ADE M600620 User manual

Operating Manual

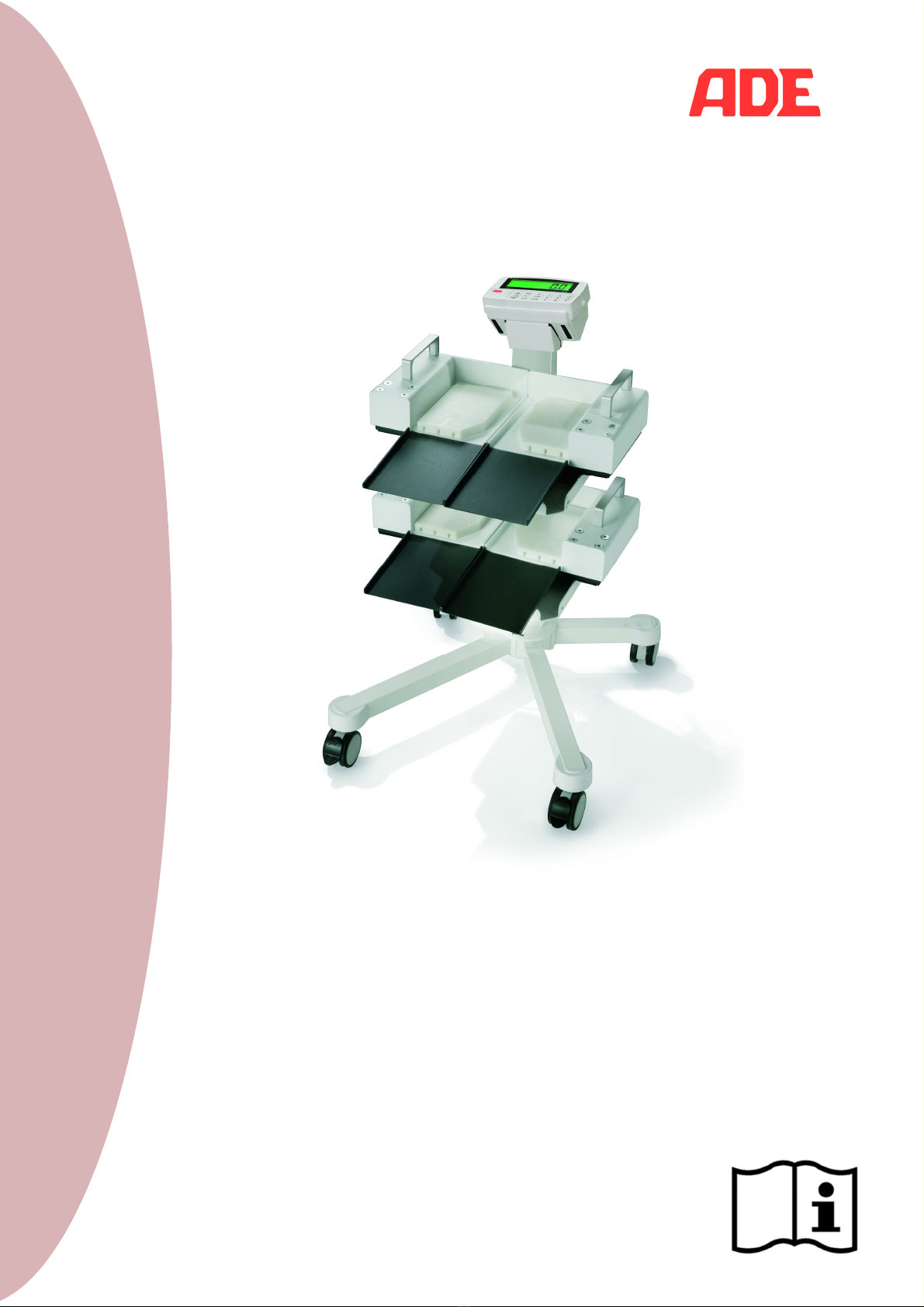

Electronic Bed Scale
M600620
M600620-210422-Rev006-UM-e

2 M600620-210422-Rev006-UM-e

M600620-210422-Rev006-UM-e 3
Contents
Introduction .............................................................................................................................................. 4
ssembly and set up ............................................................................................................................... 4
Scope of delivery .................................................................................................................. 4
Power supply ........................................................................................................................ 4
Replacing rechargeable batteries ....................................................................................... 5
Tips for handling the batteries ............................................................................................ 5
Display ..................................................................................................................................................... 6
Description ............................................................................................................................ 6
Connecting additional devices ........................................................................................... 6
Housing and connections ................................................................................................... 7
Safety ....................................................................................................................................................... 7
Settings .................................................................................................................................................... 7
Setting date and time ........................................................................................................... 8
Operation ................................................................................................................................................. 8
Modes of operation .............................................................................................................. 8
Before weighing ................................................................................................................... 9
eighing ............................................................................................................................... 9
Tare function ......................................................................................................................... 9
Hold function ...................................................................................................................... 10
Determining the Body Mass Index (BMI) ......................................................................... 10
.............................................................................................................................................. 10
Print out a record ............................................................................................................... 10
Care, servicing and recalibration ........................................................................................................... 10
Cleaning .............................................................................................................................. 10

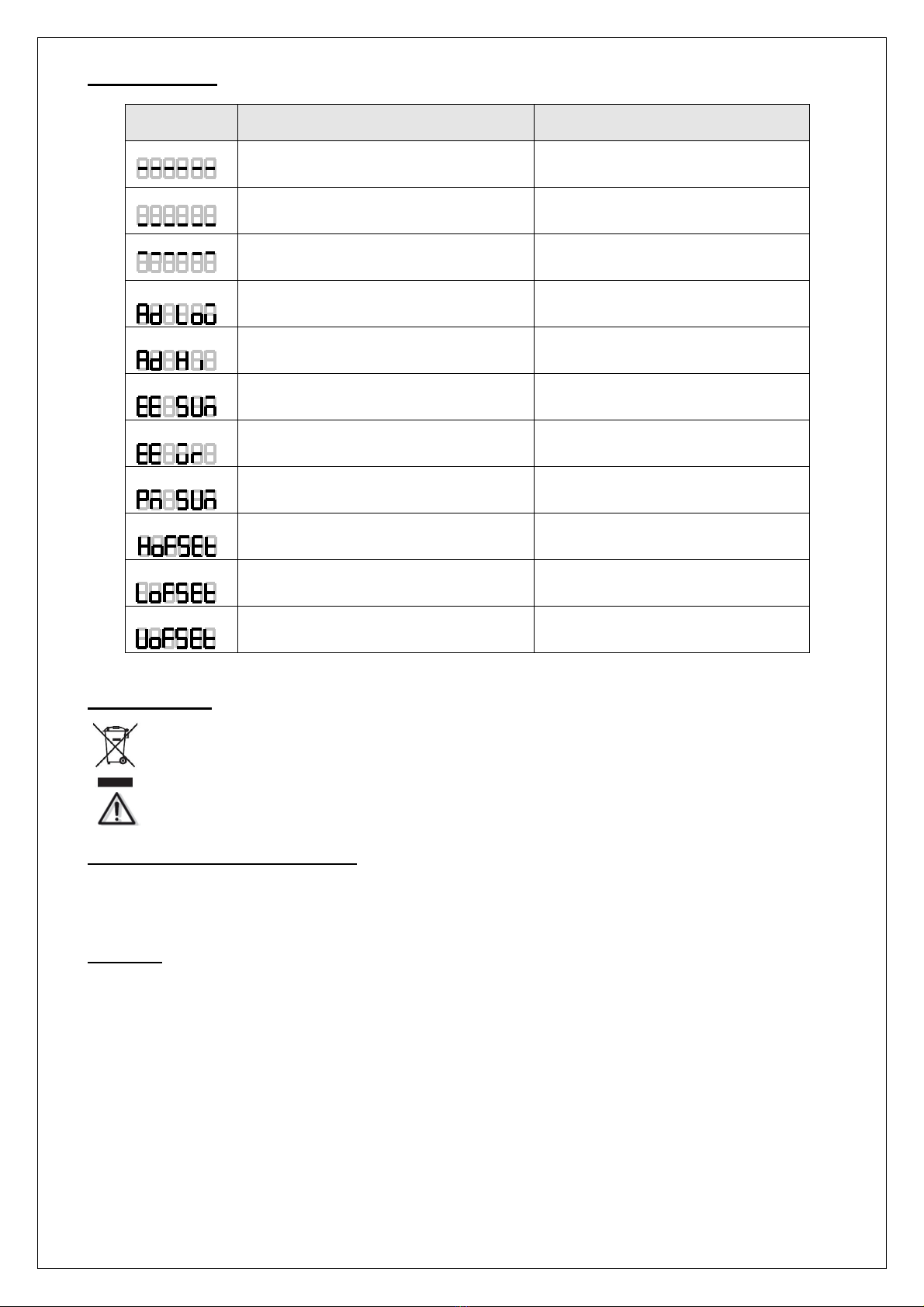

Error messages .................................................................................................................. 11
aste disposal ................................................................................................................... 11
Storage and transport conditions .................................................................................... 11
arranty .............................................................................................................................. 11
Technical specifications ......................................................................................................................... 13
Declaration of conformity ....................................................................................................................... 14

4 M600620-210422-Rev006-UM-e
Introduction
This symbol means: "Consult operating instructions". To achieve accurate results, read the
instructions for use carefully before use and follow all instructions provided therein. Keep the
instructions for use for future reference.
Your DE electronic bed-scale is a quality, sturdy and durable product manufactured under the high standards
and regulations for calibrated class III scales in accordance with national regulations in Germany. The scale is
designed and manufactured primarily for the daily practice in hospitals and dialysis centres.
DE instruction manuals have been prepared to provide the user with all the necessary knowledge about the
safe use of DE scales and their related accessory equipment.
For further questions about how to use the products or about this or other service manuals, feel free to contact
your local DE representative or visit our web page at www.ade-hamburg.de
In order to achieve the best possible results kindly read and follow the operation manual in all respects.
Assembly and set up
The DE bed scale is supplied in a fully assembled condition. Please insure that your scale is being placed
vibration-free at a dry place. Dismantle packaging and foil carefully and remove the transport securing de-
vices. Place the weighing feet on a plain, dry and level surface before the weighing procedure.
Scope of delivery
– 4 Weighing shoes/ measuring feet with integrated ramp (numbered 1-4)
– 4 Locking aids
– 1 Mains adapter
– Equipment trolley with integrated terminal box for connection to weighing shoes (numbered 1-4) and already
mounted indicator
– Operating Manual including “Certificate of Conformity”
Power supply
Power is supplied either by the rechargeable battery in the display unit or by the mains power via the supplied
power unit. The imprinted voltage value at the mains adapter must match the mains voltage at the place of use.
Connect the mains cable to the indicator and to a socket.
The wall socket must be located near to the unit and be easily accessible. Please use only the mains adapter
supplied by DE. The mains adapter is charging the battery pack during normal operation.
When the battery is being charged for the first time a sufficient charging period of approx. 24 hours is necessary
to achieve a full battery load.
If the unit is in battery mode and the display indicates – Lo, the battery needed to be recharged with the mains
adapter. For a full battery load a charging period of 12-16 hours is required with the scale being switched off. If–
Lo still appears at the display inform your service partner.

M600620-210422-Rev006-UM-e 5
Replacing rechargeable batteries
The battery compartment is located at the front of the unit (see right picture).
1) Open the battery compartment.
2) Remove the battery cable and the corresponding connector carefully from the housing. Disconnect the
old battery pack. Connect the wires/plug (red to red, black to black) with the new battery pack and insert
the new battery into the housing.
3) Close the battery compartment again.
Only use original rechargeable batteries and mains adapter from DE. The warranty does not cover any damage
caused by using other types of batteries or charger units.
Tips for handling the batteries
The life of a battery depends on the frequency of use, temperatures, settings and the accessories being used.
– New batteries or batteries that have been stored for a long period require a longer charging period.
– Charge the batteries at room temperature.
– Never expose the batteries to temperatures below -10°C (14°F) or above 45°C (113°F).
– Rechargeable batteries lose their charging capacity over the time and require a longer charging period the
older they are. If the battery performance drops considerably, then it is time to replace the battery.
– New batteries are supplied in partial charged condition. Batteries achieve their full capacity after several
complete charge and discharge cycles.
– Do not throw old rechargeable batteries into the domestic waste. Ensure that the valid legal and municipal
regulations of your country are being followed.
– Never dispose of batteries in fire as they can leak or explode!

6 M600620-210422-Rev006-UM-e
Display
Description
pic. 1-1 Indicator and operation panel
No. Name Description
1 Display LCD display for weight, mode, settings and configuration information.
2 Battery charge level Status of the battery charge level.
3 Switching points 1 & 2 In program mode: Status indicator for switching points 1 & 2.
4 BMI status indicator
(HI, OK, LO) Status of the automatic BMI (Body Mass Index) evaluation.
5 Net status indicator LCD on - net weight is being displayed.
LCD off – gross weight is being displayed.
6 Status indicator The scale is at zero level.
7 Hold – button ctivates the hold function.
8 On/off, zero – button On and off switch and re-set of the display.
9 Tare- button ctivate/ deactivate the tare function.
10 Preset tare – button Press briefly to access the tare function.
Press for a long period to enter and save the tare value.
11 BMI – Button Enter to proceed with BMI mode.
12 Units – Button Switch button between primary and secondary units. Not available for CE
approved class III scales
13 Number pad
Figures 0-9, Clear, Enter and Navigation functions: Key 6 menu direction
to the right; Key 4 menu direction to the left; Key 8 menu direction down;
Key 2 menu direction up. For better understanding see Pic. 1.1 the blue
arrows. Used to navigate through menus, to select numerical values and
to increase or lower the value.
Special function:
"0" key
In weight mode, you can change between gross and net weight using fig-
ure "0" (if any weight have been tared off).
"Enter" key Function in weight mode: "Print" if printer has been connected.
14 Standstill status indica-
tor (14) :
The scale is at a standstill. The weight is stable with no movement. This
is mandatory for functions like reset, print and tare.
15 “Hold” If displayed is the hold function is activated.
16 “kg” If displayed is the weight is displayed in kilograms.
“g” If displayed is the weight is displayed in grams.
Connecting additional devices
Printer, PC or remote-display could be connected by the RS-232 interface. For connection of additional devices
kindly ask your local representative or authorized DE dealer for further instructions.
16
15
14
1
2
3
4
5
6
7
8
9
10
11
12
13

M600620-210422-Rev006-UM-e 7
Housing and connections
The connections to mains adapter, serial port and to the load cells are located at the back of the DE display.
The set-up switch to start the configuration mode is underneath the housing. It is protected by a cover plate and
secured by a screw (not shown in Fig. 2-1).
Do not use the set-up button, as otherwise calibration will be lost. This procedure is only allowed
by authorized service personnel appointed by ADE (GmbH & Co.). Any unauthorized manipula-
tions made to the configuration mode will affect the warranty agreement.
Safety
The DE-display unit (M K) corresponds to the latest state of the art technology and complies with standard
regulations and directives. Kindly follow the safety instructions in this operating manual, the country-specific
installation standards as well as the applicable safety conditions and accident prevention regulations in all as-
pects. Electronic medical devices are restricted to special safety regulations in respect of their electromagnetic
compatibility. For positioning and operation, follow the instructions of this operation manual.
– Portable and mobile HF-communication systems may influence electronic medical devices.
– Make sure that the mains cable does not pose any potential trip hazard.
– Do not drop the weighing bridges/shoes or subject them to violent shocks.
– Do not operate the unit in hazardous or unstable conditions.
– Do not dip or submerge the unit into water or other liquids.
– Have all repairs and calibration carried out by professional personnel authorised by DE.
– Set up the unit as far away as possible from equipment that generates electromagnetic or other interfer-
ence.
– Only use original rechargeable batteries and mains adapter from DE. The warranty does not cover any
damage caused by using other types of batteries or charger units.
Safe operation is no longer guaranteed:
- If the power unit shows visible damage.
- If the power unit is not working properly.
- fter longer periods of storage in damp areas.
- In these cases, contact your service partner for your own safety!
Settings
The following functions are available in setting mode:
– Configuration of the serial interface
– Set up of date, time and consecutive printout numbers
– Set up of print format
– Set up of switching points
– Test functions

8 M600620-210422-Rev006-UM-e
The setting mode is not made for metrological parameters. ccess the function menu by pressing the CLE R
(13) key until TIME appears on the display. Use the key pad (13) to navigate within the menus, to select numer-
ical values and to increase or lower the values. Press the ENTER key to save the values entered and to return
to the super ordinate menu level.
Menus structure of setting mode:
fter entering the clear button following options are available and appear on the screen when moving with the
navigation buttons:
FILTER SERI L PROGR PFORMT SETPTS TEST TIME D TE VERS
Setting date and time
– Enter the CLE R key for approx. 4 sec; FILTER appears on the display.
– Press key "6" six times and TIME appears on the display.
– Press ENTER key and SHO appears on the display.
– Press key "6" one time and HOUR appears on the display.
– Press ENTER key and set the hours using the arrow keys "2", "4", "6" and "8".
– Press the ENTER key and set the minutes and seconds.
– Go back by pressing key "2"; TIME appears on the display.
– Press key "6" one time and DATE appears on the display like the time entry.
– Press key "2" two times and EXIT Y appears on the display.
– Confirm with ENTER and date & time are set.
Operation
Modes of operation
 eighing mode
The "weighing mode" is of course the standard mode of your scale. fter initial configuration and sealing (by
attaching a calibration sticker to the back of the unit), the DE-scale can only be operated in this mode.
 Setting mode
Date, time and consecutive numbers for print commands are being set in this mode. To start setting mode, hold
the GROSS/NET key pressed until TIME appears on the display.
 Configuration mode (set-up mode)
The values for different parameters including the calibration could be set in the configuration mode. This function
is for authorized service personnel only.
 Test mode
There are different diagnostic functions for the DE-M K in test mode. This is for service personnel only.
Manipulations to test and configuration modes can revoke the calibration status and will result
in loss of warranty!

M600620-210422-Rev006-UM-e 9
Before weighing
1. Move the bed onto the weighing feet.
2. The constructions of the weighing feet do not allow to pass over the weighing platform. In any case
ensure that the wheels of the bed are secured and the brakes are engaged. dditionally make use of
the plastic securing devices in order to fix the wheels.
3. Switch on the scale.
4. n automatic function test will lead to zero indication (0.0). The weight of the bed is being ignored
automatically.
5. Place the patient into the bed. The displayed weight is the weight of the patient.
6. If the weight of the patient should be ignored as well (e.g. for dialysis purposes), follow the instruction
under the point “Tare function”.
7. If the weight of the bed including bed-clothes is already being stored follow the instruction under the
point “Restore the preset tara value”
eighing
Press the ON key for at least 3 seconds to turn the scales on. n automatic function test will be conducted
afterwards. The test is done when the display shows zero. The scale is now ready for the weighing procedure.
Resetting the scales back to zero: Wait until the standstill status indicator  (14) appears. By entering the
ZERO key (8), measuring inaccuracies after switching on the scale are being compensated. The zero key re-
starts the scale. The status indicator (6) appears when the scale is being resetted.
Tare function
The T RE key (9) is useful for many weighing operations. Tare might be useful in case the patient is being place
on the scale/bed with items (e.g. clothing, bed clothing shoes or other items) which should be ignored by the
scale. Weigh these items first. fter the weight is displayed, press the T RE key (9) to reset the display back to
zero. The display changes to net mode (NET status indicator (5) is on) and shows zero.
Note: Taring the bed with subsequent determination of the patient weight is not possible/practical, as the bed
weight is subtracted from the maximum load of the scale and thus only a small weighing range is available.
To determine the patient weight, proceed according to section "Before Weighing" on this page.
Entering manually tare - values
The user is able to insert manually the gross weight, which is for example mentioned at the identification plate
of the bed. Enter the appropriate tare value just by using the key pad under normal weighing mode. The value
will be stored after use of the ENTER key (or T RE). The DE-display is now ready for weighing and changes
to net mode [NET status indicator (5) is on]. Enter the tare button to leave this mode.
Preset tara
Press and hold the PRESET T RE key (10) for approx. 3 seconds. PRO PT X appears on the display. Select
the memory location 1-10. Now enter the T RE V LUE which you would like to be ignored by the scale and
confirm same with ENTER. The value is displayed as a negative figure and will be deducted when a load is
being placed on the scale. Enter the on/off, zero – button (8) to leave this mode.
Restore the preset tara value
Press the PRESET T RE key (10). "Pt x" appears on the display. Enter a number from 0-9 (memory location
for the tare value). If no new number will be inserted to change the already displayed value within five seconds,
the unit will turn back to weighing mode and displays the last stored value as negative figure as above.
Enter the on/off, zero – button (8) to leave this mode.
Displaying the gross weight, net weight and tare value
Press the "0" key to change between the net weight (gross weight minus the tared value) and the gross weight.

10 M600620-210422-Rev006-UM-e
Hold function
The determined weight could be continued being displayed even when the load has already been removed.
That enables taking care of the patient first before reading the results.
To use the hold function the scale must be at standstill. The standstill status indicator  (14) is on and Hold
appears at the digital display. Deactivate the HOLD function by pressing the key again.
Determining the Body Mass Index (BMI)
The BMI figure is an index showing the ratio between height and weight.
To determine this value you need the height of the person.
Start the scale and weigh the person following the steps under weighing. Then
press the BMI key (11) to start BMI mode. The last value entered appears on the
display. Use the numerical key pad to enter a new value for the height (in cm) or retain the value, which is
already been displayed. Confirm the value entered with the ENTER key or delete same by using the CLE R
key. fter the entry has been confirmed by the ENTER key, the BMI value will be calculated using the weight on
the scales. The display changes between weight value and BMI value "b xx.x" (every two seconds) for a period
of 3 minutes. Press the BMI key (11) to cancel before this time has expired.
Evaluating Body Mass Index
Print out a record
The scales must be at standstill, e.g. standstill status display  (14) appears at the screen.
Press the ENTER key (13) to send the data to the serial interface.
Note: Printing is not possible if the net weight is 0. The print function only produces one print-out. reset is
required to print out another copy.
Care, servicing and recalibration
Cleaning
Remove the mains plug before cleaning the unit. Do not use any aggressive cleaning materials for cleaning;
only use a damp cloth or conventional disinfectant. Ensure that no liquids or any fluid gets into the scale.
BMI= body weight
(height)²
BMI evaluation according to WHO
BMI < 16 Severely underweight
16 - 17 Moderately underweight
17 - 18.5 Slightly underweight
BMI 18.5 - 25 Normal weight
BMI 25 - 30 Overweight
30 - 35 Obese Class I
35 - 40 Obese Class II
>
40
Obese Class III

M600620-210422-Rev006-UM-e 11
Error messages
Error mes-
sage
Description Problem solution
Overload display Weight exceeds max. capacity of the scales.
Overflow indicator (negative) Negative weight indicated – weight too
low to be displayed (<=99999).
Overflow indicator (positive) Positive weight indicated – weight too
high to be displayed (>=999999).
D LOW /D above negative range Check if the scales are correctly as-
sembled or if they are damaged.
D HI /D above positive range Check if the scales are correctly as-
sembled or if they are damaged.
EE SUM Parameter or calibration error Recalibrate – please contact your sup-
plier or service partner:
EE WR EEPROM indicates an error Please contact your supplier or service
partner.
PM SUM Internal program indicates a check error Please contact your supplier or service
partner.
HOFSET Switch on – above zero Please remove the weight from the
scales and restart.
LOFSET Switch on – below zero Check scales for damage and inform
your service partner:
UOFSET Irregular
Do not touch the scales after they have
been switched on.
aste disposal
Used electrical equipment and batteries do not belong in the domestic waste.
Please dispose of defective or used equipment and batteries according to legal regulations of
your specific country!
Please make sure that only discharged batteries or batteries with insulated "poles" are disposed
of as otherwise they may short-circuit!
Storage and transport conditions
Keep all packaging in case you need to return the item, in order to avoid any potential transport damage.
Disconnect all connected cables before dispatch.
arranty
DE will repair or replace this product within a period of 2 years from date of delivery applying to defects occurred
due to poor material or workmanship (presentation of invoice is necessary). ll moveable parts – batteries,
cables, mains units, rechargeable batteries etc. – are excluded. Warranty does not include natural wear, dam-
ages caused by incorrect or negligent handling, overuse or unsuitable or improper storage. The cost of transport
will be borne by the customer should the equipment be located anywhere other then the customer’s premises.
In the event of transport damage, claims under warranty can be accepted subject to using the complete original
packaging and the equipment secured the way it was packed and secured originally. ll the packaging should
therefore be retained.
ny warranty claim will be rejected if the equipment is opened by persons not authorized expressively by DE
to do so.
Customers abroad are kindly requested to contact their local dealer for any warranty claim, customer service
and spare parts.

12 M600620-210422-Rev006-UM-e

M600620-210422-Rev006-UM-e 13
Technical specifications
Power supply
Mains dapter:
Mains voltage 115 or 230V C
Frequency 50 or 60HZ
Power Consumption 11W in-charger, 2W off-charger
Main power circuit
Input Voltage 5.0VDC
Max. Current (in-charger) 1000m
Battery Requirement: Rechargeable Lithium Ion Cylindrical (18650x2) Cell 3.7V 4000m H
Battery Operation:
Charger 7~10 Hours
Saving (350ohm, Backlight-ON 30Sec,
Shutdown 5Min) 200Hours
Serial Communications
EDP Port Full duplex RS-232
38400,19200,9600, 4800, 2400, 1200 bps
Printer Port Output-only RS-232 or active 20 m current loop,
9600, 4800, 2400, 1200 bps
Both Ports 7 or 8 data bits; even, odd, or no parity
Operator Interface
Display 6-digit LCD display. 7-segment, 0.815 in (21.2 mm) digits
LCD annunciator net, center of zero, standstill, kg/lb/g/oz/ units,
Battery, Set points, Hold, HI/OK/LO
Keyboard 24-key flat membrane panel
Environmental
Operating Temperature –10 to +40°C (legal);
Storage Temperature –25 to +70°C
Humidity 0–95% relative humidity
ltitude 2000 m (6500 ft) maximum
Housing
Dimensions 18.6 cm x 9.5 cm x 10 cm
Weight 0.4 kg (without battery)
Material BS plastic, white

14 M600620-210422-Rev006-UM-e
Declaration of conformity
Manufacturer
:
DE Germany GmbH
Neuer Hoeltigbaum 15
22143 Hamburg / Germany
℡ [phone]
 [phone]

info@ade
-
germany.de
Declaration of conformity by the manufacturer
These scales have been manufactured in accordance with the harmonised European standards. They
conform to the regulations of the EC-directives listed below:
 EMC Directive 2014/30/EU
 Low Voltage Directive 2014/35/EU
 RoHS Directive 2011/65/EU
in the currently valid versions.
This declaration loses its validity if modifications are made to the scale without our approval.
Hamburg, pril 2021
ADE Germany GmbH
Neuer Hoeltigbaum 15
D-22143 Hamburg

M600620-210422-Rev006-UM-e 15

16 M600620-210422-Rev006-UM-e
Dealer:
