ADEMCO 4140XMPT2 User manual

4140XMPT2
PARTITIONED SECURITY SYSTEM
WITH SCHEDULING
N~ ?W93 ZLDHVEO
.- ——
—.. . .

TABLE OF CONTENTS
sYsTEMovERvlEw .............................................3
Genera l...........................................................3
APartitioned System .........................................3
Zones .............................................................4
Consoles .........................................................4
Burglary Protection ...........................................4
Fire Protection ..................................................5
Alarms ............................................................5
Memo~ofAlarm ............................................... 5
Seti.Help Feature ..............................................5
Using Schedules ...............................................6
DeviceTlmers .................................................. 6
SECURllYCODES &AUTHORITYLEVELS ................ 7
General ...........................................................7
Duress tie ....................................................7
Qui&Arming ................................................... 7
Authoriiy Levels ...............................................8
ToAdd AUser .................................................lO
To Change AUser's Cde ..................................l 1
To Delete AUser ..............................................l 1
ENmYExlTDEMYs ...........................................l2
ACCESS DOOR CONTROL .....................................13
ACCESSING OTHER PARTITIONS(GOTO) ...............14
sYsmMsTAms DlsPMYs .................................l5

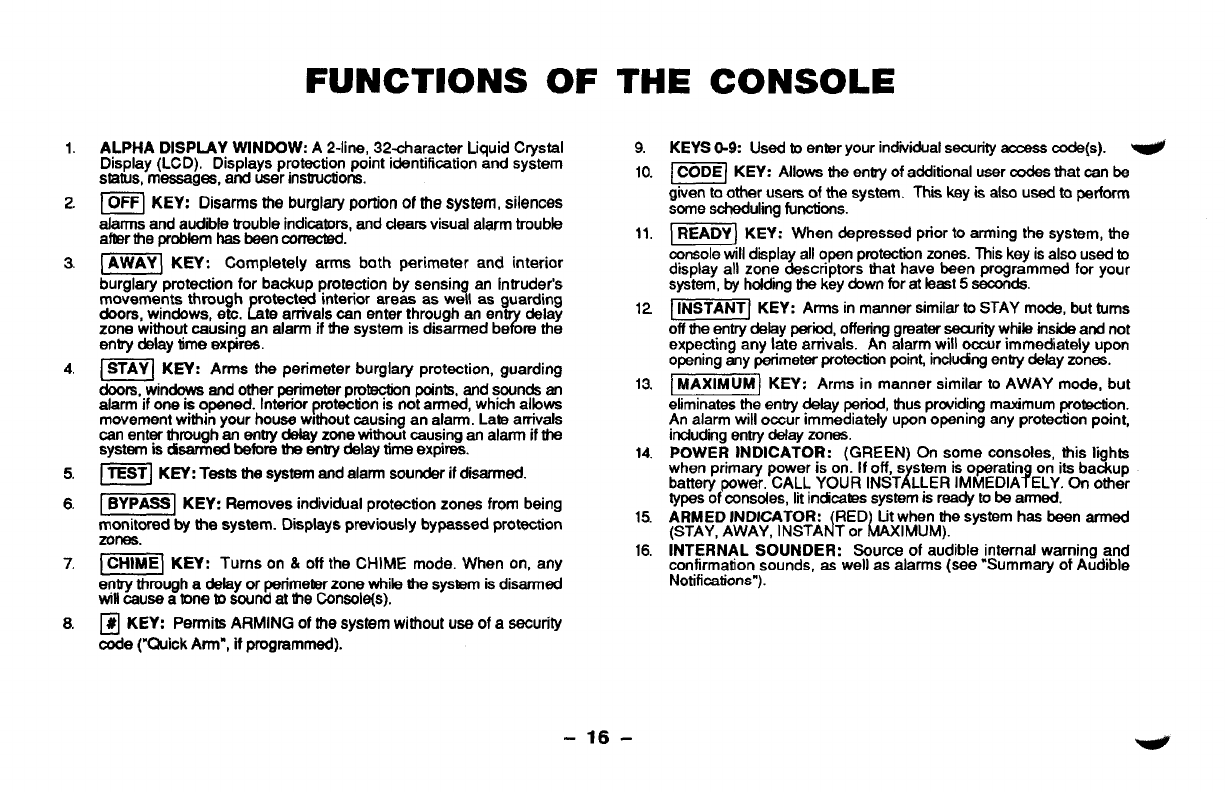

FUNCTIONSOFTHECONSOLE ..............................16
WECKING FOROPEN ZONES ...............................l8
Displaying All Zone Descriptors ...........................l8
-2-
Bypassing PRoEcTloNzoNEs .........................l9
Quick Bypass .................................................l
Displaying Bypassed Protection Zones ................2 &
SUMMARYOFARMING COMMANDS .......................21
Global Arming. .......... .......................................21
ARMING PERIMETERONLY(STAY) ........................22
ARMING PERIMETER ONLY (INSTANT) ....................23
ARMINGALLPROTECTDN(AWA~ ........................24
ARMING ALL PROTECTION (MAXIMUM) ...................25
DISARMINGTHE SYSTEMANDSILENCING ALARMS.26
USING~E KEYSWITCH .......................................27
CHIME~DE ......................................................28
VIEWING CENTRAL STATION MESSAGES ...............29
PANlc KEYs .......................................................3o
TEsTINGwEsYsTEM .........................................3l
USINGSCHEDULES .............................................~
Delaying ~eCl=ing ~me .................................X
TemporaryOpen/Close Schedules ......................34
Programming Temporary Schedules .....................35
PROGRAMMING DEVICE TIMERS ...........................37
mouBLEwNDmloNs ........................................39
FIRE ALARM SYSTEM ...........................................4l
NFPARE~MMENDATONS ..................................42
EMERGENCYEVACUATION ..................................&
GLOSSARY ........................................................U
SUMMARY OF AUDIBLE NOTIFICATION ...................45

SYSTEM OVERVIEW
General Convatulationson yourownershipOfa.VISTA partitioned Security System. You’ve
made awise decision in choosing it, ford represents the latest in security protection
technology today. Ademco is the worlds largest manufacturer of security systems
and millions of premises are protected by Ademco systems.
This system offers you three forms of protection: burglary, fire and emergency. To
realize the system’s full potential, it is important that you feel comfortable in operating
it. Your system consists of at least one Console which provides full control of
system operation, various sensors which provide perimeter and interior burglary
protection, plus aselected number of strategically placed smoke or combustion
detectors designed to provide early warning in case of fire.
The system uses microcomputer technology to monitor all protection zones and
system status and provides appropriate information for display on the Console(s)
used with the system, and initiates appropriate alarms. Your system may also have
been programmed to automatically transmit alarm or status messages over the
phone lines to acentral alarm monitoringstation.
APartitioned s~rnplystated!apartitionedsy~ternshare: onephysicalalarmsystemamongmaw
System different us.ers~each with their own requirements” APPllcatlons ran9e from atwo
family dwelling to afactory/office complex. For the most part, you as a user need not
know about other users and their structure in the system, but from time to time, you
may see display messages which indicate the system is in use by another user. Do
not be concerned, this is normal. Refer to the ACCESSING OTHER PARTITIONS
section for additional information.
-3-

SYSTEM OVERVIEW
Zones Your system’s sensing devices have been assigned to various “zones”. For
example, the sensing device on your Entry/Exit door may have been assigned to ~
zone 01, sensing devices on windows in the master bedroom to zone 02, and so
on. These numbers will appear on the display, along with an alpha descriptor for
that zone (if programmed), when an alarm or trouble conditionoccurs.
Consoles Your consoles allow you to control all system functions. The consoles feature a
telephone style (digital) keypad and aLiquid Crystal Display (LCD) which shows
~the nature and location of all occurrences. Console display backlighting is
:;f~pQg~*~~;’fijj.~***f# :::
iw~i~tidwtiwwtkflwtiw
programmable to always stay on or to light only when a key is pressed, then turn
y#r9mi$e,$;:it’Y*d:@*i*:tti$:a$$ off afew mmutes later.
%%$?ll%:#@oii*dld+tifi#.Y+tifi:
The consoles also feature abuilt-in sounder which will sound during alarms and
‘!w.i;gti$ifl~~tjg,m:y.%:xWj:ji:&troubles. It will also “beep”during certain system functions, such as during entrylexit
‘fiMFRf*m\w#f14:RwAp%i delay times, during CHIME mode, and when depressing keys to arm and disarm the
;:::~~~,,~~~~ ;Ww‘WM?aR$w;:
,,,,.... ....... . ~~~~~~~~~~~~~~~~~~system (to acknowledge the key press). These sounds can be optionally
;:,~:jj;&::~*wlkn;j’;;;; #:xz .suppressed in some of your consoles (so as not to disturb other users of the
system). Ask your installer if this has been done.
Burglary Protection The burglary protection portion of your system must be turned on or “armed”before
it will sense burglary alarm conditions. Your system provides four modes of burglary
protection: STAY, AWAY INSTANT and MAXIMUM, and even allows you to
BYPASS selected zones of protection while leaving the rest of the system armed.
The system also provides aCHIME mode, for alerting users to the opening and
closing of doors and windows while the system is disarmed. Refer to the other
sections of this manual for procedures for using these features.
-4-

SYSTEM OVERVIEW
Fire protection The tireprotectionportionof your seCUW system(if used) is a~aw on and will
sound an alarm if afire condition is detected. Refer to the FIRE ALARM SYSTEM
section for important information concerning fire protection, smoke detectors and
planning emergency exit routes from your house.
Alarms when an alarmOCCUrS!both the console and external sounders will sound! and the
console will display the zone(s) causing the alarm. If your system is connected to a
central monitoring station, an alarm message will also be sent. To stop the alarm
sounding, simply disarm the system.
Memory of Alarm when an alarmconditionoCQJrs!theconsoledisPlaYs the number(s) of the zone(s)
that caused the problem, and displays the type of alarm (ex. FIRE, ALARM). It
remains displayed until it is cleared by disarming the system (entenng your user
code +pressing [~]. If the system was armed when the alarm occurred, the user
code +[~ must be entered twice: once to disarm the system, asecond time to
clear the display.
Self-Help Feature Abbreviateduser’sinstructionsaW builtintothe sYs@rnthatcanbe easilYviewed
on the alpha console’s message display screen. This feature will prove particularly
useful if this manual is not conveniently accessible when you need to perform a
seldom used system procedure with which you are not familiar.
To view the abbreviated instructions, simply press and hold down the function key
of interest until the description starts to apear (about 5seconds) and then release
8
it. Refer to the FUNCTIONS OF THE CNSOLE section for detailed descriptions
of each key function.
-5–

SYSTEM OVERVIEW
Using Schedules Your system may have been programmed with schedules for automatically arming,
disarming and activating various devices and/or performing other system functions at -
predetermined times. Users can modify some of these schedules by manually
delaying aclosing time, using tern orary schedules, or by programming special user
E
schedules. Refer to the USING SHEDULES section at the end of this manual for
scheduling related procedures.
The system provides up to 20 “timers” which can be used to control various devices, such
Device Timers as lights or appliances. These timers are similar in concept to the individual appliance timers
that might be purchased at adepartment store. The devices that can be controlled are
programmed into the system by the installer. Up to 16 of these devices can be
programmed. Refer to the PROGRAMMING DEVICE TIMERS section for procedures.
-6-

SECURITY CODES &AUTHORrlY LEVELS
“veral Information
Duress Code
Quick Arming
At the time of installation, you were assigned an authority level and apersonal four-
digit security code, known only to you and yours. The security code must be
entered when arming and disarming the system. The authority level defines the
system functions that you can perform.
As an additional safety feature, other users that do not have aneed to know your
code can be assigned different security codes, and each user can be given a
different authority level. Users are identified by “user numbers”, which are assigned
when assigning auser’s security code.
All codes can be used interchangeably when performing system functions within the
limits of each code’s authority level (a system armed with one user’s code can be
disarmed by another user’s code), with the exception of the Operator Level Ccode.
This feature is intended for use when you are forced to disarm or arm the system
under threat. When used, the system will act normally, but can silently notify the
central station of your situation, if that service has been provided. The duress code
is pre-assigned by the installer during installation (auth. level 6).
Important: This code is useful only when the system is connected to acentral
station.
Note that if “Quick Arming” was programmed by the installer, the ❑key can be
pressed in place of the security code when arming the system. The security code
must always be used to disarm the system, however.
-7–

SECURITY CODES &AUTHORl~ LEVELS
Authority Levels Authority levels define the system functions aparticular user can perform.
Depending on the authority assigned to you, there are certain system functions you _
may be prohibited from performing. In summary, there are six authority levels, each
having certain system restrictions as shown in the table below.
To view your authority level and system capabilities, enter your code +❑+❑.
The console will display the partition(s) that you are authorized to operate, and your
user number and authority level in each partition.
User Authority Levels
,Lvl Title System Functions
1Master Can perform all system functions, and can add, delete or change
Manager and Operator level users. Can perform system functions in other
partitions as authorized by the Installer.
2Manager Can perform system functions, and can add, delete or change Operator
level users. Can perform functions in other partitions as authorized by the
Master user assigning the Manager’s code.
3Operator ACan perform system functions, but cannot add or delete other users. Can
perform functions in other partitions as authorized by the Master or
Manager assigning the Operator’s code.
4Operator BSame as Operator A, except Operator Bcannot bypass zones of
protection.
5Operator CCan arm the system, but cannot disarm the system unless the system
was armed with this code. Can perform same function in other partitions
as authorized by the Master or Manager assigning this user’s code.
6Duress Can arm and disarm the system, twt also sends asilent panic alarm to the
central station, if that service is connected.
-8-

SECURITY CODES &AUTHORITY LEVELS
General Rules on “
bhority Levels and
Changes :
.
.
.
●
Auser may not delete or change the user code of the SAME or HIGHER authority
than which he is assigned.
Auser may only ADD users to aLOWER authority level.
Auser may assign user access to other partitions only if he himself has access to
those partitions.
The only way to assign auser’s authority level is by usin the “Add AUser”
?
procedure. To change auser’s authority level, that user must irst be deleted, then
added again.
Auser can only be DELETED or CHANGED from within the partition he is
assigned.
User numbers must be entered as 2-digit entries. Single digit user numbers must
be preceded by a“O”(example, 03, 04, etc.). Security codes are entered as 4-
digit numbers.
Before assigning asecurity code, be sure it does not conflict with any DURESS
code.
Note: When adding, changing or deleting users, all other consoles in that partition
will displa “User Edit Mode –Please Stand By”, and key depressions (ex~ept
i!
Panic) at tose consoles will be ignored. Panic key depressions will cause an alarm
and terminate user entry.
To Exit User Edit Mode, press either @or ~, or don’t press any key for 10
seconds.
-9-

SECURITY CODES &AUTHORIW LEVELS
To Add aUser 1. Enter Master or Manager code and press the CODE key.
2. Enter the new user% 2-digit User Number (01-99).
3. Enter 4-digit security code for that user. The following prompt will appear.
IEEGEl &ZE~er ..cp.rater. 5X%2X.
Enter the authority ievel, 1-6, for this userwithinthis partition.
3=operator A
~
If access groups/access schedules have been assigned by the installer, this prompt will appear. See
your installer for information concerning access groups.
!4
IEmzl This prompt will appear if a58OO series button transmitter has been supplied and has not yet been
assigned to auser. Press 1if abutton transmitter will be assigned to this user.
IMulti-flccess ?
B= NO, l=VES
r
Global Rrm ?
O=NO, l= YES
~
If assigning abutton transmitter, this prompt will appear. Enter the button’s
zone number (see your installer for zone number).
!
If you as a user have access to other partitions, the console will prompt for ability of this new user to
access (GOTO) those partitions. Press O(NO) or 1(YES). If no, the system activates this user code
and exits “Add aUser” mode. if yes, the console prompts for the Global Arm option for this user,
Press 1(YES) ifthis user will be allowed to arm more than one partition via global arm prompts. Press
Oif global arming is not desired for this user.
EREl
L\The console now prompts for the user’s access to the next partition. Again press Oor 1. If no, the
next partition number appears, etc. If yes, the system will automatically assign auser number for use
in that partition and will prompt for the authority level and global arm option for this user within the
partition displayed (see previous steps), When finished, the next partition number will be displayed.
=
When all partitions have been displayed, the console will scroll through all partitions to which access
has been assigned, and will display the user number, authority level and global arm option for each.
Note that the “G”following the authority level indicates that the global arm feature has been selected
for this user in the displayed partition .The “’- indicates the partition from which the user can be
changedor deleted. -1o-

SECURITY CODES &AUTHORITY LEVELS
Change aUser’s 1.
Code 2.
3.
4.
To Delete aUser 1.
2.
3.
4.
Enter Master or Manager code and press the CODE key.
Enter the user number to have its code changed.
Enter the new code for that user.
The system will recognize that the user number is already in use and will prompt
whether or not this is anew user. Press O(NO). The system will confirm that the
change is allowed based on authorization level, and if so, will put the new code
into effect.
Note that if changin me’s own code, the system will prompt for the new
f
code to be reentered. his prevents accidentally changing ahigh level code.
Enter Master or Manager code and press the CODE key.
Enter User Number to be eliminated.
Enter Master or Manager code firstentered.
The system will remgnize that the User number is alread in use and will prompt
1!
to confirm that it shoukt be deleted. Press O(NO) or 1(Y S).
If yes, that user’s code will be removed from all partitions to which it was
assigned, and all authorization levels and other information about that user will
be deleted. Note that auser can only be deleted from the partition in which it
was first assigned, and can only be deleted by auser with ahigher authority
level. AUser cannot delete himself.
-11-

General Information
ENTRY/EX9T DELAYS
Your system has preset time delays, known as exit delay and entry delay.
Whenever you arm your system, exit delay gives you time to leave through the e
main door without setting off an alarm. Exit delay begins immediately after entering
any arming command, and applies to all modes of arming protection. If programmed,
aslow beeping will sound throughout the exit delay period.
Entry Delay gives you time to disarm the system when you reenter through the
main door. But the system must be disarmed before the entry delay period ends, or
an alarm will occur. The console will beep during the entry delay period, reminding
you to disarm the system. You can also arm the system with no entry delay at all by
using either INSTANT or MAXIMUM arming modes. These modes provide greater
secirity when sleeping or while away fo; extended
installer for your delay times.
Exit Delay 1: m Entry Delay 1: m
Exit Delay 2: m Entry Delay 2: m
periods of time. See your
-12-

ACCESS DOOR CONTROL
teral Information Your system maybe set up such that alocked access door (such as in alobby) can be
unlocked using aconsole command. Ask your installer if this has been done inyour system.
To activate this relay, enter your security code and press ❑.The door will unlock for 2
seconds.
-13–

ACCESSING OTHER PARTITIONS
(GOTO Command)
To Access Another Each console is assigned adefault partition for display purposes, and will show
Partition only that partition’s information. But, if the user is authorized, aconsole in one
partition can be used to perform system functions in another partition by using the
GOTO command. Note that only those partitions authorized and programmed by the
installer can be accessed in this manner.
To GOTO another partition, enter your security code, then press ❑followed by
the desired partition number (1-8).
The console will remain in the new partition until directed to go to another partition, or
until 120 seconds has elapsed with no keypad activity. Entering partition number O
will return the console to its original pattition.
-14–

SYSTEM STATUS DISPLAYS
For Fixed-Word Consoles
AWAY Ail burglaw zones, interior& perimeter, are armed.
STAY perimeter burglary zones, such as windows& doors, are armed.
INSTANT perimeterbwlafy zonesarmedandefW delayisturnedoff.
BYPASS One or moreburglaryProtectionzoneshavebeen Wwssed.
NOT READY Appears when burglary portion of the system is not ready for arming (due to open
protection zones).
READY The@@arY Swternis readytobe armed.
NO AC j:~e~ when AC power has been cut off. System is operating on backup battety
AC Appears when AC power is present.
CHIME AppearswhentheCHIME feature is activated.
BAT LOW battery condition in awireless sensor (if ID number displayed) or low system
battery (if no ID number displayed).
ALARM Nwars whenan intrusionhasbeende@C@d andtheSystemisarmed(also
appears during a Fire alarm). Accompanied by the protection zone ID in alarm.
CHECK Appears when amalfunction is discovered in the system at any time or if afauit is
detected in aFiRE zone at any time or in aDAY/NiGHT burgia~ zone during a
disarmed period. Accompanied by adispiay of zone number in troubie.
FIRE xars whenafire alarmispresent. Accompanied by adispiay of the zone in
-15-

FUNCTIONS OF THE CONSOLE
1.
2.
3.
4.
5.
6.
7.
8.
ALPHADISPUV WINDOW:A2-line, 32-oharacter Liquid Crystal
Display (LCD). Displays protection point identification and system
status, messages, and user insfmlfons.
~KEV: Disarms tie b.rglaty portion of thesystern, si[ence~
alarms and audible trouble indicators,and dears visual alarm trouble
afWrthe problem has bean cormclacf.
~1 KEV: Completely arms both perimeter and interior
burglary pmtaction for backup protection by sensin an Intruder’s
1
doors, windows, eto. I%e arnvdscan enterthro.gh an en? delay
movements through rotect@ interior areas as we Ias guardhg
zone without causing an alarmif the system is disarmed be ore the
entry delay time expires.
l-l KEV: Arms the perimeter burglary protection, guarding
doors,,windows and other perimeter pmtactbn Pokr=, and sounds an
alarm If one is owned. Interior protectionis not armed, which albwe
movement within your house without causing an alarm. Late arrivals
can entef through an entry dday zone withoutcausing an alarmifthe
systsin is dsarmed before the entry delay time expires.
~] KEV:Teststhesystem and alarm sounderifdisarmed.
-] KEV: Removes individual protection zones fmm being
monitored by the system. Db.plays previously bypassed protection
zones.
WI KEY: Turnson &off the CHIME mode. When on, any
entry throughadelay or WrfmeEr zone while the system is disarmed
willcause alone to sound at the console(s).
❑KEV: Permits ARMING of the system without use of asecurity
code (“QuickArm”, if programmed).
9.
10.
11,
12
13.
14.
15.
16.
KEVS0-9 UsedtoenteryourindvidualsecurityaccessOJde(s). -
-1 KEV: Allowatheenlryofadditionalusercodesthatcanbe
giventootherusersofthesystem. TMskeyisalsousedtoperform
someschedulingfunctions.
-] KEV: When depressed prior to arming the system, the
oonsolewilldsplay all open protectionzones. This key isalso used to
display all zone descriptors that have been programmed for your
system, by holdingthe key down forat least 5seconds.
~INSTANTiKEV: ArmsinmannersimilartoSTAY mode. but turns
L1
offthe entry delay period, offeringgreater securitywhile rnsideand not
expecting any late arrivals. An alarm will occur immediately upon
openingany perimeter protectionpoint,irroludingentry delay zonee.
-] KEY: Arms in manner similar to AWAY mode, but
eliminates the entry delay period, thusprovidingmaximum protion.
An alarm will occur immediately upon opening any protection point,
includingentry dday zones,
POWER INDICATOR: (GREEN) On some consolas, this lights
when primary power is on. If off, s“stem is operatin on its badwp
1?
battery power, CALL YOUR INST LLER IMMEDIA ELY, On other
types of consoles, litindicab3ssystem is ready to be armed.
ARMED INDICATOR: RED tit when the system has bean armed
{STAY. AWAY. lNSTA~Tor hlMUM).
iNTER”NALSOUNDER: Sourceof audibleinternalwarningand
confirmationsounds,as wellas alarms(see “SummaryofAudible
Notifications”).
-16-

1234
\\\\
RRRED””” RLIW’ “+ MAxlMIMTEsl
YOU17FWEXIT IYOU
PANIC
16—
I1’ [ARMED ●POWER \
I I I I I f\m
15 14 13 12 11 10
IMPORTANT!: When using the keypad to enter codes and commands, sequential key depressions must
be made within 3seconds of one another. If 3seconds elapses without a key depression, the entry is
aborted and must be repeated from its beginning. 1
-17-

CHECKING FOR OPEN ZONES
thing the ❑READY Before arming your system! alI protected doors! WindOWSand other protection zones
must be closed or bypassed (see BYPASSING section). Otherwise the console ~
‘ey will display a“Not Ready” message.
If the Not Ready message is displayed prior to arming, pressing the READY key
?xw#6iPg#ti8/&&#f~# j!; will display all zones that are faulted, making it easier for you to secure any open
?$@&tii@&a$Ri%!m:m !zones
%%@&$$w$ti+:%%w@?%;;, ~
~$~#f~&&**fwtiAt4*ffi, oshow faulted zones, simply press and release the READY key (do not enter
‘?M,*;~*wtii~,~;*#Otietiihs: ~de first)”secure or bYP=s the zones disPlaYed before =mif19 the sYstef-11’
%!#mMi%iq4M4;::fh4ffti:6:{ The “Ready” message will be displayed when all protection zones have been
‘i;%;%!w.~:wwwmm 3: either closed or bypassed.
:;:~~~$iw!~:w;?i$wqqi;
Displaying All Zone The Alpha Consoles can also display all the zone descriptorsthat are programmed
Descriptors in your system by pressing the READY key and holding down for at least 5
seconds*. The abbreviated instructions for the READY key will appear first,
followed by the descriptors programmed for your system. Displaying all descriptors
is useful when you need to know the zone number of aparticular zone, as when
bypassing zones.
*Note that the “Disarmed-Ready to arm” message must be displayed before zone
descriptors can be displayed.
@Jtim
TYPICAL CONSOLE KEYPAD qm“ m‘~:~j,
,“,~~~~~:,,$ ‘&R”DyK”
-18-

BYPASSING PROTECTION ZONES
This key is used when you want to arm your system with one or more zones
intentionallyunprotected. The system must be disarmed first.
1. Enter your security code and press the BYPASS key.
2. Enter zone number(s) for the zones to be bypassed (e.g., 01, 02, 03, etc.).
Important! All single-digit zone numbers must be preceded by azero (for
example, enter 01 for zone 1).
3. When finished, the console will display the word BYPASS and along with each
bypassed zone number. Wait for these zones to be displayed before arming.
4. Arm the system as usual. Bypassed zones are unprotected and will not cause
an alarm when violated while your system is armed.
Your system may allow you to automatically bypass all open (faulted) zones
withouthavingto enterzone numbersindividually.Askyourinstallerifthisfeatureis
activeforyoursystem.
To use this feature, enter your security code, press the BYPASS key, then press
the ❑key and stop. In afew moments, all open zones will be displayed along with
the word BYPASS. Wait for all bypassed zones to be displayed, then arm the
system as usual.
-19-

BYPASSING PROTECTION ZONES
Displaying Bypassed (For determining what zones have been previously bypassed)
Zones 1.
2.
3.
Limitations ●
.
Enter security code and press the BYPASS key.
Wait for all bypassed zones to be sequentially displayed.
Bypassed zones can be displayed only when system is disarmed.
Fire or emergency zones cannot be bypassed.
Arming the system before bypassed zones are displayed cancels all
bypasses.
TYPICALCONSOLEKEYPAD
b
h
h
b
THESE KEYS NOT PRESENT T
FIEHY1/
Ei@Ha”
rzhm?l
Cpglgl
TO BYPASS ZONES
●ENTER CODE,
●PRESS BYPASS
KEY,
●ENTERZONE Nos.
WAIT FOR
BYPASSED ZONES
TO BE DISPLAYED
BEFORE ARMING
ON ALL CONSOLES -
-20-
