User Manual
LoRaWAN
/
SNMP Agent
Document code: MN67D41_ENG Revision 1.000 age 1 of 30
User Manual
Revision 1.000
English
LoRaWAN / SNMP Agent - Converter
(Order Code: HD67D41-B2-868MHz
For Website information:
www.adfweb.com? roduct=HD67D41-B2
For rice information:
www.adfweb.com? rice=HD67D41-B2-868MHz
Benefits and Main Features:
Very easy to configure
ower Supply 18…35V DC and 8…24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
For others LoRaWAN products, see also the following links:
Converter LoRaWAN to
www.adfweb.com? roduct=HD67D01 (LoRaWAN)
www.adfweb.com? roduct=HD67D02 (LoRaWAN)
www.adfweb.com? roduct=HD67D03 (Modbus CP Master)
www.adfweb.com? roduct=HD67D04 (Modbus CP Slave)
www.adfweb.com? roduct=HD67D05 (Serial)
www.adfweb.com? roduct=HD67D15 (M-Bus)
www.adfweb.com? roduct=HD67D16 (BACnet Master)
www.adfweb.com? roduct=HD67D17 (BACnet Slave)
www.adfweb.com? roduct=HD67D18 (Ethernet)
www.adfweb.com? roduct=HD67D19 (CAN)
www.adfweb.com? roduct=HD67D20 (CANopen)
www.adfweb.com? roduct=HD67D21 (DeviceNet Master)
www.adfweb.com? roduct=HD67D22 (DeviceNet Slave)
www.adfweb.com? roduct=HD67D23 (DMX)
www.adfweb.com? roduct=HD67D24 (EtherNet/IP Master)
www.adfweb.com? roduct=HD67D25 (EtherNet/IP Slave)
www.adfweb.com? roduct=HD67D26 (J1939)
www.adfweb.com? roduct=HD67D27 (KNX)
www.adfweb.com? roduct=HD67D28 (NMEA 0183)
www.adfweb.com? roduct=HD67D29 (NMEA 2000)
www.adfweb.com? roduct=HD67D30 (PROFIBUS Master)
www.adfweb.com? roduct=HD67D31 (PROFIBUS Slave)
www.adfweb.com? roduct=HD67D32 (PROFINE Master)
www.adfweb.com? roduct=HD67D33 (PROFINE Slave)
www.adfweb.com? roduct=HD67D34 (IEC61850 Client)
www.adfweb.com? roduct=HD67D35 (IEC61850 Server)
www.adfweb.com? roduct=HD67D36 (MQ )
www.adfweb.com? roduct=HD67D37 (OPC UA Client)
www.adfweb.com? roduct=HD67D38 (OPC UA Server)
www.adfweb.com? roduct=HD67D39 (S7comm)
www.adfweb.com? roduct=HD67D40 (SNMP Manager)
User Manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN
/
SNMP Agent
Document code: MN67D41_ENG Revision 1.000 age 2 of 30
INDEX:
age
INDEX 2
U DATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAM LE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
OWER SU LY 7
FUNCTION MODES 8
LEDS 9
LORAWAN 10
ETHERNET 11
USE OF COM OSITOR SW67D41 12
NEW CONFIGURATION / O EN CONFIGURATION 13
SOFTWARE O TIONS 14
SET COMMUNICATION 16
LORAWAN ACCESS 18
SET SNM ACCESS 20
SNM MIB 23
U DATE DEVICE 24
LORAWAN AYLOAD 26
MECHANICAL DIMENSIONS 27
ORDERING INFORMATIONS 28
ACCESSORIES 28
DISCLAIMER 29
OTHER REGULATIONS AND STANDARDS 29
WARRANTIES AND TECHNICAL SU ORT 30
RETURN OLICY 30
UPDA ED DOCUMEN A ION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIS :
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
RADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.
Revision Date Author Chapter Description
1.000 04/12/2020 Ff All First release version

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN
/
SNMP Agent
Document code: MN67D41_ENG Revision 1.000 age 3 of 30
SECURI Y ALER :
G ENERAL I NFORMA ION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I N ENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORMI Y
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN
/
SNMP Agent
Document code: MN67D41_ENG Revision 1.000 age 4 of 30
EXAMPLE OF CONNEC ION:

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN
/
SNMP Agent
Document code: MN67D41_ENG Revision 1.000 age 5 of 30

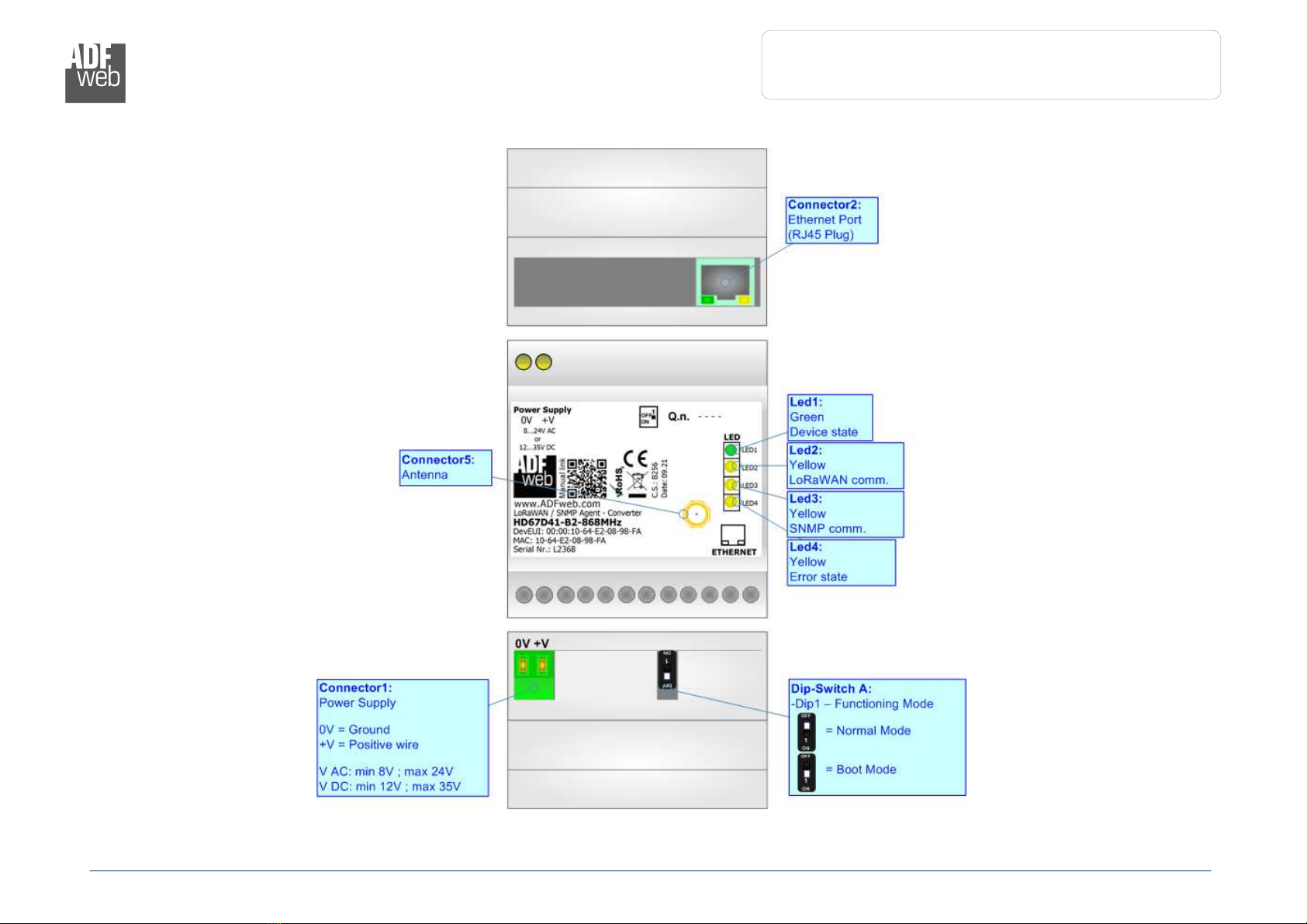

CONNEC ION SCHEME:
Figure 1: Connection scheme for HD67D41-B -xxxMHz

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN
/
SNMP Agent
Document code: MN67D41_ENG Revision 1.000 age 6 of 30
CHARAC ERIS ICS:
The HD67D41-B2 is a LoRaWAN / SNM Converter.
It allows the following characteristics:
Electrical isolation between SNM and ower Supply;
Two-directional information between LoRaWAN bus and SNM bus;
Mountable on 35mm Rail DIN;
Wide power supply input range: 12…35V DC and 8…24V AC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
CONFIGURA ION:
You need Compositor SW67D41 software on your C in order to perform the following:
Define the parameter of LoRaWAN line;
Define the parameter of SNM line;
Define the list of LoRaWAN messages in uplink and downlink to the LoRaWAN gateway;
Define the list of OIDs accessible on SNM side;
Update the device.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN
/
SNMP Agent
Document code: MN67D41_ENG Revision 1.000 age 7 of 30
POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67D41-B2-xxxMHz 3.5
H
D67D
41
-
B2
-
xxxMHz
Caution: Not reverse the polarity power

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN
/
SNMP Agent
Document code: MN67D41_ENG Revision 1.000 age 8 of 30
FUNC ION MODES:
The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the roject and/or Firmware.
For the operations to follow for the updating, see ‘U DATE DEVICE’ section.
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN
/
SNMP Agent
Document code: MN67D41_ENG Revision 1.000 age 9 of 30
LEDS:
The device has got four LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: LoRaWAN communication
(yellow) Blinks when LoRaWAN data is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: SNM communication
(yellow) Blinks when a SNM request is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Error state (yellow) ON: An error in the communication busses occurs
OFF: No errors are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN
/
SNMP Agent
Document code: MN67D41_ENG Revision 1.000 age 10 of 30
LORAWAN:
The LoRaWAN® specification is a Low ower, Wide Area (L WA) networking protocol
designed to wirelessly connect battery operated ‘things’ to the internet in regional, national
or global networks, and targets key Internet of Things (IoT) requirements such as bi-
directional communication, end-to-end security, mobility and localization services.
LoRaWAN® network architecture is deployed in a star-of-stars topology in which gateways
relay messages between end-devices and a central network server.
The wireless communication takes advantage of the Long Range characteristics of the LoRa
physical layer, allowing a single-hop link between the end-device and one or many
gateways. All modes are capable of bi-directional communication, and there is support for
multicast addressing groups to make efficient use of spectrum during tasks such as
Firmware Over-The-Air (FOTA) upgrades or other mass distribution messages.
Converters from HD67D41 serie act as end-devices and they can communicate with one or
more LoRwaWAN Gateways.
The converters support all the standard datarates and they work both on public and private
networks.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN
/
SNMP Agent
Document code: MN67D41_ENG Revision 1.000 age 11 of 30
E HERNE :
The Ethernet port is used for programming the device and for SNM communication.
The Ethernet connection must be made using Connector2 of HD67D41-B2 with at least a Category 5E cable. The maximum length of the
cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a C is recommended the use of a cross cable.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN
/
SNMP Agent
Document code: MN67D41_ENG Revision 1.000 age 12 of 30
USE OF COMPOSI OR SW67D41:
To configure the Converter, use the available software that runs with Windows called SW67D41. It is downloadable on the site
www.adfweb.com and its operation is described in this document. The software works with MS Windows (X , Vista, Seven, 8, 10; 32/64bit).
When launching the SW67D41, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
F
igure
: Main window for SW67D
41

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN
/
SNMP Agent
Document code: MN67D41_ENG Revision 1.000 age 13 of 30
NEW CONFIGURA ION / OPEN CONFIGURA ION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a rogrammable “LoRaWAN / SNM Agent - Converter”
in order to configure another device in the same manner, it is necessary to maintain
the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN
/
SNMP Agent
Document code: MN67D41_ENG Revision 1.000 age 14 of 30
SOF WARE OP IONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67D41 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN
/
SNMP Agent
Document code: MN67D41_ENG Revision 1.000 age 15 of 30
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN
/
SNMP Agent
Document code: MN67D41_ENG Revision 1.000 age 16 of 30
SE COMMUNICA ION:
By ressing the “Set Communication” button from the main window for SW67D41
(Fig. 2) the window “Set Communication” appears (Fig. 3).
The means of the fields for the “LoRaWAN” section are:
In the field “RF Band” the wireless band used for LoRaWAN communication
is defined;
In the field “Network ype” the type of LoRaWAN network is defined;
If the field “Adaptive Data Rate” is checked, the converter will enable the
ADR functionalities to select the best data rate to be used in relation to the
environmental conditions;
In the field “Data Rate” the data rate for LoRaWAN communication is
defined;
In the field “ ransmission ype” the type of LoRaWAN communication is
defined;
In the field “Max Payload Size” the maximum dimension of the LoRaWAN
messages is defined (fixed in relation to the data rate selected);
In the field “JoinEUI” the ID of the application server is defined;
In the field “Activation Method” the method used to join into a LoRaWAN
network is defined;
In the field “Device Address” the device identifier (DevEUI) is defined (only
for AB method);
In the field “Network Session Key” the key used for the communication
with the LoRaWAN gateway (NwkSKey) is defined (only for AB method);
In the field “Application Session Key” the key for encryption and
decryption of the payload (AppSKey) is defined (only for AB method);
If OTAA method is selected, in the field “Application Key” the secret key for
the dynamic activation of the converter in the LoRAWAN network is defined.
Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN
/
SNMP Agent
Document code: MN67D41_ENG Revision 1.000 age 17 of 30
The means of the fields for “SNM Agent” are:
In the field “IP ADDRESS” the I address that you want to give to the SNM side is defined;
In the field “SUBNE Mask” the SubNet Mask of the SNM side is defined;
In the field “GA EWAY” the default gateway that you want to use is defined. This feature can be enabled or disabled pressing the
Check Box field. This feature is used for going out of the net;
In the field "Name of Station" it is possible to assign a name to the SNM node.
In the field "Contact" the contact for SNM Agent station is defined;
In the field "Location" the location for SNM Agent station is defined;
In the field “Version” the version of SNM is defined;
If SNM V3 is used, the following fields must be filled:
oIn the field “User” the user for the SNM authentication is defined;
oIn the field “Security Level” the type of security used is defined;
oIn the field “Authority” the password for the SNM authentication is defined;
oIn the field “Authority Mode” the mode used for the authentication is defined;
oIn the field “Privacy” the password for rivacy authentication is defined;
oIn the field “Privacy Mode” the mode used for rivacy is defined;

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN
/
SNMP Agent
Document code: MN67D41_ENG Revision 1.000 age 18 of 30
Figure 4a: “LoRaWAN Access  LoRaWAN Uplink” window
LORAWAN ACCESS:
By ressing the “LoRaWAN Access” button from the main window for SW67D41 (Fig. 2) the window “Set LoRaWAN Access” appears (Fig.
4). This section is used to define the LoRaWAN messages where the converter will place the data read from SNM (Uplink) and the LoRAWAN
messages that the converter will take (Downlink) for writing the data to SNM .
L O R A WAN U PLINK
The means of the fields are:
If the field “Enable” is checked, the LoRaWAN message is enabled;
In the field “Start Byte” the starting byte of the internal memory array where taking the data is defined;
In the field “Num. Byte” the number of consecutive bytes to take from the internal array starting from “Start Byte” is defined;
If the field “On Change” is checked, the LoRaWAN message is sent only when the data from SNM change;
If the field “On CMD” is checked, the LoRaWAN message is sent when a SNM request is received;
If the field “On imer” is checked, the LoRaWAN message is sent cyclically with the delay defined in “ ime (s)” field;
In the field “Mnemonic” a description of the message is defined.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN
/
SNMP Agent
Document code: MN67D41_ENG Revision 1.000 age 19 of 30
Figure 4b: “LoRaWAN Access  LoRaWAN Downlink” window
L O R A WAN D OWNLINK
The means of the fields are:
If the field “Enable” is checked, the LoRaWAN message is enabled;
In the field “Start Byte” the starting byte of the internal memory array where placing the data is defined;
In the field “Num. Byte” the number of consecutive bytes to write to the internal array starting from “Start Byte” is defined;
In the field “Mnemonic” a description of the message is defined.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN
/
SNMP Agent
Document code: MN67D41_ENG Revision 1.000 age 20 of 30
SE SNMP ACCESS:
By pressing the “Set SNMP Access” button from the main window for SW67D41 (Fig. 2) the “Set SNM Access” window appears (Fig. 5). In
this section, it is possible to create the OIDs for SNM side to read or write using GET and SET commands or to be sent as TRA messages.
The window is divided into two tables, one for SNM readings and one for SNM writings.
The data of the columns in the “SNM Read” have the following meanings:
If the field “Enable” is checked, the SNM OID is enabled;
In the field “Community Name” the name of the Community is defined;
In the field “ ype” the type of data of the OID is defined (Octet String or Integer);
If the field “On Change” is checked, the OID is sent as Trap when the data from EtherCAT side change;
If the field “On CMD” is checked, the OID is sent as Trap when the a EtherCAT command is received;
If the field “On imer” is checked, the OID is sent as Trap cyclically;
In the field “ ime (ms)” the delay time for the Trap send is defined (if “On Timer” option is checked);
In the field “Position” the starting byte of the internal memory array where taking the data is defined;
In the field “Start Bit” the starting bit of the selected osition is defined;
Figure
5a
: “
Set SNMP Access
-
> SNMP Read
” window
