ADF Web HD67C58-B2 User manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
CAN
open
Document code: MN67C58_ENG Revision 1 000 Page 1 of 31
User Manual
Revision 1 000
English
EnOcean / CANopen - Converter
(Order Code: HD67C58-B2)
For Website information:
www adfweb com?Product=HD67C58-B2
For Price information:
www adfweb com?Price=HD67C58-B2
Benefits and Main Features:
Very easy to configure
Power Supply 18…35V DC and 8…24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
For others EnOcean products, see also the following links:
Converter EnOcean to
www adfweb com?Product=HD67C50 (Serial)
www adfweb com?Product=HD67C52 (Modbus Slave)
www adfweb com?Product=HD67C54 (Modbus CP Slave)
www adfweb com?Product=HD67C56 (BACnet Slave)
www adfweb com?Product=HD67C57 (CAN)
www adfweb com?Product=HD67C61 (DeviceNet Slave)
www adfweb com?Product=HD67C63 (EtherNet/IP Slave)
www adfweb com?Product=HD67C65 (IEC61850 Server)
www adfweb com?Product=HD67C66 (J1939)
www adfweb com?Product=HD67C67 (KNX)
www adfweb com?Product=HD67C70 (MQ )
www adfweb com?Product=HD67C72 (NMEA 0183)
www adfweb com?Product=HD67C73 (NMEA 2000)
www adfweb com?Product=HD67C75 (PROFIBUS Slave)
www adfweb com?Product=HD67C77 (PROFINE Slave)
www adfweb com?Product=HD67C79 (SNMP Agent)
Do you need to choose a device? Do you want help?
www adfweb com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
CAN
open
Document code: MN67C58_ENG Revision 1 000 Page 2 of 31
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
POWER SUPPLY 7
FUNCTION MODES 8
LEDS 9
ETHERNET 10
CAN 11
ENOCEAN 12
USE OF COMPOSITOR SW67C58 13
NEW CONFIGURATION / OPEN CONFIGURATION 14
SOFTWARE OPTIONS 15
SET COMMUNICATION 17
ENOCEAN ACCESS 18
SET SDO SERVER 21
SET SDO CLIENT 22
SET PDO ACCESS 24
EDS FILE 25
UPDATE DEVICE 26
MECHANICAL DIMENSIONS 28
ORDERING INFORMATIONS 29
ACCESSORIES 29
DISCLAIMER 30
OTHER REGULATIONS AND STANDARDS 30
WARRANTIES AND TECHNICAL SUPPORT 31
RETURN POLICY 31
UPDA ED DOCUMEN A ION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document
With this “Document Code” go to web page www adfweb com/download/
and search for the corresponding code on the page Click on the proper
“Document Code” and download the updates
REVISION LIS :
WARNING:
ADFweb com reserves the right to change information in this manual about
our product without warning
ADFweb com is not responsible for any error this manual may contain
RADEMARKS:
All trademarks mentioned in this document belong to their respective
owners
Revision Date Author Chapter Description
1 000 05/12/2019 Ff All First release version

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
CAN
open
Document code: MN67C58_ENG Revision 1 000 Page 3 of 31
SECURI Y ALER :
G ENERAL I NFORMA ION
To ensure safe operation, the device must be operated according to the instructions in the manual When using the device, legal and
safety regulation are required for each individual application The same applies also when using accessories
I N ENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i e
independent limit switches, mechanical interlocks, etc )
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job
R ESIDUAL R ISKS
The device is state-of-the-art and is safe The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage
CE CONFORMI Y
The declaration is made by our company You can send an email to support@adfweb com or give us a call if you need it

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
CAN
open
Document code: MN67C58_ENG Revision 1 000 Page 4 of 31
EXAMPLE OF CONNEC ION:

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
CAN
open
Document code: MN67C58_ENG Revision 1 000 Page 5 of 31
CONNEC ION SCHEME:
Figure 1: Connection scheme for HD67C58- 2

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
CAN
open
Document code: MN67C58_ENG Revision 1 000 Page 6 of 31
CHARAC ERIS ICS:
The HD67C58-B2 is a EnOcean / CANopen Slave Converter
It allows the following characteristics:
Electrical isolation between Ethernet and Power Supply;
Mountable on 35mm Rail DIN;
Wide power supply input range: 18…35V DC and 8…24V AC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F]
CONFIGURA ION:
You need Compositor SW67C58 software on your PC in order to perform the following:
Define the parameter of CANopen line;
Define the parameter of EnOcean line;
Define SDO Server information;
Define SDO Client information;
Define PDO information (RPDO/TPDO);
Export the EDS file for configuration of CANopen Master;
Update the device

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
CAN
open
Document code: MN67C58_ENG Revision 1 000 Page 7 of 31
POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC For more details see the two tables below
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67C58-B2 3 5
HD67C58-B2
Caution: Not reverse the polarity power

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
CAN
open
Document code: MN67C58_ENG Revision 1 000 Page 8 of 31
FUNC ION MODES:
The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware
For the operations to follow for the updating, see ‘UPDATE DEVICE’ section
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
CAN
open
Document code: MN67C58_ENG Revision 1 000 Page 9 of 31
LEDS:
The device has got four LEDs that are used to give information of the functioning status
The various meanings of the LEDs are described in the table below
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: CANopen communication
(yellow) Blinks when CANopen communication is running
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in
progress
3: EnOcean communication
(yellow) Blinks when EnOcean data is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Error state (yellow) ON: An error in the communication busses occurs
OFF: No errors are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
CAN
open
Document code: MN67C58_ENG Revision 1 000 Page 10 of 31
E HERNE :
The Ethernet port is used for programming the device
The Ethernet connection must be made using Connector2 of HD67C58-B2 with at least a Category 5E cable The maximum length of the
cable should not exceed 100m The cable has to conform to the T568 norms relative to connections in cat 5 up to 100 Mbps To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a cross cable

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
CAN
open
Document code: MN67C58_ENG Revision 1 000 Page 11 of 31
CAN:
For terminating the CAN line with a 120Ω resistor it is necessary that the Dip1 of ‘Dip-Switch C’ is at ON position
Cable characteristics:
DC parameter: Impedance 70 Ohm/m
AC parameters: Impedance 120 Ohm/m
Delay 5 ns/m
Length Baud Rate [bps] Length MAX [m]
10 K 5000
20 K 2500
50 K 1000
100 K 650
125 K 500
250 K 250
500 K 100
800 K 50
1000 K 25

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
CAN
open
Document code: MN67C58_ENG Revision 1 000 Page 12 of 31
ENOCEAN:
EnOcean is a protocol designed for energy harvesting devices communication The main
fields of application are building automation and domotics, but it can also be potentially
used in the industrial field
EnOcean products include solutions for environment monitoring, smart metering and
lighting Each device uses a unique ID for identification and one of the standardized profiles
(EEPs) for data transmission Communication process may be secure or unsecure and may
be unidirectional or bidirectional (for devices that support Smart Acknowledge operating
mode)
EnOcean is based on wireless communication on 868 3 MHz ASK
It is possible to connect up to 100 EnOcean devices to a single converter, where up to 32
can be in Secure Mode and up to 19 with Smart Acknowledge
The Antenna connector is a SMA Female (‘Female Outer Shell’ and ‘Female Receptacle’) so
the Antenna must have a SMA Male connector

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
CAN
open
Document code: MN67C58_ENG Revision 1 000 Page 13 of 31
USE OF COMPOSI OR SW67C58:
To configure the Converter, use the available software that runs with Windows called SW67C58 It is downloadable on the site
www adfweb com and its operation is described in this document The software works with MS Windows (XP, Vista, Seven, 8, 10; 32/64bit)
When launching the SW67C58, the window below appears (Fig 2)
Note:
It is necessary to have installed Net Framework 4
Figure 2: Main window for SW67C58

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
CAN
open
Document code: MN67C58_ENG Revision 1 000 Page 14 of 31

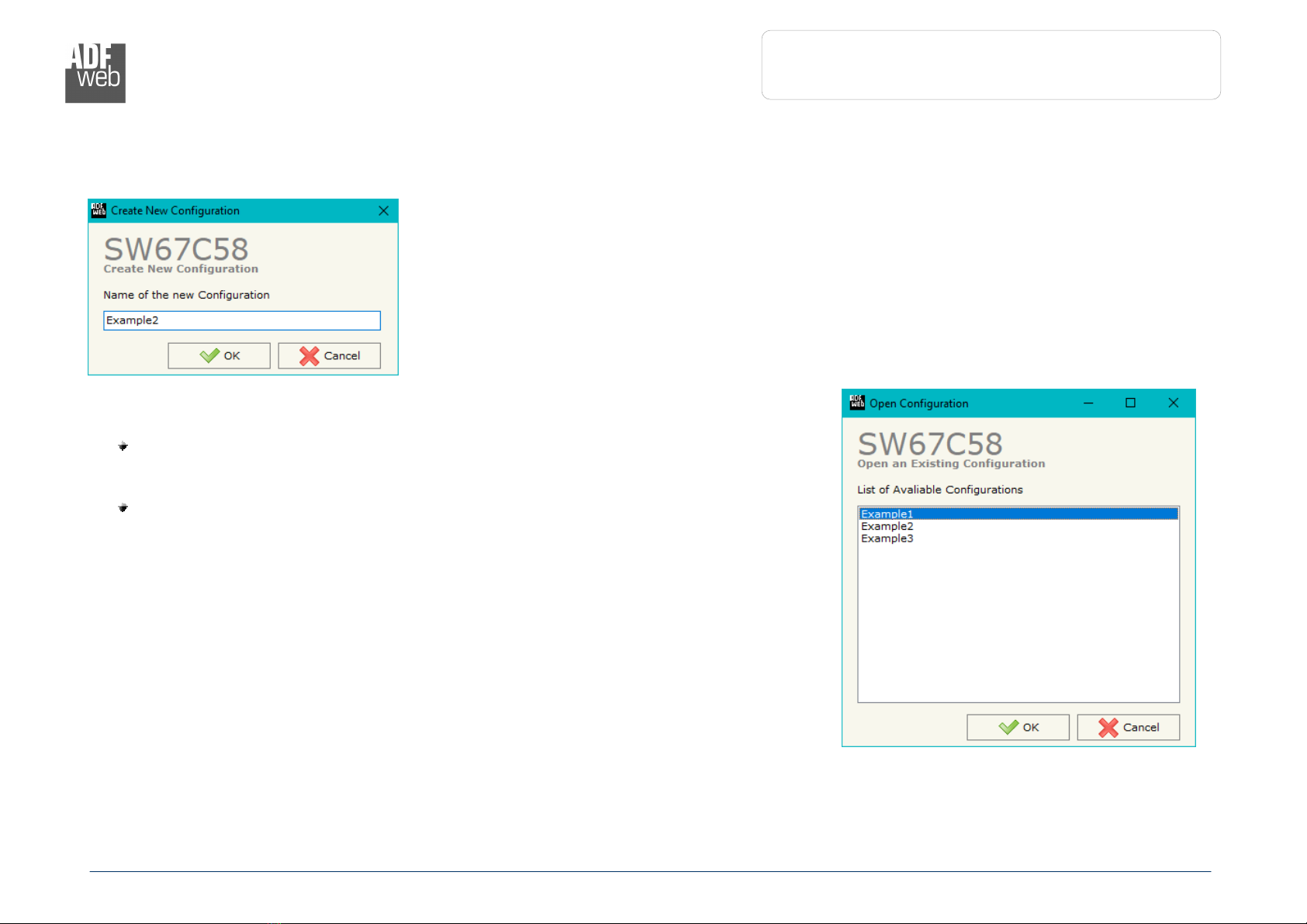

NEW CONFIGURA ION / OPEN CONFIGURA ION:
The “New Configuration” button creates the folder which contains the entire device’s configuration
A device’s configuration can also be imported or exported:
To clone the configurations of a Programmable “EnOcean / CANopen - Converter” in
order to configure another device in the same manner, it is necessary to maintain the
folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
CAN
open
Document code: MN67C58_ENG Revision 1 000 Page 15 of 31
SOF WARE OP IONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor
In the section “Language” it is possible to change the language of the
software
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb com website
Checking the option “Check Software Update at Start of Program”, the
SW67C58 check automatically if there are updatings when it is launched

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
CAN
open
Document code: MN67C58_ENG Revision 1 000 Page 16 of 31
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
CAN
open
Document code: MN67C58_ENG Revision 1 000 Page 17 of 31
SE COMMUNICA ION:
By Pressing the “Set Communication” button from the main window for SW67C58
(Fig 2) the window “Set Communication” appears (Fig 3)
The means of the fields for the “CANopen” section are:
In the field “ID Device” the ID of the CANopen side is defined;
In the field “Baudrate” the data rate of the CANopen line is defined;
In the field “Set Operational State at Start-Up” the state of the CANopen is
defined I e If it is checked the board starts in Operational State, else it starts in
Pre-Operational;
In the field “Network Start at Start-Up” the state of the CANopen network is
defined I e If it is checked the board sends a command to set the Operational
State of all the devices present in the network, after the time defined in the
“Delay” field;
In the field “Delay (seconds)” the delay before sending the “Start” command
for the CANopen is defined;
In the field “SDO Client imeOut (1/10 ms)” the maximum time that the
device attends for the answer from the Slave interrogated is defined
The means of the fields for “Ethernet” are:
In the fields “IP Address” the IP address for Ethernet side of the converter is
defined;
In the fields “SubNet Mask” the SubNet Mask for Ethernet side of the converter
is defined;
In the fields “Gateway” the default gateway of the net is defined This feature
can be enabled or disabled pressing the Check Box field This feature is used for
going out of the net
Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
CAN
open
Document code: MN67C58_ENG Revision 1 000 Page 18 of 31
Figure 4: “EnOcean Access” window
ENOCEAN ACCESS:
By Pressing the “EnOcean Set Access” button from the main window for SW67C58 (Fig 2) the window “EnOcean Set Access” appears (Fig
4) This section is used to define the list of the EnOcean devices to read/write

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
CAN
open
Document code: MN67C58_ENG Revision 1 000 Page 19 of 31
Figure 5: “Add/Modify EnOcean device”
window
By clicking on “+” or “Modify” under “ID Devices List”, it is possible to add/modify a new EnOcean device inserting its characteristics The
window “Add/Modify EnOcean device” appears (Fig 5)
The means of the fields are:
In the field “Device ID” the ID of the EnOcean device is defined;
In the field “Secure ype ” the type of EnOcean communication is defined;
In the field “Key” the key used for encryption of frames in Secure Mode is defined;
In the field “Rolling Code” the Rolling Code for the EnOcean communication is
defined;
In the field “Rolling Code Algorithm” the type of Rolling Code is defined;
In the field “Rolling Code x” the transmission of the Rolling Code is
enabled/disabled;
In the field “CMAC Algorithm” the MAC field at the end of the EnOcean frame is
defined;
In the field “Data Encrypted” the encryption of the data is enabled/disabled;
In the field “P M” the type of EnOcean device is defined

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
CAN
open
Document code: MN67C58_ENG Revision 1 000 Page 20 of 31
Figure 6: “Add/Modify EnOcean variable”
window
By clicking on “+” or “Modify”, it is possible to add/modify a new variable for the selected ID The window “Add/Modify EnOcean variable”
appears (Fig 6)
The means of the EEP fields are:
In the field “Rorg” the type of EnOcean telegram is defined;
In the field “Func” the type of EnOcean instance is defined;
In the field “ ype” the type of event is defined
The means of the Variable fields are:
In the field “Case” the format of the EnOcean telegram is defined;
In the field “Variable” the variable to read/write is defined;
In the field “Position” the starting byte of the internal array where
mapping/taking the variable is defined;
In the field “Bit Start” the starting bit of the defined Position where
mapping/taking the variable is defined
