ADF Web HD67E19-A1 User manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT /
NMEA 2000
Document code: MN67E19_ENG Revision 1.000 age 1 of 26
User Manual
Revision 1.000
English
EtherCAT / NMEA 2000 - Converter
(Order Code: HD67E19-A1)
For Website information:
www.adfweb.com? roduct=HD67E19
For rice information:
www.adfweb.com? rice=HD67E19-A1
Benefits and Main Features:
Very easy to configure
Triple Electrical isolation
Temperature range: -40°C/+85°C (-40°F/+185°F)
For other EtherCAT Slave products see also the following link:
Converter EtherCAT Slave to
www.adfweb.com? roduct=HD67E00 (Serial)
www.adfweb.com? roduct=HD67E01 (Mod us Master)
www.adfweb.com? roduct=HD67E02 (Mod us Slave)
www.adfweb.com? roduct=HD67E03 (Mod us TCP Master)
www.adfweb.com? roduct=HD67E04 (Mod us TCP Slave)
www.adfweb.com? roduct=HD67E05 (BACnet Master)
www.adfweb.com? roduct=HD67E06 (BACnet Slave)
www.adfweb.com? roduct=HD67E07 (CAN)
www.adfweb.com? roduct=HD67E08 (CANopen)
www.adfweb.com? roduct=HD67E09 (DeviceNet Master)
www.adfweb.com? roduct=HD67E10 (DeviceNet Slave)
www.adfweb.com? roduct=HD67E11 (DMX)
www.adfweb.com? roduct=HD67E12 (Ethernet)
www.adfweb.com? roduct=HD67E14 (IEC61850 Master)
www.adfweb.com? roduct=HD67E15 (IEC61850 Slave)
www.adfweb.com? roduct=HD67E16 (J1939)
www.adfweb.com? roduct=HD67E17 (MQTT)
www.adfweb.com? roduct=HD67E18 (NMEA0183)
www.adfweb.com? roduct=HD67E20 (OPC UA Client)
www.adfweb.com? roduct=HD67E21 (OPC UA Server)
www.adfweb.com? roduct=HD67E22 (PROFINET Master)
www.adfweb.com? roduct=HD67E23 (PROFINET Slave)
www.adfweb.com? roduct=HD67E24 (SNMP Manager)
www.adfweb.com? roduct=HD67E25 (SNMP Agent)
www.adfweb.com? roduct=HD67E26 (EtherNet/IP Master)
www.adfweb.com? roduct=HD67E27 (EtherNet/IP Slave)
www.adfweb.com? roduct=HD67E28 (S7comm Client)
www.adfweb.com? roduct=HD67879 (IO-Link Master)
User Manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT /
NMEA 2000
Document code: MN67E19_ENG Revision 1.000 age 2 of 26
INDEX:
age
INDEX 2
U DATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAM LE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
OWER SU LY 7
FUNCTION MODES 8
LEDS 9
ETHERCAT 10
ETHERNET 11
USE OF COM OSITOR SW67E19 12
NEW CONFIGURATION / O EN CONFIGURATION 13
SOFTWARE O TIONS 14
SET COMMUNICATION 16
ETHERCAT SET ACCESS 17
RECEIVE NMEA 2000 FRAMES 19
SEND NMEA 2000 FRAMES 20
ETHERCAT ESI FILE 20
U DATE DEVICE 21
MECHANICAL DIMENSIONS 23
ORDERING INFORMATIONS 24
ACCESSORIES 24
DISCLAIMER 25
OTHER REGULATIONS AND STANDARDS 25
WARRANTIES AND TECHNICAL SU ORT 26
RETURN OLICY 26
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.
Revision Date Author Chapter Description
1.000 18/09/2020 Ff All First Release

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT /
NMEA 2000
Document code: MN67E19_ENG Revision 1.000 age 3 of 26
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT /
NMEA 2000
Document code: MN67E19_ENG Revision 1.000 age 4 of 26
EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT /
NMEA 2000
Document code: MN67E19_ENG Revision 1.000 age 5 of 26
CONNECTION SCHEME:
Figure 1: Connection scheme for HD67E19-A1

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT /
NMEA 2000
Document code: MN67E19_ENG Revision 1.000 age 6 of 26
CHARACTERISTICS:
The HD67E19-A1 are EtherCAT / NMEA 2000 - Converters.
It allows for the following characteristics:
Isolation between EtherCAT – NMEA 2000 – ower Supply;
Two-directional information between EtherCAT bus and NMEA 2000 bus;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION:
You need Compositor SW67E19 software on your C in order to perform the following:
Define the parameters of EtherCAT line;
Define the parameters of NMEA 2000 line;
Define EtherCAT variables to read and write;
Define the list of NMEA2000 messages in reception and transmission;
Export the ESI file for configuration of EtherCAT Master;
Update the device.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT /
NMEA 2000
Document code: MN67E19_ENG Revision 1.000 age 7 of 26
POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67E19-A1 3.5
H
D67E19
-
A1
Caution:
Do n
ot reverse the polarity power

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT /
NMEA 2000
Document code: MN67E19_ENG Revision 1.000 age 8 of 26
FUNCTION MODES:
The device has got two function modes depending on the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for uploading the roject and/or Firmware.
For the operations to follow for the updating, see ‘U DATE DEVICE’ section.
According to the functioning mode, the LEDs will have specific functions, see ‘LEDS’ section.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT /
NMEA 2000
Document code: MN67E19_ENG Revision 1.000 age 9 of 26

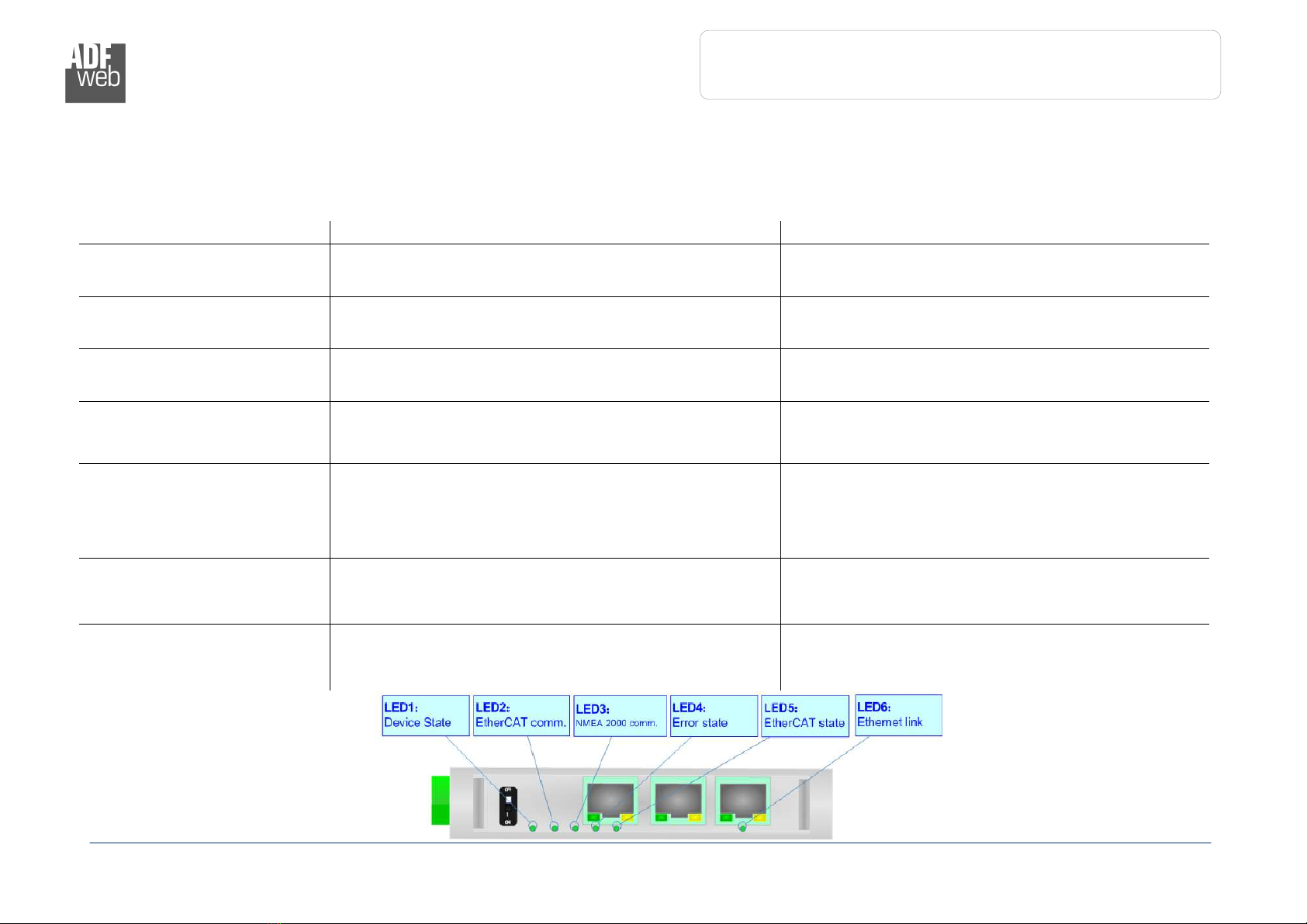

LEDS:
The device has got seven LEDs that are used to give information about the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: EtherCAT comm. (green) It blinks when EtherCAT communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: NMEA 2000 comm.
(green) It blinks when NMEA 2000 communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Error state (green) ON: An error in the communication busses occurs
OFF: No errors are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: EtherCAT state (green)
OFF: EtherCAT Master not connected
Blinking: EtherCAT Master is connecting
ON: EtherCAT Master is connected
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
6: Ethernet1 link (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
7: Ethernet2 link (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT /
NMEA 2000
Document code: MN67E19_ENG Revision 1.000 age 10 of 26
ETHERCAT
EtherCAT (Ethernet for Control Automation Technology) is an Ethernet-based fieldbus system, invented by Beckhoff Automation.
The protocol is standardized in NMEA 2000 and is suitable for both hard and soft real-time computing requirements in automation
technology.
With EtherCAT, the standard Ethernet packet or frame (according to IEEE 802.3) is no longer received, interpreted, and copied as process
data at every node. The EtherCAT slave devices read the data addressed to them while the telegram passes through the device, processing
data "on the fly". In other words, real-time data and messages are prioritized over more general, less time-sensitive or heavy load data.
The converter has two EtherCAT ports, one is used as Input port (Connector7) and it will receive the incoming messages from the Master,
the other is used as Output port (Connector8) and i twill forward the messages to the others nodes of the network.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT /
NMEA 2000
Document code: MN67E19_ENG Revision 1.000 age 11 of 26
ETHERNET:
The Ethernet port is used for programming the device.
Ethernet connection and the updating of the converter must be made using Connector9 and/or Connector10 of the HD67E19-A1 with at least
a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to
connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the
device to a C/ LC/other is recommended the use of a cross cable.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT /
NMEA 2000
Document code: MN67E19_ENG Revision 1.000 age 12 of 26
USE OF COMPOSITOR SW67E19:
To configure the Converter, use the available software that runs with Windows called SW67E19. It is downloadable on the site
www.adfweb.com and its operation is described in this document. This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (X , Vista, Seven, 8, 10; 32/64bit).

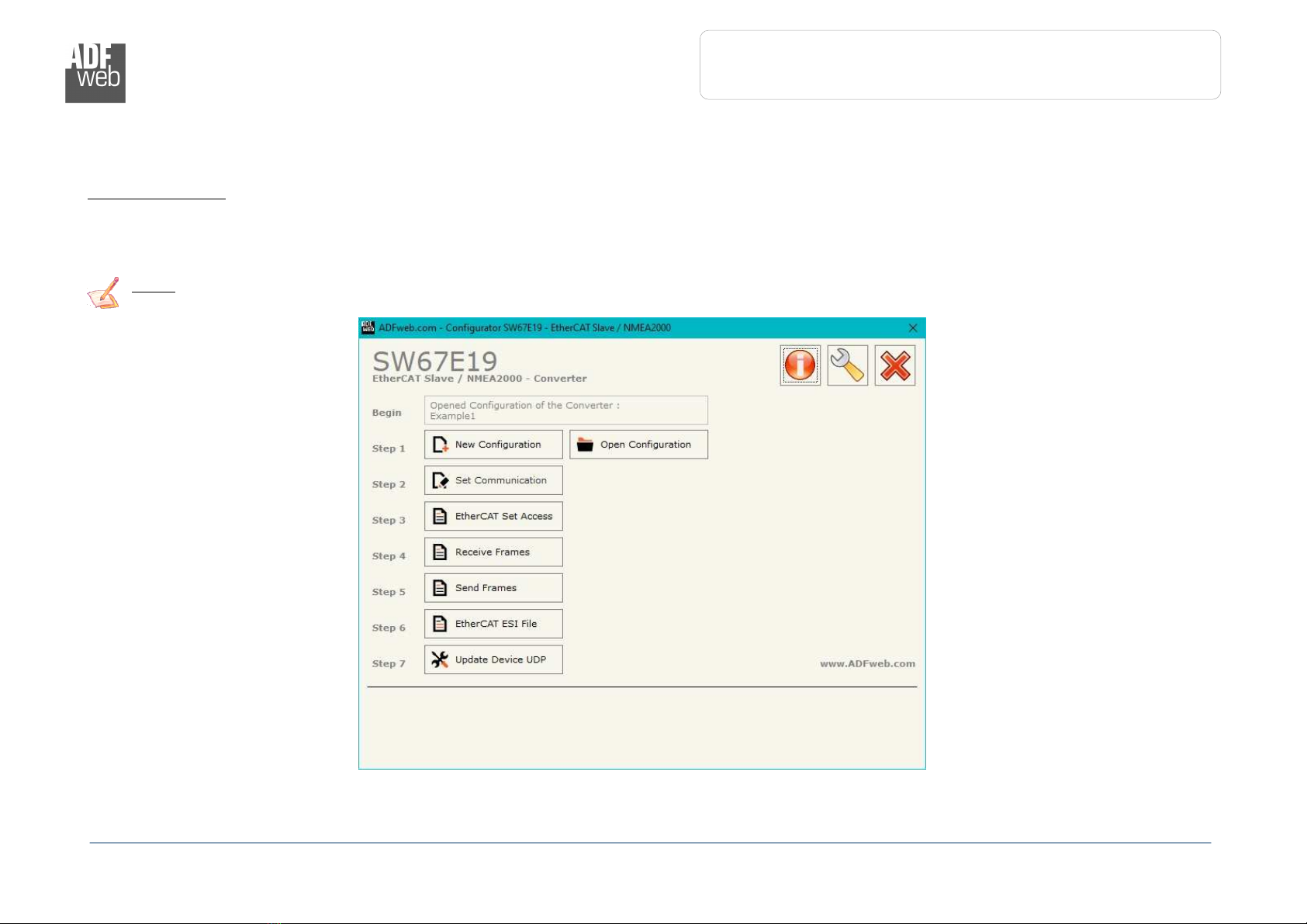

When launching the SW67E19, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW67E19

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT /
NMEA 2000
Document code: MN67E19_ENG Revision 1.000 age 13 of 26
NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a programmable “EtherCAT / NMEA 2000 - Converter” in
order to configure another device in the same manner, it is necessary to maintain the
folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT /
NMEA 2000
Document code: MN67E19_ENG Revision 1.000 age 14 of 26
SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67E19 checks automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT /
NMEA 2000
Document code: MN67E19_ENG Revision 1.000 age 15 of 26
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT /
NMEA 2000
Document code: MN67E19_ENG Revision 1.000 age 16 of 26
SET COMMUNICATION:
This section define the fundamental communication parameters of two buses, EtherCAT and
NMEA 2000.
By ressing the “Set Communication” button from the main window for SW67E19 (Fig. 2)
the window “Set Communication” appears (Fig. 3).
The means of the fields for “EtherCAT Slave” are:
In the field “Revision Num er” the revision number of the converter is defined;
In the field “Slave Name” the name of the converter is defined;
In the field “Node Address” the ID of the converter is defined.
The means of the fields for “NMEA 2000” are:
In the field “Baudrate” the data rate of J1939 is defined;
In the field “TimeOut Data” a time is defined. When a NMEA2000 message is not
received in this time, the data on O C UA side are set to 0xFF;
If the field “Ena le Peer to Peer” is checked, the gateway will mask the Source
Address of the NMEA2000 messages received.
The means of the fields for “Ethernet” are:
In the fields “IP Address” the I address for Ethernet side of the converter is defined;
In the fields “Su Net Mask” the SubNet Mask for Ethernet side of the converter is
defined;
In the fields “Gateway” the default gateway of the net is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of
the net;
In the fields “DNS” the I Address of the DNS server is defined;
Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT /
NMEA 2000
Document code: MN67E19_ENG Revision 1.000 age 17 of 26
Figure 4a: “EtherCAT Slave Set Access

Slave To Master” window
ETHERCAT SET ACCESS:
By ressing the “EtherCAT Set Access” button from the main window for SW67E19 (Fig. 2) the window “EtherCAT Slave Set Access”
appears (Fig. 4).
This section is used to define the EtherCAT variables readable by the EtherCAT Master (Slave To Master) and the EtherCAT variables
writeable by the EtherCAT Master (Master To Slave).
S LAVE T O M ASTER
The means of the fields are:
If the field “Ena le” is checked, the EtherCAT variable is enabled;
In the field “Type” the data format of the EtherCAT variable is defined;
In the field “Lenght” the dimension of the EtherCAT variable is defined;
In the field “Name” the name of the EtherCAT variable is defined;
In the field “Init Value” the default value of the EtherCAT variable is defined;
In the field “Position” the starting address of the EtherCAT array where the variable is mapped is defined;
In the field “Start Bit” the starting bit of the selected osition where the variable is mapped is defined;
In the field “Mnemonic” a description of the variable is defined.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT /
NMEA 2000
Document code: MN67E19_ENG Revision 1.000 age 18 of 26
Figure 4b: “EtherCAT Slave
Set Access

Master To Slave” window
M ASTER T O S LAVE
The means of the fields are:
If the field “Ena le” is checked, the EtherCAT variable is enabled;
In the field “Type” the data format of the EtherCAT variable is defined;
In the field “Lenght” the dimension of the EtherCAT variable is defined;
In the field “Name” the name of the EtherCAT variable is defined;
In the field “Position” the starting address of the EtherCAT array where the variable is mapped is defined;
In the field “Start Bit” the starting bit of the selected osition where the variable is mapped is defined;
In the field “Mnemonic” a description of the variable is defined.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT /
NMEA 2000
Document code: MN67E19_ENG Revision 1.000 age 19 of 26
Figure 5
: “
R
eceive
F
r
ames
” window
RECEIVE NMEA 2000 FRAMES:
The means of the fields are:
In the field “PGN” the GN of the NMEA 2000 message to receive is defined (in the NMEA 2000 protocol, the GN is an identifier);
In the field “Source Address” the address of the device that sends the frame is defined.
If the field “Transport Protocol” is checked, the frame can use transport protocol functions;
If the field “Fast Packet” is checked, the frame will use the Fast acket functions;
In the field “Start Byte” the starting byte to save internal memory array is defined;
In the field “N Bytes” the number of consecutive byte from the starting one is defined. For example, if the Start Byte is ‘20’ and Num
Bytes is ‘10’, it is possible to read the byte from 20 to 30;
If the field “Cancel Data” is checked, when the data is oldest of the time inserted in the “TimeOut Data”, the converter sets “0xFF” in
the bytes of the internal memory array reserved for the GN;
In the field “Mnemonic” the description for the frame is defined.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT /
NMEA 2000
Document code: MN67E19_ENG Revision 1.000 age 20 of 26
Figure 6: “Send Frames” window
TRANSMIT NMEA 2000 FRAMES
The means of the fields are:
In the field “Priority” the priority of the NMEA 2000 message is defined. In NMEA 2000 protocol, the priority is a number between 0
and 7. ‘0’ is the highest priority and ‘7’ is the lowest;
In the field “PGN” the GN of the NMEA 2000 message to send is defined (in NMEA 2000 protocol the GN is an identifier);
In the field “Source Address” the address of the device that sends the frame is defined;
If the field “Fast Packet” is checked, the frame will use the Fast acket functions;
In the field “Num Byte” the number of bytes of the NMEA 2000 message is defined;
If the field “On Request” is checked, the NMEA 2000 frame is sent when arrive a request frame from the NMEA 2000 network;
If the field “Data Change” is checked, the NMEA 2000 frame is sent when a byte from EtherCAT side changes value;
If the field “On Timer” is checked, the NMEA 2000 frame is sent cyclically;
In the field “Send Timer” the delay (in milliseconds) with which sending the NMEA 2000 message is defined;
In the field “Mnemonic” a description for the frame is defined.
ETHERCAT ESI FILE:
By pressing the “EtherCAT ESI File” button it is possible to save the ESI file for the EtherCAT side of the converter.
The ESI file is used to configure the EtherCAT Master.
