ADF Web HD67871-A1-2A User manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
E
ther
N
et/
IP
Slave
Document code: MN67871_ENG Revision 1.000 age 1 of 39
User Manual
Revision 1.000
English
IO-Link / EtherNet/IP Slave - Converter
(Order Code: HD67871-A1-2A, HD67871-A1-4A,
HD67871-A1-2B, HD67871-A1-2A-2B)
for Website information:
www.adfweb.com/? roduct=HD67871
for rice information:
www.adfweb.com/? rice=HD67871-A1-2A
www.adfweb.com/? rice=HD67871-A1-4A
www.adfweb.com/? rice=HD67871-A1-2B
www.adfweb.com/? rice=HD67871-A1-2A-2B
Benefits and Main Features:
Triple electrical isolation
Two Ethernet ports
Temperature range: -40°C/+85°C (-40°F/+185°F)
For others IO-Link devices, see also the following links:
IO-Link from/to
www.adfweb.com? roduct=HD67860 (Modbus Master)
www.adfweb.com? roduct=HD67861 (Modbus Slave)
www.adfweb.com? roduct=HD67862 (Modbus TCP Master)
www.adfweb.com? roduct=HD67864 (Modbus TCP Slave)
www.adfweb.com? roduct=HD67864 (BACnet Master)
www.adfweb.com? roduct=HD67865 (BACnet Slave)
www.adfweb.com? roduct=HD67866 (CAN)
www.adfweb.com? roduct=HD67867 (CANopen)
www.adfweb.com? roduct=HD67868 (DeviceNet Master)
www.adfweb.com? roduct=HD67869 (DeviceNet Slave)
www.adfweb.com? roduct=HD67870 (EtherNet/IP Master)
www.adfweb.com? roduct=HD67872 (J1939)
www.adfweb.com? roduct=HD67873 (MQTT)
www.adfweb.com? roduct=HD67874 (NMEA0183)
www.adfweb.com? roduct=HD67875 (NMEA2000)
www.adfweb.com? roduct=HD67876 (PROFINET Slave)
www.adfweb.com? roduct=HD67877 (SNMP Manager)
www.adfweb.com? roduct=HD67878 (SNMP Agent)
Do you have an your customer protocol?
See the following links:
www.adfweb.com? roduct=HD67876
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
U
ser Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
E
ther
N
et/
IP
Slave
Document code: MN67871_ENG Revision 1.000 age 2 of 39
INDEX:
age
INDEX 2
U DATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAM LE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 9
CONFIGURATION 9
OWER SU LY 10
FUNCTION MODES 11
LEDS 12
IO-LINK 13
AUX OWER SU LY 14
ETHERNET 15
USE OF COM OSITOR SW67871 16

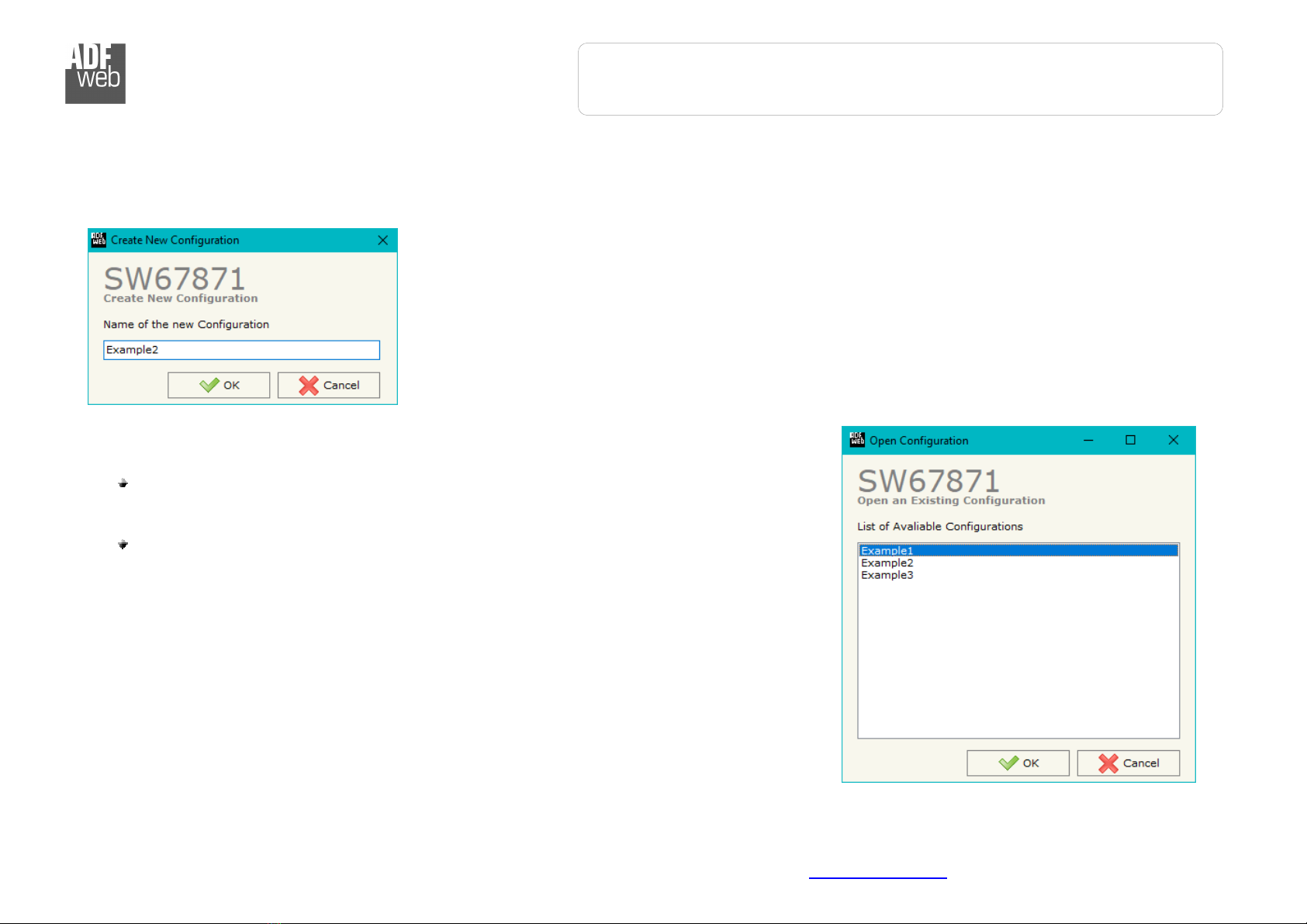

NEW ROJECT / O EN ROJECT 17

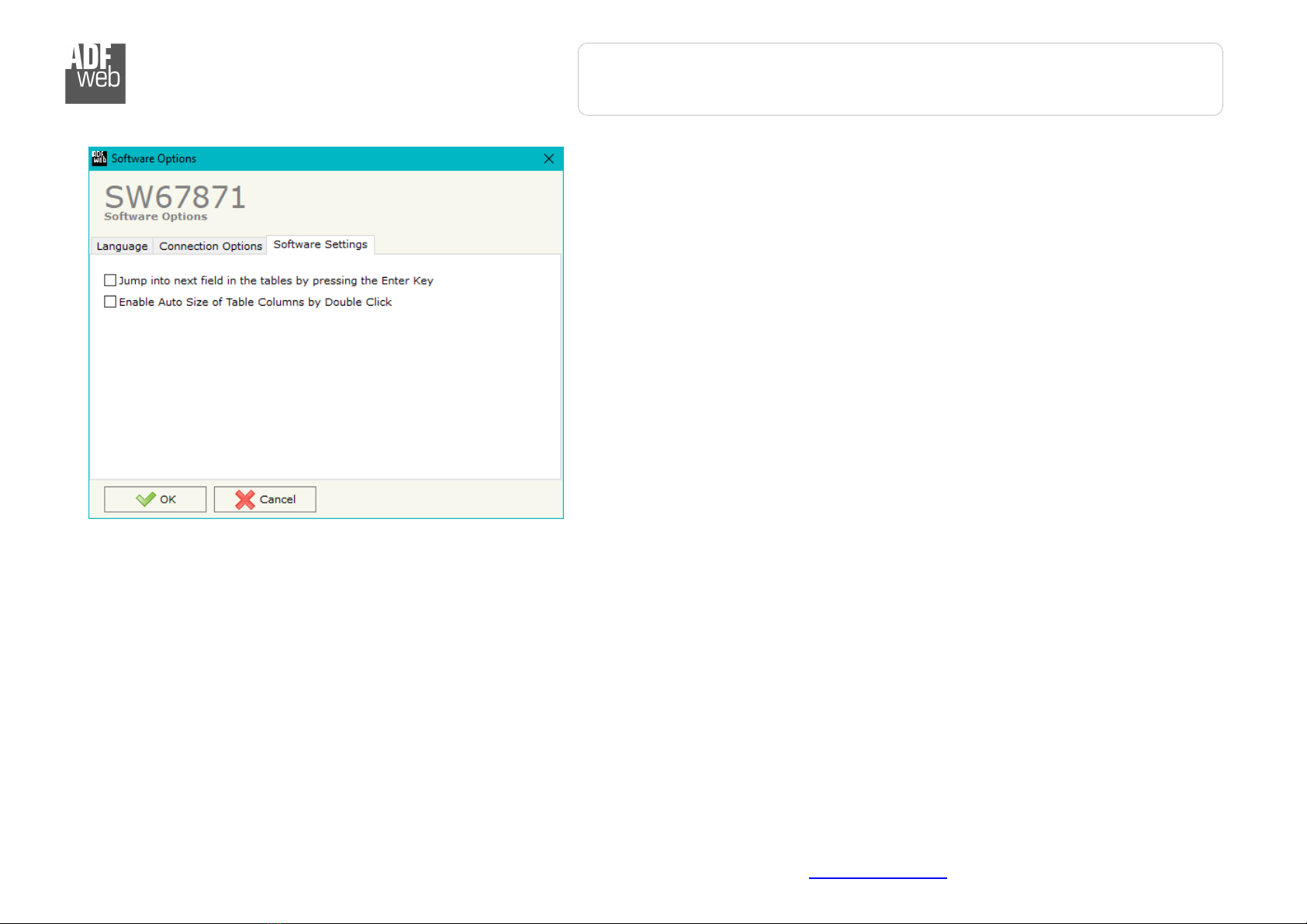

SOFTWARE O TIONS 18

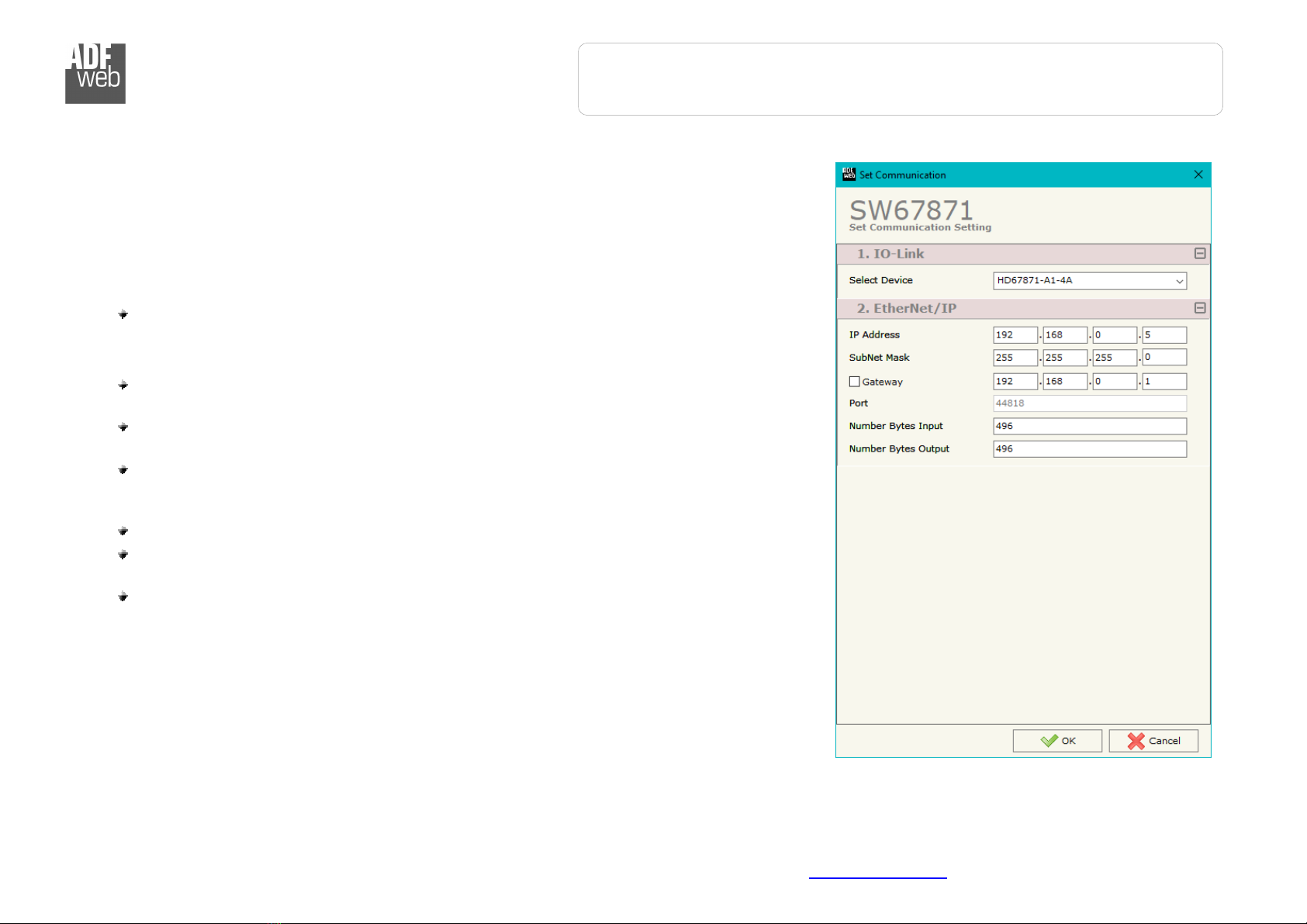

SET COMMUNICATION 20
IO-LINK SET ACCESS 21
U DATE DEVICE 30
LC CONFIGURATION (FOR ETHERNET/I ) 32
MECHANICAL DIMENSIONS 36
ORDERING INFORMATIONS 37
ACCESSORIES 37
DISCLAIMER 38
OTHER REGULATIONS AND STANDARDS 38
WARRANTIES AND TECHNICAL SU ORT 39
RETURN OLICY 39
Pagina 2 di 39
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
Revision Date Author Chapter Description
1.000 13/03/2020 Ff All First release version
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
E
ther
N
et/
IP
Slave
Document code: MN67871_ENG Revision 1.000 age 3 of 39
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
E
ther
N
et/
IP
Slave
Document code: MN67871_ENG Revision 1.000 age 4 of 39

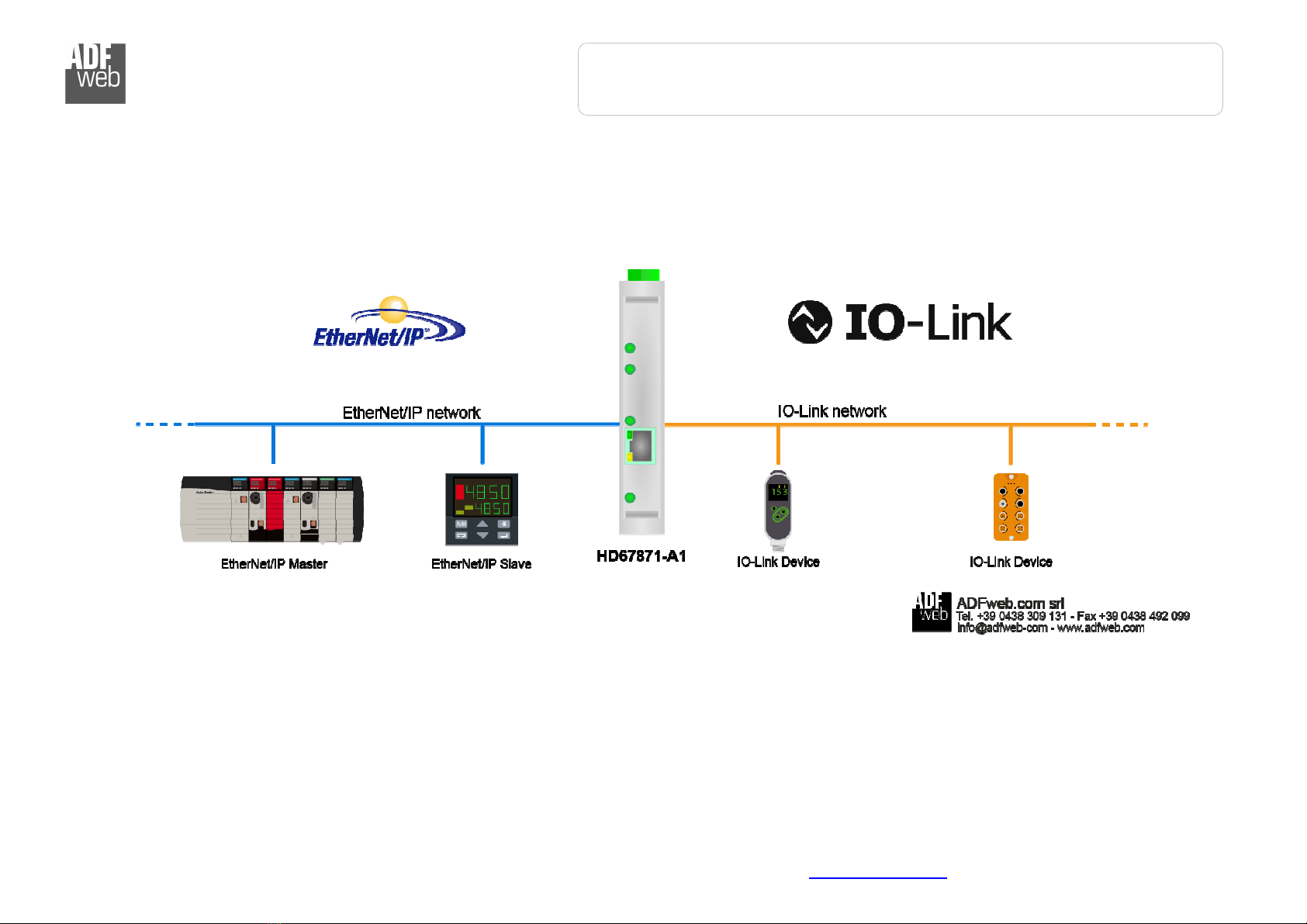

EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
E
ther
N
et/
IP
Slave
Document code: MN67871_ENG Revision 1.000 age 5 of 39

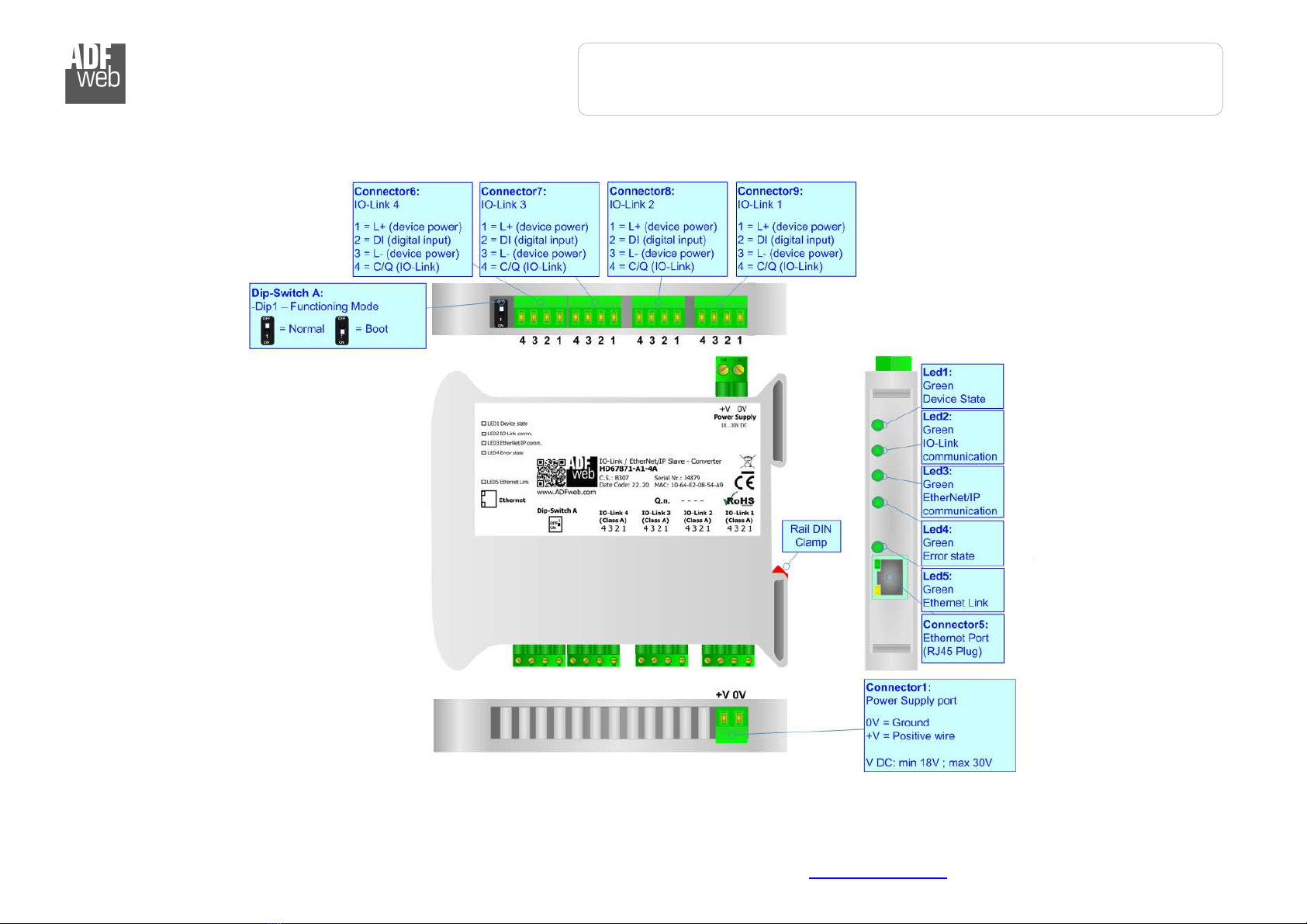

CONNECTION SCHEME:
Figure
1
a
: Connection scheme for HD67
8
71
-
A1
-
2A

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
E
ther
N
et/
IP
Slave
Document code: MN67871_ENG Revision 1.000 age 6 of 39

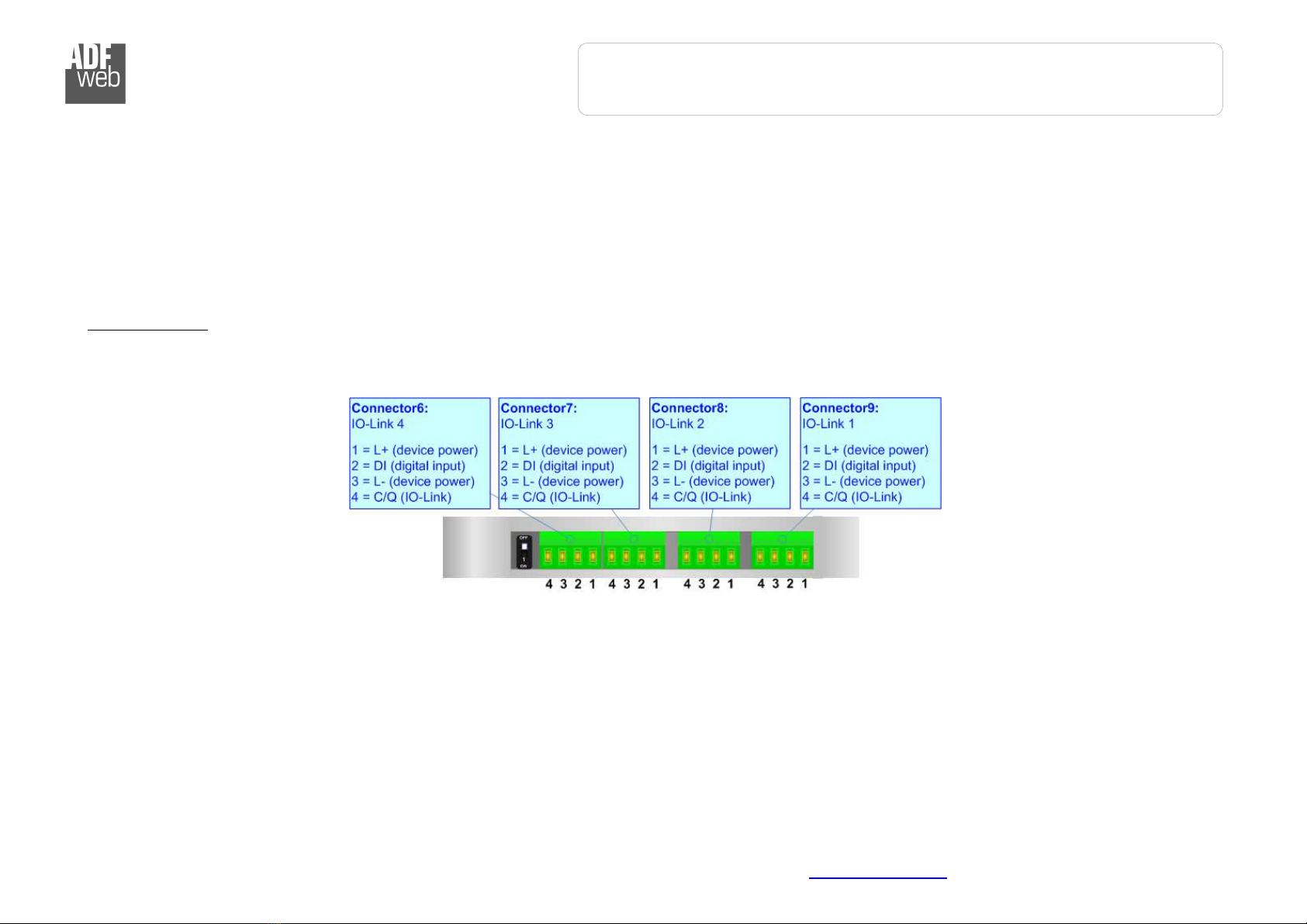

Figure
1
b
: Connection scheme for HD67
8
71
-
A1
-
4A

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
E
ther
N
et/
IP
Slave
Document code: MN67871_ENG Revision 1.000 age 7 of 39
Figure
1
c
: Connection scheme for HD67
8
71
-
A1
-
2B

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
E
ther
N
et/
IP
Slave
Document code: MN67871_ENG Revision 1.000 age 8 of 39

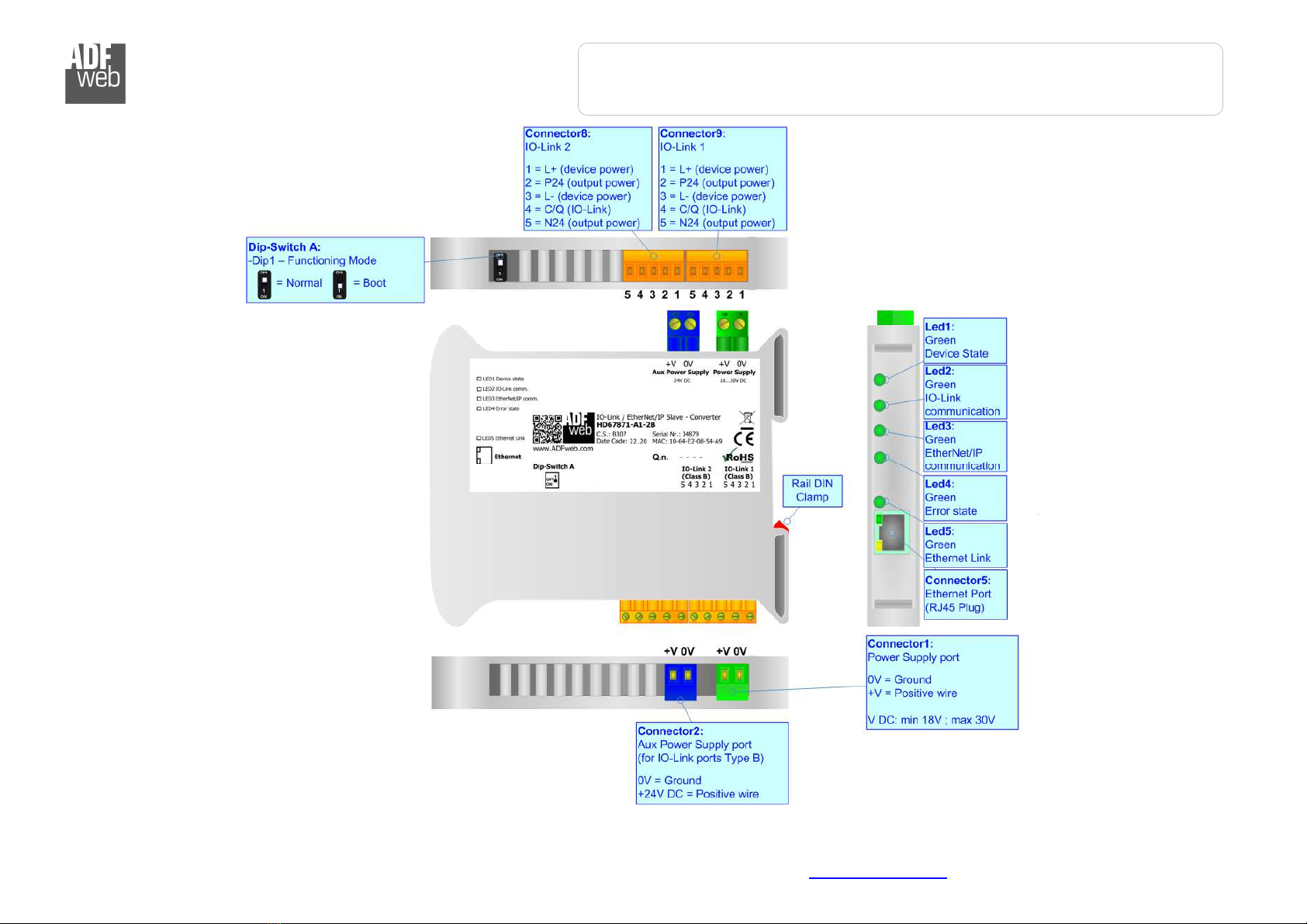

Figure
1
d
: Connection scheme for HD67
8
71
-
A1
-
2A
-
2B

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
E
ther
N
et/
IP
Slave
Document code: MN67871_ENG Revision 1.000 age 9 of 39
CHARACTERISTICS:
The HD67871-A1 is a IO-Link / EtherNet/I Slave converter.
It allows the following characteristics:
Up to 496 bytes in reading and 496 bytes in writing;
Two-directional information between EtherNet/I and IO-Link;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION:
You need Compositor SW67871 software on your C in order to perform the following:
Define the parameters of IO-Link;
Define the parameters of EtherNet/I ;
Define IO-Link variables to be read by the EtherNet/I Master;
Define IO-Link variables to be written by the EtherNet/I Master;
Update the device.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
E
ther
N
et/
IP
Slave
Document code: MN67871_ENG Revision 1.000 age 10 of 39

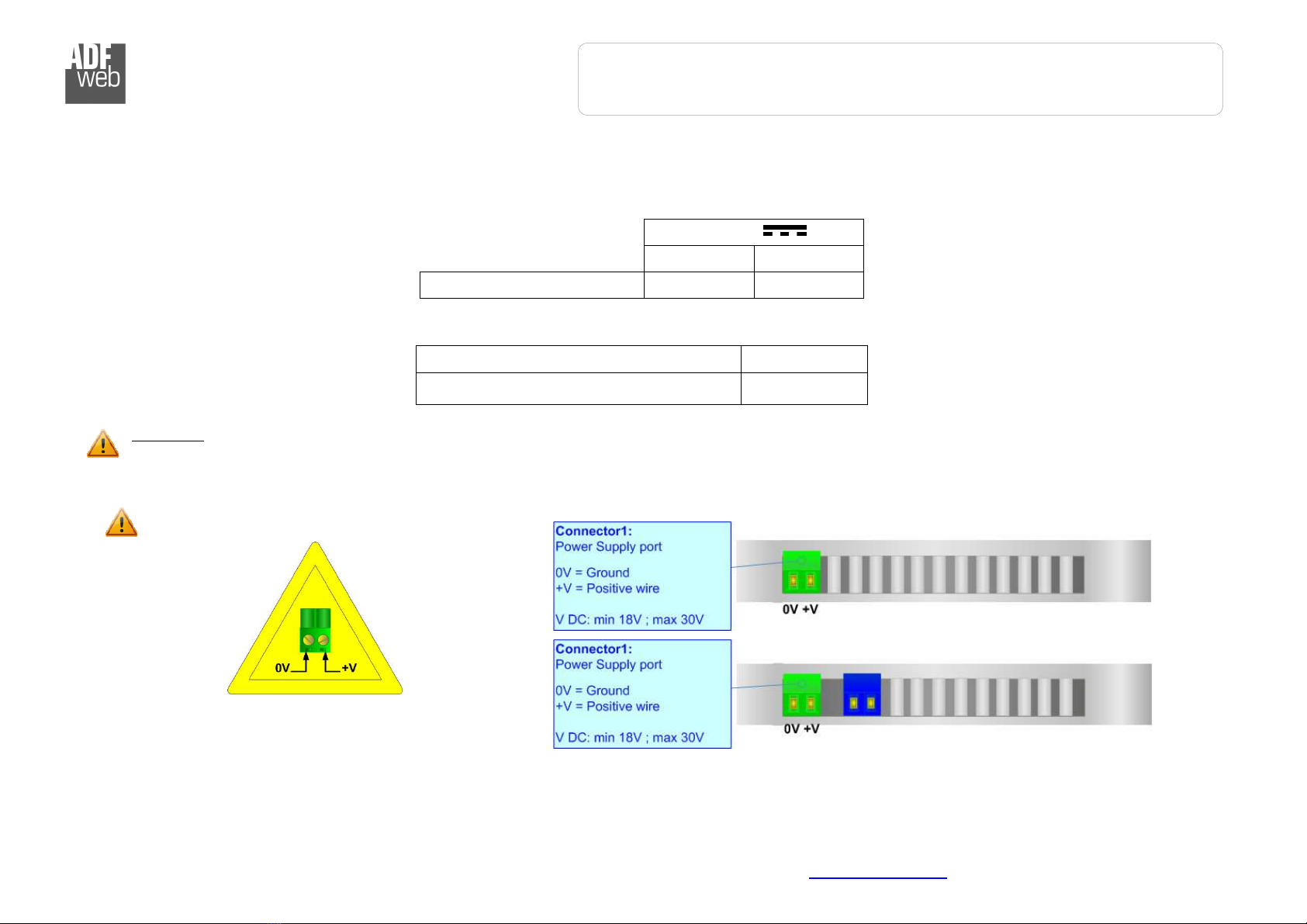

POWER SUPPLY:
The devices can be powered between a wide range of tensions. For more details see the two tables below.
VDC
Vmin Vmax
HD67863-A1-xx 18V 30V
Consumption at 24V DC:
Device W/VA
HD67871-A1-xx 4
Warning:
It is necessary to add to this consumption the one required by the IO-Link devices connected to the IO-Link channels.
Caution: Not reverse the polarity power
HD67
8
71
-
A1
-
xx

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
E
ther
N
et/
IP
Slave
Document code: MN67871_ENG Revision 1.000 age 11 of 39
FUNCTION MODES:
The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’:
The first, with Dip1 in Off position (factory setting), is used for the normal working of the device.
The second, with Dip1 in On position, is used for upload the roject/Firmware.
For the operations to follow for the updating (see ‘U DATE DEVICE’ section).
According to the functioning mode, the LEDs will have specifics functions (see ‘LEDS’ section).

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
E
ther
N
et/
IP
Slave
Document code: MN67871_ENG Revision 1.000 age 12 of 39
LEDS:
The device has got five LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: IO-Link comm. (green) Flashing: IO-Link communication
OFF: No IO-Link communication
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: EtherNet/I comm.
(green)
Flashing: EtherNet/I communication
OFF: No EtherNet/I communication
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Error state (green) ON: at least one IO-Link device is not communicating
OFF: No errors are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Ethernet Link (green) ON: Ethernet cable connected
OFF: Ethernet cable not connected
ON: Ethernet cable connected
OFF: Ethernet cable not connected

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
E
ther
N
et/
IP
Slave
Document code: MN67871_ENG Revision 1.000 age 13 of 39
IO-LINK
IO-Link is the first globally standardized IO technology (IEC 61131-9) that communicates from the controller down to the lowest automation
level. This universally applicable interface is a fieldbus-neutral point-to-point connection which uses standard unshielded cables. IO-Link
sends all the sensor and actuator signals to the controller and in turn carries controller data to the sensor/actuator level with revolutionary
consequences.
It is possible to have IO-Link device of two different type: IO-Link Class A and IO-Link Class B. ADFweb.com’s converters can manage both
of them in relation to the product code selected.
IO-L INK C LASS A:
IO-Link Class A devices uses 4 pins on connectors and the input power required can be up to 200mA. These devices are normally sensors
and actuators that don’t require high input power.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
E
ther
N
et/
IP
Slave
Document code: MN67871_ENG Revision 1.000 age 14 of 39
IO-L INK C LASS B:
IO-Link Class B devices uses 5 pins on connectors and they require an additional aux power supply used for the actuation. These devices are
normally actuators.
AUX POWER SUPPLY (for IO-Link Class B):
The Aux ower Supply port is used to provide the additional power supply for the IO-Link Class B. The input voltage is fixed to 24 V DC and
the current depends on the input power required by the IO-Link devices connected to the IO-Link channels Class B.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
E
ther
N
et/
IP
Slave
Document code: MN67871_ENG Revision 1.000 age 15 of 39

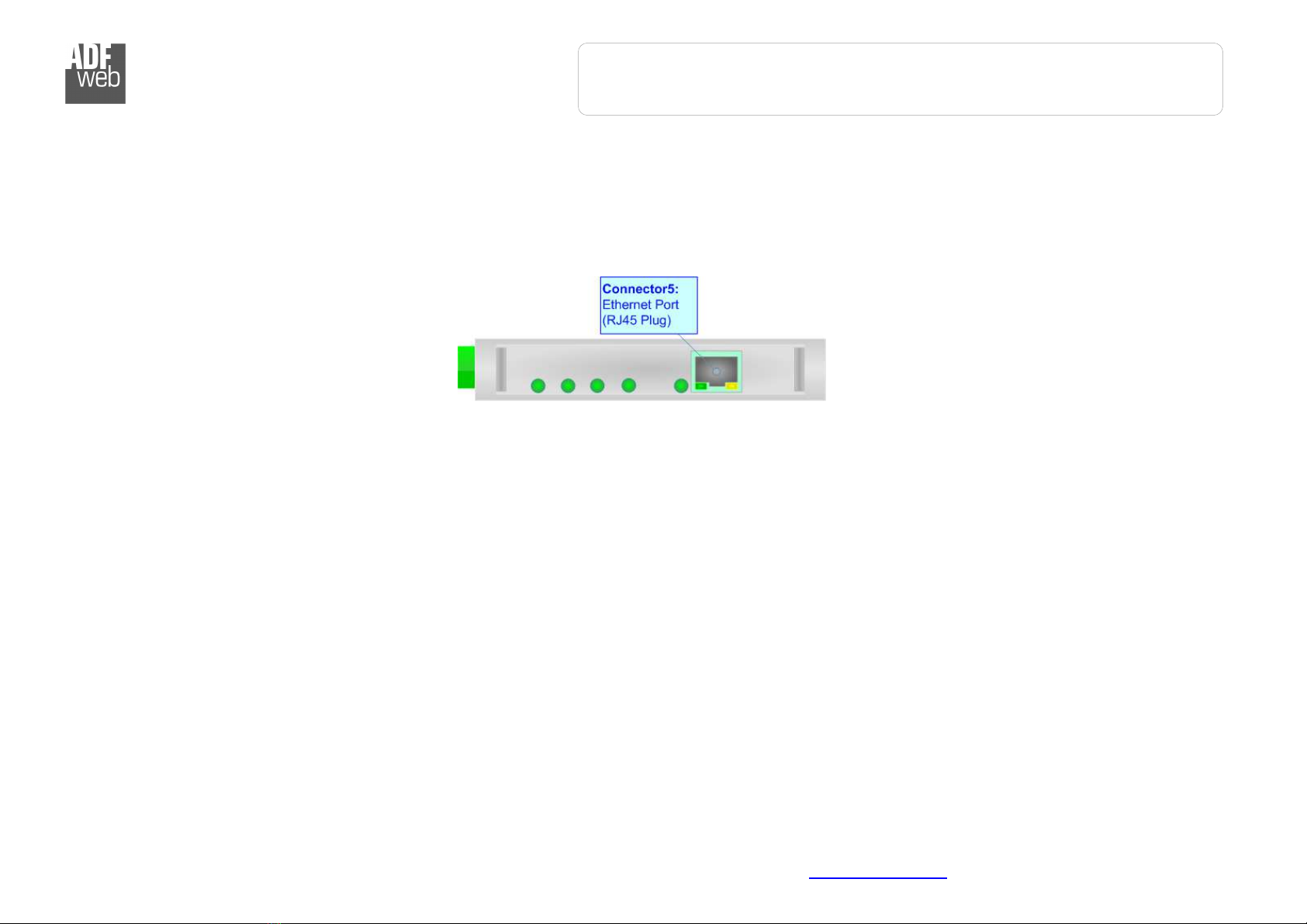

ETHERNET:
The Ethernet connection must be made using Connector5 of HD67871-A1 with at least a Category 5E cable. The maximum length of the
cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a C/ LC/other is recommended the use of a
cross cable.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
E
ther
N
et/
IP
Slave
Document code: MN67871_ENG Revision 1.000 age 16 of 39
USE OF COMPOSITOR SW67871:
To configure the Converter, use the available software that runs with Windows called SW67871. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (X , Vista, Seven, 8, 10; 32/64bit).
When launching the SW67871, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW67871

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
E
ther
N
et/
IP
Slave
Document code: MN67871_ENG Revision 1.000 age 17 of 39
NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a programmable “IO-Link / EtherNet/I Slave -
Converter” in order to configure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
E
ther
N
et/
IP
Slave
Document code: MN67871_ENG Revision 1.000 age 18 of 39
SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the
language of the software and check the updatings for the compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67871 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
E
ther
N
et/
IP
Slave
Document code: MN67871_ENG Revision 1.000 age 19 of 39
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
E
ther
N
et/
IP
Slave
Document code: MN67871_ENG Revision 1.000 age 20 of 39
SET COMMUNICATION:
This section defines the fundamental communication parameters of EtherNet/I .
By ressing the “Set Communication” button from the main window for SW67871 (Fig. 2)
the window “Set Communication” appears (Fig. 3).
The means of the fields for “IO-LINK” are:
In the fields “Select Device” the type of IO-LINK channels is defined;
The means of the fields for “EtherNet/I ” are:
In the fields “IP Address” the I address for EtherNet/I side of the converter is
defined;
In the fields “SubNet Mask” the SubNet Mask for EtherNet/I side of the converter is
defined;
In the fields “Gateway” the default gateway of the net is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of
the net;
In the field “Port” the port used for EtherNet/I communication is defined;
In the field “Number Bytes Input” the number of input bytes of the converter is
defined;
In the field “Number Bytes Output” the number of output bytes of the converter is
defined.
Figure 3: “Set Communication” window
