ADIATEK diamond 100 AC User guide

diamond 100 AC
diamond 130
03 2019
Use and maintenance
Warning! Please read the instructions before use.

3
INTRODUCTORY COMMENT
Thank you for choosing our machine. This floor cleaning machine is made for the industrial and civil cleaning and is able to clean any type of floor.
During its forward movement, the combined action of the brushes and the detergent solution removes the dirt which is the aspirated through the
rear suction assembly, giving a perfectly dry surface.
The machine must be used only for such purpose. It gives the best performance if it is used correctly and maintained in perfect efficiency. We
therefore ask you to read this instruction booklet carefully whenever difficulties arise in the course of the machine’s use. In case of need, we ask you
to contact our service department for all advice and servicing as may prove necessary.
SOMMARIO
INTRODUCTORY COMMENT 3
LEGEND PANEL OF CONTROLS 4
LEGEND MACHINE 4
MACHINE SYMBOLOGY 5
HANDBOOK SYMBOLOGY 5
OPTIONAL EQUIPMENTS 6
GENERAL RULES OF SAFETY 6
Transfer 6
Storage and disposal 6
Correct use 6
Maintenance 6
GENERAL RULES OF THE BATTERIES 6
TECHNICAL DESCRIPTION 7
BEFORE USE 8
Handling of the packed machine 8
Unpacking the machine 8
Access to the battery compartment 8
Battery installation and setting of the battery type 8
Assembling of the rollbar 8
Battery charger 8
Charging the batteries 8
Connecting the batt. connectors and switching on of the machine 9
Battery charge level 9
Hourmeter 9
Squeegee assembly 9
Adjusting the squeegee 10
Assembling the splashguards 10
Brushes assembly 10
FLOOR CLEANING 10
Recovery tank 10
Detergent solution tank 11
STARTING OF THE MACHINE 12
Forward and backward movement 12
Horn 12
Working brake 12
Emergency-parking brake 12
Automatic squeegee lifting when going backwards 13
Working in automatic mode 13
Working in manual mode 13
Working adjustments 14
Flow adjustment of the detergent solution 14
Brushes pressure adjustment 14
Electric protection 14
Overflow device 14
Selecting and working on 3S “solution saving system” mode 14
STOP OF THE MACHINE AFTER CLEANING OPERATION 14
DAILY MAINTENANCE 15
Recovery tank emptying and cleaning 15
Suction filter cleaning 15
Brushes cleaning 15
Disassembling the brushes 15
Automatic brushes unlocking (version 130) 15
Squeegee cleaning 16
WEEKLY MAINTENANCE 16
Rear squeegee rubber check 16
Squeegee hose cleaning 16
Cleaning of the solution tank and of the outer filter 16
TWO-MONTHLY MAINTENANCE 16
Front squeegee rubber check 16
SIX-MONTHLY MAINTENANCE 16
Splash guard rubber check 16
TROUBLESHOOTING GUIDE 17
The suction motor does not work 17
The brushes motor does not work 17
The traction motor does not work 17
Water does not come down onto the brushes or is insufficient 17
The machine does not clean properly 18
The squeegee does not dry perfectly 18
Excessive foam production 18
PROGRAMMED MAINTENANCE 18
Ordinary periodical maintenance chart 18
SEr1 warning 18

4
LEGEND PANEL OF CONTROLS
1. DISPLAY VISUALIZATION
2. PUSH BUTTON VISUALIZATION HOUR METER (DISPLAY)
3. PUSH BUTTON VISUALIZATION BRUSHES PRESSURE SET (DISPLAY)
4. ADJUSTMENT KNOB BRUSHES PRESSURE
5. KEY SWITCH
6. PUSH BUTTON HORN
7. CONTROL PANEL FUNCTIONS
8. DRIVE SELECTOR FORWARDS/BACKWARDS
9. SELECTOR SPEED
10. SOLUTION VALVE LEVER
11. SWITCH WATER OPENING (SOLENOID VALVE)
12. SELECTOR MODE OF FUNCTIONING
13. BRUSHES UNLOCKING BUTTON (130 model)
14. SELECTOR UP/DOWN BRUSHES
15. SELECTOR UP/DOWN SQUEEGEE
16. SWITCH SUCTION MOTORS
17. SIGNAL LAMP PARKING BRAKE ON
18. SIGNAL LAMP SUCTION MOTORS ON
19. SIGNAL LAMP DETERGENT SOLUTION LOW
20. SIGNAL LAMP RECOVERY TANK FULL
21. SIGNAL LAMP SQUEEGEE DOWN
22. SIGNAL LAMP BRUSHES DOWN
23. SIGNAL LAMP BRUSHES ROTATION
24. SIGNAL LAMP WATER OPEN (SOLENOID VALVE)
25. SIGNAL LAMP RESTORATION LIQUID LEVEL BRAKES
LEGEND MACHINE
1. RECOVERY TANK
2. SOLUTION TANK
3. SEAT
4. DRIVE WHEEL
5. SCREW CAP FOR INLET DETERGENT SOLUTION
6. BLINKING LIGHT
7. ROLLBAR
8. INSPECTION CAP RECOVERY TANK
9. SQUEEGEE HOSE
10. PLUG EXHAUST HOSE RECOVERY TANK
11. EXHAUST HOSE RECOVERY TANK
12. SQUEEGEE ASSEMBLY
13. PANEL CONTROLS
14. LEVER BLOCK/RELEASE PARKING BRAKE
15. COVER ELECTRICAL LAYOUT
16. BUMPER
17. PEDAL ACCELERATOR
18. TRACTION MOTOR WHEEL
19. STEP FOR THE OPERATOR
20. OUTER FILTER DETERGENT SOLUTION
21. BOTTOM PLATE
22. BRUSHES BASE GROUP
23. REAR WHEELS

5
MACHINE SYMBOLOGY
Symbol denoting the switch
for the water opening and the
signal lamp that the water is
open.
Automatic brushes unlocking
symbol (130 model)
Symbol denoting the selection
of the forward/backward
movement.
Symbol denoting the
functioning of the solution
valve adjusting the flow of the
detergent solution.
Symbol denoting the signal
lamp of the brushes rotation.
Symbol denoting the push
button and the signal lamps
for the selection of the
operation speed.
Symbol denoting the push
button to visualize the hour
meter on the display.
Symbol denoting the signal
lamp of the parking brake
switched on.
Indication of the maximum
temperature of the detergent
solution. It is placed near the
charging hole of the solution
tank.
Symbol denoting the push
button to visualize on the
display the brushes pressure
set.
Symbol denoting the key
switch.
Symbol denoting the selection
of the operation mode in
manual.
Symbol denoting the
functioning of the adjustment
knob of the brushes pressure.
Symbol denoting the push
button of the horn.
Symbol denoting the selection
of the operation mode in
automatic.
Symbol denoting the
activation and the signal lamp
squeegee down.
Symbol denoting the signal
lamp of low detergent solution.
Symbol denoting the selection
of the mode at the end of the
washing and transfer.
Symbol denoting the
activation of the squeegee up.
Symbol denoting the signal
lamp of overflow of the
recovery tank.
Symbol denoting the
activation and the signal lamp
brushes down.
Symbol denoting the switch
and the signal lamp of the
suction motor.
Symbol denoting the signal
lamp of restoration level liquid
brakes.
Symbol denoting the
activation of the brushes up.
Symbol denoting the charge
level of the batteries.
HANDBOOK SYMBOLOGY
Symbol denoting the open
book.
Indicates that the operator has
to read the manual before the
use of the machine.
Warning symbol.
Risk of acid leakage from the
batteries.
Obligation symbol requiring
the wear of protection gloves.
Symbol denoting the open
book.
For the good functioning of
the battery recharger, read the
manual of the constructor.
Obligation symbol, disconnect
the installation from the
batteries acting upon the
connector before any
operation on the machine.
Symbol preceding an
information about the correct
use of the machine.
Warning symbol.
Read carefully the sections
marked with this symbol, for
the security of both the
operator and the machine.
Obligation symbol requiring
the wear of protection glasses.
Symbol indicating operations
to be carried out only by
qualified personnel.
Icon indicating the part of the
manual related to the
unboxing, preparation and
start of the machine.
Icon indicating the part of the
manual related to the machine
use.
Icon indicating the part of the
manual related to the
maintenance of the machine.

6
OPTIONAL EQUIPMENTS
3S “Solution Saving System”
Adjustable lights
GENERAL RULES OF SAFETY
The rules below have to be followed carefully in order to avoid injury to
the operator and damage to the machine.
−Read the labels carefully on the machine. Do not cover them for
any reason and replace them immediately if damaged.
−ATTENTION: The machine must be used exclusively by authorized
staff that have been instructed on its correct and proper use.
−ATTENTION: Do not use the machine on areas having a higher
gradient than the one stated on the number plate.
−ATTENTION: The machine is not to be used by persons, children
included, with reduced physical, sensorial or mental capabilities, or
with lack of experience or knowledge, unless they could benefit,
through the intermediation of a responsible person for their
safety, by a supervision or instructions concerning to its use.
−During the operation of the machine, pay attention to other
people and especially to the children.
−Children shall not play with the machine.
−Children cannot carry out cleaning and maintenance of the
machine.
TRANSFER
−Do not strike shelvings or scaffoldings where there is danger of
falling objects.
−Leaving the machine in parking position, take off the key and act
upon the parking brake.
−Do not use the machine as a means of transport.
−Adapt the working speed to the adhesion conditions: particularly,
slow down before narrow curves have to be faced.
STORAGE AND DISPOSAL
−Storage temperature: between 0°C and +55°C (32°F and 131°F).
−Perfect operating temperature: between 0°C and +40°C (32°F and
104°F).
−The humidity should not exceed 95%.
−Provide for the scrapping of the material of normal wear (brushes,
squeegee blades etc.) following strictly the respective rules.
−When your machine has to stop activity, provide for the
appropriate waste disposal of its materials, especially oils, batteries
and electronic components, and considering that the machine
itself has been, where possible, constructed using recyclable
materials.
CORRECT USE
−Do not use the machine on surfaces covered with inflammable
liquids or dusts (for example hydrocarbons, ashes or soot).
−In case of fire, use a powder based fire-extinguisher. Do not use
water.
−Do not use the machine in explosive atmosphere.
−The machine has to carry out simultaneously the operations of
washing and drying. Different operations must be carried out in
restricted areas prohibited to non-authorized personnel and the
operator has to wear suitable shoes.
−Signal the areas of moist floors with suitable signs.
−Do not mix different detergents, avoiding harmful odours.
−Avoid brushes operation when the machine is standing still in
order to prevent floor damages.
MAINTENANCE
−If the machine does not work properly, check by conducting simple
maintenance procedures. Otherwise, as for technical advice from
an authorized assistance centre.
−For any cleaning and/or maintenance operation take off the power
supply from the machine.
−Where parts are required, ask for ORIGINAL spare parts from the
distributor and/or from an authorized dealer.
−Use only ORIGINAL brushes.
−Do not take off the protections which require the use of tools for
their removal.
−Do not wash the machine with direct water jets or with high water
pressure nor with corrosive material.
−Every 200 working hours have a machine check by an authorized
service department.
−Before using the machine, check that all panels and coverings are
in their position as indicated in this use and maintenance
catalogue.
−Restore all electrical connections after any maintenance operation.
GENERAL RULES OF THE BATTERIES
−At any intervention on the batteries, use suitable acid-proof gloves
and glasses.
−Do not smoke near the batteries and do not approach them with free
flames.
−Check that a fire-extinguisher is available on site.
−Be very careful in case of leakages or liquid outlets because corrosive.
−Do not place any metallic tools onto the batteries. Risk of short
circuit!
−It is compulsory to hand over exhaust batteries, classified as
dangerous waste, to an authorized institution according to the
current laws.

TECHNICAL DESCRIPTION diamond
100AC diamond 130
Cleaning width
mm
1000
1300
in
40
51
Squeegee width
mm
1175
1550
in
46
61
Working capacity, up to
m2/h
7000
9100
sqft/h
75347
97951
Brushes diameter
mm
2x510
4 x 355
in
2x20
4 x 14
Brushes rpm rpm 162 220
Pressure on the brushes
kg
160
160
lbs.
353
353
Brushes motor
W
2000
1920
A
56
53
Suction motor
W
2x570
2x570
A
2x16
2x16
Suction vacuum
mbar
190
190
water lift
76
76
Traction motor
W
1200
1400
A
33
39
Type of drive Autom. Autom.
Movement speed (max)
km/h
7
7
mph
4.35
4.35
Maximum gradient % 10 10
Solution tank
l
235
235
gal
62
62
Recovery tank
l
250
250
gal
66
66
Machine length
mm
2025
2025
in
80
80
Machine height without roll-bar
mm
1330
1330
in
53
53
Height with rollbar, without blinking light
mm
1685
1685
in
66
66
Height with rollbar and blinking light
mm
1850
1850
in
73
73
Machine width (without squeegee)
mm
1040
1400
in
41
55
Weight of the machine (empty and without
batteries)
kg
600
600
lbs.
1323
1323
Gross weight of the machine
(in conformity with EN 60335-2-72 art. 5.z102)
kg
1510
1530
lbs.
3329
3373
Battery voltage V 36 36
Capacity of the batteries Ah5500 500
Weight of the batteries
kg
600
600
lbs.
1323
1323
Battery van (LxPxH)
mm
665x640x530
665x640x530
in
26x25x21
26x25x21
Acoustic pressure level
(in conformity with EN 60704-1) Lpa dB (A) <70 <70
Class
Protection level IP X3 X3
Packed machine weight
kg
650
650
lbs.
1433
1433
Package dimensions (LxDxH)
cm
213 x 115 x 165
213 x 115 x 165
in
84 x 45 x 65
84 x 45 x 65
III III

8
BEFORE USE
HANDLING OF THE PACKED MACHINE
The machine is supplied with suitable packing foreseen for fork lift
truck handling.
For the package dimensions please look at the “TECHNICAL
DESCRIPTION” table.
Do not place any packings on top.
UNPACKING THE MACHINE
1. Remove the external packing.
2. Move the machine backwards, as indicated in the figure, avoiding
heavy contacts to mechanical parts.
3. Keep the pallet for eventual transport.
The portable slope is not included in the packaging.
ACCESS TO THE BATTERY COMPARTMENT
1. Bring the machine on a levelled surface.
2. Rotate the seat platform forward up to the blocking of the
support.
3. Having finished any intervention, to close the battery
compartment, after having released the support, reposition the
seat platform.
BATTERY INSTALLATION AND SETTING OF THE BATTERY TYPE
The machine is equipped either with batteries in serial connection or
elements of DIN-type assembled together and connected in series for a
total of 36 Volt, placed in its appropriate compartment under the seat
platform and must be handled using suitable lifting equipment (due to
weight, considering the type of batteries chosen, and coupling system).
The batteries must be in accordance with CEI 21-5 Norms.
The machine and its battery check card foresee the use of traditional
lead batteries.
CHECK THE SETTING OF THE CHECK CARD (see under paragraph
"BATTERIES CHARGE LEVEL INDICATOR").
In case of GEL batteries installation, it is necessary to set the check card.
Please contact the authorized technical assistance.
Strictly follow manufacturer/distributor indications for the
maintenance and recharge of the batteries. All installation and
maintenance operations must be executed by specialized staff, using
suitable protection accessories.
For batteries installation it is necessary to reach the battery
compartment as indicated under paragraph “ACCESS TO THE BATTERY
COMPARTMENT”.
1. Place the batteries in its compartment.
2. Connect the terminals, respecting the polarities, avoiding
contact with other parts that could create short circuit.
ASSEMBLING OF THE ROLLBAR
For packing reasons, the support of the blinking light is supplied
disassembled.
Proceed as follows:
Take off the four fixing screws (1) from the rollbar.
Place the rollbar into their seats (2) on the tank.
Fasten the screws passing them in the same order in their holes
foreseen on the support.
Complete the assembly connecting the connectors (3) to supply the
blinking light.
BATTERY CHARGER
Make sure that the battery recharger is suitable for the installed
batteries both for their capacities and type (lead/acid or GEL and
equivalent).
In the plastic bag containing the use and maintenance you will find the
coupling connector for the recharger. It must be assembled onto the
cables of your recharger, following the instructions given by the
manufacturer.
CHARGING THE BATTERIES
1. Plug the connector (3) of the battery recharger into the battery
connector.
2. Proceed for the recharging.

9
Never charge a GEL battery with a non suitable recharger. Strictly
follow the instructions supplied by the batteries and recharger
manufacturer.
In order not to cause permanent damages to the batteries, it is
necessary to avoid their complete discharge, providing for the
recharging within a few minutes after that the batteries discharge
signal starts blinking.
NOTE: Never leave the batteries completely discharged even if the
machine is not used. In case of traditional batteries, please check the
electrolyte level every 20 recharging cycles and eventually top them up
with distilled water. Never leave the batteries discharged for more than
two weeks.
Danger of gas exhalations and emission of corrosive liquids. Fire
danger: do not approach with free flames.
CONNECTING THE BATT. CONNECTORS AND SWITCHING ON OF
THE MACHINE
Once that the battery recharging has been completed:
1. Disconnect the connector of the battery recharger from the
battery connector (1).
2. Connect then the battery connector (1) to the machine connector
(2).
3. To start any function of the machine, it is necessary to rotate
clockwise the key switch (5). Rotating it counterclockwise any
function will be switched off.
BATTERY CHARGE LEVEL
When the machine is switched on, on the display (1) appear in order the
following information:
1. the version (for example A003) of software installed on the
machine.
2. the setting of the battery check card which can be:
3. GE 36: check card set for GEL batteries.
or
4. Pb 36: check card set for lead batteries.
5. The batteries charge level indicator is digital and remains fixed on
the display. The battery charge level starts from 100, which
indicates the 100% of the total charge and decreases from 10 to
10. When the charge level reaches 20%, the display starts blinking,
so you are about the end of working.
After a few seconds of the indication 10% and after this, the blinking
of the four lines, all the functions stop automatically. With the
remaining charge it is anyhow possible to finish the drying operation
before proceeding to the recharge.
HOURMETER
The machine is equipped with an hour meter located on the same
display (1) of the battery charge level indicator. Pressing the button (2),
the first data indicates the working hours and after a few seconds the
working minutes are shown.
SQUEEGEE ASSEMBLY
1. Insert the two stud bolts (2) situated on the upper part of the
squeegee (3) inside the slots present on the support (1).
2. To block the squeegee tighten the stud bolts (2).
3. Insert the squeegee hose (4) into its coupling, respecting its
position as indicated in the figure.

10
ADJUSTING THE SQUEEGEE
In order to have a perfect drying result through the squeegee, the rear
rubber must have the lower bending uniformly adjusted in all its length.
For the adjustment, it is necessary to put oneself in working condition
and therefore the suction motor has to be switched on and the brushes
have to function together with the detergent solution.
The lower part of the rubber is too much bent
Take off the pressure rotating the wing nut (5) counterclockwise.
The lower part of the rubber is not much bent
Increase the pressure rotating the wing nut (5) clockwise. Check that
the wheels which adjust the height do not rest on the floor, in this case
adjust them as indicated in paragraph "Height adjustment".
The bending is not uniform
Adjust the squeegee inclination rotating counterclockwise the wing nut
(6) to increase the bending in the central part, or clockwise to increase
the bending on the extremities.
Height adjustment
Once that the pressure and inclination of the squeegee have been
adjusted, it is necessary to fix this optimum condition making touch
slightly the wheels onto the floor. Rotate clockwise the registers (7) to
lower the wheels or counterclockwise to raise them. Both wheels must
be adjusted in the same measure. To act upon the register (7) loosen at
the same time the two milled ring nuts, adjust the height acting on the
upper one and then fix the adjustment screwing and blocking the lower
one.
Every type of floor requires a specific adjustment. For example, concrete
floors (where the friction results to be high) need little pressure, while
smooth floors (ceramics) need higher pressure.
If the cleaning operations are made always on the same type of floor,
the adjustment can change only in function of the rubber wear.
ASSEMBLING THE SPLASHGUARDS
The two slash guards are already preassembled on the two metal covers.
To assemble the covers, it is necessary to proceed as follows:
1. Take off the clips (1) present on the pins (2) fixed to the brushes
base.
2. Assemble the cover onto the brushes base.
3. Reposition the clips (1) to block.
For the disassembly it is necessary to proceed inversely with above-
mentioned operation
(version 100)
(Version 130)
BRUSHES ASSEMBLY
To assemble the brushes it is necessary that the brushes base is in the
lifted position. If it is not lifted, proceed as follows:
Without the operator seated, turning the key switch clockwise, the
display comes on and after 3 seconds all working groups come off
automatically and are lifted from the floor.
With the brushes base group in lifted position, insert the brushes into
their plate seat underneath the brushes base turning them until the
three metal buttons are properly seated in their slots; rotate energically
the brushes to push the button towards the coupling spring until they
get blocked.
The figure shows the rotating sense for brushes coupling.
For a longer life of the brushes we suggest to invert daily their position.
Whenever brushes result to be deformed we suggest to reassemble
them in the same position, in order to avoid that the different
inclination of the bristles causes excessive motor overload or
troublesome vibrations.
FLOOR CLEANING
RECOVERY TANK
Verify that the squeegee hose couplings (1/2) are correctly inserted into
their seats and that the exhaust hose plug (4) placed in the rear part of
the machine is well closed.

11
Check that the inspection cap (3) placed on the upper part of the tank
is well closed.
Finally, verify the correct tightening of the closing lever (5) of the
cleaning door (6) placed in the lower part of the tank.
DETERGENT SOLUTION TANK
The capacity of the detergent solution tank is indicated in the technical
data.
Open the screw plug placed in the left part of the machine and fill the
detergent solution tank with clean water at a maximum temperature of
50°C (122°F). Add the liquid detergent in the percentage and conditions
foreseen by the manufacturer. To avoid excessive foam presence, which
could cause problems to the suction motors, use the minimum
percentage of detergent. Screw down the plug to close the solution
tank.
The switching on of the signal lamp of low detergent (19) indicates that
the detergent solution is nearly exhausted.
Use always low foam detergent. To avoid foam presence, before starting
working operation, introduce into the recovery tank a minimum
quantity of anti-foam product.
Never use pure acid.

12

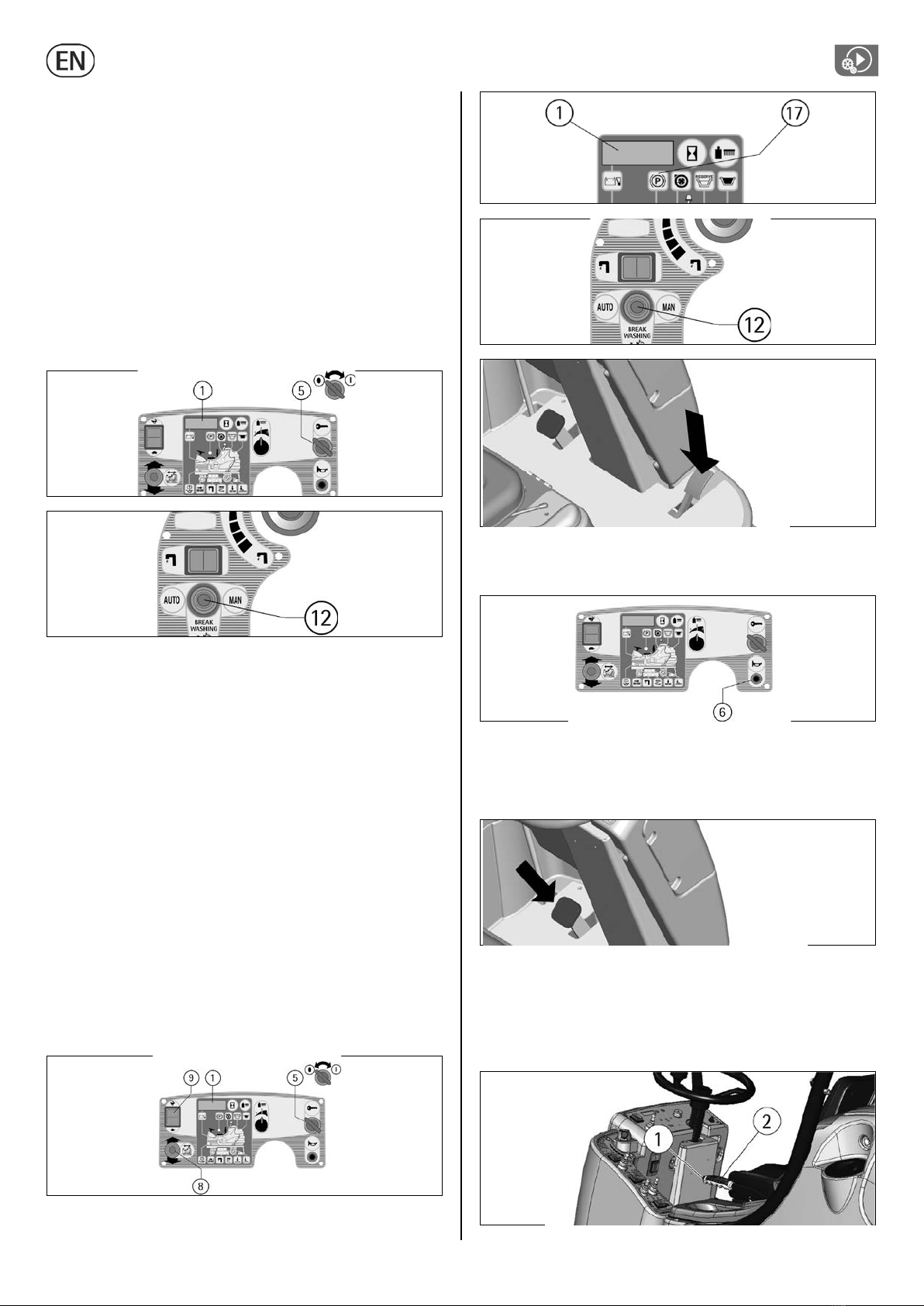

STARTING OF THE MACHINE
A safety device avoids the machine’s movement if the operator is not
seated correctly on the guiding place.
To switch on the machine:
1. Sit on the guiding place.
2. Turn the key switch (5) clockwise to switch on the machine.
3. Check the charge level of the batteries on the display (1).
4. With the selector (12) in central position (BREAK WASHING) the
transfer operations of the machine are carried out (see under
paragraph “FORWARD AND BACKWARD MOVEMENT").
5. Moving the selector (12) onto the left, the automatic (AUTO)
functioning is chosen. Moving it instead onto the right, the
functioning of the machine becomes manual (MAN):
a. If the selector (12) is in position (AUTO) the machine activates
and deactivates all the working functions in an automatic mode
(see under paragraph “WORKING IN AUTOMATIC MODE”).
b. If the selector (12) is in position (MAN) every function of the
machine has to be activated or deactivated manually (see under
paragraph “WORKING IN MANUAL MODE”).
FORWARD AND BACKWARD MOVEMENT
It is recommendable to carry out always the mere transfer of the
machine in mode (BREAK WASHING).
To proceed to activate the movement of the machine:
1. Sit on the guiding place.
2. Turn the key switch (5) clockwise to switch on the machine.
3. Check the charge level of the batteries on the display (1).
4. Release the parking brake. If the brake was inserted, the signal
lamp (17) would be switched on (see under paragraph
"EMERGENCY-PARKING BRAKE”).
5. Bring the selector (12) in central position (BREAK WASHING) to
carry out the mere transfer of the machine. In fact, in this mode
the washing functions of the machine are not working and only
the traction system functions.
6. Select the driving sense with the selector (8).
7. Press onto the accelerator pedal placed on the right side to start
the machine.
8. Adjust the driving speed in forward choosing the slow one (at the
maximum you can reach 4,5km/h - 2,8mph) or, pressing the same
selector (9) upwards, the faster one (at the maximum you can
reach 7 km/h - 4,35mph) can be obtained.
9. In backward movement, when the machine is moving, an
intermittent warning device is activated.
The machine is equipped with an automatic system that reduces the
speed when the drive direction is changed. The speed reduction is as
higher as sharper is the curve.
The speed returns again normally as soon as the machine gets out from
the curve and it runs along straight paths.
HORN
The machine is equipped with a horn which is activated pressing the
push button (6).
WORKING BRAKE
The machine is equipped with a hydraulic braking system that acts on
the rear wheels.
To brake it is sufficient to press the pedal placed at the left side of the
steering column releasing instead the accelerator pedal.
EMERGENCY-PARKING BRAKE
In case of an emergency pull the lever of the emergency and parking
brake (1) placed on the left side of the seat.
On the instrument board the signal lamp (17) comes on which signals
that the parking brake is inserted.
To release the parking brake press the button (2) placed at the final part
of the brake lever (1) and simultaneously lower it to the end.

13
AUTOMATIC SQUEEGEE LIFTING WHEN GOING BACKWARDS
Selecting the backwards movement the squeegee is brought
automatically to the upper position. It will then lower again in the
following forward movement.
This happens both in automatic as in manual mode in order to protect
the integrity of the squeegee.
WORKING IN AUTOMATIC MODE
The automatic operation is useful to simplify the operator’s work.
1. Activate the machine (see under paragraph “STARTING OF THE
MACHINE”) putting the selector (12) into the left position to
choose the automatic function (AUTO).
2. Check that the lever (10) is in the position of optimum flow,
depending on the type of floor and the type of dirt (see under the
paragraph “FLOW ADJUSTMENT OF THE DETERGENT SOLUTION”).
3. Selecting the sense of drive in forward with the selector (8),
pressing the accelerator pedal and adjusting the speed of the
forward movement with the selector (9), the machine starts to
proceed and in automatic mode all the working functions are
activated. In fact, automatically both the brushes base as the
squeegee go down, the brushes begin to turn, the solenoid valve
opens to permit the detergent solution to flow down onto the
brushes and the suction system is activated to recover the dirty
water from the floor.
Selecting the backward movement with the selector (8) the squeegee
lifts automatically and will then return to lower itself during the next
forward movement.
If the accelerator pedal is released for more than 3 seconds,
automatically all the functions are switched off and both the
brushes base as the squeegee are lifted.
Pressing again the pedal, the machine starts to move again and in
automatic mode all the working functions are reactivated.
WORKING IN MANUAL MODE
The manual mode is useful when, in special cases, it is necessary to carry
out separately only the washing with the brushes or only the drying of
the floor.
Activate the machine (see under paragraph “STARTING OF THE
MACHINE”) positioning the selector (12) to the right to choose the
manual mode (MAN).
TO CARRY OUT THE WASHING WITH ONLY THE BRUSHES:
1. Activate the selector (14) of up/down of the brushes base to lower
the brushes. Once that it is lowered, the brushes begin to turn. The
signal lamp (22) indicates that the brushes base is in the working
position, while the signal lamp (23) signals that the brushes are
turning.
2. Press the switch (11) to open the solenoid valve and permit the
detergent solution to lower onto the brushes. The signal lamp (24)
will come on to indicate that the solenoid valve is open.
3. Check that the lever (10) is in the position of optimum flow,
depending on the type of floor and the type of dirt (see under the
paragraph “FLOW ADJUSTMENT OF THE DETERGENT SOLUTION”).
TO CARRY OUT THE FUNCTION OF ONLY DRYING:
1. Activate the selector (15) of up/down squeegee to lower the
squeegee. The signal lamp (21) indicates that the squeegee is in the
working position.
2. Press the switch (16) of the suction motors to start the suction
system. The signal lamp (18) indicates that the machine is drying.
Selecting the sense of drive in forward with the selector (8), pressing
the accelerator pedal and adjusting the speed of the forward movement
with the selector (9), the machine starts to proceed and in automatic
mode all the working functions previously set are activated.
In manual mode every function of the machine has to be activated or
deactivated manually.

14
WORKING ADJUSTMENTS
Both in automatic as in manual mode, during the first metres check:
1. that the adjustment of the detergent solution flow is sufficient to
wet the floor uniformly avoiding the leakage of detergent from
the splash guards (see under paragraph “FLOW ADJUSTMENT OF
THE DETERGENT SOLUTION”).
2. that the squeegee adjustment guarantees a perfect drying result
(see under paragraph “ADJUSTMENT OF THE SQUEEGEE”).
3. that the brushes pressure permits an efficient washing action in
function of the dirt and the speed (see under paragraph
“ADJUSTMENT OF THE BRUSHES PRESSURE”).
FLOW ADJUSTMENT OF THE DETERGENT SOLUTION
To adjust the detergent solution quantity that flows down onto the
brushes it is necessary to act upon the solution valve knob (10) placed
on the upper part of the side instrument board, rotating
counterclockwise to increase it and clockwise to reduce it up to closure
of the flow.
BRUSHES PRESSURE ADJUSTMENT
Using the knob (4) it is possible to adjust the brushes pressure on the
floor on three preset levels. On the display (1) the pressure previously
set can be seen, by pressing the button (3).
The adjustment is made this way on both manual and automatic mode.
To avoid overloading the brushes motors it is bette to decrease the
brushes pressure when switching from smooth to rough floors (i.e.
concrete floors).
ELECTRIC PROTECTION
The machine is equipped with an electronic system of amperemetric
protection for the principal working functions. This control device
disconnects the function of the interested component that shows the
problem and indicates on the display (1) the corresponding alarm, for
example ”AL01”, “AL03”.
The last two figures indicate the code number of the alarm.
To restore the functioning of the component, turn off and on again the
machine acting upon the key switch. If the alarm persists, please
contact the authorized technical assistance.
OVERFLOW DEVICE
In order to avoid serious damages to the suction motors, the machine is
equipped with a float that intervenes when the recovery tank is full,
closing the suction, the switching on of the signal lamp (20) for the
signaling of the full recovery tank and consequently to the drying stop.
When this happens, it is necessary to empty the recovery tank (see
under paragraph “RECOVERY TANK EMPTYING AND CLEANING”).
SELECTING AND WORKING ON 3S “SOLUTION SAVING SYSTEM”
MODE
To work with the 3S “Solution
Saving System”
select a water
carriage using the knob (1).
On manual mode the detergent solution flow is constant and related to
the water carriage selected using the knob.
On automatic mode the carriage of the detergent solution flow changes
accordingly to the speed, up to the maxim set, in order to have a
constant water carriage per square meter.
If the machine is steady then the speed will be zero and no water will
come out.
STOP OF THE MACHINE AFTER CLEANING OPERATION
IN AUTOMATIC OR MANUAL WORKING MODE:
1. At the end of the washing cycle put the selector (12) into the
central position (BREAK WASHING). In this way automatically the
brushes lift, the solenoid valve shuts down and it is possible to
finish the drying operation.
2. When the accelerator pedal is released for more than 3 seconds,
the squeegee raises itself and the suction switches off
automatically.
3. After three seconds, the accelerator can be pressed again, if a
machine's transfer has to be made (the transfer can be carried out
also if the pedal is never lifted, in this case the squeegee gets lifted
and the suction stop automatically after 15 seconds).
4. Turn the switch key counterclockwise to switch off the machine.
5. Insert the parking brake (see under paragraph “EMERGENCY-
PARKING BRAKE”).
The mode (BREAK WASHING) is specific for the transfer at the end of
the cleaning operation.
Starting again the cleaning operation:
A. by positioning to the left the selector (12) into position (AUTO) one
can start again to work in an automatic mode.
B. by positioning to the right the selector (12) into position (MAN)
the machine re-establishes the functions pre-set manually.

15
DAILY MAINTENANCE
RECOVERY TANK EMPTYING AND CLEANING
1. Hold the exhaust hose (1) placed in the rear part of the machine
after having taken it off from its fixing support.
2. Take off the plug (2) from the exhaust hose acting upon its lever
(3) and empty the recovery tank into appropriate containers, in
compliance with the respective rules what the liquid disposal
concerns.
3. Unscrew and take off the upper inspection cap (4).
4. Rinse the inside of the tank with a water jet through the
inspection hole paying attention to clean also the protection of
the float switch placed right under the hole.
5. In case there should be solid waste or encrustation on the bottom
of the tank, it is possible to use the lower cleaning door (6). To
open it, it is necessary to act upon the lever (7) to release the
closing bracket (8).
6. Reassemble all parts.
Do not open the lower cleaning door if the recovery tank contains
water, check through the upper inspection cap that it is empty.
SUCTION FILTER CLEANING
1. Rotate the seat platform forward up to the blocking of the
support.
2. Take off the upper hose (1).
3. Unhook the lever closings (2).
4. Take off the plate with the filters (3) and wash it with care.
5. Reassemble all parts.
BRUSHES CLEANING
Disassemble the brushes and clean them with a water jet (for the
brushes disassembly see under paragraph “BRUSHES DISASSEMBLY”).
DISASSEMBLING THE BRUSHES
To disassemble the brushes it is necessary that the brushes base is in the
lifted position. If it is not lifted, proceed as follows:
Without the operator seated, turning the key switch clockwise, the
display comes on and after 3 seconds all working groups come off
automatically and are lifted from the floor.
Switch off the machine turning the key counterclockwise.
Rotate the brushes energically in order to release the button from the
coupling spring until it becomes free and wash them with a water jet.
The figure shows the rotating sense for brushes release,.
AUTOMATIC BRUSHES UNLOCKING (VERSION 130)
With the brushes base in up
position and the speed lever in
its middle position, press the
brush base button (1) for a few
seconds.

16
SQUEEGEE CLEANING
Keeping the squeegee clean guarantees always the best drying result.
For its cleaning it is necessary to:
1. Take off the squeegee hose (4) from the coupling.
2. Disassemble the squeegee (3) from its support (1) loosening the
stud bolts (2) and making them slide inside the slots up to release
them.
3. Clean with care the internal part of the squeegee inlet eliminating
eventual dirt residuals.
4. Clean with care the squeegee rubbers.
5. Reassemble all parts.
WEEKLY MAINTENANCE
REAR SQUEEGEE RUBBER CHECK
Check the squeegee rubber wear and eventually turn or replace it.
For the replacement it is necessary to:
1. Take off the squeegee (see under paragraph “SQUEEGEE
CLEANING”).
2. Unhook the couplers (1), unscrew the wing nuts (2) that block the
rubber blade and take off the rubber.
3. Turn the rubber to a new side or replace it.
4. To reassemble the squeegee repeat inversely above-mentioned
operations, inserting the rubber on the guides and blocking it with
the rubber holder blade.
SQUEEGEE HOSE CLEANING
Weekly or in case of insufficient suction, it is necessary to check that
the squeegee hose is not obstructed. Eventually, to clean it, proceed as
follows:
1. Take off the hose (1) from the squeegee coupling.
2. Wash the inside of the hose with a water jet.
3. To reassemble the hose repeat inversely the above-mentioned
operations.
CLEANING OF THE SOLUTION TANK AND OF THE OUTER FILTER
Bring the machine to an appropriate place for the detergent solution
draining.
1. Unscrew the solution tank cap (1).
2. Unscrew the cap of the exhaust filter (2) and take off the filter. Be
careful not to lose the gasket of the cap.
3. Open the solution valve adjustment (see under paragraph “FLOW
ADJUSTMENT OF THE DETERGENT SOLUTION”), so that the
detergent solution flows down into appropriate containers.
4. Rinse with a water jet the solution tank and the components of
the filter.
5. Reassemble all parts.
NOTE: in case of need it is possible to wash only the components of the
outer solution filter as above-mentioned by closing the solution valve
adjustment (see under paragraph “FLOW ADJUSTMENT OF THE
DETERGENT SOLUTION”), so that the detergent solution remains in the
solution tank.
TWO-MONTHLY MAINTENANCE
FRONT SQUEEGEE RUBBER CHECK
Check the wear of the squeegee rubber and eventually replace it.
For the replacement it is necessary to:
1. Take off the squeegee (see under paragraph “SQUEEGEE
CLEANING”).
2. Unscrew the wing nuts in the front part of the squeegee.
3. Take off the rubber holder blade.
4. Replace the front rubber.
5. Reassemble all parts.
SIX-MONTHLY MAINTENANCE
SPLASH GUARD RUBBER CHECK
With the brushes assembled, the splash guards must slightly touch the
floor. If they are worn, they have to be replaced.
Disassemble first the two metal covers (see under paragraph “SPLASH
GUARD ASSEMBLY”) and then act upon the screws to disassembly the
blades and the rubbers to be replaced.

17
TROUBLESHOOTING GUIDE
NOTE: The machine is equipped with a control system of the main
functions with indication on the display of a probable malfunction with
codified alarms: AL01, AL02 up to AL19. Instead, a problem on the drive
functioning foresees a check of the quantity of blinkings to be read on
the led placed on the chopper card.
If with the key switch positioned clockwise to switch on the machine
the display and other functions are not activated, it is necessary to
check the batteries' connection to the machine (see under paragraph
“CONNECTION BATTERIES' CONNECTION AND SWITCHING ON OF THE
MACHINE”). If the problem persists, please contact the authorized
technical assistance.
THE SUCTION MOTOR DOES NOT WORK
1. Verify that the key switch (5) is positioned clockwise to switch on
the machine. In presence of alarm signals it is necessary to switch
off and on again the machine to restore the functionality.
2. Check the charge level of the batteries on the display (1).
3. Verify of having activated correctly the function of drying (see
under paragraph “STARTING OF THE MACHINE”).
If, both in mode (MAN) as (AUTO), the signal lamp (18) is on but the
suction system does not work, it is necessary to check the connection of
the suction motor plugs situated in the compartment behind the seat.
4. Check that the recovery tank is not full.
5. Check that the float switch (2) in the recovery tank is assembled
correctly.
If the problem persists, please contact the authorized technical
assistance.
THE BRUSHES MOTOR DOES NOT WORK
1. Verify that the key switch (5) is positioned clockwise to switch on
the machine. In presence of alarm signals it is necessary to switch
off and on again the machine to restore the functionality.
2. Check the charge level of the batteries on the display (1).
3. Verify of having activated correctly the function of washing with
the brushes (see under paragraph “STARTING OF THE MACHINE”).
4. If, both in mode (MAN) as (AUTO), the signal lamp (23) is on but
the brushes do not turn, please contact the authorized technical
assistance.
If the problem persists, please contact the authorized technical
assistance.
THE TRACTION MOTOR DOES NOT WORK
1. Sit on the guiding place.
2. Verify that the key switch (5) is positioned clockwise to switch on
the machine. In presence of alarm signals it is necessary to switch
off and on again the machine to restore the functionality.
3. Check the charge level of the batteries on the display (1).
4. Check through the signal lamp (17) that the parking brake is not
inserted and eventually release it (see under paragraph
“EMERGENCY-PARKING BRAKE”).
5. Check that the selector (8) is in the movement position.
6. Press the accelerator pedal placed on the right side to start the
machine.
If the problem persists, please contact the authorized technical
assistance.
WATER DOES NOT COME DOWN ONTO THE BRUSHES OR IS
INSUFFICIENT
1. Verify that the key switch (5) is positioned clockwise to switch on
the machine.
2. Check the charge level of the batteries on the display (1).
3. Verify of having activated correctly the function of washing with
the brushes (see under paragraph “STARTING OF THE MACHINE”).
4. Check that the solution valve is open (see under paragraph “FLOW
ADJUSTMENT OF THE DETERGENT SOLUTION”).
5. If, both in mode (MAN) as (AUTO), the signal lamp (24) is on but
the detergent solution does not come down onto the brushes, it is
necessary to:
A. check the level of the liquid in the tank.
B. check that the solution filter is clean (see under paragraph
“CLEANING OF THE SOLUTION TANK AND OF THE OUTER
FILTER”).
If the problem persists, please contact the authorized technical
assistance.

18
THE MACHINE DOES NOT CLEAN PROPERLY
1. The brushes do not have the suitable bristle dimension: contact the
authorized technical assistance.
2. The brushes have got worn bristles. Check the brushes wear
condition and eventually replace them (the brushes have to be
replaced when the bristles have reached a height of about 15mm).
3. To replace the brushes, see instructions under paragraph “BRUSHES
DISASSEMBLY” and “BRUSHES ASSEMBLY”.
4. The detergent solution is insufficient: open more the solution valve
(see under paragraph “FLOW ADJUSTMENT OF THE DETERGENT
SOLUTION”).
5. Check that the liquid detergent is in the recommended percentage.
6. Increase the brushes base pressure (see under paragraph
"ADJUSTMENT OF THE BRUSHES PRESSURE").
Contact the authorized technical assistance for advice.
THE SQUEEGEE DOES NOT DRY PERFECTLY
1. Check that the suction function is on and that the recovery tank is
not full.
2. Check that the squeegee rubbers are clean (see under paragraph
“SQUEEGEE CLEANING”).
3. Check the adjustment of the height and the inclination of the
squeegee (see under paragraph “ADJUSTMENT OF THE SQUEEGEE”).
4. Check that the suction and the squeegee hoses are correctly
inserted in their proper seats on the recovery tank.
5. Clean the suction filter (see under paragraph “SUCTION FILTER
CLEANING”).
6. Clean the squeegee hose (see under paragraph “SQUEEGEE HOSE
CLEANING”).
7. Replace the rubbers if worn out.
Contact the authorized technical assistance for advice.
EXCESSIVE FOAM PRODUCTION
Check that low foam detergent has been used. Eventually add small
quantities of anti foam liquid into the recovery tank.
Please be aware that a bigger quantity of foam is produced when the
floor is not very dirty. In this case please dilute detergent solution.
PROGRAMMED MAINTENANCE
ORDINARY PERIODICAL MAINTENANCE CHART
WORK
DAILY
PERIODICAL
CLEANING OF THE RECOVERY TANK
•
CLEANING THE SUCTION FILTER
•
CLEANING THE SOLUTION FILTER
•
CLEANING THE BRUSHES
•
DISASSEMBLING AND CLEANING OF THE BRUSHES
•
CLEANING THE SQUEEGEE
•
SQUEEGEE FRONT RUBBER CHECK
•
SQUEEGEE REAR RUBBER CHECK
•
SPLASHGUARDS CHECK
•
SQUEEGEE ADJUSTMENT CHECK
•
CLEANING THE SQUEEGEE HOSE
•
CLEANING THE SOLUTION TANK
•
BATTERIES ELECTROLITE CHECK
•
SEr1 WARNING
The machine is provided with a system that warns when it is time for
the programmed maintenance.
Such signal is shown on the display as SEr1.
If this signal is shown please call an authorized assistance center to do
the maintenance.
