ADIATEK Topaz 90 User guide

Topaz 90
01 2019
Use and maintenance
Warning! Please read the instructions before use.

3
INTRODUCTORY COMMENT
Thank you for having chosen our machine. This floor cleaning machine is used for the industrial and civil cleaning and is able to clean any type of
floor. During its advance movement, the combined action of the brushes and the detergent solution removes the dirt which is aspirated through the
rear suction assembly, giving a perfectly dry surface.
The machine must be used only for such purpose. It gives the best performance if it is used correctly and maintained in perfect efficiency. We
therefore ask you to read this instruction booklet carefully whenever difficulties arise in the course of the machine’s use. In case of need, we ask you
to contact our service department for all advice and servicing as may prove necessary.
SUMMARY
INTRODUCTORY COMMENT 3
GENERAL RULES OF SAFETY 4
Transfer 4
Storage and disposal 4
Correct use 4
Maintenance 4
GENERAL RULES OF THE BATTERIES 4
TECHNICAL DESCRIPTION 5
STEERING WHEEL PANEL 6
CONTROLS BOARD LEGEND 6
MACHINE LEGEND 6
DISPLAY READING 7
Display while switching on 7
Battery settings 7
Software release 7
Controls display 7
MANUAL SYMBOLOGY 8
BEFORE USE 9
Handling of the packed machine 9
Unpacking the machine 9
Rollbar 9
Access to the battery compartment 9
Installing the batteries 9
Batteries charge level indicator 10
Charging the batteries 10
Squeegee assembly 10
Adjusting the squeegee 10
Assembling and disassembling the splash guards 10
Adjusting the splash guards 11
Assembling the brushes 11
Adjusting the steering wheel 11
Adjusting the footboard 11
Adjusting the seat 12
FLOOR CLEANING 13
Connecting the battery connector and switching on the machine 13
Recovery tank 13
Solution tank 13
Detergent solution reserve signal 13
Flow rate selection 13
WORK 13
Manual mode work 13
Brushes pressure adjustment 14
Speed adjustment, forward and backward 14
Automatic mode work 14
Standard mode - 3S 14
Selection mode standard - 3S 15
Optional mode – 3SD (Solution Saving System Dispenser) 15
Selection mode standard – 3SD 15
Installation detergent tank (mode 3SD) 15
Selection detergent level (mode 3SD) 15
Suction motor silent mode 15
Standby mode 15
Horn 16
Emergency button 16
Parking brake 16
Manual movement of the machine 16
Overflow system 16
STOP OF THE MACHINE AFTER CLEANING OPERATION 17
Break washing mode 17
DAILY MAINTENANCE 17
Draining and cleaning the recovery tank 17
Cleaning the suction filter 17
Automatic disassembly of the brushes 18
Cleaning the brushes 18
Cleaning the squeegee 18
WEEKLY MAINTENANCE 18
Rear squeegee rubber check 18
Cleaning the squeegee hose 18
Cleaning the solution tank and the filter 18
TWO-MONTHLY MAINTENANCE 19
Front squeegee rubber check 19
SIX-MONTHLY MAINTENANCE 19
Splash guard rubber check 19
TROUBLESHOOTING GUIDE 19
The suction motor does not work 19
The brushes motor does not work 19
The traction motor does not work 20
Water does not come down onto the brushes 20
The machine does not clean properly 20
The squeegee does not dry perfectly 20
Excessive foam production 20
PROGRAMMED MAINTENANCE 21
Periodic ordinary maintenance chart 21

4
GENERAL RULES OF SAFETY
The rules below have to be followed carefully in order to avoid injury
to the operator and damage to the machine.
−Read the labels carefully on the machine. Do not cover them for
any reason and replace them immediately if damaged.
−ATTENTION: The machine must be used exclusively by authorized
staff that have been instructed on its correct and proper use.
−ATTENTION: Do not use the machine on areas having a higher
gradient than the one stated on the number plate.
−ATTENTION: The machine is not to be used by persons, children
included, with reduced physical, sensorial or mental capabilities, or
with lack of experience or knowledge, unless they could benefit,
through the intermediation of a responsible person for their safety,
by a supervision or instructions concerning to its use.
−During the operation of the machine, pay attention to other people
and especially to the children.
−Children shall not play with the machine.
−Children cannot carry out cleaning and maintenance of the
machine.
TRANSFER
−Do not strike shelvings or scaffoldings where there is danger of
falling objects.
−Leaving the machine in parking position, take off the key.
−Do not use the machine as a means of transport.
−Adapt the working speed to the adhesion conditions: particularly,
slow down before narrow curves have to be faced.
STORAGE AND DISPOSAL
−Storage temperature: between 0°C and +55°C (32°F and 131°F).
−Perfect operating temperature: between 0°C and +40°C (32°F and
104°F).
−The humidity should not exceed 95%.
−Provide for the scrapping of the material of normal wear following
strictly the respective rules.
−The batteries need to be removed from the machine before its
scrapping.
−When your machine has to stop activity, provide for the
appropriate waste disposal of its materials, especially oils, batteries
and electronic components, and considering that the machine itself
has been, where possible, constructed using recyclable materials.
CORRECT USE
−Do not use the machine on surfaces covered with inflammable
liquids or dusts (for example hydrocarbons, ashes or soot).
−In case of fire, use a powder-based fire-extinguisher. Do not use
water.
−Do not use the machine in explosive atmosphere.
−The machine has to carry out simultaneously the operations of
washing and drying. Different operations must be carried out in
restricted areas prohibited to non-authorized personnel and the
operator has to wear suitable shoes.
−Signal the areas of moist floors with suitable signs.
−Do not mix different detergents, avoiding harmful odours.
−Avoid brushes operation when the machine is standing still in order
to prevent floor damages.
MAINTENANCE
−If the machine does not work properly, check by conducting simple
maintenance procedures. Otherwise, as for technical advice from
an authorized assistance centre.
−For any cleaning and/or maintenance operation take off the power
supply from the machine.
−Where parts are required, ask for ORIGINAL spare parts from the
distributor and/or from an authorized dealer.
−Do not take off the protections which require the use of tools for
their removal.
−Do not wash the machine with direct water jets or with high water
pressure nor with corrosive material.
−Every 200 working hours have a machine check by an authorized
service department.
−Before using the machine, check that all panels and coverings are
in their position as indicated in this use and maintenance
catalogue.
−Restore all electrical connections after any maintenance operation.
GENERAL RULES OF THE BATTERIES
−At any intervention on the batteries, use suitable acid-proof gloves
and glasses.
−Do not smoke near the batteries and do not approach them with
free flames.
−Check that a fire-extinguisher is available on site.
−Be very careful in case of leakages or liquid outlets because
corrosive.
−Do not place any metallic tools onto the batteries. Risk of short
circuit!
−It is compulsory to hand over exhaust batteries, classified as
dangerous waste, to an authorized institution according to the
current laws.

5
TECHNICAL DESCRIPTION U/M
Cleaning width mm 900
Squeegee width mm 1175
Working capacity, up to m2/h 6750
Brushes diameter mm 2 x 460
Brushes rpm rpm 190
Pressure on the brushes kg 140
Brushes motor W 2 x 700
Traction motor W 1200
Suction motor W 2 x 570
Suction vacuum mbar 190
Type of drive automatic
Movement speed (max) km/h 7,5
Maximum gradient % 10
Solution tank l 180
Reserve solution tank l 20
Recovery tank l 190
Machine length mm 1962
Machine height with roll-bar (without roll-bar) mm 1865 (1613)
Machine width (without squeegee) mm 985
Weight of the machine (empty and without batteries) kg 458
Gross weight of the machine
(in conformity with EN 60335-2-72 art. 5.z102) kg 1093
Battery voltage V 36
Capacity of the batteries Ah5320
Weight of the batteries kg 380
Battery van (LxPxH) mm 540 x 620 x 460
Acoustic pressure level (in conformity with EN 60704-1) Lpa dB (A) <70
Sound power level Lwa dB (A) <70
Class
Protection level IP 23
Packed machine weight kg 538
Package dimensions (LxDxH) cm 213x181x115
III

6

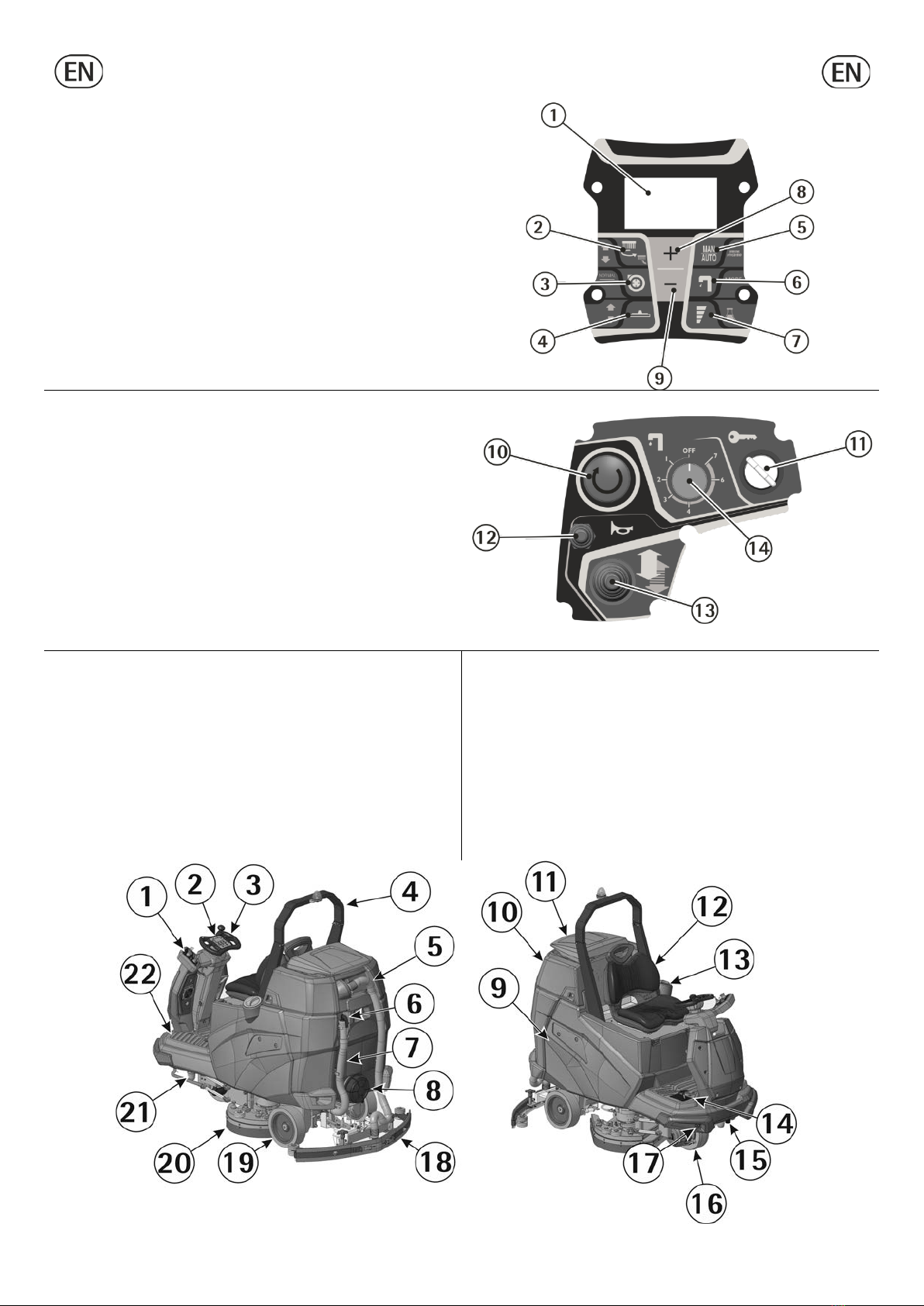

STEERING WHEEL PANEL
1. DISPLAY
2. UP/DOWN BRUSHES BUTTON
3. ON/OFF SUCTION MOTOR BUTTON
4. UP/DOWN SQUEEGEE BUTTON
5. MODE SELECTOR BUTTON
•AUTOMATIC
•MANUAL
•BREAK WASHING
6. MODE BUTTON (WATERWORKS SELECTION)
7. DETERGENT SOLUTION LEVEL BUTTON
8. MAXIMUM SPEED INCREASE BUTTON
9. MAXIMUM SPEED DECREASE BUTTON
CONTROLS BOARD LEGEND
10. SAFETY BUTTON
11. KEY SWITCH
12. HORN
13. DIRECTION LEVER (FORWARD/BACKWARD)
14. FLOW RATE SELECTOR
MACHINE LEGEND
1. CONTROLS BOARD
2. STEERING WHEEL PANEL
3. STEERING WHEEL
4. ROLLBAR
5. SQUEEGEE HOSE
6. DRAIN HOSE CAP
7. DRAIN HOSE
8. RECOVERY TANK DRAIN HOSE CAP
9. SOLUTION TANK
10. RECOVERY TANK
11. RECOVERY TANK COVER
12. SEAT
13. SOLUTION TANK CAP
14. DRIVE PEDAL
15. SOLUTION TANK DRAIN CAP
16. TRACTION WHEEL
17. FRONT LIGHT
18. SQUEEGEE ASSEMBLY
19. REAR WHEELS
20. BRUSHES BASE ASSEMBLY
21. DETERGENT SOLUTION FILTER
22. FOOTBOARD

7
DISPLAY READING
DISPLAY WHILE SWITCHING ON

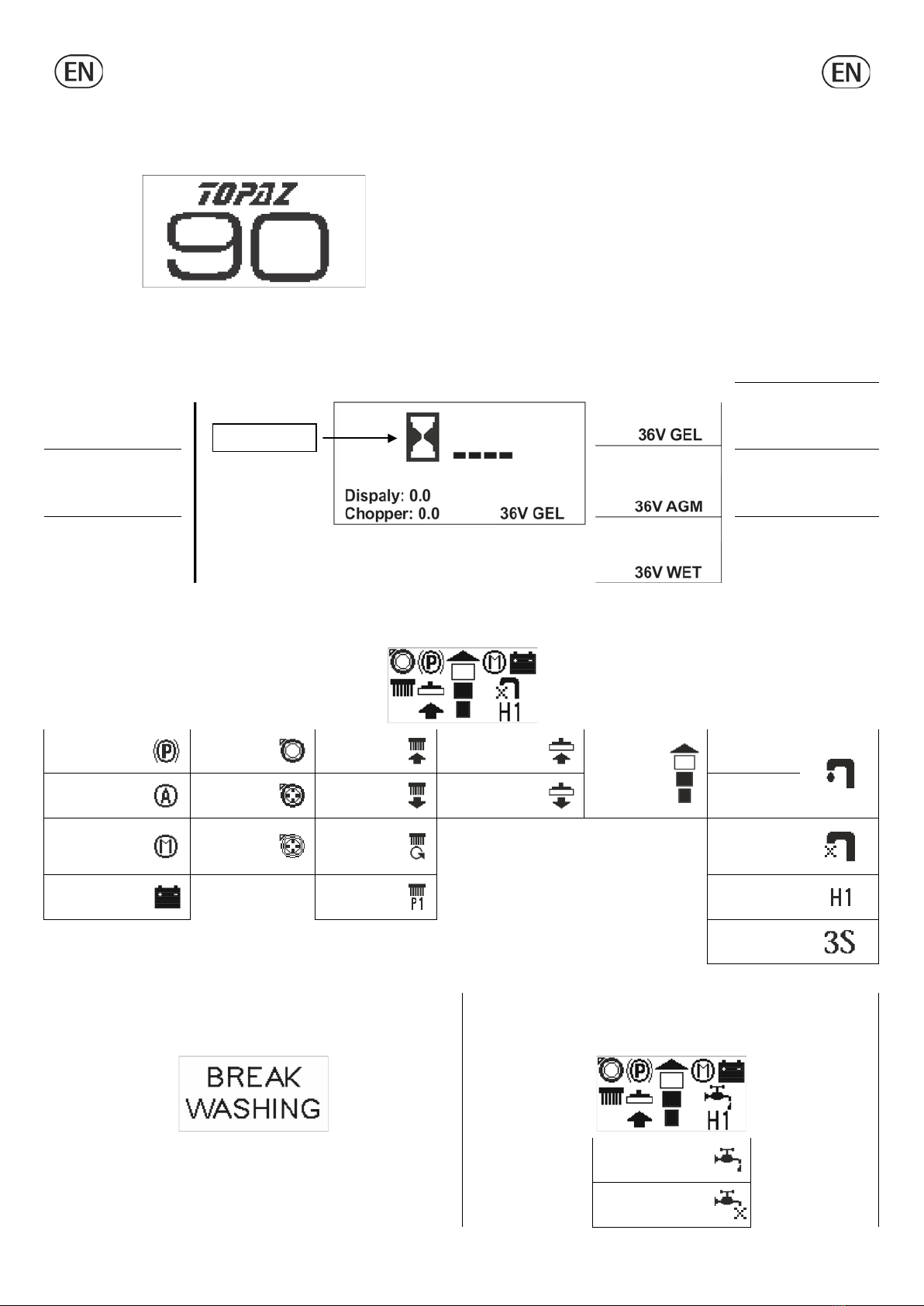

When the machine is switched on, the display shows the following screen.
Next screen will be displayed as follows:
BATTERY SETTINGS
SOFTWARE RELEASE Gel batteries settings
Display card software
release AGM batteries settings
Chopper card software
release
Lead/acid batteries
settings
CONTROLS DISPLAY Standard Mode
Parking brake
on
Suction
motor off
Brush base
up Squeegee up Maximum
speed
level set
Standard
mode
selection
Automatic
mode
Suction
motor on
Brush base
down
Squeegee
down
Solenoid
valve on
Manual mode
Suction
motor
quiet
mode
Brushes on Solenoid
valve off
Battery charge
level
Brush base
pressure
level
Water flow
level
3S mode
selection
After selecting the break washing mode (see Break Washing mode selection
chapter), the display will show the following input:
After selecting the 3S (see the 3S mode paragraph), the display will
show the following controls:
Break washing Mode
3S Mode
Solenoid valve
open
Solenoid valve
closed
HOUR METER

8
MANUAL SYMBOLOGY
Icon denoting the open book.
Indicates that the operator has to read the
manual before the use of the machine.
Obligation symbol requiring the wear of
protection glasses.
Icon denoting the open book.
For the good functioning of the battery
recharger, read the manual of the constructor.
Obligation symbol requiring the wear of
protection gloves.
Warning lcon.
Read carefully the sections marked with this
symbol, for the security of both the operator
and the machine.
Symbol preceding an information about the
correct use of the machine.
Warning Icon.
Risk of acid leakage from the batteries.
Symbol indicating operations to be carried out
only by qualified personnel.
This icon points that it is imperative to
disconnect the wiring from the batteries acting
upon the connector before any operation on
the machine.
Icon indicating the part of the manual related
to the unboxing, preparation and start of the
machine.
Icon indicating the part of the manual related
to the machine use.
Icon indication the part of the manual related
to the maintenance of the machine.

9
BEFORE USE
HANDLING OF THE PACKED MACHINE
The machine is supplied with suitable packing foreseen for fork lift
truck handling.
For the package dimensions please look at the “TECHNICAL
DESCRIPTION” table.
Do not place more than 2 packagins on top of each other.
UNPACKING THE MACHINE
1. Remove the external packing.

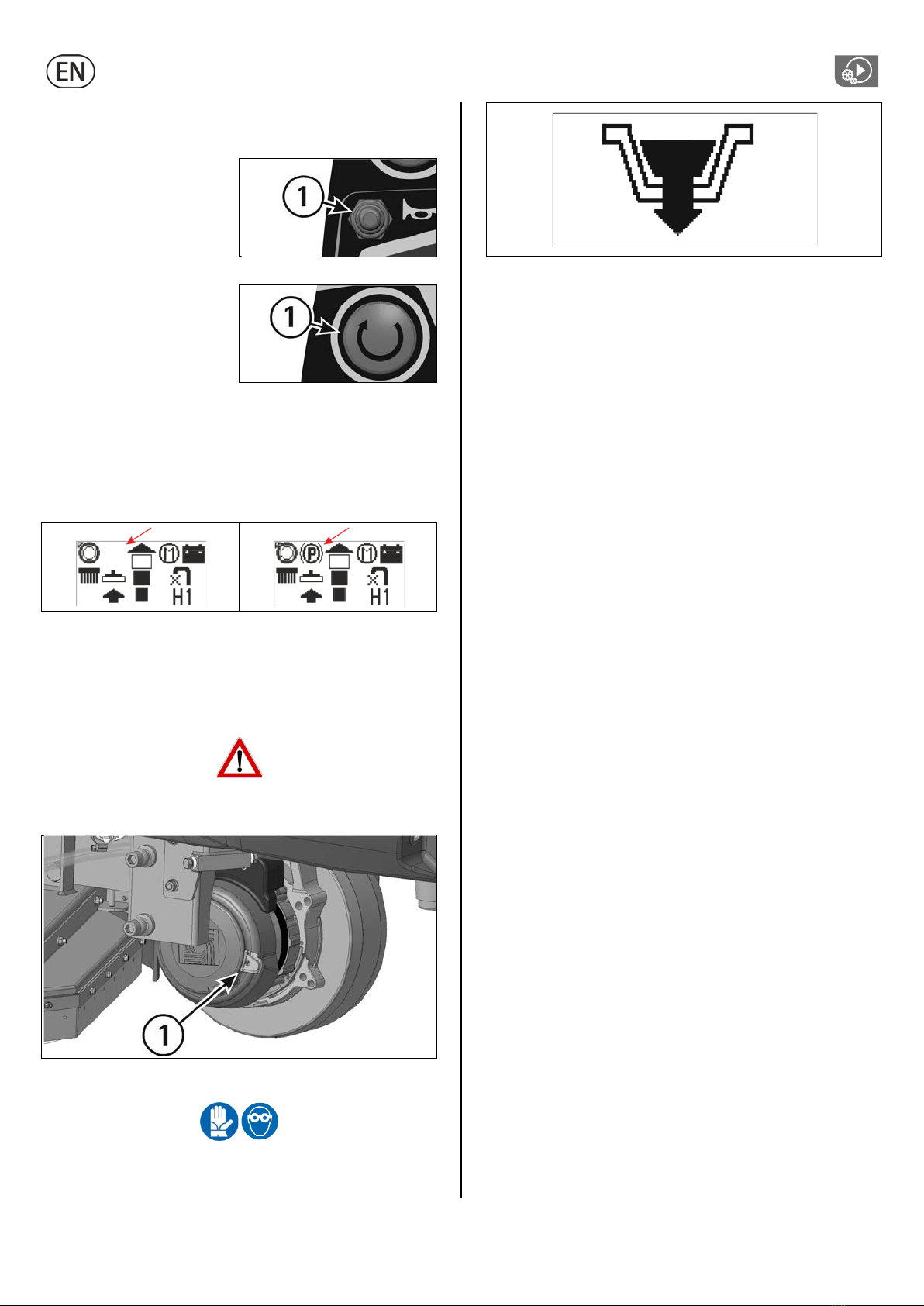

2. Before moving the machine from the pallet, it is necessary to
unblock the parking brake that blocks the traction motor wheel.
To do this, keep the lever (1) lifted. With the delivery of the
machine we also supply a cord that permits the lever operation
(1). After having moved the machine, take off the cord and keep
it for eventual re-use.
When the parking brake is released manually, for example when the
machine has to be moved without batteries, avoid covering slopes
and do not park on them either.
3. Release the machine from the wooden brackets by moving it
backwards, as indicated in the figure, avoiding heavy contacts to
mechanical parts.
Keep the pallet and the wooden brackets for an eventual transport.
The portable slope is not included in the packaging.

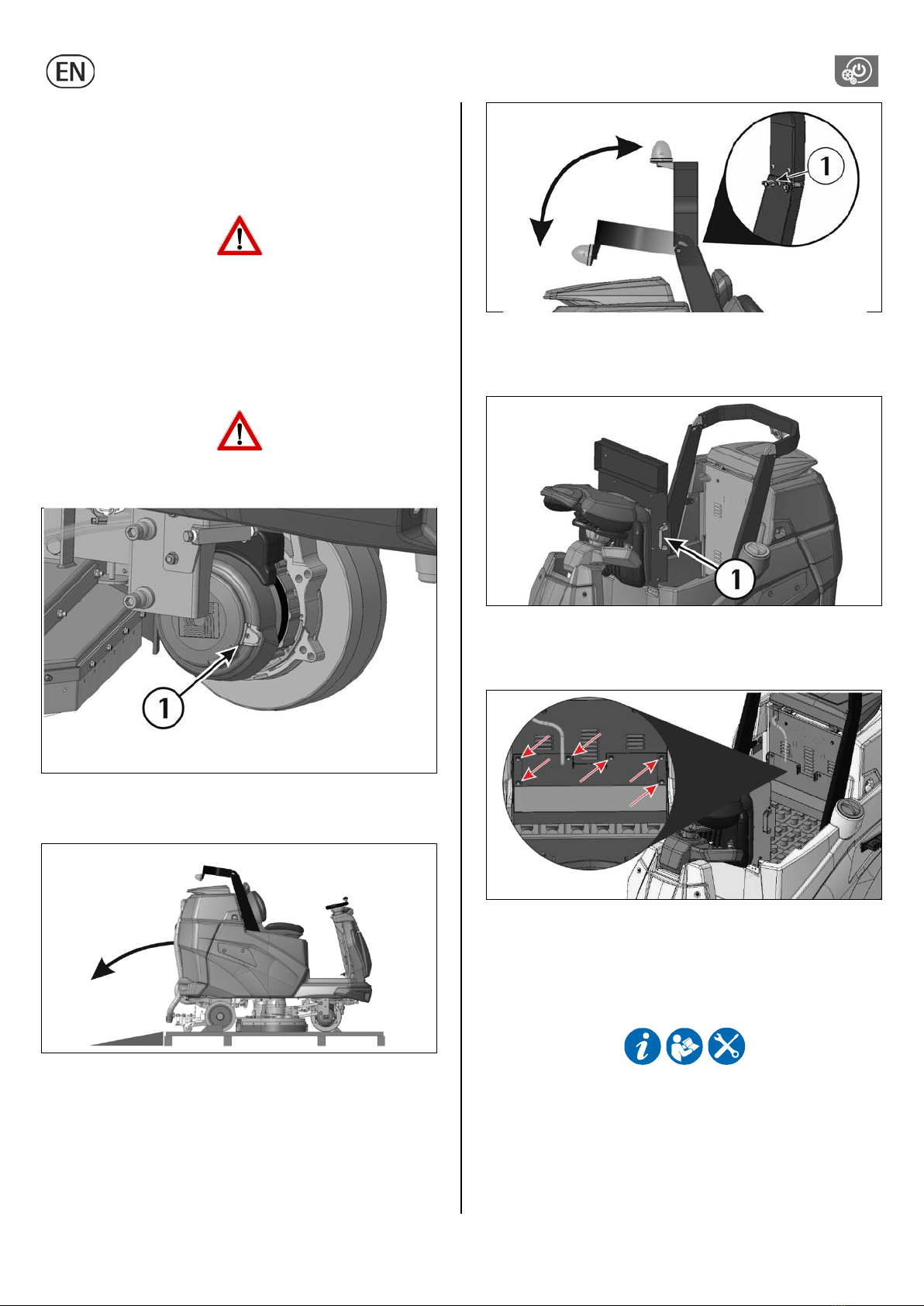

ROLLBAR
The machine is provided with a tipping rollbar.
To rotate the rollbar from an open to a closed position, or the other
way around, work on blocks (1).
ACCESS TO THE BATTERY COMPARTMENT
Open the rollbar.
To reach the battery compartment lift the seat base by grabbing the
handle (1).
If the machine is equipped with the optional 3SD water system, it is
necessary to take off the support of the detergent tanks after lifting
the seat base.
To remove the support, unscrew the 6 fixing screws.
INSTALLING THE BATTERIES
The standard machine is provided with the batteries set on lead/acid.
For different settings see chapter “BATTERY SETTINGS”.
Batteries must be handled using suitable lifting equipment (due to
weight, considering the type of batteries chosen, and coupling
system).
The batteries must be in accordance with CEI 21-5 Norms.
Strictly follow manufacturer/distributor indications for the
maintenance and recharge of the batteries. All installation and
maintenance operations must be executed by specialized staff, using
suitable protection accessories.
For batteries installation it is necessary to reach the battery
compartment as indicated under paragraph “ACCESS TO THE BATTERY
COMPARTMENT”.
1. Place the batteries in its compartment.

10
2. Connect the terminals, respecting the polarities, avoiding
contact with other parts that could create short circuit.
BATTERIES CHARGE LEVEL INDICATOR
The battery charge level is visualized on the display with its respective
symbol (see "CONTROLS DISPLAY").
When the last segment of charge starts blinking, the
battery is almost low and the suction and brushes
functions are disabled.
When even the last segment of charge turns off, the
battery is completely low and the machine stops.
CHARGING THE BATTERIES
1. Plug the connector (2) of the battery recharger into the battery
connector (1).
2. Proceed for the recharging.
Once that the battery recharging is completed:
3. Disconnect the connector of the battery recharger from the
battery connector (1).
4. Connect instead the machine connector (3).
SQUEEGEE ASSEMBLY
1. Insert the two stud bolts (2) situated on the upper part of the
squeegee (3) inside the slots present on the support (1).
2. To block the squeegee, tighten the stud bolts (2).
3. Insert the squeegee hose (4) into its coupling, respecting its
position as indicated in the figure.
ADJUSTING THE SQUEEGEE
In order to have a perfect drying result through the squeegee, the
rear rubber must have the lower bending uniformly adjusted in all its
length. For the adjustment, it is necessary to put oneself in working
condition and therefore the suction motor has to be switched on and
the brushes have to function together with the detergent solution.
The lower part of the rubber is too much bent
Take off the pressure rotating the wing nut (5) counterclockwise.
The lower part of the rubber is not much bent
Increase the pressure rotating the wing nut (5) clockwise. Check that
the wheels which adjust the height do not rest on the floor, in this
case adjust them as indicated in paragraph "Height adjustment".
The bending is not uniform
Adjust the squeegee inclination rotating counterclockwise the wing
nut (6) to increase the bending in the central part, or clockwise to
increase the bending on the extremities.
Height adjustment
Once that the pressure and inclination of the squeegee have been
adjusted, it is necessary to fix this optimum condition making touch
slightly the wheels onto the floor. Rotate clockwise the registers (7)
to lower the wheels or counterclockwise to raise them. Both wheels
must be adjusted in the same measure. To act upon the register (7)
loosen at the same time the nuts (8), adjust the height then fix the
adjustment by tighten the nuts (8).
ASSEMBLING AND DISASSEMBLING THE SPLASH GUARDS
For the splash guards cleaning, it is necessary to take off the two
metal covers.

11
To assemble the covers, it is necessary to proceed as follows:
1. Take off the clips (1) present on the pins (2) fixed to the brushes
base.
2. Take off the cover from the brushes base.
For the assembly it is necessary to proceed inversely with above-
mentioned operation.
ADJUSTING THE SPLASH GUARDS
When the brushes base is lowered on the floor the splash guards have
to slightly touch the floor. To adjust them proceed as follows:
1. Loosen the rings (2).
2. Turn the knob (1) clockwise to raise the splash guards or
counterclockwise to lower them.
3. Fasten the ring (2).
ASSEMBLING THE BRUSHES
To assemble the brushes, it is necessary that the brushes base is in the
lifted position. If it is not lifted, proceed as follows:
Without the operator seated, turning the key switch clockwise, the
display comes on and after 3 seconds all working groups come off
automatically and are lifted from the floor.
Switch off the machine turning the key counterclockwise.
With the brushes base group in lifted position lock the brushes
rotating them as in the picture below.
For a longer life of the brushes we suggest to invert daily their
position. Whenever brushes result to be deformed we suggest
reassembling them in the same position, in order to avoid that the
different inclination of the bristles causes excessive motor overload
or troublesome vibrations.

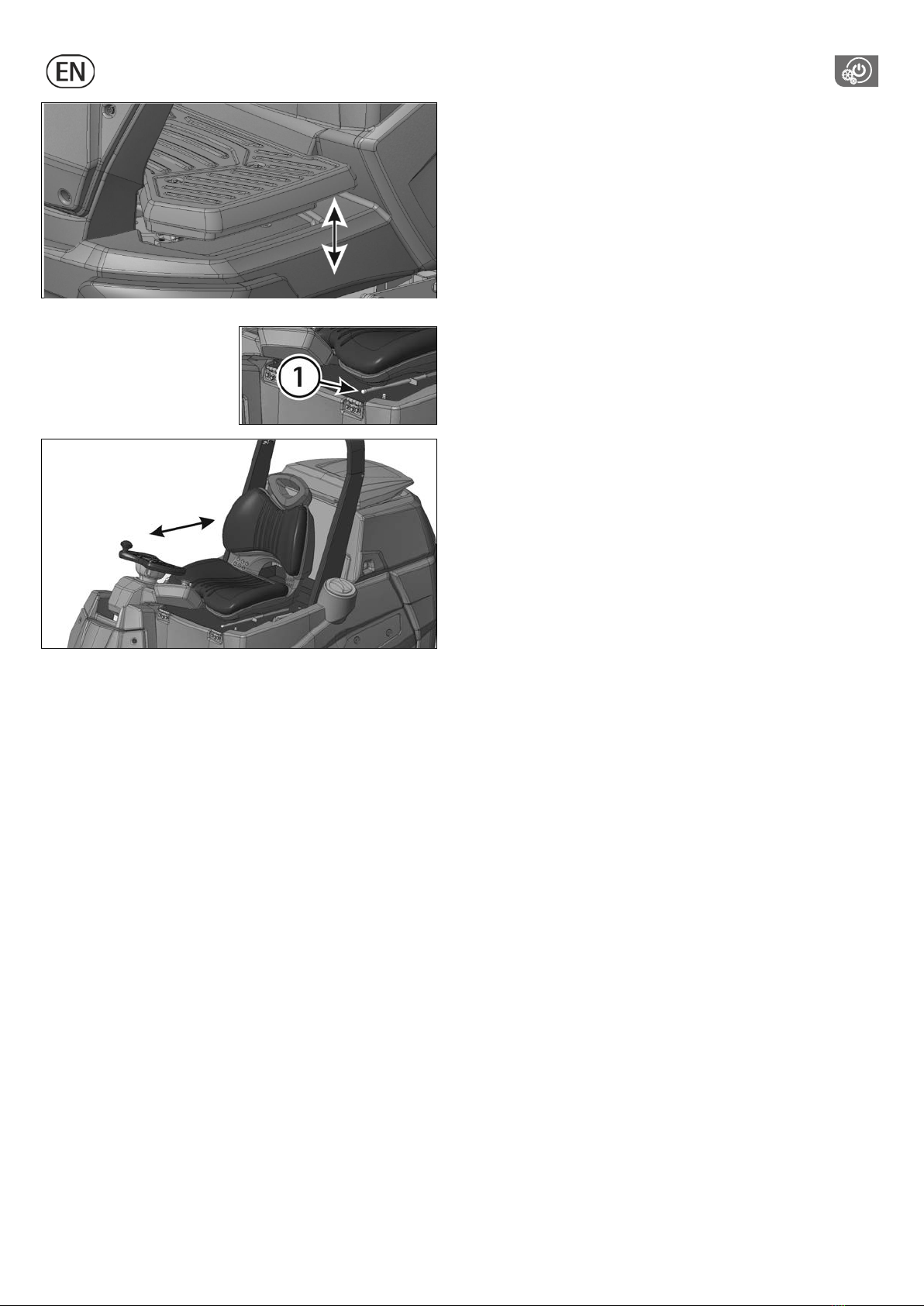

ADJUSTING THE STEERING WHEEL
Using lever (1) it is possible to
unlock the steering wheel to
adjust the distance from the
operator.
To increase or decrease the lever
locking strength, turn the
ferrule.
ADJUSTING THE FOOTBOARD
Using the knob (1) it is possible
to adjust the height of the
footboard.

12
ADJUSTING THE SEAT
Using the lever (1) it is possible
to adjust the seat position.

13
FLOOR CLEANING
CONNECTING THE BATTERY CONNECTOR AND SWITCHING ON
THE MACHINE
Once that the battery recharging has been completed:
1. Disconnect the connector (2) of the battery recharger from the
battery connector (1).
2. Connect then the battery connector (1) to the machine
connector (3).
RECOVERY TANK
Verify that the rear cap (1) is properly tightened and that the exhaust
hose plug (2) is well closed.
The recovery tank is provided with a cover (3) that blocks itself thanks
to the vacuum created by the suction motor during the use.
SOLUTION TANK
The capacity of the detergent solution tank is indicated in the
technical data.
Unscrew the cap placed on the left part of the machine and fill the
detergent solution tank with clean water at a maximum temperature
of 50°C. Add the liquid detergent in the percentage and conditions
foreseen by the manufacturer. To avoid excessive foam presence,
which could cause problems to the suction motor, use the minimum
percentage of detergent.
Screw the solution tank cap.
Use always low foam detergent. To avoid foam presence, before
starting working operation, introduce into the recovery tank a
minimum quantity of anti-foam product.
Never use pure acid.
DETERGENT SOLUTION RESERVE SIGNAL
When H2O appears on the display it means that the machine is
running out of detergent solution, so there are about 20 liters left.
This signal is both on full display and in small display.
FLOW RATE SELECTION
Using the selector (1) the solenoid valve can be activated or turned
off.
The level changes the value of H from H1 to H7 and on the display
the flow rate will be immediately displayed.
When in standard mode the detergent solution flow stays the one
that has been set.
In 3S mode the detergent solution flow changes depending on the
speed of the machine.
WORK
A safety device avoids the machine’s movement if the operator is not
properly placed on the seat.
To turn on the machine:
1. Step on the footboard.
2. Turn the key (1) clockwise to turn on the machine.
3. Check the battery level on the display.
The machine will go automatically in manual mode (MAN).
4. Select the driving direction using the lever (2).

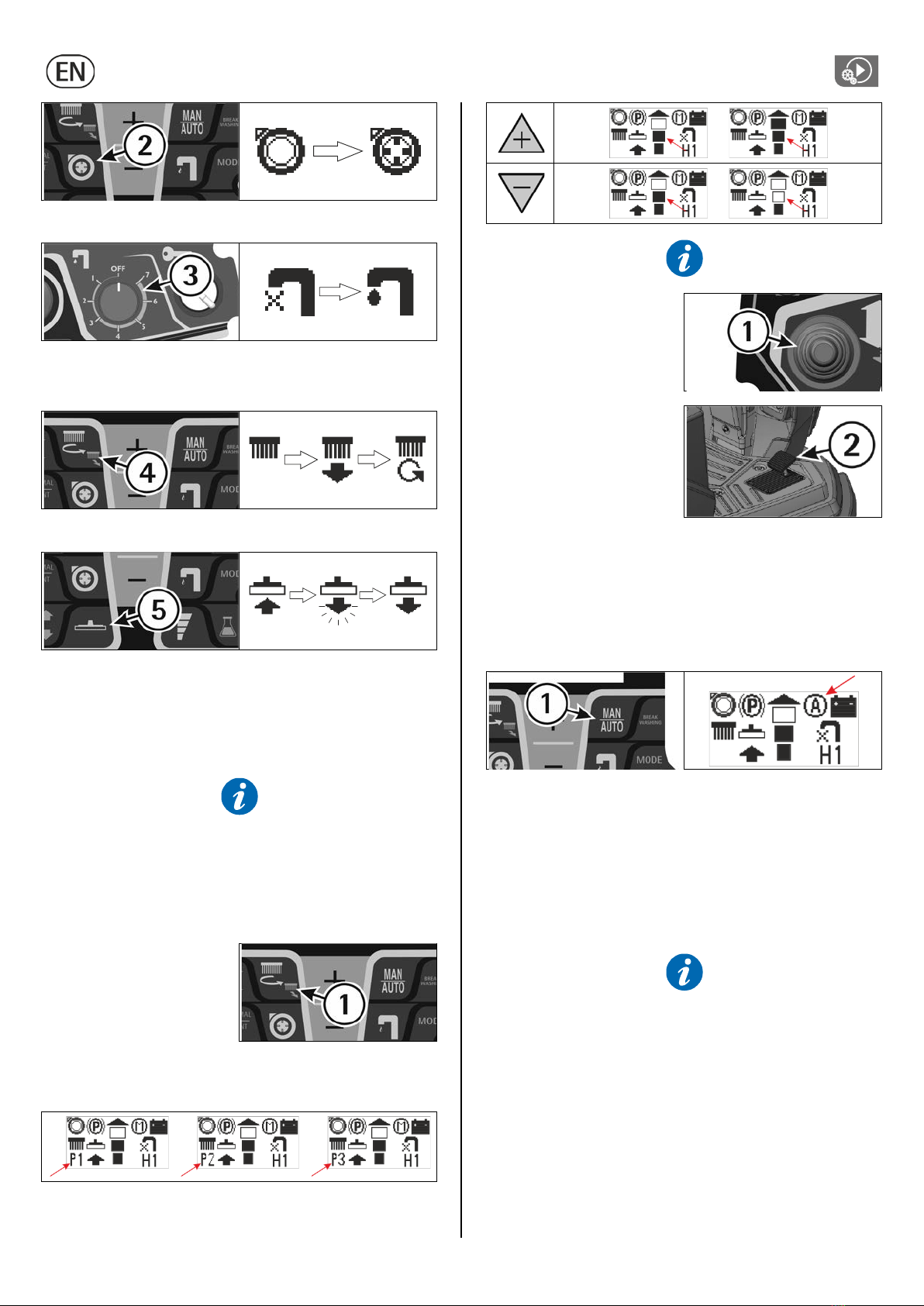

MANUAL MODE WORK
1. Check that the machine is set in manual mode, if not press
button (1) and the display will show the corresponding symbol.
2. Press the suction motor button (2); the suction motor symbol
changes depending if the motor is turned on or off, the motor
will then start to work.

14
3. Adjust the detergent solution flow rate by using the selector (3).
4. Lower the brushes base on the floor pressing button (4); the
display will show first the lifting down symbol and then the
brushes on symbol.
5. Lower the squeegee pressing the button (5).
6. While running the first meters, check that the squeegee
adjustment guarantees a perfect drying action and that the
detergent solution flow is appropriate. It has to be sufficient to
wet the floor uniformly avoiding the leakage of detergent from
the splash guards. Always consider that the correct quantity of
solution detergent depends on the type of floor, dirtiness and
machine speed.
Manual mode:
−Lowering the squeegee with the suction motor off will
automatically turn on the suction motor;
−Turning off the suction motor with the squeegee lowered down
will automatically lift up the squeegee and turn off the suction
motor.
BRUSHES PRESSURE ADJUSTMENT
To adjust the pressure press
button (1) twice.
On the display value P1, P2 or P3 will blink.
Press the buttons (+) and (-) to select the pressure, the value will set
once it will stop blinking on the display.
SPEED ADJUSTMENT, FORWARD AND BACKWARD
Before running the machine select the maximum speed level during
work. Press buttons (+) and (-) to see the speed level on the display.
To move the machine, select the
direction using the lever (1)
placed on the dashboard.
Press the pedal (2) placed on the
footboard to enable the speed.
Use the pedal (2) to adjust the
speed during
work. The speed
will change from the minimum
to the maximum previously set
and visible on the display.
If backward movement is selected the brush base will stay down, the
squeegee will lift up.
When the forward movement will be selected again the squeegee will
go down.
AUTOMATIC MODE WORK
Automatic mode is helpful to simplify the operator work.
1. Check that the machine is set in automatic mode, if not press
button (1) and the display will show the corresponding symbol.
2. Press the pedal placed on the footboard.
Once the pedal is pressed the machine runs forward, the brush base
goes down and simultaneously the squeegee goes down, then the
solenoid valve opens itself and brushes and suction motor start
working.
Before running the machine, it is possible to set the brushes pressure
and the detergent solution level.
The values set will show immediately on the display.
To adjust the detergent flow, see under “FLOW RATE SELECTION”.
After releasing the pedal: the brush base goes up, the brushes motors
stop, the solenoid valve closes itself and the suction motor shuts off.
If during working in automatic mode the brush base or squeegee
button is pressed, the machine switches to manual mode.
STANDARD MODE - 3S
The detergent solution flow rate is always adjusted using an 8 way
manipulator (see chapter “FLOW RATE SELECTION”).
When in standard mode the detergent solution flow is constant,
related to the number selected with the manipulator.
In 3S mode the flow rate selected with the manipulator changes
depending on the speed of the machine in order to have a constant
amount of water for each square meter.
If the machine is not moving the speed is 0 then no water comes out.

15
SELECTION MODE STANDARD - 3S
To switch from a mode to
another press
the button (1)
once.
On the display the related circuit symbol starts blinking (see chapter
“FLOW RATE SELECTION”).
Press the buttons (2) to select
the desired mode.
After a couple of seconds the symbol will stop blinking and the mode
will be selected.
OPTIONAL MODE – 3SD (SOLUTION SAVING SYSTEM DISPENSER)
It is a system that allows the predefined dosage of the percentage
amount of detergent that will be mixed with the water coming from
the solution tank.
The detergent solution flow rate is always adjusted using an 8-way
manipulator (see chapter “FLOW RATE SELECTION”).
If the automatic dosing system is not used for long periods, it is
advisable to wash the hoses with water only by running the pump for
a few minutes. To do this, use a tank filled with water only.
SELECTION MODE STANDARD – 3SD
To switch from a mode to
another press the button (1)
once.
On the display the related circuit symbol starts blinking (see chapter
“FLOW RATE SELECTION”).
Press the buttons (2) to select
the desired mode.
After a couple of seconds the symbol will stop blinking and the mode
will be selected.
INSTALLATION DETERGENT TANK (MODE 3SD)
To use the machine in 3SD mode it is necessary to install the tank
containing the detergent as follows:
Insert the tank into the
appropriate housing.
Remove the cap of the tank and
replace it with the adapter.
The hose has to touch the tank
bottom.
Stop the tank with the belt.
Always choose the detergent according to the dirt to be washed and
follow strictly the instructions of the manufacturer.
Do not mix detergents of different types.
SELECTION DETERGENT LEVEL (MODE 3SD)
When using the machine in 3SD mode it is necessary to set the
quantity of detergent to be used.
Press the button (1)
to select
the detergent level.
The percentage value will start
blinking on the display.
Press the navigation buttons (2)
to select the desired amount of
detergent.
After a few seconds the value stops blinking and the detergent
percentage is selected.
With the value 0% only water is used for washing.
SUCTION MOTOR SILENT MODE
It is possible to start the silent mode of the suction motor by pressing
for a few seconds the switch-on button (1) of the suction motor.
When the silent mode is on the symbol on the display changes.
STANDBY MODE
After 10 minutes of inactivity, if the machine is on, it goes in stand-
by mode and the display turns off. To start again press any button on

16
the instrument board or press the drive pedal, the display will then
turn on again and after a few seconds the machine returns operative.
HORN
The machine is provided with a
horn that can be activated
pressing button (1).
EMERGENCY BUTTON
In case of emergency press
button (1)
placed on the
dashboard. All the functions and
the movement will be
immediately disabled.
To reactivate them turn the
button clockwise.
PARKING BRAKE
The machine is equipped with a parking brake on the traction motor
wheel that operates at the complete release of the pedal or when the
machine is without batteries. In case of an emergency or simply to
stop the machine, it is sufficient to release the pedal. The brake
remains inserted up to when the pedal is pressed again. When the
batteries are connected and when the key switch is positioned on 1,
on the display the brake signal comes on.
MANUAL MOVEMENT OF THE MACHINE
To move the machine manually, it is necessary to unblock the parking
brake that blocks the traction motor wheel. To do this, keep the lever
(3) lifted. With the delivery of the machine we also supply a cord that
allows the lever operation (3).
After having moved the machine, take off the cord and keep it for
eventual re-use.
When the parking brake is released manually, for example when the
machine has to be moved without batteries, avoid covering slopes
and do not park on them either.
OVERFLOW SYSTEM
In order to avoid major damages to the suction motors the machine is
equipped with a floater that works when the recovery tank is full. The
symbol is shown on the display.
When this happens, it is necessary to drain the recovery tank (see
chapter “DRAINING AND CLEANING THE RECOVERY TANK”).

17

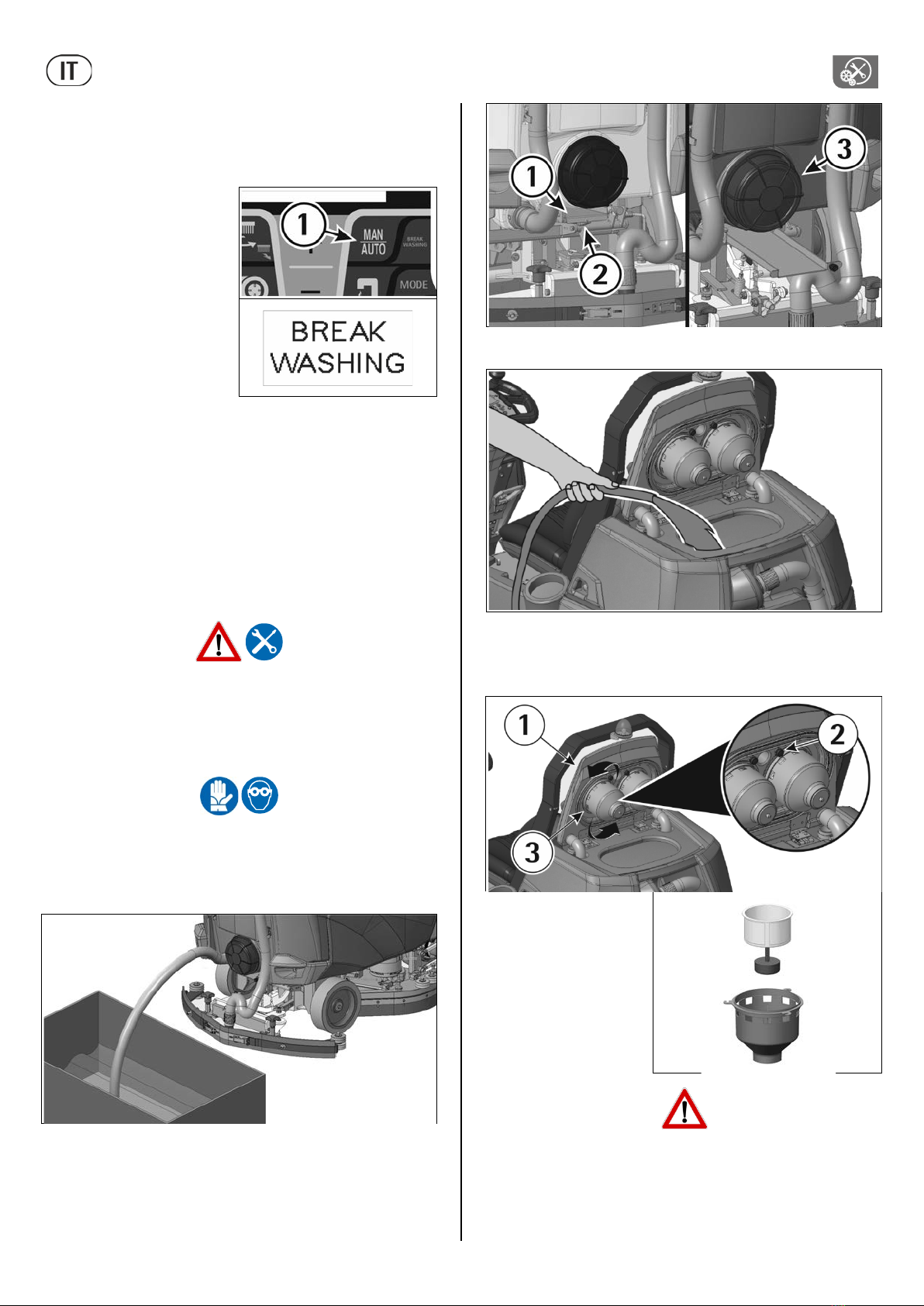

STOP OF THE MACHINE AFTER CLEANING OPERATION
BREAK WASHING MODE
IN AUTOMATIC OR MANUAL WORKING MODE:
1. At the end of the washing
cycle, keeping the button
(1) pressed, the functioning
of BREAK WASHING is
chosen. When the signal
lamp (2) is on, then the
machine is in BREAK
WASHING mode.
2. When the mode is on, the
display will show BREAK
WASHING.
In this way automatically the brushes lift, the solenoid valve shuts
down and it is possible to finish the drying operation for a total time
of about 15 seconds, afterwards also the squeegee is lifted and the
suction stops.
NOTE: all these phases are carried out with the machine operating,
so that the squeegee can dry the interested cleaning area from the
“drying phase of the brushes” and furthermore can dry the suction
hose of its dirty water. At any time it is possible to interrupt the
procedure BREAK WASHING by stopping the drive.
During the BREAK WASHING, if the drive pedal is released for more
than 3 seconds the machine will automatically switch to manual
mode (MAN).
The mode (BREAK WASHING) is specific for the transfer at the end
of the cleaning operation.
DAILY MAINTENANCE
DRAINING AND CLEANING THE RECOVERY TANK
1. Hold the exhaust hose placed on the rear part of the machine
after having taken it off from its fixing support.
2. Take off the plug from the exhaust hose acting upon its lever
and empty the recovery tank into appropriate containers, in
compliance with the respective rules what the liquid disposal
concerns.
3. After the tank is completely drained, take off the drain box (1)
by releasing the lever (2) and unscrew the cap (3).
4. Clean the inside of the tank using a water jet.
CLEANING THE SUCTION FILTER
1. Open the cover (1) and unscrew the knob (2) to release the filter
protection (3).
2. Rotate the filter protection clockwise to release it.
3.
Take off the filter and
its protection.
4.
Clean with a water jet
especially the bottom
part and the sides of
the filter.
5.
Do the cleaning
procedure precisely.
6.
Reassemble the filter.
Absolutely do not clean the inside of the recovery tank cover
otherwise the suction motor will be damaged irreversibly.

18
AUTOMATIC DISASSEMBLY OF THE BRUSHES
With the brushes
base lifted
from the floor
and the
manipulator of the direction in
central position
press the
brushes
base button (1) for a
few seconds.
CLEANING THE BRUSHES
Take off the brushes to clean them with a water jet (to read how to
do it see chapter “AUTOMATIC DISASSEMBLY OF THE BRUSHES”).
CLEANING THE SQUEEGEE
Keeping the squeegee clean guarantees always the best drying result.
For its cleaning it is necessary to:
1. Take off the squeegee hose (4) from the coupling.
2. Disassemble the squeegee (3) from its support (1) loosening the
stud bolts (2) and making them slide inside the slots up to release
them.
3. Clean with care the internal part of the squeegee inlet eliminating
eventual dirt residuals.
4. Clean with care the squeegee rubbers.
5. Reassemble all parts.
WEEKLY MAINTENANCE
REAR SQUEEGEE RUBBER CHECK
Check the squeegee rubber wearing and eventually turn it or replace
it.
To replace the rubber it is necessary to:
1. Lift up the squeegee (see under “STOP OF THE MACHINE AFTER
CLEANING OPERATION”).
2. Unlock the hooks (1).
3. Unscrew the wing nuts (2) to take off the outer rubber blades (3)
and then the central one (4).
4. Take off the rubber (5) to turn it or replace it.
To reassemble the squeegee do these operations backwards.
CLEANING THE SQUEEGEE HOSE
Weekly or in case of insufficient suction, it is necessary to check that
the squeegee hose is not obstructed. Eventually, to clean it, proceed
as follows:
1. Take off the hose (1) from the squeegee coupling.
2. Wash the inside of the hose with a water jet.
3. To reassemble the hose repeat inversely the above-mentioned
operations.
Do not clean the hose that goes from the suction motor to the
recovery tank.
CLEANING THE SOLUTION TANK AND THE FILTER
Take the machine to the place assigned for the detergent solution
draining.
1. Unscrew the detergent solution load tank cap.
2.
Close the detergent
solution flow valve (1)
3. Unscrew the filter (2) cap.
4.
Open the detergent
solution flow valve (1).

19
5.
Clean the solution tank
with a water jet.
6. Clean the filter components with a water jet
7. Once the parts are cleaned close the filter and the solution tank
cap
8. Keep the valve open.
9.
It is possible to drain the
solution tank also by
unscrewing the cap (3).
TWO-MONTHLY MAINTENANCE
FRONT SQUEEGEE RUBBER CHECK
Check the wear of the squeegee rubber and eventually replace it.
For the replacement it is necessary to:
1. Take off the squeegee (see under paragraph “SQUEEGEE
CLEANING”).
2. Disassemble the rear part of the squeegee (see under paragraph
“REAR SQUEEGEE RUBBER CHECK”).
3. Unscrew the wing nuts (1) and take off the front rubber holder
blade (2).
4. Replace the front rubber (3).
To reassemble the squeegee repeat reverse the operations above
mentioned.
SIX-MONTHLY MAINTENANCE
SPLASH GUARD RUBBER CHECK
With the brushes assembled, the splash guards must slightly touch
the floor. If they are worn, they have to be replaced. Just release the
lever coupler placed in the rear part of the brushes base group from
the ring placed at the free extremity of the metal strip to take off the
rubbers and to reinsert the new ones (see under paragraph “SPLASH
GUARD ASSEMBLY”). This operation has to be carried out for both
splash guards”).
TROUBLESHOOTING GUIDE
The checking of all the other foreseen machine operations is left to
the authorized technical assistance.
Never leave the batteries completely discharged for a long time.
In case of alarm visualizations contact the technical assistance.
If with the key switch positioned clockwise to switch on the machine
the display and other functions are not activated, it is necessary to
check the batteries' connection to the machine (see under paragraph
“CONNECTION BATTERIES' CONNECTION AND SWITCHING ON OF THE
MACHINE”). If the problem persists, please contact the authorized
technical assistance.
THE SUCTION MOTOR DOES NOT WORK
1. Check that the emergency
system (1) is not activated.
2. Use the key switch to turn
off and then on the
machine (2).
3.
Check the battery charge
on the display.
4. Check on the display that
the starting signal of the
suction motor is on.
THE BRUSHES MOTOR DOES NOT WORK
1. Check that the
emergency system (1)
is not activated.
2. Use the key switch to
turn off and then on
the machine (2).
3.
Check the battery
charge on the display.
4.
Check on the display
that the starting
signal of the brushes
motor is on.
5. Press the pedal on the
footboard (3) to start
the machine.

20
If the problem persists, please contact the authorized technical
assistance.
THE TRACTION MOTOR DOES NOT WORK
1. Step on the footboard.
2. Check that the emergency
system (1) is not activated.
3. Use the key switch to turn
off and then on the
machine (2).
4. Check the lever position
(3).
If alarms are showed on the display it is necessary to turn off and the
on the machine to restore its functions.
5.
Check the battery charge
on the display.
6.
Press the pedal on the
footboard (4
) to start the
machine.
If the problem persists, please contact the authorized technical
assistance.
WATER DOES NOT COME DOWN ONTO THE BRUSHES
The machine is equipped with a solenoid valve so to let the solution
go down onto the brushes it is necessary to make the brushes turn.
1.
Check on the display that
the solenoid
valve is
activated.
2. Check that the solution filter is clean (see under paragraph
“CLEANING THE OUTER SOLUTION FILTER”).
If the problem persists, please contact the authorized technical
assistance.
THE MACHINE DOES NOT CLEAN PROPERLY
1. The brushes do not have the suitable bristle dimension: contact
the authorized technical assistance.
2. The brushes have got worn bristles. Check the brushes wear
condition and eventually replace them (the brushes have to be
replaced when the bristles have reached a height of about
15mm).
3. To replace the brushes, see instructions under paragraph
“AUTOMATIC BRUSHES DISASSEMBLY” and “BRUSHES
ASSEMBLY”.
4. The detergent solution is insufficient: open more the solution
valve (see under paragraph “FLOW RATE SELECTION”).
5. Check that the liquid detergent is in the recommended
percentage.
6. Increase the brushes base pressure (see under paragraph
"ADJUSTMENT OF THE BRUSHES PRESSURE").
Contact the authorized technical assistance for advice.
THE SQUEEGEE DOES NOT DRY PERFECTLY
1. Check that the squeegee rubbers are clean.
2. Check the adjustment of the height and the inclination of the
squeegee (see section “ADJUSTMENT OF THE SQUEEGEE” in
“BEFORE USE”).
3. Check that the suction hose is correctly inserted in the proper
seat on the recovery tank or that it is not obstructed.
4. Clean the suction filter.
5. Replace the rubbers if worn out.
6. Check on the display that
the starting signal of the
suction motor is on.
7. Put the motor in standard
mode if silenced.
8. Check that the suction motor cap is closed properly.
If the problem persists, please contact the authorized technical
assistance.
EXCESSIVE FOAM PRODUCTION
Check that low foam detergent has been used. Eventually add small
quantities of anti foam liquid into the recovery tank.
Please be aware that a bigger quantity of foam is produced when the
floor is not very dirty. In this case please dilute detergent solution.
