ADJ ENCORE BURST User manual

User Manual

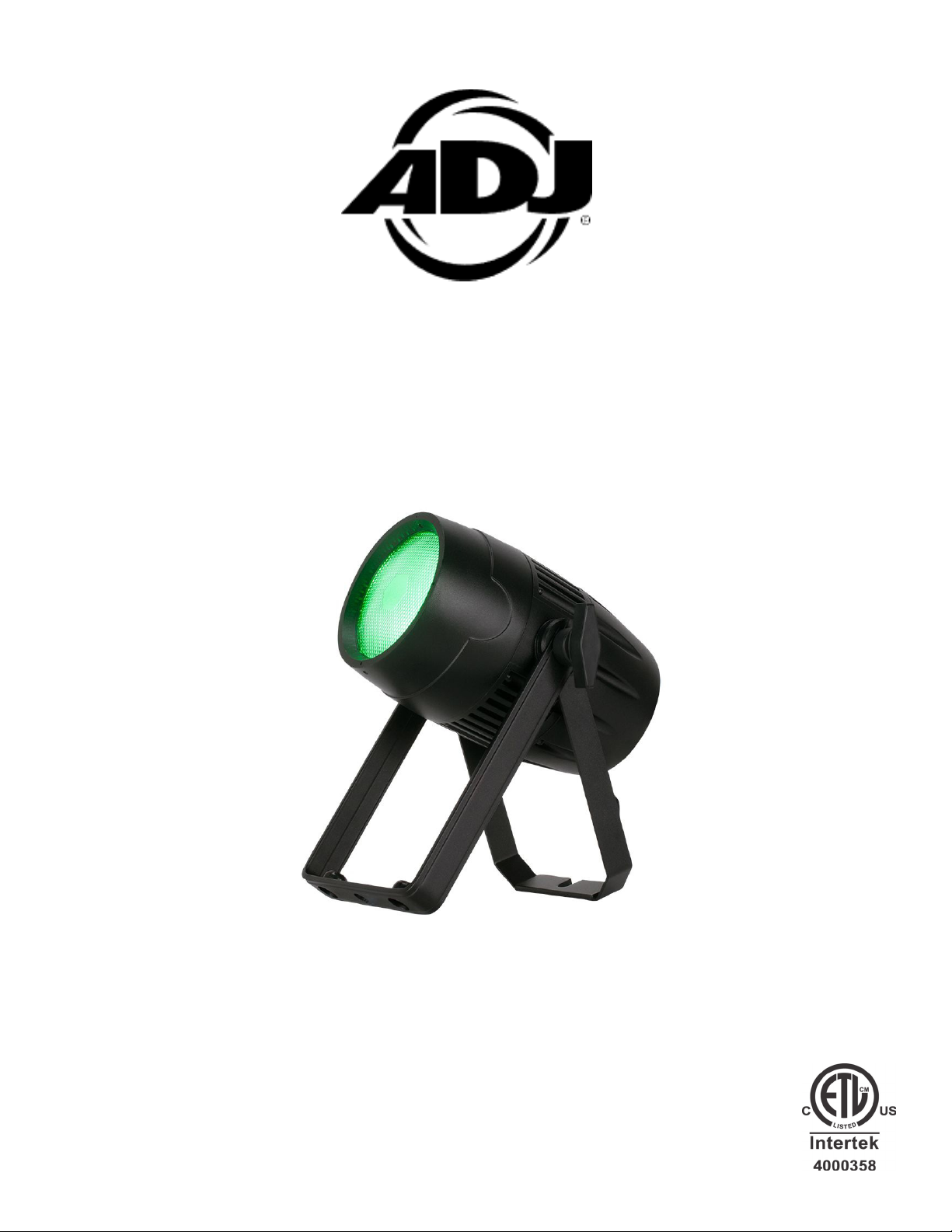

ENCORE BURST
RGBW IP

©2021 ADJ Products, LLC all rights reserved. Information, specications, diagrams, images, and
instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying
product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection
claimed includes all forms and matters of copyrightable materials and information now allowed by
statutory or judicial law or hereinafter granted. Product names used in this document may be trade-
marks or registered trademarks of their respective companies and are hereby acknowledged. All
non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their
respective companies.
ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property,
equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/or as
a result of the improper, unsafe, insucient and negligent assembly, installation, rigging, and opera-
tion of this product.
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
FCC RADIO FREQUENCY INTERFERENCE WARNINGS & INSTRUCTIONS
This product has been tested and found to comply with the limits as per Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This device uses and can radiate radio frequency energy and, if not
installed and used in accordance with the included instructions, may cause harmful interfer-
ence to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this device does cause harmful interference to radio or television
reception, which can be determined by turning the device o and on, the user is encouraged
to try to correct the interference by one or more of the following methods:
• Reorient or relocate the device.
• Increase the separation between the device and the receiver.
• Connect the device to an electrical outlet on a dierent circuit than the one connected to
the radio receiver.
• Consult the dealer or an experienced radio/TV technician for help.
ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 2
DOCUMENT VERSION
Due to additional product features and/or enhancements, an updated version of this document may be avail-
able online.
Please check www.adj.com for the latest revision/update of this manual before beginning installation and/or
programming.
Date Document
Version
Software
Version >
DMX Channel
Mode Notes
07/03/19 1 1.1 4/6/7/8/11 Initial Version
06/03/21 2 1.4 No Change Update System Menu, DMX Traits

TABLE OF CONTENTS
ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 3
Introduction 4
Features | Warranty Registration 5
Safety Precautions 6
IP65 Notice 7
Overview 8
Installation 9
Connections 10
DMX Set Up 11
DMX Addressing 12
DMX Modes 13
System Menu 16
Multi Unit Power Linking | Dimmer Mode Chart 21
Dimensional Drawing | Trouble Shooting | Cleaning 22
Limited Warranty (USA Only) 23
Specications 24

Unpacking: Thank you for purchasing the Encore Burst RGBW IP by ADJ Products, LLC. Every Encore
Burst RGBW IP has been thoroughly tested and has been shipped in perfect operating condition.
Carefully check the shipping carton for damage that may have occurred during shipping. If the carton
appears to be damaged, carefully inspect your xture for any damage and ensure that all accessories
necessary to operate the unit have arrived intact. In the event that damage has been found or parts are
missing, please contact our toll free customer support number for further instructions. Do not return
this unit to your dealer without rst contacting customer support.
Introduction: The ADJ Encore Burst RGBW IP is a DMX intelligent, high powered LED xture. To opti-
mize the performance of this product, please read these operating instructions carefully to familiarize
yourself with the basic operations of this unit. These instructions contain important safety information
regarding the use and maintenance of this unit. Please keep this manual with the unitfor future refer-
ence.
Customer Support: Contact ADJ Service for any product related service and support needs. Also
visit https://forums.adj.com/ with questions, comments or suggestions.
Parts: To purchase parts online visit http://parts.americandj.com
ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
Voice: 800-322-6337 | Fax: [phone] | [email protected]
ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
Voice: [phone] | Fax: [phone] | [email protected]
ADJ PRODUCTS LLC USA
6122 S. Eastern Ave. Los Angeles, CA. 90040
323-582-2650 | Fax [phone] | www.adj.com | [email protected]
ADJ SUPPLY Europe B.V
Junostraat 2 6468 EW Kerkrade, The Netherlands
[phone] | Fax [phone]
www.adj.eu | [email protected]
ADJ PRODUCTS GROUP Mexico
AV Santa Ana 30 Parque Industrial Lerma, Lerma, Mexico 52000
[phone]
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself, as
doing so will void your manufacturer’s warranty. In the unlikely event your unit may require service
please contact ADJ Products, LLC.
PLEASE recycle the shipping carton when ever possible.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment. Please turn o all electrical products when
they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power
when not in use. Thank you!
INTRODUCTION
ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 4

• IP65 Outdoor Rated
• Electronic Dimming 0-100%
• DMX-512 protocol
• Multiple DMX Channel Modes
• IP65 Locking 5-Pin XLR Connector In/Out
• Frequency Adjustment
• Gamma Adjustment
• 6 Dimmer Curves With Dimmer Adjustment Speed
• Multiple Unit Power Linking (See Multiple Unit Power Linking section of this manual)
The Encore Burst RGBW IP carries a 2 year limited warranty. Please fill out the enclosed warranty
card to validate your purchase. All returned service items, whether under warranty or not, must be
freight pre-paid and accompanied by a return authorization (R.A.) number. The R.A. number must be
clearly written on the outside of the return package. A brief description of the problem as well as the
R.A. number must also be written down on a piece of paper included in the shipping carton. If the unit
is under warranty, you must provide a copy of your proof of purchase invoice. You may obtain an R.A.
number by contacting our customer support team on our customer support number. All packages
returned to the service department not displaying a R.A. number on the outside of the package will be
returned to the shipper.
WARRANTY REGISTRATION
FEATURES
ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 5

SAFETY PRECAUTIONS
FOR YOUR OWN PERSONAL SAFETY, PLEASE READ AND UNDERSTAND THIS MANUAL
COMPLETELY BEFORE YOU ATTEMPT TO INSTALL OR OPERATE THIS UNIT!
• THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT TO
PERFORM ANY REPAIRS YOURSELF, AS DOING SO WILL VOID YOUR MANUFACTURER’S
WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE AND/
OR THE DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS MANUAL
VOID THE MANUFACTURER’S WARRANTY AND ARE NOT SUBJECT TO ANY WARRANTY
CLAIMS AND/OR REPAIRS.
• DO NOT PLUG THE FIXTURE INTO A DIMMER PACK!
• NEVER OPEN THIS FIXTURE WHILE IN USE!
• UNPLUG POWER BEFORE SERVICING FIXTURE!
• NEVER TOUCH THE FIXTURE DURING OPERATION, AS IT MAY BE HOT!
• KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE!
• ENSURE ALL CONNECTIONS AND END CAPS ARE PROPERLY SEALED WITH A
DIELECTRIC GREASE (AVAILABLE AT MOST ELECTRICAL SUPPLIERS) TO PREVENT
WATER CORROSION AND REDUCE THE RISK OF AN ELECTRICAL SHORT CIRCUIT.
• IF THE FIXTURE IS EXPOSED TO ENVIRONMENTAL TEMPERATURE CHANGES SUCH
AS RELOCATION FROM A COLD OUTDOOR ENVIRONMENT TO A WARM INDOOR
ENVIRONMENT, DO NOT POWER THE FIXTURE ON IMMEDIATELY. INTERNAL
CONDENSATION AS A RESULT OF ENVIROMENTAL TEMPERATURE CHANGE CAN
CAUSE INTERNAL FIXTURE DAMAGE. LEAVE THE FIXTURE POWERED OFF UNTIL IT HAS
REACHED ROOM TEMPERATURE BEFORE POWERING ON.
• NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE! DOING SO POSES A SERIOIS RETINA
INJURY RISK AND MAY INDUCE BLINDNESS! SENSITIVE PERSONS MAY SUFFER AN
EPILEPTIC SHOCK!
• Be sure that the local power outlet matches the required voltage for your unit.
• Do not attempt to operate this unit if the power cord is frayed or broken.
• Do not attempt to remove or break off the ground prong from the electrical cord. This prong is
used to reduce the risk of electrical shock and fire in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover for any reason. There are no user serviceable parts inside.
• Never operate this unit with the cover removed.
• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6”
(15cm) between this device and a wall.
• Do not attempt to operate this unit if it has been damaged in any way.
• Always mount this unit in a safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular attention to cords at plugs, convenience
receptacles, and the point at which they exit from the appliance.
• Cleaning - The fixture should be cleaned only as recommended by the manufacturer. See the
Cleaning section of this manual for details.
• Heat - This fixture should be situated away from heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when the appliance does not
appear to operate normally or exhibits a marked change in performance.
ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 6

IP65 NOTICE
IP65 RATED
An IP rated lighting xture is one that is commonly installed in outdoor environments and has been
designed with an enclosure that eectively protects the ingress (entry) of external foreign objects
such as dust and water. The International Protection (IP) rating system is commonly expressed as
“IP” (Ingress Protection) followed by two numbers (i.e. IP65) where the numbers dene the degree of
protection. The rst digit (Foreign Bodies Protection) indicates the extent of protection against par-
ticles entering the xture and the second digit (Water Protection) indicates the extent of protection
against water entering the xture. This device holds an IP65 rating, meaning it has been de-
signed and tested to protect against the ingress of dust (6) and low-pressure water jets from
any direction (5).
MARINE/COASTAL ENVIRONMENT INSTALLATIONS
NOT suitable for marine and/or coastal environment installations. Installing this
xture in a marine and/or coastal environment may cause corrosion and/or ex-
cessive wear to the interior and/or exterior components of the xture. Damages
and/or performance issues resulting from installation in a marine and/or coastal
environment will void the manufacturer’s warranty and will NOT be subject to any
warranty claims and/or repairs.
ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 7

OVERVIEW
ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 8

INSTALLATION
Always ensure that the unit is rmly xed to avoid vibration and slipping during operation. Always
ensure that the structure to which you are attaching the unit is secure and is able to support at least
10 times the unit’s weight. ALWAYS use safety cables that can hold 12 times the weight of the unit
when installing the xture. This equipment must be installed by a professional, and it must be in-
stalled in a place where it is out of the reach of people’s grasp.
The Encore Burst RGBW IP is fully operational in three dierent mounting positions: hanging upside-
down, mounted sideways on trussing, or set on a at level surface. Be sure this xture is kept at
least 12m (40ft) away from any ammable materials (decoration etc).
OVERHEAD RIGGING: The Encore Burst RGBW IP includes two rigging options.
1. OMEGA BRACKET - Mount the xture with an appropriately rated professional grade rigging
clamp (not included) to the included Omega Bracket using an M12 screw and nut (not included).
With the rigging clamp securely attached to the Omega Bracket, attach the Omega Bracket to
the xture by inserting both of the 1/4-turn quick-lock fasteners into the aligning holes on the x-
ture yoke bracket, and turning each quick-lock fastener clockwise to secure. MAKE SURE THE
OMEGA BRACKET IS SECURELY ATTACHED BEFORE RIGGING FIXTURE!
2. MOUNTING YOKE - Mount the xture with an appropriately rated professional grade rigging
clamp (not included) to the xture yoke bracket center hole using an M12 screw and nut (not in-
cluded). MAKE SURE THE CLAMP IS SECURELY ATTACHED BEFORE RIGGING FIXTURE!
SAFETY CABLE: Pull the safety-cable through the opening located on the rear of the unit and over
the trussing system or a safe xation spot. Insert the end in the carabine and tighten the safety
screw. ALWAYS use and install a safety cable as a safety measure to prevent accidental damage
and/or injury in the event the clamp fails.
ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 9

CONNECTIONS
ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 10

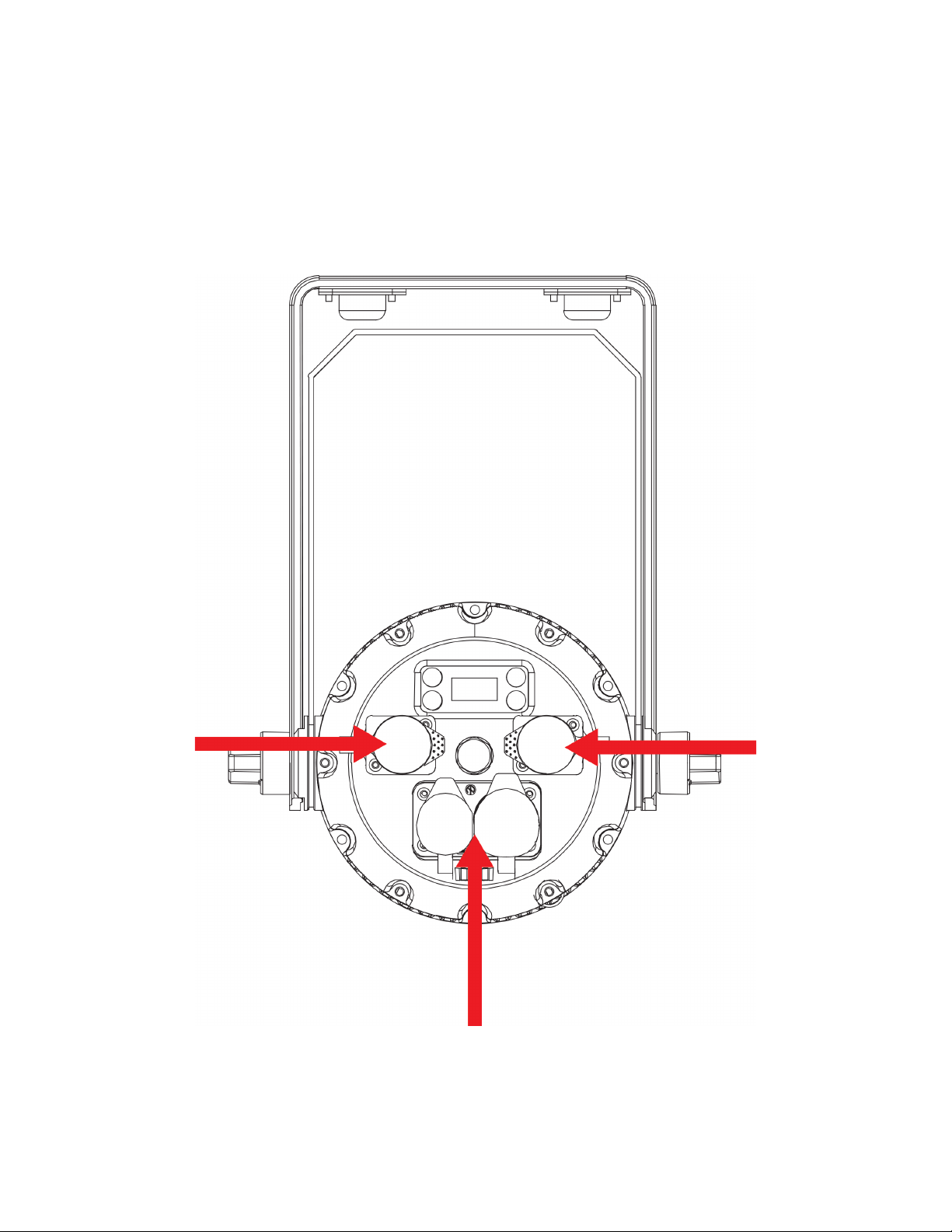

ENSURE ALL CONNECTIONS AND END CAPS ARE PROPERLY SEALED WITH A DIELECTRIC
GREASE (AVAILABLE AT MOST ELECTRICAL SUPPLIERS) TO PREVENT WATER CORROSION
AND REDUCE THE RISK OF AN ELECTRICAL SHORT CIRCUIT.
TO MAINTAIN IP65 RATING INTEGRITY AND PREVENT WATER FROM ENTERING THE FIX-
TURE, ALL UNUSED CONNECTION RUBBER CAPS MUST BE SEALED. ONLY IP65 RATED
POWER AND DATA CABLES MUST BE USED.

DMX SET UP
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of commu-
nication between intelligent xtures and controllers. A DMX controller sends DMX data instructions
from the controller to the xture. DMX data is sent as serial data that travels from xture to xture
via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX xtures (most controllers only
have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of dierent manufacturers to be
linked together and operate from a single controller, as long as all xtures and the controller are DMX
compliant. To ensure proper DMX data transmission, try to use the shortest path possible when link-
ing several DMX xtures. The order in which xtures are connected in a DMX line does not inuence
the DMX addressing. For example, a xture assigned a DMX address of 1 may be placed anywhere
in a DMX line: at the beginning, at the end, or anywhere in the middle. When a xture is assigned a
DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no
matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX Operation): The Encore Burst RGBW IP can
be controlled via DMX-512 protocol. The Encore Burst RGBW IP has multiple DMX channel modes.
Your unit and your DMX controller requires a 5-pin XLR connector for data input and data output. We
recommend Accu-Cable DMX cables. If you are making your own cables, be sure to use standard
110-120 Ohm shielded cable (This cable may be purchased at almost all pro lighting stores). Your
cables should be made with a male XLR connector on one end and a female XLR connector on the
other. Also remember that DMX cable must be daisy chained and cannot be split.
Special Note: Line Termination. When longer runs of cable are used, you may need to use a ter-
minator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor
which is connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is
inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a
cable terminator (ADJ part number Z-DMX/T) will decrease the chance of erratic behavior.
TO MAINTAIN IP65 RATING INTEGRITY AND PREVENT WATER FROM ENTERING THE FIX-
TURE, ALL UNUSED CONNECTION RUBBER CAPS MUST BE SEALED AND ONLY IP65 RATED
POWER AND DATA CABLES MAY BE USED.
ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 11

DMX ADDRESSING
All xtures should be given a DMX starting address when using a DMX controller, to ensure that
the correct xture responds to the correct control signal. This digital starting address is the channel
number from which the xture starts to “listen” to the digital control signal sent out from the DMX
controller. The starting DMX address is assigned by setting the correct DMX address on the digital
control display on the xture.
You can set the same starting address for all xtures or a group of xtures, or set dierent addresses
for each individual xture. Setting all xtures to the same DMX address will cause all xtures to react
in the same way; in other words, changing the settings of one channel will aect all the xtures si-
multaneously.
If you set each xture to a dierent DMX address, each unit will start to “listen” to the channel num-
ber you have set, based on the quantity of DMX channels of each xture. That means changing the
settings of one channel will only aect the selected xture.
In the case of the Encore Burst RGBW IP, when in 4 channel mode you should set the starting DMX
address of the rst unit to 1, the second unit to 5 (4 + 1), the third unit to 9 (5 + 4), and so on. (See
chart below for more details.)
Channel Mode Unit 1 Address Unit 2 Address Unit 3 Address Unit 4 Address
4 Ch 1 5 9 13
6 Ch 1 7 13 19
7 Ch 1 8 15 22
8 Ch 1 9 17 25
11 Ch 1 12 23 34
ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 12

DMX MODES
CHANNEL DMX
VALUES DESCRIPTION
4-CH 6-CH 7-CH 8-CH 11-CH
1 1 1 1 1 000 - 255 Red, 0-100%
2 2 2 2 2 000 - 255 Green, 0-100%
3 3 3 3 3 000 - 255 Blue, 0-100%
4 4 4 4 4 000 - 255 White, 0-100%
5
Color Macros
000 - 007 No eect
008 - 015 Moroccan pink
016 - 022 Pink
023 - 030 Special rose pink
031 - 037 Fillies pink
038 - 045 Fuchsia pink
046 - 052 Surprise pink
053 - 060 Congo blue
061 - 067 Tokyo blue
068 - 075 Deep blue
076 - 082 Just blue
083 - 090 Medium blue
091 - 097 Double CT blue
098 - 105 State blue
106 - 112 Full CT blue
113 - 120 Half CT blue
121 - 127 Steel blue
128 - 135 Lighter blue
136 - 142 Light blue
143 - 150 Medium blue green
151 - 157 Dark green
158 - 165 Primary green
166 - 172 Moss green
173 - 180 Fern green
181 - 187 JAS green
188 - 195 Lime Green
CONTINUED ON NEXT PAGE
ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 13

ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 14
DMX MODES
CHANNEL DMX
VALUES DESCRIPTION
4-CH 6-CH 7-CH 8-CH 11-CH
5
Color Macros (cont’d from prev page)
196 - 202 Spring yellow
203 - 210 Deep amber
211 - 217 Chrome orange
218 - 225 Orange
226 - 232 Gold amber
233 - 240 Millennium gold
241 - 247 Deep gold amber
248 - 255 Flame red
5 5 6
Shutter
000 - 031 Shutter closed (LEDs o)
032 - 063 Shutter open (LEDs on)
064 - 095 Strobe eect, slow to fast
096 - 127 Shutter open (LEDs on)
128 - 159 Pulse eect in sequences
160 - 191 Shutter open (LEDs on)
192 - 223 Random strobe eect, slow to fast
224 - 255 Shutter open (LEDs on)
5 6 6 7 000 - 255 Dimmer, 0-100%
6 7 7 8 000 - 255 Dimmer Fine
8 9
Dim Modes
000 - 020 Standard
021 - 040 Stage
041 - 060 TV
061 - 080 Architectural
081 - 100 Theatre
101 - 120 Stage 2
121 - 140 Dim speed, fast to slow (0.1s-10.0s)
141 - 255 Default
CONTINUED ON NEXT PAGE

DMX MODES
CHANNEL DMX
VALUES DESCRIPTION
4-CH 6-CH 7-CH 8-CH 11-CH
10
Refresh Rates
000 - 015 Default
016 - 030 900 Hz
031 - 045 1000 Hz
046 - 060 1100 Hz
061 - 075 1200 Hz
076 - 090 1300 Hz
091 - 105 1400 Hz
106 - 120 1500 Hz
121 - 135 2500 Hz
136 - 150 4000 Hz
151 - 165 5000 Hz
166 - 180 6000 Hz
181 - 255 No function
11
Gamma
000 - 020 Default
021 - 040 1.0
041 - 060 2.0
061 - 080 2.2
081 - 100 2.4
101 - 120 2.6
121 - 130 2.8
131 - 255 No function
ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 15

SYSTEM MENU
ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 16
The xture includes an easy to navigate system menu control panel display where all necessary
settings and adjustments can be made. (See image below) During normal operation, pressing the
MENU button once will access the xture’s main menu. Once in the main menu, you can navigate
through the dierent options with the UP, DOWN, and MENU buttons. When you reach a eld that
requires adjusting, press the ENTER button to access that eld and use the UP and DOWN buttons
to adjust the eld. Pressing the ENTER button once more to conrm your setting. You may exit the
menu at any time without making any adjustments by pressing the MENU button. If there are no
changes/adjustments made within 10 seconds, the unit will revert back to the setting made under
“No DMX State”.

SYSTEM MENU
DMX ADDRESS 001 - 512
DMX CH MODE
4 ch
6 ch
7 ch
8 ch
11 ch
NO DMX STATUS
Hold Last
Blackout
Manual
DIM MODES
Standard
Stage
TV
Architectural
Theatre
Stage 2
Dim Speed 0.1s - 10.0s
LED REFRESH
RATE 900-1500, 2500, 4000, 5000, 6000 Hz Default = 1200 Hz
GAMMA
1.0
2.0
2.2
2.4
2.6
2.8
DISPLAY Backlight On / O
Display Lock On / O
SERVICE Passcode Eect Adjust
Red (000-255)
Passcode = 011
Green (000-255)
Blue (000-255
White (000-255)
Factory Restore Passcore
CONTINUED ON NEXT PAGE
ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 17

ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 18
SYSTEM MENU
MANUAL
CONTROL
Red 000 - 255
Green 000 - 255
Blue 000 - 255
White 000 - 255
Strobe 000 - 255
Dimmer 000 - 255
Program
Program0
Program1
Program2
Program3
Program4
Program Speed 000 - 255
Fade Time 0- 100%
INFORMATION
Fixture Life Time
Power On Time xxxxxx Hours
P-On Time-R xxxxxx Hours
P-On Time Reset Passcode Passcode = 050
Total LED Time
xxxxxx Hours
LED On Time-R xxxxxx Hours
LED Time Reset Passcode Passcode = 050
Fixture Temps
Current
Max Resettable(1)
Max Not Resettable(2)
Rst Temp History Passcode Passcode = 050
DMX Value(3)
Red 000-255
Green 000-255
Blue 000-255
White 000-255
Strobe 000-255
Dimmer 000-255
Software Version
Notes:
1. Current Maximum Temperature - Maximum xture temp that has been recorded, before reset and
after reset.
2. Maximum Temperature - Overall maximum xture temp that has been recorded. (Not Resettable)
3. DMX value options depend on the DMX Channel mode the xture is set to.

SYSTEM MENU
DMX ADDRESS - Use this menu to set your desired DMX address.
DMX CH MODE - In this menu you can nd and set your desired DMX channel mode.
NO DMX STATUS - Use this menu to control how your device will behave in the event that DMX
signal is lost or interrupted. Available options are shown below:
• Hold Last - This setting will have the xture stay in the last DMX setup.
• Blackout - This setting will have the xture automatically go into stand by mode.
• Manual - This setting will go into the current manual control set up. See the Manual Control
section below for details.
DIM MODES - In this menu you are able to select your desired dimmer mode and adjust the dim-
ming speed time.
LED REFRESH RATE - In this menu you are able to select your desired LED refresh rate.
GAMMA - In this menu you are able to select your desired gamma setting.
DISPLAY - In this menu you you are able to activate/deactivate the backlighting and the display lock
feature.
SERVICE - In this menu you are able to access and adjust/change: the calibration (eect adjust) and
restore the factory settings.
MANUAL CONTROL - This menu is for manual testing and manual control. The color, dimmer,
strobe, and program parameters can be tested/adjusted. The xture must be set to “Manual” under
“No DMX State”.
INFORMATION - FIXTURE LIFE TIME
• Power On Time -The TOTAL power ON running time of the unit is displayed. This time CANNOT
be reset.
• P-On Time-R - The CURRENT power ON running time of the unit is displayed. This running time
may not be the same as the TOTAL power ON running time displayed under “Power On Time”.
This time CAN be reset. NOTE: The displayed time represents the current power ON time since
the last reset.
• P-On Time-Reset - Reset the CURRENT power ON running time that is displayed under “P-On
Time-R”.
INFORMATION - TOTAL LED TIME
• LED On Time - The TOTAL LED ON time is displayed. This total LED ON time CANNOT be reset.
NOTE: The displayed time represents the TOTAL LED ON time.
• LED On Time-R - The CURRENT LED ON running time is displayed. This running time may not
be the same as the total LED ON time displayed under “LED On Time”. This total LED ON time
CAN be reset. NOTE: The displayed time represents the current LED ON time since the last reset.
• LED On Time Reset - With this function you can reset the CURRENT LED ON time that is dis-
played under “LED On Time-R”.
ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 19

SYSTEM MENU
INFORMATION - FIXTURE TEMPS
Current - The current unit temperature is displayed.
Max Resettable - Maximum temperature that has been recorded, before reset and after reset. This
temperature may not be the same as the temperature displayed under “CURRENT” or “MAX NOT
RESETTABLE”. This temperature CAN be reset. NOTE: The displayed temperature represents the
highest temperature the xture has reached since the last reset.
Max Not Resettable - Overall maximum temperature that has been recorded. This temperature
CANNOT be reset, and could continue rise.
Rst Temp History - Reset the “Max Resettable” temperature.
INFORMATION - DMX VALUES - Displays the DMX values of any DMX channel that is currently in
use. NOTE: DMX value options depend on the current DMX channel mode setting.
INFORMATION - SOFTWARE VERSION - The current software version is displayed.
ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 20
