ADJ VIZI BEAM RXONE User manual

User Manual
VIZI BEAM RXONE
Rev. 01/2021

ADJ Products, LLC - www.adj.com - Vizi Beam RXONE User Manual Page 2
©2021 ADJ Products, LLC all rights reserved. Information, specications, diagrams, images, and
instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying prod-
uct names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed
includes all forms and matters of copyrightable materials and information now allowed by statutory or
judicial law or hereinafter granted. Product names used in this document may be trademarks or regis-
tered trademarks of their respective companies and are hereby acknowledged. All non-ADJ Products,
LLC brands and product names are trademarks or registered trademarks of their respective compa-
nies.
ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property,
equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/or as
a result of the improper, unsafe, insucient and negligent assembly, installation, rigging, and operation
of this product.
DOCUMENT VERSION
Due to additional product features and/or enhancements, an updated version of this docu-
ment may be available online. Please check www.adj.com for the latest revision/update of this
manual before beginning installation and/or programming.
Date Document
Version
Software
Version >
DMX
Channel
Mode
Notes
07/24/17 1 1.0 15/17 Initial Release
11/06/19 2 4.3 15/17 Updated Lamp Warnings Added
01/08/21 3 4.4 15/17 Primary/Secondary Update, Updated Specifications
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is key to protecting the enviroment. Please turn o all electrical products when
they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from
power when not in use. Thank you!

Vizi Beam RXONE Table of Contents
ADJ Products, LLC - www.adj.com - Vizi Beam RXONE User Manual Page 3
General Information 4
Safety Precautions 5
Features 6
General Instructions | Handling Precautions | Product Registration 7
Important Discharge Lamp Warnings 8
Mounting 10
Dimensional Drawing | Photometric Chart 12
Base Layout 13
DMX Set Up 14
Power Cord Daisy Chain | DMX Control 16
15 Channel Mode 17
17 Channel Mode 22
System Menu 27
Offset Menu 31
Operation | Primary-Secondary Set Up 32
ADJ UC IR/Airstream IR Control 33
Lamp & Fuse Replacement 34
Lamp Replacement 35
Cleaning | Trouble Shooting 37
Warranty 38
Specifications 39

Unpacking: Thank you for purchasing the Vizi Beam RXONE by ADJ Products, LLC®. Every Vizi Beam
RXONE has been thoroughly tested and has been shipped in perfect operating condition. Carefully
check the shipping carton for damage that may have occurred during shipping. If the carton appears
to be damaged, carefully inspect your xture for any damage and be sure all equipment necessary
to operate the unit has arrived intact. In the event that damage has been found or parts are missing,
please contact our toll free customer support number for further instructions. Please do not return this
unit to your dealer without contacting customer support rst.
Introduction: The Vizi Beam RXONE is a DMX intelligent, moving head xture. This xture has 3 oper-
ating modes; sound active mode, show mode, and DMX control. This unit can be used as a stand
alone unit or in a Primary-Secondary conguration. For best results use fog or special eects smoke
to enhance the beams projections.
During the initial start-up or use of this product, a light smoke or smell may arise from the unit.
This is a normal process and is caused by the heat associated with the lamp.
Customer Support: ADJ Products, LLC® provides a toll free customer support line, to provide help
and to answer any questions that may arise during your set up or initial operation. You may also visit
us on the web at www.adj.com for any comments or suggestions. Service Hours are Monday through
Friday 8:00 a.m. to 4:30 p.m. Pacic Standard Time.
Voice: [phone]
Fax: [phone]
E-mail: [email protected]
To purchase parts online, please visit parts.adj.com.
Warning! To prevent or reduce the risk of electrical shock or re, do not expose this unit to rain or
moisture.
Warning! This unit can cause severe eye damage! Never look directly into the light source at
any time!
WARNING: FIRE HAZARD! DUE TO THE EXTREME HEAT EMITTED FROM THIS FIXTURE, THE
MINIMUM DISTANCE TO LIGHTED OBJECTS IS 8 METERS (26 FT).
Vizi Beam RXONE General Information
ADJ Products, LLC - www.adj.com - Vizi Beam RXONE User Manual Page 4

ADJ Products, LLC - www.adj.com - Vizi Beam RXONE User Manual Page 5
Vizi Beam RXONE Safety Precautions
For Your Own Personal Safety, Please Read and Understand This Manual Completely Before
You Attempt To Install Or Operate This Unit!
• To reduce the risk of electrical shock or fire, do not expose this unit rain or moisture.
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet matches the required voltage for your unit.
• Do not attempt to operate this unit if the power cord is frayed or broken.
• Do not attempt to remove or break off the ground prong from the electrical cord. This prong is
used to reduce the risk of electrical shock and fire in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user serviceable parts inside.
• Never operate this unit with the cover removed.
• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6”
(15cm) between this device and a wall.
• Do not attempt to operate this unit if it has been damaged in any way.
• This unit is intended for indoor use only, use of this product outdoors voids all warranties.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the appliance.
• Cleaning - The fixture should be cleaned only as recommended by the manufacturer. See the
Cleaning section of this manual for details.
• Heat - This fixture should be situated away from heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. Objects have fallen, or liquid has been spilled into, the appliance.
B. The appliance has been exposed to rain or water.
C. The appliance does not appear to operate normally or exhibits a marked change in perfor-
mance.

ADJ Products, LLC - www.adj.com - Vizi Beam RXONE User Manual Page 6
Vizi Beam RXONE Features
• Osram® Sirius HRI 100W 1R Discharge Lamp
• Micro-Stepping Motors for Smooth Color and Gobo Transitions
• DMX-512 Protocol Compatible (2 DMX Modes: 15 Channels & 17 Channels)
• 3-Pin XLR In/Out
• Independent Gobo and Color Wheels
• 15 Static Fixed Gobos + Spot
• 14 Colors, Plus White and Split Colors
• 16 Facet Prism with Rotation
• Frost Filter
• Strobe Effect
• 3 Degree Beam Angle
• 540˚ Pan Movement
• 270˚ Tilt Movement
• Pan/Tilt Invert
• Pan/Tilt Speed Adjustment
• Digital Display for Address and Function Setting
• Power Cord Daisy Chain (See Power Cord Daisy Chain section of this manual for details)

ADJ Products, LLC - www.adj.com - Vizi Beam RXONE User Manual Page 7
Vizi Beam RXONE General Instructions
To optimize the performance of this product, please read these operating instructions carefully to
familiarize yourself with the basic operations of this unit. These instructions contain important safety
information regarding the use and maintenance of this unit. Please keep this manual with the unit for
future reference.
Vizi Beam RXONE Handling Precautions
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,
doing so will void your manufacturer’s warranty. In the unlikely event your unit may require service,
please contact ADJ®.
During operation the housing may become extremely hot. Avoid touching the unit with bare hands
while in use.
ADJ® will not accept any liability for any resulting damages caused by the non-observance of this
manual or any unauthorized modification to this unit.
Vizi Beam RXONE Product Registration
The Vizi Beam RXONE carries a one year limited warranty. Please fill out the enclosed warranty card
to validate your purchase. All returned service items whether under warranty or not, must be freight
pre-paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly writ-
ten on the outside of the return package. A brief description of the problem as well as the R.A. num-
ber must also be written down on a piece of paper and included in the shipping carton. If the unit is
under warranty, you must provide a copy of your proof of purchase invoice. You may obtain an R.A.
number by contacting our customer support team on our toll free customer support number. All pack-
ages returned to the service department not displaying an R.A. number on the outside of the package
will be returned to the shipper at the shipper’s cost.

Vizi Beam RXONE Important Discharge Lamp Warnings
ADJ Products, LLC - www.adj.com - Vizi Beam RXONE User Manual Page 8
This xture is tted with a discharge lamp which is highly susceptible to damage if improperly han-
dled. NEVER touch the lamp located within the reector with your bare ngers, as the oil from your
hands will shorten lamp life. Also, never move the xture until the lamps have had ample time to
cool. Remember, lamps are not covered under warranty conditions.
This unit emits intense UV radiation which is harmful to the eyes and skin. The intense luminance of
the lamp can cause severe damage to the retina. Never operate this unit without the covers in place,
as these covers have been specially designed to shield against UV radiation.
Epileptic Warning: Those suering from epilepsy should avoid looking directly into the lamp at all
times.
Avoid switching the xture on and o repeatedly in short intervals as this will reduce lamp life and
intensity.
To achieve the intensity associated with discharge lamps, these lamps use gas sealed in a high pres-
sure environment to emit a brilliant output. Due to the high pressure involved with the construction of
the lamp, the lamp may explode during prolonged extensive use. This risk is increased with age, and
added care is therefore encouraged when dealing with older lamps. Extreme caution should be used
when operating this or any xture tted with a gas discharge lamp. Never open this unit while in use.
LAMP REPLACEMENT WARNING (Software Version <V1.0):
This is for your safety and the life length of the unit.The Osram® 1R Discharge lamp has lifetime of
6000 hours.
ADJ recommends periodically checking the lamp running time (see the “Lamp Time” sub-section
of the System Menu section of this manual). When the lamp approaches or reaches the 6000 hour
mark, it is strongly recommended to switch the lamp out and replace it with a fresh unit.
Replace the lamp following the instructions shown in the Lamp & Fuse Replacement section of this
manual. After replaceing the lamp you must clear the LAMP TIME (see the “Lamp Time” sub-section
of the System Menu section of this manual).
Warning: DO NOT use this lamp for more then 6000 hours. Using the lamp any longer then the
set life could seriously damage your unit.
WARNING! CAUTION! FIRE HAZARD! DUE TO THE EXTREME HEAT CAUSED BY THIS LAMP,
THE MINIMUM DISTANCE TO LIGHTED OBJECTS IS 8 METERS (26FT).

ADJ Products, LLC - www.adj.com - Vizi Beam RXONE User Manual Page 9
Vizi Beam RXONE Important Discharge Lamp Warnings
LAMP REPLACEMENT WARNING (Software Version >V4.3)
When the lamp reaches 5700 Hours of usage, the display will ash the message “Replace Lamp-
Soon”. This message will ash for up to 10 minutes. To conrm this warning and return to normal
operation, press the ENTER button.
When the lamp reaches 6000 Hours of usage, the display will ash the message “Replace Lamp
Now”. This message will ash for up to 10 minutes. To conrm this warning and return to normal
operation, press the ENTER button. NOTE: When the xture is powered OFF and then back ON
again, the xture display will ash the following message: “Replace Lamp Now”.
When the lamp reaches 6200 Hours of usage, the display again will ash the message “Replace
Lamp Now”. The unit will now no longer respond to DMX commands and enter hibernation mode,
which will discontinue all xture functionality with the exception of a few menu commands. The
xture will continue to enter into hibernation mode until the lamp is replaced and the lamp time has
been reset.
See the “Lamp Time” sub-section of the System Menu section of this manual for the procedure on
how to reset the lamp time.
NOTE: After replacing the lamp, the lamp time MUST be reset. The lamp time must be reset to
gain access to the full system menu.

Vizi Beam RXONE Mounting
ADJ Products, LLC - www.adj.com - Vizi Beam RXONE User Manual Page 10

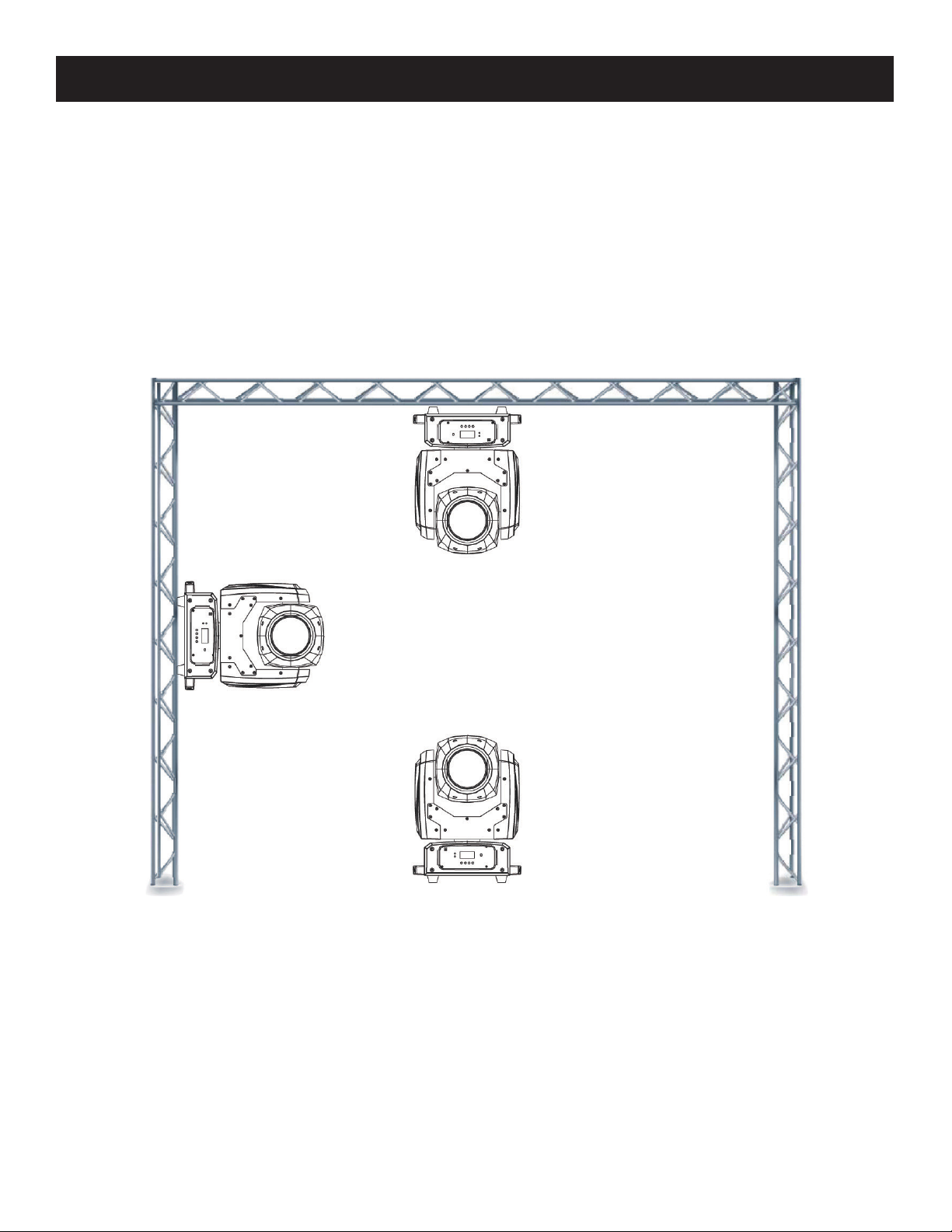

When installing the unit, the trussing or area of installation must be able to hold 10 times the weight of
the unit without any deformation. The unit must be secured with a secondary safety attachment, such
as an appropriately-rated safety cable. Never stand directly below the unit when mounting, removing,
or servicing the unit.
Overhead mounting requires extensive experience, including calculating working load limits, installa-
tion material being used, and perodic safety inspection of all installation material and unit. If you lack
these qualifications, do not attempt the installation yourself.
The installation should be checked by a skilled person once a year.
The Vizi Beam RXONE is fully operational in three different mounting positions: hanging upside-down
from a ceiling, sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least
12m (40ft) away from any flammable materials (decoration etc.). Always use and install an appropri-
ately-rated safety cable in order to prevent accidental damage and/or injury in the event the clamp
fails. Never use the carrying handles for secondary attachment.

ADJ Products, LLC - www.adj.com - Vizi Beam RXONE User Manual Page 11
Vizi Beam RXONE Mounting
NOTICE: The suitable enviromental temperature for this lighting fixture is between -25˚ C to 45˚ C.
Do not place this lighting fixture in an enviroment where the temperatures are outside of this stated
range. This will allow the fixture to run at its best and help prolong the fixture life.
Screw one clamp onto the Omega holders using an M12 screw and nut. Insert the quick-lock fas-
teners of the first Omega holder into the respective holes on the bottom of the Vizi Beam RXONE.
Tighten the quick-lock fasteners fully clockwise. Pull the safety-cable through the openings located
on the base plate and over the trussing system or a safe fixation spot. Insert the end in the carabine
and tighten the safety screw.

ADJ Products, LLC - www.adj.com - Vizi Beam RXONE User Manual Page 12
Vizi Beam RXONE Dimensional Drawing
Vizi Beam RXONE Photometric Chart

ADJ Products, LLC - www.adj.com - Vizi Beam RXONE User Manual Page 13
Vizi Beam RXONE Base Layout
1. Button functions:
MENU Select programming functions.
DOWN Go forward in the selected functions.
UP Go backward in the selected functions.
ENTER Confirm the selected functions.
2. Microphone: Receives ambient sound of use in Sound Active Mode.
3. LED:
POWER On Power On
DMX On DMX input present
4. Function Display: Shows the various menus and selected functions.
5. IR Receiver: Receives signal from IR remote.
6. Fuse: Protects the unit from over-voltage or short circuit.
7. Power In/Out: Used to connect the unit to supply power.
8. DMX In/Out: 3-pin XLR connectors for DMX-512 operation.

ADJ Products, LLC - www.adj.com - Vizi Beam RXONE User Manual Page 14
Vizi Beam RXONE DMX Set Up
Power Supply: The ADJ® Vizi Beam RXONE contains an electronic ballast, which will auto sense
the voltage when it is plugged into the power source. With the electronic ballast you do not need to
worry about wall voltage. This unit can be plugged in anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used by most lighting and
controller manufactures as a form of communication between intelligent xtures and controllers. A
DMX controller sends DMX data instructions from the controller to the xture. DMX data is sent as
serial data that travels from xture to xture via the DATA “IN” and DATA “OUT” XLR terminals locat-
ed on all DMX xtures (most controllers only have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of dierent manufactures to be
linked together and operate from a single controller, as long as all xtures and the controller are DMX
compliant. To ensure proper DMX data transmission, when using several DMX xtures, try to use
the shortest cable path possible. The order in which xtures are connected in a DMX line does not
inuence the DMX addressing. For example; a xture assigned a DMX address of 1 may be placed
anywhere in a DMX line: at the beginning, at the end, or anywhere in the middle. When a xture is
assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that
unit, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX and Primary/Secondary Operation): The Vizi
Beam RXONE can be controlled via DMX-512 protocol. The Vizi Beam RXONE has 2 DMX channel
modes: 15 channels and 17 channels. The DMX address is set electronically using the controls on
the front panel of the unit. Your unit and your DMX controller require an approved DMX-512 110 Ohm
Data cable for data input and data output (Figure 1). We recommend Accu-Cable DMX cables. If you
are making your own cables, be sure to use standard 110-120 Ohm shielded cable (This cable may
be purchased at almost all professional sound and lighting stores). Your cables should be made with
a male and female XLR connector on either end of the cable. Also remember that DMX cable must
be daisy chained and cannot be split.

ADJ Products, LLC - www.adj.com - Vizi Beam RXONE User Manual Page 15
Vizi Beam RXONE DMX Set Up

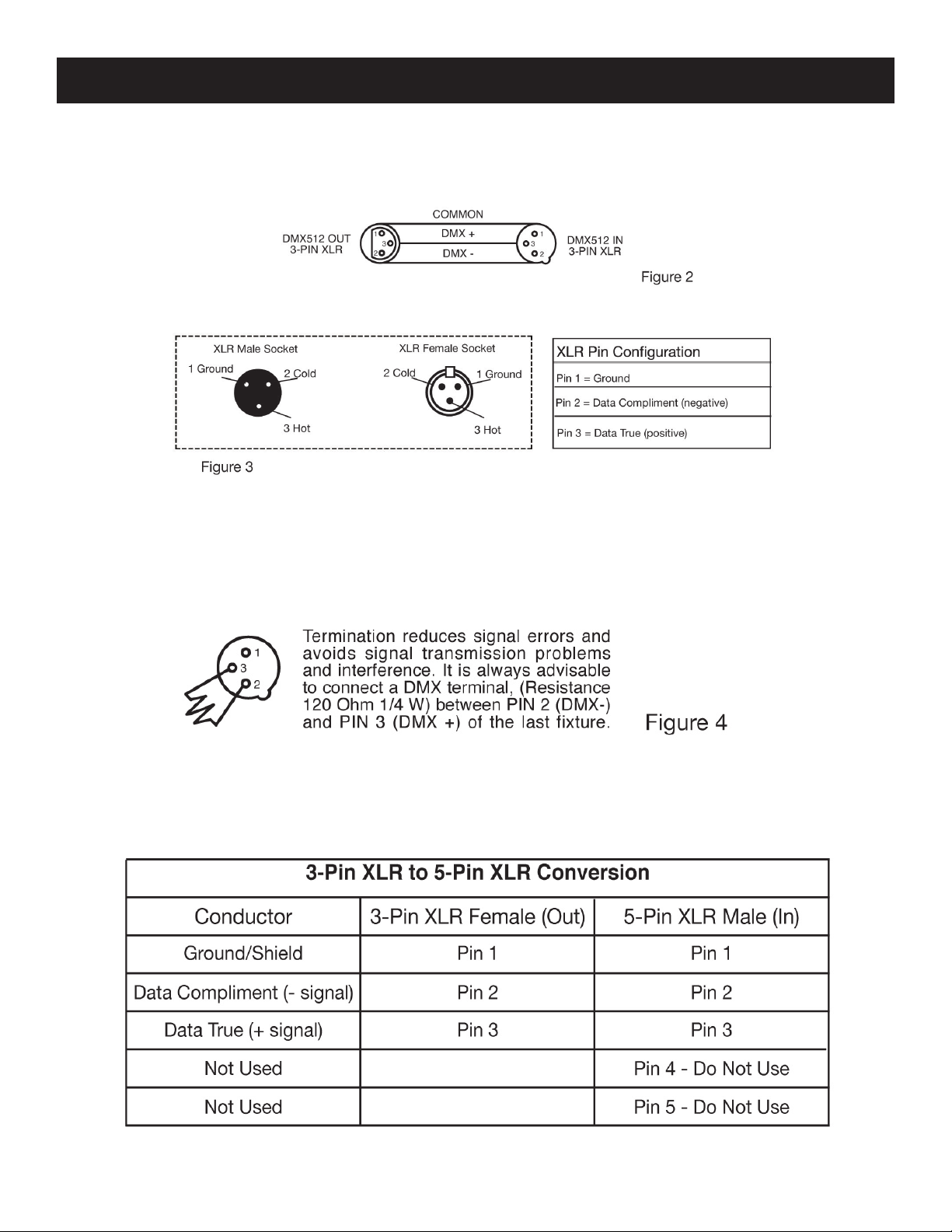

Notice: Be sure to follow gures two and three when making your own cables. Do not use the
ground lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug
or allow the shield conductor to come in contact with the XLR’s outer casing. Grounding the shield
could cause a short circuit and result in erratic behavior.
Special Note: Line Termination. When longer runs of cable are used, you may need to use a ter-
minator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor
which is connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is
inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a
cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.
5-Pin XLR DMX Connectors. Some manufacturers use 5-pin DMX-512 data cables for DATA trans-
mission in place of 3-pin. 5-pin DMX xtures may be implemented in a 3-pin DMX line. When insert-
ing standard 5-pin data cables in to a 3-pin line, a cable adaptor must be used. These adaptors are
readily available at most electric stores. The chart below details a proper cable conversion.

ADJ Products, LLC - www.adj.com - Vizi Beam RXONE User Manual Page 16
Vizi Beam RXONE Power Cord Daisy Chain
With this feature you can connect the xtures to one another using the power input and output
sockets.
The maximum number of xtures that can be connected in this manner is as follows:
• 8 xtures maximum @ 120V
• 16 xtures maximum @230V
After this quantity has been exceeded, a new power outlet will be required in order to accom-
modate additional devices.
All connected xtures must be of the same make and model type. DO NOT mix xtures.
Vizi Beam RXONE DMX Control
Universal DMX Control: This function allows you to use a universal DMX-512 controller. A DMX
controller allows you to create unique programs tailored to your individual needs.
• The Vizi Beam RXONE has two DMX channel modes: a 15 channel mode and 17 channel mode.
See the Channel Mode sections of this manual for detailed descriptions of the DMX traits.
• To control your xture in DMX mode, follow the procedures shown in the DMX Set Up section of
this manual as well as the set-up specications that are included with your DMX controller.
• Follow the instructions shown in the System Menu section of this manual to select your desired
DMX channel mode and to set your desired DMX address.
• Use the controller’s faders to control the various DMX xture traits.
• For longer cable runs (more than a 100 feet) use a terminator on the last xture.
• For help operating in DMX mode consult the manual included with your DMX controller.

ADJ Products, LLC - www.adj.com - Vizi Beam RXONE User Manual Page 17

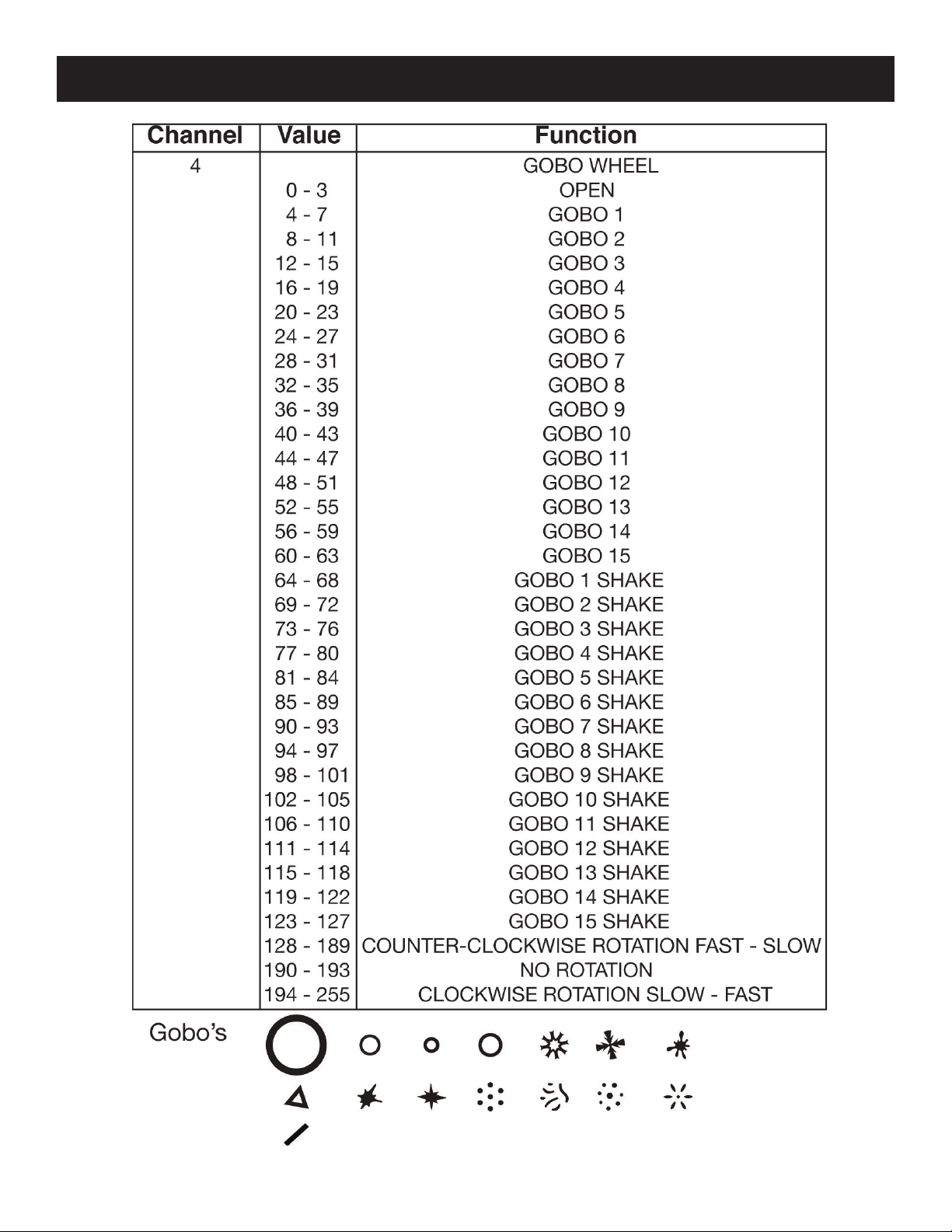

Vizi Beam RXONE 15 Channel Mode

ADJ Products, LLC - www.adj.com - Vizi Beam RXONE User Manual Page 18

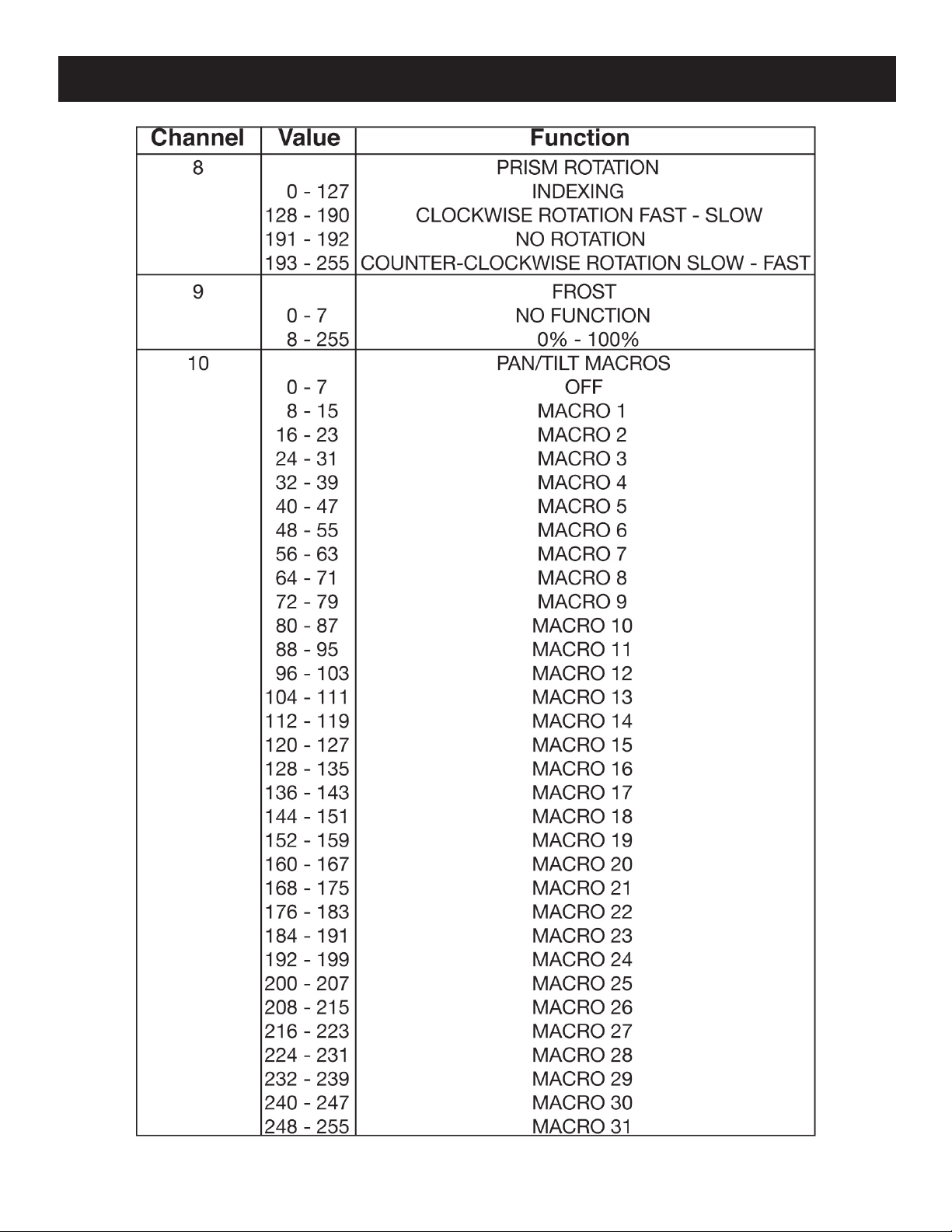

Vizi Beam RXONE 15 Channel Mode

ADJ Products, LLC - www.adj.com - Vizi Beam RXONE User Manual Page 19

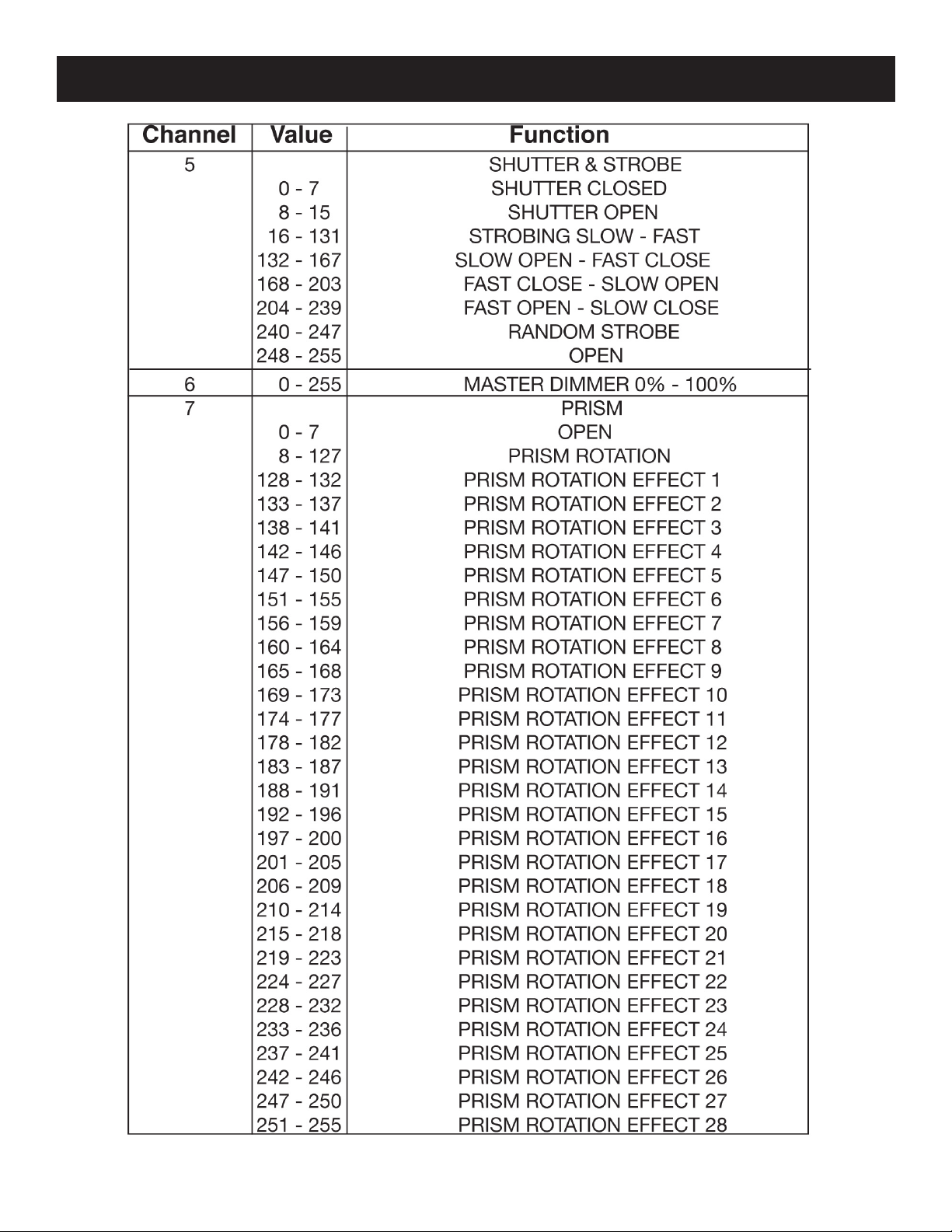

Vizi Beam RXONE 15 Channel Mode

ADJ Products, LLC - www.adj.com - Vizi Beam RXONE User Manual Page 20
Vizi Beam RXONE 15 Channel Mode
