Advansus i965GM-DCQI User manual

i965GM-DCQI
Intel® GME965 socket 479P Core Duo / Core Solo/Core 2
Duo Mini ITX Main Board
User’s Manual
Ver. 1.00

i965GM-DCQI
2
Contents
Safety Information ..........................................................................................................4
Technical Support ............................................................................................................5
Conventions Used in This Guide....................................................................................5
Packing List.......................................................................................................................6
Revision History ...............................................................................................................7
Specifications Summary..................................................................................................8
Block Diagram.................................................................................................................10
Production Introduction ...............................................................................................12
1.1 Before you Proceed ................................................................................................12
1.2 Motherboard Overview............................................................................................13
1.2.1 Placement Direction ....................................................................................................................... 13
1.2.2 Screw Holes ................................................................................................................................... 13
1.3 Motherboard Layout ................................................................................................14
1.3.1 Layout Content List ........................................................................................................................ 15
1.4 Central Processing Unit (CPU)................................................................................17
1.4.1 Installing the CPU........................................................................................................................... 18
1.4.2 Installing the CPU Heatsink and Fan .............................................................................................20
1.4.3 Uninstalling the CPU Heatsink and Fan......................................................................................... 22
1.5 System Memory ......................................................................................................23
1.5.1 DIMM Sockets Location ................................................................................................................. 23
1.5.2 Memory Configurations .................................................................................................................. 24
1.5.3 Installing a DDR2 DIMM................................................................................................................. 25
1.5.4 Removing a DDR2 DIMM............................................................................................................... 26
1.6 Expansion Slots ......................................................................................................27
1.6.1 Installing an Expansion Card ......................................................................................................... 27
1.6.2 Configuring an Expansion Card ..................................................................................................... 27
1.6.3 Standard Interrupt Assignments..................................................................................................... 28
1.6.4 PCI Slots ........................................................................................................................................ 28
1.7 Jumpers ..................................................................................................................29
1.7.1 Clear CMOS (CCMOS1) ................................................................................................................ 29
1.7.2 COM1 RI/+5V/+12V Selection (JCOMPWR1, JCOMPWR2)......................................................... 30
1.7.3 COM2 RI/+5V/+12V Selection (JCOMPWR1, JCOMPWR2)......................................................... 30
1.7.4 COM3 RI/+5V/+12V Selection (JCOMPWR3, JCOMPWR4)......................................................... 31
1.7.5 COM4 RI/+5V/+12V Selection (JCOMPWR3, JCOMPWR4)......................................................... 31
1.7.6 SM Power Connector (SM_PWRBTN1)......................................................................................... 32

User’s Manual
i965GM-DCQI
3
Contents
1.8 Connectors..............................................................................................................33
1.8.1 Rear Panel Connectors.................................................................................................................. 33
1.8.2 Amplifier Connector (AMPJ1)......................................................................................................... 35
1.8.3 ATX Power Connector (ATXPWR1)............................................................................................... 35
1.8.4 Serial Port 3 Connector (COM3) .................................................................................................... 36
1.8.5 Serial Port 4 Connector (COM4) .................................................................................................... 36
1.8.6 CPU Fan Connector (CPU_FAN1)................................................................................................. 37
1.8.7 Power Fan Connector (PWR_FAN1) ............................................................................................. 37
1.8.8 System Panel Connector (FPIO1)..................................................................................................38
1.8.9 Primary IDE Connector (IDE1)....................................................................................................... 39
1.8.10 LVDS Connector (JLVDS1) ....................................................................................................... 39
1.8.11 LCD Inverter Connector (JBKL1)............................................................................................... 40
1.8.12 Digital I/O Connector (JDIO1).................................................................................................... 40
1.8.13 SPI Connector (JSPI1)............................................................................................................... 41
1.8.14 Digital Audio Connector (SPDIF_OUT2) ................................................................................... 41
1.8.15 Serial SATA Connector [Black] (SATA1, SATA2, SATA3) ........................................................ 42
1.8.16 USB 2.0 Connector (USB3, USB4, USB5) ................................................................................ 43

i965GM-DCQI
4
Safety Information
Electrical safety
zTo prevent electrical shock hazard, disconnect the power cable from the electrical
outlet before relocating the system.
zWhen adding or removing devices to or from the system, ensure that the power cables
for the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you add a device.
zBefore connecting or removing signal cables from the motherboard, ensure that all
power cables are unplugged.
zSeek professional assistance before using an adapter or extension cord. These
devices could interrupt the grounding circuit.
zMake sure that your power supply is set to the correct voltage in your area. If you are
not sure about the voltage of the electrical outlet you are using, contact your local
power company.
zIf the power supply is broken, do not try to fix it by yourself. Contact a qualified service
technician or your retailer.
Operation safety
zBefore installing the motherboard and adding devices on it, carefully read all the
manuals that came with the package.
zBefore using the product, make sure all cables are correctly connected and the power
cables are not damaged. If you detect any damage, contact your dealer immediately.
zTo avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.
zAvoid dust, humidity, and temperature extremes. Do not place the product in any area
where it may become wet.
zPlace the product on a stable surface.
zIf you encounter technical problems with the product, contact a qualified service
technician or your retailer.
The symbol of the crossed out wheeled bin indicates that the product
(electrical and electronic equipment) should not be placed in
municipal waste. Check local regulations for disposal of electronic
products.

User’s Manual
i965GM-DCQI
5
Technical Support
If a problem arises with your system and no solution can be obtained from the user’s
manual, please contact your place of purchase or local distributor. Alternatively, please try
the following help resources for further guidance. Visit the Advansus website for FAQ,
technical guide, BIOS updates, driver updates, and other information:
http://www.advansus.com.tw/Support/Support.asp
Conventions Used in This Guide
To make sure that you perform certain tasks properly, take note of the following symbols
used throughout this manual.
DANGER/WARNING: Information to prevent injury to yourself when
trying to complete a task.
CAUTION: Information to prevent damage to the components when
trying to complete a task.
IMPORTANT: Instructions that you MUST follow to complete a task.
NOTE: Tips and additional information to help you complete a task.

i965GM-DCQI
6
Packing List
Before you begin installing your single board, please make sure that the following materials
have been shipped:
91 x Intel GME965 Mini ITX Main board
91 x CD-ROM contains the followings:
－User’s manual (this manual in PDF file)
－Drivers
92 x COM1 cable (9-pin w/o bracket, 26cm)
91 x IDE HDD cable (40-pin, 30cm)
93 x SATA cable kit
91 x I/O Shield
96 x 4# Screws
91 x Startup Manual
If any of the above items is damaged or missing, please contact your
retailer.

User’s Manual
i965GM-DCQI
7
Revision History
Revision Revision History Date
V 1.0 First release for PCB 1.00 October 02, 2007

i965GM-DCQI
8
Specifications Summary
1 Supports Intel socket P Core 2 Duo / Core Duo / Core 2 Solo / Core Solo
mobil CPU with 65nm process technology
2 Intel GME965 Chipset
3 Two 200-pin SODIMMs sockets up to 4GB Dual Channel DDR2 533/667
SDRAM
4 Intel Graphics Media Accelerator X3100
5 DVI, Dual 18/24-bit LVDS
6 Realtek ALC888 5.1+2 CH Audio (5W x 2-CH Amplified ) with Dual
Independent Audio Streams
7 Dual Gigabit Lan Realtek RTL8111B (DVT)
8 Gigabit LAN Realtek RTL8111B
9 One PCI slot
Features
10 4 COM,10 USB 2.0, 3 SATA
TPM INFINEON SLB9635TT Module Onboard
System
CPU Supports Intel socket P Core 2 Duo / Core Duo / Core 2 Solo / Core Solo mobile
CPU with 65nm process technology
FSB 533/800 MHz
BIOS AMI 16 Mb SPI BIOS
System Chipset Intel GME965/ICH8M
I/O Chipset Winbond W83627DHG-A
Memory Two 200-pin SODIMM sockets support up to 4 GB Dual Channel DDR2 533/667
SDRAM
SSD One CompactFlash Type I/II socket
Watchdog Timer Reset: 1 sec.~255 min. and 1 sec. or 1 min./step
H/W Status Monitor Monitoring CPU temperature, voltage, and cooling fan status. Auto throttling
control when CPU overheats
Expansion Slots One PCI slot (PCI Rev. 2.2 compliant) supports 3 PCI master
S3 S3 Support
Smart Fan Control Yes
I/O
MIO 1x EIDE, 3 x SATA, 10 x USB, 4 x RS232, 1 x K/B, 1 x Mouse, (COM1~4 with
Power output)
USB 10 x USB 2.0
DIO 8-bit General Purpose I/O for DI and DO

User’s Manual
i965GM-DCQI
9
Specifications Summary
I/O
Internal I/O
3 x USB connectors support additional 6 USB ports
1 x 20-pin ATX Power connector,1 x IDE 40-pin connector for two devices
2 x COM port header,3 x SATA connectors,1 x Front panel audio connector
1 x Audio amplifier connector,1 x System panel connector
1 x LVDS connector,1 x Inverter Power connector,1 x CPU Fan connector
1 x System Fan connector,1 x Digital IO header
1 x SPDIF Out connector reserved
Back Panel
1 x PS/2 Keyboard,1 x PS/2 Mouse,2 x RS-232,1 x VGA port,1 x DVI port
4 x USB 2.0/1.1,1 x LAN RJ45 Port (one existed, another option)
5.1 + 2 CH Audio I/O (3 jacks)
Display
Chipset Intel Graphics Media Accelerator X3100
Display Memory Intel DVMT 4.0 supports 384 MB video memory
Resolution 2048 x 1536 @ 32 bpp(@ 60Hz)
Dual Display CRT + LVDS, or CRT + DVI-D
LVDS Dual-channel 24-bit LVDS
DVI Chrontel CH7307C DVI transmitter up to 165M pixels/second
Audio
Audio Codec Realtek ALC888 Audio Code
5.1+2 ch. with two independent audio stream
Audio Interface Mic in, Line in, Line out
Audio Amplifier TPA3005D2 Stereo 5Watt per channel
Ethernet
LAN1 Realtek RTL8111B PCI-E Gigabit Ethernet Controller
LAN2 Realtek RTL8111B PCI-E Gigabit Ethernet Controller (optional)
Mechanical & Environmental
Power Type ATX
Operating Temperature 0~60°C (32~140°F)
Operating Humidity 0%~90% relative humidity, non-condensing
Size (L x W) 6.69" x 6.69" (170 mm x 170 mm)
Weight 0.88 lbs (0.4 Kg)
* Specifications are subject to change without notice.

i965GM-DCQI
10
Block Diagram

User’s Manual
i965GM-DCQI
11
This chapter describes the main board
features and the new technologies
it supports.
1
Product
introduction
1
Product
introduction

i965GM-DCQI
12
Production Introduction
1.1 Before you Proceed
Take note of the following precautions before you install motherboard components or
change any motherboard settings.
zUnplug the power cord from the wall socket before touching any
component.
zUse a grounded wrist strap or touch a safely grounded object or a
metal object, such as the power supply case, before handling
components to avoid damaging them due to static electricity
zHold components by the edges to avoid touching the ICs on
them.
zWhenever you uninstall any component, place it on a grounded
antistatic pad or in the bag that came with the component.
zBefore you install or remove any component, ensure that the ATX
power supply is switched off or the power cord is detached from
the power supply. Failure to do so may cause severe damage to
the motherboard, peripherals, and/or components.

User’s Manual
i965GM-DCQI
13

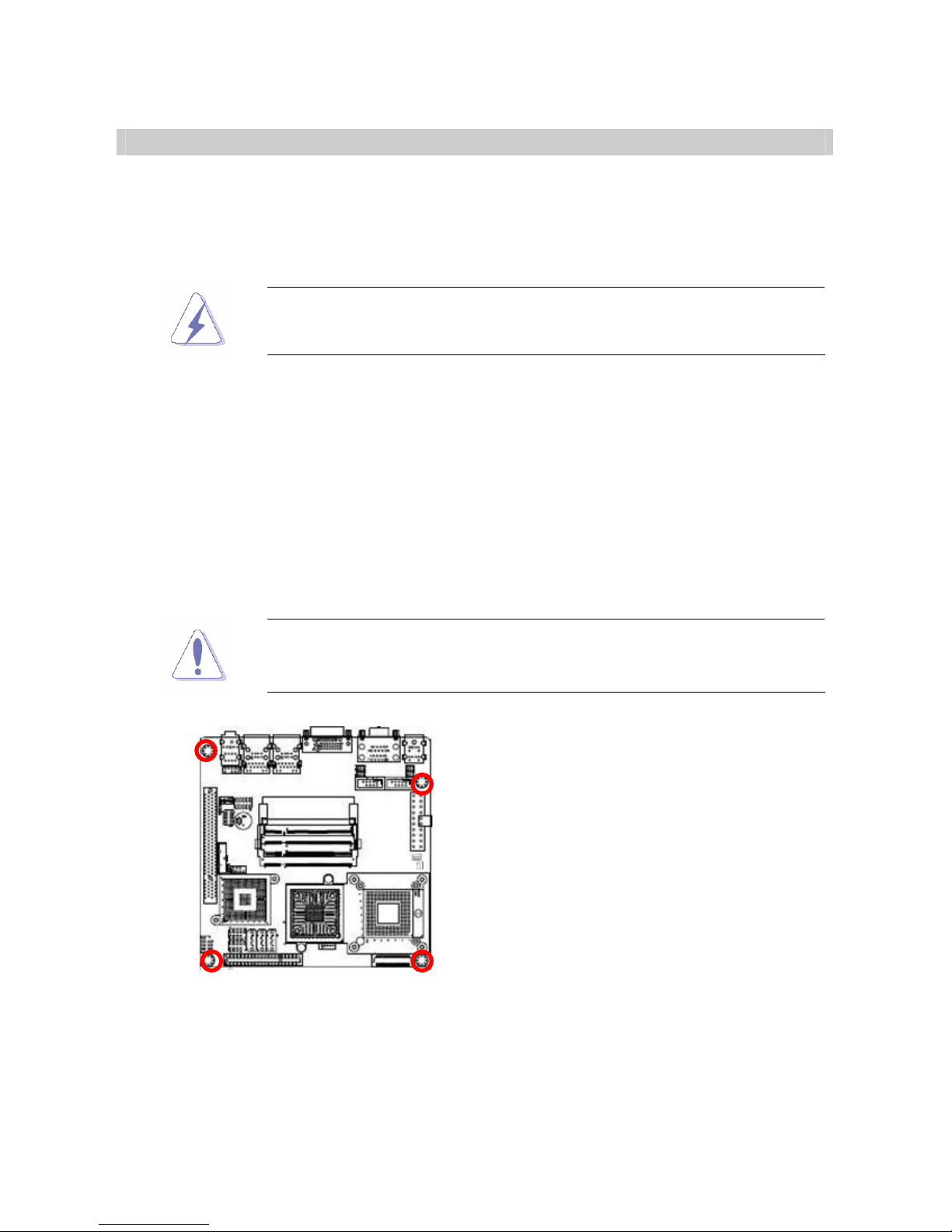

1.2 Motherboard Overview
Before you install the motherboard, study the configuration of your chassis to ensure that
the motherboard fits into it. Refer to the chassis documentation before installing the
motherboard.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so can cause you physical injury and
damage motherboard components.
1.2.1 Placement Direction
When installing the motherboard, make sure that you place it into the chassis in the correct
orientation. The edge with external ports goes to the rear part of the chassis as indicated in
the image below.
1.2.2 Screw Holes
Place four (4) screws into the holes indicated by circles to secure the motherboard to the
chassis.
Do not over tighten the screws! Doing so can damage the
motherboard.
Place this side towards the rear of the
chassis

i965GM-DCQI
14

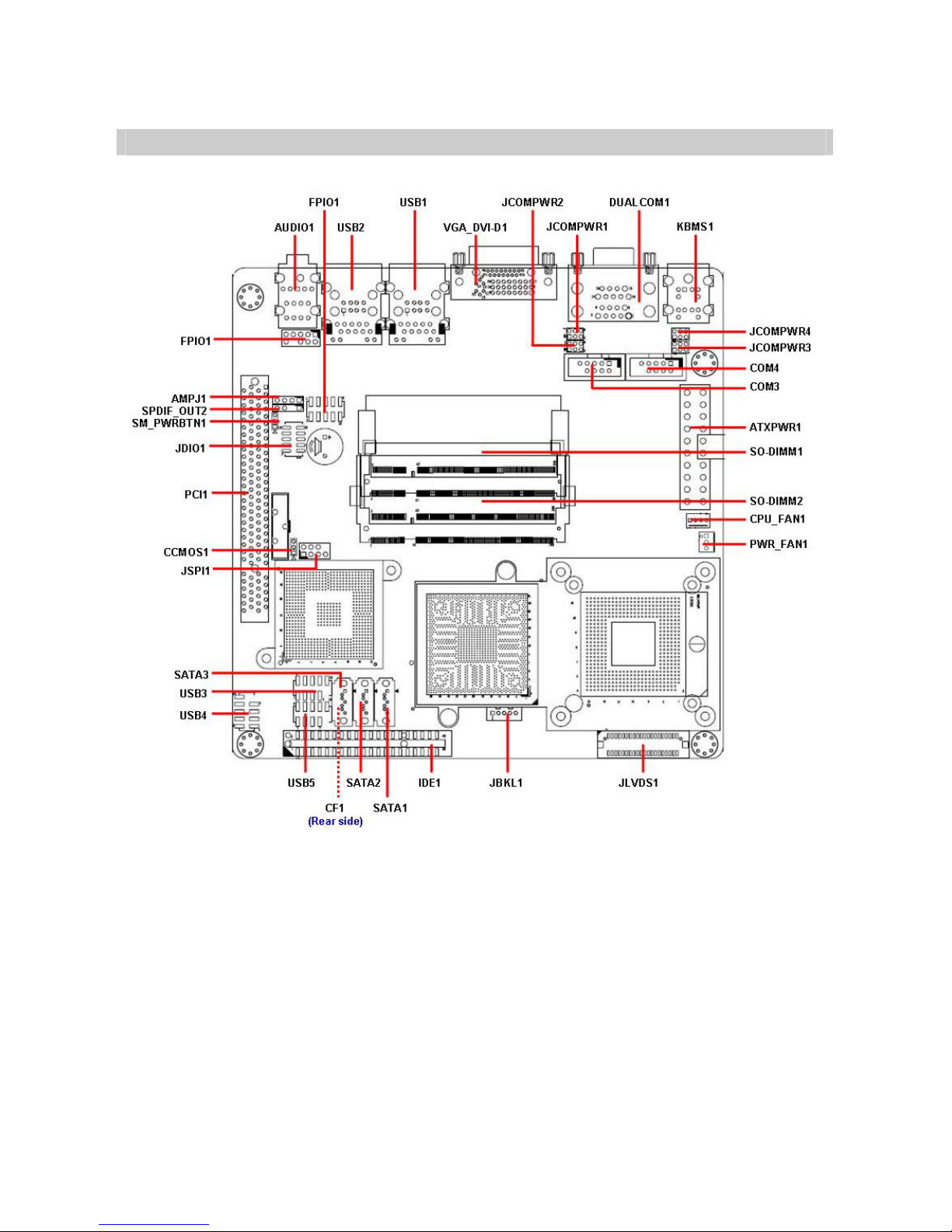

1.3 Motherboard Layout

User’s Manual
i965GM-DCQI
15
1.3.1 Layout Content List
Slots
Label Function Note Page
CF1A Compact Flash connector (Rear side) N/A
SO-DIMM1 200-pin SODIMM slot 1 N/A
SO-DIMM2 200-pin SODIMM slot 2 N/A
PCI1 PCI slot N/A
Jumpers
Label Function Note Page
CCMOS1 Clear CMOS 3 x 1 header, pitch 2.00mm 29
JCOMPWR1,2 COM 1, 2 RI/+5V/+12V
selection
3 x 2 header, pitch 2.00mm 30
JCOMPWR3,4 COM 3, 4 RI/+5V/+12V
selection
3 x 2 header, pitch 2.00mm 31
SM_PWRBTN1 SM power connector 3 x 1 header, pitch 2.00mm 32
Rear Panel Connector
Label Function Note Page
KBMS1 PS/2 keyboard and mouse 6-pin Mini-Din 33,34
DUALCOM1 Serial port connector x 2 D-sub 9-pin, male 33
VGA_DVI-D1 VGA connector
DVI connector
D-sub 15-pin, female 33,34
USB1 RJ-45 Ethernet connector x 1
USB connector x 2
33,34
USB2 RJ-45 Ethernet connector x 1
USB connector x 2
(Optional for Intel 82566MM) 33,34
AUDIO1 Line-in port, Line-out port,
Microphone port,
5.1 Channel Audio I/O (3 jacks) 34

i965GM-DCQI
16
Internal Connector
Label Function Note Page
AMPJ1 Amplifier connector 4 x 1 header, pitch 2.54mm 35
ATXPWR1 ATX power connector 10 x 2 header 35
COM3 Serial port 3 connector 5 x 2 header, pitch 2.54mm 36
COM4 Serial port 4 connector 5 x 2 header, pitch 2.54mm 36
CPU_FAN1 CPU fan connector 4 x 1 wafer, pitch 2.54mm 37
PWR_FAN1 Power fan connector 3 x 1 wafer, pitch 2.54mm 37
FPIO1 System panel connector 5 x 2 header, pitch 2.54mm 38
IDE1 Primary IDE connector 20 x 2 header, pitch 2.00mm 39
JLVDS1 LVDS connector HIROSE DF13S-40DP-1.25V 39
JBKL1 LCD Inverter connector 5 x 1 header, pitch 2.00mm 40
JDIO1 Digital I/O connector 5 x 2 header, pitch 2.00m 40
JSPI1 SPI connector 4 x 2 header, pitch 2.54mm 41
SPDIF_OUT2 Digital Audio connector 4 x 1 header, pitch 2.54mm 41
SATA1,2,3 Serial ATA connectors 1,2,3
[black]
7-pin header 42
USB3 USB 2.0 connector 5 x 2 header, pitch 2.54mm 43
USB4 USB 2.0 connector 5 x 2 header, pitch 2.54mm 43
USB5 USB 2.0 connector 5 x 2 header, pitch 2.54mm 43

User’s Manual
i965GM-DCQI
17
1.4 Central Processing Unit (CPU)
The motherboard comes with a surface mount 478-pin designed for the Intel® socket 479P
Core Duo / Core Solo / Core 2 Duo CPU with 65nm process.
Take one of the marked corner (with gold
triangle) on the CPU. This mark should
match a specific corner on the socket to
ensure correct installation.
zMake sure the AC power is off before you install the CPU.
zIf installing a dual-core CPU, connect the CPU fan cable to the
CPU_FAN1 connector to ensure system stability.
zYour boxed Intel® socket 479P Core Duo / Core Solo / Core 2
Duo CPU with 65nm process package should come with
installation instructions for the CPU, heatsink, and the retention
mechanism. If the instructions in this section do not match the
CPU documentation, follow the latter.
zUpon purchase of the motherboard, make sure that the PnP cap
is on the socket and the socket contacts are not bent. Contact
your retailer immediately if the PnP cap is missing, or if you see
any damage to the PnP cap/socket contacts/motherboard
components. Your place of purchase or local distributor will
shoulder the cost of repair only if the damage is
shipment/transit-related.
zKeep the cap after installing the motherboard. Your place of
purchase or local distributor will process Return Merchandise
Authorization (RMA) requests only if the motherboard comes with
the cap on the socket.
zThe product warranty does not cover damage to the socket
contacts resulting from incorrect CPU installation/removal, or
misplacement/loss/ incorrect removal of the PnP cap.

i965GM-DCQI
18
1.4.1 Installing the CPU
1. Locate the CPU socket on the
motherboard.
Before installing the CPU,
make sure that the socket
box is facing towards you.
2. The processor socket comes with a
screw to secure the processor, please
unlock the screw first.

User’s Manual
i965GM-DCQI
19
3. Position the CPU above the socket and
the gold triangular mark on the CPU
must align with pin 1 of the CPU socket.
4. Carefully insert the CPU into the socket
until it fits in place ‘Gold mark’.
5. Turn the screw to the lock position.
The CPU fits in only one
correct orientation. DO
NOT force the CPU into
the socket to prevent
bending the connectors
on the socket and
damaging the CPU.
After installation, make sure to plug-in the ATX power cable to the
motherboard.

i965GM-DCQI
20
1.4.2 Installing the CPU Heatsink and Fan
The Intel® socket 479P Core Duo / Core Solo / Core 2 Duo CPU processor requires a
specially designed heatsink and fan assembly to ensure optimum thermal condition and
performance.
zInstall the motherboard to the chassis before you install the CPU
fan and heatsink assembly.
zWhen you buy a boxed Intel® processor, the package includes
the CPU fan and heatsink assembly. If you buy a CPU
separately, make sure that you use only Intel®‑certified
multi‑directional heatsink and fan.
If you purchased a separate CPU heatsink and fan assembly, make
sure that you have properly applied Thermal Interface Material to the
CPU heatsink or CPU before you install the heatsink and fan
assembly.
1. Place the heatsink on top of the installed
CPU, making sure that the four fasteners
match the holes on the motherboard.
Orient the heatsink and fan
assembly such that the CPU
fan cable is closest to the
CPU fan connector.
Make sure each fastener is oriented as shown, with the narrow groove
directed outward.
