Advantech MIC-3000 Series User manual

Advantech CompactPCI™
Modular Industrial Computer
MIB-3081A
6U-8-slot backplane
with CT bus and rear I/O
for CompactPCI™

MIB-3081A User Manual --- Page
II
Copyright Notice
This document is copyrighted, 2003. All rights are reserved. The original manufacturer
reserves the right to make improvements to the products described in this manual at
any time without notice.
No part of this manual may be reproduced, copied, translated or transmitted in any
form or by any means without the prior written permission of the original manufacturer.
Information provided in this manual is intended to be accurate and reliable. However,
the original manufacturer assumes no responsibility for its use, nor for any
infringements upon the rights of third parties which may result from its use.
Acknowledgements
PICMGTM, CompactPCI TM and the PICMG TM, CompactPCI TM logos are trademarks of the
PCI Industrial Computers Manufacturers Group
All other product names or trademarks are properties of their respective owners.
Part Number: 2008308110 1st Edition
Printed in Taiwan July 2003

MIB-3081A User Manual --- Page
III
Product warranty
Advantech warrants to you, the original purchaser, that each of its productswill be free
from defects in materials and workmanship for one year from the date of purchase.
This warranty does not apply to any products which have been repaired or altered by
persons other than repair personnel authorized by Advantech, or which have been
subject to misuse, abuse, accident or improper installation.
Advantech assumes no liability under the terms of this warranty as a consequence of
such events.
Because of Advantech’s high quality-control standards and rigorous testing, most of
our customers never need to use our repair service. If an Advantech product is
defective, it will be repaired or replaced at no charge during the warranty period. For
out-of-warranty repairs, you will be billed according to the cost of replacement
materials, service time and freight. Please consult your dealer for more details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For example, CPU speed,
Advantech products used, other hardware and software used, etc.) Note anything
abnormal and list any on-screen messages you get when the problem occurs.
2. Call your dealer and describe the problem. Please have your manual, product, and
any helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return merchandize
authorization) number from your dealer. This allows us to process your return more
quickly.
4. Carefully pack the defective product, a fully-completed Repair and Replacement
Order Card and a photocopy proof of purchase date (such as your sales receipt) in a
shippable container. A product returned without proof of the purchase date is not
eligible for warranty service.
5.Write the RMA number visibly on the outside of the package and ship it prepaid to
your dealer.

MIB-3081A User Manual --- Page
IV
Packing List
Before installation, ensure that the following materials have been received:
* The MIB-3081A backplane
* This user’s manual in PDF
If any of these items are missing or damaged, contact your distributor or sales
representative immediately.
Technical Support and Sales Assistance
If you have any technical questions about the MIB-3081A or any other Advantech
products, please visit our support website at:
• http://www.advantech.com.tw/support
For more information about Advantech's products and sales information, please visit:
• http://www.advantech.com

MIB-3081A User Manual --- Page
V
Contents
1.Introduction....................................................................................1
1.1 General Information ........................................................................... 2
1.2 Features ........................................................................................... 3
1.3 Specification ..................................................................................... 4
2. Hardware Configuration .................................................................... 5
2.1 Slot Assignments ............................................................................... 6
2.2 Connector and Jumper Locations .......................................................... 9
2.3 Ground Configuration ........................................................................ 14
2.4 Computer Telephony Bus ................................................................... 15
2.5 Clock Routing Configuration ............................................................... 15
B. Pin Assignments ............................................................................. 17
B.1 System Slot P1 Connector (1-P1) .............................................................. 18
B.2 System Slot P2 Connector (1-P2) .............................................................. 19
B.3 System Slot P3 Connector (1-P3) .............................................................. 20
B.4 System Slot P4 Connector (1-P4) .............................................................. 21
B.5 System Slot P5 Connector (1-P5) .............................................................. 22
B.6 Peripheral Slot P1 Connector (2-P1 to 8-P1) ............................................... 23
B.7 Peripheral Slot P2 Connector (2-P2 to 8-P2) ............................................... 24
B.8 Peripheral Slot P3 Connnector (2-P3 to 8-P3) .............................................. 25
B.9 Peripheral Slot P4 Connector (2-P4 to 8-P4) ............................................... 26
B.10 Peripheral Slot P5 Connector (2-P5 to 8-P5) .............................................. 27
B.11 Alarm Board Interface Connector (CN8) ................................................... 28
B.12 Fan Module Connector (FAN1 ~ FAN6) ...................................................... 28
B.13 ATX Power Connector (ATX1 and ATX2) ................................................... 29
B.14 Power Connector for Peripherals (CN1and CN2) ....................................... 30
B.15 Power Switch Connector (CN4) ................................................................ 30

MIB-3081A User Manual --- Page
VI
Figures
Figure 2-1: Slot numbering of the MIB-3081A ..................................................7
Figure 2-2: The connector and jumper locations on the front side ....................... 10
Figure 2-3: The connector and jumper locations on the rear side ......................... 11

MIB-3081A User Manual --- Page
VII
Tables
Table 2-1: System to peripheral slot signal assignment ........................................8
Table 2-2: MIB-3081A Connector and jumper description ...................................9
Table 2-3: V I/O voltage selection ................................................................... 13
Table B-1: System slot P1 connector ............................................................... 18
Table B-2: System slot P2 connector ............................................................... 19
Table B-3: System slot P3 connector ............................................................... 20
Table B-4: System slot P4 connector ............................................................... 21
Table B-5: System slot P5 connector ............................................................... 22
Table B-6: Peripheral slot P1 connector ........................................................... 23
Table B-7: Peripheral slot P2 connector ........................................................... 24
Table B-8: Peripheral slot P3 connector ............................................................ 25
Table B-9: Peripheral slot P4 connector ........................................................... 26
Table B-10: Peripheral slot P5 connector .......................................................... 27

MIB-3081A User Manual --- Page
1
1
Introduction

MIB-3081A User Manual --- Page
2
1.1 General Information
The MIB-3081A is a 6U-sized CT backplane that provides eight CompactPCI slots. One
slot is assigned to the CPU board and seven slots to the peripheral boards. The
MIB-3081A supports front and rear I/O wiring, providing simplified system cabling. The
backplane also complies with PICMG 2.5 Computer Telephony Specification, providing
H.110 CT bus on the P4 connectors.
The MIB-3081A provides 3-pin connector for connecting up to six cooling fans. A 26-pin
connector can be used for connecting an external alarm module (MIC-3924 series) to
detect system internal conditions, such as bus voltages and fan speed. In order to
provide users with a flexible system configuration, the MIC-3081 includes two standard
ATX power connectors to accept up to two ATX power supplies.
The MIB-3081A complies with PICMG 2.1 Hot-Swap Specification, providing full
hot-swapping capability. Users can build a hot-swap system using hot-swap plug-in
boards and software.
1.2 Features
-Front and rear I/O supports
-H.110 CT bus compliant (PICMG 2.5)
-Eight 32-bit CompactPCI slots (64-bit upon request)
-Complies with PICMG 2.1 Hot-Swap Specification
-Accepts up to two ATX power supplies
-Alarm module interface
-Fan interface
1.3 Specification
· 8 CompactPCI slots (one system slot and 7 peripheral slots)
· Front and rear I/O supports
· Bus width: 32-bit (64-bit upon request)
· 8-layer PCB, 3.0 mm thick
· Separate power and ground planes
· Power connectors: Two ATX power connectors for connecting standard ATX power
supplies
· 26-pin connector for MIC-3924 alarm board signals
· Complies with CompactPCI Specification PICMG 2.0, Ver.2.1

MIB-3081A User Manual --- Page
3
· Complies with CompactPCI Hot Swap Specification PICMG 2.1, Ver.1.0
· Complies with Computer Telephony Specification PICMG 2.5, Ver.1.0
· V I/O Voltage: 3.3 V or 5 V, jumper selectable
· Logic Ground and Chassis Ground can be isolated or common
· Dimensions: 183.5 x 262.2 mm
· Operating temperature: -40 ~ 80°C (-40 ~ 176°F)

MIB-3081A User Manual --- Page
4
2
Hardware
Configuration

MIB-3081A User Manual --- Page
5
2.1 Slot Assignments
The CompactPCI specification defines slot numbering seperating for physical and logical
slots. Each slot has a physical number and a logical number (refer to the CompactPCI
specification version 2.0 R2.1 for further information on slot assignments). The physical
numbers are printed on the backplane, enclosed in circles or triangles, below each slot.
Slot 8, marked by a triangle, is the system slot and can only be used by a CPU board.
The other slots (slot 1~7) are peripheral slots and can be used by peripheral cards.
The logical number of each slot is defined according to the IDSEL signal and the
associated address used to select the slot. Table 2-1shows the system slot and
peripheral slot relationships on the MIB-3081A. Physical slot 8 (system slot) has a
logical number of 1, physical slot 7 has a logical number of 2, physical slot 6 has a
logicalnumber of 3, ..., and physical slot 1 has a logical number of 8. The connectors in
logical slot 1 are designated as 1-P1, 1-P2, 1-P3, 1-P4, and I-P5, from the bottom up.
Nomenclature for connectors in other slots is similar, such as 2-P1, 2-P2, 3-P1, 3-P2,
etc. Connector 1-P1 is a keyed connector providing 32-bit CompactPCI bus between the
system slot and the peripheral slots (2-P1~8-P1). Connector 1-P2 is an un-keyed
connector providing 64-bit CompactPCI bus between the system slot and the peripheral
slots (2-P2~ 8-P2). Connector 2-P4 to 8-P4 are un-keyed connectors which provide
H.110 CT bus used for TDM signals transmission.
Appendix A gives the pin assignment for all the slots on the MIC-3081.

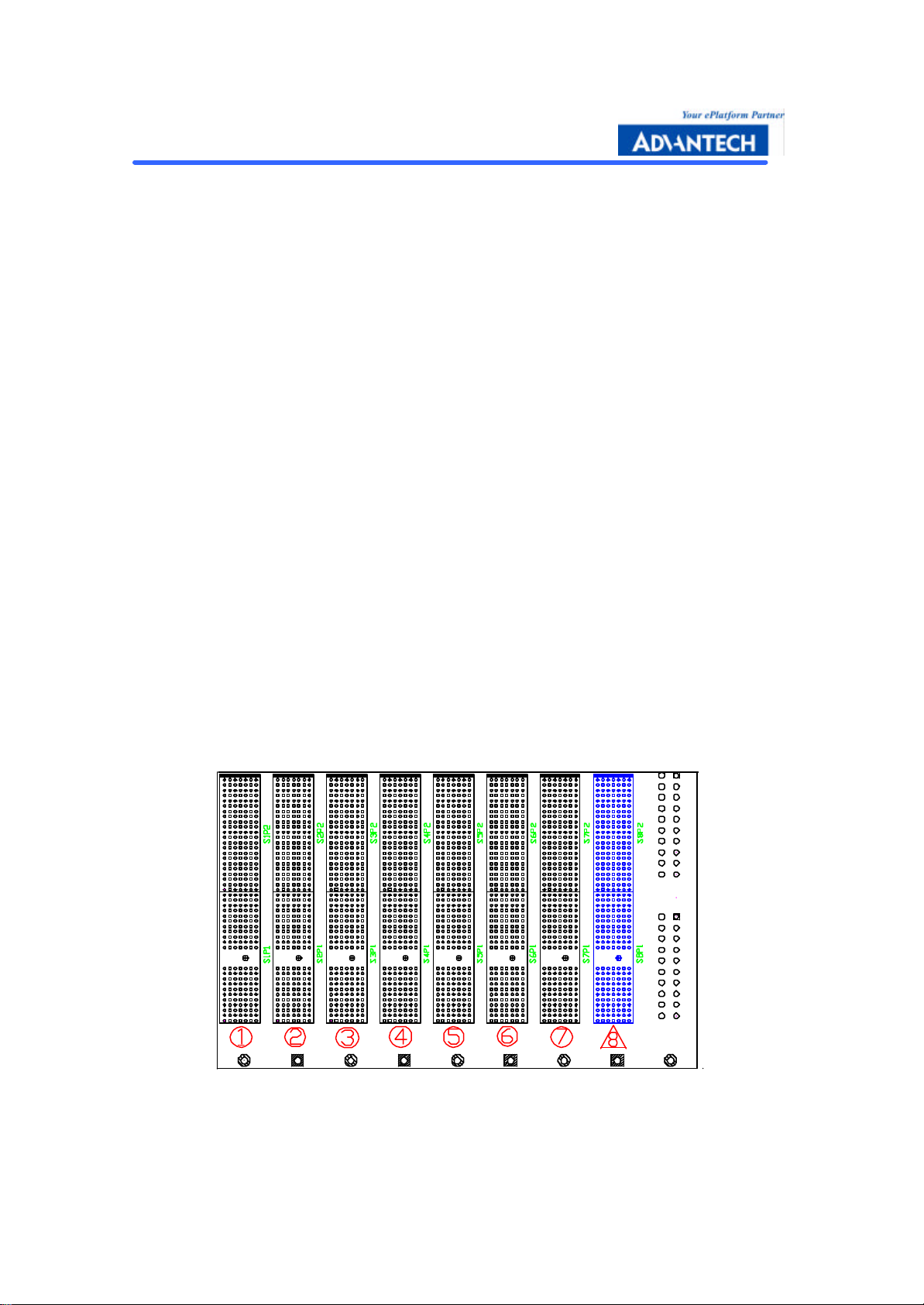

Figure 2-1: Slot numbering of the MIB-3081A

MIB-3081A User Manual --- Page
6
Table 2-1: System to peripheral slot signal assignment
Signal Connector Pin Signal Connector Pin
System Slot 8, (Logical Slot 1): Peripheral Slot 7, (Logical slot 2)
CLK1 P2:A1 CLK P1:D6
AD31 P1:E6 IDSEL P1:B9
REQ0# P1:A6 REQ# P1:A6
GNT0# P1:E5 GNT# P1:E5
System Slot 8, (Logical Slot 1): Peripheral Slot6, (Logical Slot 3):
CLK6 P2:A21 CLK P1:D6
AD30 P1:A7 IDSEL P1:B9
REQ1# P2:C1 REQ# P1:A6
GNT1# P2:D1 GNT# P1:E5
System Slot 8, (Logical Slot 1): Peripheral Slot5, (Logical Slot 4):
CLK0 P1:D6 CLK P1:D6
AD29 P1:B7 IDSEL P1:B9
REQ2# P2:E1 REQ# P1:A6
GNT2# P2:D2 GNT# P1:E5
System Slot 8, (Logical Slot 1): Peripheral Slot4, (Logical Slot 5):
CLK5 P2:A20 CLK P1:D6
AD28 P1:C7 IDSEL P1:B9
REQ3# P2:E2 REQ# P1:A6
GNT3# P2:C3 GNT# P1:E5
System Slot 8, (Logical Slot 1): Peripheral Slot3, (Logical Slot 6):
CLK2 P2:A2 CLK P1:D6
AD27 P1:E7 IDSEL P1:B9
REQ4# P2:D3 REQ# P1:A6
GNT4# P2:E3 GNT# P1:E5
System Slot 8, (Logical Slot 1): Peripheral Slot2, (Logical Slot 7):
CLK3 P2:B2 CLK P1:D6
AD26 P1:A8 IDSEL P1:B9
REQ5# P2:D15 REQ# P1:A6
GNT5# P2:E15 GNT# P1:E5
System Slot 8, (Logical Slot 1): Peripheral Slot1, (Logical Slot 8):
CLK4 P2:A3 CLK P1:D6
AD25 P1:D8 IDSEL P1:B9
REQ6# P2:D17 REQ# P1:A6
GNT6# P2:E17 GNT# P1:E5
2.2 Connector and Jumper Locations
The MIB-3081A provides connectors and jumpers for users to configure the backplane
for specific application. Table 2-2 gives a brief description to each connector on the
backplane. Figure 2-2 and Figure 2-3illustrate the connector locations of the
MIB-3081A.

MIB-3081A User Manual --- Page
7
Table 2-2: MIB-3081A Connector and jumper description
Name Function
T1, T2, T3 V I/O voltage selection jumper
CN4 Power switch connector
ATX1 ATX power connector 1
ATX2 ATX power connector 2
CN8Alarm board interface connector
FAN# Fan module connector
CN1Peripheral power connector 1
CN2Peripheral power connector 2

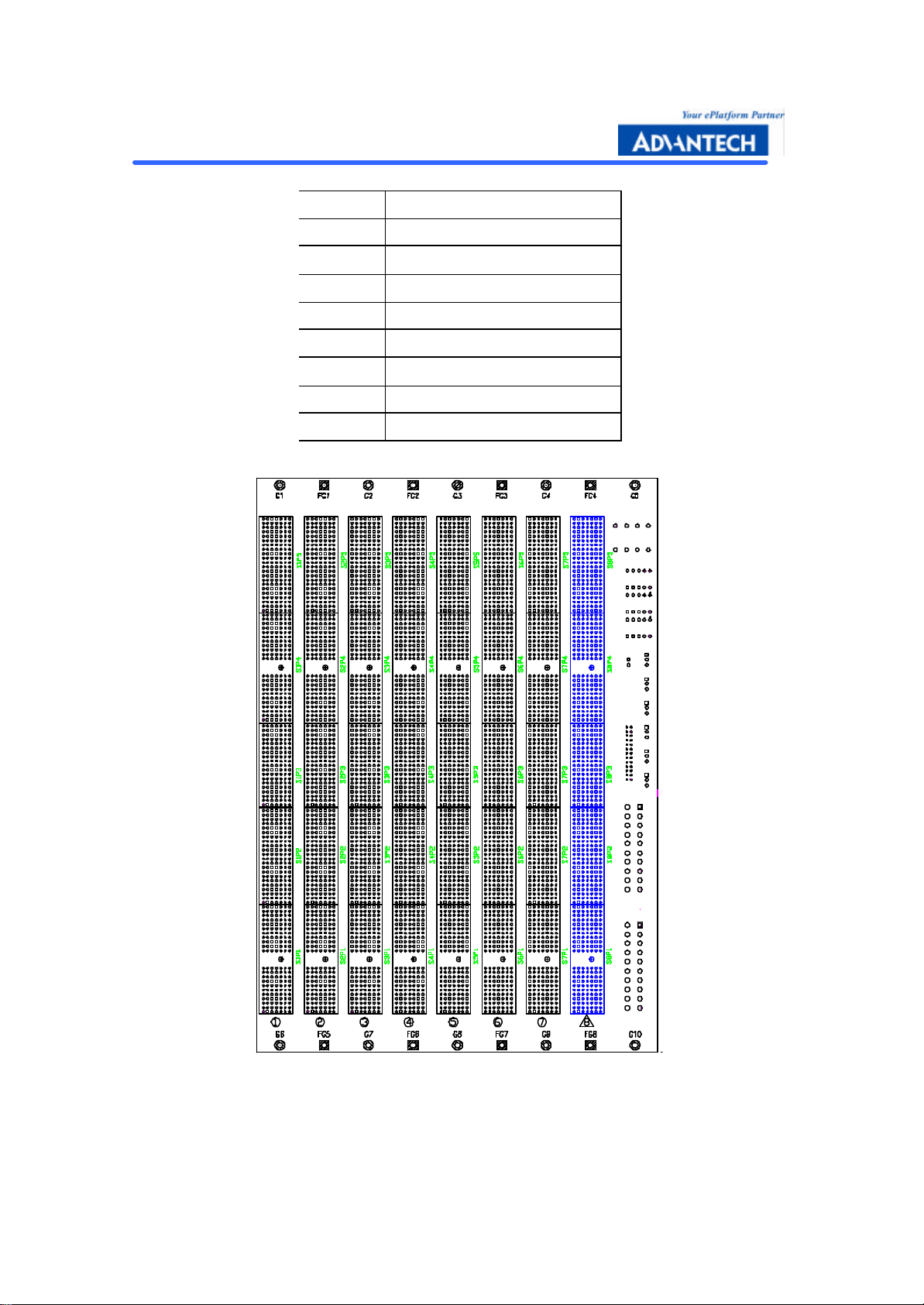

Figure 2-2: The connector and jumper locations on the front side

MIB-3081A User Manual --- Page
8
ATX2 ATX1 CN8
CN4
CN1
T1
T2
T3
CN2
FAN1FAN2FAN3FAN4FAN5FAN6
JP1

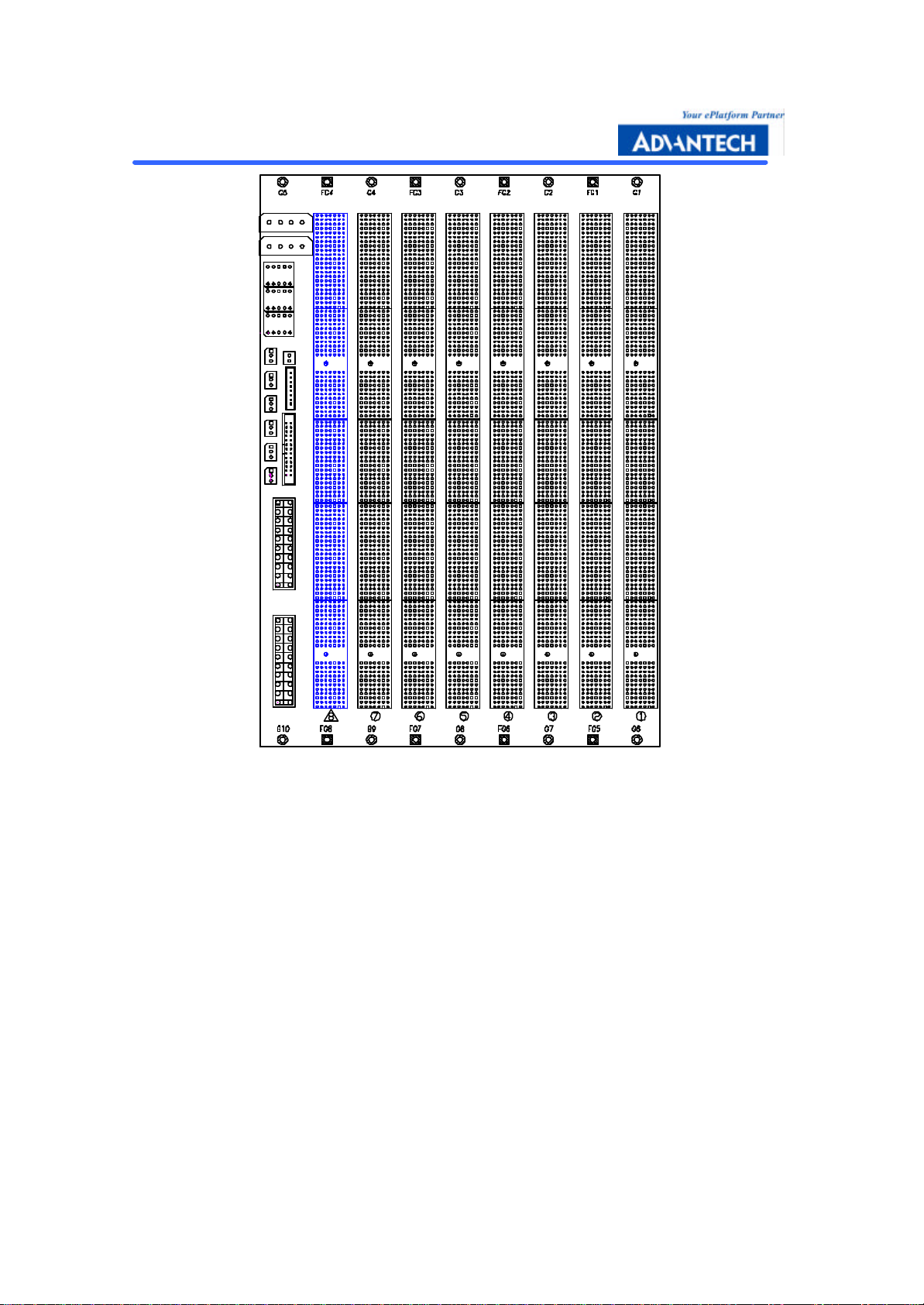

Figure 2-3: The connector and jumper locations on the rear side
2.2.1 Alarm Board Interface (CN8)
The 26-pin connector CN8is an interface for an external monitoring and alarm module,
such as MIC-3924 series, which monitors the conditions of the system. It contains bus
voltages 3.3 V, 5 V, 12 V and -12 V, and utilizes six fan tachometer signals
2.2.2 Fan Module Connector (FAN1 ~ FAN6)
The FAN1 ~ FAN6 connector provides +12 V power for fan operation and accepts the
tachometer output from the fans. It accepts up to six fan signals.
2.2.3 ATX Power Connector (ATX1 and ATX2)
These connectors accept two standard ATX power supplies.
Note: Do not use ATX power supplies and plug-in power modules at the same time.

MIB-3081A User Manual --- Page
9
2.2.4 Power Connectors for Peripherals (CN1and CN2)
The CN1and CN2connectors provide power to the peripherals, such as hard disk drives
or floppy disk drives.
2.2.5 V I/O Voltage Selection (T1 ~ T3)
This jumper is used to select the V I/O voltage. MIB-3081A allows V I/O to be set to
either 5 V or 3.3 V. Since the MIB-3081A default is configured for use with 5 V
CompactPCI boards (blue keyed connectors), once the jumper is set to 3.3 V, the
CompactPCI keys must be changed to 3.3 V at the same time (as yellow keyed
connectors).

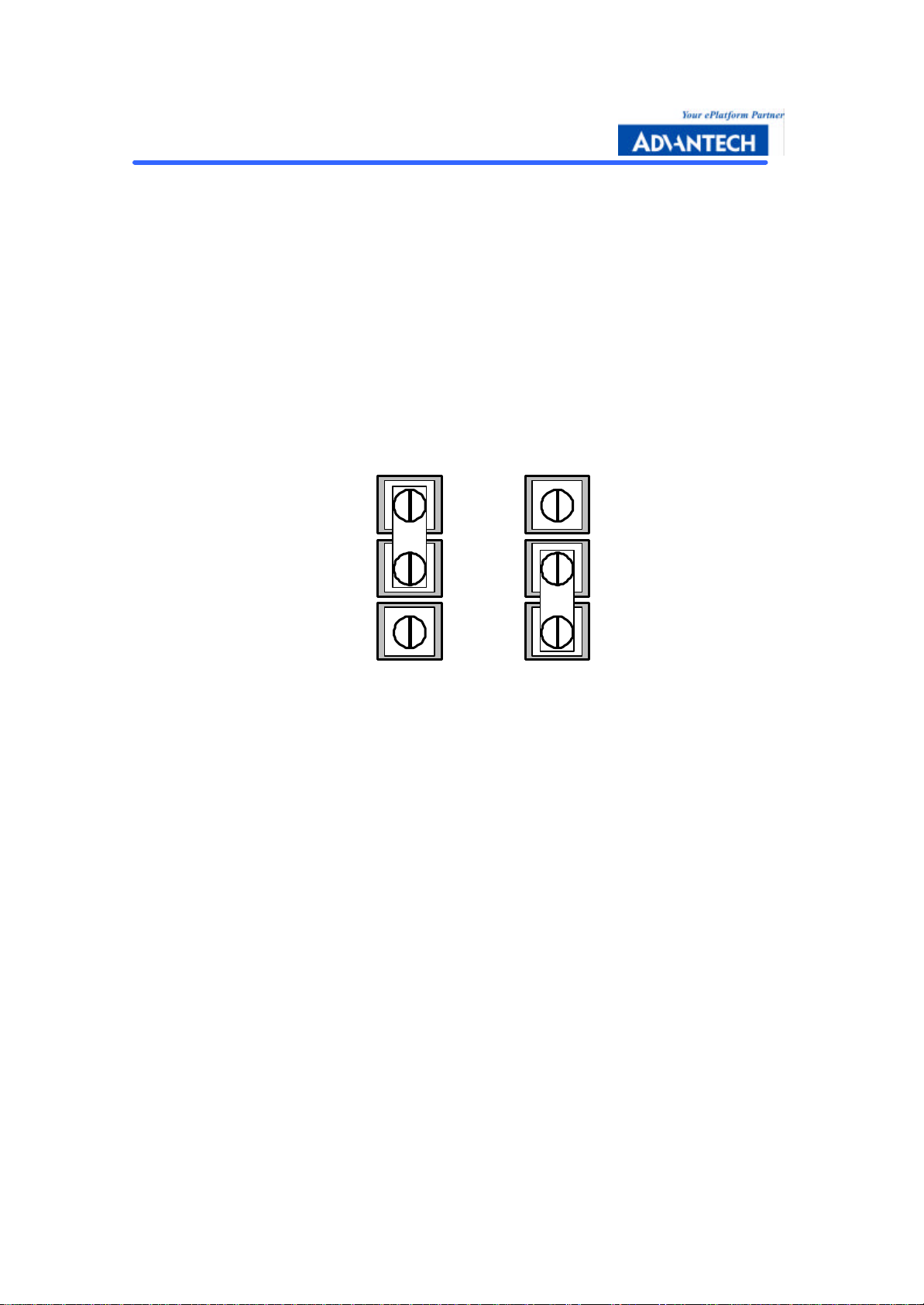

+5V
VIO
+3.3V
+5V
VIO
+3.3V
VIO for +5V VIO for +3.3V
2.2.6 Power Switch (CN4)
This connector provides power on/off control of the ATX power supply or the plug-in
power module. If the CompactPCI chassis provides a 2-pin power switch cord, connect
this cord to the CN4 connector and users can control the power on/off by the power
switch. Or users can directly short this connector by a jumper and control the power
on/off by the ATX power supply switch.
2.2.7 LED Status Connector (JP1)
This connector provides digital outputs for the alarm module (MIC-3924) to the chassis
front panel notification used. Three alarm LED (red) and one power status LED (green)
is included for Fan_fail, Power_fail, and Temp_fail for alert notification.

MIB-3081A User Manual --- Page
10
2.3 Ground Configuration
Along the top and bottom of the MIB-3081A are 18 mounting holes. The holes are
arranged in an alternating pattern of chassis (frame) grounded pads and logic
grounded pads. The square pad holes are connected to chassis ground, and the round
pad holes are connected to logic ground. To isolate chassis and logic grounds, install
mounting screws in only square pad mounting holes.
2.4 Computer Telephony Bus
The MIB-3081A provides H.110 CT bus on the P4 connectors, which complies with the
PICMG 2.5 Computer Telephony Specification. The CT bus is routed across the P4
connectors on the peripheral slots. Please refer to Appendix A for pin assignment
information.
2.5 Clock Routing Configuration
The MIB-3081A is configured to comply with the clock routing specified in the
CompactPCI Hot Swap Specification, PICMG 2.1, version 1.0. This Specification
requires that each slot be independently clocked. If users would like to reconfigure the
backplane to comply with the earlier CompactPCI Specification, PICMG 2.0, version 2.1,
which allows the MIB-3081A to be backward compatible with CPUs using shared
clocks, please contact Advantech for help.

MIB-3081A User Manual --- Page
11
A
Pin Assignments
APPENDIX

MIB-3081A User Manual --- Page
12
A.1 System Slot P1 Connector
Table A-1: System slot P1 connector
Pin ZABCDEF
25 GND +5V REQ64# ENUM# +3.3V +5V GND
24 GND AD[1] +5V V(I/O) AD[0] ACK64# GND
23 GND +3.3V AD[4] AD[3] +5V AD[2] GND
22 GND AD[7] GND +3.3V AD[6] AD[5] GND
21 GND +3.3V AD[9] AD[8] M66EN C/BE[0]# GND
20 GND AD[12] GND V(I/O) AD[11] AD[10] GND
19 GND +3.3V AD[15] AD[14] GND AD[13] GND
18 GND SERR# GND +3.3V PAR C/BE[1]# GND
17 GND +3.3V IPMBSCL IPMBSDA GND PERR# GND
16 GND DEVSEL# GND V(I/O) STOP# LOCK# GND
15 GND +3.3V FRAME# IRDY# GND TRDY# GND
12-14 Key Area
11 GND AD[18] AD[17] AD[16] GND C/BE[2]# GND
10 GND AD[21] GND +3.3V AD[20] AD[19] GND
9GND C/BE[3]# GND AD[23] GND AD[22] GND
8GND AD[26] GND V(I/O) AD[25] AD[24] GND
7GND AD[30] AD[29] AD[28] GND AD[27] GND
6GND REQ0# GND +3.3V CLK AD[31] GND
5GND BRSVP1A5 RRSVP1B5 RST# GND GNT0# GND
4GND IPMBPWR Healthy# V(I/O) INTP INTS GND
3GND INTA# INTB# INTC# +5VINTD# GND
2GND TCK +5V TMS TDO TDI GND
1GND +5V -12V TRST# +12V +5V GND
= long pins = short pins = medium length pins
#: Low active

MIB-3081A User Manual --- Page
13
A.2 System Slot P2 Connector
Table A-2: System slot P2 connector
Pin ZABCDEF
22 GND GA4 GA3 GA2 GA1 GA0 GND
21 GND CLK6 GND RSV RSV RSV GND
20 GND CLK5 GND RSV GND RSV GND
19 GND GND GND RSV RSV RSV GND
18 GND BRSVP2A18 BRSVP2B18 BRSVP2C18 BRSVP2D18 BRSVP2E18 GND
17 GND BRSVP2A17 GND PRST# REQ6# GNT6# GND
16 GND BRSVP2A16 BRSVP2B16 DEG# GND BRSVP2E16 GND
15 GND BRSVP2A15 GND FAL# REQ5#GNT5# GND
14 GND AD[35] AD[34] AD[33] GND AD[32] GND
13 GND AD[38] GND V(I/O) AD[37] AD[36] GND
12 GND AD[42] AD[41] AD[40] GND AD[39] GND
11 GND AD[45] GND V(I/O) AD[44] AD[43] GND
10 GND AD[49] AD[48] AD[47] GND AD[46] GND
9GND AD[52] GND V(I/O) AD[51] AD[50] GND
8GND AD[56] AD[55] AD[54] GND AD[53] GND
7GND AD[59] GND V(I/O) AD[58] AD[57] GND
6GND AD[63] AD[62] AD[61] GND AD[60] GND
5GND C/BE[5]# GND V(I/O) C/BE[4]# PAR64 GND
4GND V(I/O) BRSVP2B4 C/BE[7]# GND C/BE[6]# GND
3GND CLK4 GND GNT3# REQ4# GNT4# GND
2GND CLK2 CLK3 SYSEN# GNT2# REQ3# GND
1GND CLK1 GND REQ1# GNT1# REQ2# GND
#: Low active
Note: GA[4...0] shall be used for geographic addressing on the backplane
