Advantech PCA-5630 Installation and operation manual

PCA-5630 Startup Manual 1
PCA-5630 Industrial VGA Card with XGI Volari™ V3XE
Before you begin installing your card, please make
sure that the following materials have been shipped:
If any of these items are missing or damaged, contact
your distributor or sales representative immediately.
Note: Acrobat Reader is required to view any PDF file.
Acrobat Reader can be downloaded at:
www.adobe.com/products/acrobat/readstep2.html
The CD disc contains a driver installer program that
will lead you through the installation of your VGA card.
The computer is provided with a battery-powered
Real-time Clock circuit. There is a danger of explo-
sion if battery is incorrectly replaced. The battery
doesn’t need to be charged. Replace only with same
or equivalent type recommended by the manufacturer.
Discard used batteries according to manufacturer's
instructions.
This device complies with the requirements in part 15 of
the FCC rule. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation.
Industrial VGA card specifications
• GPU: XGI Volari™ V3XE
• Bus: AGP 3.0, 4X
• Memory: 64bit, 200MHz, 128MB DDRI SDRAM
• CRT1 output: 2048 x 1536, up to 85Hz vertical rate
• CRT2 output: 1600 x 1200, up to 60 Hz vertical rate
• TV-Out output: S-Video/Composite port; HDTV upto
720p & 1080i
• DVI: Single Link TMDS up to UXGA
(1600x1200@60Hz).
• Dual Display Mode: Under Windows XP, all the 4 com-
binations shown below support mirror mode and exten-
sion mode, while under Windows 2000, these
combinations support only mirror mode.
(1) CRT1 (CON3) + CRT2 (DVI1 + DVI-VGA Adapter)
(2) CRT1 + DVI
(3) CRT1 + S-Video
(4) S-Video + DVI
• Under Linux, this product only supports CRT1 + DVI mir-
ror mode.
• Triple-DAC Mode: This product does NOT support tri-
ple-DAC display.
• OS’s Supported: Microsoft® windows XP/2K/Linux
The VGA card has a number of jumpers and connectors
that allow you to configure your system to suit your appli-
cation.
• 1 PCA-5630 Industrial VGA card
• 1 PCA-5630 Startup Manual
• 1 CD with driver utility
• 1 DVI-VGA Adapter
• Warranty certificate
Software Installation
Caution
FCC
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/network
For technical support and service, please visit our
support website at:
http://www.advantech.com.tw/support
This manual is for the PCA-5630 series Rev. A1.
Part No. 2002563010
Printed in Taiwan
1st Edition
May 2006
1. Jumpers and Connectors
JP6: NTSC/PAL Mode Selector under DOS
Jumper Setting Description Output Mode
Under DOS
Closed Pal
Open NTSC
Connectors
Label Function
CON2 S-Video/Composite port
CON3 Port
DVI1 DVI port
PCA-5630 Industrial VGA Card with XGI Volari™ V3XE
2 PCA-5630 Startup Manual
Board Layout: Jumper and Connector Locations
CON3 : VGA connector
Pin Signal Pin Signal
1RED 9VCC
2GREEN 10GND
3BLUE 11 N/C
4N/C 12SDT
5 GND 13 H-SYNC
6 GND 14 V-SYNC
7 GND 15 SCK
8GND
CON2: TV-Out connector
Pin Signal Pin Signal
1 TVY 2 TVCVBS
3GND 4TVC
5 N/C
2. Board Layout
5
15
1
11
10 6
DVI1: DVI port
Pin Signal Pin Signal
1 TMDS2- 2 TMDS2+
3 TMDSSD 4 N/C
5 N/C 6 DDC2_SCLOUT
7 DDC2_SDAOUT 8 D2_VS1OUT
9 TMDS1- 10 TMDS1+
11 TMDSSD 12 N/C
13 N/C 14 AGP_5V
15 GND 16 HP0_DETECT
17 TMDS0- 18 TMDS0+
19 TMDSSD 20 N/C
21 N/C 22 TMDSSD
23 TMDSCLK+ 24 TMDSCLK-
C1 CRT2_R1 C2 CRT2_G1
C3 CRT2_B1 C4 D2_HS1OUT
C5 TMDSSD C6 TMSSD

Other Advantech PCI Card manuals

Advantech DVP-7010BE User manual

Advantech

Advantech DVP-7010BE User manual

Advantech PCI-1730U User manual

Advantech

Advantech PCI-1730U User manual

Advantech PCIE-1174 User manual

Advantech

Advantech PCIE-1174 User manual

Advantech PCA-6184VE User manual

Advantech

Advantech PCA-6184VE User manual

Advantech PCI-1750 User manual

Advantech

Advantech PCI-1750 User manual

Advantech PCIE-1730H-AE User manual

Advantech

Advantech PCIE-1730H-AE User manual

Advantech PCA-6194 User manual

Advantech

Advantech PCA-6194 User manual

Advantech ECU-P1706 Installation and operation manual

Advantech

Advantech ECU-P1706 Installation and operation manual

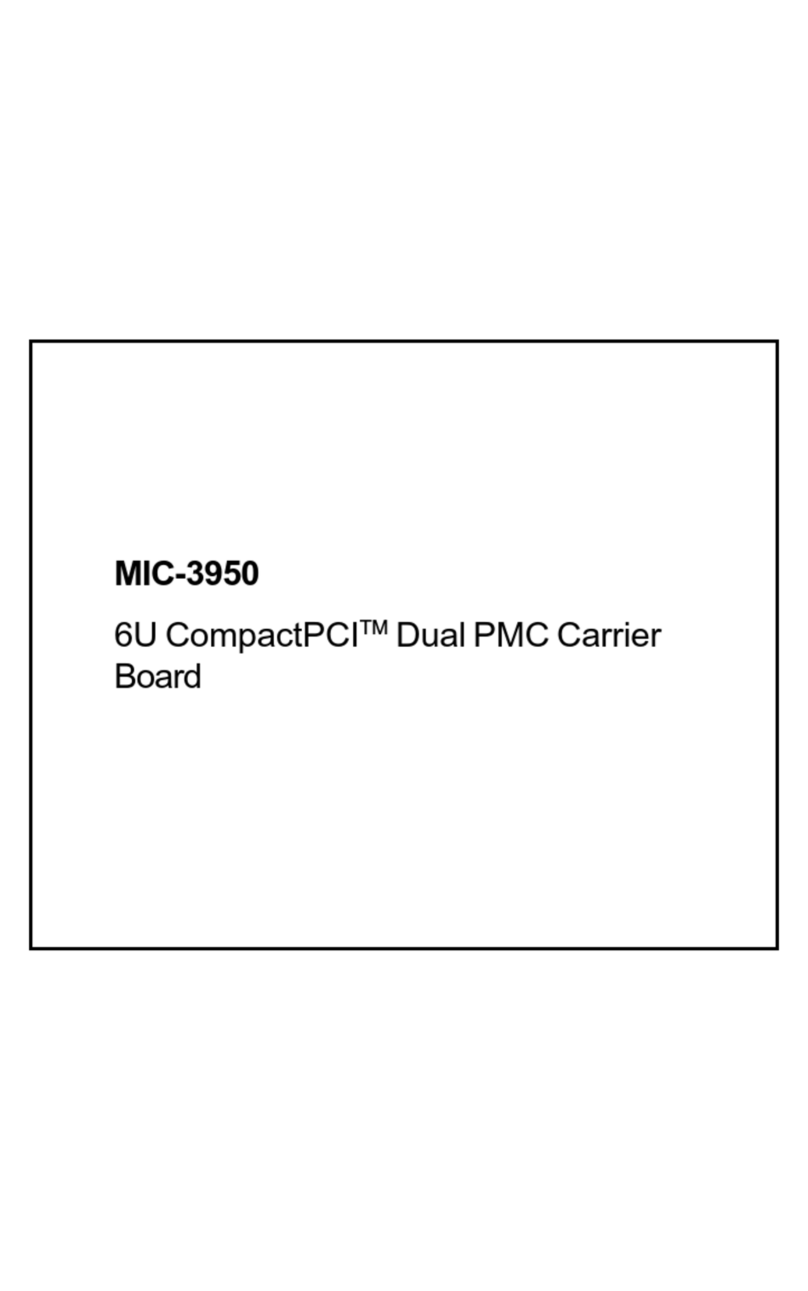

Advantech MIC-3950 User manual

Advantech

Advantech MIC-3950 User manual

Advantech MIO-5393 User manual

Advantech

Advantech MIO-5393 User manual

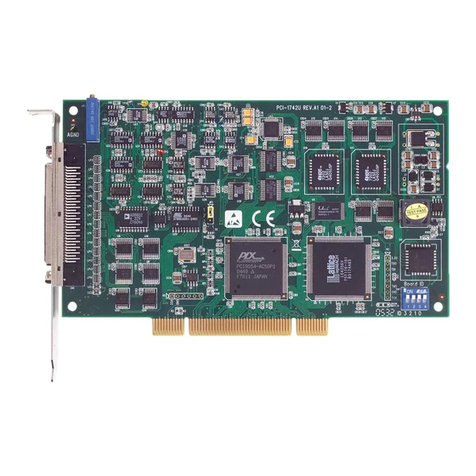

Advantech PCI-1742U Installation and operation manual

Advantech

Advantech PCI-1742U Installation and operation manual

Advantech PCIE-1824 User manual

Advantech

Advantech PCIE-1824 User manual

Advantech DVP-7612HE User manual

Advantech

Advantech DVP-7612HE User manual

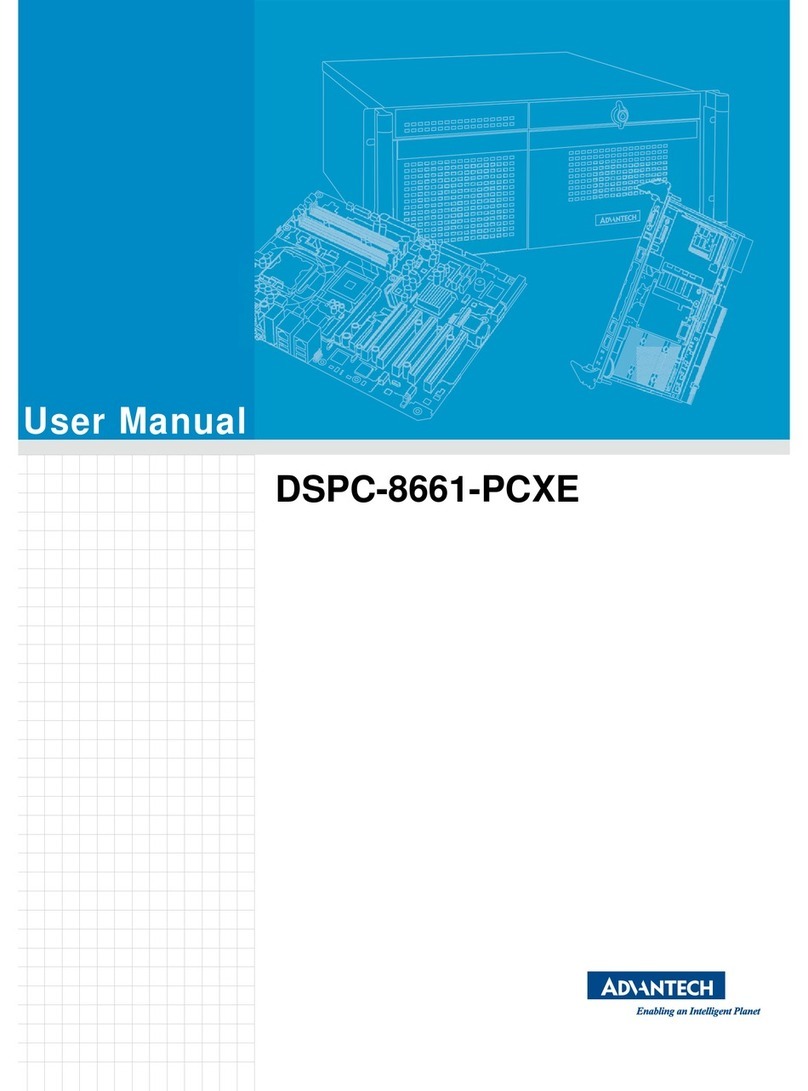

Advantech DSPC-8661-PCXE User manual
