AEG Electrolux 502 D Specification sheet

502 D
Cooker Hood
Operating and Installation Instructions

2
Contents
Electrical connections .......................................................... 3
Safety warnings for kitchen unit installer ................................ 4
General details ....................................................................... 5
Extractor version ..................................................................... 5
Filter Version ........................................................................... 6
Description of the appliance ................................................ 7
Technical details .................................................................... 7
Fixing the hood .......................................................................
Safeting warnings for user ..................................................... 9
Hood operation ..................................................................... 10
Care and maintenance ....................................................... 11
Metal grease filter ................................................................ 11
Charcoal filter ....................................................................... 12
Replacing the lamps ............................................................ 13
Cleaning ............................................................................... 13
Special accessories ........................................................... 14
What to do if ......................................................................... 14
Service and spare parts ..................................................... 1
Customer Care .................................................................... 1
Guarantee conditions ......................................................... 16

3
Electrical connections
Electrical connection - not for UK
Safety warnings for the electrician
Before connecting the appliance to the power supply, check that
the voltage indicated on the rating plate corresponds to the
mains power supply available. Appliances fitted with a plug can
be connected to any standard power socket within easy access.
Should it be necessary to provide a fixed connection, the hood
must only be installed by an electrician authorised by the local
electricity board. When installing, an omnipolar disconnector
with a distance of at least 3 mm between contacts must be
provided. ixed connection of the appliance must only be carried
out by an authorised electrician.
Electrical connection - for UK only
W RNING: DOUBLE INSUL TED DO NOT E RTH
Electrical Requirements
Any permanent electrical installation must comply with the latest
I.E.E. Regulations and local Electricity Board regulations. For
your own safety this should be undertaken by a qualified electrician
e.g. your local Electricity Board, or a contractor who is on the roll
of the National Inspection Council for Electrical Installation
Contracting (NICEIC) or a suitably competent person.
Electrical Connection
Before connecting to the mains supply ensure that the mains
voltage corresponds to the voltage on the rating plate inside the
cooker hood.
This appliance is fitted with a 2 core mains cable and must be
permanently connected to the electricity supply via a double-pole
switch having 3mm minimum contact gap on each pole. A
Switched Fuse Connection Unit to BS1363 Part 4, fitted with a 5
Amp time delay fuse, is a recommended mains supply connection
accessory to ensure compliance with the Safety Requirements
applicable to fixed wiring instructions.
This appliance conforms to BS 00: 19 and EEC
Directive No. 7 30 regarding suppression of radio and television
interference.
Safety warnings for the electrician
The following is valid in Ireland only:
- the wire which is coloured blue must be connected
to the terminal which is marked with the letter N,
- the wire which is coloured brown must be connected
to the terminal which is marked with the letter L.

4
When the unit is used in its extractor version, a sufficiently large
ventilation hole must be provided, with dimensions that are
approximately the same as the outlet hole.
The air outlet must not be connected to chimney flues or combus-
tion gas ducts. The air outlet must under no circumstances be
connected to ventilation ducts for rooms in which fuel-burning
appliances are installed.
It is advisable to apply for authorization from the relevant control-
ling authority when connecting the outlet to an unused chimney
flue or combustion gas duct.
The air outlet installation must comply with the regulations laid
down by the relevant authorities.
National and regional building regulations impose a number of
restrictions on using hoods and fuel-burning appliances con-
nected to a chimney, such as coal or oil room-heaters and gas
fires, in the same room.
The local decree on fuel-burning systems specifies a maximum
depression of 0.04 mbar in such rooms.
Hoods can only be used safely with appliances connected to a
chimney if the room and/or flat (air/environment combination) is
ventilated from outside using a suitable ventilation hole approxi-
mately 500-600 cm2 large to avoid the possibility of negative
pressure being created during operation of the hood.
If you have any doubts, contact the relevant controlling authority
or building inspectors office.
Since the rule for rooms with out fuel burning appliances is air
inlet should be same size as extractor outlet hole, an aperture
of 500-600 cm2, which is to say a larger hole, could reduce the
performance of the extractor hood.
If the hood is used in its filtering version (carbon filter), it will
operate simply and safely in the above conditions without the
need for any of the aforementioned measures.
When the hood is used in its extractor function, the following rules
must be followed to obtain optimal operation:
 short and straight outlet hose
 minimum number of bends in the outlet hose
 Install hoses with an acute angle, always following a gentle
curve only
 hose as large as possible (100 mm Ø).
Failure to observe these basic rules will drastically reduce the
performance and increase the noise levels of the extractor hood.
Safety warnings
for kitchen unit
installer

5
When used as an extractor unit, the hood must be fitted with a
100mm diameter hose.
If the fumes must be forced out through the wall, you must obtain
a MKZ sizable wall exhaust pipe (with external exhaust and air
intake), E-Nr.- 610 99 004 (Ø 120 mm) which is one of our
optional parts.
When installing the hood, make sure you respect the following
minimum distance from the top edge of the cooking hob/ring
surfaces:
electric cookers 600 mm
gas cookers 700 mm
The hood can be installed above these heights but for optimum
performance it should be installed at the distance quoted for the
appropriate heat source.
General details
The hood is supplied as a ducted version, but may also be used
in recirculation mode by inserting a charcoal filter (Special
accessories).
The air is ducted out through a pipe which is connected to the
outlet hole (fig. 1) by means of a coupling flange B.
To connect the hood to a wall box, you use hoses and wall boxes
as offered on the AEG price list as optional extras.
Extractor version
1
A
B

6
Cooking vapours are cleaned by the charcoal filter (Special
accessories) and ducted back into the kitchen.
The AEG original charcoal filter is necessary for the recirculating
mode (see paragraph Special accessories).
For the recirculating mode proceed as follows:

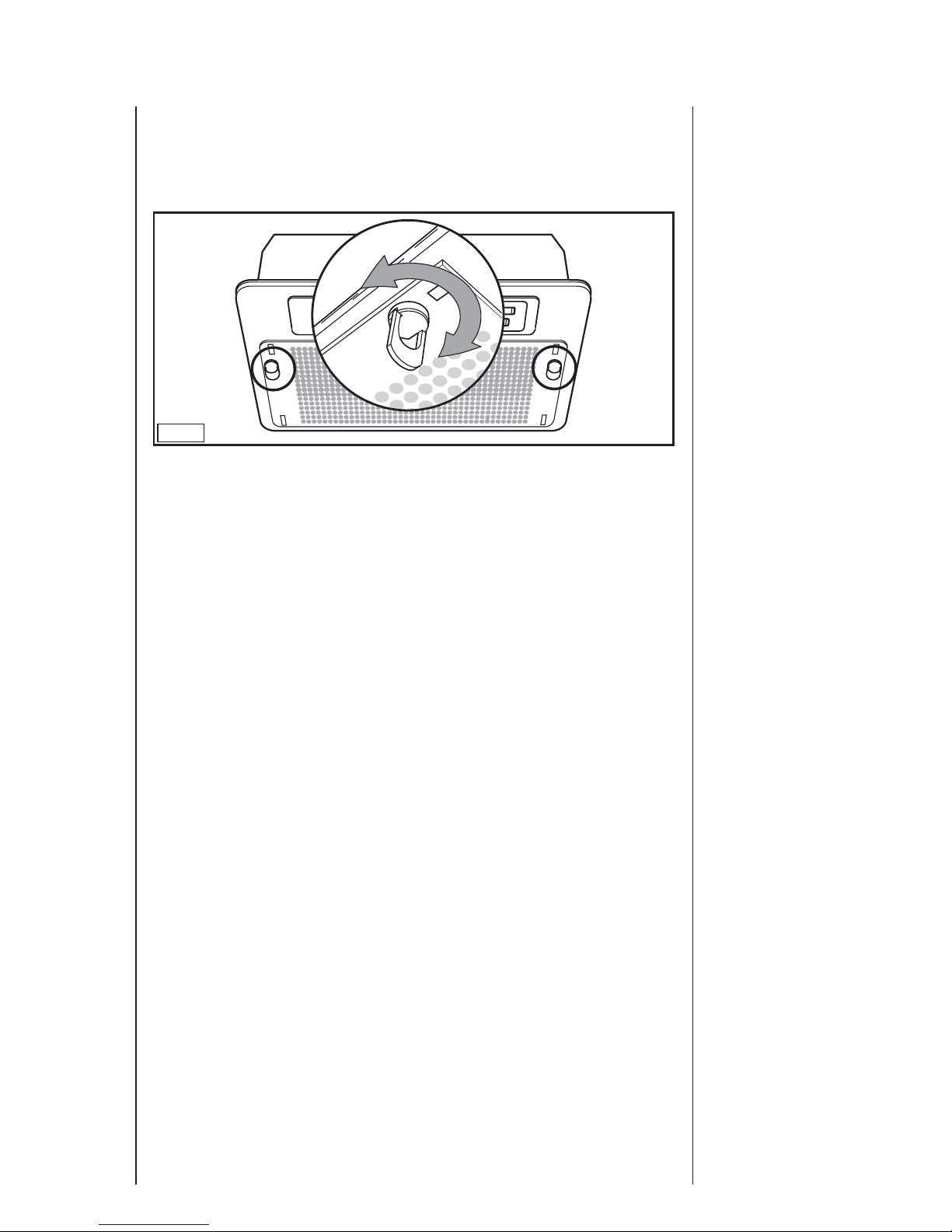

a) Remove the grid by turning knob (fig. 2).
b) Position the filter (fig. 3) and rotate clockwise until it stops.
In this mode air will be expelled through an exhaust pipe with
an internal diameter of 100 mm on the top of the cupboard.
c) Replace the grid.
2
A
A
3
Filter version

7
Description of the appliance

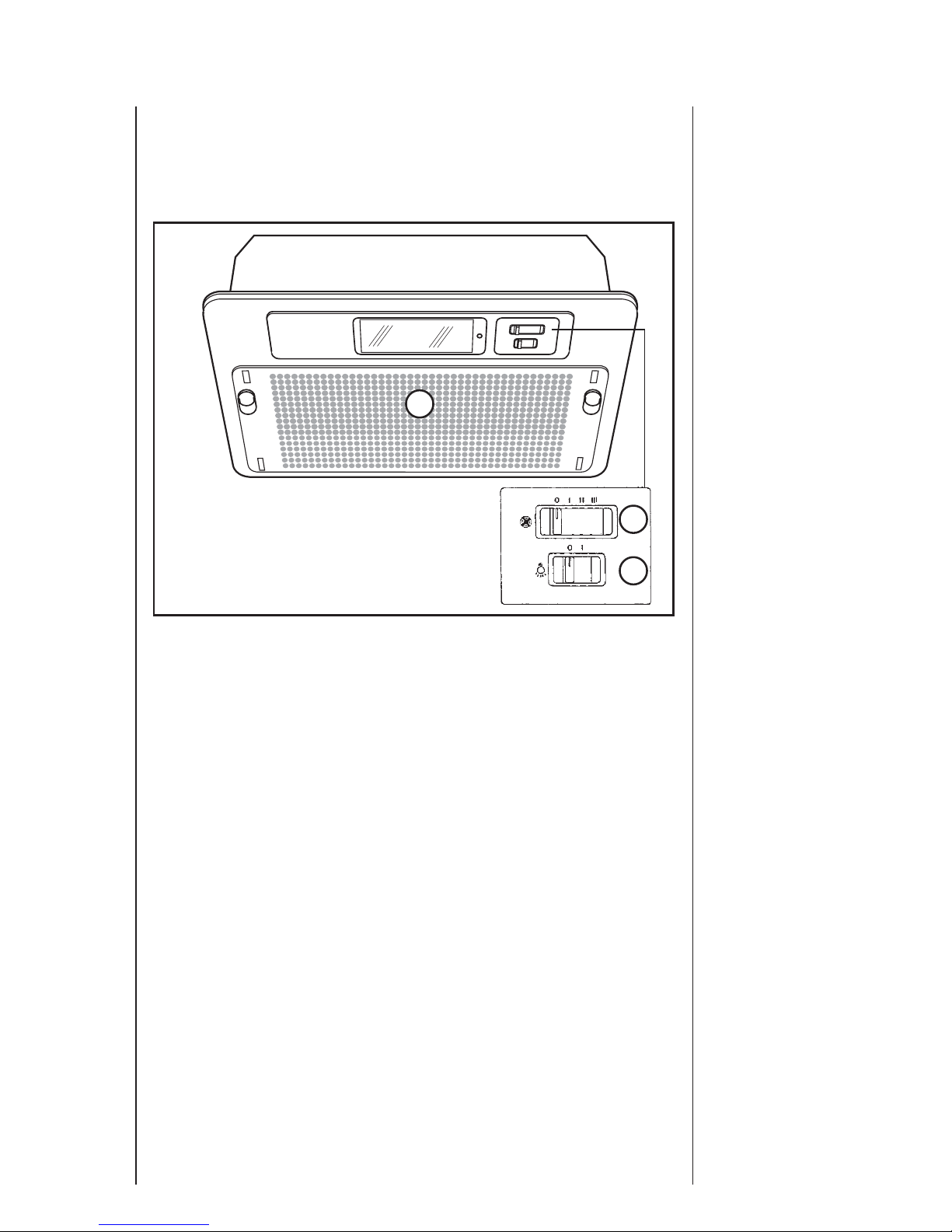

1) Light switch
2) Motor switch
3) Work surface lamp
4) Grid
4
3
Technical details
Model 02 D
Net weight: 5 kg
Height 145 mm
Width 520 mm
Depth 2 5 mm
bsorbed power: 160W
Motor: 1 x 120 W
Lighting: 1 x 40 Watt
Lengt of the cable: 110 cm
2
1

After having adjusted the hood for the version required, it may be
installed.
This appliance is designed for fitting in a cabinet or some other
support.
The opening to be made on the bottom of the wall-hung cabinet
must correspond with the measurements shown in fig. 4
(495 X 260 mm).
To fix the hood proceed as follows:
a) remove the grid.
b) Fit the hood into the opening.
c) Secure the unit to the cabinet by screwing up screws through
holes C (fig. 4).
d) Replace the grid.
4
C
C
Fixing
the hood

9
The hood is fitted with one variable speed motor.
The most effective use of the hood is obtained by switching it on
a few minutes before you start cooking and leaving it on a for
approximately 5-15 minutes after having finished, thus ensuring
that all that cooking odours are eliminated.
Never leave a cooking hob or ring on without a pot or pan on
top of it, to avoid the possibility of excess heat damaging the
unit. Gas, oil or coal cooker flames in particular should never
be left uncovered.
Special care should be taken when using deep fat fryers since
the oil in them can overheat and burst into flames.
The risk of fat catching fire is increased when using dirty oil.
It is extremely important to note that overheating can cause
a fire.
Never carry out any flambé cooking under the hood.
lways disconnect the unit from the power supply before
carrying out any work on the hood, including replacing the light
bulb (take the cartridge fuse out of the fuse holder or switch off the
automatic circuit breaker).
It is very important to clean the hood and the grease filters at
the recommended intervals. Failure to do so could cause
grease deposits to build up, causing a fire hazard.
This appliance is marked according to the European directive
2002/96/EC on Waste Electrical and Electronic Equipment
(WEEE).
By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment
and human health, which could otherwise be caused by
inappropriate waste handling of this product.
The symbol on the product, or on the documents
accompanying the product, indicates that this appliance may not
be treated as household waste. Instead it shall be handed over
to the applicable collection point for the recycling of electrical and
electronic equipment.
Disposal must be carried out in accordance with local
environmental regulations for waste disposal.
For more detailed information about treatment, recovery and
recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you
purchased the product.
Safety warnings
for user

10
Hood Operation
A
B
The hood is fitted with a variable speed motor. The most effective
use of the hood is obtained by switching it on a few minutes before
you start cooking and leaving it on a for approximately 15 minutes
after you have finished, thus ensuring all cooking odours are
eliminated. The control switches are located on the units front

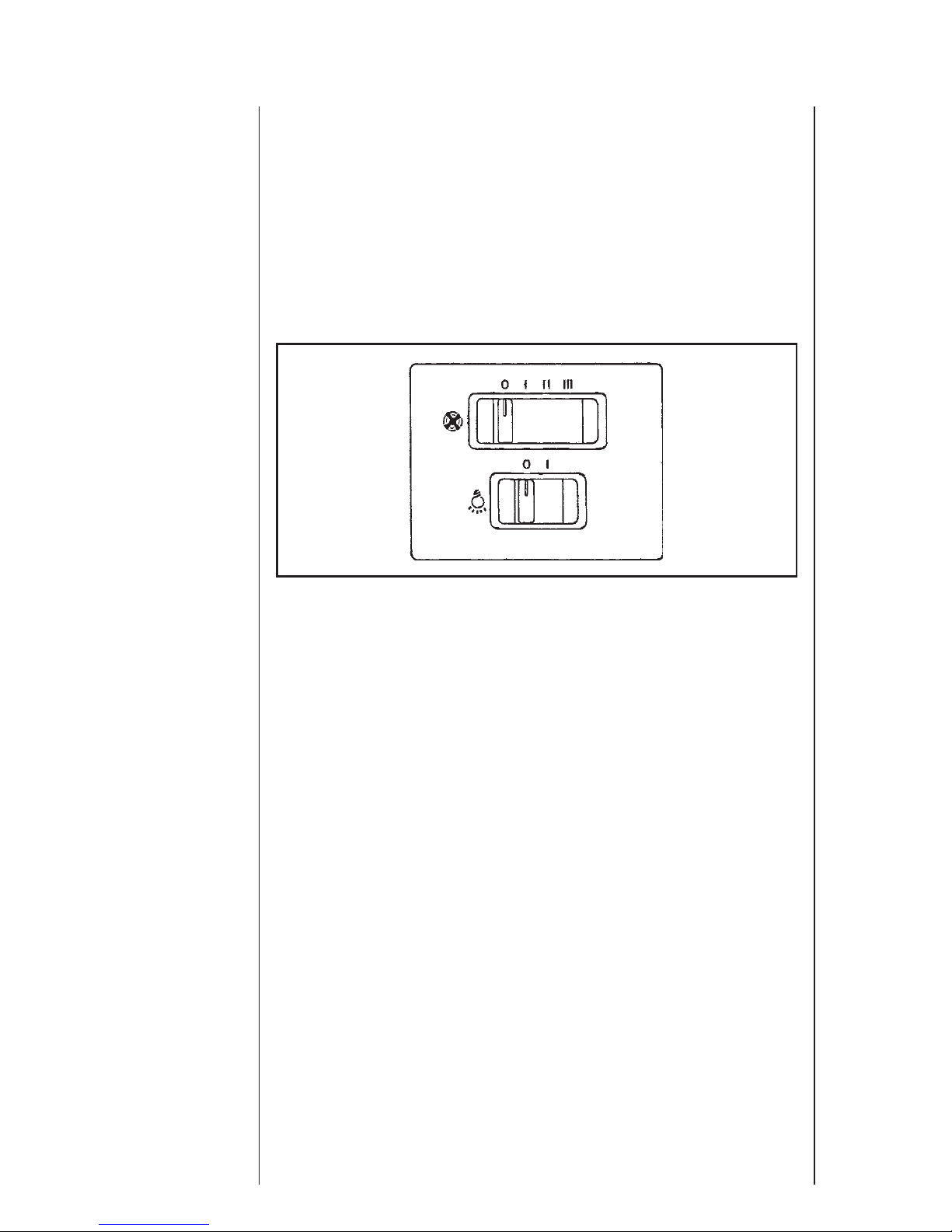

panel: the light switch ( ) switches the hood lamp on and off;
the motor switch (B) switches the cooking smoke and vapour
extractor motor on and off, enabling you to select one of the three
different speeds.
Controls
