Montage- und Gebrauchsanweisung
Installatie- en gebruiksaanwijzing
Notice d utilisation et d installation
Operating and Installation Instructions

54
Contents
Safety warnings .............................................................................. 55
For the user ...................................................................................... 55
For the installer ................................................................................. 56
Description of the Appliance ......................................................... 5
Extraction mode ............................................................................... 58
Recirculation mode ........................................................................... 58
Control Panel .................................................................................. 59
rease and charcoal filter maintenance indicator ............................. 60
Maintenance and Care ................................................................... 61
Cleaning the hood ............................................................................ 61
Removing the panels ........................................................................ 61
Metal grease filter ............................................................................. 62
Removing the metal grease filter ...................................................... 62
Charcoal filter ................................................................................... 63
Changing the light upper and lower bulbs ................................... 64
What to do if ................................................................................... 65
Special accessories........................................................................ 65
Technical assistance service (not for UK) .................................... 66
Service and Spare Parts ................................................................... 66
Customer Care Department ............................................................. 67
Technical Details ............................................................................ 67
Mounting accessories included......................................................... 67
Electrical connection ..................................................................... 6
Wall unit mounting ............................................................................ 69

55
Safety warnings
For the user
 The cooker hood is designed to extract unpleasant odours from the
kitchen, it will not extract steam.
 Always cover lighted elements, to prevent excess heat from
damaging the appliance. In the case of oil, gas and coal fired
cookers it is essential to avoid open flames.
 Also, when frying, keep the deep frying pan on the cooker top/
cooker under careful control.
 The hot oil in the frying pan might ignite due to overheating.
 The risk of self-ignition increases when the oil being used is dirty.
 It is extremely important to note that overheating can cause a fire.
Never carry out any flambé cooking under the hood.
Always disconnect the unit from the power supply before
carrying out any work on the hood, including replacing the light
bulb (take the cartridge fuse out of the fuse holder or switch off the
automatic circuit breaker).
It is very important to clean the hood and replace the filter at
the recommended intervals. Failure to do so could cause
grease deposits to build up, resulting in a fire hazard.
 The appliance is not intended for use by young children or infirm
persons without supervision.
 Older children must be supervised if using the appliance.
 Young children should be supervised to ensure that they do not play
with the appliance.
 WARNING - Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
This appliance is marked according to the European directive 2002/96/
EC on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste
handling of this product.
The symbol on the product, or on the documents accompanying
the product, indicates that this appliance may not be treated as
household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment.
Disposal must be carried out in accordance with local environmental
regulations for waste disposal.
For more detailed information about treatment, recovery and recycling
of this product, please contact your local city office, your household
waste disposal service or the shop where you purchased the product.

56
For the insta er
 When used as an extractor unit, the hood must be fitted with a hose
having preferably the same diameter as the outlet hole.
Attention: The hose is not supplied and must be purchased
separately.
 When installing the hood, make sure you observe the following
minimum distance from the top edge of the cooking hob/ring
surfaces:
electric cookers 500 mm
gas cookers 650 mm
If the instructions for installation for the gas hob specify a greater
distance, this must be adhered to.
 The national Standard on fuel-burning systems specifies a maximum
depression of 0.04 mbar in such rooms.
 The air outlet must not be connected to chimney flues or combustion
gas ducts. The air outlet must under no circumstances be connected
to ventilation ducts for rooms in which fuel-burning appliances are
installed.
 The air outlet installation must comply with the regulations laid down
by the relevant local authorities.
 When the unit is used in extraction mode, a sufficiently large
ventilation hole must be provided, with dimensions that are approxi-
mately the same as the outlet hole.
 National and regional building regulations impose a number of
restrictions on using hoods and fuel-burning appliances connected
to a chimney, such as coal or oil room-heaters and gas fires, in the
same room.
 Hoods can only be used safely with appliances connected to a
chimney if the room and/or flat (air/environment combination) is
ventilated from outside using a suitable ventilation hole approxi-
mately 500-600 cm2 large to avoid the possibility of a depression
being created during operation of the hood.
 If you have any doubts, contact the relevant controlling authority or
building inspectors office.
 Since the rule for rooms with fuel burning appliances is outlet hole
of the same size as the ventilation hole, a hole of 500-600 cm2,
which is to say a larger hole, could reduce the performance of the
extractor hood.
 If the hood is used in its recirculation mode, it will operate simply and
safely in the above conditions without the need for any of the
aforementioned measures.
 When the hood is used in its extraction mode, the following rules
must be followed to obtain optimal operation:
- short and straight outlet hose
- keep bends in outlet hose to a minimum

57
- never install the hoses with an acute angle, they must always
follow a gentle curve.
- keep the hose as large as possible (preferably the same diameter
as the outlet hole).
- the length should be no more than:
3 metres with one 90° bend
2 metres with two 90° bends
Bends of more than 90° will reduce the efficiency of the hood and
reduce the airflow.
 Failure to observe these basic instructions will drastically reduce the
performance and increase the noise levels of the extractor hood.

58
Fig. 1
A
Description of the Appliance
The cooker hood is designed to extract unpleasant odours from
the kitchen, it will not extract steam.
 The hood is supplied as an extractor unit and can also be used with
a recirculation mode by fitting a charcoal filter.
 In some models the charcoal filter is supplied. The hood, therefore,
can be used immediately in the recirculation mode. We advise
removing the charcoal filter to use the hood in the extraction mode.
Extraction mode
 In this mode fumes are extracted to the outside via a hose
connected to the coupling ring A. Fig. 1.
 In order to obtain the best performance the hose should have a
diameter equal to the outlet hole.
Recircu ation mode
 The air is filtered through a charcoal filter and returned to the
kitchen.
 You will need an original charcoal filter for the recirculation mode.
(See Special Accessories).

59
Control Panel
 Best results are obtained by using a low speed for normal conditions
and a high speed when odours are more concentrated.
Turn the hood on a few minutes before you start cooking.
The hood should be left on after cooking for about 15 minutes or
until all the odours have disappeared.
The control switches are located on the hoods front panel:
1. ON/OFF Lights Key lower lamps:
press once to switch the lights on (soft lighting).
press twice to increase the intensity of the light.
press once again to switch the lights off.
ON/OFF LIGHTS Key  upper lamps:
press and keep pressed  the upper lights switch on.
repeat the same operation to switch them off.
2. ON/OFF motor key reset indicators.
3. Cyclical 1-2-3 speed selection key:
4. Intensive speed selection key:
lasts 5 minutes after which the hood returns to the previously set
speed.
5. Led speed suction 1 indicator (power) and grease filter saturation
indicator (n this case the led flashes).
6. Led speed suction 2 indicator (power) and carbon filter saturation
indicator (in this case the led flashes).
7. Led speed suction 3 indicator (power) and remote control batteries
discharged indicator (the led flashes  the remote control is a
special accessory to order apart).
. Led intensive speed (power) indicator.

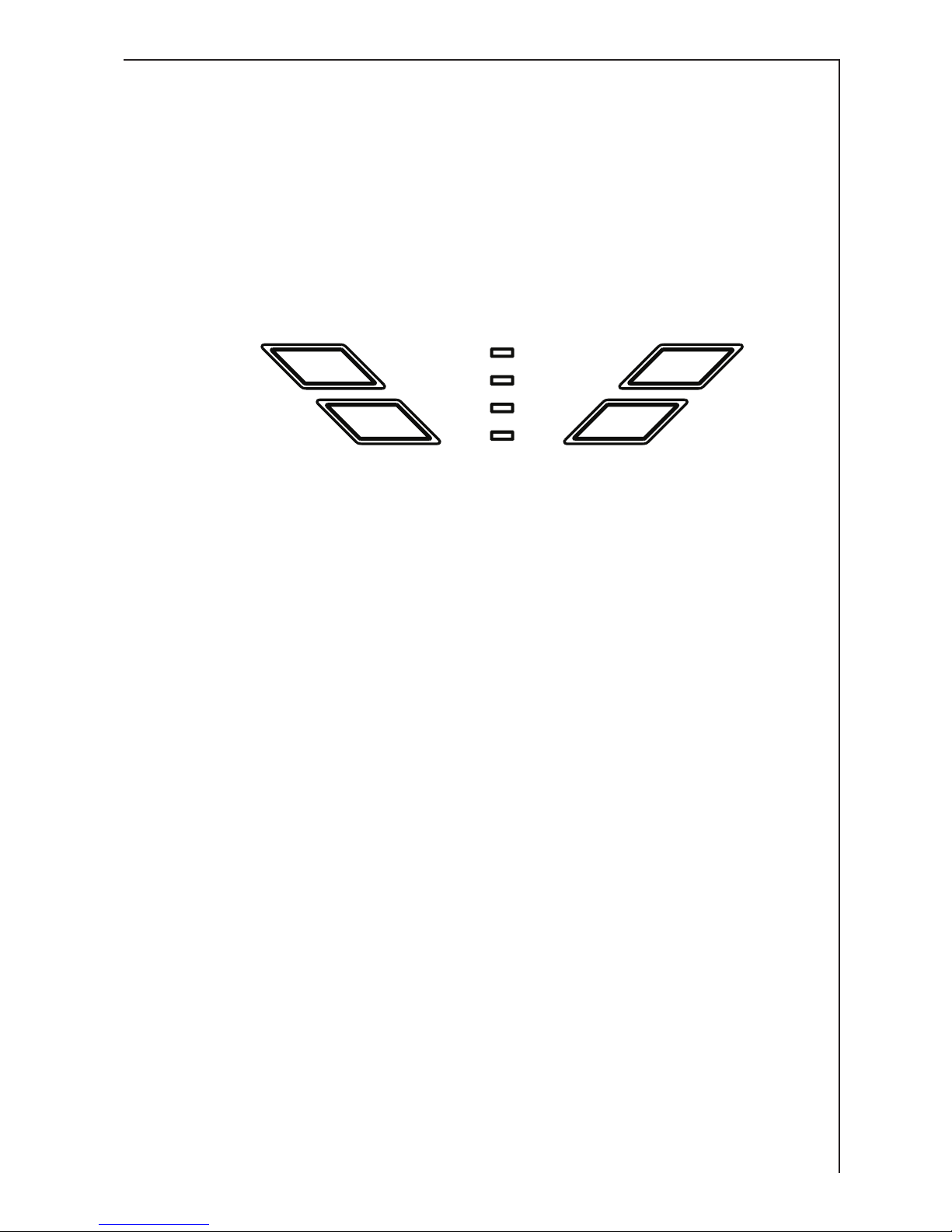

Fig. 2
1
2
4
3
5
6
7

60
Grease and charcoa fi ter maintenance
indicator
This hood is fitted with a device that indicates when it is necessary to
clean the grease filter or the charcoal filter (if the hood is used in the
recirculation version with a charcoal filter).
On delivery, the hood is not supplied with a charcoal filter, so the
saturation indicator will be disabled.
If the hood is to be used with a charcoal filter, the saturation
indicator light must be enabled as follows:
Set the hood in Stand by.
Press buttons 3 and 4 simultaneously and hold them for 3 seconds. At
first only the grease filter LED 5 will light up, but when the charcoal
filter LED 6 lights up the saturation indicator will be enabled.
To disable it: Press buttons 3 and 4 again simultaneously and hold
them for 3 seconds, until the charcoal filter LED 6 goes out.
Grease fi ter LED (5)
LED 5 will start to flash when it is time to clean the grease filter.
Cleaning will be necessary after 40 working hours. Always comply
with the maintenance instructions for the grease filter.
Charcoa fi ter LED (6)
The charcoal filter LED 6 will start to flash when the charcoal filter
needs to be replaced.
This operation is necessary after approximately 160 working hours.
Resetting the saturation indicator
After cleaning or replacing the filters, press button 2 for 3 seconds until
the grease filter LED 5 or the charcoal filter LED 6 stops flashing.

61
Maintenance and Care
The hood must always be disconnected from the electricity
supply before beginning any maintenance work.
C eaning the hood
 Clean the outside of the hood using a damp cloth and a solution of
water and mild washing up liquid.
 Never use corrosive, abrasive or flammable cleaning products or
products containing bleach. .
 Never insert pointed objects in the motors protective grid.
 Only ever clean the switch panel and filter grill using a damp cloth
and mild washing up liquid.
 It is extremely important to clean the unit and change the filters at
the recommended intervals. Failure to do so will cause grease
deposits to build up that could constitute a fire hazard.
 To access the grease filter, first remove the panels which conceal
the grease filter.
Removing the pane s
Pull the panels downwards to release them from the support pins (pull
decisively).
The panel/s must always be remounted!
Fig. 3

62
Meta grease fi ter
 The purpose of the grease filters is to absorb grease particles which
form during cooking and it must always be used, either in the
external extraction or internal re-circulation function.
Attention: the metal grease filters must be removed and washed,
either by hand or in the dishwasher, every four weeks.
Removing the meta grease fi ter

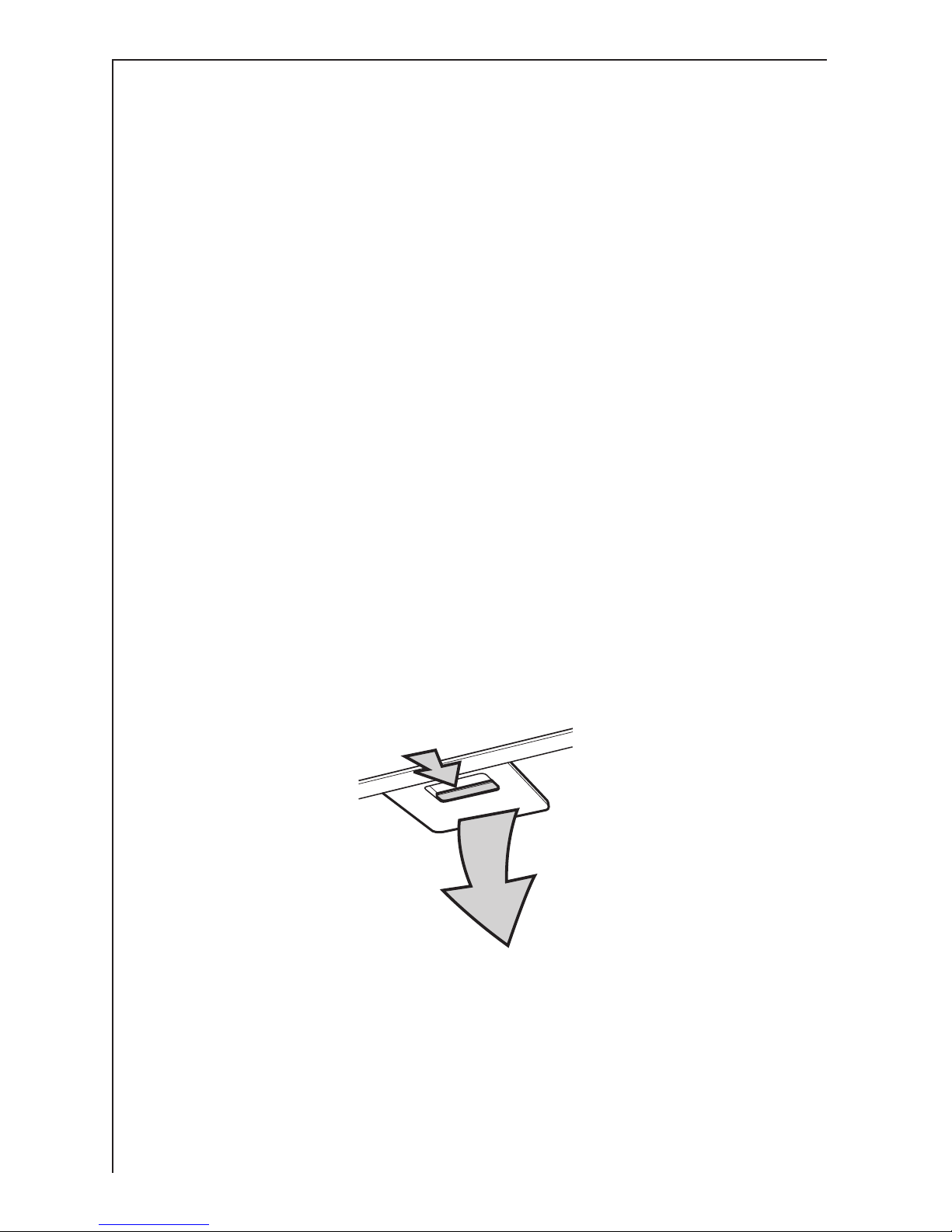

 First, push the metal grease filter stop backwards, then extract the
filter, pulling downwards. Fig. 4.
Hand washing
Soak grease filters for about one hour in hot water with a grease-
loosening cleaner, then rinse off thoroughly with hot water. Repeat
the process if necessary. Refit the grease filters when they are dry.
Dishwasher
Place grease filters in the dishwasher. Select most powerful washing
programme and highest temperature, at least 65°C. Repeat the
process. Refit the grease filters when they are dry.
When washing the metal grease filter in the dishwasher a slight
discolouration of the filter can occur, this does not have any impact
on its performance.
 Clean the inner housing using a hand hot solution only(never use
caustic detergents, abrasive powders or brushes).
Fig. 4

63
g
g
i
i
h
gg
hi
g
i
Charcoa fi ter
 The charcoal filter should only be used if you want to use the hood in
recirculation mode.
 To do this you will need an original charcoal filter (available from
your local Service Force Centre).
Cleaning/replacing the charcoal filter
Unlike other charcoal filters, the LON LIFE charcoal filter can be
cleaned and reactivated. With normal use the filter should be
cleaned every second month (when using the hood 2,5 hours per
day,on avarage). The best way to clean the filter is in the
dishwasher. Use normal detergent and choose the highest tempera-
ture (65º C). Wash the filter separately so that no food parts gets
stuck on the filter and later causes bad odours. To reactivate the
charcoal, the filter should be dried in an oven for 10 minutes with a
maximum temperature of 100º C.
After approximately three years of use, the charcoal filter should be
replaced with a new, as the odour reduction capacity will be reduced.
Fitting

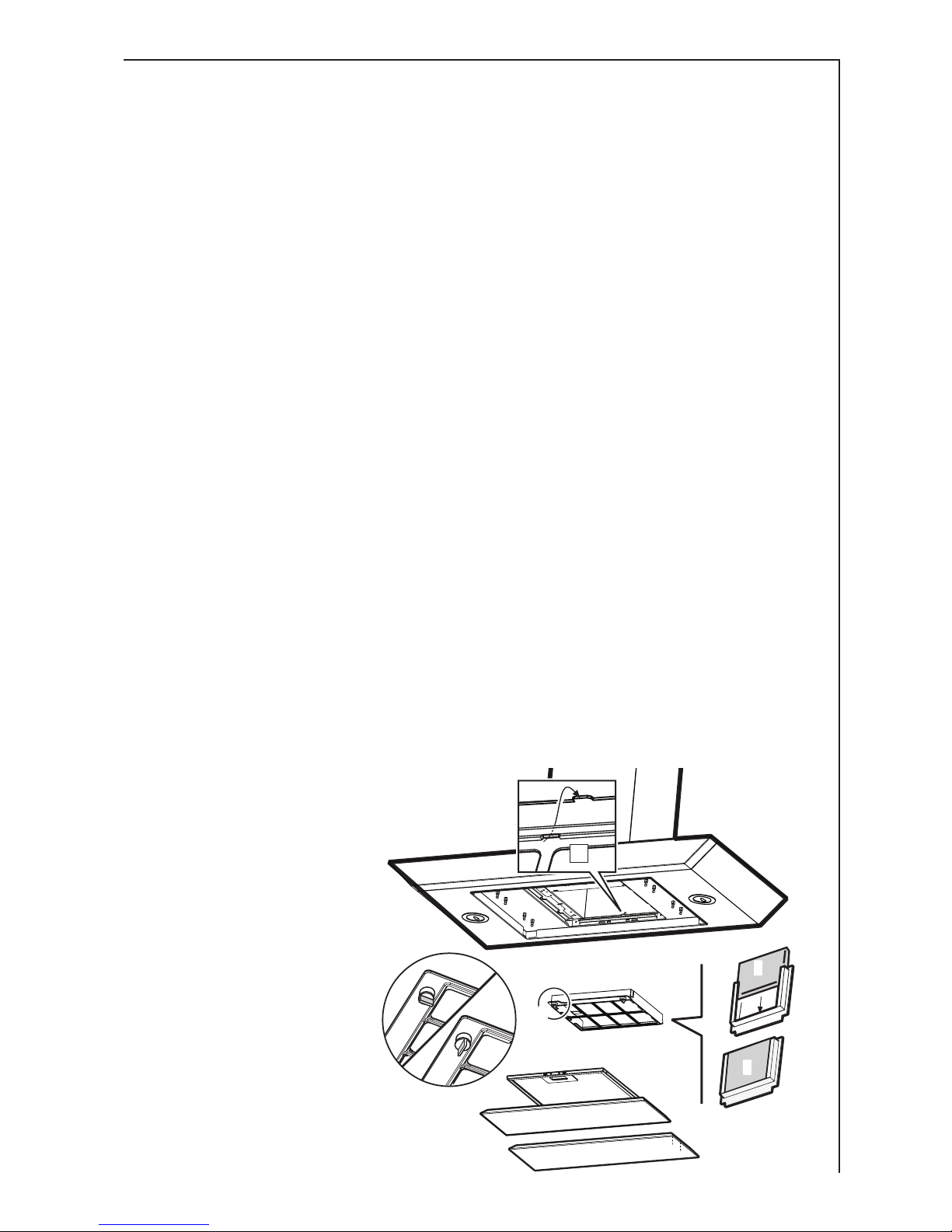

Remove the frame i which supports the filter h by turning 90° the
two knobs g.
Insert the charcoal filter inside the frame and put all parts back in
their place. Fig. 5.
To remove proceed in the reverse order.
 Always specify the hood model code number and serial number
when ordering replacement filters. This information is shown on the
rating plate located on the
inside of the unit.
 The charcoal filter can be
ordered from your local
Service Force
Centre.
Fig. 5

64
Warning
 Failure to observe the instructions on cleaning the unit and changing
the filters will cause a fire hazard. You are therefore strongly
recommended to follow these instructions.
 The manufacturer declines all responsibility for any damage to the
motor or any fire damage linked to inappropriate maintenance or
failure to observe the above safety recommendations.
Changing the ight upper and ower bu bs
Disconnect the cooker hood from the mains supply.
 Remove the lamp cover carefully, use a screw driver as a
lever. Fig. 6.
 Replace the old bulb with a new one of the same type.
 Refit the lamp cover.
 If the light does not come on, make sure the bulb has been inserted
in correctly before contacting your local Service Force Centre.
Fig. 6

65
What to do if
If your appliance fails to work properly please carry out the following
checks.
Symptom Solution
The cooker hood Check that: The hood is connected to
will not start... the electricity supply.
Check that a fan speed has been
selected
The cooker hood Check that: The fan speed is set
is not working high enough for the task.
The grease filters are clean.
The kitchen is adequately vented to
allow the entry of fresh air.
If set up for recirculation, check that
the charcoal filter is still effective.
If set up for extraction, check that the
ducting and outlets are not blocked.
The cooker hood has The safety cut-out device has been
switched off tripped.
during operation... Turn off the hob and then wait for
the device to reset.
If the hood has been installed below
the heights indicated in the
installation instructions the motor
will cut-out frequently which will
damage the hood.
If after all these checks, the problem persists, contact your local
Service Force Centre, quoting the model and serial number.
Please note that it will be necessary to provide proof of purchase for
any in-guarantee service calls.
In-guarantee customers should ensure that the above checks have
been made as the engineer will make a charge if the fault is not a
mechanical or electrical breakdown.
Special accessories
Charcoal filter TYPE 20
Remote control RM 8700 942 120 658

66
Technica assistance service (not for UK)
You are welcome to telephone our technical assistance service (see list of technical
assistance centres) whenever you need information or in the unlikely event of a fault.
For service in Australia call 1300 6 0 020.
When calling, please be ready to specify:
1. The model code number
2. The serial number (E-Nr.)
3. The manufacturing number (F-Nr.)
This information is shown on the registration plate inside the unit behind the
grease filter.
We reserve the right to change specifications and colours as a result of our policy of
continuing technological development.
Service and Spare Parts
In the event of your appliance requiring service, or if you wish to purchase spare
parts, contact your local Service Force Centre by telephoning: 87 5 929 929
Your call will be automatically routed to the Service Centre covering your post code
area. For the address of your local Service Force Centre and further information
about Service Force, please visit the website at www.serviceforce.co.uk
Please ensure that you have read the section What to do if.... as the engineer will
make a charge if the fault is not a mechanical or electrical breakdown even the
appliance is under warranty. Please note that proof of purchase is required for in-
guarantee service calls.
Help us to help you
Please determine your type of enquiry before writing or telephoning.
When you contact us we need to know:
 Your name  Clear and concise details of the fault
 Address and post code  Name and model of the appliance*
 Telephone number  E number*
 Serial number*
* This information can be found on the rating plate, which can be seen when the
grease filters are removed.
If you require Customer Service in the Republic of Ireland please contact us at
the address below:
AEG
Electrolux Group (Ire) Ltd
Long Mile Road
Dublin 12
Republic of Ireland
Tel: + 3 3 (0) 1 40907 1
Email: [email protected]

67
CUSTOMER CARE DEPARTMENT
For general enquiries concerning your AEG appliance or for further information on
AEG products, please contact our Customer Care Department by letter or telephone
at the address below or visit our website at www.aeg.co.uk
Customer Services Department
Major Appliances
AEGElectrolux
Addington Way
Luton
Bedfordshire
LU4 9QQ
0870 3 0 3 0 (*)
* calls to this number may be recorded for training purposes.
Technical Details
Dimensions (in cm):
Height: 63,7 (72) - 107,8
Width: 89,5
Depth: 45
Maximum absorbed power: 330 W
Motor: 250 W
Lighting: 4 x 20 W
Electrical connection: 220-240V 50/60hz
Fuse rating: 5A T
Mounting accessories inc uded
1 deflector
1 allen spanner (for TORX screws).
2 screw 3,5 x 9,5 (to fix the deflector)
1 support bracket
1 chimney support
5 wood-screws 5 x 45 mm (for wall mounting) ,
5 Dübel Ø 8 mm (for wall mounting)
2 screw 2,9 x 6,5 (to fix the upper chimney)

68
Electrical connection (not for U )
Safety warnings for the e ectrician
Before connecting the appliance to the power supply, check that the
voltage indicated on the rating plate corresponds to the mains power
supply available. Appliances fitted with a plug can be connected to
any standard power socket within easy access.
Should it be necessary to provide a fixed connection, the hood must
only be installed by an electrician authorised by the local electricity
board. When installing, an omnipolar disconnector with a distance of
at least 3 mm between contacts must be provided.
Fixed connection of the appliance must only be carried out by an
authorised electrician.
E ectrica connection for UK on y
Safety warnings for the electrician
Connect the hood to the mains supply via a double pole switch which
has 3 mm minimum separation between the contacts.
The switch must be accessible at all times.
The following is valid in the United Kingdom only:
- the wire which is coloured green and yellow must be connected to
the terminal which is marked with the letter E or by the earth symbol
( ), or coloured green or green and yellow;
- the wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black, -
- the wire which is coloured brown must be connected to the terminal
which is marked with the letter L or coloured red.

69
Wall unit mounting - Fig. 7
Remove the panels and the grease filter (see paragraphs Removing
the panels and Removing the metal grease filter).
 Mark the wall with a centre line, this will aid mounting procedure (1),
position the template so that the mid line printed on the template
matches with the centre line previously drawn, the lower side of the
template corresponds to the lower side of the hood once mounted
(2).
 Drill two holes Ø 8mm and fix the support bracket with two wall
plugs and screws (3). Hang the hood (4) and adjust its position (5-
6).
 From the inside of the hood sign 1 point for definitive fixing (7).
 Remove the hood ( ) and drill 1 hole Ø 8mm (9), fit two wall plugs
(10).
 Drill two holes Ø 8mm on the upper side close to the ceilling, fit two
wall plugs (11) (In case the hood is to be used in filter version,
mount the deflector F on the chimney support with 2 screws) and fix
the chimney support G with two screws (12).
 Hang the hood again (13) and fix it definitively with 1 screw (14).
 Fit an exhausting pipe (15) to connect the outlet hole B of the hood
to the outside (Extractor hood) or to the deflector F (Filter version).
 Make electrical connection (16).
 Fix the chimney first up (17a) to the chimney support (17b), then
slide the lower section of the chimney down into the proper housing
on top of the hood (1 ).
 Fix the lower section to the hood with two screws (19).
Refit the grease filter and the panels.
Note! Check that the upper halogen lamps are not covered (e.g. by
the wall units).

70
17b
17b
4-13
4-13
1
2
3
11
11
12
15
17a
17a
6
5
16
B
G
H
8
8
18
F
5
6
14
9
10
7
Fig. 7

LI2QRA Ed. 04/05
From the Electrolux Group. The world´s No.1 choice.
The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning
and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers,
washing machines,vacuum cleaners, chain saws and lawn mowers are sold each year to a
value of approx. USD 14 billion in more than 150 countries around the world.
AEGElectrolux
Addington Way
Luton
Bedfordshire
LU4 9QQ
http://www.aeg.co.uk
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
