Safety warnings
For the user
 The cooker hood is designed to extract unpleasant odours from the
kitchen, it will not extract steam.
 Always cover lighted elements, to prevent excess heat from
damaging the appliance. In the case of oil, gas and coal fired
cookers it is essential to avoid open flames.
 Also, when frying, keep the deep frying pan on the cooker top/
cooker under careful control.
 The hot oil in the frying pan might ignite due to overheating.
 The risk of self-ignition increases when the oil being used is dirty.
 It is extremely important to note that overheating can cause a fire.
Never carry out any flambé cooking under the hood.
Always disconnect the unit from the power supply before
carrying out any work on the hood, including replacing the light
bulb (take the cartridge fuse out of the fuse holder or switch off the
automatic circuit breaker).
It is very important to clean the hood and replace the filter at
the recommended intervals. Failure to do so could cause
grease deposits to build up, resulting in a fire hazard.
 The appliance is not intended for use by young children or infirm
persons without supervision.
 Older children must be supervised if using the appliance.
 Young children should be supervised to ensure that they do not play
with the appliance.
 WARNING Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
This appliance is marked according to the European directive 2002/96/
EC on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste
handling of this product.
The symbol on the product, or on the documents accompanying
the product, indicates that this appliance may not be treated as
household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment.
Disposal must be carried out in accordance with local environmental
regulations for waste disposal.
For more detailed information about treatment, recovery and recycling
of this product, please contact your local city office, your household
waste disposal service or the shop where you purchased the product.

65
For the insta er
 When used as an extractor unit, the hood must be fitted with a
150mm diameter hose.
 Should there already be a pipe of diameter 125 or 120 mm that
ducts to the outside through the walls, it is possible to use the 150/
125-120 mm reduction flange provided.
In this case the hood will be slightly noisier.
 When installing the hood, make sure you observe the following
minimum distance from the top edge of the cooking hob/ring
surfaces:
electric cookers 500 mm
gas cookers 650 mm
If the instructions for installation for the gas hob specify a greater
distance, this must be adhered to.
 The national Standard on fuel-burning systems specifies a maximum
depression of 0.04 mbar in such rooms.
 The air outlet must not be connected to chimney flues or combustion
gas ducts. The air outlet must under no circumstances be connected
to ventilation ducts for rooms in which fuel-burning appliances are
installed.
 The air outlet installation must comply with the regulations laid down
by the relevant local authorities.
 When the unit is used in extraction mode, a sufficiently large
ventilation hole must be provided, with dimensions that are approxi-
mately the same as the outlet hole.
 National and regional building regulations impose a number of
restrictions on using hoods and fuel-burning appliances connected
to a chimney, such as coal or oil room-heaters and gas fires, in the
same room.
 Hoods can only be used safely with appliances connected to a
chimney if the room and/or flat (air/environment combination) is
ventilated from outside using a suitable ventilation hole approxi-
mately 500-600 cm2 large to avoid the possibility of a depression
being created during operation of the hood.
 If you have any doubts, contact the relevant controlling authority or
building inspectors office.
 Since the rule for rooms with fuel burning appliances is outlet hole
of the same size as the ventilation hole, a hole of 500-600 cm2,
which is to say a larger hole, could reduce the performance of the
extractor hood.
 If the hood is used in its recirculation mode, it will operate simply and
safely in the above conditions without the need for any of the
aforementioned measures.
 When the hood is used in its extraction mode, the following rules
must be followed to obtain optimal operation:
- short and straight outlet hose

66
- keep bends in outlet hose to a minimum
- never install the hoses with an acute angle, they must always
follow a gentle curve.
- keep the hose as large as possible (preferably the same diameter
as the outlet hole).
- the length should be no more than:
3 metres with one 90° bend
2 metres with two 90° bends
Bends of more than 90° will reduce the efficiency of the hood and
reduce the airflow.
 Failure to observe these basic instructions will drastically reduce the
performance and increase the noise levels of the extractor hood.

67

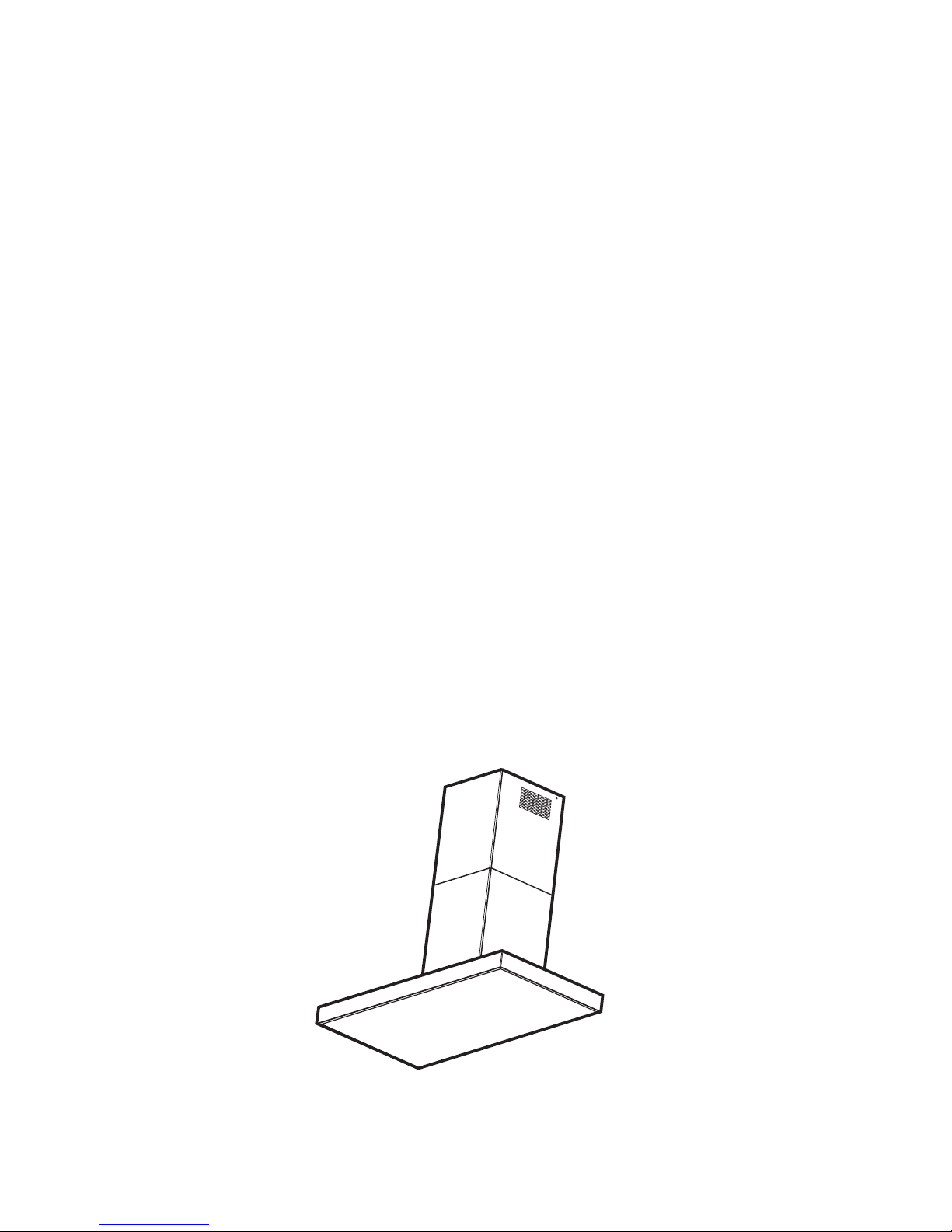

Fig. 1
A
Description of the Appliance
The cooker hood is designed to extract unpleasant odours from
the kitchen, it will not extract steam.
 The hood is supplied as an extractor unit and can also be used with
a recirculation mode by fitting a charcoal filter.
 In some models the charcoal filter is supplied. The hood, therefore,
can be used immediately in the recirculation mode. We advise
removing the charcoal filter to use the hood in the extraction mode.
Extraction mode
 In this mode fumes are extracted to the outside via a hose
connected to the coupling ring A. Fig. 1.
 In order to obtain the best performance the hose should have a
diameter equal to the outlet hole.
Should there already be a pipe of diameter 125 or 120 mm that
ducts to the outside through the walls, it is possible to use the 150/
125-120 mm reduction flange provided.
In this case the hood will be slightly noisier.
Recircu ation mode
 The air is filtered through a charcoal filter and returned to the
kitchen.
 You will need an original charcoal filter for the recirculation mode.
(See Special Accessories).

68

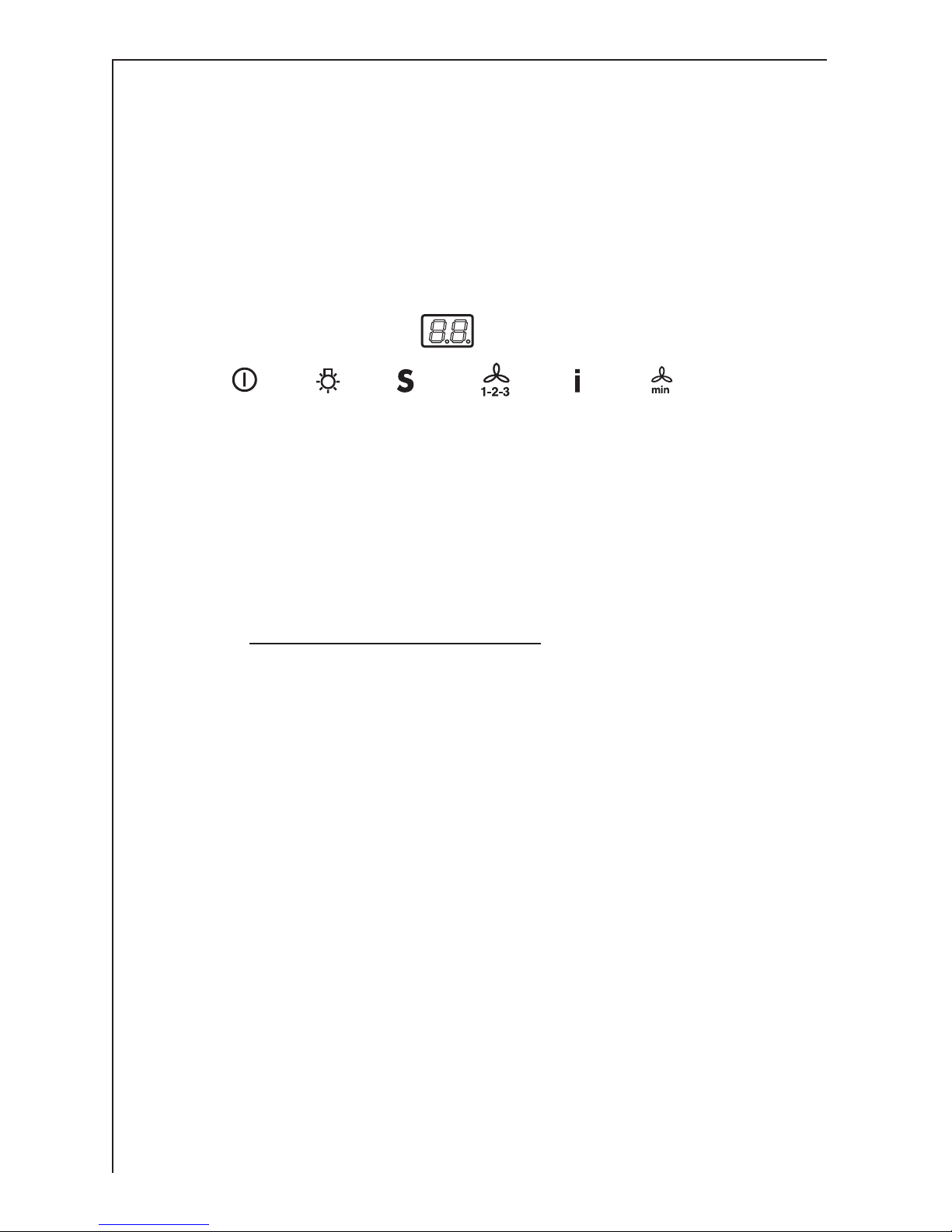

Control Panel - DD 8990
 Best results are obtained by using a low speed for normal conditions
and a high speed when odours are more concentrated.
Turn the hood on a few minutes before you start cooking.
The hood should be left on after cooking for about 15 minutes or
until all the odours have disappeared.
The control switches are located on the hoods front panel:
1- ON (stand-by - illuminated key) / OFF switch.
Press once or more to obtain the function desired:
Stand-by (dot "b" on the display is illuminated): the hood is ready
to function, the safety procedure is activated (see next page 
Safety procedure).
OFF: all the functions are switched off except the illumination.
2- Light ON/OFF
3- Display
4-Manual(stand by)/Automatic (sensors Led S will illuminate).
Press once to switch ON the Automatic mode, press again to
switch OFF (stand-by / Manual mode).
Automatic function:
The hood switch ON (extraction) on the basis of the change in the
normal environmental conditions that the hood notices through
its sensors (see next page  Sensor test) .
The leds of the display will turn on alternatively in proportion to the
suction power setting.
Attention! The hood is equipped with an automatic system that
establishes what the normal environmental conditions are.
In the case of abnormal operation, calibration can be carried out
automatically or manually (see next page  Automatic
calibration and Manual calibration).
5- Start and choice of motor speed 1-2-3-1-2.........
6- Intensive speed on/off. The Intensive speed runs for 5 minutes:
If the hood is on when the Intensive speed is activated, the hood
will revert to previous speed after 5 minutes.
If the hood is off when the Intensive speed is activated, the hood
12 6
7
ab
5
4
Fig. 2
3

69
will automatically turn off after 5 minutes.
To interrupt the Intensive speed, press button 1 or 6.
The letter P appears on the display and the remaining time (the
point a is flashing), if interrupted an acoustic signal is heard.
7- Self-Timer: times all the speed levels (the point b is flashing),
and then the cooker hood switches off:
The self-timer is set as follows:
1st speed level 20 minutes
2nd speed level 15 minutes
3rd speed level 10 minutes
P (intensive) speed level: 5 minutes
The display shows the remaining operation time, at the end of the
time an acoustic signal is heard. Depressing the push-button
again exits the function.
Automatic Sensor calibration:
The automatic calibration is carried on by the hood itself every 30
minutes.
When the hood is installed for the first time or the power is cut off
for many hours or days, please wait 30 minutes before the use or
make a manual calibration.
Manual Sensor calibration
Carry out calibration with the hob off, at normal ambient room
temperature and in the absence of an appreciable amount of
steam:
- press switch 4 for about 3secs , then press switch 1, the hood
emits a sound signal to indicate calibration taking place.
Sensors test
When functioning in Automatic mode, the system continuously
tests the efficiency of the sensors. In case of a fault the display
shows 88. Contact your local Service Force Centre.
In this situation the hood can, in any case, be used in the manual
mode.
Safety procedure
Self-activation of Automatic (SAFETY) mode:
if the sensors reveal an excessive increase in temperature,
even if the hood is in Manual mode, the system self selects the
Automatic mode and the hood selects the necessary speed.
The hood can be turned off by pressing push switch 1.
Should the hood or the controls fail to operate: disconnect the power
supply for at least 5 seconds.
After reconnecting the power supply wait 15 seconds and then check
that the cooker hood is now operating correctly.

70
Control Panel - DD 8861-8891-8821
 Best results are obtained by using a low speed for normal conditions
and a high speed when odours are more concentrated.
Turn the hood on a few minutes before you start cooking.
The hood should be left on after cooking for about 15 minutes or
until all the odours have disappeared.
The control switches are located on the hoods front panel:
1- Mains switch, ON/OFF
Press for less than 1 1/2 seconds and the cooker hood goes into
the "stand by" position (point "b" is illuminated).
Press for more than 1 1/2 seconds and the cooker hood turns off,
ALL the controls (except the light push button) are disabled (the
display is off).
Press again for more than 1 1/2 seconds to reset the cooker
hood to "stand by".
2- Light ON/OFF
3- Display
4- Start and choice of motor speed 1-2-3-1-2.........
5- Intensive speed on/off. The Intensive speed runs for 5 minutes:
If the hood is on when the Intensive speed is activated, the hood
will revert to previous speed after 5 minutes.
If the hood is off when the Intensive speed is activated, the hood
will automatically turn off after 5 minutes.
To interrupt the Intensive speed, press button 1 or 5.
The letter P appears on the display and the remaining time (the
point a is flashing), if interrupted an acoustic signal is heard.
6- Self-Timer: times all the speed levels (the point b is flashing),
and then the cooker hood switches off:
The self-timer is set as follows: 1st speed level 20 minutes
2nd speed level 15 minutes
3rd speed level 10 minutes
The display shows the remaining operation time, at the end of the
time an acoustic signal is heard. Depressing the push-button
again exits the function.
Should the hood or the controls fail to operate: disconnect the power
supply for at least 5 seconds. After reconnecting the power supply wait
15 seconds and then check that the cooker hood is now operating
correctly.
123 456
ab
Fig. 3

71
Grease and charcoa fi ter maintenance
indicator - DD 8990 - 8861 - 8891 - 8821
This hood is fitted with a device that indicates when it is necessary to
clean the grease filter or the charcoal filter (if the hood is used in the
recirculation version with a charcoal filter).
On delivery, the hood is not supplied with a charcoal filter, so the
saturation indicator will be disabled.
If the hood is to be used with a charcoal filter, the saturation
indicator light must be enabled as follows:
DD 8990 only: Set the hood in OFF.
Press buttons 4 and 5 simultaneously and hold them for 3 seconds. At
first only the grease filter LED F will light up, but when the charcoal
filter LED C lights up the saturation indicator will be enabled.
To disable it: Press buttons 4 and 5 again simultaneously and hold
them for 3 seconds, until the charcoal filter LED goes out.
Grease fi ter LED (F)
LED F will start to flash when it is time to clean the grease filter.
Cleaning will be necessary after 40 working hours. Always comply
with the maintenance instructions for the grease filter.
Charcoa fi ter LED (C)
The charcoal filter LED C will start to flash when the charcoal filter
needs to be replaced.
This operation is necessary after approximately 160 working hours.
Resetting the saturation indicator
After cleaning or replacing the filters, press button 1 for 3 seconds until
the grease filter LED F or the charcoal filter LED C stops flashing.

72
Control Panel - DD 86 5-8665-8625
 Best results are obtained by using a low speed for normal conditions
and a high speed when odours are more concentrated.
Turn the hood on a few minutes before you start cooking.
The hood should be left on after cooking for about 15 minutes or
until all the odours have disappeared.
The control switches are located on the hoods front panel:
A- OFF  ON push button
Press once or more to obtain the function desired:
ON: the hood switches on to the last speed selected.
OFF: all the functions are switched off except the illumination.
B - Speed selection push button (extraction power).
Press this push button once or more to select the most suitable
extraction speed (power) (1-2-3).
C - The display shows the extraction power selected, signalling the
saturation of the filters (F).
D- Intensive speed on/off. The Intensive speed runs for 5 minutes:
If the hood is on when the Intensive speed is activated, the hood
reverts to previous speed after 5 minutes.
If the hood is off when the Intensive speed is activated, the hood
will be turned off after 5 minutes.
To interrupt the Intensive speed, press button A or B.
H- Light ON/OFF
Should the hood or the controls fail to operate: disconnect the power
supply for at least 5 seconds, then turn the hood back on again.
i
AB CDE
Fig. 4

73
Grease and charcoa fi ter maintenance
indicator
DD 8695-8665-8625
This hood is fitted with a device that indicates when it is necessary to
clean the grease filter or the charcoal filter (if the hood is used in the
recirculation version with a charcoal filter).
On delivery, the hood is not supplied with a charcoal filter, so the
saturation indicator will be disabled.
If the hood is to be used with a charcoal filter, the saturation
indicator light must be enabled as follows:
Set the hood in OFF.
Pressing keys B and D simultaneously for three seconds, LED F lights
up and begins to flash the 1st speed led. After 1 second the 2nd speed
led also flashes and the system emits a sound signal (-Beep-) to
indicate setting taking place.
To remove the charcoal filter signal press push buttons B and D
simultaneously for 3 seconds. LED F lights up and begins to flash the
1st speed led (grease filter) and the 2nd speed led. After 1 second, only
the 1st speed led continues to flash. The system emits a sound signal
(-Beep-) to indicate setting taking place.
Grease filter LED
The 1st speed led (+ led F) flashes, when it is time to clean the grease
filter.
Always comply with the maintenance instructions for the grease filter.
Charcoal filter LED
The 2nd speed led (+ led F) flashes, when the charcoal filter needs to
be cleaned or replaced.
Resetting the saturation indicator
After cleaning or replacing the filters, press button A for 3 seconds
until the 1st speed led or the second speed led stops flashing.
The F LED also turns off..

74
Maintenance and Care
The hood must always be disconnected from the electricity
supply before beginning any maintenance work.
C eaning the hood
 Clean the outside of the hood using a damp cloth and a solution of
water and mild washing up liquid.
 Never use corrosive, abrasive or flammable cleaning products or
products containing bleach. .
 Never insert pointed objects in the motors protective grid.
 Only ever clean the switch panel and filter grill using a damp cloth
and mild washing up liquid.
 It is extremely important to clean the unit and change the filters at
the recommended intervals. Failure to do so will cause grease
deposits to build up that could constitute a fire hazard.
Meta grease fi ter
 The purpose of the grease filters is to absorb grease particles which
form during cooking and it must always be used, either in the
external extraction or internal re-circulation function.
Attention: the metal grease filters must be removed and washed,
either by hand or in the dishwasher, every four weeks.
Removing the meta grease fi ter
 First, push the metal grease filter stop backwards, then extract the
filter, pulling downwards. Fig. 5.
Hand washing
Soak grease filters for about one hour in hot water with a grease-
loosening cleaner, then rinse off thoroughly with hot water. Repeat
the process if necessary. Refit the grease filters when they are dry.
Dishwasher
Place grease filters in the dishwasher. Select most powerful washing
programme and highest temperature, at
least 65°C. Repeat the process. Refit the
grease filters when they are dry.
When washing the metal grease filter in
the dishwasher a slight discolouration of
the filter can occur, this does not have any
impact on its performance.
 Clean the inner housing using a hand hot
solution only(never use caustic
detergents, abrasive powders or
brushes). Fig. 5

75
d
i
h
g
g
gg
Fig. 6
Charcoa fi ter
 The charcoal filter should only be used if you want to use the hood in
recirculation mode.
 To do this you will need an original charcoal filter (available from
your local Service Force Centre).
Cleaning/replacing the charcoal filter
Unlike other charcoal filters, the LON LIFE charcoal filter can be
cleaned and reactivated. With normal use the filter should be
cleaned every second month (when using the hood 2,5 hours per
day,on avarage). The best way to clean the filter is in the
dishwasher. Use normal detergent and choose the highest tempera-
ture (65º C). Wash the filter separately so that no food parts gets
stuck on the filter and later causes bad odours. To reactivate the
charcoal, the filter should be dried in an oven for 10 minutes with a
maximum temperature of 100º C.
After approximately three years of use, the charcoal filter should be
replaced with a new, as the odour reduction capacity will be reduced.
Fitting
Remove the frame i which supports the filter h by turning 90° the
two knobs g.
Insert the charcoal filter inside the frame and put all parts back in
their place. Fig. 6.
To remove proceed in the reverse order.
 Always specify the hood model code number and serial number
when ordering replacement filters. This information is shown on the
rating plate located on the inside of the unit.
 The charcoal filter can be ordered from your local Service Force
Centre.

76
Fig. 7
Warning
 Failure to observe the instructions on cleaning the unit and changing
the filters will cause a fire hazard. You are therefore strongly
recommended to follow these instructions.
 The manufacturer declines all responsibility for any damage to the
motor or any fire damage linked to inappropriate maintenance or
failure to observe the above safety recommendations.
Changing the ight bu b
Disconnect the cooker hood from the mains supply.
 Remove the lamp cover carefully, use a screw driver as a
lever. Fig. 7.
 Replace the old bulb with a new one of the same type.
 Refit the lamp cover.
 If the light does not come on, make sure the bulb has been inserted
in correctly before contacting your local Service Force Centre.

77
What to do if
If your appliance fails to work properly please carry out the following
checks.
Symptom Solution
The cooker hood Check that: The hood is connected to
will not start... the electricity supply.
Check that a fan speed has been
selected
The cooker hood Check that: The fan speed is set
is not working high enough for the task.
The grease filters are clean.
The kitchen is adequately vented to
allow the entry of fresh air.
If set up for recirculation, check that
the charcoal filter is still effective.
If set up for extraction, check that the
ducting and outlets are not blocked.
The cooker hood has The safety cut-out device has been
switched off tripped.
during operation... Turn off the hob and then wait for
the device to reset.
If the hood has been installed below
the heights indicated in the
installation instructions the motor
will cut-out frequently which will
damage the hood.
If after all these checks, the problem persists, contact your local
Service Force Centre, quoting the model and serial number.
Please note that it will be necessary to provide proof of purchase for
any in-guarantee service calls.
In-guarantee customers should ensure that the above checks have
been made as the engineer will make a charge if the fault is not a
mechanical or electrical breakdown.
Special accessories
Charcoal filter TYPE 20

78
Technica assistance service (not for UK)
You are welcome to telephone our technical assistance service (see list
of technical assistance centres) whenever you need information or in
the unlikely event of a fault.
For service in Australia call 1300 650 020.
When calling, please be ready to specify:
1. The model code number
2. The serial number (E Nr.)
3. The manufacturing number (F Nr.)
This information is shown on the registration plate inside the unit
behind the grease filter.
We reserve the right to change specifications and colours as a result of
our policy of continuing technological development.
Service and Spare Parts
In the event of your appliance requiring service, or if you wish to
purchase spare parts, contact your local Service Force Centre by
telephoning: 08705 929 929
Your call will be automatically routed to the Service Centre covering
your post code area. For the address of your local Service Force
Centre and further information about Service Force, please visit the
website at www.serviceforce.co.uk
Please ensure that you have read the section What to do if.... as the
engineer will make a charge if the fault is not a mechanical or electri-
cal breakdown even the appliance is under warranty. Please note that
proof of purchase is required for in guarantee service calls.
Help us to help you
Please determine your type of enquiry before writing or telephoning.
When you contact us we need to know:
 Your name  Clear and concise details of the fault
 Address and post code  Name and model of the appliance*
 Telephone number  E number*
 Serial number*
* This information can be found on the rating plate, which can be seen
when the grease filters are removed.
If you require Customer Service in the Republic of Ireland please
contact us at the address below:
AE
Electrolux roup (Ire) Ltd
Long Mile Road
Dublin 12
Republic of Ireland
Tel: + 353 (0) 1 4090751
Email: [email protected]

79
CUSTOMER CARE DEPARTMENT
For general enquiries concerning your AE appliance or for further
information on AE products, please contact our Customer Care
Department by letter or telephone at the address below or visit our
website at www.aeg.co.uk
Customer Services Department
Major Appliances
AE Electrolux
Addington Way
Luton
Bedfordshire
LU4 9QQ
08705 350 350 (*)
* calls to this number may be recorded for training purposes.
Technical Details
Models: DD8625 DD8665/8695 DD8861/8891 DD8990 DD8821
Dimensions (in cm):
Height 82,3-125,7 72,7-108,7 72-114 72-114 79-123
Width 119,8 59,8/89,8 59,8/89,8 89,8 119,8
Depth 45 45 45 45 45
Maximum
abso bed
powe (W): 255 215 215 215 255
Motor (W): 175 175 175 175 175
Lighting (W): 4x20 2x20 2x20 2x20 4x20
Length of
the cable (cm): 150 150 150 150 150
Elect ical
connection (V): 230 220-240 220-240 220-240 220-240
Fuse ating:
Mounting accessories inc uded
1 deflector ,
1 support bracket ,
1 chimney support,
6 wood-screws 5 x 45 mm (for wall mounting) ,
6 D bel Ø 8 mm (for wall mounting) ,
1 reduction flange Ø 125-120 mm ,
1 allen spanner (for TORX screws).
DD 8665-8695-8861-8891-8990: 2+2 metal screws 3,5 x 9,5 (to fix the deflector), 2
metal screws 2,9 x 6,5 (to fix the chimney)
DD 8625-8821: 4 metal screws 2,9 x 6,5 (2 to fix the deflector - 2 to fix the upper
chimney), 2 metal screws 3 x 9 (to fix the lower chimney).

80
Electrical connection (not for UK)
Safety warnings for the e ectrician
Before connecting the appliance to the power supply, check that the
voltage indicated on the rating plate corresponds to the mains power
supply available. Appliances fitted with a plug can be connected to
any standard power socket within easy access.
Should it be necessary to provide a fixed connection, the hood must
only be installed by an electrician authorised by the local electricity
board. When installing, an omnipolar disconnector with a distance of
at least 3 mm between contacts must be provided.
Fixed connection of the appliance must only be carried out by an
authorised electrician.
E ectrica connection for UK on y
Safety warnings for the electrician
Connect the hood to the mains supply via a double pole switch which
has 3 mm minimum separation between the contacts.
The switch must be accessible at all times.
The following is valid in the United Kingdom only:
- the wire which is coloured green and yellow must be connected to
the terminal which is marked with the letter E or by the earth symbol
( ), or coloured green or green and yellow;
- the wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black, -
- the wire which is coloured brown must be connected to the terminal
which is marked with the letter L or coloured red.

81
180°
A
B
C-OK!
Fig. 8
all unit mounting - Fig. 8-9
Pre mounting operations (Only for
model DD 8625 8821)
First decide which functioning version is
better for you.
If you decide to use the hood in
exhausting version we suggest to position
the upper section of the chimney so that
the oulet slots are not visible once
installation has ended, on the contrary if
is decided to use the hood in recycling
version BE SURE that the side with slots
is up (see also A-B-C sequence on on
Fig. 8).
 Mark the wall with a centre line, this will
aid mounting procedure (1), position the template so that the mid
line printed on the template matches with the centre line previously
drawn, the lower side of the template corresponds to the lower side
of the hood once mounted (2).
 Drill two holes Ø 8mm and fix the support bracket with two wall
plugs and screws (3). Hang the hood (4) and adjust its position (5
6).
 From the inside of the hood sign two points for definitive fixing (7).
 Remove the hood (8) and drill two holes Ø 8mm (9), fit two wall
plugs (10).
 Drill two holes Ø 8mm on the upper side close to the ceilling, fit two
wall plugs (11) (In case the hood is to be used in filter version,
mount the deflector F on the chimney support with 2 screws) and fix
the chimney support G with two screws (12).
 Hang the hood again (13) and fix it definitively with two screws (14).
 Fit an exhausting pipe (15) to connect the outlet hole B of the hood
to the outside (Extractor hood) or to the deflector F (Filter version).
 Make electrical connection (16).
 Fix the chimney first up (17a) to the chimney support (17b), then
slide the lower section of the chimney down into the proper housing
on top of the hood (18).
Only for model DD 8625 8821: Fix the lower section to the hood
with two screws (19).
