AEG Electrolux HC 3360 Product guide

DK 9160-9190
DK 9360-9390
DK 9660-9690
DK 9960-9990
DK 9090-9060
HC 5690-3360
Dunstabzugshaube
Afzuigkap
Hotte
Cooker Hood
Montage- und Gebrauchsanweisung
Installatie- en gebruiksaanwijzing
Notice d utilisation et d installation
Operating and Installation Instructions

66
Contents
Safety warnings .............................................................................. 67
For the user ...................................................................................... 67
For the installer ................................................................................. 68
Description of the Appliance ......................................................... 69
Description of the Appliance - For DK 9060 9090 only ...................... 69
Extraction mode................................................................................ 69
Recirculation mode ........................................................................... 70
Control Panel .................................................................................. 71
DK 9090 D - 9060 D .......................................................................... 71
DK 9160 D - 9190 D .......................................................................... 71
DK 9360 - DK 9390 - HC 3360 .......................................................... 72
DK 9660 - DK 9690 - HC 5690 .......................................................... 73
DK 9960 - DK 9990 ........................................................................... 74
Grease and charcoal filter maintenance indicator...................... 76
DK 9660 - DK 9690 - DK 9960 - DK 9990 - HC 5690 ......................... 76
Maintenance and Care................................................................... 77
Cleaning the hood ............................................................................. 77
Metal grease filter ............................................................................. 77
Removing the metal grease filter........................................................ 77
Charcoal filter .................................................................................... 78
Changing the light bulb ...................................................................... 79
What to do if ................................................................................... 80
Special accessories........................................................................ 81
Technical assistance service ......................................................... 81
Technical Details ............................................................................ 83
Mounting accessories included ......................................................... 83
Electrical connection (not for UK) ................................................. 84
Wall unit mounting ............................................................................ 85

67
Safety warnings
For the user
 The cooker hood is designed to extract unpleasant odours from the
kitchen, it will not extract steam.
 Always cover lighted elements, to prevent excess heat from
damaging the appliance. In the case of oil, gas and coal fired
cookers it is essential to avoid open flames.
 Also, when frying, keep the deep frying pan on the cooker top/cooker
under careful control.
 The hot oil in the frying pan might ignite due to overheating.
 The risk of self-ignition increases when the oil being used is dirty.
 It is extremely important to note that overheating can cause a fire.
Never carry out any flambé cooking under the hood.
Always disconnect the unit from the power supply before
carrying out any work on the hood, including replacing the
light bulb (take the cartridge fuse out of the fuse holder or switch off
the automatic circuit breaker).
It is very important to clean the hood and replace the filter at
the recommended intervals. Failure to do so could cause
grease deposits to build up, resulting in a fire hazard.
 The appliance is not intended for use by young children or infirm
persons without supervision.
 Older children must be supervised if using the appliance.
 Young children should be supervised to ensure that they do not play
with the appliance.
 WARNING Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
This appliance is marked according to the European directive 2002/96/
EC on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health,
which could otherwise be caused by inappropriate waste handling of
this product.
The symbol on the product, or on the documents accompanying
the product, indicates that this appliance may not be treated as
household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment.
Disposal must be carried out in accordance with local environmental
regulations for waste disposal.
For more detailed information about treatment, recovery and recycling
of this product, please contact your local city office, your household
waste disposal service or the shop where you purchased the product.

68
For the insta er
 When used as an extractor unit, the hood must be fitted with a
150mm diameter hose (For DK 9060 9090 only: Ø 120mm).
Should there already be a pipe of diameter 125 or 120 mm that ducts
to the outside through the walls, it is possible to use the 150/125-
120 mm reduction flange provided.
In this case the hood will be slightly noisier.
When installing the hood, make sure you observe the follow
ing minimum distance from the top edge of the cooking hob/
ring surfaces:
electric cookers 500 mm
gas cookers 650 mm
If the instructions for installation for the gas hob specify a greater
distance, this must be adhered to.
 The national Standard on fuel-burning systems specifies a maximum
depression of 0.04 mbar in such rooms.
 The air outlet must not be connected to chimney flues or combustion
gas ducts. The air outlet must under no circumstances be connected
to ventilation ducts for rooms in which fuel-burning appliances are
installed.
 The air outlet installation must comply with the regulations laid down
by the relevant local authorities.
 When the unit is used in extraction mode, a sufficiently large
ventilation hole must be provided, with dimensions that are approxi-
mately the same as the outlet hole.
 National and regional building regulations impose a number of
restrictions on using hoods and fuel-burning appliances connected to
a chimney, such as coal or oil room-heaters and gas fires, in the
same room.
 Hoods can only be used safely with appliances connected to a
chimney if the room and/or flat (air/environment combination) is
ventilated from outside using a suitable ventilation hole approximately
500-600 cm2 large to avoid the possibility of a depression being
created during operation of the hood.
 If you have any doubts, contact the relevant controlling authority or
building inspectors office.
 Since the rule for rooms with fuel burning appliances is outlet hole of
the same size as the ventilation hole, a hole of 500-600 cm2, which
is to say a larger hole, could reduce the performance of the extractor
hood.
 If the hood is used in its recirculation mode, it will operate simply
and safely in the above conditions without the need for any of the
aforementioned measures.

69
 When the hood is used in its extraction mode, the following rules
must be followed to obtain optimal operation:
- short and straight outlet hose
- keep bends in outlet hose to a minimum
- never install the hoses with an acute angle, they must always
follow a gentle curve.
- keep the hose as large as possible (preferably the same diameter
as the outlet hole).
- the length should be no more than:
3 metres with one 90° bend
2 metres with two 90° bends
Bends of more than 90° will reduce the efficiency of the hood and
reduce the airflow.
 Failure to observe these basic instructions will drastically reduce the
performance and increase the noise levels of the extractor hood.
Description of the Appliance
The cooker hood is designed to extract unpleasant odours
from the kitchen, it will not extract steam.
 The hood is supplied as an extractor unit and can also be used with
a recirculation mode by fitting a charcoal filter.
 In some models the charcoal filter is supplied. The hood, therefore,
can be used immediately in the recirculation mode. We advise
removing the charcoal filter to use the hood in the extraction mode.
 For DK 9060 9090 only: The hood is supplied as an extractor unit.
Please disconsider the instructions related to the recycling version,
to the installation, use and maintenance of the charcoal filter and of
the deflector.
The hood is not supplied with an internal motor
and must be connected with an exetrnal
aspirating motor unit.
Extraction mode
 In this mode fumes are extracted to
the outside via a hose connected to
the coupling ring A. Fig. 1.
 In order to obtain the best performan-
ce the hose should have a diameter
equal to the outlet hole.
 Should there already be a pipe of
diameter 125 or 120 mm that ducts to
the outside through the walls, it is
possible to use the 150/125-120 mm Fig. 1

70
Fig. 1a
reduction flange provided. In this case the
hood will be slightly noisier.
 For DK 9060 9090 only: The valve located
inside the discharge hole of the range
hood A allows, anyhow, a minimum air
exhaustion even when the electric valve
switch is in OFF ( O ) position. This is a
useful function, since it grants a
continuous air exchange inside the
kitchen.
It is possible to use this function adjusting
the valve opening properly.
For this purpose it is necessary to change
the position of the screws which lock the adjustable closings
positioned on the valve surface. Fig 1a.
Recircu ation mode
 The air is filtered through a charcoal filter and returned to the
kitchen.
 You will need an original charcoal filter for the recirculation mode.
(See Special Accessories).
 Fix the deflector using 2 screws Ø 2,9x13 mm. Fig. 2.
 Optionally, the position of the chimney elements can be changed.
When using the hood in the recirculation mode the chimney must be
fixed at the top, with the air outlet grill at the side.
Fig. 2

71
Control Panel
 Best results are obtained by using a low speed for normal conditions
and a high speed when odours are more concentrated.
Turn the hood on a few minutes before you start cooking.
The hood should be left on after cooking for about 15 minutes or until
all the odours have disappeared.
The control switches are located on the hoods front panel:
DK 9090 D - 9060 D
the light switch switches the hood lamp on and off
 the Electr. valve switch serves to open (and close) the electrical
valve so to let air be extracted towards the outside.
DK 9160 D - 9190 D
the light switch switches the hood lamp on and off
the motor switch switches the motor on and off, enabling you to
select one of the three different speeds.
Light switch Motor switch
Light switch Electr. valve switch

72
DK 9360 - DK 9390 - HC 3360
the light switch switches the hood lamp on and off
the motor switch switches the motor off
 Speed 1: Speed 1 push-button
 Speed 2: Speed 2 push-button
 Speed 3: Speed 3 push-button
Light switch
Motor switch Speed 1 Speed 2
Speed 3

73
DK 9660 - DK 9690 - HC 5690
A- OFF  ON push button
Press once or more to obtain the function desired:
ON: the hood switches on to the last speed selected.
OFF: all the functions are switched off except the illumination.
B - Speed selection push button (extraction power).
Press this push button once or more to select the most suitable
extraction speed (power) (1-2-3).
C - The display shows the extraction power selected, signalling the
saturation of the filters (F).
D- Intensive speed on/off. The Intensive speed runs for 5 minutes:
If the hood is on when the Intensive speed is activated, the hood
reverts to previous speed after 5 minutes.
If the hood is off when the Intensive speed is activated, the hood
will be turned off after 5 minutes.
To interrupt the Intensive speed, press button A or B.
E- Light ON/OFF
Should the hood or the controls fail to operate: disconnect the power
supply for at least 5 seconds, then turn the hood back on again.
i
AB CDE

74
DK 9960 - DK 9990
A- ON (stand-by - illuminated key) / OFF push button.
Press once or more to obtain the function desired:
Stand-by (illuminated push button): the hood is ready to function,
the safety procedure is activated (see under  safety procedu
re).
OFF: all the functions are switched off except the illumination.
B - Speed selection push button (extraction power).
Press this push button once or more to select the most suitable
extraction speed (power) (1 2 3 i).
Attention: the i (intensive) speed is limited to 5 minutes after
which the system automatically sets itself to speed 2.
C - The display indicates the selected extraction power (1-2-3-i) and
signals the saturation of the filters (F).
D - Manual function selection push button (OFF)/automatic
(sensors  ON).
In automatic function (ON) the hood enters into function
(extraction) on the basis of the change in the normal
environmental conditions that the hood notices through its
sensors.
The display shows the extraction speed (power) set.
Attention! The hood is equipped with an automatic system that
establishes what the normal environmental conditions are.
In the case of abnormal operation, calibration can be carried out
manually:
Manual calibration
Carry out manual calibration in the following cases:
When the hood is installed for the first time.
When power is cut off for many hours or days (e.g. during
prolonged holidays).
When a very rapid change in temperature and/or humidity in the
kitchen takes place.
SENSOR
AB CDE

75
Carry out calibration with the hob off, at normal ambient tempera-
ture and in the absence of an appreciable amount of steam:
- press push button A and set the hood OFF (A key OFF)
- press push buttons A and D simultaneously for 3 secs. The
hood emits a sound signal to indicate calibration taking place.
Sensors test
When functioning in automatic, the system continuously tests the
efficiency of the sensors. In case of damage, it signals the fault,
making the D push button flash the word SENSOR. Contact
technical assistance.
In this situation the hood can, in any case, be used in the manual
mode.
Safety procedure
Self-activation of automatic SAFETY functioning in particular
conditions: if the sensors reveal an excessive increase in
temperature, even if the hood is in manual functioning mode,
the system self selects automatic functioning and the extraction
motor starts. The hood can be turned off by pressing push button A.
E- Light ON/OFF
Should the hood or the controls fail to operate: disconnect the power
supply for at least 5 seconds, then turn the hood back on again.

76
Grease and charcoa fi ter maintenance
indicator
DK 9660 - DK 9690 - DK 9960 - DK 9990 - HC 5690
This hood is fitted with a device that indicates when it is necessary to
clean the grease filter or the charcoal filter (if the hood is used in the
recirculation version with a charcoal filter).
On delivery, the hood is not supplied with a charcoal filter, so the
saturation indicator will be disabled.
If the hood is to be used with a charcoal filter, the saturation
indicator light must be enabled as follows:
DK 9660 DK 9690 HC 5690: Set the hood in OFF.
Pressing keys B and D simultaneously for three seconds, LED F lights
up and begins to flash the 1st speed led. After 1 second the 2nd speed
led also flashes and the system emits a sound signal (-Beep-) to
indicate setting taking place.
To remove the charcoal filter signal press push buttons B and D
simultaneously for 3 seconds. LED F lights up and begins to flash the
1st speed led (grease filter) and the 2nd speed led. After 1 second, only
the 1st speed led continues to flash. The system emits a sound signal
(-Beep-) to indicate setting taking place.
Grease filter LED
The 1st speed led (+ led F) flashes, when it is time to clean the grease
filter.
Always comply with the maintenance instructions for the grease filter.
Charcoal filter LED
The 2nd speed led (+ led F) flashes, when the charcoal filter needs to
be cleaned or replaced.
Resetting the saturation indicator
After cleaning or replacing the filters, press button A for 3 seconds until
the 1st speed led or the 2nd speed led stops flashing.
The F LED also turns off..

77
Maintenance and Care
The hood must always be disconnected from the electricity
supply before beginning any maintenance work.
C eaning the hood
 Clean the outside of the hood using a damp cloth and a solution of
water and mild washing up liquid.
 Never use corrosive, abrasive or flammable cleaning products or
products containing bleach. .
 Never insert pointed objects in the motors protective grid.
 Only ever clean the switch panel and filter grill using a damp cloth
and mild washing up liquid.
 It is extremely important to clean the unit and change the filters at
the recommended intervals. Failure to do so will cause grease
deposits to build up that could constitute a fire hazard.
Metal grease filter
 The purpose of the grease filters is to absorb grease particles which
form during cooking and it must always be used, either in the
external extraction or internal re-circulation function.
Attention: the metal grease filters must be removed and washed,
either by hand or in the dishwasher, every four weeks.
Removing the meta grease fi ter
 First, push the metal grease filter stop backwards, then extract the
filter, pulling downwards. Fig. 3.
Hand washing
Soak grease filters for about one hour in hot water with a grease-
loosening cleaner, then rinse off thoroughly
with hot water. Repeat the process if
necessary. Refit the grease filters when
they are dry.
Dishwasher
Place grease filters in the
dishwasher. Select most
powerful washing
programme and highest
temperature, at least 65°C.
Repeat the process. Refit
the grease filters when they
are dry.
When washing the metal grease filter in the dishwasher a slight
discolouration of the filter can occur, this does not have any impact
on its performance.
 Clean the inner housing using a hand hot solution only(never use
caustic detergents, abrasive powders or brushes).
Fig. 3

78
Charcoa fi ter
 The charcoal filter should only be used if you want to use the hood in
recirculation mode.
 To do this you will need an original charcoal filter (Available from your
local Service Force Centre).
Cleaning/replacing the charcoal filter
Unlike other charcoal filters, the LON LIFE charcoal filter can be
cleaned and reactivated. With normal use the filter should be cleaned
every second month (when using the hood 2,5 hours per day,on
avarage). The best way to clean the filter is in the dishwasher. Use
normal detergent and choose the highest temperature (65º C). Wash
the filter separately so that no food parts gets stuck on the filter and
later causes bad odours. To reactivate the charcoal, the filter should
be dried in an oven for 10 minutes with a maximum temperature of
100º C.
After approximately three years of use, the charcoal filter should be
replaced with a new, as the odour reduction capacity will be reduced.

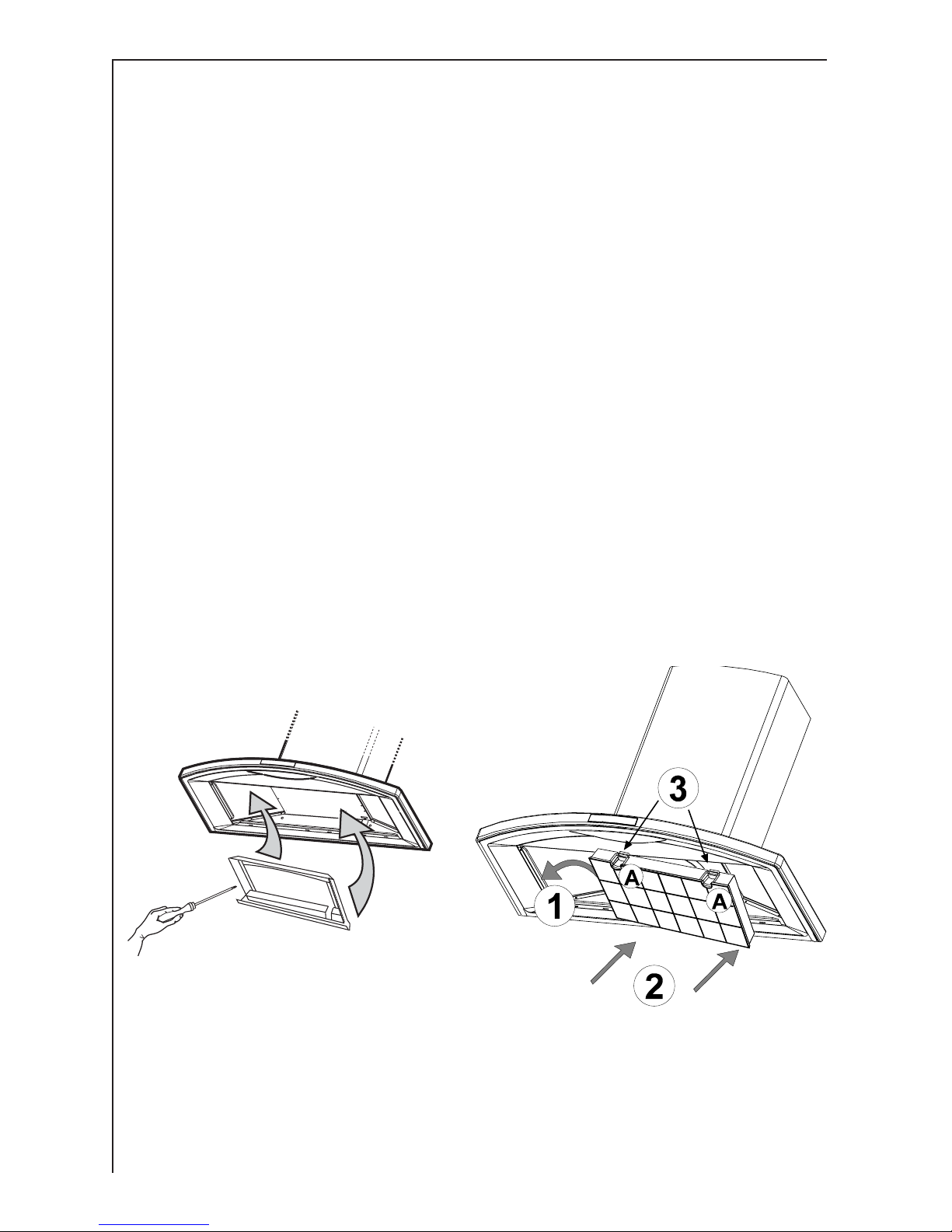

Fitting Fig. 4
Put the charcoal filter frame in place and fix it with 5 screws.
Fit the charcoal filter first from the rear side and fix it frontwards
using the two red keys A.
To remove proceed in the reverse order.
 Always specify the hood model code number and serial number
when ordering replacement filters. This information is shown on the
rating plate located on the inside of the unit.
 The charcoal filter can be ordered from your local Service Force
Centre.
Fig. 4

79
Warning
 Failure to observe the instructions on cleaning the unit and changing
the filters will cause a fire hazard. You are therefore strongly
recommended to follow these instructions.
 The manufacturer declines all responsibility for any damage to the
motor or any fire damage linked to inappropriate maintenance or
failure to observe the above safety recommendations.
Changing the ight bu b
Disconnect the cooker hood from the mains supply.
DK 9160 DK 9190
DK 9090 DK 9060
 Remove the lamp cover. Fig. 5.
 Replace the old bulb with a new
one of the same type.
 Remount the lamp cover.
DK 9360 DK9390 DK 9660 HC 5690
DK 9690 DK 9960 DK9990 HC 3360
 Press (1) the lamp cover (2) and
open it. Fig. 6.
 Replace the old bulb with a new
one of the same type (3).
 Close the lamp cover.
 If the light does not come on,
make sure the bulb has been
inserted in correctly before
contacting your local Service
Force Centre.
3
1
2
Fig. 6
1
2
Fig. 5

80
What to do if
If your appliance fails to work properly please carry out the following
checks.
Symptom Solution
The cooker hood will not start... Check that:
The hood is connected to
the electricity supply.
Check that a fan speed has
been selected
The cooker hood is not working Check that:
effectively.. The fan speed is set high
enough for the task.
The grease filters are clean.
The kitchen is adequately vented
to allow the entry of fresh air.
If set up for recirculation, check
that the charcoal filter is still
effective.
If set up for extraction, check that
the ducting and outlets are not
blocked.
The cooker hood has The safety cut-out device has been
switched off during operation... tripped.
Turn off the hob and then wait for
the device to reset.
If the hood has been installed
below the heights indicated in the
installation instructions the motor
will cut-out frequently which will
damage the hood.
If after all these checks, the problem persists, contact your local
Service Force Centre, quoting the model and serial number.
Please note that it will be necessary to provide proof of purchase for
any in-guarantee service calls.
In-guarantee customers should ensure that the above checks have
been made as the engineer will make a charge if the fault is not a
mechanical or electrical breakdown.

81
Special accessories
Charcoal filter TYPE 150 LON LIFE
Technica assistance service (not for UK)
You are welcome to telephone our technical assistance service (see list
of technical assistance centres) whenever you need information or in the
unlikely event of a fault.
For service in Australia call 1300 650 020.
When calling, please be ready to specify:
1. The model code number
2. The serial number (E Nr.)
3. The manufacturing number (F Nr.)
This information is shown on the registration plate inside the unit
behind the grease filter.
We reserve the right to change specifications and colours as a result of
our policy of continuing technological development.
Service and Spare Parts
In the event of your appliance requiring service, or if you wish to
purchase spare parts, contact your local Service Force Centre by
telephoning: 08705 929 929
Your call will be automatically routed to the Service Centre covering
your post code area. For the address of your local Service Force Centre
and further information about Service Force, please visit the website at
www.serviceforce.co.uk
Please ensure that you have read the section What to do if.... as the
engineer will make a charge if the fault is not a mechanical or electrical
breakdown even the appliance is under warranty. Please note that
proof of purchase is required for in guarantee service calls.
Help us to help you
Please determine your type of enquiry before writing or telephoning.
When you contact us we need to know:
 Your name  Clear and concise details of the fault
 Address and post code  Name and model of the appliance*
 Telephone number  E number*
 Serial number*
* This information can be found on the rating plate, which can be seen
when the grease filters are removed.

82
If you require Customer Service in the Republic of Ireland please
contact us at the address below:
AE
Electrolux roup (Ire) Ltd
Long Mile Road
Dublin 12
Republic of Ireland
Tel: + 353 (0) 1 4090751
Email: [email protected]
CUSTOMER CARE DEPARTMENT
For general enquiries concerning your AE appliance or for further
information on AE products, please contact our Customer Care
Department by letter or telephone at the address below or visit our
website at www.aeg.co.uk
Customer Services Department
Major Appliances
AE Electrolux
Addington Way
Luton
Bedfordshire
LU4 9QQ
08705 350 350 (*)
* calls to this number may be recorded for training purposes.

83
Technical Details
Mounting accessories inc uded
6 wall plugs Ø 8 mm (brick fixing only)
6 wood-screws 5 x 45 mm
*2 metal screws 2,9 x 13
4 metal screws 2,9 x 6,5
*5 metal screws 3,5 x 9,5
2 hooks
1 chimney support
*2 clamps
*1 deflector
*1 reduction flange Ø 150-125 mm
*1 charcoal filter frame
1 allen spanner
*1 tube (DK 9960- DK 9990)
* Not supplied with DK 9060-9090 models.
Models
Dimensions - (in cm)
Height
Width
Depth
Max.
absorbed
power
Motor power
Lighting
Electrical Connection
Length of the cable
'.
80-135 59,8 47 170W 1x170W 1x11W(PL) 180cm 220-240V
'.
82-137 89,8 48 170W 1x170W 1x11W(PL) 180cm 220-240V
'.
+&
80-135 59,8 47 200W 1x170W 2x20W(G4) 150cm 220-240V
'.
82-137 89,8 48 200W 1x170W 2x20W(G4) 150cm 220-240V
'.
80-135 59,8 47 290W 1x250W 2x20W(G4) 150cm 220-240V
+&
'.
82-137 89,8 48 290W 1x250W 2x20W(G4) 150cm 220-240V
'.
80-135 59,8 47 290W 1x250W 2x20W(G4) 150cm 220-240V
'.
82-137 89,8 48 290W 1x250W 2x20W(G4) 150cm 220-240V
'.
80-135 59,8 47 25W - 1x11W(PL) 150cm 220-240V
'.
82-137 89,8 48 25W - 1x11W(PL) 150cm 220-240V

84
Electrical connection (not for UK)
Safety warnings for the e ectrician
Before connecting the appliance to the power supply, check that the
voltage indicated on the rating plate corresponds to the mains power
supply available. Appliances fitted with a plug can be connected to any
standard power socket within easy access.
Should it be necessary to provide a fixed connection, the hood must
only be installed by an electrician authorised by the local electricity
board. When installing, an omnipolar disconnector with a distance of at
least 3 mm between contacts must be provided.
Fixed connection of the appliance must only be carried out by an
authorised electrician.
E ectrica connection for UK on y
Safety warnings for the electrician
Connect the hood to the mains supply via a double pole switch which
has 3 mm minimum separation between the contacts.
The switch must be accessible at all times.
The following is valid in the United Kingdom only:
- the wire which is coloured green and yellow must be connected to
the terminal which is marked with the letter E or by the earth symbol
( ), or coloured green or green and yellow;
- the wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black, -
- the wire which is coloured brown must be connected to the terminal
which is marked with the letter L or coloured red.
