Safety warnings
• When used as an extractor unit, the hood must be fitted with a hose
having preferably the same diameter as the outlet hole.
Should there already be a pipe of diameter 125 mm that ducts to
the outside through the walls or roof, it is possible to use the 150/
125 mm reduction flange provided. In this case the hood will be
slightly noisier.
Attention: The hose is not supplied and must be purchased
separately.
• The minimum distance between the supporting surface for the
cooking vessels on the hob and the lowest part of the range hood
must be not less than 50cm from electric cookers and 65cm from
gas or mixed cookers.
If the instructions for installation for the gas hob specify a greater
distance, this must be adhered to.
• Before any cleaning or maintenance operation, disconnect the hood
from the mains by removing the plug or disconnecting the home
mains switch.
• The appliance is not intended for use by children or persons with
impaired physical, sensorial or mental faculties, or if lacking in
experience or know-how, unless they are under supervision or have
been trained in the use of the appliance by a person responsible for
their safety.
• Children should be monitored to ensure that they do not play with
the appliance.
• Never use the hood without effectively mounted grating.!
• The hood must NEVER be used as a support surface unless
specifically indicated.
• The premises must be sufficiently ventilated, when the kitchen hood
is used together with other gas combustion devices or other fuels.
• The suctioned air must not be conveyed into a conduit used for the
disposal of the fumes generated by appliances that combust gases
or other fuels.
• The flaming of foods beneath the hood itself is severely prohibited.
• The use of exposed flames is detrimental to the filters and may
cause a fire risk, and must therefore be avoided in all
circumstances.
• Any frying must be done with care in order to make sure that the oil
does not overheat and burst into flames.
• As regards the technical and safety measures to be adopted for
fume discharging it is important to closely follow the relations

4
provided by the competent authorities.
• The hood must be regularly cleaned on both the inside and outside
(AT LEAST ONCE A MONTH, it is in any event necessary to
proceed in accordance with the maintenance instructions provided
in this manual)..
• Failure to follow the instructions as concerns hood and filter
cleaning will lead to the risk of fires.
• Do not use or leave the hood without the lamp correctly mounted
because of the possible risk of electric shocks.
• We decline any responsibility for any problems, damage or fires
caused to the appliance as the result of the non-observance of the
instructions included in this manual.
This appliance is marked according to the European directive 2002/96/
EC on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste
handling of this product.
The symbol on the product, or on the documents accompanying
the product, indicates that this appliance may not be treated as
household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment.
Disposal must be carried out in accordance with local environmental
regulations for waste disposal.
For more detailed information about treatment, recovery and recycling
of this product, please contact your local city office, your household
waste disposal service or the shop where you purchased the product.

5
Description of the Appliance
• The cooker hood is designed to extract unpleasant odours from the
kitchen, it will not extract steam.
• The hood is supplied as an extractor unit and can also be used
with a recirculation mode by fitting a charcoal filter.
Extraction mode
• In this mode fumes are extracted to the outside via a hose
connected to the coupling ring. Fig. 1
• In order to obtain the best performance the hose should have a
diameter equal to the outlet hole.
Recirculation mode
• The air is filtered through a charcoal filter and returned to the
kitchen. Fig. 2
• You will need an original charcoal filter for the recirculation mode.
(See Special Accessories).
Fig. 1
Fig. 2

6
Control Panel
• Best results are obtained by using a low speed for normal
conditions and a high speed when odours are more concentrated.
Turn the hood on a few minutes before you start cooking.
The hood should be left on after cooking for about 15 minutes or
until all the odours have disappeared.
The control switches are located on the unit’s front panel:
1- Mains switch, ON/OFF
Press for less than 1 1/2 seconds and the cooker hood goes into the
"stand by" position (point "b" is illuminated).
Press for more than 1 1/2 seconds and the cooker hood turns off,
ALL the controls (except the light push button) are disabled (the
display is off).
Press again for more than 1 1/2 seconds to reset the cooker hood to
"stand by".
2- Light ON/OFF
3- Display
4- Start and choice of motor speed 1-2-3-1-2.........
5- Intensive speed on/off. The Intensive speed runs for 5 minutes:
If the hood is on when the Intensive speed is activated, the hood will
revert to previous speed after 5 minutes.
If the hood is off when the Intensive speed is activated, the hood will
automatically turn off after 5 minutes.
To interrupt the Intensive speed, press button 1or 4.
The letter P appears on the display and the remaining time (the
point “a” is flashing), if interrupted an acoustic signal is heard.
6- Self-Timer: times all the speed levels (the point “b” is flashing), and
then the cooker hood switches off:
The self-timer is set as follows:
1st speed level 20 minutes
2nd speed level 15 minutes
3rd speed level 10 minutes
The display shows the remaining operation time, at the end of the
time an acoustic signal is heard. Depressing the push-button again
exits the function.
Should the hood or the controls fail to operate: disconnect the power
supply for at least 5 seconds. After reconnecting the power supply
wait 15 seconds and then check that the cooker hood is now
operating correctly.
123 456
ab

7
Grease and charcoal filter maintenance indicator
This hood is fitted with a device that indicates when it is necessary to
clean the grease filter or the charcoal filter (if the hood is used in the
recirculation version with a charcoal filter).
On delivery, the hood is not supplied with a charcoal filter, so the
saturation indicator will be disabled.
If the hood is to be used with a charcoal filter, the saturation
indicator light must be enabled as follows:
Press buttons 4and 5 simultaneously and hold them for 3 seconds.
At first only the grease filter LED Fwill light up, but when the charcoal
filter LED Clights up the saturation indicator will be enabled.
To disable it: Press buttons 4and 5again simultaneously and hold
them for 3 seconds, until the charcoal filter LED C goes out.
Grease filter LED (F)
LED Fwill start to flash when it is time to clean the grease filter.
Cleaning will be necessary after 40 working hours. Always comply
with the maintenance instructions for the grease filter.
Charcoal filter LED (C)
The charcoal filter LED Cwill start to flash when the charcoal filter
needs to be replaced.
This operation is necessary after approximately 160 working hours.
Resetting the saturation indicator
After cleaning or replacing the filters, press button 1for 3 seconds
until the grease filter LED For the charcoal filter LED C stops flashing.
Warning! The resetting of the saturation indicator MUST be done in
stand-by, never disconnect the hood from the mains.
Correct ventilation
If the cooker hood is to work correctly there must be an under
pressure in the kitchen. It is important to keep the kitchen windows
closed and have a window in an adjacent room open.

8
Fig. 3
Maintenance and Care
Warning! Before performing any maintenance operation, isolate the
hood from the electrical supply by switching off at the connector and
removing the connector fuse.
Or if the appliance has been connected through a plug and socket,
then the plug must be removed from the socket.
Metal grease filter
• The purpose of the grease filters is to absorb grease particles
which form during cooking and it must always be used, either in the
external extraction or internal re-circulation function.
Attention: the metal grease filters must be removed and washed,
either by hand or in the dishwasher, every four weeks.
Removing the metal grease filters
• Pull the handle downwards, then remove the filter. Fig. 3.
Hand washing
Soak grease filters for about one hour in hot water with a grease-
loosening cleaner, then rinse off thoroughly with hot water. Repeat
the process if necessary. Refit the grease filters when they are dry.
Dishwasher
Place grease filters in the dishwasher. Select most powerful
washing programme and highest temperature, at least 65°C.
Repeat the process. Refit the grease filters when they are dry.
When washing the metal grease filter in the dishwasher a slight
discolouration of the filter can occur, this does not have any impact
on its performance.
• Clean the inner housing using a hand hot solution only(never use
caustic detergents, abrasive powders or brushes).

9
Fig. 4
Charcoal filter
• The charcoal filter should only be used if you want to use the hood
in recirculation mode.
•Replacing the charcoal filter
The charcoal filter cannot be washed nor regenerated.
The charcoal filter should be replaced every 4 months under
normal use.
Replacement filters are available from your local Service Force
Centre.

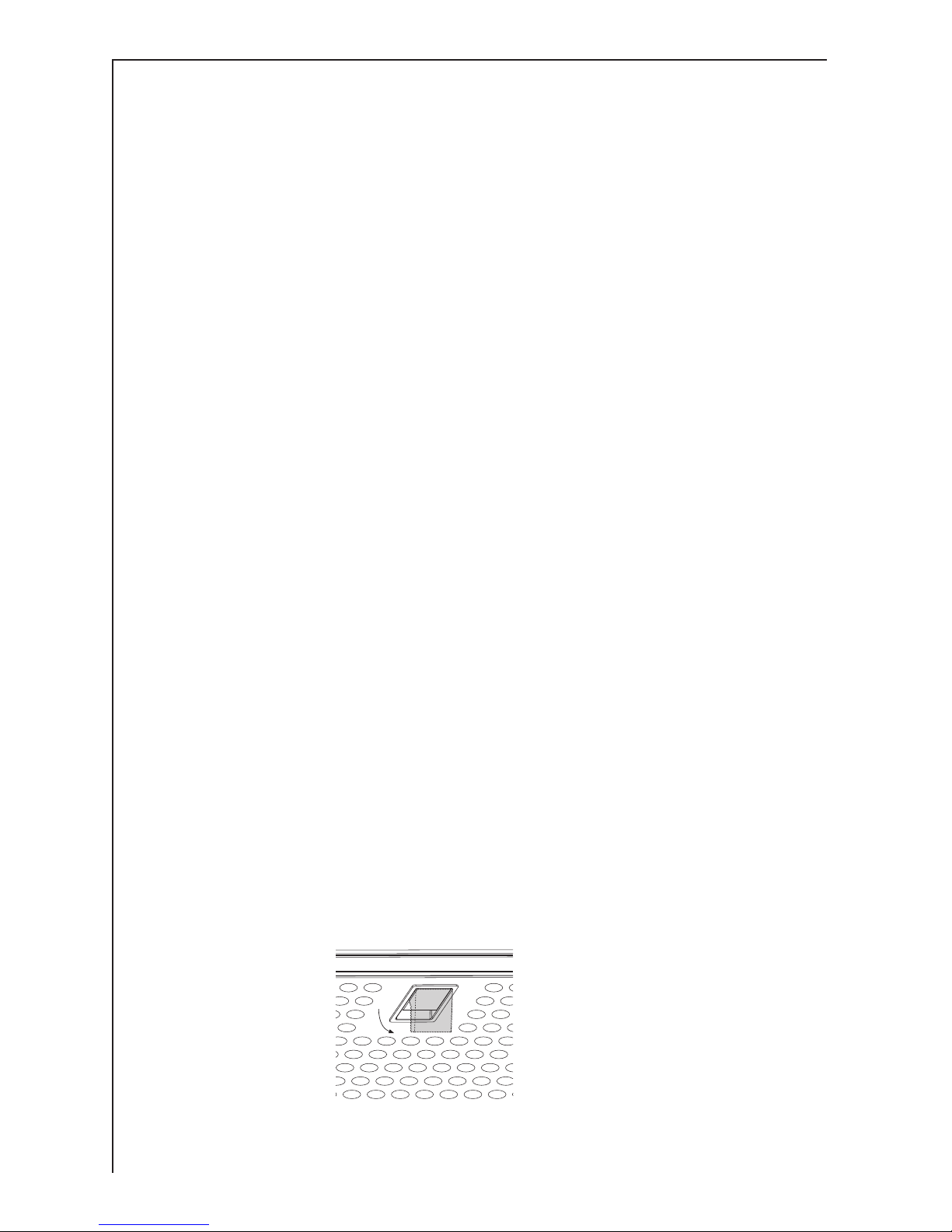

•Fitting - Fig. 4
Position the carbon filter inside the hood to cover the protection grill
of the motor.
Fix the filter with 2 lateral knobs.
•To remove proceed in the reverse order.
• Always specify the hood model code number and serial number
when ordering replacement filters. This information is shown on the
rating plate located on the inside of the unit.
• The charcoal filter can be ordered from your local Service Force
Centre.

10
Warning
• Failure to observe the instructions on cleaning the unit and changing
the filters will cause a fire hazard. You are therefore strongly
recommended to follow these instructions.
• The manufacturer declines all responsibility for any damage to the
motor or any fire damage linked to inappropriate maintenance or
failure to observe the above safety recommendations.
Changing the light bulbs
•Disconnect the cooker hood from the mains supply.
•Prior to touching the light bulbs ensure they are cooled down.
• Extract the lamp cover by
using a small flat
screwdriver or similar tool
as a lever. Fig. 5
• Replace the old bulb with
a new one of the same
type.
• Refit the lamp cover.
• If the light does not come
on, make sure the bulb
has been inserted in
correctly before contacting
your local Service Force
Centre.
Cleaning the hood
• Clean the outside of the hood using a damp cloth and a solution of
water and mild washing up liquid.
• Never use corrosive, abrasive or flammable cleaning products or
products containing bleach.
• Never insert pointed objects in the motor’s protective grid.
• Only ever clean the switch panel and filter grill using a damp cloth
and mild washing up liquid.
• Clean all the plastic parts with a soft cloth soaked in warm water
and neutral soap.
• It is extremely important to clean the unit and change the filters at
the recommended intervals. Failure to do so will cause grease
deposits to build up that could constitute a fire hazard.
Fig. 5

11
Special accessories
Charcoal filter TYPE 15
Technical assistance service
You are welcome to telephone our technical assistance service (see list of technical
assistance centres) whenever you need information or in the unlikely event of a fault.
For service in Australia call 1300 650 020.
When calling, please be ready to specify:
1. The model code number
2. The serial number
3. The Product number
This information is shown on the registration plate inside the unit behind the
grease filter.
We reserve the right to change specifications and colours as a result of our policy of
continuing technological development.
Technical Details
DI 9814
Dimensions (in cm):
Height: 82-110
Width: 100
Depth: 60
Max. absorb. power: 255 W
Motor: 175 W
Lighting: 4 x 20 W (G4)
Length of the cable: 150 cm
Electrical connection: 230 V
Fuse rating: 5At
Mounting accessories included
2screwdriver bits (for TORX screws)
1deflector
6screws 3,5 x 13 (to fix the deflector)
6wood-screws 6 x 70 mm
6wall plugs Ø 10 mm
4screws 3 x 9 (chimney fixing)
10 screws 4 x 8 (to fix hood to structure)
14 screws 4 x 7 (to fix chimney sections)
14 nuts
14 fixing springs

12
Electrical connection
Safety warnings for the electrician
Safety warnings for the electrician
The mains power supply must correspond to the rating indicated on
the plate situated inside the hood. If provided with a plug connect the
hood to a socket in compliance with current regulations and positioned
in an accessible area. If it not fitted with a plug (direct mains
connection) or if the plug is not located in an accessible area apply a
bi-polar switch in accordance with standards which assures the
complete disconnection of the mains under conditions relating to over-
current category III, in accordance with installation instructions.
IMPORTANT: Before re-connecting the hood circuit to the mains
supply and checking the efficient function, always check that the
mains cable is correctly assembled.

13

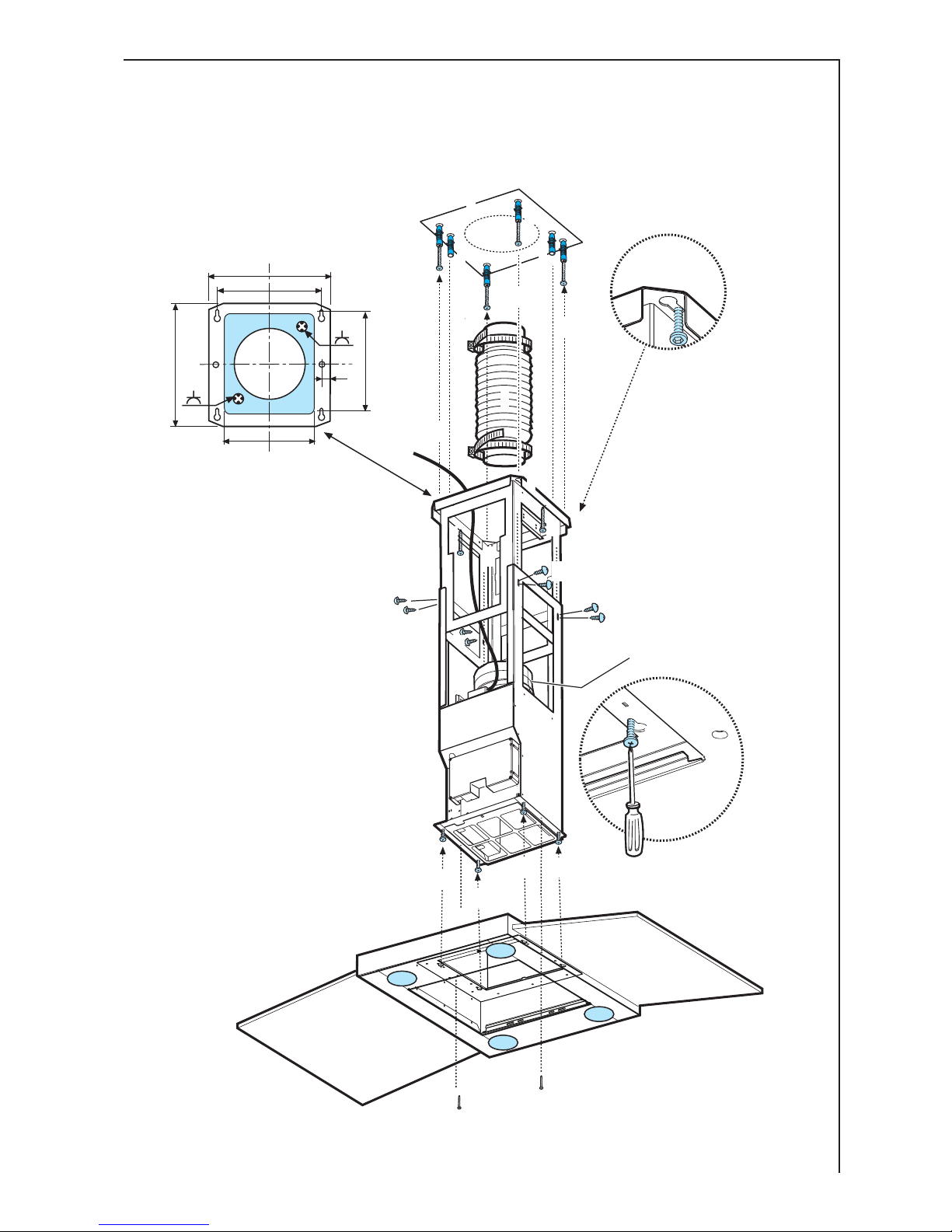

Installation - Fig. 6-7-8-9
Assembling the deflector (3 parts – only for filter version):
The three parts should be fixed with 2 screws, the deflector extension
is adjustable and should correspond to the width of the chimney flue
support, to which it is then fixed. Fig. 6.
Expansion plugs are provided to secure the hood to most types of
ceilings. However, a qualified technician must verify suitability of the
materials in accordance with the type of ceiling. The ceiling must be
strong enough to take the weight of the hood.
During electrical connection ensure the power supply is disconnected
at the domestic mains switch.
Fig. 6

14
• Adjust extension of the hood support structure, as the final height of
the hood depends on this, and remember that with installation
completed the hood must be at least 60 cm above the hob top for
electric cookers and 75 cm for gas or mixed fuel cookers.
• Fix the two sections of the structure using 8 screws (2).
• Place the ceiling hole diagram directly above the hob top (3- the
centre of the diagram must match the centre of the hob top and the
edges must be parallel to the sides of the hob top – the side of the
diagram with the wording FRONT corresponds to the control panel
side). Prepare the electrical connection.
• Drill as shown (6 holes for 6 wall plugs – 4 plugs for fixture), screw
the outer screws leaving a space of about 1 cm. between the screw
head and the ceiling (4).
• Fit an exhaust pipe inside the support (5) and connect it to the
motor compartment connection ring (exhaust pipe and fixing
brackets are not supplied).
• Hook the frame onto the 4 screws (6- see also step 4).
CAUTION! The side of the support with connection box
corresponds to the side of the control panel with hood assembled.
• Tighten the 4 screws (7).
• Insert and tighten another 2 screws in the remaining free holes (8)
for secure fixing.
• Carry out the electrical connection (9) to the mains power supply,
only turn on the power supply upon completion of assembly.
• Hook the hood onto the support (10) , ensuring it fits properly – to
hook the hood onto the support partially tighten 4 screws (see also
step 12).
• Secure the hood to the support using 6 screws (11); this will also
help centre the two sections.
• Tighten the 4 screws securing the support to the hood (12).

15
3
4
4
4
4
44
6
6
7
7
7
7
8
8
2a
2
2a
5
7
9
10
10
10 10
11
11
14,5
273
273
244
214
190
6
12
2
B
Fig. 7

16
• For extractor versions (13A), connect the other end of the exhaust
pipe to the flue.
For filter versions (13F), fit deflector F to the support and secure it
to the bracket supplied using 4 screws, then connect the exhaust
pipe to the connection ring located on the deflector.
• Fit the nuts with fixing hooks (14) supplied inside the top and
bottom sections of the flues at the rectangular slots. A total of 14
nuts must be fitted.
• Join the two top sections of the flue to cover the support (15) so
that one of the slots on the sections is situated on the same side of
the control panel and the other on the opposite side. Screw the two
sections together with 8 screws and springs (4 each side- see the
plan diagram for joining the two sections - springs must be fixed
horizontally).
• Fix the top flue assembly to the support, near the ceiling, with two
screws (16 - one each side).
15
15
15
15
15
16
16
15
15
13F
13A
15
14
H
F
G
15
15
15
Fig. 8

17
• Carry out electrical connection of control panel and bulbs (17).
• Join the two bottom sections of the flue covering the support (18)
using 6 screws and springs (3 each side, see the plan diagram for
joining the two sections - springs must be fixed horizontally).
• Insert the bottom section of the flue in its seat so that it completely
covers the motor compartment and electrical connection box, then
ensure it from inside the hood using two screws (19).
• Apply the 2 tabs (20 - supplied) to cover the fixing points of the
bottom flue (CAUTION! THE BOTTOM FLUE TABS ARE THE
NARROWER AND SHALLOWER ONES).
The wider and deeper tabs are those used for the top flue, and
must be cut to size.
If necessary, slightly expand the tabs to ensure their adherence to
the flue.
• Turn the mains power on again at the central electrical panel and
check for correct hood operation.
18
18
18
18
18
18
18
18
18 18
M
17
X
X
20
20
X
19
19
Fig. 9

LI3TRB Ed. 04/09
