AEG Electrolux DD 8696 Specification sheet

DD 8696
Dunstabzugshaube
Afzuigkap
Hotte
Cooker Hood
Montage- und Gebrauchsanweisung
Installatie- en gebruiksaanwijzing
Notice d utilisation et d installation
Operating and Installation Instructions

55
Contents
Safety warnings .............................................................................. 56
For the user ...................................................................................... 56
For the installer ................................................................................. 57
Description of the Appliance ......................................................... 59
Extraction mode................................................................................ 59
Recirculation mode ........................................................................... 59
Control Panel .................................................................................. 60
Maintenance and Care................................................................... 62
Cleaning the hood ............................................................................. 62
Metal grease filter ............................................................................. 62
Remo ing the front panels ................................................................. 62
Remo ing the metal grease filter........................................................ 63
Charcoal filter .................................................................................... 64
Changing the light bulb ...................................................................... 65
Technical assistance service ........................................................ 66
Technical Specifications ................................................................ 67
Mounting accessories included ......................................................... 67
What to do if ................................................................................... 6
Special accessories ........................................................................ 69
Electrical connection ..................................................................... 69
Wall mounting ................................................................................... 70

56
Safety warnings
For the user
 The cooker hood is designed to extract unpleasant odours from the
kitchen, it will not extract steam.
 Always co er lighted elements, to pre ent excess heat from
damaging the appliance. In the case of oil, gas and coal fired
cookers it is essential to a oid open flames.
 Also, when frying, keep the deep frying pan on the cooker top/cooker
under careful control.
 The hot oil in the frying pan might ignite due to o erheating.
 The risk of self-ignition increases when the oil being used is dirty.
 It is extremely important to note that o erheating can cause a fire.
Never carry out any flambé cooking under the hood.
Always disconnect the unit from the power supply before
carrying out any work on the hood, including replacing the
light bulb (take the cartridge fuse out of the fuse holder or switch off
the automatic circuit breaker).
It is very important to clean the hood and replace the filter at
the recommended intervals. Failure to do so could cause
grease deposits to build up, resulting in a fire hazard.
 The appliance is not intended for use by young children or infirm
persons without super ision.
 Older children must be super ised if using the appliance.
 Young children should be super ised to ensure that they do not play
with the appliance.
 WARNING - Ensure that the appliance is switched off before
replacing the lamp to a oid the possibility of electric shock.
This appliance is marked according to the European directi e 2002/96/
EC on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help pre ent
potential negati e consequences for the en ironment and human health,
which could otherwise be caused by inappropriate waste handling of
this product.
The symbol on the product, or on the documents accompanying
the product, indicates that this appliance may not be treated as
household waste. Instead it shall be handed o er to the applicable
collection point for the recycling of electrical and electronic equipment.
Disposal must be carried out in accordance with local en ironmental
regulations for waste disposal.
For more detailed information about treatment, reco ery and recycling
of this product, please contact your local city office, your household
waste disposal ser ice or the shop where you purchased the product.

57
For the insta er
 When used as an extractor unit, the hood must be fitted with a
150mm diameter hose.
 Should there already be a pipe of diameter 125 or 120 mm that ducts
to the outside through the walls, it is possible to use the 150/125-
120 mm reduction flange pro ided.
In this case the hood will be slightly noisier.
 When installing the hood observe the following minimum
distances from the cooking top:
Electric cooking tops 450mm
Attention! The hood must not be installed over gas hob.
 The national Standard on fuel-burning systems specifies a maximum
depression of 0.04 mbar in such rooms.
 The air outlet must not be connected to chimney flues or combustion
gas ducts. The air outlet must under no circumstances be connected
to entilation ducts for rooms in which fuel-burning appliances are
installed.
 The air outlet installation must comply with the regulations laid down
by the rele ant local authorities.
 When the unit is used in extraction mode, a sufficiently large
entilation hole must be pro ided, with dimensions that are approxi-
mately the same as the outlet hole.
 National and regional building regulations impose a number of
restrictions on using hoods and fuel-burning appliances connected to
a chimney, such as coal or oil room-heaters and gas fires, in the
same room.
 Hoods can only be used safely with appliances connected to a
chimney if the room and/or flat (air/en ironment combination) is
entilated from outside using a suitable entilation hole approximately
500-600 cm2 large to a oid the possibility of a depression being
created during operation of the hood.
 If you ha e any doubts, contact the rele ant controlling authority or
building inspectors office.
 Since the rule for rooms with fuel burning appliances is outlet hole of
the same size as the entilation hole, a hole of 500-600 cm2, which
is to say a larger hole, could reduce the performance of the extractor
hood.
 If the hood is used in its recirculation mode, it will operate simply
and safely in the abo e conditions without the need for any of the
aforementioned measures.
 When the hood is used in its extraction mode, the following rules
must be followed to obtain optimal operation:
short and straight outlet hose

58
keep bends in outlet hose to a minimum
ne er install the hoses with an acute angle, they must always
follow a gentle cur e.
keep the hose as large as possible (preferably the same diameter
as the outlet hole).
the length should be no more than:
3 metres with one 90° bend
2 metres with two 90° bends
Bends of more than 90° will reduce the efficiency of the hood and
reduce the airflow.
 Failure to obser e these basic instructions will drastically reduce the
performance and increase the noise le els of the extractor hood.

59
Description of the Appliance
The cooker hood is designed to extract unpleasant odours
from the kitchen, it will not extract steam.
 The hood is supplied as an extractor unit and can also be used with
a recirculation mode by fitting a charcoal filter.
 In some models the charcoal filter is supplied. The hood, therefore,
can be used immediately in the recirculation mode. We ad ise
remo ing the charcoal filter
to use the hood in the
extraction mode.

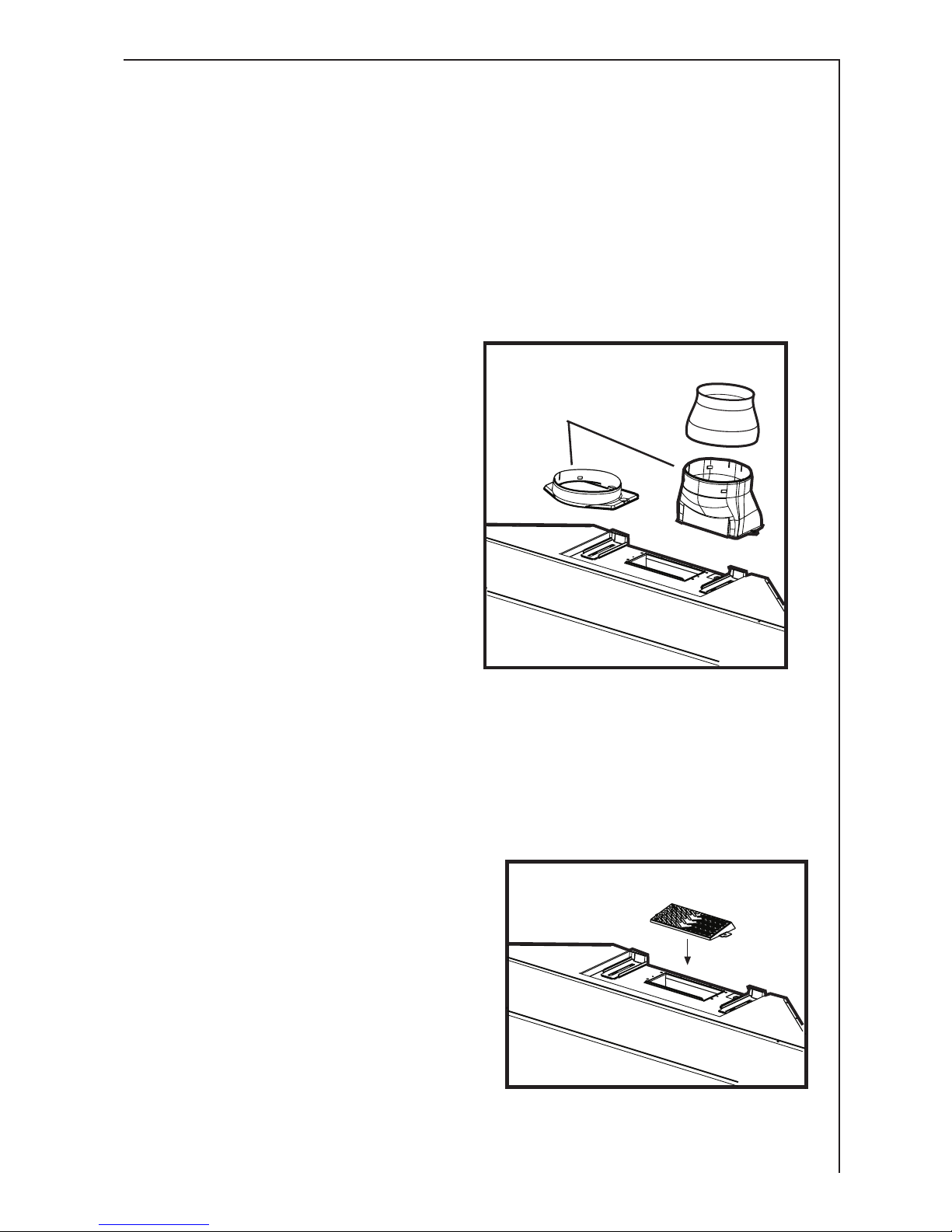

Extraction mode
 In this mode fumes are
extracted to the outside ia
a hose connected to the
coupling ring. Fig. 1.
 In order to obtain the best
performance the hose
should ha e a diameter
equal to the outlet hole.
 Should there already be a
pipe of diameter 125 or 120
mm that ducts to the outside through the walls, it is possible to use
the 150/125-120 mm reduction flange pro ided.
In this case the hood will be slightly noisier.
Recircu ation mode
 The air is filtered through a
charcoal filter and returned to
the kitchen.
 You will need an original
charcoal filter for the
recirculation mode. (See
Special Accessories).
 Fix the deflector using 2 screws
Ø 3.5x9.5 mm. Fig. 2.
coupling ring
reduction flange
Fig. 1
Deflector
Fig. 2

60
Control Panel
 Best results are obtained by using a low speed for normal conditions
and a high speed when odours are more concentrated.
Turn the hood on a few minutes before you start cooking.
The hood should be left on after cooking for about 15 minutes or until
all the odours ha e disappeared.
 The hood can also be commanded from the control panel or the
remote control. (the remote control is a special accessory and is
ordered separately).
The control panel is low on the left (lights and reset filters) and right
(speed control  suction power).
1- Mains switch, ON/OFF
Press for less than 1 1/2 seconds and the cooker hood goes into
the "stand by" position (point "b" is illuminated).
Press for more than 1 1/2 seconds and the cooker hood turns off,
ALL the controls (except the light push button) are disabled (the
display is off).
Press again for more than 1 1/2 seconds to reset the cooker hood
to "stand by".
2- Cooking top lights OFF key: -suffused  full light-OFF- .
3- Reset indicators of filters saturation key
4- Upper lights key: OFF  full light-OFF- 
5- Start and choice of motor speed 1-2-3-1-2.........
6- Display
7- Intensi e speed on/off. The Intensi e speed runs for 5 minutes:
If the hood is on when the Intensi e speed is acti ated, the hood
will re ert to pre ious speed after 5 minutes.
If the hood is off when the Intensi e speed is acti ated, the hood
will automatically turn off after 5 minutes.
To interrupt the Intensi e speed, press button 1 or 7.
The letter P appears on the display and the remaining time (the
point a is flashing), if interrupted an acoustic signal is heard.
1
Fig. 3
234 5 678
ab

61
- Self-Timer: times all the speed le els (the point b is flashing),
and then the cooker hood switches off:
The self-timer is set as follows: 1st speed level 20 minutes
2nd speed level 15 minutes
3rd speed level 10 minutes
P speed level 5 minutes
The display shows the remaining operation time, at the end of the
time an acoustic signal is heard. Depressing the push-button
again exits the function.
Should the hood or the controls fail to operate: disconnect the power
supply for at least 5 seconds. After reconnecting the power supply wait
15 seconds and then check that the cooker hood is now operating
correctly.
Grease and charcoa fi ter maintenance
indicator
This hood is fitted with a de ice that indicates when it is necessary to
clean the grease filter or the charcoal filter (if the hood is used in the
recirculation ersion with a charcoal filter).
On deli ery, the hood is not supplied with a charcoal filter, so the
saturation indicator will be disabled.
If the hood is to be used with a charcoal filter, the saturation
indicator light must be enabled as follows:
Set the hood in OFF.
Press buttons 1 and 3 simultaneously and hold them for 3 seconds. At
first only the grease filter LED F will light up, but when the charcoal
filter LED C lights up the saturation indicator will be enabled.
To disable it: Press buttons 1 and 3 again simultaneously and hold
them for 3 seconds, until the charcoal filter LED goes out.
Grease fi ter LED (F)
LED F will start to flash when it is time to clean the grease filter.
Cleaning will be necessary after 40 working hours. Always comply with
the maintenance instructions for the grease filter.
Charcoa fi ter LED (C)
The charcoal filter LED C will start to flash when the charcoal filter
needs to be replaced.
This operation is necessary after approximately 160 working hours.
Resetting the saturation indicator
After cleaning or replacing the filters, press button 3 for 3 seconds until
the grease filter LED F or the charcoal filter LED C stops flashing.

62

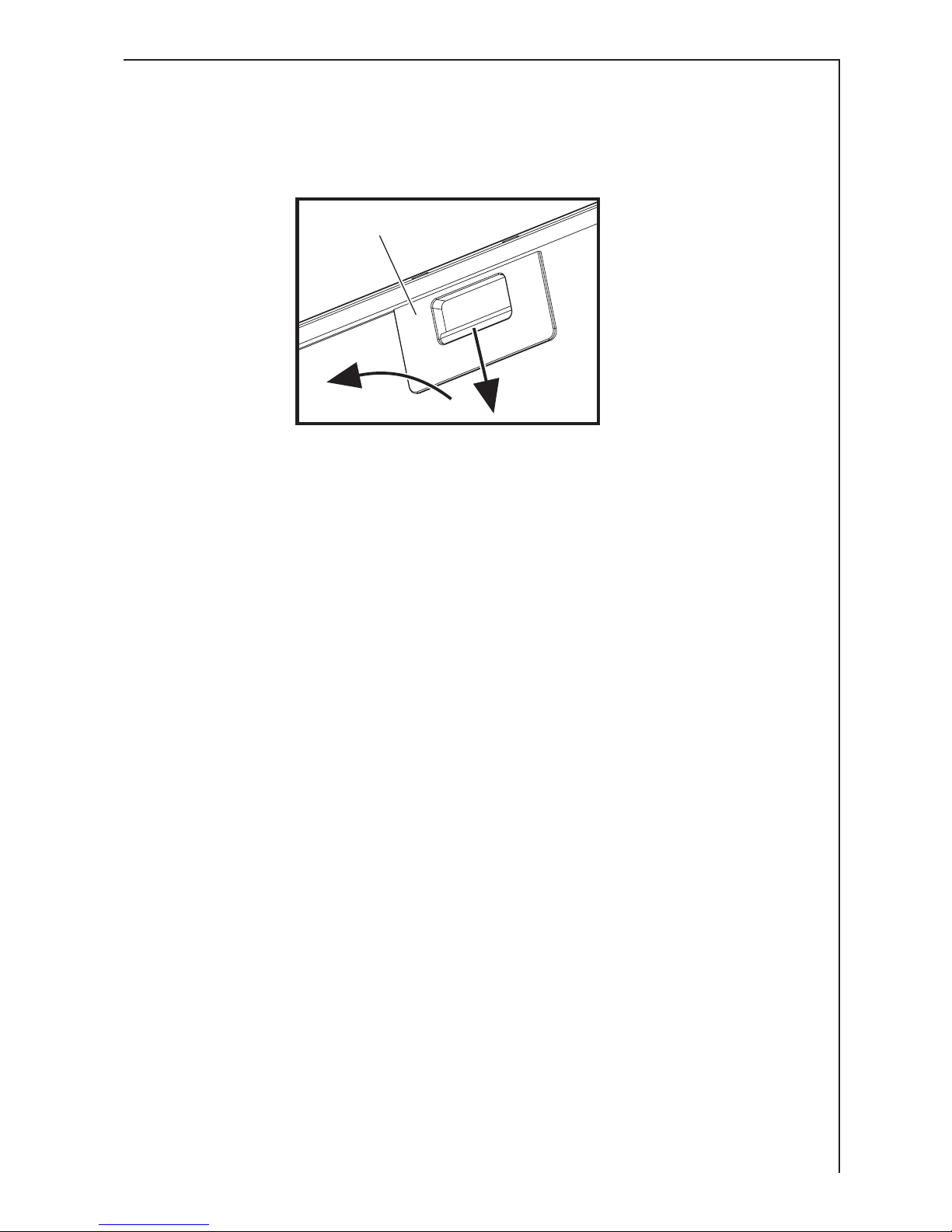

Extract
Unhook
Fig. 4
Maintenance and Care
The hood must always be disconnected from the electricity
supply before beginning any maintenance work.
C eaning the hood
 Clean the outside of the hood using a damp cloth and a solution of
water and mild washing up liquid.
 Ne er use corrosi e, abrasi e or flammable cleaning products or
products containing bleach. .
 Ne er insert pointed objects in the motors protecti e grid.
 Only e er clean the switch panel and filter grill using a damp cloth
and mild washing up liquid.
 It is extremely important to clean the unit and change the filters at
the recommended inter als. Failure to do so will cause grease
deposits to build up that could constitute a fire hazard.
Meta grease fi ter
 The purpose of the grease filters is to absorb grease particles which
form during cooking and it must always be used, either in the
external extraction or internal re-circulation function.
Attention: the metal grease filters must be remo ed and washed,
either by hand or in the dishwasher, e ery four weeks.
The front panels should also be washed by hand e ery 4 weeks
using a neutral liquid detergent. Do
not use aggressi e detergents.
 To access the
grease filter, first
remo e the front
panels which
conceal the grease
filter.
Removing the
front pane s:
Extract the small
panel, rotate upwards
and unhook.
Repeat the operation
for all the small
panels. Fig. 4.

63
Handle
Fig. 5
Removing the meta grease fi ter
Pull the handle downards, then extract the filter.Fig. 5.
Hand washing
Soak grease filters for about one hour in hot water with a grease-
loosening cleaner, then rinse off thoroughly with hot water. Repeat
the process if necessary. Refit the grease filters when they are dry.
Dishwasher
Place grease filters in the dishwasher. Select most powerful washing
programme and highest temperature, at least 65°C. Repeat the
process. Refit the grease filters when they are dry.
When washing the metal grease filter in the dishwasher a slight
discolouration of the filter can occur, this does not ha e any impact
on its performance.
 Clean the inner housing using a hand hot solution only(ne er use
caustic detergents, abrasi e powders or brushes).
After ha ing re-installed the grease filter, remount the front panels
following the instructions for remo al in re erse.
The narrower front panel is to be mounted at the highest position.

64
Charcoa fi ter
 The charcoal filter should only be used if you want to use the hood in
recirculation mode.
 To do this you will need an original charcoal filter (a ailable from your
local Ser ice Force Centre).
Cleaning/replacing the charcoal filter
Unlike other charcoal filters, the LONGLIFE charcoal filter can be
cleaned and reacti ated. With normal use the filter should be cleaned
e ery second month (when using the hood 2,5 hours per day,on
a arage). The best way to clean the filter is in the dishwasher. Use
normal detergent and choose the highest temperature (65º C). Wash
the filter separately so that no food parts gets stuck on the filter and
later causes bad odours. To reacti ate the charcoal, the filter should
be dried in an o en for 10 minutes with a maximum temperature of
100º C.
After approximately three years of use, the charcoal filter should be
replaced with a new, as the odour reduction capacity will be reduced.
Fitting
Fit the charcoal filter on the rear side of the grease filter, fix it with
two metal wires. Fig. 6.
Attention! The metal wires
are included in the carbon
filterpacking and not on the
hood
To remove proceed in the
re erse order.
 Always specify the hood
model code number and
serial number when
ordering replacement filters.
This information is shown
on the rating plate located
on the inside of the unit.
 The charcoal filter can be
ordered from your local
Ser ice Force Centre. grease filter
charcoal filter
metal wires
Fig. 6

65
Warning
 Failure to obser e the instructions on cleaning the unit and changing
the filters will cause a fire hazard. You are therefore strongly
recommended to follow these instructions.
 The manufacturer declines all responsibility for any damage to the
motor or any fire damage linked to inappropriate maintenance or
failure to obser e the abo e safety recommendations.
Changing the ight bu b
Disconnect the cooker hood from the
mains supply.
 Remo e the lamp, use a screw dri er as a
le er. Fig. 7.
 Replace the old bulb with a new one of the
same type.
 If the light does not come on, make sure
the bulb has been inserted in correctly
before contacting your local Ser ice Force
Centre. Fig. 7

66
Technica assistance service (not for UK)
You are welcome to telephone our technical assistance service (see list of technical
assistance centres) whenever you need information or in the unlikely event of a fault.
For service in Australia call 1300 650 020.
When calling, please be ready to specify:
1. The model code number
2. The serial number (E-Nr.)
3. The manufacturing number (F-Nr.)
This information is shown on the registration plate inside the unit behind the
grease filter.
We reserve the right to change specifications and colours as a result of our policy of
continuing technological development.
Service and Spare Parts
In the event of your appliance requiring service, or if you wish to purchase spare parts,
contact your local Service Force Centre by telephoning: 0870 929 929
Your call will be automatically routed to the Service Centre covering your post code
area. For the address of your local Service Force Centre and further information about
Service Force, please visit the website at www.serviceforce.co.uk
Please ensure that you have read the section What to do if.... as the engineer will make
a charge if the fault is not a mechanical or electrical breakdown even the appliance is
under warranty. Please note that proof of purchase is required for in-guarantee
service calls.
Help us to help you
Please determine your type of enquiry before writing or telephoning.
When you contact us we need to know:
 Your name  Clear and concise details of the fault
 Address and post code  Name and model of the appliance*
 Telephone number  E number*
 Serial number*
* This information can be found on the rating plate, which can be seen when the grease
filters are removed.
If you require Customer Service in the Republic of Ireland please contact us at
the address below:
AEG
Electrolux Group (Ire) Ltd
Long Mile Road
Dublin 12
Republic of Ireland
Tel: + 353 (0) 1 4090 51
Email: [email protected]

67
CUSTOMER CARE DEPARTMENT
For general enquiries concerning your AEG appliance or for further information on AEG
products, please contact our Customer Care Department by letter or telephone at the
address below or visit our website at www.aeg.co.uk
Customer Services Department
Major Appliances
AEGElectrolux
Addington Way
Luton
Bedfordshire
LU4 9QQ
08 05 350 350 (*)
* calls to this number may be recorded for training purposes.
Technical Specifications
Dimensions (in cm):
Height 65
Width 89,8
Depth 30,4
Maximum absorbed power: 2 5 W
Motor absorption: 1 5 W
Lighting: 5 x 20W (60° Ø50 12V GU5.3)
Length of the cable: 1 0 cm
Electrical connection: 220-240 V
Fuse rating: 5A 250V
Mounting accessories inc uded
1 reduction flange Ø 150-125 mm (DD 8794 and DD 8795 only)
2 flanges Ø 150 mm
1 container with the documentation and the material for fixing.

68
What to do if
If your appliance fails to work properly please carry out the following
checks.
Symptom Solution
The cooker hood Check that: The hood is connected to
will not start... the electricity supply.
Check that a fan speed has been
selected
The cooker hood Check that: The fan speed is set
is not working high enough for the task.
The grease filters are clean.
The kitchen is adequately ented to
allow the entry of fresh air.
If set up for recirculation, check that
the charcoal filter is still effecti e.
If set up for extraction, check that the
ducting and outlets are not blocked.
The cooker hood has The safety cut-out de ice has been
switched off tripped.
during operation... Turn off the hob and then wait for
the de ice to reset.
If the hood has been installed below
the heights indicated in the
installation instructions the motor
will cut-out frequently which will
damage the hood.
If after all these checks, the problem persists, contact your local
Ser ice Force Centre, quoting the model and serial number.
Please note that it will be necessary to pro ide proof of purchase for
any in-guarantee ser ice calls.
In-guarantee customers should ensure that the abo e checks ha e
been made as the engineer will make a charge if the fault is not a
mechanical or electrical breakdown.

69
Special accessories
Charcoal Filter Type 31
Remote control RM 8700 942 120 658
Inox Telescopic chimney
(for extraction mode only) 942 120 750
Aluminium Telescopic chimney
(for extraction mode only) 942 120 966
Electrical connection (not for UK)
Safety warnings for the e ectrician
Before connecting the appliance to the power supply, check that the
oltage indicated on the rating plate corresponds to the mains power
supply a ailable. Appliances fitted with a plug can be connected to any
standard power socket within easy access.
Should it be necessary to pro ide a fixed connection, the hood must
only be installed by an electrician authorised by the local electricity
board. When installing, an omnipolar disconnector with a distance of at
least 3 mm between contacts must be pro ided.
Fixed connection of the appliance must only be carried out by an
authorised electrician.
E ectrica connection for UK on y
Safety warnings for the electrician
Connect the hood to the mains supply ia a double pole switch which
has 3 mm minimum separation between the contacts.
The switch must be accessible at all times.
The following is alid in the United Kingdom only:
- the wire which is coloured green and yellow must be connected to
the terminal which is marked with the letter E or by the earth symbol
( ), or coloured green or green and yellow;
- the wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black, -
- the wire which is coloured brown must be connected to the terminal
which is marked with the letter L or coloured red.

70
The hood is supplied with halogen bulbs, abo e and below. Foresee
sufficient space between the hood and the kitchen furniture in order to
a oid the bulbs and the furniture panels o erheating.
Also lea e sufficient space to allow opening and remo ing the front
panels.
 Place the three rubber strips on the back of the cooker hood.
Where necessary mount the two spacers pro ided on the drill holes
for definiti e fixing.
The spacers are useful when the wall which is to house the cooker
hood is not perfectly ertical (for example: where it is partially
co ered with wall tiles).
Wa mounting - Fig. 8-9-10
Fig.
rubber strips
spacers
definiti e fixing
rubber strips
rubber strips
definiti e fixing

71
 Mark the wall with a centre line, this will aid mounting procedure (1),
position the template so that the mid line printed on the template
matches with the centre line pre iously marked, the lower side of the
template corresponds to the lower side of the hood once mounted
(2).
 Drill two holes Ø 8mm and fix the support bracket with two wall plugs
and screws (3).
 Remo e the front panels (see paragraph Remo ing the front panels).
 Hang the hood (4) adjust its position (5-6) and from the inside of the
hood sign two points for definiti e fixing (7), remo e the hood and drill
two holes Ø 8mm ( ), fit two wall plugs, hang the hood again and fix
it securely with two screws (9). Co er the drill holes for screws with
the two screw caps pro ided.
Fig. 9
1
2
3
4
4
5
5
6
6
7
8
8
9
(5x18)
(5x18)

72
 Make electrical connection (10), but lea e the hood disconnected
from the home mains circuit.
 In the case that it is decided to use the cooker hood in the mains
circuit, then place one of the two flanges pro ided in the exit hole (11
 Extraction). Attention! The tall flange should be used when a
telescopic chimney is required to be mounted (this item should be
ordered  see special accessories), the short flange is to be used in
all other cases.
 Remount the grease filter and the front panels (12a-b-c).
11
11
10
12a
12b
12c
Extraction mode
Recirculation
mode
Fig. 10

AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nür berg
http://www.aeg.hausgeraete.de
© Copyright by AEG LI2JPD Ed. 10/05
From the Electrolux Group. The world´s No.1 choice.
The Electrolux Group is the world´s largest producer of powered appliances for kitchen,
cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators,
cookers, washing machines,vacuum cleaners, chain saws and lawn mowers are sold each
year to a value of approx. USD 14 billion in more than 150 countries around the world.
AEGElectrolux
Addington Way
Luton
Bedfordshire
LU4 9QQ
http://www.aeg.co.uk
