Door / Window Sensor 7 Basic user guide (ZWA011/ZWA041)
Modified on: Thu, 3 Jun, 2021 at 2:02 PM
Aeotec Door / Window Sensor 7.
Aeotec Door / Window Sensor 7 was developed to record the condition of doors or windows with Z-Wave Plus
(http://aeotec.com/z-wave-plus). It is powered by Aeotec’s Gen7 (https://aeotec.com/z-wave-home-automation/z-wave-
gen7.html) technology and S2 framework. You can find out more about Door / Window Sensor 7 (https://aeotec.com/z-
wave-door-window-sensor) Basic by following that link.
To see whether Door / Window Sensor 7 Basic is known to be compatible with your Z-Wave system or not, please
reference our Z-Wave gateway comparison (http://aeotec.com/z-wave-gateways) listing. The technical specifications of
Door / Window Sensor 7 (https://aeotec.freshdesk.com/a/solutions/articles/6000218908-door-window-sensor-7-technical-
specifications-) Basic can be viewed at that link.
Familiarize yourself with your Door / Window Sensor 7.

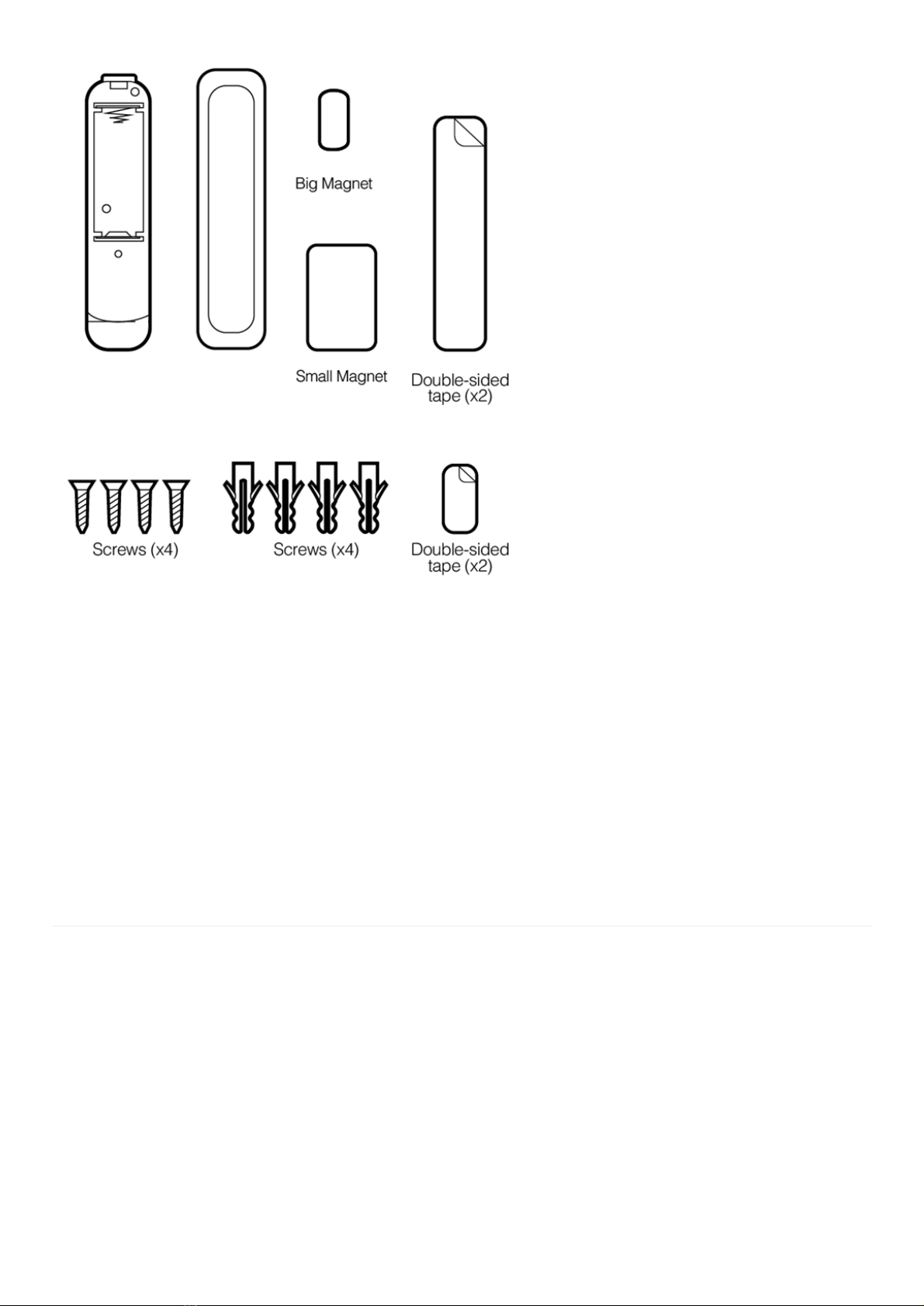

Package contents:
. Sensor Unit.
. Cover
. Big Magnet.
. Small Magnet.
. Double-Sided Tape large (×2).
. Double-Sided Tape small (x2).
. Screws (×4).
. Dowels( x4).

18/06/2021
Aeotec Door Window Sensor 7 Basic guide : Aeotec Help Desk
https://help.aeotec.com/support/solutions/articles/6000230382-door-window-sensor-7-basic-user-guide-zwa011-zwa041-
2/9
Important safety information.
Please read this and other device guides carefully. Failure to follow the recommendations set forth by Aeotec Limited may
be dangerous or cause a violation of the law. The manufacturer, importer, distributor, and/or reseller will not be held
responsible for any loss or damage resulting from not following any instructions in this guide or in other materials.
Keep the product and batteries away from open flames and extreme heat. Avoid direct sunlight or heat exposure. Always
remove all batteries from products that are being stored and not used. Batteries may damage the appliance if they leak.
Do not use rechargeable batteries. Ensure correct polarity when inserting the batteries. Improper battery use may damage
the product.
Door / Window Sensor 7 is intended for indoor use in dry locations only. Do not use in damp, moist, and/or wet locations.
It contains small parts; keep away from children.

18/06/2021
Aeotec Door Window Sensor 7 Basic guide : Aeotec Help Desk
https://help.aeotec.com/support/solutions/articles/6000230382-door-window-sensor-7-basic-user-guide-zwa011-zwa041-
3/9
Quick Start
Pre-Installation of Door / Window Sensor 7 Basic.
Open the cover by pressing the clip on the side and pulling the cover upwards.
Insert a fresh 1 * 1/2 AA battery, but pay attention to the polarity
Install your Door / Window Sensor 7.
The sensor can be mounted either on the moving part or on the fixed part of a door or a window. Mounting can be
accomplished either using the tape by peeling off the protection foil or using two screws with the holes inside the battery
compartment. If the tilt detection on a window (only normal windows, no roof windows) shall be used the sensor device
must be placed on the moving part of the window and the magnet on the window frame. The sensor comes with two types
of magnets:
The standard magnet covered by the plastic part, mountable beside the sensor. Make sure the two indicating lines
on sensor enclosure and magnet are opposite to each other. The image on the right-hand side shows the position
of magnet and sensor body.
A slim "naked" magnet to be mounted behind the sensor in case the sensor body is placed on the side of a window.
For German-style windows where the window sits on top of the window frame mounting on the side of the window
is highly recommended. The sensor can be placed on any position of the door or the window.

18/06/2021
Aeotec Door Window Sensor 7 Basic guide : Aeotec Help Desk
https://help.aeotec.com/support/solutions/articles/6000230382-door-window-sensor-7-basic-user-guide-zwa011-zwa041-
4/9

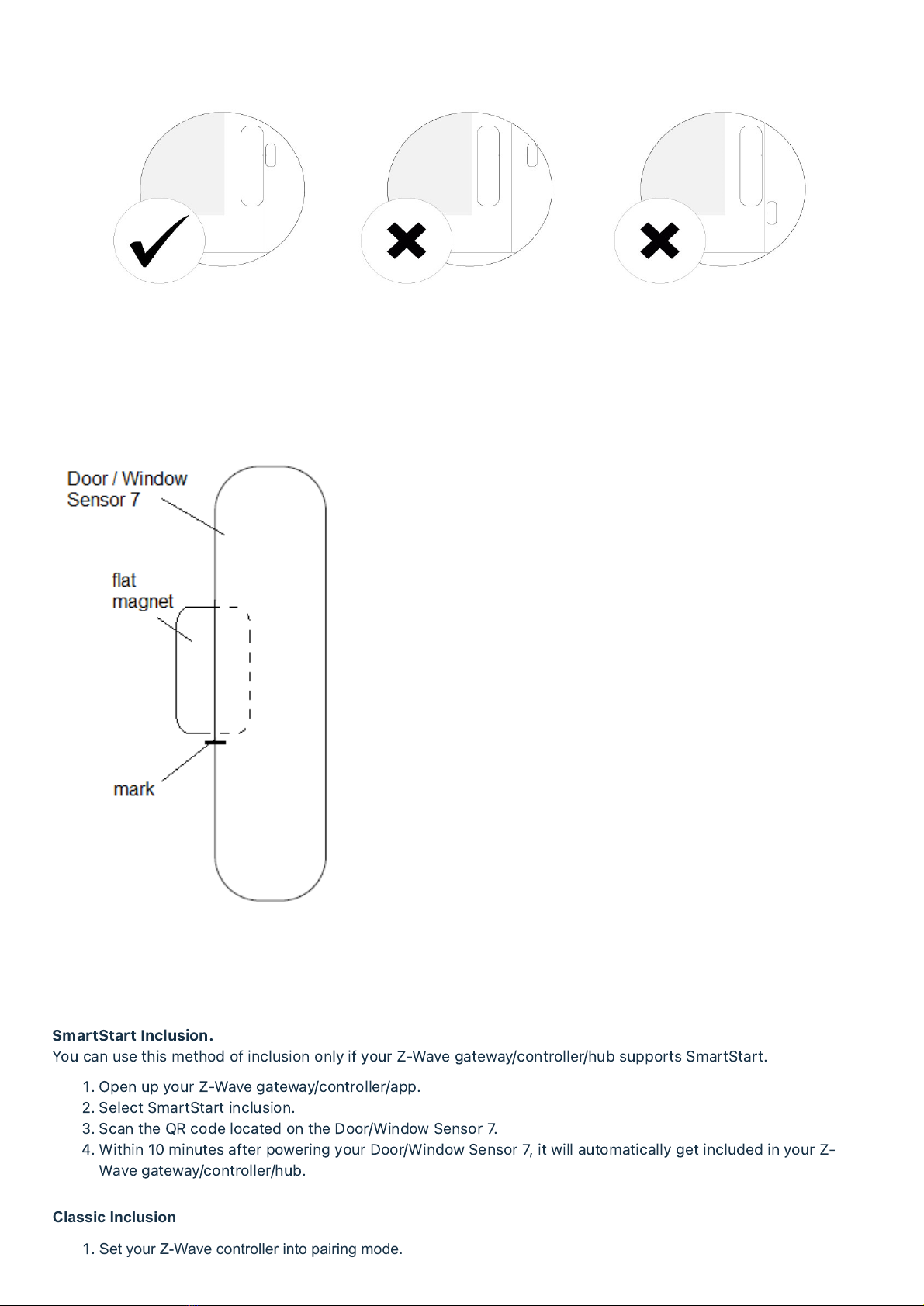

Installation of the flat magnet
When installing the flat magnet in a hidden location, make sure that it is on the longer side as seen from the mark on the
Door / Windows Sensor 7 Basic.
Adding your Door / Windows Sensor 7 Basic to Z-Wave network.
S m a rt S t a rt I n cl us i on .
Y ou ca n us e t hi s m e t h o d o f i n cl us i on on l y if your Z - W a v e ga t e w a y / c ontro lle r / h u b supports S m a rt S t a rt .
. O p e n up your Z - W a v e ga t e w a y / c ontro lle r / a pp .
. S elec t S m a rt S t a rt i n cl us i on .
. S ca n t he QR c o de l o ca t ed on t he D oor / W i n d ow S e nsor 7.
. W i t hi n 10 m i nut e s af t e r pow e r i n g your D oor / W i n d ow S e nsor 7, i t w ill a utom a t icall y ge t i n cl u ded i n your Z -
W a v e ga t e w a y / c ontro lle r / h u b .
Classic Inclusion
. Set your Z-Wave controller into pairing mode.

18/06/2021
Aeotec Door Window Sensor 7 Basic guide : Aeotec Help Desk
https://help.aeotec.com/support/solutions/articles/6000230382-door-window-sensor-7-basic-user-guide-zwa011-zwa041-
5/9
. Triple-click the tamper switch on Door / Window Sensor 7 - this begins to blink five times
. After completion of the inclusion, it lights up once before it goes out.
. Close the cover
Note: Closing the cover is important! If the housing is not closed, the sensor is permanently awake. Only when the
cover is closed does the sensor change to the idle state.
Functions of Door / Window Sensor 7.
Open/Close/Tamper
Once installed the sensor will report "open" and "close" status changes to a central Z-Wave controller using notification
commands.
Open/Close utilizes Notification Report.
Tamper utilizes Notification Report.

18/06/2021
Aeotec Door Window Sensor 7 Basic guide : Aeotec Help Desk
https://help.aeotec.com/support/solutions/articles/6000230382-door-window-sensor-7-basic-user-guide-zwa011-zwa041-
6/9
Advances functions.
C ommun ica t i on t e st .
T hi s ut ili z e s t he P ow e r L e v el c omm a n d cla ss to de t e rm i n e t he heal t h be tw ee n t he D oor / W i n d ow S e nsor 7 a n d your
Z - W a v e ga t e w a y . T hi s w ill t ell you if t he D oor / W i n d ow S e nsor 7 ha s a heal t h y c onn ec t i on to your syst e m a n d i s a
g r ea t m e t h o d o f deb u ggi n g c onn ec t i v i ty i ssu e s .
. S e t P a r a m e t e r # 5 to v al u e # 1
. D ou ble  click t he T a mp e r S w i t ch .
. R e su l t :
B li n k s on ce - su cce ss
B li n k s 3 x t i m e s - fail ur e
Firmware-Update over the Air.
This device is capable of receiving a new firmware 'over the air'. The update function needs to be supported by the central
controller. Once the controller starts the update process, perform the following action to confirm the firmware update:
. Wake Up the device by removing the cover.
. The hit the tamper switch once.
Send a wake-up notification.
In order to send your sensors new configuration commands from your Z-Wave controller or gateway, it will need to be
woken up.
. Wake Up the device by removing the cover.
. The hit the tamper switch once.
Note: Door / Window Sensor 7 Basic remains awake until the housing is closed again.
Remove your Door / Window Sensor 7 Basic from Z-Wave network.
Your sensor can be removed from your Z-Wave network at any time. You'll need to use your Z-Wave network's main
controller/gateway. To do this, please refer to the part of your gateway's respective manual that tells you how to remove
devices from your network.
. Set your Z-Wave controller into unpair mode.
. Triple-click the tamper switch on Door / Window Sensor 7 within 1.5 seconds - this will cause the LED to blink five
times.
. After a successful exclusion, it will light up its LED for 2 seconds then deactivate.
Reset your Door / Windows Sensor 7 Basic.
This device also allows being reset without any involvement of a Z-Wave controller. This procedure should only be used
when the primary controller is inoperable.
To manually factory reset:

18/06/2021
Aeotec Door Window Sensor 7 Basic guide : Aeotec Help Desk
https://help.aeotec.com/support/solutions/articles/6000230382-door-window-sensor-7-basic-user-guide-zwa011-zwa041-
7/9
. Remove the cover of Door / Window Sensor 7
. Press and hold tamper switch for 5 seconds until the red LED blinks.
. Release the tamper switch
. Immediately press and hold the tamper switch for 5 seconds until the red LED blinks.
Association Groups.
Association groups allow Door Window Sensor 7 to directly control Z-Wave devices without the use of a Z-Wave
Controller to maximize communication efficiency.
GroupNumber MaxNodes Description
1 5 Lifeline
2 5 Control devices when a magnet or external dry
contacts trips
3 5 Sends our alarm message when magnet controlled or
external dry sensor trips.
4 5 Sends alarm messages when tamper is tripped
Parameter Configurations.
Parameter 3: Door/Window State.
This parameter allows setting Door / Window Sensor 7 state when the magnet is close to the sensor.
Size: 1 Byte, Default Value: 0
Setting Description
0 closed when the magnet is near
1 opened when the magnet is near
Parameter 4: Visual LED Indications.
This parameter defines events indicated by the visual LED indicator. Disabling events might extend battery life.
Size: 1 Byte, Default Value: 7, Range: 0 - 7
Setting Description
0 no indications
1 indication of opening/closing status change
2indication of wake up (1 x click or
periodical)
4 indication of device tampering
Parameter 5: Range test after double click.
Allows enabling the activation of Z-Wave range test with double click of a Tamper Switch 2.
Size: 1 Byte, Default Value: 0
Setting Description
0 Disable
1 Enable
Parameter 6: Group 2 Association Triggers.

18/06/2021
Aeotec Door Window Sensor 7 Basic guide : Aeotec Help Desk
https://help.aeotec.com/support/solutions/articles/6000230382-door-window-sensor-7-basic-user-guide-zwa011-zwa041-
8/9
This parameter defines events that result in sending On/Off commands to devices added to the 2nd Association Group.
These commands are sent alternately to switch the devices On and Off. Commands represent the values of BASIC SET
command frames. This parameter is inactive in external dry-contact mode (parameter “Operation Mode” set to 1).
Size: 1 Byte, Default Value: 0
Setting Description
0 switch after opening and closing
1 switch after opening
2 switch after closing
Parameter 7: Commands sent to associated devices on Group 2.
Command frames sent to devices added to the 2nd association group.
Size: 1 Byte, Default Value: 2
Setting Description
0 On
1 Off
2 On and Off
Parameter 8: Values of ON command frame sent to Group 2 Association.
The value of 0 turns OFF the device, 255 turns it On. In the case of associating the Dimmer or Roller Shutter module,
values
Size: 1 Byte, Default Value: 255
Setting Description
0 - 99 allow setting an Associated device to a
specified level (0 is OFF)
255 ON
Parameter 9: Value of OFF command frame sent to Group 2 Association.
The value of 0 turns OFF the device, 255 turns it On. In the case of associating the Dimmer or Roller Shutter module,
values.
Size: 1 Byte, Default Value: 0
Setting Description
0 - 99 allow setting an associated device to a
specified level. (0 is OFF)
255 ON
Parameter 10: Time Delay of ON command from Group #2.
The time period after which On command frame will be sent.
Size: 2 Byte, Default Value: 0
Setting Description
0 -
32400 Time set in seconds
Parameter 11: Time Delay of OFF command from Group #2.
The time period after which the OFF command frame will be sent.
Size: 2 Byte, Default Value: 0
Setting Description

18/06/2021
Aeotec Door Window Sensor 7 Basic guide : Aeotec Help Desk
https://help.aeotec.com/support/solutions/articles/6000230382-door-window-sensor-7-basic-user-guide-zwa011-zwa041-
9/9
0 -
32400 Time in seconds
Parameter 12: Delay of tamper alarm cancellation.
The time period after which a tamper alarm will be canceled.
Size: 2 Byte, Default Value: 0
Setting Description
0 -
32400 Time in seconds
Parameter 13: Reporting tamper alarm cancellation.
Reporting cancellation of tamper alarm to the controller and 3rd Association Group.
Size: 1 Byte, Default Value: 1
Setting Description
0 do not send tamper cancellation report
1 send tamper cancellation report
Parameter 255: Factory reset.
This parameter helps reset configuration parameters and the device to factory defaults.
Size: 1 Byte, Default Value: 0
Setting Description
1 Reset Parameter
1431655765 Factory default (exclude the device)
