AEQ PAW 120 User manual

AEQ PAW 120
Professional Digital Portable Recorder
USER’S MANUAL
ED 02/07
Software version 3.14

.
AEQ PAW120
1
CONTENTS
Page
1. GENERAL INFORMATION........................................................................................... 2
1.1. Features........................................................................................................... 3
1.2. Front panel keys functions............................................................................... 4
1.3. Left side keys functons.................................................................................... 5
1.4. Rigth side......................................................................................................... 5
1.5. Top face........................................................................................................... 6
1.6. Batteries installation......................................................................................... 6
1.7. Turning on........................................................................................................ 6
1.8. Play/Record window description...................................................................... 7
2. USING THE PAW120.................................................................................................... 9
2.1. Audio recording................................................................................................ 9
2.2. Voice operated recording................................................................................. 10
2.3. Playback.......................................................................................................... 11
2.4. Playback levels adjustment............................................................................. 11
2.5. Settings storage in a template......................................................................... 11
2.6. Fast deleting an audio recording..................................................................... 11
3. PRESET MENU............................................................................................................. 12
4. SETUP MENU............................................................................................................... 14
5. FILE / FOLDER MANAGER.......................................................................................... 17
6. EDITION........................................................................................................................ 19
6.1. Edition display.................................................................................................. 19
6.2. Audio edition.................................................................................................... 19
7. USB............................................................................................................................... 21
8. SOFTWARE UPDATE................................................................................................... 23
9. SPECIFICATIONS......................................................................................................... 24
10. FAQ............................................................................................................................... 28

.
AEQ PAW120
2
1. GENERAL INFORMATION.
What is PAW120?
AEQ PAW120 is a professional hand-held digital audio recorder. It is smart, easy to use and
has extensive features. The PAW120 allows user to record, playback and edit, it supports the
MP2, MP3, BWF and WAV formats. The recorder also can connect with a PC via USB interface
for audio files uploading or downloading.
◙RECORD.
The PAW120 allows user to pre-define some templates to make a faster selection of technical
parameters when a recording is made. Select a template such as “MUSIC” or “SPEECH”.
◙PLAYBACK.
Press “ ”key to start playing. The user can monitor the audio with either earphones or
built-in speaker.
◙FILE MANAGEMENT.
In the file management module it is possible to copy, move and delete files.
◙EDIT.
Cut the unnecessary sections of an audio file and get an storage space release in addition.
◙OLED Display.
The PAW120 recorder has a large bright OLED display. Files can be clearly seen in both bright
(sunlight) and darkness conditions.

.
AEQ PAW120
3
1.1. FEATURES.
•High quality internal microphone capsule.
•Supports any dynamic, capacitor and electrets external microphone, with Phantom power
supply.
•Built-in speaker.
•Built-in waveform audio editor.
•Real-time MPEG and Linear PCM editing.
•OLED dual colour display.
•USB transfer FAT file format compatible with Windows™ and Mac™ OS.
•Automatic Gain Control (AGC) recording.
•Metal case.
•Support BWF (Broadcast Wave File) format, for easy integration into existing automation
system.
•Two modes of operation for VOR (Voice Operated Record) system: Pause REC or Split
Track.
•Variable voice control trigger level.
•Customized mute time delay.
•Automatic level control.
•Standard Windows FAT16 file system.
•Optional external stereo microphone with direct-contact feature and self-lock system.
•Document management.

.
AEQ PAW120
4
1.2. FRONT PANEL KEYS FUNCTIONS.
1 - key:
•Pause function during playback and recording.
•Executes functions in menu mode.
•Selects PRE-RECORD mode from STOP.
2 - C key:
•Cancels (escape) a menu operation or exits a display
mode.
•Play/Record mode and MANAGER and SETUP menus
access.
3 - REC led:
•Red blinking during recording.
4 - Up key:
•Increases the input gain in prerecord/record mode.
•Skip back to previous file in play/stop mode.
•Moves to the previous available option in menu mode.
•Moves the A or B marker backwards in edition mode.
5 - Left key:
•Rewind key during playback.
•Decreases the recording level (0.5dB steps) in
prerecord/record mode.
•Move left in the menu mode.
•In edition mode moves the marker backwards.
6 - Menu key:
•Display the sub-menu for fast selection of input device, template, etc., in play/record
mode.
•Enters markers during recording.
•In edition mode it allows to jump to an exact playback position, return to a previous
situation or modify resolution.
7 - Right key:
•Fast forward key during playback.
•Increases the recording level (0.5 dB steps) in prerecord/record mode.
•Move right in the menu mode.
•In edition mode moves the marker forwards.
8 - Down key:
•Decreases the input gain in prerecord/record mode.
•Skip forward to next file in play/stop mode.
•Moves to next available option in menu mode.
•Moves the A or B marker forwards in edition mode.
9 - Edit key:
•Fast access to edition mode from MANAGER menu.
•Removes the selected portion between 2 marks during editing.
•Removes the selected files in STOP mode.
10 - Play / Stop / Power key:
•Main Power ON/OFF key (press for 5 secs.). When USB cable is connected, the
machine cannot be switched off.
•Toggles between play and stop.
11 - A-B key:
•Selects the position of marker A or B in the edition mode.
•In all other modes, put the display into high brightness for 5 sec.
6
7
1 2
4
3
3
7
3
8
356
3
911
310
Fig. 2

.
AEQ PAW120
5
1.3. LEFT SIDE KEYS FUNCTIONS.
1 - RECORD switch:
•When you slide up the switch the PAW120 starts recording.
2 - AGC (Automatic Gain Control) switch:
•When you slide up the switch Automatic Gain Control is activated.
3 - HOLD switch:
•When you slide up the switch up the keyboard controls are locked.
1.4. RIGHT SIDE.
1 - USB port:
•Used for connecting to a PC/MAC for file download.
•Allows for external DC powering of the unit.
2 - Output VOLUME adjustment:
•Volume adjustment of headphones & built-in speaker.
•In the sub-menus, allows selection of a character or a number (for names changing).
3 - LINE OUTPUT:
•Stereo line output 3.5 mm Jack connector.
4 - Headphone output:
•Stereo headphone output 3.5 mm Jack connector.
1 32
Fig. 2
1 2 3 4
Fig. 3

.
AEQ PAW120
6
1.5. TOP FACE.
1 - LINE INPUT:
•3,5 mm stereo Jack connector for line inputs.
2 - EXT MIC:
•3,5 mm stereo Jack connector for external micro
inputs.
3 - MIC:
•Built-in mono microphone.
1.6. BATTERIES INSTALLATION.
Insert 2 AA batteries into the battery
compartment taking care of the correct
polarity and close the cover.
Rechargeable batteries (NiCd or Ni-mH)
can also be used, but they can not be
charged inside the PAW120 when it is
connected via USB to a PC/MAC for
external powering.
1.7. TURNING ON.
Push and hold the “ ”key for 5 seconds: the machine turns on and shows the initial screen
for 2 seconds followed by the “STOP” window display.
To skip the initial screen, press any key. To jump to the ”PRE-RECORD” window, press the
“”key.
If the AEQ PAW120 recorder is off and you connect it to the computer through the USB cable,
the unit will automatically turn on and a sub-window will appear giving the possibility to select
“USB Power” or “USB Transfer”. Make a selection and press the ” ” key.
Fig. 4
3
21
Fig. 5

.
AEQ PAW120
7
1.8. PLAY / RECORD WINDOW DESCRIPTION.
1 - Function Name: Area that indicates the function´s name of the current display (“STOP”,
“PLAY”, “PRE REC” or “RECORD”).
2 - Input Level: Indicates the input device (internal/external microphone, line input or a new
created device) and the associated input gain.
3 - REC Level: The recording level can be adjusted when record or prerecord function is active
using the left and right keys in steps of 0.5 dB. The adjustment range depends on the selected
input type: from +84 to +144 dB for “EXT MIC”, from -60 to 0 dB for “LINE”, from -12 to +20 dB
for “LINE HI” and from -35 to -3 dB for “LINE LO”. Please note that when internal microphone
(“INT MIC”) is selected, the “AGC” must be turned on as recording level can not be adjusted.
4 - VOR status: Indicates if VOR (Voice Operated Record) mode is turned ON or OFF.
5 - USB status: This icon appears when the machine is connected via USB to a PC/MAC for
external powering.
6 - Keylock status: The key icon appears when the keys are locked by means of the “HOLD”
slide button on the left side.
7 - Battery status: Five stripes inside the battery icon
indicates full capacity.
8 - Input Boost level: Only when using an external mic, indicates additional gain, that can be
turned off or set to +19dB or +34dB.
9 - AGC status: Indicates if Automatic Gain Control is turned ON or OFF.
10 - Output volume: The output volume level for headphones or internal speaker (play mode)
can be adjusted from -40.0 dB to + 1.0 dB in 0.5 dB steps.
11 - VU meter: Full scale from -40 dB to 0 dB with peak hold indicator for left and right
channels.
12 - Current status: ■Stop, ΟMonitoring/pre-record (EE) mode, ●Record, ►Play,
Forward, Rewind and ▐▌Pause.
13 - File counters: The upper counter indicates the total number of recorded files. The lower
counter indicates the number of the file ready to be played.
1- Function Name
2- Input Level
3 - Recording Level
4 - VOR status
7 - Battery status
9- AGC status
8- Boost level
10 - Output volume
5 - USB status
11 - VUmeter
12 – Current status
13 - Files Counters
14 - Total file time / Free
record time
15 - Play / Record file name
16 - Audio parameters
17 -Play / Record time
18 - Play progress bar
6 - Keylock status

.
AEQ PAW120
8
14 - Total file time / Free record time: In playback the counter shows the duration of the
current file and in recording it shows the remaining capacity left in the memory.
15 - Play/Record file name: The name of the current file during recording or playback.
16 - Audio parameters: This area shows (left to right), the current file type, the sampling
frequency, the bit rate and the Mono/Stereo mode.
17 - Play/Record time: Display in minutes & seconds the time since the playback or recording
start.
18 - Play progress & free disk space bar (3 colour): During playback the entire bar
corresponds to the selected file. The “filled-in” part indicates the playback progression. In stop
or record mode, it indicates the remaining record space available in the memory.

.
AEQ PAW120
9
2. USING THE PAW120.
Introduction and general information.
The AEQ PAW120 is a hand-held recorder designed for a wide range of applications and
functions, which are described in this manual.
The operating concept is designed around a system of preset templates where all the required
operating settings are stored. The user can choose different parameters of the machine and
these personalised settings are stored in a template for future quick access. There are two sets
of templates: one for the compression mode to be used and the other one to store different
input devices.
The topics covered into this User’s Manual are:
•Field audio recording.
•Playing a previous recording.
•Storing settings in a template.
•Editing a recording.
•File / Folder management.
•Downloading to a computer.

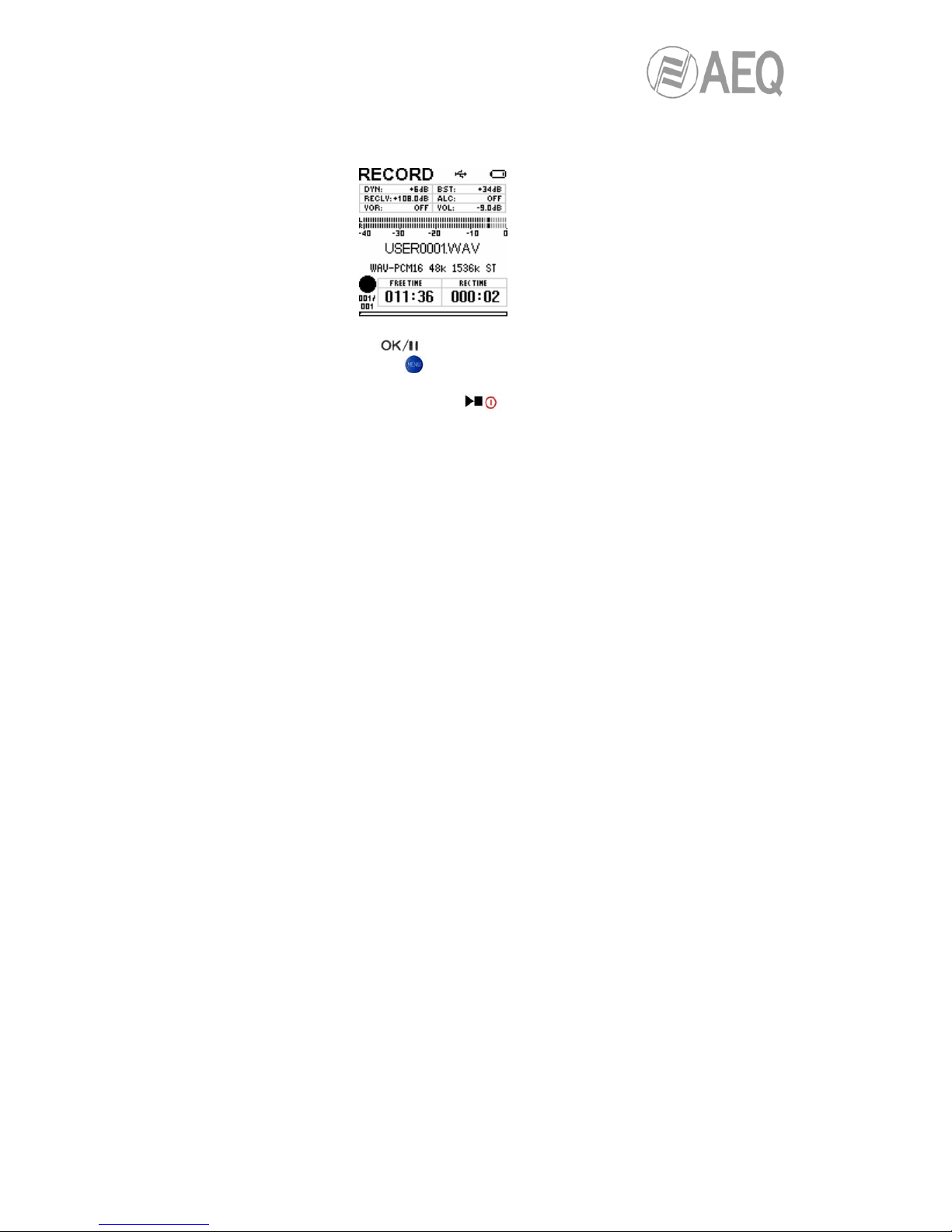

2.1. AUDIO RECORDING.
Before making a recording the input source, compression mode, file name and working directory
need to be defined. The PAW120 makes recordings according to the pre-selected settings
stored in the templates. If nothing is set prior to the first recording then the default settings will
be adopted. If specific settings are required, then they must be selected first defining a
customized template:
•Input device (internal/external microphone or line input).
•Compression format (Linear PCM, MP2, MP3, a-Law, µ-Law, G729a).
•Working directory (where the recorded files will be stored).
When you select the input device, input gain, additional boost, use (or not) of input filter and
power (this two parameters just for external micro) are automatically set according to the
devices template. Select input device and compression template using the “MENU” key
according to the pre-saved templates.
When ready, press the “OK” key and the PAW120 will go to the “PRE REC” mode where the
audio input can be heard on the headphones and the levels are shown on the vumeter. In this
mode the prerecord buffer (3 seconds) is also active.
In this mode, the recording level can be adjusted in 0.5 dB steps using the “ ” or ” ” keys: the
value is shown in the window that appears. Initially, the value corresponds to the preset value
stored along in the input device template. When internal microphone (“INT MIC”) is selected, the
recording level can not be adjusted.

.
AEQ PAW120
10
To begin recording, slide the “RECORD” switch upwards. The red LED and the display
recording symbol will start blinking. The levels are shown and can be adjusted during recording
if necessary.
To pause recording press the “ ” key. To continue recording, press it again. To enter
markers during recording, press the “ ” key.
To stop recording, simply press and hold the “ ” key for 3 seconds.
If the recording is started directly from the “STOP” mode, the Pre-record buffer will be off. If
during the recording the “RECORD” switch is slided upwards again, a new file will be recorded.
Each new recording will be given a file name of up to 8 digits. This file will be stored in the
working directory.
See “Renaming a directory” (chapter 5) for details.
Recording using the AGC.
If the AGC switch is in the “ON” position then the Automatic Gain Control circuit is active and the
manual level controls will no longer operate. The level is controlled automatically to prevent
overloads.
2.2. VOICE OPERATED RECORDING.
The VOR allows the system to start a recording depending on the input level. Two parameters
must be entered:
- the trigger level to start a recording.
- the recording duration once the input signal falls 25 dB below the trigger level.
IMPORTANT: To start a VOR recording, first start the record manually by shifting up the
“RECORD” button.
Once a recording is started using the VOR mode it will stop automatically when one of the
following applies:
•The input signal drops 25 dB below the threshold setting for more than x seconds (user
defined).
•The internal memory of the machine is full.
•The batteries of the machine are flat.
There are two modes of operation for the VOR system:
•Split Track: each VOR operation will create a new TAKE
•Pause Rec: each VOR operation will be added to the previous, thus creating a
continuous TAKE.

.
AEQ PAW120
11
2.3. PLAYBACK.
The AEQ PAW120 can play back files irrespective of the current compression mode selected.
- To playback the last recorded file, press ” ” and the machine starts playback
immediately.
- To stop the playback, press the “ ” key again.
- To pause the playback, use the ” “key.
If recording was made with markers, during the playback press shortly the “ ” key to jump to
the next marker position.
To playback another file from the same working directory, use the “ ” or “ ” keys to scroll
through the recorded files available. Once “ ” is pressed, the selected file will be played
immediately.
During a playback of a file, the full play progress bar corresponds to the total length of the file.
When a new file has been selected for playback the “TOTAL TIME” counter will indicate its full
length and the “PLAY TIME” counter starts increasing once the playback begins.
To REWIND during playback, press and hold the “ ” key, to go FORWARD press and hold
the “ ” key.
2.4. PLAYBACK LEVELS ADJUSTMENT.
The output volume level for the headphones and line output can be adjusted by the right side
Buttons “+ VOL –“ in steps of 0.5 dB from -40 dB up to +1 dB. This value is also shown on the
display and stored in the memory.
2.5. SETTINGS STORAGE IN A TEMPLATE.
Templates are used to store the custom settings for the AEQ PAW120. These templates contain
settings of: input device, levels, filter selection, microphone powering, type of compression,
mono or stereo mode, etc.
- Input devices: 10 templates are available and each can store the name and
characteristics of different input devices such as microphone capsules or line inputs.
The gain setting and powering filters can be selected for each device.
- Compression templates: 10 templates are available and each can be given a dedicated
name and can store the desired compression mode, sampling frequency, bit rate and
file extension.
Templates configuration is explained on “SETUP MENU” chapter in this manual. Once
completed, the desired template can be selected by pressing the “MENU” key. Choose the
corresponding template by its name in the “Set compress template” or “Set input device”.
2.6. FAST DELETING AN AUDIO RECORDING.
Any audio file can be selected from the “STOP” mode by pressing the “ ” or “ ”keys. Once
the corresponding file is shown on the display, press the “ ” key and confirm to delete the
file.

.
AEQ PAW120
12
MENU Set input device OK / > DYN
IECM-1
COND
INT
LINEH
LINEL
Set compress template OK / > HI QUALITY
MUSIC
SPEECH
STENO
Set VOR mode OK / >
V
OR of
f
- 10dB
- 20dB
- 30dB
- 40dB
Cancel
Set VOR stop mode OK / > Pause REC
Split track
Set VOR stop delay OK / > 5 sec
10 sec
15 sec
20 sec
Set AGC target level OK / > - 5 dB
- 8 dB
-11,5 dB
-14dB
Set pre-rec buf
f
OK / > 500 ms
1000 ms
1,5 sec
2 sec
3 sec
Set work directory OK / > RECORD
USER006.DIR
USER001.DIR
USER defined data
3. PRESET MENU.
All the settings and parameters of the AEQ PAW120 are made through a selection of MENUs.
There are two sets of menus: one is used for the selection of the pre-set choices and the other
is used for storing the different settings of the machine.
Press the “MENU” key and the menu that allows you to configure the PAW120 will appear.
The “ “ or “ ” keys will highlight the different options and the “OK” key confirms the selection.
•Set input device: Pressing the “OK” key allows
selection between line input, internal or external
microphone or any other predefined template. Each
input device can be personalized in the “SETUP”
menu.
To change the input device, highlight the desired
option and press “OK”.
Press “C” twice to return to the main window.
•Set compress template: Allows the selection of
different operating templates, containing all the
recording compression settings.
Select by pressing the “ ” or “ ” keys a preset
template. Once selected, press the “OK” key.
Each template stores the following parameters:
•Template name.
•Compression type.
•Sampling frequency.
•Bit rate & Mono/Stereo mode.
•File extension name.
•Set VOR mode: Access to the adjustment of the
Voice Operated Recording mode trigger level. This
sub-menu permits to set the minimum input level for
start recording or to turn off the VOR mode.
•Set VOR stop mode: If “Pause REC” is selected, the
recording will be paused (once the stop delay has
passed) if the level drops 25 dB below the trigger
level. If the input level rises again above the trigger
level, the record on the same file will continue.
If “Split track” is selected, the recording will be stopped (once the stop delay has passed) if
the level drops 25 dB below the trigger level. If the input level rises again above the trigger
level, a new record will start.
•Set VOR stop delay: It permits to select the maximum recording lengt before it stops if the
input level dropped 25 dB below the trigger level.

.
AEQ PAW120
13
•Set AGC target level: This sub-menu permits to select the mean maximum target recording
level. 4 levels are available.
•Set pre-rec buffer: Permits to select the size of the pre-record (in seconds or milliseconds).
•Set Loop mode: Permits to active a playback loop. There are 4 available options: “No loop”,
“Current” (actives the loop just for the selected audio file), “Order” (active a loop with all the
audio files, playing them back in increasing order) and “Random” (same as “Order” but with a
random order).
•Set search speed: Permits to increase the search speed.
•Set work directory: Select the preferred sub-directory into which, files are to be stored
(record or play) and press “OK”.
Work directories can only be created in the “MANAGER” menu. The other directories, like
“USER0001.DIR”, are the ones that include graphical information as well as editing
information and should not be used to store other audio files.

.
AEQ PAW120
14
Select display language OK / >
English
Set auto power down OK / > 15 sec
30 sec
45 sec
1 min
2 min
Disable
Set screen save OK / > 15 sec
30 sec
45 sec
1 min
2 min
Disable
Manager compress template OK / > HI QUALITY OK / >
MUSIC NAME: HI QU
A
SPEECH CORE : WAV- PCM-16
STENO SR : 48000Hz
empty BR : 1536kBps
empty EXT : WAV
empty
USER defined data
Template manage
4. SETUP MENU.
The “SETUP” menu gives access to several sub-
menus. The most important are the compress
templates creation and the input devices manager.
To access to “SETUP” menu from the main
display, press “C”. The microphone and folder
icons appear. Press and hold the “ ” key until the
screwdriver icon appears. By using the “ ” or
“ ” keys, select the screwdriver icon and press
“OK”.
By surfing through the different menu windows, be
aware that in some cases not only the “OK” key
can be used to advance one step but also the
“ “ and “ ” keys.
To go back one step or to escape from a particular
screen press “C”.
When it appears, select the microphone icon and
press “OK” to return to the main display.
•Select display language: Actually 3 languages
are available: English, Spanish and Chinese.
•Set auto power down: This menu allows 5 possible settings to power down the machine
when no keys are pressed for a centain period (except in record, edit or play mode). To turn
the auto power down off, select “Disable”.
•Set screen save: To save battery power, the screen can be turned off automatically with 5
different settings. To turn the screen save off, select “Disable”.
If this mode is active, when no keys are pressed during the selected period, the display will
turn off. Push any key to turn on again the display.
•Manager compress template: Before the templates can be selected from the “PRESET
MENU”, they must be created and stored first. Maximum 10 templates can be entered. They
are used to store different configurations and provide a quick access to them.
To create a new template or edit a previously created one, select the desired one from the list
that appears (“Empty” is you want to create a new one) y press “OK”. The “Template
manager” window will appear, where you can define the following parameters:
•NAME: The selected character can be changed by using the “+”and “-“ ouput
volume buttons. Press the “ “ key to jump to the next character. Maximum 6
characters can be entered. To validate the new name press the “ ” key to go
to the next step.

.
AEQ PAW120
15
Manager input device OK / > DYN OK / >
IECM-1 NAME: DYN
COND TYPE : EXT - MIC
IN
T
GAIN : + 0dB
LINEH BST : + 19dB
LINEL PWR : ON
empt
y
FLT : 100 - 20kHz
empt
y
empt
y
Set speaker mode OK / > off
A
uto
Clear record counter OK / > Clear to zero
Lock input device gain OK / > Manual
Lock
Set record prefix OK/ > U S ER
Set date and time OK / > Date setting
YEAR MONTH DAY
2005 05 01
HOUR MIN
00 5
5
Restore factory settings OK / > Entr
y
OK / > Resume factory setting
Confi r
m
Cancel
Format disk OK / > Format OK / >
Confi r
m
Cancel
Check disk space OK / > USED : 0 MB
FREE : 527MB
Check software version OK / > Infomedi
a
BUILD: 1209
Check machine ID OK / >
720 C - 003C
4158 - 89AC
Datos defi nidos por el USUARI
O
InDev manage
ver 2.6
MACHI NE I D
13
Please confi rm ?
Please confi rm ?
Data will be lost
PAW120
•CORE (Recording file compression type setting): Select one of the
possibilities using the “ “ or “ “ key and press the “ “key to go to the
next step.
•S.R. (Sampling frequency setting): Several options are available, depending
on the file compression type selected. Select one of the possibilities using the
“ “ or “ “ keys and press the “ “ to go to the next step.
•B.R. (Bitrate and mono/stereo mode setting): Several options are available
(see the table at the end of the manual). Select oneof the possibilities using the
“ “ or “ “ keys and press the “ “ to go to the next step.
•EXT (File extension setting): By using the “+” or “-“ output volume keys, the
selected character can be changed. Press the “ “ key to proceed to the next
character position. To confirm the new extension name, press “OK”. Maximum 3
characters can be entered.
•Manager input device: This allows
to define a new input device or edit
a previously created one. Select the
desired one from the list that
appears (“Empty” is you want to
create a new one) y press “OK”.
The “InDev manager” window will
appear, where you can define the
following parameters:
•NAME: The selected
character can be
changed by using the
“+”and “-“ ouput
volume buttons. Press
the “ “ key to jump to
the next character. To
validate the new
name press the “ “
key to go to the next
step.
•TYPE: This sub-menu
gives the selection of
the input that will be
used for recording.
By using the “ “or
“ “ keys, select the
corresponding input
type and press “ “ to
go to the next step.
The available options
in this sub-menu are:
“INT-MIC” (built-in
microphone), “EXT-
MIC” (external
microphone), “LINE”
(line signal), “LINE HI” (high level line signal: +0 dB fixed gain) and “LINE LO”
(low level line signal: +24 dB fixed gain).

.
AEQ PAW120
16
•GAIN: The input device gain can be pre-adjusted. To modify the value, if it’s
possible, use the “ “ or “ “ keys. Once the corresponding value is set, press
“ “ to go to the next step.
•BST: Only for “EXT-MIC” an additional boost can be added to the previous gain
setting. By pressing the “ “ or “ “ keys, the boost can be set to +19dB or
+34 dB. Once the corresponding setting is made, press “ “ to go to the next
step.
•PWR: Power can only be turned on for “EXT- MIC”. The power available for the
Mic is 3V dc. By pressing the “ “ or “ “ keys, power can be turned ON or
OFF.
•FLT: A filter can be selected for “EXT-MIC”. By pressing the “ “ or “ “ keys,
you can select one of the two available options. Press “OK” to validate.
•Set speaker mode: The AEQ PAW120 has a built-in speaker for audio monitoring. The
speaker can be turned “Off” or set to “Auto”. In the “Auto” mode the speaker is active during
playback or editing only. During record or monitoring (EE) mode, the speaker is turned off.
•Lock input device gain: Permits to lock or unlock the input gain adjustment from the record
or pre-record display. Normally the input gain is stored in the input templates.
•Set record name prefix: This sub-menu allows 4 characters to be entered. Once being in the
“Input record prefix” menu use the “+” or “-“ output volume keys to select the corresponding
character. Press the “ “ key for the next character position. Once all the characters are
entered, press “OK”.
•Set date and time: It permits to set the correct time start and date for each recording. Use
the “ “or “ “ keys to set or “ “ keys to go to the next step. Once the settings made,
press “OK”.
•Clear record counter: Every recording has an index number incrementing automatically.
Resetting the counter, by pressing “OK” when “Clear to zero” is shown, resets it to 1. The
next recording will have the full name XXXX0001. If there are still files in memory and the
USER name has not been changed, the next recording with the same name prefix and index
will overwrite the old one.
•Restore factory settings: This sub-menu permits to restore the factory settings, including
the template settings names, input devices etc.
•Format disk: If you need to erase all information on the internal memory, the fastest way is to
format it. Once formatted, “No File” will be shown on the display. The three XXX.DAT files in
the “SYSINI” folder will not be deleted.
•Check disk space: Indicates in Mbytes, the remaining space left in the memory and the used
space up to now.
•Check software version: This sub-menu shows the type of the machine and the software
version installed.
•Check machine ID: This sub-menu shows the serie number of the machine.

.
AEQ PAW120
17
OK/
>
Retur
n
OK/
>
Retur
n
OK/
>
RECORD
USER0001.DIR Make Dir SYS.INI
USER0002.DIR
NEWDI R
USER0001.WA
V
USER0002.WAV
OK/ > Return OK/ > Entry OK/ > Return OK/ > Return
USER0001. DIR Play Make Dir
USER0002. DIR Erase
NEWDI
R
Make Di r
USER0001.WA
V
Rename OK/
>
New Name
USER0002.WA
V
N E W D I R
OK/ > Return OK/ > Play OK/ > Vuelve a ventana principal
USER0001. DIR Erase OK / > USER0001. WAV
USER0002.DIR confirmfile delete ?
NEWDIR DELE / Cancel
USER0001.WAV
USER0002.WAV Edit OK / > Vuelve a ventana de edición
Wipe OK/ > Limpia el archivo de audio original
Copy t
o
OK/
>
RECORD
USER006.DIR
USER001.DIR
NEWDI R
Move to OK/
>
RECORD
USER006.DIR
USER001.DIR
NEWDI R
Make di r OK /
>
Directorio nuev
o
Rename OK/
>
New Name
U S E R 0 0 0 1
Datos definidos por el USUARIO
5. FILE / FOLDER MANAGER.
The “MANAGER” acts like the explorer on a PC. It offers the possibility to create, erase, move,
copy and rename directories or files.
To access to “MANAGER” from the main display, press “C” and use the “ ” or “ ” key to select
the folder icon and then press “OK”.
•Return to root: To return
to ROOT level, press
“OK”, then select
“Return” and press “OK”
again.
•Entering a directory:
Highlight the directory
name and press “OK”.
Then select “Entry” and
press “OK”. The files in
this directory will then be
shown.
•Erasing a directory: To
erase a directory,
highlight the directory
name and press “OK”.
Then select “Erase”
followed by “OK”. A
confirmation window
appears to confirm the
erasure of the directory
and all included files. If
“DELE” is selected the
directory and all included
files will be deleted.
•Making a directory:
Press “OK” and select
“Make dir”. Press “OK”
once and the folder
“NEWDIR” will be shown
on the display.
•Renaming a directory:
To rename a directory,
highlight the directory
name and press “OK”. Then select “Rename” and press “OK”. The selected character can
now be changed by using the “+” or “-“ output volume keys. Press the “ ” key to move to the
next character. Press “OK” when completed. A maximum of 8 characters can be entered.

.
AEQ PAW120
18
•Erasing a file: To erase a file, highlight the file name and press “OK”. Then select “Erase”
followed by “OK”. A confirmation window will appear. Select “DELE” and confirm by pressing
“OK”.
•Editing a file: Highlight the file name and press “OK”. Then select “Edit”, press “OK” and the
selected audio file will be shown in the edit display. Editing is only possible on audio files
recorded with the AEQ PAW120. All imported audio files via USB can not be edited.
If the selected audio file is shown with the icon it can be edited; if it is shown with the icon
it can not be edited. All MPEG files recorded on the PAW120 using 44.1 KHz sampling can
also not be edited on the machine.
After editing, the original audio file is not at all modified. The editing information is stored in
separated data files. When this audio file is copied to the PC or MAC it still has his original file
length, but when this file is played back on the machine, it will only playback the parts decided
by the editing.
•Wiping a file: Highlight the file name and press “OK”; then select “Wipe” and press “OK”.
This function creates a new file that is a copy of the original audio file where the edition cuts
have been applied (therefore it will have less lenght than the original). This new file name is
the same but with a number 1 at the end (if you apply this function to USER0005.WAV file, for
instante, the USER0005-1.WAV file will be created). If you edit several time the original file
and, after each edition, you apply this function, new files will be created ended on 1, 2, 3...
•Copying a file: To copy a file from the ROOT or from one directory to another, highlight the
file to be copied and press “OK”. Select “Copy to” and press “OK”. Select the new directory
(by pressing the “ “, “ “, “ “ and “ “ keys) and press “OK”.
•Moving a file: To move a file from the ROOT or from one directory to another, highlight the
file to be moved and press “OK”. Select “Move to” and press “OK”. Select the new directory
(by pressing the “ “, “ “, “ “ and “ “ keys) and press “OK”.

.
AEQ PAW120
19
Run status
Marker B
Marker A
Original file lenght
Actual file lenght
Modulemeter
Playback counter
Marker A position
Marker B position
6. EDITION.
The AEQ PAW120 is fitted with a simple audio editor. It only allows to remove sections of
unwanted audio. This is done by setting 2 edition markers (A and B) and then deleting the
portion between these 2 points.
To start editing a recorded file, first go to the “MANAGER” menu and select the file that needs
to be edited. Press the “ ” key or press “OK”, select “Edit” and press “OK” again to start
editing.
6.1. EDITION DISPLAY.
6.2. AUDIO EDITION.
The audio file appears graphically. The virtual playback head is in the middle of the screen. The
full length of the screen corresponds approximately to 10 seconds of sound (without zooming).
Press the “ ” key four times to modify resolution and the available options will appear: 1, 3, 6
or 10 frames/pixel.
To start or to stop the playback, press the “ ” key.
You can move though the file by pressing the “ “ and “ “ keys or by pressing the “ “ and
“ “ keys to do it at bigger intervals. If you need to place the playback head in an exact
position, press the “ ”key once. A sub-window appears permitting to enter in minutes and
seconds the requested position by pressing the “ “, “ “, “ “ and “ “ keys. Once all numbers
are entered, press “OK”.
If recording was made with markers, press the “ ”key twice and a list of them will appear
where you can select one to jump to its position.
