The D2500 Telecom Analyzer
is the culmination of thirty years
of experience that Aethra has
in the development and
production of test instruments.
It has been designed to meet
the requirements of technicians
working in the Telecoms industry,
and its range of capabilities
makes it an indispensable
toolkit - probably the only tester
the engineer needs to carry
around with him.
Wide range of features
The D2500 to address a wider range of applications such as
Service Verification over PRI, BRI, Frame Relay Links, WAN
and ISDN lines, and also testing of DCE/DTE connections over
a range of interfaces. Additionally, testing for G.SHDSL, HDSL
and IP across the Internet is also provided.
Graphic interfaces
The new, improved Graphical User Interface uses smart
windows drop-down menus. This makes navigating around
the configuration procedures extremely easy and minimizes
time required to achieve proficiency with the tester.
Smart Status™
This feature is always available - even while a test is in progress,
thus allowing continuous monitoring of clock frequency,
alarms, errors, PCM time-slot status, channel configurations
and test parameters, as well as the unit’s own device status.
Telecom analyzer
ISDN & Telecom standards
On board support for multiple protocols
WAN & DATACOM
Leased line & Datacom
Pre-Qualification Testing
Flexible Operation
Control all Functions locally
or via Remote Control

Aethra and the Aethra logo are registered trademarks of Aethra SpA in Italy and in other Countries. All other company and product names may be registered trademarks or trademarks of their respective owners.
All information provided by Aethra SpA in this datasheet is believed to be accurate. Aethra SpA reserves the right to discontinue and change specifications and prices at any time without notice. Copyright © 2006 Aethra SpA
All rights reserved. For further details about technical specifications please see “Products” on our website: www.aethra.com.
AETHRA® SpA
via Matteo Ricci, 10
60126 Ancona (Italy)
Telephone [phone]
Fax [phone]
Video 1 +39.071.2189704
Video 2 +39.071.2189701
Beijing Hong Kong London Madrid
Mexico City Paris Miami São Paulo
Shanghai Shenzhen
Email:[email protected]
www.aethra.com
Telecom interfaces
• Basic Rate Access
S/T ITU-T Rec.I.430, ETS 300 012
U 2B1Q and 4B3T, TS 102 080
• Primary Rate Access
Interface CCITT G.703 (2Mbps) / G.704
E1 ITU-T Rec.I.431, ETS 300 011
2Mbit PCM30/CRC, PCM31/CRC,
Unframed
• WAN/Datacom (option)
Sync X.21/V.11, V.24, V.35,
V.36 (RS449), G.703 co-dir
Bit Rates 50bps - 2048Kbps (Nx64)
Async V.24 (RS232)
Bit Rates 50bps - 230400bps
V.11/X.21 interface Integrated on board
(VX21-2500 option)
Clock frequency Measurement (±1Hz) and
shift management (±100ppm)
Protocols supported
• Simulation mode EDSS-1, Q.SIG, 1TR6,
TN1R6®, VN4, X.25, X.31,
DASS-2, DPNSS, CorNet®-N,
-NX, -NQ, -T, PPP, IP, UDP,
DHCP, ICPM, TFTP, HTTP, FTP,
Frame Relay,
• Monitor mode EDSS-1, Q.SIG, 1TR6,
TN1R6®, VN4, X.25, X.31,
DASS-2, DPNSS, CorNet®-N,
-NX, -NQ, -T,
• Other protocols available V.5.1, V.5.2, NI1, DMS100, 5ESS

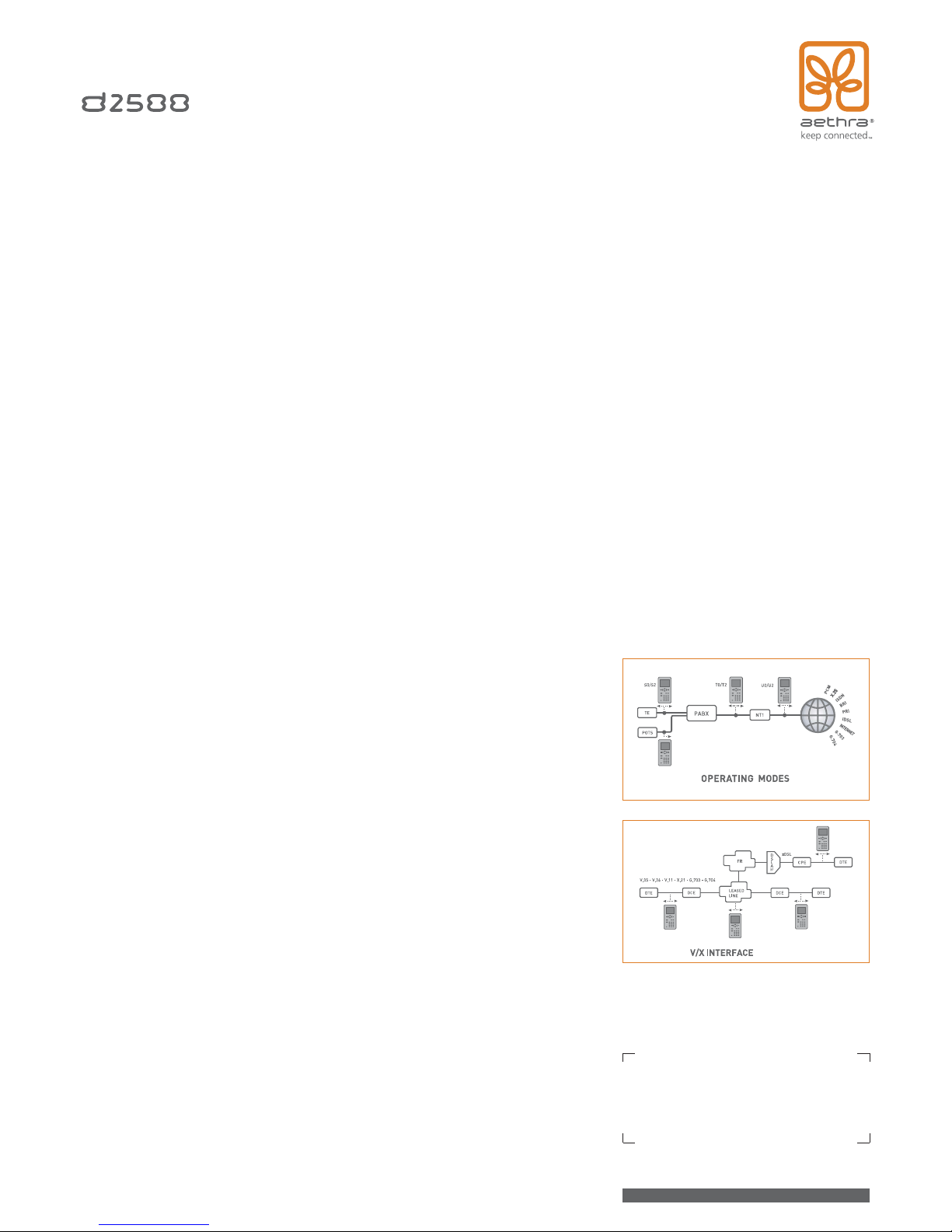

Operating modes available
• Basic Rate Access BRI TE-S, BRI MON-S,
BRI NT-S, BRI NT-U,
BRI MON-U (D2022 option),
BRI LT-U (LTU-2K option),
BRI S/T-Bus wiring test
(WT2000 option)
• Primary Rate Access PRI TE-E1, PRI MON-E1,
PRI MON-E1 PMP,
PRI NT-E1,
• POTS/Analog TE (AB2000N option),
MON (AB2000N option)
• V/X DTE, DCE (VX2000 and VX21-
2500 option when required)
• Pattern generation Single, n x 64Kbit timeslot
Smart Status™
• G.826/M.2100
(only PRI) ES, SES, BBER, UAS
• ISDN line Layers 1, 2, 3 and B ch status
• V/X interface Control leads, test running, loop,
clock frequency, clock phasing
• 2Mbit FAS, NFAS, MFAS, NMFAS,
alarms, errors, sync, CAS
channel status,
• Frame Relay (FR2K) DLCI, LMI, and quality test
Background monitor
• Modes High impedance and during
simulation
• Protocol analysis
on-board
• Programmable filters Independent filters’ capturing
and displaying
• Statistics information
• Analysis of the results
stored on PC PC108 for Windows™
Automatic access test
• Fully automated Access test
• Supplementary services automatic test
• Programmable test sequence
Bit error rate test
• G.821 statistics ES, SES, US, DM, PASS/FAIL,
S-LOSS
• Pseudo-Random User definable 211-1, 215-1, 223-1,
bit sequences User All 0’s, All 1’s, 10101010,
16 bit octet, HDLC frame
• Error Injection Manual, Automatic, Single
Manual sending
• Types Bit, LFA, LOS, AIS, NMFAS, Sa,
RAI (A bit), E bit, CRC, CV,
control leads
Generate traffic
• Number of cycles Up to 65535
• Number of parallel calls Up to 30 (PRI)
• Delay between calls User selectable
X.25/X.31
• Modes SVC, PVC
• Logical Types DTE, DCE
• Tests Traffic generator, Echo port
IP
• Modes IP routed, IP over PPP
(Client and Server)
• IP address supported Static, Dynamic
• Authentication
protocolPPP PAP, CHAP (MD5)
• Protocols IPv4, UDP, DNS, DHCP
ICMP, TFTP, HTTP, FTP
Frame relay (FR2K)
• Frame Relay Forum FRF.1.1, FRF.3.1, FRF.12.1, FRF.14
• Type of traffic IP, IP over PPP
• LMI ITU-T Q.933, ANSI T1.617,
original LMI CISCO
• Logical Types UNI, CPE, NNI
• QoS statistics FECN, BECN, DE, NLPID, DLCI,
FRF.12
U-BUS loop qualification
• U-Bus voltage measurement
• Loop resistance measurement (Ω)
• Programmable simulation “NT-load” over U-Bus
• Activation/Deactivation time measurement (msec.)
History and predefined tests features
Saving and recalling of 10 different setup and results
for each kind of test
Connectors
• Primary Access interface RJ45 120Ω, BNC 75Ω
• V.11/X.21 DB-15
• S/T Basic Access interface RJ45 (ISO 8877)
• U Basic Access interface RJ45 (ISO 8877)
• RS232 DB-9 (V.28 CCITT ISO4902)
• Handset 4 wires RJ9. Balanced, 600Ω
• Power in External AC/DC adapter
• Power out Mini-DIN 4 wires connector
Environmental characteristics
• Dimension
Weight, with battery 1 kg
Dimensions,
with holster (mm) 130 (w) x 260 (l) x 65 (d)
• Power
Battery Type Rechargeable, Ni-MH
Battery life 3 hours @ 25°C, LCD back-lit off
External AC/DC adapter 115/230Vac ±10% @ 50/60 Hz
~
~
~
~
Temperature
• Storage/Transport - 40°C to +70°C
• Operating, nominal - 5°C to +45°C
• Operating, limits -10°C to +55°C
• Humidity, non-condensing 93% RH @ 40°C
70% RH @ 55°C
• User's Safety Aspects EN 61010-1,EN 60950,
EN 41003
• EMC Aspects EN 55022, EN55024,
EN 61000-3-2 / -3-3
• CE Marking Class B (residential devices)
Miscellaneous
• LCD display 240x200 Graphic display
wide bright an back-lit
• Internal microphone & loudspeaker
• Upgradable firmware
• MultiMediaCard™
memory extension MMC2000 Option
Options
• INET2500 HTTP, FTP Internet download
• VX21-2500 X.21 / V.11 interface
• WT2000 S0/T0 wiring test
• AB2000N Analog (POTS) line adapter
• LT-U2K BRI LT-U simulation
• D2022-Q BRI U (2B1Q) interface monitor
• D2022-T BRI U (4B3T) interface monitor
• MMC2000 MMC Memory extention
• VX2000 DTE/DCE Datacom tester
• FR2K Frame Relay test suite
• PC108XP EXPERT More performing version for
license protocol analysis and remote
management
• KCX21-DXE2500 X21/VII DTE/DCE CABLE KIT
• KCX2K-DTE Cable Kit for VX2000
DTE simulation mode
• KCX2K-DCE Cable Kit for VX2000
DCE simulation mode
<
–
<
–
Technical Specifications
