1. General Overview
The GeForce GTX10 MXM series are powered by the next-generation NVIDIA
Pascal™ architecture, which delivers blazing-fast performance, advanced graphics
technologies, and improved battery life. Now you can take on your PC games with
faster, smoother gameplay at ultra-settings. Game advanced, unplugged.
The Aetina GTX10 MXM module is the compact, thinnest graphics module solution
based on the industrial standard Mobile PCI Express Module Version 3.1
specification, delivering the latest and leading-edge GPU benefits for your
embedded system. It’s superior graphics performance, GPU computing and video
capabilities are the ideal solution for performance demanding systems such as
digital signage, medical image, defense and aerospace applications.
1.1 Features
Powered by NVIDIA Pascal ™ architecture GPU GeForce GTX 1060/1070.
Featuring thousand optimal CUDA cores.
Support optimal resolution 8K UHD at 60Hz.
High-end DirectX12 compatible graphics module.
Unrivaled Graphics Computing performance and superbly-detailed image
quality.
Ideal for medical imaging, gaming, defense and aerospace applications.
1.1.1 GPU
GeForce GTX 1060
CUDA cores: 1280
Core clock: 1404MHz (Boost: 1670MHz)
Voltage: Variable
Package size: 37.5 mm x 37.5 mm, 2152 ball flip-chip, plastic ball grid array
(FCPBGA)
GeForce GTX 1070
CUDA cores: 2048
Core clock: 1442MHz (Boost: 1645MHz)
Voltage: Variable

AETINA CONFIDENTIAL
UM-M3N1060-MN-v05
- 3 -
Package size: 37.5 mm x 37.5 mm, 2152 ball flip-chip, plastic ball grid array
(FCPBGA)
1.1.2 Board
GeForce GTX 1060
12-layer printed circuit board (PCB)
16-lanes PCI Express 3.0 capable (x16/x8)
MXM3.1 Type B form factor
Physical dimensions: 105mm x 82mm (single width)
Board power : 78 W
High-Bandwidth Digital Content Protection (HDCP) support
GeForce GTX 1070
12-layer printed circuit board (PCB)
16-lanes PCI Express 3.0 capable (x16/x8)
MXM3.1 form factor
Physical dimensions: 113mm x 82mm (single width)
Board power : 115 W
High-Bandwidth Digital Content Protection (HDCP) support
1.1.3 Memory Configuration
GeForce GTX 1060
Memory clock: 4004 MHz (8 Gbps)
Interface: 192-bit
Local frame buffer: 6 GB (6pieces 256M x 32 GDDR5, FBGA-170 package)
GeForce GTX 1070
Memory clock: 4004 MHz (8 Gbps)
Interface: 256-bit
Local frame buffer: 8 GB (6pieces 256M x 32 GDDR5, FBGA-170 package)
1.1.4 Support
NVIDIA CUDA Technology (Compute capability 6.1)
NVIDIA Optimus Technology
NVIDIA Ansel
NVIDIA GPU Boost 3.0
Microsoft DirectX 12
Vulkan

AETINA CONFIDENTIAL
UM-M3N1060-MN-v05
- 4 -
OpenCL
OpenGL 4.5
VR Ready
1.1.5 Display Support
LCD –eDP 1.4
Maximum resolution over eDP 1.4 port: 4096 x 2160 at 60Hz
DisplayPort 1.2 (DisplayPort 1.3/1.4 Ready)
Maximum resolutions RBG 8-bit with dual-DisplayPort connector: 7680 x
4320 at 60Hz
Maximum resolution YUV420 8-bit with one DisplayPort connector: 7680 x
4320 at 60 Hz
HDMI 2.0
Maximum resolution over HDMI: 4096 x 2160 at 60Hz
HDCP Support 1.3 and 2.2
1.1.6 Cooling System
N/A
1.1.7 Operating System Support
Windows® 7 - 10
Linux
Note:
1. Windows10 requires November 2015 update or newer.
2. The WINDOWS operating system requires “Battery Module Enabled” (NOT RTC). If the battery module enabled,
you can find the battery icon on the right side of the taskbar, as the below figure.
※Please contact your system BIOS vendor to get help.

AETINA CONFIDENTIAL
UM-M3N1060-MN-v05
- 5 -
1.2 Configuration
Table 1.1 lists the SKU configuration currently available for the GeForce GTX
1060/1070 MXM graphics module.
Table 1.1: Board configuration
Specification
M3N1060-MN Description
M3N1070-NN Description
Chip
GeForce GTX 1060
GeForce GTX 1070
Core clock
1404MHz (Boost: 1670MHz)
1442MHz (Boost: 1645MHz)
Memory clock
4004MHz (8.0 Gbps)
4004MHz (8.0 Gbps)
Frame buffer
6 GB GDDR5
8 GB GDDR5
Memory interface
192-bit
256-bit
Memory type
256M x 32 GDDR5 FBGA-170
package
256M x 32 GDDR5 FBGA-170
package
Memory AVL
Samsung K4G80325FB-HC25
Samsung K4G80325FB-HC25
Maximum board power
78 W
115 W
Connectors
MXM 3.0 Connector
Interoperability
MXM 3.0 Connector
Interoperability
HDCP support
Yes
Yes
Supplementary Power
Connector
N/A
4-pins (PWR_SRC)
Operating Temperature
Standard: 0°C to +55°C
Extreme temperature: Optional
Standard: 0°C to +55°C
Storage Temperature
-40°C to 125°C
-40°C to 125°C
Operating Humidity
10~90%, No Condensation.
10~90%, No Condensation.

AETINA CONFIDENTIAL
UM-M3N1060-MN-v05
- 6 -
2. Display Options
Table 2.1 list the GeForce GTX10 MXM graphics module display options.
Table 2.1: Display Options
Displays Supported for Each Interface
DP_A
DP_B
DP_C
DP_D
DP_E
DP_F
DisplayPort,
HDMI
DisplayPort
DisplayPort,
HDMI
eDP only
DisplayPort,
DVI (single-link
or dual-link with
DP_F)
DisplayPort,
DVI (dual-link
with DP_E)
Note:
1. DP_P cannot be used for driving an external display.
2. System without Dual-link display can be supported up to four digital displays at the same time.
3. All display interfaces that support DisplayPort can be support dual-mode DisplayPort.

AETINA CONFIDENTIAL
UM-M3N1060-MN-v05
- 7 -
3. Functional Description
3.1 Board Architecture
The AETINA M3N1060-MN is based on MXM 3.1 Type B form factor.
The AETINA M3N1070-NN is based on MXM 3.1 form factor.
Figure 3.1: Block diagram

AETINA CONFIDENTIAL
UM-M3N1060-MN-v05
- 8 -
3.2 General Purpose Graphics Processing Unit
The AETINA GeForce GTX10 MXM series are based on NVIDIA Pascal GPU.
M3N1060-MN is based on GeForce GTX 1060. 1280 CUDA core enabled and
M3N1070-NN is based on GeForce GTX 1070. 2048 CUDA core enabled. All of them
are compliant with NVIDIA’s CUDA compute capability 6.1.
3.2.1 Gpu Resoures
GeForce GTX 1060
GDDR5 SDRAM
-6 pieces 256M x 32 GDDR5, total capacity of 6144 Mbytes
-192bit data bus width
-8.0 Gbps clock frequency
BIOS ROM
-8Mbit SPI FLASH for BIOS image
GeForce GTX 1070
GDDR5 SDRAM
-8 pieces 256M x 32 GDDR5, total capacity of 8192 Mbytes
-256bit data bus width
-8.0 Gbps clock frequency
BIOS ROM
-8Mbit SPI FLASH for BIOS image
3.3 Display Interface (Optional)
The AETINA GeForce GTX10 MXM series provide six digital output channels. Four
channels can be active at same time.

AETINA CONFIDENTIAL
UM-M3N1060-MN-v05
- 9 -
3.3.1 Graphics Output channels
Figure 3.2: Output channels
3.3.2 Digital Output
The AETINA GeForce GTX10 MXM series supported 6x digital outputs via MXM
connector.
DP_A/DP_B/DP_C/DP_D/DP_E/DP_F; dual-mode DisplayPort; maximum
resolution over digital port: 7680 x 4320 at 60 Hz.
3.3.3 Analog Output
The AETINA GeForce GTX10 MXM series not support analog output.
3.3.4 AUX
The AETINA GeForce GTX10 MXM series support AUX for DisplayPort monitor.
3.3.5 Hot Plug
The AETINA GeForce GTX10 MXM series support Hot Plug detect for digital
monitors.

AETINA CONFIDENTIAL
UM-M3N1060-MN-v05
- 10 -
3.4 PCI Express
The AETINA GeForce GTX 10 MXM series support a native x16 PCI Express Gen3/2/1
bus interface and also supports x8 lane widths.

AETINA CONFIDENTIAL
UM-M3N1060-MN-v05
- 11 -
4. Pin Definition
4.1 Board Interface
Figure 4.1: M3N1060-MN Board layout Figure 4.2: M3N1070-NN Board layout
The table 4.1 shows the board layout and connector to familiarize users with
M3N1060-MN/M3N1070-NN MXM graphics module.
Table 4.1: Board layout and connectors
Specification
Describe
Specification
Describe
G1
GeForce GTX 1060 GPU
G1
GeForce GTX 1070 GPU
CN1
MXM connector
CN1
MXM connector
J5
Supplementary Power
connector
G1
G1
J5
CN1
CN1

AETINA CONFIDENTIAL
UM-M3N1060-MN-v05
- 12 -
4.2 Supplementary Power Connector Pin Assignments
4.2.1 Supplementary Power Connector

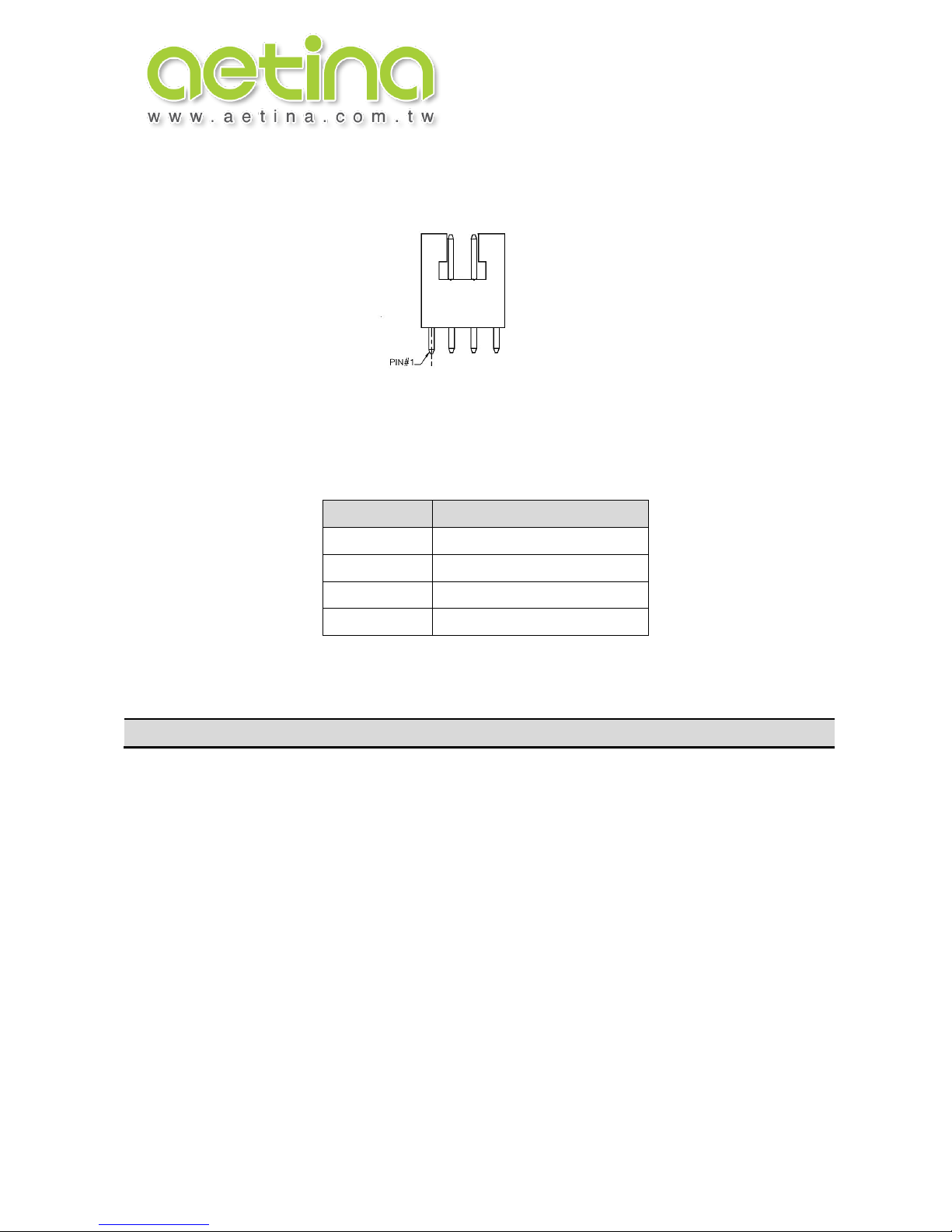

Figure 4.3: Supplementary power connector
4.2.2 Connector Pinout
Pin
Signal Name
1
GND
2
GND
3
PWR_SRC
4
PWR_SRC
Table 4.2: Power connector pinout
Note: The P/N of mating connector on carrier board or system board: ACES: 50299-00401-004

AETINA CONFIDENTIAL
UM-M3N1060-MN-v05
- 13 -
4.3 MXM Pin Assignments
4.3.1 MXM Connector

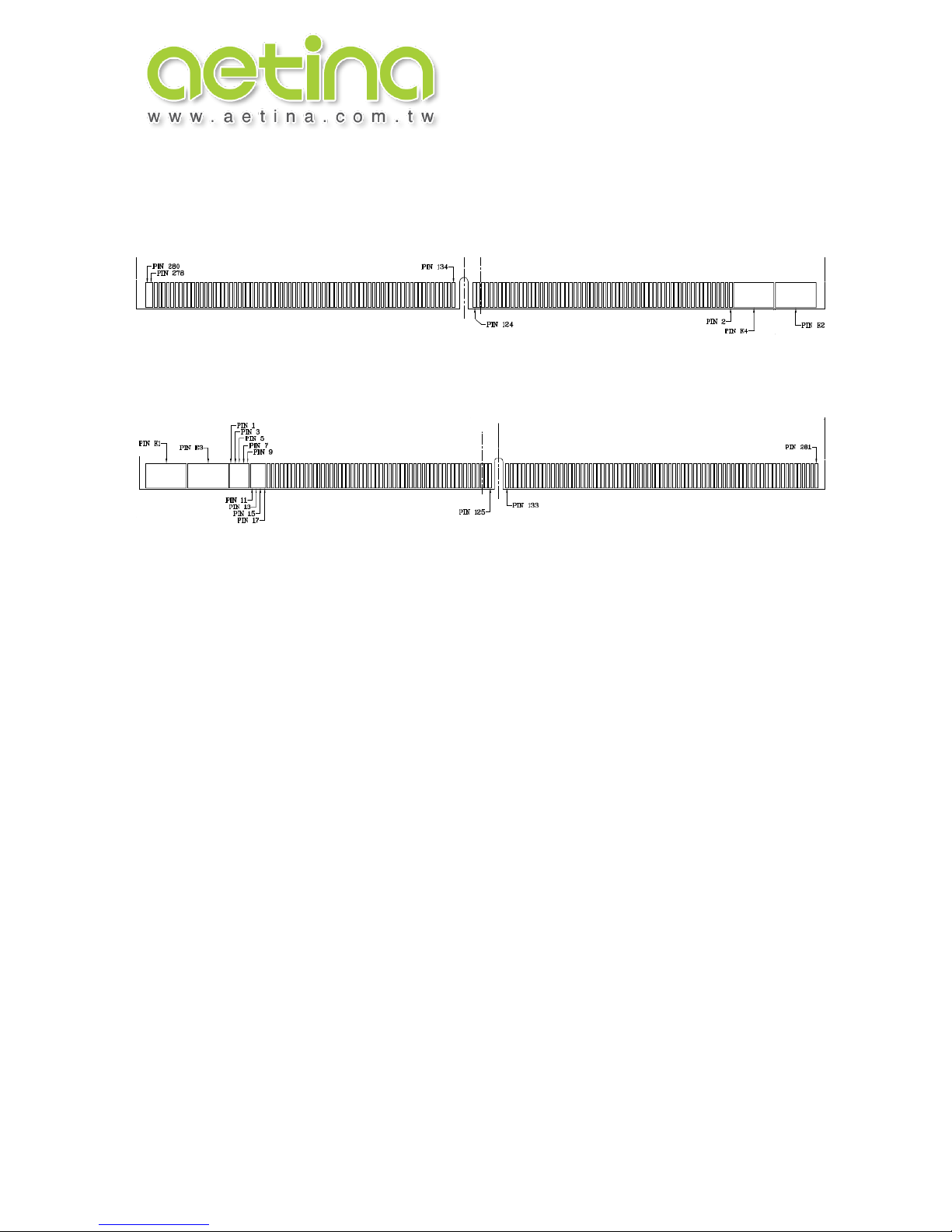

Figure 4.4: MXM connector (card TOP)
Figure 4.5: MXM connector (card BOTTOM)
4.3.2 MXM connector Pinout

AETINA CONFIDENTIAL
UM-M3N1060-MN-v05
- 14 -
Table 4.3: MXM connector pinout

AETINA CONFIDENTIAL
UM-M3N1060-MN-v05
- 15 -
Table 4.4: MXM connector pinout (continued)

AETINA CONFIDENTIAL
UM-M3N1060-MN-v05
- 16 -
4.3.3 MXM OEM and GPIO Pin Assignment
Table 4.5: MXM/GPIO pin assignment
MXM OEM/GPIO1
Signal Name
IO Type
OEM 4
GPU_EVENT#
IN
OEM 5
GC6_FB_EN
OUT
OEM 6
GPU_STEREO
OUT
OEM 7
FRAMELOCK#
IN
GPIO 0
GPIO 21
Tri-state
GPIO 1
GPIO 22
Tri-state
GPIO 2
RESERVE2
NC
Note:
1. If OEM/GPIO pin is not in use, keep it NC in the system board.
2. Keep the RESERVE pin as NC in the system board.
