安提國際 / Aetina Corporation UM-M3N970M-MN-V2

User Manual

GeForce GTX 970M MXM GRAPHICS BOARD

Aetina M3N970M-MN

UM-M3N970M-MN-V2

AETINA CONFIDENTIAL

安提國際 / Aetina Corporation UM-M3N970M-MN-V2

Document Change History

Version

Date

Description

Authors

2015, 5, 8

Initial Release

Jackal Chen

2016/7/29

Rename: Document no.

AETINA CONFIDENTIAL

安提國際 / Aetina Corporation UM-M3N970M-MN-V2

Contents

1. General Overview ........................................................................................................................... - 1 -

1.1 Features ................................................................................................................................... - 2 -

1.1.1 GPU.................................................................................................................................... - 2 -

1.1.2 Board ................................................................................................................................. - 2 -

1.1.3 Memory Configuration........................................................................................................ - 2 -

1.1.4 Support .............................................................................................................................. - 3 -

1.1.5 Display Support................................................................................................................... - 3 -

1.1.6 Cooling System ................................................................................................................... - 3 -

1.1.7 Operating System Support................................................................................................... - 3 -

1.2 Configuration............................................................................................................................ - 4 -

2. Display Options............................................................................................................................... - 5 -

3. Functional Description..................................................................................................................... - 6 -

3.1 Board Architecture.................................................................................................................... - 6 -

3.2 General Purpose Graphics Processing Unit.................................................................................. - 7 -

3.2.1 Gpu Resoures ..................................................................................................................... - 7 -

3.3 Display Interface (Optional) ....................................................................................................... - 7 -

3.3.1 Graphics Output channels.................................................................................................... - 7 -

3.3.2 Digital Output..................................................................................................................... - 8 -

3.3.4 Analog Output .................................................................................................................... - 8 -

3.3.5 DDC/AUX............................................................................................................................ - 8 -

3.3.6 Hot Plug ............................................................................................................................. - 8 -

3.4 PCI Express................................................................................................................................ - 8 -

4. Pin Definition.................................................................................................................................. - 9 -

4.1 Board Interface......................................................................................................................... - 9 -

4.2 Pin Assignments.......................................................................................................................- 10 -

AETINA CONFIDENTIAL

安提國際 / Aetina Corporation UM-M3N970M-MN-V2

iii

4.2.1 MXM Connector (Card TOP)................................................................................................- 10 -

4.2.2 MXM Connector (Card BOTTOM) ........................................................................................- 10 -

4.2.3 Connector Pinout...............................................................................................................- 10 -

4.2.4 MXM OEM and GPIO Pin Assignment..................................................................................- 13 -

5. Mechanical Specifications...............................................................................................................- 14 -

5.1 Dimensions..............................................................................................................................- 14 -

6. Thermal Specifications ...................................................................................................................- 15 -

7. Certificates and Agencies................................................................................................................- 15 -

7.1 Certifications............................................................................................................................- 15 -

7.2 Agencies..................................................................................................................................- 15 -

8. Appendix.......................................................................................................................................- 16 -

8.1 Order Information....................................................................................................................- 16 -

AETINA CONFIDENTIAL

安提國際 / Aetina Corporation UM-M3N970M-MN-V2

- 1 -

1. General Overview

The GeForce GTX 970M is powered by the next-generation NVIDIA Maxwell™

architecture, which delivers blazing-fast performance, advanced graphics

technologies, and improved battery life. Now you can take on your PC games with

faster, smoother gameplay at ultra-settings. Game advanced, unplugged.

The Aetina M3N970M-MN MXM module is the compact, thinnest graphics module

solution based on the industrial standard Mobile PCI Express Module Version 3.1

specification, delivering the latest and leading-edge GPU benefits for your

embedded system. It’s superior graphics performance, GPU computing and video

capabilities are the ideal solution for performance demanding systems such as

digital signage, medical image, defense and aerospace applications.

AETINA CONFIDENTIAL

安提國際 / Aetina Corporation UM-M3N970M-MN-V2

- 2 -

1.1 Features

Powered by NVIDIA Maxwell ™ architecture GPU GeForce GTX 970M.

Featuring 1280 optimal CUDA cores.

6GB large memory capacity.

Support 4K resolution at 60Hz over HDMI 2.0.

High-end DirectX12 compatible graphics module.

Unrivaled Graphics Computing performance and superbly-detailed image

quality.

Ideal for medical imaging, gaming, defense and aerospace applications.

1.1.1 GPU

NVIDIA® GeForce GTX 970M

CUDA cores: 1280

Core clock: 924MHz + Boost

Voltage: Variable

Package size: 35 mm x 35 mm, 1745 ball flip-chip, plastic ball grid array

(FCPBGA)

1.1.2 Board

12-layer printed circuit board (PCB)

16-lanes PCI Express 3.0 capable (x8/x4/x1)

MXM3.1 Type B form factor

Physical dimensions: 105mm x 82mm (single width)

Board power : 80 W

High-Bandwith Digital Content Protection (HDCP) support

1.1.3 Memory Configuration

Memory clock: 2500 MHz (5 Gbps)

Interface: 192-bit

Local frame buffer: 6 GB (12 pieces 256M x 16 GDDR5, FBGA-170 package)

AETINA CONFIDENTIAL

安提國際 / Aetina Corporation UM-M3N970M-MN-V2

- 3 -

1.1.4 Support

Microsoft DirectX compute

Multi-Frame sampled Anti-Aliasing (MFAA)

NVIDIA CUDA Technology(Compute capability 5.2)

NVIDIA Optimus Technology

NVIDIA H.264 video encoding

NVIDIA PureVideo HD Technology

NVIDIA PhysX-ready

NVIDIA GPU Boost 2.0

OpenCL

OpenGL

1.1.5 Display Support

LCD –eDP 1.2

Maximum resolution over eDP 1.2 port: 3840 x 2160

LCD –LVDS

Maximum resolution over LVDS port: 1920 x 1200

VGA analog display

400MHz integrated RAMDACs; maximum resolution/reflesh: 2048 x 1536 x

30 bpp at 75 Hz

DisplayPort Dual-mode

Maximum resolution over DisplayPort: 3840 x 2160

1.1.6 Cooling System

N/A

1.1.7 Operating System Support

Windows® 8.1

Windows® 8

Windows® 7

Linux

AETINA CONFIDENTIAL

安提國際 / Aetina Corporation UM-M3N970M-MN-V2

- 4 -

1.2 Configuration

Table 1 lists the SKU configuration currently available for the GeForce GTX 970M

MXM graphics module.

Table 1. Board configuration

Specification

M3N970M-MN Description

Chip

GeForce GTX 970M

Core clock

924MHz + Boost

Memory clock

2500MHz (5.0 Gbps)

Frame buffer

6 GB GDDR5

Memory interface

192-bit

Memory type

256M x 16 GDDR5 FBGA-170 package

Memory AVL

Samsung K4G41325FC-HC03

Maximum board power

80 W

Connectors

MXM 3.0 Connector Interoperability

HDCP support

Yes

Operating Temperature

Standard: 0 to +55 °C

Extreme temperature: Optional

Operating Humidity

20~90%, No Condensation.

AETINA CONFIDENTIAL

安提國際 / Aetina Corporation UM-M3N970M-MN-V2

- 5 -

2. Display Options

Table 2 list the M3N970M-MN MXM graphics module display options.

Table 2. Display Options

Displays Supported for Each Interface

DP_A

DP_B

DP_C

DP_D

LVDS

VGA

DisplayPort

HDMI

DVI (single-link

or dual-link

with DP_B)

DisplayPort

DVI (dual-link

with DP_A)

DisplayPort

HDMI

DVI (single-link)

DisplayPort

eDP

LVDS (single-link

or dual-link)

DVI (single-link or

dual-link)

VGA

Note:

1. Embedded DisplayPort (eDP) is supported on DP_D only.

2. System without Dual-link display can be supported up to four digital displays among

DP-A/B/C/D and LVDS at the same time.

3. All display interfaces that support DisplayPort can be support dual-mode DisplayPort.

AETINA CONFIDENTIAL

安提國際 / Aetina Corporation UM-M3N970M-MN-V2

- 6 -

3. Functional Description

3.1 Board Architecture

The AETINA M3N970M-MN is based on MXM 3.1 Type B form factor.

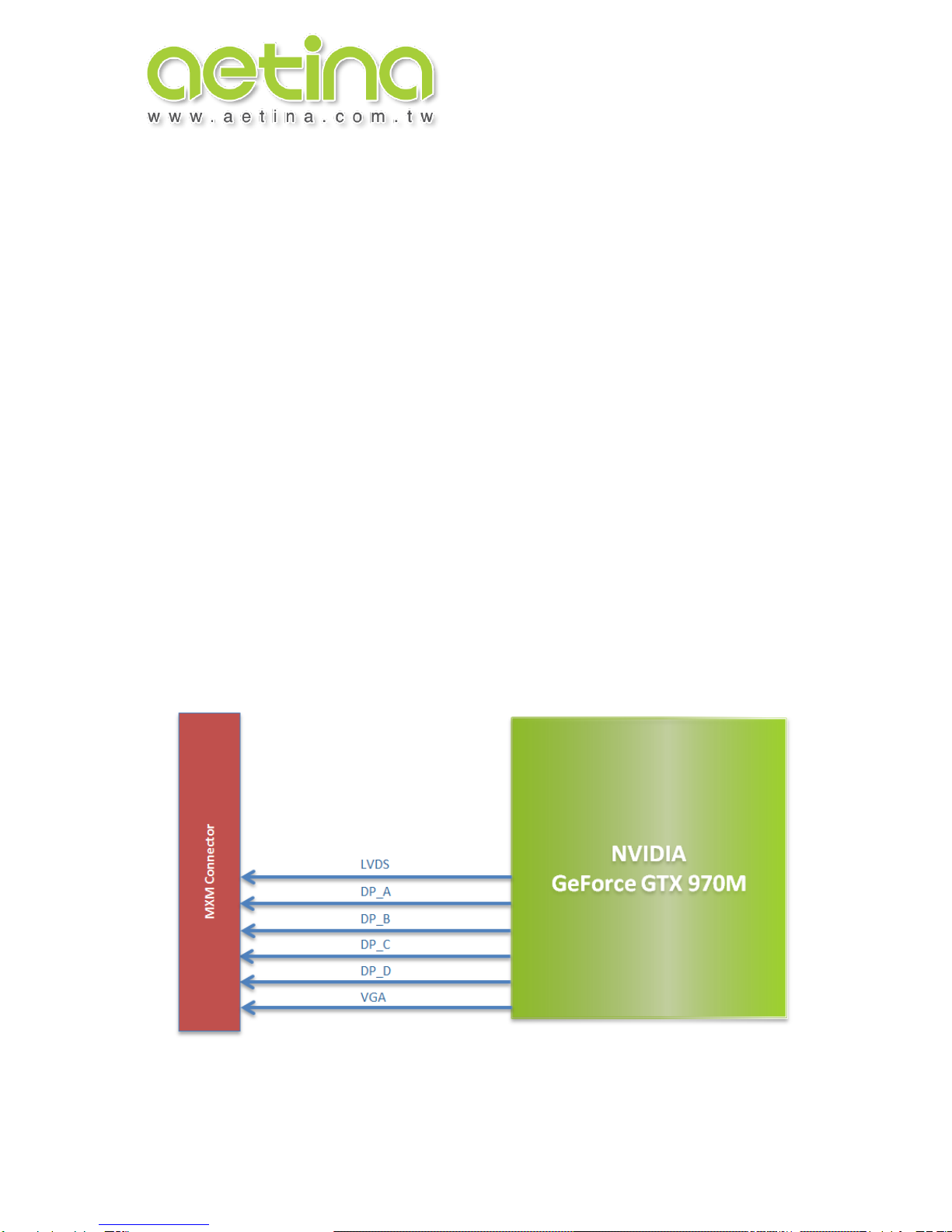

Figure 1. Block diagram
