AgaMatrix WaveSense JAZZ User manual

Key Features in the AgaMatrix
WaveSense JAZZ™
No Coding Required - The AgaMatrix WaveSense
JAZZ doesn’t require you to enter a code. Insert a test
strip and you are ready to test.
Pre/Post Tagging - After you test, tag your reading
with the mealtime. Better organize your data and see
how your test results change before and after meals.
Positive Feedback - AgaMatrix WaveSense JAZZ will
display a smiley face icon if your result is within the
target range.

1
Customer Care: 0800 093 1812
In case of emergency, contact your healthcare professional or
emergency medical response.
Manufacturer:
AgaMatrix, Inc.
7C Raymond Avenue
Salem, NH 03079 USA
©2005-2011 AgaMatrix, Inc.
Meter Firmware ©2004-2011 AgaMatrix, Inc.
US and International Patents Pending. All rights reserved. All trademarks and copyrights
are the property of their respective owners.
8100-02301 Rev F
MDSS GmbH
Schiffgraben 41
30175 Hannover, Germany

2
Contents
Getting Started
Important Health-related Information
Important Information about Your
AgaMatrix WaveSense JAZZ System
About the AgaMatrix WaveSense JAZZ System
Meter Basics
Preparing For a Test With Your AgaMatrix
WaveSense JAZZ Meter
Performing a Control Solution Test
How To Test Your Blood Glucose Level
Testing on Your Palm or Forearm
Data Management Features
Viewing Individual Results
Viewing 14 Day Statistics
Viewing 14, 30, and 90 Day Averages
Viewing Pre/Post Mealtime Averages and Glucose
Variability Tracking
Viewing 1 Month, 2 Week, and 3 Day Trend Graphs
1
2
3
4
5
6
7
8
9
10
10.1
10.2
10.3
10.4
10.5
CHAPTER PAGE
4
4
5
8
14
16
17
22
31
33
34
35
35
36
38
TITLE

3
Setting the Mealtime Tag
Setting Meter Volume
Setting the Time
Setting the Date
Setting Hypoglycaemic Warning Alarms
Setting Hyperglycaemic Warning Alarms
Setting the Glucose Target Range
Setting Alarms
Errors and Troubleshooting
Display Messages
Batteries
Caring For Your Meter and Lancing Device
Meter Specifications
Symbols
11
12
13
14
15
16
17
18
19
20
21
22
23
24
PAGECHAPTER
41
41
42
43
45
46
47
49
51
55
59
62
62
64
TITLE

4
Unpack your AgaMatrix WaveSense JAZZ Blood Glucose
Monitoring System. Dispose of the packing material properly.
IMPORTANT: To ensure accurate use of meter, verify the
time, date and units of measure.
For step-by-step instructions on changing the time and date
settings, please refer to chapters 13 and 14.
Getting Started
1
CHAPTER
Please Read the Following:
[1] Inaccurate results may occur in severely hypotensive indi-
viduals or patients in shock. Inaccurate low results may occur
for individuals experiencing a hyperglycaemic-hyperosmolar
state, with or without ketosis. Critically ill patients should not
be tested with blood glucose meters.
[2] Severe dehydration and excessive water loss may yield
inaccurate results. If you believe you are suffering from severe
dehydration, consult your healthcare professional immediately.
[3] Patients undergoing oxygen therapy may receive
inaccurate results.
[4] Results below 3.9 mmol/L may mean low blood glucose
levels (hypoglycaemia).
Important Health-related
Information
2
CHAPTER

5
[5] Results over 13.3 mmol/L may mean high blood glucose
levels (hyperglycaemia). Checking ketones may be advisable.
[6] If you get results below 3.9 mmol/L or above 13.3 mmol/L
and do not have symptoms of hypoglycaemia or hypergly-
caemia, repeat the test. If you have symptoms, or continue to
get results below 3.9 mmol/L or above 13.3 mmol/L, follow
the treatment plan recommended by your healthcare team or
contact your healthcare professional immediately.
[7] If you are experiencing symptoms that are not consistent
with your blood glucose test and you have followed all
instructions described in the AgaMatrix WaveSense JAZZ
Owner’s Guide, follow your healthcare professional’s recom-
mendations.
[8] Do not use test strips that are expired or appear to be
damaged as they may return inaccurate results.
[9] Healthcare professionals should follow their institution’s
infection control protocols.
[10] Always follow your healthcare professional’s
recommendations.
The AgaMatrix WaveSense JAZZ System should be used:
[1] For measuring blood glucose levels from fresh capillary
whole blood samples taken from the fingertip, palms (at the
base of the thumb), or forearms.
Important Information about
Your AgaMatrix WaveSense JAZZ System
3
CHAPTER

6
[2] For in vitro diagnostic (i.e. outside of the body) use only.
[3] With AgaMatrix WaveSense JAZZ Test Strips and AgaMatrix
Control Solution only. Do not use other brands of test strips and
control solution with this meter. This may produce inaccurate
results.
[4] For use at home (over the counter (OTC)) by persons with
diabetes, or in a clinical setting by healthcare professionals, as
an aid to monitor the effectiveness of diabetes control.
Do not use the AgaMatrix WaveSense JAZZ System for:
[1] The diagnosis of diabetes.
[2] Testing the glucose levels of neonates (children under 4
weeks).
[3] Testing glucose levels of arterial or venous blood.
[4] Testing glucose from sites other than the fingertip, palm
(at the base of the thumb), or forearm.

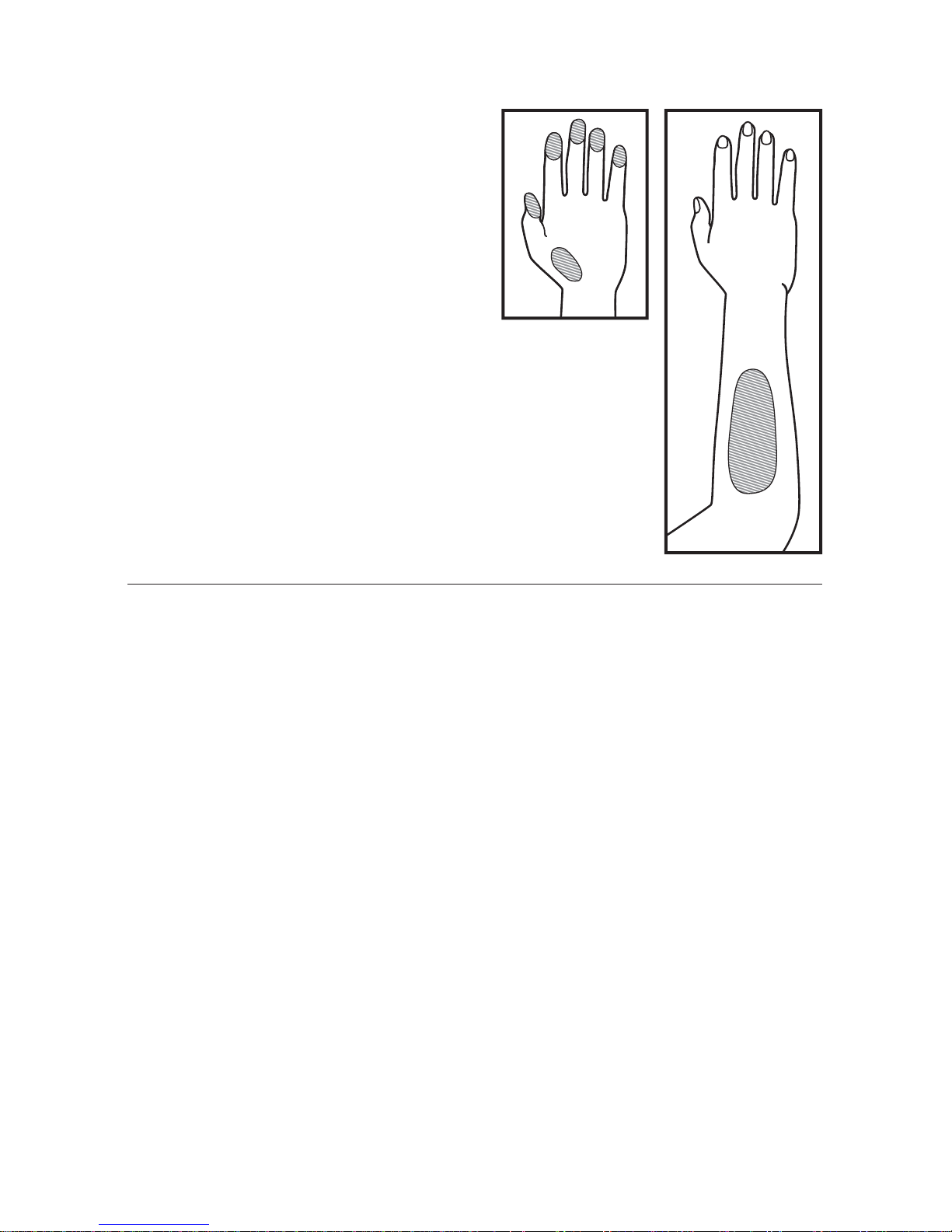

Possible test sites:
The AgaMatrix WaveSense JAZZ System requires only 0.5 μL
of blood to perform a glucose test. For best results, test using
blood from the tip of any finger. The palm (at the base of the
thumb) and forearm are alternate, but less accurate test sites.
Only select soft and fleshy areas to lance. Avoid lancing any
bony areas, obvious veins and moles.

7
Physiological differences
in circulation between the
fingertip, palm (at the base
of the thumb), and forearm
may result in differences in
blood glucose measurements
between these sites.
Differences in glucose
concentrations may be observed after eating,
taking insulin medication, or exercise. Changes
in blood glucose may be detected at the
fingertips before the palm (at the base of the
thumb) and forearm.
It is recommended that you use a ngertip sample if:
[1] You are testing for hypoglycaemia or if you suffer from
hypoglycaemia unawareness,
[2] You are testing your blood glucose within 2 hours of
eating, taking insulin or medication, exercising, or
[3] Your blood glucose results obtained from the palm (at the
base of the thumb) or forearm are not consistent with the way
you feel.
CAUTION: Please read all the instructions provided in this
Owner’s Guide and practice the testing procedures before
using the AgaMatrix WaveSense JAZZ Blood Glucose
Monitoring System. Blood glucose monitoring should be
done under the guidance of your healthcare professional.

8
About the AgaMatrix
WaveSense JAZZ System
4
CHAPTER
Your AgaMatrix WaveSense JAZZ System includes:

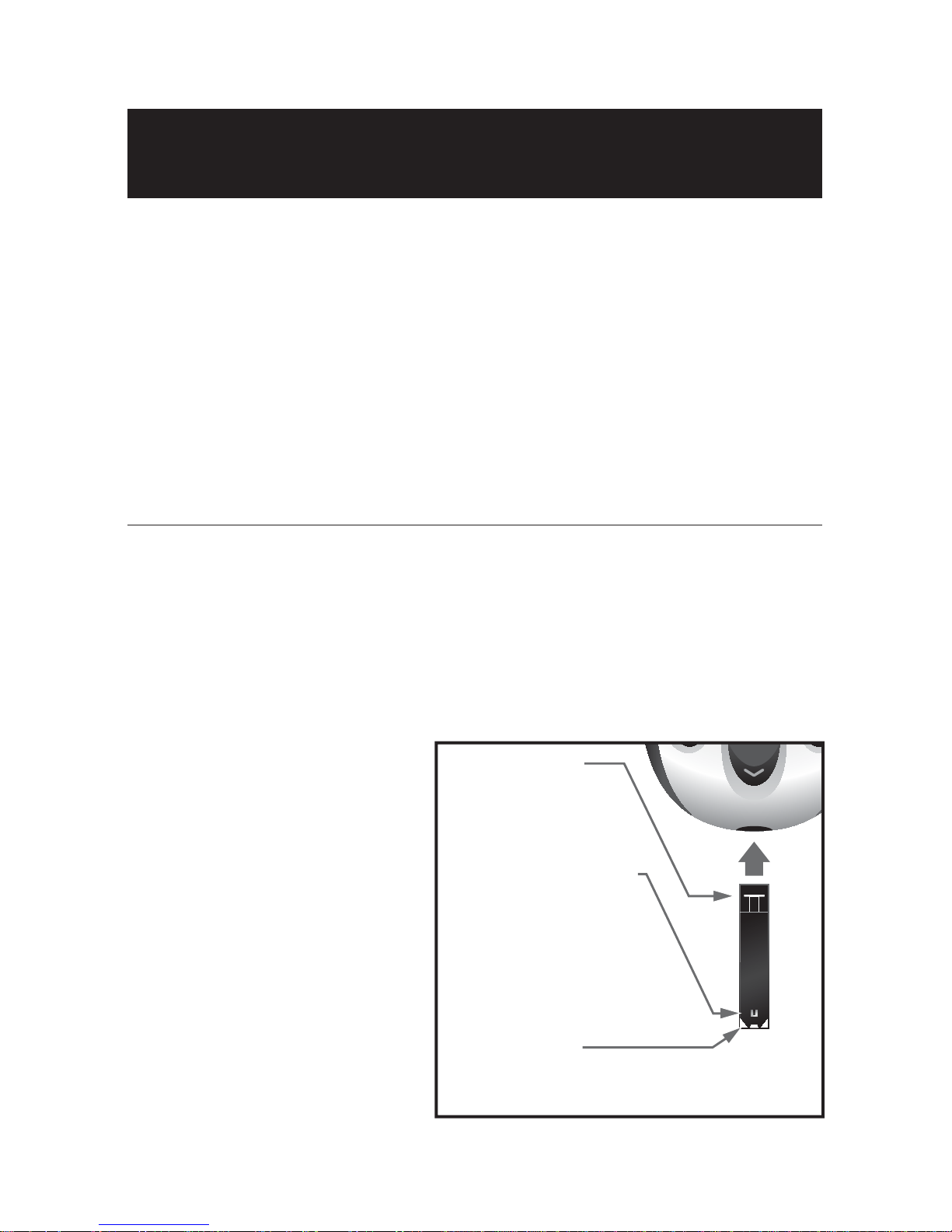

About the AgaMatrix WaveSense JAZZ Test Strip
With your AgaMatrix WaveSense JAZZ System, you can
test your blood glucose on your fingertips, palms (at the
base of the thumb) or forearms. Testing with the AgaMatrix
WaveSense JAZZ System requires a small sample size, 0.5 μL
of blood, about the size of
a pinhead.
CAUTION: Dispose used
test strips properly.
IMPORTANT: Use
AgaMatrix WaveSense
JAZZ Test Strips only
once.
Contact Bars:
Insert this end,
facing up, into the
meter’s test strip port.
Visual Fill Window:
The window will turn
red when enough
blood has been applied
or blue when enough
control solution has
been applied.
Sample Area:
Apply blood or control solution to the
tip of the test strip here.
• AgaMatrix WaveSense JAZZ
Blood Glucose Meter
• Two Pre-installed CR2032,
3 Volt, Lithium Batteries
• Lancing Device with Cap
• Clear AST Lancing
Device Cap
• 10 Sterile Lancets
• Compact Carrying Case
• 1 Vial of 25 Test Strips
• Control Solution
• Owner’s Guide
• Log Book
• Registration Card

9
IMPORTANT: Only use AgaMatrix WaveSense JAZZ Test
Strips with the AgaMatrix WaveSense JAZZ System.
Important Test Strip Information:
[1] Store the AgaMatrix WaveSense JAZZ Test Strip vial in a
cool, dry place at 8 °C to 30 °C (46 °F to 86 °F).
[2] Use AgaMatrix WaveSense JAZZ Test Strips only within the
system operating temperature range of 10 °C to 40 °C (50 °F to
104 °F).
[3] Keep away from direct sunlight and heat.
[4] Store your AgaMatrix WaveSense JAZZ Test Strips in their
original vial only; never store them in another vial, any other
container, or outside the vial.
[5] After removing an AgaMatrix WaveSense JAZZ Test Strip
from the vial, immediately close the vial cap tightly.
[6] With clean, dry hands you may gently handle the
AgaMatrix WaveSense JAZZ Test Strip when removing it from
the vial or inserting it into the meter.
[7] Do not use AgaMatrix WaveSense JAZZ Test Strips beyond
the expiration date or 90 days after first opening the vial. This
may cause inaccurate results. Write the discard date (90 days
from the first opening) on the test strip vial.
[8] Do not bend, cut or alter AgaMatrix WaveSense JAZZ Test
Strips.

10
[9] Apply only fresh capillary blood or control solution to the
sample area of the AgaMatrix WaveSense JAZZ Test Strip.
About the AgaMatrix WaveSense JAZZ Meter
(1) Display: Glucose test results, symbols,
messages, and graphs appear here.
(2) CHECK ( ) Button: Use the CHECK
button to confirm an option or make a
selection in a menu.
(3) UP Arrow ( ) Button: Use the UP
arrow button to scroll backward through
options.
(4) DOWN Arrow ( ) Button: Use the
DOWN arrow button to scroll forward
through options.
(5) BACKLIGHT ( ) Button: Use the
BACKLIGHT button to turn the backlight ON and OFF.
(6) Test Strip Port: Insert the AgaMatrix WaveSense JAZZ
Test Strip, with the contact bars facing up, into the test strip
port.
4
3
2
6
1
5

11

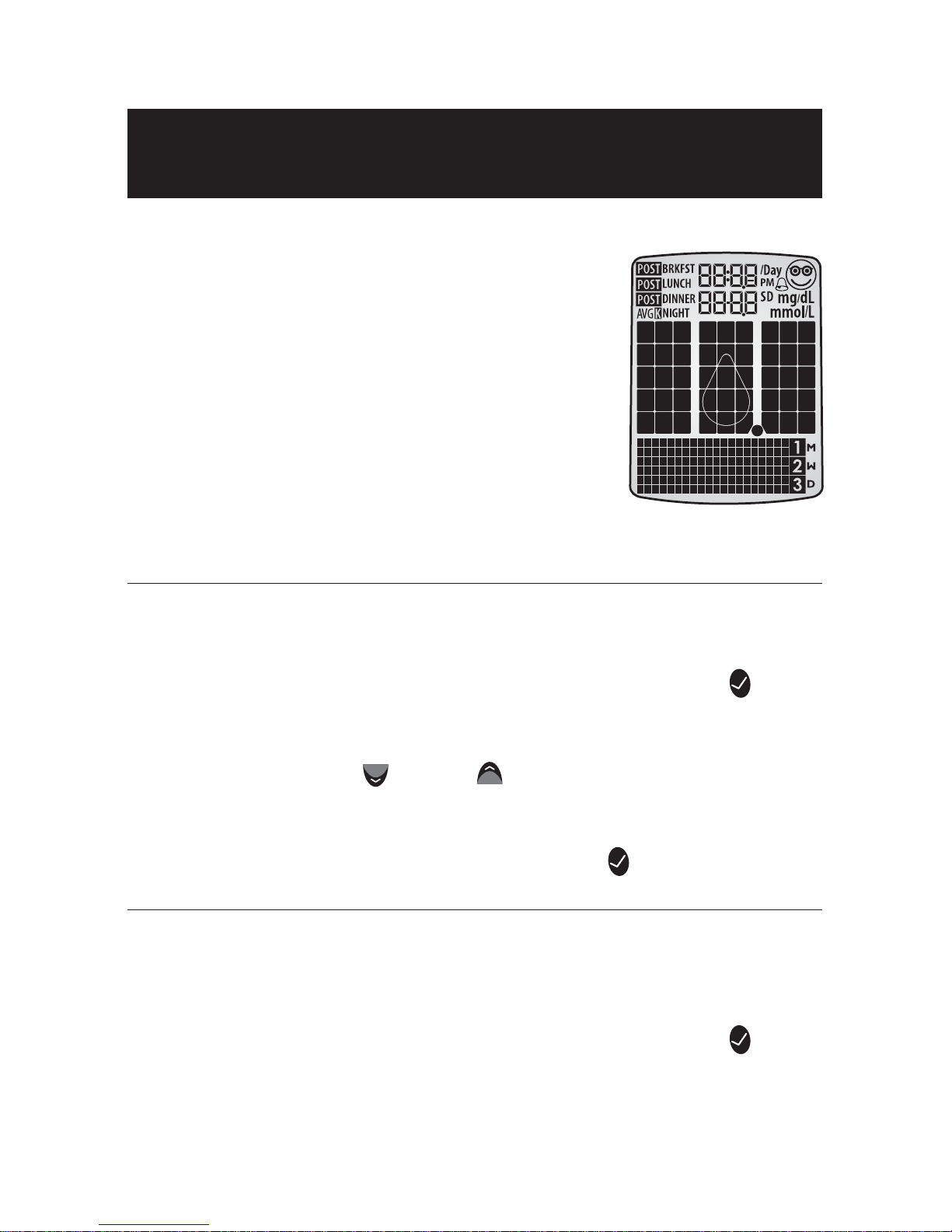

About the AgaMatrix WaveSense JAZZ Meter Display Symbols/
Messages
(1) Date and Time:
Appears here, including
when the meter is
deactivated.
(2) Glucose Test Results
(3) Low Battery Message:
Appears when battery #2 in your
meter is running low.
(4) Dead Battery Message: Appears when
battery #2 in your meter is dead.
(5) Temperature Symbol: Appears when the
meter is outside its operating temperature range of
10 °C to 40 °C (50 °F to 104 °F).
(6) Ketone Symbol: Appears when your glucose
test results are higher than 13.3 mmol/L.
(7) Control Solution message: Appears after
you have performed a control solution test.
(8) Units of Measurement symbol: Results will
be displayed in mmol/L.

12
(9) Apply Sample to Test Strip message: The
flashing droplet symbol and the word “fill” will signal
you to apply a sample to the test strip.
(10) Volume Message: Can be set to ON or OFF.
(11) 1 Month, 2 Week, 3 Day Indicators: The
appropriate number of days will appear when viewing
graphical averages.
(12) 1,2,3 Countdown: The 1, 2 and 3 symbols will
appear during a glucose test.
(13) Graphing Area: Areas of the dot
matrix will appear during a test and when
displaying graphs.
(14) Happy Face Symbol: The happy face is displayed
with glucose test results that fall within specific pre and
post meal target ranges.
(15) Mealtime Tags: The mealtime tags appear
after a test is complete and will help categorize your
results.
(16) /Day, SD, and AVG Symbols: These symbols
appear in the meter’s data management functions.

13
About the AgaMatrix Lancing System
(1) Cocking Handle: Cocks the device so it
is ready to lance.
(2) Depth Adjustment Dial: Adjusts how
deep the lancet will lance the skin.
(3) Depth Indicator Window: Displays the
depth setting of the lancing device.
(4) Release Button: Fires the lancet.
(5) Lancet: Lances the skin to produce a
drop of blood.
(6) Lancet Cover: Covers the lancet for
safety.
(7) Lancing Device Cap: Covers the lancet
when in lancing device.
(8) Alternate Site Testing Cap: An AST
clear lancing device cap used for obtaining
a blood sample on the palm (at the base of
the thumb) or forearm.
(9) Lancet Holder Cup: Holds the lancet
into place inside the lancing device.
2
1
3
4
8
75
6
9

14
METER SYSTEM CHECK
Each time your meter is activated, the
meter will perform a meter system check.
All display segments and the backlight
will briefly flash ON.
IMPORTANT: If all the display segments
DO NOT ash ON (each time your meter
is activated), do not use the meter. Call
Customer Care immediately.
HOW TO ACTIVATE THE METER AND ENTER MENU MODE
[1] When your meter is deactivated, press the CHECK ( ) but-
ton to enter the menu mode.
[2] Press the DOWN ( ) or UP ( ) arrow buttons to view the
options: MEM, STATS, AVG, MEAL, GRAPH, TIME, DATE, TAG,
RANGE, BEEP, HYPO, HYPER, and ALARM. To view/alter any of
these options or settings press the CHECK ( ) button.
HOW TO ACTIVATE THE METER AND VIEW INDIVIDUAL
RESULTS
[1] When your meter is deactivated, press the CHECK ( )
button to enter menu mode. The word “MEM” is displayed.
Meter Basics
5
CHAPTER

15
Press the CHECK ( ) button again to see your most recent test
result.
[2] Press the DOWN ( ) or UP ( ) arrow buttons repeatedly
to scroll thru every test result, starting from the most recent
and ending with the oldest.
HOW TO ACTIVATE THE METER AND VIEW MEALTIME
AVERAGES
[1] When your meter is deactivated, press the CHECK ( ) but-
ton once to enter Menu mode. The word “MEM” is displayed.
Press the DOWN ( ) or UP ( ) arrow buttons until the word
“MEAL” appears in the lower part of the display. Press the
CHECK ( ) button again to see your mealtime averages.
[2] Press the DOWN ( ) or UP ( ) arrow buttons repeatedly
to scroll through your Breakfast, Lunch, Dinner, and Bedtime
Averages.
HOW TO DEACTIVATE THE METER
To deactivate the meter, press and hold the CHECK ( ) for 2
seconds. If the meter is inactive for 3 minutes, the meter will
be deactivated automatically.
HOW TO ACCELERATE THROUGH OPTIONS
Hold down the DOWN ( ) or UP ( ) arrow buttons to accel-
erate through options or results.

16

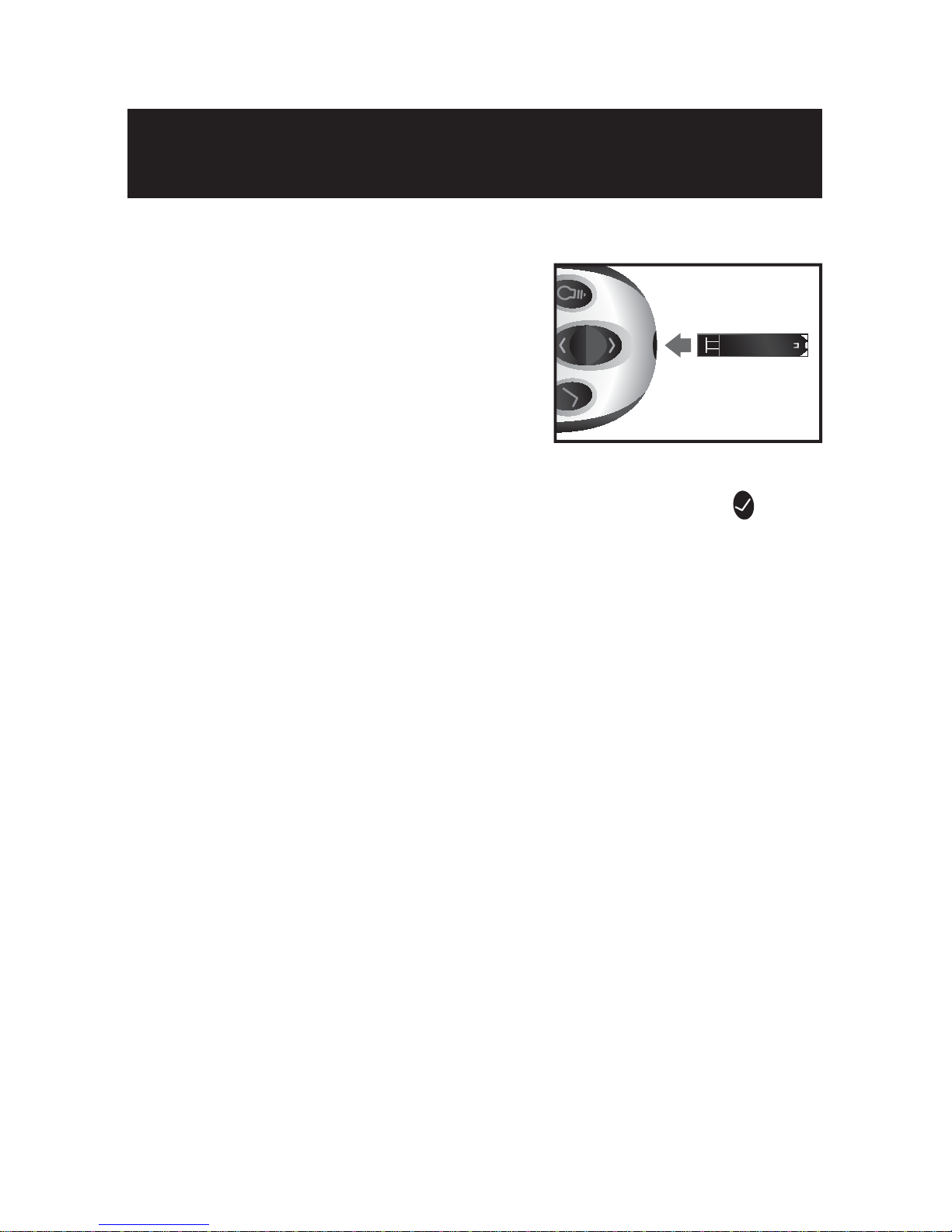

[1] Insert an AgaMatrix WaveSense JAZZ Test Strip: Insert
a new AgaMatrix WaveSense JAZZ
Test Strip into the meter. Make sure
you insert the test strip, with the
contact bars facing up, into the test
strip port. The meter will be activated
automatically.
Note: If you do not start the test within 5 minutes, the meter will
be deactivated. To reactivate your meter, press the CHECK (
) button or remove the unused AgaMatrix WaveSense JAZZ Test
Strip and reinsert it into the meter.
[2] Meter Ready for Test: The meter now displays the blood
drop symbol and the word “Fill”. The AgaMatrix WaveSense
JAZZ System is now ready for you to apply control solution or
blood.
Preparing For a Test With Your
AgaMatrix WaveSense JAZZ Meter
6
CHAPTER

17
The AgaMatrix WaveSense JAZZ System has 2 different levels
of control solution: Normal and High. Select the level of
control solution you want to use.
The control solution is used to:
[1] Ensure that your AgaMatrix WaveSense JAZZ Meter and
Test Strips are working together properly.
[2] Practice testing without having to use your own blood.
Control solution tests should be performed when you:
[1] First get your meter.
[2] Suspect that your meter or test strips are not working
properly.
[3] Think your test results are not accurate.
[4] Have dropped or damaged your meter or exposed your
meter to liquids.
[5] Are advised by your healthcare professional to do so.
Control solution should only be used for 90 days after first
opening the bottle or until the expiration date printed on the
label, whichever comes first.
Performing a Control Solution Test
7
CHAPTER

18
IMPORTANT: Count forward 90 days from the date you
open a new bottle of AgaMatrix Control Solution. This is
your discard date. Write the discard date on the AgaMatrix
Control Solution bottle.
Important AgaMatrix Control Solution information:
[1] Use only AgaMatrix Control Solution with your AgaMatrix
WaveSense JAZZ System.
[2] Always replace the cap on the control solution bottle
immediately after use.
[3] Do not add water or any other liquid to control solution.
[4] Control solution tests should be performed within the system
operating temperature range of 10 °C to 40 °C (50 °F to 104 °F).
How to perform a control solution test:
[1] Inserting an AgaMatrix
WaveSense JAZZ Test Strip: Insert
a new AgaMatrix WaveSense JAZZ
Test Strip into the meter. The meter
will be activated when the test strip is
fully inserted.
[2] Meter Ready for Test: The meter now displays the
droplet symbol and the word “Fill”. The AgaMatrix WaveSense
JAZZ System is now ready for you to apply control solution.
You do not need to set a calibration code for this meter.
