AGFA CR 85-X User manual

CR 85-X Digitizer
User manual

24450A EN 20060221
CR 85-X DIGITIZER
For more information on Agfa products and Agfa HealthCare products, please visit www.agfa.com.
© Agfa-Gevaert N.V. 2006.
No parts of this document may be reproduced, copied, adapted or transmitted in any form or by any means
without the written permission of Agfa-Gevaert N.V.
Agfa-Gevaert N.V. makes no warranties or representation, expressed or implied, with respect to the accuracy,
completeness or usefulness of the information contained in this document and specifically disclaims warran-
ties of suitability for any particular purpose. Agfa-Gevaert N.V. shall under no circumstances be liable for any
damage arising from the use or inability to use any information, apparatus, method or process disclosed in this
document.
Agfa-Gevaert N.V. reserves the right to make changes to this document without prior notice.
Agfa-Gevaert N.V., Septestraat 27, B-2640 Mortsel, Belgium.
CR 85-X is a trademark of Agfa-Gevaert N.V., Belgium.
Agfa and Agfa-Rhombus are trademarks of Agfa-Gevaert GmbH, Germany.

3
4450A EN 20060221
CR 85-X DIGITIZER
Table of contents
Chapter 1: Introducing the CR 85-X...............................................................5
CR 85-X intended use......................................................................................6
CR 85-X features .............................................................................................7
Warnings, Cautions and Notes .......................................................................8
Safety precautions ..........................................................................................9
Safety compliance.........................................................................................13
Operating modes ..........................................................................................14
The user interface.........................................................................................15
Switching on the CR 85-X .............................................................................22
Switching off the CR 85-X.............................................................................24
Resetting the CR 85-X ...................................................................................25
Chapter 2: Basic operation (‘Operator mode’) ............................................27
Reading an image plate ................................................................................28
Reading an emergency image plate..............................................................31
Re-erasing an image plate ............................................................................34
Chapter 3: Advanced operation (‘Key-operator mode’) .............................39
Survey of advanced functions ......................................................................40
Preventive maintenance ...............................................................................41
General procedure in case of malfunction ...................................................43
Troubleshooting ...........................................................................................44
Clearing cassette jams ..................................................................................45
Clearing image plate jams ............................................................................49
Appendix A: Equipment information sheet .................................................53
Specifications ...............................................................................................54
Appendix B: CR cassettes..............................................................................59
Safety precautions ........................................................................................60
Description of the CR cassette......................................................................61
Cleaning the image plate ..............................................................................63
Cleaning the cassettes ..................................................................................64
Technical specifications of the cassettes ......................................................65

44450A EN 20060221
CR 85-X DIGITIZER
Technical specifications of the image plates ................................................67

Introducing the CR 85-X
This chapter draws attention to important safety precautions
and introduces the CR 85-X.
!CR 85-X intended use
!CR 85-X features
!Warnings, Cautions and Notes
!Safety precautions
!Safety compliance
!Operating modes
!The user interface
!Switching on the CR 85-X
!Switching off the CR 85-X
!Resetting the CR 85-X
Chapter 1

64450A EN 20060221Introducing the CR 85-X
CR 85-X DIGITIZER
CR 85-X intended use
This device must only be used to scan exposed X-ray cassettes, containing an
erasable image plate (IP). This device is part of a system, consisting of
X-ray cassettes with erasable phosphor image plates, an identification station
for the cassettes and a workstation where the resulting digital image
information is further processed and routed. It is intended that this device is
only operated in a radiological environment by qualified staff.

7
4450A EN 20060221 Introducing the CR 85-X
CR 85-X DIGITIZER
CR 85-X features
The CR 85-X scans the exposed CR image plate, converts the information into
digital data and automatically transfers the image to the image processing
station for further processing and visualization.
The CR 85-X requires but little manual interaction. All you have to do, after
exposure and identification of the cassette, is to place it in the input buffer of
the CR 85-X. You can deposit up to 10 cassettes of different sizes
simultaneously in the input buffer. The Digitizer takes in the cassettes one by
one. The Digitizer reads the demographic data and routing information from
the memory chip in the cassette, opens the cassette, removes the image plate
and scans the latent image by means of a sweeping laser beam.
Once the image is digitized, the cassette is returned to the output buffer to be
used for new exposures. After a full Digitizer cycle, the plate has turned 180°
in the cassette.
Depending on the X-ray intensity which has affected the phosphor during the
exposure, more or less light will be emitted during laser scanning. The light is
converted into an electrical signal. This signal is then converted into a digital
bit stream. Once converted into digital form, the digitized image is
transferred to the image processing station for further processing and
visualization.
Further features of the CR 85-X include:
"The CR 85-X permits assigning the status ‘emergency’ to an image. An emer-
gency image will be given priority by the image processing station.
"The CR 85-X permits re-erasing an image plate before re-using it. In specific
cases, this is necessary to prevent ghost images caused by previous exposures or
stray radiation from interfering with the image of interest. You can erase a
batch of up to 9 image plates.

84450A EN 20060221Introducing the CR 85-X
CR 85-X DIGITIZER
Warnings, Cautions and Notes
The following samples show how warnings, cautions, instructions and notes
appear in this document. The text explains their intended use.
WARNING: Warnings are directions which, if they are not followed,
can cause serious or fatal injuries.
Caution: Cautions are directions which, if they are not followed, can cause
damage to the equipment described in this manual or any other equipment
or goods and can cause environmental pollution.
Instruction : Follow the instruction literally to avoid the topic of warnings.
Note: Notes provide advice and highlight unusual points. A note is not
intended as an instruction.

9
4450A EN 20060221 Introducing the CR 85-X
CR 85-X DIGITIZER
Safety precautions
General safety instructions
•For software and other technical platforms, and/or in combination with
any consumable, which constitute, after installation, a system for the
interpretation of medical image data: such system is used by trained and
qualified professionals. It is the user's responsibility to ensure that image
quality, display quality, environmental lighting and other possible
distractions are consistent with the clinical application.
The user must be aware, that automatic collimation could possibly lead to
misinterpretation of the image.
•Make sure that the CR 85-X is constantly monitored in order to avoid
inappropriate handling, especially by children.
•Only trained service personnel must make repairs. Only authorized service
personnel must make changes to the CR 85-X.
•If there is any visible damage to the machine casing, do not start nor use
the CR 85-X.
•If you want to connect the CR 85-X with other devices, components or
assemblies and if the technical data do not permit determining whether the
combination with these devices, components or assemblies involves
hazards, you must consult the respective manufacturers to avoid danger for
operating personnel or the environment.
•Do not override or disconnect the integrated safety features.
•As is the case for all technical devices, the CR 85-X must be operated, cared
for and serviced correctly.
•If you don’t operate the CR 85-X correctly or if you don’t have it serviced
correctly, Agfa-Gevaert is not liable for resulting disturbances, damages or
injuries.
•When installing the CR 85-X, care must be taken to ensure that there is
either a mains plug or an all-cable disconnecting device in the internal
installation fitted near the CR 85-X and that it is easily accessible.
•If you notice conspicuous noise or smoke, disconnect the CR 85-X
immediately.
•Check that the mains voltage is within the specified range of the self
adapting power supply of the machine.

10 4450A EN 20060221Introducing the CR 85-X
CR 85-X DIGITIZER
Markings and labels
Always take into account the markings and labels provided on the inside and
outside of the machine. A brief overview of these markings and labels and
their meaning is given below.
Safety warning, indicating that the CR 85-X manuals should be consulted
before making any connections to other equipment. The use of accessory
equipment not complying with the equivalent safety requirements of this
Digitizer may lead to a reduced level of safety of the resulting system.
Consideration relating to the choice of accessory equipment shall include:
• Use of the accessory equipment in the patient vicinity,
• Evidence that the safety certification of the accessory equipment has been
performed in accordance with the appropriate IEC 601-1 and IEC 601-1-1
harmonized national standard.
In addition all configurations must comply with the medical electrical
systems standard IEC 601-1-1. The party that makes the connections acts as
system configurator and is responsible for complying with the systems
standard.
If required contact your local service organization.
In order to reduce the risk of electric shock, do not remove any covers.
Caution hot:
Keep hands clear from the erasure unit.
Type B equipment:
Indicates that the CR 85-X complies with the limits for type B equipment.

11
4450A EN 20060221 Introducing the CR 85-X
CR 85-X DIGITIZER
•You can hurt your fingers if they are caught between the CR cassette and
the edge of the input slot. Insert the cassette in the input buffer as
described in ‘Reading an image plate’ on page 28. At all times, keep your
fingers clear of the input slot. As soon as the CR 85-X takes in the cassette,
release it.
Supplementary protective earth connector:
Provides a connection between the CR 85-X and the potential equalization
busbar of the electrical system as found in medical environments. This plug
should never be unplugged before the power is turned off and the power plug
has been removed.
Intergrounding connector:
Provides a connection between the Digitizer and other equipment which
might exhibit minor ground potential differences. These differences may
degrade the quality of communication between different equipment. Never
remove connections to this terminal.
Protective earth (ground):
Provides a connection between the Digitizer and the protective earth of the
mains. Do not remove this connection, because this will have a negative
influence on the leakage current.
Power on
Power off
Note that the power cord has to be disconnected from the wall outlet in order
to disconnect the unit entirely from the mains.
Precautions for use in USA only:
Make sure that the circuit is single-phase center-tapped, if the Digitizer is
connected to a 240 V/60 Hz source instead of a 120 V/60 Hz source.

12 4450A EN 20060221Introducing the CR 85-X
CR 85-X DIGITIZER
TÜV safety issues
Accessory equipment connected to the analog and digital interfaces must be
certified according to the respective IEC standards (e.g. IEC 950 for data
processing equipment and IEC 601-1 for medical equipment). Furthermore
all configurations shall comply with the valid version of the system standard
IEC 601-1-1. Everybody who connects additional equipment to the signal
input part or signal output part configures a medical system, and is therefore
responsible that the system complies with the requirements of the valid
version of the system standard IEC601-1-1. If in doubt, consult your local
service organization.
Safety instructions for laser products
The CR85-X is a Class 1 Laser Product. It uses a 80 mW laser diode,
classification class IIIb.
Under normal operating conditions - when both doors are closed - there can
be no laser radiation outside the CR 85-X. It is nonetheless imperative that the
local radiation safety regulations regarding the protection of staff against
scattered radiation are complied with, if the CR 85-X is located in the
immediate vicinity of an X-ray room.
Open the front left and right door only to solve cassette or image plate jams.
When you open either of the doors, the power supply of all critical
components is switched off automatically as a precaution.

13
4450A EN 20060221 Introducing the CR 85-X
CR 85-X DIGITIZER
Observe the Caution instructions on the Optical module label:
Safety compliance
The CR 85-X complies with:
•the general safety regulations:
EN 60601-1:1990+A1:1993+A2:1995,
IEC 601-1:1988+A1:1991+A2:1995,
IEC 601-1-1 / EN 60601-1-1,
EN 60601-1-2:1993,
UL 2601-1 Second Edition,
CAN/CSA 22.No.601.1-M909;
•the laser safety regulations:
EN 60825, DHHS/FDA 21 CFR, Parts 1040.10 and 1040.11, ANSI Z 136-1980.
WARNING: User interventions other than those described in this
manual can be hazardous with regard to laser radiation.
CAUTION!
CLASS 3B LASER RADIATION:
WHEN OPEN AVOID DIRECT
EXPOSURE TO THE BEAM!
CUIDADO!
RAYO LASER CLASE 3B:
EVITAR LA EXPOSICIÓN AL HAZ
CUANDO LA TAPA ESTÁ ABIERTA.
VORSICHT !
LASERSTRAHLUNG KLASSE 3B:
WENN ABDECKUNG GEÖFFNET
NICHT DEM STRAHL AUSSETZEN!
ATTENTION!
FAISCEAU LASER CLASSE 3B:
QUAND CAPOT OUVERT ÉVITER
DE S´EXPOSER AU RAYÓN!

14 4450A EN 20060221Introducing the CR 85-X
CR 85-X DIGITIZER
Operating modes
The CR 85-X can be operated in three modes: operator mode, key-operator
mode and service mode.
Operator mode
The operator mode groups all basic functions which are aimed at
radiographers:
•Reading an image plate;
•Reading an emergency image plate;
•Re-erasing an image plate.
A normal image plate is read automatically after it is placed in the CR 85-X
input buffer; the other functions of the operator mode can be accessed via the
keypad. All functions of the operator mode are described in Chapter 2, ‘Basic
operation (‘Operator mode’)’.
Key-operator mode
The key-operator mode groups advanced functions which are aimed at
technicians.
The key-operator mode can be accessed via the Key-operator key on the
keypad and is menu-driven. The key-operator functions are described in
Chapter 3, ‘Advanced operation (‘Key-operator mode’)’.
Service mode
The service mode functions are reserved for trained service personnel. They
are password protected.

15
4450A EN 20060221 Introducing the CR 85-X
CR 85-X DIGITIZER
The user interface

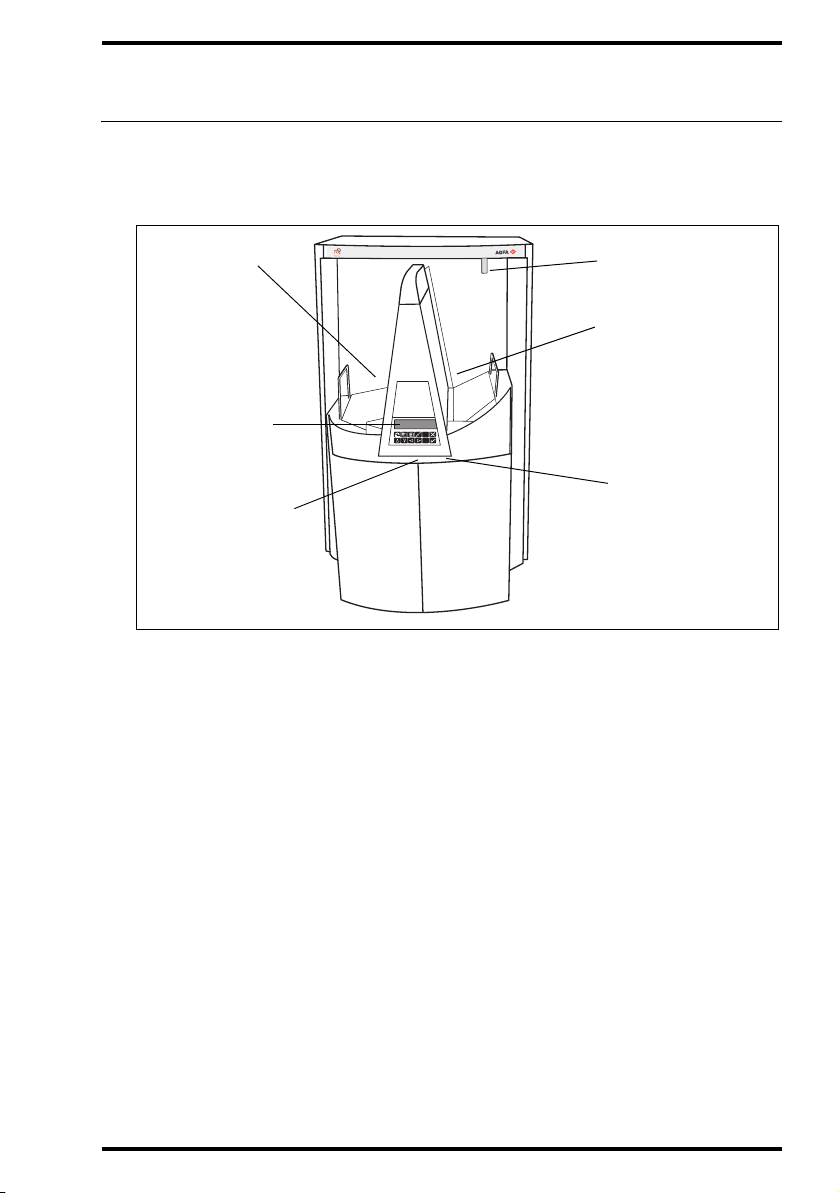

Main components of the Digitizer
The main components of the CR 85-X are:
"Cassette input buffer
The cassette input buffer accepts up to 10 cassettes - even of different sizes -
for digitizing and up to 9 cassettes for erasure.
"Keypad
As the handling of the cassettes is fully automated, normal operation is a zero-
button operation. The keys on the keypad are only used to activate special
functions such as reading an emergency image plate or erasing an image
plate.
"Status indicator
A light indicates the status of the CR 85-X.
"Cassette output buffer
The cassette output buffer receives cassettes which have been handled by the
Digitizer.
CR
CR
85-X
MUSICA
Cassette input buffer
Cassette
output buffer
Keypad with
display
Service connector
Main switch
Status indicator

16 4450A EN 20060221Introducing the CR 85-X
CR 85-X DIGITIZER
The control panel
The control panel of the CR 85-X consists of a backlit LCD display and 10 keys.
As the handling of the cassettes is fully automated, normal operation is a zero-
button operation. Only when you are performing special functions or in the
event of problems (e.g. a cassette or image plate jam), you will need the keys.

17
4450A EN 20060221 Introducing the CR 85-X
CR 85-X DIGITIZER
The keypad
Special functions can be accessed via the keypad. The keypad features the
following keys:
Emergency key To give an image the status ‘emergency’ when it is sent to
the image processing station.
Erase key
To erase images without digitizing them.
This must be done if:
• an image plate has not been used for more than 3 days;
• an image plate has been exposed to an exceptionally
high X-ray dose.
Key-operator
key To access advanced functions (‘key-operator functions’).
Service key To access service-level functions.
Reserved for trained service personnel.
Escape key To quit the current function or exit a menu without saving
modifications.
Confirm key
In key-operator mode:
•toselectamenu.
• to accept an entry in a menu and go back to operator
mode.

18 4450A EN 20060221Introducing the CR 85-X
CR 85-X DIGITIZER
Up key
• To move the cursor to the previous entry field.
•Toscrollupwards.
• To increment the number in a numeric entry field.
Down key
• To move the cursor to the next entry field.
• To scroll downwards.
• To decrement the number in a numeric entry field.
Left key
• To scroll backwards through multiple choices within a
field.
• To move the entry position in a numerical entry field
from right to left.
• To toggle between values in a field.
Right key
• To scroll forwards through multiple choices within a
field.
• To move the entry position in a numerical entry field
from left to right.
• To toggle between values in a field.

19
4450A EN 20060221 Introducing the CR 85-X
CR 85-X DIGITIZER
The display
The CR 85-X control panel has a backlit LCD display with 8 lines of 40
characters each. Its lay-out depends on the operating mode.
"In operator mode, the display has dedicated areas for specific information:
1Set-up of image processing station:
• [blank]: Default image processing station selected.
• Off line: Transmission to all image processing stations disabled.
• [process.station] not ready: Image processing station not available.
• [process.station] rerouted: Images rerouted to other image processing station.
2Type of message
3Extra comment or action to take
4System status:
• READY: The CR 85-X is ready for operation.
• BUSY: The CR 85-X is busy with scanning or erasing.
•ERROR:Anerrorhasoccurred.
•LOCKED:id.
•WARNING:id.
3
1
Set-up STATUS
OPERATION MODE
1ST MESSAGE
2nd Message
Patient_Last_Name Sub_Exam
Patient_Last_Name Sub_Exam
Patient_Last_Name Sub_Exam
Station Name ERROR
5
6
8.1
8.2
8.3
124
7

20 4450A EN 20060221Introducing the CR 85-X
CR 85-X DIGITIZER
If the system has been idle for 5 minutes, the backlit LCD display dims. The
display lightens if:
•The display message changes, e.g. if the Digitizer receives a message from
the image processing station.
•You place a cassette in the input buffer.
•You press a key on the keypad.

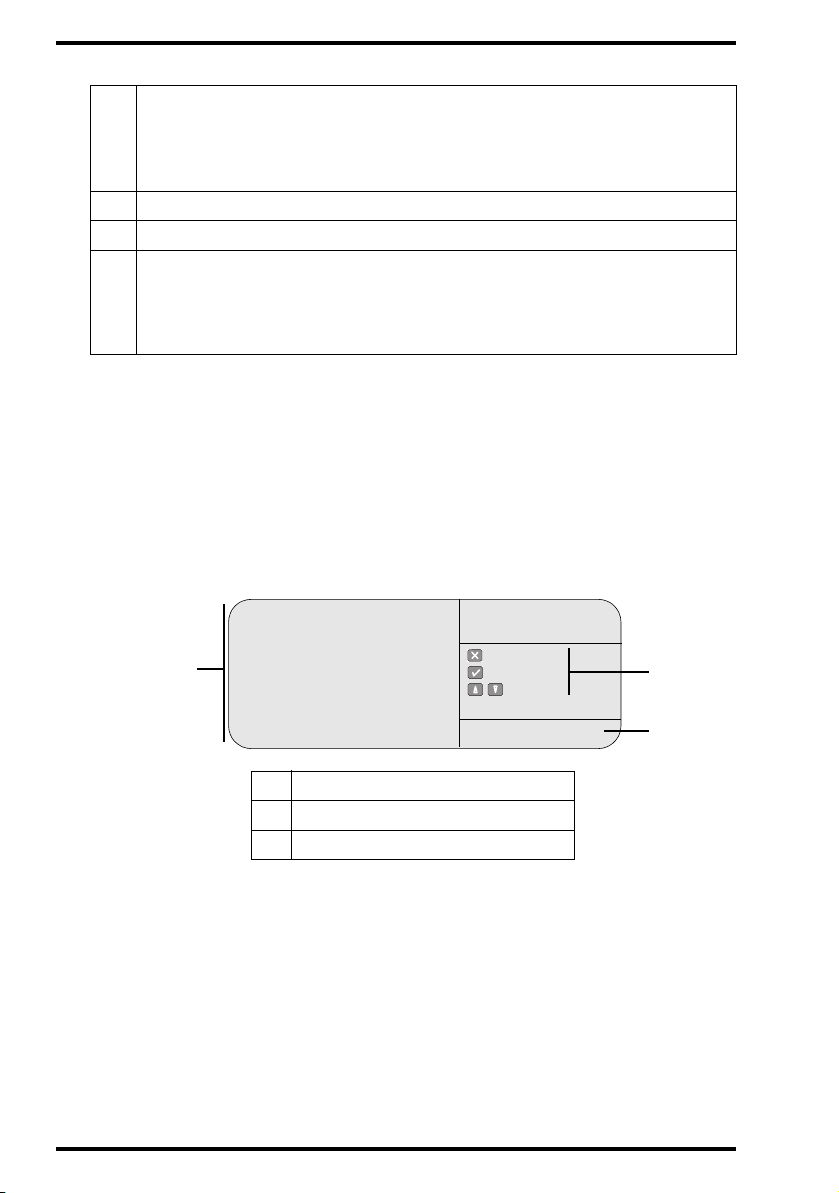

"In key-operator mode, operation is menu driven. The menu displays the key-
operator functions, the active keys, and the service code.
5Operation mode:
• [blank]: Normal operation mode.
• EMERGENCY: Emergency function for image plates with ID data.
• ERASURE: Re-erasure function.
6Error status: service code (SERVICE XXXXX) or error code (CODE XXXXX)
7Station name of the CR 85-X
Identifier of image plate being treated:
8.1
8.2
8.3
After image ID data is read;
During scanning of image plate and transmittal of image data;
During transmittal of image data to image processing station.
1Key-operator functions
2Active keys
3Service code
Queue management
Digitizer set-up
Date and Time
Send test image
System info
Install
Save configuration
Fast preview
: quit
: ok
: select
KEY-OPERATOR
MENU
SERVICE XXXXX
2
3
1
