Agilent Infiniium 9000 Series Oscilloscopes
Engineered for broadest measurement capability
Data Sheet

2
If you haven’t purchased an Agilent scope lately,
why should you consider one now?
There is no better way to experience
the superiority of the Infiniium 9000 Series
scopes than to see it.
Contact Agilent today to request an
evaluation.
Or visit:
www.agilent.com/find/9000
The Infiniium 9000 Series offers bandwidths up to 4 GHz. Each model, equipped with a large 15” XGA LCD display, comes in a whisper-quiet
package that is just 9” (23 cm) deep and weighs only 26 pounds (11.8 kg).
If you’re like most engineers, you never know what your next project will demand from you.
You need an oscilloscope that can adapt to a wide variety of debug and test challenges.
That’s why we designed our new Infiniium 9000 Series oscilloscope to meet a full range
of needs.
First we built in the powerful features you’d expect in any Infiniium scope. Then we
engineered the scope for the broadest measurement capability, so it would be the most
indispensable tool in your arsenal.
Model Analog bandwidth
Analog sample rate
4-channel/2-channel
Standard memory
4-channel/2-channel Scope channels Logic channels
DSO9064A 600 MHz 5 GSa/s/10 GSa/s 20 Mpts/40Mpts 4 -
MSO9064A 600 MHz 5 GSa/s/10 GSa/s 20 Mpts/40Mpts 4 16
DSO9104A 1 GHz 10 GSa/s/20 GSa/s 20 Mpts/40Mpts 4 -
MSO9104A 1 GHz 10 GSa/s/20 GSa/s 20 Mpts/40Mpts 4 16
DSO9254A 2.5 GHz 10 GSa/s/20 GSa/s 20 Mpts/40Mpts 4 -
MSO9254A 2.5 GHz 10 GSa/s/20 GSa/s 20 Mpts/40Mpts 4 16
DSO9404A 4 GHz 10 GSa/s/20 GSa/s 20 Mpts/40Mpts 4 -
MSO9404A 4 GHz 10 GSa/s/20 GSa/s 20 Mpts/40Mpts 4 16

3
It’s three instruments in one
1. Scope: The powerful features of our Infiniium Series oscilloscopes coupled with
superior specifications give you precise signal representation.
2. Logic analyzer: Fast deep-memory digital channels let you see critical data values
and timing relationships.
3. Protocol analyzer: The world’s first scope-based protocol viewer with multi-tab
viewing. Quickly drill and move between protocol and physical layers.
It offers the widest range of debug and compliance application software
Need accurate answers to your measurement questions? The Infiniium 9000 Series offers
the largest range of application-specific software for debug, analysis and compliance test-
ing. Which application is right for you? Take a look at the possibilities on pages 7-12.

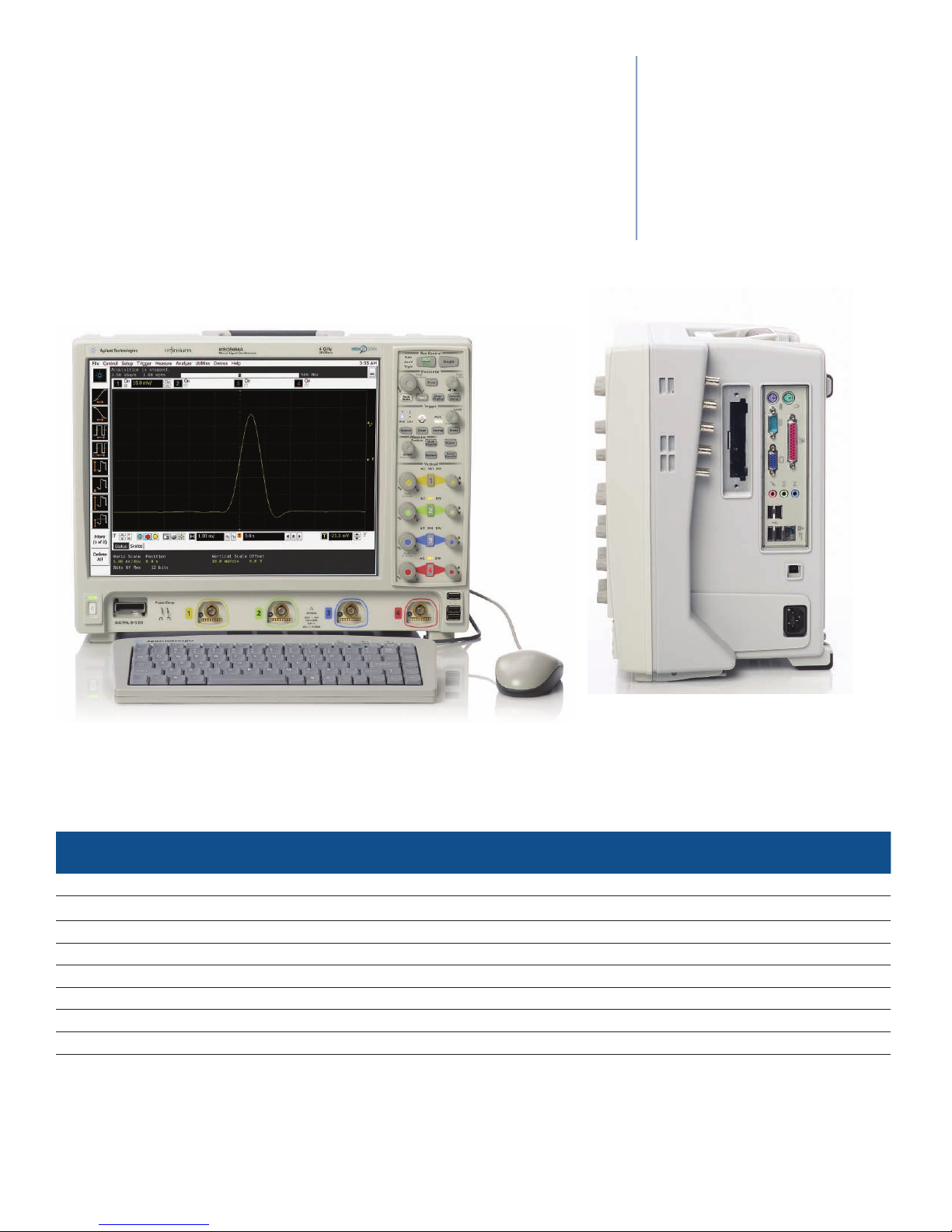

It’s sized to fit your environment
Limited bench space? It has a small footprint and thin profile
Height: 12.9” (33 cm); width: 16.8” (43 cm); depth: just 9” (23 cm)
Need to share the scope? It’s light weight: 26 lbs. (11.8 kg)
Need to see lots of signals? It has the biggest screen: 15” (23 cm) XGA
What makes the Infiniium 9000 Series the go-to scope for a whole range of
test and debug challenges?

4
It’s three instruments in one
1. Oscilloscope
Responsive deep memory
With standard 20 Mpts/ch, and up to 1 Gpts/
ch of memory, you can capture long time
periods while retaining fast sample rates.
Fast update rates mean your scope stays
responsive with deep memory on, ensuring
precise representation of analog signals.
Advanced triggering
Advanced triggers are essential when you are
investigating suspected problems. Infiniium
offers a full range of advanced triggers to
help you isolate and capture the condition
you need to characterize. The 9000 Series
simplifies trigger setups by using intuitive
dialog boxes with descriptive graphics.

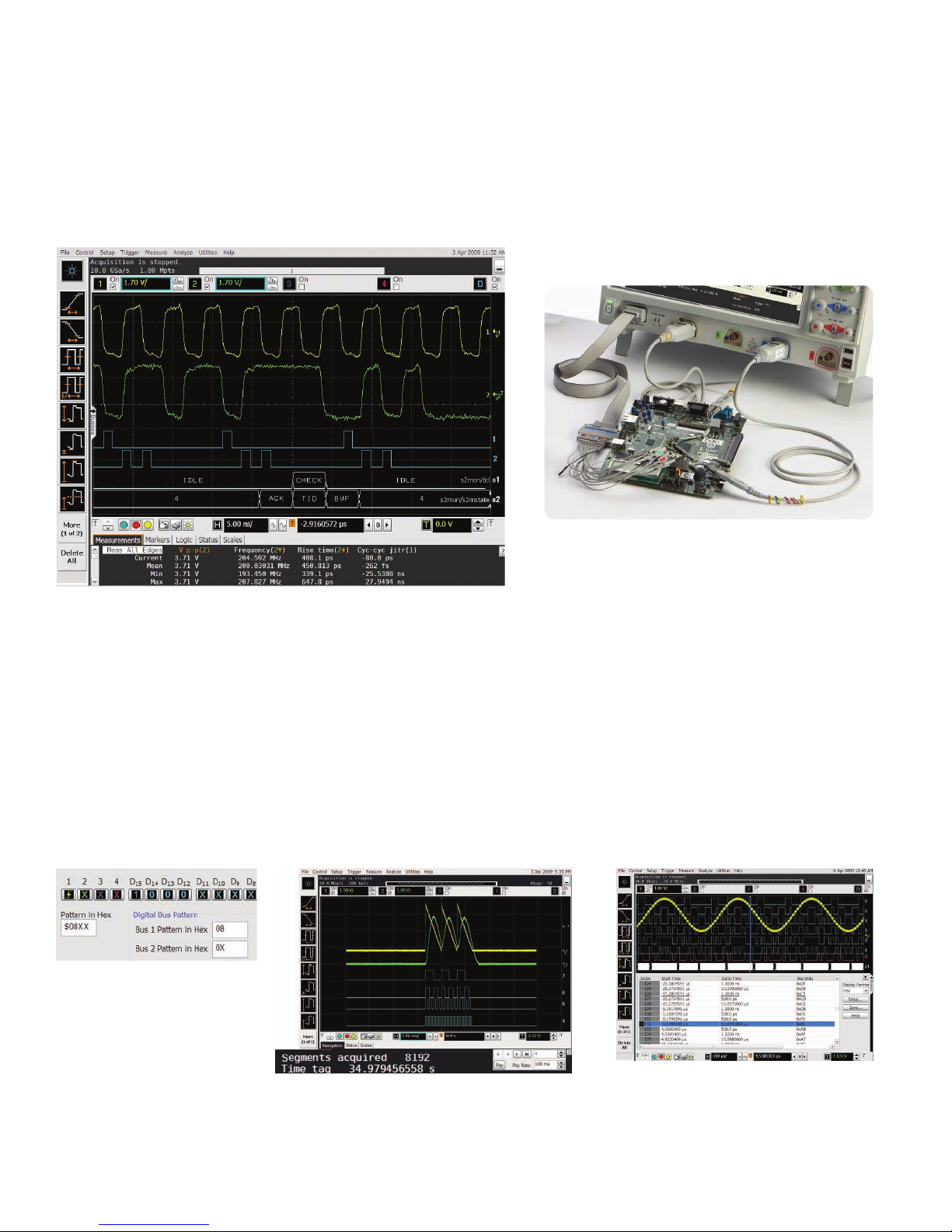

Drag and drop measurements
It’s simple: drag an icon from the measure-
ment bar and drop it on the cycle you want to
measure. You can make up to ten measure-
ments on your waveforms. All of the measure-
ments appear at the bottom of the display with
statistics and are color-coded to the channel
you are measuring.
High-performance scope channels ensure superior viewing of signals under test. All models incorporate a powerful, feature-packed Infi-
niium oscilloscope with responsive deep memory.
Up to 4 GHz bandwidth and 20 GSa/s high sample rates guarantee you’ll see a
precise representation of the analog characteristics of signals you’re testing.
Mask tests, histograms and a wide variety of functions such
as the gated FFTs in the above image provide deep signal
analysis.

5
It’s three instruments in one
2. Logic analyzer
Digital and mixed-signal trigger
Trigger on and display individual
signals or buses. With precise
time-correlation between analog
and digital signals, confidently trig-
ger across any combination
of analog and digital signals
simultaneously.
Industry’s only segmented memory for both
analog and digital channels
Capture short bursts without consuming
memory during periods when the trigger
condition is not met. Agilent is the only
vendor that supports segmented memory
capture on both analog and digital channels.
Waveform and Listing Windows
View buses as waveforms or easily follow
events in the listing window expandable to
the entire display. A blue tracking marker
provides time-correlation between waveform
and listing displays.
MSO models add 16 high-speed timing channels with standard 128 Mpts digital memory, allowing you to retain fast 2 GSa/s sample rates
over long periods of time.
Use the timing channels to evaluate control signal relationships and data buses
up to 16 bits wide. Use symbols to more quickly interpret waveforms.
Designing with Altera or Xilinx FPGAs? Use the FPGA
dynamic probe for rapid internal FPGA measurements. Using
I²C, SPI, RS-232, or low- or full-speed USB? Use the digital
channels to acquire and decode these buses, preserving
analog channels for other time-correlated measurements.

6
It’s three instruments in one
3. Protocol analyzer
Does your design include a serial bus that is a key point for testing or debugging? Add protocol analysis capability to your scope for:
• CAN • FlexRay • I2C • JTAG • LIN • MIPI D-Phy
• PCle • RS-232/UART • SATA • SPI • USB • 8B/10B
• digRF
Quickly move between physical and protocol layer information using the time-correlated
tracking marker. Display protocol content using waveform symbols and the industry’s first
multi-tab protocol viewer. The packets tab shows a high level view of the packet over time.
Protocol-level triggering makes it easy to
isolate events with pinpoint accuracy.
Use any combination of analog or digital channels for serial protocol decode, with
up to four buses decoded simultaneously.
Header tab shows packets in a databook for-
mat. Hovering on any tab reveals additional
detail.

7
Widest range of debug and compliance software applications: serial protocol-level
I2C/SPI serial trigger and decode (N5391B or Option 007 on new scope purchases)
This application displays real-time time-aligned decode of I2C and SPI serial buses. Hardware-based
triggering means triggering reliably, even on the most infrequent events.
This application works on all models and can use any combination of scope or logic acquisition
channels.
For more information: www.agilent.com/find/9000_I2C-SPI
RS-232/UART serial decode and trigger (N5462B or Option 001 on new scope purchases)
This application eliminates the need to manually decode bus traffic. Using data captured on the
scope or logic channels, the application lets you easily view the information sent over an RS-232
RS-422, RS-485 or other UART serial buses.
Display real-time time-aligned decode of transmit and receive lines. Hardware-based triggering
means triggering reliably, even on the most infrequent events.
This application works on all models and can use any combination of the scope or logic acquisition
channels.
For more information: www.agilent.com/find/9000_RS-232
CAN, LIN and FlexRay triggering and decode (N8803B or Option 008 on new scope purchases)
Trigger on and view both protocol layer information and physical layer signal characteristics for
CAN, LIN and FlexRay buses. Numerical decode values are automatically displayed and
synchronized below the captured signal or seen in protocol viewer.
Hardware-based triggering for CAN and LIN means triggering reliably, even on the most infrequent
events. FlexRay uses software-based protocol triggering.
This application works on all models and can use any combination of scope or logic acquisition
channels.
For more information: www.agilent.com/find/9000_CAN

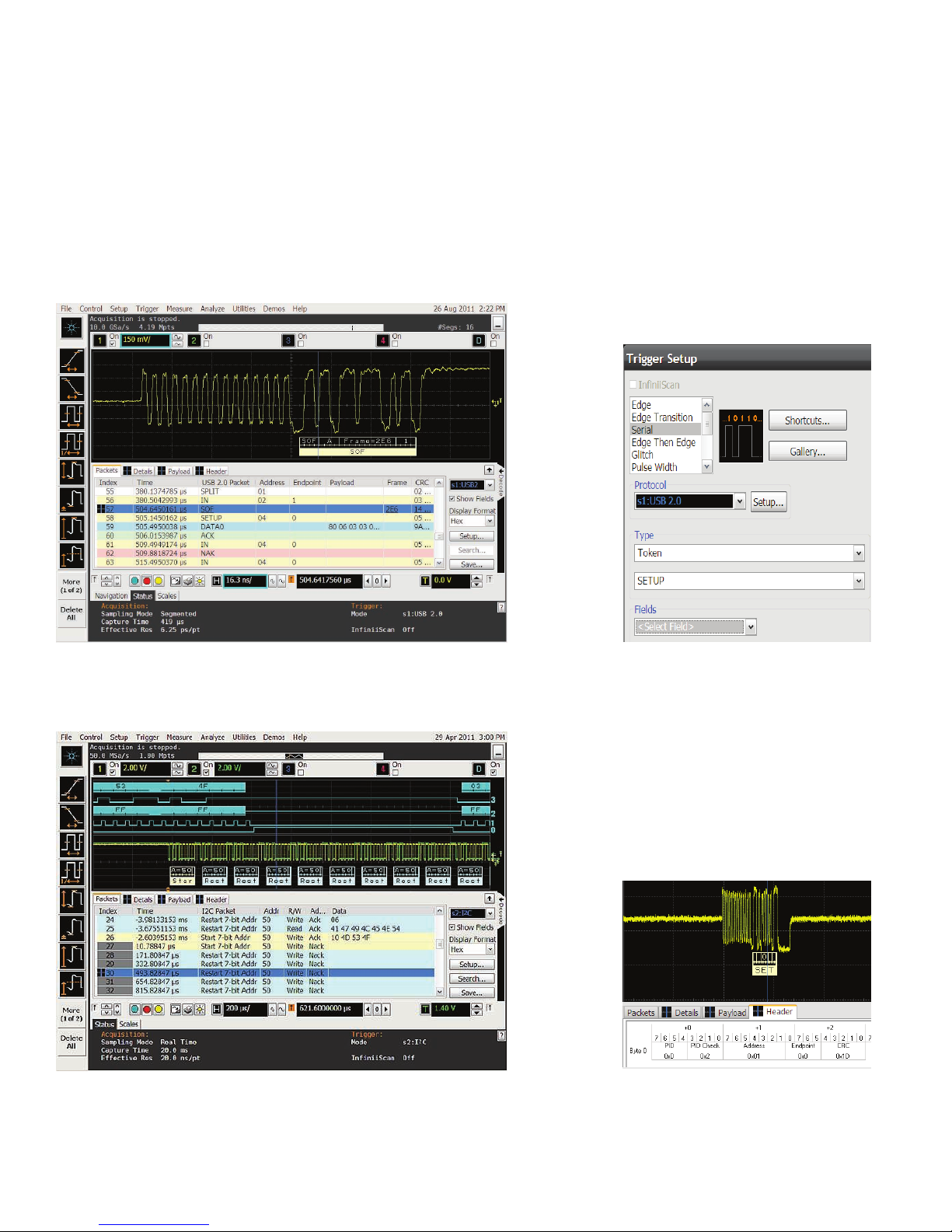

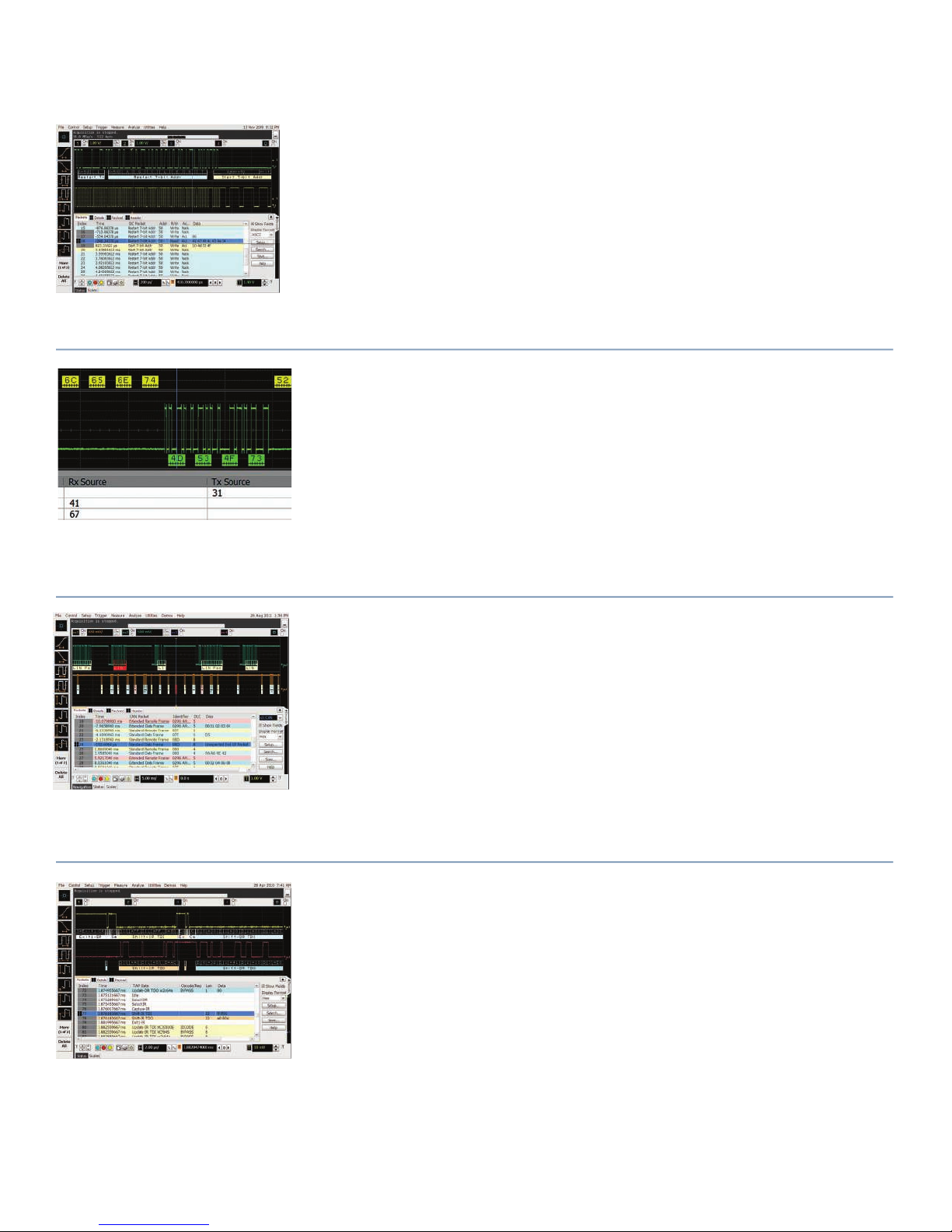

Trigger and view on-screen serial decode
of I2C packets.
Trigger on and decode RS-232/UART
transmission.
Trigger on and decode CAN, LIN and
FlexRay serial packets.
JTAG (IEEE 1149.1) triggering and decode (N8817A or Option 042 on new scope purchases)
This application displays real-time time-aligned decode of JTAG (IEEE 1149.1) TDI and TDO signals.
The application eliminate the difficult task of manually determining JTAG TAP controller states, in-
struction and data register decode, and flags error conditions. The application includes scan chain
description features including the ability to import .bsdl files for each device and displays device
names and opcodes in the protocol listing.
This application works on all models and can use any combination of scope or logic acquisition
channels.
For more information: www.agilent.com/find/9000_JTAG
Import BSDL files and decode JTAG
scan chain activity.

8
Widest range of debug and compliance software applications: serial protocol and FPGA
USB serial trigger and protocol viewer (N5464B or Option 005 on new scope purchases)
Trigger on and quickly view USB packets, payload, header and detail information. Powerful
time-correlated views of waveform and symbol, to the bit level, make it easy to isolate
communication faults to logic or analog sources.
USB hardware-based triggering means triggering reliably, even on the most infrequent events.
Low and full-speed USB protocol is supported on digital and scope channels of all models.
High-speed USB protocol is supported on scope channels of 1 GHz, 2.5 GHz and 4 GHz models.
For more information: www.agilent.com/find/9000_USB
MIPI D-Phy serial decode and trigger (N8802A or Option 019 on new scope purchases)
This application eliminates the need to manually decode bus traffic. Using data captured on the
scope, the application lets you easily view the information sent over MIPI serial buses.
The application also enables software-based protocol triggering.
This application works on all 4 GHz models and can use any combination of the scope
channels
For more information: www.agilent.com/find/N8802A
SATA triggering and decode (N8801A or option 038 on new scope purchases)
Trigger on and view both protocol layer information and physical layer signal characteristics
for SATA 1 (1.5 GB/s). Numerical decode values are automatically displayed and synchronized
below the capture signal or seen in protocol viewer.
This application enables software-based protocol triggering. This application works on 4 GHz
and can use any combination of scope channels
For more information: www.agilent.com/find/N8801A
Trigger on and decode USB packets.
Trigger on and decode MIPI packets
Trigger on and decode SATA serial
packets
PCI Express®serial trigger and protocol viewer (N5463B or Option 006 on new scope
purchases)
This application provides protocol-level triggering and viewing of a PCIe®lane. Quickly view pack-
ets, payload, header, and detail information. Powerful time-correlated views of waveform, symbol,
character, link and transaction layer packet data down to the bit level make it easy to isolate com-
munication faults to logic or analog sources.
Trigger on and view CRC, 8B/10B and disparity errors. Hardware-based triggering for PCIe means
triggering reliably, even on the most infrequent events.
This application is supported on scope channels of 4 GHz models.
For more information: www.agilent.com/find/9000_PCI
Trigger on and decode PCIe serial packets.

9
Widest range of debug and compliance software applications: serial physical-layer
USB 2.0 compliance testing (N5416A or Option 029 on new scope purchases)
Quickly determine USB compliance with this USB-IF recognized solution. A setup
wizard guides you through test selection and configuration.
This application is USB-IF approved and supported on all 2.5 GHz and 4 GHz models.
For more information:
www.agilent.com/find/9000_USB-complianc e
DDR1 and LPDDR/DDR2 and LPDDR2/DDR3 compliance testing (U7233A/N5413B/U7231A
or Options 031/032/033 on new scope purchases) or N5459A Opt 001 for all memory
applications
Quickly and easily evaluate and characterize your memory designs. Automated testing based
on JEDEC specifications saves time. The application also includes additional debug and com-
pliance capabilities.
This application is supported on all models. However, the DDR technology you are using may
dictate the minimal bandwidth required for your scope.
For more information: www.agilent.com/find/9000_DDR
Ethernet and Energy Efficient Ethernet compliance testing (N5392A and N5392B)
Perform a wide range of electrical tests for 10-, 100-, and 1000-Base-T systems. An N5395C
test fixture and N5396A jitter test cable speed compliance testing.
These applications are supported on all 600 MHz and higher bandwidth models.
For more information: www.agilent.com/find/9000_ethernet
MIPI compliance testing (U7238A or Option 035 on new scope purchased)
Quickly validate your embedded D-Phy data link for CSI and DSI architectures. This software
performs a wide range of tests required for meeting MIPI D-Phy physical layer
requirements.
These applications are is supported on analog channels of all 4 GHz models.
For more information: www.agilent.com/find/U7238A
Check for USB compliance.
Test DDR memory.
Validate Ethernet compliance.
Check for MIPI compliance.

10

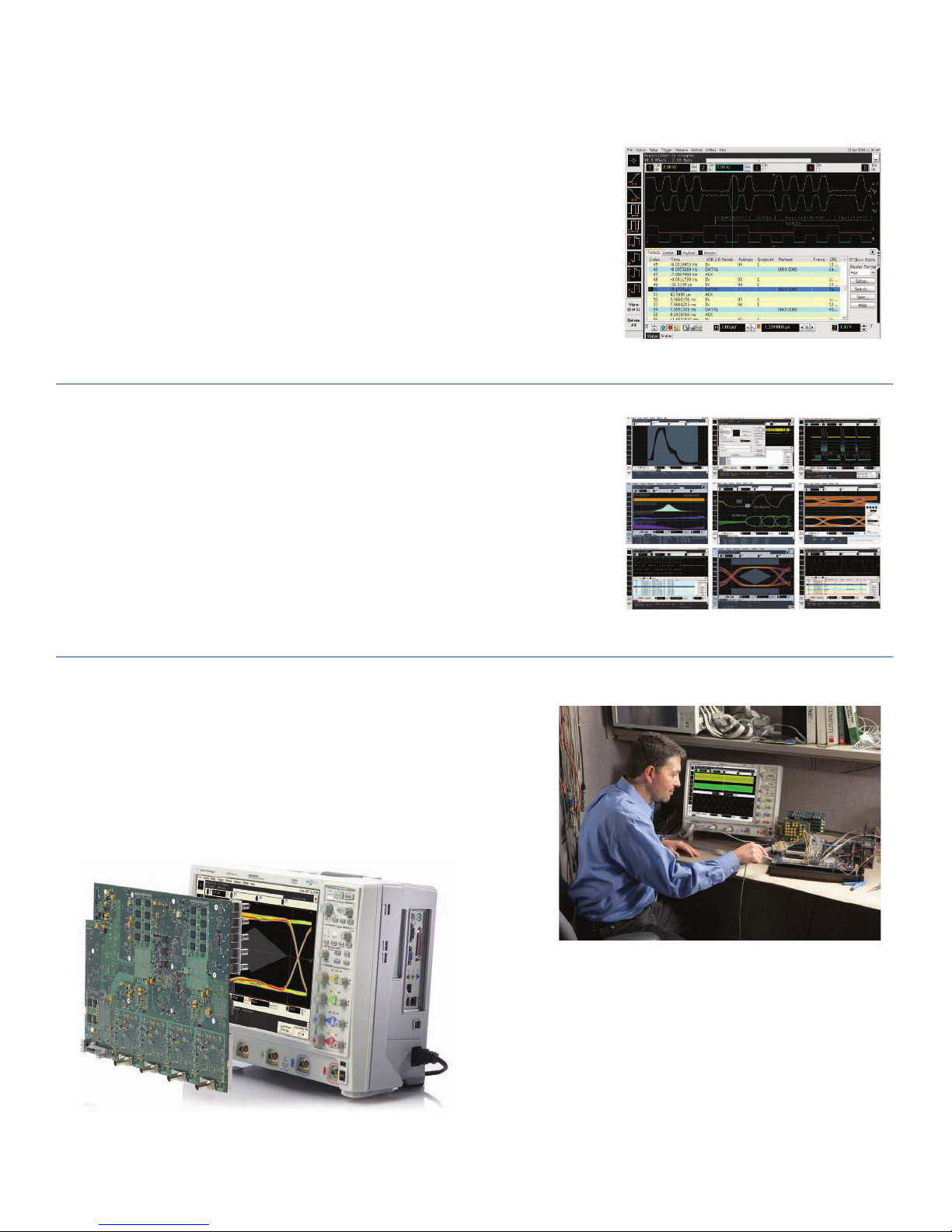

Widest range of debug and compliance software applications: InfiniiScan and jitter analysis
InfiniiScan event identification (N5415B or Option 009 on new scope purchases)
Rapidly trigger on complex events and identify signal integrity issues.
This innovative software quickly scans through thousands of acquired waveform cycles and iso-
lates anomalous signal behavior. Up to eight zones across channels are available.
This application is supported on all models.
For more information: www.agilent.com/find/infiniiScan

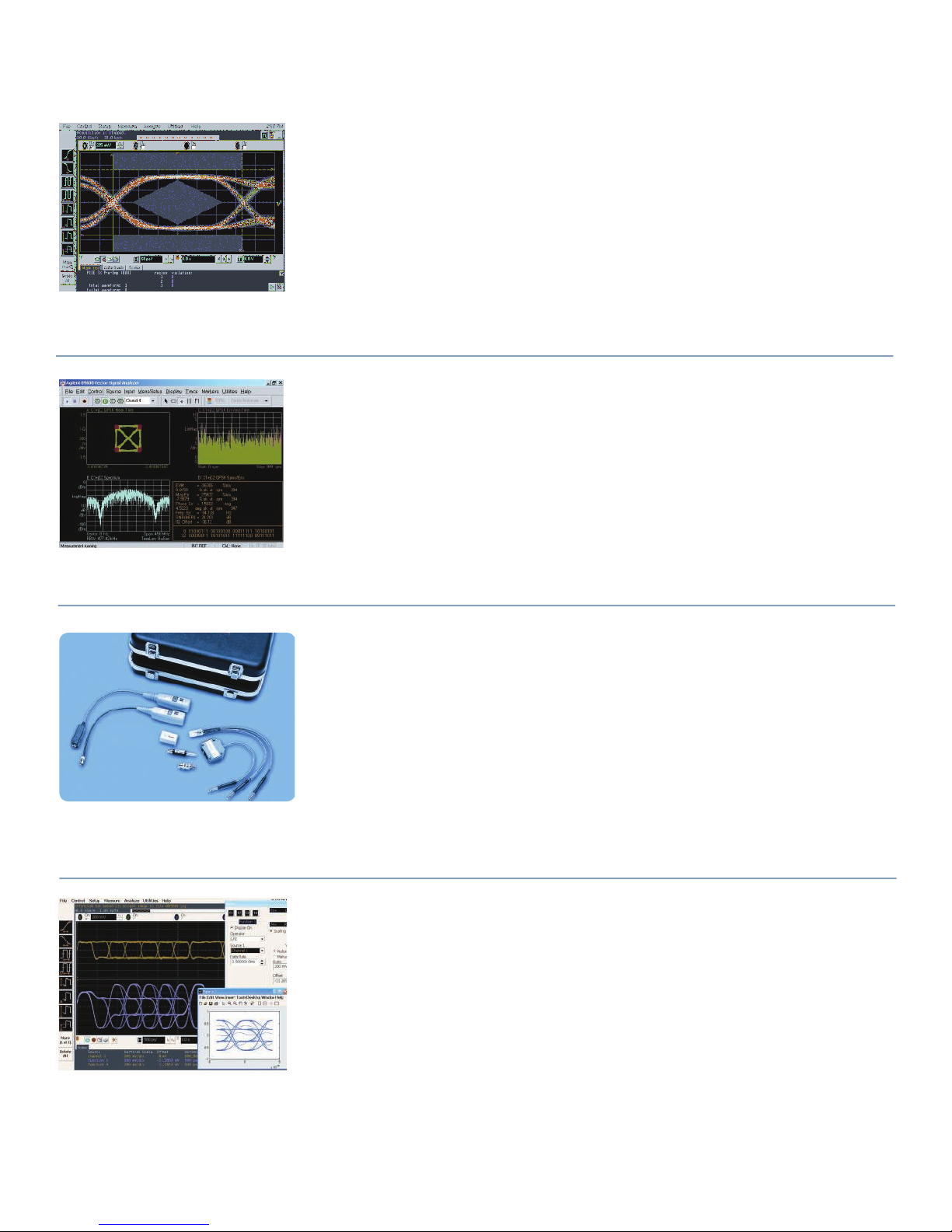

EZJIT analysis software (E2681A or option 002 on new scope purchases)
Quickly characterize and evaluate most commonly needed jitter measurements, including cycle-
cycle, N-cycle, period, time-interval, error, setup and hold time, histograms, measurement trending
and jitter spectrum.
This application is supported on all models.
For more information: www.agilent.com/find/EZJIT
EZJIT Plus analysis software (N5400A or Option 004 on new scope purchases. To upgrade from
EZJIT to EZJIT Plus, order N5401A.)
EZJIT Plus adds additional compliance views and an expanded measurement setup wizard to
simplify and automate RJ/DJ separation for testing against industry standards.
This application is supported on all models.
For more information: www.agilent.com/find/EZJITPlus
Identify signal integrity issues with InfiniiScan
Zone – Qualify triggering.
Conduct jitter analysis.
Analyze jitter plus RJ/DJ separation.
EZJIT Complete analysis software (N8823A or Option 070 on new scope purchases. To upgrade
from EZJIT Plus to EZJIT Complete, order N8813A.)
EZJIT Complete includes all of the advanced jitter analysis capabilities of EZJIT and EZJIT Plus,
and adds advanced analysis of the vertical noise affecting the ones and zeros of your real-time eye.
Decomposition of vertical noise provides key insight into degradation of your eye height. In
providing advanced decomposition of both horizontal jitter and vertical noise components of your
signals, EZJIT Complete represents the most comprehensive analysis software available.
This application is supported on all models and is standard on DSA models.
For more information: www.agilent.com/find/EZJITComplete
EZJIT Complete.

11
Widest range of debug and compliance software applications: viewing and analysis

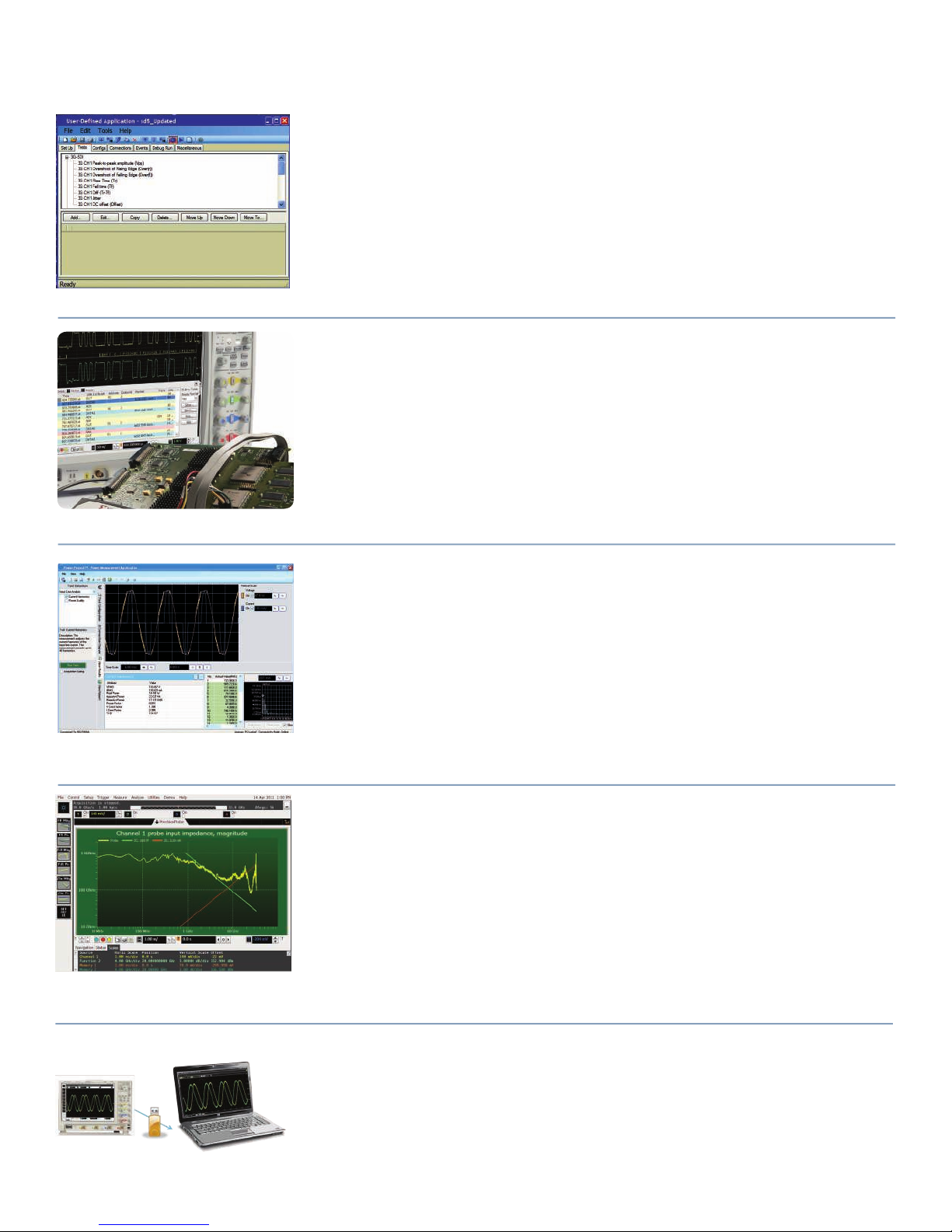

User-defined function (N5430A or Option 010 on new scope purchases)
Install MATLAB®on your scope and add your favorite MATLAB .m scripts as function operators
and use them as standard waveform functions.
This application is supported on all models and requires MATLAB software (not included with UDF)
For more information: www.agilent.com/find/UDF
Signal equalization using user-defined
function.
High-speed serial data analysis software (N5384A or Option 003 on new scope purchases)
Quickly validate signal integrity for high-speed serial interfaces with embedded clocks. Recover
embedded clocks synchronized with the analog waveform view. Build and validate eye diagrams.
The SDA package also includes software-based bit-level triggering and decode for 8B/10B.
This application is supported on all models.
For more information: www.agilent.com/find/9000_SDA
Recover embedded clocks with serial data
analysis (SDA).
Communication mask test kit (E2625A)
Take the frustration out of communications testing and prove your designs conform to industry
standards with the communication mask test kit option.
The kit comes with a set of electrical communication adapters to ensure convenient, reliable, and
accurate connections to your device under test. The kit includes more than 20 industry-standard
ANSI T1.102, ITU-T G.703, and IEEE 802.3 communication signal mask templates.
This application is supported on all models.
For more information: www.agilent.com/find/9000_comm
Prove your designs conform to industry
standards with a communication mask test kit.
Vector signal analysis software (89601B)
Expand the measurement capability of your scope with the 89601B vector signal analysis software.
This advanced DSP-based software takes the digitized signal data from the scope. Then it provides
FFT-based spectrum analysis and wide-bandwidth digital modulation analysis for wireless
communication signals such as WCDMA and cdma2000 and wireless networking signals such as
802.11 WiFi and 802.16 WiMax.
Take advantage of the super-wide bandwidth of your scope to capture and evaluate radar signals.
For more information: www.agilent.com/find/VSA
Use vector signal analysis software to see
FFT-based spectrum analysis.

12
Infiniium 9000 Series applications and upgrades
PrecisionProbe software (N2808A)
Make more accurate measurements independent of what probes or cables used. Agilent’s
N2808A PrecisionProbe software characterizes and corrects for the loss in your specific cable or
probe. PrecisionProbe removes the uncertainty about the input connected to your oscilloscope by
allowing you to see its characteristics in less than five minute. PrecisionProbe gives you design
and debug confidence by allowing you to quickly de-embed probe and cable loss to make more
accurate measurements.
For more information: www.agilent.com/find/PrecisionProbe
Quickly characterize and correct for any
input to your oscilloscope
Power application (U1882A or Option 015 on new scope purchases)
Agilent’s power application provides a full suite of power measurements. Make more accurate
power-supply efficiency measurements by using an U1880A de-skew fixture to de-skew your volt-
age and current probes.
This application is supported on all models.
For more information: www.agilent.com/find/9000_power-app
Use your scope to quickly make and analyze
power measurements.
FPGA dynamic probe application (N5397A or Option 016 on new scope purchases)
Agilent’s MSO FPGA dynamic probe provides internal FPGA visibility and quick instrument
setup using an innovative core-assisted debug approach. Measurement tasks that previously
took hours can be done in seconds with a few mouse clicks.
This application is supported on all MSO models.
For more information: www.agilent.com/find/9000_xilinx
Rapid FPGA debug.
InfiniiView Oscilloscope Analysis Software (N8900A)
Wish you could do additional signal viewing, analysis and documentation tasks away from
your scope and target system? With Agilent’s InfiniiView oscilloscope analysis software
you can. Capture waveforms on your scope, save to a file, and open the data record into
Agilent’s InfiniiView application. View, analyze, share, and document scope measurements
anywhere your PC goes.
User-definable application (N5467A or Option 040 on new scope purchases)
Rapidly develop your own automated measurements and tests. This application provides the
framework you need to quickly program and automate any single or set of measurements the
oscilloscope can make.
The application also provides full control of other Agilent instruments and HTML reporting capabilities.
For more information: www.agilent.com/find/9000_UDA
Quickly automate oscilloscope measurements.

13
Agilent’s real-time Infiniium lineup includes 9000, 9000 H-, 90000A and 90000 X Series oscilloscopes. These share a number of advanced
hardware and software technology blocks. Use the following selection guide to determine which best matches your specific needs.
Agilent Infiniium portfolio
Fastest real-time oscilloscope
Low noise, high bandwidthWidest range of applications.
Biggest display plus thin depth
9000 Series 9000 H-Series 90000 Series 90000 X-Series 90000 Q-Series
Bandwidth Up to 4 GHz Up to 2 GHz Up to 13 GHz Up to 33 GHz Up to 63 GHz
50 Ω & 1 MΩ inputs • • 1 M Ω with adapter 1 M Ω with adapter 1 M Ω with adapter
MSO models • • •
Max 2-channel (4-channel)
sample rate
20 GSa/s
(10 GSa/s)
10 GSa/s
(10 GSa/s)
40 GSa/s
(40 GSa/s)
80 GSa/s
(40 GSa/s)
160 GSa/s
(80 GSa/s)
GPIB N4865A GPIB to LAN
adapter
N4865A GPIB to
LAN adapter
Built in option Built in option Built in option
Rackmount height 8U 8U 7U 7U 8U
Display size 15” 15” 12” 12” 15”
See your signals in HD

14

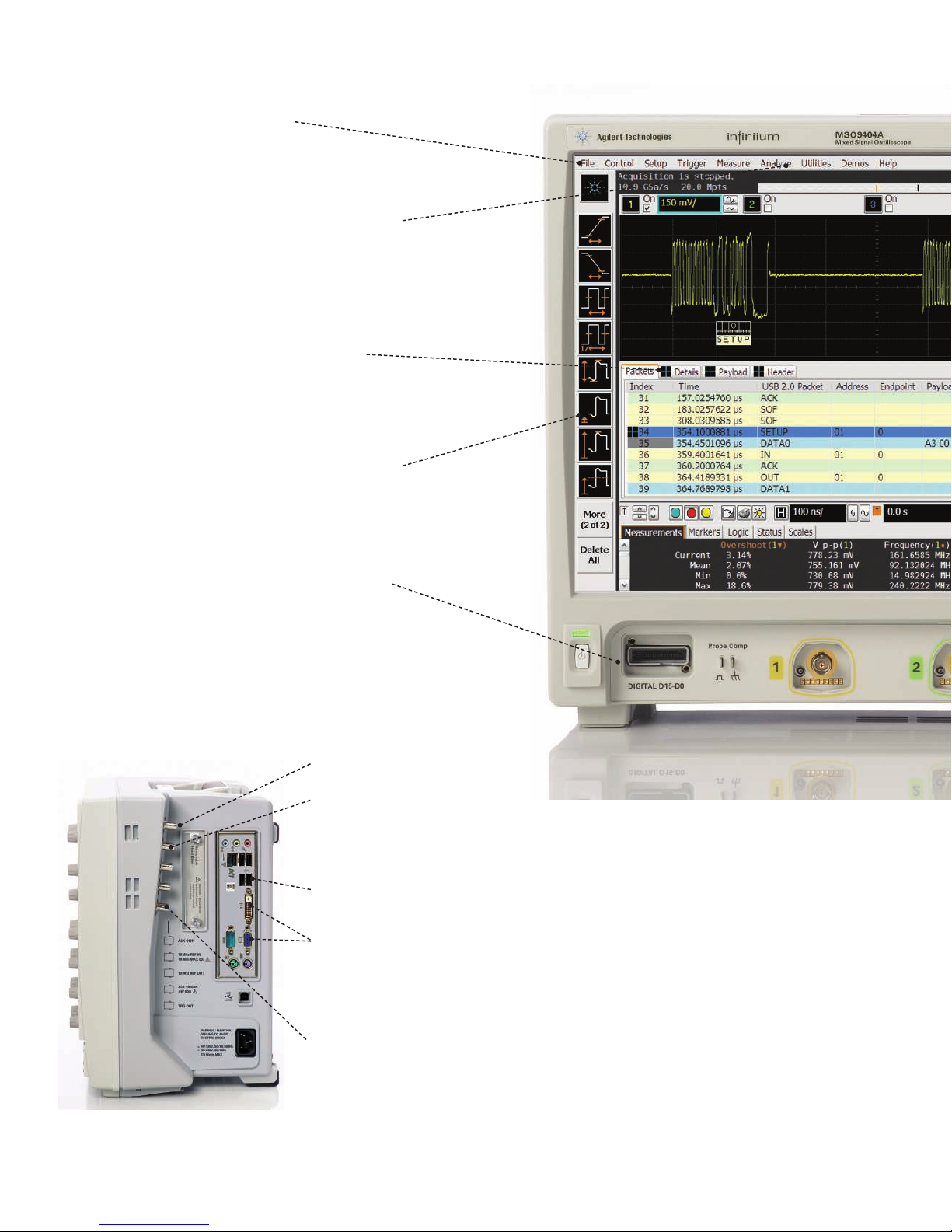

Agilent Infiniium 9000 Series oscilloscopes
15” XGA display makes it easier to view
analog, digital and serial signals.
Touchscreen display comes standard for mouse-free
operation.
Drag-and-drop measurements from the measurement bar
provide an intuitive way to make a measurement on a particu-
lar cycle of your waveform.
Mixed-signal oscilloscope (MSO) models seamlessly
integrate four analog scope channels with 16 digital channels.
Comprehensive built-in information system gives you fast
answers to your questions. The task-oriented setup guide
provides step-by-step instructions for several measurement
procedures.
XGA and DVI video output port lets you
connect to an external monitor.
Standard USB and LAN ports provide
PC and printer connectivity.
Trig in/out ports provide an easy way to
synchronize your scope to other instruments.
Built-in 10-MHz reference in/out port
synchronizes multiple measurement instru-
ments in a system.
AUX OUT for calibration

15

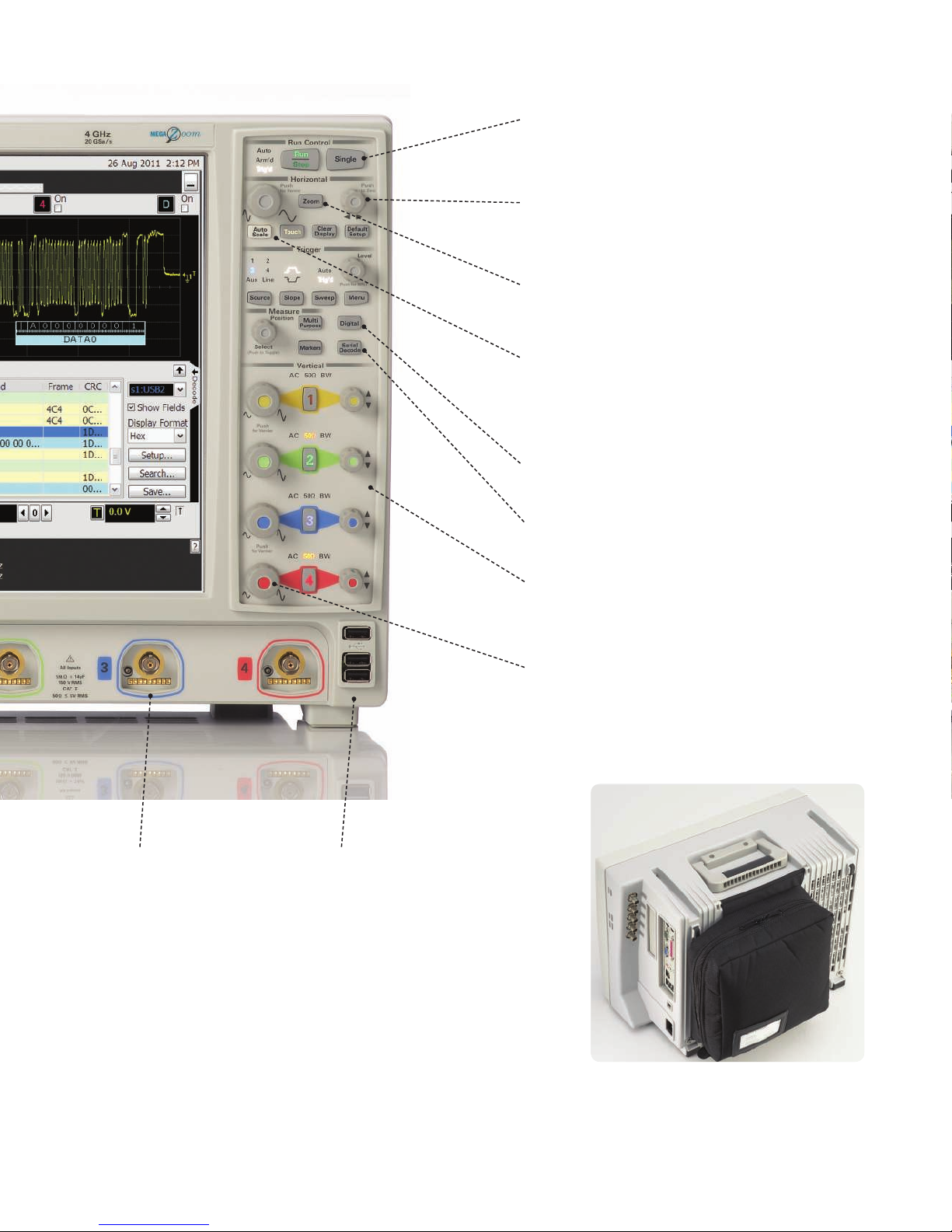

Dedicated single acquisition button provides better control to
capture a unique event.
Pressing horizontal delay knob sets the delay to zero. A zoom
button provides quick access to two screen-zoom modes.
MegaZoom instant response and optimum resolution allows
you to pan and zoom quickly.
Autoscale lets you rapidly display any analog or digital active
signals, automatically setting the vertical, horizontal and
trigger controls for the best display, while optimizing memory.
Digital channel button provides quick setup access.
Serial decode button enables quick setup access.
Dedicated per-channel front panel controls make it easy to
access the vertical and horizontal scaling and offset.
Quick access to fine/vernier control by pressing the horizon-
tal and vertical sensitivity knobs.
Accessory pouch detaches easily.
AutoProbe interface automatically
configures the attenuation ratio of the
probe and provides probe power for
Agilent’s active probes.
Built-in USB ports makes it easy
to save your work and update your
system software quickly.

16
Connectivity and probing
Connectivity
Industry compatibility
Export screen shots and waveforms in
numerous industry-standard formats.
In addition, the 9000 Series supports
compatibility with the following
• MATLAB Basic and Advanced (add as 061
and 062 on new scope orders)
• IVI COM driver for application development
environments such as Visual Studio, Agilent
VEE, NI LabView and MATLAB instrument
control toolbox.
www.agilent.com/find/adn
• IntuiLink tool bars and data capture.
www.agilent.com/find/intuilink
• LXI Class C including built-in Web control
• NI LabView PnP and IVI drives
www.agilent.com/find/ni9404
Probing
Each Infiniium 9000 Series oscilloscope ships
with four N2873A 10:1 divider passive probes
and probe accessory pouch.
With both 50 Ω and 1 MΩ inputs, Infiniium
9000 Series scopes support a wide range of
probes, including Agilent’s InfiniiMax and
InfiniiMode Series probes.
Agilent offers an innovative family of probes
that are engineered for signal access and
measurement accuracy. Whether you’re
looking for simple passive probes, the high
bandwidth and low loading of an active
probe, or specialty probes for current or high
voltage, we can meet your needs. Our inno-
vative accessories allow reliable connection
to challenging
DSO/MSO9404A 1132A InfiniiMax 5 GHz probe
N2752A InfiniiMode 6 GHz probe
DSO/MSO9254A 1131A InfiniiMax 3.5 GHz probe
N2751A InfiniiMode 3.5 GHz probe
DSO/MSO9104A N2796A 2 GHz single-ended probe
1130A InfiniiMax 1.5 GHz probe
N2750A InfiniiMode 1.5 GHz probe
DSO/MSO9064A N2795A 1 GHz single-ended probe
N2750A InfiniiMode 1.5 GHz probe
Recommended optional active probes
components like small pitch devices,
surface mount ICs, and DDR BGA pack-
ages – even hands free! To see our entire
award-winning portfolio of passive, single-
ended active, differential active, and
current probes for Infiniium oscilloscopes,
please view the Infiniium Oscilloscope
Probes and Accessories Selection Guide.
publication number 5968-7141EN.

17
Infiniium 9000 Series performance characteristics
Vertical: scope channels 9064A 9104A 9254A 9404A
Analog bandwidth (–3 dB) 50 Ω1 600 MHz 1.0 GHz 2.5 GHz 4 GHz
1MΩ 500 MHz 500 MHz 500 MHz 500 MHz
Typical Rise Time / Fall 540 ps 253 ps 142 ps 85 ps
Time 10% to 90% at 50 Ω
Typical Rise Time / Fall 360 ps 174 ps 98 ps 59 ps
Time 20% to 80% at 50 Ω
Input channels DSO9000 – 4 analog
MSO9000 – 4 analog + 16 digital
Input impedance150 Ω ± 2.5%, 1 MΩ ± 1% (11pF typical)
Input sensitivity31 MΩ: 1 mV/div to 5 V/div
50 Ω: 1 mV/div to 1 V/div
Input coupling 1 MΩ: AC (3.5 Hz), DC
50 Ω:DC
Bandwidth limit 20 MHz on 1 MΩ input ; 500 MHz up to full scope bandwidth in increments of 500 MHz
Vertical resolution2,3 8 bits, ≥12 bits with averaging
Channel-to-channel isolation DC to 50 MHz: 50 dB
>50 MHz to 2.5 GHz: 40 dB
>2.5 GHz to 4 GHz: 25 dB
DC gain accuracy1,2,3 ± 2% of full scale at full resolution on channel scale ± 5 ˚C from cal temp
Maximum input voltage11 MΩ: 150V RMS or DC, CAT I
± 250 V (DC + AC) in AC coupling
50 Ω: 5 Vrms
Offset range Vertical sensitivity Available offset
1 MΩ 1 mV to <10 mV/div ± 2 V
10 mV to <20 mV/div ± 5 V
20 mV to <100 mV/div ± 10 V
100 mV to <1 V/div ± 20 V
1 V to 5 V/div ± 100 V
50 Ω ±12 div or ±4V, whichever is smallest
1 Denotes warranted specifications, all others are typical. Specifications are valid after a 30-minute warm-up period and ±5 °C from firmware calibration temperature. Input
impedance is valid when V/div scaling is adjusted to show all waveform vertical values within scope display.
2 Vertical resolution for 8 bits = 0.4% of full scale, for 12 bits = 0.024% of full scale.
3 50Ω input: Full scale is defined as 8 vertical divisions. Magnification is used below 10mV/div, full-scale is defined as 80 mV. The major scale settings are 5mV, 10mV, 20mV, 50
mV, 100mV, 200 mV, 500 mV, 1V.
1MΩ input: Full scale is defined as 8 vertical divisions. Magnification is used below 5mV/div, full-scale is defined as 40 mV. The major scale settings are 5mV, 10mV, 20mV, 50
mV, 100 mV, 200 mV, 500 mV, 1V,2V, 5V.

18
Infiniium 9000 Series performance characteristics
Vertical: scope channels (con’t)
Offset accuracy1,3 ± (1.25% of channel offset +1% of full scale + 1 mV)
Dynamic range 1 MΩ: ± 8 div from center screen
50 Ω: ± 8 div from center screen
DC voltage measurement accuracy2
Dual cursor ± [(DC gain accuracy)+(resolution)]
Single cursor ± [(DC gain accuracy)+(offset accuracy)+(resolution/2)]
1 Denotes warranted specifications, all others are typical. Specifications are valid after a 30-minute warm-up period and ±5 °C from firmware calibration temperature.
2 Vertical resolution for 8 bits = 0.4% of full scale, for 12 bits = 0.024% of full scale.
3 50Ω input: Full scale is defined as 8 vertical divisions. Magnification is used below 10mV/div, full-scale is defined as 80 mV. The major scale settings are 5mV, 10mV, 20mV,
50 mV, 100 mV, 200 mV, 500 mV, 1V.
1MΩ input: Full scale is defined as 8 vertical divisions. Magnification is used below 5mV/div, full-scale is defined as 40 mV. The major scale settings are 5mV, 10mV, 20mV,
50 mV, 100 mV, 200 mV, 5 00mV, 1V,2V, 5V.
Vertical: digital channels On all MSO Models
Input channels 16 digital channels
Threshold groupings 16 digital channels Pod 2: D15 – D8
Threshold selections TTL (1.4V), CMOS, (5.0V, 3.3V, 2.5V), ECL (-1.3V), PECL (3.7V), user defined (±8.00 V in 100 mV increments)
Maximum input voltage ±40 V peak CAT I
Threshold accuracy ±(100 mV + 3% of threshold setting)
Input dynamic range ±10 V about threshold
Minimum input voltage swing 500 mV peak-to-peak
Input impedance (flying leads) 100 kΩ ± 2% (~ 8 pF) at probe tip
Resolution 1 bit
Analog bandwidth 400 MHz
RMS Noise Floor (V RMS AC)
9064A 9104A 9254A 9404A
Volts/div full BW 500 MHz filter full BW 1 GHz filter full BW 2 GHz filter full BW 4 GHz filter
10 mV 213 uV 138 uV 240 uV 120 uV 273 uV 210 uV 402 uV 263 uV
20 mV 470 uV 175 uV 481 uV 154 uV 445 uV 330 uV 627 uV 424 uV
50 mV 1.15 mV .464 mV 1.24 mV .415 mV 1.22 mV .780 mV 1.67 mV 1.12 mV
100 mV 2.37 mV .895 mV 2.43 mV .786 mV 2.54 mV 1.50 mV 3.17 mV 2.16 mV
200 mV 4.65 mV 1.75 mV 4,85 mV 1.50 mV 5.06 mV 2.86 mV 6.18 mV 4.15 mV
500 mV 11.8 mV 4.60 mV 12.3 mV 4.15 mV 12.2 mV 7.61 mV 15.8 mV 11.26 mV
1 V 23.9 mV 8.91 mV 24.3 mV 7.85 mV 25.2 mV 14.9 mV 31.5 mV 21.9 mV

19
Horizontal
Channel-to-channel skew (digital) 2 ns typical
Glitch detect (digital) ≥ 2.0 ns
Main time base range 5 ps/div to 20 s/div
Horizontal position range 0 to ± 200 s
Delayed sweep range 1 ps/div to current main time base setting
Resolution 1 ps
Modes Main, delayed, roll (200 ms to 20 sec)
Reference positions Left, center, right
Channel deskew -1 ms to +1 ms range
Time scale accuracy (internal reference) Horizontal time base setting ± ((Horizontal time base setting) *(0.4 + 0.5* years since
(External reference clock = off) calibration)) ppm
Infiniium 9000 Series performance characteristics
Delta-time measurement accuracy2,3,4,5
1 Denotes warranted specifications, all others are typical. Specifications are valid after a 30-minute warm-up period and ±5 °C from firmware calibration temperature.
2 Noise is the displayed noise floor. SlewRate is the displayed slew rate of the signal at the threshold crossings. Sample rate = max, sin(x)/x interpolation enabled.
3 Measurement threshold = fixed voltage at 50% level.
4 Time ranges ≤ 10 µs.
5 Values represent time error between two edges on a single channel. Standard deviation value refers to the standard deviation of 256 consecutive measurements performed
using an individual instrument. Reading is the displayed DTMA measurement value.
9064 4.8 20
9104 4.8 15
9254 4.0 15
9404 5.0 20
9064 .33 .1
9104 .33 .05
9254 .33 .10
9404 .35 .15
9064 .75
9104 .65
9254 .75
9404 .80
9064 1.0 1.0
9104 1.0 0.5
9254 .95 1.1
9404 .95 1.2
9064 .75
9104 .65
9254 .75
9404 .80
9064 1.8
9104 1.4
9254 1.9
9404 2.0
Absolute averaging disabled
Absolute >256 averages
Standard deviation averaging disabled
Standard deviation >256 averages
Jitter measurements floor2,3
Time interval error 4
N-cycle, cycle-cycle jitter
Period jitter

20
Infiniium 9000 Series performance characteristics
Acquisition 9104, 9254, 9404 9064
Maximum real-time sample rate 4 ch x 10 GS/s or 2 ch x 20 GS/s 4 ch x 5 GSa/s or 2 ch x 10 GSa/s
Memory depth per channel
Standard 20 Mpts on 4 channels, 40 Mpts on 2 channels
Option 50M 50 Mpts on 4 channels, 100 Mpts on 2 channels
Option 100 100 Mpts on 4 channels, 200 Mpts on 2 channels
Option 200 200 Mpts on 4 channels, 400 Mpts on 2 channels
Option 500 500 Mpts/ 250 Mpts on 4 channels, 1 Gpts/ 500 Mpts on 2 channels (single/repetitive mode)
Sampling Modes
Real-time
Real-time with peak detect
Real-time with high resolution (user selectable to 9-, 10-, 11-, or 12-bits of resolution)
Real-time with roll mode (200 ms to 20 sec.)
Equivalent-time (1.0 ps fine interpolator resolution yields a maximum effective sample rate of 1,000 GSa/s)
Segmented memory ( 1 ps time stamp resolution between segments)
Up to 8192 segments for 20 Mpts standard memory, up to 131,072 segments with Option 500
Maximum time between triggers is 562,950 seconds (6.5 days)
Re-arm time (minimum time between trigger events) is 4.5 s with analog channels, 5.8 s with digital channels on
Filters Sin (x) / x Interpolation
Acquisition: digital channels
Maximum real time sample rate 2 GSa/s
Maximum memory depth per channel 128/ 64 Mpts with 2 GSa/s. 64/32 Mpts with sampling < 2 GSa/s (single/repetitive mode).
Minimum width glitch detection 2 ns
Trigger: scope channels
Trigger sources Channel 1, channel 2, channel 3, channel 4, aux, and line
Sensitivity 1 MΩ input, edge trigger, DC to 500 MHz: 0.6 div
50 Ω DC to 2 GHz, 0.5 div
2 GHz to 4 GHz: 1.0 div
Auxiliary DC to 700 MHz: 300 mVp-p
Trigger level range ± 4 div from center screen (50 Ω)
Channel 1,2,3,4 ± 8 div from center screen with max of ± 8 V (1 MΩ)
Auxiliary ± 5 V (50 up to 500 MHz with at least 500 mV signal swing)
Sweep modes Auto, triggered, single
Display jitter (displayed trigger jitter)1,2
Trigger holdoff range 100 ns to 10 s fixed and random
Trigger actions Specify an action to occur, and the frequency of the action, when a trigger condition occurs.
Actions include: e-mail on trigger and execute “multipurpose” user settings
Trigger coupling 1 MΩ: DC, AC, (10 Hz) low frequency reject (50 kHZ high pass filter), high frequency reject (50 kHz low pass filter)
1. Internal edge trigger mode. Trigger threshold = fixed voltage at 50% level. The slew rate independent value in the formula represents the traditional trigger jitter.
2. Display jitter example. At 100 mV/div typical noise values are 3.2 mV RMS for 9404 models, 2.5 mV RMS for 9254A models, and 2.4 mV RMS for 9104A models. For slew rate of 500 mVpp
sin wave with frequency equal to max analog bandwidth of each model, typical display jitter is .95 ps RMS for 9404A models, .97ps for 9254A models, and 1.7 ps RMS for 9104A models.
9064 .50
9104 .35
9254 .50
9404 .40
