Agora LAMBORGHINI MIURA Pack 03 Manual

STAGE 16: ASSEMBLING THE LEFT AIR FILTER
BOX AND FITTING PETROL PIPES
STAGE 17: CONSTRUCTING THE ENGINE
STAGE 18: ATTACHING THE TRANSMISSION
STAGE 19: FIXING THE CRANKCASE COVER
AND OIL SUMP
STAGE 20: ATTACHING THE ALTERNATOR
STAGE 21: INSTALLING THE CLUTCH
STAGE 22: FITTING ESSENTIAL ENGINE PARTS
STAGE 23: OIL PUMP AND BREATHER SYSTEM
STAGE 24: THE REAR FRAME
Pack 03
BUILD INSTRUCTIONS
The “Automobili Lamborghini” and “Automobili Lamborghini Bull and Shield” trademarks, copyrights,
designs and models are used under license from Automobile Lamborghini S.p.A, Italy.

AGORAMODELS LAMBORGHINI MIURA
2
Spare screws are included with each part. Occasionally, you may be instructed to keep spare or
unused screws for a later stage. Keep these spares in a safe place and label them correctly.
Please make sure you don’t mix up the screws. They look quite similar, but the threads do vary
slightly. Using the wrong screws may damage the parts.
When securing parts together using multiple screws, fit each screw loosely to ensure all the
parts are correctly aligned before gently tightening them firmly, but not overtight, in the order
in which you placed them.
The screwdriver can be magnetized by stroking it with a magnet (fridge magnet, etc.) enabling
it to hold the screws and make assembly easier.
If a screw is tight going into a metal part, do not force it as you may shear the head off. Remove
it and put a tiny smear of Vaseline, soap or light oil on the thread. That will lubricate it and make
it easier to drive home.
During the course of this build, you will receive many pieces that you will assemble immediately
– following the instructions in the corresponding stage – and other pieces that you should store
safely to one side, for use in future assembly stages.
Left and Right! When building your Lamborghini, the left or right hand side refers to each side
as you are sitting in the car.
WARNING: Some parts are assembled using magnets. These magnets can cause serious injury
if they are swallowed. Keep away from children. If you suspect a magnet has been swallowed,
seek medical help straight away.
Advice from the experts
!

AGORAMODELS LAMBORGHINI MIURA
3
XXX
Name
Air filter box
Air filter box cover
Petrol pipes
Petrol pipe fittings
Air filter box screw x3
STAGE 16 PARTS LIST
In this stage you’ll assemble the left
air filter box, then it’s time to fit the
carburettors from the last pack with
petrol pipes.
Air filter box
Stage 16: Assembling the Left Air Filter Box and
Fitting Petrol Pipes
Air filter box cover
Petrol pipes
Petrol pipe fittings
Air filter box screw x3

AGORAMODELS LAMBORGHINI MIURA
4
1
3
2
4

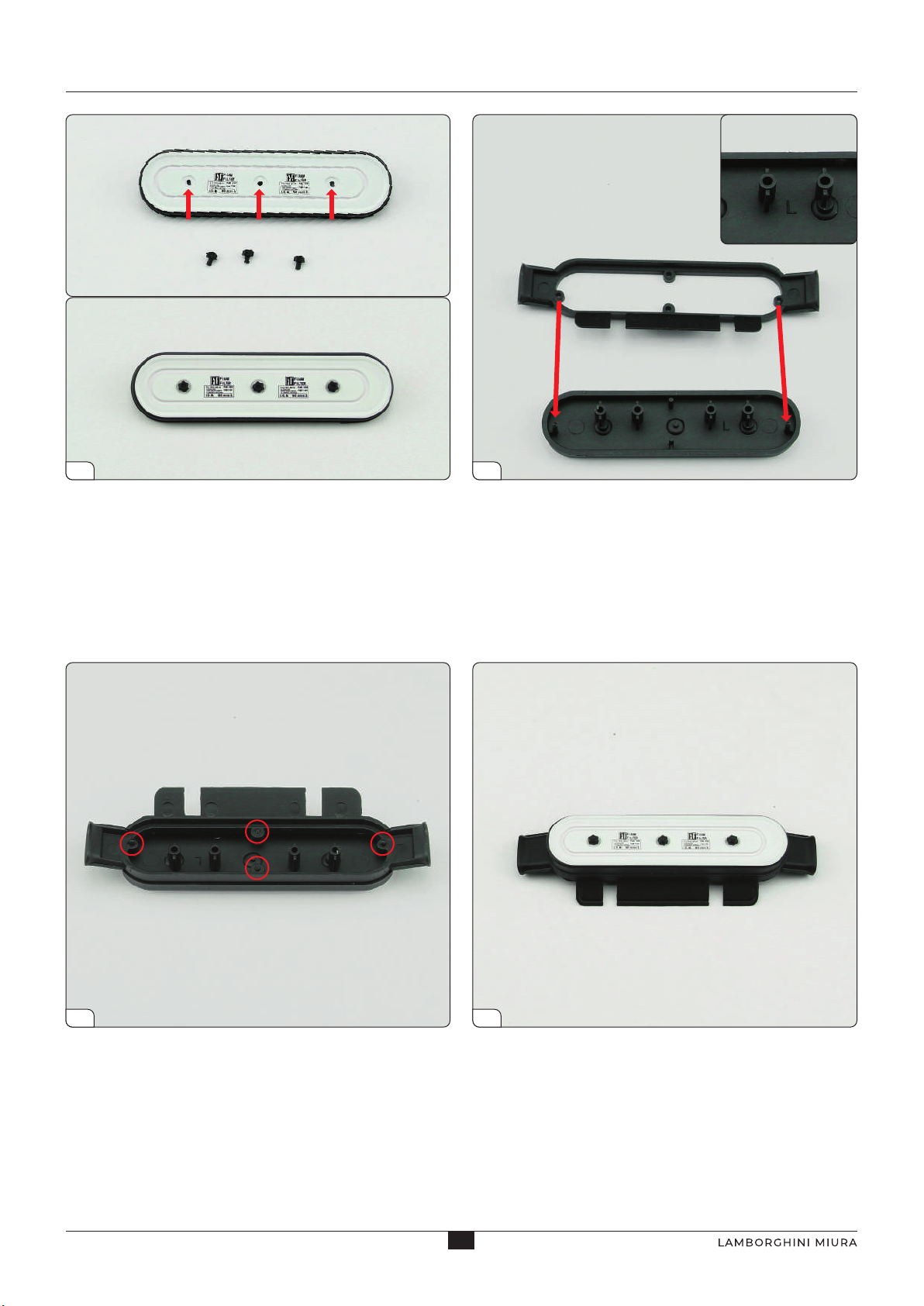

First take the air filter box cover and the three air filter box screws.
Carefully push the screws into the holes in the cover (arrows).
We recommend doing this by hand to avoid damaging the paint and
print on the cover.
Push the parts firmly together until all four holes have fitted over the
pins (circled).
Turn the box cover over, then align the air filter box with it as shown.
Use the holes on the air filter box and the pins on the cover as a guide
(arrows).
Note the ‘L’ printed on the cover (inset). This will help when fitting the
air filters at a later stage.
The air filter box should now look like this. Check the fit is flush all the
way round.
Stage 16: Assembling the Left Air Filter Box and
Fitting Petrol Pipes

AGORAMODELS LAMBORGHINI MIURA
5
5
7
6
Cut the petrol pipe fittings from their sprue using sprue cutters by
snipping at the points indicated by red arrows.
Take the right cylinder head from stage 15 and the shorter petrol
pipe fitting, then align the two as shown. Note the four holes in the
carburettors and the corresponding pins on the petrol pipe (circled).
Fit the petrol pipes onto the ends of the fittings as shown. We
recommend using a pair of tweezers to grip and twist the petrol pipe
as you push it on.
Stage 16: Assembling the Left Air Filter Box and
Fitting Petrol Pipes
8
Press the four pins of the petrol pipe into the four holes on the
carburettors. We recommend pressing each one in partially before
pushing all four firmly in place.

AGORAMODELS LAMBORGHINI MIURA
6
9
11
10

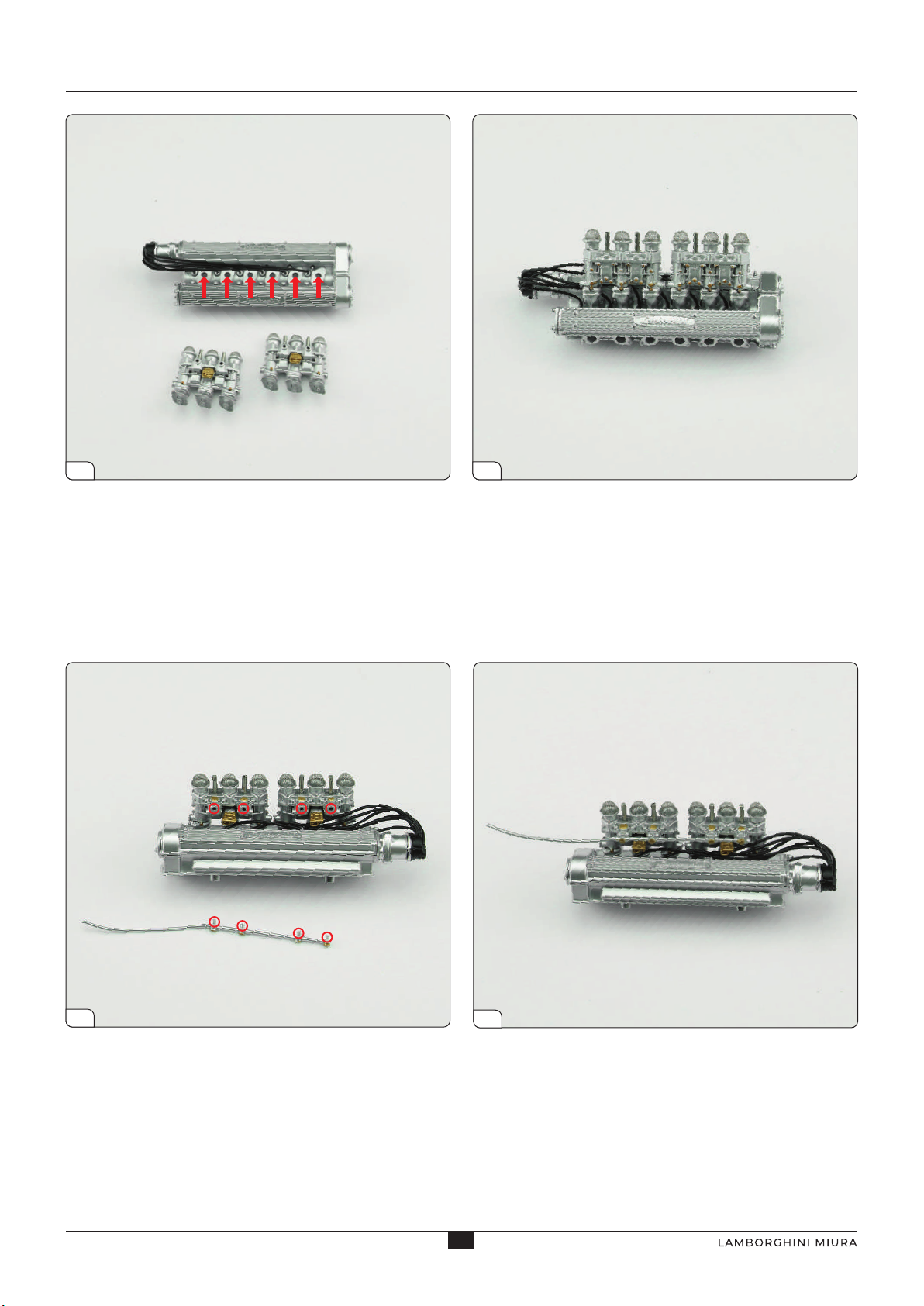

Now take the two carburettors assembled in stages 11 and 12 along
with the left cylinder head from stage 13. Press the pins on the
carburettors into the holes between the spark plugs simultaneously, as
you did in stage 15 (arrows).
Take the longer petrol pipe and align it with the holes in the
carburettors as shown. Note that you may need to move the spark
plug wires out of the way before fitting the petrol pipe, as shown in
the photo.
The carburettors should look like this once in place.
Stage 16: Assembling the Left Air Filter Box and
Fitting Petrol Pipes
12
Press the pins of the petrol pipe into the carburettor holes, in the same
manner as step 8.

AGORAMODELS LAMBORGHINI MIURA
7
STAGE COMPLETE
Stage 16: Assembling the Left Air Filter Box and
Fitting Petrol Pipes

AGORAMODELS LAMBORGHINI MIURA
8
XXX
Name

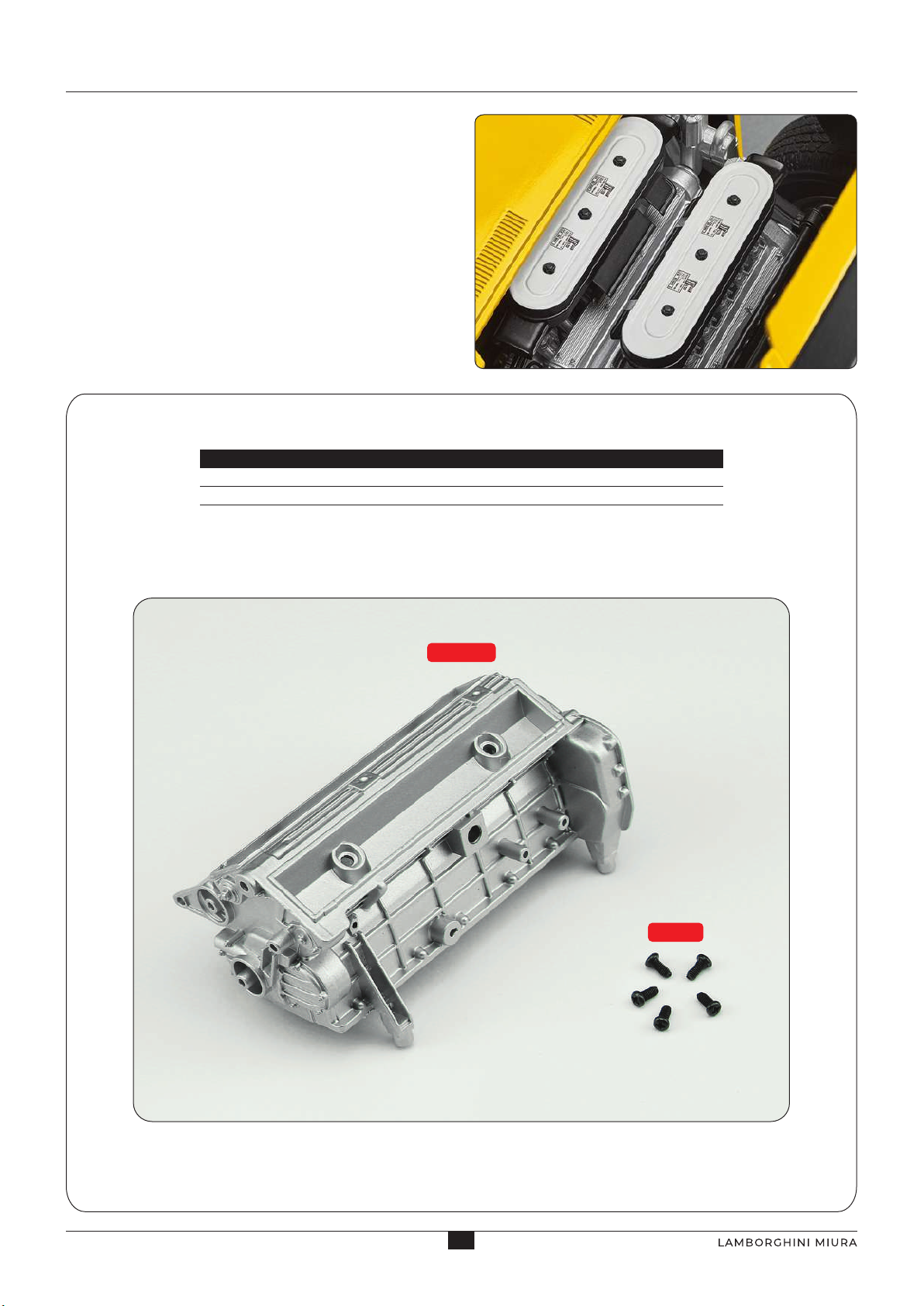

Engine base
Type A screws x5
STAGE 17 PARTS LIST
Now the engine starts to take
shape! After attaching the cylinder
heads to the base, you’ll begin to
add detail to the engine, starting
with fitting the two air filter boxes
over the velocity stacks.
Engine base
Stage 17: Constructing the Engine
Type A x5

AGORAMODELS LAMBORGHINI MIURA
9
1
3 4

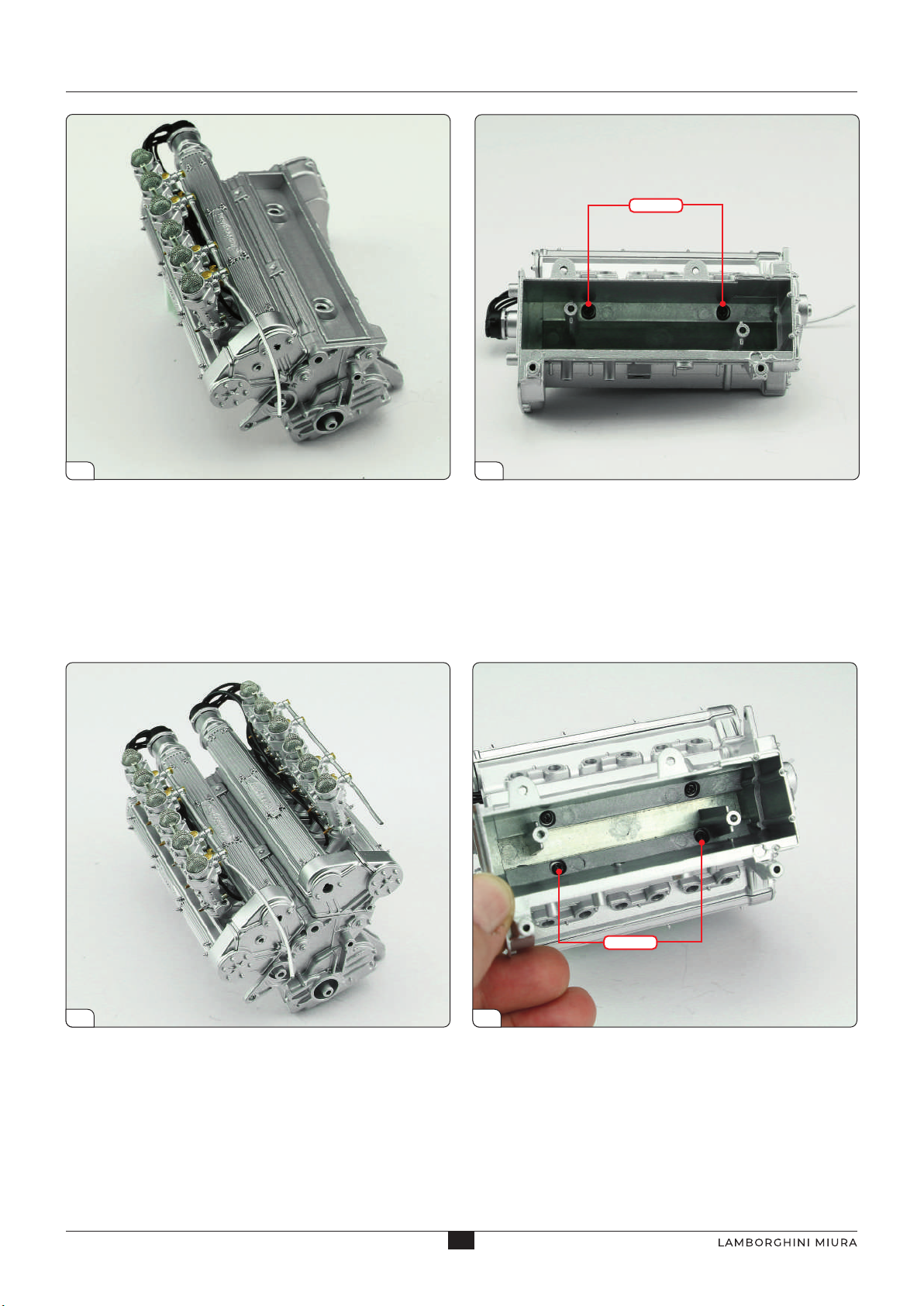

First place the engine base on your work surface, then fit the left
cylinder head onto the engine base as shown.
Stage 17: Constructing the Engine
TYPE A
2
While holding everything in place, turn the assembly over and secure
the cylinder head to the engine base using 2x Type A screws. We
recommend removing the carburettors from the cylinder head before
driving the screws in to avoid damaging the velocity stacks.
Tip: try adding a drop of oil to the thread of the screw if it’s difficult to
drive in.
Then place the right cylinder head onto the engine base. Secure the right cylinder head using 2x Type A screws.
TYPE A

AGORAMODELS LAMBORGHINI MIURA
10
Stage 17: Constructing the Engine
5

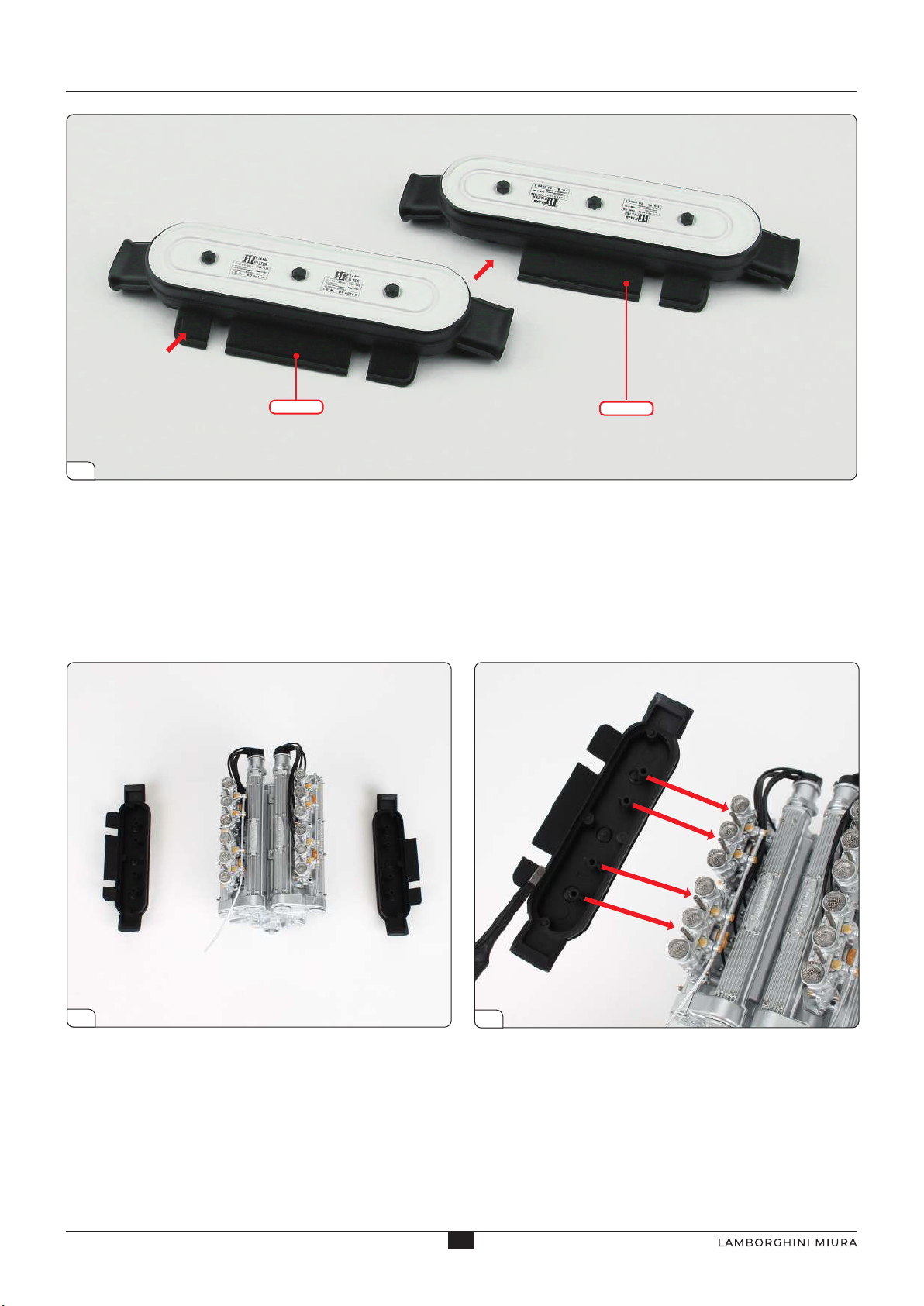

Now take the two air filter boxes, one from the previous stage and the other from stage 10. Note the difference between the air filter boxes on the
left and right air filters (arrows), as well as the ‘L’ and ‘R’ printed on the underside of them to help differentiate the two.
LEFT RIGHT
6
Once you’ve identified the air filter boxes, align them with the engine
block as shown.
7
Fit the left air filter box onto the left cylinder head using the support
pins in the carburettors (arrows). Take care not the scratch the paint of
the air filter box cover.

AGORAMODELS LAMBORGHINI MIURA
11
Stage 17: Constructing the Engine
8
Push the right air filter box onto the other side.
9
The air filter boxes should look like this when in place.
STAGE COMPLETE

AGORAMODELS LAMBORGHINI MIURA
12
XXX
Name
Transmission/differential housing
Lower engine crankcase closure
Left differential cover
Housing cap
Differential body
Right differential cover
Type A screws x3
Type B screws x5
STAGE 18 PARTS LIST
Next you’ll build the gearbox and
install it on your engine, then cover
the lower engine up by adding the
crankcase closure.
Transmission/differential housing
Stage 18: Attaching the Gearbox
Lower engine crankcase closure
Left differential cover
Right differential cover
Type A x3 Type B x5
Housing cap
Differential body

AGORAMODELS LAMBORGHINI MIURA
13
1
3
2
4
Take the housing cap and the left differential cover. Note the pins on
the cap (circled) and the corresponding holes on the cover (arrows).
Turn the cover over and align the differential body with it as shown.
Fit the cap into the cover so that the D-shaped holes in both parts
align as shown.
Fit the holes over the pins and press the parts together firmly until the
fit is flush all the way round.
Stage 18: Attaching the Gearbox

AGORAMODELS LAMBORGHINI MIURA
14
5
7
6
Now align the right differential cover with the assembly. Press the pins
on the back of the right cover into the holes of the left cover (arrows).
Take the transmission/differential housing and 2x Type B screws. Note
the holes in the housing (circled).
The differential assembly should now look like this.
Stage 18: Attaching the Gearbox
8
Fit the differential assembly onto the housing as shown.

AGORAMODELS LAMBORGHINI MIURA
15
9
11
10
Secure in place using 2x Type B screws.
Push the assembly into place, then secure with 2x Type B screws.
Note: you may need to file away excess paint around the transmission/
differential housing to get a good fit.
Align the assembly with the engine block as shown. The two columns
fit under the protruding tabs from the engine block (arrows).
Stage 18: Attaching the Gearbox
12
Finally, take the lower engine crankcase cover. Locate the
corresponding screw holes (arrows) and the pin and plug (circled) for
fitting the parts together.
TYPE B
TYPE B
TYPE B

AGORAMODELS LAMBORGHINI MIURA
16
13
Fit the cover onto the engine base, then drive 2x Type A screws
through the holes to secure everything together.
Stage 18: Attaching the Gearbox
STAGE COMPLETE
TYPE A

AGORAMODELS LAMBORGHINI MIURA
17
XXX
Name
Crankcase cover
Oil sump
Oil sump cover
Type B screws x3
Type A screws x3
STAGE 19 PARTS LIST
The impressive engine continues
to take shape as you add the
crankcase cover to the side and oil
sump cover underneath.
Crankcase cover
Stage 19: Fixing the Crankcase Cover and Oil Sump
Oil sump cover
Oil sump
Type A x3
Type B x3

AGORAMODELS LAMBORGHINI MIURA
18
1
3
2
4

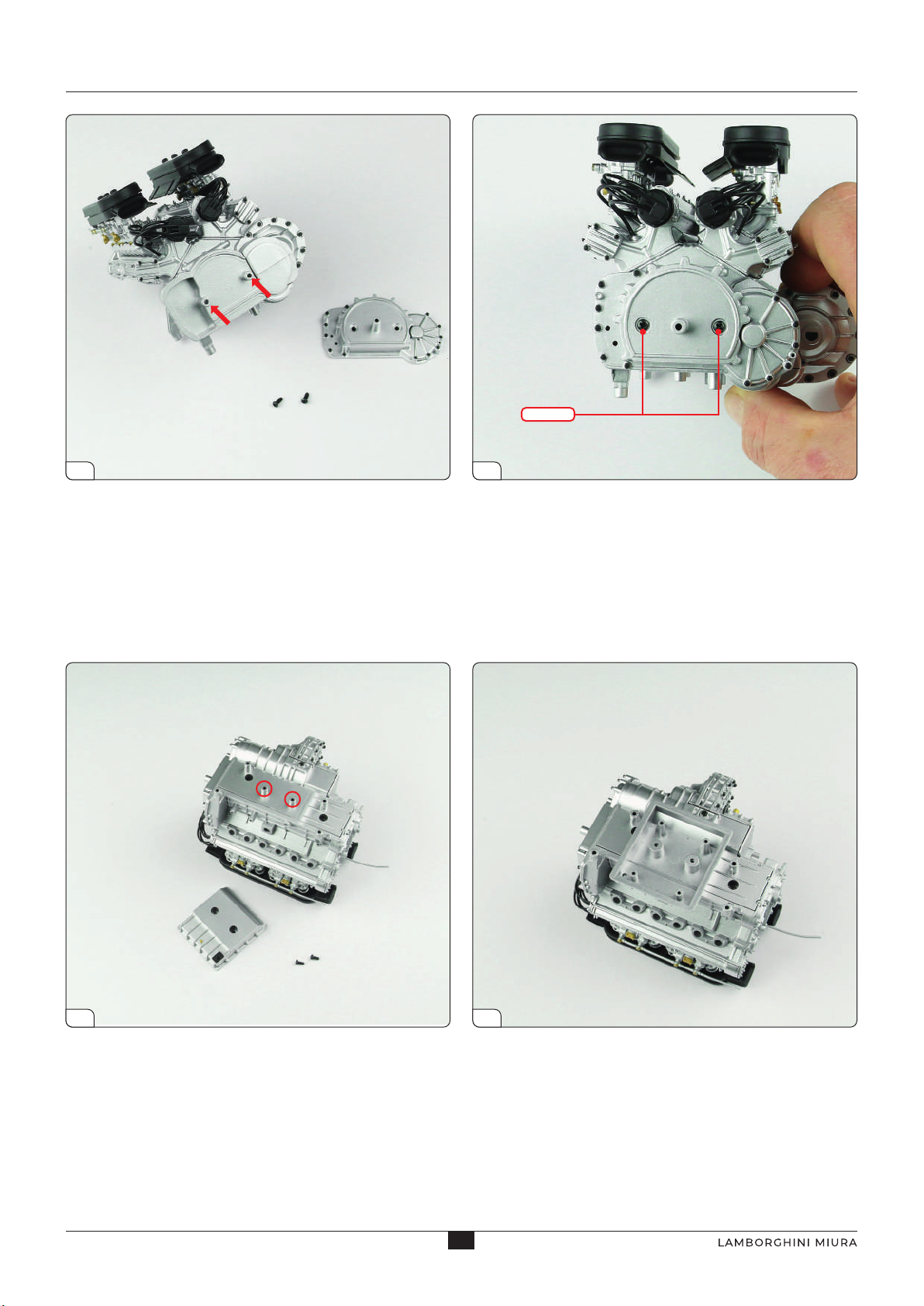

Take the crankcase cover and two Type B screws. The cover fits over
the protruding screw holes on the engine block (arrows).
Next take the oil sump and two Type A screws. Place the engine block
upside down on your work surface as shown. Note the two pins in the
middle of the engine block (circled).
Press the cover onto the engine block as shown, then secure with
2x Type B screws.
Turn the oil sump over and position it on the pins of the engine block
as shown.
Stage 19: Fixing the Crankcase Cover and Oil Sump
TYPE B

AGORAMODELS LAMBORGHINI MIURA
19
5
7
6
Secure the oil sump using 2x Type A screws.
Press the cover firmly onto the oil sump as shown, until the fit is flush all the way round the edges.
Finally take the oil sump cover. Note the four pins on the cover and the
corresponding holes (circled).
Stage 19: Fixing the Crankcase Cover and Oil Sump
TYPE A

AGORAMODELS LAMBORGHINI MIURA
20
STAGE COMPLETE
Stage 19: Fixing the Crankcase Cover and Oil Sump
