Agora SHELBY COBRA 427 SEMI-COMPETITION 1965 Manual

1
AGORAMODELS SHELBY COBRA 427 S/C
STAGE 01: HOOD ASSEMBLY
Air intake, Hood locks and Badge
STAGE 02: LEFT FRONT WHEEL
Wheel, Tire, Brake discs
STAGE 03: STEERING WHEEL
AND EXHAUST PARTS
Steering wheel, Emblem, Seat, Roll bar, Exhaust
cylinder and muffler
STAGE 04: ENGINE AND
EXHAUST PARTS
Engine block, Carburetor, Air filter, Exhaust pipes
STAGE 05: OIL FILTER
AND EXHAUST PARTS
STAGE 06: EXHAUST PIPES
Pack 01 |Build Instructions
In the 1960s, Carroll Shelby’s Cobras dominated racetracks worldwide, first winning races coast to coast
across North America, then in 1965, winning the World Manufacturer’s GT Championship, achieving the
ultimate goal of defeating Ferrari. The Semi-Competitions were modified from full competition models
just enough to make them street legal. Only 29 models were produced, making them one of the most
sought-after American sports cars by collectors.
Your 1:8 model replicates the original 1965 Semi-Competition Cobra in intricate detail. From the
dashboard dials to the writing on the wheels, every piece is precisely reproduced.
In your first model pack, you will assemble:

2
AGORAMODELS SHELBY COBRA 427 S/C
Spare screws are included with each part. Occasionally, you may be instructed to keep spare or
unused screws for a later stage. Keep these spares in a safe place and label them correctly.
Please make sure you don’t mix up the screws. They look quite similar, but the threads do vary
slightly. Using the wrong screws may damage the parts.
When securing parts together using multiple screws, fit each screw loosely to ensure all the
parts are correctly aligned before gently tightening them firmly, but not overtight, in the order
in which you placed them.
The screwdriver can be magnetized by stroking it with a magnet (fridge magnet, etc.) enabling
it to hold the screws and make assembly easier.
If a screw is tight going into a metal part, do not force it as you may shear the head off. Remove
it and put a tiny smear of Vaseline, soap or light oil on the thread. That will lubricate it and make
it easier to drive home.
During the course of this build, you will receive many pieces that you will assemble immediately
– following the instructions in the corresponding stage – and other pieces that you should store
safely to one side, for use in future assembly stages.
Left and Right! When building your Cobra, the left hand side refers to the driver’s side of the car.
WARNING: Some parts are assembled using magnets. These magnets can cause serious injury
if they are swallowed. Keep away from children. If you suspect a magnet has been swallowed,
seek medical help straight away.
Advice from the experts
!

3
AGORAMODELS SHELBY COBRA 427 S/C
Name Quantity
Hood 1
Air intake 1
Hood latch 2
Hood lock ring 2
Rubber strips 2
Left hood handle 1
Right hood handle 1
Front badge 1
Screwdriver 1
Spring 2
Screws TYPE OP01 3 [Including 1 spare]
Screws TYPE OP02 3 [Including 1 spare]
STAGE 01 PARTS LIST
In this first stage of building the
Shelby Cobra, you will assemble
parts of the hood.
Stage 01: Hood Assembly
Front badge
Hood latch
Spring
Hood lock ring
Rubber strips
Left hood handle
Right hood handle
Screwdriver
Screws
Air intake
Hood

4
AGORAMODELS SHELBY COBRA 427 S/C
Stage 01: Hood Assembly
STEP 1
STEP 2
1
2
3
1
2
ATTACH THE RUBBER STRIPS
Take the hood and lay it carefully, upside down on
your work surface. It’s a good idea to lay it on top of
the Agora cleaning cloth, or other modeling-board
surface, so that you don’t scratch the paintwork.
Using a pair of tweezers, pick up a rubber strip, peel
back the adhesive backing, and position the strip on
the hood in the position shown. There is no specific
position for the strip. Press gently in place. Repeat
with the second rubber strip on the opposite side of
the hood.
ATTACH THE AIR INTAKE
With the hood in one hand, align the lugs on the
air intake with the holes on top of the hood, with
the gap facing forwards. Hold in place and turn
the assembly over to secure with three TYPE OP02
screws. Start by putting all the screws in loosely, and
then tighten them.

5
AGORAMODELS SHELBY COBRA 427 S/C
Stage 01: Hood Assembly
STEP 3
1
8
23
4 5
6 7
ATTACH THE HOOD HANDLES
Note that the hood handles are marked left (L) and
right (R).
Take the left hood handle and push it through the
hole on the left hand side of the hood. From the
underside, thread a gold-coloured hood latch over
the protruding handle, followed by a spring and
then a hood lock ring. Secure these components in
place using a TYPE OP01 screw, checking that the
components are oriented in the direction shown
before tightening the screw. Repeat for the handle
on the right hand side. Be careful not to over tighten
these screws as you can easily strip the threads.
Keep your Shelby badge for assembly at a later
stage.
RL
ADVICE FROM THE EXPERTS
You may find it easier to place the hood
lock ring on the screw and then screw
this into the handle stem. (This reduces
the risk of the lock ring being catapulted
into orbit by the spring).
!

6
AGORAMODELS SHELBY COBRA 427 S/C
Stage 01: Hood Assembly
Stage 01 complete!

7
AGORAMODELS SHELBY COBRA 427 S/C
STAGE 02 PARTS LIST
In stage 02, you will build the left
front wheel.
Stage 02: Left Front Wheel
Name Quantity
Tire 1
Wheel hub 1
Hubcap 1
Brake caliper 1
Inside rim 1
Outside rim 
Three-eared knock-on 1
Brake disc 1
Wheel 1
Screws TYPE OD01 2 [including 1 spare]
Screws TYPE OD02 2 [including 1 spare]
Screws TYPE OP03 9 [including 1 spare]
Wheel hub
Hubcap
Brake caliper
Inside Rim
Outside Rim
Three-eared knock-on
Brake disc
Wheel
Screws
Tire

8
AGORAMODELS SHELBY COBRA 427 S/C
Stage 02: Left Front Wheel
STEP 1
STEP 2
SOFTEN THE TIRE
The first step in assembling the wheel is to soften
the tire by soaking it in a hot water-bath, filled with
water straight from a kettle. The water must be very
hot, so take care, and have everything in place and
ready before you start.
Soak the tire in the water-bath for five minutes.
ASSEMBLE THE WHEEL IN THE RIMS
While the tire is softening in the hot water, assemble
the rims. First, place the wheel inside the outside
rim, aligning the screw holes. The wheel should
project into the rim so the screw holes sit flush.
Secure in place using 4 x OP03 screws. Then take
the inside rim and fix it to the outside rim and wheel
assembly, aligning the screw holes. Secure in place
with 4 x OP03 screws. Insert all 4 screws loosely
before tightening any of them.
1
1
2
3
4

9
AGORAMODELS SHELBY COBRA 427 S/C
Stage 02: Left Front Wheel
STEP 3
FIT THE TIRE TO THE RIM
Remove the tire from the water-bath and dry on a
cloth or kitchen roll. Take care, it may still be very hot
so use tweezers to remove it from the water.
Hold the wheel assembly at a right angle to the tire
and push halfway through the tire before sliding it
into place. Firmly ease the tire around the wheel.
Fitting the tire requires some force, so push hard
and act quickly while the tire is hot and soft enough
to stretch.
1
2
3
4

10
AGORAMODELS SHELBY COBRA 427 S/C
Stage 02: Left Front Wheel
STEP 4

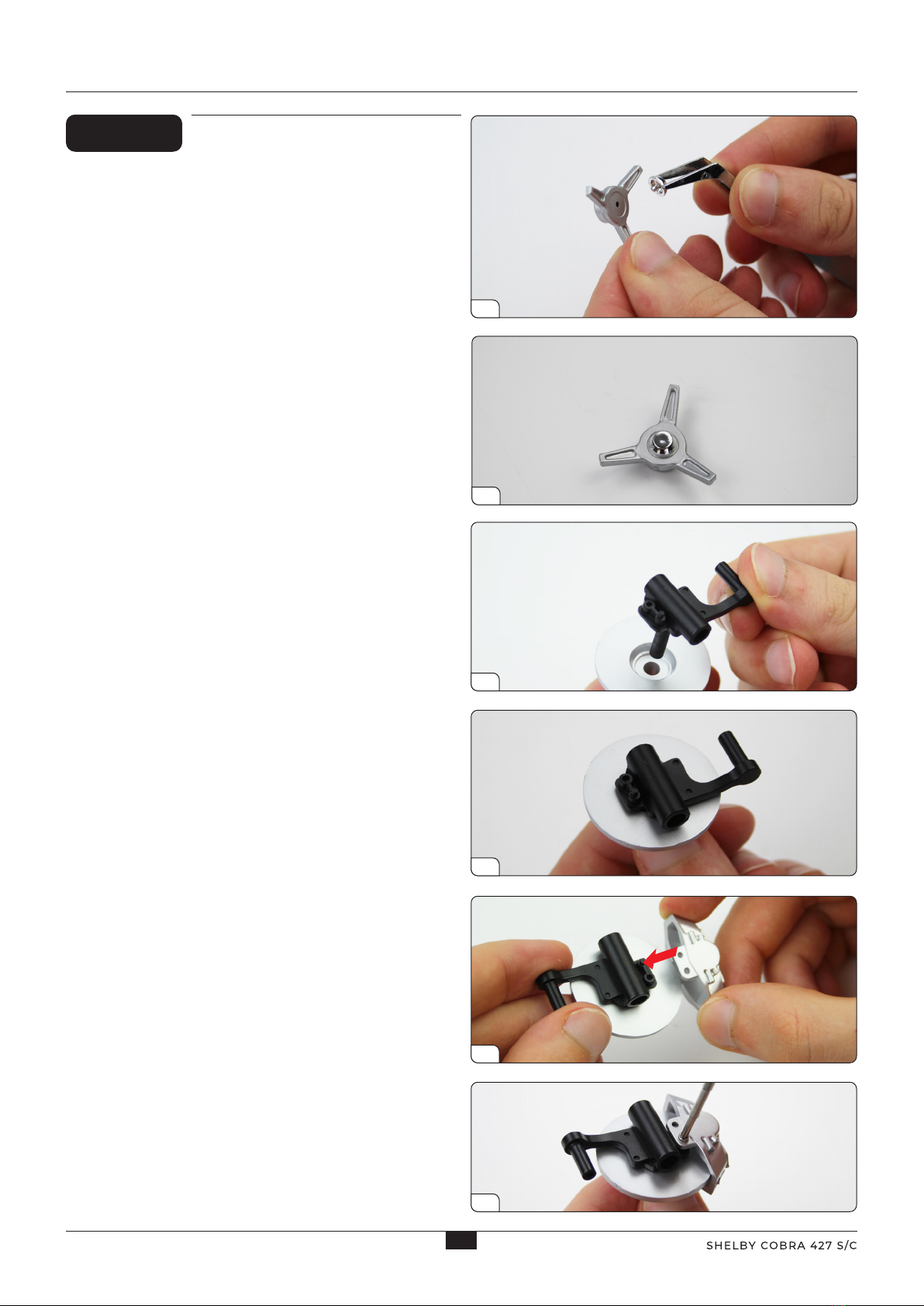

ASSEMBLE BRAKE COMPONENTS
Push the hubcap into the center of the three-eared knock-on. This is
a friction fit and will stay in place without screws. Align the wheel hub
with the brake disc and position the pieces together. Align the tiny
hole on the brake caliper with the tiny lug on the wheel hub. Position
the pieces together and secure with a TYPE OD01 screw.
1
3
2
5
4
6

11
AGORAMODELS SHELBY COBRA 427 S/C
Stage 02: Left Front Wheel
STEP 5
COMPLETE THE WHEEL
Place the wheel hub assembly in the inside of the wheel,
aligning the lug on the brake disc with the corresponding
notch on the wheel. Secure in place from the outside of
the wheel using a TYPE OD02 screw. Finish by placing the
knock-on assembly in the center of the outside wheel.
The knock-on assembly is magnetic and will stay in place
without screws.
1
3
4
2

12
AGORAMODELS SHELBY COBRA 427 S/C
Stage 02 complete!
Stage 02: Left Front Wheel

13
AGORAMODELS SHELBY COBRA 427 S/C

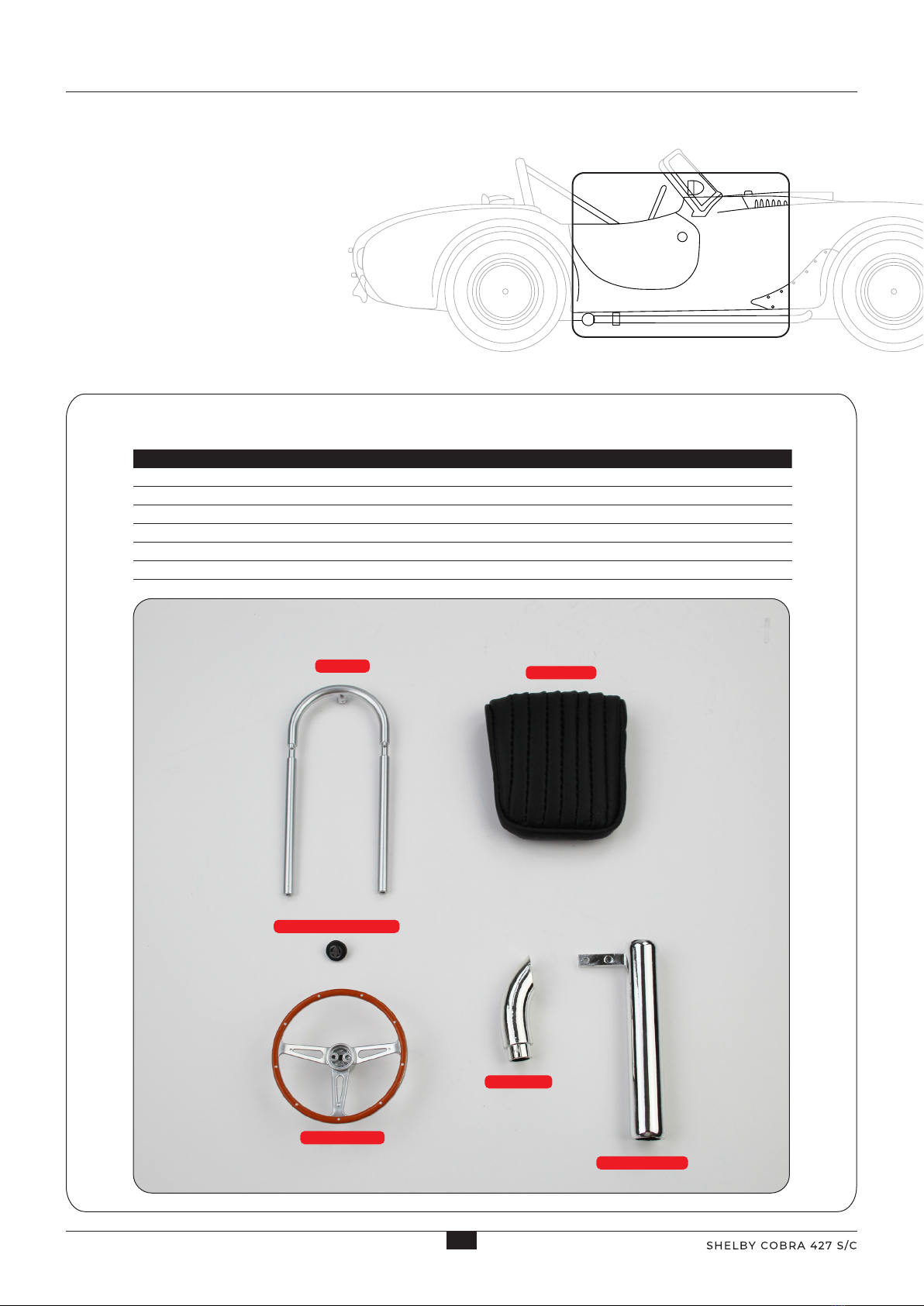

STAGE 03 PARTS LIST
In stage 03 you will prepare the
exhaust pipes for full assembly in
stage 4.
Stage 03: Steering Wheel and Exhaust Parts
Name Quantity
Steering wheel 1
Steering wheel emblem 1
Driver’s seat 1
Roll bar 1
Exhaust cylinder 1
Exhaust tip 
Steering wheel emblem
Driver’s seat
Steering wheel
Roll bar
Exhaust cylinder
Exhaust tip

14
AGORAMODELS SHELBY COBRA 427 S/C
Stage 03: Steering Wheel and Exhaust Parts
STEP 1
STEP 2
FIX THE COBRA EMBLEM TO THE
STEERING WHEEL
Assemble the steering wheel by pushing the Cobra
emblem into the recess in the center of the wheel.
Ensure you have it in the correct orientation – as
shown – and push firmly.
ASSEMBLE THE EXHAUST PARTS
Take the exhaust pipes and align the lug on the
exhaust tip with the notch on the exhaust cylinder.
Push the two pieces together. You will add more
exhaust pipes to this assembly in the next stage.
The steering wheel, seat and roll bar are ready for
assembly with new components at a later stage.
1
2
1
2
3

15
AGORAMODELS SHELBY COBRA 427 S/C
Stage 03 complete!
Stage 03: Steering Wheel and Exhaust Parts

16
AGORAMODELS SHELBY COBRA 427 S/C
STAGE 04 PARTS LIST
In stage 04, you will start building
the engine, and assemble more
exhaust pipes.
Stage 04: Engine & Exhaust Parts
Name Quantity
Air filter bottom 1
Air filter top 1
Air filter grille 1
Carburetor top 1
Carburetor bottom 1
Carburetor housing 
Engine block 1
Exhaust elbow 1 1
Exhaust elbow 2 1
Exhaust elbow 3 1
Exhaust elbow 4 1
Exhaust collector 
Exhaust plate 1
Screw TYPE OP03 4 [including 1 spare]
Screw TYPE OP04 3 [including 1 spare]
Screw TYPE OP05 3 [including 1 spare]
Air filter bottom
Air filter top
Air filter grille
Carburetor top
Carburetor
bottom
Carburetor housing
Engine block
Exhaust elbow 1
Exhaust elbow 2
Exhaust elbow 3
Exhaust elbow 4
Exhaust collector
Exhaust plate
Screws

17
AGORAMODELS SHELBY COBRA 427 S/C
Stage 04: Engine & Exhaust Parts
STEP 1
ASSEMBLE THE AIR FILTER
To start assembling the air filter, take the air filter
bottom in one hand and wrap the air filter grille
around the ridge on the circumference. The grille is
the same both sides, so may be fixed either way up.
Hold the grille in place with one hand, and place the
air filter top on to hold the pieces together. Use a
pair of tweezers or screwdriver to tuck in the end of
the grille if necessary (picture 5). Ensure the screw
holes are aligned and fix the parts together using 2 x
TYPE OP04 screws.
7
6
5
3 4
2
1
ADVICE FROM THE EXPERTS
Roll the filter grill round the handle of a
wooden spoon to get an even curve.
!

18
AGORAMODELS SHELBY COBRA 427 S/C
Stage 04: Engine & Exhaust Parts
STEP 2
ATTACH THE CARBURETOR
Align the carburetor bottom with the air filter
assembly – the ‘D’ shape of the air filter and
carburetor determines the orientation of the parts.
Attach the pieces together using a TYPE OP03 screw.
7 8
6
5
3 4
2
1
Then add the carburetor top, aligning the tiny hole
with the corresponding lug (picture 3) in the corners,
fixing the parts together using 2 x TYPE OP05 screws.
Align the lug on the carburetor assembly
with the hole in the carburetor housing
and drop the assembly into the housing.
Fix in place using a TYPE OP03 screw.
Align the lugs and holes on the engine
block with the carburetor housing and fix
together using a TYPE OP03 screw.

19
AGORAMODELS SHELBY COBRA 427 S/C
Stage 04: Engine & Exhaust Parts
STEP 3
1
3
2
5
4
Exhaust elbow 1
4
4
3
3
2
2
1
1
1
ASSEMBLE THE EXHAUST PARTS
Align the notch on the exhaust collector with the exhaust
cylinder and tip assembly from stage 3. Push the parts
together firmly. Look at the end of the exhaust collector
– you will see holes are numbered 1–4. These holes
correspond with the numbers on the end of the exhaust
elbows. Attach the exhaust elbows by pushing them firmly
into the exhaust collector.
ADVICE FROM THE EXPERTS
Do not try to twist the exhaust pipes
in the holes as you’ll probably sheer off
the locating pin. You should pull them
out and re-insert them with the correct
alignment.
!
The flats with the number on (see picture 4) should
face each other for correct alignment. Once all four
pipes are firmly in place, hold the ends together
and align the four ends with the exhaust plate. This
is also engraved with the numbers 1–4 to assist with
correct alignment.

20
AGORAMODELS SHELBY COBRA 427 S/C
7
6
9
10
8
Exhaust elbow 4
Exhaust elbow 2
4
2
Stage 04: Engine & Exhaust Parts
Note the correct orientation of the exhaust plate – the
raised corners should face outwards towards the pipes
(picture 10).
