Aigis Mechtronics HS9349 SERIES User manual

Hole
26.9
1.06
137
5.38
228.6
9.00
160
6.30
15.2
0.60
10.15
0.40
165.1
6.5
mm
in
Hole
26.9
1.06
137
5.38
228.6
9.00
160
6.30
15.2
0.60
10.15
0.40
165.1
6.5
mm
in
INSTALLATION AND OP E RATING INSTRUCTIONS
FIXED DOME HOUSINGS
HS9349 SERIES

IMPORTANT SAFEGUARDS
1. Read Instructions - All the safety and operating instructions should be
read before the unit is operated.
2. Retain Instructions - The safety and operating instructions should be
retained for future reference.
3. Heed Warnings - All warnings on the unit and in the operating instruc-
tions should be adhered to.
4. Follow Instructions - All operating and use instructions should be fol-
lowed.
5. Cleaning - Unplug the unit from the outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
6. Attachments - Do not use attachments not recommended by the product
manufacturer as they may cause hazards.
7. Accessories - Do not place this unit on an unstable stand, tripod, bracket,
or mount. The unit may fall, causing serious injury to a person and seri-
ous damage to the unit. Use only with a stand, tripod, bracket, or mount
recommended by the manufacturer, or sold with the product. Any
mounting of the unit should follow the manufacturer's instructions, and
should use a mounting accessory recommended by the manufacturer.
An appliance and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause the
appliance and cart combination to overturn.
8. Ventilation - Openings in the enclosure, if any, are provided for ventila-
tion and to ensure reliable operation of the unit and to protect it from
overheating. These openings must not be blocked or covered. This unit
should not be placed in a built-in installation unless proper ventilation is
provided or the manufacturer's instructions have been adhered to.
9. Power Sources - This unit should be operated only from the type of
power source indicated on the marking label. If you are not sure of the
type of power supply you plan to use, consult your appliance dealer or
local power company. For units intended to operate from battery power,
or other sources, refer to the operating instructions.
10. Grounding or Polarization - This unit may be equipped with a polarized
alternating-current line plug (a plug having one blade wider than the
other). This plug will fit into the power outlet only one way. This is a
safety feature. If you are unable to insert the plug fully into the outlet, try
reversing the plug. If the plug should still fail to fit, contact your electri-
cian to replace your obsolete outlet. Do not defeat the safety purpose of
the polarized plug.
Alternately, this unit may be equipped with a 3-wire grounding-type plug,
aplug having a third (grounding) pin. This plug will only fit into a ground-
ing-type power outlet. This is a safety feature. If you are unable to insert
the plug into the outlet, contact your electrician to replace your obsolete
outlet. Do not defeat the safety purpose of the grounding-type plug.
11. Power-Cord Protection - Power-supply cords should be routed so that
they are not likely to be walked on or pinched by items placed upon or
against them, paying particular attention to cords and plugs, convenience
2
receptacles, and the point where they exit from the appliance.
12. Power Lines - An outdoor system should not be located in the vicinity of
overhead power lines or other electric light or power circuits, or where
it can fall into such power lines or circuits. When installing an outdoor
system, extreme care should be taken to keep from touching such power
lines or circuits as contact with them might be fatal. U.S.A. models only -
refer to the National Electrical Code Article 820 regarding installation of
CATV systems.
13. Overloading - Do not overload outlets and extension cords as this can
result in a risk of fire or electric shock.
14. Object and Liquid Entry - Never push objects of any kind into this unit
through openings as they may touch dangerous voltage points or short-
out parts that could result in a fire or electric shock. Never spill liquid of
any kind on the unit.
15. Servicing - Do not attempt to service this unit yourself as opening or
removing covers may expose you to dangerous voltage or other hazards.
Refer all servicing to qualified service personnel.
16. Damage Requiring Service - Unplug the unit from the outlet and refer ser-
vicing to qualified service personnel under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the unit.
c. If the unit has been exposed to rain or water.
d. If the unit does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the oper-
ating instructions, as an improper adjustment of other controls may
result in damage and will often require extensive work by a qualified
technician to restore the unit to its normal operation.
e. If the unit has been dropped or the cabinet has been damaged.
f.When the unit exhibits a distinct change in performance--this indicates a
need for service.
17. Replacement Parts - When replacement parts are required, be sure the
service technician has used replacement parts specified by the manufactur-
er or have the same characteristics as the original part. Unauthorized sub-
stitutions may result in fire, electric shock or other hazards.
18. Safety Check - Upon completion of any service or repairs to this unit, ask
the service technician to perform safety checks to determine that the unit
is in proper operating condition.
19. Coax Grounding - If an outside cable system is connected to the unit, be
sure the cable system is grounded. U.S.A. models only--Section 810 of the
National Electrical Code, ANSI/NFPA
No.70-1981, provides information with respect to proper grounding of
the mount and supporting structure, grounding of the coax to a discharge
unit, size of grounding conductors, location of discharge unit, connection
to grounding electrodes, and requirements for the grounding electrode.
20. Lightning - For added protection of this unit during a lightning storm, or
when it is left unattended and unused for long periods of time, unplug it
from the wall outlet and disconnect the cable system. This will prevent
damage to the unit due to lightning and power-line surges.
This label may appear on the bottom of the unit due to space limitations.
The lightning flash with an arrowhead symbol, within an equilat-
eral triangle, is intended to alert the user to the presence of un-
insulated "dangerous voltage" within the product's enclosure that
may be of sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to presence of important operating and mainte-
nance (servicing) instructions in the literature accompanying the
appliance.
En raison de limitation de place, cette étiquette peut être placée sur le
dessous de l'appareil.
L'éclair fléché dans un triangle équilatéral, avertit l'utilisateur de
la présence d'une "tension dangereuse" non isolée à l'intérieur
de l'appareil et d'une valeur suffisante pour constituer un risque
d'électrocution.
Le point d'exclamation contenu dans un triangle équilatéral,
avertit l'utilisateur de la présence, dans la documentation qui
accompagne l'appareil, de consignes d'utilisation et de mainte-
nance importantes.
CCAAUUTTIIOONN::TTOORREEDDUUCCEETTHHEERRIISSKKOOFFEELLEECCTTRRIICCAALLSSHHOOCCKK,,
DDOONNOOTTOOPPEENNCCOOVVEERRSS..NNOOUUSSEERRSSEERRVVIICCEEAABBLLEEPPAARRTTSS
IINNSSIIDDEE..RREEFFEERRSSEERRVVIICCIINNGGTTOOQQUUAALLIIFFIIEEDDSSEERRVVIICCEEPPEERRSSOONN--
NNEELL..
WWAARRNNIINNGG
TTOOPPRREEVVEENNTTFFIIRREEOORRSSHHOOCCKKHHAAZZAARRDD,,DDOONNOOTTEEXXPPOOSSEE
UUNNIITTSSNNOOTTSSPPEECCIIFFIICCAALLLLYYDDEESSIIGGNNEEDDFFOORROOUUTTDDOOOORRUUSSEE
TTOORRAAIINNOORRMMOOIISSTTUURREE..
DDAANNGGEERR::PPOOUURRÉÉVVIITTEERRTTOOUUTTRRIISSQQUUEEDD''ÉÉLLEECCTTRROOCCUUTTIIOONN,,
NNEEPPAASSOOUUVVRRIIRRLLEEBBOOÎÎTTIIEERR..IILLNN''YYAAPPAASSDDEEPPIIÈÈCCEESSRREEMM--
PPLLAAÇÇAABBLLEESSÀÀLL''IINNTTÉÉRRIIEEUURR..PPOOUURRTTOOUUTTEERRÉÉVVIISSIIOONN,,
SS''AADDRREESSSSEERRÀÀUUNNTTEECCHHNNIICCIIEENNSSPPÉÉCCIIAALLIISSÉÉ..
AATTTTEENNTTIIOONN
PPOOUURRÉÉVVIITTEERRLLEERRIISSQQUUEEDD''ÉÉLLEECCTTRROOCCUUTTIIOONNOOUUDD''IINN--
CCEENNDDIIEE,,NNEEPPAASSEEXXPPOOSSEERRÀÀLLAAPPLLUUIIEEOOUUÀÀLL''HHUUMMIIDDIITTÉÉ
UUNNAAPPPPAARREEIILLNNOONNCCOONNÇÇUUPPOOUURRUUNNEEUUTTIILLIISSAATTIIOONN
EEXXTTÉÉRRIIEEUURREE..
SAFETY PRECAUTIONS SECURITE

3
Aus Platzgründen kann diese Warnung auf der Unterseite des Gerätes ange-
bracht sein.
Das Blitzsymbol im gleichseitigen Dreieck soll den Benutzer auf
nicht isolierte "Hochspannung" im Gehäuse aufmerksam machen,
die eventuell stark genug ist, um einen elektrischen Schlag zu
verursachen.
Das Ausrufezeichen im gleichseitigen Dreieck soll den Benutzer
auf wichtige Bedienungs- und Wartungsanleitungen in der dem
Gerät beigefügten Literatur aufmerksam machen.
Debido a limitaciones de espacio, esta etiqueta puede aparecer en la parte inferior
de la unidad.
El símbolo representado por un relámpago con punta de flecha den-
tro de un triángulo equilátero, se muestra con el objetivo de alertar
al usuario que existen "voltages peligrosos" sin aislamiento, dentro de
la cubierta de la unidad. Dichos voltages pueden ser de tal magnitud
que constituyen un riesgo de choque eléctrico a personas.
El símbolo de exclamación dentro de un triángulo equilátero, se
muestra con el objetivo de alertar al ususario de que instrucciones
de operación y mantenimiento importantes acompañan al equipo.
PPEELLIIGGRROO
PPAARRAAEEVVIITTAARREELLPPEELLIIGGRROODDEEIINNCCEENNDDIIOOÓÓCCHHOOQQUUEEEELLÉÉCC--
TTRRIICCOO,,NNOOEEXXPPOONNGGAAAALLAALLLLUUVVIIAAÓÓHHUUMMEEDDAADD,,EEQQUUIIPPOOSS
QQUUEENNOOHHAANNSSIIDDOODDIISSEEÑÑAADDOOSSPPAARRAAUUSSOOEEXXTTEERRIIOORR..
PPRREECCAAUUCCIIOONN::PPAARRAARREEDDUUCCIIRREELLRRIIEESSGGOODDEECCHHOOQQUUEE
EELLÉÉCCTTRRIICCOO,,FFAAVVOORRNNOOAABBRRIIRRLLAACCUUBBIIEERRTTAA..EESSTTEEEEQQUUIIPPOO
NNOOCCOONNSSTTAADDEEPPIIEEZZAASSOOPPAARRTTEESSQQUUEERREEQQUUIIEERREENN
SSEERRVVIICCIIOOOOMMAANNTTEENNIIMMIIEENNTTOO..PPAARRAARREEPPAARRAACCIIOONNEESS
FFAAVVOORRRREEFFEERRIIRRSSEEAAUUNNTTÉÉCCNNIICCOOCCAALLIIFFIICCAADDOO..
WWAARRNNUUNNGG
UUMMFFEEUUEERROODDEERREELLEEKKTTRRIISSCCHHEESSCCHHLLÄÄGGEEZZUUVVEERRMMEEIIDDEENN,,
SSEETTZZEENNSSIIEEDDAASSGGEERRÄÄTTNNIIEEMMAALLSSRREEGGEENNOODDEERR
FFEEUUCCHHTTIIGGKKEEIITTAAUUSS..
VVOORRSSIICCHHTT::UUMMEEIINNEENNEELLEEKKTTRRIISSCCHHEENNSSCCHHLLAAGGZZUUVVEERRMMEEII--
DDEENN,,AABBDDEECCKKUUNNGGNNIICCHHTTEENNTTFFEERRNNEENN..WWAARRTTUUNNGGEENN
AALLLLEERRAARRTTQQUUAALLIIFFIIZZIIEERRTTEEMMPPEERRSSOONNAALLÜÜBBEERRLLAASSSSEENN..
SICHERHEITSVORKEHRUNGEN PRECAUCIONES DE SEGURIDAD
CONTENTS
1 UNPACKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2 MODEL NUMBERS . . . . . . . . . . . . . . . . . . . . . . . . . . .3
3 SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
4 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
5 MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
6 PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

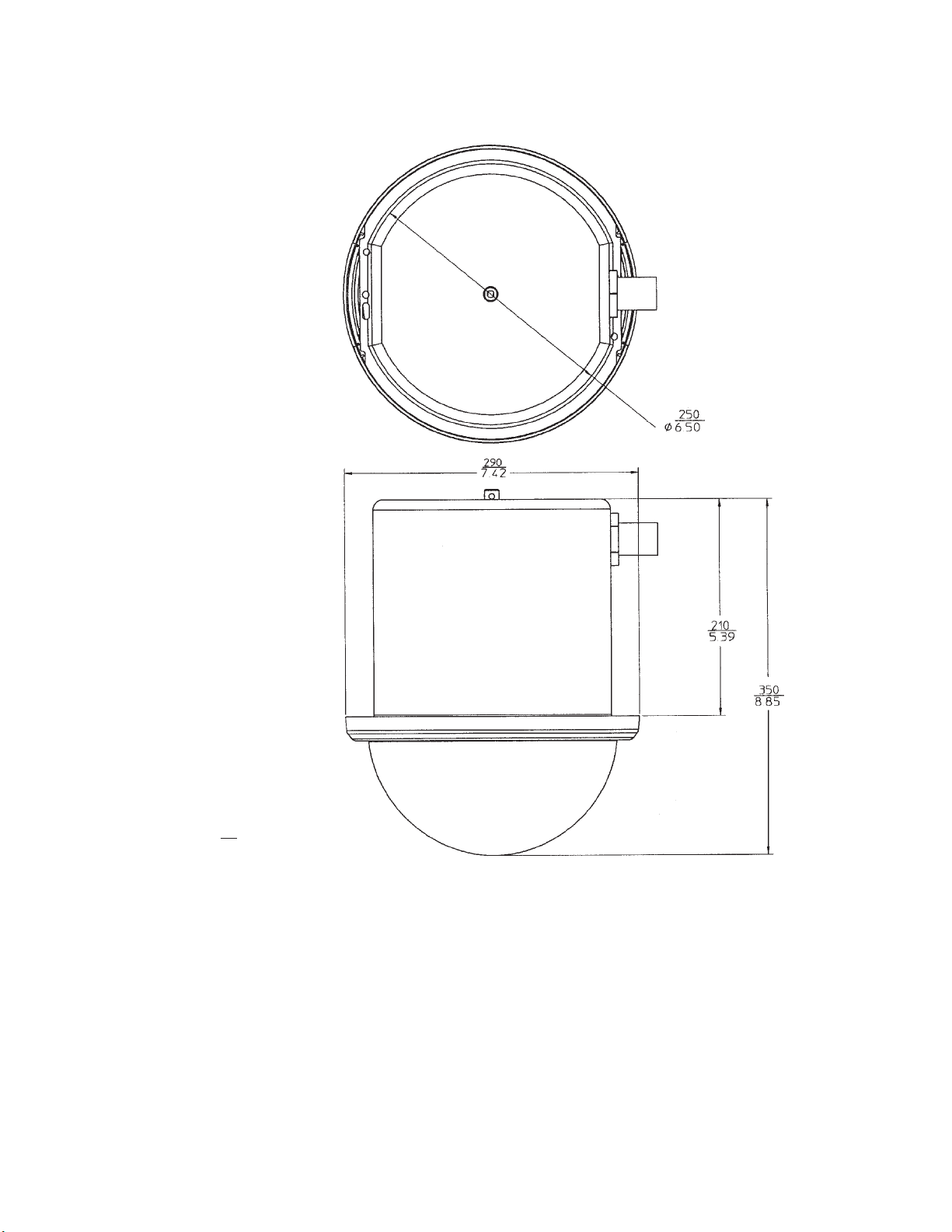

7 DIMENSIONAL OUTLINE . . . . . . . . . . . . . . . . . . . .7
1UNPACKING
Unpack carefully. This equipment should be handled with
care.
Check to ensure that the following items are included for the
applicable modules ordered:
• HS9349 Series Fixed Dome Housing for fixed cameras.
• Hardware Kit: see 6 PARTS LIST.
• Template Tool.
If an item appears to have been damaged in shipment, replace
it properly in its carton and notify the shipper. If any items
are missing, notify Aigis Mechtronics.
The shipping carton is the safest container in which the unit
may be transported. Save it for possible future use.
2 MODEL NUMBERS
MMooddeellNNoo..CCoolloorr
HHSS99334499Black Trim Ring
HHSS99334499WWWhite Trim Ring
3 SERVICE
If the unit ever needs repair service, the customer should
contact Aigis Mechtronics.

4
Mount the unit in a suspended ceiling grid using the existing
ceiling tile as follows:
1. Remove tile at desired location
2. Move adjacent tiles for access as required.
3. Cut a 172 mm (6.75 in) diameter hole in the center of the
tile. Use two pencils (or a pencil and a nail) with the
template tool provided to draw the circle.

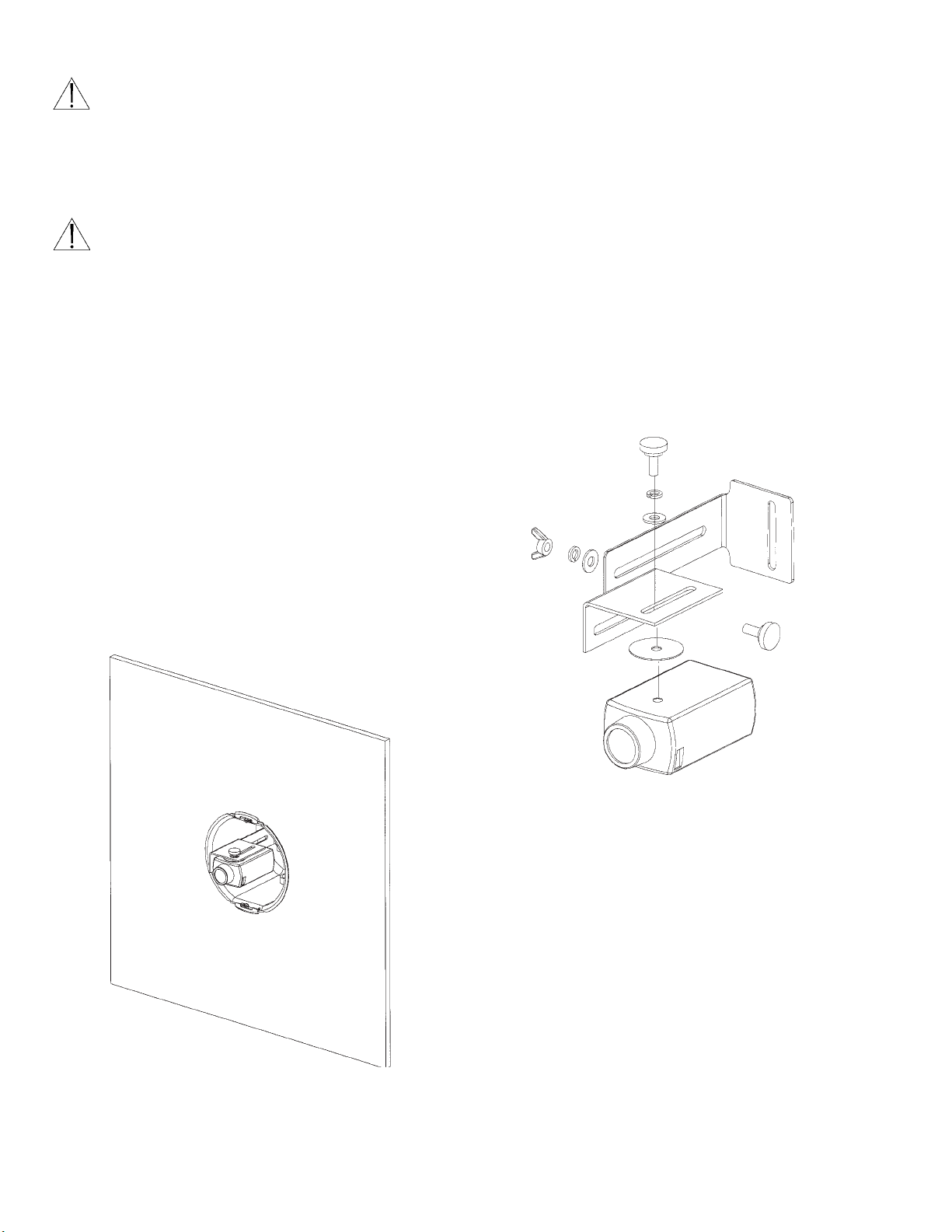

4. Install box into pre-cut tile with the bottom flange, then
press against the tile. Position the round section of the
box in the direction that the camera will be aimed. See
FFiigguurree11.
FFiigguurree11
5. Pull the drawstring tight (away from the screw) and lock
into groove. DDOONNOOTTCCUUTTDDRRAAWWSSTTRRIINNGGPush
the excess string through the hole provided. As an
option, a screwdriver may be used to turn screws and
lock ceiling clamps in place.
6. Reinstall tile in grid.
7. Fasten support wire (not provided) to structural framing,
masonry, or concrete above the unit. Connect the other
end to the eyebolt in the top of the box. Draw wire tight
and twist securely.
8. Run the electrical cable into the housing through the con-
duit as required by applicable codes.
9. Complete the electrical connections.
10. Adjust camera bracket to proper angle and mount camera
to camera bracket. See FFiigguurree22.
FFiigguurree22
11. Assemble dome in the trim ring by lining the slots in the
dome with tabs in the trim ring. Push one side of the
dome under the tab; the other side should clear the
other tab. Turn the dome to secure it.
12. Attach the dome/trim ring by lining up the dots on the
box and the trim ring. Push on one side of the trim ring
near the the flat section of the box, then push on the
other side of the trim ring until it snaps into place.
Listen for a distinct click to ensure ring is securely in
place. See FFiigguurree33.
4 INSTALLATION
AAtttteennttiioonn::IInnssttaallllaattiioonnsshhoouullddbbeeppeerrffoorrmmeedd
bbyyqquuaalliiffiieeddsseerrvviicceeppeerrssoonnnneelloonnllyy,,iinnaaccccoorr--
ddaanncceewwiitthhtthheeNNaattiioonnaallEElleeccttrriiccaallCCooddeeoorr
aapppplliiccaabblleellooccaallccooddeess..RReeffeerrttooaapppplliiccaabbllee
iinnssttaallllaattiioonnsseeccttiioonn..
4.1 Suspended Ceiling Mounting
CCAAUUTTIIOONN::TThheesseeuunniittssmmuussttbbeepprrooppeerrllyyaanndd
sseeccuurreellyymmoouunntteeddttooaassuuppppoorrttiinnggssttrruuccttuurree
ccaappaabblleeooffssuussttaaiinniinnggtthheeuunniittwweeiigghhtt..UUssee
ccaarreewwhheennsseelleeccttiinnggmmoouunnttiinngghhaarrddwwaarree((nnoott
ssuupppplliieedd))ffoorriinnssttaallllaattiioonnTThheemmoouunnttiinnggssuurr--
ffaacceeaanndduunniitt''sswweeiigghhttsshhoouullddbbeeccaarreeffuullllyy
ccoonnssiiddeerreedd..

5

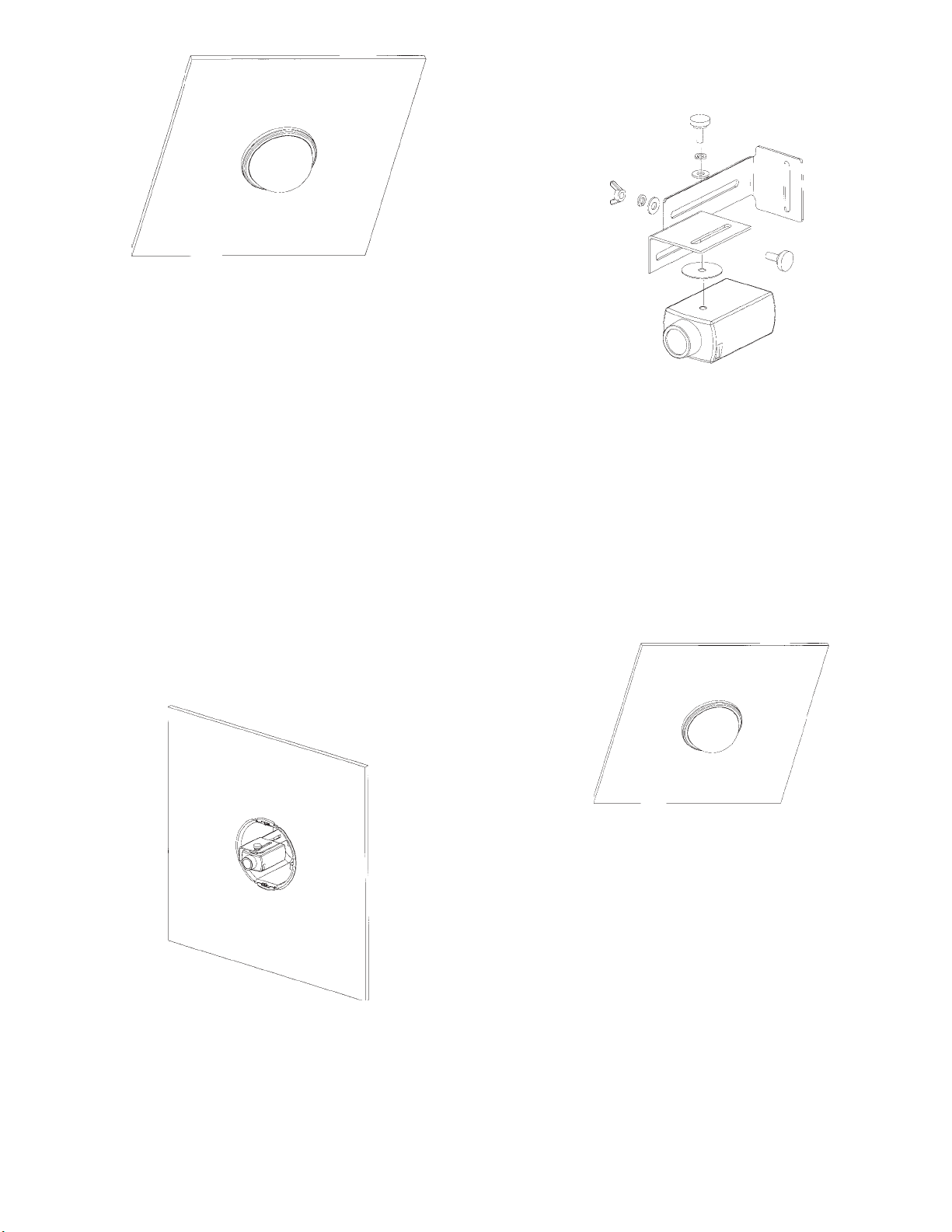

6. Adjust camera bracket to proper angle and mount cam-
era to camera bracket. See FFiigguurree55.
FFiigguurree55
7. Assemble dome in the trim ring by lining the slots in the
dome with tabs in the trim ring. Push one side of the
dome under the tab; the other side should clear the
other tab. Now turn the dome to secure it.
8. Attach the dome/trim ring by lining up the dots on the
box and the trim ring. Push on one side of the trim ring
near the the flat section of the box, then push on the
other side of the trim ring until it snaps into place. Listen
for a distinct click to ensure ring is securely in place. See
FFiigguurree66.
FFiigguurree66
9. Adjust the dome so that the viewing slot is in the proper
position
5 MAINTENANCE
No special maintenance is required.
If internal wiping is necessary, use only microwave type paper
towels, or equivalent soft paper towels. Roll a section into a
tightly wound tube, tear tube in half, and wet the fuzzy torn
end with a solution of isopropyl alcohol diluted with water.
While holding the dome with its opening facing down, wipe
the interior using a circular motion spiraling in toward the
center. Use a new paper towel for each two passes.
To clean the exterior of the dome, use any nonabrasive
cleaning cloth and cleaning agent that is safe for use on acrylic
plastic. Liquid or spray cleaner/wax suitable for use on fine
furniture is acceptable.
4.2 Hard Ceiling Mounting
Mount the unit in a hard ceiling, e.g. dry wall etc. as follows.
Be sure the ceiling will support the weight of the housing and
camera.
1. Cut a 172 mm (6.75 in) diameter hole in the ceiling. Use
two pencils (or a pencil and a nail) with the template tool
provided to draw the circle.
2. Run the electrical cable into the housing through the con-
duit and the hole in ceiling as required by the applicable
codes.
3. Install box into pre-cut hole with the bottom flange
pressing against the ceiling. Position the round section of
the box in the direction that the camera will be aimed.
See FFiigguurree44.
FFiigguurree44
4. Pull the drawstring tight (away from the screw) and
lock into the groove. DDOONNOOTTCCUUTTDDRRAAWW--
SSTTRRIINNGGPush the excess string through the hole
provided. As an option, a screwdriver may be used
to turn screws and lock ceiling clamps in place.
5. Complete the electrical connections.
FFiigguurree33
13. Adjust the dome so that the viewing slot is in the proper
position.
14. Replace any previously removed adjacent tiles.

6
FFiigguurree77
6 PARTS LIST
Refer to FFiigguurree77.
IItteemmDDeessccrriippttiioonnPPaarrttNNoo..QQttyy..
A Back Box 315 3107 001 1
B Can Bracket 315 3139 001 2
C Nut #8-32 315 3245 800 2
D Screw 6-32 x 3.0 ph 315 3171 800 2
E Ceiling Bracket 315 3138 001 2
FBeaded Tie 315 3172 000 2
G Trim Ring, charcoal 315 3133 002 1
HDome, grey tint 315 4054 001 1
I Neoprene Washer 315 2018 900 1
JEye Bolt 1/4-20 x 1.00 315 3175 800 1
KBottom Camera Bracket 315 2957 001 1
LTop Camera Bracket 315 2956 001 1
M Rubber Washer 315 3202 900 1
NKnurled Screw 1/4-20 x 1/2 315 3066 801 1
OFender Washer 315 3246 800 1
P Wing Nut 1/4-20 315 3177 800 2
Q1/4 Spiral Washer 315 2541 800 3
R1/4 Flat Washer 315 2019 800 2
S 3/4 Conduit Fitting 315 3179 001 1
T Knurled Screw 1/4-20 x 5/8 315 3066 802 1

7
mm
inches
FFiigguurree88
7 DIMENSIONAL OUTLINE

100 0022 001 AIG 08/08
Printed in U.S.A.
©2008 Aigis Mechtronics
1124 Louise Road, Winston-Salem, NC 27107-5450
Tel: [phone] Fax: [phone]
Data subject to change without notice
