AIMS Power GEN3200W120V User manual

PORTABLE INVERTER GENERATOR
GEN3200W120V
IMPORTANT ─ USERS OF THIS EQUIPMENT SHOULD READ AND
UNDERSTAND THE MANUAL PRIOR TO USING. KEEP MANUAL FOR
REFERENCE.
2018-8-8 (REV:01)

1
C O N T E N T S
SAFETY INFORMATION...................................................................................................................2
CONTROL & FEATURES..................................................................................................................4
PRE-OPERATION CHECK...............................................................................................................6
OPERATION.........................................................................................................................................8
PERIODIC MAINTENANCE............................................................................................................12
TROUBLE SHOOTING....................................................................................................................15
STORAGE............................................................................................................................................16
SPECIFICATION................................................................................................................................17

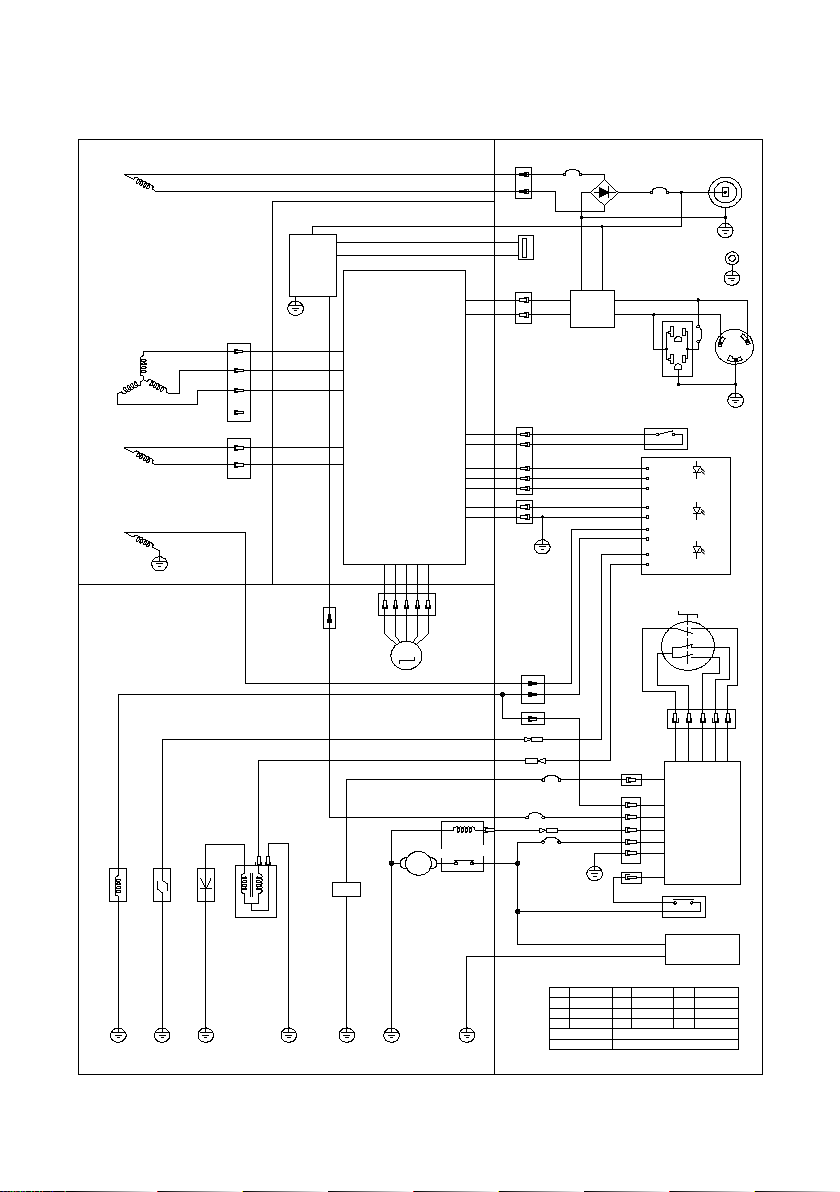

WIRING DIAGRAM............................................................................................................................18

2
WARNING !
PLEASEREADANDUNDERSTANDTHISMANUALCOMPLETELYBEFOREOPERATINGTHEGENERATOR.
SAFETY INFORMATION
1) EXHAUSTFUMESAREPOISONOUS
Never operate the engine in a closed area or it may cause unconsciousness and can cause death within a short
periodoftime.Operatetheengineina wellventilatedarea.
2) FUELISHIGHLYFLAMMABLEANDPOISONOUS
Always turnofftheenginewhenrefueling
Neverrefuelwhilesmokingorinthevicinityofan openflame.
Takecarenottospillanyfuelonthe engineormufflerwhenrefueling.
If you swallow any fuel, inhale fuel vapor, or allow any to get in your eyes, see your doctor immediately. If any fuel
spills onyourskinorclothing,immediatelywashwithsoapandwaterandchangeyourclothes.
When operating or transporting the generator,be sure it is kept upright. If it tilts, fuel may leak from the carburetor or
fuel tank.
3) ENGINEANDMUFFLERMAYBEHOT
Placethegeneratorinaplacewherepassers-by orchildrenarenotlikelytotouch thegenerator.
Avoidplacinganyflammablematerialsneartheexhaustoutletduringoperation.
Keepthegeneratoratleast3feetfrombuildings andotherequipment,or theenginemay overheat.
Avoidoperatingtheenginewithadustcover.
Besuretocarrythe generator onlybyitscarrying handle.
Putthegeneratorontheflatground,allowingthegeneratortoventheatfreely.
4) ELECTRICSHOCKPREVENTION
Neveroperatetheenginein rainorsnow.
Nevertouchthegeneratorwithwethandsorelectricalshockwilloccur.

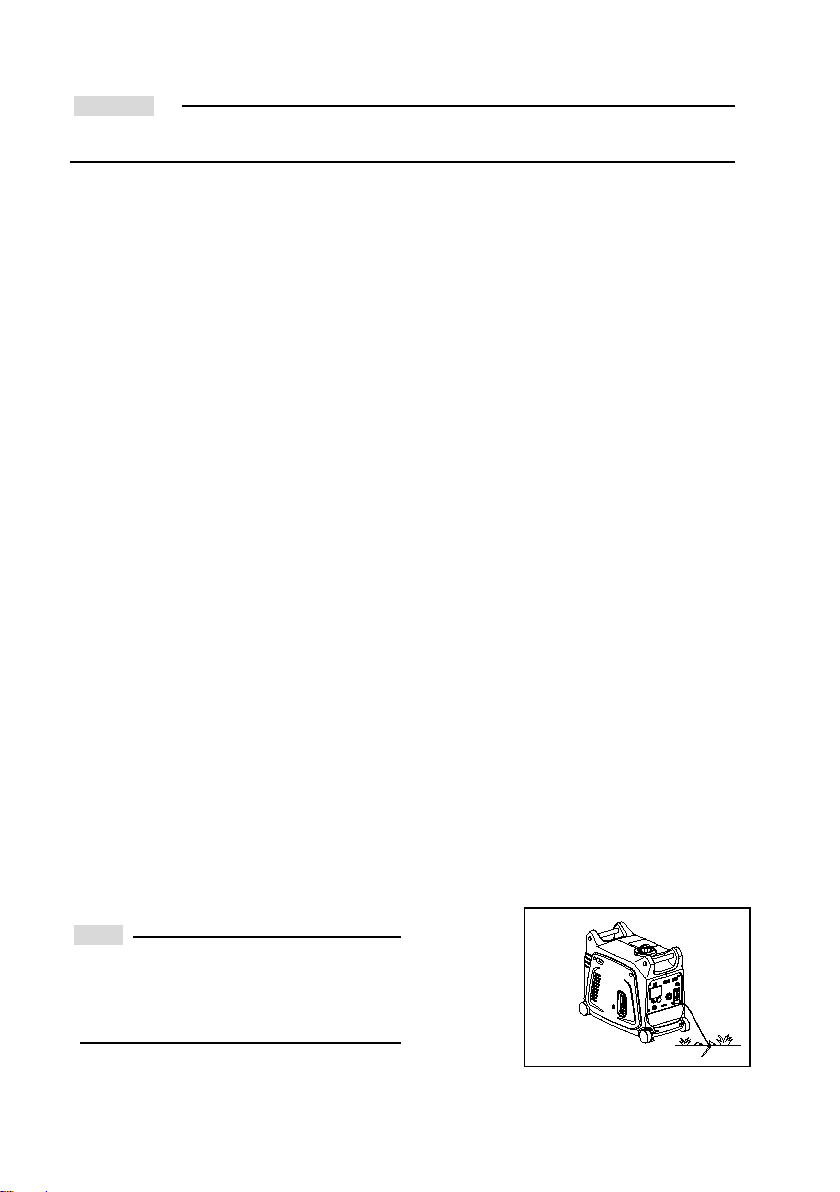

Besuretoground(earth)thegenerator.FIG.1
NOTE:
Useground(earth)leadofsufficientcurrentcapacity.
Diameter: 0.12mm(0.005in)/ampere
EX:10Ampere--1.2mm(0.055in)-Use8AWG
FIG.1

3
5) CONNECTIONNOTES
Donotconnectthegeneratortocommercialpoweroutlet.
Donotconnectthegeneratorinparallelwithanyothergenerator.

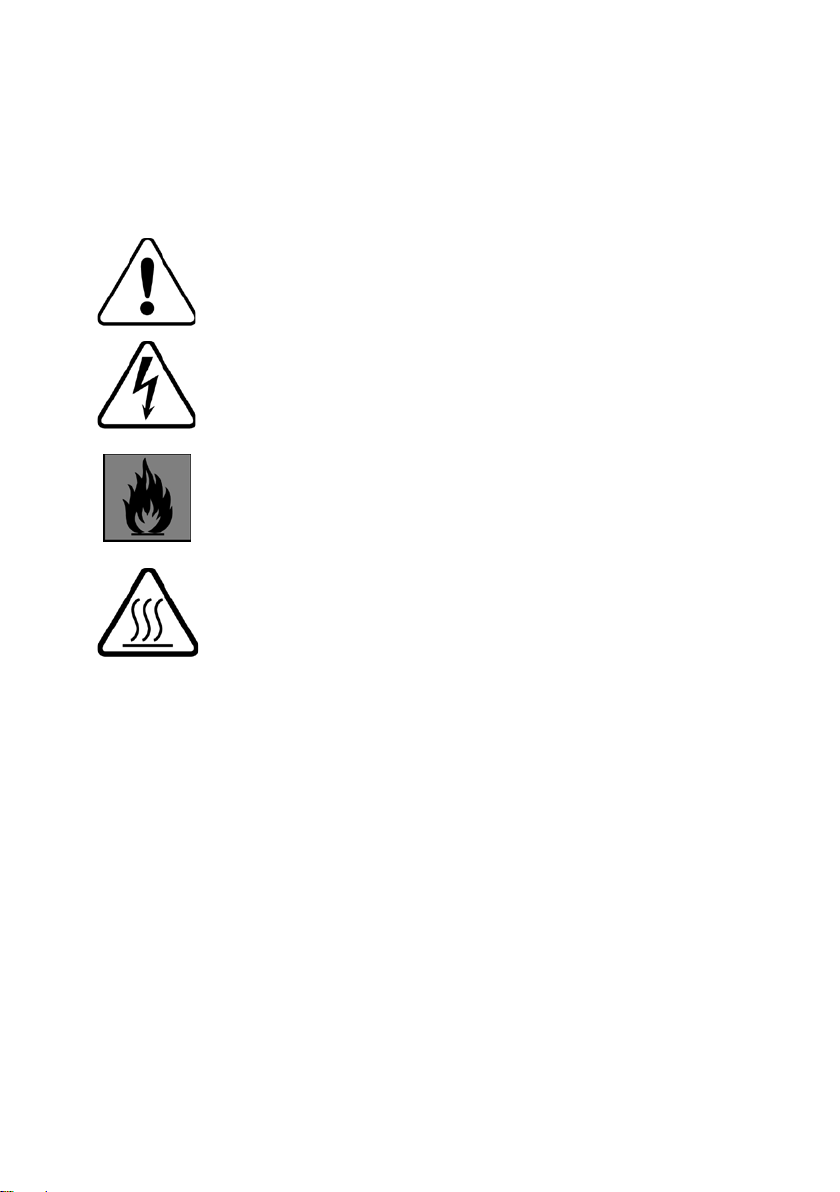

SAFETY SYMBOLS
Caution-Theusershouldbe awareofageneralhazard.
DangerousVoltage
Flammable
HotSurface-Donottouch.

4
CONTROL & FEATURES
DESCRIPTION
(1) Fueltank
(2)Fueltankcap
(3)Fuelfilter
(4)Carryinghandle
(5) Muffler
(6)Spark plug
(7) Chokelever
(8) Recoilstarter
(9) Fuelcock
(10)Brake lever
(11)Wheel
(12)Oilfillercap
(13)Airfilter
(14)Fuelpump
(15)Battery
(16)Oilwarninglight
(17)Overloadindicatorlight
(18)ACpilotlight
(19)Economycontrol switch
(20)Voltmeter
(21)DCprotector
(22)Engine switch
(23)DC receptacle
(24)USB
(25)ACreceptacleL5-30R
(26)Ground(earth)terminal
(27)ACreceptacle5-20R
(28)ACprotector
(29)Autogenstart
l
ON/PUSH OFF
DC PROTECTOR DC12V 5A
ECON.
STOP
RUN
START
15
16 17 18
19
20
21
22
27
23 24
28
29
V
A
KW
HZ
MODE
1 2 3 4 5 678 9
10 11 12 13 14
-
3
0
L
5
0
3
V
5
2
1
A
R
ON/PUSH OFF
AC PROTECTOR 20A
25 26

5

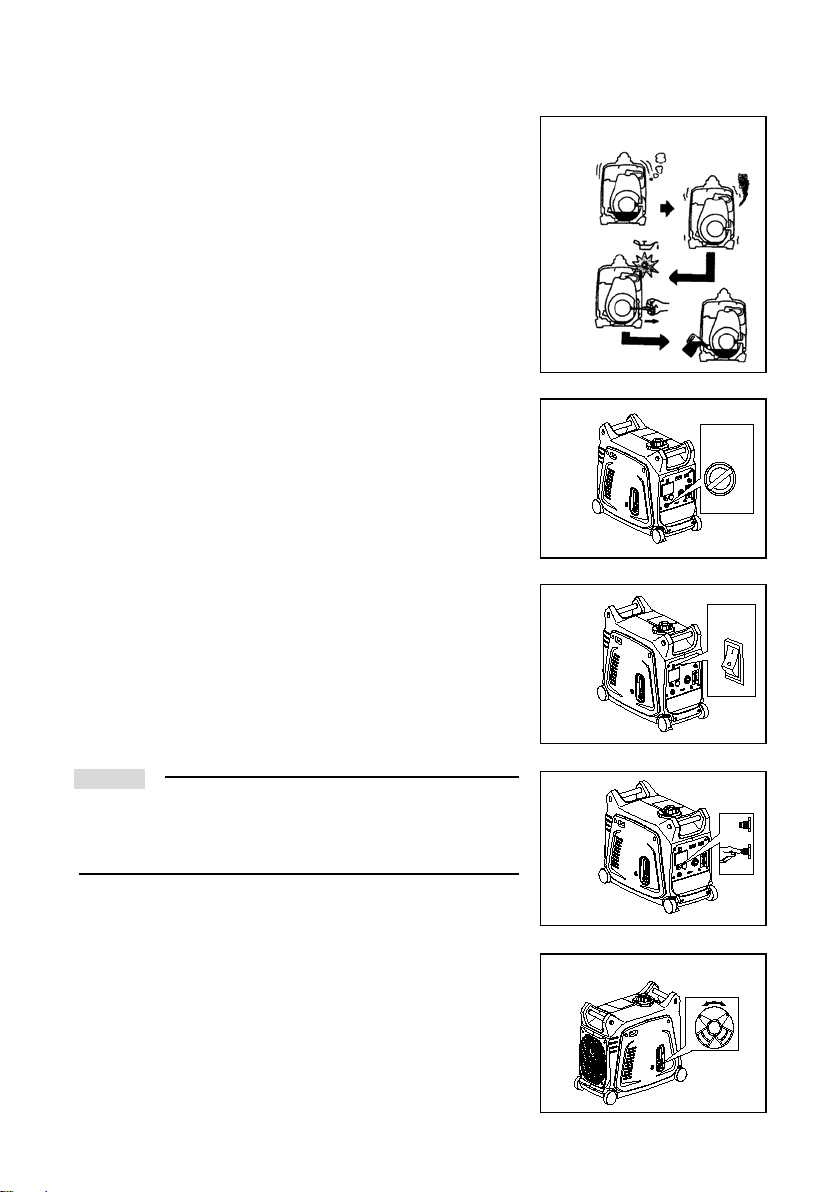

1) OILWARNINGSYSTEM
When the oil level falls below the lower level, the engine stops automatically.
Unless yourefillwithoil,the enginewillnotstartagain.FIG.2
2) ENGINE SWITCH
Theengineswitchcontrolstheignitionsystem.FIG.3
①
ON(run)
Ignitioncircuitisswitchedon.Theenginecanbestarted.
②STOP
Ignitioncircuitisswitchedoff. Theenginewillnotrun.
③START
Startingcircuitisswitchedon.Thestartermotorstarts.
3) ECONOMY CONTROLSWITCH
When the economy control switch is turned “ON”, the economy control unit
control the engine speed according to the connected load. The result is a less
efficientfuelconsumptionwithlessnoise.FIG.4
4) DCCIRCUITPROTECTOR
The DC circuit protector turns off automatically when the load exceeds the
generator’sratedoutput.FIG.5
CAUTION:
Reduce the load to within specified generator’s rated output if the DC
circuitprotectorturnsoff.
5)FUELCOCK
Thefuelcockis usedtosupplyfuel fromthetanktothecarburetor.FIG.6
FIG.2
FIG.3
FIG.4
FIG.5
FIG.6 ON OFF
STOP
RUN
START
ENGINE
SWITCH
ON
OFF
ECON.
RESET

6
6) BRAKE LEVER
Thefunctionofbrakeleverispreventinggeneratormoving.FIG.7
①ifthebrakeleveris noton,thegeneratorcanmove.
②Ifthebrakeleverison,thegeneratorcan’tmove.
7) AUTO GEN START
Theautogenstartcontrolstheignitionsystem.FIG.8
Whenthecircuit ofthisplugconnectedthestartermotorstarts
Whenthecircuitof thisplugdisconnectedtheenginewillstop
PRE-OPERATION CHECK
NOTE:
Addthefuel(morethan5litersforthe firsttimeusingthisgenerator).
Thefirsttime usingthe generator,presstheprimerbulb6times afterrefuelinggasoline
Pre-operationchecksshouldbemadeeachtimethegeneratorisused.
1) CHECKENGINEFUEL
Makesurethereissufficientfuelinthetank.FIG.9
Iffuelislow, refillwithunleadedautomotivegasoline.
Besuretouse thefuelfilterscreenonthefuelfilter neck.
Recommendedfuel:Unleaded gasoline.
Fueltankcapacity: (
seepage17 )
WARNING:
Donotrefilltank whileengineis runningorhot.
Closefuelcockbeforerefuelingwithfuel.
Becarefulnot toallowdust,dirt,waterorotherforeignobjectsinto fuel.
Donotfillabovethetopofthefuelfilteroritmayoverflowwhenthe fuelheatsup andexpands.
Wipeoffspiltfuel thoroughlybeforestartingengine.
Keepawayfromopenflames.
FIG.7 ①②
FIG.9
FIG.8
AUTO GEN
START

7
2) CHECKENGINEOIL
Make sure the engine oil is at the upper level of the oil filler hole. Add oil as
necessary.
Removeoil fillercapandchecktheengineoil level.FIG.10
If oil level is below the lower level line, refill with suitable oil to upper level
line. Donotscrewintheoilfillercapwhencheckingoillevel.
Changeoilifdirty.
Oilcapacity:(seepage 17)
Recommendedengineoil:
APIService“SJ” FIG.11
3) GROUND (Earth)
Makesuretoground(earth)thegenerator.Use 8AWGwire. FIG.12
4) CONNECTBATTERY(forelectricstartsystem)
Loosenthescrewand removethebatterycover.
Clamp the red wire to the positive (+) terminal and the black wire to the
negative(-)terminalofthebattery.Donotreversethesepolarity.
FIG.13
Besurethebatteryisinstalledonthebatterymounttraysecurely.
Installthecoverandtightenthescrew.
Recommendedbattery: Minimumcapacity 12V6AH
FIG.10
FIG.11
32°F F 80°
25°CC 0°
or 10W-30
SAE #30
or 10W-40
SAE #20
or 10W-30
or 10W-40or 10W-40
or 10W-30
SAE 10W
FIG.12
UPPER
LEVEL
FIG.13

8
OPERATION
Thegeneratorhasbeenshippedwithoutengineoil.Fillwithoiloritwillnot
start.
Do not tilt the generator when adding engine oil. This could result in
overfilling anddamageto theengine

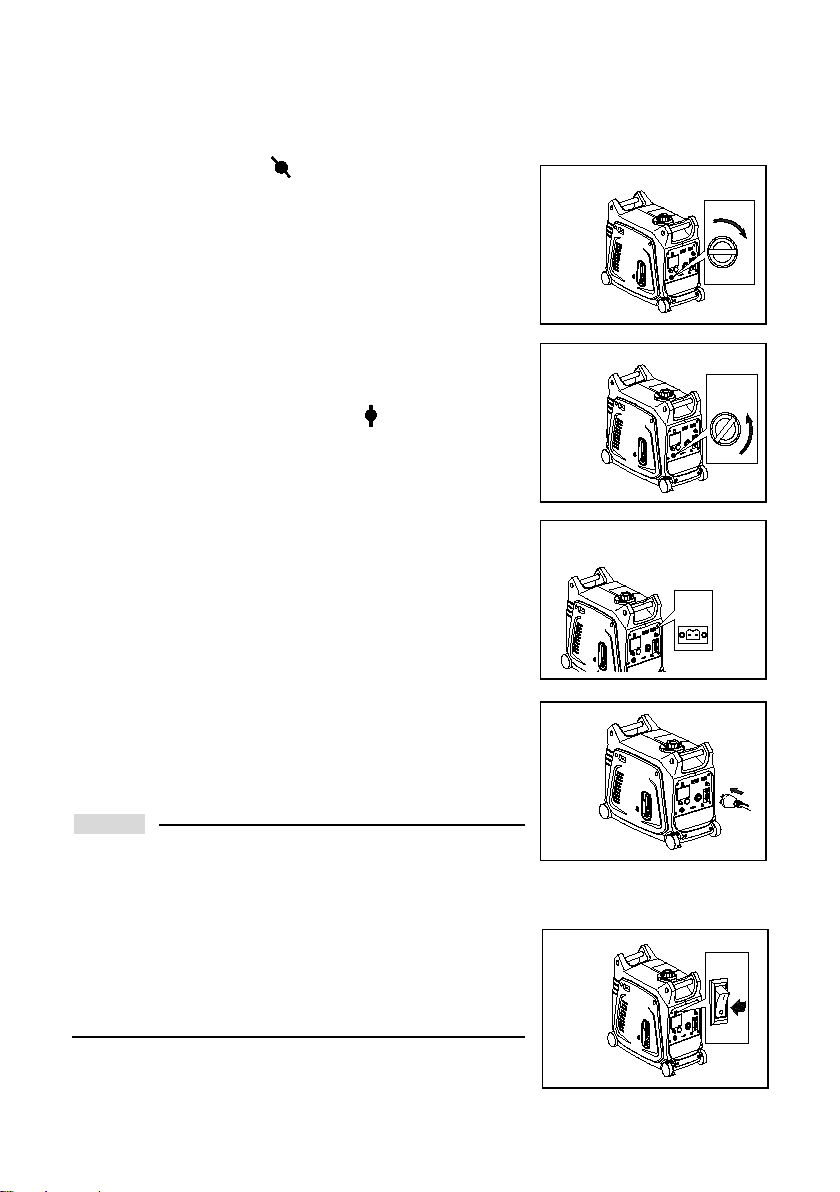

1) STARTINGTHEENGINE
Beforestartingtheengine,do notconnectelectricappliance.
Recoilstart
1. TurnthefuelcocklevertotheONposition.FIG.14
2. TurntheengineswitchtotheRUNposition.FIG.15
3. When starting the generator for the first time, press the primer bulb 6
times beforeattemptingtostart.FIG.16
4. Turnthechokelevertothe││position.FIG.17
5. Pull the starter handle slowly until resistance is felt. This is the
“Compression” point. Return the handle to its original position and pull
swiftly.Donotfullypull out therope.Afterstarting,allowthestarterhandle
to return to its original position while still holding the handle. Grasp the
carrying handle firmly to prevent the generator from falling over when
pullingtherecoilstarter. FIG.18
6. Warm uptheenginewithoutaloadforafewminutes.
7. Turnthechokeleverbacktotheoperatingposition. FIG.19
8. Warm uptheengine without aloadforafewminutes.
FIG.14
FIG.15
FIG.16
FIG.17
FIG.18
FIG.19
ON
RUN
CHOKE
RUN

9
Electricstart
1. TurnthefuelcocklevertotheONposition.
2. Turnthechokelevertothe││position.
3. TurntheengineswitchtotheSTARTposition.FIG.20
4. TurntheengineswitchtotheRUNposition.FIG.21
5. Turnthechokeleverbacktotheoperatingposition.
6. Warm uptheengine without aloadforafewminutes.
Autostart
1. Makesurethefuelcockleverto theONposition.
2. Pleasemakesurethechokelevertothe ││RUNposition.
3. MakesuretheengineswitchtotheRUNposition.
4. Connect the cable to Auto Gen Start plug, as soon as the generator
receives the start signal, the generator will start. If the generator does
not start successfully, it will try to start again. Generator will disconnect
thecircuitwhenthegeneratordoesnotstart afterthreetimes..FIG.22
USINGELECTRIC POWER
ACAPPLICATION
(a) Check theACpilotlampforpropervoltage.
(b) Turn off the switch(s) of the electrical appliance(s) before connecting to
thegenerator.
(c) Insertthepulg(s)oftheelectricalappliance(s)intothereceptacle.FIG.23
CAUTION:
Besuretheelectric apparatus isturnedoffbefore pluggingin.
Besurethetotalloadis withingeneratorratedoutput.
Besurethesocketloadcurrentiswithinsocketratedcurrent.
The economy control switch must be turned to “OFF”when using electric
devices that require a large starting current, such as a compressor or a
submergiblepump.FIG.24
FIG.20
FIG.22
AUTO GEN
START
FIG.23
FIG.21
FIG.24
START
RUN
ECON.SW
OFF

10
OVERLOADINDICATORLIGHT
The overload indicator light comes on when an overload of a connected
electrical device is detected, the inverter unit overheats, or the AC output
voltage rises. The electronic breaker will then activate, stopping power to the
generation inorder toprotectthe generatorand anyconnected electric devices.
The output pilot light (green) will flicker and the overload indicator light (red) will
turn on, then the engine will stop running. If so please follow the following steps:
FIG.25
(a) Turn offanyconnectedelectricdevices andstoptheengine
(b) Reducethetotalwattageofconnectedelectricdevicestowithinthegenerator’sratedoutput.
(c) Check forblockagesinthecoolingairinletandaroundthecontrolunit.Ifanyblockages arefound,remove.
(d) Afterchecking, restarttheengine.
CAUTION:
ThegeneratorAC outputautomatically resetswhentheengineisstoppedandthen restarted.
The overload indicator light may come on for a few seconds at first when using electric devices that require a large
startingcurrent,suchasacompressororasubmergiblepump. Thisis notamalfunction.
DCAPPLICATION (option)
Thisappliesto12Vbatterycharging only.
(a) Charginginstructionforbattery
Disconnecttheleadsforthe battery.
Foropenleadacidbatteries,removecaps.
Filldistilledwatertotheupperlimit,ifthebattery fluidislowlevel.
Measure the specific gravity for the battery fluid by using the hydrometer,
and calculate the charging time in according with the table shown to the
right.
Thespecificgravity forthe fullychargedbatteryshall be within1.26to1.28.
Itis recommendedtoconfirmeveryhour.FIG.26
(b) Connect between the DC output socket and the battery terminals using
the charging leads. The leadsshould be connected making sure the (+)
and(-)polarityarecorrect.FIG.27
(c) The DC circuit protector is to be set to “ON” after confirming the
FIG.26
3
2
1
CSpecific gravity 20°
3. 47AH 20HR
2. 35AH 20HR
1. 30AH 20HR
Charging time Hr
Battery capacity
810
4620
1.06
1.14
1.10
1.22
1.18
1.26
1.30
Aim for specific gravity and charging time
OVERLOAD
FIG.25
FIG.27

11
connection,iftheprotectorisin“OFF”position.
CAUTION:
Besuretheeconomycontrol switchis turnedoffwhilechargingthebattery.

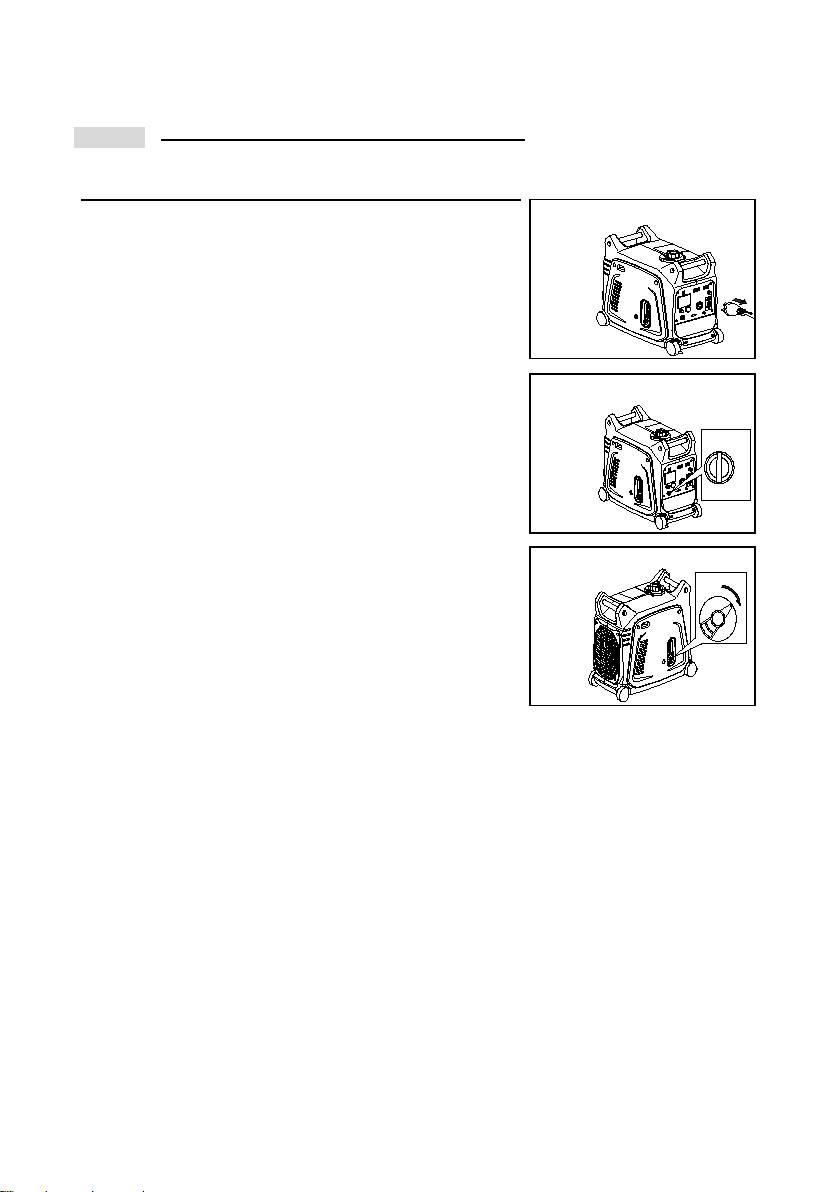

STOPPINGTHEENGINE
1. Turn off the power switch of the electric apparatus or disconnect any
electricdevices.FIG.28
2. TurntheengineswitchtoSTOPposition.FIG.29
.
3. Turnthefuelcockleverto“OFF”. FIG.30
.
FIG.28
FIG.29
FIG.30
STOP
OFF

12
PERIODIC MAINTENANCE
MAINTENANCECHART
Maintenance is important for the best performance and safe operation.
Item Remarks
Pre-operation
check
(daily)
Initial
1months
or20Hr
Every
3months
or50Hr
Every
6months
or100Hr
Every
12months
or300Hr
Spark
Plug Check condition adjust gap and clean.Replaceifnecessary. 
Engine
Oil Check oillevel 
Replace 
Oilfilter Cleanoilfilter 
AirFilter Clean.Replaceifnecessary. 
FuelFilter Clean fuel cock filter. Replace if
necessary 
Choke Checkchokeoperation 
Valve
Clearance Check and adjust when engine iscold. 
FuelLine Check fuel hose for crack or
damage.Replaceifnecessary. 
Exhaust
System Check for leakage. Retighten or replacegasketifnecessary 
Check mufflerscreen.
Clean/replaceifnecessary. 
Carburetor Checkchokeoperation 
Cooling
system Check fandamage. 
Starting
system Check recoilstarteroperation. 
Idlespeed Checkandadjustengineidlespeed 
Fittings/
Fasteners Check all fittings and fasteners correctifnecessary. 
Crankcase
breather Check breather hose for cracks or damage.Replaceifnecessary 
Generator Checkthepilotlightcomeson 

13
ENGINEOILREPLACEMENT
1. Place the generator on a level surface and warm up the engine for
several minutes. Then stop the engine and turn the fuel cock knob to
“OFF””.
2. Loosenthescrewand removethecover.FIG.31
3. Removetheoilfillercap.FIG.32
4. Place an oil pan under the engine. Tilt the generator to drain the oil
completely
5. Replacethegeneratoronalevelsurface.
6. Addengineoil totheupperlevel.
7. Installtheoilfillercap
8. Installthecoverandtightenthescrew
Recommendedengineoil:(
seepage17 )
API Service“SJ”
CAUTION:
Besurenoforeignmaterialentersthecrankcase.
Do not tilt the generator when adding engine oil. This could result in
overfilling anddamageto theengine
Cleantheoilfilterevery100hr.FIG.33
AIR FILTER
Cleaning your air filter needs to be part of your maintenance regime. The air
filter ensures that the air entering the combustion chamber is as clean as
possible. The consequences of contaminated air include wear on the engine
causedbyforeignbodiesandaless efficientcombustionprocess.FIG.34
1. Removethecover.
2. Removetheairfiltercoverandelement.
3. Wash theelementinsolventanddry.
4. Oiltheelementandsqueezeoutexcessoil.Theelementshouldbewetbut
notdripping.
5. Inserttheelementintothe airfilter.
6. Replacethecover
FIG.31
FIG.32
FIG.33
OIL FILTER
FIG.34
UPPER
LEVEL

14
CAUTION:
The engine should never run without the element; excessive piston and/or
cylinderwearmayresult.

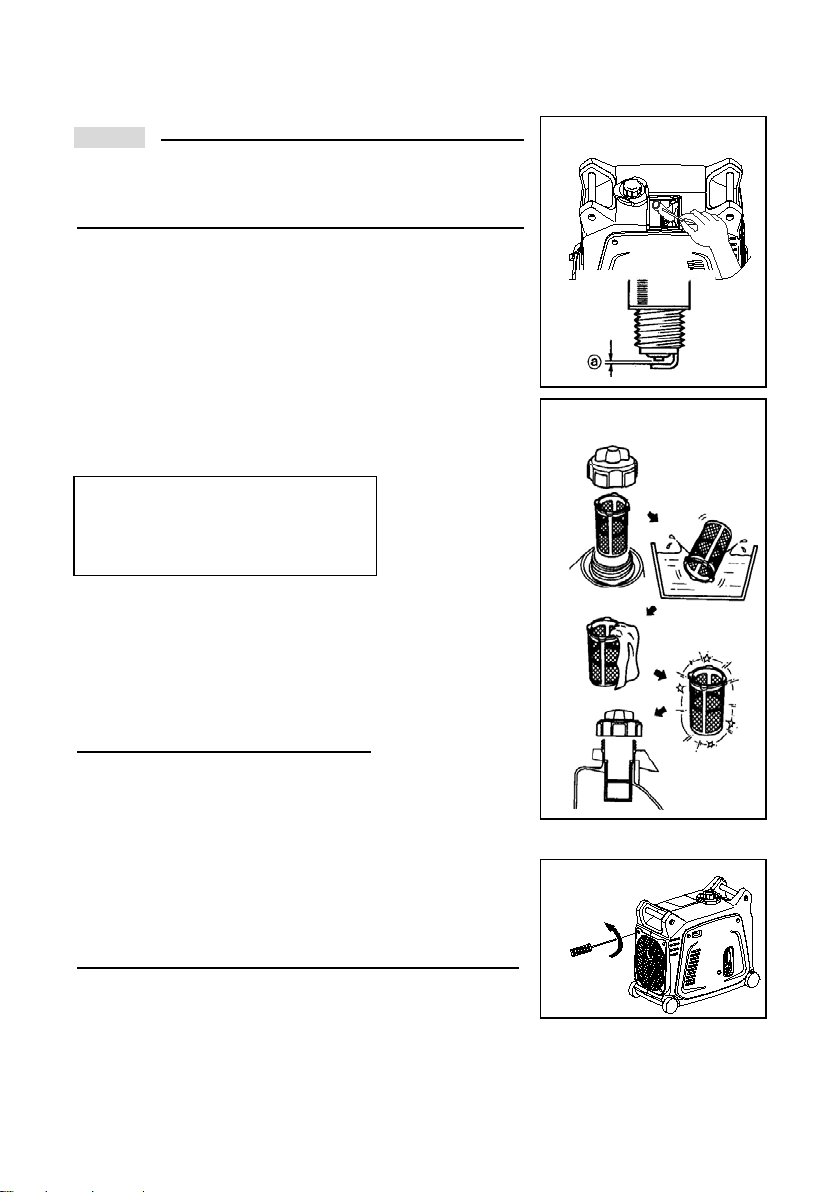

CLEANINGANDADJUSTING SPARKPLUG
1. Removethecover.
2. Checkfordiscolorationandremovethecarbon.FIG.35
3. Checkthesparkplug typeandgap.
4. Replacethe sparkplug.
5. Attachthecover
FUEL TANKFILTER
1. Removethefueltankcapandfilter.
2. Cleanthefilterwithsolvent.Ifdamaged,replace.FIG.36
3. Wipethefilterandinsertit.
Besurethetankcapistightenedsecurely.
MUFFLERSCREEN
Theengine and mufflerwillbeveryhotaftertheenginehas beenrun.
Avoid touching the engine and muffler while they are still hot with any part
ofyourbodyorclothingduringinspectionorrepair.
1. Removethecover.FIG.37
2. Removethemufflerscreen.
3. Usetheflatheadscrewdrivertoprythesparkarresteroutfromthemuffler
Standardelectrodecolor: TanColor
StandardSparkPlug: CR7HSA(NGK)
SparkPlugGap:0.6-0.7mm(0.024-0.028in)
FIG.35
FIG.36
FIG.37

15

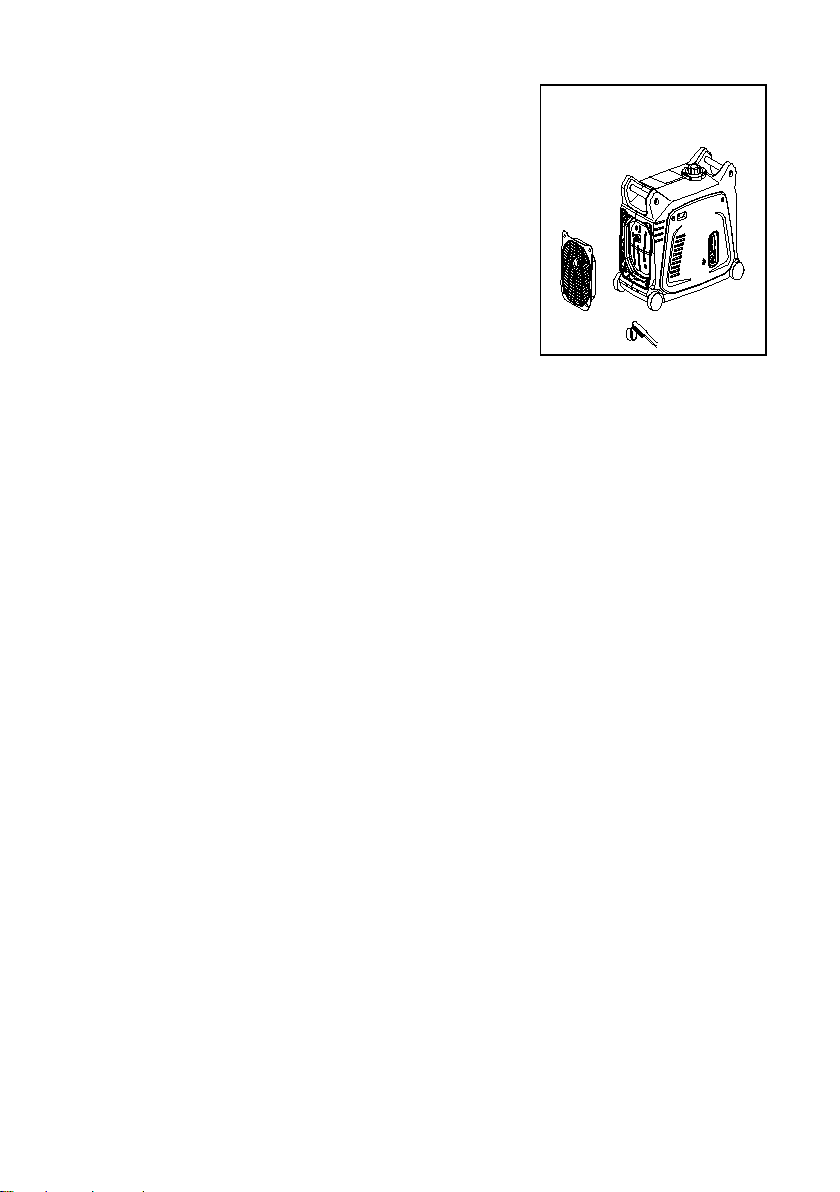

4. Remove the carbon deposits on the muffler screen and spark arrester
using awirebrush.FIG.38
5. Re-installthemufflerscreen.
6. Re-installthecover
TROUBLESHOOTING
Enginewon’tstart
1. Fuelsystems
Nofuelsuppliedtocombustionchamber.
Nofuelintank….Supplyfuel.
Fuelintank….Fueltankcapairventknob to“ON”,fuelcockknobto“ON”.
Cloggedfuelline….Cleanfuelline.
Cloggedcarburetor….Cleancarburetor.
2．Engine oilsystem
Insufficientoil
Oillevelislow….Addengineoil.
3. Electricalsystems
Poorspark
Sparkplugdirtywithcarbonorwet….Removecarbonorwipesparkplugdry.
Faultyignitionsystem….Consultdealer.
4. Compressioninsufficient
Wornoutpistonandcylinder….Consultdealer.
Generatorwon’tproducepower
1.Safetydevice(AC)to“OFF”…Stoptheengine, thenrestart.
2.Safetydevice(DC)to“OFF”…PresstoresettheDCprotector
FIG.38

16
STORAGE
Longtermstorageofyourgeneratorwillrequiresomepreventative maintenancetoguardagainstdeterioration.
DRAIN THEFUEL
1. Removethefueltankcap,drainthefuel fromthe fueltank
2. Removethecover,drainfuelfromthecarburetorbylooseningthedrainscrew.
ENGINE
1. Remove the spark plug, pour in about one tablespoon of SAE 10W30 or 20W40 motor oil into the spark plug hole
andreinstallthesparkplug.
2. Usetherecoilstartertoturntheengineoverseveraltimes(withignition off).
3. Pulltherecoilstarteruntilyoufeelcompression.
4. Stoppulling.
5. Cleanexteriorofthegenerator andapply arustinhibitor.
6. Storethegeneratorinadry,well-ventilatedplace,withthecoverplacedoverit.
7. Thegeneratormustremaininaverticalposition.

17
SPECIFICATION
MODEL
GEN3200W120V
GENERATOR
Type
PortableInverterGenerator
ACVoltage
100V,110V,120V
Frequency
60Hz
Max.Output
3.2kW
Rated Output
2.8kW
PowerFactor 1.0
DCOutput
12V/5.0A
ENGINE
Model
XY157F
Type
Air-cooled,4cycle,OHC,Gasoline Engine
Bore×Stroke mm×mm 57.4×57.8
Displacement
149.5cc
Max.Output
4.0KW/5500rpm
Fuel
UnleadedAutomobileGasoline
Fueltank Capacity
6.3liters
Rated ContinuousOperation 5h（50%Load）
Lubricatingoil
SAE10W30
Lubricatingoil Capacity
0.9liter
StartingSystem
Electric/RecoilStarter
Ignitionsystem
C.D.I.
SparkPlug: Type
A7RTC
DIMENSION
Netdimension L×W×H 24.17”×13.42”×20”
Overalldimension L
×
W
×
H
35.2”
×
14.14”
×
20.86”
NetWeight
73.85lb
DryWeight
80.44lb
Specificationssubjecttochangewithoutpriornotice.

18
WIRING DIAGRAM
BL
BL
BL
BL
BL
BL
W
W
Bu
Bu
INVERTER
UNIT
OVERLOAD
LOW OIL
R
PI
Gr
R
O
Br
Bu
BL
BR
GR
P
Y/G
W
O
R
BU
OUTPUT
R
SUB
WINDING
MAIN
WINDING
M
O R W Gr BU
R
O Bu PI Br
IGNITION
WINDING
OIL SENSOR
DC
WINDING
BL
W
R
SPARK PLUG
SPRING WINDING
BATTERY
12
3
45
CONTROL PANEL BLOCK
GENERATOR BLOCK
ENGINE BLOCK
ELECTRIC LOCK
GROUND
TERMINAL
BL Bu BL/W W G
IGNITION CONTROLLER
ECO. SWITCH
W
W
STEPPER MOTOR ASSY.
BL
W
W
BL P
W
P
IGNITION COIL
BL O
RY/G
O Y W R BL
R
W
RECTIFIER
DC 12V OUTPUT
Bu
Bu
Bu
Bu
Bu
BL
FUSE 15A
R
DC PROTECTOR 6A
V-I-W-Hz
R
BL
AC OUTPUT
BL
W
5-20R L5-30R
BATTERY
START MOTOR
ELE VALVE
ELECTRIC MAGNET
P
Gr
R
BL
R
Y/G
FUSE 5A
O
R
Y
W
BL
Bu
FUSE 15A
R
BL
R
AUTO GEN
START
FUSE 3A
GRAY
BLACK / WHITE
PI
Gr
PINK
BL/W
ORANGEO
WWHITE
PPURPLE
YELLOW / GREEN
Y/G
YELLOW
Y
BL
Bu BLACK BLUE
GGREEN BROWN
RED
Br
R
R
BL
RECTIFIER
DC 5V OUTPUT
