TPH900 Car Configurations – January 2017
CarKitsconfigurationswithTPH900
Table
1. Aim of the document....................................................................................................................... 3
2. eneral overview ............................................................................................................................ 3
3. Basics on use cases .......................................................................................................................... 4
Standard features ................................................................................................................................ 4
Location - Identification ...................................................................................................................... 5
4. Component descriptions ................................................................................................................. 6
Car cradle TPH900 – HR9080 ............................................................................................................... 6
CCB_900 – HR9623 .............................................................................................................................. 7
BIV Smart - HR6723 ............................................................................................................................. 7
Remote Speaker Microphone – HR9035 ............................................................................................. 7
Loudspeaker – HC1194 ........................................................................................................................ 8
Discreet configuration – HT11004 ....................................................................................................... 8
Cables ................................................................................................................................................ 10
H 5443 – CCB Power cable ........................................................................................................... 10
H 5444 – RF cable ......................................................................................................................... 10
Cable between CCB & Cradle ........................................................................................................ 11
H 5440 – CCB to BIVS (10W) ........................................................................................................ 12
H 5569 – µUSB-RS232 .................................................................................................................. 12
H 5596 – RSM Extension cable .................................................................................................... 12
H 5438 – BIV POWER CORD ......................................................................................................... 13
BIV connectivity kit – HT7462............................................................................................................ 13
5. Car configurations ......................................................................................................................... 14
TPH900 2W configuration ................................................................................................................. 14
TPH900 10W configuration ............................................................................................................... 15
ANTARES ........................................................................................................................................ 16
6. Ordering......................................................................................................................................... 17
Configurations with 2W capacity ...................................................................................................... 17
TPH900 2W initial configuration ................................................................................................... 17
TPH900 2W configuration - CAR CONFI 900 2W -B .................................................................... 17
Configurations with 10W capacity .................................................................................................... 18
TPH900 10W initial configuration ................................................................................................. 18

2
TPH900 Car Configurations – January 2017
TPH900 10W configuration - CAR CONFI 900 10W –B ................................................................ 18
TPH900 10W configuration - CAR CONFI 900 10W –B -SP .......................................................... 19
TPH900 10W configuration - CAR CONFI 900 10W without audio ............................................. 19
TPH900 10W configuration - CAR CONFI 900 10W –B ANTARES .............................................. 20
Discreet audio and PTT ...................................................................................................................... 21
Retrofit kit ......................................................................................................................................... 22
Car Config 900 upgrade 10W -B .................................................................................................... 22
7. Installations options ...................................................................................................................... 23
Options for Cradle ............................................................................................................................. 23
Re-use of Pioneer loudspeaker ......................................................................................................... 23
Figures inside this document
Figure 1: TPH900 car configuration 2 Watts ........................................................................................... 3
Figure 2: TPH900 car configuration with Booster (10 Watts) ................................................................. 4
Figure 3 Location and Identification management ................................................................................. 5
Figure 4 TPH900 Car cradle picture ......................................................................................................... 6
Figure 5 HR9623 - CCB_900 ..................................................................................................................... 7
Figure 6 : HR9035 - TPH900 RSM for car kit ............................................................................................ 7
Figure 7 : HC1194 - Loudspeaker ............................................................................................................. 8
Figure 8 : Discreet audio/PTT accessories for TPH900 car kit ................................................................. 8
Figure 9 : H 5445 cable for discreet configuration ................................................................................ 9
Figure 10 H 5443 .................................................................................................................................. 10
Figure 11 H 5444 .................................................................................................................................. 10
Figure 12 H 5472 .................................................................................................................................. 11
Figure 13 H 5613 .................................................................................................................................. 11
Figure 14 H 5440 .................................................................................................................................. 12
Figure 15 H 5569 .................................................................................................................................. 12
Figure 16 H 5596 .................................................................................................................................. 12
Figure 17 H 5438 .................................................................................................................................. 13
Figure 18 Car configuration 2W - components ..................................................................................... 14
Figure 19 Car configuration 10W – 2016 - components ....................................................................... 15
Figure 20 Overview ANTARES configuration ......................................................................................... 16
Figure 21 Option with Metal plate holder kit ........................................................................................ 23
Figure 22 : Molex wiring ........................................................................................................................ 23
Version
Date
Comment
Author
Initial
2015
Standard
D Mulsant
V2
October 2016
Include
–
B versions of Cradle and CCB,
and Trafico
D Mulsant
V3
Nov. 2016
Include code
with no audio
D Mulsant
Final
January
201
7
D Mulsant

3
TPH900 Car Configurations – January 2017
1. Aim of the document
This document presents the various configurations of TPH900 used in cars.
After providing a general overview, the second chapter describes the features and characteristics of
the main components. Last chapter introduces the references codes of the solution for ordering. It
includes the upgrade between P2 or TPH700 to TPH900 car configurations.
This document is a product description.
It is not an installation guide.
2. General overview
The schematic bellow presents the two TPH900 car configurations. Some elements are optional
items, or may be ordered separately, please check Ordering Options chapter.
Figure 1: TPH900 car configuration 2 Watts

4
TPH900 Car Configurations – January 2017
Figure 2: TPH900 car configuration with Booster (10 Watts)
Note that Booster 10W in the back is indicative.
3. Basics on use cases
Standard features
Car configurations are installed in car and trucks. Choice is made between standard (2W) and with
booster (10W) configurations, depending on the need of enhanced Radio Frequency coverage or not.
User benefits from following functions.
•TPH900 is securely positioned of the in the car, with a specifically designed cradle. This cradle
will ensure firm and robust attachment of the TPH900 in the car, also complying with
standard EU regulations for inside vehicle equipment.
•Access to TPH900 features can be achieved handsfree, with external PTT key or Speaker
Microphone, and loudspeaker.
Discreet installations are also possible, connecting wired PTT, microphone and earphones to the
CCB900 instead of the RSM.
When TPH900 is in cradle:
Remote Speaker Microphone can be used. Only one communication can thus be handled at
the same time.
For discreet configuration, press on the wired PTT, allows the driver to initiate call without
using PTT on the TPH900. The speech goes through the wired microphone. The received
audio goes through the external loudspeaker 4Ohms (option) or the binaural earpiece.
Radiated signal will be sent by the car antenna and not the TPH900, thus giving more
coverage. 10W booster enhances also the emission, when installed in the car.

5
TPH900 Car Configurations – January 2017
Location - Identification
TPH900 can receive PS location signal. When used in a car configuration, car cradle shall then be
connected to external antenna either PS or dual PMR/ PS.
For configurations using AVL server from AIRBUS SLC, an “IDENT” identification option exists.
TPH900 is then able to transmit the IDENT via DTAP.
Figure 3 Location and Identification management
With HR9623BAA01, TPH900 is able to transmit an IDENT coming from external equipment and sent
via DTAP protocol or via HR9623. The IDENT value can be stored in the CCB900 so that external
equipment is no longer needed.
TPH900 allows user to configure IDENT with a specific user interface in maintenance mode. With this
UI, a maximum 15 numerical characters string can be define for the IDENT.
As for today, AIRBUS AVL server offers access either to IDENT information or to RFSI information
(attached to Terminal) provided by network.

6
TPH900 Car Configurations – January 2017
. Component descriptions
Car cradle TPH900 – HR9080
TPH900 car cradle is specific to TPH900, as any cradle is to one radio.
The product offers the following features:
•Connection of power supply to the terminal
•Connection to external antenna with one antenna cable dual band (Tetrapol and PS)
•Connection to external device through µUSB port. Connection to data with µUSB/USB and
µUSB/RS232.
The product is IP40.
Cradle can be attached thanks to swivel solution (optional).

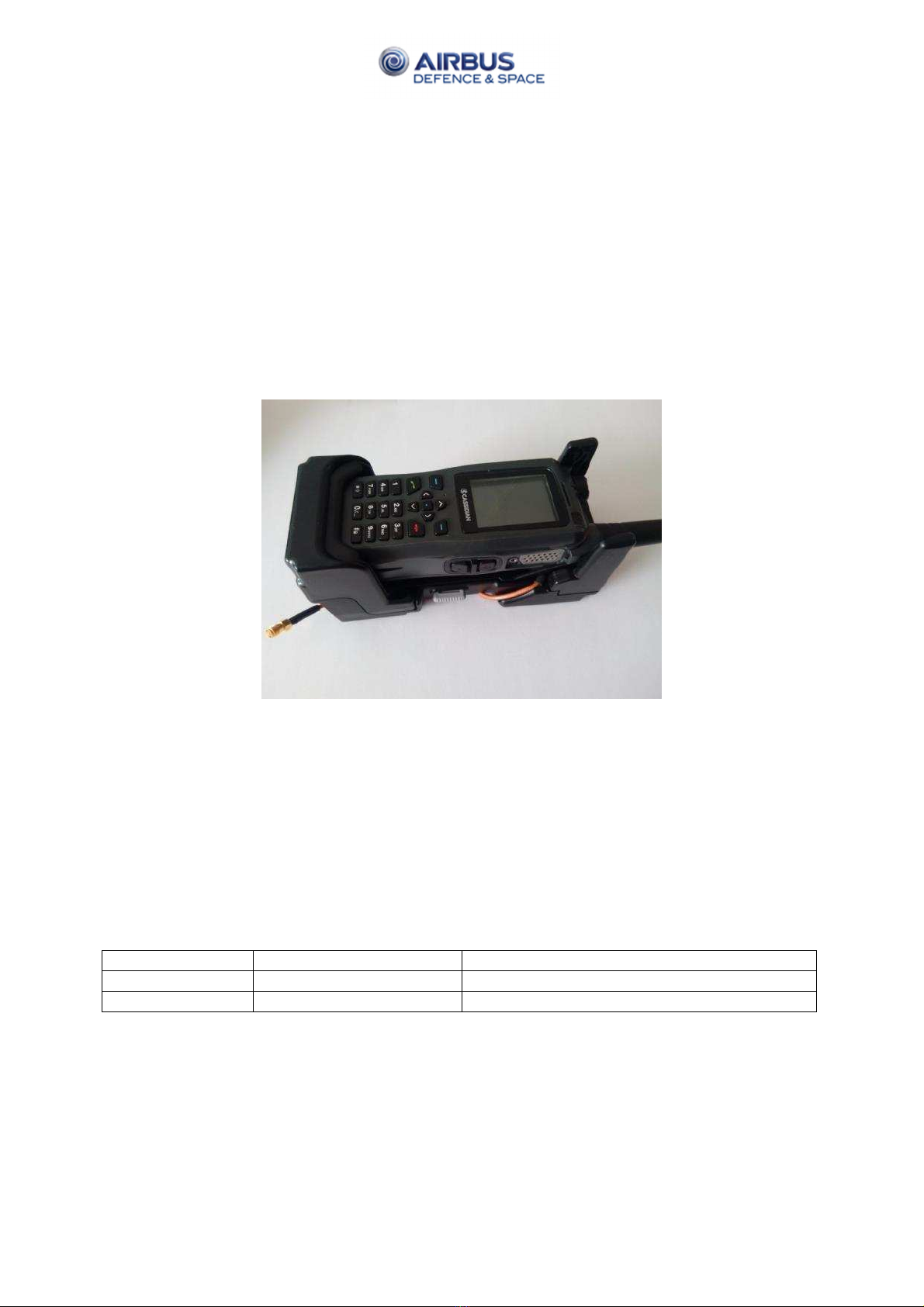

Figure 4 TPH900 Car cradle picture
Note that audio accessories, when plugged on the TPH900 side interface, may not be usable when
radio is inserted in the cradle. This priority management will depend upon items connected to the
CCB.
TPH900 cradle allows the user to insert the radio with one hand. Removing the radio is also done
with one hand only.
Note that it is mandatory to press the side buttons to allow easy extraction.
Note that RF antenna cable is now colored in black.
Reference codes
HR9080AA Car cradle V1 Includes mounting swivel
HR9080CA Car cradle V2 (2017) Antenna cable black, Includes mounting swivel
HR9080DA Car cradle V2 (2017) Antenna cable black, No swivel included

7
TPH900 Car Configurations – January 2017
CCB_900 – HR9623
Car Configuration Box (CCB) is a new element in car kits configuration, compared to P2 /TPH700
solutions.
Figure 5 HR9623 - CCB_900
With 2016 version, CCB900 can now be installed up to 2m from cradle, with different cable variants.
CCB_900 main features are:
•Interface between the cradle, the BIV Smart;
•Interface to external antenna, PMR antenna, or dual band PMR/ PS antenna,
•Management of audio links: to/from Remote Speaker Microphone, loudspeaker, …
•Power supply management for TPH900 5V - 4A (vs 6.5V for P2 )
•Provide identification of the vehicle it is installed in. Therefore, a menu is available in the
TPH900 to set up this identification.
BIV Smart - HR6723
Existing BIV Smart can be used with the retrofit kit. Software must be at least 010202.
AIRBUS will provide two possible configurations:
Retrofit kit, to upgrade existing P2 or TPH700 configurations to TPH900
Complete kit, to be installed in a new vehicle.
Nevertheless, the BIV smart box is connected to CCB900.
Installation kit is HT7528.
Remote Speaker Microphone – HR9035
Remote speaker microphone is the connected on CCB900.
Installation is done thanks to pivot located on back of RSM.
When user is pressing volume +/-, it interacts directly with TPH900 audio volume.
Figure 6 : HR9035 - TPH900 RSM for car kit

8
TPH900 Car Configurations – January 2017
An extension cable exists to install RSM up to 2 meter from CCB900.
Connectivity is SUBD15 high density.
Loudspeaker – HC119
Power : 20W
Impedance : 8 ohms
Dimensions: 176x186x80mm
Cable length 2,000m with MOLEX plug to connect to CCB.
Figure 7 : HC1194 - Loudspeaker
Mounting includes a Molex connector for installation in car kits.
Discreet configuration – HT1100
Discreet installation consists in plugging wired audio and PTT on the CCB900 on the plug dedicated to
RSM.
It shall be highlighted that both car cradle and CCB900 have to be installed.
Discreet kit will include one cable (H 5445AA) to which three accessories are attached:
•Microphone,
•Binaural earpiece,
•PTT key.
This configuration is to be ordered separately.
Figure 8 : Discreet audio/PTT accessories for TPH900 car kit

9
TPH900 Car Configurations – January 2017
L= 0.5m
L= 3m
L= 1m L= 3m
Earpiece
Microphone
PTT
VIB

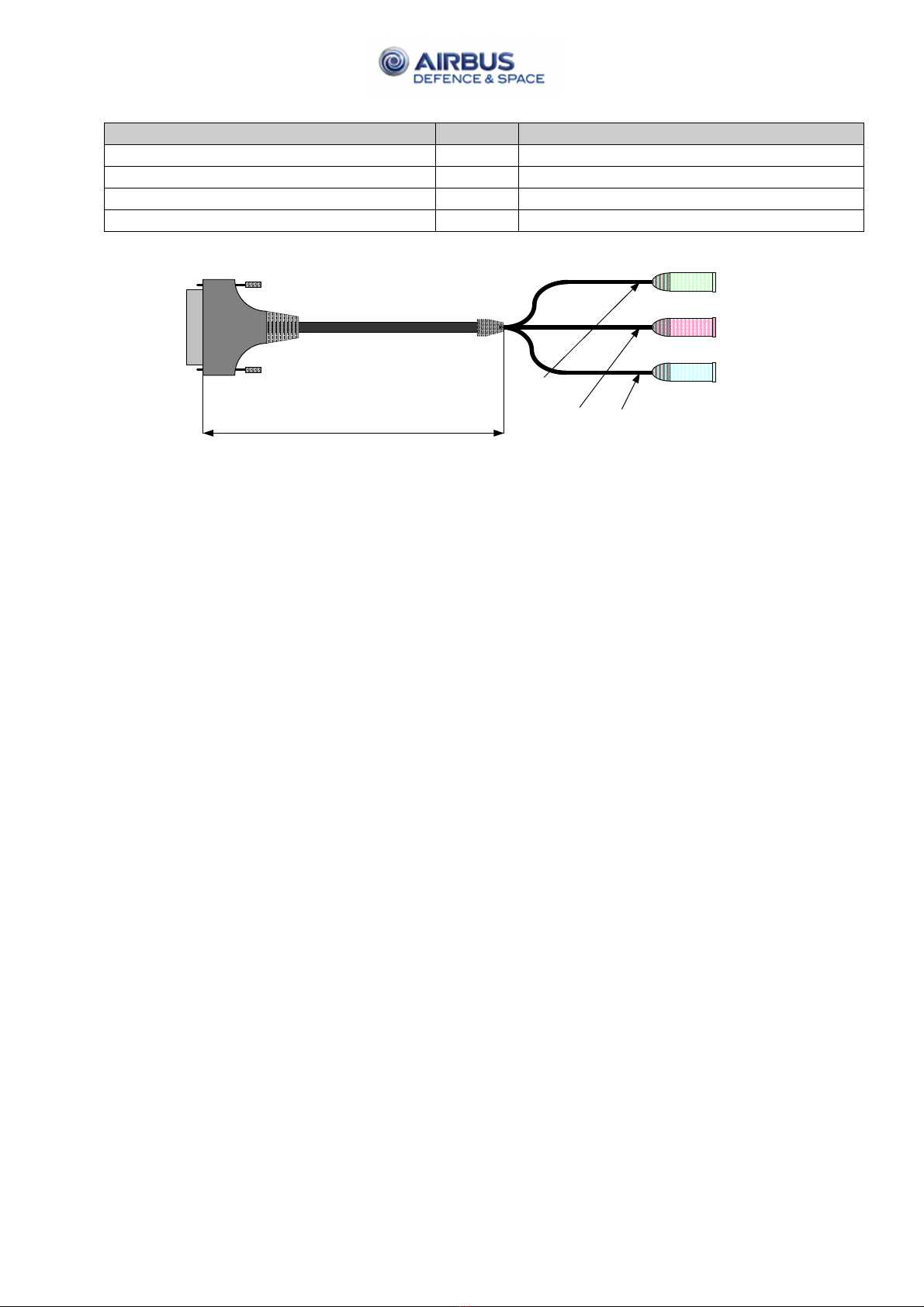

Figure 9 : HG5445 cable for discreet configuration
Description
Qt
y
r
e
f
e
rence
specifique
C
a
ble ref ADS
(H 5445AA)
1
H 5445XX01
-
ED (plan)
Binaural earpiece
with
jack3.5
1
MDR
-
E9LP/BC1(AE)
Microphone jack 2.5 mono +
with
velcro
1
Q400 MK3
Black
PTT
key
L=3m jack 2.5 mono
1
n
c
(custom)

10
TPH900 Car Configurations – January 2017
Cables
HG5 3 – CCB Power cable
This cable enables to connect to CCB with Molex connector to power source.

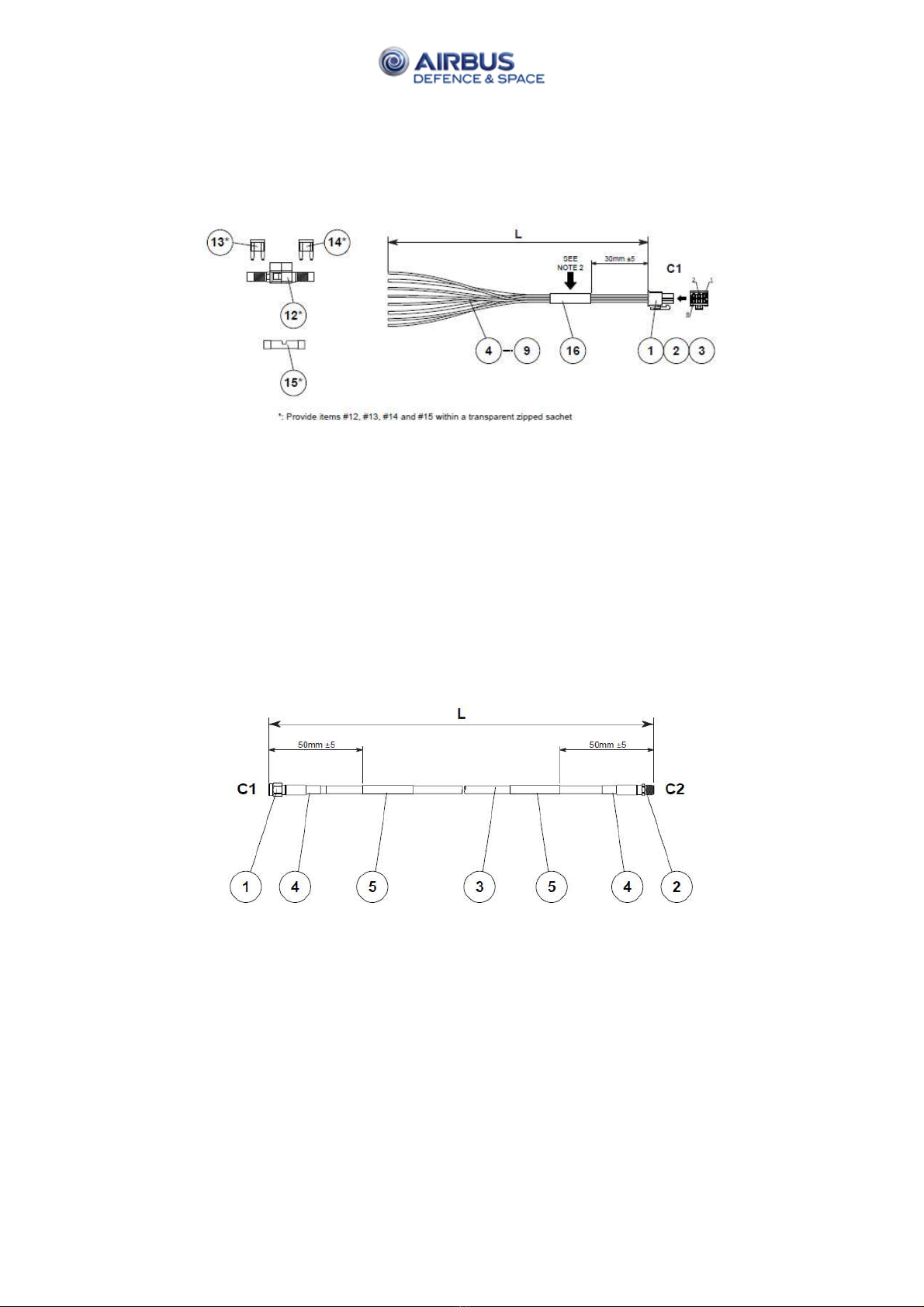

Figure 10 HG5443
#13 is Mini-Fuse, 5A, 32VDC, Ag plated, -40/+125°C
#14 is mini-fuse 20A, 32VDC, Ag plated, -40°C/+125°C
#15 is mini-fuse 5A, 32VDC, Ag plated, -40°C/+125°C
#12 is fuse holder 20A max.
Length 300 mm
HG5 – RF cable
This cable enables to connect the CCB900 to the cradle.
Figure 11 HG5444
Coaxial cable 50 Ω, R 223/U, MIL-C-17
#1 is SMA plug, straight, 50 Ω
#2 is SMA Jack, straight, 50 Ω
Length variants:
•H 5444AA01 500 mm (to be ordered separately)
•H 5444BA01 2,000 mm (standard kits)

11
TPH900 Car Configurations – January 2017
Cable between CCB & Cradle
HG5472xA Straight connector
Figure 12 HG5472
#C1-C2 is DSUB-15 high density over molded plug, size E, straight exit.
#C3-C4 is Molex connector Mini-Fit Jr.
Reference:
•H 5472AA01 2,000 mm (standard kits)
HG5613 Connector with angle 90°
This 90° connector helps the installation in car, as it reduces the global wheelbase.
Figure 13 HG5613
#C1-C2 is DSUB-15 high density over molded plug, size E.
C2 straight exit,
C1 with 90° angle.
#C3-C4 is Molex connector Mini-Fit Jr.
H 5613AA01
Length: 2,000 mm

12
TPH900 Car Configurations – January 2017
HG5 0 – CCB to BIVS (10W)

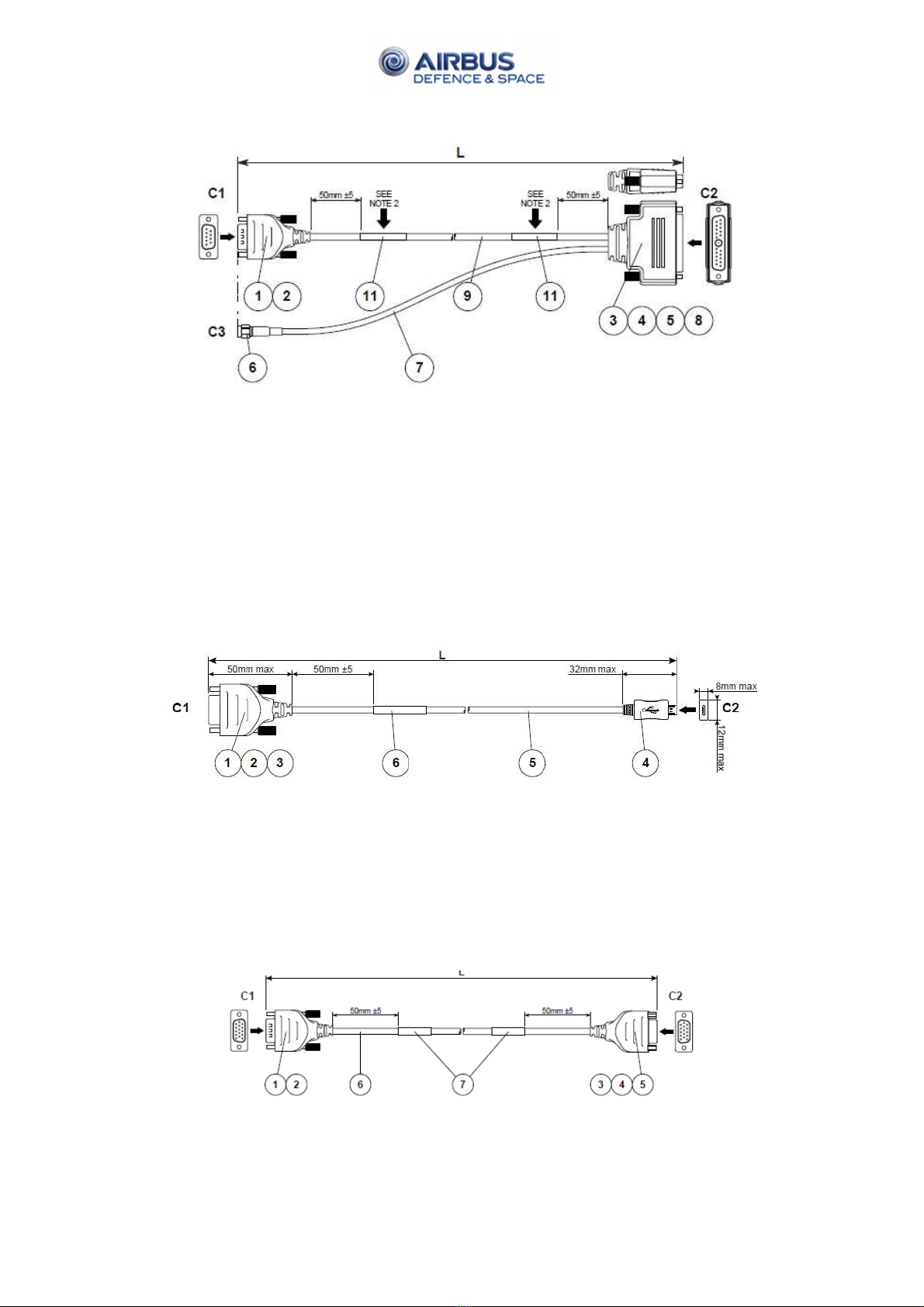

Figure 14 HG5440
#C1 is DSUB-10 over molded plug, size E.
#C2 is DSUB-21 over molded plug, size B
#C3 is SMA plug
Length variants:
•H 5440AA01 Length 3,000 mm
•H 5440BA01 Length 500mm
HG5569 – µUSB-RS232
(optional)
Figure 15 HG5569
H 5569 allows connecting Personnal Computer or Pilot Box to the cradle via RS232.
#C1 is DSUB-XX over molded, size E.
#C2 is µUSB plug
H 5569AA01
Length: 1,500 mm
HG5596 – RSM Extension cable
Figure 16 HG5596
#C1/C2 is DSUB-15 over molded plug, size E.
H 5596XX01
Length 2,000mm

13
TPH900 Car Configurations – January 2017
HG5 38 – BIV POWER CORD

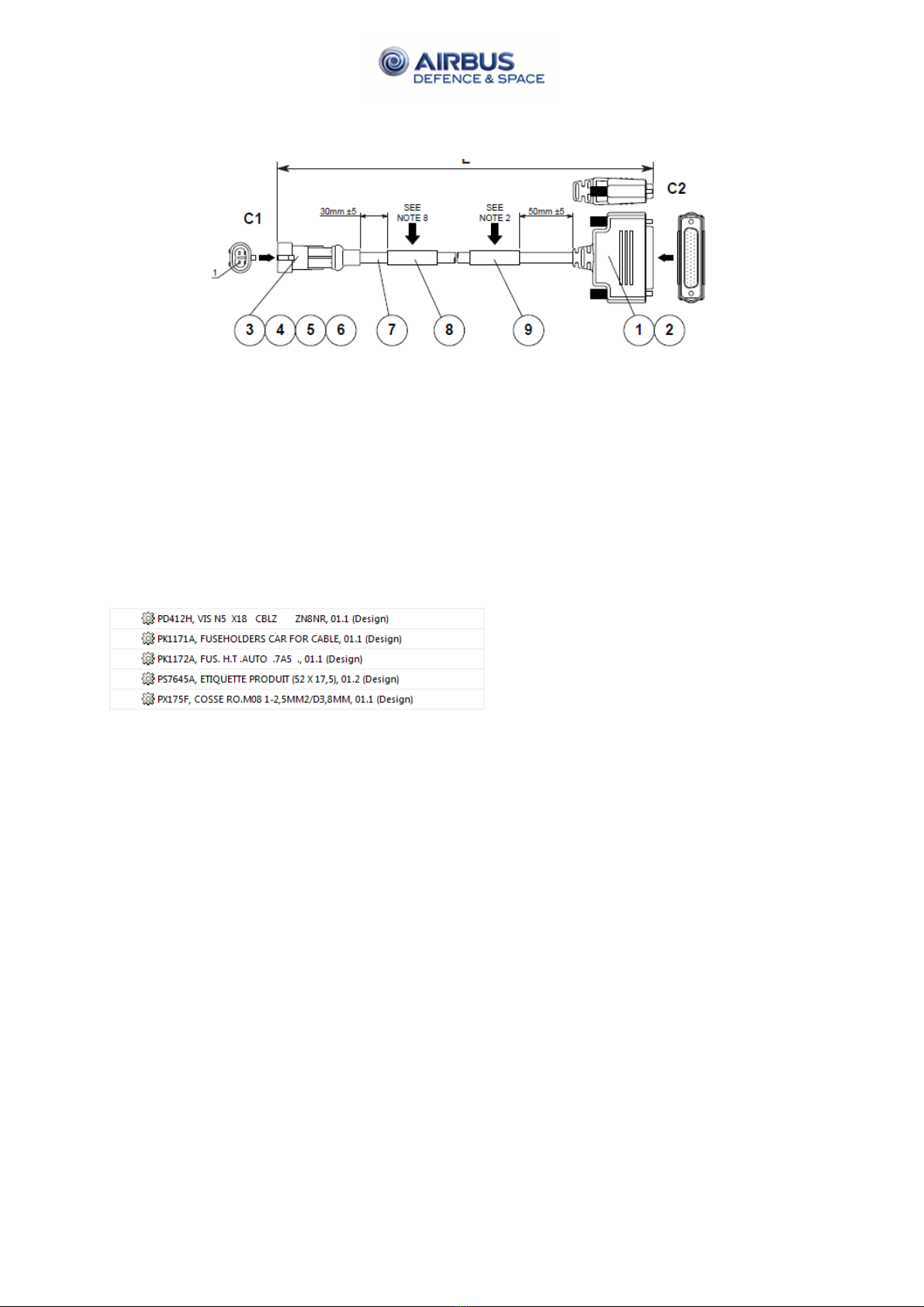

Figure 17 HG5438
#C1 is superseal 1.5 2-pos
#C2 is DSUB 44, Size B
H 5438AA01
Length 700mm
BIV connectivity kit – HT7 62
Kit of screws, fuse. Refer to installation guide.
HT7462AAA01

14
TPH900 Car Configurations – January 2017
5. Car configurations
2015 car configuration concept would see cradle and CCB900 positioned within 2 meters.
With 2016 configuration, distance between cradle and CCB900 can be extended up to 6 meters.
The two following schematics provide general understanding of the car kit concepts.
TPH900 2W configuration
Figure 18 Car configuration 2W - components

15
TPH900 Car Configurations – January 2017
TPH900 10W configuration
Figure 19 Car configuration 10W – 2016 - components
Adaptations in 2016 of this 10W configuration lead to some specific packages:
-TPL for Antares:
Company TPL will integrate BIV and CCB900 in a dedicated housing, easing the integration in the
trunk of the car. A dedicated unique cable will then connect front end equipment (cradle, RSM, µUSB
plug) to back end equipment (10W booster, CCB board, car battery).
-SPICA:
Standard installation is to have both CCB900 and BIV below copilot seat (as it was the normal case
with P2 / TPH700 installations). The CCB900 to cradle cable (H 5613) is using normal 2 m length,
but with 90º connector. Also, an extension cable (H 5596) is provided between CCB900 and RSM, to
be able to install the RSM in the dashboard.

16
TPH900 Car Configurations – January 2017
ANTARES
In this configuration, the main cables are not included.
They are provided while the integration of CCB in additional casing is performed.
Report to ANTARES kit description in “6-Ordering”.
Figure 20 Overview ANTARES configuration
TPL is supplier of 6 meter system cable.
BIV TPL is host metal box for all equipment installed in the back of the truck.
Detailed description in HYP/TR/DFF/35

17
TPH900 Car Configurations – January 2017
6. Ordering
Antennas are ordered separately.
Note that the B version of cradle/CCB includes 2017 features (§3).
An CCB900-B will work only with a cradle-B.
Configurations with 2W capacity
TPH900 2W initial configuration
This configuration will be phased out in 2017.
Commercial code Designation
Comment
HR9703AA TPH900 2W configuration
HR9080 TPH900 CAR CRADLE
HR9035 CCB900–MLS MICROLOUDSPEAKER HR9035BAA01
With SUBD-15 connector CCB
HC1194 LOUDSPEAKER 15/20W VEHICLE (CCB) HC1194BA01
Dimensions 176x186x80mm
HG5443 POWER CORD HG5443AA01 Length 0.3 meter
HG5444 RF CORD HG5444AA01 Length 2 meters
HR9623 CCB900
HG5472 CRADLE ALIMENTATION and DATA
CORD HG5472AA01 Length 2 meters
TPH900 2W configuration - CAR CONFIG 900 2W -B
Commercial code Designation
Comment
HR9703BA TPH900 CAR CONFIG - B 2W HR9703BAA01
HR9080 TPH900 CAR CRADLE KIT –V2 µUSB-RS232 capable
with swivel HR9080CAA01
HR9035 CCB900–MLS MICROLOUDSPEAKER HR9035BAA01
With SUBD-15 connector CCB
HR9623 CCB900 -B With ident capacity
HR9623BAA01
HC1194 LOUDSPEAKER 15/20W VEHICLE (CCB) HC1194BA01 1 loudspeaker per kit
Dimensions 176x186x80mm
HG5443 POWER CORD HG5443AA01 Length 0.3 meter
HG5444 RF CORD HG5444AA01 Length 2 meters
HG5472 CRADLE ALIMENTATION and DATA
CORD HG5472AA01 Length 2 meters

18
TPH900 Car Configurations – January 2017
Configurations with 10W capacity
TPH900 10W initial configuration
This configuration will be phased out in 2017.
Commercial code Designation
Comment
HR9704AA TPH900 10W configuration Overall configuration code
HR9080 TPH900 CAR CRADLE
HR9623 TPH900 CCB900
HR9035 CCB900–MLS MICROLOUDSPEAKER With SUBD-15 connector CCB
HG5472 CRADLE ALIMENTATION and DATA
CORD HG5472AA 2 meters
HG5472BA (1) 0.35 meter
HC1194 LOUDSPEAKER 15/20W VEHICLE (CCB) HC1194BA01
Dimensions 176x186x80mm
HR6723 RECH BOITIER BIVS
HT7528 KIT SUPPORT BIVS
HG5438 BIVS POWER CORD HG5438AA01 Length 0.7 meter
HG5440 BIVS DATA CORD V2 HG5440AA01 Length 3 meters
HG5443 POWER CORD HG5443AA01 Length 0.3 meter
HG5444 RF CORD HG5444AA01 Length 2 meters
TPH900 10W configuration - CAR CONFIG 900 10W –B
Commercial code Designation
Comment
HR9704BA TPH900 CAR CONFIG - B 10W Overall configuration code
HR9704BAA01
HR9080 TPH900 CAR CRADLE – V2 HR9080CAA01 with swivel
HR9623 TPH900 CCB900 - B HR9623BAA01
HR9035 CCB900–MLS MICROLOUDSPEAKER HR9035BAA01
With SUBD-15 connector CCB
HC1194 LOUDSPEAKER 15/20W VEHICLE (CCB) HC1194BA01 - 1 loudspeaker per kit
Dimensions 176x186x80mm
HR6723 RECH BOITIER BIVS HR6723AAJ03
HG5438 BIVS POWER CORD HG5438AA01 Length 0.7 meter
HG5440 BIVS DATA CORD V2 HG5440AA01 Length 3 meters
HG5443 CCB POWER CORD HG5443AA01 Length 0.3 meter
HG5444 RF CORD HG5444AA01 Length 2 meters
HG5472 CRADLE ALIMENTATION and DATA
CORD HG5472AA01 Length 2 meters
HT7462 KIT CONNECTIQUE BIV SMART HT7462AAA02
HT7528 KIT SUP BIV SMART VIS TOLE D4 HT7528AAA01

19
TPH900 Car Configurations – January 2017
TPH900 10W configuration - CAR CONFIG 900 10W –B -SP
Commercial code Designation
Comment
HR9704CA CAR CONFIG 900 10W –B -SP Overall configuration code
HR9704CAA01
HR9080 TPH900 CAR CRADLE - B HR9080CAA01 with swivel
HR9623 CCB900 - B HR9623BAA01
HR9035 CCB900–MLS MICROLOUDSPEAKER HR9035BAA01
With SUBD-15 connector CCB
HC1194 LOUDSPEAKER 15/20W VEHICLE (CCB) HC1194BA01 - 1 loudspeaker per kit
Dimensions 176x186x80mm
HR6723 RECH BOITIER BIVS HR6723AAJ03
HG5438 BIVS POWER CORD HG5438AA01 Length 0.7 meter
HG5440 BIVS DATA CORD V2 HG5440BA01 Length 0.5 meters
HG5443 CCB POWER CORD HG5443AA01 Length 0.3 meter
HG5444 RF CORD HG5444AA01 Length 2 meters
HG5596 EXTENSION µLS 2 meters HG5596AA01
HG5613 CRADLE ALIMENTATION and DATA
CORD HG5613AA01 Length 2 meters 90° angle
HT7462 KIT CONNECTIQUE BIV SMART HT7462AAA02
HT7528 KIT SUP BIV SMART VIS TOLE D4 HT7528AAA01
TPH900 10W configuration - CAR CONFIG 900 10W without audio
Commercial code Designation
Comment
HR9704DA TPH900 CAR CONFIG -B WITHOUT
AUDIO
This kit can be ordered with Discreet audio
kit for discreet in car installation
HR9704DAA01
HR9080 TPH900 CAR CRADLE - B HR9080CAA01 with swivel
HR9623 TPH900 CCB900 - B HR9623BAA01
HR6723 RECH BOITIER BIVS HR6723AAJ03
HG5438 BIVS POWER CORD HG5438AA01 Length 0.7 meter
HG5440 BIVS DATA CORD V2 HG5440AA01 Length 3 meters
HG5443 CCB POWER CORD HG5443AA01 Length 0.3 meter
HG5444 RF CORD HG5444AA01 Length 2 meters
HG5472 CRADLE ALIMENTATION and DATA
CORD HG5472AA01 Length 2 meters
HT7462 KIT CONNECTIQUE BIV SMART HT7462AAA02
HT7528 KIT SUP BIV SMART VIS TOLE D4 HT7528AAA01

20
TPH900 Car Configurations – January 2017
TPH900 10W configuration - CAR CONFIG 900 10W –B ANTARES
Commercial code Designation
Comment
HR9704EA TPH900 CAR CONFIG -B 10W ANTARES This kit can be ordered with Discreet audio
kit for discreet in car installation
HR9704EAA01
HR9080 TPH900 CAR CRADLE - B HR9080DAA01 (no swivel)
HR9623 CCB900 - B HR9623BAA01
HR6723 RECH BOITIER BIVS HR6723AAJ03
HR9035 CCB900–MLS MICROLOUDSPEAKER HR9035BAA01
With SUBD-15 connector CCB
HG5569 RS232-µUSB conversion cable HG5569AA01
HT7462 KIT CONNECTIQUE BIV SMART HT7462AAA02
