AirCom 50TH HVLP Series User manual
AIRCOM®- INSTRUCTION MANUAL - 2022 - v. 1.0
AVAILABLE MODELS
mod. 50TH HVLP
Suitable for multiple sectors
mod. 50TH HVLP-X
Stainless steel internal passages
mod. 50TH HVLP-Q
Possibility of using the quick release block,
AIRCOM® QRB
50TH HVLP series
EN
.04
.04
.05
.08
.10
.11
.17
.17
.18
50TH HVLP series
Index
WARNINGS!
Carefully read and follow all instructions and safety precautions before
using the product.
Instruction Manual
Warnings
Maintenance and cleaning
Installation and start-up
Technical data
Troubleshooting
Spare parts and components
Certified quality
Support
Notes
MANUALS
Our manuals are available at aircom.it/en/support/manuals/
Or, by scanning the QR Code on this page.
4 - Instruction Manual aircom.it
50TH HVLP series
EN
WARNINGS
CORROSIVE PRODUCT
WARNINGS
Our guns can be used with the majority
of water, or solvent-based pigments for
coating and nishing all types of surfaces.
However, they are not designed to spray
abrasive and/or corrosive products. If
abrasive and/or corrosive products are
used, guns with components made of the
appropriate material can be ordered.
HEALTH HAZARD
Some chemicals, once sprayed, may
be harmful and cause irritation or
health disorders. Careful reading of all
labels and instructions on how to use
the product are necessary. Use of the
product is restricted to trained technical
personnel, with the use of special safety
glasses when adjusting the gun and,
while the system is operating.
MAINTENANCE AND
CLEANING
MAINTENANCE
Before any maintenance work, empty
the gun and disconnect it from both,
the compressed air supply, and the
liquid supply. Use only original AIRCOM®
accessories, spare parts, and related
components: any other product not
supplied by AIRCOM®is not approved or
authorized. AIRCOM®is not liable for any
damage caused by using non-original
spare parts and accessories.
CLEANING
Use exclusively appropriate liquid
cleaners with neutral pH 6-8. Do not use
acids, alkaline solutions or other cleaning
agents containing sodium hydroxide,
which are aggressive for cleaning the
exterior of the gun. Do not immerse
the gun in liquid cleaners that may
cause corrosion of the product. Clean
all material passages by propagating
water within the paint circuit: inadequate
cleaning can cause damages to the fan
shape. While cleaning, avoid scratching
the surfaces of the air nozzle holes and
the dipstick.
aircom.it Instruction Manual - 5
50TH HVLP series
EN

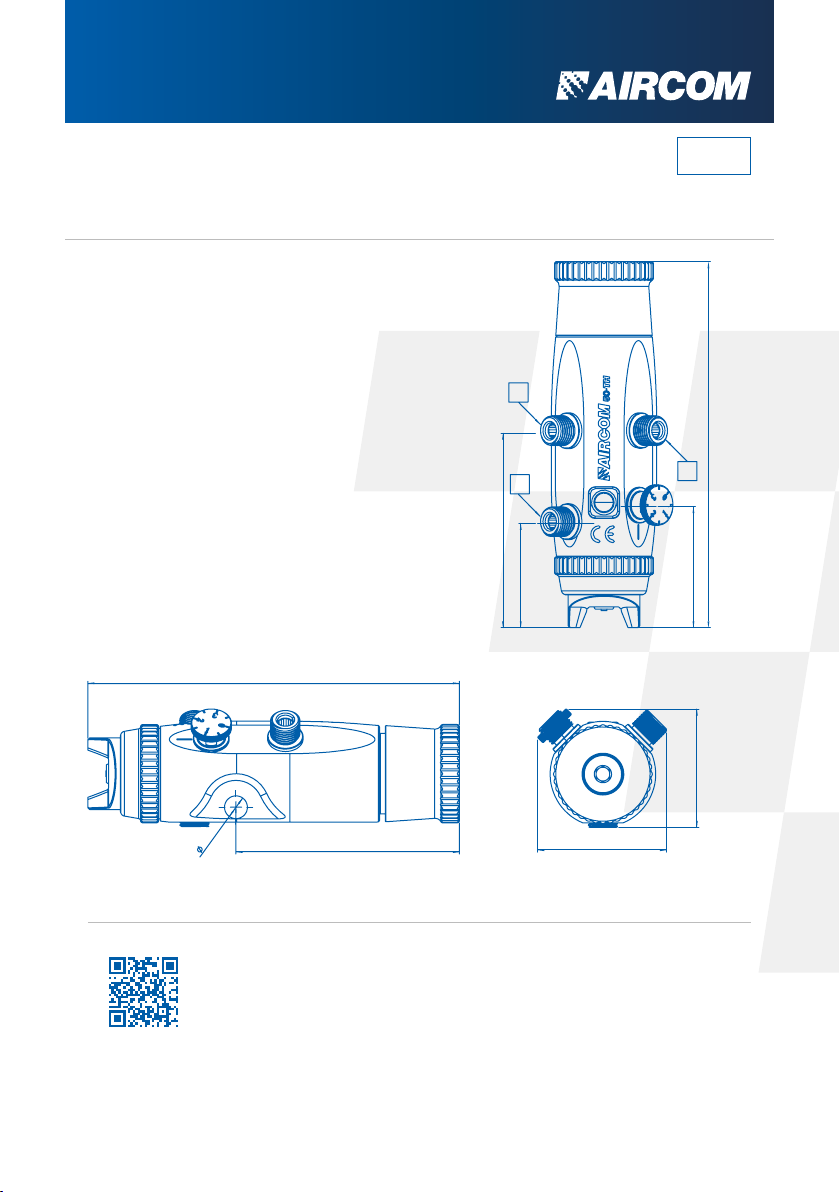

INSTALLATION
TECHNICAL SPECIFICATIONS
Connection hole diameter: 10,2 mm.
Size of pipe junctions:
• Control air inlet: A= ¼ gas
• Atomizing air inlet: B= ¼ gas
• Product inlet: C= ¼ gas
Gun weight: 0,75 kg
Gun size: see dimensioned views
57
53
100
10,2
166
A
B
C
47
87
54
162
VIDEO TUTORIALS ►
Our video tutorials are available at aircom.it/en/support/tutorials/
Or, by scanning the QR Code on this page.
6 - Instruction Manual aircom.it
50TH HVLP series
EN

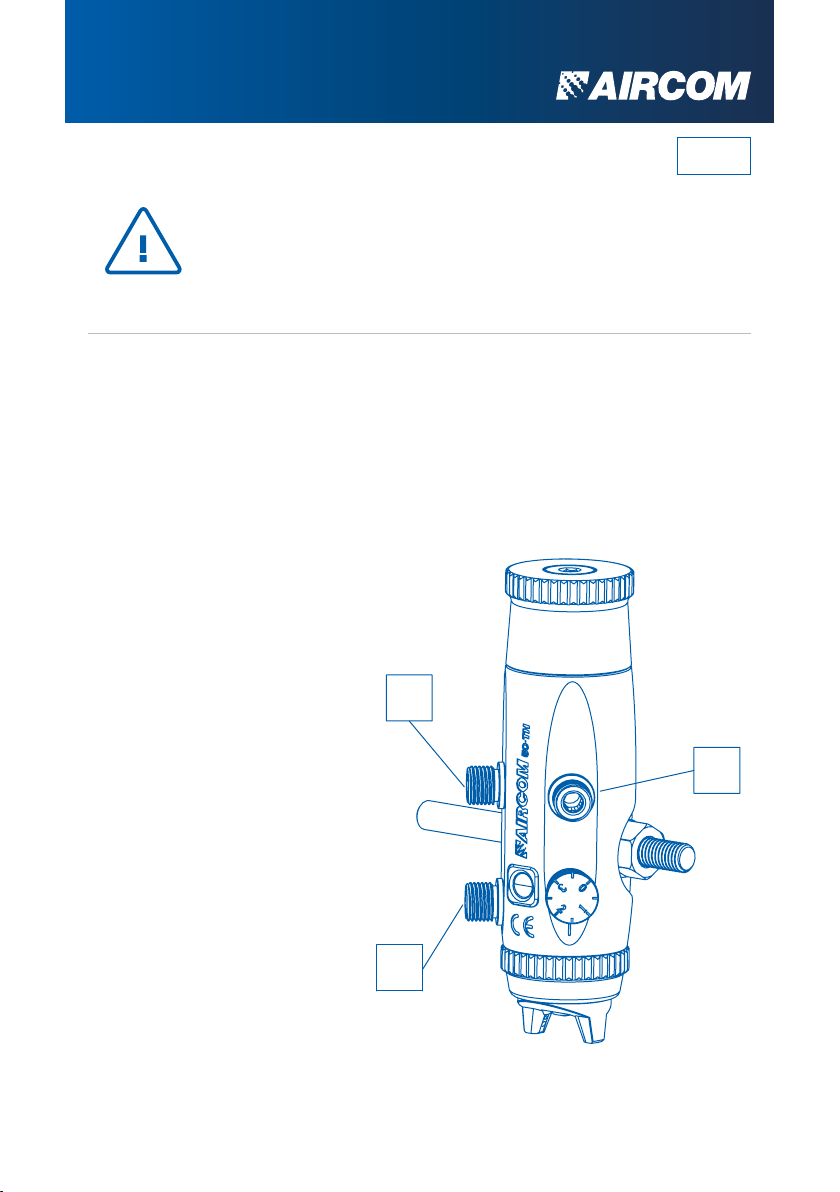

DIRECTIONS FOR GUN
OPERATION
A
Pipe Ø 6 ÷ 8
Plunger opening ≥ 4,0 - 4,5 bar
B
Pipe Ø 10 ÷ 12
Atomization: 1,0 - 2,0 bar
C
Pipe Ø 6 ÷ 8
Pigment inlet
A
B
C
INSTALLATION AND STARTUP
Before using a new gun or a new product, clean the gun thoroughly
with an appropriate solvent. Powering should be done with dry, ltered
air and regulated to constant pressure.
aircom.it Instruction Manual - 7
50TH HVLP series
EN
ADJUSTMENT SEQUENCE
1. Lock the gun to the system using
the fastening bracket and orient
the head towards the appropriate
coverage direction. When using the
-Q version, lock the system block
rst, and then hook the gun.
2. Connect the atomization air, control
air and product piping to the
junctions shown on the previous
page.
3. Screw the handwheel part. [63]
as far as it will go (do not force
when reaching the stop). Act on the
control air. If no drop of pigment
comes out, remove the control air,
and open the handwheel part. [63]
with one click. Repeat the process
until the rst drop appears.
4. Open the handwheel part. [63] with
the necessary clicks to determine
the desired amount of pigment.
5. Act on the adjustment screw to
obtain the desired atomization
range.
15 shots per revolution
1
2
3
4
5
6
7
8
9
10 11 12 13
14
15 0
8 - Instruction Manual aircom.it
50TH HVLP series
EN
TECHNICAL DATA
HEAD
ø NOZZLE
SHOTS FLOW RATE OF
THE FLUID
(g/min)
ATOMIZATION
PRESSURE
(kg/cm²)
AIR
CONSUMPTION
(L/min)
E-I ø 0,8
6 122 0,9 174
9184 1,1 200
E-I ø 1,0
7 163 1,1 195
10 252 1,3 217
E-I ø 1,2
8 252 1,4 219
11 356 1,5 234
E-I ø 1,5
9 365 1,6 250
12 485 1,9 281
HEAD E-I
NOTES
Pump pressure 0,8 ÷ 1,0 Kg/cm².
Liquid used for testing: water. Ford cup viscosity 4 = 11 sec.
1/2
aircom.it Instruction Manual - 9
50TH HVLP series
EN
TECHNICAL DATA
HEAD
ø NOZZLE
SHOTS FLOW RATE OF
THE FLUID
(g/min)
ATOMIZATION
PRESSURE
(kg/cm²)
AIR
CONSUMPTION
(L/min)
E-A ø 0,8
6 122 0,9 174
9184 1,1 200
E-A ø 1,0
7 163 1,1 195
10 252 1,3 217
E-A ø 1,2
8 252 1,4 219
11 356 1,5 234
E-A ø 1,5
9 365 1,6 250
12 485 1,9 281
HEAD E-A
NOTES
Pump pressure 0,8 ÷ 1,0 Kg/cm².
Liquid used for testing: water. Ford cup viscosity 4 = 11 sec.
2/2
10 - Instruction Manual aircom.it
50TH HVLP series
EN
TROUBLESHOOTING
Anomaly Problem /Solution
No atomization
No pressure is getting to the gun
Check air system
Valve part. [43] worn out
Replace valve part. [43] worn out
The head part. [65] or part. [90/E], the nozzle
part. [64] or part. [72], and the rod part. [54]
are worn out.
Replace the head part. [65] or part. [90/E], the
nozzle part. [64] or part. [72] and the rod part. [54]
worn out.
The product is exceeding the amount needed
Reduce the product passage
Lack of product (ow rate too low)
Add product or reduce atomization air pressure
Missing product in tank or clogged pipes.
Fill tank or clean up with solvent
Leakage from
the nozzle
Mounted handwheel part. [63] worn out
Replace mounted handwheel part. [63] worn out
Rod part. [54] / nozzle part. [64] or part. [72]
worn out
Replace dipstick part. [54] / nozzle part. [64] or
part. [72] worn out
12 - Spare parts and components aircom.it
50TH HVLP series
EN

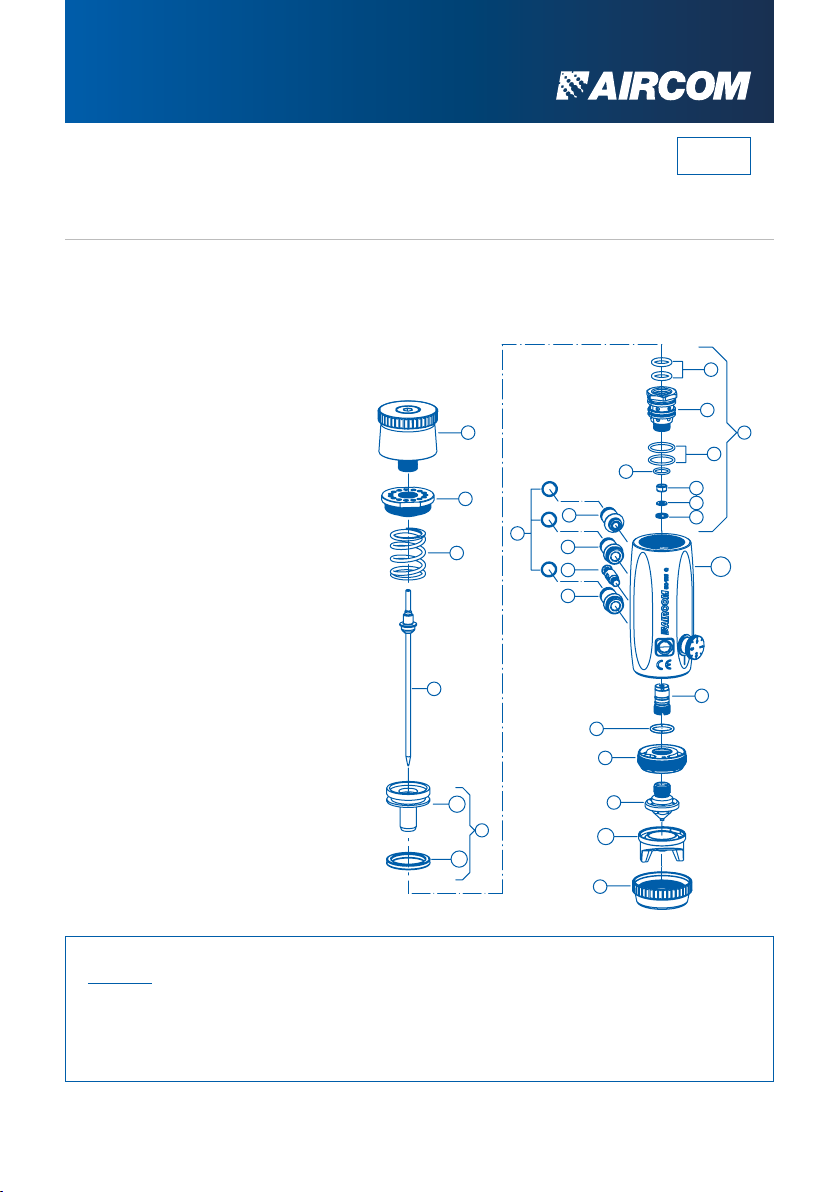

SPARE PARTS
DETAILS LIST mod. 50TH HVLP
55
57
12
54
63
64
65
R1
56
R1
R1
100
E
37
34
38
L
N
35
39
43
G20
11 [x1] Mounted Plunger
12 [x1] Spring
34 [x1] Gasket cover ring
35 [x1] Valve
37 [x1] Seeger
38 [x1] Gasket
39 [x1] Gasket
43 [x1] Mounted Valve
54 [x1] Rod
55 [x1] Ferrule
56 [x1] Gasket kit
57 [x1] Stopper
63 [x1] Mounted Hand wheel
64 [x1] Nozzle
65 [x1] Head
100 [x1] Plunger
E[x1] Gasket
G20 [x1] Body with brass inner
bushing, adjusting screw
and plug.
L[x2] Gasket
N[x2] Gasket
R1 [x3] Junction
11
NOTES
The head protection stopper is also available as a
spare part. You can refer to the CNN table below for
compatible heads for your model.
aircom.it Spare parts and components - 13
50TH HVLP series
EN
SPARE PARTS
DETAILS LIST mod. 50TH HVLP-X
56-X
R1-X
R1-X
R1-X
G20-X
55
57
12
54
63
64
65
100
E
11
37
34
38
L
N
35
39
43
11 [x1] Mounted Plunger
12 [x1] Spring
34 [x1] Gasket cover ring
35 [x1] Valve
37 [x1] Seeger
38 [x1] Gasket
39 [x1] Gasket
43 [x1] Mounted Valve
54 [x1] Rod
55 [x1] Ferrule
56-X [x1] Stainless steel gasket kit
57 [x1] Plug
63 [x1] Mounted Hand wheel
64 [x1] Nozzle
65 [x1] Head
100 [x1] Plunger
E[x1] Gasket
G20-X [x1] Body with stainless steel
inner bushing, adjusting
screw and plug.
L[x2] Gasket
N[x2] Gasket
R1-X [x3] Stainless steel Junction
NOTES
The head protection stopper is also available as a
spare part. You can refer to the CNN table below for
compatible heads for your model.
14 - Spare parts and components aircom.it
50TH HVLP series
EN
SPARE PARTS
DETAILS LIST mod. 50TH HVLP-Q
39
90/E
72
77
77
76
84
B3
O2
J
57
12
63
56
55
54
B2
E
P2
37
34
38
L
N
35
43
G21
12 [x1] Spring
34 [x1] Gasket cover ring
35 [x1] Valve
37 [x1] Seeger
38 [x1] Gasket
39 [x1] Gasket
43 [x1] Mounted Valve
54 [x1] Rod
55 [x1] Ferrule
56 [x1] Gasket kit
57 [x1] Stopper
63 [x1] Mounted Hand wheel
72 [x1] Nozzle
76 [x1] Junction
77 [x2] Junction
84 [x1] Lock pin
90/E [x1] Head
B2 [x1] Plunger
B3 [x1] Threaded insert
E[x1] Gasket
G21 [x1] Body with brass inner
bushing and adjusting
screw.
J[x3] Gasket
L[x2] Gasket
N[x2] Gasket
O2 [x1] Gasket
P2 [x1] Mounted Plunger
NOTES
The head protection stopper is also available as a spare part. You can refer to the CNN table
below for compatible heads for your model. Parts. [B3], [56] and [77] can be supplied in
stainless steel as well as part. [B3-X], [56-X] and [77-X] for special painting requirements.
aircom.it Instruction Manual - 17
50TH HVLP series
EN
CERTIFIED QUALITY
SUPPORT
DO YOU NEED HELP?
We are at your disposal.
Online support+39 0124 5154 44 [email protected]
CERTIFICATIONS
All AIRCOM® products are certied
according to norm EN 13 966 - 1 (VDMA-
Einheisblatt 24 366) and therefore
also according to transfer efciency
parameters.
THREE-COLOR INSERT
Each gun is marked with a three-color
three-dimensional seal. It represents an
additional guarantee of authenticity and
Italianity because it is present exclusively
in original AIRCOM®guns.
AIRCOM SRL © 2022 - ALL RIGHTS RESERVED
