AirMan C71A-54 User manual

OWNER’S MANUAL
MODEL NO: C71A-54
KEEP THE ORIGINAL BOX, PACKAGING AND RECEIPT. BEFORE OPERATING THIS
UNIT, READ THE MANUAL THOROUGHLY AND RETAIN IT FOR FUTURE REFERENCE.
12V AIR STATION
Multi use
ALL-IN-ONE
[ACT 027] Manual E 6/9/05 10:18 PM Page 3

1
HIGH-PRESSURE
APPLICATIONS
•Car tires
•Bicycle tires
•Basketball
•Sporting equipment
•Party balloons
HIGH-VOLUME
APPLICATIONS
•Air mattresses
•Rafts
•Inflatable toys
•Pool toys
12V AIR STATION
Multi use
ALL-IN-ONE
[ACT 027] Manual E 6/9/05 10:18 PM Page 4

www.activeproducts.com
A6
A2
A5
A1
B2
B9
B8B7B6B5 A9 A8
A4
A7
A3
B1
C1 C2
B3 B4

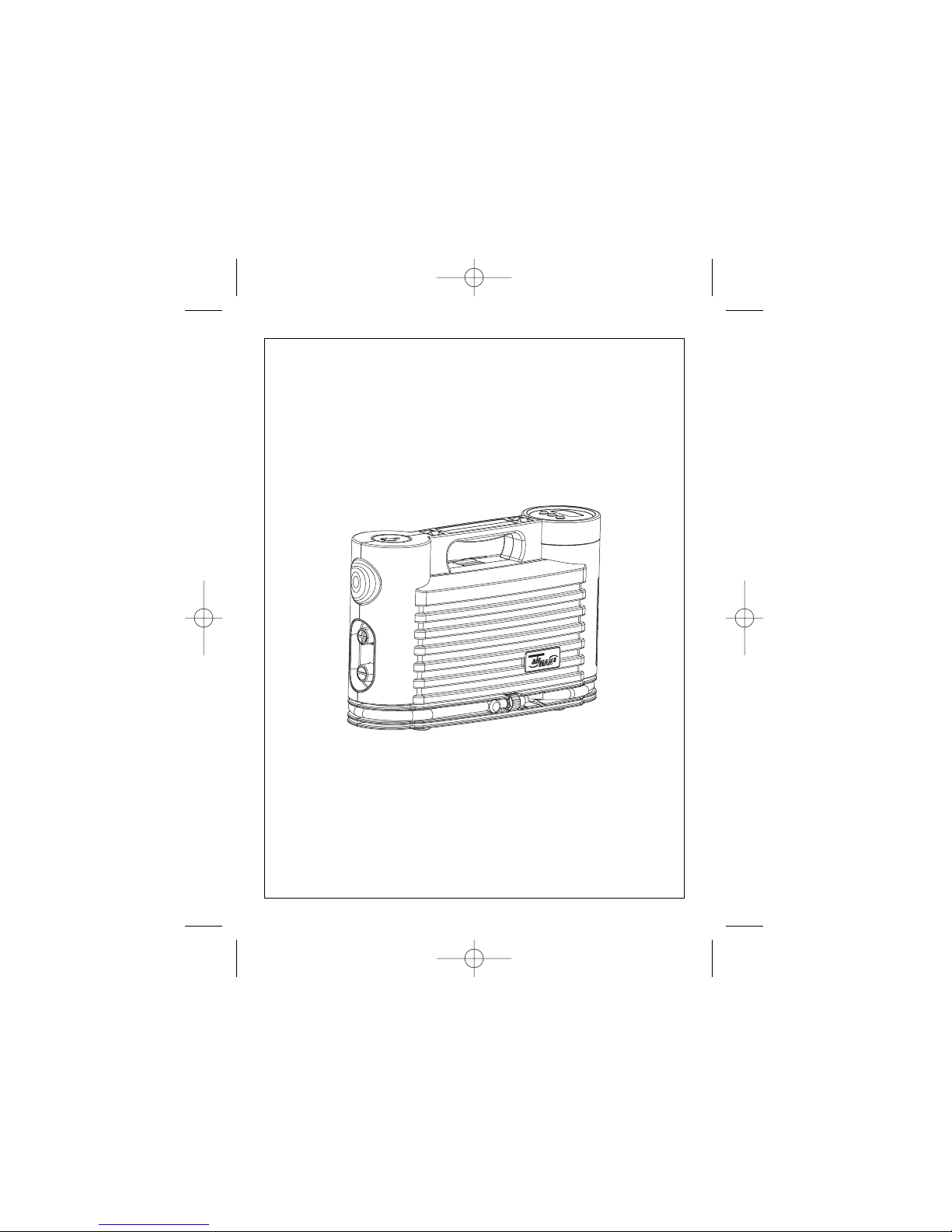

12V AIR STATION
A1. High-pressure air compressor
on/off switch
A2. Built-in digital tire gauge
with preset auto-stop function
A3. Storage compartment
A4. 12V car cigarette lighter
adapter (3.4 m cable)
A5. Pressure hose
A6. Thread connector
A7. Deflation valve
A8. Ball adapter
A9. Balloon adapter
B1. High-volume air inflator
on/off switch
B2. Adapter storage
B3. Inflation outlet
B4. Deflation outlet
B5. Large adapter
B6. Medium adapter
B7. Small adapter
B8. Inflatable connector
B9. Extension hose
C1. Built-in LED light
C2. Light switch
2
[ACT 027] Manual E 6/9/05 10:18 PM Page 5

The Air Compressor has been specially
designed for simple and fast inflation
of car tires, bicycle tires, basketball,
sporting equipment, and party
balloons.The air compressor provides
a small quantity of air at a relatively
high pressure.
INFLATING A CAR TIRE
AND BICYCLE TIRE
1. With power switch in “O” (off)
position, roll out the 12V cord from
storage compartment, and connect
the 12V car cigarette lighter adapter
to the cigarette lighter socket in
your car.
2. To choose desired pressure format
PSI, BAR, KPA, press the “M” button.
Each press of the “M” button cycles
through the pressure format.
3. Press “+” or “-” for 3 seconds to
check pre-set level. Adjust to desired
level by pressing “+” or “-”. Once
pre-set pressure is set, wait a few
seconds for display to change back
to zero.
4. Screw the thread connector onto
tire’s valve stem. When connected
correctly the gauge will display the
current pressure in the tire.
5. Turn the “I/O” switch to the “I”
position.Your compressor will
now inflate your tire to the pre-set
pressure level, and will shut
off automatically.
6. Remove the thread connector from
the tire.
7. Disconnect the 12V car cigarette
lighter adapter from the cigarette
lighter socket and store the 12V cord
into the compartment area.
Note:To avoid over-inflation of tires,
please check the recommended car
tire pressure in the vehicle’s owner’s
manual. For bicycle tire, please check
the tire marking.
INFLATING SPORTING EQUIPMENT
(I.E. BASKETBALL) OR PARTY BALLOONS
1. With power switch in “O” (off)
position, roll out the 12V cord from
storage compartment, and connect
the 12V car cigarette lighter adapter
to the cigarette lighter socket in
your car.
2. Screw the ball/balloon adapter into
the thread connector.
3. Insert the ball/balloon adapter into
valve of the object to be inflated.
INFLATION INSTRUCTION
3
HIGH-PRESSURE AIR COMPRESSOR
[ACT 027] Manual E 6/9/05 10:18 PM Page 6

www.activeproducts.com
4. Turn the “I/O” switch to the “I”
position. Operate the air compressor
until the desired firmness is reached,
or the object is fully inflated.
5. Pull ball/balloon adapter from the
inflated object’s valve and unscrew
ball/balloon adapter from the
thread connector.
6. Disconnect the 12V car cigarette
lighter adapter from the cigarette
lighter socket and store the 12V cord
into the compartment area.
Note: If a pressure reading is required
during inflation, the built-in pressure
gauge will provide an estimated
reading only.
INFLATION INSTRUCTION
4
 CAUTION 
•Do not run the air compressor
continuously for more than
20 minutes. After each 20 minutes,
allow it to cool for a minimum of
20 minutes.
•Do not leave the air compressor
unattended while in operation.
Keep out of reach of children.
•Do not exceed maximum pressure
of 120 psi.
•The built-in pressure gauge will
provide an estimated reading
only. Please use a digital pressure
gauge for more accuracy pressure
information.
[ACT 027] Manual E 6/9/05 10:18 PM Page 7

INFLATION INSTRUCTION
The Air Inflator is designed for quick and
easy inflation and deflation of high air
volume objects such as air mattresses,
rafts, inflatable toys and pool toys.
BEFORE INFLATING
Choose the appropriate inflatable
adapter.There are four inflatable
adapters and an extension hose provid-
ed for high-volume inflation/deflation.
The small and medium adapters must
be used with the inflatable connector
provided.The inflatable connector and
large adapter can be directly attached
to the inflation air outlet.
INFLATING PROCEDURE
1. With power switch in “O” (off)
position, roll out the 12V cord from
storage compartment, and connect
the 12V car cigarette lighter adapter
to the cigarette lighter socket in
your car.
2. Insert the appropriate inflatable
adapter into inflation outlet.
3. Insert adapter into the air valve of the
object to be inflated.
4. Turn the “I/O” switch to the “I”
position. Operate the air inflator until
the desired firmness is reached.
5. Remove adapter from the inflated
object valve and close the valve cap.
6. Disconnect the 12V car cigarette
lighter adapter from the cigarette
lighter socket and store the 12V cord
into the compartment area.
DEFLATING PROCEDURE
1. With power switch in “O” (off)
position, roll out the 12V cord from
storage compartment, and connect
the 12V car cigarette lighter adapter
to the cigarette lighter socket in
your car.
2. Insert the inflatable adapter into
deflation outlet.
3. Insert adapter into the valve of the
object to be deflated.
4. Turn the “I/O” switch to the “I”
position. Operate the air inflator until
desired deflation is reached.
5. Remove adapter from the deflated
object valve.
6. Disconnect the 12V car cigarette
lighter adapter from the cigarette
lighter socket and store the 12V cord
into the compartment area.
HIGH-VOLUME AIR INFLATOR
5
[ACT 027] Manual E 6/9/05 10:18 PM Page 8

www.activeproducts.com
INFLATION TIPS FOR LARGE OBJECTS
The performance of an air inflator
depends on air flow rate, size of
adapter and the valve of the inflatable
object.The smaller the valve and/or
adapter used, the lower the air flow
rate.Therefore, always buy inflatable
objects with the largest possible valves.
Typically, air mattresses or large
inflatable objects may have two sizes
of air valve, always inflate from the
largest valve to get maximum
performance.
INFLATION INSTRUCTION
 CAUTION 
•Do not run the air inflator for
continuously for more than
20 minutes. After each 20 minutes,
allow it to cool for a minimum of
20 minutes.
•Do not leave the air inflator
unattended while in operation.
Keep out of reach of children.
•Make sure the stop valve or
resisted valve is opened,
before inflation or deflation.
6
[ACT 027] Manual E 6/9/05 10:18 PM Page 9

GENERAL SAFETY MEASURES
GENERAL SAFETY MEASURES
AND PRECAUTIONS THAT
APPLY TO THE USE OF AIR
COMPRESSOR/INFLATOR.
The following instructions apply to
both the air compressor and air inflator.
Safe operation of the air compressor
and inflator require that you read
the instructions and safety precautions
carefully and follow all instructions
before using the air compressor
or inflator.
1. The air compressor and inflator
are designed for occasional use.
Inflation over a long period will
overheat the air compressor or
air inflator and may cause damage.
2. The air compressor and inflator
must not operate for more than
20 minutes at a time, after which
it must be switched off and set
aside to cool for at least 20 minutes
before restarting.
3. If the air compressor or inflator emits
abnormal sounds or overheats,
turn it off immediately and let it cool
off for minimum 40 minutes.
4. Inspect air compressor, inflator and
batteries before use. If cracked,
broken or damaged parts are found,
qualified technicians should repair
damaged parts.
5. Incorrect use of air compressor/
inflator may result in personal
injury and/or property damage.
6. Never expose the air compressor,
inflator to rain, frost or temperatures
above 50 ºC (122 ºF).
7. Never use the air compressor or
inflator near flammable fluids or
gases. Make sure your working
area is well-lit.
8. Protect yourself against electric
shock. Avoid physical contact
with grounded surfaces such as
pipes, radiators, electric stoves,
refrigerators, etc.
9. Never allow children to connect/
disconnect the air compressor or
inflator to/from power sources.
Never leave children unattended
with the air compressor or inflator
and never allow them to play with
the accessories.
10. Never allow anyone to pump air
into mouth, ears, nose, etc of
people, or animals.The air
compressor/inflator is not a toy.
7
[ACT 027] Manual E 6/9/05 10:18 PM Page 10

www.activeproducts.com
GENERAL SAFETY MEASURES
11. Store air compressor and inflator
in a secure location. If the air
compressor/inflator for long peri-
ods of time, it should be stored in a
dry space inaccessible to children.
12. Make sure the cord is not exposed
to hot objects, oil or sharp edges.
13. Keep the air compressor and
inflator clean to maintain maximum
output and safety. Examine the plug
and cable pack at regular intervals
and have them repaired by
qualified technicians if they
are damaged.
14. Unplug the 12V car cigarette lighter
adapter from the cigarette lighter
socket in your car when is not in use.
15. Warning! For your own safety, you
should only use accessories and
parts specified in the instructions,
or recommended for use by the
manufacturer. Use of accessories
and other parts that are not
mentioned in the instructions may
entail an increased risk for the user
of the air compressor and inflator.
8
[ACT 027] Manual E 6/9/05 10:18 PM Page 11

9
WARRANTY
This Active Products equipment carries
a one-year limited warranty against
defects in manufacturing workmanship.
This Limited Warranty shall be limited
to the repair or replacement of parts
which prove defective under normal
use and service and which on examina-
tion shall indicate, to Active Product’s
satisfaction, they are defective. Active
Products reserves the right to request
the return of defective parts. Shipping
charges may apply. Before returning
any parts, contact the toll-free hotline
1-866-9AIRMAN (924-7626). If Active
Products confirms the defect and
approves the claim, Active Products
will elect to replace such parts
without charge.
The foregoing warranty does not apply
to defects resulting from faulty installa-
tion, operation, disassembly, alterations
or remodeling, or misuse, misapplica-
tion, neglect, abuse, accident, tornado,
hurricane, and earthquake; or lack of
proper maintenance, cleaning and care.
Warranty will not apply if this product is
used for commercial or rental purposes.
This warranty shall not extend to anyone
other than the original purchaser of
this product.
Should this product become defective
within the stated warranty period, do not
return to store, but call 1-866-9AIRMAN
(924-7626). Have the sales receipt handy.
[ACT 027] Manual E 6/9/05 10:18 PM Page 12

www.activeproducts.com 10
[ACT 027] Manual E 6/9/05 10:18 PM Page 13

Imported by:
Active Products Inc.
Toronto, Ontario, Canada M3B 2M3
Toll free:
1-866-9AIRMAN (1-866-924-7626)
www.activeproducts.com
Made in China
[ACT 027] Manual E 6/9/05 10:18 PM Page 14
