SERVICE MANUAL
DATA
STEREO CAR CD RECEIVER BASIC CD MECHANISM : CDC02AW1
CDC-MP3 Y
S/M Code No. 09-00B-436-6S1
SUPPLEMENT
•This Service Manual is the "Supplement" and replaces "Simple Manual"
CDC-MP3(Y), (S/M Code No. 09-00B-436-6T2).
•This Service Manual contains information about the difference between
CDC-MP3(Y) and CDC-MP3(YU). If requiring other information,
see Service Manual of CDC-MP3(YU), (S/M Code No. 09-008-436-6R1).

– 2 –
SPECIFICATIONS
• Design and specifications are subject to change without notice.
RADIO SECTION
(FM)
Frequency Range 87.5 MHz –108 MHz (100 kHz steps)*
87.5 MHz –108 MHz (50 kHz steps)*
Usable Sensitivity 12.7 dBf
50 dB Quieting Sensitivity 17.2 dBf
IF Rejection 80 dB
Frequency Response 30 Hz – 15,000 Hz
S/N Ratio 63 dB
Stereo Separation 35 dB at 1 kHz
Alternate Channel Selectivity
70 dB
Capture Ratio 3 dB
(AM)
Frequency Range 530 kHz – 1,710 kHz (10 kHz steps)*
531 kHz – 1,620 kHz (9 kHz steps)*
Usable Sensitivity 30 µV (30 dB)
* Set the frequency increment for your area using the switch on the
bottom of the unit.
(The switch is set at the factory to the 9k position.)
CD SECTION
Frequency Response 17 Hz – 20 kHz +0/–3 dB
Dynamic Range More than 80 dB
Channel Separation More than 65 dB
S/N Ratio More than 85 dB
Wow/Flutter Unmeasurable
MP3 Decoding MPEG 1 Audio Layer 3
AUDIO SECTION
Max. Power Output 45 W x 4 channels
AUX IN input
Input Sensitivity (load impedance)
AUX IN 300 mV (10 kΩ)
GENERAL
Power Supply Voltage 14.4 V (11 to 16 V allowable),
DC, negative ground
Load Impedance 4 Ω
Tone Control Bass ±10 dB at 100 Hz
Treble ±10 dB at 10 kHz
Preamp Output Voltage (load impedance)
2.2 V (10 kΩ)
Installation Size 182 (W) x 53 (H) x 155 (D) mm
(71/4(W) x 21/8(H) x 61/8(D) inches)
STEERING-WHEEL-MOUNTED REMOTE CONTROL UNIT
Dimensions Approx. 67 (W) x 26 (H) x 27 (D) mm
(23/4(W) x 11/16 (H) x 11/8(D) inches)
(excluding holder)
Weight Approx. 38 g (1.33 oz.)
(including holder, battery)

– 3 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
87-A21-562-010 IC,LA4743B
87-A21-875-030 C-IC,UPD78F4216AYGC-101-8EU
87-A21-600-080 C-IC,LC36W1000CTLL-10X
87-A21-621-010 C-IC,MAS3507D-G10
87-A21-624-080 C-IC,SN74AHC1G08 DCK
87-A21-599-010 C-IC,LC89513K
87-A21-601-040 C-IC,LC35W256ET-10W
87-A21-714-030 C-IC,DAC3550A
87-A21-532-030 C-IC,LC75817W-8720
87-A21-467-040 C-IC,CXA2581N
87-A21-533-030 C-IC,CXD2587Q
87-017-888-080 IC,NJM4558MD
87-A20-905-040 C-IC,BA033FP
87-A21-190-040 C-IC,PQ20WZ1U
87-A21-728-040 C-IC,SN74LVC07A
87-A21-161-040 C-IC,BA6392FP
87-A20-712-040 C-IC,BA6417F
87-A21-876-030 C-IC,UPD178018AGC-568-3B9
88-KT1-606-080 IC,PST994D
87-020-784-080 IC,TC4053BF
8Z-KT1-622-010 C-IC,LC75374E
87-A90-951-010 RCR UNIT,SBX1971-52
TRANSISTOR
87-A30-289-040 C-TR,2SA1037AK(R)
89-324-122-080 TR,2SC2412KR
87-A30-218-080 TR,2SB1237(Q)
87-A30-287-040 C-TR,DTC114TKA
87-A30-301-080 TR,2SD1862
87-A30-299-080 TR,2SB1326
87-A30-298-010 TR,2SD2396
87-A30-302-040 C-TR,2SD1758-F5
87-A30-279-040 C-TR,DTC314TK
87-A30-282-040 C-TR,DTA114TKA
87-A30-248-040 C-TR,2SB1197KQ
87-A30-011-080 C-TR,DTB113ZK
87-A30-273-040 C-TR,DTC124EKA
89-211-323-080 C-TR,2SB1132R
89-211-821-080 CHIP-TR 2SB1182Q
87-A30-427-040 C-TR,DTC114EKA
87-A30-455-040 C-TR,DTA144EKA
DIODE
87-A40-250-080 C-DIODE,DAN217
87-070-136-080 ZENER,MTZJ5.1B
87-A40-523-080 ZENER,MTZJ9.1B
87-A40-798-010 DIODE,1N5402 (3A/200V)
87-A40-235-080 ZENER,MTZJ9.1C
87-A40-624-080 ZENER,MTZJ10A
87-A40-344-080 ZENER,MTZJ6.2C
87-A40-189-080 DIODE,1SR139-400
87-020-331-080 C-DIODE,DAN202K
87-A40-871-080 ZENER,MTZJ5.6C
87-017-932-080 ZENER,MTJ6.2B
87-001-783-080 DIODE,1N4002
87-A40-650-080 ZENER,MTZJ6.8A
87-070-334-080 ZENER,MTZJ10B
87-A40-817-040 C-ZENER,STZ6.8N
87-020-465-080 DIODE,1SS133
MAIN C.B
C101 87-010-178-080 CHIP CAP 1000P
C102 87-010-197-080 CAP, CHIP 0.01 DM
C104 87-010-186-080 CAP,CHIP 4700P
C105 87-010-244-040 CAP,E 22-16 5L
C106 87-010-322-080 C-CAP,S 100P-50 CH
C107 87-010-498-040 CAP,E 10-16 GAS
C109 87-010-555-040 CAP,E 100-10 GAS
C110 87-010-185-080 C-CAP,S 3900P-50 B
C111 87-010-220-080 C-CAP,S 0.018-25 KB
C112 87-010-220-080 C-CAP,S 0.018-25 KB
C113 87-010-494-040 CAP,E 1-50 GAS
C114 87-010-494-040 CAP,E 1-50 GAS
C115 87-010-197-080 CAP, CHIP 0.01 DM
C116 87-016-669-080 CHIP-CAPACITOR,0.1-25 KB
C117 87-010-197-080 CAP, CHIP 0.01 DM
C118 87-010-197-080 CAP, CHIP 0.01 DM
C119 87-010-196-080 CHIP CAPACITOR,0.1-25
C133 87-010-197-080 CAP, CHIP 0.01 DM
C134 87-010-495-040 CAP,E 2.2-50 GAS
C135 87-010-198-080 CAP, CHIP 0.022
C210 87-016-669-080 C-CAP,S 0.1-25 K B
C211 87-010-182-080 C-CAP,S 2200P-50 B
C212 87-010-182-080 C-CAP,S 2200P-50 B
C241 87-010-198-080 C-CAP,S 0.022-25
C242 87-010-553-040 CAP,E 47-16 GAS
C251 87-010-182-080 C-CAP,S 2200P-50 B
C252 87-010-182-080 C-CAP,S 2200P-50 B
C260 87-010-498-040 CAP,E 10-16 M SRE
C263 87-010-198-080 CAP, CHIP 0.022
C264 87-010-553-040 CAP,E 47-16 GAS
C265 87-010-498-040 CAP,E 10-16 GAS
C266 87-010-194-080 CAP, CHIP 0.047
C267 87-010-198-080 C-CAP, S 0.022-25
C268 87-010-498-040 CAP,E 10-16 GAS
C269 87-010-555-040 CAP,E 100-10 GAS
C270 87-010-555-040 CAP,E 100-10 GAS
C291 87-010-553-040 CAP,E 47-16 GAS
C292 87-010-498-040 CAP,E 10-16 GAS
C401 87-010-494-040 CAP,E 1-50 GAS
C402 87-010-494-040 CAP,E 1-50 GAS
C403 87-010-494-040 CAP,E 1-50 GAS
C404 87-010-494-040 CAP,E 1-50 GAS
C405 87-010-186-080 C-CAP,S 4700P-50 K B
C406 87-010-186-080 C-CAP,S 4700P-50 K B
C407 87-010-494-040 CAP,E 1-50 GAS
C408 87-010-494-040 CAP,E 1-50 GAS
C409 87-010-498-040 CAP,E 10-16 GAS
C410 87-010-498-040 CAP,E 10-16 GAS
C411 87-010-494-040 CAP,E 1-50 GAS
C412 87-010-494-040 CAP,E 1-50 GAS
C413 87-010-498-040 CAP,E 10-16 GAS
C414 87-010-498-040 CAP,E 10-16 GAS
C415 87-010-498-040 CAP,E 10-16 GAS
C416 87-010-498-040 CAP,E 10-16 GAS
C417 87-010-498-040 CAP,E 10-16 GAS
C418 87-010-498-040 CAP,E 10-16 GAS
C419 87-010-498-040 CAP,E 10-16 GAS
C420 87-010-555-040 CAP,E 100-10 GAS
C421 87-010-805-080 CAP, S 1-16
C422 87-010-805-080 CAP, S 1-16
C423 87-010-805-080 CAP, S 1-16
C424 87-010-805-080 CAP, S 1-16
C425 87-012-140-080 CAP 470P
C426 87-012-140-080 CAP 470P
C427 87-012-140-080 CAP 470P
C428 87-012-140-080 CAP 470P
C429 87-010-498-040 CAP,E 10-16 GAS
C430 87-010-498-040 CAP,E 10-16 GAS
C431 87-010-184-080 CHIP CAPACITOR 3300P(K)
C432 87-010-184-080 CHIP CAPACITOR 3300P(K)
C433 87-010-198-080 CAP, CHIP 0.022
C434 87-010-198-080 CAP, CHIP 0.022
C435 87-A11-177-080 C-CAP,S 0.15-16 K B
C436 87-A11-177-080 C-CAP,S 0.15-16 K B

– 4 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C437 87-A11-177-080 C-CAP,S 0.15-16 K B
C438 87-A11-177-080 C-CAP,S 0.15-16 K B
C439 87-010-196-080 CHIP CAPACITOR,0.1-25
C440 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C441 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C461 87-012-358-080 C-CAP,S 0.47-10 F Z
C462 87-012-358-080 C-CAP,S 0.47-10 F Z
C463 87-012-358-080 C-CAP,S 0.47-10 F Z
C464 87-010-197-080 CHIP CAPACITOR,0.01-25 KB
C495 87-010-498-040 CAP,E 10-16 GAS
C501 87-010-198-080 CAP, CHIP 0.022
C502 87-010-194-080 CAP, CHIP 0.047
C503 87-010-198-080 CAP, CHIP 0.022
C504 87-010-198-080 CAP, CHIP 0.022
C551 87-012-358-080 C-CAP,S 0.47-10 F Z
C552 87-012-358-080 C-CAP,S 0.47-10 F Z
C553 87-012-358-080 C-CAP,S 0.47-10 F Z
C554 87-012-358-080 C-CAP,S 0.47-10 F Z
C555 87-010-175-080 CHIP CAP,S 560P
C556 87-010-175-080 CHIP CAP,S 560P
C557 87-010-175-080 CHIP CAP,S 560P
C558 87-010-175-080 CHIP CAP,S 560P
C559 87-010-498-040 CAP,E 10-16 GAS
C560 8A-KC7-623-000 CAP,E 2200U-16 BT(125C)
C561 87-010-805-080 CAP, S 1-16
C562 87-010-196-080 CHIP CAPACITOR,0.1-25
C563 87-010-074-040 CAP,E 4.7-35 5L
C564 87-010-182-080 C-CAP,S 2200P-50 B
C565 87-010-196-080 CHIP CAPACITOR,0.1-25
C567 87-010-196-080 CHIP CAPACITOR,0.1-25
C571 87-012-368-080 C-CAP,S 0.1-50 F
C572 87-012-368-080 C-CAP,S 0.1-50 F
C573 87-012-368-080 C-CAP,S 0.1-50 F
C574 87-012-368-080 C-CAP,S 0.1-50 F
C591 87-010-196-080 CHIP CAPACITOR,0.1-25
C907 87-010-196-080 CHIP CAPACITOR,0.1-25
C908 87-010-196-080 CHIP CAPACITOR,0.1-25
C909 87-010-315-080 C-CAP,S 27P-50 CH
C910 87-016-039-010 CAP,DL 0.022F-5.5 Z 70
C911 87-010-315-080 C-CAP,S 27P-50 CH
C912 87-010-196-080 CHIP CAPACITOR,0.1-25
C913 87-010-198-080 CAP, CHIP 0.022
C914 87-010-196-080 CHIP CAPACITOR,0.1-25
C915 87-010-198-080 CAP, CHIP 0.022
C916 87-010-322-080 C-CAP,S 100P-50 CH
C917 87-010-322-080 C-CAP,S 100P-50 CH
C918 87-010-196-080 CHIP CAPACITOR,0.1-25
C919 87-010-498-040 CAP,E 10-16 GAS
C921 87-012-156-080 C-CHIP,S 220P-50
C922 87-010-198-080 C-CAP,S 0.022-25 KB
C923 87-010-178-080 CHIP CAP 1000P
C924 87-010-196-080 CHIP CAPACITOR,0.1-25
C925 87-010-498-040 CAP,E 10-16 GAS
C927 87-010-178-080 CHIP CAP 1000P
C928 87-010-178-080 CHIP CAP 1000P
CON201 8Z-KT1-611-010 CONN,16P CAM-B51
CON901 87-A60-861-080 C-CONN,20P 08-6224-020-001
CON902 87-A60-182-010 CONN,16P TKC-F16P-E3
D909 87-027-262-010 LED ,TLR-124(RED)
F281 8Z-KC1-621-010 FUSE,15A 32V
FFC901 88-KC4-641-010 FF-CABLE, 20P 1.0 90MM
J101 8Z-KT1-614-010 ANT,AW-002
J451 87-A61-224-010 JACK,PIN 4P XR-401
J951 8A-KC7-620-010 JACK,DIN 13 P SKDS1302
L101 87-003-143-080 COIL 4.7 UH
L104 8Z-KT1-619-010 COIL,68MH K7-D
L201 8Z-KT1-615-010 FLTR,AMORPHOUS-CHOKE
L251 87-003-045-080 COIL,22UH K LAL04
L252 87-003-149-080 COIL,47UH K LAL02
L401 87-003-143-080 COIL 4.7 UH K LAL02
L404 87-003-102-080 COIL, 10UH J LAL02
L901 87-A50-079-080 COIL,22UH (CECS)
PL901 8Z-KT1-641-010 LAMP,T-3
SW901 87-A91-070-010 SW,TACT SKHHLV
SW903 87-036-109-010 PUSH SWITCH
SW904 87-A91-152-010 SW,SL 1-1-2 SSSS212-11-A
TU101 8A-KC8-624-010 TU UNIT, FAE347-A16
X901 87-A70-175-010 VIB,XTAL 4.5MHZ AT-49
FRONT C.B
C701 87-010-196-080 CHIP CAPACITOR,0.1-25
C702 87-010-197-080 C-CAP,S 0.01-25 KB
C703 87-010-805-080 CAP, S 1-16
C704 87-010-805-080 CAP, S 1-16
C705 87-010-194-080 CAP, CHIP 0.047
C706 87-010-194-080 CAP, CHIP 0.047
C707 87-010-194-080 CAP, CHIP 0.047
C708 87-012-156-080 C-CAP,S 220P-50 CH
C709 87-010-194-080 CAP, CHIP 0.047
C710 87-010-197-080 CAP, CHIP 0.01 DM
C711 87-010-197-080 CAP, CHIP 0.01 DM
C712 87-010-197-080 CAP, CHIP 0.01 DM
C713 87-A11-062-080 C-CAP,S 2.2-16 Z F
CON701 8Z-KT1-612-010 CONN,16P CAM-C73
D719 87-A40-813-040 C-LED,SEC1E01C BLUE
D720 87-A40-813-040 C-LED,SEC1E01C BLUE
D721 87-A40-813-040 C-LED,SEC1E01C BLUE
D725 87-017-827-070 C-LED,SEC 1201C RED
D726 87-017-827-070 C-LED,SEC 1201C RED
D727 87-017-827-070 C-LED,SEC 1201C RED
LCD701 8A-KC6-610-010 LCD,AKC-6(DOT)
PL701 8Z-KT1-651-010 LAMP,9V-85MA
PL702 8Z-KT1-651-010 LAMP,9V-85MA
SW701 87-A90-001-080 C-SW,TACT SKQMAL
SW702 87-036-251-080 SW,TACT SXQCAE
SW703 87-036-251-080 SW,TACT SXQCAE
SW704 87-036-251-080 SW,TACT SXQCAE
SW705 87-A90-001-080 C-SW,TACT SKQMAL
SW706 87-036-251-080 SW,TACT SXQCAE
SW707 87-036-251-080 SW,TACT SXQCAE
SW708 87-A90-001-080 C-SW,TACT SKQMAL
SW709 87-036-251-080 SW,TACT SXQCAE
SW710 87-036-251-080 SW,TACT SXQCAE
SW711 87-036-251-080 SW,TACT SXQCAE
SW712 87-036-251-080 SW,TACT SXQCAE
SW713 87-A90-001-080 C-SW,TACT SKQMAL
SW714 87-036-251-080 SW,TACT SXQCAE
SW715 87-036-251-080 SW,TACT SXQCAE
SW716 87-A91-597-010 SW,RTRY SIM-026MT
MP3 C.B
C100 87-010-178-080 C-CAP,S 1000P-50 KB
C601 87-A10-263-080 C-CAP,U 0.1-16ZF
C602 87-A10-263-080 C-CAP,U 0.1-16ZF
C603 87-A10-263-080 C-CAP,U 0.1-16ZF
C604 87-A10-263-080 C-CAP,U 0.1-16ZF
C605 87-012-274-080 C-CAP,U 1000P-50 KB
C606 87-012-274-080 C-CAP,U 1000P-50 KB
C621 87-010-880-080 C-CAP,E 47-6.3 MF
C622 87-A10-263-080 C-CAP,U 0.1-16ZF
C623 87-A10-263-080 C-CAP,U 0.1-16ZF
C624 87-A10-263-080 C-CAP,U 0.1-16ZF
C625 87-A10-263-080 C-CAP,U 0.1-16ZF
C626 87-A10-263-080 C-CAP,U 0.1-16ZF
C627 87-A10-263-080 C-CAP,U 0.1-16ZF
C628 87-A10-263-080 C-CAP,U 0.1-16ZF
C629 87-A10-263-080 C-CAP,U 0.1-16ZF
C630 87-A10-263-080 C-CAP,U 0.1-16ZF
!

– 5 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C631 87-010-880-080 C-CAP,E 47-6.3 MF
C651 87-016-287-080 C-CAP,TN 3.3-6.3 F93
C652 87-012-286-080 CAP, U 0.01-25
C653 87-010-880-080 C-CAP,E 47-6.3 MF
C654 87-A10-263-080 C-CAP,U 0.1-16ZF
C655 87-A10-263-080 C-CAP,U 0.1-16ZF
C656 87-012-178-080 C-CAP,U 18P-50 CH
C657 87-012-178-080 C-CAP,U 18P-50 CH
C658 87-A10-263-080 C-CAP,U 0.1-16ZF
C659 87-016-317-080 C-CAP,TN 2.2-6.3
C660 87-A10-263-080 C-CAP,U 0.1-16ZF
C661 87-010-880-080 C-CAP,E 47-6.3 MF
C662 87-A10-263-080 C-CAP,U 0.1-16ZF
C663 87-012-271-080 CAP, U 560P-50
C664 87-012-271-080 CAP, U 560P-50
C665 87-012-193-080 C-CAP,U 82P-50 CH
C666 87-012-193-080 C-CAP,U 82P-50 CH
C667 87-012-335-080 C-CAP,U 270P-50 SL
C668 87-012-335-080 C-CAP,U 270P-50 SL
C669 87-012-274-080 CHIP CAP,U 1000P-50B
C670 87-012-274-080 CHIP CAP,U 1000P-50B
C803 87-A10-711-080 C-CAP,E 100-6.3 M MF
C804 87-012-274-080 CHIP CAP,U 1000P-50B
C805 87-A10-260-080 C-CAP,U 0.1-16 KB
C806 87-012-280-080 CAP, U 3300P-50
C808 87-A10-263-080 C-CAP,U 0.1-16ZF
C809 87-010-880-080 C-CAP,E 47-6.3 MF
C811 87-A10-263-080 C-CAP,U 0.1-16ZF
C812 87-012-165-080 C-CAP,U 3P-50 CH
C813 87-A10-263-080 C-CAP,U 0.1-16ZF
C815 87-A10-263-080 C-CAP,U 0.1-16ZF
C816 87-010-880-080 C-CAP,E 47-6.3 MF
C817 87-010-880-080 C-CAP,E 47-6.3 MF
C831 87-012-199-080 C-CAP,U 220P-50 B
C832 87-A10-504-080 C-CAP,U 0.047-16 K B
C833 87-012-198-080 C-CAP,U 180P-50 CH
C834 87-012-199-080 C-CAP,U 220P-50 CH
C835 87-016-669-080 C-CAP,S 0.1-25 K B
C836 87-012-199-080 CAP 220P-50
C837 87-012-280-080 CAP, U 3300P-50 K B
C838 87-A10-504-080 C-CAP,U 0.047-16 K B
C839 87-010-880-080 C-CAP,E 47-6.3 MF
C840 87-A10-263-080 C-CAP,U 0.1-16ZF
C841 87-A10-263-080 C-CAP,U 0.1-16ZF
C842 87-016-526-080 C-CAP,S 0.47-16 BK
C843 87-012-198-080 CAP 180P-50
C844 87-012-198-080 CAP 180P-50
C845 87-012-273-080 C-CAP,U 820P-50 B
C846 87-012-273-080 C-CAP,U 820P-50 B
C847 87-016-563-080 C-CAP,TN 10-10
C848 87-016-563-080 C-CAP,TN 10-10
C849 87-012-188-080 C-CAP,U 47P-50 CH
C850 87-012-188-080 C-CAP,U 47P-50 CH
C851 87-016-317-080 C-CAP,TN 2.2-6.3
C852 87-016-317-080 C-CAP,TN 2.2-6.3
C853 87-012-274-080 CHIP CAP,U 1000P-50B
C854 87-012-274-080 CHIP CAP,U 1000P-50B
C855 87-A10-473-080 C-CAP,E 47-10 MF10FC(M)
C856 87-012-286-080 CAP, U 0.01-25
C857 87-A10-711-080 C-CAP,E 100-6.3 MF
C858 87-A10-263-080 C-CAP,U 0.1-16ZF
C861 87-A10-263-080 C-CAP,U 0.1-16ZF
C862 87-A10-711-080 C-CAP,E 100-6.3 M MF
C871 87-A10-419-080 C-CAP,TN 1-16 A TCF
C872 87-A10-419-080 C-CAP,TN 1-16 A TCF
C873 87-016-526-080 C-CAP,S 0.47-16 BK
C874 87-A10-263-080 C-CAP,U 0.1-16 ZF
C875 87-A10-260-080 C-CAP,U 0.1-16 KB
C876 87-A10-260-080 C-CAP,U 0.1-16 KB
C877 87-010-880-080 C-CAP,E 47-6.3 MF
C878 87-A10-263-080 C-CAP,U 0.1-16 ZF
C879 87-012-274-080 CHIP CAP,U 1000P-50B
C880 87-010-880-080 C-CAP,E 47-6.3 MF
C881 87-A12-424-080 C-CAP,E 220-10 M 4B SE1A221
C882 87-A10-263-080 C-CAP,U 0.1-16ZF
C883 87-A10-263-080 C-CAP,U 0.1-16ZF
C884 87-012-274-080 CHIP CAP,U 1000P-50B
C885 87-A10-473-080 C-CAP,E 47-10 MF10FC(M)
C886 87-A10-263-080 C-CAP,U 0.1-16ZF
C887 87-A10-263-080 C-CAP,U 0.1-16ZF
C888 87-A10-263-080 C-CAP,U 0.1-16ZF
C899 87-010-880-080 C-CAP,E 47-6.3 MF
CN801 87-A61-125-080 C-CONN,16P H FLZ-SM1-TB
CN891 87-A61-220-080 C-CONN,20P H 52271-2090
L621 87-A50-536-080 C-COIL,10UH K LQH3C24
L622 87-A50-536-080 C-COIL,10UH K LQH3C24
L651 87-A50-499-080 C-COIL,S 4.7UH K LQG21N
L652 87-A50-536-080 C-COIL,10UH K LQH3C24
L801 87-A50-536-080 C-COIL,10UH K LQH3C24
L802 87-A50-536-080 C-COIL,10UH K LQH3C24
L831 87-A50-536-080 C-COIL,10UH K LQH3C24
L832 87-A50-536-080 C-COIL,10UH K LQH3C24
L833 87-A50-536-080 C-COIL,10UH K LQH3C24
L871 87-A50-367-080 C-COIL, 10UH LQG21F
L881 87-A50-536-080 C-COIL,10UH K LQH3C24
S861 87-A91-627-080 SW,PUSH MPU10372MLBO
X601 87-A70-266-080 C-VIB,CER 6.25MHZ CSTRC-MG05
X651 87-A70-267-080 C-VIB,XTAL 14.725MHZ CX-53F
X831 87-A70-261-080 C-VIB,CER 16.93MHZ CSTCW-MX03T
CONN C.B
CON601 8Z-KT1-613-010 CONN,16P CAM-C74
CON602 87-A60-910-010 C-CONN,16P V TKC-F16X-H2
AUX C.B
J751 85-HRL-623-010 JACK,3.5 ST BLK
W751 8A-KC7-611-010 F-CABLE,3P (AUX)
EJECT C.B
D950 87-A40-641-010 LED,SLR-332MG GRN
SW950 87-A90-001-080 C-SW,TACT SKQMAL
W1001 8Z-KC1-613-010 F-CABLE,3P (EJECT)
SENSOR C.B
SW1 87-A91-627-080 SWITCH
SW2 87-A91-627-080 SWITCH

– 6 –
TRANSISTOR ILLUSTRATION
B
C
E
DTA144EKA
DTC114EKA

WIRING  1 (MAIN) <1 / 2>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
 7 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

WIRING  1 (MAIN) <2 / 2>
1 2 3 4 5 6 7 8 9 1011121314151617181920212223242526272829303132
 8 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

– 9 –
SCHEMATIC DIAGRAM – 1 (MAIN / EJECT)

P6 /
RANDOM P5 /
REP1 P4 /
REP* P3 /
INT P2 /
ALBUM/DISC *
V
P1 /
ALBUM/DISC V *
NOTE:
* USASBLE ONLY WHEN MP3 PLAY OR AN OPTIONAL
CHANGER IS CONNECTED.
WIRING  2 (FRONT / CONN / AUX / EJECT) <1 / 2>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
 10 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

WIRING  2 (FRONT / CONN / AUX / EJECT) <2 / 2>
1 2 3 4 5 6 7 8 9 1011121314151617181920212223242526272829303132
 11 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

– 12 –
SCHEMATIC DIAGRAM – 2 (FRONT / CONN / AUX)

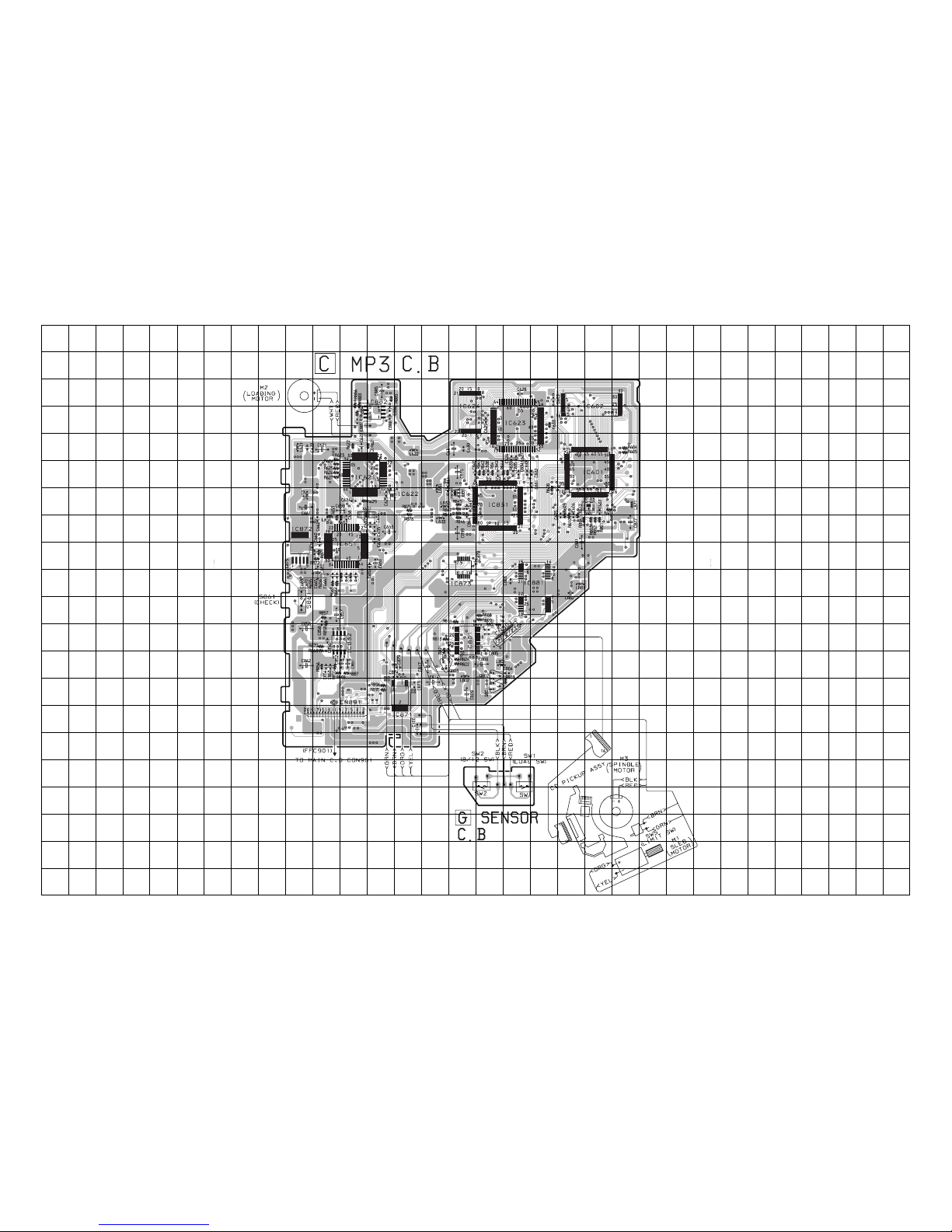

WIRING  3 (MP3) <1 / 2>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
 13 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

WIRING  3 (MP3) <2 / 2>
1 2 3 4 5 6 7 8 9 1011121314151617181920212223242526272829303132
 14 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

– 15 –
SCHEMATIC DIAGRAM – 3 (MP3 1/2 / SENSOR)
(LOAD SW)

– 16 –
SCHEMATIC DIAGRAM – 4 (MP3 2/2)

– 17 –
MECHANICAL EXPLODED VIEW 1 / 1
K
A
4
12
3
5
6
7
9
10
11
12
14
15
LCD
SH,
LCD-AC7 16
17
30 28
F
29
F
28
27
59
PWB
PWB
PWB
PWB
PWB
10
8
13
21
22
23
24
25 A
A
E
48
D
49
50
51
A
K
E
E
54 PANEL,
HT-SINK-AC
A
A
C
B
A
AA
A
53
D
55
A
56
58
L
A
A
57
47
45
44
F
I
I
42
46
43
41
G
33
E
H
D
H
31
34
E
J
35
38
37
39 40
36
G
32
GD
52
26
20
19 18
CDC02AW1
HOLDER,STTIC SA

– 18 –
MECHANICAL PARTS LIST 1 / 1
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
1 8A-KC7-010-010 KNOB,RTRY-RUBBER
2 8A-KC7-020-010 RING,RTRY -AC
3 8A-KC7-220-010 SPR-C,ROTARY -AC
4 8A-KC6-001-010 WINDOW,LCD MP3
5 8A-KC7-022-010 WINDOW,R-AC7
6 8A-KC7-021-010 WINDOW,L-AC7
7 8A-KC7-001-110 CABI,FRONT-AC7
8 8A-KC7-014-010 BTN,CLEAR S -AC
9 8A-KC7-015-010 BTN,SEL -AC
10 8A-KC7-259-010 HLDR,BTN PWR FUNC
11 8A-KC7-004-010 BTN,FUNC-AC7
12 8A-KC7-007-010 BTN,SEESAW R -AC
13 8A-KC7-205-210 LENS,ENCO-AC7
14 8A-KC7-006-010 BTN,PRE.-AC
15 8A-KC7-204-010 HLDR,LCD-AC7
16 8A-KC7-202-010 LENS,LCD-AC7
17 8A-KC7-201-010 CASE,LCD LENS- AC7
18 8A-KC7-012-010 BTN,CLEAR MH -AC
19 8A-KC7-011-010 BTN,CLEAR L -AC
20 8A-KC7-209-010 HLDR,BTN R1-AC7
21 8A-KC7-013-010 BTN,CLEAR ML -AC
22 8A-KC7-210-010 HLDR,BTN R2-AC7
23 8A-KC7-009-010 BTN,LO-AC7
24 8A-KC7-008-010 BTN,EJECT-AC7
25 8Z-KC1-242-010 SPR-C,OPEN BTN F -C
26 8A-KC7-206-010 LENS,R-AC7
27 8A-KC7-207-010 HLDR,HOOK R-AC7
28 8Z-KC1-241-010 SPR-C,DFP HOOK F -C
29 8A-KC7-002-010 CABI,REAR-AC7
30 8Z-KC1-204-110 HLDR,F-HOOK L -C
31 8A-KC7-023-010 CABI,TRIM-AC7
32 8Z-KC1-222-010 ARM,SENSOR F -C1
33 8Z-KC1-248-010 SPR-T,SENSOR F-C
34 8Z-KC1-021-310 CABI,BASE F -C1
35 8Z-KC1-018-010 BTN,EJ F -C
36 8Z-KC1-229-010 HLDR,DAMPER F ASS’Y-C
37 8Z-KT1-250-010 OIL-DMPR,100
38 8Z-KC1-203-010 GEAR,FLAP -C1
39 8A-KC7-252-010 COVER, DUST-AC7
40 8Z-KC1-208-010 LENS,BASE -C
41 8Z-KC1-230-010 HLDR,DFP ASS’Y F-C
42 8Z-KC1-260-010 SPR-T,F.LOCK-C
43 8Z-KC1-201-310 ARM,F-LOCK -C1
44 8Z-KC1-243-010 SPR-T,FLAP-C
45 8Z-KC1-202-010 LEVER,F-OPEN -C1
46 8Z-KC1-231-110 HLDR,HALF-C
47 8Z-KC1-212-010 COVER, BOTTOM -C
48 8Z-KC1-213-110 CHAS,SIDE L -C
49 8A-KC7-230-210 HLDR,TR2 -AC
50 8Z-KC1-211-010 COVER, TOP -C
51 8Z-KC1-216-310 HLDR,DECK CDC-01
52 8Z-KC1-210-210 CHAS,FRONT F -C1
53 8Z-KC7-201-010 COVER, ISO BLIND -C
54 8A-KC7-224-010 HLDR,P-IC -AC
55 8A-KC7-225-010 HLDR,CD-AC
56 8Z-KT1-237-010 CAP,LAMP GRN
57 8Z-KC1-214-110 CHAS,SIDE R -C
58 8A-KC7-255-010 SPR-C,WIRE
59 8Z-KT1-239-010 CAP,LAMP BLU B
A 87-251-073-410 SCREW,U+2.6-6
B 87-251-100-410 U+3-16
C 87-B10-259-010 UT2+3.0-10.0 W/O SLOT (BH TAP)
D 87-B10-216-010 U+2.6-4.0 ZINC BLK (BH M2.6)
E 8Z-KC1-251-010 S-SCREW,TH2.6-4.0-0.8
F 8Z-KC1-253-010 S-SCREW,PT 2*8 BH+ BLK
G 8Z-KC1-254-010 S-SCREW,PT 2*5 BH+ BLK
H 87-253-034-410 U+2-5 BLK
I 8Z-KC1-246-010 S-SCREW,2.0-2.5 -10
J 8Z-KC1-247-010 S-SCREW,GEAR2.0-1.8 -4.2
K 88-ZG5-317-010 S-SCREW,8ZG5S+2-4 W/O
L 87-432-903-010 WASHER,WTE 2.6
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink
LA Aqua Blue GL Light Green

– 19 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
ACCESSORIES / PACKAGE LIST
*NOTE: This remote controller is not an accessory part.
It is an individual model.
1 8Z-KC1-030-010 CASE,DFP -C
2 8Z-KT1-616-010 CONN ASSY,16P B52
3 8Z-KC1-231-110 HLDR,HALF -C
4 8Z-KC1-235-010 HLDR,REAR MTG
5 8A-KCG-908-010 IB,INST,YH(E CK CH)-I
6 8A-KC6-905-010 IB,Y(E CH A) MP3
7 8Z-KC1-232-010 KEY,REMOVE -C
8 87-B10-141-010 NUT,5 TYPE-2
9 8Z-KC1-244-010 S-SCREW,5*6 TH+ TAPPING ST
10 8Z-KC1-250-010 S-SCREW,HEXAGON
11 87-B10-216-010 U+2.6-4.0 ZINC BLK (BH M2.6)
12 87-B10-143-010 UT1+5-15 W/O SLOT
13 87-B10-144-010 W,5.2-10-0.5
14 87-B10-145-010 W-SPR,5.3-8.5-1.5
*15 R8-AZR-190-040 AZR-1 RCKCGNF

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]
Printed in Singapore9620450 0251431
