SERVICE MANUAL
DATA
STEREO CAR CD RECEIVER BASIC CD MECHANISM : CDC02AW1
CDC-X707M YH
S/M Code No. 09-009-424-3S1
SUPPLEMENT
• This Service Manual is the "Supplement" and replaces "Simple Manual"
CDC-X707M (YH), (S/M Code No. 09-008-424-3T2).
• This Service Manual contains information about the difference between
CDC-X707M (YH) and CDC-X7070M (YL). If requiring other information,
see Service Manual of CDC-X707M (YU) / X7070M (YL),
(S/M Code No. 09-003-424-3R1).

– 2 –
SPECIFICATIONS
• Design and specifications are subject to change without
notice.
RADIO SECTION
(FM)
Frequency Range 87.5 MHz –108 MHz (100 kHz steps)*
87.5 MHz –108 MHz (50 kHz steps)*
Usable Sensitivity 12.7 dBf
50 dB Quieting Sensitivity 17.2 dBf
IF Rejection 80 dB
Frequency Response 30 Hz – 15,000 Hz
S/N Ratio 63 dB
Stereo Separation 35 dB at 1 kHz
Alternate Channel Selectivity
70 dB
Capture Ratio 3 dB
(AM)
Frequency Range 530 kHz – 1,710 kHz (10 kHz steps)*
531 kHz – 1,620 kHz (9 kHz steps)*
Usable Sensitivity 30 µV (30 dB)
9k 10k
* Set the frequency increment for your area using the switch on the
bottom of the unit.
(The switch is set at the factory to the 9k position)
CD SECTION
Frequency Response 17 Hz – 20 kHz +0/–3 dB
Dynamic Range More than 80 dB
Channel Separation More than 65 dB
S/N Ratio More than 85 dB
Wow/Flutter Unmeasurable
AUDIO SECTION
Max. Power Output 45 W x 4 channels
AUX IN input
Input Sensitivity (load impedance)
AUX IN 300 mV (10 kΩ)
GENERAL
Power Supply Voltage 14.4 V (11 to 16 V allowable),
DC, negative ground
Load Impedance 4 Ω
Tone Control Bass ±10 dB at 100 Hz
Treble ±10 dB at 10 kHz
Preamp Output Voltage (load impedance)
2.2 V (10 kΩ)
Installation Size 182 (W) x 53 (H) x 155 (D) mm
(71/4(W) x 21/8(H) x 61/8(D) inches)
STEERING-WHEEL-MOUNTED REMOTE CONTROL UNIT
Dimensions Approx. 67 (W) x 26 (H) x 27 (D) mm
(23/4(W) x 11/16 (H) x 11/8(D) inches)
(excluding folder)
Weight Approx. 38 g (1.33 oz.)
(including holder, battery)

– 3 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
8Z-KT1-622-010 C-IC,LC75374E
87-A21-562-010 IC,LA4743B
88-KT1-608-010 C-IC,LC75854W
87-A90-951-010 RCR UNIT,SBX1971-52
87-A21-622-130 C-IC,UPD178006AGC-540-3B9
88-KT1-606-080 IC,PST994D
87-020-784-080 IC,TC4053BF
87-A21-467-010 C-IC,CXA2581N
87-A21-533-030 C-IC,CXD2587Q
87-017-888-080 IC,NJM4558MD
87-A21-534-030 C-IC,UPD78012FGC656-AB8
87-A21-161-040 C-IC,BA6392FP
87-A20-712-040 C-IC,BA6417F
TRANSISTOR
87-A30-427-040 CHIP-TR,DTC114EKA
87-A30-289-040 C-TR,2SA1037AK(R)
89-324-122-080 C-TR,2SC2412KR
87-A30-218-080 TR,2SB1237Q
87-A30-287-040 C-TR,DTC114TKA
87-A30-300-080 TR,2SB1277
87-A30-299-080 TR,2SB1326
87-A30-302-040 C-TR,2SD1758-F5
87-A30-298-010 TR,2SD2396
89-211-323-080 C-TR,2SB1132R
87-A30-279-040 C-TR,DTC314TK
89-423-953-010 TR,2SD2395F
87-A30-248-040 C-TR,2SB1197KQ
87-A30-011-080 C-TR,DTB113ZK
87-A30-273-040 C-TR,DTC124EKA
87-026-210-040 C-TR,DTC144EK
DIODE
87-A40-250-080 C-DIODE,DAN217
87-001-783-080 DIODE,1N4002
87-070-136-080 ZENER,MTZJ5.1B
87-A40-798-010 DIODE,1N5402 (3A/200V)
87-A40-523-080 ZENER,MTZJ9.1B
87-070-334-080 ZENER,MTZJ10B
87-A40-509-080 ZENER,MTZJ6.8C
87-A40-189-080 DIODE,1SR139-400
87-020-465-080 DIODE,1SS133
87-A40-624-080 ZENER,MTZJ10A
87-020-585-080 CHIP-ZENER,02CZ6.2Y
87-A40-871-080 ZENER,MTZJ5.6C
87-017-932-080 ZENER,MTZJ6.2B
87-A40-650-080 ZENER,MTZJ6.8A
87-020-331-080 C-DIODE,DAN202K

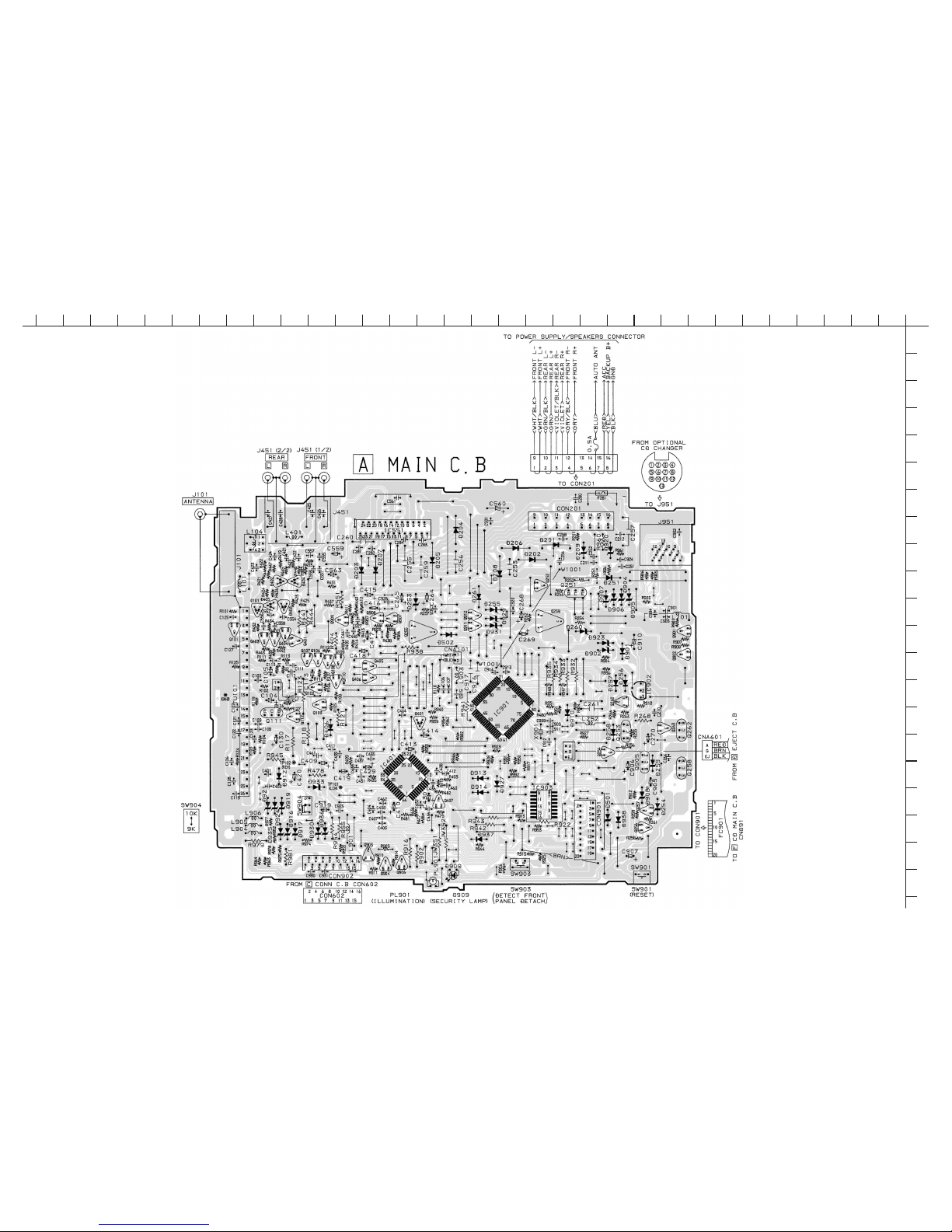

MAIN C.B
C102 87-010-198-080 CAP, CHIP 0.022-25
C103 87-010-322-080 C-CAP,S 100P-50 CH
C104 87-010-498-040 CAP,E 10-16 GAS
C105 87-010-498-040 CAP,E 10-16 GAS
C106 87-010-322-080 C-CAP,S 100P-50 CH
C107 87-010-322-080 C-CAP,S 100P-50 CH
C108 87-010-805-080 CAP, S 1-16
C109 87-010-805-080 CAP, S 1-16
C110 87-010-197-080 CAP,CHIP 0.01-25 KB
C111 87-A10-826-080 CHIP CAPACITOR,1-10 KB
C112 87-010-197-080 CAP, CHIP 0.01-25
C113 87-010-495-040 CAP,E 2.2-50 GAS
C119 87-010-196-080 CHIP CAPACITOR,0.1-25
C121 87-010-220-080 C-CAP,S 0.018-25 B
C122 87-010-220-080 C-CAP,S 0.018-25 B
C123 87-010-178-080 CHIP CAP 1000P-50
C125 87-010-197-080 CAP, CHIP 0.01-25
C126 87-010-196-080 CAP, CHIP 0.1-25 ZF
C127 87-010-186-080 C-CAP,S 4700P-50 KB
C128 87-010-197-080 CAP, CHIP 0.01-25
C130 87-A10-189-040 CAP,E 220-10 M 5L
C210 87-016-669-080 C-CAP,S 0.1-25 K B
C211 87-010-182-080 C-CAP,S 2200P-50 B
C212 87-015-629-080 CHIP CAPACITOR, 0.0022
C251 87-012-368-080 C-CAP,S 0.1-50 K B
C252 87-010-182-080 C-CAP,S 2200P-50 B
C253 87-018-119-080 CAP, TC U100P-50V
C254 87-010-322-080 C-CAP,S 100P-50 CH
C255 87-018-119-080 CAP, TC U100P-50V
C256 87-018-119-080 CAP, TC U100P-50V
C257 87-018-119-080 CAP, TC U100P-50V
C258 87-010-297-080 C-CAP,S 100P-50 CH
C259 87-018-119-080 CAP, TC U100P-50V
C260 87-018-119-080 CAP, TC U100P-50V
C261 87-018-205-080 CAP, TC U 0.022-25
C264 87-010-553-040 CAP,E 47-16 GAS
C265 87-010-498-040 CAP,E 10-16 GAS
C266 87-010-194-080 CAP, CHIP 0.047-25
C268 87-010-498-040 CAP,E 10-16 GAS
C269 87-010-555-040 CAP,E 100-10 GAS
C270 87-010-555-040 CAP,E 100-10 GAS
C280 87-015-629-080 CHIP CAPACITOR, 0.0022-50
C281 87-012-368-080 C-CAP,S 0.1-50 F
C282 87-012-368-080 C-CAP,S 0.1-50 F
C283 87-012-368-080 C-CAP,S 0.1-50 F
C284 87-012-368-080 C-CAP,S 0.1-50 F
C401 87-010-805-080 C-CAP,S 1-16
C402 87-010-805-080 C-CAP,S 1-16
C403 87-010-805-080 CAP, S 1-16
C404 87-010-805-080 CAP, S 1-16
C407 87-010-805-080 CAP, S 1-16
C408 87-010-805-080 CAP, S 1-16
C409 87-010-498-040 CAP,E 10-16 M 5L SRE
C410 87-010-498-040 CAP,E 10-16 M 5L SRE
C411 87-010-805-080 CAP, S 1-16
C412 87-010-805-080 CAP, S 1-16
C413 87-010-498-040 CAP,E 10-16 M 5L SRE
C414 87-010-498-040 CAP,E 10-16 M 5L SRE
C415 87-010-498-040 CAP,E 10-16 M 5L SRE
C416 87-010-498-040 CAP,E 10-16 M 5L SRE
C417 87-010-498-040 CAP,E 10-16 M 5L SRE
C418 87-010-498-040 CAP,E 10-16 M 5L SRE
C419 87-010-498-040 CAP,E 10-16 M 5L SRE
C420 87-010-555-040 CAP,E 100-10 GAS
C421 87-010-805-080 CAP, S 1-16
C422 87-010-805-080 CAP, S 1-16
C423 87-010-805-080 CAP, S 1-16
C424 87-010-805-080 CAP, S 1-16
C425 87-012-140-080 CAP 470P-50
C426 87-012-140-080 CAP 470P-50
C427 87-012-140-080 CAP 470P-50
C428 87-012-140-080 CAP 470P-50
C429 87-010-498-040 CAP,E 10-16 M 5L SRE
C430 87-010-498-040 CAP,E 10-16 GAS
C431 87-010-184-080 CHIP CAPACITOR 3300P-50
C432 87-010-184-080 CHIP CAPACITOR 3300P-50
C433 87-010-198-080 CAP, CHIP 0.022-25
C434 87-010-198-080 CAP, CHIP 0.022-25
C435 87-A11-177-080 C-CAP,S 0.15-16 K B
C436 87-A11-177-080 C-CAP,S 0.15-16 K B
C437 87-A11-177-080 C-CAP,S 0.15-16 K B
C438 87-A11-177-080 C-CAP,S 0.15-16 K B
C439 87-010-196-080 CHIP CAPACITOR,0.1-25
C440 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C441 87-012-141-080 CHIP-CAPACITOR,0.22-16F

– 4 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C461 87-010-450-080 CAPACITOR 0.47-16
C462 87-012-358-080 C-CAP,S 0.47-10 F Z
C463 87-012-358-080 C-CAP,S 0.47-10 F Z
C464 87-010-196-080 CHIP CAPACITOR,0.1-25
C501 87-016-669-080 C-CAP,S 0.1-25 K B
C503 87-012-368-080 C-CAP,S 0.1-50 KB
C551 87-016-461-080 C-CAP, S 0.47-16 ZF
C552 87-016-461-080 C-CAP, S 0.47-16 ZF
C553 87-016-461-080 C-CAP, S 0.47-16 ZF
C554 87-016-461-080 C-CAP, S 0.47-16 ZF
C555 87-010-178-080 CHIP CAP 1000P
C556 87-010-178-080 CHIP CAP 1000P
C557 87-010-178-080 CHIP CAP 1000P
C558 87-010-178-080 CHIP CAP 1000P
C559 87-010-498-040 CAP,E 10-16 GAS
C560 8A-KC7-623-000 CAP,E 2200U-16 BT(125C)
C561 87-010-805-080 CAP, S 1-16
C563 87-010-497-040 CAP,E 4.7-35 GAS
C901 87-010-198-080 CAP, CHIP 0.022-25
C902 87-010-198-080 CAP, CHIP 0.022-25
C903 87-010-194-080 CAP, CHIP 0.047-25
C904 87-010-198-080 CAP, CHIP 0.022-25
C905 87-010-498-040 CAP,E 10-16 GAS
C906 87-010-553-040 CAP,E 47-16 GAS
C907 87-010-497-040 CAP,E 4.7-35 GAS
C908 87-010-196-080 CHIP CAPACITOR,0.1-25
C909 87-010-314-080 C-CAP,S 22P-50 J CH
C910 87-016-039-010 CAP,DL 0.022F-5.5 Z 70
C911 87-010-315-080 C-CAP,S 27P-50 CH
C912 87-010-196-080 CHIP CAPACITOR,0.1-25
C913 87-010-198-080 CAP, CHIP 0.022-25
C914 87-010-198-080 CAP, CHIP 0.022-25
C915 87-012-350-080 C-CAP,1-25 F
C916 87-018-119-080 CAP, TC U100P-50V
C917 87-018-119-080 CAP, TC U100P-50V
C919 87-010-498-040 CAP,E 10-16 GAS
C920 87-010-198-080 CAP, CHIP 0.022-25
C923 87-010-178-080 CHIP CAP 1000P-50
C924 87-010-196-080 CHIP CAPACITOR,0.1-25
C927 87-010-805-080 CHIP CAPACITOR,1-16
C928 87-015-627-080 C-CAP,1000P-50 B
C930 87-016-460-080 C-CAP, S 0.22-16 KB
C931 87-016-460-080 C-CAP, S 0.22-16 KB
CNA101 8A-KC8-614-010 CONN ASSY,2P SHLD
CON201 8Z-KT1-611-010 CONN,16P CAM-B51
CON901 87-A61-219-010 CONN,20P H 52089-2020
CON902 87-A60-182-010 CONN,16P TKC-F16P-E3
D909 87-027-262-010 LED,TLR-124(RED)
F281 8Z-KC1-621-010 FUSE,15A 32V
FC901 88-KC4-641-010 FF-CABLE,20P 1.0 90MM
J101 8Z-KT1-614-010 ANT,AW-002
J451 87-A61-224-010 JACK,PIN 4P XR-401
J951 8A-KC7-620-010 JACK,DIN 13 P SKDS1302
L101 87-003-143-080 COIL 4.7 UH
L104 8Z-KT1-619-010 COIL,68MH K7-D
L201 8Z-KT1-615-010 FLTR,AMORPHOUS -CHOKE
L252 87-003-149-080 COIL,47UH
L401 87-003-143-080 COIL 4.7 UH
L901 87-003-147-080 COIL, 22UH
L903 87-003-149-080 COIL,47UH
L904 87-003-102-080 COIL, 10UH
L905 87-003-102-080 COIL, 10UH
L906 87-003-102-080 COIL, 10UH
PL901 8Z-KT1-641-010 LAMP,T-3
SW901 87-A91-070-010 SW,TACT SKHHLV
SW903 87-036-109-010 SW MICRO SPPB61
SW904 87-A91-152-010 SW,SL 1-1-2 SSSS212-11-A
TU101 8A-KC8-621-010 TU UNIT, FAE347-A12
X901 87-A70-175-010 VIB,XTAL 4.5MHZ AT-49

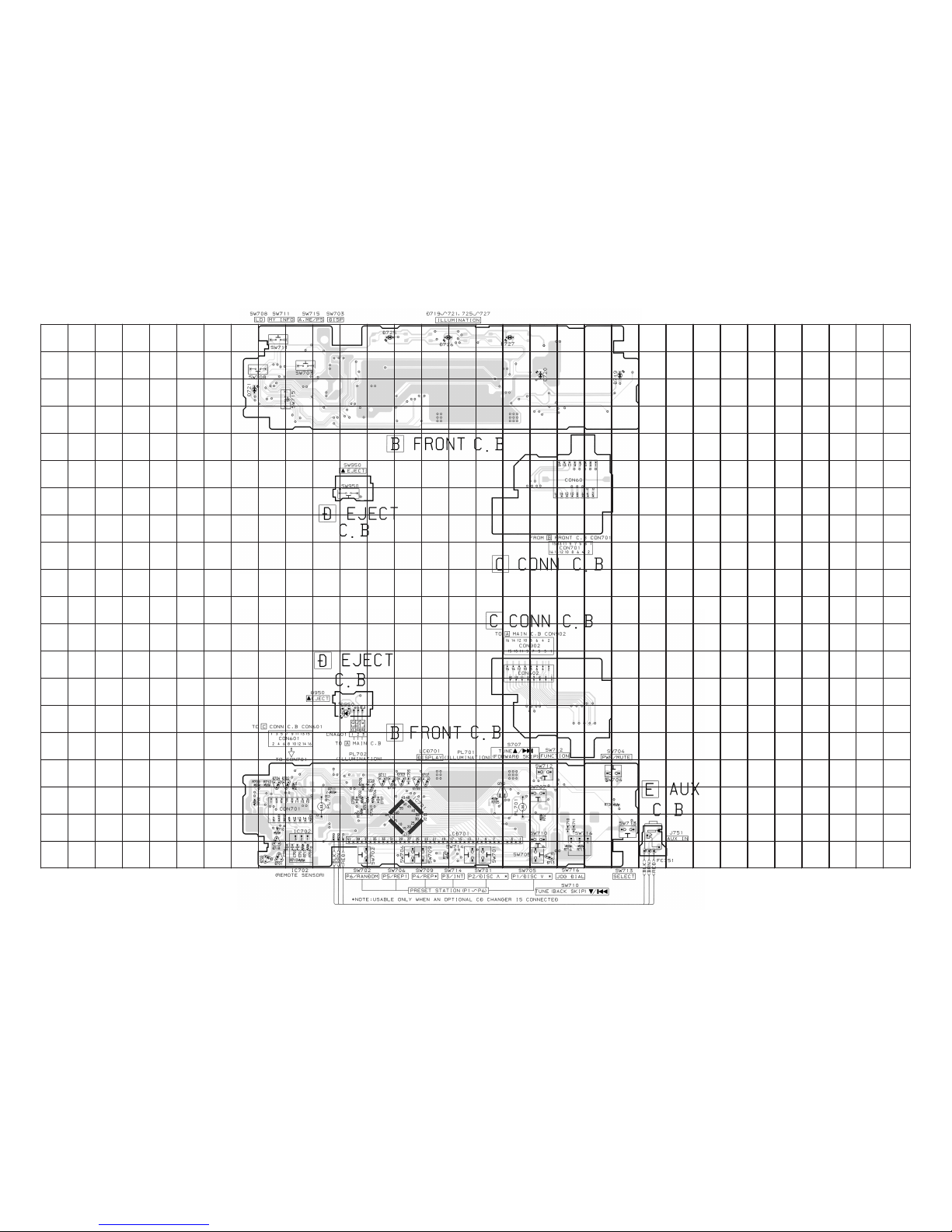

FRONT C.B
C702 87-010-196-080 CHIP CAPACITOR,0.1-25
C703 87-010-805-080 CAP, S 1-16
C704 87-010-805-080 CAP, S 1-16
C705 87-010-154-080 CAP CHIP 10P-50
C706 87-010-176-080 C-CAP,S 680P-50 SL
C707 87-010-194-080 CAP, CHIP 0.047-25
C708 87-010-194-080 CAP, CHIP 0.047-25
C709 87-010-196-080 CHIP CAPACITOR,0.1-25
C710 87-010-194-080 CAP, CHIP 0.047-25
C711 87-010-194-080 CAP, CHIP 0.047-25
CON701 8Z-KT1-612-010 CONN,16P CAM-C73
D719 87-A40-813-040 C-LED,SEC1E01C BLUE
D720 87-A40-813-040 C-LED,SEC1E01C BLUE
D721 87-A40-813-040 C-LED,SEC1E01C BLUE
D725 87-017-827-070 C-LED,SEC 1201C RED
D726 87-017-827-070 C-LED,SEC 1201C RED
D727 87-017-827-070 C-LED,SEC 1201C RED
LCD701 8A-KC8-610-010 LCD,AKC-2/8(2 COLOR)
PL701 8Z-KT1-641-010 LAMP,T-3
PL702 8Z-KT1-641-010 LAMP,T-3
SW701 87-036-251-080 SW,TACT SKQCAE
SW702 87-036-251-080 SW,TACT SKQCAE
SW703 87-A90-001-080 C-SW,TACT SKQMAL
SW704 87-036-251-080 SW,TACT SKQCAE
SW705 87-036-251-080 SW,TACT SKQCAE
SW706 87-036-251-080 SW,TACT SKQCAE
SW707 87-036-251-080 SW,TACT SKQCAE
SW708 87-A90-001-080 C-SW,TACT SKQMAL
SW709 87-036-251-080 SW,TACT SKQCAE
SW710 87-036-251-080 SW,TACT SKQCAE
SW711 87-A90-001-080 C-SW,TACT SKQMAL
SW712 87-036-251-080 SW,TACT SKQCAE
SW713 87-036-251-080 SW,TACT SKQCAE
SW714 87-036-251-080 SW,TACT SKQCAE
SW715 87-A90-001-080 C-SW,TACT SKQMAL
SW716 87-A91-597-010 SW,RTRY SIM-026MT
CONN C.B
CON601 8Z-KT1-613-010 CONN,16P CAM-C74
CON602 87-A60-910-010 C-CONN,16P V TKC-F16X-H2
EJECT C.B
CNA601 8A-KC8-613-010 CONN ASSY,3P EJECT
D950 87-A40-641-010 LED,SLR-332MG GRN
SW950 87-A90-001-080 C-SW,TACT SKQMAL
AUX C.B
FC751 8A-KC7-611-010 F-CABLE,3P (AUX)
J751 85-HRL-623-010 JACK,3.5 ST BLK
CD MAIN C.B
C803 87-A10-711-080 C-CAP,E 100-6.3 M MF
C804 87-010-178-080 CHIP CAP 1000P
C805 87-016-669-080 C-CAP,S 0.1-25 K B
C806 87-010-184-080 CHIP CAPACITOR 3300P(K)
C808 87-016-669-080 C-CAP,S 0.1-25 K B
C809 87-010-880-080 C-CAP,E 47-6.3 MF
C811 87-016-669-080 C-CAP,S 0.1-25 K B
C813 87-016-669-080 C-CAP,S 0.1-25 K B
C816 87-010-880-080 C-CAP,E 47-6.3 MF
C831 87-012-156-080 C-CAP,S 220P-50 CH
C832 87-010-194-080 CAP, CHIP 0.047
C833 87-012-156-080 C-CAP,S 220P-50 CH
C834 87-012-156-080 C-CAP,S 220P-50 CH
!

– 5 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C835 87-016-669-080 C-CAP,S 0.1-25 K B
C836 87-012-156-080 C-CAP,S 220P-50 CH
C837 87-010-186-080 CHIP CAPACITOR 4700P(K)
C838 87-010-194-080 CAP, CHIP 0.047
C839 87-010-880-080 C-CAP,E 47-6.3 MF
C840 87-016-669-080 C-CAP,S 0.1-25 K B
C841 87-016-669-080 C-CAP,S 0.1-25 K B
C842 87-016-526-080 C-CAP,S 0.47-16 BK
C843 87-012-155-080 C-CAP 180P-50CH
C844 87-012-155-080 C-CAP 180P-50CH
C845 87-010-177-080 C-CAP,S 820P-50 SL
C846 87-010-177-080 C-CAP,S 820P-50 SL
C847 87-010-885-080 C-CAP,E 22-10 MF
C848 87-010-885-080 C-CAP,E 22-10 MF
C849 87-010-318-080 C-CAP,S 47P-50 CH
C850 87-010-318-080 C-CAP,S 47P-50 CH
C851 87-A12-034-080 C-CAP,E 2.2-35 M MF
C852 87-A12-034-080 C-CAP,E 2.2-35 M MF
C853 87-010-178-080 CHIP CAP 1000P
C854 87-010-178-080 CHIP CAP 1000P
C855 87-A10-473-080 C-CAP,E 47-10 MF10FC(M)
C856 87-016-669-080 C-CAP,S 0.1-25 K B
C857 87-010-880-080 C-CAP,E 47-6.3 MF
C861 87-016-669-080 C-CAP,S 0.1-25 K B
C862 87-016-669-080 C-CAP,S 0.1-25 K B
C863 87-010-880-080 C-CAP,E 47-6.3 MF
C881 87-A10-473-080 C-CAP,E 47-10 MF10FC(M)
C882 87-016-669-080 C-CAP,S 0.1-25 K B
C883 87-016-669-080 C-CAP,S 0.1-25 K B
C884 87-010-178-080 CHIP CAP 1000P
C885 87-A10-473-080 C-CAP,E 47-10 MF10FC(M)
C886 87-016-669-080 C-CAP,S 0.1-25 K B
C887 87-016-669-080 C-CAP,S 0.1-25 K B
C888 87-016-669-080 C-CAP,S 0.1-25 K B
C889 87-A10-473-080 C-CAP,E 47-10 MF10FC(M)
C891 87-012-156-080 C-CAP,S 220P-50 CH
C892 87-012-156-080 C-CAP,S 220P-50 CH
C893 87-012-156-080 C-CAP,S 220P-50 CH
C894 87-012-156-080 C-CAP,S 220P-50 CH
C895 87-012-156-080 C-CAP,S 220P-50 CH
C896 87-012-156-080 C-CAP,S 220P-50 CH
C897 87-012-156-080 C-CAP,S 220P-50 CH
CN801 87-A61-125-080 C-CONN,16P H FLZ-SM1-TB
CN891 87-A61-220-080 C-CONN,20P H 52271-2090
L801 87-A50-536-080 C-COIL,10UH K LQH3C24
L802 87-A50-536-080 C-COIL,10UH K LQH3C24
L831 87-A50-536-080 C-COIL,10UH K LQH3C24
L832 87-A50-536-080 C-COIL,10UH K LQH3C24
L833 87-A50-536-080 C-COIL,10UH K LQH3C24
L861 87-A50-536-080 C-COIL,10UH K LQH3C24
L881 87-A50-536-080 C-COIL,10UH K LQH3C24
S861 87-A91-627-080 SW,PUSH MPU10372MLBO
X831 87-A70-262-080 C-VIB,16.93MHZ CSTCW
X861 87-A70-251-080 C-VIB,CER 10.00MHZ CSTCC
SENSOR C.B
SW1 87-A91-627-080 SWITCH
SW2 87-A91-627-080 SWITCH
TRANSISTOR ILLUSTRATION
DTC114EKA
E
B
C

– 6 –
WIRING – 1 (MAIN) 101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

– 7 –
SCHEMATIC DIAGRAM – 1 (MAIN / EJECT)

WIRING – 2 (FRONT / CONN / EJECT / AUX)
– 8 –
123456789101112131415
J
I
H
G
F
E
D
C
B
A
A
B
C
D
E
F
G
H
I
J
123456789101112131415
161718192021 161718192021 2223242526272829303132 2223242526272829303132

– 9 –
SCHEMATIC DIAGRAM –2 (FRONT / CONN / AUX)

WIRING – 3 (CD MAIN / SENSOR) <1 / 2>
– 10 –
181920212223242526272829303132
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

– 11–
151413121110987654321
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
WIRING – 3 (CD MAIN) <2 / 2>

– 12 –

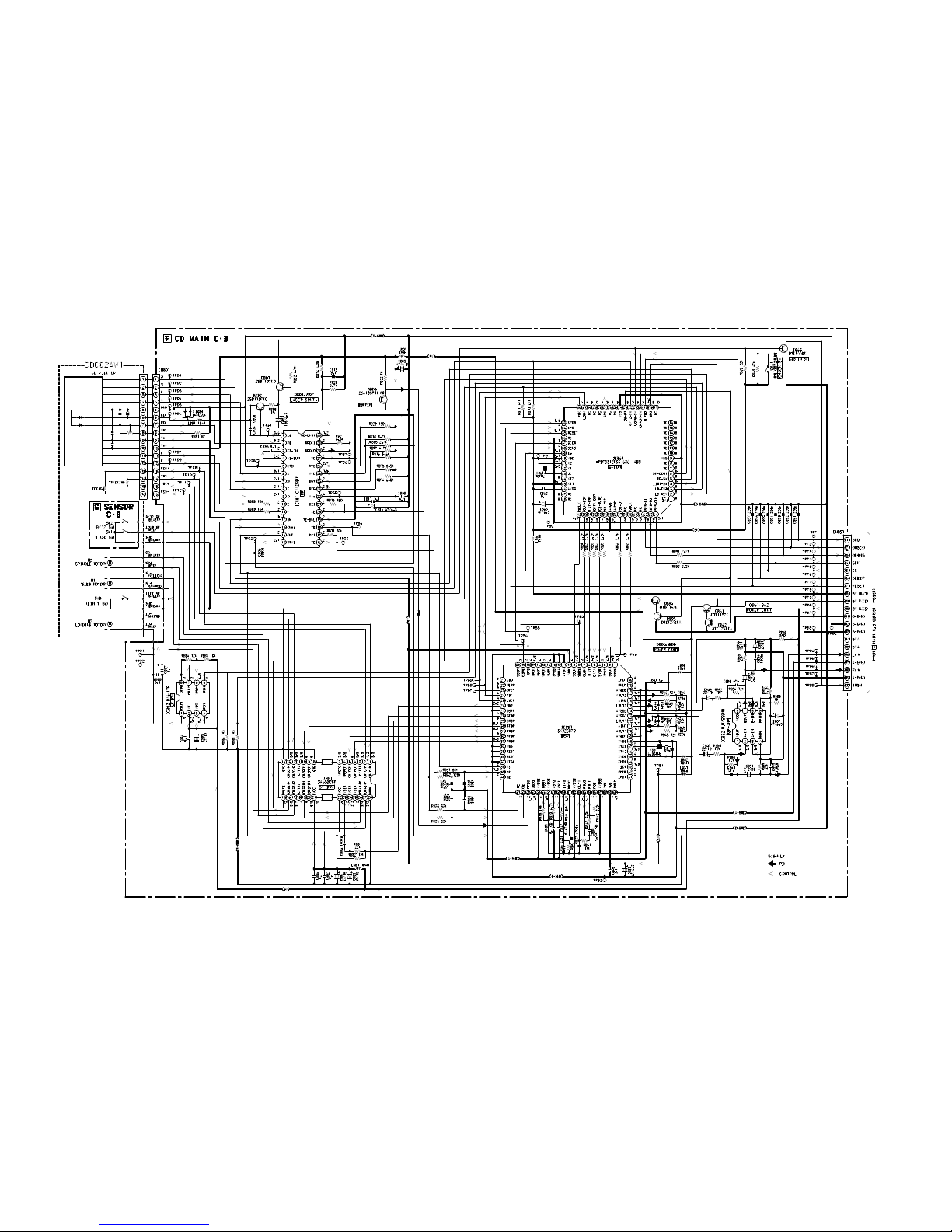

SCHEMATIC DIAGRAM – 3 (CD MAIN / SENSOR)

– 13 –

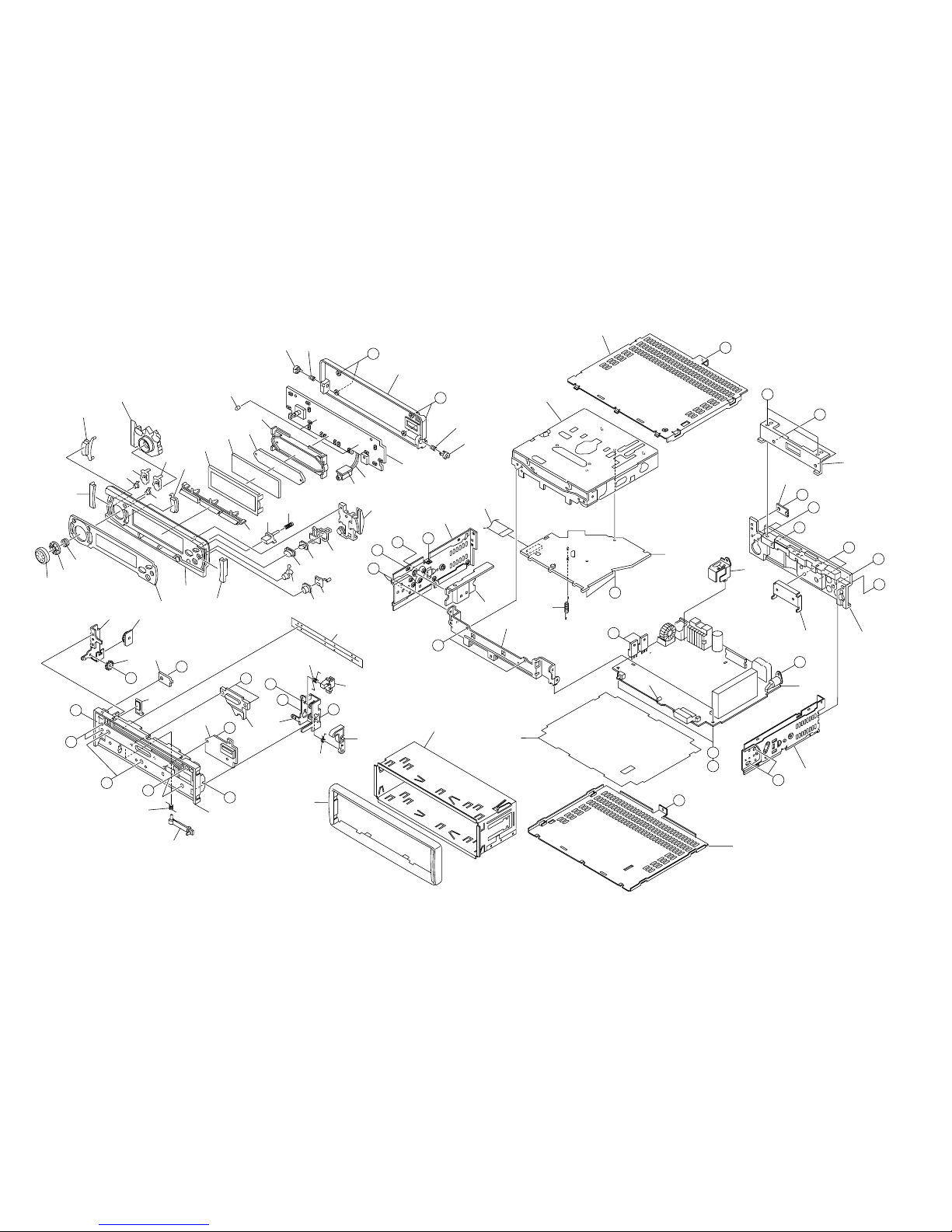

MECHANICAL EXPLODED VIEW 1 / 1
CDC-X707YHSTF
(FileName:EXP.EPS)
2000/8/31 AKC-8
60
B
D
F
D
57
PANEL,
HT-SINK- AC
D
H
G
D
D
D
56
55
D
B
54
CDC02AW1
21
19
A
20
A
17
PWB
PWB
24
23
5
6
4
34
33
35
L
39
C
B
I
I
37 38
36
C
C
C
47
48
SH,PWB
61
B
52
53
D
50
44
45
A
43
42
J
J
41
40
K
K
PWB
PWB
K
123
46
28 29
31
25 26 27
D
D
22
13
12
10
10
9
11
30
8
7
LCD 14
15
16
18 19
32
D
49
51
58
E
PWB
PWB
D
59

– 14 –
MECHANICAL PARTS LIST 1 / 1
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
1 8A-KC7-005-010 KNOB,RTRY -AC
2 8A-KC7-020-010 RING,RTRY -AC
3 8A-KC7-220-010 SPR-C,ROTARY -AC
4 8A-KC8-003-010 WINDOW,LCD X707M YH
5 8A-KC7-022-010 WINDOW,R-AC7
6 8A-KC7-001-110 CABI,FRONT-AC7
7 8A-KC7-021-010 WINDOW,L-AC7
8 8A-KC7-004-010 BTN,FUNC-AC7
9 8A-KC7-014-010 BTN,CLEAR S -AC
10 8A-KC7-259-010 HLDR,BTN PWR FUNC
11 8A-KC7-015-010 BTN,SEL -AC
12 8A-KC7-007-010 BTN,SEESAW R -AC
13 8A-KC7-204-010 HLDR,LCD-AC7
14 8A-KC7-202-010 LENS,LCD-AC7
15 8A-KC7-201-010 CASE,LCD LENS- AC7
16 8Z-KT1-236-010 CAP,LAMP BLU
17 8A-KC7-611-010 F-CABLE,3P (AUX)
18 8Z-KC1-204-110 HLDR,F-HOOK L -C
19 8Z-KC1-241-010 SPR-C,DFP HOOK F -C
20 8A-KC7-002-010 CABI,REAR-AC7
21 8A-KC7-207-010 HLDR,HOOK R-AC7
22 8A-KC7-006-010 BTN,PRE.-AC
23 8A-KC7-008-010 BTN,EJECT-AC7
24 8Z-KC1-242-010 SPR-C,OPEN BTN F -C
25 8A-KC7-012-010 BTN,CLEAR MH -AC
26 8A-KC7-011-010 BTN,CLEAR L -AC
27 8A-KC7-209-010 HLDR,BTN R1-AC7
28 8A-KC7-013-010 BTN,CLEAR ML -AC
29 8A-KC7-210-010 HLDR,BTN R2-AC7
30 8A-KC7-205-210 LENS,ENCO-AC7
31 8A-KC7-009-010 BTN,LO-AC7
32 8A-KC7-206-010 LENS,R-AC7
33 8Z-KC1-229-010 HLDR,DAMPER F ASS’Y-C
34 8Z-KT1-250-010 OIL-DMPR,100
35 8Z-KC1-203-010 GEAR,FLAP -C1
36 8Z-KC1-222-010 ARM,SENSOR F -C1
37 8Z-KC1-248-010 SPR-T,SENSOR F-C
38 8Z-KC1-021-310 CABI,BASE F -C1
39 8Z-KC1-018-010 BTN,EJ F -C
40 8Z-KC1-208-010 LENS,BASE -C
41 8Z-KC1-230-010 HLDR,DFP ASS’Y F-C
42 8Z-KC1-260-010 SPR-T,F.LOCK-C
43 8Z-KC1-201-310 ARM,F-LOCK -C1
44 8Z-KC1-243-010 SPR-T,FLAP-C
45 8Z-KC1-202-010 LEVER,F-OPEN -C1
46 8A-KC7-252-010 COVER, DUST-AC7
47 8A-KC7-023-010 CABI,TRIM-AC7
48 8Z-KC1-213-110 CHAS,SIDE L -C
49 8A-KC7-230-110 HLDR,TR2 -AC
50 88-KC4-641-010 FF-CABLE, 20P 1.0 90MM
51 8Z-KC1-210-210 CHAS,FRONT F -C1
52 8A-KC7-255-010 SPR-C,WIRE
53 8Z-KC1-211-010 COVER, TOP -C
54 8Z-KC1-216-310 HLDR,DECK CDC-01
55 8Z-KC7-201-010 COVER, ISO BLIND -C
56 8A-KC7-224-010 HLDR,P-IC -AC
57 8A-KC7-225-010 HLDR,CD-AC
58 8Z-KC1-214-110 CHAS,SIDE R -C
59 8Z-KC1-212-010 COVER, BOTTOM -C
60 8Z-KT1-237-010 CAP,LAMP GRN
61 8Z-KC1-231-110 HLDR,HALF -C
A 8Z-KC1-253-010 S-SCREW,PT 2*8 BH+ BLK
B 87-B10-216-010 U+2.6-4.0 ZINC BLK (BH M2.6)
C 8Z-KC1-251-010 S-SCREW,TH2.6-4.0-0.8
D 87-251-073-410 SCREW,U+2.6-6
E 88-ZG5-317-010 S-SCREW,8ZG5S+2-4 W/O
F 87-432-903-010 WASHER,WTE 2.6
G 87-251-100-410 U+3-16
H 87-B10-259-010 UT2+3.0-10.0 W/O SLOT (BH TAP)
I 87-253-034-410 U+2-5 BLK
J 8Z-KC1-246-010 S-SCREW,2.0-2.5 -10
K 8Z-KC1-254-010 S-SCREW,PT 2*5 BH+ BLK
L 8Z-KC1-247-010 S-SCREW,GEAR2.0-1.8 -4.2
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink
LA Aqua Blue

– 15 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
ACCESSORIES / PACKAGE LIST
1 8A-KC8-903-110 IB,YH(E CK CH)707M
2 8A-KCG-908-010 IB,INST,YH (E CK CH)-I
3 87-B10-141-010 NUT,5 TYPE-2
4 87-B10-143-010 UT1+5-15 W/O SLOT
5 87-B10-144-010 W,5.2-10-0.5
6 87-B10-145-010 W-SPR,5.3-8.5-1.5
7 87-B10-216-010 U+2.6-4.0 ZINC BLK (BH M2.6)
8 8Z-KC1-030-010 CASE,DFP -C
9 8Z-KC1-231-110 HLDR,HALF -C
10 8Z-KC1-232-010 KEY,REMOVE -C
11 8Z-KC1-235-010 HLDR,REAR MTG
12 8Z-KC1-244-010 S-SCREW,5*6 TH+ TAPPING ST
13 8Z-KC1-250-010 S-SCREW,HEXAGON
14 8Z-KT1-616-010 CONN ASSY,16P B52
*15 R8-AZR-190-040 AZR-1 RCKCGNF
*NOTE: This remote controller is not an accessory part.
It is an individual model.

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]
Printed in Singapore9301978 0251431
