Aiwa CS-P505 AEZ User manual

SERVICE MANUAL
DATA
STEREO RADIO CASSETTE RECODER
CS-P505
S/M Code No. 09-027-458-5T2
SIMPLE
AEZ(S),AHS(S),
(W),(P)
Replace this Service Manual with “Revision Publishing” when it is issued.
BASIC TAPE MECHANISM : TN-9ZR-215

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-2-
ACCESSORIES PARTS LIST -1/1
CS-P505 CS-P505 CS-P505 CS-P505
AEZSC AHSSC AHSWC AHSPC
O AS1001 8C-CS8-906-01 IB,EZ a . . .
O AS1001 8C-CS8-931-01 IB,AHS . b c d
! O AS1002 S0-206-020-040 PT,230V 6VDC a . . .
! O AS1002 S0-206-020-070 PT,220V 6VDC . b c d

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-3-
ELECTRICAL PARTS LIST -1/3
CS-P505 CS-P505 CS-P505 CS-P505
AEZSC AHSSC AHSWC AHSPC
MAX C 0101 S6-220-520-500 C-CAP,22PF-50V a b c d
MAX C 0102 S6-300-520-500 C-CAP,30PF-50V a b c d
MAX C 0103 S4-220-500-500 CAP,CER 22PF-50V a b c d
MAX C 0104 S0-473-800-500 CAP,CER 0.047UF-50V a b c d
MAO C 0105 S0-001-005-0C0 CAP,E 0.1-50V a b c d
MAO C 0107 S0-040-005-0C0 CAP,E 4.7-50V a b c d
MAX C 0108 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d
MAX C 0109 S0-331-100-500 CAP,CER 330PF-50V a b c d
MAX C 0110 S0-473-800-500 CAP,CER 0.047UF-50V a b c d
MAX C 0112 S5-473-820-250 C-CAP,0.047UF-2 a b c d
MAX C 0113 S5-473-820-250 C-CAP,0.047UF-2 a b c d
MAO C 0114 S0-221-001-0C0 ELECT CAP 220-10V a b c d
MAX C 0115 S5-224-120-100 C-CAP,0.22-10V a b c d
MAX C 0116 S5-224-120-100 C-CAP,0.22-10V a b c d
MAX C 0117 S5-224-120-100 C-CAP,0.22-10V a b c d
MAX C 0118 S6-308-320-500 C-CAP,3PF-50V a b c d
MAX C 0119 S5-105-820-100 C-CAP,1UF-10V a b c d
MAX C 0120 S5-104-820-250 C-CAP,0.1UF-25V a b c d
MAX C 0121 S5-104-820-250 C-CAP,0.1UF-25V a b c d
MAX C 0123 S4-220-500-500 CAP,CER 22PF-50V a b c d
CS-P505 CS-P505 CS-P505 CS-P505
AEZSC AHSSC AHSWC AHSPC
MAX C 0124 S6-180-520-500 C-CAP,18PF-50V a b c d
MAX C 0127 S6-608-420-500 C-CAP,6PF-50V a . . .
MAX C 0127 S6-408-320-500 C-CAP,4PF-50V . b c d
MAX C 0128 S6-308-320-500 C-CAP,3PF-50V a b c d
MAX C 0130 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d
MAX C 0131 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d
MAX C 0145 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b c d
MAX C 0201 S0-222-101-000 CAP,M 0.0022UF-100V a b c d
MAX C 0202 S0-222-101-000 CAP,M 0.0022UF-100V a b c d
MAO C 0203 S0-040-005-0C0 CAP,E 4.7-50V a b c d
MAO C 0204 S0-040-005-0C0 CAP,E 4.7-50V a b c d
MAO C 0205 S0-101-001-0C0 ELECT CAP 100-10V a b c d
MAX C 0206 S0-223-501-000 CAP,M 0.022UF-100V a b c d
MAO C 0207 S0-040-005-0C0 CAP,E 4.7-50V a b c d
MAO C 0208 S0-101-001-0C0 ELECT CAP 100-10V a b c d
MAO C 0209 S0-040-005-0C0 CAP,E 4.7-50V a b c d
MAX C 0210 S0-223-501-000 CAP,M 0.022UF-100V a b c d
MAO C 0211 S0-101-001-0C0 ELECT CAP 100-10V a b c d
MAX C 0212 S0-222-101-000 CAP,M 0.0022UF-100V a b c d
MAX C 0213 S0-222-101-000 CAP,M 0.0022UF-100V a b c d
CS-P505 CS-P505 CS-P505 CS-P505
AEZSC AHSSC AHSWC AHSPC
MAX C 0214 S0-222-101-000 CAP,M 0.0022UF-100V a b c d
MAX C 0215 S0-222-101-000 CAP,M 0.0022UF-100V a b c d
MAX C 0216 S5-221-120-500 C-CAP,220PF-50V a b c d
MAX C 0217 S5-221-120-500 C-CAP,220PF-50V a b c d
MAO C 0223 S0-221-001-0C0 ELECT CAP 220-10V a b c d
MAX C 0226 S5-103-120-500 C-CAP,0.01-50V a b c d
MAX C 0227 S5-103-120-500 C-CAP,0.01-50V a b c d
MAO C 0228 S0-004-005-0C0 CAP,E 0.47-50V a b c d
MAO C 0229 S0-004-005-0C0 CAP,E 0.47-50V a b c d
MAO C 0230 S0-471-001-0C0 ELECT CAP 470-10V a b c d
MAO C 0231 S0-100-005-0C0 ELECT CAP 10-50V a b c d
MAX C 0233 S5-473-820-250 C-CAP,0.047UF-2 a b c d
MAX C 0234 S5-473-820-250 C-CAP,0.047UF-2 a b c d
MAO C 0235 S0-001-005-0C0 CAP,E 0.1-50V a b c d
MAX C 0253 S5-221-120-500 C-CAP,220PF-50V a b c d
MAX C 0254 S5-221-120-500 C-CAP,220PF-50V a b c d
MAO C 0306 S0-004-005-0C0 CAP,E 0.47-50V a b c d
MAO C 0307 S0-004-005-0C0 CAP,E 0.47-50V a b c d
MAX C 0313 S5-562-120-500 C-CAP,0.0056UF-50V a b c d
MAX C 0314 S5-562-120-500 C-CAP,0.0056UF-50V a b c d
CS-P505 CS-P505 CS-P505 CS-P505
AEZSC AHSSC AHSWC AHSPC
MAX C 0315 S5-473-820-250 C-CAP,0.047UF-2 a b c d
MAX C 0316 S5-473-820-250 C-CAP,0.047UF-2 a b c d
MAO C 0317 S0-010-005-0C0 CAP,E 1-50V a b c d
MAO C 0318 S0-010-005-0C0 CAP,E 1-50V a b c d
MAX C 0319 S5-102-120-500 C-CAP,0.001UF-50V a b c d
MAX C 0320 S5-102-120-500 C-CAP,0.001UF-50V a b c d
MAO C 0321 S0-101-001-0C0 ELECT CAP 100-10V a b c d
MAO C 0322 S0-101-001-0C0 ELECT CAP 100-10V a b c d
MAX C 0323 S5-104-820-250 C-CAP,0.1UF-25V a b c d
MAO C 0324 S0-331-001-0C0 CAP,E 330-10V a b c d
MAX C 0325 88-WA2-697-08 CAP,0.1UF-50V a b c d
MAX C 0326 88-WA2-697-08 CAP,0.1UF-50V a b c d
MAO C 0327 S0-221-001-0C0 ELECT CAP 220-10V a b c d
MAO C 0328 S0-221-001-0C0 ELECT CAP 220-10V a b c d
MAO C 0332 S0-101-001-0C0 ELECT CAP 100-10V a b c d
MAO C 0334 S0-221-001-0C0 ELECT CAP 220-10V a b c d
MAO C 0335 S0-222-001-0C0 CAP,E 2200-10V a b c d
MAX C 0336 88-WA2-697-08 CAP,0.1UF-50V a b c d
MAO C 0349 S0-470-001-6C0 CAP,E 47-16V a b c d
MAO C 0350 S0-221-001-0C0 ELECT CAP 220-10V a b c d

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-4-
ELECTRICAL PARTS LIST -2/3
CS-P505 CS-P505 CS-P505 CS-P505
AEZSC AHSSC AHSWC AHSPC
MAO CF 0101 S0-004-550-110 CERAMIC FILTER,CFSFU455B a b c d
MAO CF 0102 87-A90-988-01 C.FILTER KMFC5153T6-Z a b c d
MAO CF 0103 87-A90-988-01 C.FILTER KMFC5153T6-Z a b c d
MAO D 0101 S0-041-480-000 DIODE,IN4148 a b c d
MAO D 0102 S0-041-480-000 DIODE,IN4148 a b c d
MAO D 0201 87-020-465-08 DIODE,1SS133 a b c d
MAO D 0202 87-020-465-08 DIODE,1SS133 a b c d
MAO D 0203 S0-041-480-000 DIODE,IN4148 a b c d
MAO D 0204 S0-041-480-000 DIODE,IN4148 a b c d
MAO D 0301 S0-300-100-030 LED,SE3001 RED a b c d
MAO D 0303 S0-240-010-000 DI,1N4001B a b c d
MAO DZ 0104 S0-100-300-000 ZENER,MTZJ3.0A a b c d
MAO IC 0101 S8-321-110-010 IC TA2111N (TOSHIBA) a b c d
MAO IC 0201 S5-073-100-000 IC,AN7310 a b c d
MAO IC 0301 S3-022-090-010 IC,KA2209B a b c d
MAO IC 0302 S3-024-020-000 IC,KA2402 a b c d
MAO JK 0001 87-A60-420-01 JACK,HP ST 3.5MM a b c d
MAO JK 0002 S1-065-010-000 JACK,DC a b c d
MAX L 0101 S0-900-300-040 COIL,FM 9T 3-0.4 a b c d
MAO L 0102 S0-400-500-080 FM COIL 4T,5mm,DIA:0.8mm (CS5 a b c d
CS-P505 CS-P505 CS-P505 CS-P505
AEZSC AHSSC AHSWC AHSPC
MAX L 0103 87-HRL-605-019 COIL,FM 6-2.9-0.4 a b c d
MAO L 0104 8Z-HJ9-608-01 COIL,FM 6T a b c d
MAO LD 0101 S0-011-310-050 LED,L113SGDT 2-5 GREEN a b c d
MAO Q 0201 S3-045-800-030 TR,2SC458C a b c d
MAS Q 0301 S8-080-500-030 TR,SS8050C a b c d
MAX R 0101 S3-102-520-160 C-RES,1K-1/16 a b c d
MAX R 0102 S0-470-510-160 RES,47-1/16W a b c d
MAX R 0103 S0-100-510-160 RES,10-1/16W (1/ a b c d
MAX R 0104 S3-150-520-160 C-RES,15-1/16W a b c d
MAX R 0105 S3-332-520-160 C-RES,3.3K-1/16W a b c d
MAX R 0106 S3-562-520-160 C-RES,5.6K-1/16W a b c d
MAX R 0107 S3-562-520-160 C-RES,5.6K-1/16W a b c d
MAX R 0108 S3-822-520-160 C-RES,8.2K-1/16W a b c d
MAX R 0109 S3-822-520-160 C-RES,8.2K-1/16W a b c d
MAX R 0113 S3-182-520-160 C-RES,1.8K-1/16W . b c d
MAX R 0113 S3-331-520-160 C-RES,330-1/16W a . . .
MAX R 0118 S3-331-520-160 C-RES,330-1/16W a b c d
MAX R 0120 S3-331-520-160 C-RES,330-1/16W a b c d
MAX R 0200 S3-560-520-160 C-RES,56-1/16W a b c d
MAX R 0201 S3-273-520-160 C-RES,27K-1/16W a b c d
CS-P505 CS-P505 CS-P505 CS-P505
AEZSC AHSSC AHSWC AHSPC
MAX R 0202 S3-563-520-160 C-RES,56K-1/16W a b c d
MAX R 0203 S3-472-520-160 C-RES,4.7K-1/16W a b c d
MAX R 0204 S3-102-520-160 C-RES,1K-1/16 a b c d
MAX R 0205 S3-563-520-160 C-RES,56K-1/16W a b c d
MAX R 0206 S3-472-520-160 C-RES,4.7K-1/16W a b c d
MAX R 0207 S3-560-520-160 C-RES,56-1/16W a b c d
MAX R 0208 S3-273-520-160 C-RES,27K-1/16W a b c d
MAX R 0209 S3-102-520-160 C-RES,1K-1/16 a b c d
MAX R 0210 S3-682-520-160 C-RES,6.8K-1/16W a b c d
MAX R 0212 S3-682-520-160 C-RES,6.8K-1/16W a b c d
MAX R 0213 S3-102-520-160 C-RES,1K-1/16 a b c d
MAX R 0214 S3-222-520-160 C-RES,2.2K-1/16W a b c d
MAX R 0215 S3-222-520-160 C-RES,2.2K-1/16W a b c d
MAX R 0221 S3-103-520-160 C-RES,10K-1/1 a b c d
MAX R 0222 S3-472-520-160 C-RES,4.7K-1/16W a b c d
MAX R 0223 S3-472-520-160 C-RES,4.7K-1/16W a b c d
MAX R 0224 S3-563-520-160 C-RES,56K-1/16W a b c d
MAX R 0225 S3-563-520-160 C-RES,56K-1/16W a b c d
MAX R 0226 S3-332-520-160 C-RES,3.3K-1/16W a b c d
MAX R 0227 S3-332-520-160 C-RES,3.3K-1/16W a b c d
CS-P505 CS-P505 CS-P505 CS-P505
AEZSC AHSSC AHSWC AHSPC
MAX R 0228 S3-564-520-160 C-RES,560K-1/16W a b c d
MAX R 0229 S3-564-520-160 C-RES,560K-1/16W a b c d
MAX R 0230 S3-272-520-160 C-RES,2.7K-1/16W a b c d
MAX R 0231 S3-272-520-160 C-RES,2.7K-1/16W a b c d
MAX R 0235 S3-332-520-160 C-RES,3.3K-1/16W a b c d
MAX R 0236 S3-332-520-160 C-RES,3.3K-1/16W a b c d
MAX R 0237 S3-471-520-160 C-RES,470-1/16W a b c d
MAX R 0238 S3-392-520-160 C-RES,3.9K-1/16W a b c d
MAX R 0239 S3-224-520-160 C-RES,220K-1/16W a b c d
MAX R 0251 S3-273-520-160 C-RES,27K-1/16W a b c d
MAX R 0252 S3-273-520-160 C-RES,27K-1/16W a b c d
MAX R 0301 S3-680-520-160 C-RES,68-1/16 a b c d
MAX R 0302 S3-221-520-160 C-RES,220-1/16W a b c d
MAX R 0307 S3-332-520-160 C-RES,3.3K-1/16W a b c d
MAX R 0308 S3-332-520-160 C-RES,3.3K-1/16W a b c d
MAX R 0311 S3-682-520-160 C-RES,6.8K-1/16W a b c d
MAX R 0312 S3-682-520-160 C-RES,6.8K-1/16W a b c d
MAX R 0315 S3-103-520-160 C-RES,10K-1/1 a b c d
MAX R 0316 S3-103-520-160 C-RES,10K-1/1 a b c d
MAX R 0317 S3-478-520-160 C-RES,4.7-1/16W a b c d

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-5-
ELECTRICAL PARTS LIST -3/3
CS-P505 CS-P505 CS-P505 CS-P505
AEZSC AHSSC AHSWC AHSPC
MAX R 0318 S3-478-520-160 C-RES,4.7-1/16W a b c d
MAX R 0322 S3-331-520-160 C-RES,330-1/16W a b c d
MAX R 0323 S0-100-501-020 RES,10-2W a b c d
MAX R 0325 S0-181-510-160 RES,180-1/16W a b c d
MAX R 0326 S0-181-510-160 RES,180-1/16W a b c d
MAX R 0327 S3-102-520-160 C-RES,1K-1/16 a b c d
MAX R 0328 S3-681-520-160 C-RES,680-1/16W a b c d
MAX R 0333 S3-562-520-160 C-RES,5.6K-1/16W a b c d
MAX R 0334 S3-271-520-160 C-RES,270-1/16W a b c d
MAX R 0335 S3-122-520-160 C-RES,1.2K-1/16W a b c d
MAO SW 0102 S4-200-511-000 SW,SL 4P2T SK42D01GA5 a b c d
MAO SW 0201 S0-102-200-000 SW,REC 10P2T a b c d
MAO SW 0202 S2-300-511-020 SW,SLIDE 2P3T SK23D06 a b c d
MAO T 0101 87-A50-187-01 IFT-P-7LC MM/SUMIDA a b c d
MAO T 0102 S0-022-400-100 IFT 4A-224R,10mm a b c d
MAO VC 0001 S3-444-820-010 PVC,JF444WAB82-A02-01 AM/FM a b c d
MAO VR 0301 SE-125-032-010 VR-E12M2GV050KAWSH&D XV012302 a b c d
MAX VR 0302 S2-020-650-000 SFR,2K a b c d

-6-

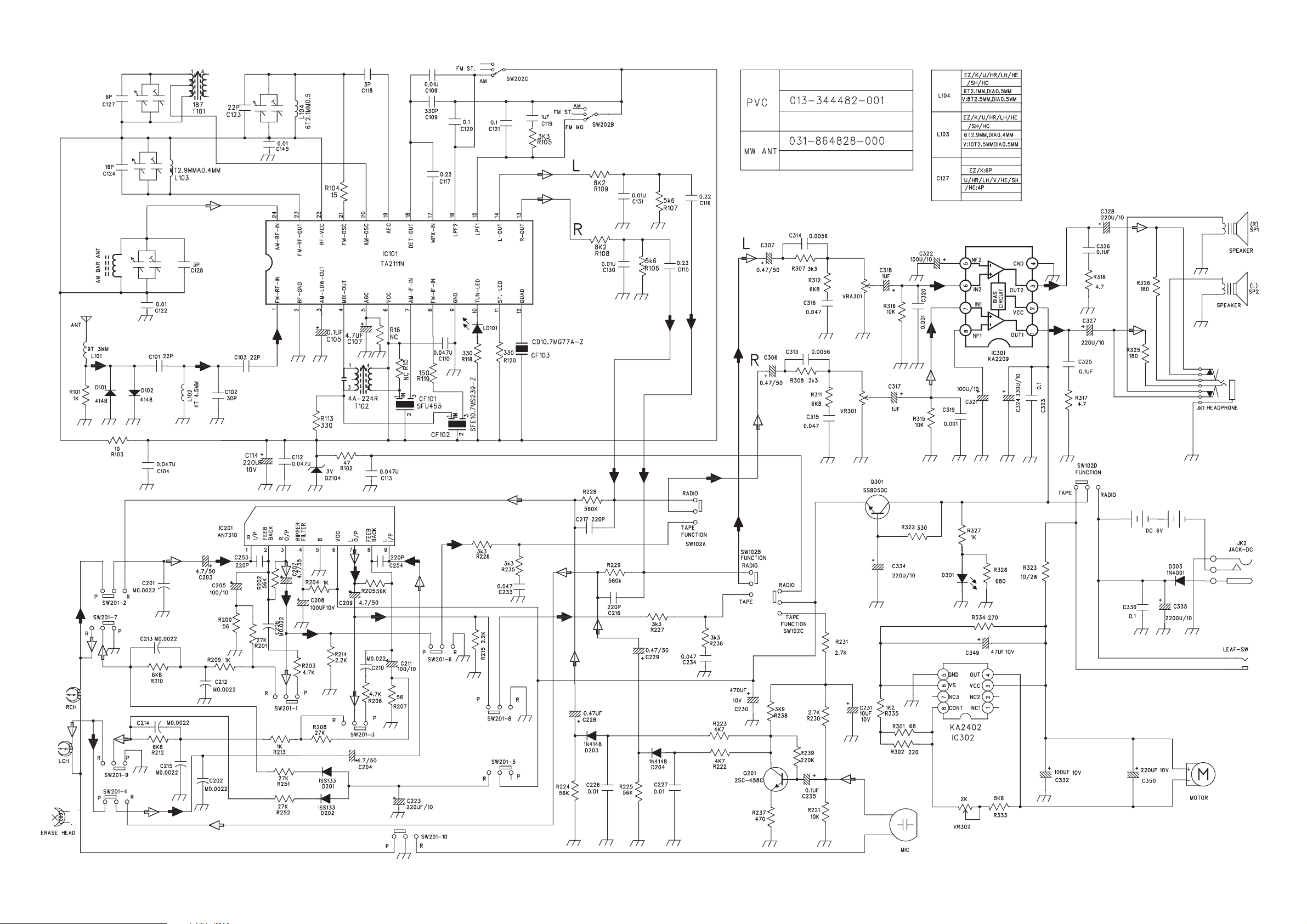

SCHEMATIC DIAGRAM - 1/1 (MAIN)

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-7-
MECHANICAL PARTS LIST -1/1
CS-P505 CS-P505 CS-P505 CS-P505
AEZSC AHSSC AHSWC AHSPC
O MC1001 8C-CS8-004-01 PANEL,SPK L a b . .
O MC1001 8C-CS8-051-01 PANEL,SPK L P . . . d
O MC1001 8C-CS8-060-01 PANEL,SPK L W . . c .
O MC1002 8C-CS8-022-01 D.WINDOW,EZ a . . .
O MC1002 8C-CS8-024-01 D.WINDOW,HR . b c d
O MC1003 8C-CS8-020-01 CABI,CENTER EX a b . d
O MC1003 8C-CS8-056-01 CABI,CENTER EXW . . c .
O MC1004 S2-040-005-200 SPK,4OHM-0.5W a b c d
X MC1005 S0-0CC-S85-010 PWB,CCS8-01-01 a . . .
X MC1005 S0-0CC-S85-000 PWB,CCS8-01-01 . b c d
O MC1006 8C-CS8-201-01 GEAR,PVC a b c d
O MC1007 SA-CM3-260-000 PLATE,CASS SPRING a b c d
O MC1008 8C-CS8-202-01 HLDR,KNOB POWER a b c d
O MC1009 8C-CS8-014-01 KNOB,SL a b . d
O MC1009 8C-CS8-067-01 KNOB,SL W . . c .
X MC1010 S0-002-15K-000 CASS DECK TN a b c d
X MC1010 M8-4ZK-692-070 CASS.DECK TN-9ZR-215 a b c d
O MC1011 87-A60-420-01 JACK,HP ST 3.5MM a b c d
O MC1012 8C-CS8-016-01 KNOB,VOLUME a b . d
O MC1012 8C-CS8-068-01 KNOB,VOLUME W . . c .
CS-P505 CS-P505 CS-P505 CS-P505
AEZSC AHSSC AHSWC AHSPC
O MC1013 8C-CS8-204-01 BATT,COMPARTMENT(+) a b c d
O MC1014 S1-065-010-000 JACK,DC a b c d
O MC1015 S8-CS8-300-000 HLDR,BAR ANT a b c d
O MC1016 S8-648-280-000 ANT COIL ASSY,AP55-864828 a b c d
O MC1017 S6-938-280-000 SPR,BATT A(-) a b c d
O MC1018 S1-027-440-000 MIC,CMS-2744 a b c d
O MC1019 8C-CS8-205-01 BATT,COMPARTMENT(-) a b c d
O MC1020 8C-CS8-008-01 LID,BATTERY a b . .
O MC1020 8C-CS8-053-01 LID,BATTERY P . . . d
O MC1020 8C-CS8-062-01 LID,BATTERY W . . c .
O MC1021 S0-136-380-000 ANT,ROD TELESCOPIC a b c d
O MC1022 8C-CS8-018-01 HANDLE a b . .
O MC1022 8C-CS8-054-01 HANDLE,P . . . d
O MC1022 8C-CS8-070-01 HANDLE,W . . c .
O MC1023 8C-CS8-002-01 CABI,REAR a b . .
O MC1023 8C-CS8-048-01 CABI,REAR P . . . d
O MC1023 8C-CS8-057-01 CABI,REAR W . . c .
O MC1024 8C-CS8-006-01 WINDOW,CASS a b c d
O MC1025 8C-CS8-023-01 LID,CASS EX a b . .
O MC1025 8C-CS8-059-01 LID,CASS EXW . . c .
CS-P505 CS-P505 CS-P505 CS-P505
AEZSC AHSSC AHSWC AHSPC
O MC1025 8C-CS8-050-01 LID,CASS EXP . . . d
O MC1026 8C-CS8-005-01 PANEL,SPK R a b . .
O MC1026 8C-CS8-052-01 PANEL,SPK R P . . . d
O MC1026 8C-CS8-061-01 PANEL,SPK R W . . c .
O MC1027 8C-CS8-009-01 KEY,CASS STOP a b . d
O MC1027 8C-CS8-063-01 KEY,CASS STOP W . . c .
O MC1028 8C-CS8-010-01 KEY,CASS FF a b . d
O MC1028 8C-CS8-064-01 KEY,CASS FF W . . c .
O MC1029 8C-CS8-011-01 KEY,CASS REW a b . d
O MC1029 8C-CS8-065-01 KEY,CASS REW W . . c .
O MC1030 8C-CS8-012-01 KEY,CASS PLAY a b . d
O MC1030 8C-CS8-066-01 KEY,CASS PLAY W . . c .
O MC1031 8C-CS8-013-01 KEY,CASS REC a b c d
O MC1032 SA-CS8-240-000 PLATE,REC a b c d
O MC1033 SC-CS8-250-000 PLATE,CASS DOOR SPRING a b c d
O MC1034 8C-CS8-017-01 KNOB,TUN a b . d
O MC1034 8C-CS8-069-01 KNOB,TUN W . . c .
O MC1035 8C-CS8-019-01 POINTER a b c d
O MC1036 8C-CS8-203-01 HLDR,KNOB FUNC a b c d
X MC1037 SZ-CS8-280-000 CUSH,MIC a b c d
CS-P505 CS-P505 CS-P505 CS-P505
AEZSC AHSSC AHSWC AHSPC
O MC1A S0-102-001-200 SCREW,ST2-12 a b c d
O MC1B S0-502-000-600 SCREW,ST2-6 a b c d
O MC1C S0-503-000-800 SCREW,ST3-8 a b c d
O MC1D S0-503-001-200 SCREW,ST3-12 a b c d
O MC1E S1-102-000-400 SCREW,ST2-4 a b c d
O MC1F S1-102-001-000 SCREW,ST2-10 a b c d
O MC1G S1-103-000-600 SCREW,ST3-6 a b c d
O MC1H S1-103-000-800 SCREW,ST3-8MM HEAD V5.9-6.3 B a b c d
O MC1I S1-403-000-800 SCREW ST3-8 KB BRASS BASED a b c d
O MC1J S0-101-700-400 SCREW,1.7-4 PM a b c d
O MC1K S0-102-600-500 SCREW,PM 2.6-5 a b c d
O MC1XXX SC-CS8-260-000 HLDR,POINTER a b c d

-8-

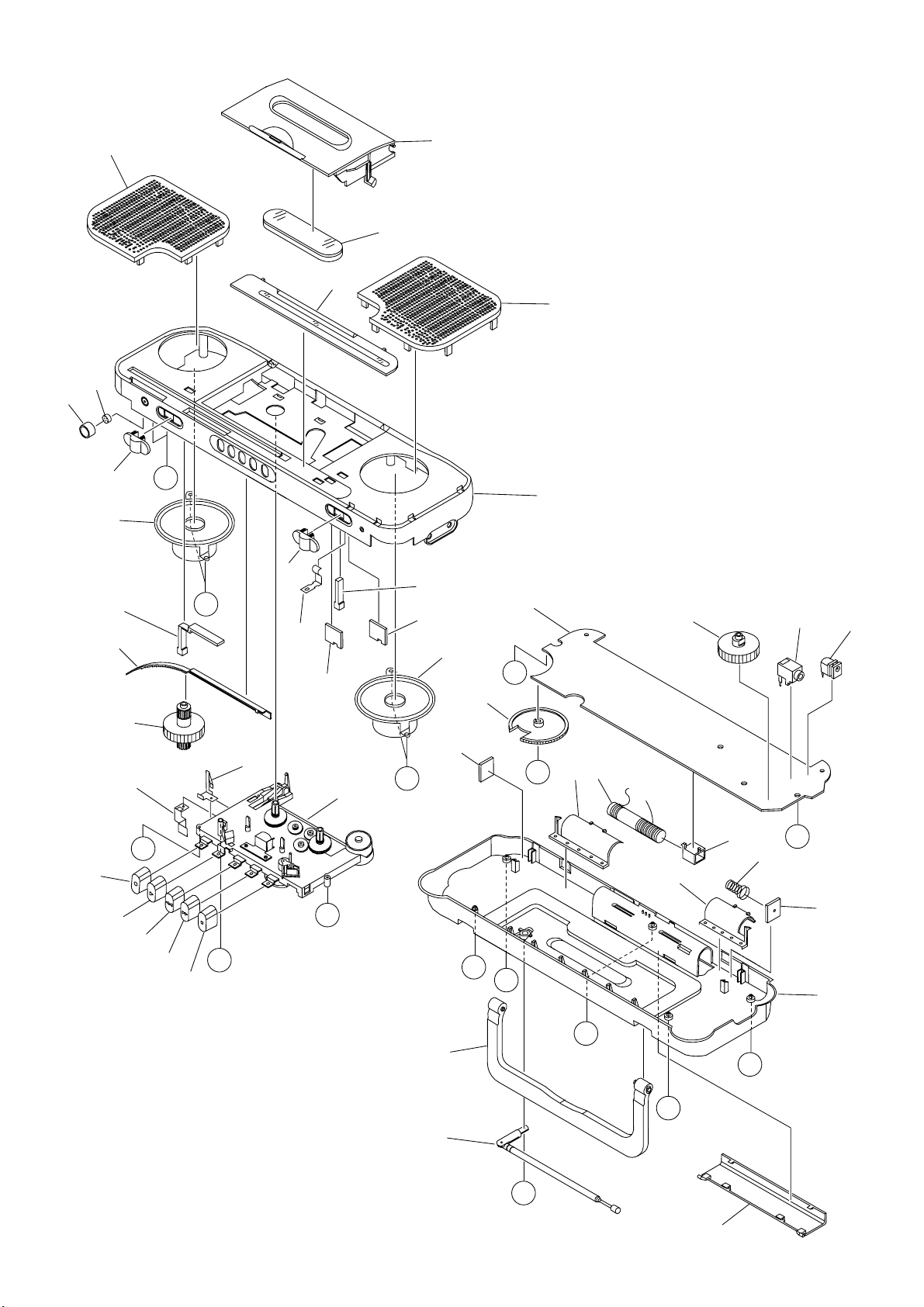

MECHANICAL EXPLODED VIEW - 1/1
H
H
B
A
E
K
F
I
J
G
D
D
C
D
D
5
23
17
15
1411
4
8
5
1
3
2
24
25
9
21
20
22
27
28
29
30
31
32
34
35
36
4
9
37
18
26
5
7
13 16
5
19
10
33
512
6

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-9-
TAPE MECHANISM PARTS LIST -1/1 (TN-9ZR-215)
CS-P505(CCS8)
TN-9ZR-215
O ST1001 S1-877-013-170 CHASSIS ASSY a
O ST1002 S1-877-120-010 MOTOR PULLEY a
O ST1003 S6-002-070-110 MOTOR RF-410CA-12250Y a
O ST1004 S1-877-010-170 AUTO LEVER a
O ST1005 S1-877-010-190 AUTO LEVER SPR a
O ST1006 S1-877-030-090 SPR,EARTH a
O ST1007 S1-877-010-370 SPR,LEVER BTN STOP a
O ST1008 S1-867-050-040 BELT,RF a
O ST1009 S1-877-093-050 FLYWHEEL ASSY a
O ST1010 S1-877-090-070 BELT,MAIN a
O ST1011 S1-877-070-060 SPR,ARM PULLEY RF a
O ST1012 S1-877-073-030 RF PULLEY ARM ASSY a
O ST1013 S1-877-010-110 FR BUTTON LEVER SPR a
O ST1014 S1-877-010-260 BTN,ACTUATOR a
O ST1015 S1-877-010-060 STOP BUTTON LEVER a
O ST1016 S1-877-010-230 LEVER,BTN FF a
O ST1017 S1-877-010-240 LEVER,BTN RWD a
O ST1018 S1-877-010-320 SPR,PLATE T GEAR a
O ST1019 S1-877-010-250 LEVER,BTN REC a
O ST1020 S1-877-040-010 PINCH ROLLER ARM a
CS-P505(CCS8)
TN-9ZR-215
O ST1021 S1-877-040-070 PINCH ROLLER ASSY a
O ST1022 S1-877-010-270 PLATE,SW a
O ST1023 S1-877-010-310 SPR,ACTUATOR a
O ST1024 S1-877-190-020 PLATE TIMING a
O ST1025 S1-877-030-080 SPR,RC a
O ST1026 S1-877-030-040 P,PLATE a
O ST1027 S1-877-030-030 PANEL,HEAD a
O ST1028 S1-877-040-080 PINCH ROLLER ARM SPR a
O ST1029 S1-877-030-070 SPR,PANEL HEAD a
O ST1030 S6-401-011-490 SW,LEAF MSW-1541T a
O ST1031 S1-867-020-040 RPH COLLAR a
O ST1032 S1-877-033-010 SENSING PLATE ASSY a
O ST1033 S9-400-312-000 SPR,HEAD a
O ST1034 S0-274-420-020 RP HEAD,RP-7442BS-1251 a
O ST1035 S1-877-030-050 ARM MG a
O ST1036 S0-103-800-000 E HEAD,PH-K380-MS1-6A a
O ST1037 S1-877-020-010 LEVER,SAFETY REC a
O ST1038 S1-821-100-700 GEAR,FF a
O ST1039 S1-877-190-010 ARM RC a
O ST1040 S1-877-060-040 BACK TENSION SPR a
CS-P505(CCS8)
TN-9ZR-215
O ST1041 S1-877-060-010 S REEL a
O ST1042 S1-877-053-040 TAKE UP REEL ASSY a
O ST1043 S1-821-103-4A0 GEAR T ROLLER a
O ST1044 S1-821-100-460 BACK TENSION SPR a
O ST1045 S1-877-015-030 T ROLLER GEAR PLATE ASSY a
X ST1046 S9-F04-204-040 LUG,PLATE(S) a
O ST1A S9-F08-203-410 +- AZIMUTH SCREW M2X4.3 a
O ST1B S9-P13-200-510 +- SCREW M2X5 a
O ST1C S9-C33-172-030 CAMERA(SPECIAL) SCREW M2-1.7 a
O ST1D S9-W01-200-200 P.WASHER 1.85X3.2X0.2 a
O ST1E S9-W02-400-100 P.WASHER CUT 1.2X3X0.4 a
O ST1F S9-W02-500-300 P.WASHER CUT 1.5X3.2X0.5 a
O ST1G S9-W23-200-100 FH WASHER 2.1X5X0.2 a
O ST1H S9-C01-201-530 CAMERA SCREW M2-1.5 a

-10-
TAPE MECHANISM EXPLODED VIEW - 1/1
46
H

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-11-
OTHER PARTS LIST -1/1
CS-P505 CS-P505 CS-P505 CS-P505
AEZSC AHSSC AHSWC AHSPC
X 87-B40-281-01J LBL,BAR CODE(A-35-8) a b c d
X S0-501-100-000 POLYBAG PE 0.045-5-11 a b c d
X 8C-CS8-851-01 POLYFOAM CCS8-90 a b c d
X 87-056-765-01 LBL,COLOR(SILVER) . . . d
X 87-056-757-01 LBL,COLOR(WHT) . . c .
X 87-B50-078-01 FACILITY LIST (S)-0007 a . . .
X 8C-CS8-854-01 GB,AEZS a . . .
X 87-056-168-01C INFORMATION WARRANTY SHEET a . . .
X 8C-CS8-971-01 LABEL,POP K a . . .
X 8C-CS8-032-01 LABEL,SPEC EZ a . . .
X 8C-CS8-860-01 GB,AHSS . b c d
X SA-CS8-941-600 LABEL,DATE CODE . b c d
X 8C-CS8-972-01 LABEL,POP AHS . b c d
X 8C-CS8-034-01 LABEL,SPEC HS . b c d
X S0-408-270-000 PWB FELT 408-27 T=0.5mm SIZE: a b c d
X S0-001-000-000 CABLE/PLASTIC TIE a b c d
X S8-CS8-290-000 CUSH,ANT a b c d
X 8A-CS8-203 CUSH,VIBRATION a b c d
X SC-CM3-220-000 FIBRE PAPER a b c d
X SC-CS8-320-000 PLATE,PC a b c d
CS-P505 CS-P505 CS-P505 CS-P505
AEZSC AHSSC AHSWC AHSPC
X SC-CS8-310-000 PLATE,PC CASS BOX a b c d
X SZ-CS8-310-000 RUBBER FOAM a b c d
X SC-CS8-270-000 SH,MYLAR a b c d
X S7-J09-400-000 SH,MYLAR 10-12.5-0.13 a b c d
X SC-CM3-210-010 SH,SHIELD a b c d
X S3-000-000-000 SOLDERING LUG a b c d
X S8-CS8-240-000 SPACER,PWB a b c d
X S9-938-560-000 SPK. BOX FELT 80x8x0.3mm, 993 a b c d
X S0-000-010-200 SPONGE 12x12x8mm WHITE a b c d
X S6-730-900-090 JP WIRE 90MM(BLK) a b c d
X S8-132-500-070 JP WIRE,3-3-250 a b c d
X S6-753-000-060 JP WIRE 300MM(RED) a b c d
X S8-132-500-050 JP WIRE,3-3-250 a b c d
X S8-133-300-060 JP WIRE,3-3-330 a b c d
X S8-133-300-090 JP WIRE,3-3-330 a b c d
X S6-733-500-020 JP WIRE,3-3-350 a b c d
X S6-733-600-030 JP WIRE,3-3-360 a b c d
X S8-730-800-060 JP WIRE,3-3-80 a b c d
X S8-730-800-090 JP WIRE,3-3-80 a b c d
X S6-730-900-100 JP WIRE,3-3-90 a b c d
CS-P505 CS-P505 CS-P505 CS-P505
AEZSC AHSSC AHSWC AHSPC
X S8-132-200-090 JP,WIRE AWG28#1571 a b c d
X S2-022-200-200 SHIELD WIRE,2-220 a b c d
X S6-731-200-080 JP WIRE,3-3-120 a b c d

2-11 IKENOHATA 1-CHOME TAITO-KU TOKYO 110-8710 JAPAN TEL:[phone]
H251941
