S E R V I C E M A N U A L

SIMPLE MANUAL

•Replace this Service Manual with ”Revision Publishing” when it is issued.

CSD-ED37

• TYPE: EZ

S/M Code No. 09–992–403–6T3

COMPACT DISC STEREO

CASSETTE RECORDER

ELECTRICAL MAIN PARTS LIST - 1/5

NOTE: The characters in the suffix column indicate the part usage.

EZ .....................XX....................................C.................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8Z-CH6-012-010 CABI,FR X ....................

8Z-CHT-015-010 BOX,CASS 26U ....................

C 217 87-010-400-080 0E CAP, ELECT 0.47-50V ABC.................

C 218 87-010-400-080 0E CAP, ELECT 0.47-50V ABC.................

C 228 87-010-401-080 0E CAP, ELECT 1-50V ABC.................

C 229 87-010-401-080 0E CAP, ELECT 1-50V ABC.................

C 231 87-010-213-080 0E C-CAP,S 0.015-50 B ABC.................

C 232 87-010-213-080 0E C-CAP,S 0.015-50 B ABC.................

C 238 87-010-263-080 0E CAP, ELECT 100-10V ABC.................

C 237 87-010-374-080 0E CAP, ELECT 47-10V ABC.................

C 235 87-010-544-080 0E CAP, ELECT 0.1-50V ABC.................

C 236 87-010-544-080 0E CAP, ELECT 0.1-50V ABC.................

C 233 87-010-546-080 0E CAP, ELECT 0.33-50V ABC.................

C 234 87-010-546-080 0E CAP, ELECT 0.33-50V ABC.................

C 248 87-010-404-080 0E CAP, ELECT 4.7-50V ABC.................

C 247 87-010-404-080 0E CAP, ELECT 4.7-50V ABC.................

C 244 87-010-405-080 0E CAP, ELECT 10-50V ABC.................

C 242 87-010-405-080 0E CAP, ELECT 10-50V ABC.................

C 243 87-010-405-080 0E CAP, ELECT 10-50V ABC.................

C 246 87-010-405-080 0E CAP, ELECT 10-50V ABC.................

C 245 87-010-405-080 0E CAP, ELECT 10-50V ABC.................

C 241 87-010-405-080 0E CAP, ELECT 10-50V ABC.................

C 262 87-010-402-080 0E CAP, ELECT 2.2-50V ABC.................

C 261 87-010-402-080 0E CAP, ELECT 2.2-50V ABC.................

D 281 87-A40-466-080 0E ZENER,MTZJ2.7A ABC.................

IC 203 87-A21-111-040 1C C-IC,M62495FP ABC.................

C 209 87-010-190-080 0E S CHIP F 0.01 ABC.................

C 208 87-010-402-080 0E CAP, ELECT 2.2-50V ABC.................

C 207 87-010-408-080 0E CAP, ELECT 47-50V ABC.................

C 210 87-010-190-080 0E S CHIP F 0.01 ABC.................

C 215 87-010-425-080 0E C-CAP,0.22-25 F ABC.................

C 216 87-010-425-080 0E C-CAP,0.22-25 F ABC.................

C 211 87-010-544-080 0E CAP, ELECT 0.1-50V ABC.................

C 212 87-010-544-080 0E CAP, ELECT 0.1-50V ABC.................

C 223 87-010-190-080 0E S CHIP F 0.01 ABC.................

C 226 87-010-190-080 0E S CHIP F 0.01 ABC.................

C 222 87-010-190-080 0E S CHIP F 0.01 ABC.................

C 220 87-010-405-080 0E CAP, ELECT 10-50V ABC.................

IC 201 87-A20-946-040 1D C-IC,MM1434XF ABC.................

C 251 87-010-401-080 0E CAP, ELECT 1-50V ABC.................

C 263 87-010-178-080 0E CHIP CAP 1000P ABC.................

C 264 87-010-178-080 0E CHIP CAP 1000P ABC.................

C 268 87-010-380-080 0E CAP, ELECT 47-16V ABC.................

C 267 87-010-380-080 0E CAP, ELECT 47-16V ABC.................

C 265 87-010-383-080 0E CAP, ELECT 33-25V ABC.................

C 266 87-010-383-080 0E CAP, ELECT 33-25V ABC.................

C 279 87-010-112-080 0E CAP, ELECT 100-16V ABC.................

C 272 87-010-221-080 0E CAP, ELECT 470-10V ABC.................

C 271 87-010-221-080 0E CAP, ELECT 470-10V ABC.................

C 277 87-010-260-080 0E CAP, ELECT 47-25V ABC.................

C 278 87-010-384-080 0E CAP, ELECT 100-25V ABC.................

C 273 87-010-628-080 0E CAP,E 3.3-16 M 5L BP SRE ABC.................

C 274 87-010-628-080 0E CAP,E 3.3-16 M 5L BP SRE ABC.................

C 281 87-010-401-080 0E CAP, ELECT 1-50V ABC.................

C 280 87-010-401-080 0E CAP, ELECT 1-50V ABC.................

IC 201 87-A20-591-010 1C IC,BA5417 ABC.................

J 251 87-A60-569-010 JACK,HTJ-035-18 ABC.................

Q 244 89-320-011-010 0E TR,2SC2001 (0.6W) ABC.................

Q 243 89-320-011-010 0E TR,2SC2001 (0.6W) ABC.................

C 308 87-010-221-080 0E CAP, ELECT 470-10V ABC.................

C 309 87-010-263-080 0E CAP, ELECT 100-10V ABC.................

C 307 87-010-401-080 0E CAP, ELECT 1-50V ABC.................

C 306 87-010-404-080 0E CAP, ELECT 4.7-50V ABC.................

C 301 87-010-453-010 1C CAP, ELECT 4700-25V ABC.................

C 315 87-010-197-080 0E CAP, CHIP 0.01 DM ABC.................

C 312 87-010-248-080 0E CAP, ELECT 220-10V ABC.................

C 310 87-010-248-080 0E CAP, ELECT 220-10V ABC.................

C 314 87-010-248-080 0E CAP, ELECT 220-10V ABC.................

C 311 87-010-263-080 0E CAP, ELECT 100-10V ABC.................

C 904 87-A10-577-080 CAP,CER 0.022-50 Z YF ABC.................

C 901 87-A10-577-080 CAP,CER 0.022-50 Z YF ABC.................

C 903 87-A10-577-080 CAP,CER 0.022-50 Z YF ABC.................

C 902 87-A10-577-080 CAP,CER 0.022-50 Z YF ABC.................

CN 301 87-099-043-010 0E CONN 2P EH ABC.................

D 307 87-017-148-080 0E ZENER,HZS6A1L ABC.................

D 304 87-017-161-080 0E ZENER,HZS7C2L ABC.................

D 303 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

D 308 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

D 305 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

D 306 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

D 309 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

D 311 87-017-139-010 0E ZENER,HZS15-2 ABC.................

D 904 87-A40-465-010 0E DIODE,FR202 ABC.................

D 901 87-A40-465-010 0E DIODE,FR202 ABC.................

D 903 87-A40-465-010 0E DIODE,FR202 ABC.................

D 902 87-A40-465-010 0E DIODE,FR202 ABC.................

ELECTRICAL MAIN PARTS LIST - 2/5

FC 0 87-033-213-010 0E CLAMP,FUSE SMK ABC.................

IC 310 87-070-416-010 1B IC,NJU7201 L55 ABC.................

Q 303 87-026-291-010 1A TR,DTC124XS ABC.................

Q 307 87-026-462-010 0E TR,2SC1740S ABC.................

Q 305 87-026-462-010 0E TR,2SC1740S ABC.................

Q 302 87-026-463-010 0E TR,2SA933S,RS ABC.................

Q 306 88-NF9-637-010 TR,2SA1318T/U ABC.................

Q 301 89-112-965-010 0E TR,2SA1296GR ABC.................

Q 304 89-213-702-010 1A TR,2SB1370 (1.8W) ABC.................

Q 310 87-026-462-010 0E TR,2SC1740S ABC.................

C 804 87-010-177-080 0E C-CAP,S 820P-50 SL ABC.................

C 803 87-010-177-080 0E C-CAP,S 820P-50 SL ABC.................

C 801 87-010-402-080 0E CAP, ELECT 2.2-50V ABC.................

C 802 87-010-402-080 0E CAP, ELECT 2.2-50V ABC.................

C 809 87-010-406-010 0E CAP,E 22-50 SM ABC.................

C 805 87-012-158-080 0E C-CAP,S 390P-50 CH ABC.................

C 806 87-012-158-080 0E C-CAP,S 390P-50 CH ABC.................

C 815 87-010-374-010 0E CAP, ELECT 47-10V ABC.................

C 818 87-010-401-010 0E CAP, ELECT 1-50V ABC.................

C 817 87-010-401-010 0E CAP, ELECT 1-50V ABC.................

C 819 87-010-401-010 0E CAP, ELECT 1-50V ABC.................

C 814 87-010-402-080 0E CAP, ELECT 2.2-50V ABC.................

C 813 87-010-402-080 0E CAP, ELECT 2.2-50V ABC.................

C 811 87-010-404-010 0E CONDENSER 4.7-50 ABC.................

C 812 87-010-404-010 0E CONDENSER 4.7-50 ABC.................

C 810 87-010-406-010 0E CAP,E 22-50 SM ABC.................

C 823 87-010-213-080 0E C-CAP,S 0.015-50 B ABC.................

C 824 87-010-213-080 0E C-CAP,S 0.015-50 B ABC.................

C 820 87-010-401-010 0E CAP, ELECT 1-50V ABC.................

C 828 87-010-404-010 0E CONDENSER 4.7-50 ABC.................

C 827 87-010-404-010 0E CONDENSER 4.7-50 ABC.................

C 825 87-010-405-080 0E CAP, ELECT 10-50V ABC.................

C 826 87-010-405-080 0E CAP, ELECT 10-50V ABC.................

C 821 87-012-153-080 0E C-CAP,S 120P-50 CH ABC.................

C 822 87-012-153-080 0E C-CAP,S 120P-50 CH ABC.................

C 833 87-010-179-080 0E CAP,CHIP S B1200P ABC.................

C 839 87-010-186-080 0E CAP,CHIP 4700P ABC.................

C 831 87-010-198-080 0E CAP, CHIP 0.022 ABC.................

C 832 87-010-198-080 0E CAP, CHIP 0.022 ABC.................

C 834 87-010-248-080 0E CAP, ELECT 220-10V ABC.................

C 830 87-010-260-080 0E CAP, ELECT 47-25V ABC.................

C 835 87-010-374-010 0E CAP, ELECT 47-10V ABC.................

C 838 87-010-405-080 0E CAP, ELECT 10-50V ABC.................

C 844 87-010-178-080 0E CHIP CAP 1000P ABC.................

C 845 87-010-178-080 0E CHIP CAP 1000P ABC.................

C 849 87-010-184-080 0E CHIP CAPACITOR 3300P(K) ABC.................

C 840 87-010-186-080 0E CAP,CHIP 4700P ABC.................

C 843 87-010-190-080 0E S CHIP F 0.01 ABC.................

C 841 87-010-194-080 0E CAP, CHIP 0.047 ABC.................

C 846 87-010-194-080 0E CAP, CHIP 0.047 ABC.................

C 842 87-010-194-080 0E CAP, CHIP 0.047 ABC.................

C 850 87-010-184-080 0E CHIP CAPACITOR 3300P(K) ABC.................

C 851 87-010-186-080 0E CAP,CHIP 4700P ABC.................

CN 802 87-049-469-010 0E CONN,4P V ABC.................

D 806 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

D 801 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

D 807 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

D 803 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

D 808 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

D 805 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

D 804 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

D 802 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

D 809 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

D 810 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

D 841 87-070-136-080 0E ZENER,MTZJ5.1B ABC.................

IC 801 87-A21-145-040 C-IC,BA4560F-E2 ABC.................

IC 802 87-A21-145-040 C-IC,BA4560F-E2 ABC.................

L 801 87-007-342-010 0E COIL,OSC 85K BIAS ABC.................

Q 802 87-026-462-010 0E TR,2SC1740S ABC.................

Q 804 87-026-463-010 0E TR,2SA933S,RS ABC.................

Q 803 87-026-463-010 0E TR,2SA933S,RS ABC.................

Q 808 87-026-496-080 0E FET,2SJ103GR ABC.................

Q 809 87-026-496-080 0E FET,2SJ103GR ABC.................

Q 805 89-110-150-010 TR,2SA1015 ABC.................

Q 807 89-110-150-010 TR,2SA1015 ABC.................

Q 801 89-318-155-010 0E TR,2SC1815(GR) ABC.................

Q 806 89-318-155-010 0E TR,2SC1815(GR) ABC.................

Q 810 87-026-464-010 0E TR,DTC114TS ABC.................

R 840 87-029-124-010 0E RES,FUSE 2.2-1/4 ABC.................

C 299 87-010-190-080 0E S CHIP F 0.01 ABC.................

C 321 87-010-190-080 0E S CHIP F 0.01 ABC.................

C 322 87-010-263-080 0E CAP, ELECT 100-10V ABC.................

C 325 87-010-405-080 0E CAP, ELECT 10-50V ABC.................

CN 204 87-049-469-010 0E CONN,4P V ABC.................

CN 203 87-049-469-010 0E CONN,4P V ABC.................

CN 201 87-099-016-010 0E CONN,14P 6216V ABC.................

CN 205 87-A60-109-010 0E CONN,2P V S2M-2W ABC.................

D 32 87-027-607-080 0E ZENER,HZ7B3L ABC.................

D 322 87-020-465-080 0E DIODE,1SS133 (110MA) .BC.................

D 323 87-020-465-080 0E DIODE,1SS133 (110MA) .BC.................

Q 323 87-026-291-080 1A TR,DTC124XS .BC.................

Q 322 87-026-463-080 0E TR,2SA933S (0.3W) .BC.................

ELECTRICAL MAIN PARTS LIST - 3/5

Q 321 89-318-154-080 0E TR,2SC1815 (0.4W) ABC.................

C 609 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABC.................

C 608 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABC.................

C 606 87-010-197-080 0E CAP, CHIP 0.01 DM ABC.................

C 607 87-010-197-080 0E CAP, CHIP 0.01 DM ABC.................

C 601 87-010-313-080 0E CAP, CHIP 18P ABC.................

C 604 87-010-314-080 0E C-CAP,S 22P-50V ABC.................

C 602 87-010-315-080 0E C-CAP,S 27P-50 CH ABC.................

C 605 87-010-317-080 0E C-CAP,S 39P-50 CH ABC.................

C 603 87-010-317-080 0E C-CAP,S 39P-50 CH ABC.................

C 614 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABC.................

C 611 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABC.................

C 612 87-010-248-080 0E CAP, ELECT 220-10V ABC.................

C 610 87-010-263-080 0E CAP, ELECT 100-10V ABC.................

C 615 87-010-400-080 0E CAP, ELECT 0.47-50V ABC.................

C 616 87-010-401-080 0E CAP, ELECT 1-50V ABC.................

C 613 87-010-402-080 0E CAP, ELECT 2.2-50V ABC.................

CN 601 87-099-031-010 0E CONN,14P 6216 H ABC.................

CN 603 87-099-199-010 0E CONN,6P 6216 H ABC.................

CN 608 87-099-200-010 0E CONN,7P 6216H ABC.................

CN 609 87-099-200-010 0E CONN,7P 6216H ABC.................

CN 605 87-099-200-010 0E CONN,7P 6216H ABC.................

CN 602 87-099-200-010 0E CONN,7P 6216H ABC.................

CN 604 87-099-200-010 0E CONN,7P 6216H ABC.................

D 601 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

D 602 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

D 611 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

D 612 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

D 614 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

IC 601 8Z-CH4-636-010 2A IC,LC867132V-**** ABC.................

L 601 87-003-171-010 0E COIL,15UH TROIDAL ABC.................

LCD 601 8Z-CH4-635-010 LCD,HLC7365 ZCH-4 ABC.................

LED 605 88-CD6-630-010 LED,934ID RED ABC.................

LED 609 88-CD6-630-010 LED,934ID RED ABC.................

LED 602 88-CD6-630-010 LED,934ID RED ABC.................

LED 607 88-CD6-630-010 LED,934ID RED ABC.................

LED 604 88-CD6-630-010 LED,934ID RED ABC.................

LED 606 88-CD6-630-010 LED,934ID RED ABC.................

LED 601 88-CD6-630-010 LED,934ID RED ABC.................

LED 603 88-CD6-630-010 LED,934ID RED ABC.................

LED 610 88-CD6-631-010 LED,934GD GRN ABC.................

Q 601 87-026-291-010 1A TR,DTC124XS ABC.................

Q 603 87-026-291-010 1A TR,DTC124XS ABC.................

Q 602 87-026-463-010 0E TR,2SA933S,RS ABC.................

Q 604 87-026-464-010 0E TR,DTC114TS ABC.................

Q 608 87-026-464-010 0E TR,DTC114TS ABC.................

Q 605 87-026-464-010 0E TR,DTC114TS ABC.................

Q 607 87-026-464-010 0E TR,DTC114TS ABC.................

Q 606 87-026-464-010 0E TR,DTC114TS ABC.................

Q 609 87-026-464-010 0E TR,DTC114TS ABC.................

Q 611 87-026-464-010 0E TR,DTC114TS ABC.................

Q 610 87-026-464-010 0E TR,DTC114TS ABC.................

Q 621 87-026-291-010 1A TR,DTC124XS ABC.................

S 615 87-A90-696-080 0E SW,TACT TS2103-03-430 ABC.................

S 616 87-A90-696-080 0E SW,TACT TS2103-03-430 ABC.................

S 612 87-A90-696-080 0E SW,TACT TS2103-03-430 ABC.................

S 613 87-A90-696-080 0E SW,TACT TS2103-03-430 ABC.................

S 611 87-A90-696-080 0E SW,TACT TS2103-03-430 ABC.................

S 614 87-A90-696-080 0E SW,TACT TS2103-03-430 ABC.................

X 602 87-030-273-010 1A VIB,XTAL 32.768K5PPM ABC.................

X 601 87-A70-070-080 1A VIB,CER 5.76MHZ CRHF ABC.................

C 400 87-010-178-080 0E CHIP CAP 1000P ABC.................

C 409 87-010-248-080 0E CAP, ELECT 220-10V ABC.................

C 404 87-010-248-080 0E CAP, ELECT 220-10V ABC.................

C 403 87-010-263-080 0E CAP, ELECT 100-10V ABC.................

C 406 87-010-374-080 0E CAP, ELECT 47-10V ABC.................

C 401 87-010-403-080 0E CAP, ELECT 3.3-50V ABC.................

C 410 87-010-263-080 0E CAP, ELECT 100-10V ABC.................

C 412 87-010-401-080 0E CAP, ELECT 1-50V ABC.................

C 414 87-010-405-080 0E CAP, ELECT 10-50V ABC.................

C 416 87-010-545-080 0E CAP, ELECT 0.22-50V ABC.................

C 417 87-012-157-080 0E C-CAP,S 330P-50 CH ABC.................

C 425 87-010-176-080 0E C-CAP,S 680P-50 SL ABC.................

C 429 87-010-186-080 0E CAP,CHIP 4700P ABC.................

C 432 87-010-374-080 0E CAP, ELECT 47-10V ABC.................

C 436 87-010-374-080 0E CAP, ELECT 47-10V ABC.................

C 433 87-010-401-080 0E CAP, ELECT 1-50V ABC.................

C 437 87-010-404-080 0E CAP, ELECT 4.7-50V ABC.................

C 431 87-010-545-080 0E CAP, ELECT 0.22-50V ABC.................

C 430 87-012-156-080 0E C-CAP,S 220P-50 CH ABC.................

C 440 87-010-147-080 0E C-CAP,S 3P-50 CH ABC.................

C 442 87-010-313-080 0E CAP, CHIP 18P ABC.................

C 448 87-010-315-080 0E C-CAP,S 27P-50 CH ABC.................

C 459 87-010-263-080 0E CAP, ELECT 100-10V ABC.................

C 458 87-010-316-080 0E C-CAP,S 33P-50 CH ABC.................

C 457 87-010-316-080 0E C-CAP,S 33P-50 CH ABC.................

C 450 87-012-140-080 0E CAP 470P ABC.................

C 463 87-010-184-080 0E CHIP CAPACITOR 3300P(K) ABC.................

C 468 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABC.................

C 463 87-010-197-080 0E CAP, CHIP 0.01 DM ABC.................

C 467 87-010-263-080 0E CAP, ELECT 100-10V ABC.................

C 462 87-010-370-080 0E CAP,E 330-6.3 SME ABC.................

ELECTRICAL MAIN PARTS LIST - 4/5

C 465 87-010-404-080 0E CAP, ELECT 4.7-50V ABC.................

C 469 87-012-154-080 0E C-CAP,S 150P-50 CH ABC.................

C 476 87-010-236-080 0E CAP,E 1000-10 SME ABC.................

C 478 87-010-263-080 0E CAP, ELECT 100-10V ABC.................

C 480 87-010-221-080 0E CAP, ELECT 470-10V ABC.................

C 481 87-010-405-080 0E CAP, ELECT 10-50V ABC.................

C 482 87-010-405-080 0E CAP, ELECT 10-50V ABC.................

C 483 87-012-156-080 0E C-CAP,S 220P-50 CH ABC.................

C 484 87-012-156-080 0E C-CAP,S 220P-50 CH ABC.................

C 495 87-010-322-080 0E C-CAP,S 100P-50 CH ABC.................

C 498 87-010-322-080 0E C-CAP,S 100P-50 CH ABC.................

C 493 87-010-322-080 0E C-CAP,S 100P-50 CH ABC.................

C 497 87-010-322-080 0E C-CAP,S 100P-50 CH ABC.................

C 496 87-010-322-080 0E C-CAP,S 100P-50 CH ABC.................

C 499 87-010-322-080 0E C-CAP,S 100P-50 CH ABC.................

CN 403 87-099-195-010 0E CONN,7P 6216 V ABC.................

CN 401 87-A60-424-010 0E CONN,16P V TOC-B ABC.................

D 491 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

D 494 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

IC 401 87-A20-446-010 1E C-IC,LA9241ML ABC.................

IC 402 87-A20-459-010 2A C-IC,LC78622ED ABC.................

IC 404 87-A21-093-010 1C IC,LA6541D ABC.................

L 401 87-003-102-080 0E COIL, 10UH ABC.................

L 402 87-005-847-080 0E COIL,2.2UH(CECS) ABC.................

L 406 87-005-847-080 0E COIL,2.2UH(CECS) ABC.................

L 404 87-008-372-010 0E FILTER, EMI BL OIRNI ABC.................

L 405 87-008-372-010 0E FILTER, EMI BL OIRNI ABC.................

L 403 87-008-372-010 0E FILTER, EMI BL OIRNI ABC.................

Q 403 87-026-502-080 0E DTC144TS ABC.................

Q 402 89-113-184-080 0E TR,2SA1318T ABC.................

SFR 401 87-024-175-080 0E SEMI-FIXED RESISTOR, 47K ABC.................

X 401 81-592-641-010 1A CERAMIC FILTER, 16.93MHZ ABC.................

X 401 87-A70-046-010 1B VIB,XTAL 16.934MHZ ABC.................

C 491 87-010-197-080 0E CAP, CHIP 0.01 DM ABC.................

C 492 87-010-221-080 0E CAP, ELECT 470-10V ABC.................

D 492 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

D 491 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

D 494 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................

Q 401 87-026-463-080 0E TR,2SA933S (0.3W) ABC.................

Q 492 87-026-291-080 1A TR,DTC124XS ABC.................

Q 491 89-112-965-080 0E TR,2SA1296 (0.75W) ABC.................

C 5 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABC.................

C 6 87-010-313-080 0E CAP, CHIP 18P .BC.................

C 3 87-010-314-080 0E C-CAP,S 22P-50V ABC.................

C 1 87-010-314-080 0E C-CAP,S 22P-50V ABC.................

C 7 87-012-158-080 0E C-CAP,S 390P-50 CH A...................

C 8 87-012-349-080 0E C-CAP,S 1000P-50 CH ABC.................

C 7 87-014-051-080 0E CAPACITOR (PP), 560P .BC.................

C 19 87-010-112-080 0E CAP, ELECT 100-16V ABC.................

C 13 87-010-145-080 0E C-CAP,S 1P-50 CH ABC.................

C 17 87-010-194-080 0E CAP, CHIP 0.047 ABC.................

C 14 87-010-305-080 0E C-CAP 470P-50CH ABC.................

C 16 87-010-380-080 0E CAP, ELECT 47-16V ABC.................

C 15 87-012-349-080 0E C-CAP,S 1000P-50 CH ABC.................

C 18 87-015-819-080 0E CAPACITOR,0.01 ABC.................

C 20 87-010-404-080 0E CAP, ELECT 4.7-50V ABC.................

C 24 87-015-629-080 0E CHIP CAPACITOR, 0.0022 ABC.................

C 25 87-016-460-080 0E C-CAP,S 0.22-16 B ABC.................

C 29 87-016-669-080 0E C-CAP,S 0.1-25 K B ABC.................

C 28 87-016-669-080 0E C-CAP,S 0.1-25 K B ABC.................

C 27 87-A11-067-080 0E C-CAP,S 1-10 K B ABC.................

C 36 87-010-112-080 0E CAP, ELECT 100-16V ABC.................

C 30 87-010-198-080 0E CAP, CHIP 0.022 A...................

C 31 87-010-198-080 0E CAP, CHIP 0.022 A...................

C 31 87-010-213-080 0E C-CAP,S 0.015-50 B .BC.................

C 30 87-010-213-080 0E C-CAP,S 0.015-50 B .BC.................

C 38 87-010-380-080 0E CAP, ELECT 47-16V ABC.................

C 33 87-010-401-080 0E CAP, ELECT 1-50V ABC.................

C 34 87-010-401-080 0E CAP, ELECT 1-50V ABC.................

C 39 87-010-404-080 0E CAP, ELECT 4.7-50V ABC.................

C 35 87-015-819-080 0E CAPACITOR,0.01 ABC.................

C 44 87-010-311-080 0E CAP 12P ABC.................

C 45 87-010-312-080 0E C-CAP,S 15P-50 CH ABC.................

C 41 87-012-349-080 0E C-CAP,S 1000P-50 CH ABC.................

C 42 87-012-349-080 0E C-CAP,S 1000P-50 CH ABC.................

C 43 87-012-349-080 0E C-CAP,S 1000P-50 CH ABC.................

C 53 87-010-197-080 0E CAP, CHIP 0.01 DM ABC.................

C 55 87-010-197-080 0E CAP, CHIP 0.01 DM ABC.................

C 52 87-010-197-080 0E CAP, CHIP 0.01 DM ABC.................

C 51 87-010-316-080 0E C-CAP,S 33P-50 CH ABC.................

C 54 87-014-055-080 0E CAP,PP 820P-100 J .BC.................

CF 3 82-785-747-080 1A CF,MS2 GHY,R ABC.................

CF 2 82-785-747-080 1A CF,MS2 GHY,R ABC.................

CF 1 87-A91-094-010 1A FLTR,CDA10.7 MG80A ABC.................

D 6 87-017-072-080 0E ZENER,HZS3B1 ABC.................

D 1 87-070-345-080 0E DIODE,IN4148 ABC.................

D 2 87-070-345-080 0E DIODE,IN4148 ABC.................

HD 2 88-CD6-661-010 HLDR,BAR ANT. ABC.................

HD 1 88-CD6-661-010 HLDR,BAR ANT. ABC.................

IC 1 87-A21-184-010 1D IC,TA2104AN ABC.................

IC 2 87-A21-185-040 1C C-IC,LC72121M ABC.................

L 8 87-005-849-080 0E COIL,10UH(CECS) ABC.................

ELECTRICAL MAIN PARTS LIST - 5/5

L 9 87-005-849-080 0E COIL,10UH(CECS) ABC.................

L 2 87-A50-347-010 COIL,FM BPF EX ABC.................

L 4 87-A50-420-010 1E COIL,MW OSC(SYN) ABC.................

L 5 87-A50-424-010 0E COIL,FM RF EX(SYN) ABC.................

L 6 87-A50-427-010 COIL,FM OSC EX(SYN) .BC.................

L 6 87-A50-454-010 0E COIL,FM OSC U(SYN) A...................

L 3 87-A91-095-010 1B BAR-ANT,MW FOR 2B(SYN) A...................

L 3 87-A91-096-010 BAR-ANT,MW/LW FOR 3B(SYN) .BC.................

L 7 87-A91-308-010 0E FLTR,PCFAZH- 450T (TOK) ABC.................

L 2 88-CD6-655-010 COIL,FM5MM*3.5T ABC.................

L 51 87-A50-421-010 COIL,LW OSC(SYN) .BC.................

Q 1 89-319-233-080 0E TR,2SC1923 (0.1W) ABC.................

Q 54 87-026-214-080 0E TR,DTA114YS (0.3W) .BC.................

Q 52 87-026-447-080 0E TR,2SC1740S R .BC.................

Q 51 87-A30-092-080 0E FET,2SK439E/F .BC.................

Q 53 89-320-011-080 0E TR,2SC2001 (15W) .BC.................

SCR 4 87-A40-615-070 0E VARI-CAP,KV1311NT ABC.................

SCR 5 87-A40-615-070 0E VARI-CAP,KV1311NT ABC.................

SCR 3 87-A40-616-070 1B VARI-CAP,SVC384(S/T) ABC.................

TC 1 87-011-220-080 1A TRIMMER CAP 20P VTC ABC.................

TC 51 87-011-233-080 1A TRIMER,50P VCT54 .BC.................

X 1 87-A70-061-010 1A VIB,XTAL 4.500MHZ CSA-309 ABC.................

MECHANICAL PARTS LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

EZ .....................XX....................................C.................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8Z-CH6-012-010 CABI,FR X ....................

8Z-CHT-015-010 BOX,CASS 26U ....................

87-B00-020-010 0E BADGE,AIWA 30 GOLD ABC.................

88-CH6-019-010 PANEL,CD ABC.................

8Z-CH4-002-010 CABI,REAR ABC.................

8Z-CH4-003-010 CHAS,CD ABC.................

8Z-CH4-004-010 BOX,CD ABC.................

8Z-CH4-005-010 WINDOW,CD ABC.................

8Z-CH4-007-010 WINDOW,CASS ABC.................

8Z-CH4-008-010 LID,BATT ABC.................

8Z-CH4-009-010 HANDL,ARM ABC.................

8Z-CH4-010-010 HANDL,GRIP ABC.................

8Z-CH4-013-010 PANEL,LCD21 ABC.................

8Z-CH4-015-010 WINDOW,LCD A...................

8Z-CH4-030-010 COVER, PH ABC.................

8Z-CH4-064-010 WINDOW,LCD EZ .BC.................

8Z-CH6-001-010 CABI,TOP 3L ABC.................

8Z-CH6-002-010 CABI,TOP 3R ABC.................

8Z-CH6-010-010 BOX,CASS 6 ABC.................

8Z-CH6-012-010 CABI,FR X ABC.................

8Z-CH6-013-010 WINDOW,LED 6 A...................

8Z-CH6-017-010 GRILLE,FR L 6 ABC.................

8Z-CH6-018-010 GRILLE,FR R 6 ABC.................

8Z-CH6-019-010 WINDOW,LED 6A .BC.................

8Z-CH4-023-010 BTN,VOL ABC.................

8Z-CH4-024-010 BTN,CD ABC.................

8Z-CH4-025-010 BTN,REPEAT ABC.................

8Z-CH4-026-010 BTN,FUNC ABC.................

8Z-CH4-027-010 BTN,EQ ABC.................

8Z-CH4-028-010 KEY,CASS 21 ABC.................

87-CD6-041-010 PLATE,AC ABC.................

84-CD5-215-010 0E GEAR ABC.................

84-CD5-216-010 0E BRACKET ABC.................

84-CD5-217-010 PLATE,MAGNET ABC.................

85-CD7-217-010 HLDR,CHUCK A ABC.................

86-CT4-218-010 0E CUSHION,FOOT/PORON ABC.................

87-036-368-010 0E MAGNET ABC.................

87-A91-151-010 SW,LEAF 1P2T/TC48-021 ABC.................

87-CD6-213-010 SPR-C,BATT (-) ABC.................

87-CD6-214-010 SPR-C,BATT LINK ABC.................

87-CD6-222-010 SPR-C,BATT (-) L ABC.................

87-CD6-223-010 SPR-C,BATT LINK L ABC.................

88-CH6-207-010 HLDR,ANT ABC.................

8Z-CH4-201-010 HLDR,LCD ABC.................

8Z-CH4-204-010 HLDR,SPEAKER ABC.................

8Z-CH4-205-010 SPR-T,CASS ABC.................

8Z-CH4-206-010 SPR-T,CD ABC.................

8Z-CH4-207-010 HLDR,OIL-DMPR ABC.................

8Z-CH4-208-010 HLDR,PWB ABC.................

8Z-CH4-209-010 HLDR,PT ABC.................

8Z-CH4-210-010 HLDR,LED ABC.................

8Z-CH4-211-010 BASE,CHUCK ABC.................

8Z-CH4-212-010 RING,CHUCK ABC.................

8Z-CH4-214-010 HLDR,REC-SW 21 ABC.................

8Z-CH4-216-010 HLDR,FUNC-PWB ABC.................

87-067-566-010 0E TAPPING SCREW, VFTT+3-6 ABC.................

87-254-097-410 0E U+3-12 CR ABC.................

87-261-037-410 0E V+2-10 GLD ABC.................

87-342-074-010 0E UT2+2.6-8 ABC.................

87-571-032-410 0E VIT+2-3 ABC.................

87-644-096-410 UT1+3-10 CR ABC.................

87-661-100-410 0E VFT1+3-16 ABC.................

87-741-095-410 0E UT2+3-8 GLD ABC.................

87-751-094-410 0E VT2+3-6 W10SL0T ABC.................

* 87-751-075-410 VT2+2.6-10 ABC.................

* 87-B10-239-010 QT2+3-8 W/O CR ABC.................

* 87-B10-242-010 UT2+3-30 W/O CR ABC.................

87-036-389-010 1B SW,PUSH LOCK ABC.................

87-A60-177-010 1A JACK,AC U W/SW A...................

87-A60-178-010 JACK,AC E W/SW .BC.................

87-A90-092-080 1A PROTECTOR,2.5A 491 ..C.................

88-CH6-626-010 PT,U A...................

88-CH6-627-010 PT,E .BC.................

8Z-CH4-614-010 CONN ASSY,6P CD-ME ABC.................

8Z-CH4-618-010 FF-CABLE, 16P CD-RF ABC.................

8Z-CH4-620-010 FF-CABLE, 7P FR-LED ABC.................

8Z-CH4-621-010 FF-CABLE, 7P CD-FR ABC.................

8Z-CH4-640-010 ANT,ROD ABC.................

SP 0 88-CD5-603-010 SPKR,10 7OHM ABC.................

W 0 8Z-CH4-619-010 FF-CABLE, 14P AF-FR ABC.................

W 0 8Z-CH4-622-010 FF-CABLE, 6P TU-FR ABC.................

ACCESSORIES / PACKAGE LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

EZ .....................XX....................................C.................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8Z-CH6-905-010 IB,U(ESF)B A...................

8Z-CH6-908-010 IB,EZ(9L)B ..C.................

8Z-CH6-909-010 IB,K(E)B .B..................

8Z-CH6-915-010 IB,U(ESF)FM ....................

8Z-CH6-918-010 IB,EZ(9L)FM ....................

8Z-CH6-919-010 IB,K(E)FM ....................

87-A80-034-010 AC CORD SET ASSY,K W/F MAY-BG .B..................

87-A80-036-010 AC CORD SET ASSY,E W/FLTR VOL ..C.................

87-A80-109-010 1C AC CORD,HK7281 BLK U A...................

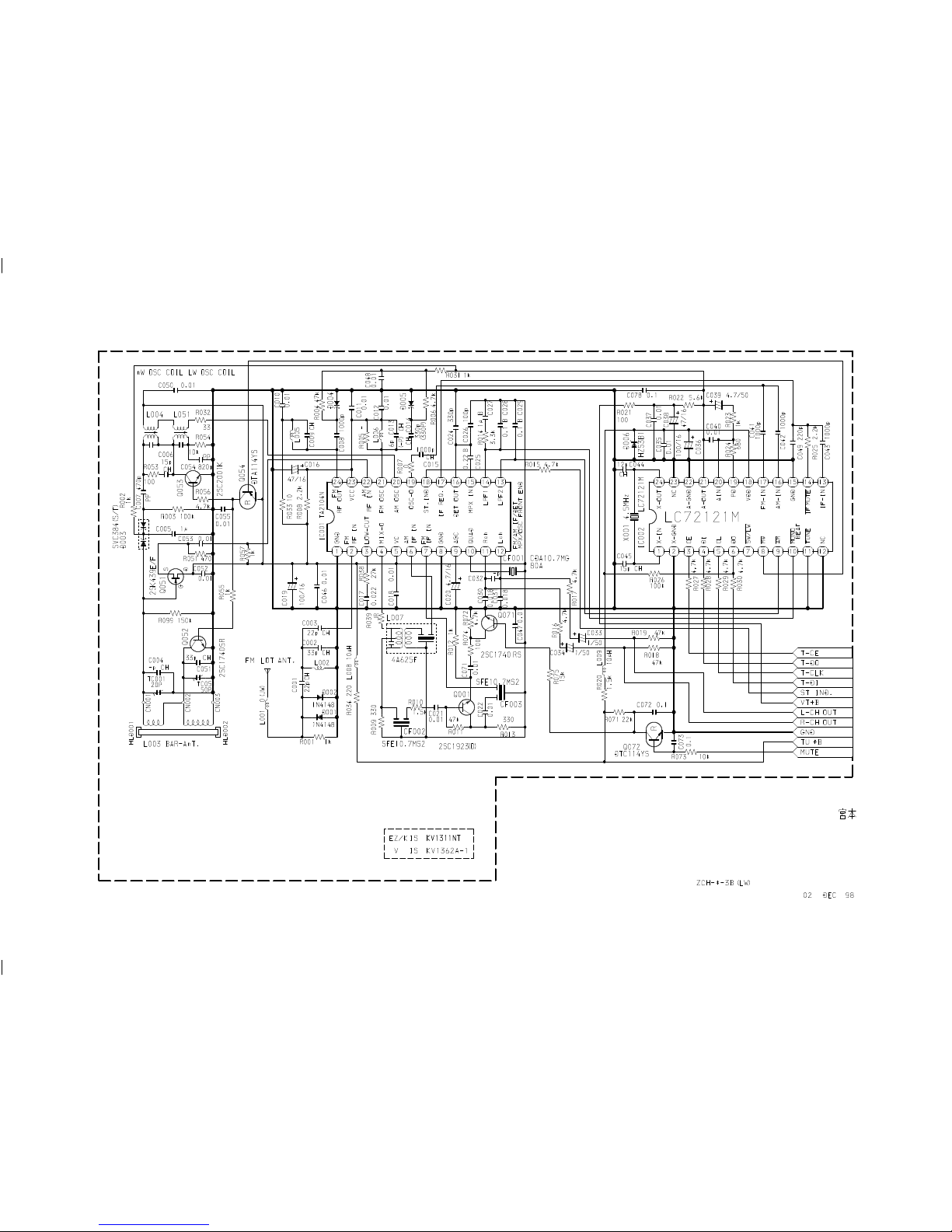

SCHEMATIC DIAGRAM _1 (MAIN 1/2)

SCHEMATIC DIAGRAM _2 (MAIN 2/2)

Other manuals for CSD-ED37

Table of contents

Popular Cassette Player manuals by other brands

Ahuja

Ahuja CPA-360 Operation manual

Sony

Sony Pressman TCS-60DV Specifications

Philips

Philips AQ6485/14 Product information

Sony

Sony TCM-200DV - Cassette Recorder operating instructions

Nakamichi

Nakamichi BX-300 Service manual

Panasonic

Panasonic RQ-E25V operating instructions

Yamaha

Yamaha MT8X Operation manual

Sherwood

Sherwood Newcastle D-480 operating instructions

Manta

Manta MA408 user manual

GPO

GPO W0162B user guide

Marantz

Marantz CP230 Service manual

Sony

Sony HST-471 Service manual

Sharp

Sharp JC-AV1 Operation manual

Pioneer

Pioneer CT-W103 Service manual

Sony

Sony CFS-B15 - Am/fm Stereo Cassette Recorder operating instructions

Sony

Sony WMFS220 - Portable Sports AM/FM Cassette... operating instructions

Sanyo

Sanyo MCD-ZX700F Service manual

Sony

Sony Pressman TCM-465V operating instructions

Aiwa CSD-ED37 Instructions for use

Popular Cassette Player manuals by other brands
