SERVICE MANUAL
DATA
BASIC TAPE MECHANISM : ZZM-1 YR2NF
BASIC CD MECHANISM : DA11T3C
COMPACT DISC RADIO
CASSETTE RECORDER
CSD-A170
CSD-A110
CSD-A100
CSD-A99
S/M Code No. 09-003-342-2R2
U(S),K(S),HA(S)
EZ(S,L),HR(S)
K(S),EZ(S,L,P)
,HE(S),HT(S)
K(S)
REVISION
This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
CSD-A100 K(S),EZ(S)/A110 EZ(S)/A170 K(S)(S/M Code No. 09-003-342-2T2)
CSD-A170 U(S),HA(S)/A110 EZ(L),HR(S)/A100 HE(S),HT(S),EZ(L,P)/A99 K(S)
(S/M Code No. 09-003-342-2T4).
2
SPECIFICATIONS
•
Design and specifications are subject to change
without notice.
HR, HE MODELS K, EZ MODELS
•
Design and specifications are subject to change
without notice.
HA MODEL U MODEL
•
Design and specifications are subject to change
without notice.
•
Design and specifications are subject to change
without notice.
3

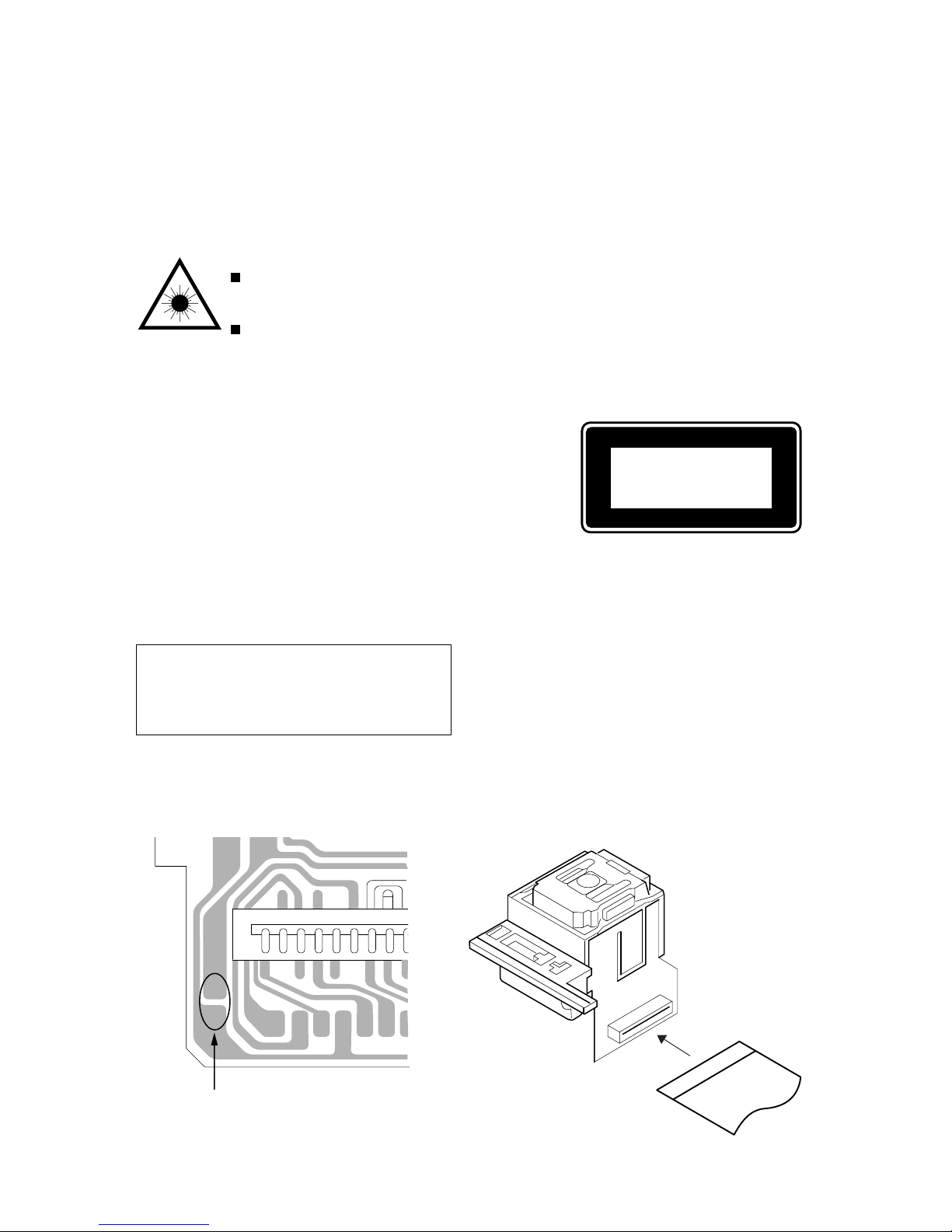

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainit-
ulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylit-
tävälle näkymättömälle lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som specificeras i
denna bruksanvising, kan användaren utsättas för osynling
laserstrålning, som överskrider gränsen för laserklass 1.
Caution: Invisible laser radiation when
open and interlocks defeated avoid expo-
sure to beam.
Advarsel:Usynling laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
ATTENTION
L'utilisation de commandes, réglages ou procédures autres que
ceux spécifiés peut entraîner une dangereuse exposition aux
radiations.
ADVARSEL!
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude
af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1 LASER
product.
The CLASS 1 LASER PRODUCT label is located on the rear
exterior.
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!
WHEN SERVICING, DO NOT APPROACH THE LASER EXIT
WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO
CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE
FROM A DISTANCE OF MORE THAN 30cm FROM THE
SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL
PICK-UP BLOCK.
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT
Precaution to replace Optical block
(SF-P101NR)
1) After the connection, remove solder shown in
the right figure.
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.
Solder
1
16
TO/FROM CD C.B
PICK UP ASSY
SF-P101NR
4
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
ELECTRICAL MAIN PARTS LIST
IC
87-A20-955-010 IC,LA1828
87-A21-064-010 IC,LA4227
87-A21-520-040 C-IC,M61509FP
<110HRJ(S),110EZ(S),110EZ(L),170U(S),170K(S),170HA(S)>
87-A21-443-040 C-IC,M62495AFP
<EXCEPT 110HRJ(S),110EZ(S),110EZ(L),170U(S),170K(S),170HA(S)>
87-A20-446-010 C-IC,LA9241ML
87-A20-459-010 C-IC,LC78622ED
87-A21-093-010 IC,LA6541D
8A-CD9-610-010 C-IC,LC865516A-5P16
87-A20-650-010 IC,RPM6938-V11
<170U(S),170K(S),170HA(S)>
87-A21-607-010 IC,NJM14558LD
TRANSISTOR
89-327-143-080 TR,2SC2714 (0.1W)
87-026-447-080 TR,2SC1740S R
87-026-463-080 TR,2SA933S (0.3W)
87-026-213-080 CHIP-TR,DTC114YK
89-318-154-080 TR,2SC1815 (0.4W)
89-112-965-080 TR,2SA1296 (0.75W)
87-026-291-080 TR,DTC124XS
89-213-702-010 TR,2SB1370 (1.8W)
87-026-462-080 TR,2SC1740 S(RS 0.3W)
89-109-332-380 TR,2SA933RS
89-113-187-080 TR,2SA1318TU
87-026-295-080 TR,DTC144TK
89-317-403-080 TR,2SC1740S
87-026-239-080 TR,DTC114TK (0.2W)
87-026-237-080 CHIP-TR,DTC124XK
<170U(S),170K(S),170HA(S)>
87-026-464-080 TR,DTC114TS (0.3W)
DIODE
87-020-465-080 DIODE,1SS133 (110MA)
87-A40-128-080 C-VARI-CAP,HVU202A
87-A40-650-080 ZENER,MTZJ6.8A
87-070-345-080 DIODE,IN4148
87-A40-648-080 ZENER,MTZJ8.2A
87-A40-234-080 ZENER,MTZJ5.6A
87-017-978-080 DIODE,1N4003
87-017-932-080 ZENER,MTJ6.2B
87-A40-465-010 DIODE,FR202
MAIN C.B
C211 87-A11-177-080 C-CAP,S 0.15-16 K B
C212 87-A11-177-080 C-CAP,S 0.15-16 K B
C215 87-016-460-080 C-CAP,S 0.22-16 B
C216 87-016-460-080 C-CAP,S 0.22-16 B
C231 87-010-213-080 C-CAP,S 0.015-50 B
C232 87-010-213-080 C-CAP,S 0.015-50 B
C233 87-A10-201-080 C-CAP,S0.33-16 KB
C234 87-A10-201-080 C-CAP,S0.33-16 KB
C235 87-016-669-080 C-CAP,S 0.1-25 K B
C236 87-016-669-080 C-CAP,S 0.1-25 K B
C237 87-010-371-080 CAP, ELECT 470-6.3V
C239 87-010-197-080 CAP, CHIP 0.01 DM
<110HRJ(S),110EZ(S),110EZ(L),170U(S),170K(S),170HA(S)>
C239 87-010-805-080 CAP, S 1-16
<EXCEPT 110HRJ(S),110EZ(S),110EZ(L),170U(S),170K(S),170HA(S)>
C240 87-010-197-080 CAP, CHIP 0.01 DM
<110HRJ(S),110EZ(S),110EZ(L),170U(S),170K(S),170HA(S)>
C240 87-010-805-080 CAP, S 1-16
<EXCEPT 110HRJ(S),110EZ(S),110EZ(L),170U(S),170K(S),170HA(S)>
C247 87-010-401-080 CAP, ELECT 1-50V
C248 87-010-401-080 CAP, ELECT 1-50V
C310 87-010-248-080 CAP, ELECT 220-10V
C316 87-010-263-080 CAP, ELECT 100-10V
C317 87-015-819-080 CAPACITOR,0.01
C322 87-010-260-080 CAP, ELECT 47-25V
C483 87-012-156-080 C-CAP,S 220P-50 CH
C484 87-012-156-080 C-CAP,S 220P-50 CH
C801 87-010-248-080 CAP, ELECT 220-10V
C805 87-012-365-080 C-CAP,S 0.027-25VBK
C806 87-012-365-080 C-CAP,S 0.027-25VBK
C807 87-010-405-080 CAP, ELECT 10-50V
C808 87-010-405-080 CAP, ELECT 10-50V
C809 87-010-401-080 CAP, ELECT 1-50V
C810 87-010-401-080 CAP, ELECT 1-50V
C811 87-010-178-080 CHIP CAP 1000P
C812 87-010-178-080 CHIP CAP 1000P
C816 87-010-180-080 C-CER 1500P
C817 87-010-180-080 C-CER 1500P
C821 87-010-401-080 CAP, ELECT 1-50V
C822 87-010-401-080 CAP, ELECT 1-50V
C823 87-010-178-080 CHIP CAP 1000P
C824 87-010-178-080 CHIP CAP 1000P
C829 87-010-178-080 CHIP CAP 1000P
C830 87-010-178-080 CHIP CAP 1000P
C833 87-018-195-080 CAP, CER 1200P-16V
C834 87-010-248-080 CAP, ELECT 220-10V
C843 87-010-197-080 CAP, CHIP 0.01 DM
C844 87-018-124-080 CAP, CER 270P-50V
C845 87-010-178-080 CHIP CAP 1000P
C846 87-010-263-080 CAP, ELECT 100-10V
C851 87-010-186-080 CAP,CHIP 4700P
C852 87-010-178-080 CHIP CAP 1000P
C853 87-A11-132-080 CAP,TC U 0.01-50 K B
CN201 87-099-018-010 CONN,16P
CN801 87-A60-110-010 CONN,4P V S2M-4W
CNA302 8A-CDA-629-010 CONN ASSY,6P MA-TU
L801 87-007-342-010 COIL,OSC 85K BIAS
SW801 8Z-CD9-609-010 SW,SL 1-6-2 PS62D01
CD C.B
C30 87-010-260-080 CAP, ELECT 47-25V
C251 87-010-404-080 CAP, ELECT 4.7-50V
C261 87-010-402-080 CAP, ELECT 2.2-50V
C262 87-010-402-080 CAP, ELECT 2.2-50V
C263 87-010-178-080 CHIP CAP 1000P
C264 87-010-178-080 CHIP CAP 1000P
C265 87-010-263-080 CAP, ELECT 100-10V
C266 87-010-263-080 CAP, ELECT 100-10V
C267 87-010-112-080 CAP, ELECT 100-16V
C268 87-010-112-080 CAP, ELECT 100-16V
C271 87-010-237-080 CAP, ELECT 1000-16V
C272 87-010-237-080 CAP, ELECT 1000-16V
C278 87-010-405-080 CAP, ELECT 10-50V
C279 87-010-385-080 CAP, ELECT 220-25V
C301 87-016-495-000 CAP,E 3300-25 M SMG
C306 87-010-404-080 CAP, ELECT 4.7-50V
C307 87-010-401-080 CAP, ELECT 1-50V
C308 87-010-221-080 CAP, ELECT 470-10V
C311 87-010-374-080 CAP, ELECT 47-10V
C312 87-010-385-080 CAP, ELECT 220-25V
C321 87-010-197-080 CAP, CHIP 0.01 DM
C322 87-010-263-080 CAP, ELECT 100-10V
C325 87-010-405-080 CAP, ELECT 10-50V
C401 87-010-403-080 CAP, ELECT 3.3-50V
C402 87-010-197-080 CAP, CHIP 0.01 DM
C403 87-010-263-080 CAP, ELECT 100-10V
C404 87-010-248-080 CAP, ELECT 220-10V
C405 87-010-197-080 CAP, CHIP 0.01 DM
5
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
C406 87-010-374-080 CAP, ELECT 47-10V
C407 87-010-178-080 CHIP CAP 1000P
C408 87-010-198-080 CAP, CHIP 0.022
C409 87-010-248-080 CAP, ELECT 220-10V
C410 87-010-263-080 CAP, ELECT 100-10V
C411 87-A11-177-080 C-CAP,S 0.15-16 K B
C412 87-010-401-080 CAP, ELECT 1-50V
C413 87-016-369-080 C-CAP,S 0.033-25 B K
C414 87-010-405-080 CAP, ELECT 10-50V
C416 87-010-545-080 CAP, ELECT 0.22-50V
C417 87-012-157-080 C-CAP,S 330P-50 CH
C418 87-010-213-080 C-CAP,S 0.015-50 B
C419 87-A11-608-080 C-CAP,S 0.33-25 K B
C420 87-016-369-080 C-CAP,S 0.033-25 B K
C421 87-A11-177-080 C-CAP,S 0.15-16 K B
C422 87-010-184-080 CHIP CAPACITOR 3300P(K)
C423 87-010-992-080 C-CAP,S 0.047-25 B
C425 87-010-176-080 C-CAP,S 680P-50 SL
C426 87-A11-608-080 C-CAP,S 0.33-25 K B
C428 87-010-197-080 CAP, CHIP 0.01 DM
C429 87-010-186-080 CAP,CHIP 4700P
C430 87-012-156-080 C-CAP,S 220P-50 CH
C431 87-010-545-080 CAP, ELECT 0.22-50V
C432 87-010-374-080 CAP, ELECT 47-10V
C433 87-010-401-080 CAP, ELECT 1-50V
C434 87-010-184-080 CHIP CAPACITOR 3300P(K)
C435 87-010-197-080 CAP, CHIP 0.01 DM
C436 87-010-374-080 CAP, ELECT 47-10V
C437 87-010-404-080 CAP, ELECT 4.7-50V
C438 87-016-669-080 C-CAP,S 0.1-25 K B
C439 87-010-178-080 CHIP CAP 1000P
C440 87-010-145-080 C-CAP,S 1P-50 CH
C441 87-010-197-080 CAP, CHIP 0.01 DM
C442 87-010-313-080 CAP, CHIP 18P
C445 87-012-368-080 C-CAP,S 0.1-50 F
C446 87-012-368-080 C-CAP,S 0.1-50 F
C447 87-012-368-080 C-CAP,S 0.1-50 F
C448 87-010-315-080 C-CAP,S 27P-50 CH
C450 87-012-140-080 CAP 470P
C451 87-012-156-080 C-CAP,S 220P-50 CH
C455 87-010-247-080 CAP, ELECT 100-50V
C457 87-010-312-080 C-CAP,S 15P-50 CH
C458 87-010-312-080 C-CAP,S 15P-50 CH
C459 87-010-263-080 CAP, ELECT 100-10V
C460 87-015-819-080 CAPACITOR,0.01
C461 87-010-197-080 CAP, CHIP 0.01 DM
C462 87-010-248-080 CAP, ELECT 220-10V
C463 87-010-197-080 CAP, CHIP 0.01 DM
C465 87-010-404-080 CAP, ELECT 4.7-50V
C466 87-012-368-080 C-CAP,S 0.1-50 F
C467 87-010-263-080 CAP, ELECT 100-10V
C469 87-012-154-080 C-CAP,S 150P-50 CH
C470 87-010-544-080 CAP, ELECT 0.1-50V
C471 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z
C472 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z
C473 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z
C474 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z
C475 87-010-197-080 CAP, CHIP 0.01 DM
C476 87-010-236-080 CAP,E 1000-10 SME
C477 87-010-197-080 CAP, CHIP 0.01 DM
C478 87-010-263-080 CAP, ELECT 100-10V
C479 87-010-197-080 CAP, CHIP 0.01 DM
C480 87-010-221-080 CAP, ELECT 470-10V
C481 87-010-405-080 CAP, ELECT 10-50V
C482 87-010-405-080 CAP, ELECT 10-50V
C489 87-012-368-080 C-CAP,S 0.1-50 F
C490 87-012-368-080 C-CAP,S 0.1-50 F
C491 87-010-197-080 CAP, CHIP 0.01 DM
C492 87-010-221-080 CAP, ELECT 470-10V
C493 87-010-180-080 C-CER 1500P<170U(S)>
C494 87-010-197-080 CAP, CHIP 0.01 DM
C501 87-012-368-080 C-CAP,S 0.1-50 F
C502 87-010-322-080 C-CAP,S 100P-50 CH
C503 87-010-322-080 C-CAP,S 100P-50 CH
C504 87-010-322-080 C-CAP,S 100P-50 CH
C505 87-010-322-080 C-CAP,S 100P-50 CH
C506 87-010-322-080 C-CAP,S 100P-50 CH
C510 87-016-669-080 C-CAP,S 0.1-25 K B
C831 87-010-198-080 CAP, CHIP 0.022
CN202 8A-CH4-689-010 CONN,3P V 2.5
CN205 87-A60-109-010 CONN,2P V S2M-2W
CN301 8A-CH4-689-010 CONN,3P V 2.5
CN401 87-A60-424-010 CONN,16P V TOC-B
CN403 87-099-201-010 CONN,8P 6216 H
CN802 8A-CH4-687-010 CONN,4P V 2.5
CNA402 8A-CDA-625-010 CONN ASSY,6P CD-ME
L401 87-003-102-080 COIL, 10UH
L404 87-003-152-080 COIL, 100UH
!
R840 87-029-124-010 RES,FUSE 2.2-1/4
SFR430 87-024-437-080 SFR100K,RH063EC
X401 8Z-CD5-633-010 VIB, CER16.93MHZ FCR16.93M2
FRONT C.B
C601 87-010-313-080 CAP, CHIP 18P
C602 87-010-315-080 C-CAP,S 27P-50 CH
C603 87-010-319-080 C-CAP,S 56P-50 CH
C604 87-010-317-010 CHIP CAP,S 39P CH
C605 87-010-264-040 CAP,E 100-10 5L
C606 87-012-368-080 C-CAP,S 0.1-50 F
C607 87-015-779-010 CHIP CAPACITOR, 0.01
C608 87-010-415-080 CAP ELE SRE 10-50V
C609 87-010-493-080 CAP,E 0.47-50 GAS
C610 87-010-178-080 CHIP CAP 1000P
<170U(S),170K(S),170HA(S)>
C611 87-A10-189-040 CAP,E 220-10
C612 87-010-415-080 CAP ELE SRE 10-50V
<170U(S),170K(S),170HA(S)>
C613 87-012-368-080 C-CAP,S 0.1-50 F
C614 87-010-312-080 C-CAP,S 15P-50 CH
C627 87-015-779-010 CHIP CAPACITOR, 0.01
C628 87-015-779-010 CHIP CAPACITOR, 0.01
C629 87-015-779-010 CHIP CAPACITOR, 0.01
C630 87-010-264-040 CAP,E 100-10 5L
C631 87-015-779-010 CHIP CAPACITOR, 0.01
CN601 87-099-757-010 CONN,16P 9604S F
CN602 87-A60-079-010 CONN,08P H 9604S-08F
CNA604 8A-CDA-623-010 CONN ASSY,7P KEY
JW603 87-008-372-080 FILTER, EMI BL OIRNI
JW605 87-003-097-080 COIL,1UH
JW606 87-003-097-080 COIL,1UH
JW608 87-003-097-080 COIL,1UH
JW627 87-008-372-080 FILTER, EMI BL OIRNI
JW633 87-003-098-080 COIL,2.2UH
L601 87-003-098-080 COIL,2.2UH
LED602 88-CD6-630-010 LED,934ID RED
LED608 88-CD6-630-010 LED,934ID RED
LED610 88-CD6-631-010 LED,934GD GRN
<110HRJ(S),110EZ(S),110EZ(L),170U(S),170K(S),170HA(S)>
LED611 87-CD8-616-010 LED,SA36-11 HWA-11.0
S601 87-A91-704-080 SW,TACT EVQ 214 05R
S602 87-A91-704-080 SW,TACT EVQ 214 05R
S603 87-A91-704-080 SW,TACT EVQ 214 05R
S604 87-A91-704-080 SW,TACT EVQ 214 05R
S605 87-A91-704-080 SW,TACT EVQ 214 05R
S609 87-A91-704-080 SW,TACT EVQ 214 05R
<110HRJ(S),110EZ(S),110EZ(L),170U(S),170K(S),170HA(S)>
S611 87-A91-704-080 SW,TACT EVQ 214 05R
X601 87-030-273-010 VIB,XTAL 32.768K5PPM
X602 87-030-376-080 VIB,CER CSA5.76MG200
6
REF. NO PART NO. KANRI DESCRIPTION
NO. REF. NO PART NO. KANRI DESCRIPTION
NO.
TUNER C.B
C1 87-010-314-080 C-CAP,S 22P-50V
C2 87-010-316-080 C-CAP,S 33P-50 CH
C3 87-010-314-080 C-CAP,S 22P-50V
C4 87-010-148-080 CAP, CHIP S 4P SL
<110HRJ(S),100HRJ(S),170U(S),170HA(S)>
C5 87-010-378-080 CAP, ELECT 10-16V
C7 87-012-156-080 C-CAP,S 220P-50 CH
C8 87-010-197-080 CAP, CHIP 0.01 DM
C9 87-010-311-080 CAP 12P
C10 87-010-197-080 CAP, CHIP 0.01 DM
C11 87-010-152-080 C-CAP,S 8P-50 CH
C12 87-010-314-080 C-CAP,S 22P-50V
C13 87-010-322-080 C-CAP,S 100P-50 CH
C14 87-010-148-080 CAP, CHIP S 4P SL
C15 87-016-669-080 C-CAP,S 0.1-25 K B
C16 87-010-178-080 CHIP CAP 1000P
C17 87-016-669-080 C-CAP,S 0.1-25 K B
C18 87-010-198-080 CAP, CHIP 0.022
C19 87-016-669-080 C-CAP,S 0.1-25 K B
C20 87-010-400-080 CAP, ELECT 0.47-50V
C21 87-010-403-080 CAP, ELECT 3.3-50V
C22 87-010-197-080 CAP, CHIP 0.01 DM
C24 87-010-197-080 CAP, CHIP 0.01 DM
C25 87-010-197-080 CAP, CHIP 0.01 DM
C26 87-012-358-080 C-CAP,S 0.47-10 F Z
C27 87-012-358-080 C-CAP,S 0.47-10 F Z
C28 87-010-992-080 C-CAP,S 0.047-25 B
C29 87-010-992-080 C-CAP,S 0.047-25 B
C30 87-010-248-080 CAP, ELECT 220-10V
C31 87-010-379-080 CAP, ELECT 22-16V
C32 87-010-197-080 CAP, CHIP 0.01 DM
C33 87-010-197-080 CAP, CHIP 0.01 DM
C34 87-010-197-080 CAP, CHIP 0.01 DM
C35 87-010-197-080 CAP, CHIP 0.01 DM
C36 87-010-263-080 CAP, ELECT 100-10V
C37 87-010-197-080 CAP, CHIP 0.01 DM
C38 87-010-197-080 CAP, CHIP 0.01 DM
C39 87-010-197-080 CAP, CHIP 0.01 DM
<110HRJ(S),100HRJ(S),170U(S),170HA(S)>
C40 87-010-150-080 C-CAP,S 6P-50 CH
<EXCEPT 110HRJ(S),100HRJ(S),170U(S),170HA(S)>
C41 87-010-321-080 CHIP CAPACITOR,82P(J)
<EXCEPT 110HRJ(S),100HRJ(S),170U(S),170HA(S)>
C42 87-010-150-080 C-CAP,S 6P-50 CH
<EXCEPT 110HRJ(S),100HRJ(S),170U(S),170HA(S)>
C44 87-012-140-080 CAP 470P
<EXCEPT 110HRJ(S),100HRJ(S),170U(S),170HA(S)>
C51 87-010-197-080 CAP, CHIP 0.01 DM
C56 87-010-152-080 C-CAP,S 8P-50 CH
<110HRJ(S),100HRJ(S),170U(S),170HA(S)>
CF1 87-A90-128-010 FLTR,AM IF CFAL-455
CF2 87-008-261-010 FILTER, SFE10.7MA5-A
CF3 87-008-261-010 FILTER, SFE10.7MA5-A
CN2 87-A60-116-010 CONN,6P H S2M-6WR
L2 87-A50-560-010 COIL,FM BPF(ACD)
L3 8A-CD9-660-010 BAR-ANT,MW 2B-ACD(COI)
<110HRJ(S),100HRJ(S),170U(S),170HA(S)>
L3 8A-CD9-661-010 BAR-ANT,MW/LW 3B-ACD(COI)
<EXCEPT 110HRJ(S),100HRJ(S),170U(S),170HA(S)>
L4 87-A50-562-010 COIL,FM RF EX(ACD)
L5 87-A50-564-010 COIL,FM OSC EX(ACD)
L6 87-A50-337-010 COIL,AM OSC (TOKO)
<110HRJ(S),100HRJ(S),170U(S),170HA(S)>
L7 87-A50-579-010 COIL,AM IFT(ACD)
L8 87-A50-335-010 COIL,FM IFT (TOKO)
L9 87-A50-577-010 COIL,FM DET(ACD)
L10 87-005-849-080 COIL,10UH(CECS)
L16 87-A50-569-010 COIL,LW OSC-ACD(COI)
<EXCEPT 110HRJ(S),100HRJ(S),170U(S),170HA(S)>
L17 87-A50-337-010 COIL,AM OSC (TOKO)
<EXCEPT 110HRJ(S),100HRJ(S),170U(S),170HA(S)>
S1 87-A91-548-010 SW,SL-2-3 SK23E01G06
<110HRJ(S),100HRJ(S),170U(S),170HA(S)>
S1 87-A91-549-010 SW,SL-6-4 SK64D01G06
<EXCEPT 110HRJ(S),100HRJ(S),170U(S),170HA(S)>
TC5 87-011-253-080 TRIMER,30P LAR
<EXCEPT 110HRJ(S),100HRJ(S),170U(S),170HA(S)>
TC6 87-011-253-080 TRIMER,30P LAR
<EXCEPT 110HRJ(S),100HRJ(S),170U(S),170HA(S)>
VC1 87-A91-635-010 TUN-CAP,20P-140P E-ACD(MITSUMI
<EXCEPT 100HE(S),170U(S),170HA(S)>
VC1 87-A91-167-010 TUN-CAP,20P-160P FA-22125 N000
<170U(S),170HA(S)>
VC1 87-A91-170-010 TUN-CAP,20P-335P FA-2217 N000-
<100HE(S)>
HP C.B
CN204 87-A60-685-010 CONN,4P H WHT EH
CN605 87-A60-117-010 CONN,7P H S2M-7WR
CNA203 8A-CDA-628-010 CONN ASSY,4P MA-HP
J251 87-A60-569-010 JACK,HTJ-035-18
LED606 88-CD6-630-010 LED,934ID RED
LED607 88-CD6-630-010 LED,934ID RED
S606 87-A91-704-080 SW,TACT EVQ 214 05R
S607 87-A91-704-080 SW,TACT EVQ 214 05R
S608 87-A91-704-080 SW,TACT EVQ 214 05R
S614 87-A91-704-080 SW,TACT EVQ 214 05R
S615 87-A91-704-080 SW,TACT EVQ 214 05R
BATT1 C.B
C901 87-010-192-080 C-CAP,S 0.022-50 F
C902 87-010-192-080 C-CAP,S 0.022-50 F
C903 87-010-192-080 C-CAP,S 0.022-50 F
C904 87-010-192-080 C-CAP,S 0.022-50 F
CNA901 8A-CDA-627-010 CONN ASSY,3P PWR
!
PR901 87-A90-092-080 PROTECTOR,2.5A 491
SP901 87-CD6-213-010 SPR-C,BATT (-)
SP902 87-CD6-213-010 SPR-C,BATT (-)
BATT2 C.B
SP903 87-CD6-213-010 SPR-C,BATT (-)
SP904 87-CD6-213-010 SPR-C,BATT (-)
MOTOR C.B
M2 9X-262-576-910 MOTOR GEAR ASSY
PIN3 91-564-722-110 CONNECTOR 6P
SW1 91-572-085-120 LEAF SW
VOL SEL C.B<170HA(S)>
!
F901 87-035-347-010 FUSE, 2.5A 250V T<170HA(S)>
FC901 87-033-213-010 CLAMP, FUSE SMK<170HA(S)>
FC902 87-033-213-010 CLAMP, FUSE SMK<170HA(S)>
87
• Regarding connectors, they are not stocked as they are not the initial order items.
The connectors are available after they are supplied from connector manufacturers upon the order is received.
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ 1.0 0.5 0.35 104
Lt
W
IC BLOCK DIAGRAM
IC, M62495AFP
AUTO RESET
IC, LA6541D IC, M61509FP
IC, LA1828 IC, BA4560N
mono. SW
Control logic
12345678910 11 12 13 14
A
B
C
D
E
F
G
H
I
J
K
109
WIRING-1 (MAIN/CD)
A99, A100
A99, A100
1211
SCHEMATIC DIAGRAM-1 (MAIN)
C239, C240
IC203
R203, R204
R205, R206
A99, A100
0.1
M62495AFP
6.8K
1.2K
A110, A107
1
M61509FP
JW
NO MOUNT
MTJ6.2B
1N4148100
MTZJ6.8A
100
D810
1SS133 D809
1SS133
C484
220P
C483 220P
R819, R820
A110<HRJ(S)/EZ(S)/A170>
A100<K(S)/EZ(S)>
OTHER MODELS
: 1K
: 820
: 8.2K
J90
DRY BATTERY
R14X8
DC 12V
A170<HA> MODEDL
OTHER MODELS
1413
SCHEMATIC DIAGRAM-2 (CD)
1615
1234567
A
B
C
D
E
F
G
H
I
J
K

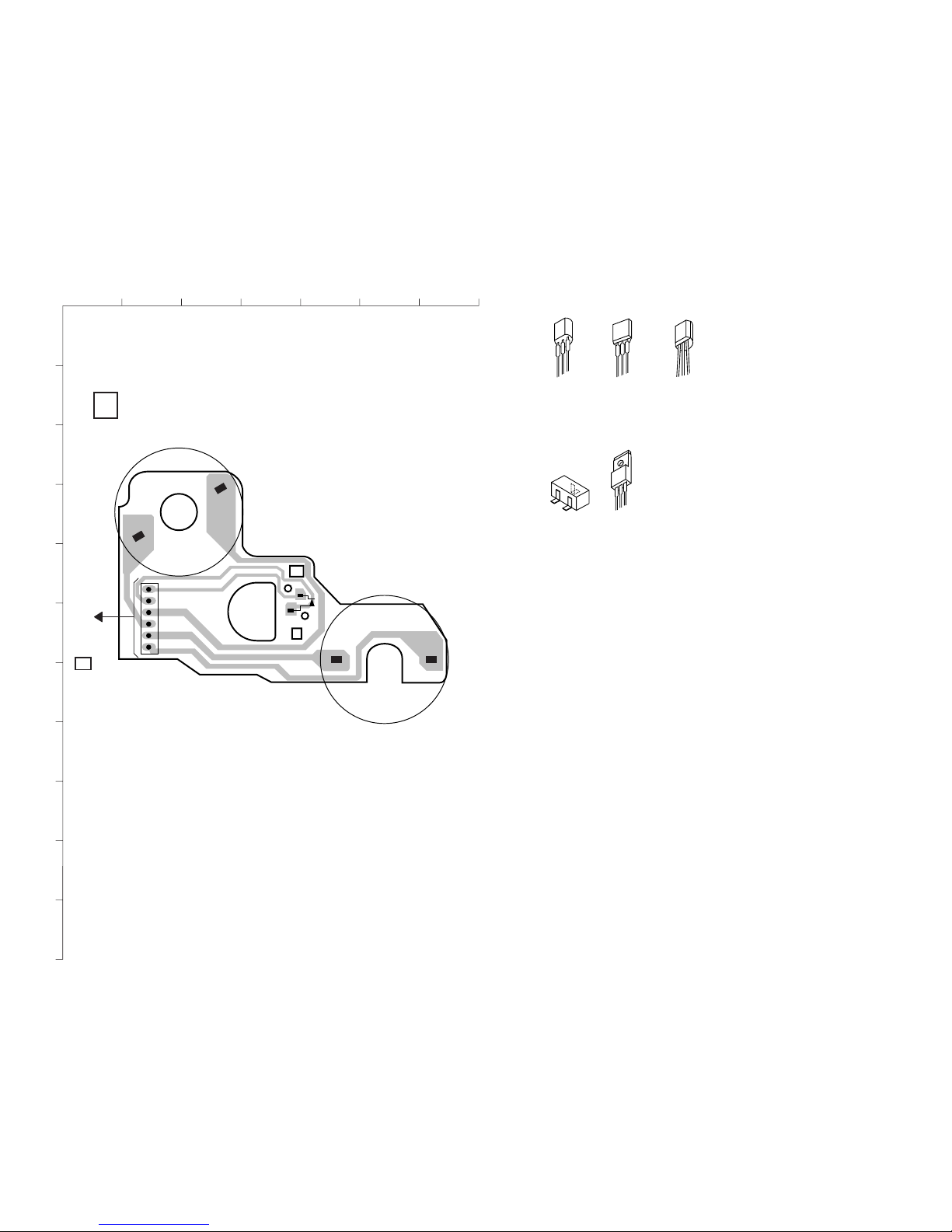

WIRING-2 (MOTOR)
PIN3
M3
SW1
_
+
M2
M3
(SPINDLE MOTOR)
SW1
(INSIDE LIMIT SW)
M2
(SLED MOTOR)
TO B CD C.B CNA402
H MOTOR C.B
_+
TRANSISTOR ILLUSTRATION
E
B
C
ECB ECB ECB
BCE
2SC2714
DTC114TK
DTC114YK
DTC124XK
DTC144TK
2SA1296
2SC1815 2SA933
2SC1740
DTC114TS
DTC124XS
2SA1318
2SB1370
12345678910 11 12 13 14
A
B
C
D
E
F
G
H
I
J
K
1817

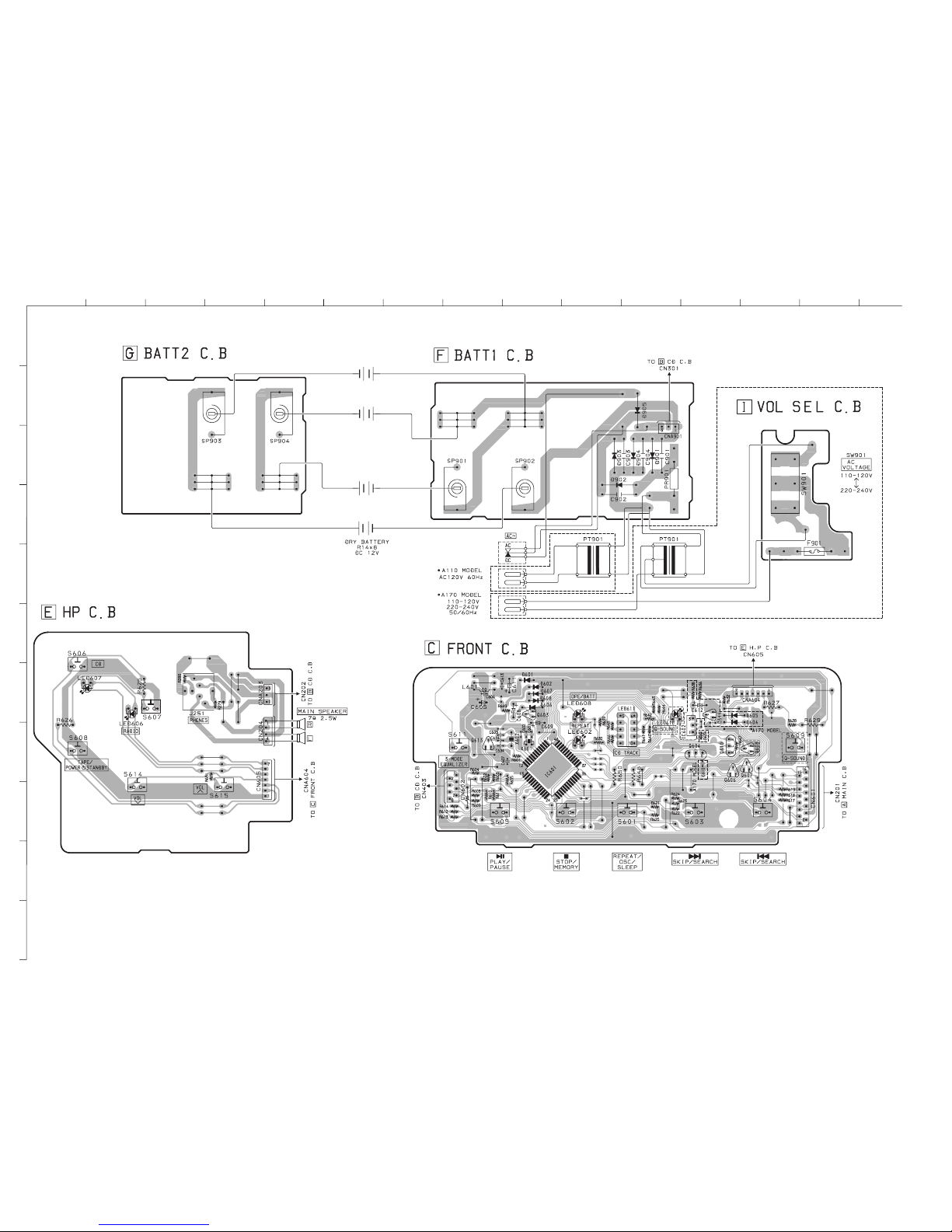

WIRING-3 (FRONT/HP/BATT1/BATT2)
A110, A170 MODELS
A110, A170
MODELS
A110, A170
MODELS
A110, A170
MODELS
JW604
A170<HA> MODEL
OTHER MODELS
2019
SCHEMATIC DIAGRAM-3 (FRONT)
CN602
CONN, 8P H 9604S-08F
A110, A170 MODELS
A110, A170 MODELS
A110, A170 MODELS
JW604
4.7k
2221

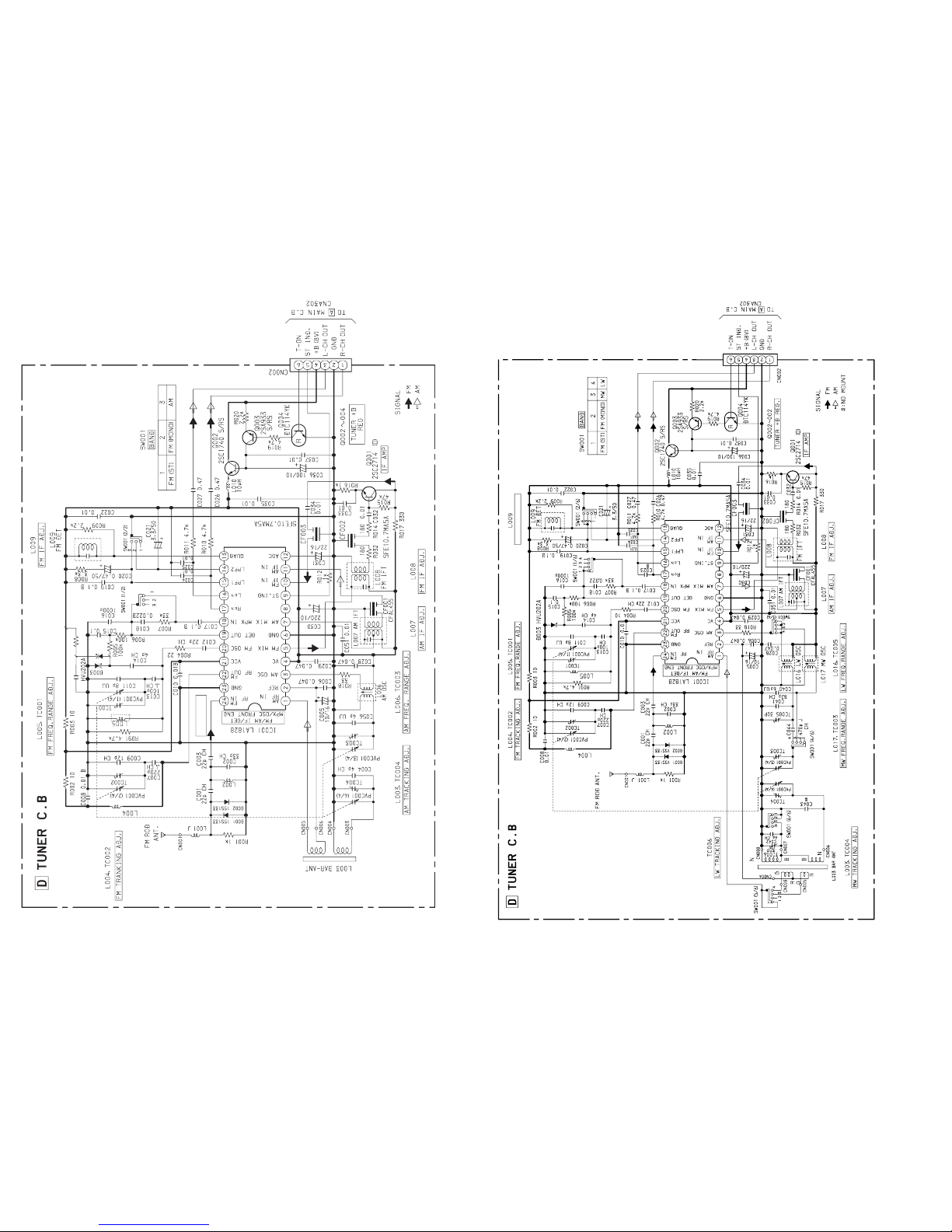

SCHEMATIC DIAGRAM-4 (TUMER: HA, HE, HR, U)
L005, TC001
FM FREQ. RANGE
ADJ.
C039 0.01 R022 100k
D013
HVU202A
SH001
SCHEMATIC DIAGRAM-5 (TUMER: K, EZ)
FM BALANCE ADJ.
2423
1234567
A
B
C
D
E
F
G
H
I
J
K
WIRING-4 (TUNER:HA, HE, HR, U) 1234567
A
B
C
D
E
F
G
H
I
J
K
WIRING-5 (TUNER: K, EZ)
2625
!
RPH
0
M1 (TAPE MOTOR)
MAIN C.B
A
L801
IC801
CN201
CN801
@
IC404
IC001
SFR430
#
CN401
CD C.B
B
TUNER C.B
(HA, HE, HR, U MODELS)
D
1
5
2
123
63 74
L009
L006
PVC001
TC1TC2
TC4 TC3 L005
L007
L008
L004
L003
(BAR ANT)
IC001
19
TUNER C.B
(K, EZ MODELS)
D
7
3
4
21
85 96
L009
L016 L017
TC006
TC005
PVC001
TC1
TC2
TC4 TC3
L005
L007
L008
L004
L003
(BAR ANT)
19
PHONES
J251
H.P. C.B
E
0!
ELECTRICAL ADJUSTMENT < TUNER SECTION >
(HA, HE, HR, U MODELS)
1. AM Freq. Range Adjustment
L006 ....................................................................... 517kHz
TC003................................................................... 1750kHz
2. AM Tracking Adjustment
L003 ....................................................................... 600kHz
TC004................................................................... 1400kHz
3. AM IF Adjustment
Settings: • Test point: IC001 (LA1828) 19PIN
• Adjustment location: L007
Method: Adjust L007 so that the output level at 1400kHz
becomes maximum.
4. FM Freq. Range Adjustment
L005 .....................................................................87.0MHz
TC001.................................................................109.0MHz
5. FM Tracking Adjustment
L004 .....................................................................88.0MHz
TC002.................................................................108.0MHz
6. FM IF Adjustment
Settings: • Test point: IC001 (LA1828) 19PIN
• Adjustment location: L008
Method: Adjust L008 so that the output level at 98.0MHz
becomes balanced.
7. FM Balance Adjustment
Settings: • Test point: IC001 (LA1828) 19PIN
• Adjustment location: L009
Method: Adjust L009 so that the output level at 98.0MHz
becomes balanced.
(K, EZ MODELS)
1. LW Freq. Range Adjustment
L016 ....................................................................... 145kHz
TC005..................................................................... 295kHz
2. MW Freq. Range Adjustment
L017 ....................................................................... 515kHz
TC003................................................................... 1635kHz
3. MW Tracking Adjustment
L003 ....................................................................... 600kHz
TC004................................................................... 1400kHz
4. LW Tracking Adjustment
TC006..................................................................... 288kHz
5. AM IF Adjustment
Settings: • Test point: IC001 (LA1828) 19PIN
• Adjustment location: L007
Method: Adjust L007 so that the output level at 1400kHz
becomes maximum.
6. FM Freq. Range Adjustment
L005 .....................................................................87.4MHz
TC001.................................................................108.3MHz
7. FM Tracking Adjustment
L004 .....................................................................88.0MHz
TC002.................................................................108.0MHz
8. FM IF Adjustment
Settings: • Test point: IC001 (LA1828) 19PIN
• Adjustment location: L008
Method: Adjust L008 so that the output level at 98.0MHz
becomes balanced.
9. FM Balance Adjustment
Settings: • Test point: IC001 (LA1828) 19PIN
• Adjustment location: L009
Method: Adjust L009 so that the output level at 98.0MHz
becomes balanced.
< DECK SECTION >
10. Tape Speed Adjustment
Settings : • Test tape : TTA–100
• Test point : J251 (PHONES jack)
• Adjustment location : SFR of deck motor
Method : Play back the test tape and adjust SFR so that
the frequency counter reads 3000Hz ± 30Hz.
11. Head Azimuth Adjustment
Settings : • Test tape : TTA–320
• Test point : J251 (PHONES jack)
• Adjustment location : Azimuth adjustment
screw
Method : Play back the 8kHz signal of the test tape and
adjust screw so that the output becomes
maximum.
12. Bias frequncy Adjustment
L801..................................................................85kHz±0.5kHz
< CD SECTION >
13. FE Balance Adjustment
Settings : • Test point : IC401 PIN58 (VR), IC401 PIN 20
(FE)
• Adjustment location : SFR430
Method : Playback the disc and adjust SFR430 so that the
test point voltage becomes 0V.
2827
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30, 31
32, 33
34
35
IC, LA9241ML
Pin No. Pin Name I/O Description
IC DESCRIPTION
FIN2
FIN1
E
F
TB
TE-
TE
TESI
SCI
TH
TA
TD-
TD
JP
TO
FD
FD-
FA
FA-
FE
FE-
AGND
SP
SPI
SPG
SP-
SPD
SLEQ
SLD
SL-, SL+
JP-, JP+
TGL
TOFF
I
I
I
I
I
I
O
I
I
I
O
I
I
I
O
O
I
I
I
O
I
—
O
I
I
I
O
I
O
I
I
I
I
Pin to which external pickup photo diode is connected. RF signal is created by adding
with the FIN1 pin signal. FE signal is created by subtracting from the FIN1 pin signal.
Pin to which external pickup photo diode is connected.
Pin to which external pickup photo diode is connected. TE signal is created by
subtracting from the F pin signal.
Pin to which external pickup photo diode is connected.
DC component of the TE signal is input.
Pin to which external resistor setting the TE signal gain is connected between the TE
pin.
TE signal output pin.
TES “Track Error Sense” comparator input pin. TE signal is passed through a band-
pass filter then input.
Shock detection signal input pin.
Tracking gain time constant setting pin.
TA amplifier output pin.
Pin to which external tracking phase compensation constants are connected between
the TD and VR pins.
Tracking phase compensation setting pin.
Tracking jump signal (kick pulse) amplitude setting pin.
Tracking control signal output pin.
Focusing control signal output pin.
Pin to which external focusing phase compensation constants are connected between
the FD and FA pins.
Pin to which external focusing phase compensation constants are connected between
the FD– and FA– pins.
Pin to which external focusing phase compensation constants are connected between
the FA and FE pins.
FE signal output pin.
Pin to which external FE signal gain setting resistor is connected between the FE pin.
Analog signal GND.
Signal ended output of the CV+and CV- pin input signal.
Spndle amp input.
Pin to which external spindle gain setting resistor in 12 cm mode is connected.
Pin to which external spindle phase compensation constants are connected together
with SPD pin.
Spindle control signal output pin.
Pin to which external sled phase compensation constants are connected.
Sled control signal output pin.
Sled advance signal input pin from microprocessor.
Tracking jump signal input pin from DSP.
Tracking gain control signal input from DSP. Low gain when TGL = H.
Tracking off control signal input pin from DSP. Off when TOFF = H.
Pin No. Pin Name I/O Description
36
37
38
39, 40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
TES
HFL
SLOF
CV–, CV+
RFSM
RFS-
SLC
SLI
DGND
FSC
TBC
NC
DEF
CLK
CL
DAT
CE
DRF
FSS
VCC2
REFI
VR
LF2
PH1
BH1
LDD
LDS
VCC1
O
O
I
I
O
I
O
I
—
O
I
—
O
I
I
I
I
O
I
—
—
O
I
I
I
O
I
—
Pin from which TES signal is output to DSP.
“High Frequency Level” is used to judge whether the main beam position is on top of
bit or on top of mirror.
Sled servo off control input pin.
CLV error signal input pin from DSP.
RF output pin.
RF gain setting and EFM signal 3T compensation constant setting pin together with
RFSM pin.
“Slice Level Control” is the output pin which controls the RF signal data slice level by
DSP.
Input pin which control the data slice level by the DSP.
Digital system GND.
Output pin to which external focus search smoothing capacitor is connected.
“Tracking Balance Control” EF balance variable range setting pin.
No connection.
Disc defect detector output pin.
Reference clock input pin. 4.23 MHz of the DSP is input.
Microprocessor command clock input pin.
Microprocessor command data input pin.
Microprocessor command chip enable input pin.
“Detect RF” RF level detector output.
“Focus Search Select” focus search mode (± search/+ search) select pin.
Servo system and digital system Vcc pin.
Pin to which external bypass capacitor for reference voltage is connected.
Reference voltage output pin.
Disc defect detector time constant setting pin.
Pin to which external capacitor for RF signal peak holding is connected.
Pin to which external capacitor for RF signal bottom holding is connected.
APC circuit output pin.
APC circuit input pin.
RF system Vcc pin.
3029
1
2
3
4
5
6
7
8
9
10
11
12, 13
14
15
16
17
18
19, 20
21
22
23
24
25
26
27
28
29
30
31
32, 33
34
35
36
37
38
39
40
41
42
Pin No. Pin Name I/O Description
DEFI
TAI
PDO
VVSS
ISET
VVDD
FR
VSS
EFMO
EFMIN
T2
CLV+, CLK-
___
V/P
HFL
TES
TOFF
TGL
JP+, JP-
PCK
FSEQ
VDD
SL+
SL-
—
PUIN
_______
RW
EMPH
C2F
DOUT
T3, T4
N.C.
MUTEL
LVDD
LCHO
LVSS
RVSS
RCHO
RVDD
MUTER
I
I
O
—
I
—
I
—
O
I
I
O
O
I
I
O
O
O
O
O
—
O
O
—
I
O
O
O
O
I
—
O
—
O
—
—
O
—
O
Defect sense signal (DEF) input pin. (Connect to 0V when not used).
Test signal input pin with built-in pull-down resistor. Be sure to connect to 0V.
Phase comparator output pin to control external VCO.
For PLL. GND pin for built-in VCO. Be sure to connect to 0V.
Pin to which external resistor adjusting the PD0 output current.
Power supply pin for built-in VCO.
Pin for VCO frequency range adjustment.
Digital system GND. Be sure to connect to 0V.
For slice level control. EFM signal output pin.
EFM signal input pin.
Test signal input pin with built-in pull-down resistor. Be sure to connect to 0V.
Disc motor control output. Three level output is possible using command.
Rough servo or phase control automatic selection monitoring output pin. Rough servo
at H. Phase servo at L.
Track detect signal input pin. Schmidt input.
Tracking error signal input pin. Schmidt input.
Tracking OFF output pin.
Tracking gain selection output pin. Gain boost at L.
Track jump control signal output pin. Three level output is possible using command.
EFM data playback clock monitoring pin 4.3218 MHz when phase is locked in.
Sync signal detection output pin. H when the sync signal which is detected from EFM
signal and thesync signal which is internally generated agree.
Digital system power supply pin.
Moves the sled to outer circumference.
Moves the sled to inner circumference.
Not connected.
CD pickup inner switch detection.
Read, wright signal.
De-emphasis monitor output pin. De-emphasis disc is being played back at H.
C2 flag output pin.
DIGITAL OUT output pin. (EIAJ format).
Test signal input pin with built-in pull-down resistor. Be sure to connect to 0V.
Not used. Set the pin to open.
L-channel mute output pin.
L-channel 1-bit DAC. L-channel power supply pin.
L-channel output pin.
L-channel GND. Be sure to connect to 0V.
R-channel GND. Be sure to connect to 0V.
R-channel 1-bit DAC. R-channel output pin.
R-channel power supply pin.
R-channel mute output pin.
IC, LC78622ED
Pin No. Pin Name I/O Description
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
XVDD
XOUT
XIN
XVSS
SBSY
EFLG
PW
SFSY
SBCK
FSX
WRQ
RWC
SQOUT
COIN
___________
CQCK
RES
T11
16M
4.2M
T5
______
CS
T1
—
O
I
—
O
O
O
O
I
O
O
I
O
I
I
I
O
O
O
I
I
I
Crystal oscillator power supply pin.
Pin to which external 16.9344 MHz crystal oscillator is connected.
Crystal oscillator GND pin. Be sure to connect to 0V.
Subcode block sync signal output pin.
C1, C2, single and dual correction monitoring pin.
Subcode P, Q, R, S, T, U and W output pin.
Subcode frame sync signal output pin. Falls down when subcode enters standby.
Subcode read clock input pin. Schmidt input. (Be sure to connected to 0V when not
in use.)
Pin outputting the 7.35 kHz sync signal which is generated by dividing frequency of
crystal oscillator.
Subcode Q output standby output pin.
Read/write control input pin. Schmidt input.
Subcode Q output pin.
Command input pin from microprocessor.
Command input read clock or subcode read input clock from SQOUT pin
LC78622 reset input pin. Set this pin to L once when the main power is turned on.
Test signal output pin. Use this pin as open (normally L output).
16.9344 MHz output pin.
4.2336 MHz output pin.
Test signal input pin with built-in pull-down resistor. Be sure to connect to 0V.
Chip select signal input pin with built-in pull-down resistor. Be sure to connect to 0V
while it is not controlling.
Test signal input pin without built-in pull-down resistor. Be sure to connect to 0V.
3231
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
SEG E
SEG F
SEG G
NC
I-RES
XT(IN)
NC
XT2(OUT)
VSS
CF1(IN)
CF2(OUT)
VDD
I-KEY0
I-KEY1
I-MOTOR
I-CD SW
O-SHIFT
NC
O-BASS LED
O-QS LED
O-SFT LED
I-DRF
I-WRQ
NC
I-REM
O-CD ON
O-TU ON
O-P.CONT
NC
O-BEAT
O-MUTE
O-DIGIT
O-SEG RPEAT
O-COIN
I-SQOUT
O-CQCK
O-WRC
O-DATA
O-CD LED
O-TU LED
O-TA LED
O
O
O
—
I
I
—
O
—
I
O
—
I
I
I
I
O
—
O
O
—
I
I
—
—
O
O
O
—
O
O
O
O
O
I
O
O
O
O
O
O
SEG E control.
SEG F control.
SEG G control.
Not connected.
Micro processor reset input
Connected to an external 32.768 kHz crystal oscillator.
Not connected.
Connected to an external 32.768 kHz crystal oscillator.
GND.
Connected to an external 5.76 MHz ceramic filter.
Connected to an external 5.76 MHz ceramic filter.
Microprocessor power supply (+5V).
Key AD input. (AD)
Key AD input. (AD)
Deck status input. (AD)
CD door switch status input.
Main clock shift output.
Not connected.
BASS LED ON/OFF control output. (Not connected)
Q sound LED ON/OFF control output. (Not connected)
Not connected.
CD RF level detection input.
CD subcode Q standby input.
Not connected.
Remote control input.
CD power control output.
TU power control output.
The main power supply control output.
Not connected.
Beat control.
Main mute output.
7-segment LED power supply control output.
REPEAT LED ON/OFF control output.
CD command output.
CD subcode Q input.
CD command/CLK for subcode.
CD read/write control output.
Data output to M62349FP.
LED ON/OFF control output for the CD function.
LED ON/OFF control output for the TU function.
LED ON/OFF control output for the TA function. (Not connected)
IC, LC865516A-5P16
Pin No. Pin Name I/O Description
42
43
44
45
46
47
48
NC
SEG DP
SEG A
SEG B
SEG C
SEG D
NC
—
O
O
O
O
O
—
Not connected.
SEG DP control.
SEG A control.
SEG B control.
SEG C control.
SEG D control.
Not connected.
Pin No. Pin Name I/O Description
3433
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
MECHANICAL PARTS LIST 1/1
1 8A-CDA-006-010 WINDOW,CASS
<110HRJ(S),100K(S),99K(S),100EZ(S),170U(S),170K(S),170HA(S)>
1 8A-CDA-062-010 WINDOW,CASS D
<100HE(S),110EZ(S),100HRJ(S)>
1 8A-CDA-072-010 WINDOW,CASS EZ L<100EZ(L)>
1 8A-CDA-096-010 WINDOW,CASS EZ P<100EZ(P)>
1 8A-CDA-128-010 WINDOW,CASS L<110EZ(L)>
2 87-B00-010-010 BADGE,AIWA 30.5-5.2 S 2.5L
3 8A-CDA-003-010 LID,CASS
<EXCEPT 100EZ(P),100EZ(L),110EZ(L)>
3 8A-CDA-069-010 LID,CASS EZ L<100EZ(L)>
3 8A-CDA-093-010 LID,CASS EZ P<100EZ(P)>
3 8A-CDA-125-010 LID,CASS L<110EZ(L)>
4 8A-CDA-212-010 SPR-T,CASS
5 8A-CDL-031-010 WINDOW,LED<170K(S),170HA(S)>
5 8A-CDA-008-010 WINDOW,LED<100EZ(L)>
5 8A-CDA-039-010 WINDOW,LED LH
<110HRJ(S),110EZ(S),110EZ(L)>
5 8A-CDA-113-010 WINDOW,LED LOW EZ P<100EZ(P)>
5 8A-CDA-042-010 WINDOW,LED LOW LH
<100HE(S),100K(S),99K(S),100EZ(S),100HRJ(S)>
5 8A-CDL-033-010 WINDOW,LED U<170U(S)>
6 8A-CDA-028-010 CABI ASSY,FRONT
<110HRJ(S),170U(S),170HA(S)>
6 8A-CDA-120-010 CABI ASSY,FRONT A99<99K(S)>
6 8A-CDA-034-010 CABI ASSY,FRONT EZ
<110EZ(S),170K(S)>
6 8A-CDA-122-010 CABI ASSY,FRONT EZ L<110EZ(L)>
6 8A-CDA-036-010 CABI ASSY,FRONT LOW EZ
<100K(S),100EZ(S)>
6 8A-CDA-066-010 CABI ASSY,FRONT LOW EZ L
<100EZ(L)>
6 8A-CDA-090-010 CABI ASSY,FRONT LOW EZ P
<100EZ(P)>
6 8A-CDA-054-010 CABI ASSY,FRONT LOW HR
<100HE(S),100HRJ(S)>
7 8A-CDA-206-010 HLDR,SPKR
8 8A-CDA-020-010 KNOB,SL BAND
<110HRJ(S),100HE(S),100HRJ(S),170U(S),170HA(S)>
8 8A-CDA-059-010 KNOB,SL BAND EZ
<100K(S),110EZ(S),99K(S),100EZ(S),170K(S)>
8 8A-CDA-081-010 KNOB,SL BAND EZ L<100EZ(L)>
8 8A-CDA-105-010 KNOB,SL BAND EZ P<100EZ(P)>
8 8A-CDA-136-010 KNOB,SL BAND L<110EZ(L)>
9 8A-CDA-009-010 WINDOW,TU<170U(S)>
9 8A-CDA-045-010 WINDOW,TU EZ
<100K(S),110EZ(S),99K(S),100EZ(S),170K(S)>
9 8A-CDA-073-010 WINDOW,TU EZ L<100EZ(L)>
9 8A-CDA-097-010 WINDOW,TU EZ P<100EZ(P)>
9 8A-CDA-046-010 WINDOW,TU HR
<110HRJ(S),100HE(S),100HRJ(S),170HA(S)>
9 8A-CDA-129-010 WINDOW,TU L<110EZ(L)>
10 8A-CDA-007-010 LENS,LED
11 8A-CDA-019-010 KEY,VOL
<EXCEPT 100EZ(P),100EZ(L),110EZ(L)>
11 8A-CDA-080-010 KEY,VOL EZ L<100EZ(L)>
11 8A-CDA-104-010 KEY,VOL EZ P<100EZ(P)>
11 8A-CDA-135-010 KEY,VOL L<110EZ(L)>
12 8A-CDA-004-010 LID,CD
<110HRJ(S),100K(S),99K(S),100EZ(S),170U(S),170K(S),170HA(S)>
12 8A-CDA-061-010 LID,CD D
<100HE(S),110EZ(S),100HRJ(S)>
12 8A-CDA-070-010 LID,CD EZ L<100EZ(L)>
12 8A-CDA-094-010 LID,CD EZ P<100EZ(P)>
12 8A-CDA-126-010 LID,CD L<110EZ(L)>
13 8A-CDA-213-010 COVER, CHUCK
14 87-036-368-010 MAGNET
15 8A-CDA-207-010 HLDR,CHUCK
16 8A-CDA-150-010 BASE,CHUCK F/M
17 88-CD9-211-210 RING,CHUCK
18 8A-CDA-620-010 FF-CABLE,16P FR-MAIN
19 8A-CDA-208-110 HLDR,LED
20 8A-CDA-622-010 FF-CABLE,8P CD-FR
21 8A-CDA-016-010 KEY,CD
<EXCEPT 100EZ(P),100EZ(L),110EZ(L)>
21 8A-CDA-078-010 KEY,CD EZ L
<100EZ(P),100EZ(L),110EZ(L)>
22 87-063-165-010 OIL-DMPR 150
23 8A-CDA-017-010 KEY,MODE
<EXCEPT 100EZ(P),100EZ(L),110EZ(L)>
23 8A-CDA-079-010 KEY,MODE EZ L
<100EZ(P),100EZ(L),110EZ(L)>
24 88-CH6-220-010 CUSHION,CD A
25 8A-CDA-621-010 FF-CABLE,16P CD-RF
26 8A-CDA-012-010 CHAS,CD<EXCEPT 100EZ(P),100EZ(L)>
26 8A-CDA-180-010 CHAS,CD EZ L<100EZ(L)>
26 8A-CDA-114-010 CHAS,CD EZ P<100EZ(P)>
27 87-036-389-010 SW,PUSH LOCK
28 8A-CDA-211-010 SPR-T,CD
29 8A-CDA-010-110 HANDL,ARM
<EXCEPT 100EZ(P),100EZ(L),110EZ(L)>
29 8A-CDA-074-010 HANDL,ARM EZ L<100EZ(L)>
29 8A-CDA-098-010 HANDL,ARM EZ P<100EZ(P)>
29 8A-CDA-130-010 HANDL,ARM L<110EZ(L)>
30 8A-CDA-011-010 HANDL,COVER
<EXCEPT 100EZ(P),100EZ(L),110EZ(L)>
30 8A-CDA-075-010 HANDL,COVER EZ L<100EZ(L)>
30 8A-CDA-099-010 HANDL,COVER EZ P<100EZ(P)>
30 8A-CDA-131-010 HANDL,COVER L<110EZ(L)>
31 87-NF8-220-010 DMPR,150
32 8Z-CH4-640-010 ANT,ROD
33 8Z-CDB-169-010 PANEL,CD SANYO
34 8A-CDA-027-010 KEY,PAUSE
<EXCEPT 100EZ(P),100EZ(L),110EZ(L)>
34 8A-CDA-088-010 KEY,PAUSE EZ L<100EZ(L)>
34 8A-CDA-112-010 KEY,PAUSE EZ P<100EZ(P)>
34 8A-CDA-143-010 KEY,PAUSE L<110EZ(L)>
35 8A-CDA-026-010 KEY,STOP
<EXCEPT 100EZ(P),100EZ(L),110EZ(L)>
35 8A-CDA-087-010 KEY,STOP EZ L<100EZ(L)>
35 8A-CDA-111-010 KEY,STOP EZ P<100EZ(P)>
35 8A-CDA-142-010 KEY,STOP L<110EZ(L)>
36 8A-CDA-025-010 KEY,FF
<EXCEPT 100EZ(P),100EZ(L),110EZ(L)>
36 8A-CDA-085-010 KEY,FF EZ L<100EZ(L)>
36 8A-CDA-109-010 KEY,FF EZ P<100EZ(P)>
36 8A-CDA-140-010 KEY,FF L<110EZ(L)>
37 8A-CDA-024-010 KEY,REW
<EXCEPT 100EZ(P),100EZ(L),110EZ(L)>
37 8A-CDA-086-010 KEY,REW EZ L<100EZ(L)>
37 8A-CDA-110-010 KEY,REW EZ P<100EZ(P)>
37 8A-CDA-141-010 KEY,REW L<110EZ(L)>
38 8A-CDA-023-010 KEY,PLAY
<EXCEPT 100EZ(P),100EZ(L),110EZ(L)>
38 8A-CDA-084-010 KEY,PLAY EZ L<100EZ(L)>
38 8A-CDA-108-010 KEY,PLAY EZ P<100EZ(P)>
38 8A-CDA-139-010 KEY,PLAY L<110EZ(L)>
39 8A-CDA-022-010 KEY,REC
<EXCEPT 100EZ(P),100EZ(L),110EZ(L)>
39 8A-CDA-083-010 KEY,REC EZ L<100EZ(L)>
39 8A-CDA-107-010 KEY,REC EZ P<100EZ(P)>
39 8A-CDA-138-010 KEY,REC L<110EZ(L)>
40 8A-CDA-221-010 SPR-P,REC<EXCEPT 100HE(S)>
41 8A-CDA-220-010 PLATE,REC
42 8A-CDA-021-010 KNOB,RTRY TU
<EXCEPT 100EZ(P),100EZ(L),110EZ(L)>
42 8A-CDA-082-010 KNOB,RTRY TU EZ L<100EZ(L)>
42 8A-CDA-106-010 KNOB,RTRY TU EZ P<100EZ(P)>
42 8A-CDA-137-010 KNOB,RTRY TU L<110EZ(L)>
43 8A-CDA-013-010 POINTER,TU
44 8A-CDA-201-010 HLDR,TU
45 8A-CDA-216-010 GEAR,TU B
46 8A-CDA-203-010 GUIDE,GEAR
47 8A-CDA-202-010 GEAR,RELAY
48 8A-CDA-215-010 DRUM,TU
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange
COLOR NAME TABLE
49 8A-CDL-002-010 CABI,REAR<170U(S),170K(S)>
49 8A-CDA-002-010 CABI,REAR<110EZ(S)>
49 8A-CDA-118-010 CABI,REAR A99<99K(S)>
49 8A-CDA-124-010 CABI,REAR EZ L<110EZ(L)>
49 8A-CDA-030-010 CABI,REAR LH<110HRJ(S)>
49 8A-CDL-030-010 CABI,REAR LH<170HA(S)>
49 8A-CDA-037-010 CABI,REAR LOW<100K(S),100EZ(S)>
49 8A-CDA-068-010 CABI,REAR LOW EZ L<100EZ(L)>
49 8A-CDA-092-010 CABI,REAR LOW EZ P <100EZ(P)>
49 8A-CDA-038-010 CABI,REAR LOW LH
<100HE(S),100HRJ(S)>
50 8A-CDA-005-010 LID,BATT
<EXCEPT 100EZ(P),100EZ(L),110EZ(L)>
50 8A-CDA-071-010 LID,BATT EZ L<100EZ(L)>
50 8A-CDA-095-010 LID,BATT EZ P<100EZ(P)>
50 8A-CDA-127-010 LID,BATT L<110EZ(L)>
51 8Z-CD5-634-010 COVER,AC SOCKET
52 8A-CDA-626-010 CONN ASSY,2P DOOR
53 8A-CDA-630-010 CONN ASSY,4P RPH
54 8A-CDA-633-010 CONN ASSY,4P SP
55 8A-CDA-631-010 CONN ASSY,4P TA-ME
!
57 87-A60-178-010 JACK,AC E W/SW<EXCEPT 170U(S)>
!
57 87-A60-177-010 JACK,AC U W/SW<170U(S)>
58 8A-CDA-018-010 KEY,QSOUND
<110HRJ(S),110EZ(S),170U(S),170K(S),170HA(S)>
58 8A-CDA-134-010 KEY,QSOUND L<110EZ(L)>
59 8A-CDA-612-010 PT,E 2.5W
<EXCEPT 110HRJ(S),100HE(S),100HRJ(S),170U(S),170HA(S)>
59 8A-CDA-613-010 PT,H 2.5W
<110HRJ(S),100HE(S),100HRJ(S),170HA(S)>
!
59 8A-CDA-611-010 PT,U 2.5W<170U(S)>
60 8A-CH4-682-010 SPKR,10- 7OHM
61 88-CD6-661-010 HLDR,BAR ANT.
62 87-A91-369-010 SW,AC SL 2 2 2 SDKGA41700
<110HRJ(S),100HE(S),100HRJ(S),170HA(S)>
A 87-721-096-410 QT2+3-10 GLD
B 87-751-104-410 VT2+3-30
C 8A-CK4-223-010 S-SCREW,CD
D 87-067-566-010 TAPPING SCREW, VFTT+3-6
E 87-352-075-210 VT2+2.6-10
F 8A-CDA-222-010 S-SCREW,CASS+2.6-4
H 87-253-097-410 U+3-12 BLK
I 87-261-073-410 V+2.6-6
J 87-751-096-410 VT2+3-10 GLD
REF. NO PART NO. KANRI DESCRIPTION
NO. REF. NO PART NO. KANRI DESCRIPTION
NO.
Other manuals for CSD-A170 LH
1
This manual suits for next models
23
Table of contents
Other Aiwa Cassette Player manuals
