SERVICE MANUAL

DATA

COMPACT DISC STEREO

CASSETTE RECEIVER BASIC TAPE MECHANISM : 2ZM-3MK2 PR7NM

BASIC CD MECHANISM : AZG-1 VZD3RNDM

NSX-VC88

S/M Code No. 09-005-428-7R1

REVISION

•This Service Manual is the "Revision Publishing" and replaces "Simple Manual"

NSX-VC88 (HR), (S/M Code No. 09-005-428-7T1).

• If requiring information about the CD mechanism, see Service Manual of

AZG-1 VZD3RNDM, (S/M Code No. 09-001-335-3NG).

NSX–VC88

MAIN

SPEAKER

SYSTEM CD

CASSEIVER REMOTE

CONTROLLER

RC–ZAS07CX–NVC88 SX–WNSZ85

SATELLITE

SPEAKER

SX–S80

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

– 2 –

Tuning range 87.5 MHz to 108 MHz

Usable sensitivity (IHF) 13.2 dBf

Antenna terminals 75 ohms (unbalanced)

Tuning range 531 kHz to 1602 kHz (9 kHz step)

530 kHz to 1710kHz (10 kHz step)

Usable sensitivity 350 µV/m

Antenna Loop antenna

Tuning range 5.730 MHz to 17.900 MHz

Antenna Wire antenna

Mid-high frequency amplifier

Power output Rated: 35 W + 35 W (8 ohms, T.H.D.

1 %, 1 kHz)

Reference: 45 W + 45 W (8 ohms,

T.H.D. 10 %, 1 kHz)

Total harmonic distortion 0.1 % (30 W, 1 kHz, 8 ohms,

DIN AUDIO )

Low frequency amplifier

Power output Rated: 105 W + 105 W (6 ohms, T.H.D.

1 %, 120 Hz)

Reference: 135 W + 135 W (6 ohms,

T.H.D. 10 %, 120 Hz)

Total harmonic distortion 0.1 % (100 W, 120 Hz, 6 ohms,

DIN AUDIO)

Satellite amplifier

Power output Rated: 4 W + 4 W (8 ohms, T.H.D.

1 %, 1 kHz)

Reference: 5 W + 5 W (8 ohms,

T.H.D. 10 %, 1 kHz)

Total harmonic distortion 0.1 % (3 W, 1 kHz, 8 ohms,

DIN AUDIO )

Inputs VIDEO/AUX: 316 mV (adjustable)

MD: 316 mV (adjustable)

MIC 1, MIC 2:

1.0 mV (10 kohms)

Outputs SPEAKERS HIGH FREQ:

accept speakers of 8 ohms or more

SPEAKERS LOW FREQ:

accept speakers of 6 ohms or more

SATELLITE SPEAKERS:

accept speakers of 8 ohms or more

SURROUND SPEAKERS:

accept speakers of 8 ohms to 16 ohms

VIDEO OUT: 1.0 Vp-p (75 ohms)

LINE OUT: 210 mV

PHONES (stereo jack): accepts

headphones of 32 ohms or more

Track format 4 tracks, 2 channels stereo

Frequency response CrO2tape: 50 Hz – 16000 Hz

Normal tape: 50 Hz – 15000 Hz

Recording system AC bias

Heads Deck 1: Playback head x 1

Deck 2: Recording/Playback head x 1,

erase head x 1

SPECIFICATIONS

Laser Semiconductor laser (λ =780 nm)

D-A converter 1 bit dual

Signal-to-noise ratio 85 dB (1 kHz, 0 dB)

Harmonic distortion 0.05 % (1 kHz, 0 dB)

Wow and flutter Unmeasurable

Video signal NTSC/PAL color format (selectable)

Video data MPEG 1

Audio data MPEG 1, LAYER 2

Power requirements 120 V/220–230 V/240 V AC

(switchable), 50/60 Hz

Power consumption 255 W

Power consumption in If the power-economizing mode is

standby mode ECO OFF: 33 W

If the power-economizing mode is

ECO ON or ECO AUTO: 0.9 W

Dimensions of main unit 260 x 329 x 389.6 mm

(W xH xD)

Weight of main unit 12.0 kg

Speaker system 3 way, built-in subwoofer (magnetic

shielded type)

Speaker units Subwoofer:

200 mm cone type

Full range:

120 mm cone type

Super tweeter:

20 mm ceramic type

Impedance 6 ohms/8 ohms

Sensitivity 87 dB/W/m

Dimensions (W xH xD) 240 x 324 x 285 mm

Weight 5.7 Kg

Speaker system Full range (magnetic shielded type)

Speakers units 80 mm cone type

Impedance 8 ohms

Output sound pressure level 87 dB/W/m

Dimensions (W xH xD) 100 x 327 x 105 mm (with pedestal)

100 x 190 x 81 mm (without pedestal)

Weight 0.6 kg

• Design and specifications are subject to change without notice.

• The word "BBE"and the "BBE symbol" are trademarks of BBE

Sound, Inc.

Under license from BBE Sound,Inc.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

– 3 –

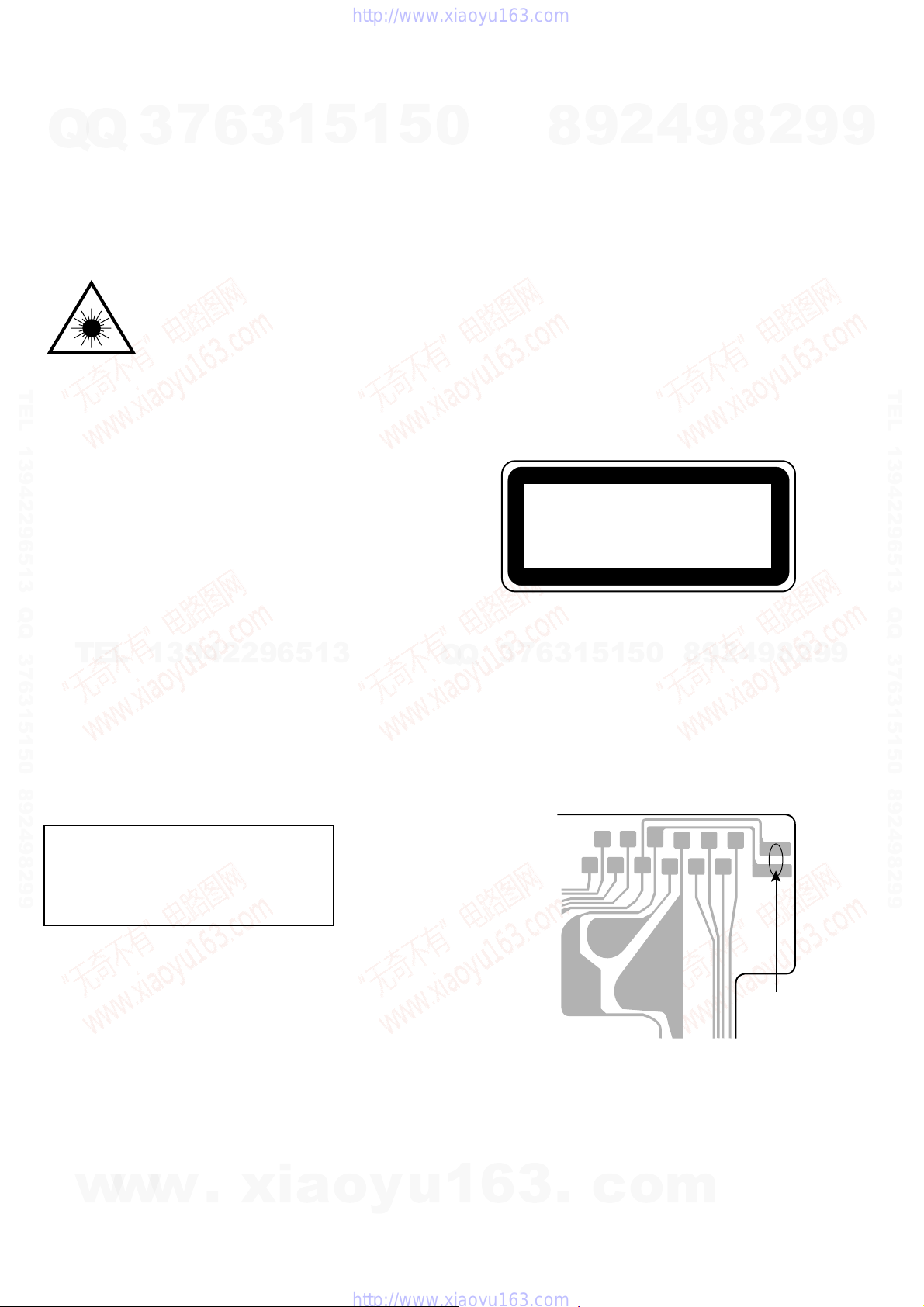

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

LUOKAN 1 LASER LAITE

KLASS 1 LASER APPARAT

This set employs laser. Therefore, be sure to follow carefully

the instructions below when servicing.

WARNING!!

WHEN SERVICING, DO NOT APPROACH THE LASER

EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS

NECESSARY TO CONFIRM LASER BEAM EMISSION.

BESURETOOBSERVEFROMADISTANCEOFMORE

THAN 30cm FROM THE SURFACE OF THE OBJEC-

TIVE LENS ON THE OPTICAL PICK-UP BLOCK.

sCaution: Invisible laser radiation when

open and interlocks defeated avoid

exposure to beam.

sAdvarsel: Usynliglaserstålingvedåbning,

nårsikkerhedsafbrydereerudeaffunktion.

Undgå udsættelse for stråling.

VAROITUS!

Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa

mainitulla tavalla saataa altistaa käyt-täjän

turvallisuusluokan 1 ylittävälle näkymättömälle

lasersäteilylle.

VARNING!

Om apparaten används på annat sätt än vad som

specificeras i denna bruksanvising, kan användaren

utsättas för osynling laserstrålning, som överskrider

gränsen för laserklass 1.

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING

CAUTION

Use of controls or adjustments or performance of proce-

dures other than those specified herin may result in

hazardous radiation exposure.

ATTENTION

L’utillisation de commandes, réglages ou procédures

autresque ceuxspécifiés peutentraîner unedangereuse

exposition aux radiations.

ADVARSEL

Usynliglaserstålingvedåbning,nårsikkerhedsafbrydereer

ude af funktion. Undgå udsættelse for stråling.

This Compact Disc player is classified as a CLASS 1

LASER product.

The CLASS 1 LASER PRODUCT label is located on the

rear exterior.

Precaution to replace Optical block

(KSS-213F)

Body or clothes electrostatic potential could

ruin laser diode in the optical block. Be sure

ground body and workbench, and use care the

clothes do not touch the diode.

1) After the connection, remove solder shown in

right figure.

PICK-UP Assy P.C.B

Solder

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

– 4 –

NOTE ON BEFORE STARTING REPAIR

Charging voltage (V) Discharging Rated power (W) Parts number

(C101, 102) resistor (Ω)

25-48 100 3 87-A00-247-090

49-140 220 5 87-A00-232-090

Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check the

reference numbers of the charging capacitors on schematic diagram before starting the discharging work.

2. Check items before exchanging the MICROCOMPUTER

Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after confirming

that the MICROCOMPUTER is surely defective.

2-1. Regarding the HOLD terminal of the MICROCOMPUTER

WhentheHOLD terminal (INPUT) of the MICROCOMPUTER is“H”,the MICROCOMPUTER is judged to be operatingcorrectly.

When this terminal is “L”, the main power cannot be turned on. Therefore, be sure to check the terminal voltage of the HOLD

terminal before exchange.

When the MICROCOMPUTER is not defective, the HOLD terminal can also go “L” when the POWER AMPLIFIER has any

abnormalities that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to “L”.

• Good or no good judgement of the MICROCOMPUTER

1Turn on the AC main power.

2Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the “H” level or not.

3When the HOLD terminal is “L” level, the abnormality detection circuit is judged to be working correctly and the

MICROCOMPUTER is judged to be good.

1. Forced discharge of electrolytic capacitor of power supply block

When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across

the electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this condition, secondary defect

can occur.

In order to prevent the secondary trouble, perform the following measures before starting repair work.

Discharge procedure

1Remove the AC power cord.

2Connect a discharging resistor at an end of lead wire that

has clips at both ends. Connect the other end of the lead

wire to metal chassis.

3Contact the other end of the discharging resistor to the

positive (+) side (+VH) of C101. (For two seconds)

4Contact the same end of the discharging resistor as step

3to the negative (-) side (-VH) of C102 in the same way.

(For two seconds)

5Check that voltage across C101 and C102 has decreased

to 1 V or less using a multimeter or an oscilloscope.

Select a discharging resistor referring to the following table.

Fig-1

MAIN C.B

D101

C101 C102

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

– 5 –

In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not.

2-2. Regarding reset

There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power

cord is re-inserted, or the software reset (pressing the STOP key + POWER key) is performed.

When the above described phenomenon occurs, it can lead to wrong judgement as if the MICROCOMPUTER is defective and to

exchange the MICROCOMPUTER. In such a case, perform the forced-reset by the following procedure and check good or no

good of the MICROCOMPUTER.

1Remove the AC power cord.

2Short both ends of the electrolytic capacitor C113 that is connected to VDD of the MICROCOMPUTER with tweezers.

3Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the MICROCOMPUTER is

good.

Note: Thereferencenumberor MICROCOMPUTER pin number of transistor (Q110) and electrolyticcapacitor(C113) can change depending

on the models. Be sure to check the reference numbers on schematic diagram before starting the discharging work.

2-3. Confirmation of soldering state of MICROCOMPUTER

Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to exchange the

MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the MICROCOMPUTER itself.

Fig-2-2

MICRO-

COMPUTER

MICROCOMPUTER

FRONT C.B

VSS

VDD

C113 *

C113

Short with tweezers.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

– 6 –

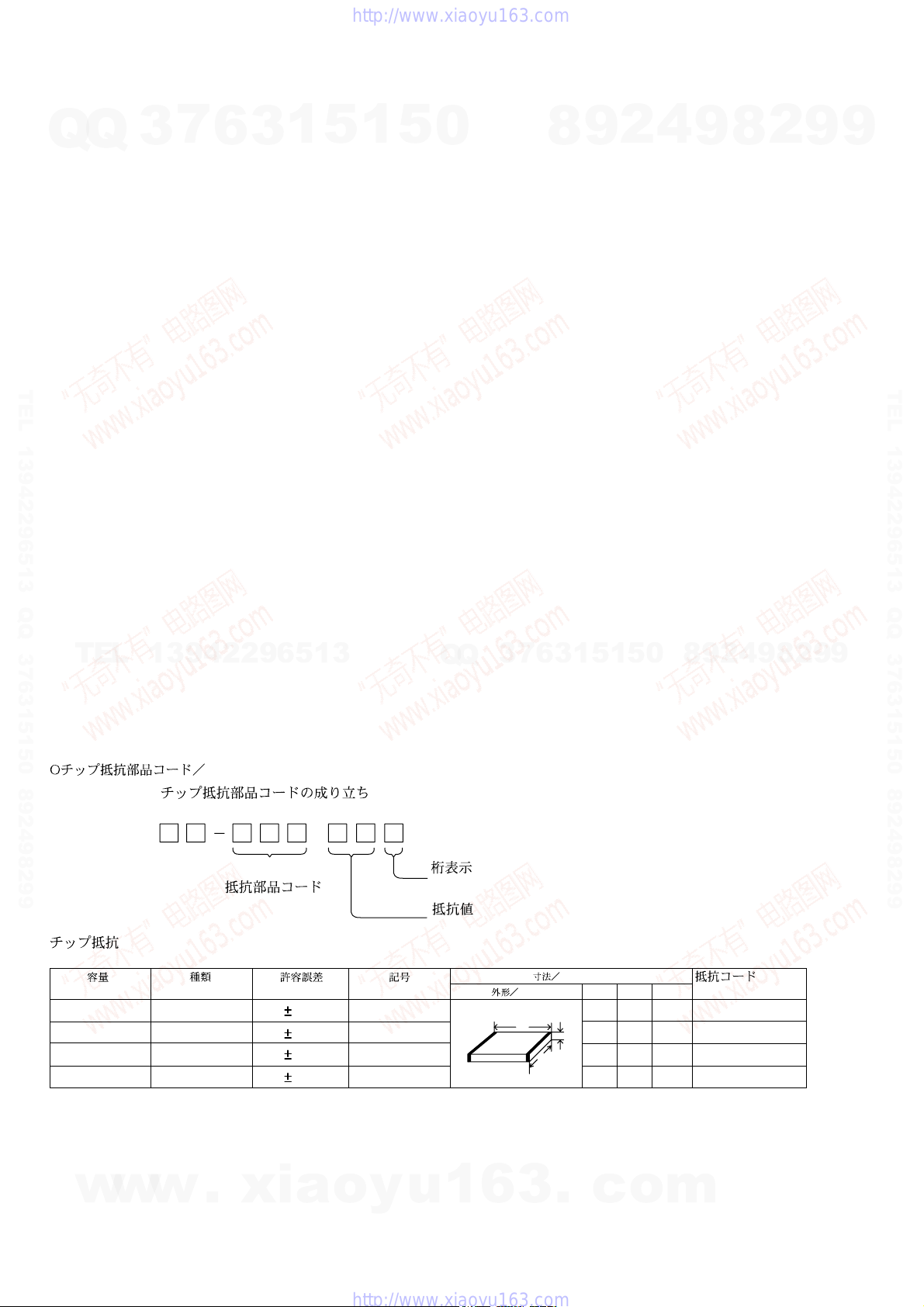

ELECTRICAL MAIN PARTS LIST

DESCRIPTIONREF. NO. KANRI

NO.

PART NO. DESCRIPTIONREF. NO. KANRI

NO.

PART NO.

8A-NH7-601-010 C-IC,LC876572V-5R25

87-A21-418-010 IC,STK490-340

87-A21-018-040 C-IC,M65849BFP631D

87-A21-397-010 IC,STK490-070

87-A20-914-010 IC,SPS-442-1-F

87-A20-783-040 C-IC,BA7762AFS

87-A21-577-040 C-IC,M61506FP

87-A21-021-040 C-IC,BU2099FV

87-070-289-040 IC,BU 2092F

87-A21-452-030 C-IC,BD3876KS2

87-A21-051-040 C-IC,BU9990-03FS

87-A21-560-010 IC,LA1844L-A

87-070-127-110 IC,LC72131 D

87-020-454-010 IC,DN 6851

87-A20-561-040 C-IC,M65847AFP

TRANSISTOR

87-026-245-080 TR,DTC114ES

87-A30-075-080 C-TR,2SA1235F

87-A30-318-080 TR,CSA952K

89-213-702-010 TR,2SB1370 (1.8W)

87-A30-076-080 C-TR,2SC3052F

87-026-610-080 TR,KTC3198GR

87-026-609-080 TR,KTA1266GR

87-A30-087-080 C-FET,2SK2158

87-A30-107-070 C-TR,CMBT5401

87-A30-468-080 C-TR,KRC102S-RTK

87-A30-074-080 C-TR,RT1P141C

87-A30-269-040 C-FET,2SJ461-T1

87-A30-106-040 C-TR,CMBT5551

87-A30-086-040 C-TR,CSD1306E

87-A30-190-080 TR,CC5551

89-420-613-010 TR,2SD2061F

89-213-703-010 TR,2SB1370F

87-A30-063-080 C-TR,KRA104S

87-A30-086-070 C-TR,CSD1306E

87-A30-329-080 TR,CD1585BC

89-327-143-080 TR,2SC2714 (0.1W)

87-A30-489-080 C-TR,KRA107S

87-A30-234-080 TR,CSC4115BC

87-026-463-080 TR,2SA933S

87-A30-484-080 C-TR,KRA102S

89-503-602-080 C-FET,2SK360E

DIODE

87-A40-673-090 DIODE,D10XB20

87-A40-547-090 DIODE,D5SBA20

87-020-465-080 DIODE,1SS133

87-A40-553-080 DIODE,1N4003 LES

87-A40-784-080 ZENER,UZ39BSB

87-A40-764-080 ZENER,UZ10BSC

87-A40-313-080 C-DIODE,MC 2840

87-A40-270-080 C-DIODE,MC2838

87-A40-269-080 C-DIODE,MC2836

87-A40-768-080 ZENER,UZ16BSA

87-A40-752-080 ZENER,UZ6.2BSC

87-A40-748-080 ZENER,UZ5.6BSA

87-A40-802-080 ZENER,UZ5.1BSC

87-A40-747-080 ZENER,UZ5.1BSB

87-A40-745-080 ZENER,UZ4.7BSA

87-A40-749-080 ZENER,UZ5.6BSB

87-017-149-080 ZENER,HZS6A2L

MAIN C.B

C3 87-012-368-080 C-CAP,S 0.1-50 F

C4 87-012-368-080 C-CAP,S 0.1-50 F

C21 87-016-658-000 CAP,E 4700-35 M SMG

C22 87-016-658-000 CAP,E 4700-35 M SMG

C25 87-010-406-080 CAP, ELECT 22-50V

C26 87-010-406-080 CAP, ELECT 22-50V

C27 87-010-406-080 CAP, ELECT 22-50V

C28 87-010-406-080 CAP, ELECT 22-50V

C31 87-010-263-080 CAP, ELECT 100-10V

C32 87-010-197-080 CAP, CHIP 0.01 DM

C34 87-010-247-080 CAP, ELECT 100-50V

C35 87-010-260-080 CAP, ELECT 22-50V

C36 87-010-381-080 CAP, ELECT 330-16V

C38 87-010-247-080 CAP, ELECT 100-50V

C39 87-010-247-080 CAP, ELECT 100-50V

C40 87-010-197-080 CAP, CHIP 0.01 DM

C60 87-010-403-080 CAP, ELECT 3.3-50V

C80 87-010-401-080 CAP, ELECT 1-50V

C81 87-010-379-080 CAP, ELECT 22-16V

C82 87-010-260-080 CAP, ELECT 47-25V

C104 87-010-196-080 CHIP CAPACITOR,0.1-25

C105 87-010-196-080 CHIP CAPACITOR,0.1-25

C111 87-010-545-080 CAP, ELECT 0.22-50V

C112 87-010-545-080 CAP, ELECT 0.22-50V

C113 87-010-545-080 CAP, ELECT 0.22-50V

C114 87-010-545-080 CAP, ELECT 0.22-50V

C115 87-010-546-080 CAP, ELECT 0.33-50V

C116 87-010-546-080 CAP, ELECT 0.33-50V

C121 87-010-546-080 CAP, ELECT 0.33-50V

C122 87-010-546-080 CAP, ELECT 0.33-50V

C171 87-012-368-080 C-CAP,S 0.1-50 F

C172 87-012-368-080 C-CAP,S 0.1-50 F

C173 87-012-368-080 C-CAP,S 0.1-50 F

C174 87-012-368-080 C-CAP,S 0.1-50 F

C301 87-010-318-080 C-CAP,S 47P-50 J CH

C302 87-010-318-080 C-CAP,S 47P-50 J CH

C303 87-012-157-080 C-CAP,S 330P-50 CH

C304 87-012-157-080 C-CAP,S 330P-50 CH

C305 87-012-157-080 C-CAP,S 330P-50 CH

C306 87-012-157-080 C-CAP,S 330P-50 CH

C307 87-010-196-080 CHIP CAPACITOR,0.1-25

C309 87-010-196-080 CHIP CAPACITOR,0.1-25

C310 87-010-196-080 CHIP CAPACITOR,0.1-25

C311 87-010-198-080 CAP, CHIP 0.022

C312 87-010-198-080 CAP, CHIP 0.022

C313 87-010-179-080 CAP,CHIP S B1200P

C314 87-010-179-080 CAP,CHIP S B1200P

C315 87-010-179-080 CAP,CHIP S B1200P

C316 87-010-179-080 CAP,CHIP S B1200P

C321 87-012-142-080 CAP, S 0.33-16

C322 87-012-142-080 CAP, S 0.33-16

C324 87-010-260-080 CAP, ELECT 47-25V

C325 87-010-370-080 CAP,E 330-6.3 SME

C327 87-010-404-080 CAP, ELECT 4.7-50V

C328 87-010-404-080 CAP, ELECT 4.7-50V

C332 87-010-196-080 CHIP CAPACITOR,0.1-25

C335 87-010-401-080 CAP, ELECT 1-50V

C336 87-010-401-080 CAP, ELECT 1-50V

C337 87-010-196-080 CHIP CAPACITOR,0.1-25

C339 87-010-196-080 CHIP CAPACITOR,0.1-25

C340 87-010-196-080 CHIP CAPACITOR,0.1-25

C351 87-012-140-080 CAP 470P

C352 87-012-140-080 CAP 470P

C354 87-010-175-080 CAP 560P

C355 87-010-178-080 CHIP CAP 1000P

C356 87-010-260-080 CAP, ELECT 47-25V

C357 87-010-197-080 CAP, CHIP 0.01 DM

C358 87-010-183-080 C-CAP,S 2700P-50 B

C359 87-010-183-080 C-CAP,S 2700P-50 B

C360 87-010-183-080 C-CAP,S 2700P-50 B

C370 87-010-196-080 CHIP CAPACITOR,0.1-25

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

– 7 –

C373 87-A11-177-080 C-CAP,S 0.15-16 KB

C374 87-A11-177-080 C-CAP,S 0.15-16 KB

C378 87-010-196-080 CHIP CAPACITOR,0.1-25

C379 87-010-382-080 CAP, ELECT 22-25V

C380 87-010-382-080 CAP, ELECT 22-25V

C381 87-010-197-080 CAP, CHIP 0.01 DM

C382 87-010-312-080 C-CAP,S 15P-50 CH

C383 87-010-197-080 CAP, CHIP 0.01 DM

C384 87-010-402-080 CAP, ELECT 2.2-50V

C386 87-010-196-080 CHIP CAPACITOR,0.1-25

C387 87-012-145-080 CAP, CHIP S 270P CH

C388 87-012-156-080 C-CAP,S 220P-50 CH

C391 87-010-319-080 C-CAP,S 56P-50 CH

C392 87-010-319-080 C-CAP,S 56P-50 CH

C393 87-010-319-080 C-CAP,S 56P-50 CH

C394 87-010-319-080 C-CAP,S 56P-50 CH

C501 87-010-263-080 CAP, ELECT 100-10V

C502 87-010-196-080 CHIP CAPACITOR,0.1-25

C503 87-012-393-080 C-CAP,S 0.22-16 R K

C504 87-012-393-080 C-CAP,S 0.22-16 R K

C505 87-012-141-080 CHIP-CAPACITOR,0.22-16F

C506 87-010-184-080 CHIP CAPACITOR 3300P(K)

C507 87-010-177-080 C-CAP,S 820P-50 SL

C508 87-016-669-080 C-CAP,S 0.1-25 K B

C509 87-016-669-080 C-CAP,S 0.1-25 K B

C510 87-010-184-080 CHIP CAPACITOR 3300P(K)

C511 87-010-177-080 C-CAP,S 820P-50 SL

C512 87-012-141-080 CHIP-CAPACITOR,0.22-16F

C513 87-010-544-080 CAP, ELECT 0.1-50V

C514 87-010-374-080 CAP, ELECT 47-10V

C515 87-010-401-080 CAP, ELECT 1-50V

C516 87-010-401-080 CAP, ELECT 1-50V

C517 87-010-183-080 C-CAP,S 2700P-50 B

C518 87-010-183-080 C-CAP,S 2700P-50 B

C531 87-010-405-080 CAP, ELECT 10-50V

C532 87-010-196-080 CHIP CAPACITOR,0.1-25

C533 87-010-196-080 CHIP CAPACITOR,0.1-25

C534 87-012-156-080 C-CAP,S 220P-50 CH

C535 87-010-178-080 CHIP CAP 1000P

C536 87-010-196-080 CHIP CAPACITOR,0.1-25

C538 87-010-318-080 C-CAP,S 47P-50 CH

C541 87-010-178-080 CHIP CAP 1000P

C609 87-010-181-080 CAP,CHIP S 1800P

C610 87-010-181-080 CAP,CHIP S 1800P

C611 87-010-598-080 CHIP-CAP,S 0.068-16 KR

C612 87-016-369-080 C-CAP,S 0.033-25 B K

C613 87-010-197-080 CAP, CHIP 0.01 DM

C614 87-016-669-080 C-CAP,S 0.1-25 K B

C616 87-010-184-080 CHIP CAPACITOR 3300P(K)

C617 87-012-369-080 C-CAP,S 0.047-50F

C618 87-010-401-080 CAP, ELECT 1-50V

C619 87-010-263-080 CAP, ELECT 100-10V

C620 87-016-669-080 C-CAP,S 0.1-25 K B

C621 87-010-197-080 CAP, CHIP 0.01 DM

C623 87-010-401-080 CAP, ELECT 1-50V

C624 87-010-401-080 CAP, ELECT 1-50V

C626 87-010-596-080 CAP, S 0.047-16

C627 87-010-400-080 CAP, ELECT 0.47-50V

C628 87-010-400-080 CAP, ELECT 0.47-50V

C629 87-010-596-080 CAP, S 0.047-16

C630 87-010-383-080 CAP, ELECT 33-25V

C631 87-010-185-080 C-CAP,S 3900P-50 B

C632 87-010-185-080 C-CAP,S 3900P-50 B

C634 87-010-196-080 CHIP CAPACITOR,0.1-25

C635 87-A10-307-080 CAP,M 0.1-50 J

C636 87-A10-307-080 CAP,M 0.1-50 J

C637 87-A10-307-080 CAP,M 0.1-50 J

C638 87-A10-307-080 CAP,M 0.1-50 J

C639 87-010-405-080 CAP, ELECT 10-50V

C641 87-010-401-080 CAP, ELECT 1-50V

C642 87-010-401-080 CAP, ELECT 1-50V

C643 87-010-196-080 CHIP CAPACITOR,0.1-25

C644 87-010-401-080 CAP, ELECT 1-50V

C671 87-010-322-080 C-CAP,S 100P-50 CH

C672 87-010-322-080 C-CAP,S 100P-50 CH

C673 87-010-197-080 CAP, CHIP 0.01 DM

C679 87-010-196-080 CHIP CAPACITOR,0.1-25

C680 87-010-197-080 CAP, CHIP 0.01 DM

C771 87-010-263-080 CAP, ELECT 100-10V

C772 87-010-197-080 CAP, CHIP 0.01 DM

C779 87-012-182-080 C-CAP,S 2200P-50 KB

C780 87-012-182-080 C-CAP,S 2200P-50 KB

C782 87-010-197-080 CAP, CHIP 0.01 DM

C783 87-010-197-080 CAP, CHIP 0.01 DM

C784 87-010-197-080 CAP, CHIP 0.01 DM

C785 87-010-197-080 CAP, CHIP 0.01 DM

C786 87-010-197-080 CAP, CHIP 0.01 DM

C788 87-010-149-080 C-CAP,S 5P-50 CH

C789 87-A10-592-080 C-CAP,S 0.015-50 J B

C790 87-A10-592-080 C-CAP,S 0.015-50 J B

C791 87-010-196-080 CHIP CAPACITOR,0.1-25

C792 87-010-197-080 CAP, CHIP 0.01 DM

C793 87-010-404-080 CAP, ELECT 4.7-50V

C795 87-010-197-080 CAP, CHIP 0.01 DM

C796 87-010-197-080 CAP, CHIP 0.01 DM

C797 87-010-405-080 CAP, ELECT 10-50V

C798 87-010-197-080 CAP, CHIP 0.01 DM

C799 87-010-407-080 CAP, ELECT 33-50V

C800 87-012-369-080 C-CAP,S 0.047-50F

C801 87-010-403-080 CAP, ELECT 3.3-50V

C802 87-012-369-080 C-CAP,S 0.047-50F

C803 87-010-198-080 CAP, CHIP 0.022

C804 87-010-263-080 CAP, ELECT 100-10V

C807 87-010-400-080 CAP, ELECT 0.47-50V

C808 87-010-401-080 CAP, ELECT 1-50V

C809 87-010-401-080 CAP, ELECT 1-50V

C810 87-010-196-080 CHIP CAPACITOR,0.1-25

C811 87-010-403-080 CAP, ELECT 3.3-50V

C812 87-010-403-080 CAP, ELECT 3.3-50V

C814 87-010-197-080 CAP, CHIP 0.01 DM

C815 87-010-400-080 CAP, ELECT 0.47-50V

C816 87-010-400-080 CAP, ELECT 0.47-50V

C821 87-010-405-080 CAP, ELECT 10-50V

C823 87-010-177-080 C-CAP,S 820P-50 SL

C824 87-010-405-080 CAP, ELECT 10-50V

C825 87-010-596-080 CAP, S 0.047-16

C842 87-010-197-080 CAP, CHIP 0.01 DM

C843 87-010-197-080 CAP, CHIP 0.01 DM

C844 87-010-197-080 CAP, CHIP 0.01 DM

C845 87-010-197-080 CAP, CHIP 0.01 DM

C846 87-010-197-080 CAP, CHIP 0.01 DM

C847 87-010-197-080 CAP, CHIP 0.01 DM

C848 87-010-197-080 CAP, CHIP 0.01 DM

C849 87-010-197-080 CAP, CHIP 0.01 DM

C850 87-010-260-080 CAP, ELECT 47-25V

C851 87-010-197-080 CAP, CHIP 0.01 DM

C852 87-010-197-080 CAP, CHIP 0.01 DM

C853 87-010-197-080 CAP, CHIP 0.01 DM

C858 87-010-196-080 CHIP CAPACITOR,0.1-25

C859 87-010-196-080 CHIP CAPACITOR,0.1-25

C860 87-010-197-080 CAP, CHIP 0.01 DM

C940 87-010-197-080 C-CAP,S 0.01-25

C941 87-010-314-080 C-CAP,S 22P-50 CH

C943 87-010-197-080 C-CAP,S 0.01-25 KB

C945 87-010-197-080 C-CAP,S 0.01-25 KB

C946 87-010-971-080 C-CAP,S 4700P-50 JB

C947 87-010-197-080 C-CAP,S 0.01-25

C948 87-010-148-080 C-CAP,S 4P-50 CH

C952 87-010-197-080 C-CAP,S 0.01-25

C953 87-010-197-080 C-CAP,S 0.01-25 KB

DESCRIPTIONREF. NO. KANRI

NO.

PART NO. DESCRIPTIONREF. NO. KANRI

NO.

PART NO.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

– 8 –

C954 87-010-400-080 CAP, ELECT 0.47-50V

C956 87-010-263-080 CAP, ELECT 100-10V

C959 87-010-196-080 CHIP CAPACITOR,0.1-25

C961 87-010-152-080 C-CAP,S 8P-50 CH

C962 87-010-401-080 CAP, ELECT 1-50V

C963 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z

C964 87-010-854-080 C-CAP,S 560P-50 CH

C971 87-010-381-080 CAP, ELECT 330-16V

C972 87-010-404-080 CAP, ELECT 4.7-50V

C973 87-010-197-080 CAP, CHIP 0.01 DM

C974 87-010-197-080 CAP, CHIP 0.01 DM

C979 87-010-322-080 C-CAP,S 100P-50 CH

C981 87-010-260-080 CAP, ELECT 47-25V

C982 87-010-196-080 CHIP CAPACITOR,0.1-25

C983 87-010-197-080 CAP, CHIP 0.01 DM

C984 87-010-197-080 CAP, CHIP 0.01 DM

C987 87-010-197-080 CAP, CHIP 0.01 DM

C989 87-010-197-080 C-CAP,S 0.01-25

C991 87-010-312-080 C-CAP,S 15P-50 CH

C992 87-010-312-080 C-CAP,S 15P-50 CH

C993 87-010-178-080 CHIP CAP 1000P

C995 87-010-178-080 CHIP CAP 1000P

C997 87-010-196-080 CHIP CAPACITOR,0.1-25

C998 87-010-260-080 CAP, ELECT 47-25V

C999 87-A11-155-080 CAP,TC U 0.01-16 Z F

CF831 87-008-261-010 FILTER, SFE10.7MA5-A

CF832 87-008-261-010 FILTER, SFE10.7MA5-A

CN1 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3

CN91 87-A60-109-010 CONN,2P V S2M-2W

CN101 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3

CN301 87-A60-620-010 CONN,3P V 2MM JMT

CN351 87-A60-625-010 CONN,8P V 2MM JMT

CN601 87-099-719-010 CONN,30P TYK-B(X)

CN602 87-099-194-010 CONN,6P 6216V

CN606 87-099-566-010 CONN,7P TUC-P7P-B1

CNA1 8A-NF6-646-010 CONN ASSY,9P TID-A(460)

CNA2 8A-NF6-630-010 CONN ASSY,3P(VM)ANF-6

CNA101 8A-NF6-670-010 CONN ASSY,2P(MUTE)ANF-6

CON301 87-NF6-615-010 CONN ASSY,3P PB

CON351 87-NF6-616-010 CONN ASSY,8P RPB

D951 87-A40-618-080 VARI-CAP,SVC 348(S/T)

FB501 87-008-372-080 FILTER, EMI BL OIRNI

FC602 88-906-621-110 FF-CABLE,6P 1.25 620MM

FFE831 A8-8ZA-190-030 8ZA-1 FEUNM

J102 87-A60-238-010 TERMINAL,SP 4P (MSC)

J103 87-A60-929-010 JACK,DIA6.3 BLK ST W/S TAI

J601 87-A60-885-010 JACK,PIN 6P R/W MSC

J831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02

J940 81-754-629-010 CONNECTOR XH 2P(UL)

L101 87-A50-610-010 COIL,1UH K(MDEC)

L102 87-A50-610-010 COIL,1UH K(MDEC)

L301 87-A50-049-010 COIL,TRAP 85K(COI)

L302 87-A50-049-010 COIL,TRAP 85K(COI)

L351 87-007-342-010 COIL,OSC 85K BIAS

L801 87-A50-608-010 COIL,FM DET-N(TOK)

L802 87-A91-552-010 FLTR,CFMT-450AL(TOK)

L811 87-005-847-080 COIL,2.2UH(CECS)

L832 87-005-847-080 COIL,2.2UH(CECS)

L941 87-A50-022-010 COIL,ANT SW(COI)7.96MHz

L942 87-A50-550-010 COIL,OSC SW-2N(COI)

L943 87-A50-522-080 COIL,1mH K CEC

L944 87-A50-159-010 COIL,10mH K C2B

L952 87-A50-430-010 COIL,ANT MW (3BSW)

L953 87-A50-431-010 COIL,OSC MW (3BSW)

R161 87-A00-441-050 RES,270-1/2W J RP

R162 87-A00-441-050 RES,270-1/2W J RP

R163 87-A00-441-050 RES,270-1/2W J RP

R164 87-A00-441-050 RES,270-1/2W J RP

R790 87-010-197-080 CAP, CHIP 0.01 DM

R991 87-010-322-080 C-CAP,S 100P-50 CH

R993 87-010-322-080 C-CAP,S 100P-50 CH

R995 87-010-322-080 C-CAP,S 100P-50 CH

SFR351 87-A90-433-080 SFR,50K H NVZ6TLTA

SFR352 87-A90-433-080 SFR,50K H NVZ6TLTA

TC941 87-011-254-080 TRIMMER,CER 20P 4.0x4.5 ECR

TC943 87-011-253-080 TRIMMER,CER 30P 4.0x4.5 ECRLA

WH1 87-A90-510-010 HLDR,WIRE 2.5-9P

X991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309

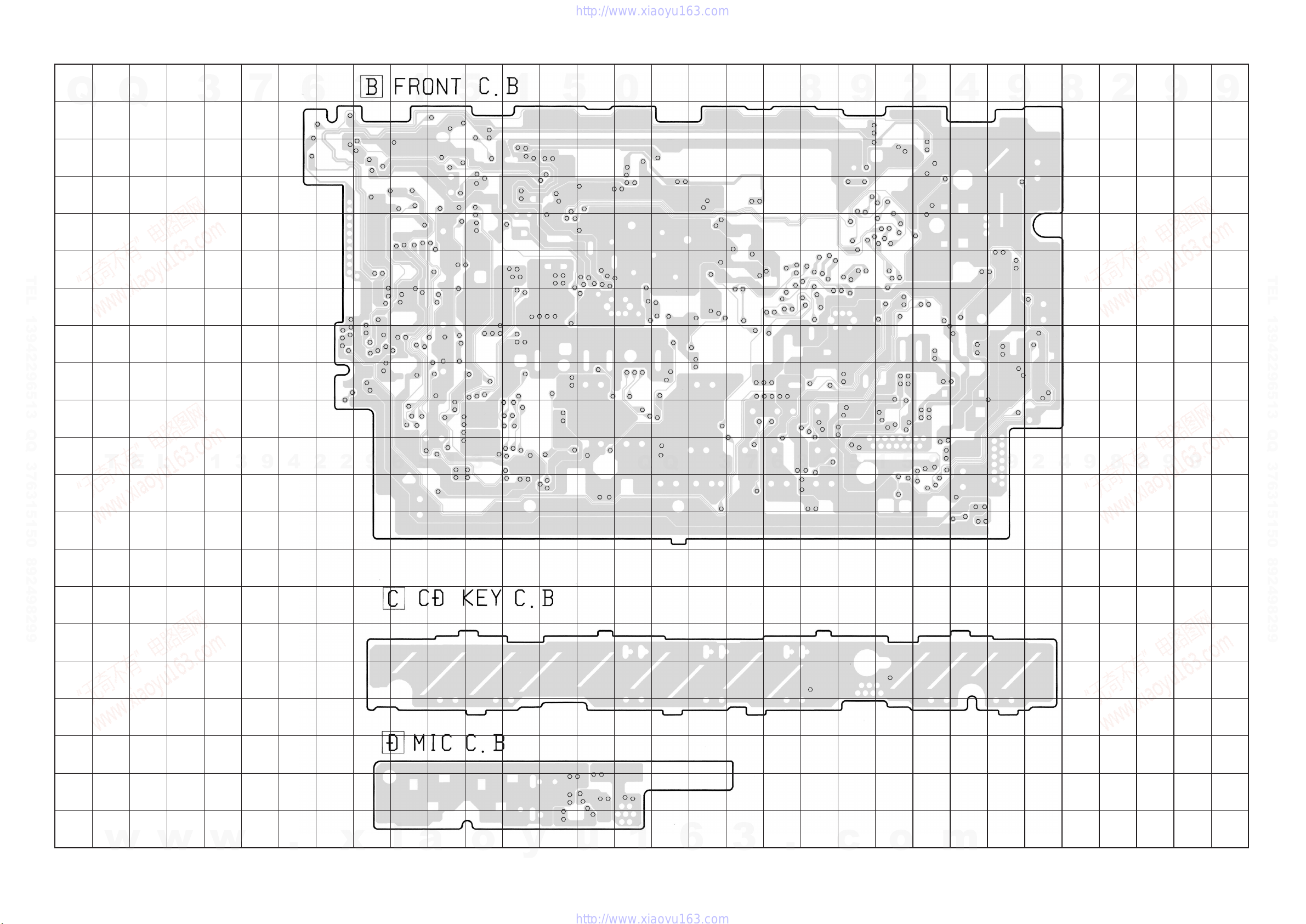

FRONT C.B

C101 87-010-197-080 CAP, CHIP 0.01 DM

C102 87-010-322-080 C-CAP,S 100P-50 CH

C103 87-010-312-080 C-CAP,S 15P-50 CH

C104 87-012-157-080 C-CAP,S 330P-50 CH

C105 87-010-415-040 CAP,E 10-50 5L

C106 87-010-493-040 CAP,E 0.47-50 GAS

C107 87-A10-189-040 CAP,E 220-10

C108 87-A10-189-040 CAP,E 220-10

C109 87-010-196-080 CHIP CAPACITOR,0.1-25

C110 87-010-178-080 CHIP CAP 1000P

C112 87-012-368-080 C-CAP,S 0.1-50 F

C113 87-A10-354-080 C-CAP,S 0.047-50 K B

C114 87-010-196-080 CHIP CAPACITOR,0.1-25

C115 87-010-196-080 CHIP CAPACITOR,0.1-25

C116 87-010-196-080 CHIP CAPACITOR,0.1-25

C118 87-012-145-080 CAP, CHIP S 270P CH

C180 87-010-178-080 CHIP CAP 1000P

C181 87-010-178-080 CHIP CAP 1000P

C202 87-012-156-080 C-CAP,S 220P-50 CH

C203 87-010-322-080 C-CAP,S 100P-50 CH

C204 87-012-157-080 C-CAP,S 330P-50 CH

C205 87-012-156-080 C-CAP,S 220P-50 CH

C214 87-010-322-080 C-CAP,S 100P-50 CH

C215 87-010-322-080 C-CAP,S 100P-50 CH

C216 87-010-986-080 C-CAP,S 820P-50 CH

C221 87-010-421-040 CAP,E 4.7-50 5L

C222 87-010-421-040 CAP,E 4.7-50 5L

C223 87-010-408-040 CAP,E 47-50 SME

C224 87-012-369-080 C-CAP,S 0.047-50F

C312 87-010-498-040 CAP,E 10-16 GAS

C314 87-010-196-080 CHIP CAPACITOR,0.1-25

C315 87-010-196-080 CHIP CAPACITOR,0.1-25

C316 87-010-196-080 CHIP CAPACITOR,0.1-25

C321 87-012-393-080 C-CAP,S 0.22-16 R K

C382 87-010-320-080 CHIP CAP 68P

C383 87-010-196-080 CHIP CAPACITOR,0.1-25

C384 87-010-196-080 CHIP CAPACITOR,0.1-25

C385 87-010-196-080 CHIP CAPACITOR,0.1-25

C386 87-010-196-080 CHIP CAPACITOR,0.1-25

C387 87-010-196-080 CHIP CAPACITOR,0.1-25

C392 87-010-320-080 CHIP CAP 68P

C402 87-010-196-080 CHIP CAPACITOR,0.1-25

C403 87-010-322-080 C-CAP,S 100P-50 CH

C404 87-010-322-080 C-CAP,S 100P-50 CH

C405 87-010-322-080 C-CAP,S 100P-50 CH

C406 87-010-322-080 C-CAP,S 100P-50 CH

C407 87-010-322-080 C-CAP,S 100P-50 CH

C408 87-010-322-080 C-CAP,S 100P-50 CH

C461 87-010-196-080 CHIP CAPACITOR,0.1-25

C462 87-010-196-080 CHIP CAPACITOR,0.1-25

C463 87-010-196-080 CHIP CAPACITOR,0.1-25

C464 87-010-196-080 CHIP CAPACITOR,0.1-25

C465 87-010-196-080 CHIP CAPACITOR,0.1-25

C652 87-010-183-080 C-CAP,S 2700P-50 B

C653 87-010-213-080 C-CAP,S 0.015-50 B

C701 87-010-406-040 CAP,E 22-50 SME

C802 87-012-154-080 C-CAP,S 150P-50 CH

C804 87-010-187-080 CAP CHIP S5600P

C805 87-010-196-080 CHIP CAPACITOR,0.1-25

DESCRIPTIONREF. NO. KANRI

NO.

PART NO. DESCRIPTIONREF. NO. KANRI

NO.

PART NO.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

– 9 –

C806 87-010-401-040 CAP,E 1-50 SME

C807 87-010-196-080 CHIP CAPACITOR,0.1-25

C808 87-010-196-080 CHIP CAPACITOR,0.1-25

C809 87-012-155-080 C-CAP 180P-50CH

C810 87-010-263-040 CAP,E 100-10

C811 87-010-545-040 CAP,E 0.22-50 SME

C812 87-010-405-040 CAP,E 10-50

CN101 87-099-720-010 CONN,30P TYK-B(P)

CN104 87-099-017-010 CONN, 15P 6216 V

CN301 87-099-195-010 CONN,7P 6216 V

CN604 87-099-210-010 CONN,5P 6216 H

CN901 87-A60-161-010 CONN,13P H FE

FB801 87-008-372-080 FILTER, EMI BL OIRNI

FC104 88-915-111-110 FF-CABLE,15P 1.25

FC301 88-907-421-110 FF-CABLE,7P 1.25 420MM

FC901 88-913-521-110 FF-CABLE,13P 1.25 520MM

FL201 8A-NF6-601-010 FL,BJ750GNK 13G-35S ANF-6

L101 87-A50-333-010 COIL,OSC 9.43MHZ

L801 87-A50-093-010 COIL,CLOCK 5.76MHZ

LED401 87-017-756-040 LED,SLR-342DCT31 ORN

LED402 87-017-756-040 LED,SLR-342DCT31 ORN

LED403 87-017-756-040 LED,SLR-342DCT31 ORN

LED404 87-017-756-040 LED,SLR-342DCT31 ORN

LED405 87-017-756-040 LED,SLR-342DCT31 ORN

LED406 87-A40-496-040 LED,SLR-342MCT31 GRN

LED407 87-A40-496-040 LED,SLR-342MCT31 GRN

LED408 87-A40-496-040 LED,SLR-342MCT31 GRN

LED409 87-A40-496-040 LED,SLR-342MCT31 GRN

LED410 87-A40-496-040 LED,SLR-342MCT31 GRN

LED416 87-A40-809-080 LED,LTL-307KK PGRN

LED417 87-A40-809-080 LED,LTL-307KK PGRN

LED418 87-A40-809-080 LED,LTL-307KK PGRN

LED419 87-A40-809-080 LED,LTL-307KK PGRN

LED420 87-A40-809-080 LED,LTL-307KK PGRN

LED421 87-A40-809-080 LED,LTL-307KK PGRN

LED425 87-017-756-040 LED,SLR-342DCT31 ORN

LED426 87-017-756-040 LED,SLR-342DCT31 ORN

LED431 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF

LED432 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF

LED433 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF

LED440 87-A91-665-010 LED,SELU1E10 CXM-SLF55 BLUE

LED441 87-A91-665-010 LED,SELU1E10 CXM-SLF55 BLUE

LED499 87-A40-317-080 LED,SLR-342VCT31 RED

S101 87-A91-591-010 SW,RTRY RE0121PVB25FINA24

S102 87-A91-664-010 SW,RTRY RE0121PVB30F

S301 87-A91-024-180 SW,TACT KSH0611BT

S302 87-A91-024-180 SW,TACT KSH0611BT

S303 87-A91-024-180 SW,TACT KSH0611BT

S304 87-A91-024-180 SW,TACT KSH0611BT

S305 87-A91-024-180 SW,TACT KSH0611BT

S306 87-A91-024-180 SW,TACT KSH0611BT

S307 87-A91-024-180 SW,TACT KSH0611BT

S308 87-A91-024-180 SW,TACT KSH0611BT

S309 87-A91-024-180 SW,TACT KSH0611BT

S310 87-A91-024-180 SW,TACT KSH0611BT

S311 87-A91-024-180 SW,TACT KSH0611BT

S312 87-A91-024-180 SW,TACT KSH0611BT

S313 87-A91-024-180 SW,TACT KSH0611BT

S314 87-A91-024-180 SW,TACT KSH0611BT

S321 87-A91-024-180 SW,TACT KSH0611BT

S322 87-A91-024-180 SW,TACT KSH0611BT

S323 87-A91-024-180 SW,TACT KSH0611BT

S324 87-A91-024-180 SW,TACT KSH0611BT

S325 87-A91-024-180 SW,TACT KSH0611BT

S326 87-A91-024-180 SW,TACT KSH0611BT

S327 87-A91-024-180 SW,TACT KSH0611BT

S328 87-A91-024-180 SW,TACT KSH0611BT

S329 87-A91-024-180 SW,TACT KSH0611BT

S330 87-A91-024-180 SW,TACT KSH0611BT

S331 87-A91-024-180 SW,TACT KSH0611BT

S332 87-A91-024-180 SW,TACT KSH0611BT

S333 87-A91-024-180 SW,TACT KSH0611BT

S334 87-A91-024-180 SW,TACT KSH0611BT

S341 87-A91-024-180 SW,TACT KSH0611BT

S342 87-A91-024-180 SW,TACT KSH0611BT

S343 87-A91-024-180 SW,TACT KSH0611BT

S344 87-A91-024-180 SW,TACT KSH0611BT

S345 87-A91-024-180 SW,TACT KSH0611BT

S346 87-A91-024-180 SW,TACT KSH0611BT

S347 87-A91-024-180 SW,TACT KSH0611BT

CD KEY C.B

CN302 87-099-195-010 CONN,7P 6216 V

LED451 87-017-756-040 LED,SLR-342DCT31 ORN

LED452 87-017-756-040 LED,SLR-342DCT31 ORN

LED453 87-017-756-040 LED,SLR-342DCT31 ORN

LED454 87-A40-496-040 LED,SLR-342MCT31 GRN

LED455 87-A40-496-040 LED,SLR-342MCT31 GRN

LED456 87-A40-496-040 LED,SLR-342MCT31 GRN

S349 87-A91-024-180 SW,TACT KSH0611BT

S350 87-A91-024-180 SW,TACT KSH0611BT

S351 87-A91-024-180 SW,TACT KSH0611BT

S352 87-A91-024-180 SW,TACT KSH0611BT

S353 87-A91-024-180 SW,TACT KSH0611BT

S354 87-A91-024-180 SW,TACT KSH0611BT

S355 87-A91-024-180 SW,TACT KSH0611BT

MIC C.B

C601 87-010-186-080 CAP,CHIP 4700P

C602 87-010-405-040 CAP,E 10-50

C603 87-010-320-080 CHIP CAP 68P

C604 87-010-546-040 CAP,E 0.33-50

C605 87-012-368-080 C-CAP,S 0.1-50 ZF

C606 87-010-112-040 CAP,E 100-16

C607 87-010-196-080 CHIP CAPACITOR,0.1-25

C608 87-010-178-080 CHIP CAP 1000P

C621 87-010-178-080 CHIP CAP 1000P

CN603 87-099-212-010 CONN,5P 6216 V

FB601 87-008-372-080 FILTER, EMI BL OIRNI

FC603 88-905-281-110 FF-CABLE, 5P 1.25 280MM

J601 87-A61-242-010 JACK,6.3 BLK MONO W/SW V KM

J602 87-A61-242-010 JACK,6.3 BLK MONO W/SW V KM

VM C.B

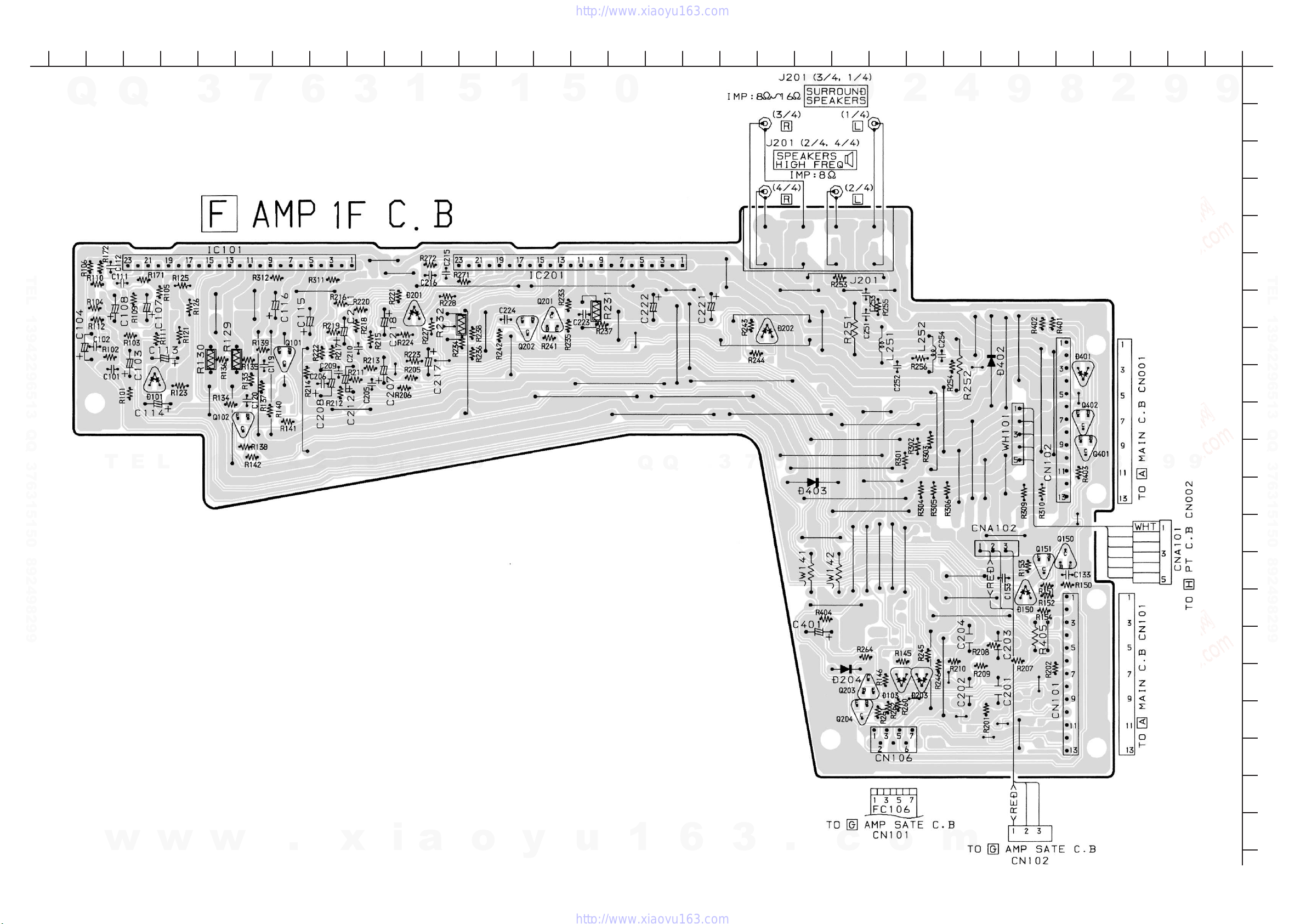

AMP 1F C.B

C101 87-010-178-080 CHIP CAP 1000P

C102 87-010-178-080 CHIP CAP 1000P

C103 87-010-545-080 CAP, ELECT 0.22-50V

C104 87-010-545-080 CAP, ELECT 0.22-50V

C107 87-010-405-080 CAP, ELECT 10-50V

C108 87-010-405-080 CAP, ELECT 10-50V

C111 87-010-179-080 C-CAP,S 1200P-50 KB

C112 87-010-179-080 C-CAP,S 1200P-50 KB

C113 87-010-405-080 CAP, ELECT 10-50V

C114 87-010-405-080 CAP, ELECT 10-50V

C115 87-016-299-080 CAP,E 10-100 SME

C116 87-016-299-080 CAP,E 10-100 SME

C119 87-010-197-080 CAP, CHIP 0.01 DM

C120 87-010-197-080 CAP, CHIP 0.01 DM

C133 87-010-190-080 C-CAP,S 0.01-50 ZF

C153 87-010-188-080 C-CAP,S 6800P-50 B

C201 87-A10-300-080 CAP,M 0.027-50 J

C202 87-A10-300-080 CAP,M 0.027-50 J

C203 87-A10-300-080 CAP,M 0.027-50 J

C204 87-A10-300-080 CAP,M 0.027-50 J

C205 87-010-180-080 C-CER 1500P

DESCRIPTIONREF. NO. KANRI

NO.

PART NO. DESCRIPTIONREF. NO. KANRI

NO.

PART NO.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

– 10 –

C206 87-010-180-080 C-CER 1500P

C207 87-010-401-080 CAP, ELECT 1-50V

C208 87-010-401-080 CAP, ELECT 1-50V

C209 87-010-187-080 CAP CHIP S5600P

C210 87-010-187-080 CAP CHIP S5600P

C211 87-010-402-080 CAP, ELECT 2.2-50V

C212 87-010-402-080 CAP, ELECT 2.2-50V

C215 87-010-179-080 C-CAP,S 1200P-50 KB

C216 87-010-179-080 C-CAP,S 1200P-50 KB

C217 87-010-401-080 CAP, ELECT 1-50V

C218 87-010-401-080 CAP, ELECT 1-50V

C221 87-010-405-080 CAP, ELECT 10-50V

C222 87-010-405-080 CAP, ELECT 10-50V

C223 87-010-197-080 CAP, CHIP 0.01 DM

C224 87-010-197-080 CAP, CHIP 0.01 DM

C251 87-012-368-080 C-CAP,S 0.1-50 F

C252 87-012-368-080 C-CAP,S 0.1-50 F

C253 87-010-196-080 CHIP CAPACITOR,0.1-25

C254 87-010-196-080 CHIP CAPACITOR,0.1-25

C401 87-010-260-080 CAP, ELECT 47-25V

CN101 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3

CN102 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3

CN106 87-099-195-010 CONN,7P 6216 V

CNA101 8A-NF6-645-010 CONN ASSY,5P TID-A(530)

CNA102 8A-NF6-660-010 CONN ASSY,3P (SATE) ANF-6

FC106 88-907-151-110 FF-CABLE, 7P 1.25 150MM

J201 87-A61-148-010 JACK,PIN 4P R/W BLUE

L251 87-003-383-010 COIL,1UH-S

L252 87-003-383-010 COIL,1UH-S

R129 87-A00-262-080 RES,M/F 0.15-2W J

R130 87-A00-262-080 RES,M/F 0.15-2W J

R231 87-A00-258-080 RES,M/F 0.22-1W J

R232 87-A00-258-080 RES,M/F 0.22-1W J

WH101 87-A90-459-010 HLDR,WIRE 2.5-5P

AMP SATE C.B

C201 87-010-263-080 CAP, ELECT 100-10V

C211 87-012-393-080 C-CAP,S 0.22-16 R K

C212 87-012-393-080 C-CAP,S 0.22-16 R K

C213 87-012-393-080 C-CAP,S 0.22-16 R K

C214 87-012-393-080 C-CAP,S 0.22-16 R K

C215 87-010-196-080 CHIP CAPACITOR,0.1-25

C216 87-010-196-080 CHIP CAPACITOR,0.1-25

C217 87-012-141-080 CHIP-CAPACITOR,0.22-16F

C218 87-012-141-080 CHIP-CAPACITOR,0.22-16F

C219 87-010-184-080 CHIP CAPACITOR 3300P(K)

C220 87-010-184-080 CHIP CAPACITOR 3300P(K)

C221 87-010-177-080 C-CAP,S 820P-50 SL

C222 87-010-177-080 C-CAP,S 820P-50 SL

C223 87-016-081-080 C-CAP,S 0.1-16 K R

C224 87-016-081-080 C-CAP,S 0.1-16 K R

C225 87-016-081-080 C-CAP,S 0.1-16 K R

C226 87-016-081-080 C-CAP,S 0.1-16 K R

C227 87-010-184-080 CHIP CAPACITOR 3300P(K)

C228 87-010-184-080 CHIP CAPACITOR 3300P(K)

C229 87-010-177-080 C-CAP,S 820P-50 SL

C230 87-010-177-080 C-CAP,S 820P-50 SL

C231 87-012-141-080 CHIP-CAPACITOR,0.22-16F

C232 87-012-141-080 CHIP-CAPACITOR,0.22-16F

C233 87-010-374-080 CAP, ELECT 47-10V

C234 87-010-374-080 CAP, ELECT 47-10V

C235 87-010-544-080 CAP, ELECT 0.1-50V

C236 87-010-544-080 CAP, ELECT 0.1-50V

C237 87-010-183-080 C-CAP,S 2700P-50 B

C238 87-010-183-080 C-CAP,S 2700P-50 B

C239 87-010-544-080 CAP, ELECT 0.1-50V

C240 87-010-544-080 CAP, ELECT 0.1-50V

C301 87-010-178-080 CHIP CAP 1000P

C302 87-010-178-080 CHIP CAP 1000P

C303 87-010-544-080 CAP, ELECT 0.1-50V

C304 87-010-544-080 CAP, ELECT 0.1-50V

C309 87-010-401-080 CAP, ELECT 1-50V

C310 87-010-401-080 CAP, ELECT 1-50V

C311 87-010-260-080 CAP, ELECT 47-25V

C312 87-010-260-080 CAP, ELECT 47-25V

C315 87-A10-596-080 C-CAP,S 100P-100 J CH

C316 87-A10-596-080 C-CAP,S 100P-100 J CH

C317 87-010-197-080 CAP, CHIP 0.01 DM

C318 87-010-197-080 CAP, CHIP 0.01 DM

C319 87-012-368-080 C-CAP,S 0.1-50 F

C320 87-012-368-080 C-CAP,S 0.1-50 F

C321 87-010-197-080 CAP, CHIP 0.01 DM

C322 87-010-197-080 CAP, CHIP 0.01 DM

C323 87-010-196-080 CHIP CAPACITOR,0.1-25

C324 87-010-196-080 CHIP CAPACITOR,0.1-25

C325 87-010-186-080 CAP,CHIP 4700P

C401 87-010-196-080 CHIP CAPACITOR,0.1-25

C402 87-010-196-080 CHIP CAPACITOR,0.1-25

C403 87-010-405-080 CAP, ELECT 10-50V

C404 87-010-405-080 CAP, ELECT 10-50V

CN101 87-099-195-010 CONN,7P 6216 V

CN102 87-049-919-010 CONN,3P EH V WHT

CN103 87-A60-619-010 CONN,2P V 2MM JMT

J301 87-A61-189-010 JACK,3.5 MONO

J302 87-A61-189-010 JACK,3.5 MONO

L301 87-003-383-010 COIL,1UH-S

L302 87-003-383-010 COIL,1UH-S

PT C.B

C1 87-010-387-080 CAP,E 470-25 SME

C4 87-A11-148-080 CAP,TC U 0.1-50 Z F

C5 87-A11-148-080 CAP,TC U 0.1-50 Z F

C6 87-010-917-000 CAP,E 3300-50 M SMG

C7 87-010-917-000 CAP,E 3300-50 M SMG

C8 87-A11-148-080 CAP,TC U 0.1-50 Z F

C9 87-A11-148-080 CAP,TC U 0.1-50 Z F

C10 87-A11-148-080 CAP,TC U 0.1-50 Z F

C11 87-A11-148-080 CAP,TC U 0.1-50 Z F

C12 87-016-657-090 CAP,E 3300-71

C13 87-016-657-090 CAP,E 3300-71

C16 87-010-403-080 CAP, ELECT 3.3-50V

CN1 87-A61-110-010 CONN,9P V TID-A

CN2 87-A61-108-010 CONN,5P V TID-A

PT2 8A-NF8-673-010 PT,SUB ANF-8 (H)KAMI

PT101 8A-NF6-622-010 PT,LH EI96-60 ANF-6

RY1 87-A91-281-010 RELAY,ACDC12V OSA-SS-212DM5

S1 87-A90-165-010 SW,SL 1-2-3 SWS2301

T1 87-A60-317-010 TERMINAL, 1P MSC

T2 87-A60-317-010 TERMINAL, 1P MSC

DECK C.B

CON501 87-099-756-010 CONN,15P 9604S F

SFR1 87-024-581-010 SFR,3.3K DIA 6H

SOL1 82-ZM1-618-410 SOL ASSY,27

SOL2 82-ZM1-618-410 SOL ASSY,27

SW1 87-A90-248-010 SW,MICRO ESE11SH2CXQ

SW2 87-A90-248-010 SW,MICRO ESE11SH2CXQ

SW3 87-A90-248-010 SW,MICRO ESE11SH2CXQ

SW4 87-036-110-010 SW,MICRO SPPB62

SW5 87-036-110-010 SW,MICRO SPPB62

SW6 87-036-110-010 SW,MICRO SPPB62

SW8 87-A90-248-010 SW,MICRO ESE11SH2CXQ

SW9 87-A90-248-010 SW,MICRO ESE11SH2CXQ

W1 82-ZM3-601-010 RBN-CORD,4P-75

HEAD-1 C.B

DESCRIPTIONREF. NO. KANRI

NO.

PART NO. DESCRIPTIONREF. NO. KANRI

NO.

PART NO.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

Table of contents

Popular Cassette Player manuals by other brands

Ahuja

Ahuja CPA-360 Operation manual

Sony

Sony Pressman TCS-60DV Specifications

Philips

Philips AQ6485/14 Product information

Sony

Sony TCM-200DV - Cassette Recorder operating instructions

Nakamichi

Nakamichi BX-300 Service manual

Panasonic

Panasonic RQ-E25V operating instructions

Yamaha

Yamaha MT8X Operation manual

Sherwood

Sherwood Newcastle D-480 operating instructions

Manta

Manta MA408 user manual

GPO

GPO W0162B user guide

Marantz

Marantz CP230 Service manual

Sony

Sony HST-471 Service manual

Sharp

Sharp JC-AV1 Operation manual

Pioneer

Pioneer CT-W103 Service manual

Sony

Sony CFS-B15 - Am/fm Stereo Cassette Recorder operating instructions

Sony

Sony WMFS220 - Portable Sports AM/FM Cassette... operating instructions

Sanyo

Sanyo MCD-ZX700F Service manual

Sony

Sony Pressman TCM-465V operating instructions

Aiwa NSX-VC88 User manual

Popular Cassette Player manuals by other brands
