Aiwa Z-L120 User manual

SERVICE MANUAL
DATA
COMPACT DISC STEREO SYSTEM BASIC TAPE MECHANISM : ZZM-2 PR1NM
BASIC CD MECHANISM : BZG-5 ZD3N1M
Z-L120 EZ,K
S/M Code No. 09-012-439-5S1
SUPPLEMENT
•This Service Manual is the “Supplement” and replaces “Simple Manual”
of Z-L120 <EZ,K>, (S/M Code No. 09-011-439-5T2).
•This Service Manual contains information about the difference between Z-L120 <EZ,K>
and Z-L220 <LH>. If requiring other information, see Service Manual of Z-L220 <LH>,
(S/M Code No. 09-011-439-5R1).
• If requiring information about the CD mechanism, see Service Manual of BZG-5,
(S/M Code No. 09-00C-353-3N2).
Z-L120 RC-ZAS02
SYSTEM CD
CASSEIVER REMOTE CONTROLLER
CX-ZL120
SPEAKER
SX-ZL120

– 2 –
<Compact disc player section>
Laser Semiconductor laser (λ =780 nm)
D/A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
Wow and flutter Unmeasurable
<General>
Power requirements 230V AC, 50 Hz
Power consumption 80 W
Dimensions of main unit 360 x 395.3 x 348.8 mm
(W xH xD) (141/4x 155/8x 133/4in.)
Weight of main unit 7.2 kg (15 lbs 14oz)
Standby power consumption
If the power-economizing is OFF: 22W
If the power-economizing is AUTO or ON: 0.9W
Speaker system SX-ZL120
Cabinet type 2 way, bass reflex
Speakers Woofer:
130 mm (51/8in.) cone type
Tweeter:
20 mm (13/16 in.) ceramic type
Impedance 6 ohms
Output sound 89 dB/W/m
pressure level
Dimensions (W xH xD) 260 x 495 x 260 mm
(101/4x 191/2x 101/4in.)
Weight 4.5 kg (9 lbs 15 oz.)
SPECIFICATIONS
Main unit CX-ZL120
<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
<MW tuner section>
Tuning range 531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<LW tuner section>
Tuning range 144 kHz to 290 kHz
Usable sensitivity 1400 µV/m
Antenna Loop antenna
<Amplifier section>
Power output Rated: 24 W + 24 W
(6 ohms, T.H.D. 1 %, 1 kHz)
Reference: 30 W + 30 W
(6 ohms, T.H.D. 10 %, 1 kHz)
Total harmonic distortion 0.15 %
(10 W, 1 kHz, 6 ohms, DIN AUDIO)
Inputs VIDEO/AUX/PHONO IN: 500 mV
Outputs SPEAKERS: accept speakers of 6 ohms
or more
PHONES (stereo jack): accepts
headphones of 32 ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz – 10000 Hz
Recording system AC bias
Heads DECK 1: Recording/playback head x 1,
erase head x 1
DECK 2: Playback head x 1
• Design and specifications are subject to change without notice.

– 3 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
8B-MA6-615-010 C-IC,LC866560-5T63
87-A21-831-010 IC,SPS-422-1-F1
87-A21-419-040 C-IC,NJM14558MD-TE2
87-A21-893-040 C-IC,NJM14558V-TE2
87-A21-443-040 C-IC,M62495AFP
87-A21-695-010 IC,LA1845L
87-070-127-110 IC,LC72131D
87-A20-440-040 C-IC,BU1920FS
TRANSISTOR
87-A30-515-080 TR,2SA1979O/Y
87-A30-559-010 TR,CSB1370EF
87-A30-492-080 TR,2SC5343G
87-A30-076-080 C-TR,2SC3052F
87-A30-075-080 C-TR,2SA1235F
87-A30-107-070 C-TR,CMBT5401
87-A30-484-080 C-TR,KRA102S
87-026-610-080 TR,KTC3198GR
87-026-245-080 TR,DTC114ES
87-026-269-080 TR,DTA114ES
87-026-609-080 TR,KTA1266GR
87-A30-190-080 TR,CC5551
87-A30-106-040 C-TR,CMBT5551
87-A30-091-080 FET,2SJ460
87-A30-090-080 FET,2SK2541
87-A30-062-080 C-TR,KRC104S
87-A30-495-080 TR,2SA1981Y
87-A30-234-080 TR,CSC4115BC
89-327-143-080 TR,2SC2714O
87-A30-489-080 C-TR,KRA107S
89-503-602-080 C-FET,2SK360E
87-A30-086-040 C-TR,CSD1306E
87-A30-494-080 TR,2SA1980G
87-A30-255-010 TR,2SB1342
87-A30-256-010 TR,2SD1933
DIODE
87-A40-393-090 DIODE,1N5402GW(F20)
87-020-465-080 DIODE,1SS133 (110MA)
87-A40-553-080 DIODE,1N4003 LES
87-A40-776-080 ZENER,UZ27BSD
87-A40-764-080 ZENER,UZ10BSC
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
87-A40-291-080 DIODE,1N4148M(CPT)
87-A40-234-080 ZENER,MTZJ5.6A
87-A40-539-080 ZENER,MTZJ2.4A
87-017-149-080 ZENER,HZS6A2L
MAIN C.B
C9 87-A12-317-080 C-CAP,U 0.1-50 Z F
C10 87-A12-317-080 C-CAP,U 0.1-50 Z F
C11 87-A12-317-080 C-CAP,U 0.1-50 Z F
C12 87-A12-317-080 C-CAP,U 0.1-50 Z F
C21 87-A10-520-000 CAP, E 3300-35 M SMG
C22 87-A10-520-000 CAP, E 3300-35 M SMG
C25 87-010-407-080 CAP, E 33-50 M 11L SME
C26 87-010-407-080 CAP, E 33-50 M 11L SME
C27 87-010-407-080 CAP, E 33-50 M 11L SME
C28 87-010-407-080 CAP, E 33-50 M 11L SME
C30 87-010-247-080 CAP, E 100-50 M SME
C31 87-A12-062-080 CAP,E 100-10 SMG
C32 87-012-286-080 C-CAP, U 0.01-25
C33 87-A12-062-080 CAP,E 100-10 SMG
C34 87-010-384-080 CAP, E 100-25 M 11L SME
C35 87-A12-066-080 CAP,E 47-16 SMG
C36 87-010-381-080 CAP, ELECT 330-16V
C38 87-012-286-080 C-CAP, U 0.01-25
C60 87-A12-089-080 CAP,E 3.3-50 SMG
C61 87-A12-071-080 CAP,E 47-25 SMG
C83 87-A12-068-080 CAP, E 470-16 SMG
C97 87-010-759-080 C-CAP,U 0.1-25F
C99 87-010-759-080 C-CAP,U 0.1-25 Z F
C101 87-012-279-080 C-CAP,U 2700P-50 B
C102 87-012-279-080 C-CAP,U 2700P-50 B
C103 87-A12-090-080 CAP,E 4.7-50 SMG
C104 87-A12-090-080 CAP,E 4.7-50 SMG
C107 87-A12-091-080 CAP,E 10-50 SMG
C108 87-A12-091-080 CAP,E 10-50 SMG
C109 87-012-199-080 C-CAP,U 220P-50 CH
C110 87-012-199-080 C-CAP,U 220P-50 CH
C111 87-010-392-080 CAP ELECT 33SME-35V
C112 87-010-392-080 CAP ELECT 33SME-35V
C113 87-012-195-080 C-CAP,U 100P-50 CH
C114 87-012-195-080 C-CAP,U 100P-50 CH
C115 87-012-167-080 C-CAP,S 5P-50 CH
C116 87-012-167-080 C-CAP,S 5P-50 CH
C117 87-A12-317-080 C-CAP,U 0.1-50 Z F
C118 87-A12-317-080 C-CAP,U 0.1-50 Z F
C119 87-012-286-080 C-CAP,U 0.01-25
C120 87-012-286-080 C-CAP,U 0.01-25
C121 87-A12-090-080 CAP,E 4.7-50 SMG
C122 87-A12-090-080 CAP,E 4.7-50 SMG
C123 87-010-177-080 C-CAP,S 820P-25 J SL C2012
C124 87-010-177-080 C-CAP,S 820P-25 J SL C2012
C133 87-012-282-080 C-CAP,U 4700P-50
C140 87-012-278-080 C-CAP,U 2200P-50
C223 87-012-272-080 C-CAP,U 680P-50 B
C224 87-012-272-080 C-CAP,U 680P-50 B
C225 87-A12-317-080 C-CAP,U 0.1-50 Z F
C226 87-A12-317-080 C-CAP,U 0.1-50 Z F
C227 87-A12-317-080 C-CAP,U 0.1-50 Z F
C228 87-A12-317-080 C-CAP,U 0.1-50 Z F
C229 87-012-287-080 C-CAP,U 0.015-25 F
C230 87-012-287-080 C-CAP,U 0.015-25 F
C231 87-012-286-080 CAP, U 0.01-25
C232 87-012-286-080 CAP, U 0.01-25
C241 87-010-759-080 C-CAP,U 0.1-25 Z F
C301 87-012-274-080 CHIP CAP,U 1000P-50B
C302 87-012-274-080 CHIP CAP,U 1000P-50B
C303 87-012-274-080 CHIP CAP,U 1000P-50B
C304 87-012-274-080 CHIP CAP,U 1000P-50B
C307 87-A12-062-080 CAP,E 100-10 SMG
C308 87-A12-062-080 CAP,E 100-10 SMG
C309 87-012-195-080 C-CAP,U 100P-50 J CH
C310 87-012-195-080 C-CAP,U 100P-50 J CH
C313 87-012-284-080 CAP, U 6800P-50
C314 87-012-284-080 CAP, U 6800P-50
C315 87-A12-062-080 CAP,E 100-10 SMG
C317 87-A12-085-080 CAP,E 0.33-50 SMG
C318 87-A12-085-080 CAP,E 0.33-50 SMG
C326 87-016-118-080 C-CAP,U 0.022-25BJ
C327 87-A12-317-080 C-CAP,U 0.1-50 Z F
C350 87-012-286-080 C-CAP,U 0.01-25 K B
C360 87-A12-087-080 CAP,E 1-50 SMG
C365 87-010-759-080 C-CAP,U 0.1-25 Z F
C399 87-012-270-080 CAP, U 470P-50
C401 87-A12-083-080 CAP,E 0.1-50 SMG
C402 87-A12-083-080 CAP,E 0.1-50 SMG
C403 87-012-193-080 C-CAP,U 82P-50 CH
C404 87-012-193-080 C-CAP,U 82P-50 CH
C405 87-012-286-080 CAP, U 0.01-25
C406 87-012-286-080 CAP, U 0.01-25
C407 87-012-286-080 CAP, U 0.01-25
C408 87-012-286-080 CAP, U 0.01-25

– 4 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C409 87-012-278-080 C-CAP,U 2200P-50 B
C410 87-012-278-080 C-CAP,U 2200P-50 B
C411 87-A12-091-080 CAP,E 10-50 SMG
C412 87-A12-091-080 CAP,E 10-50 SMG
C452 87-A12-092-080 CAP,E 22-50 SMG
C453 87-012-279-080 C-CAP,U 2700P-50 B
C454 87-012-279-080 C-CAP,U 2700P-50 B
C455 87-012-279-080 C-CAP,U 2700P-50 B
C456 87-012-286-080 CAP, U 0.01-25
C457 87-A12-361-080 CAP,M 5600P-100 J CP
C458 87-012-274-080 CHIP CAP,U 1000P-50B
C459 87-012-271-080 CAP, U 560P-50
C460 87-010-759-080 C-CAP,U, 0.1-25F
C461 87-012-269-080 C-CAP,U 390P-50 B
C462 87-012-269-080 C-CAP,U 390P-50 B
C470 87-018-127-080 CAP, CER 470P-50V
C605 87-012-275-080 C-CAP,U 1200P-50 B
C606 87-012-275-080 C-CAP,U 1200P-50 B
C609 87-012-287-080 C-CAP,U 0.015-25 F
C610 87-012-287-080 C-CAP,U 0.015-25 F
C611 87-A12-084-080 CAP,E 0.22-50 SMG
C612 87-A12-084-080 CAP,E 0.22-50 SMG
C613 87-A12-084-080 CAP,E 0.22-50 SMG
C614 87-A12-084-080 CAP,E 0.22-50 SMG
C615 87-012-172-080 CAPACITOR CHIP U 10P CH
C616 87-010-221-080 CAP, ELECT 470-10V
C617 87-010-221-080 CAP, ELECT 470-10V
C618 87-A12-091-080 CAP,E 10-50 SMG
C623 87-010-402-080 CAP, ELECT 2.2-50V
C624 87-010-402-080 CAP, ELECT 2.2-50V
C630 87-010-759-080 C-CAP,U, 0.1-25F
C669 87-012-195-080 C-CAP,U 100P-50CH
C670 87-012-195-080 C-CAP,U 100P-50CH
C677 87-012-286-080 CAP, U 0.01-25
C771 87-A12-062-080 CAP,E 100-10 SMG
C772 87-012-286-080 CAP, U 0.01-25
C779 87-010-949-080 C-CAP,S 0.01-50 J B
C780 87-010-949-080 C-CAP,S 0.01-50 J B
C782 87-012-286-080 CAP, U 0.01-25
C783 87-012-286-080 CAP, U 0.01-25
C784 87-012-286-080 CAP, U 0.01-25
C785 87-012-286-080 CAP, U 0.01-25
C786 87-012-286-080 CAP, U 0.01-25
C788 87-012-167-080 C-CAP,U 5P-50 CH
C789 87-016-118-080 C-CAP,U 0.022-25 J B GRM
C790 87-016-118-080 C-CAP,U 0.022-25 J B GRM
C791 87-010-831-080 C-CAP,U,0.1-16F
C792 87-012-286-080 CAP, U 0.01-25
C793 87-A12-090-080 CAP,E 4.7-50 SMG
C795 87-012-286-080 CAP, U 0.01-25
C796 87-012-286-080 CAP, U 0.01-25
C797 87-A12-091-080 CAP,E 10-50 SMG
C798 87-012-286-080 CAP, U 0.01-25
C799 87-010-265-080 CAP,E 33-16 M 11L SME
C800 87-010-829-080 CAP, U 0.047-16
C801 87-A12-089-080 CAP,E 3.3-50 SMG
C802 87-010-829-080 CAP, U 0.047-16
C803 87-010-787-080 CAP, U 0.022-25 K B
C804 87-A12-062-080 CAP,E 100-10 SMG
C807 87-A12-086-080 CAP,E 0.47-50 SMG
C808 87-A12-087-080 CAP,E 1-50 SMG
C809 87-A12-087-080 CAP,E 1-50 SMG
C810 87-010-831-080 C-CAP,U,0.1-16F
C814 87-012-286-080 CAP, U 0.01-25
C815 87-A12-086-080 CAP,E 0.47-50 SMG
C816 87-A12-086-080 CAP,E 0.47-50 SMG
C818 87-012-276-080 C-CAP,U 1500P-50 K B
C821 87-A12-091-080 CAP,E 10-50 SMG
C823 87-012-349-080 C-CAP,S 1000P-50 J CH GRM
C824 87-A12-090-080 CAP,E 4.7-50 SMG
C825 87-010-829-080 CAP, U 0.047-16
C831 87-A12-092-080 CAP,E 22-50 SMG
C842 87-012-286-080 CAP, U 0.01-25
C844 87-012-286-080 CAP, U 0.01-25
C850 87-A12-071-080 CAP,E 47-25 SMG
C851 87-012-286-080 CAP, U 0.01-25
C852 87-012-286-080 CAP, U 0.01-25
C853 87-012-286-080 CAP, U 0.01-25
C858 87-010-831-080 C-CAP,U 0.1-16 Z F
C859 87-010-831-080 C-CAP,U 0.1-16 Z F
C860 87-012-286-080 C-CAP,U 0.01-25 K B
C869 87-012-286-080 C-CAP,U 0.01-25 K B
C870 87-012-274-080 C-CAP,U 1000P-50 K B
C871 87-012-199-080 C-CAP,U 220P-50 J CH
C872 87-012-199-080 C-CAP,U 220P-50 J CH
C873 87-A10-039-080 C-CAP,U 470P-50 J CH
C874 87-A12-091-080 CAP,E 10-50 SMG
C875 87-010-759-080 C-CAP,U 0.1-25 Z F
C876 87-A12-091-080 CAP,E 10-50 SMG
C877 87-012-286-080 C-CAP,U 0.01-25 K B
C878 87-012-184-080 C-CAP,U 33P-50 J CH
C879 87-012-180-080 C-CAP,U 22P-50 J CH
C940 87-012-286-080 C-CAP,U 0.01-25 K B
C942 87-012-165-080 C-CAP,U 3P-50 C CH
C947 87-012-286-080 C-CAP,U 0.01-25 K B
C948 87-A10-039-080 C-CAP,U 470P-50 J CH
C952 87-012-286-080 C-CAP,U 0.01-25 K B
C957 87-012-174-080 C-CAP,U 12P-50 J CH
C958 87-012-286-080 C-CAP,U 0.01-25 K B
C959 87-010-831-080 C-CAP,U,0.1-16F
C960 87-010-831-080 C-CAP,U,0.1-16F
C962 87-A12-087-080 CAP,E 1-50 SMG
C963 87-015-785-080 CHIP CAPACITOR, 0.1-25 Z F
C971 87-A12-067-080 CAP,E 330-16 SMG
C972 87-A12-090-080 CAP,E 4.7-50 SMG
C973 87-012-286-080 CAP, U 0.01-25
C974 87-012-286-080 CAP, U 0.01-25
C979 87-012-195-080 C-CAP,U 100P-50CH
C981 87-A12-071-080 CAP,E 47-25 SMG
C982 87-010-831-080 C-CAP,U,0.1-16F
C983 87-012-286-080 CAP, U 0.01-25 K B
C984 87-012-286-080 CAP, U 0.01-25 K B
C985 87-012-195-080 C-CAP,U 100P-50 J CH
C987 87-012-286-080 CAP, U 0.01-25 K B
C989 87-012-286-080 C-CAP, U 0.01-25 K B
C991 87-012-176-080 C-CAP,U 15P-50 J CH
C992 87-012-176-080 C-CAP,U 15P-50 J CH
C993 87-012-274-080 CHIP CAP,U 1000P-50B
C995 87-012-274-080 CHIP CAP,U 1000P-50B
C997 87-010-831-080 C-CAP,U,0.1-16F
C998 87-A12-071-080 CAP,E 47-25 SMG
C999 87-A11-155-080 CAP,TC U 0.01-16 Z F
CF831 87-008-423-010 FILTER, CF SFE10.7MS3G-A
CF832 82-785-747-010 CF,MS2 GHY,R
CN301 87-A60-620-010 CONN,3P V 2MM JMT
CN351 87-A60-625-010 CONN,8P V 2MM JMT
CN601 87-099-719-010 CONN,30P TYK-B(X)
CN602 87-A60-131-010 CONN,6P V FE
CNA301 8A-MA6-642-110 CONN ASSY,3P (PH)
CNA351 8A-MA6-641-010 CONN ASSY,8P RPB
FC602 88-906-321-110 FF-CABLE,6P 1.25 320mm
FFE831 A8-6ZA-19H-030 6ZA-1 FEMENM
J201 87-A60-488-010 JACK,DIA6.3 BLK ST W/SW KM16AT
J203 87-A60-238-010 TERMINAL,SP 4P (MSC)
J602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN
J832 87-A60-403-010 TERMINAL,ANT PAL 2P HSP-312V05
L201 87-A50-610-010 COIL,1UH K(MDEC)
L202 87-A50-610-010 COIL,1UH K(MDEC)
L451 87-007-342-010 COIL,OSC 85KHZ BIAS
L801 87-A50-608-010 COIL,FM DET-N(TOK)

– 5 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
L802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK)
L811 87-005-847-080 COIL,2.2UH CECS
L832 87-005-847-080 COIL,2.2UH CECS
L861 87-005-847-080 COIL,2.2UH K CECS
L941 87-A50-020-010 COIL,ANT LW (COI) 252KHZ
L942 87-A50-019-010 COIL,OSC LW (COI) 856KHZ
L951 8A-NF8-668-010 COIL,AM PACK 2(TOK)
R129 87-A00-258-080 RES,M/F 0.22-1W J
R130 87-A00-258-080 RES,M/F 0.22-1W J
R131 87-A00-258-080 RES,M/F 0.22-1W J
R132 87-A00-258-080 RES,M/F 0.22-1W J
R243 87-A00-440-050 RES,220-1/2W J RP
R244 87-A00-440-050 RES,220-1/2W J RP
R245 87-A00-440-050 RES,220-1/2W J RP
R246 87-A00-440-050 RES,220-1/2W J RP
R790 87-012-286-080 CAP, U 0.01-25
R991 87-012-195-080 C-CAP,U 100P-50CH
R993 87-012-195-080 C-CAP,U 100P-50CH
R995 87-012-195-080 C-CAP,U 100P-50CH
SFR451 87-024-435-080 SFR,33K H RH063MC
SFR452 87-024-435-080 SFR,33K H RH063MC
TC942 87-A91-774-080 TRIMMER, PLY 30P 6.8X5.4 CDYL
TH101 87-A91-042-080 C-THMS,100K 55001
TH102 87-A91-042-080 C-THMS,100K 55001
W99 8B-MA6-609-010 F-CABLE,7P 2.5 480MM
WH1 87-A90-510-010 HLDR,WIRE 2.5-9P
X862 87-A70-307-010 VIB,XTAL 4.332MHZ CSA-309ST
X992 87-A70-306-010 VIB,XTAL 4.500MHZ CSA-309ST
FRONT C.B
C101 87-A11-147-080 CAP,TC U 0.047-50 Z F
C102 87-A11-124-080 CAP,TC U 2200P-50 K B
C104 87-010-246-040 CAP,E 47-35 SME
C105 87-A11-146-080 CAP,TC U 0.022-50 Z F
C106 87-010-374-040 CAP,E 47-10 M 11L SME
C107 87-018-205-080 CAP, CERA-SOL 0.022
C108 87-018-131-080 CAP, CER 1000P-50V
C109 87-018-131-080 CAP, CER 1000P-50V
C110 87-018-131-080 CAP, CER 1000P-50V
C111 87-010-404-040 CAP,E 4.7-50 SME
C112 87-A11-148-080 CAP,TC U 0.1-50 Z F
C113 87-018-131-080 CAP, CER 1000P-50V
C114 87-018-147-080 CAP,TC-U 10P-50 CH
C115 87-018-128-080 CAP, CERA-SOL SS 560P
C116 87-010-400-040 CAP,E 0.47-50
C117 87-A11-148-080 CAP,TC U 0.1-50 Z F
C118 87-010-248-040 CAP,E 220-10 SME
C120 87-018-123-080 CAP, CER 220P-50V
C130 87-010-405-040 CAP,E 10-50
C135 87-A11-148-080 CAP,TC U 0.1-50 Z F
C201 87-018-118-080 CAP,TC-U 82P-50 B
C202 87-018-117-080 CAP,TC-U 68P-50 SL
C205 87-018-117-080 CAP,TC-U 68P-50 SL
C208 87-018-117-080 CAP,TC-U 68P-50 SL
C209 87-018-117-080 CAP,TC-U 68P-50 SL
C210 87-018-117-080 CAP,TC-U 68P-50 SL
C211 87-A11-147-080 CAP,TC U 0.047-50 Z F
C212 87-010-404-040 CAP,E 4.7-50 SME
C213 87-010-404-040 CAP,E 4.7-50 SME
C216 87-A11-147-080 CAP,TC U 0.047-50 Z F
C701 87-010-384-040 CAP,E 100-25 SME
CN101 87-099-720-010 CONN,30P TYK-B(P)
CN701 87-A60-673-010 CONN,9P H 2MM JMT
CN801 87-A60-133-010 CONN,8P V FE
FC801 88-908-271-110 FF-CABLE,8P 1.25 27
FL201 8A-NFA-604-010 FL,10-BT-224GNK
L101 87-A50-408-010 COIL,OSC 5.76MHZ
LED101 87-A40-317-080 LED,SLR-342VCT31 RED
S101 87-A92-071-010 SW,RTRY EC12E24508-30MM
S301 87-A90-095-080 SW,TACT EVQ11G04M
S302 87-A90-095-080 SW,TACT EVQ11G04M
S303 87-A90-095-080 SW,TACT EVQ11G04M
S304 87-A90-095-080 SW,TACT EVQ11G04M
S305 87-A90-095-080 SW,TACT EVQ11G04M
S306 87-A90-095-080 SW,TACT EVQ11G04M
S307 87-A90-095-080 SW,TACT EVQ11G04M
S308 87-A90-095-080 SW,TACT EVQ11G04M
S309 87-A90-095-080 SW,TACT EVQ11G04M
S310 87-A90-095-080 SW,TACT EVQ11G04M
S311 87-A90-095-080 SW,TACT EVQ11G04M
S312 87-A90-095-080 SW,TACT EVQ11G04M
S321 87-A90-095-080 SW,TACT EVQ11G04M
S322 87-A90-095-080 SW,TACT EVQ11G04M
S323 87-A90-095-080 SW,TACT EVQ11G04M
S324 87-A90-095-080 SW,TACT EVQ11G04M
S325 87-A90-095-080 SW,TACT EVQ11G04M
S326 87-A90-095-080 SW,TACT EVQ11G04M
S327 87-A90-095-080 SW,TACT EVQ11G04M
S328 87-A90-095-080 SW,TACT EVQ11G04M
S329 87-A90-095-080 SW,TACT EVQ11G04M
S330 87-A90-095-080 SW,TACT EVQ11G04M
S331 87-A90-095-080 SW,TACT EVQ11G04M
SFR701 87-024-352-080 SFR,4.7K H EVN DJAA03
PT C.B
C85 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
PT1 8B-MA6-662-010 PT,BMA-6 EZ
PT81 8B-MA6-675-010 PT,SUB BMA E (VRK)
RY81 87-A91-418-010 RELAY,AC 12V G5PA-1-M
T81 87-A60-317-010 TERMINAL, 1P MSC
T82 87-A60-317-010 TERMINAL, 1P MSC
WH81 87-A90-510-010 HLDR,WIRE 2.5-9P
!
!
!
!
!

–6 –
TRANSISTOR ILLUSTRATION
B C E
2SB1342
2SD1933
CSD 1306E
B
C
E

WIRING  1 (MAIN)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
 7 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

 8 
SCHEMATIC DIAGRAM - 1 (MAIN 1/2)

 9 
SCHEMATIC DIAGRAM - 2 (MAIN 2/2) <TUNER>

WIRING – 2 (FRONT)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 10 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

 11 
SCHEMATIC DIAGRAM - 3 (FRONT)

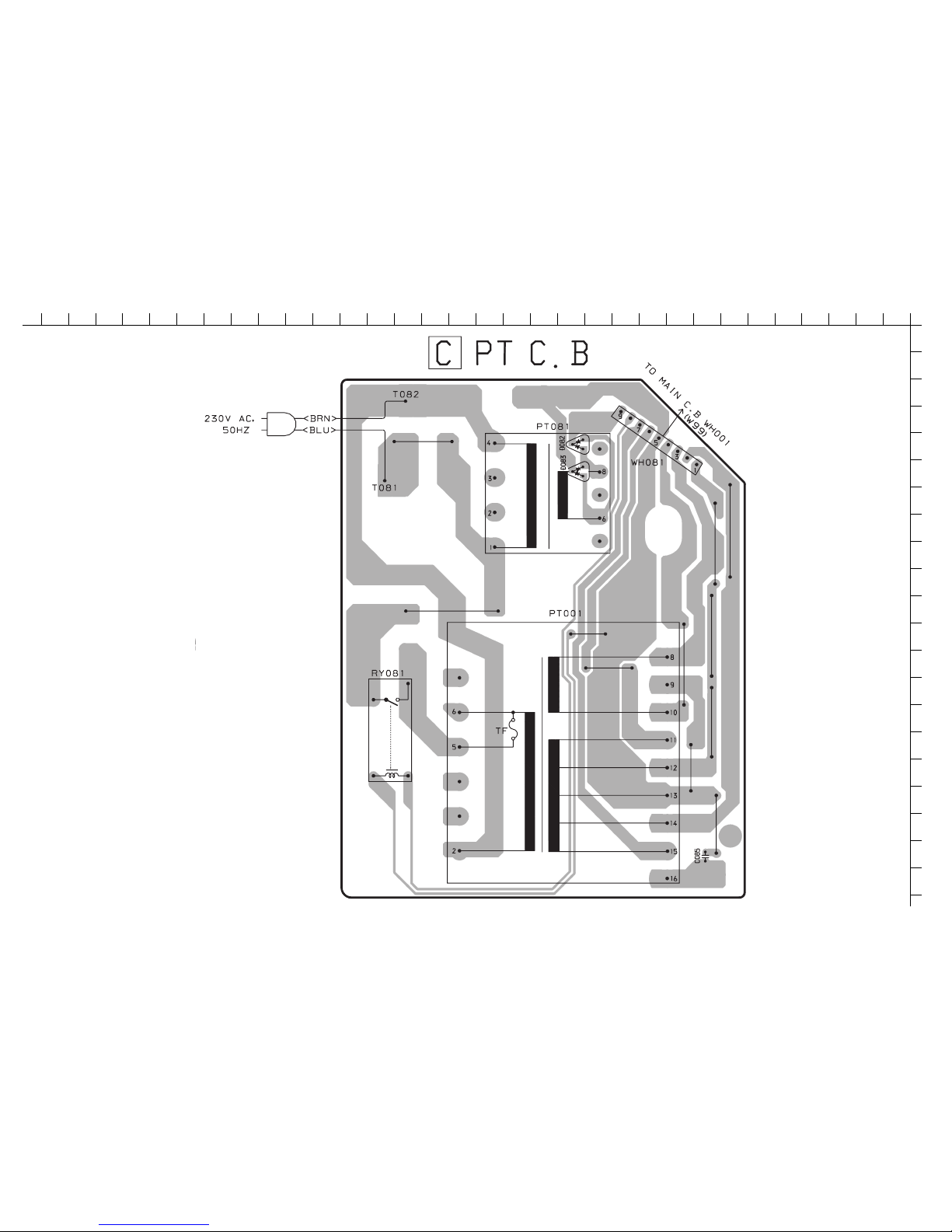

WIRING  3 (PT)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
 12 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

 13 
SCHEMATIC DIAGRAM - 4 (PT)

 14 

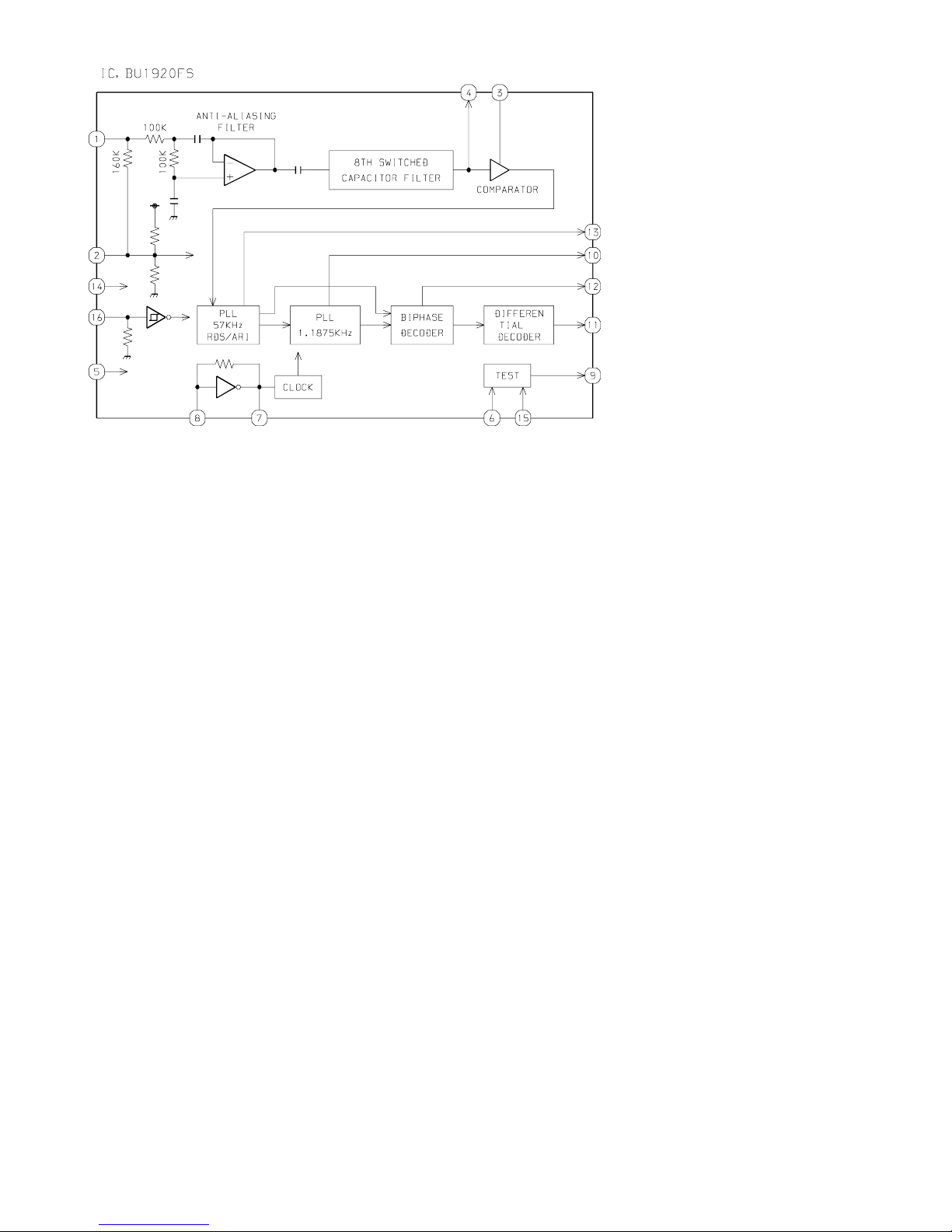

IC BLOCK DIAGRAM

– 15 –
ADJUSTMENT – 1 <TUNER/FRONT>
< TUNER SECTION >
1. Clock Frequency Check
Settings : • Test point : TP2 (CLK)
Method : Set to MW 1602kHz and check that the test point is
2052kHz ±45Hz.
2. MW VT Check
Settings : • Test point : TP1 (VT)
Method : Set to MW 1602kHz and check that the test point is
less than 8.0V. Then set to MW 531kHz and check
that the test point is more than 0.6V.
3. FM VT Check
Settings : • Test point : TP1 (VT)
Method : Set to FM 108.0MHz and check that the test point is
less than 8.0V. Then set to FM 87.5MHz and check
that the test point is more than 0.5V.
4. FM Tracking Check
Settings : • Test point : TP8 (Lch), TP9 (Rch)
Method : Set to FM 98.0MHz and check that the test point is less
than 13dBµV.
5. LW VT Adjustment
Settings : • Test point : TP1 (VT)
• Adjustment location : L942
Method : Set to LW 144kHz and adjust L942 so that the test
point becomes 1.3V ±0.05V. Then set to LW 290kHz
and check that the test point is less than 8.0V.
6. LW Tracking Adjustment
Settings : • Test point : TP8 (Lch), TP9 (Rch)
• Adjustment location :
L941 .................................................... 144kHz
TC942 .................................................. 290kHz
Method : Set up TC942 to center before adjustment. The level at
144kHz is adjusted to maximum by L941. Then the
level at 290kHz is adjusted to maximum by TC942.
7. MW Tracking Adjustment
Settings : • Test point : TP8 (Lch), TP9 (Rch)
• Adjustment location :
L951 (1/3) ....................................................1000kHz
Method : Set to MW 999kHz and adjust L951 (1/3) so that the
test point becomes maximum.
8. MW IF Adjustment
Settings : • Test point : TP8 (Lch), TP9 (Rch)
• Adjustment location :
L802 .................................................... 450kHz
9. DC Balance / Mono Distortion Adjustment
Settings : • Test point : TP3, TP4 (DC)
TP8 (Lch), TP9 (Rch)
(Distortion)
• Adjustment location : L801
• Input level : 60dBµV
Method : Set to FM 98.0MHz and adjust L801 so that the
voltage between TP3 and TP4 becomes 0V ±300mV
with distortion less than 1.2%.
10. Output Level Check
<MW>
Settings : • Test point : TP8 (Lch), TP9 (Rch)
• Input level : 74dBµV
Method : Set to MW 999kHz and check that the test point is
40mV ±3dB.
<FM>
Settings : • Test point : TP8 (Lch), TP9 (Rch)
• Input level : 60dBµV
Method : Set to FM 98.0MHz and check that the test point is
140mV ±3dB.
11. FM Separation Check
Settings : • Test point : TP8 (Lch), TP9 (Rch)
• Input level : 60dBµV
Method : Set to FM 98.0MHz and check that the test point is
more than 12dB.
< FRONT SECTION >
12. MICON OSC Adjustment
Settings : • Test point : TP10 (KEY-SCAN)
TP11 (D-GND)
• Adjustment location : L101
Method : Insert AC plug while pressing of "POWER" key and
"TUNER" function key.
Connect a frequency counter across TP10 and TP11.
Then adjust L101 so that the test point becomes
171.46Hz ±0.17Hz.
[ Manual Reset ]
Make up for RESET after adjustment.
* Reset is to press "POWER" key while pressing of
"CLEAR (STOP)" key.

– 16 –
ADJUSTMENT – 2 <DECK>
< DECK SECTION >
1. Tape Speed Adjustment (DECK 1)
Settings : • Test tape : TTA–100
• Test point : TP8 (Lch), TP9 (Rch)
• Adjustment location : SFR701
Method : Play back the test tape and adjust SFR701 so that the
test point becomes 3000Hz ±5Hz (FWD) and FWD
SPEED ±45Hz (REV) with respect to forward speed.
2. Head Azimuth Adjustment (DECK 1, DECK 2)
Settings : • Test tape : TTA–330
• Test point : TP8 (Lch), TP9 (Rch)
• Adjustment location : Head azimuth
adjustment screw
Method : Play back (FWD) the 8kHz signal of the test tape and
adjust screw so that the output becomes maximum.
Next, perform on REV PLAY mode.
3. PB Frequency Response Check (DECK 1, DECK 2)
Settings : • Test tape : TTA–330
• Test point : TP8 (Lch), TP9 (Rch)
Method : Play back the 315Hz and 8kHz signals of the test
tape and check that the output ratio of the 8kHz
signal with respect to that of the 315Hz signal is
0dB ±5dB.
4. PB Sensitivity Check (DECK 1, DECK 2)
Settings : • Test tape : TTA–200
• Test point : TP8 (Lch), TP9 (Rch)
Method : Play back the test tape and check that the output level
of the test point is 140mV ±3dB.
5. REC/PB Frequency Response Adjustment (DECK 1)
Settings : • Test tape : TTA–602
• Test point : TP8 (Lch), TP9 (Rch)
• Input signal : 1kHz / 8kHz
(–20VU)
• Adjustment location : SFR451 (Lch)
SFR452 (Rch)
Method : Apply a 1kHz signal and REC mode. Then adjust OSC
attenuator so that the output level at the TP8, TP9
becomes 0 dB (10mV). Record and play back the
1kHz and 8kHz signals and adjust SFRs so that the
output of the 10kHz signals becomes 0dB ±1dB with
respect to that of the 1kHz signal.
6. REC/PB Sensitivity Check (DECK 1)
Settings : • Test tape : TTA–602
• Test point : TP8 (Lch), TP9 (Rch)
• Input signal : 1kHz (0VU)
Method : Apply a 1kHz signal and REC mode. Then adjust
OSC attenuator so that the output level at TP8, TP9
becomes 0 dB (100mV). Record and play back
the 1kHz signals and check that the output is
–1dB ±3.5dB.

– 17 –
MECHANICAL EXPLODED VIEW 1 / 1

– 18 –
MECHANICAL PARTS LIST 1 / 1
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gol P Pink
R Re S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink
LA Aqua Blue GL Light Green
1 8B-MA6-026-010 BOX,CASS R A6
2 8B-MA6-056-010 WINDOW,CASS R A6
3 8B-MA6-055-010 WINDOW,CASS L A6
4 8B-MA6-025-010 BOX,CASS L A6
5 8B-MA3-105-010 KNOB ASSY,RTRY VOL
6 87-B00-002-010 BADGE,AIWA 30 ABS SIL
7 81-532-080-010 LABEL, CASS. COMPT
8 8B-MA6-052-010 WINDOW,DISP RDS A6
9 8Z-CL8-209-010 SPR-T,CASS
10 86-NFZ-231-010 DMPR,70
11 8B-MA6-030-010 PANEL,TRAY A6
12 8B-MA6-002-010 CABI,FR RDS A6
13 8A-MA3-057-010 WINDOW,TOP
14 8B-MA6-019-010 CABI,TOP U
15 8A-NFA-208-010 GUIDE,FL 100-25 ANFA
16 8B-MA6-103-010 KEY ASSY,OPE A6
17 8B-MA6-086-010 RING,OPE A6
18 8B-MA6-071-010 KEY,FUNC A6
19 8B-MA6-064-010 KEY,T-BASS A6
20 8B-MA6-062-010 KEY,OPEN RDS A6
21 8B-MA6-063-010 KEY,DIRECT A6
22 8B-MA6-074-010 KEY,CASS L
23 8B-MA6-075-010 KEY,CASS R
24 88-MA1-208-210 JOINT,CABI
25 8B-MA6-207-010 HLDR,TR A6
26 87-NF4-221-010 HLDR,CABLE
27 8B-MA5-012-010 CABI,REAR K A5
28 87-A80-157-010 AC CORD ASSY,E BLK C
29 87-085-185-010 BUSHING, AC CORD (E)
30 87-099-811-010 PLUG,ADPTR CONV(K)<K>
31 87-MA3-062-010 FOOT, H17
32 8B-MA3-047-010 PANEL,SIDE L (U)
33 8B-MA3-048-010 PANEL,SIDE R (U)
A 87-078-060-010 BVIT3PB+3-10
B 87-067-758-010 BVT2+3-12 W/O SLOT
C 87-067-703-010 TAPPING SCREW, BVT2+3-10
D 87-NF4-224-010 S-SCREW,IT3B+3-8 CU
E 87-078-200-010 S-SCREW,ITC+4-8 R
F 87-B10-315-010 BVIT3B+3-8 R W/O
G 87-B10-316-010 BVIT3B+3-10 R W/O
H 87-591-095-410 TAPPING SCREW, QIT+3-8 (GLD)
I 87-067-641-010 UTT2+3-8(W/O SLOT)BL
!
!

– 19 –
SPEAKER PARTS LIST
(SX-ZL120) <YSC>
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
1 8B-MSG-001-010 PANEL,DUCT
2 8B-MSG-002-010 GRILLE,FRAME ASSY
3 8B-MSG-604-010 SPKR, 130
4 83-MSE-605-010 SPKR,CERAMIC
5 8B-MSG-612-010 CORD,SPKR
6 8A-NSJ-006-010 BADGE,AIWA S35
ACCESSORIES / PACKAGE LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
1 8B-MA6-905-010 IB,K (E) M <K>
1 8B-MA6-906-010 IB,EZ (9L) M <EZ>
2 87-006-268-010 ANT,LOOP AM
3 8Z-NF9-702-010 RC UNIT,ZAS02
4 87-A90-118-010 ANT,WIRE FM (Z)

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]
Printed in Singapore2000068 9630472 0251431
