Aiwa Z-HT63 User manual

8Z-MAP-903-01
981215AKM-Y-9
Im
mm
mm
For assistance and information
call toll free I-800-BUY=AIWA
(United States and Puerto Rico)

AA●

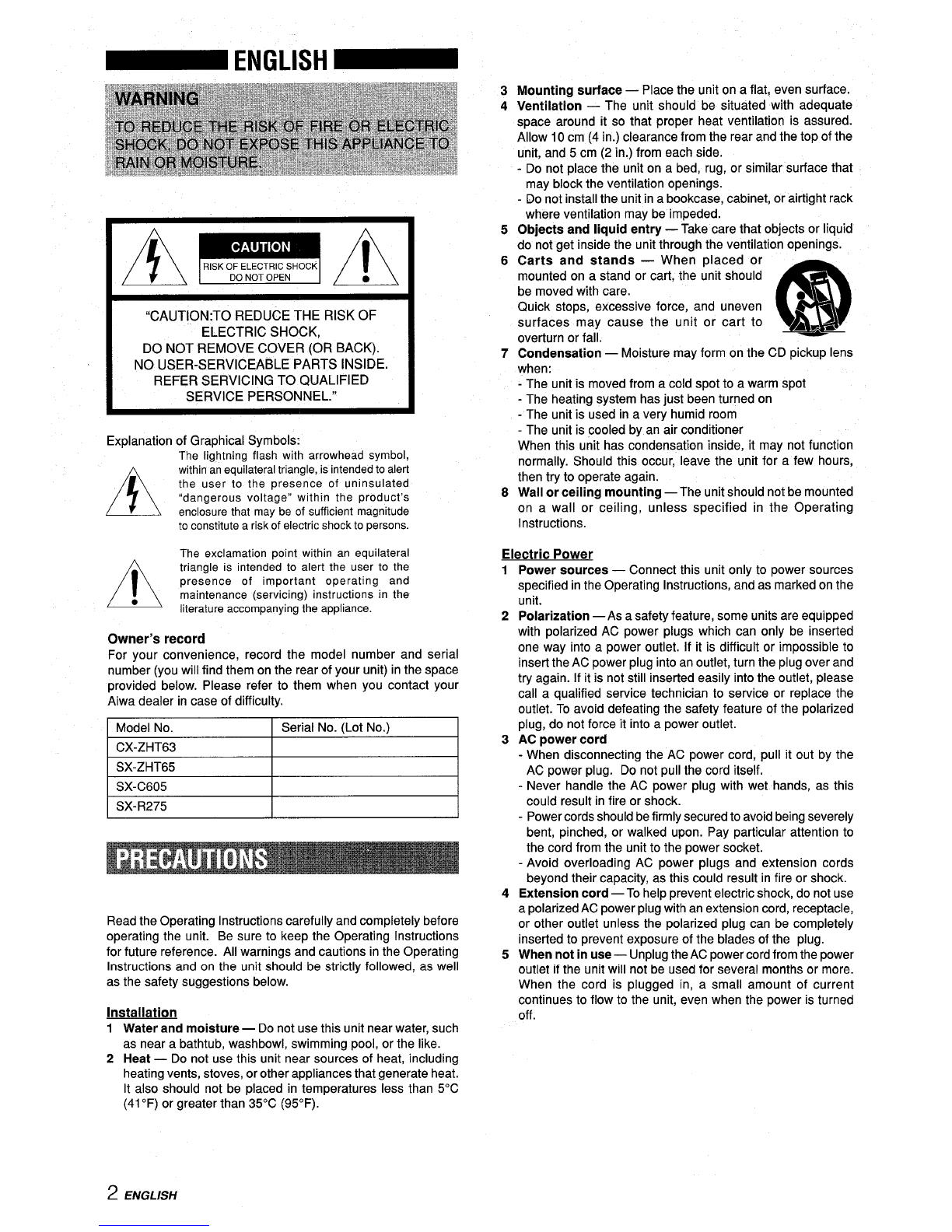

RISK OF ELECTRIC SHOCK
DO NOT OPEN
-A●
“CAUTION:TO REDUCE THE RISK OF
ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.”
Explanation of Graphical Symbols:
The lightning flash with arrowhead symbol,
A
within an equilateral triangle, is intended to alert
the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude
to constitute arisk of electric shockto persons.
The exclamation point within an equilateral
A
triangle is intended to alert the user to the
presence of important operating and
●maintenance (servicing) instructions in the
literatureaccompanyingthe appliance.
Owner’s record
For your convenience, record the model number and serial
number (you will find them on the rear of your unit) in the space
provided below. Please refer to them when you contact your
Aiwa dealer in case of difficulty.
Model No. Serial No. (Lot No.)
CX-ZHT63
SX-ZHT65
SX-C605
SX-R275
Read the Operating Instructions carefully and completely before
operating the unit. Be sure to keep the Operating Instructions
for future reference. All warnings and cautions in the Operating
Instructions and on the unit should be strictly followed, as well
as the safety suggestions below.
Installation
1Water and moisture —Do not use this unit near water, such
as near abathtub, washbowl, swimming pool, or the like.
2Heat —Do not use this unit near sources of heat, including
heating vents, stoves, or other appliances that generate heat.
It also should not be placed in temperatures less than 5°C
(41‘F) or greater than 35°C (95”F).
3
4
5
6
7
8
Mounting surface —Place the unit on a flat, even surface.
Ventilation —The unit should be situated with adequate
space around it so that proper heat ventilation is assured.
Allow 10 cm (4 in.) clearance from the rear and the top of the
unit, and 5 cm (2 in.) from each side.
-Do not place the unit on a bed, rug, or similar surface that
may block the ventilation openings.
-Do not install the unit in abookcase, cabinet, or airtight rack
where ventilation may be impeded.
Objects and liquid entry —Take care that objects or liquid
do not get inside the unit through the ventilation openings.
Carts and stands —When placed or
mounted on a stand or cart, the unit should
be moved with care.
Quick stops, excessive force, and uneven
surfaces may cause the unit or cart to mY
A~s
overturn or fall.
Condensation —Moisture may form on the CD pickup lens
when:
-The unit is moved from acold spot to awarm spot
-The heating system has just been turned on
-The unit is used in avery humid room
-The unit is cooled by an air conditioner
When this unit has condensation inside, it may not function
normally. Should this occur, leave the unit for afew hours,
then try to operate again.
Wall or ceiling mounting —The unit should not be mounted
on a wall or-ceiling, u;less specified in the Operating
Instructions.
Electric Power
1
2
3
4
5
Power sources —Connect this unit only to power sources
specified in the Operating Instructions, and as marked on the
unit.
Polarization —As asafety feature, some units are equipped
with polarized AC power plugs which can only be inserted
one way into apower outlet. If it is difficult or impossible to
insert the AC power plug into an outlet, turn the plug over and
try again. If it is not still inserted easily into the outlet, please
call aqualified service technician to service or replace the
outlet. To avoid defeating the safety feature of the polarized
plug, do not force it into apower outlet.
AC power cord
-When disconnecting the AC power cord, pull it out by the
AC power plug. Do not pull the cord itself.
-Never handle the AC power plug with wet hands, as this
could result in fire or shock.
-Power cords should be firmly secured to avoid being severely
bent, pinched, or walked upon. Pay particular attention to
the cord from the unit to the power socket.
-Avoid overloading AC power plugs and extension cords
beyond their capacity, as this could result in fire or shock.
Extension cord — To help prevent electric shock, do not use
apolarized AC power plug with an extension cord, receptacle,
or other outlet unless the polarized plug can be completely
inserted to prevent exposure of the blades of the plug.
When not in use —Unplug the AC power cord from the power
outlet if the unit will not be used for several months or more.
When the cord is plugged in, asmall amount of current
continues to flow to the unit, even when the power is turned
off.
2ENGLISH

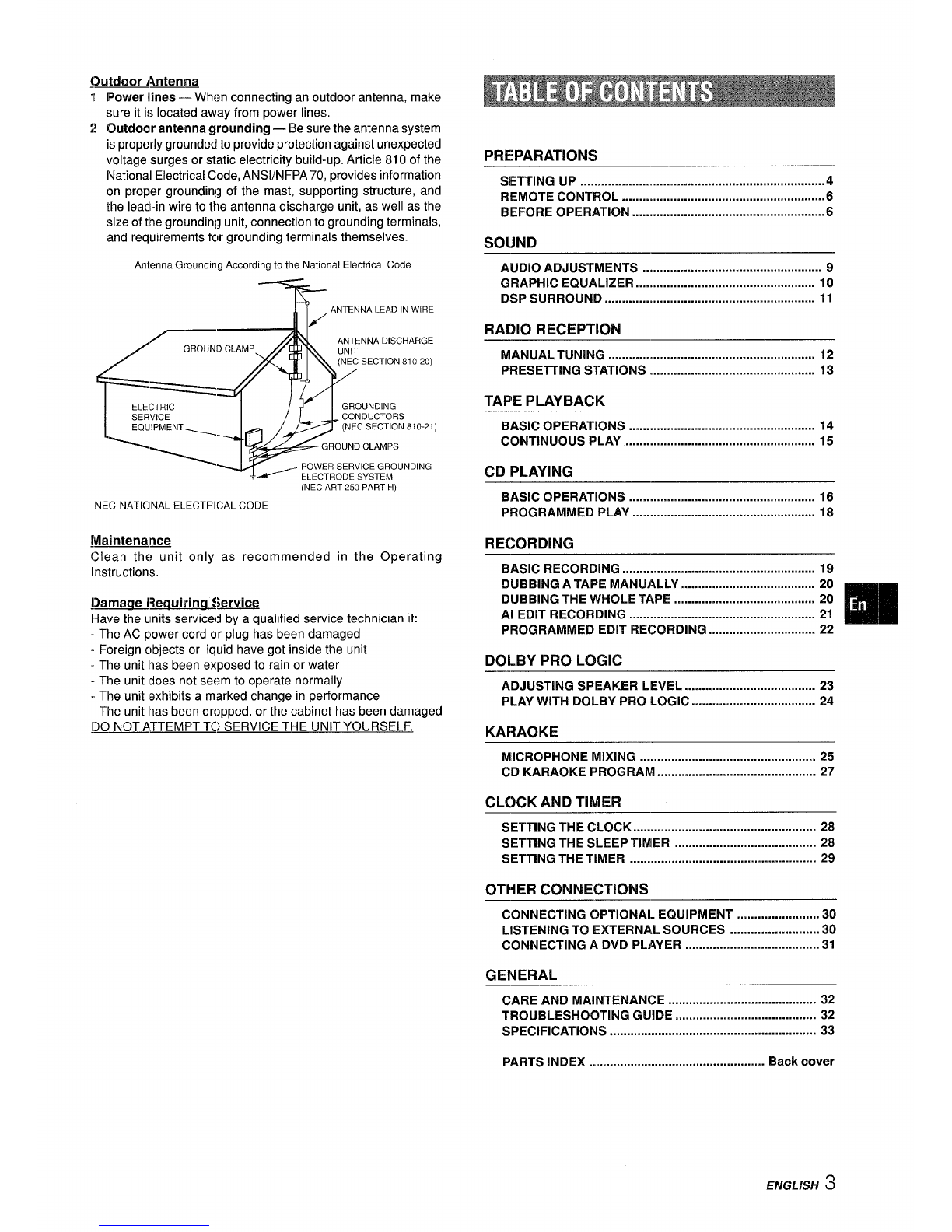

Qutdoor Antenna
1Power lines ——When connecting an outdoor antenna, make
sure it is located away from power lines.
2Outdoor antenna grounding —Be sure the antenna system
is properly grounded to provide protection against unexpected
voltage surges or static electricity build-up. Article 810 of the
National Electrical Code, ANSJNFPA 70, provides information
on proper grounding of the mast, supporting structure, and
the lead-in wire to the antenna discharge unit, as well as the
size of tinegrounding unit, connection to grounding terminals,
and requirements fclr grounding terminals themselves.
AntennaGroundingAccordingto the National ElectricalCode
T,ANTENNA LEAD IN WIRE
f“
-
~~
ELECTRIC
SERVICE
EQUIPMENT~ )
\,
(NEC ART 250 PART H)
NEC-NATIONALELECTRICALCODE
!tiaintenain~
Clean the unit only as recommended in the Operating
Instructions.
f)arnaae Rem.ririna Service
Have the units serviced by aqualified service technician if:
-The AC power cord or plug has been damaged
-Foreign clbjects or liquid have got inside the unit
-The unit Ihasbeen exposed to rain or water
-The unit (doesnot seem to operate normally
-The unit (exhibits amarked change in performance
-The unit Ihasbeen dropped, or the cabinet has been damaged
DO NOT ATTEMPT TC~SERVICE THE UNIT YOURSELF.
PREPARATIONS
SETTING UP .......................................................................4
REMOTE CONTROL ...........................................................6
BEFORE OPERATION .......................................................6
SOUND
AUDIO ADJUSTMENTS ..............mm.................................... 9
GRAPHIC EQUALIZER .................................................. 10
DSP SURROUND .............>............................................... 11
RADIO RECEPTION
MANUAL TUNING ........................................................... 12

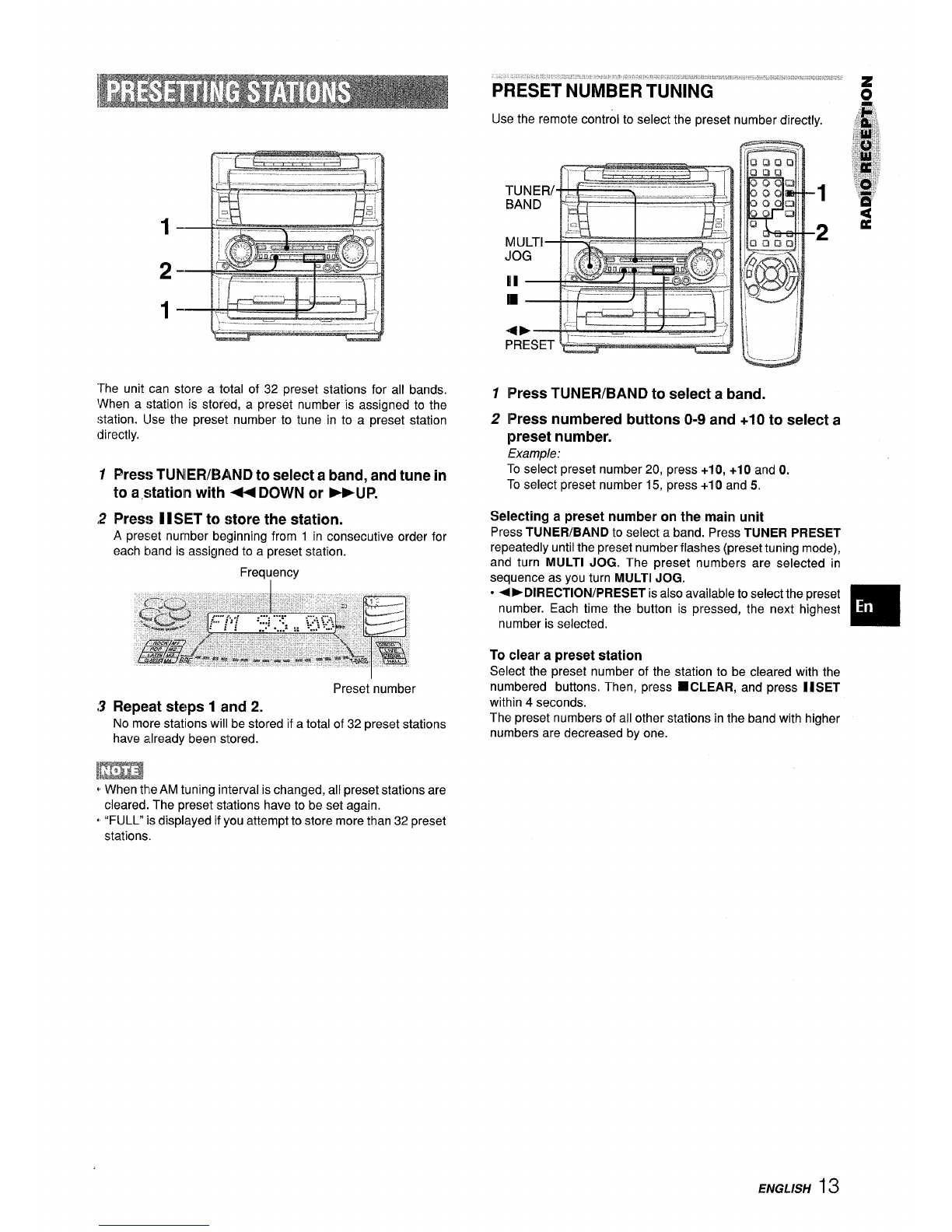

PRESETTING STATIONS ................................................ 13
TAPE PLAYBACK
BASIC OPERATIONS .......m ........m ..................................... 14

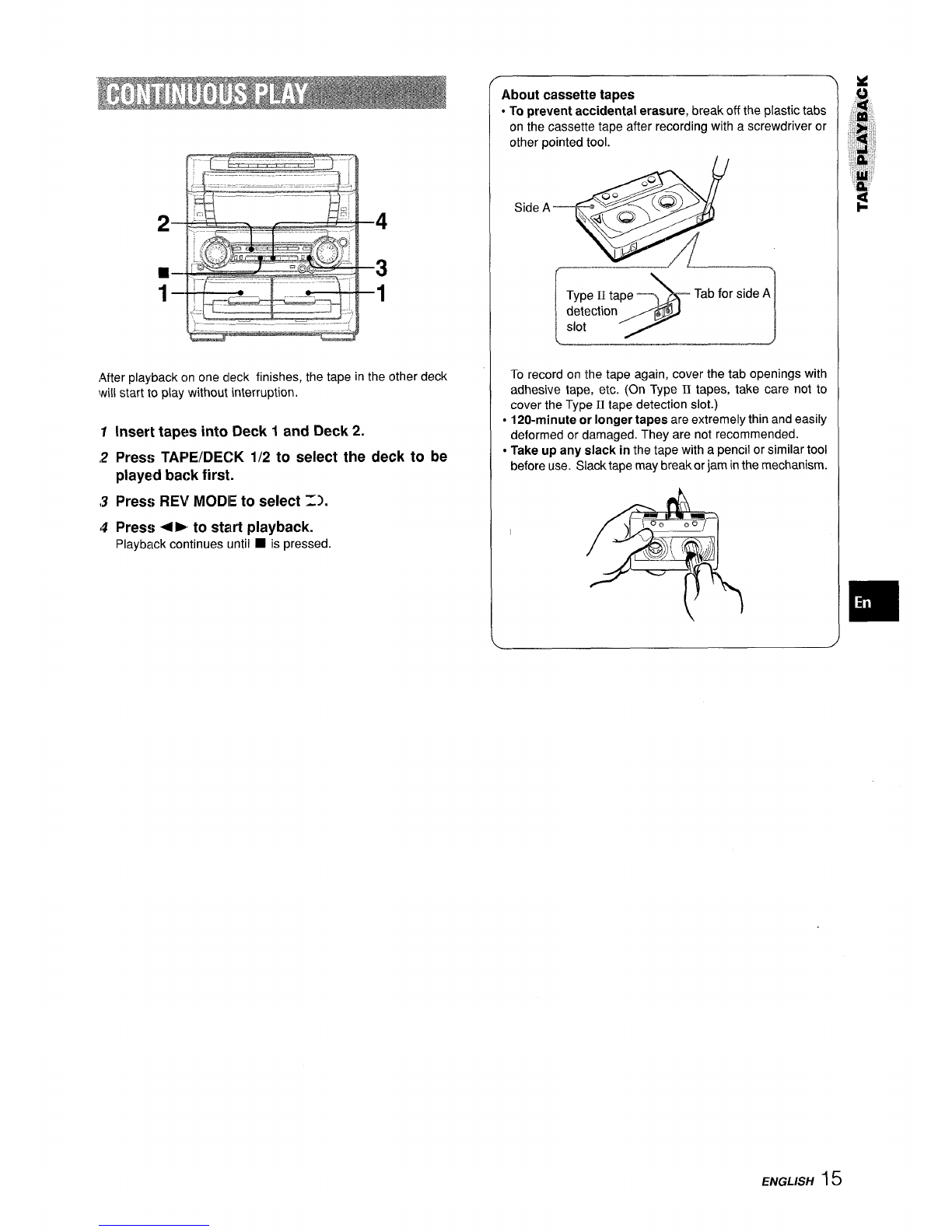

CONTINUOUS PLAY ...................................................... 15
CD PLAYING
BASIC OPERATIONS ..................................................... 16
PROGRAMMED PLAY ..................................................... 18
RECORDING
BASIC RECORDING .............m.......................................... 19
DUBBING ATAPE MANUALLY ....................................... 20
DUBBING THE WHOLE TAPE ......................................... 20
Al EDIT RECORDING ...................................................... 21 m
PROGRAMMED EDIT RECORDING ............................... 22
DOLBY PRO LOGIC
ADJUSTING SPEAKER LIEVEL...................................... 23
PLAY WITH DOLBY PRO LOGIC .................................... 24
KARAOKE
MICROPHONE MIXING ................................................... 25
CD KARAOKE PROGRAM .............................................. 27
CLOCK AND TIMER
SETTING THE CLOCK ..............................m...................... 28
SETTING THE SLEEP TIMIER ......................................... 28
SETTING THE TIMER ...................................................... 29
OTHER CONNECTIONS
CONNECTING OPTIONAL EQUIPMENT ........................30
LISTENING TO EXTERNAL SOURCES ..........................30
CONNECTING ADVD PLAYER ....................................... 31
GENERAL
CARE AND MAINTENANCE ........................................... 32
TROUBLESHOOTING GUIDE ......................................... 32
SPECIFICATIONS ............................................................ 33
PARTS INDEX ................................................... Back cover
ENGL!SH 3

.,.,,‘.,,,,. !.,W..! :,. ,-, =, . . . . . .
.,’ ~-41E4%=!h:,#iJ i., ,,,w J+.. ,. ,,,.:.;wwBw -- --J~=-”’J% mita BS.n ~w!dlkr* s??.! sbwa
., -s.!. ,.- . . .
POSITIONING THE SPEAKERS
To achieve the optimum effects obtainable with the DOLBY PRO
LOGIC system, it is important to position the speakers properly.
The DOLBY PRO LOGIC system which is the biggest feature of
this stereo system provides you with multichannel sound in your
home.
Complete setting and connection of the main unit, supplied
speakers, your TV and video equipment according to the following
procedure.
Check your system and accessories
1..2m4
CX-ZHT63 Compact disc stereo cassette receiver
SX-ZHT65 Front speakers
SX-C605 Center speaker
SX-R275 Surround speaker
Remote control AM antenna FM antenna
Operating Instructions, etc.
Refer to the following illustration to find out the best location in
your room.
I
(36
0Front speakers
@Center speaker
Position in the center of the two front speakers. In addition,
position on or below the TV set, if connecting aTV set to the
unit.
@Surround speakers
Place the surround speakers directly to the side of or slightly
behind the listening area. Align them horizontally, about 1
meter above ear height.
●No sound is heard from the center and surround speakers when
the DOLBY PRO LOGIC, the DSP SURROUND system and
the 5.1 CH (page 31) are set to off.
●The sound is heard from the center speaker when the DOLBY
PRO LOGIC or the 5.1CH (page 31) is set to on.
3FM antenna
Center st)eaker 11(
hi II
l.iEzzl
-+7
4ENGLISH

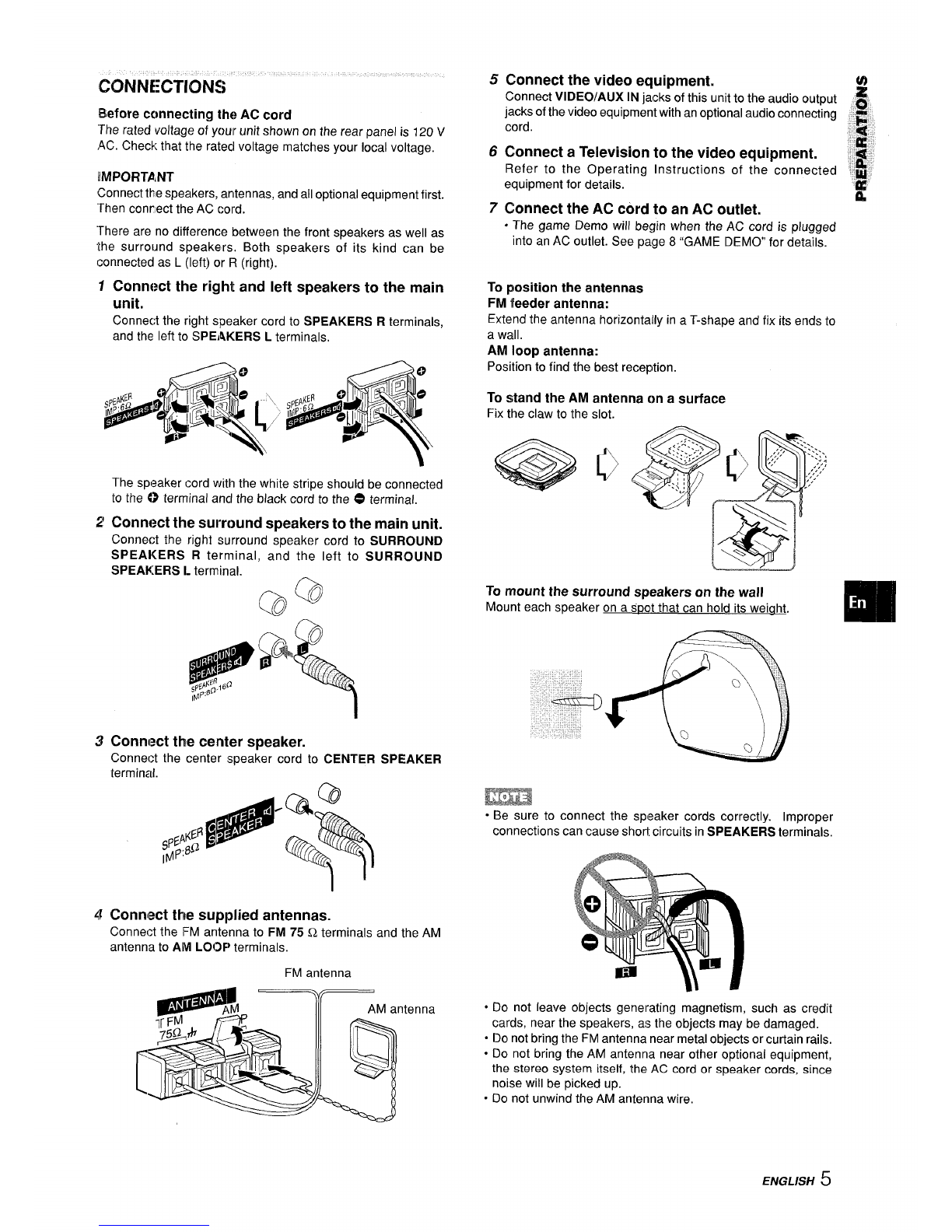

CONNECTION:;
Before connecting the AC cord
The rated voltage of your unit shown on the rear panel is 120 V
AC. Check that the rated voltage matches your local voltage.
IMPORTANT
Connect the speakers, antennas, and all optional equipment first.
Then connect the AC cord.
There are no difference between the front speakers as well as
the surround speakers. Both speakers of its kind can be
connected as L(left) or R(right).
7Connect the right and left speakers to the main
unit.
Connect the right speaker cord to SPEAKERS Rterminals,
and the left to SPEAKERS Lterminals,
2
The speaker cord with the white stripe should be connected
to the {B terminal ancl the black cord to the Oterminal.
Connect the surround speakers to the main unit.
Connect the right surround speaker cord to SURROUND
SPEAKERS Rterminal, and the left to SURROUND
SPEAKERS Lterminal.
3Connect the center speaker.
Connect the center [speaker cord to CENTER SPEAKER
terminal.
4Connect the supplied antennas.
Connect the FM antenna to FM 75 !2 terminals and the AM
antenna to AM LOOF~terminals.
FM antenna
5
6
7
Connect the video equipment. z
Connect VIDEO/AUX IN jacks of this unit to the audio output ~
jacks of the video equipment with an optional audio connecting
cord. ~
Connect aTelevision to the video equipment. ‘M
Refer to the Operating Instructions of the connected g
equipment for details. a
&
Connect the AC cord to an AC outlet.
●The game Demo will begin when the AC cord is plugged
into an AC outlet. See page 8 “GAME DEMO” for details.
To position the antennas
FM feeder antenna:
Extend the antenna horizontally in aT-shape and fix its ends to
awall.
AM loop antenna:
Position-to find the best reception.
To stand the AM antenna on asurface
Fix the claw to the slot.
&l
‘+
-%
To mount the surround speakers on the wall
Mount each speaker on a spo~. m
“Be sure to connect the speaker cords correctly. Improper
connections can cause short circuits in SPEAKERS terminals.
●Do not leave objects generating magnetism, such as credit
cards, near the speakers, as the objects may be damaged.
●Do not bring the FM antenna near metal objects or curtain rails.
●Do not bring the AM antenna near other optional equipment,
the stereo system itself, the AC cord or speaker cords, since
noise will be picked up.
“Do not unwind the AM antenna wire.
ENGLISH ~

For better FM reception, use of an outdoor antenna is
recommended.
Connect the outdoor antenna to FM 75 Qterminals.
To connect other optional equipment +page 30. I
Inserting batteries
Detach the battery cover on the rear of the remote control and
inserf two R6 (size AA) batteries.
R6(AA)
When to replace the batteries
The maximum operational distance between the remote control
and the sensor on the main unit should be approximately 5meters
(16 feet). When this distance decreases, replace the batteries
with new ones.
●If the remote control is not going to be used for an extended
period of time, remove the batteries to prevent possible
electrolyte leakage.
●The remote control may not operate correctly when:
-The line of sight between the remote control and the remote
sensor inside the display window is exposed to intense light,
such as direct sunlight
-Other remote controls are used nearby (those of atelevision,
etc.)
CD
■
To turn the power on
Press one of the function buttons (TAPE, TUNER, PHONO,
VIDEO/AUX or CD).
Playback of the inserted disc or tape begins, or the previously
tuned station is received (Direct Play Function).
POWER is also available.
To turn the power off
Press POWER.
Illumination guides
Whenever POWER or one of the function buttons is pressed
after setting the clock, the buttons for the selected operation
light up or flash. (See “SETTING THE CLOCK on page 28.)
Flash windows
The window on the top of the unit and the cassette decks light
up or flash while the unit’s power is on.
To turn off the light of the top window, press ■CLEAR while
pressing CD. To turn back on, repeat the above.
Using the remote control
The instructions in this manual refer mainly to the buttons on the
main unit. Buttons on the remote control with the same names
as those on the main unit can be used as well.
To change the brightness level of the display
1Press ECO so that “ECO MODE” is displayed,
2Within 4seconds, turn MULTI JOG to display “DIM MODE”,
and then press ENTER within 4seconds.
3Within 4seconds, turn MULTI JOG to selectthe dimmermode
as below.
The mode will be automatically set after 4seconds. It will
also be set if ENTER is pressed within 4seconds after step
3.
r
DIM-OFF-DIMMER 1-DIMMER 2*DIMMER 3-1
DIM-OFF: The normal display.
DIMMER 1: The illumination of the display is dimmer than
usual.
DIMMER 2: The illumination of the display is dimmer than
DIMMER 1.
DIMMER 3: The illumination of the display is dimmer than
DIMMER 2. The spectrum analyzer, the window on the top of
the unit, and the button lamps light off.
6ENGLISH

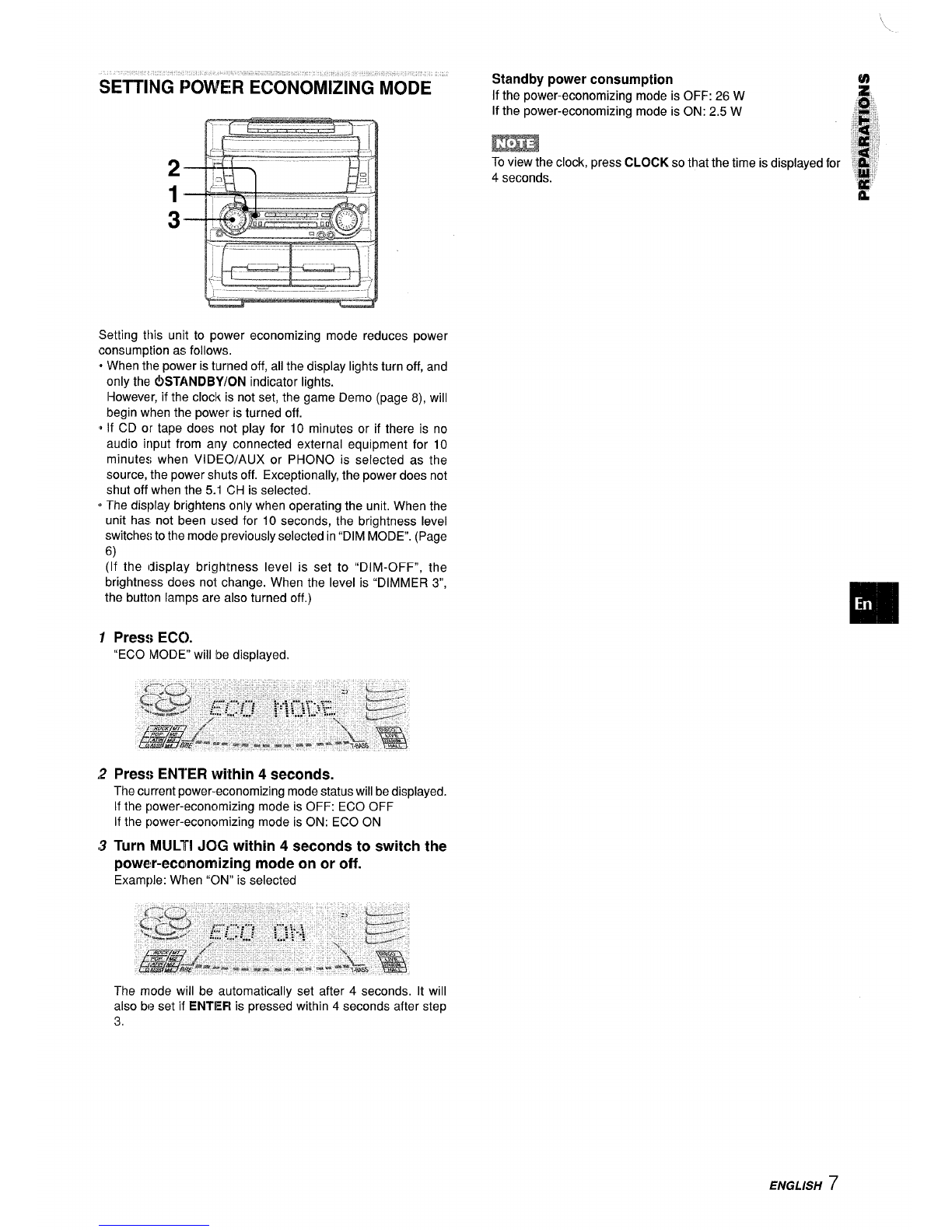

SETTING POWER ECONOMIZING MODE
k=-” --
.Setting this unit to povver economizing mode reduces power
consumption as follows.
oWhen the power is turned off, all the display lights turn off, and
only the (!)STANDBY/C)N indicator lights.
However, if the clock is not set, the game Demo (page 8), will
begin when the power is turned off.
@If CD or tape does not play for 10 minutes or if there is no
audio input from any connected external equipment for 10
minutes when VIDEO/AUX or PHONO is selected as the
source, the power shuts off. Exceptionally, the power does not
shut off when the 5.1 CH is selected.
oThe display brightens only when operating the unit. When the
unit has not been used for 10 seconds, the brightness level
switches to the mode previously selected in ‘(DIMMODE”. (Page
6)
(If the (display brightness level is set to “DIM-OFF”, the
brightness does not change. When the level is “DiMMER 3“,
the button lamps are also turned off.)
1
2
3
Press ECC).
“ECO MODE” will be displayed.
Press ENTER within 4seconds.
The current power-economizing mode status will be displayed.
If the power-econclrnizing mode is OFF: ECO OFF
If the power-economizing mode is ON: ECO ON
Turn MULTI JOG within 4seconds to switch the
power-economizing mode on or off.
Example: When “C)N” is selected
Standby power consumption
If the power-economizing mode is OFF: 26 W
If the power-economizing mode is ON: 2.5 W
To view the clock, press CLOCK sothat the time is displayed for
4seconds.
The mode will be automatically set after 4seconds. It will
also be set if ENTER is pressed within 4seconds after step
3.
ENGLISH 7

When the AC cord is plugged into an AC outlet for the first time
after purchase, the game Demo will begin in the display. When
the power is turned on, the game Demo will end. When the power
is turned off, the game Demo will begin again.
Until the clock is set, the game Demo will begin whenever the
power is turned off.
When the clock is set, the game Demo will not begin even if the
power is turned off. (See “SETTING THE CLOCK on page 28.)
To start or end game Demo when the clock is set
Press DEMO when the power is off, the game Demo will begin.
To end the game Demo, press DEMO again.
To play the game Demo
1Press DEMO so that the game Demo displays.
2Press +-.
Three numbers on the display start to run.
3Press ■once.
The number on the left side stops.
4Press ■twice to stop the remaining two numbers.
Scoring:
20 points are given to start the game.
If all the numbers are eaual, 50 points are added to the score.
If not eaual, one point is subtracted.
If the gained points reach 9999, you win.
If the gained points fall to O, you lose.
To change the probability of equalizing the three numbers
Press ++ or -repeatedly to select one of the three probability
levels when playing the game Demo. The tray number indicator
in the display changes between 1 and 3. As the tray number
increases from 1to 3, the higher the probability of equalizing.
●During the game Demo, +>,+, _ and ■are available
only for the game Demo. Cancel the game Demo to use these
buttons for the functions such as CD playing, etc.
●During the game Demo, some indicators unrelated with the
actual operation light up on the display.
To reset the game
Press DEMO twice, then press +-. The game starts again.
8ENGLISH

,., 8..;,,”- .’ -..,? t
BBE SYSTEM E
VOLUME CONTIROL
Turn VOLUME om the main unit, or press VC)L A
m’ Von the remote control.
The volume level is displayed as anumber from Oto MAX (50).
“rhe volume level is automatically set to 20 when the power is
turned ofl with the volume level set to 21 or more.
To chamge the left/right balance
Press MANUAL SELECT on the remote control. L/R is displayed
for 2seconds. Press <H or >on the remote control within
lhese 2seconds.
IThe DOLBY PRO LOGIC (page 23) and the DOLBY DIGITAL
SURROIJND (page 31)front speakers level is also changed.
UJsingthe headphones
Connect headphones to PHONES jack with astereo standard
plug (06.:~ mm, ‘/4 inch;).
No sound is output from the speakers while the headphones are
plugged in.
,,When the headphone are plugged in, the DSP SURROUND
system (page 11), the DOLBY PRO LOGIC (page 23) and the
5.1CH (page 31) do not function.
Sound adjustment during recording
“rhe output volume and tone (except BBE) of the speakers or
Iheadphones can be freely varied without affecting the recording.
@
The BBE system enhances the clarity of high-frequency sound. F
It also enriches the Karaoke function to make your voice sound
clear and pleasant, $!
‘*:
Press BBE. ,@
.W%
Each time it is pressed, the level changes. Select one of the ~
three levels or the off position to suit your preference.
The T-BASS system enhances the realism of low-frequency
sound.
Press T-BASS.
Each time it is pressed, the level changes. Select one of the
three levels or the off position to suit your preference.
Kmz3
When playing back atape recorded with BBE, it is recommended
that BBE be set to off to avoid distorted high frequency sound.
ENGLISH 9

SETTING ANEW EQUALIZATION CURVE
MANUALLY
GEQ
,4$ ,,. ,,,~,. ,, ,, ., . ,1, %:., ,! ,.- . . .’, ,,. . . .
SELECTING THE PROGRAMMED
EQUALIZATION CURVE
This unit provides the following 4different equalization curves.
ROCK: Powerful sound emphasizing treble and bass
POP: More presence in the vocals and midrange
LATIN: Accented higher frequencies for Iatin-type music
CLASSIC: Enriched sound with heavy bass and fine treble
1
2
Press PRGM/MANU to select PRGM (program)
mode.
The PRGM indicator turns on.
Press one of the graphic equalizer preset buttons.
The selected prog;am- mode indicator-flashes and that
program mode appears for 4seconds on the display.
To cancel the selected mode
Press the selected graphic equalizer preset button. “GEQ OFF”
is displayed and the equalization curve becomes flat.
To select with the remote control
Press GEQ repeatedly until the desired program mode is
displayed.
r’
ROCK— POP — LATIN — CLASSIC —
------------ PRGMmode -----------fl
GEQ OFF +GEQ M4+GEQ M3+GEQ M2+GEQ Ml+
(cancel) :---------MANUAL mode -------:
ENTER
The equalization curve can be customized to suit your preference.
1
2
3
4
Press GEQ FREQ (LOW).
The lowest level frequency indicator flashes for 8seconds.
Within 8seconds, turn MULTI JOG to adjust the
level of the lowest frequency.
Press GEQ FREQ (HIGH).
The highest level frequency indicator flashes for 8seconds.
Within 8seconds, turn MULTI JOG to adjust the
level of the highest frequency.
The frequency level indicators between the lowest and the
highest are adjusted accordingly.
10 ENGLISH

MEMCIRIZIING THE NEW EQUALIZATION
CURVES
lJp to 4customized equalization curves can be stored on the
MANUAL mode Ml -M4.
1
The DSP (Digital Signal Processor) SURROUND system can
create the effect of sound reflected from walls and ceilings. This
Set anew equalization curve with GEQ FREQ and system enhances 4types of sound presence.
MULTI JOG. DISCO: Sound presence of adisco
See “SETTING NEW EQUALIZATION CURVE MANUALLY LIVE: Sound presence of alive music performance
STADIUM: Sound presence of astadium
on page 10.
The created equalization curve is displayed for 8seconds. HALL: Sound presence of aconcert hall
2Within 8seconds press ENTER.
———. !
“MEMORY is displayed and all the manual mode indicators
flash for 8seconds. Go to step 3within those 8seconds.
cIf this step is not completed within 8seconds, press GEQ
FREG first to display “GEQ ON”. Then press ENTER within
8seconds.
;3 While the manual mode indicators are flashing,
press one of the graphic equalizer preset buttons
M1-M4.
SUR-
ROUND
MANUAL
SELECT
++,W
The actualization curve is stored.
To select the stored equalization curve -u
11 Press lPRGM/MANU to select the MANUAL mode.
The MANUAL indicator turns on.
2! Press one of the graphic equalizer preset buttons MI–M4. Press one of the DSP SURROUND mode buttons.
The selected mode indicator flashes and that mode appears for
4seconds on the display.
Equalization curves are selected automatically to match the DSP
SURROUND modes and can also be selected or turned off to
suit your preference.
When the music source is monaural
Select LIVE to obtain asimulated stereo effect. When DISCO or
HALL is selected, no sound will be heard from the surround
speakers.
To cancel the selected mode
Press the selected DSP SURROUND mode button again. “DSP
OFF” is displayed.
To select with the remote control
Press SURROUND repeatedly until the desired mode is
displayed.
To adjust the volume of the surround speakers
Press MANUAL SELECT twice or three times on the remote
control. “S-L” or “S-R” is displayed for 2seconds. Press +or
-on the remote control within these 2seconds.
●The DOLBY PRO LOGIC (page 23) and the DOLBY DIGITAL
SURROUND (page 31) surround speakers level is also
changed.
The DSP SURROUND mode is canceled when:
-the ECHO is turned on.
-the DOLBY PRO LOGIC is turned on.
-the headphones are plugged in.
-the 5.1CH (page 31) is selected.
ENGLISH 1 I

+,- ]_ .—— —J
——.—. . .——.
1
2
3
Press TUNER/BAND to select the FM or AM band.
When TUNER/BAND is pressed while the power is off, the
power is turned on directly (Direct Play Function).
Press TUNER PRESET repeatedly to select the
manual tuning mode.
Each time the button is pressed, the following three tuning
modes are selected cyclically.
@Preset tuning mode: The preset number flashes.
@Auto search mode: “SEARCH is displayed.
@Manual tuning mode: “SEARCH” is not displayed and
the preset number does not flash.
Frequency SEARCH
Preset number
The preset tuning mode is skipped if no station is preset.
Turn MULTI JOG clockwise or counterclockwise
to tune in to astation.
The frequency changes as you turn MULTI JOG. When a
station is received, “TUNE is displayed for 2seconds.
During FM stereo reception, [IIUDI) is displayed.
To search for astation quickly (Auto Search)
Press TUNER PRESET repeatedly to display “SEARCH” (auto
search mode), and turn MULTI JOG clockwise or
counterclockwise until the frequency starts to change rapidly.
After tuning into astation, the search stops.
SEARCH
To stop the Auto Search manually, turn MULTI JOG alittle in
either direction,
●The Auto Search may not stop at stations with very weak
signals.
●+DOWN and -UP are also available to search for a
station. Keep +DOWN or -UP pressed until the tuner
starts searching. Press the button to stop the search manually.
When an FM stereo broadcast contains noise
Press MONO TUNER on the remote control so that “MONO”
appears on the display.
Noise is reduced, although reception is monaural.
MONO
To restore stereo reception, press MONO TUNER so that
“MONO” disappearsand“STEREO” is displayed for 2seconds.
To change the AM tuning interval
The default setting of the AM tuning interval is 10 kHz/step. If
you use this unit in an area where the frequency allocation system
is 9kHz/step, change the tuning interval.
Press POWER while pressing +➤on the unit.
To reset the interval, repeat this procedure.
.uDOWN and -UP are also available to tune in to a
station.
12ENGLISH

,,,)‘,’! @.“’!!. :?-., $. ! ., !-::,. .-.”. -,, “%! ,.
~RE~ETJN”MBER’yuN,NG 75
Use the remote control to select the preset number directly. z~
:*.
1
2
1>.._ __
f----- _L
“The unit can store atcltal of 32 preset stations for all bands.
When astation is stored, apreset number is assigned to the
station. Use the preset number to tune in to apreset station
directly.
Press TUNIER/E3AND to select aband, and tune in
to a,station with -DOWN or WUP.
Pres!; llSET to store the station.
Apreset number beginning from 1in consecutive Order for
each band is assigned to apreset station.
Freq~ency
Preset number
Repeat steps 1 and 2.
No more stations will be stored if atotal of 32 preset stations
have already been sltored.
BEES
1
2
9
!.,____ --- ..
Press TUNER/BAND to select aband.
Press numbered buttons O-9 and +10 to select a
preset number.
Example:
To select preset number 20, press +10,+10 and O.
To select preset number 15, press +10and 5.
Selecting apreset number on the main unit
Press TUNER/BAND to select aband. Press TUNER PRESET
repeatedly until the preset number flashes (preset tuning mode),
and turn MULTI JOG. The preset numbers are selected in
sequence as you turn MULTI JOG.
.+➤DIRECTION/PRESET is also available to select the preset
number. Each time the button is pressed, the next highest
number is selected. ❑
To clear apreset station
Select the preset number of the station to be cleared with the
numbered buttons. Then, press ❑CLEAR, and press IISET
within 4seconds.
The preset numbers of all other stations in the band with higher
numbers are decreased by one.
tWhen the AM tuning interval is changed, all preset stations are
cleared. The preset stiations have to be set again.
c“FULL is displayed if you attempt to store more than 32 preset
stations.
ENGLISH13

Use Type I(normal), Type II (high/CrOL) or Type IV (metal) tapes
for playback.
Press TAPE, then press =PUSH EJECT to open the
cassette holder.
A
Insert atape with the exposed side down. Push the cassette
holder to close.
To select areverse mode on Deck 2
Each time REV MODE is pressed, the reverse mode changes.
To play one side only, select =.
To ~lav from front side to back side once only, select =1.
To plav both sides repeatedly, select (Z).
●When tapes are loaded in both decks, => on the display
indicates Continuous Play.
●On Deck 1, tapes are always played back on both sides once.
Insert atape.
Press 4F to start play.
Playing Playback
deck number side indicator
The tape cou;ter indicates the
tape running length.
P: The front side is being played (forward).
+: The back side is being played (reverse).
When tapes are loaded in both decks
Press TAPE/DECK 1/2 firstto select adeck.
The selected deck number is displayed.
To stop play, press ■.
To pause play (Deck 2only), press 11. To resume play, press
again.
To change the playback side, press+ EDIRECTION/PRESET
in play or pause mode.
To fast forward or rewind, press+ or ~. Then press ■to
stop the tape.
To start play when the power is off (Direct Play Function)
Press TAPE. The power is turned on and play of the inserted
tape begins.
To set the tape counter to “0000”
Press ■CLEAR in stop mode.
The counter is also set to “0000 when the cassette holder is
opened.
14ENGLISH

2-
9–
1-
ti-
After playback cm one deck finishes, the tape in the other deck
will start to play without interruption.
Insert tapes into Deck 1and Deck 2.
Press TAPE/DECK 1/2 to select the deck to be
played back first.
Press REV MODIE to select =).
Press 4> to stalrt playback.
Playback continues until 9is pressed.
About cassette tapes
.To prevent accidental erasure, break off the plastic tabs
on the cassette tape after recording with ascrewdriver or
other pointed tool.
Side Ae
q
,
<@<
I!-J
[>
Type II tape Tab for side A
detection
slot
To record on the tape again, cover the tab openings with
adhesive tape, etc. (On Type 11tapes, take care not to
cover the Type II tape detection slot.)
.120-minute or longer tapes are extremely thin and easily
deformed or damaged. They are not recommended.
.Take up any slack in the tape with apencil or similar tool
before use. Slack tape may break or jam inthe mechanism.
I
ENGLISH 15

Press CD, then press AOPEN/CLOSE to open the
disc compartment. Load disc(s) with the label side
up.
To load one or two disCS,place the disc(s) on the tray(s) in the
direction of the arrows as illustrated.
HANGE
Tray
num
To load three to five discs, press DISC CHANGE to rotate the
trays after placing two discs. Place the next disc on empty tray.
Each time DISC CHANGE is pressed, the trays rotate and one
disc can be placed.
After placing the discs, press AOPEN/CLOSE to close the
disc compartment.
The display shows the information of the disc to be played.
Tray number of the
disc to be played Total playing time
Total number of tracks
CDEDITI
CHECK
0-9,+1 o
DISC
DIRECT
PLAY
4b
+,*
❑
Load discs.
To dav all discs in the disc com~artment, press +>.
All discs are played once.
The indicator of DISC DIRECT PLAY flashes to indicatethe disc
being played.
Number of track
being played Elapsed playing time
To tiav one disc only, press DISC DIRECT PLAY
The disc with the selected tray number is played once. 1-5.
Only the indicator of the selected DISC DIRECT PLAY flashes.
Selected disc t[ay number Elapsed playing time
Number of track being played
To play with the remote control
Press DISC DIRECT PLAY, then press one of the numbered
buttons 1-5 within 3seconds to select adisc.
To stop play, press ■.
To pause play, press 1[. To resume play, press again.
To search for aparticular point during playback, keep 4+
or wpressed and release the button at the desired point.
To skip to the beginning of atrack during playback, turn
MULTI JOG or press -or _repeatedly.
To remove discs, press AOPEN/CLOSE.
You can onlv remove the two discs that face VOU.When the
disc(s) to be removed does(do) not face you, press DISC
CHANGE repeatedly.
16ENGLISH

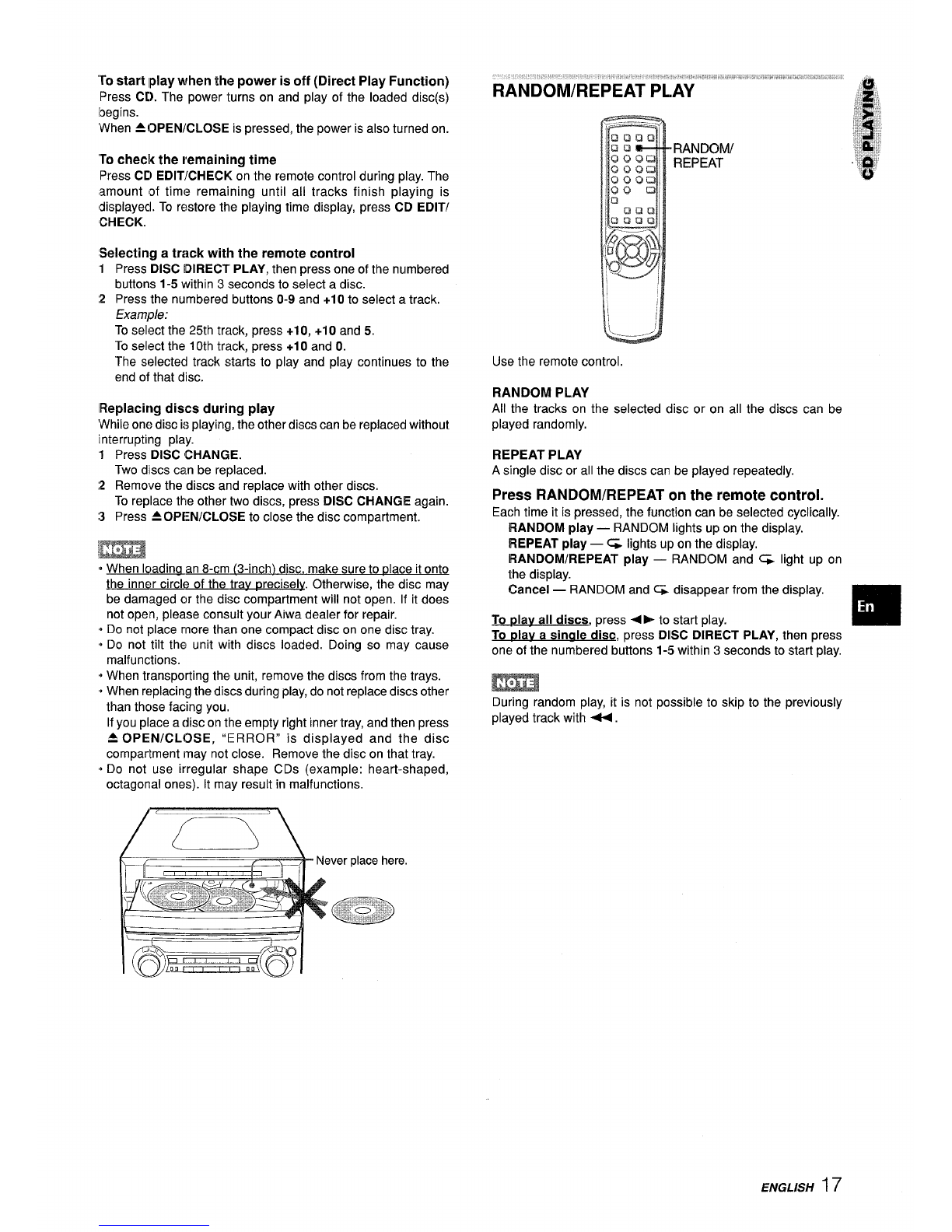

To start Iplay when the power is off (Direct Play Function)
Press CD. The power turns on and play of the loaded disc(s)
begins.
‘When AOPEN/CLOSE ispressed, the power is also turned on.
‘To check the remaining time
Press CD EDIT/CHECK on the remote controlduring play. The
amount of time remaining until all tracks finish playing is
[displayed. To restore thle playing time display, press CD EDIT/
ICHECK.
:Selecting atrack with the remote control
‘1
:2
Press DISC IDIRECT PLAY, then press one of the numbered
buttons 1-5 within 3seconds to select adisc.
Press the numbered buttons O-9and +1Clto select atrack.
Example:
To select the 25th track, press +1O,+1Oand 5.
To select the 10th track, press +1Oand O.
The selected track starts to play and play continues to the
end of that disc.
lReplacing discs during play
While one disc is playing, the other discs can be replaced without
interrupting play.
“1 Press DISC CHANGE.
Two discs can be replaced.
:2 Remove the discs and replace with other discs.
To replace the other two discs, press DISC CHANGE again.
:3 Press AOPEN/CLOSE to close the disc compartment.
l=
CI
When loading an 8-cm [3-inch) disc, make sure to ~lace it onto
the inner circle of the trav rIrecisely. Otherwise, the disc may
be damaged w’ the disc compartment will not open. If it does
not open, please consult your Aiwa dealer for repair.
IDo not place more thamone compact disc on one disc tray.
IDo not tilt the. unit with discs loaded. Doing so may cause
malfunctions.
IWhen transporting the unit, remove the discs from the trays.
IWhen replacing the discs during play, do not replace discs other
than those facing you,
If you place adisc on the empty right inner tray, and then press
AOPEN/CLOSE, “I;RROR” is displayed and the disc
compartment Imaynot close. Remove the disc on that tray.
~Do not use irregular shape CDs (example: heart-shaped,
octagonal ones). It may result in malfunctions.
a.everplacehere.
RANDOMI
REPEAT
Use the remote control.
RANDOM PLAY
All the tracks on the selected disc or on all the discs can be
played randomly.
REPEAT PLAY
Asingle disc or all the discs can be played repeatedly.
Press RANDOM/REPEAT on the remote control.
Each time it is pressed, the function can be selected cyclically.
RANDOM play —RANDOM lightsup on the display.
REPEAT play —~lights up on the display.
RANDOM/REPEAT play —RANDOM and ~light up on
the display.
Cancel —RANDOM and ~disappear from the display.
To dav all discs, press +E- to start play. ❑
To @av asingle disc, press DIISC DIRECT PLAY, then press
one of the numbered buttons 1-!5within 3seconds to start play.
During random play, it is not possible to skip to the previously
played track with 4.
ENGLISH 17

Up to 30 tracks can be programmed from any of the inserted
discs.
1RANDOIW
REPEAT
“5
44,W
■
Use the remote control.
1Press PRGM twice in stop mode.
‘,
——
“appears on the display.
2
3
PR~M
●When PRGM is pressed once in step 1, the unit enters the
CD KARAOKE PROGRAM (page 27).
Press DISC DIRECT PLAY, then press one of the
numbered buttons 1-5 within 3seconds to select
adisc.
Go to the next step when the tray stops rotating.
Press the numbered buttons O-9 and +1Oto
program atrack.
Example:
To select the 25th track, press +1O, +1Oand 5.
To select the 10th track, press +1Oand O.
Selected track number Total number of selected tracks
4
5
Program number Total playing time of the
selected tracks
Repeat steps 2and 3to program other tracks.
Press 4➤to start play.
To check the program
Each time 4+ or >is pressed in stop mode, adisc number,
track number, and program number will be displayed.
To clear the program
Press ■CLEAR in stop mode.
To add tracks to the program
Repeat steps 2 and 3 in stop mode. The track will be programmed
after the last programmed track.
To change the programmed tracks
Clear the program and repeat all the steps again.
To play the programmed tracks repeatedly
After programming the tracks, press RANDOM/REPEAT
repeatedly until CL appears on the display.
●During programmed play, you can not use random play, check
the remaining time or select atrack.
.“FULL” is displayed if you attempt to program more than 30
tracks.
The silent portions between tracks recorded on a CD can be
skipped during playback.
1
2Press +Eto start playback.
The silent portions between tracks will be skipped, and the
sound will be played back without interruption. If atrack fades
out (ends with the sound gradually decreasing), the fadeout
portion will also be skipped.
To return to normal playback
Press CD BLANK SKIP again, ‘(CD BLANK SKIP OFF” is
displayed and the dot in the display will disappear.
●There may be a case where BLANK SKIP PLAY does not
function correctly.
●BLANK SKIP PLAY is automatically canceled when performing
Al EDIT RECORDING (page 21), PROGRAMMED EDIT
RECORDING (page 22), or recording during PROGRAMMED
PLAY (left column) or RANDOM PLAY (page 17).
18ENGLISH

RECORDU+4G
This section explains how to record from the tuner, CD player,
or external equipment.
Preparation
‘Set the tape to the point where recordingwill start
‘Use Type I(normal) and Type II (high/CrOz) tapes for recording.
1
.2
,3
4
Insert the tape to be recorded on into Deck 2.
Insert the tape with the side to be recorded on first facing out
from the unit.
A
—-
1J
Press REV MODE to select the reverse mode.
To record on one side only, select =.
To record on both sides, select =) or C=>.
Press one of the function buttons and prepare
the source to be recorded.
To record from aCl), press CD and load the disc(s).
To record from aradio broadcast, press TUNER and tune
in to astation.
To record from the connected source, press PHONO or
VIDEO/AUX and play.
Press ●REC/REC MUTE to start recording.
When the selected function is CD, playback and recording
start simultaneously.
To stop recording, press ❑.
To pause recording, press 11. (Applicable when the recording i?’”
source is TUNER, PHONO or VI DEO/AUX,) To resume recording, “&
press again.
To start recording with the remote control ‘;$
Firstpress ●\OREC/REC MUTE, and then press <› within2
seconds. &
ma :*:
“can’t REC” is displayed if you attempt to record on a tape with ‘~ ~
the plastic tabs broken off. ;,’g’
-w’
‘Ii?
,., , ,,, ,, ...
SOUND ADJUSTMENT DURING
RECORDING
The output volume and tone (except BBE) of the speakers or
headphones are freely varied without affecting the recording.
To erase arecording
Make sure the microphone is not connected to the unit.
Set the microphone volume and the echo level to OFF (page
25).
1
2
3
4
Insert the tape to be erased into Deck 2 and press TAPE/
DECK 1/2 to display “TP2”.
Set the tape to the point where the erasure is to be started.
Set the reverse mode by pressing REV MODE.
Press ●REC/REC MUTE to start the erasure.
ENGLISH 19

Preparation
cSet the tape to the point where recording will start.
.The reverse mode is automatically set to =. Note that recording
will be done on one side of the tape only.
1
2
3
4
Press TAPE.
Insert the original tape into Deck 1and the tape
to be recorded on into Deck 2.
Insert the tapes with the sides to be played back or recorded
On first facing out from [he unit.
Press TAPE/DECK 1/2 to select Deck 1.
“TPI” is displayed.
Press ●REC/REC MUTE to start recording.
Playing and recording start simultaneously.
To stop dubbing
Press W.
–2
This function allows you to make exact copies of both sides of
the original tape. The reverse side of both tapes will start
simultaneously as soon as the longer tape has been reversed.
●Dubbing does not start from apoint halfway in the tape.
●The reverse mode is automatically set to =>. Recording will
be done on both sides.
1
2
3
Press TAPE.
Insert the original tape into Deck 1and the tape
to be recorded on into Deck 2.
Insert each tape with the side to be played back or recorded
on first facing out from the unit.
Press SYNC DUB once or twice to start recording.
@l For recording at normal speed, press it once to displ;y
“NORM-DUB”.
@For recording at high speed, press it twice to display
“HIGH-DUB”.
@@
The tapes are rewound to the beginning of the front sides,
and recording starts.
To stop dubbing
Press 9.
Recording does not start if the erasure prevention tab on either
side of the tape is broken off.
20ENGLISH
