Aiwa NSX-V70 User manual

COMPACT DISC STEREO SYSTEM
SISTEMA ESTEREO CON REPRODUCTOR DE DISCOS
COMPACTOS
CHAINE STEREO AVEC LECTEUR DE DISQUES COMPACTS
NSX-V70
NSX-V72
(ilTi5i
DIGITALAUDIO

o
2
?1
Zi?&Wf3& tzeA%%@ %s%v70/
V72
Congratulations on your purchase of an Aiwa Stereo System.
To optimize the performance of this system, please take the time
to read through these Operating Instructions and become familiar
with the operating procedures.
About your system
Your system NSX-V70/NSX-V72 is composed of the units ~-~
and supplied with the accessories @)-@ as follows. +❑
@CX-NV70/CX-NV72 Compact disc stereo cassette receiver
@SX-NV70 (L,R) Front speakers
@Surround speakers SX-R220
@Remote control
@FM antenna
@AM antenna
Q1 Operating Instructions, etc.
About this manual +❑
This manual contains illustrations @and instructions in three
languages (Z@.
@l Illustration
@English
@Spanish
@French
About the illustrations
Capital letters, bold face numbers, smaller numbers and lower
case letters in the instructions correspond to the letters and
numbers in the illustration column.
For example, the “+ ❑“following “About this manual” above
is areference to ❑of the illustration,
OWNER’S RECORD
For your convenience, record the model number and serial
number (you will find them on the rear of your set) in the space
provided below. Please refer to them when you contact your
AIWA dealer in case of difficulty.
Model No. CX-NV701CX-NV72 Serial No,
Model No. SX-NV70 Serial (Lot) No.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SliOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
2
AE!!!!!5A
“CAUTION:TO REDUCE THE RISK OF
ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.”
Explanation of Graphical Symbols:
AThe lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated “dangerous volt-
age” within the product’s enclosure that may be of
sufficient magnitude to constitute arisk of electric
shock to persons.
AThe exclamation point within an equilateral tri-
angle is intended to alert the user to the presence
of im~ortant operating and maintenance (servic-
l!--L!l ing) instructions in ttie literature accompanying
the appliance.

a?wea!h“&A%#4 %S%v?ol
“72

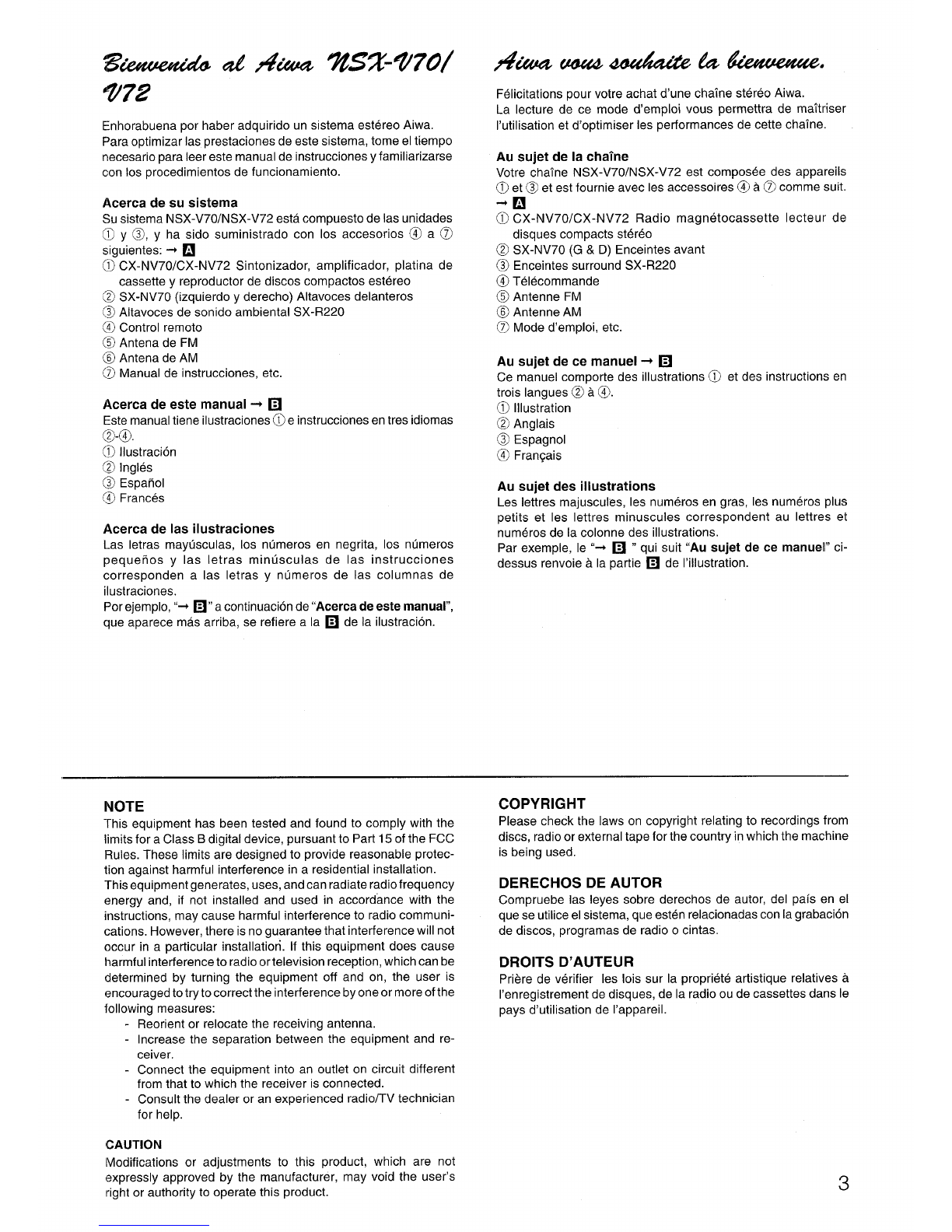

Enhorabuena por haber adquirido un sistema estereo Aiwa.
Para optimizar Ias prestaciones de este sistema, tome el tiempo
necesario para leer este manual de instrucciones yfamiliarizarse
con Ios procedimientos de funcionamiento.
Acerca de su sistema
Su sistema NSX-V701NSX-V72 esta compuesto de Ias unidades
(~ y@), yha sido suministrado con IOS accesorios @) a@
siguientes: +❑
@CX-NV70/CX-NV72 Sintonizador, amplificador, platina de
cassette yreproductor de discos compactos estereo
@SX-NV70 (izquierdo yderecho) Altavoces delanteros
(~ Altavoces de sonido ambiental SX-R220
@) Control remoto
(~ Antena de FM
@Antena de AM
(~ Manual de instrucciones, etc.
Acerca de este manual +❑
Este manual tiene ilustraciones (3 einstrucciones en tres idiomas
(~-@J
@Ilustracion
(~ Ingles
(~ Espaflol
@) Frances
Acerca de Ias ilustraciones
Las Ietras mayusculas, 10s numeros en negrita, 10s ntimeros
pequefios yIas Ietras mintisculas de Ias instrucciones
corresponded aIas Ietras ynumeros de Ias columnas de
ilustraciones.
Por ejemplo, ”+ ❑“acontinuation de “Acerca de este manual”,
que aparece mas arriba, se refiere ala ❑de la ilustracion.
Felicitations pour votre achat d’une chalne stereo Aiwa.
La lecture de ce mode d’emploi vous permettra de maltriser
I’utilisation et d’optimiser Ies performances de cette chalne.
Au sujet de la cha~ne
Votre chalne NSX-V70/NSX-V72 est composee des appareils
@et @et est fournie avec Ies accessoires @a@comme suit.
+m
~CX-NV70/CX-NV72 Radio magnetocassette Iecteur de
disques compacts stereo
@SX-NV70 (G &D) Enceintes avant
@) Enceintes surround SX-R220
@Telecommande
@Antenne FM
@Antenne AM
@Mode d’emploi, etc.
Au sujet de ce manuel +❑
Ce manuel comporte des illustrations@) et des instructions en
trois Iangues @a@.
(3J Illustration
@Anglais
@Espagnol
@Frangais
Au sujet des illustrations
Les Iettres majuscules, Ies numeros en gras, Ies numeros plus
petits et Ies Iettres minuscule correspondent au Iettres et
numeros de la colonne des illustrations.
Par exemple, Ie “+ ❑“qui suit “Au sujet de ce manuell” ci-
dessus renvoie ala partie ❑de I’illustration.
NOTE
This equipment has been tested and found to comply with the
limits for aClass Bdigital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protec-
tion against harmful interference in aresidential installation.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communi-
cations. However, there is no guarantee that interference will not
occur in aparticular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged totrytocorrect the interference byoneormore of the
iollowing measures:
-Reorient or relocate the receiving antenna.
Increase the separation between the equipment and re-
ceiver.
-Connect the equipment into an outlet on circuit different
from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician
for help.
ICAUTION
Modifications or adjustments to this product, which are not
expressly approved by the manufacturer, may void the user’s
right or authority to operate this product.
COPYRIGHT
Please check the laws on copyright relating to recordings from
discs, radio or external tape for the country in which the machine
is being used.
DERECHOS DE AUTOR
Compruebe Ias Ieyes sobre derechos de autor, del pais en el
que se utilice el sistema, que esten relacionadas con la grabacion
de discos, programas de radio ocintas.
DROITS D’AUTEUR
Priere de verifier Ies Iois sur la propriete artistique relatives a
I’enregistrement de disques, de la radio ou de cassettes clans Ie
pays d’utilisation de I’appareil.
3

4

INIIICIE TABLE DES MATMRES
PREPARATIVES PREPARATIONS
PRECALICIONES ................................................................ 7
CONEXIONES ..................................................................... 9
POSIClONAMIENTO DE LOS ALTAVOCES ...................11
ANTES DE LA OPERACION ............................................ 13
PIJESTA EN HORA DEL RELOJ ..................................... 15
Precautions .................................................................. 7
coNNExloNs ..................................ml.......m.......m.....m..........9
POSITIONNEMENT DES ENCEINTES ............................ 11
AVANT L’UTILISATION ......................................... ........ 13
REGLAGE DE L’HORLOGE ........................................... 15
SONIDO SON
REGLAGE DU SON .......................................................... 17
EGALISEUR GRAPHIQUE ............................................... 17
DSP SURROUND .............................................................. 19
AJUSTE DEL SONIDO ..................................................... 17
ECUALIZADOR GRAFICO ............................................... 17
SONIDO AMBIENTAL DSP .............................................. 19
RECEPCION DE LA RADIO
SINTONIZACION MANUAL .............................................. 21
PREAJUSTE DE EMISORAS ........................................... 23
SINTONIZACION MEDIANTE NUMERO DE
PREAJUSTE ..................................................................... 23
RECEPTION RAD!O
ACCORD MANUEL ........................................................... 21
MEMORISATION DE -STATIONS ..................................... 23
ACCORD SUR UNE STATION MEMORISEE ..................23
LECTURE DE DISQUES COMPACTS
OPERATIONS DE BASE .................................................. 25
REPRODUCTION DE DISCOS COMPACTOS
OPERACICINES 13ASICAS ............................................... 25 LECTURE DE CASSETTES
REPRODUCTION DE CINTAS OPERATIONS DE BASE ..............................m...........m....... 31
LECTURE CONTINUE ...................................................... 33
OPERACIONES BASICAS ............................................... 31
REPRODUCTION CONTINUA ......................................... 33
GRABACK3N ENREGISTREMENT
GRABACION BASICA ...................................................... 35
COPIADCI MANUAL DE CINTAS ..................................... 37
COPIADO DE TODA LA CINTA ....................................... 39
GRABACION CON EDICION Al ....................................... 41
GRABACION CON EDICION PROGRAMADA ...............43
ENREGISTREMENT DE BASE ........................................ 35
DUPLICATION MANUELLE D’UNE CASSETTE .............37
DUPLICATION DE LA TOTALITE D’UNE CASSETTE,,.. 39
ENREGISTREMENT AVEC MONTAGE ET CALCUL DU
TEMPS ...............................................................................41
ENREGISTREMENT AVEC MONTAGE PROGRAMME, 43
KARAOKE
MEZCLA MICROFONICA ................................................. 47
FUNCION VOCAL FADER/MULTIPLEX .......................... 49
PROGRAMA DE KARAOKE ............................................ 51
KARAOKE
MIXAGE AVEC MICROPHONE ........................................ 47
FONCTION VOCAL FADER/MULTIPLEX ....................... 4QI
PROGRAMME DE KARAOKE ......................................... 51
TEMPOIWZADOR
AJUSTE DEL TEMPORIZADOR ...................................... 53
AJUSTE DEL TEMPORIZADOR PARA DORMIR ...........55
MINUTERIE
REGLAGE DE LA MINUTERIE ........................................ 53
REGLAGE DE LA MINUTERIE D’ARRET.., .................... 55
OTRAS Cf3NEX10NES AUTRES CONNEXIONS —.
CONNEXION D’UN APPAREIL OPTIONNEL
ECOUTE DE SOURCES EXTERNES ............... . .. . . . ..Z
CONEXION DE UN EQUIPO OPTIONAL ........................ 57
ESCUCHA DE FUENTES DE SONIDO EXTERNAS .,,...57
GENERALIDADES GENERALITIES
SOINS ET ENTRETIEN ................................................... 59
SPECIFICATIONS ............................................................. 61
EN CAS DE PROBLEME .........m........................................ 65
CUIDADOS YMANTENIMIENTO .................................... 59
ESPECIFICACIONES ....................................................... 61
GUIA PARA LA SOLUCION DE AVERIAS ...................... 65
INDICE DE LAS PARTES ................................................. 67 NOMENCLATURE ............................................................ &r

PRECAUTIONS
Follow the advice below for safe and correct operation.
On AC voltage
Before connecting the AC cord, check that the rated voltage
shown on the rear panel matches your local voltage.
On placement
●Do not use the system in places which are extremely hot, cold,
dusty or humid.
$,s,-
,.-
‘.,.,,. ●Do not use the system in places which are subject to vibration.
●Place the system on a flat, even surface.
●To prevent internal heat build up, keep adequate space around
the unit. +❑
In particular, do not place the system in an airtight rack.
●If using the system near the television or radio, noise may be
heard from the television, radio or this system. Move this system
away from the affected television or radio.
On safety
●When disconnecting the AC cord, pull out by the plug. Do not
pull the cord itself.
●When the system is not used for an extended period of time,
disconnect the AC cord. When the cord is plugged in, asmall
amount of current continues to flow to the system, even when
the power is turned off.
●(f the AC cord is damaged, contact your dealer or an Aiwa
service center for immediate replacement or repair.
Should any trouble occur, disconnect the AC cord and contact a
qualified service representative.
6

PRECAUCIONES PRECAUTIONS
Siga Ios consejos dados acontinuation para que el
funcionamiento sea seguro ycorrecto.
Acerca de la tension de CA
Antes de conectar el cable de alimentacion de CA, compruebe
si la tension nominal mostrada en el panel trasero concuerda
con la tension de su Iocalidad.
Acerca del Iugar de instalacion
●No utilice el sistema en Iugares extremadamente calientes,
fr[os, polvorientos ohumedos.
●No utilice ei sistema en lugares sometidos avibraciones.
●Ponga el sistema sobre una superficie plana ynivelada.
●Para evitar la acumulacion termica en el interior, deje un espacio
Iibre suficiente alrededor del sistema. +❑
En particular, no ponga el sistema en un mueble cerrado.
●Si utiliza el sistema cerca de un televisor o de una radio, tal
vez se oigan ruidos en el televisor, en la radio o en este sistema.
Separe este sistema de la radio odel televisor afectado.
Acerca de la seguridad
●Cuando desconecte el cable de aliment acion de CA,
desconectelosujetandolopor la clavija. No tire del propio cable.
●Cuando no utilice el sistema durante mucho tiempo, desconecte
el cable de alimentacion de CA. Cuando el cable este
conectado, una pequefia cantidad de corriente fluira de forma
continua hacia el sistema, aunque la alimentacion este
desconectada.
*Si el cable de alimentacion de CA esta estropeado, pongase
en contacto con su concesionario ocentro de reparaciones
Aiwa para que se 10cambien oreparen inmediatamente.
Si se produce algun problems, desconecte el cable de
alimentacion de CA ypongase en contacto con un representante
de servicio cualificado.
Priere de respecter Ies consignes suivantes pour une utilisation
silre et correcte.
Tension du secteur
Avant de brancher Ie cordon secteur, s’assurer que la tension
nominale indiquee sur Ie panneau arriere correspond acelle du
secteur local.
Emplacement
*Ne pas utiliser la chahe clans des endroits extr6mement
chauds, froids, poussiereux ou humides.
●Ne pas utiliser la chalne clans des endroits qui sent soumis a
des vibrations.
●Installer la chaine sur une surface plate et Iisse.
●Pour eviter une elevation de la temperature interne, garder un
espace adequat autour de I’appareil. +❑
En particulier, ne pas placer la chalne clans un meuble
completement ferme.
●Si la chaine est utilisee pres d’un poste de television ou de
radio, des parasites peuvent dre audibles par ce poste OUI par
la chalne. Le cas echeant, eloigner cette chaine du poste de
telfwision ou de radio affecte.
Securite
●Pour debrancher Ie cordon secteur, Ie tirer par sa fiche, Ne pas
tirer sur Ie cordon proprement alit.
●Si la cha~ne ne doit pas 6tre utilisee pendant Iongternps,
debrancher Ie cordon secteur. Si on Iaisse ce cordon branche,
un courant de faible intensite continue de circuler clans la chalne
meme si I’alimentation est toupee.
●Si Ie cordon secteur est endommage, contacter immediaternent
Ie revendeur ou un centre de service Aiwa pour Ie “faire
remplacer ou reparer,
En cas de probleme, debrancher Ie cordon secteur et contacter
un technician qualifie.
-r
/

IMPORTANT
●Connect the AC cord after connecting speakers, antennas, and
all optional equipment.
●There are no differences between the front speakers, and
between the surround speakers. Both speakers can be
connected as L(left) or R(right).
1
2
3
4
5
Connect the SX-NV70 right speaker to the unit.
Connect the speaker cord to the SPEAKERS Rterminals.
●The cord with the white stripe should be connected to the @
terminal and the black cord to the @terminal.
Connect the other SX-NV70 left speaker to the
unit.
Connect the speaker cord to the SPEAKERS Lterminals in
the same manner as step 1.
Connect the SX-R220 surround speakers.
Connect the supplied AM antenna @and FM
antenna a.
Connect the AC cord to an AC outlet.
To be continued.
8

CONEXIONES CONNEXIONS
IMPORTANTE
●Conecte el cable de alimentacion de CA despues de haber
conectado Ios altavoces, Ias antenas ytodos Ios demas equipos
opcionales.
●No existen diferencias entre Ios altavoces delanteros, ni entre
Ios altavoces de sonido ambiental.
Ambos altavoces podran conectarse como altavoz izquierdo
(L) ocomo altavoz derecho (R).
1
2
3
4
5
Conecte el altavoz derecho SX-NV70 ala unidad.
Conecte el cable del aitavoz aIos terminals SPEAKERS R.
●El cable con la franja blanca debera conectarse al terminal
@, yel cable negro al terminal ~.
Conecte el altavoz izquierdo SX-NV70 ala unidad.
Conecte el cable del altavoz aIos terminals SPEAKERS L
de igual forma que en el paso 1.
Conecte Ios altavoces de sonido ambiental SX-
R220,
Conecte Ias antenas de AM @yde FM @
suministradas.
Conecte el cable de alimentacith de CA auna
toma de CA.
IMPORTANT
●BrancherIe cordonsecteurapres avoirconnecte Iesenceintes,
Ies antennes et tout autre appareil optionnel.
●II n’yapas de difference entre Ies enceintes avant, nientre Ies
enceintes surround. Chacune d’elles peut etre connectee
comme enceinte gauche (L) ou droite (R).
1
2
3
4
5
Connecter I’enceinte droite SX-NV70 aI’appareil.
Connecter Ie cordon d’enceinte aux bornes SPEAKERS R.
●Le cordon raye de blanc doit etre connecte Z?Ila borne @et
Ie cordon noir ala borne G.
Connecter I’enceinte gauche SX-NV70 a
I’appareil.
Connecter Ie cordon d’enceinte aux bornes SPEAKERS L de
la m6me maniere qu’a I’etape 1
Connecter Ies enceintes surround SX-R220.
Connecter I’antenne AM @) et I’antenne FM @
fournies.
Brancher Ie cordon secteur aune prise de
courant.
Continua. Asuivre
9

❑
✚
[
Jr
lr FM
[
75 c1

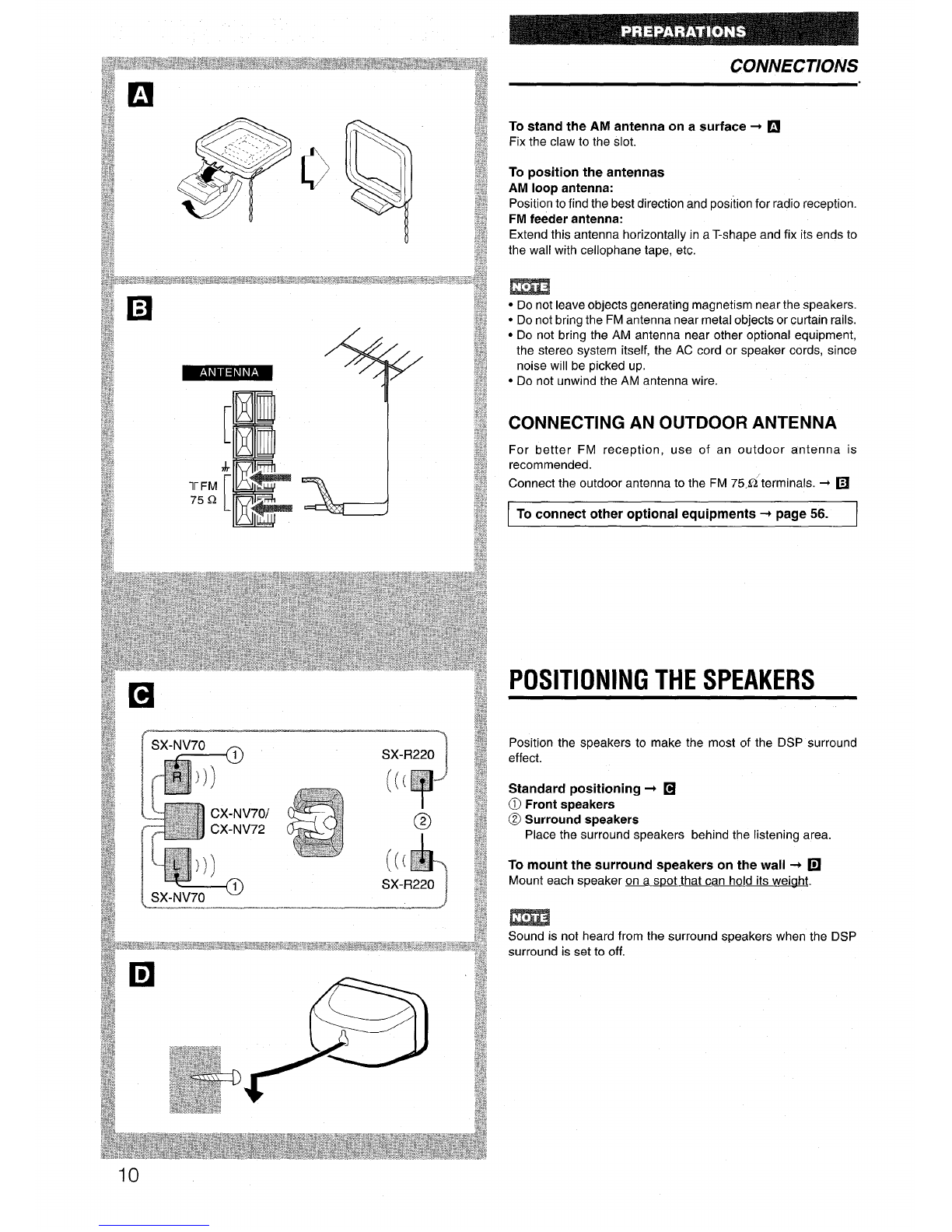

CONNECTIONS

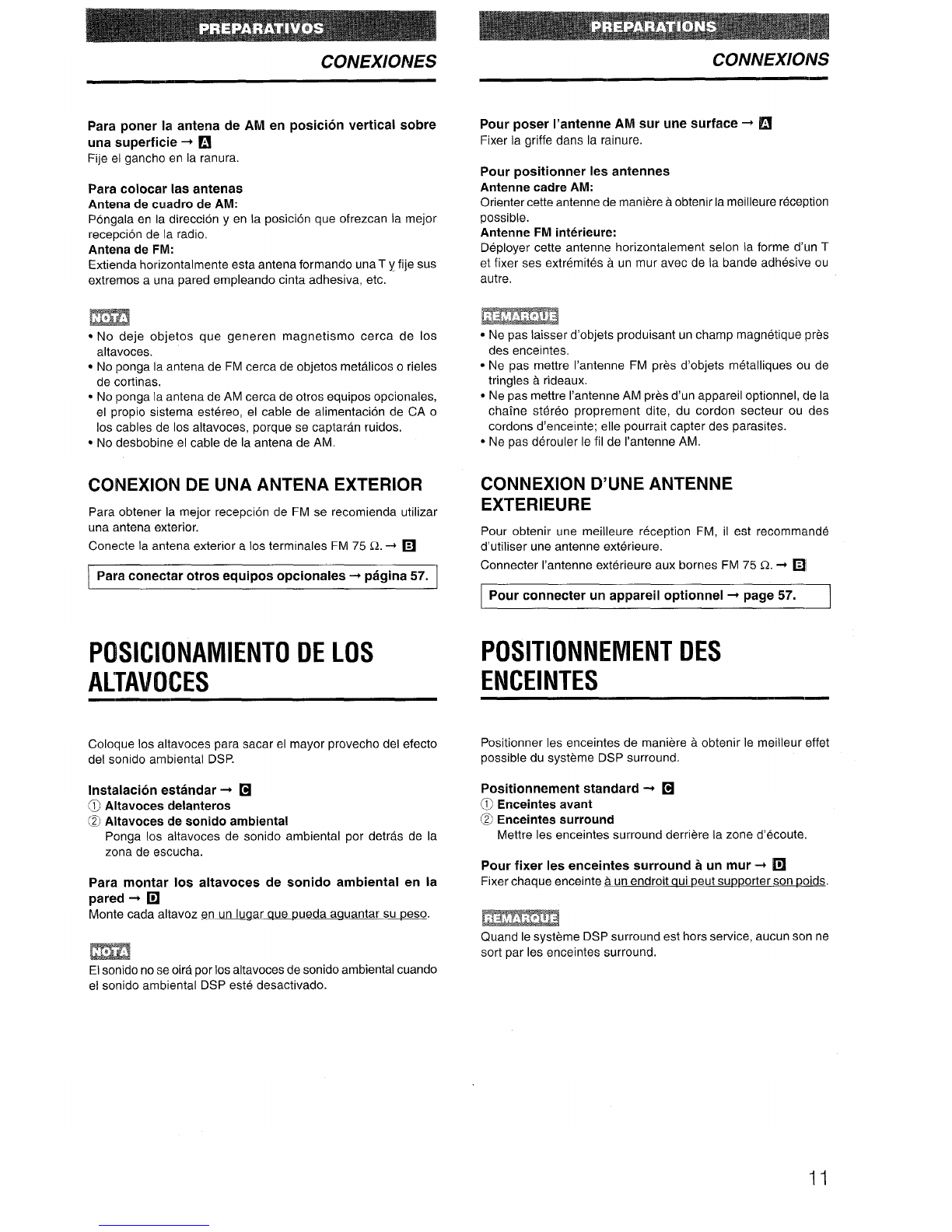

To stand the AM antenna on asurface +❑
Fix the claw to the slot.
To position the antennas
AM loop antenna:
Position to find the best direction and posikon for radio reception.
FM feeder antenna:
Extend this antenna horizontally in aT-shape and fix its ends to
the wall with cellophane tape, etc.
m
●Do not leave objects generating magnetism near the speakers.
●Do not bring the FM antenna near metal objects or curtain rails.
●Do not bring the AM antenna near other optional equipment,
the stereo system itself, the AC cord or speaker cords, since
noise will be picked up.
●Do not unwind the AM antenna wire.
CONNECTING AN OUTDOOR ANTENNA
For better FM reception, use of an outdoor antenna is
recommended.
Connect the outdoor antenna to the FM 75,~’terminals. +❑
To connect other optional equipments+ page 56.
POSITIONING THE SPEAKERS
Position the speakers to make the most of the DSP surround
effect.
Standard positioning +❑
@Front speakers
@Surround speakers
Place the surround speakers behind the listeningarea.
To mount the surround speakers on the wall +❑
Mount each speaker on a s~ot that can hold its weight.
Sound is not heard from the surround speakers when the DSP
surround is set to off.
10
