Akai ACA-3630UC User manual

MANUAL DE INSTRUCTIUNI
SISTEM DETASABIL AL FETEI CASETOFONULUI
PENTRU ANTIFURT
PLAYER CD/MP3/WMA CU MMC/SD/USB
RADIO DIGITAL AM/FM - RDS
Downloaded from Caradio-Manual.com Manuals

LOCATIA SI FUNCTIA CONTROALELOR
1. RELEASE BUTTON (Buton de deschidere)
Apasati butonul REL pentru a desprinde partea frontala de sasiul
unitatii, apoi ridicati putin pentru detasare.
Cand partea frontala este desprinsa un indicator LED va clipi.
2&3&4. SEL BUTTON (Select) AND VOL CONTROL BUTTON
(Buton de selectare si butonul de control al volumului)
a) Apasati butonul SEL scurt, apoi se activeaza selectand unul din
modurile VOLUME→BASS→TREBLE→BALANCE
→FADER→
Cand selectati un mod audio preferat, apasati butonul VOL+/VOL-
pentru a ajusta efectul audio.
In fiecare mod, timpul de asteptare este de 5 secunde, si cand se
termina timpul de asteptare, se intoarce la ultimul mod de tuner sau
CDP.
Modul de control E.VOL este controlat de urmatoarele date numerice
pe display:
-VOL: (MIN)00,01,.......46,47(MAX)
-BASS/TRE: -07,-06,......,00....+06,+07
-BAL: 0LR9, 1LR9,......9LR9,....9LR1,9LR0
-FAD: 0FR9, 1FR9,......,9FR9,....9FR1,9FR0
b) Apasati butonul SEL si tineti apasat mai mult de 2 secunde pentru
a porni TA SEEK/TA ALARM, apoi apasati butonul SEL scurt si
repetati pentru a selecta unul din modurile PI SOUND/PI MUTE,
RETUNE L/RETUNE S, MASK DPI/MASK ALL, BEEP ON/
BEEP OFF, USER SET (FLAT/CLASSIC/ ROCK/POP) VOL
LAST/VOL DEFA, STEREO/MONO (in modul radio), LOUD
OFF/LOUD ON, DX/LOCAL (in modul radio), CLK ON/CLK
OFF, CLK 12/24. Dupa selectarea modului dorit, apasati butonul
VOL- sau VOL+ pentru a selecta setarea acestuia.
1. TA SEEK/TA ALARM (TA CAUTARE/ TA ALARMA)
Modul TA SEEK: cand posturile noi de radio nu primesc informatii TP
(TRAFFIC PROGRAMME) timp de 5 secunde, radioul cauta urmatorul
post radio care nu are acelasi nume de statie –PI (PROGRAMME
IDENTIFICATION) ca precedentul, dar are informatii TP.
Timpul pentru cautarea unui post nou cand informatia TP este pierduta este
dat de RETUNE SHORT – 90 secunde (CAUTARE SCURTA) sau
RETUNE LONG – 150 secunde (CAUTARE LUNGA). Cand informatia
TP este pierduta incepe cautarea unui nou post radio PI. Cand acelasi post
radio-PI- nu este gasit in durata unei scanari, radioul cauta urmatorul post
radio cu informatii TP.
Modul TA ALARM: cand acest mod este selectat, nici o cautarea automata
nu este activata. Se aude un dublu beep(ALARMA).
Cand posturi noi nu au informatii TP pentru 5 secunde, se aude un beep.
Cand informatia TP este pierduta se aude un beep in loc de a cauta postul
radio.
Cand posturi noi nu au semnal RDS (RADIO DATA SYSTEM), PI SEEK
incepe.
2. PI SOUND/PI MUTE:
Modul PI SOUND: Daca o masina circula intre doua locatii, un fenomen
de oscilare poate aparea, din cauza ca coduri PI diferite pot fi primite de la
1
2
Downloaded from Caradio-Manual.com Manuals

aceeasi AF, cand sunete diferite PI (DIP) sunt auzite din cand in cand mai
putin de 1 secunda.
Modul PI MUTE: in aceeasi situatie , un sunet mut va fi auzit mai putin de
1 secunda.
3. RETUNE L / RETUNE S:
Timpul initial de cautare automata TA sau mod PI SEARCH este selectat.
Cand informatia PI nu este gasita in timp de recautare, radioul incepe
recautarea aceluiasi post radio PI.
Cand nu se gasesti acelasi post PI in timpul unei scanari, radioul trece la
ultimul post si asteapta 4-5 minute pana cand codul PI este receptionat.
Modul RETUNE L: selectat la 150 de secunde.
Modul RETUNE S: selectat la 90de secunde.
4. MASK DPI/MASK ALL:
Modul MASK DPI: mascheaza numai AF (ALTERNATIVE
FREQUENCIES) care are PI diferit.
Modul MASK ALL: mascheaza AF care are PI diferit si nici semnal RDS
de putere mare.
5. BEEP ON/BEEP OFF
Modul BEEP ON: Beep-ul este generat cand oricare buton este apasat.
Modul BEEP OFF: Beep-ul este dezactivat.
6. VOL LAST/VOL DEFA
VOL LAST: Radioul se deschide cu volumul cu care a fost inchis.
VOL DEFA: Dupa apasarea butonului SEL, AVOL apare pe LCD. Apoi
puteti preselecta un volum constant de inchidere folosind butonul VOL.
7. CLK ON/OFF
CLK ON: Ceasul va aparea tot timpul pe ecran dupa ce a fost stins.
CLK OFF: Ceasul va disparea de pe ecran dupa ce a fost stins.
5. POWER ON/OFF & MUTE
Cand aparatul a fost stins, va porni la apasarea oricarui buton exceptand
EJECT si RELEASE.
Cand aparatul functioneaza, tineti apasat butonul de pornire mai mult de 0,5
secunde si aparatul se stinge.
Cand aparatul este pornit, apasati butonul de pornire pentru a
activa/dezactiva sunetul – MUTE ON/OFF.
6. LCD DISPLAY
7&8. TUNE,SEEK,TRACK,SKIP UP/DOWN BUTTONS
a.In timpul modului radio:
Apasati butonul >>| sau |<< scurt pentru cautarea manuala a posturilor
preferate pas cu pas.
Apasati butonul >>| sau |<< mai mult de 0.5 secunde pentru cautarea
automata a posturilor radio cu semnal puternic.
b.In timpul modului SD/MMC sau USB:
Apasati butonul >>| sau |<< scurt pentru a reda urmatoarea/precedenta
melodie.
Apasati butonul |<< scurt pentru a reda melodia curenta de la inceput daca
timpul de redare a depasit 2 secunde.
Apasati butonul |<< scurt pentru a reda precedenta melodie daca timpul de
redare a depasit 2 secunde.
9-14. PRESET STATION MEMORY AND TOP/>||,INT,RPT,RDM
BUTTONS
a) In modul radio:
Cand sunt apasate scurt, cele 6 butoane selecteaza direct un post radio
predefinit. Daca cele 6 butoane sunt apasate mai mult de 2 secunde, postul
radio care este ascultat este memorat pe butonul presetat.
b) In modul SD/MMC sau USB:
1. Apasati butonul TOP />|| scurt pentru a intrerupe redarea MMC/SD sau
USB. Apasati din nou pentru a reveni la redarea normala a cardului
MMC/SD sau USB.
2. Apasati butonul INT pentru a reda primele 10 secunde ale fiecarei
melodii, si pe LCD va aparea mesajul INT ON.
Apasati din nou pentru a opri scanarea, in timp ce melodia curenta este
redata si pe LCD va aparea mesajul INT OFF.
3 4
Downloaded from Caradio-Manual.com Manuals

3. Apasati butonul RPT pentru a reda melodia curenta repetat si pe
LCD va aparea mesajul RPT ONE.
In modul MP3/WMA, MMC/SD sau modul USB, apasati butonul RPT
repede de doua ori pentru a reda folderul curent, si RPT ABM va fi
vizibil pe LCD.
Apasati butonul RPT din nou pentru a revoca acesta functie, si pe LCD
va aparea mesajul RPT OFF.
4. Apasati butonul RDM pentru a reda toate melodiile in mod arbitrar,
si pe LCD va aparea mesajul RDM ON.
Apasati butonul RDM din nou pentru a revoca aceasta functie si pe
LCD va aparea mesajul RDM OFF.
5. Apasati butoanele -10 si +10 pentru a reda melodiile din 10 in 10
crescator sau descrescator Cand melodiile ramase sunt mai putin de 10,
amandoua butoanele vor fi inactive.
15. BAND AND PTY BUTTON
In modul radio:
Apasati butonul BND/PTY scurt pentru a selecta banda de emisie
dorita. Banda AM/FM este comutata ciclic :
→FM1→FM2→FM3→MW1→MW2→
Tineti apasat butonul BND/PTY pentru a selecta unul din modurile:
POP M- NEWS.
In timp ce selectati PTY TYPE, selectia lui este implementata de
butoanele presetate (apasati scurt si repetat unul din cele 6 butoane
presetate pentru selectarea PTY TYPE).
Cand POP M sau NEWS sunt activate, programul PTY anterior si
cuvantul PTY sunt afisate pe LCD. . Daca nu sunt introduse date timp
de 2 secunde, PTY-ul precedent este cautat. In timpul unei cautari, daca
PTY-ul dorit nu este gasit, mesajul NO PTY apare pe LCD si postul
radio precedent si PTY dispar de pe ecran.
In modul MMC/SD/USB, vor aparea pe LCD informatii despre numele
fisierului, numele folderului, titlul melodiei,artist,album.
Atata timp cat melodiile MP3/WMA contin informatii relevante (ID3
tag) in versiunea 1.0/2.0, cele trei elemente subliniate vor aparea pe
LCD, altfel nu.
16. MODE BUTTON
Apasati butonul MODE pentru a schimba intre radio,disc,card
MMC/SD, USB si modul AUX.
17. EJECT KEY
Cand unitatea este pornita,, discul incarcat poate fi scos apasand
butonul EJ.
18. TA (TRAFFIC ANNOUNCEMENT) BUTTON (Butonul de
anunturi din trafic)
Cand apasati butonul, modul TA este activat/dezactivat.
Cand modul TA este activat (TA apare pe LCD), va incepe cautarea
statiilor TA si mesajul TA SEEK apare pe LCD pentru un timp.
Cand anunturi din trafic sunt transmise:
1.Daca unitatea este in modul MMC/SD sau USB, va schimba in modul
radio pentru un timp.
2.Daca volumul este sub 20, volumul este crescut la 20, si revine la
modul si volumul precedent cand anuntul din trafic este terminat.
Daca volumul este ajustat in timpul anunturilor din trafic, numai
volumul anuntului din trafic este valabil.
Functia de intrerupere TA:
Anuntul din trafic curent este revocat apasand acest buton. Dar modul
TA nu este oprit.
Cand functia TA este pornita, functiile SEEK, SCAN, AUTO
MEMORY pot fi folosite sau salvate numai cand codul de identificare
al programului de trafic este primit.
Cand functia TA este pornita, codul de identificare al programului de
trafic nu este primit intr-o anumita perioada de timp.
19. AS/PS BUTTON (AUTO-STORAGE/PRESET SCAN)
In modul radio:
1.Cand este apasat si tinut apasat mai mult de 1 secunda butonul
AS/PS, radioul cauta din frecventele curente semnalul cel mai puternic
pana cand 6 posturi radio sunt gasite. Apoi cele sase posturi radio sunt
presetate in memorie. Operatia de auto stocare este implementata in
toate latimile de banda. Cand operatia de auto stocare este terminta,
radioul activeaza modul de scanare presetat.
2.Cand este apasat scurt, radioul cauta fiecare post radio presetat din
latimea de banda curenta si retine numarul presetat pentru 5 secunde,
apoi cauta din nou.
In modul MP3/WMA/SD/MMC sau USB:
1.In modul TRACK SEARCH, pe LCD apare TRK T000 si primul 0
clipeste.
5 6
Downloaded from Caradio-Manual.com Manuals

Apoi apasati butonul VOL- sau VOL+ pentru a selecta numarul
digitului care clipeste (0-9). Apoi apasati butonul SEL pentru a
confirma numarul si a trece la urmatorul digit care clipeste. Procedand
la fel, selectati numarul urmatorului digit. Dupa terminarea selectarii
tutror digitilor, apasati butonul SEL pentru a reda track-ul respectiv.
2. In modul selectare melodie FIRST CHARACTER SEARCH
(Cautarea primului caracter) , pe LCD va aparea A--. (Daca sunt fisiere
care incep cu litera A, atunci prima melodie in ordinea A-Z, 0-9 va fi
redata prima, daca nu va aparea mesajul NONE).
Apasati butoanele VOL+ sau VOL - pentru a selecta fisierele care au ca
prim caracter in ordinea A-Z,0-9.
Apoi apasati butonul >>| sau |<< pentru a selecta un fisier care are
primul caracter ca cel selectat. In final apasati butonul SEL pentru a
reda fisierul selectat.
3.In modul de selectare a melodiei DIRECTORY SEARCH (Cautare in
director), folderul principal va fi visibil pe ecran. (Daca nu este un
folder principal pe discul MP3/WMA, card MMC/SD sau USB, veti
gasi un fisier principal numit ROOT). Apoi apasati butoanele VOL+
sau VOL- pentru a selecta directorul dorit. Apoi apasati butonul >>|
sau |<< pentru a selecta melodia preferata din director. In final, apasati
butonul SEL pentru a selecta melodia.
20. BUTONUL AF (ALTERNATIVE FREQUENCIES) –
FRECVENTE ALTERNATIVE
Cand este apasat scurt, modul AF este selectat, si starea modului AF
este afisata.
AF OFF: AF este oprit
AF ON: AF este pornit si are informatii RDS.
AF clipeste: AF este pornit, dar informatia RDS nu este receptionata
inca.
Cand modul AF este selectat, radioul verifica puterea semnalului AF
tot timpul. Intervalul de verificare depinde de puterea semnalului a
postului radio curent, de la cateva minute pentru un semnal puternic
pana la cateva secunde pentru un semnal slab al postului radio.
De fiecare data cand AF este mai puternic decat postul actual, schimba
frecventa pentru putin timp, si mesajul NEW FREQUENCY (Frecventa
Noua) apare pentru 1-2 secunde. Din cauza timpului scurt al schimbarii
sau verificarii, este abia auzit.
In timpul modului FM, cand AF este pornit, functiileSEEK,(SCAN),
AUTO-MEMORY pot doar receptiona si salva posturi RDS.
21.CLOCK BUTTON
Apasati butonul CLK scurt pentru a aparea timpul 5 secunde pe LCD,
si apoi revine la meniul precedent in caz ca butonul nu este apasat din
nou.
Apoi apasati butonul CLK si tineti-l mai mult de 1 secunda pana cand
timpul real incepe sa clipeasca pe LCD. Apoi puteti regla ora si
minutele apasand butoanele VOL- sau VOL+.
22. AUX INPUT JACK
Apasati butonul MODE pentru a selecta intrarea auxiliara. Apoi puteti
conecta orice dispozitiv audio extern care se potriveste. Folositi butonul
VOL pentru ajustarea volumului.
23. MMC/SD CARD SLOT (Slot de carduri de memorie MMC/SD)
Cand doriti sa redati fisiere dupa un card MMC/SD, inserati cardul in
slotul MMC/SD. Sistemul va schimba in mod MMC/SD automat, apoi
redati primul fisier de pe card.
Nota:
Cand cardul MMC/SD sau USB sunt introduse amandoua in sloturile
sau porturile lor, sistemul va schimba in modul de redare a ultimului
introdus.
24.USB SOCKET (Port USB)
Cand doriti sa redati dupa un stick de memorie USB, dati la o parte
protectia de plastic, apoi inserati stickul de memorie in portul USB.
Sistemul va schimba in mod USB automat, apoi redati primul fisier de
pe USB.
Cand nu folositi portul USB, va rugam sa acoperiti portul cu protectia
de plastic.
25. FLASHING LED ( LUMINA LED)
Cand fata detasabila este indepartata acest indicator va licari.
7
8
Downloaded from Caradio-Manual.com Manuals

26. RESET BUTTON (Buton de reset)
Inainte de a opera prima oara pe unitate, sau dupa inlocuirea bateriei la
masina sau schimband conexiunile, aceasta trebuie resetata.
Apasati acest buton cu varful unui obiect. Aceasta operatiune va sterge
setarile ceasului si cateva din continuturile stocate.
INSTALARE
9 10
Inainte de a instala si folosi CD
player-ul, indepartati mufa de
montare din metal ilustrata de
sageti
Indepartati cele doua suruburi
care protejeaza CD player-ul in
timpul transportului inainte de
a folosi aparatul.
Pentru atasarea partii
din fata, introduceti
prima data partea
dreapta in dreapta
sasiului.Apoi apasati
partea stanga a partii
din fata in sasiu pana
auzi “clic”.
Downloaded from Caradio-Manual.com Manuals

PROBLEME
Inainte de a verifica lista, va rugam faceti conexiunile.
Daca tot mai aveti intrebari dupa ce ati verificat lista, va rugam
consulati service-ul autorizat din localitatea dumneavoatra.
1211
Downloaded from Caradio-Manual.com Manuals

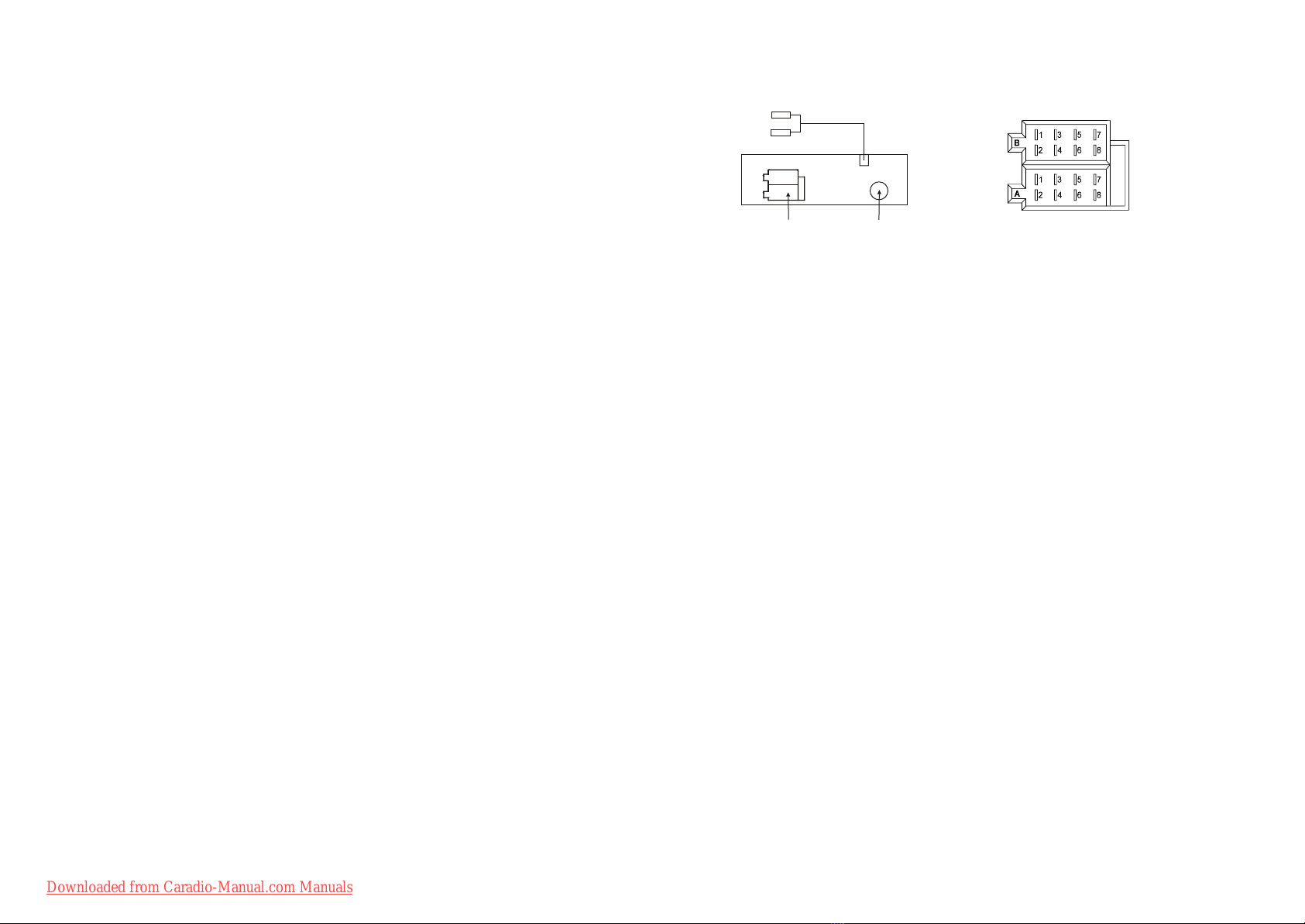

CONECTAREA FIRELOR
Conector A Conector B
1. 1.Boxa spate dreapta (+)
2. 2.Boxa spate dreapta (-)
3. 3.Boxa fata dreapta (+)
4. Memorie +12V 4.Boxa fata dreapta (-)
5.Iesire Antena Auto 5.Boxa fata stanga (+)
6. 6. Boxa fata stanga (-)
7. 12V(Contact) 7.Boxa spate stanga (+)
8.Impamantare 8. Boxa spate stanga (-)
Specificatii:
GENERAL
Voltaj Impamantare negativa DC 12V
Consum curent Maxim 10A
Putere iesire 25W x 4 (Masurati la DC 14.4V)
Numar canale 2 canale Stereo
Dimensiuni 178W x 165D x 50H mm
Sectiunea FM
Lungimea de banda 87.5Mhz – 108.0Mhz
Senzitivitate efectiva 3uV
Frecventa I.F. 10.7Mhz
Sectiunea AM
Lungimea de banda 522Khz – 1620Khz
Senzitivitate efectiva 40dB.
Frecventa I.F. 450Khz
Iesire RCA
Iesire 1200mV @ CD MAX
CD PLAYER
Sistem Sistem Audio Mp3
CD-uri suportate CD/CD-R/CD-RW/MP3/WMA
Caracteristicile frecventei 20Hz-100Hz ≤5dB.
10Khz-20Khz≤5dB.
S/N Ratio to CD 50dB [1Khz]
13 14
Downloaded from Caradio-Manual.com Manuals

AKAI
Reciclarea echipamentelor electrice şi
electronice uzate:
Acest simbol prezent pe produs sau pe
ambalaj semnificăfaptul căprodusul
respectiv nu trebuie tratat ca un deşeu
menajer obişnuit. Nu aruncaţi aparatul
la gunoiul menajer la sfârşitul duratei de
funcţionare, ci duceţi-l la un centru de
colectare autorizat pentru reciclare. În
acest fel veţi ajuta la protejarea
mediului înconjurător şi veţi putea
împiedica eventualele consecinţe negative pe care le-ar avea
asupra mediului şi sănătăţii umane.
Pentru a afla adresa celui mai apropiat centru de colectare:
- Contactaţi autorităţile locale;
- Accesaţi pagina de internet: www.mmediu.ro ;
- Solicitaţi informaţii suplimentare de la
magazinul de unde aţi achiziţionat produsul.
Downloaded from Caradio-Manual.com Manuals

INSTRUCTION MANUAL
ACA-3630UC
ANTI-THEFT FLIP DOWN DETACHABLE SYSTEM
CD/MP3/WMA PLAYER WITH MMC/SD USB
AM/FM-RDS DIGITAL PLL TUNING RADIO
Downloaded from Caradio-Manual.com Manuals

Page 1
1. RELEASE BUTTON
Press the RELbutton to releasethe front controlpanel from the unit chassis,
then pull itup a little to remove fromthe unit chassis.
When the frontcontrol panel is removed the LEDindicator flashes.
2&3&4. SEL BUTTON (Select) AND VOLCONTROL BUTTON
a) Press theSEL button briefly, it is activatedas selecting each mode of E.VOL.
-> VOLUME ->BASS->TREBLE -> BALANCE -> FADER->
When selecting adesired audio mode, press the VOL+or VOL- button to adjust
the audio effect.
In each mode,the waiting time is about 5seconds, and the time waiting timeis over,
it returns tothe last display mode of tuneror CDP mode.
The control mode of E.VOLis operated withfollowing numeric display.
- VOL: (MIN)00,01,......46, 47(MAX).
- BASS/TRE: -07,-06,...,00,...+06,+07
- BAL: 0LR9,1LR9, ..., 9LR9,..., 9LR1, 9LR0
- FAD:0FR9,1FR9, ..., 9FR9,..., 9FR1, 9FR0
b) Press SELbutton and holdfor more than2 seconds to turn on TASEEK/TAALARM
mode, then pressSEL button briefly and repeatedly to select PISOUND/PI MUTE,
RETUNE L/RETUNE S,MASK DPI/MASK ALL, BEEP ON/BEEP OFF, USER SET
(FLAT/CLASSIC/ROCK/POP),VOLLAST/VOL DEFA ,STEREO/MONO(in RADIO
mode), LOUD OFF/LOUDON,DX/LOCAL (in RADIO mode), CLK ON/CLK OFF,
CLK 12/24 mode. After selectingthe desired mode,press the VOL- or VOL+ button
to select onesetup item of the desired mode.
LOCATION AND FUNCTION OF CONTROLS
Downloaded from Caradio-Manual.com Manuals

Page 2Page 9
1) TA SEEK/TA ALARM:
TASEEK mode: whennewly tuned stationdoes not receive TP information for 5
seconds, the radioretunes to next station which hasnot the same station(PI) as
the last station,but has the TP information.
When TP information gets lostat the current station for retunetime which is set by
RETUNE SHORT(90 seconds) or RETUNE LONG(150 seconds), the radio start to
retune to nextsame PI station. When same PIstation does not catch in 1cyclic
search, the radioretunes to next station with TP information.
TA ALARM mode:when this mode is selected, anyautomatic retune mode is not
activated. Only doublebeep sound(ALARM) is out-put.
When newly tunedstation does not have TP information for 5seconds, beeps come out.
When TP information gets lostat the current station for retunetime, the beep sound
is out-putted.
When newly tunedstation has not RDS signal, PISEEK is suppressed somewhat.
2) PI SOUND/PI MUTE:
PI SOUND mode:if a car cruises that criticalarea back and forth, an oscillation
phenome-non can beoccurred, because the different PI code can be receive from a
same AF. when thedifferent PI sound (DIP) isheard once in a while, thedifferent PI
sound will beheard for less than 1 second.
PI MUTE mode:under above same situation, a mutesound will be heard for less
than1second.
3) RETUNE L/ RETUNE S:
The initial time of automatic TAsearch or PISEARCH mode isselected.
When PI informationis not caught for retune time, the radio start to retuneto next
same PI station.
When same PIstation does not catch 1 cyclicsearch, the radio goes to laststation
and waits for4-5 minutes until PI code isreceived.
RETUNE L mode: selected as150 seconds.
RETUNE S mode:selected as 90 seconds.
4) MASK DPI/MASKALL:
MASK DPI mode:masked only the AF whichhas different PI.
MASK ALLmode: masked theAF whichhas different PI and NORDS signal with high
field strength.
5)BEEP ON/BEEP OFF
BEEP ON mode: The beep is generatedwhen any key is pressed.
BEEP OFF mode: The beep sound isdisabled.
6) VOL LAST/VOL DEFA
VOL LAST: The radio switches onat the actual volume it hadwhen it was last
switched off.
VOL DEFA: After pressing SEL button, AVOL will be displayed. Then you can
pre-select a constantswitch-on volume by using the VOLknob.
7)CLK ON/OFF
CLK ON: Clockwill always show on the displaywhen power off.
CLK OFF: Clockwill disappear on the display whenpower off.
5. POWER ON/OFF& MUTE
When the unitis power off, the unitcomes to on by pressing anybutton except the
EJECT and the RELEASE button.
When the unitis power on, press and holdthe power button for more than0.5 seconds,
the unit goesinto power off mode.
When the unitis power on, press the powerto switch the MUTE state on/off.
6. LCD Display
SPECIFICATION
GENERAL
Supply Voltage DC 12V. Negative Ground
Current Consumption Max.10A
Power Output 25Watts X 4 (Measured at DC 14.4 V)
Number of channels 2 STEREO channels.
Unit Dimensions 178[W] X 101.5[D] X 50[H] mm.
FM SECTION
Frequency range 87.5MHz - 108.0MHz
Effective sensitivity 3uV.
I.F Frequency 10.7MHz.
AM SECTION
Frequency range 522KHz - 1620KHz
Effective sensitivity 40dB.
I.F Frequency 450KHz
RCA LINE OUT
Output 1200mV @ MAX.
CD PLAYER
System MP3 audio system.
Usable disc CD/CD-R/CD-RW/MP3/WMA disc
Frequency characteristics 20Hz-100Hz < 5dB
\
10KHz-20KHz < 5dB.
\
S/N Ratio to CD 50dB [1KHz]
Downloaded from Caradio-Manual.com Manuals

Page 3 Page 8
7&8. TUNE, SEEK,TRACK, SKIP UP / DOWN BUTTONS
a) During RADIOmode:
Press the >>|or |<< button briefly to manual tune up/down for the desired radio
station frequency stepby step.
Press and holdthe >>| or |<< button for longer 0.5 seconds, to automatically tune
up/down for theradio station frequency of strong signal.
b) During SD/MMC& USB mode:
Press the >>|button briefly to play next track.
Press the |<<button briefly to play the current track from the beginning of it if the
playing time ismore than 2 seconds.
Press the |<<button briefly to play the previous track if the playing time is
less than 2seconds.
9-14. PRESET STATION MEMORY AND TOP/>||, INT,RPT, RDM BUTTONS
a) During radiomode:
Go to anypreset station by pressing one of the 6 preset station buttons (1-6).
If one ofthese buttons is pressed for more than 2 seconds, the station currently
being listened towill be memorized into the selected preset button.
b) During disc,MMC/SD or USBmode:
1) Press theTOP/ >|| button briefly to pause the playback of the disc,MMC/SD or
USB. Press againto resume normal playback of the disc, MMC/SD or USB.
Press the TOP/>|| button and hold for approximately 0.5 seconds to play the first
track of thedisc, MMC/SD or USB.
2) Press theINT button to sample the first 10 seconds part of each track, and the
INT ON will be visible on the LCD display.
In the processof INT, press INT button again to stop sampling and to continue
playing the currenttrack, and the LCD will display INT OFF.
3) Press theRPT button once to play the current track repeatedly, and the RPT
ONE will bevisible on the LCD display.
During MP3/WMAdisc, MMC/SD or USB mode, press the RPT button twice
continuously to playthe current folder repeatedly, and the RPTABM willbe visible
on the LCDdisplay.
In the processof RPT, press RPT button again to stop playing repeatedly mode and
the LCD willdisplay RPT OFF.
4) Press theRDM button toplay all tracks on disc inrandom order, and the RDM ON
will be visible on the LCD display.
In the processof RDM, press RDM button again to stop playing in random order
and the LCDwill display RDM OFF.
5) Press the-10 and +10buttonto move up and down10 tracks at a time.
When the remained total tracks is lack of 10,the both buttons are inactively.
15. BAND & PTY BUTTON
During radio mode:
Press the BND/PTYbutton briefly toselect the radio broadcasting band you would
like to hear. The AM/FM bandis toggled cyclically through the tuningbands:
->FM 1-> FM 2 -> FM 3 -> MW 1->MW 2 ->.
Press and holdthe BND/PTY button to select the following mode:POP M- -NEWS
While selecting PTYTYPE, its selection is implemented by preset buttons as
described in presetkey. (press one ofthe 6 preset buttons shortly and repeatedly
to select thePTY TYPE in the preset button) When POPM or NEWSis on, the
previous PTY program and PTY word is displayed on LCD. If there are nokeys
entered for 2seconds, previously selected PTY is searched. During 1loop, if
desired PTY is not found, NO PTY is flashed, thenreturn to previous normal radio
and PTY word disappear.
CONNECTOR A
1.
2.
3.
4. Memory +12V
5. Auto Antenna Output
6.
7. 12V (To Ignition Key)
8. GROUND
CONNECTOR B
1. Rear Right Speaker (+)
2. Rear Right Speaker (-)
3. Front Right Speaker (+)
4. Front Right Speaker (-)
5. Front Left Speaker (+)
6. Front Left Speaker (-)
7. Rear Left Speaker (+)
8. Rear Left Speaker (-)
WIRES CONNECTION
ISO SOCKET SKETCH
FUSE 10 A
ISO SOCKET ANTENNA JACK
RCA LINE OUT
RED R
WHITE L
Downloaded from Caradio-Manual.com Manuals

Page 4
In MMC/SD, USBmode, the file name, folder name, song’s title, artistand album
information will bescrolling on the LCD display.
As longas the current playing MP3/WMA musiccontains relevant ID3 tag
information in version1.0/2.0 format, the 3 items underlinedabove will be scrolling
on the LCDdisplay; otherwise, they will not.
16. MODE BUTTON
Press the MODEbutton to change among tuner (radio),disc (when a disc is loaded),
MMC/SD card (whenan MMC/SD card is inserted) ,USB (when an USB stick is
inserted) andAUX mode.
17. EJECT KEY
In the power on state, theloaded disc can be ejected bypressing the EJ key.
18. TA [TRAFFICANNOUNCEMENT] BUTTON
When press the button, it isactivated as TAmode on oroff.
When TA modeis on(TA isdisplayed on LCD),it will begin to seek TA station and
TA SEEK will be displayed on LCDfor a while.
When traffic announcement is transmitted:
1). If theunit is inMMC/SD, USB mode, it will switch to radio mode temporarily.
2). If volumelevel is below20, volume level is raised to 20, and returns to its previous
mode and volumelevel when the traffic announcement is over.
If volume isadjusted during traffic announcement, onlythe traffic announcement
volume is valid.
* TA interruptionfunction:
The current traffic announcement is cancelled bypressing this key. But theTAmode
will not beoff.
* When TAis on, SEEK,(SCAN), AUTO MEMORY function can bereceived or saved
only when traffic program identificationcode has beenreceived.
When TA is ON, traffic program identification code is not receivedduring specified time.
19. AS/PS BUTTON (Auto-storage /Preset scan)
During radio mode:
1) when pressand hold for more than 1 second, the radio searches from the current
frequency and checksthe signal strength level until 6 station are found.And then
the 6 stationsfrequency are preset to the corresponding preset memory numbered
bank. The auto-storage operation is implemented in the each selected band.
When the auto-storageoperation is finished, the radio execute the Preset Scan.
2) when pressbriefly, the radio searches for each preset station in the current
band and holdsat that preset number for 5 seconds with releasing mute, and
then search again.
During MP3/WMAfile in disc, MMC/SD or USB mode:
1) In TRACK SEARCH mode, the LCD will display TRK T 000 and flash the biggest
digit 0 thatthe SD/MMC card or USBstick contain. (if the number of tracks is less
than 100 andmore than 9, it will be TRK 00) Then press the VOL+ or VOL- button
to select thenumber of the flashing digit from 0 ~ 9. Then press SEL button to
confirm the numberand flash next smaller digit 0.
With the samemeans, select the number of the flashing digit. After finishing
selecting the numberof all flashing digit, press SELbutton to playthe track of
the selected serialnumber.
2) In FIRSTCHARACTER SEARCH mode,the LCD will display A--......, If there
are files namesits first character are A, the ......isthe first filename its first
character isA by the order of A~Z and 0~9; otherwise, the ......is NONE. Then
press the VOL+or VOL- button to select file’s first character by the orderof
Page 7
TROUBLE SHOOTING
Before using the check list please make all the connections first.
If you still have questions after going through the checklist, please consult
your local customer service representative.
Common Symptoms
There is no power.
The CDs cannot
be loaded.
Cause
The fuse has blown.
Presence of CD disc inside the player
Inserting the disc in upside down
The surface of CD is extremely dirty
or it is damaged.
Temperature inside the car is too
high.
The volume control is set too low.
There is no sound.
The operation keys
do not work
The sound of the
CD player skips
The antenna cable is not connected. Insert the antenna cable firmly into the
antenna socket of the device.
No radio reception.
1.The built-in microcomputer is not
operating properly due to noise
2.Front panel is not properly fix into
its place
1. Switch the device off and on again. Or press
the RESET button to resume the program.
2. Reinstall the front panel
The device has not been correctly
connected.
The installation angle is more than
30 degrees
Wait until the road becomes smoother before
playing the CD.
Adjust the installation angle to less than 30
degrees
Turn up the volume properly.
Check the power and earth connection
according to the wiring diagram.
Cool off until the ambient temperature returns
to normal
Clean the CD or try another CD, if this works
correctly, the first CD is properly damaged.
Insert the compact disc with the label facing
upward
Remove the disc in the player then put a new
upward
Replace another fuse according to the wiring
diagram.
The car ignition is switched off. If the power supply is properly connected to
the car accessory, switch the ignition key to
ON or " ACC" " " .
Solution
The device does
not work correctly
(EJECT, LOAD,
PLAY)
In automatic search
mode the radio does
not stop at a trans-
mitting station.
Tune in to a radio station manually.The transmission signals are too
weak.
The CDs are loaded
only halfway into
the CD tray.
The transport screws have not been
removed.
Remove the transport screws before using.
The surface of the road is uneven.
The surface of CD is extremely dirty
or it is damaged.
Clean the CD or try another CD, if this works
correctly, the first CD is properly damaged.
Downloaded from Caradio-Manual.com Manuals

A~Z and0~9. Finally pressSEL button to play the selected file.
3) In DIRECTORY SEARCHmode, the LCD will display theroot folder(if there is
not the rootfolder, it will find aroot folder named ROOT). Then press the VOL+
or VOL- buttonto select your desired folder andthen press >> | or |<<button
to select yourdesired track in the folder.Finally press SELbutton to playthe
selected track.
20.AF [ALTERNATIVE FREQUENCIES] BUTTON
When pressed briefly, AFswitching mode is selected and the state of AF switching
mode is displayedby AFsegment in display.
Segment off: AF switching mode off.
Segment on:AF switching mode on, and hasRDS information.
Segment flashing:AF switching mode on, but RDSinformation is not received yet.
When AFswitching mode is selected, the radiochecks the signal strength ofAF all
the time. The interval of checking time ofeach AFs depends on thesignal strength of
current station, froma few minutefor strong stationto a few seconds for weakstation.
Every time thatnew AF is stronger thancurrent station, it switches over tothat
frequency for veryshort time, andNEW FREQUENCY is displayed for 1-2 second.
Because the mutetime of AF switching orchecking time is very short, itis almost
inaudible in caseof normal program.
During FM mode,when AF is on, SEEK,(SCAN), AUTO-MEMORY function can only
receive and saveRDS program.
21. CLOCK BUTTON
Press the CLKbutton briefly to display time for5 seconds on the display, and then
returns to itsprevious display unlessthe button is pressed again.
Then press the CLK button and hold formore than 1 seconds until thereal time
flashes on thedisplay. Then you can adjust HOUR or MINUTE bypress the VOL- or
VOL+ button .
22. AUX INPUT JACK
Press the mode button to selectauxiliary input playing mode. Then you can
connect any matched external audio deviceto this socket. Use the volume
knob to adjust volume.
23. MMC/SD CARDSLOT
In order toplay the file in the MMC/SDcard, insert the MMC/SD card intothe
MMC/SD card slot.The system will change intothe MMC/SD mode automatically,
and then playthe first file in the MMC/SD.
Note:
When MMC/SD cardand USB stick are both insertedinto their slot or socket, the
system will changeinto the playback mode of thelatter one.
24. USB SOCKET
In order toplay the file in the USBstick, turn over the plastic covercap then insert
the USB stickinto the USB socket. The system will change into the USBmode
automatically, and then play the first filein the USB.
When no needingto do USB operation, please coverthe plastic cover cap.
25. FLASHING LED
When the frontcontrol panel is removed this indicatorflashes.
Page 5 Page 6
26. RESET BUTTON
Before operating theunit for the first time, or after replacing the car battery or
changing the connections.You must reset the unit.
Press this buttonwith a cuspidal object. This operation will erasethe clock setting
and some storedcontents.
Downloaded from Caradio-Manual.com Manuals
