Akai ACVDS736 User manual

2 Portable LCD displays 7”
with built-in DVD player
ALD1915H
GB 2
NL 22
FR 43
ES 64
DA 129
DE 85
EL 107
User manual
Gebruiksaanwijzing
Manuel de l’utilisateur
Manual de instrucciones
ACVDS736

Table of contents
Copyright notice
Design and specifications are subject to change without notice.
1. Safety ........................................................................... 3
1.1 Intended use ....................................................................3
1.2 Labels in this manual .......................................................3
1.3 General safety instructions ..............................................4
2. Preparations for use................................................... 4
2.1 Unpacking ........................................................................4
2.2 Package contents ............................................................5
3. Installation................................................................... 5
3.1 Connecting the units ........................................................5
3.2 Connecting to a power source .........................................6
3.3 Remote control.................................................................6
4. Functions..................................................................... 7
4.1 Master unit .......................................................................7
4.2 Slave unit .........................................................................8
4.3 Remote control.................................................................9
5. Operation................................................................... 10
5.1 Master power switch ......................................................10
5.2 Quick start ......................................................................10
5.3 DVD/CD functions ..........................................................11
5.4 DVD setup menu operation............................................14
5.5 Slave setup menu operation ..........................................17
6. Cleaning and maintenance ...................................... 17
6.1 Handle and care of a disc ..............................................17
7. Troubleshooting........................................................ 18
8. Technical data ........................................................... 20
9. Disposal of used electrical and electronic
equipment.................................................................. 21

3
ACVDS736
Safety1.
Intended use1.1
The LCD display with built-in DVD player plays film and photos from DVD,
USB and memory card. The game pad can be connected to play video games.
The appliance also plays music from CD. Read the manual carefully before
first use.
2 DVDs and DVD appliances are manufactured under the worldwide
agreed DVD regional code system that the appliance will operate
only with corresponding disc of the same regional code. If the code
number on the label of a DVD does not match that on the label
alongside, the DVD will not play on this appliance.
i The appliance has built-in copyright protection technology that
prevents copying from a disc to any media. If a video recorder is
connected to the appliance, the video output image will be distorted
during recording.
i Due to the great variety of products with external memory connection
(USB, SD/MMC, etc.) and their sometimes quite manufacturer-
specific functions we can neither guarantee that all devices will be
recognised, nor that all operating options that are possible in theory
will actually work.
Labels in this manual1.2
! WARNING
A warning means that injury or death is possible if the instructions
are not obeyed.
! CAUTION
A caution means that damage to the equipment is possible.
i
A note gives additional information, e.g. for a procedure.

4
General safety instructions1.3
! WARNING
Do not put force on the appliance. The appliance can fall and can
cause serious injury.
! CAUTION
Do not spill any liquid on the appliance.
! WARNING
Do not insert any objects in the ventilation holes.
! CAUTION
Do not block the ventilation holes.
i This appliance is double insulated; therefore no earth wire is required.
Always check that the mains voltage corresponds to the voltage on
the rating plate. Never attempt to replace the adaptor plug with a
regular mains plug.
L This appliance employs a laser system. To prevent direct exposure
to the laser beam, do not open the appliance. Visible laser radiation
when open and interlock defeated.
Preparations for use2.
Unpacking2.1
● Unpack the appliance carefully.
● Check the package contents as described below. If any item is missing,
please contact your reseller.
● Remove the labels from the front panel carefully if present.
i We recommend that you retain the original carton and packing
materials in case it ever becomes necessary to return your product
for service. This is the only way to safely protect the product against
damage in transit. If you do dispose of the carton and the packing
materials, please remember to recycle with due care to the
environment.

5
ACVDS736
Package contents2.2
The following items are included in the received package:
1 LCD display with built-in DVD player (master unit)
1 LCD display (slave unit)
1 Unit connection cable
1 Remote control
1 Battery (CR2025)
1 Carrying bag
1 Operator manual
i
If any item is missing, please contact your reseller.
Installation3.
● Install the batteries in the remote control.
Read the paragraph "Remote control".
● Connect the two units to each other.
Read the paragraph "Connecting the units".
● Connect the master unit to a power source.
Read the paragraph "Connecting to a power source".
!
CAUTION
● Do not put the appliance near a heat source.
● Do not expose the appliance to direct sunlight.
Connecting the units3.1
● Connect the adaptor plugs of the connection cable to the DC OUT 9-12 V
connection and to the AV OUT connection in the master unit.
● Connect the other ends of the connection cable to the DC IN 9-12 V
connection and to the AV IN connection in the slave unit.

6
Connecting to a power source3.2
Connecting to a car battery
For this connection the 12 VDC adaptor + cable has to be used.
● Connect the adaptor plug of the adaptor cable to the DC IN 9-12 V
connection in the master unit.
● Connect the DC plug to 12 VDC receptacle of the vehicle.
Connecting to the mains
For this connection the AC/DC adaptor + cable has to be used. The AC/DC
adaptor + cable is not supplied with the appliance.
● Connect the adaptor plug of the adaptor cable to the DC IN 9-12 V
connection in the master unit.
● Connect the mains plug to a wall socket.
Remote control3.3
Installing the battery
● Press the catch and at the same
time pull out the battery tray.
● Insert 1 lithium battery, type CR2025
3V battery with the stamped (+)
mark facing upward.
● Insert the battery tray into the
remote control.
! CAUTION
Incorrect installation can cause battery leakage and corrosion
which will damage the appliance. Corrosion, oxidation, battery
leakage and any other gradually acidic defect of this nature will
invalidate the guarantee.
2
1

7
ACVDS736
Functions4.
Master unit4.1
3
4
5
6
7
8
9
12
10 11 12 13
1 OPEN button
2 SD/MS/MMC card slot
3 Master power switch
4 Headphone jack
5 AV OUT connection
6 COAXIAL output
7 USB slot
8 DC OUT 9-12 V connection
9 DC IN 9-12 V connection
10 ENTER button
11 Arrow buttons
12 SOURCE button
13 LCD display

8

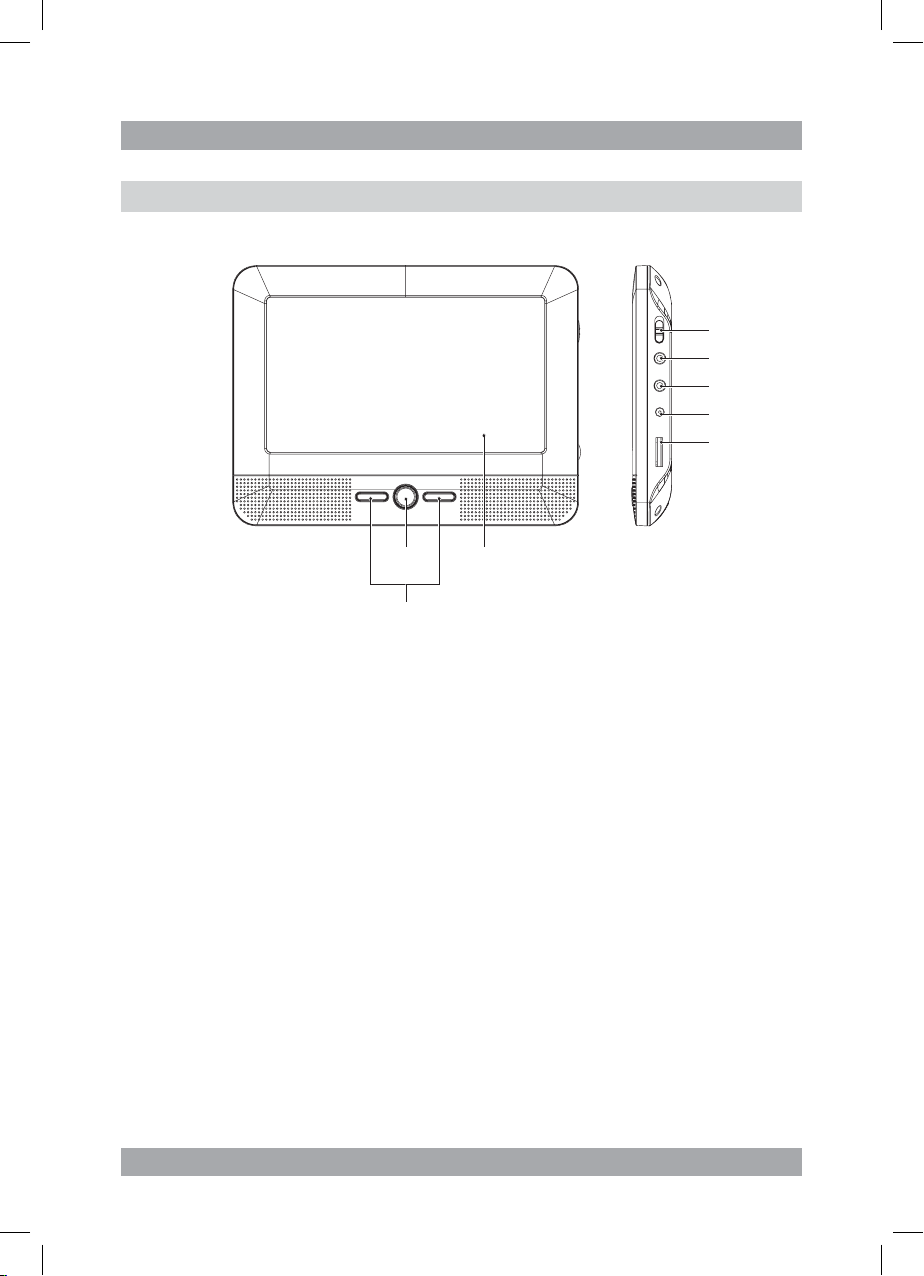

Slave unit4.2
15
14
16
21
20
19
18
17
14 Arrow buttons
15 MODE button
16 LCD display
17 Volume dial
18 DC IN 9-12 V connection
19 AV IN connection
20 Headphone jack
21 Master power switch

9
ACVDS736
Remote control4.3
22 STEP button
23 SEARCH button
24 Digit buttons (0-10+)
25 SUBTITLE button
26 ANGLE button
27 TITLE button
28 Arrow buttons
29 ENTER button
30 SETUP button
31 REPEAT button
32 SLOW button
33 PROGRAM button
34 ZOOM button
35 REV button
36 FWD button
37 PREV button
38 NEXT button
39 VOL- button
40 VOL+ button
41 MODE button
42 STOP button
43 PLAY/PAUSE button
44 AUDIO button
45 MENU/PBC button
46 DISPLAY button
47 MUTE button
48 SOURCE button
i
The arrow buttons are buttons for navigation in the DVD menu.
22
24
23
25
26
31
32
33
34
29
27
30
48
47
45
46
44
42
38
37
36
35
39
43
41
40
28

10
Operation5.
All functions of the unit are accessible using the remote control. All instructions
refer to operation with the remote control, unless indicated otherwise.
Master power switch5.1
The units are equipped with a master power switch (3 & 21) located at the
side panel.
● Set the switch into the ON position prior to taking the units into operation.
● Set the switch into the OFF position prior to disconnecting from the mains.
i
● The units are designed to be operated using the remote control.
Quick start5.2
General functions
● To connect the master unit with the slave unit, proceed as follows:
Connect the adaptor plugs of the connection cable to the DC OUT 9-12 •
V connection and to the AV OUT connection in the master unit.
Connect the other ends of the connection cable to the DC IN 9-12 V •
connection and to the AV IN connection in the slave unit.
● To select the source mode (DVD/CARD/USB), press the SOURCE button (48).
● To adjust the volume, press the VOL+ button (40) or the VOL- button (39).
● To mute or restore sound, press the MUTE button (47).
● To adjust the screen settings (SHARPNESS/BRIGHTNESS/CONTRAST/
HUE/SATURATION), press the MODE button (41).
● To connect a headphone, insert the cable plug in the headphone jack (4 & 20).
To prevent hearing damage, remember to adjust the volume to a comfortable
level.
