Akai APC40MKII User manual

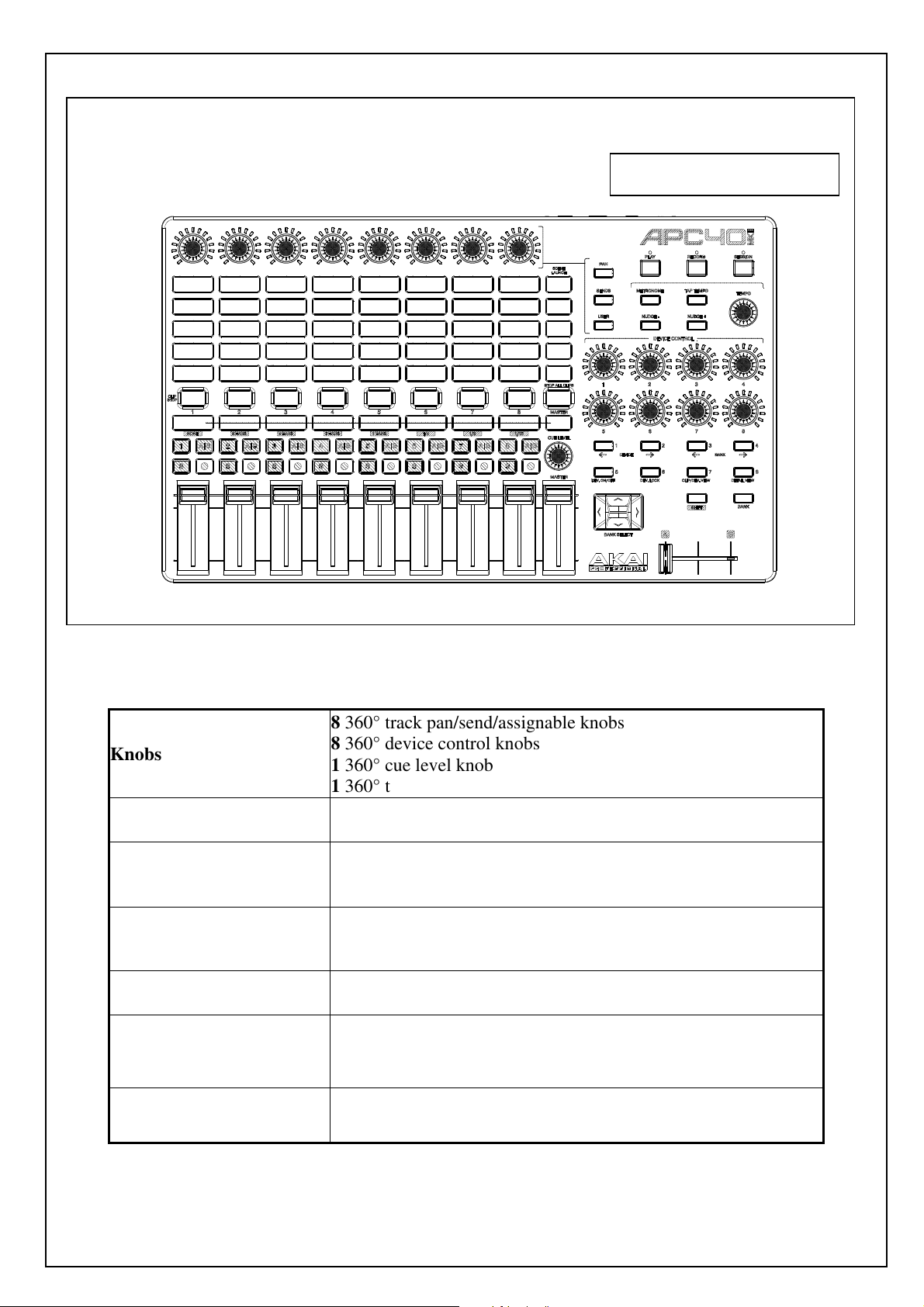

SPECIFICATIONS
Technical Specification
Technical SpecificationTechnical Specification
Technical Specification
Knobs
8
360° track pan/send/assignable knobs
8 360° device control knobs
1 360° cue level knob
1 360° tempo knob
Clip Launch Buttons
40
backlit RGB buttons in a 8x5 matrix
5 scene launch buttons
Faders
8
45mm track volume faders
1 45mm master volume fader
1 45mm crossfader
Inputs / Outputs 1 USB port
1 1/4" (6.35mm) TS jack for footswitch input
Power USB-bus-powered
Dimensions
(width x depth x height; no cable)
16.7" x 10.0" x 1.8"
42.4 cm x 25.4 cm x 4.6 cm
Weight
(no cable)
3.97 lbs.
1.8 kg
SERVICE MANUAL
MODEL:APC40MKII

DISASSEMBLY PROCEDURES
1. DISASSEMBLE THE BOTTOM PANEL. (Fig.1)
(A) REMOVE 14 SCREWS FROM BOTTOM PANEL.
(Fig.1)
2. DISASSEMBLE THE MAIN PCB ASS’Y. (Fig.2)
(A) REMOVE 3 SCREWS FROM THE MAIN PCB ASS’Y.
(B) REMOVE 2 CABLES.
(Fig.2)

3.DISASSEMBLE THE TOP PANEL AND TOP PCB ASS’Y .(Fig.3)
(A) REMOVE 18 KNOBS AND 10 FADERS.
(B) REMOVE 18 NUTS AND 18 WASHERS.
(C) REMOVE 12 SCREWS.
(D) REMOVE 2 CABLES.
(Fig.3)

WIRING DIAGRAM
(US/AUS)
SEQUENCE NO OF EXPLODE DIAGRAM WILL BE MARKED ON REF. COLUMN OF BOM LIST

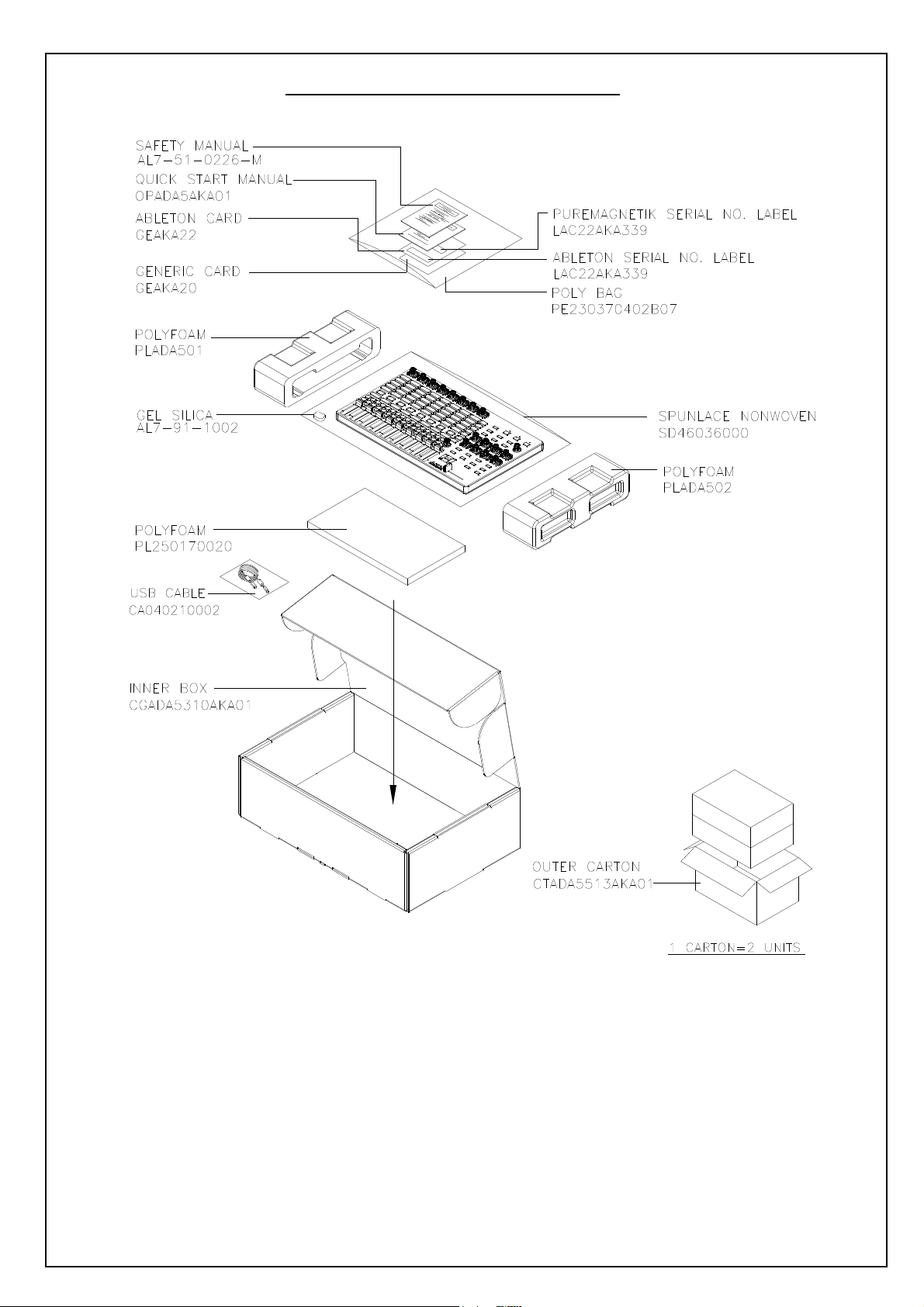

PACKING DIAGRAM
(US)

PACKING DIAGRAM
(AUS)

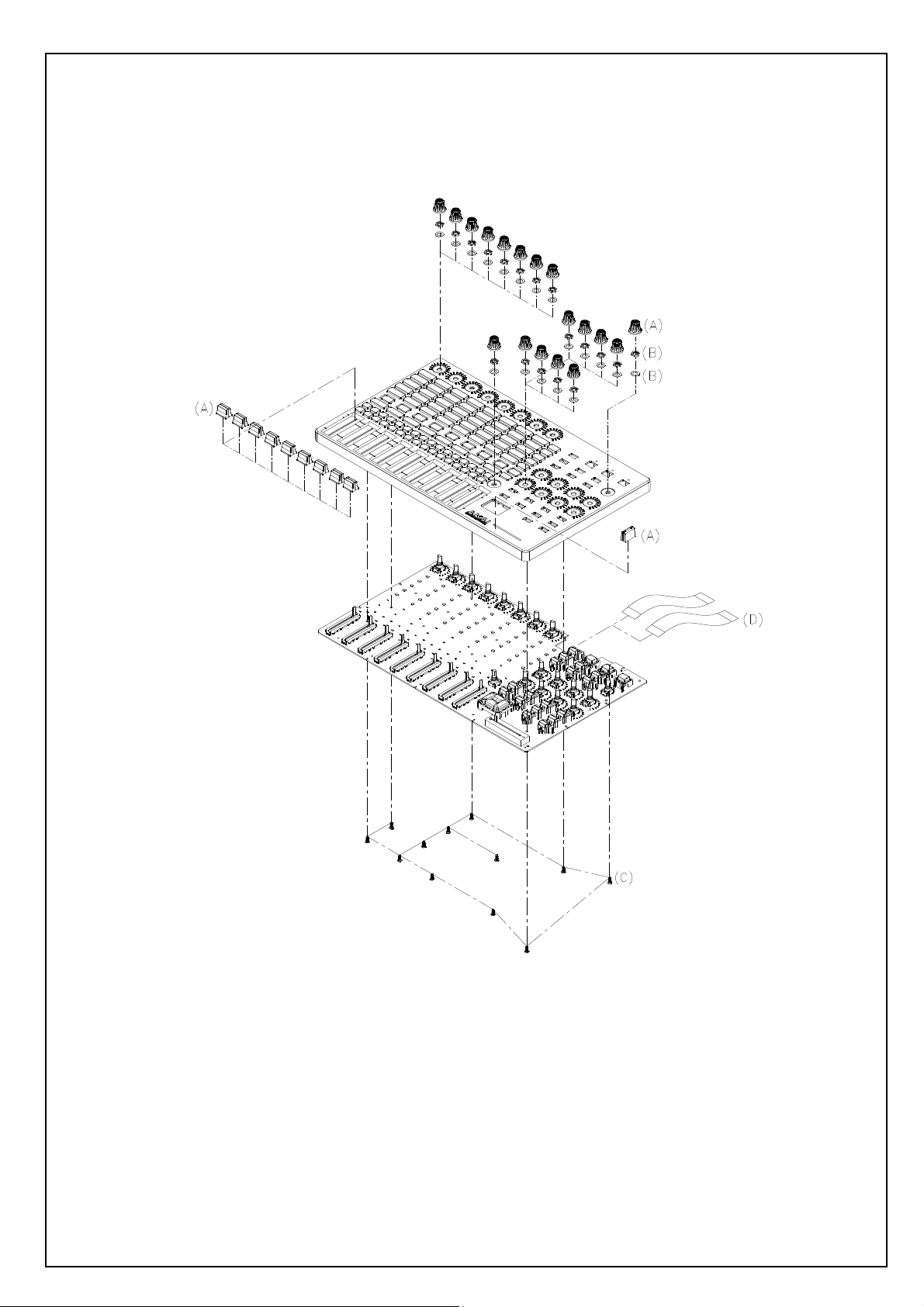

EXPLODE DIAGRAM
(US/AUS)

LEVEL
P/N DESCRIPTION QTY REF
0 ADA5AKA01 ADA5 USB POWER USA 0
1 BASJ5012B PU Stand 6 15
1 CA040210002 USB Cable 1
1 FFC4005001001 FFC 40pin pitch 0.5mm Length 100mm 2 18
1 LAC22AKA339 Stick S/N Ableton 1
1 LAC22AKA340 Stick S/N Puremagnetik 1
1 LAC67YAH261 Label φ8mm Green 1
1 LAP67YAH255 Sticker φ10mm red 2
1 NM1504403 FELT-45-ADHESIVE 10 13
1 PADA5AKA01 Packing Assembly 1
2 AL7-51-0226-M Safety Manual 1
2 AL7-91-1002 Gel Silica 1
2 CGADA5310AKA01 Inner Box 1
2 CTADA5513AKA01 Carton 0.5
2 GEAKA20 Generic Card 1
2 GEAKA22 Ableton Card 1
2 LAC22AKA334 Bar Code Label 1
2 LAC55AKA342 Soft Sheet 1
2 LAC62AKA306 Bar Code Label(GT1N14) 1
2 LAC62AKA343 Bar Code Label(CODE39) 1
2 NM1504435 Spunlace Nonwoven 1
2 OPADA5AKA01 Fast Instruction 1
2 PE230370402B07 Poly Bag 230*370mm 1
2 PL250170020 Poly Foam 1
2 PLADA501 Poly foam(Left) 1
2 PLADA502 Poly foam(Right) 1
1 PT11106374 VR Cap 1 9
1 PT1110685 Button Push 13 5
1 PT150430701 LED Master Ring 16 10
1 PT1504326 Light Pipe 3 3
1 PT1510611001 Power Button(Painting) 1 20
2 PT15106110 Power Button 1
1 PT15106150 Knob 18 2
1 PT15106152 Button Transport(8C) 1 7
1 PT15106153 Button Push(8C) 4 6
1 PT15106154 Button Transport(185C) 2 8
1 PT151063801 FADER INDICATE PAINTING WHITE 9 19
2 PT1510638 FADER 9
1 PT151063904 Button Cursor(Black)Printing 1 4
2 PT1510639 BUTTON CURSOR(BLACK) 1
1 PT153003803 Top Housing Paint/Print 1 1
2 PT1530038 Top Housing 1
1 PT1530333 Bottom plate 1 14
1 RU1504360 Rubber Button 1 11
1 SC0310RBBI Screw M3X8 RBB Tapping 14 21
1 SC0308RBNI Screw M3X8 PRN Tapping 15 16
1 TWPC13A00101 Main PCB Assembly 1 12
2 AA822748X Diode BAV99 1 D5
2 AL0-17-0470 RES Array 4X47 1/10W 0603 4 R4,5,11,20
2 AL0-17-8103 RES ARRAY 8X10K 2 R13,14
2 AL2-51-0140 Schottky Barrier Rectifiers Diode 1 D28
B140-13-F SMA
ADA5AKA01 BOM

2 AL2-51-4401 Transistor 2N4401 NPN SOT-23 (Transistor 3 Q2,3,5
MMBT4401LT1 NPN SOT-23)
2 AL2-51-4403 Transistor 2N4403 PNP SOT-23 1 Q11
2 AL2-52-5242 Diode MMBZ5242B 1 D15
2 AL2-54-6306 Mosfet FDC6306P P-CH SSOT-6 1 Q4
2 AL2-61-7223 IC NJU7223DL1-33 3.3V TO-252 1 Q1
2 AL4-08-0402 Con USB 4-Pin Female PC-MNT Horizontal 1 J4
2 AL6-02-0001 Switch Push 2P2T Dual Row Lock 1 SW1
2 CS102K5003X7R CCAP SMD 1nF/50V 10% 0603 X7R 6 C3,9,11,12,15,17
2 CS103K5003X7R CCAP SMD 0.01uF/50V 10% 0603 X7R 2 C7,31
2 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 18 C4,5,8,10,13,16,19,22,24~28,30,53,54,135,138
2 CS106K1606X5R CCAP SMD 10UF/16V 10% 1206 X5R 4 C23,130,131,137
2 CS180J5003NPO CCAP SMD 18pF/50V 5% 0603 NPO 2 C1,2
2 CS475K1606X7R CCAP SMD 4.7uF/16V 10% 1206 X7R 1 C6
2 DISDBAT54CSM Zener Diode BAST54C 1 D33
2 FCN1T0504001 FCN Down Touch ZIF SMD Pitch=0.5mm 40 Pin 2 J1,2
2 ICLM2738XMY IC LM2738XMY eMSOP-8 1 U38
2 ICYH102M01 IC(ICSTM32F102R8T6+Program)TQFP-64 1 U2
3 ICSTM32F102R8T6 IC STM32F102R8T6 TQFP64 1 (U2)
2 JK6L0670CBKA6A 6.4φPhone JACK 7PIN 90°Female 1 J5
2 PC13A001 Main PCB 2Layer FR-4 1.6T 175*80MM 1 -
2 RS000008J05 RES 0Ω5% SMD 0805 3 R18,24,25
2 RS000010J03 RES 0Ω5% SMD 0603 3 R1,2,17
2 RS000108J05 RES 1.0 Ω5% SMD 0805 1 R15
2 RS001K10F03 RES 1K 1% SMD 0603 4 R28,30,31,40
2 RS001M10F03 RES 1M 1% SMD 0603 2 R9,41
2 RS002210F03 RES 22Ω1% SMD 0603 2 R35,36
2 RS004710F03 RES 47Ω1% SMD 0603 4 R3,6~8
2 RS007508F05 RES 75Ω1% SMD 0805 1 R21
2 RS010K10F03 RES 10K 1% SMD 0603 9 R12,16,19,23,26,32,44,243,279
2 RS01K510F03 RES 1.5K 1% SMD 0603 1 R37
2 RS021K10F03 RES 21K 1% SMD 0603 1 R280
2 RS022010F03 RES 220Ω1% SMD 0603 1 R10
2 RS036K10F03 RES 36K 1% SMD 0603 1 R43
2 RS03K310F03 RES 3.3K 1% SMD 0603 1 R29
2 RS047K10F03 RES 47K 1% SMD 0603 1 R38
2 RS820K10F03 RES 820K 1% SMD 0603 1 R39
2 TCS107M100D Solid Tantalum Electrolytic 5 C21,37~39,182
Capacitors100uF/10V 20% D-SMD
2 UHBRI4D15-220M Inducto 22uH 20% 0.65A 0.692 Ohm Dcr SMD 1 L2
2 XTM08000XA1 Crystal Oscillator 8MHZ 5*3.2mm 1 X1
1 TWPC13A00201 TOP PCB Assembly 1
2 AL0-09-0044 Variable Resistor 17 P1~17
2 AL0-17-0102 RES ARRAY 4X1K 10 R32,36,39,40,43~46,57,58
2 AL0-17-0221 RES ARRAY 4X220 1/10W 0603 4 R50,51,63,64
2 AL0-17-0470 RES Array 4X47 1/10W 0603 2 R187,189
2 AL2-54-0138 Mosfet BSS138 N-CH SOT-23 40 Q1~3,5,6,9~22,27~42,48,49,54~56
2 AL2-54-6306 Mosfet FDC6306P P-CH SSOT-6 8 Q44~47,50~53
2 AL2-65-0114 IC 74AHC1G14 SOP-5 1 U74
2 AL2-73-4051 IC74HC4051 Single 8-Chan Mux 16P Soic 6 U1,2,5~8
2 CS103K5003X7R CCAP SMD 0.01uF/50V 10% 0603 X7R 3 C22,103,104
2 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 108 C1~3,6~17,23~48,50~102,105~108,111
C133,142,150,154,173~177
2 CS106K1606X5R CCAP SMD 10UF/16V 10% 1206 X5R 12 C4,5,18,49,119~122,166~169
2 DIEN1N4148WSM Diode SMD 119 D37~45,70,78,131,160,169,320~322,331~421
D430~433,442~448

2 ECS10710D Capacitor Electrolytic 100UF 10V SMD-D 3 C19~21
2 FCN1T0504001 FCN Down Touch ZIF SMD Pitch=0.5mm 40 2 J1,2
Pin
2 IC74AHC541PW IC 74AHC541PW Octal Buffer/Line driver 1 U27
3-state output TSSOP-20
2 ICSN74LV595APWR IC 74LV595A 8-bit SERIAL SHIFT W/LATCHES 18 U4,9~15,22,24,37,42,48,60~64
TRI-STATE TSSOP-16
2 ICYH102M02 IC(AL2-80-0256+Program)TQFP-100 1 U3
3 AL2-80-0256 IC LCMX0256 TQFP-100 1 (U3)
2 LDJ1M1F1BB7R4S3 Liquid-emitting Diode Red/Green/Blue SMD 45 LED1~5,20~27,36~43,52~59,67~74,83~90
0603 angle 120°
2 LDKPT-1608SYCK Liquid-emitting Diode Yellow SMD 0603 8 D124~130,152
angle 120°
2 LDKPTC2012QBC-C BLUE LED KPTC2012QBC-C 0805 8 D307~314
2 LDL-S291SBC-ML Liquid-emitting Diode Orange SMD 0603 294 D1~36,46~69,71~77,79~123,132~150
angle 130° D154,155,157~159,161~168,170~306
D315~319,422~429
2 LDLTST-C190KGKT Liquid-emitting Diode Green SMD 0603 1 D151
angle 130°
2 LDLTST-C190KRKT LED Red 10 D153,156,323~330
2 PC13A002 TOP Panel PCB 2Layer FR-4 1.6T 416*260MM 1 -
2 RS000008J05 RES 0Ω5% SMD 0805 15 R1,6,9,16,17,20,47,75,85~87,102,104
R106,107
2 RS000010J03 RES 0Ω5% SMD 0603 3 R2,3,113
2 RS001208F05 RES 12Ω1% SMD 0805 1 R115
2 RS001M10F03 RES 1M 1% SMD 0603 6 R10,15,84,89,108,109
2 RS002208F05 RES 22Ω1% SMD 0805 3 R31,38,101
2 RS002408F05 RES 24Ω1% SMD 0805 1 R99
2 RS002708F05 RES 27Ω1% SMD 0805 1 R100
2 RS003608F05 RES 36Ω1% SMD 0805 30 R13,14,21~30,33~35,52~54,59~62,66~73
2 RS004710F03 RES 47Ω1% SMD 0603 17 R7,8,11,12,65,133,177,180~186,188
R190,198
2 RS006808F05 RES 68Ω1% SMD 0805 8 R74,191~197
2 RS010K10F03 RES 10K 1% SMD 0603 20 R48,49,55,56,76~83,91~98
2 RS011010F03 RES 110Ω1% SMD 0603 90 R18,117,118,120,121,124,125,127,129~132
R135,136,138,139,141,142,144,145,147
R148,151~153,155,157,159,162,163,165
R166,168,169,170,172,173~176,178,179
R205,207,209,212,214,215,217,218,220
R223~225,227~230,251,253,255,257,259
R265~272,274~276,290,292,295,298,302
R303,304,306,307,309~315
2 RS022110F03 RES 221Ω1% SMD 0603 45 R116,119,122,123,126,128,134,137,140,143
R146,149,150,154,156,158,160,161,164,167
R171,204,206,208,210,211,213,216,219,250
R252,254,256,258,261~263,288,289,291,293
R294,296,297,305
2 RS047K10F03 RES 47K 1% SMD 0603 2 R4,41
2 RS04R708J05 RES 4.7Ω5% SMD 0805 3 R88,114,199
2 RS06R808F05 RES 6.8Ω1% SMD 0805 3 R19,37,90
2 SWDC11B2020469 Switch Rotational Encode 20Pulse Total 1 ENC1
Length 25mm
2 SWEVQ11L04M Switch Tact 4.3mm 160g Horizontal DIP 24 SW28~31,41,51~56,57,92~95,104~110,119
2 VRS10304514 POTENTIOMETER SLIDE 10KB 45MM L:11MM 1 P27
DUAL UNIT
2 VRS10304533 Potentiometer Slide 10K 2B 45mm 15mm 9 P18~26
Dual Unit

ADA5 – Test Procedure
1. Open ADA5-Testapp.exe
2. Select APC40 mk from the M D Device list for both nput and Output
3. Connect a footswitch into the FS1 input on the device.
4. Press the ‘Reset’ button.
5. Verify Firmware Version is the latest MP approved firmware.
6. Preform all the tests described below. The tests can be performed in any
order.
7. f you prefer to verify LEDs all at 1 time first, you can use the LED utility on
the left side fo the appication to turn LEDs on and off.
8. Once all the tests have passed, a pop up window will appear. Enter or scan
the units serial number into this box.
9. The test will change from ‘Test Not Complete” to “Test Complete” if all the
tests have passed and the serial number has been programed.
Knob Test
There are 2 separate knob sections. The testing for both sections is the same.
1. Move the knob all the way to the right, then all the way to the left.
2. You will see the corresponding knob on screen change from red to green if
the knob has been verified to be working properly.
3. You will also see the LEDs above the knob begin to cycle. Verify each Knob
LED lights.
4. Once all knobs have passed, the section on screen that surrounds the knobs
will turn from red to green.
Button Test
There are several separate plastic button sections. The testing for both sections is
the same.
1. Press each button and release

2. You will see the corresponding button on screen change from red to green if
the button has been verified to be working properly.
3. You will also see the LED under the button light. n the case of Play, Record
and Session, the LED is above the knob. Shift, Bank Select arrows, Tap Tempo
Nudge – and Nudge + have no LEDs. Verify LED lights.
4. Once all buttons have passed, the section on screen that surrounds the
buttons will turn from red to green
Pad / Soft button Test
There are several separate plastic button sections. The testing for both sections is
the same.
1. Press each button and release
2. You will see the corresponding button on screen change from red to green if
the button has been verified to be working properly.
3. You will also see the LED under the button light. Button/Pads that have RGB
LEDs will cycle colors. Bi color LEDs will also cycle colors. t will not cycle off,
therefore f you notice there is no LED under a particular button being lit, you
can conclude there is an issue with this LED.
4. Once all buttons have passed, the section on screen that surrounds the
pads/soft buttons will turn from red to green
Encoder Test .
1. Move the two encoders(Tempo and Cue Level) to the left and to the right.
2. You will see the corresponding button on screen change from red to green if
the button has been verified to be working properly.
Slider Test .
1. Move the 9 sliders from minimum to maximum position.
2. You will see the corresponding slider on screen change from red to green if
the button has been verified to be working properly.
3. Once all buttons have passed, the section on screen that surrounds the
pads/soft buttons will turn from red to green
Footswitch Test .
4. Press the footswitch and release the footswitch
5. You will see the corresponding button on screen change from red to green if
the button has been verified to be working properly.

1 1
2 2
3 3
4 4
5 5
6 6
D D C C B B A A
Title
Number RevisionSize
A3
Date: 2014/3/12 Sheet of File: E:\忚埴󰵶㨇䧖\..\ADA5MN-20131223.SchDocDrawn By:

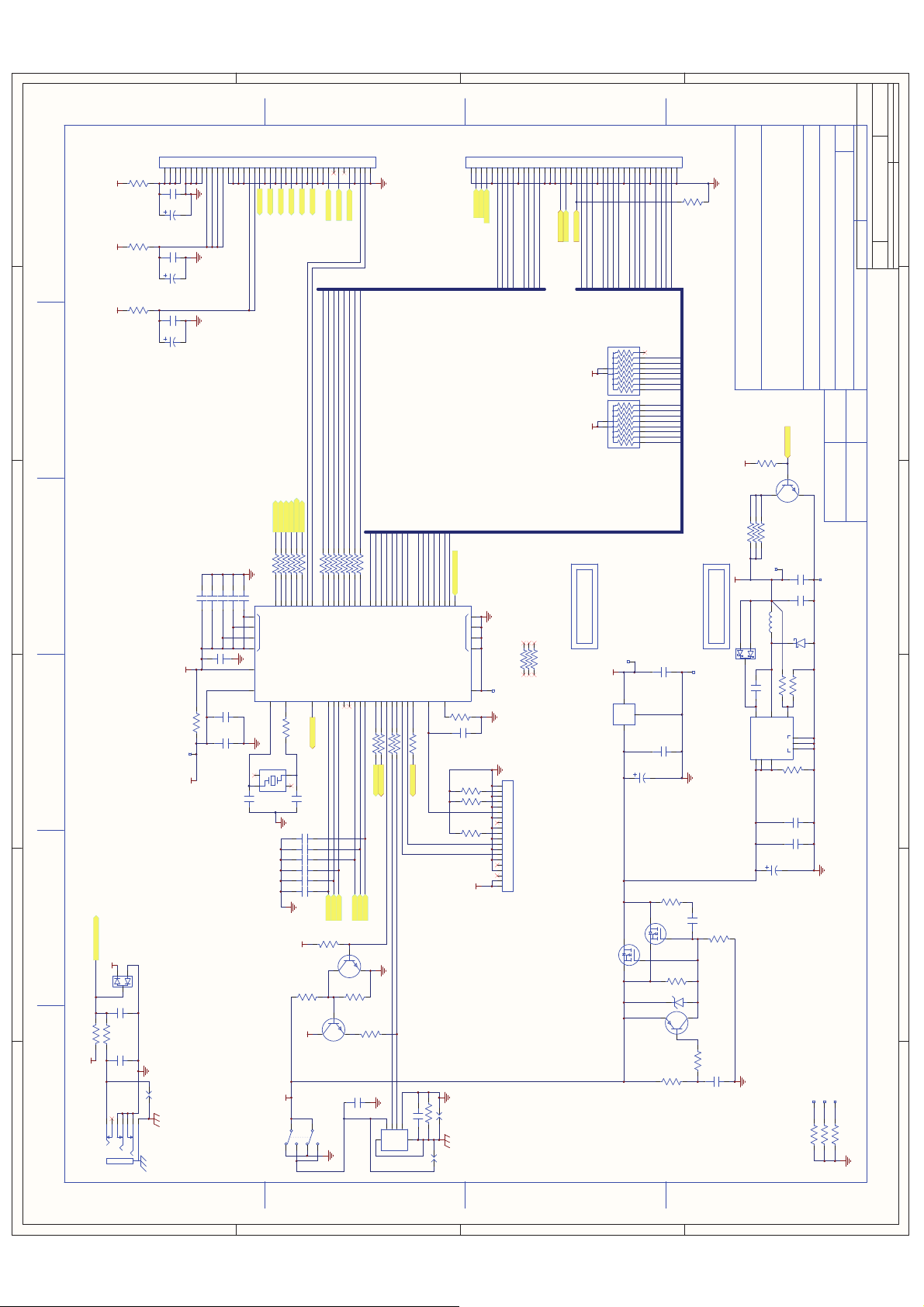

STM32 JTAG (SW-DEBUG)
Foot Switch 1
SW-RE T Bus al so used to write d ata to FPGA
RC filt er for VD DA
USB DISCONNECT
NC
TO TOP PANEL PCB
MOUNTING HOLES
NC
NC
NC
+2.5V_LED
+3.3V
USB
FULL-SPEED
ON / OFF
TO MAIN PCB
Unused
ASSY N UMB ER:
123456
D C B A
C D B A
COM PAN Y: TITL E: PART N UMBER: FILE NAM E: SCAL E:
RELE ASE D: DRA WN: DA TED:
DAT ED:
SIZE :
SHEE T: OF **
#NAME?
9-79-xxxx-x-x
9-40-xxxx-x
BOARD
COMPANY
Name #NAME?
#NAME?
Copyright [year] [brand]
ASSY N UMB ER:
123456
D C B A
C D B A
COM PAN Y: TITL E: PART N UMBER: FILE NAM E: SCAL E:
RELE ASE D: DRA WN: DA TED:
DAT ED:
SIZE :
SHEE T: OF **
#NAME?
9-79-xxxx-x-x
9-40-xxxx-x
BOARD
COMPANY
Name #NAME?
#NAME?
Copyright [year] [brand]
11
22
33
44
55
66
77
88
99
10 10
11 11
12 12
13 13
14 14
15 15
16 16
17 17
18 18
19 19
20 20
J3
10KR23
10K
R16
10KR12
0.1uF C28
10KR32
1K
R31
0.1uF
C24
0.1uF
C19
0.1uF
C22
0.1uF
C13
0.1uF
C16
0.1uFC10
18pF
C1 220 ohm
R10
18pF
C2
0.01uF C7
4.7uF
C6
10K
R19
47K R38
36K
R43 10K R44
1.50k 1%
R37
22 ohm
R35
22 ohm
R36
1.0 ohmR15
TP6
TP3
1000pFC11
1000pF
C9
1000pFC3
1000pFC12
1000pFC15
1000pF
C17
0.1uF C8
0 ohm
R2
0 ohm
R1
TP12 TP13
0 ohm
R17 TP14
0.1uF C138
10uF,16V
C137
0.1uF
C135
10uF C130
21.0k 1%R280
10k 1%
R279
10uF
C131
10K R243
TP4
TP5
0.1uF C4
TP1
TP2
1K R28
1K R40
1K
R30
0.1uF C54
0.1uF
C53
820K
R39
1M
R41
0.1uF C26
0.1uF C27
0.1uF
C30
1MR9
0.01uF
C31
47 OHM
R20D
47 OHMR20B 47 OHM
R20A
47 OHM
R20C
47 ohm
R3
47 OHM
R4A
47 OHM
R4B
47 OHM
R4C
47 OHM
R4D
47 ohmR6
47 ohm
R7
47 ohm
R8
47 OHM
R5B
47 OHM
R5C
47 OHM
R5D
47 OHM
R11A
47 OHM
R11B
47 OHMR11C 47 OHM
R11D
10uF
C23
0 ohm R18
0 ohm R24
0 ohm
R25
+VBUS
SW-DRV-0
SW-DRV-0
SW-DRV-1
SW-DRV-1
SW-DRV-2
SW-DRV-2
SW-DRV-3
SW-DRV-3
SW-DRV-4
SW-DRV-4
SW-DRV-5
SW-DRV-5
SW-DRV-6
SW-DRV-6
SW-DRV-7
SW-DRV-7
SW-RET-5
SW-RET-5
SW-RET-5
SW-RET-7
SW-RET-7
SW-RET-7
SW-RET-9
SW-RET-9
SW-RET-9
SW-RET-11
SW-RET-11
SW-RET-11
SW-RET-13
SW-RET-13
SW-RET-13
SW-RET-6
SW-RET-6
SW-RET-6
SW-RET-8
SW-RET-8
SW-RET-8
SW-RET-10
SW-RET-10
SW-RET-10
SW-RET-12
SW-RET-12
SW-RET-12
+2.5V_LED
SW-RET-0
SW-RET-0
SW-RET-0
SW-RET-1
SW-RET-1
SW-RET-1
SW-RET-2
SW-RET-2
SW-RET-2
SW-RET-3
SW-RET-3
SW-RET-3
SW-RET-4
SW-RET-4
SW-RET-4
SW-RET-14
SW-RET-14
ENC_B ENC_A
SW-RET-[0..14]
SW-DRV-[0..7]
GND
+3.3V
+3.3V
GND
GND
+3.3V
GND
GND
GND
+3.3V
GND
+3.3V
AN-IN-0 AN-IN-1 AN-IN-2 AN-IN-3 AN-IN-4 AN-IN-5
GND
AN-SEL-0 AN-SEL-1 AN-SEL-2
GND
FPGA-ALE
+VDDA
AN-IN-2 AN-IN-3 AN-IN-4 AN-IN-5
GND
+2.5V_LED
GND
GND
+3.3V
GND
+2.5V_LED+VDDA
GNDGNDGND
GNDGND_CH
+VBUS
GND_CH
GND
+3.3V
FOOTSWITCH-1
FOOTSWITCH-1
SPI-CLK SPI-STROBE SPI-DATA
+3.3V
GND
AN-IN-0 AN-IN-1
AN-SEL-0 AN-SEL-1 AN-SEL-2
SPI-CLK SPI-DATA
SPI-STROBE
+3.3V
FPGA-ALE
GND
Q2
MBT4401
Q3
MBT4401
Q11
MBT4403
1 2
SP1
1 2
SP2
1 2
SP3
1 2
3
D33 BAT54C
1
2
3 4
5
6
SW1
+VBUS 1
D- 2
D+ 3
GND 4
56
J4
47 OHMR5A
1
2
3
4
5
6
7
8
9
10
R13 10K
1
2
3
4
5
6
7
8
9
10
R14 10K
1 3
D15
12V
1
65 DS
G
FDC6306P
Q4A
3
42 DS
G
FDC6306P Q4B
BOOST 1
VIN
2
VCC
3
EN
4
5
FB 6
7
GNDGND
SW 8
9
U38 ICLM2738XMY
D28
B140
1 2
22uH L2
100uF, 10V
C37
100uF, 10V
C38
100uF, 10V
C39
100uF, 10V C21
100uF, 10V C182
1 2 3 4 5 6 7
J5 JK6L0670CBKA6A
1
32
4
X1 8MHz
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
J1
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
J2
BAV99 D5
0.1uF C25
GND FPGA-EN
LED_LOAD
FPGA-DS
10K R26
FPGA-EN
Smar t Load to K eep 2.5V Con tinuou s
+3.3V
LED_LOAD
Q5
MBT4401
47K R29
75 ohmR21 75 ohmR27 75 ohmR22
FPGA-DS
GND
+3.3V
GND
NJU7223DL1-33
12
3
GND
IN OUT
Q1
0.1uF C5
VBAT 1
PC13-TAMPER-RTC 2
PC14-OSC32_IN 3
PC15-OSC32_OUT 4
PD0-OSC_IN
5
PD1-OSC_OUT
6
RST
7
PC0 8 PC1 9 PC2 10 PC3 11
VSSA
12 VDDA 13
PA0-WKUP
14
PA1
15
PA2
16
48 48 47
47
PA13
46 PA12 45 PA11 44 PA10 43 PA9 42 PA8 41
PC9 40 PC8 39 PC7 38 PC6 37
PB15 36 PB14 35 PB13 34 PB12 33
PA14
49
PA15
50
PC10 51 PC11 52 PC12 53
PD2
54
PB3 55 PB4 56 PB5 57 PB6 58 PB7 59
BOOT0
60
PB8 61 PB9 62
63
63 64 64
VDD 32 VSS
31
PB11 30 PB10 29
PB2 28 PB1 27 PB0 26 PC5 25 PC4 24
PA7
23 PA6 22 PA5 21 PA4 20
19 19 18
18
PA3
17
STM32F102R8T6
U2
AL2-70-3270
SW-RET-14

NC
NO CONNECT
NC
CUE VOL
NC
NC
AGNDs for POTS

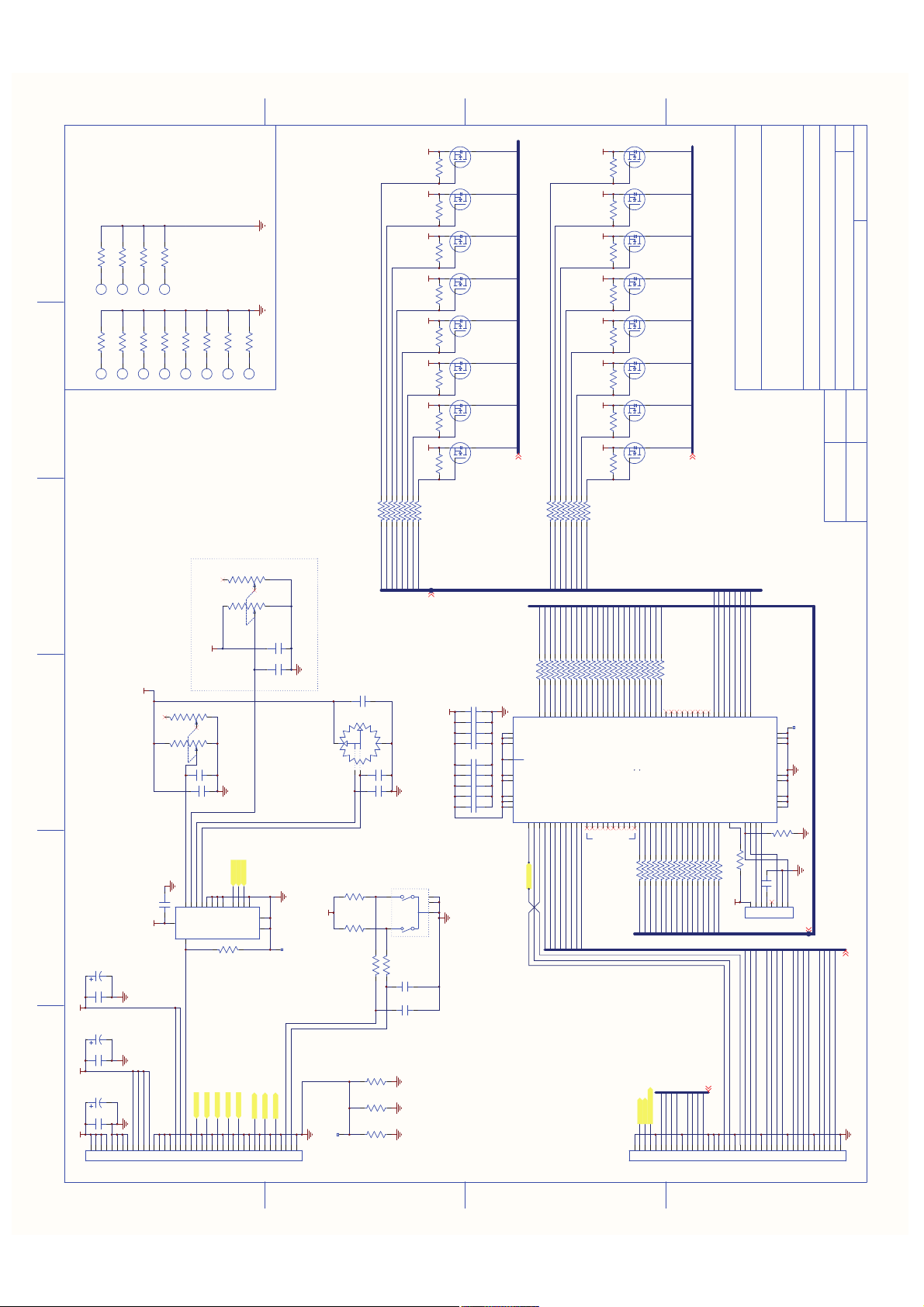

ADA5 TOP PANEL PCB
ASSY N UMB ER:
123456
D C B A
C D B A
COM PAN Y: TITL E: PART N UMBER: FILE NAM E: SCAL E:
RELE ASE D: DRA WN: DA TED:
DAT ED:
SIZE :
SHEE T: OF
AKAI PROFESSIONAL
CAN
PL2A
1
PL2B
2
PL3A
3
PL3B
4
PL3C
5
PL3D
6
PL4A
7
PL4B
8
PL5A
9
10 10
PL5B
11
12
12
PL5C
13
PL5D/GSRN
14
PL6A
15
PL6B/TSALL
16
PL7A
17
PL7B
18
PL7C
19
PL7D
20
PL8A
21
PL8B
22
PL9A
23
VCCIO1 24 GNDIO1
25
TMS
26
PL9B
27
TCK
28
PB2A
29
PB2B
30
TDO
31
PB2C
32
TDI
33
PB2D
34
VCC 35
PB3A/PCLKT1_1
36
PB3B
37
PB3C/PCLKT1_0
38
PB3D
39
40
40
41 41 42
42
PB4A
43
PB4B
44
PB4C
45
PB4D
46
PB5A
47
SLEEP
48
PB5C
49
PB5D
50
PR9B 51
PR9A 52
PR8B 53
PR8A 54 PR7D 55
PR7C 56 PR7B 57
PR7A 58
PR6B 59
60 60
PR6A 61
62
62
PR5D 63
PR5C 64 PR5B 65
PR5A 66
PR4B 67
PR4A 68 PR3D 69
PR3C 70 PR3B 71
PR3A 72
PR2B 73
VCCIO0 74 GNDIO0
75
PR2A 76
PT5C 77 PT5B 78
PT5A 79
PT4F 80
PT4E 81
PT4D 82
PT4C 83
GND
84
PT4B/PCLKT0_1 85
PT4A/PCLKT0_0 86
PT3D 87
VCC_AUX 88
PT3C 89
90 90
PT3B 91 92 92 93
93
PT3A 94
PT2F 95
PT2E 96
PT2D 97
PT2C 98 PT2B 99
PT2A 100
LCMX0256C-3T100C
U3
0.1uFC53
0.1uFC52
0.1uF
C51
0.1uFC50
0.1uF
C58
0.1uFC54
0.1uFC55
0.1uF
C57
1 2 3 4 5 6 7 8
J5
FPGA JTAG
0.01uF C22
47K R4
IO4 1 IO6 2
OUT/IN
3
IO7 4 IO5 5
INH 6
VEE
7
VSS
8
C9 B10
A11
IO3 12 IO0 13 IO1 14 IO2 15
VDD 16
74HC4051 U8
0.1uF
C86
1M
R109
10KB
1
2
3
4
5
6
P26
0.1uF C95
0.1uF
C17
0.1uF
C96
0.1uF C97
1
2
3
4
P17
CROSSFADER 0.1uF
C6
0.1uF
C8
0.1uF
C7
47K
R41
TP14
TP9
0 ohm R3
0 ohm
R2
TP3
Z1
0 ohm
R1
Z3
0 ohm
R6
Z7
0 ohm
R16
Z8
0 ohm
R17
Z9
0 ohm
R20
Z16
0 ohm
R85
Z17
0 ohm
R75
Z18
0 ohm
R86
Z20
0 ohm
R102
Z11
0 ohm
R47
Z26
0 ohm
R106
Z27
0 ohm
R107
1K1 8R57A 1K
2 7R57B
1K
3 6R57C
1K
4 5R57D
1K
1 8R46A
1K
2 7R46B
1K
3 6R46C
1K
4 5R46D
1K
1 8R45A
1K
2 7R45B
1K
3 6R45C
1K
4 5R45D
1K
1 8R44A
1K
2 7R44B
1K
3 6R44C
1K
4 5R44D
1K
1 8R43A
1K
2 7R43B
1K
3 6R43C
1K
4 5R43D
1K
1 8R58A
1K
2 7R58B
1K
3 6R58C
1K
4 5R58D
1K 18 R32A
1K 27 R32B 1K 36 R32C 1K 45 R32D 1K 18 R36A 1K 27 R36B 1K 36 R36C 1K 45 R36D 1K 18 R39A 1K 27 R39B 1K 36 R39C 1K 45 R39D 1K 18 R40A 1K 27 R40B 1K 36 R40C 1K 45 R40D
RA45D2F-211-11C1-B10K
1
2
3
1'
2'
3'
P27
0.1uF C1
0.1uF
C2
0.1uF
C3
100uF, 10V
C19
100uF, 10V C20
100uF, 10V
C21
10K R83
10K
R82
10K
R81
10K
R80
10K
R79
10K
R78
10K
R77
10K
R76
220 ohm 18 R64A
220 ohm 27 R64B 220 ohm 36 R64C 220 ohm 45 R64D 220 ohm 18 R63A 220 ohm 27 R63B 220 ohm 36 R63C 220 ohm 45 R63D
FDC6306P
G
1
D
6S5
Q47A
FDC6306P
G
3
D
4S2
Q47B
FDC6306P
G
1
D
6S5
Q45A
FDC6306P
G
3
D
4S2
Q45B
FDC6306P
G
1
D
6S5
Q46A
FDC6306P
G
3
D
4S2
Q46B
FDC6306P
G
1
D
6S5
Q44A
FDC6306P
G
3
D
4S2
Q44B
FDC6306P
G
1
D
6S5
Q53A
10K
R97
10K
R98
FDC6306P
G
1
D
6S5
Q52A
10K
R95
10K
R96
FDC6306P
G
1
D
6S5
Q51A
10K
R93
10K
R94
FDC6306P
G
1
D
6S5
Q50A
10K
R91
10K
R92
FDC6306P
G
3
D
4S2
Q53B
FDC6306P
G
3
D
4S2
Q52B
FDC6306P
G
3
D
4S2
Q51B
FDC6306P
G
3
D
4S2
Q50B
220 ohm 18 R51A
220 ohm 27 R51B 220 ohm 36 R51C 220 ohm 45 R51D 220 ohm 18 R50A 220 ohm 27 R50B 220 ohm 36 R50C 220 ohm 45 R50D
10uFC49
10K R48
10K R49
0.01uF C103
0.01uF
C104
10K R55
10K R56
1
2
3
4
5
ENC1
Encoder
0 ohm R113
FPGA_EN FPGA_ALE FPGA_DS
LED-DRV7
SW-RET13 SW-RET12 SW-RET11 SW-RET10 SW-RET9 SW-RET8
SW-RET7
SW-RET7
SW-RET6
SW-RET6
SW-RET5
SW-RET5
LED-ROW18
SW-DRV0
SW-RET0
SW-RET0
SW-DRV1
SW-RET1
SW-RET1
SW-DRV2
SW-RET2
SW-RET2
SW-RET3
SW-RET3
SW-DRV3 SW-DRV4
SW-RET4
SW-RET4
SW-DRV5 SW-DRV6
SW-RET14
SW-DRV7
LED-DRV0
LED-DRV1
LED-DRV2
LED-BLUE0
LED-DRV3
LED-BLUE1
LED-DRV4
LED-DRV5
LED-COL0
LED-COL0 LED-COL0
LED-COL1
LED-COL1 LED-COL1
LED-COL2
LED-COL2 LED-COL2
LED-COL3
LED-COL3 LED-COL3
LED-COL4
LED-COL4 LED-COL4
LED-COL5
LED-COL5 LED-COL5
LED-COL6
LED-COL6 LED-COL6
LED-COL7
LED-COL7 LED-COL7
LED-DRV6
LED-BLUE2
LED-BLUE3
LED-BLUE4
LED-BLUE5
LED-BLUE6
LED-BLUE7
LED-ROW17 LED-ROW16 LED-ROW32 LED-ROW33 LED-ROW19
LED-ROW11 LED-ROW12 LED-ROW13
LED-ROW20
LED-ROW10
LED-ROW34
LED-ROW14
LED-ROW21 LED-ROW15 LED-ROW22
LED-ROW35
LED-ROW23 LED-ROW24
LED-ROW36
LED-ROW25 LED-ROW26
LED-ROW37
LED-ROW27 LED-ROW28
LED-ROW38
LED-ROW29 LED-ROW30
LED-ROW39
LED-ROW31
LED-ROW40 LED-ROW41 LED-ROW42
LED-ROW43 LED-ROW44 LED-ROW45 LED-ROW46
LED-ROW47
LED-ROW[0..49]
LED-COL[0..7]
SW-RET[0..14]
SW-DRV[0..7]
LED-DRV[0..7]
LED-BLUE[0..7]
GND
+3.3V
GND
+3.3V
GND
GND
AN_SEL_0 AN_SEL_1 AN_SEL_2
+VFADER
AGND2
AGND2
AGND2
AGND2
AGND2
+VFADER
AN_IN_1 AN_IN_0 AN_IN_2 AN_IN_3 AN_IN_4
AN_SEL_0 AN_SEL_1 AN_SEL_2
AGND1 AGND2
GND GND
+3.3V
GND
+VLED +VDDA
GND GND GND
GND
SPI-CLK
SPI-DATA
SPI-STROBE
+VLED +VLED +VLED +VLED +VLED +VLED +VLED +VLED
+3.3V +3.3V +3.3V +3.3V +3.3V +3.3V +3.3V +3.3V
GND
+3.3V
AGND3
Copyright 2013 - Akai Professional
CROSSFADER BREAK-OFF PCB
MOUNTING HOLES
ADA5TP102A.sch
9/13/2013
9 VCC pins but only 8 caps OK due to pin proximity

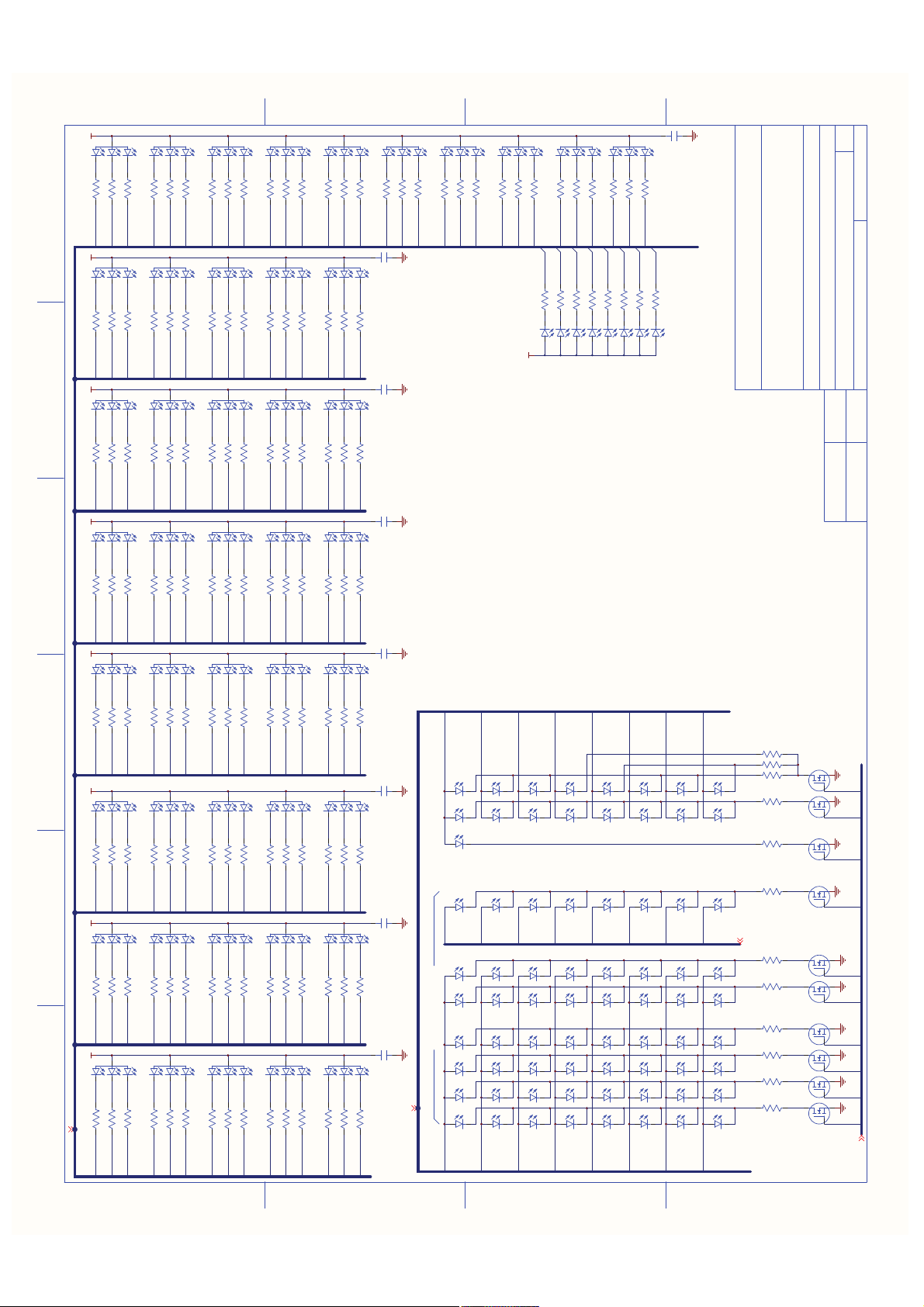

BLUE LED DRIVERS
1 6
9-40-0681-1 9-79-0681-1-0
c
LED-BLUE[0..7]
LED-DRV[0..7]
LED-COL[0..7]
SW-DRV[0..7]
LED-ROW[0..49]
SW-RET[0..14]
LED-ROW9 LED-ROW8
FPGA_EN LED COLUMN DRIVERS
+VFADER
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
J1
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
J2

TRACK CONTROLLERSGLOBAL CONTROLLERS
ASSY N UMB ER:
123456
D C B A
C D B A
COM PAN Y: TITL E: PART N UMBER: FILE NAM E: SCAL E:
RELE ASE D: DRA WN: DA TED:
DAT ED:
SIZE :
SHEE T: OF

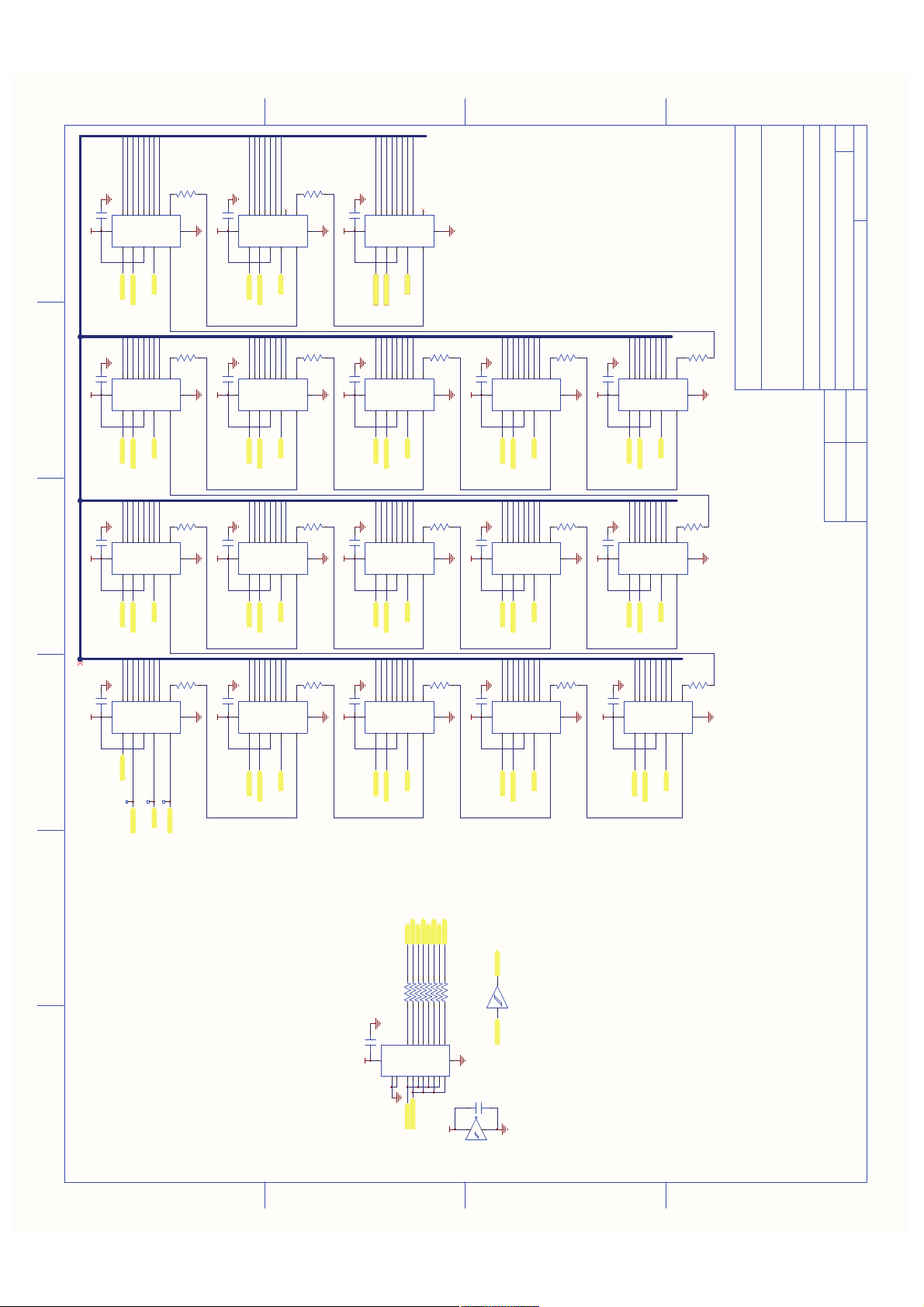

ADA5 TOP PANEL PCB
AKAI PROFESSIONAL
CAN
BSS138
G
1
S
2D3
Q34
BSS138
G
1
S
2D3
Q35
BSS138
G
1
S
2D3
Q36
BSS138
G
1
S
2D3
Q37
BSS138
G
1
S
2D3
Q38
BSS138
G
1
S
2D3
Q39
BSS138
G
1
S
2D3
Q40
BSS138
G
1
S
2D3
Q41
BSS138
G
1
S
2D3
Q27
BSS138
G
1
S
2D3
Q28
BSS138
G
1
S
2D3
Q29
BSS138
G
1
S
2D3
Q30
BSS138
G
1
S
2D3
Q31
BSS138
G
1
S
2D3
Q32
BSS138
G
1
S
2D3
Q33
36 ohm R66
36 ohm
R67
36 ohm
R68
36 ohm
R69
36 ohm
R70
36 ohm
R71
36 ohm
R72
36 ohm
R73
36 ohm
R59
36 ohm
R60
36 ohm
R61
36 ohm
R62
36 ohm
R52
36 ohm
R53
36 ohm
R54
36 ohm R26
BSS138
G
1
S
2D3
Q15
BSS138
G
1
S
2D3
Q14
BSS138
G
1
S
2D3
Q16
BSS138
G
1
S
2D3
Q21
BSS138
G
1
S
2D3
Q10
BSS138
G
1
S
2D3
Q11
BSS138
G
1
S
2D3
Q12
BSS138
G
1
S
2D3
Q13
BSS138
G
1
S
2D3
Q5
BSS138
G
1
S
2D3
Q6
BSS138
G
1
S
2D3
Q20
BSS138
G
1
S
2D3
Q22
BSS138
G
1
S
2D3
Q19
BSS138
G
1
S
2D3
Q18
BSS138
G
1
S
2D3
Q17
36 ohm R25
36 ohm
R27
36 ohm
R34
36 ohm
R21
36 ohm
R22
36 ohm
R23
36 ohm
R24
36 ohm
R13
36 ohm
R14
36 ohm
R33
36 ohm
R35
36 ohm
R30
36 ohm
R29
36 ohm
R28
ORG D62
GC_1_1
ORG D64
GC_2_1
ORG D66
GC_3_1
ORG D68
GC_4_1
ORG D140
GC_5_1
ORG D142
GC_6_1
ORG D144
GC_7_1
ORG D146
GC_8_1
ORG D1
GC_1_2
ORG D2
GC_2_2
ORG D3
GC_3_2
ORG D4
GC_4_2
ORG D5
GC_5_2
ORG D6
GC_6_2
ORG D7
GC_7_2
ORG D8
GC_8_2
ORG D9
GC_1_3
ORG D10
GC_2_3
ORG D11
GC_3_3
ORG D12
GC_4_3
ORG D13
GC_5_3
ORG D14
GC_6_3
ORG D15
GC_7_3
ORG D16
GC_8_3
ORG D17
GC_1_4
ORG D18
GC_2_4
ORG D19
GC_3_4
ORG D20
GC_4_4
ORG D21
GC_5_4
ORG D22
GC_6_4
ORG D23
GC_7_4
ORG D24
GC_8_4
ORG D25
GC_1_5
ORG D26
GC_2_5
ORG D27
GC_3_5
ORG D28
GC_4_5
ORG D29
GC_5_5
ORG D30
GC_6_5
ORG D31
GC_7_5
ORG D32
GC_8_5
ORG D33
GC_1_6
ORG D34
GC_2_6
ORG D35
GC_3_6
ORG D36
GC_4_6
ORG D46
GC_5_6
ORG D47
GC_6_6
ORG D48
GC_7_6
ORG D49
GC_8_6
ORG D50
GC_1_7
ORG D51
GC_2_7
ORG D52
GC_3_7
ORG D53
GC_4_7
ORG D54
GC_5_7
ORG D55
GC_6_7
ORG D56
GC_7_7
ORG D57
GC_8_7
ORG D58
GC_1_8
ORG D59
GC_2_8
ORG D60
GC_3_8
ORG D61
GC_4_8
ORG D63
GC_5_8
ORG D65
GC_6_8
ORG D67
GC_7_8
ORG D69
GC_8_8
ORG D79
GC_1_9
ORG D80
GC_2_9
ORG D81
GC_3_9
ORG D82
GC_4_9
ORG D83
GC_5_9
ORG D84
GC_6_9
ORG D85
GC_7_9
ORG D86
GC_8_9
ORG D87
GC_1_10
ORG D88
GC_2_10
ORG D89
GC_3_10
ORG D90
GC_4_10
ORG D91
GC_5_10
ORG D92
GC_6_10
ORG D93
GC_7_10
ORG D94
GC_8_10
ORG D95
GC_1_11
ORG D96
GC_2_11
ORG D97
GC_3_11
ORG D98
GC_4_11
ORG D99
GC_5_11
ORG D100
GC_6_11
ORG D101
GC_7_11
ORG D102
GC_8_11
ORG D103
GC_1_12
ORG D104
GC_2_12
ORG D105
GC_3_12
ORG D106
GC_4_12
ORG D107
GC_5_12
ORG D108
GC_6_12
ORG D109
GC_7_12
ORG D110
GC_8_12
ORG D111
GC_1_13
ORG D112
GC_2_13
ORG D113
GC_3_13
ORG D114
GC_4_13
ORG D115
GC_5_13
ORG D116
GC_6_13
ORG D117
GC_7_13
ORG D118
GC_8_13
ORG D119
GC_1_14
ORG D120
GC_2_14
ORG D121
GC_3_14
ORG D122
GC_4_14
ORG D132
GC_5_14
ORG D133
GC_6_14
ORG D134
GC_7_14
ORG D135
GC_8_14
ORG D136
GC_1_15
ORG D137
GC_2_15
ORG D138
GC_3_15
ORG D139
GC_4_15
ORG D141
GC_5_15
ORG D143
GC_6_15
ORG D145
GC_7_15
ORG D147
GC_8_15
ORG D178
TC_1_1
ORG D179
TC_2_1
ORG D180
TC_3_1
ORG D181
TC_4_1
ORG D182
TC_5_1
ORG D183
TC_6_1
ORG D184
TC_7_1
ORG D185
TC_8_1
ORG D186
TC_1_2
ORG D187
TC_2_2
ORG D188
TC_3_2
ORG D189
TC_4_2
ORG D190
TC_5_2
ORG D191
TC_6_2
ORG D192
TC_7_2
ORG D193
TC_8_2
ORG D194
TC_1_3
ORG D195
TC_2_3
ORG D196
TC_3_3
ORG D197
TC_4_3
ORG D198
TC_5_3
ORG D199
TC_6_3
ORG D200
TC_7_3
ORG D201
TC_8_3
ORG D202
TC_1_4
ORG D203
TC_2_4
ORG D204
TC_3_4
ORG D205
TC_4_4
ORG D206
TC_5_4
ORG D207
TC_6_4
ORG D208
TC_7_4
ORG D209
TC_8_4
ORG D210
TC_1_5
ORG D211
TC_2_5
ORG D212
TC_3_5
ORG D213
TC_4_5
ORG D214
TC_5_5
ORG D215
TC_6_5
ORG D216
TC_7_5
ORG D217
TC_8_5
ORG D218
TC_1_6
ORG D219
TC_2_6
ORG D220
TC_3_6
ORG D221
TC_4_6
ORG D222
TC_5_6
ORG
D223
TC_6_6
ORG D224
TC_7_6
ORG D225
TC_8_6
ORG D226
TC_1_7
ORG D227
TC_2_7
ORG D228
TC_3_7
ORG D229
TC_4_7
ORG D239
TC_5_7
ORG D240
TC_6_7
ORG D241
TC_7_7
ORG D242
TC_8_7
ORG D243
TC_1_8
ORG D244
TC_2_8
ORG D245
TC_3_8
ORG D246
TC_4_8
ORG D247
TC_5_8
ORG D248
TC_6_8
ORG D249
TC_7_8
ORG D250
TC_8_8
ORG D251
TC_1_9
ORG D252
TC_2_9
ORG D253
TC_3_9
ORG D254
TC_4_9
ORG D255
TC_5_9
ORG D256
TC_6_9
ORG D257
TC_7_9
ORG D258
TC_8_9
ORG D259
TC_1_10
ORG D260
TC_2_10
ORG D261
TC_3_10
ORG D262
TC_4_10
ORG D263
TC_5_10
ORG D264
TC_6_10
ORG D265
TC_7_10
ORG D266
TC_8_10
ORG D267
TC_1_11
ORG D268
TC_2_11
ORG D269
TC_3_11
ORG D270
TC_4_11
ORG D271
TC_5_11
ORG D272
TC_6_11
ORG D273
TC_7_11
ORG D274
TC_8_11
ORG D280
TC_1_12
ORG D281
TC_2_12
ORG D282
TC_3_12
ORG D283
TC_4_12
ORG D284
TC_5_12
ORG D285
TC_6_12
ORG D286
TC_7_12
ORG D287
TC_8_12
ORG D288
TC_1_13
ORG D289
TC_2_13
ORG D290
TC_3_13
ORG D291
TC_4_13
ORG D292
TC_5_13
ORG D293
TC_6_13
ORG D294
TC_7_13
ORG D295
TC_8_13
ORG D296
TC_1_14
ORG D297
TC_2_14
ORG D298
TC_3_14
ORG D299
TC_4_14
ORG D300
TC_5_14
ORG D301
TC_6_14
ORG D302
TC_7_14
ORG D303
TC_8_14
ORG D304
TC_1_15
ORG D305
TC_2_15
ORG D306
TC_3_15
ORG D315
TC_4_15
ORG D316
TC_5_15
ORG D317
TC_6_15
ORG D318
TC_7_15
ORG D319
TC_8_15
LED-DRV7
LED-ROW18
LED-DRV0 LED-DRV1 LED-DRV2 LED-DRV3 LED-DRV4 LED-DRV5 LED-DRV6
LED-ROW17
LED-ROW16
LED-ROW32
LED-ROW33
LED-ROW19
LED-ROW20
LED-ROW34
LED-ROW21
LED-ROW15
LED-ROW22
LED-ROW35
LED-ROW23
LED-ROW24
LED-ROW36
LED-ROW25
LED-ROW26
LED-ROW37
LED-ROW27
LED-ROW28
LED-ROW38
LED-ROW29
LED-ROW39
LED-ROW31
LED-ROW40
LED-ROW41
LED-ROW42
LED-ROW43
LED-ROW44
LED-ROW45
LED-ROW[0..49]
LED-DRV[0..7]
GND GND GND GND GND GND GND GND GND GND GND GND GND GND GNDGND GND GND GND GND GND GND GND GND GND GND GND GND GND GND
Copyright 2013 - Akai Professional
ADA5TP102A.sch
9/13/2013

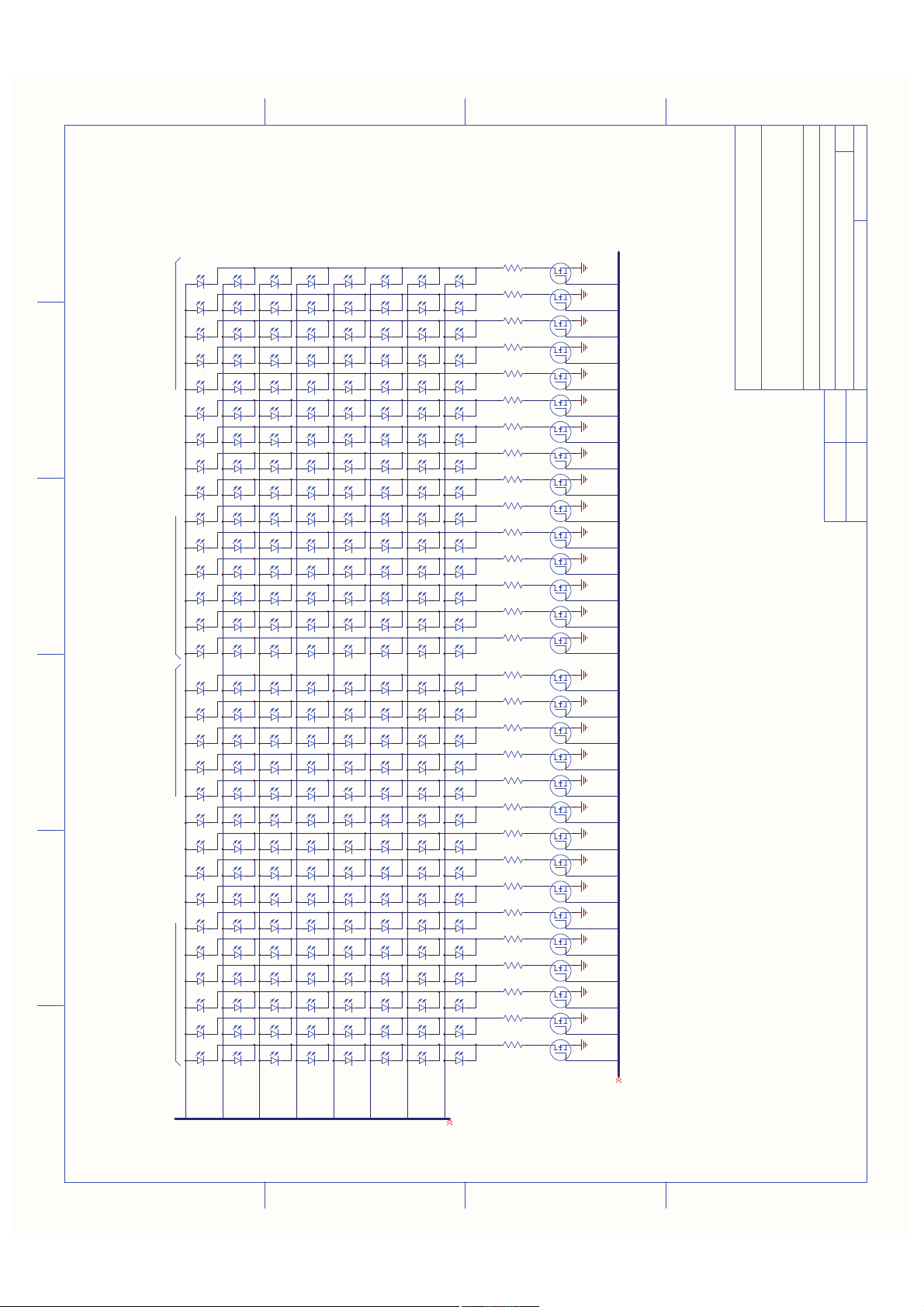

S1S2S3S4S5S6S7S8
*If you stare long enough at this matrix, you might see a sailboat
6 6
9-40-0681-1 9-79-0681-1-0
c
LED-DRV[0..7]
LED-ROW[0..49]

TRACK STRIPS -MISC-
40mA
ASSY N UMB ER:
123456
D C B A
C D B A
COM PAN Y: TITL E: PART N UMBER: FILE NAM E: SCAL E:
RELE ASE D: DRA WN: DA TED:
DAT ED:
SIZE :
SHEE T: OF
ADA5 TOP PANEL PCB
AKAI PROFESSIONAL
CAN
1
RR
2
AA
4
GG
3
BB
LED59
PAD24
1
RR
2
AA
4
GG
3
BB
LED43
PAD32
1
RR
2
AA
4
GG
3
BB
LED90
PAD8
1
RR
2
AA
4
GG
3
BB
LED74
PAD16
1
RR
2
AA
4
GG
3
BB
LED27
PAD40
1
RR
2
AA
4
GG
3
BB
LED58
PAD23
1
RR
2
AA
4
GG
3
BB
LED42
PAD31
1
RR
2
AA
4
GG
3
BB
LED89
PAD7
1
RR
2
AA
4
GG
3
BB
LED73
PAD15
1
RR
2
AA
4
GG
3
BB
LED26
PAD39
1
RR
2
AA
4
GG
3
BB
LED57
PAD22
1
RR
2
AA
4
GG
3
BB
LED41
PAD30
1
RR
2
AA
4
GG
3
BB
LED88
PAD6
1
RR
2
AA
4
GG
3
BB
LED72
PAD14
1
RR
2
AA
4
GG
3
BB
LED25
PAD38
1
RR
2
AA
4
GG
3
BB
LED56
PAD21
1
RR
2
AA
4
GG
3
BB
LED40
PAD29
1
RR
2
AA
4
GG
3
BB
LED87
PAD5
1
RR
2
AA
4
GG
3
BB
LED71
PAD13
1
RR
2
AA
4
GG
3
BB
LED24
PAD37
1
RR
2
AA
4
GG
3
BB
LED55
PAD20
1
RR
2
AA
4
GG
3
BB
LED39
PAD28
1
RR
2
AA
4
GG
3
BB
LED86
PAD4
1
RR
2
AA
4
GG
3
BB
LED70
PAD12
1
RR
2
AA
4
GG
3
BB
LED23
PAD36
1
RR
2
AA
4
GG
3
BB
LED54
PAD19
1
RR
2
AA
4
GG
3
BB
LED38
PAD27
1
RR
2
AA
4
GG
3
BB
LED85
PAD3
1
RR
2
AA
4
GG
3
BB
LED69
PAD11
1
RR
2
AA
4
GG
3
BB
LED22
PAD35
1
RR
2
AA
4
GG
3
BB
LED53
PAD18
1
RR
2
AA
4
GG
3
BB
LED37
PAD26
1
RR
2
AA
4
GG
3
BB
LED84
PAD2
1
RR
2
AA
4
GG
3
BB
LED68
PAD10
1
RR
2
AA
4
GG
3
BB
LED21
PAD34
1
RR
2
AA
4
GG
3
BB
LED52
PAD17
1
RR
2
AA
4
GG
3
BB
LED36
PAD25
1
RR
2
AA
4
GG
3
BB
LED83
PAD1
1
RR
2
AA
4
GG
3
BB
LED67
PAD9
10uF C167
1
RR
2
AA
4
GG
3
BB
LED20
PAD33
10uF C168
10uF
C169
10uF
C166
10uF
C119
10uF
C120
10uF
C121
10uF
C122
6.8 ohm R90
27 ohm
R100
BSS138
G
1
S
2D3
Q48
BSS138
G
1
S
2D3
Q49
BSS138
G
1
S
2D3
Q55
22 ohm R101
BSS138
G
1
S
2D3
Q56
BSS138
G
1
S
2D3
Q9
22 ohmR31
GRN D151
PLAY (G)
BLUE D307
SOLO_1 (B)
BLUE D308
SOLO_2 (B)
BLUE D309
SOLO_3 (B)
BLUE D310
SOLO_4 (B)
BLUE D311
SOLO_5 (B)
BLUE D312
SOLO_6 (B)
BLUE D313
SOLO_7 (B)
BLUE D314
SOLO_8 (B)
BSS138
G
1
S
2D3
Q54
6.8 ohm
R19
6.8 ohm
R37
BSS138
G
1
S
2D3
Q1
BSS138
G
1
S
2D3
Q2
22 ohmR38
24 ohm R99
BSS138
G
1
S
2D3
Q42
RED D323
REC_1 (R)
RED D324
REC_2 (R)
RED D325
REC_3 (R)
RED D326
REC_4 (R)
RED D327
REC_5 (R)
RED D328
REC_6 (R)
RED D329
REC_7 (R)
RED D330
REC_8 (R)
RED D153
RECORD (R)
D172
STOP_1 (O)
D157
STOP_2 (O)
D158
STOP_3 (O)
D159
STOP_4 (O)
D161
STOP_5 (O)
D162
STOP_6 (O)
D163
STOP_7 (O)
D164
STOP_8 (O)
ORG
D165
TGT_1 (O)
ORG D166
TGT_2 (O)
ORG D167
TGT_3 (O)
ORG D168
TGT_4 (O)
ORG D170
TGT_5 (O)
ORG D171
TGT_6 (O)
ORG D173
TGT_7 (O)
ORG D174
TGT_8 (O)
ORG D175
MASTER (O)
ORG D176
ACT_1 (O)
ORG D177
ACT2 (O)
ORG D230
ACT_3 (O)
ORG D231
ACT_4 (O)
ORG D232
ACT5 (O)
ORG D233
ACT_6 (O)
ORG D234
ACT_7 (O)
ORG D235
ACT_8 (O)
ORG D71
A/B_1 (O)
ORG D72
A/B_2 (O)
ORG D73
A/B_3 (O)
ORG D74
A/B_4 (O)
ORG D75
A/B_5 (O)
ORG D76
A/B_6 (O)
ORG D77
A/B_7 (O)
ORG D123
A/B_8 (O)
YEL D124
A/B_1 (Y)
YEL D125
A/B_2 (Y)
YEL D126
A/B_3 (Y)
YEL D127
A/B_4 (Y)
YEL D128
A/B_5 (Y)
YEL D129
A/B_6 (Y)
YEL D130
A/B_7 (Y)
YEL D152
A/B_8 (Y)
RED D156
SESSION (R)
ORG D155
METRO (O)
ORG D236
DEV- (O)
ORG D237
DEV+ (O)
ORG D238
BANK- (O)
ORG D275
BANK+ (O)
ORG D276
DEV ON/OFF (O)
ORG D277
DEV LOCK (O)
ORG D278
CLIP/DEV (O)
ORG D279
DETAIL (O)
ORG D154
BANK LOCK (O)
ORG D148
PAN (O)
ORG D149
SENDS (O)
ORG D150
USER (O)
22 ohm
R115
1
RR
2
AA
4
GG
3
BB
LED1
SCENE LAUNCH 3
1
RR
2
AA
4
GG
3
BB
LED2
SCENE LAUNCH 2
1
RR
2
AA
4
GG
3
BB
LED3
SCENE LAUNCH 5
1
RR
2
AA
4
GG
3
BB
LED4
SCENE LAUNCH 4
1
RR
2
AA
4
GG
3
BB
LED5
SCENE LAUNCH 1
LED-DRV7 LED-DRV7 LED-DRV0 LED-DRV0 LED-DRV1 LED-DRV1 LED-DRV2 LED-DRV2
LED-BLUE0
LED-DRV3 LED-DRV3
LED-BLUE1
LED-DRV4 LED-DRV4 LED-DRV5 LED-DRV5
RGB-29 RGB-28 RGB-27 RGB-26 RGB-25
LED-DRV6 LED-DRV6
LED-BLUE2 LED-BLUE3 LED-BLUE4 LED-BLUE5 LED-BLUE6 LED-BLUE7
RGB-24 RGB-23 RGB-22 RGB-21
RGB-20 RGB-19 RGB-18
RGB-17
RGB-120 RGB-121 RGB-122
RGB-16 RGB-15
RGB-14
RGB-123 RGB-124 RGB-125
RGB-13 RGB-12
RGB-11
RGB-126 RGB-127 RGB-128
RGB-10 RGB-9
RGB-8
RGB-129
LED-ROW12
LED-ROW13
LED-ROW10
LED-ROW14
RGB-130
LED-ROW30
RGB-7
RGB-131 RGB-132 RGB-133
LED-ROW46
LED-ROW47
RGB-6
RGB-5 RGB-4 RGB-3
RGB-2 RGB-1 RGB-0
RGB-76 RGB-75
RGB-74 RGB-73 RGB-72
RGB-71 RGB-70 RGB-69
RGB-68 RGB-67 RGB-66
RGB-65 RGB-64 RGB-63
RGB-62 RGB-61 RGB-60 RGB-116
RGB-117 RGB-118 RGB-119
RGB-59 RGB-58 RGB-57
RGB-56 RGB-55 RGB-54 RGB-53 RGB-52 RGB-51
RGB-50 RGB-49 RGB-48
RGB-47 RGB-46 RGB-45
RGB-44 RGB-43 RGB-42
RGB-41 RGB-40 RGB-39
RGB-38 RGB-37 RGB-36
RGB-35 RGB-34 RGB-33
RGB-32 RGB-31 RGB-30
RGB-115 RGB-114
RGB-113 RGB-112 RGB-111
RGB-110 RGB-109 RGB-108 RGB-107 RGB-106 RGB-105
RGB-104 RGB-103 RGB-102
RGB-101 RGB-100 RGB-99
RGB-98 RGB-97 RGB-96
RGB-95 RGB-94 RGB-93
RGB-92 RGB-91 RGB-90
RGB-89 RGB-88 RGB-87
RGB-86 RGB-85 RGB-84 RGB-83 RGB-82 RGB-81 RGB-80 RGB-79 RGB-78 RGB-77
RGB-[0..142]
LED-DRV[0..7]
LED-ROW[0..47]
GND
GNDGNDGNDGNDGNDGNDGND
+3.3V +3.3V +3.3V +3.3V +3.3V +3.3V +3.3V +3.3V
GND GND GND
GND GNDGND
GND GND
GND
Copyright 2013 - Akai Professional
ADA5TP102A.sch
9/13/2013
5 6
9-40-0681-1 9-79-0681-1-0
c
LED-DRV[0..7]
RGB-[0..142]
RGB-134
LED-ROW[0..47]
LED-BLUE[0..7]
LED-BLUE[0..7]
LED-ROW9
LED-ROW8
221 ohm 1%R123 221 ohm 1%R161 221 ohm 1%R213 221 ohm 1%R261 221 ohm 1%R288
221 ohm 1%R122 221 ohm 1%R154 221 ohm 1%R204 221 ohm 1%R250 221 ohm 1%R289
221 ohm 1%R126 221 ohm 1%R156 221 ohm 1%R206 221 ohm 1%R252 221 ohm 1%R291
221 ohm 1%R128 221 ohm 1%R164 221 ohm 1%R216 221 ohm 1%R262 221 ohm 1%R293
221 ohm 1%R134 221 ohm 1%R158 221 ohm 1%R208 221 ohm 1%R254 221 ohm 1%R294
221 ohm 1%R137 221 ohm 1%R160 221 ohm 1%R210 221 ohm 1%R256 221 ohm 1%R305
221 ohm 1%R140 221 ohm 1%R167 221 ohm 1%R219 221 ohm 1%R263 221 ohm 1%R296
221 ohm 1%
R143
221 ohm 1%
R150
221 ohm 1%
R211
221 ohm 1%
R258
221 ohm 1%
R297
221 ohm 1%
R116
221 ohm 1%
R119
221 ohm 1%
R146
221 ohm 1%
R149
221 ohm 1%
R171
R18 110 ohm 1% R130 110 ohm 1% R172 110 ohm 1% R173 110 ohm 1% R223 110 ohm 1% R230 110 ohm 1% R265 110 ohm 1% R274 110 ohm 1% R309 110 ohm 1% R313 110 ohm 1%
R124 110 ohm 1% R125 110 ohm 1% R155 110 ohm 1% R162 110 ohm 1% R205 110 ohm 1% R214 110 ohm 1% R251 110 ohm 1% R266 110 ohm 1% R290 110 ohm 1% R302 110 ohm 1%
R127 110 ohm 1% R131 110 ohm 1% R157 110 ohm 1% R163 110 ohm 1% R207 110 ohm 1% R215 110 ohm 1% R253 110 ohm 1% R267 110 ohm 1% R292 110 ohm 1% R303 110 ohm 1%
R129 110 ohm 1% R132 110 ohm 1% R174 110 ohm 1% R175 110 ohm 1% R224 110 ohm 1% R227 110 ohm 1% R271 110 ohm 1% R275 110 ohm 1% R310 110 ohm 1% R314 110 ohm 1%
R135 110 ohm 1% R136 110 ohm 1% R159 110 ohm 1% R165 110 ohm 1% R209 110 ohm 1% R217 110 ohm 1% R255 110 ohm 1% R268 110 ohm 1% R295 110 ohm 1% R304 110 ohm 1%
R138 110 ohm 1% R139 110 ohm 1% R166 110 ohm 1% R176 110 ohm 1% R218 110 ohm 1% R228 110 ohm 1% R257 110 ohm 1% R269 110 ohm 1% R306 110 ohm 1% R311 110 ohm 1%
R141 110 ohm 1% R142 110 ohm 1% R169 110 ohm 1% R170 110 ohm 1% R225 110 ohm 1% R229 110 ohm 1% R272 110 ohm 1% R276 110 ohm 1%
R312 110 ohm 1% R315 110 ohm 1%
R144
110 ohm 1%
R145
110 ohm 1%
R151
110 ohm 1%
R168
110 ohm 1%
R212
110 ohm 1%
R220
110 ohm 1%
R259
110 ohm 1%
R270
110 ohm 1%
R298
110 ohm 1%
R307
110 ohm 1%
R117
110 ohm 1%
R118
110 ohm 1%
R120
110 ohm 1%
R121
110 ohm 1%
R147
110 ohm 1%
R148
110 ohm 1%
R152
110 ohm 1%
R153
110 ohm 1%
R178
110 ohm 1%
R179
110 ohm 1%
R88 4.7 ohm
R114 4.7 ohm
68 ohmR74 68 ohmR191 68 ohmR192 68 ohmR193 68 ohmR194 68 ohmR195 68 ohmR196 68 ohmR197
+3.3V
RGB-135 RGB-136 RGB-137 RGB-138 RGB-139 RGB-140 RGB-141 RGB-142
BSS138
G
1
S
2D3
Q3
ORG
D422 ORG D423 ORG D424 ORG D425 ORG D426 ORG D427 ORG D428 ORG D429
LED-ROW12
GND
R199 4.7 ohm

NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
ASSY N UMB ER:
123456
D C B A
C D B A
COM PAN Y: TITL E: PART N UMBER: FILE NAM E: SCAL E:
RELE ASE D: DRA WN: DA TED:
DAT ED:
SIZE :
SHEE T: OF
ADA5 TOP PANEL PCB
AKAI PROFESSIONAL
CAN
1
2
3
4
P1
GC1
0.1uF C25
0.1uF
C23
0.1uF
C24
1
2
3
4
P2
GC2
0.1uF C28
0.1uF
C26
0.1uF
C27
1
2
3
4
P3
GC3
0.1uF C31
0.1uF
C29
0.1uF
C30
1
2
3
4
P4
GC4
0.1uF C34
0.1uF
C32
0.1uF
C33
1
2
3
4
P5
GC5
0.1uF C39
0.1uF
C37
0.1uF
C38
1
2
3
4
P6
GC6
0.1uF C42
0.1uF
C40
0.1uF
C41
1
2
3
4
P7
GC7
0.1uF C45
0.1uF
C43
0.1uF
C44
1
2
3
4
P8
GC8
0.1uF C48
0.1uF
C46
0.1uF
C47
IO4
1
IO6
2
OUT/IN 3
IO7
4
IO5
5
INH
6
VEE
7
VSS
8
C
9B
10 A 11
IO3
12
IO0
13
IO1
14
IO2
15
VDD 16
74HC4051
U1 0.1uF
C35
IO4
1
IO6
2
OUT/IN 3
IO7
4
IO5
5
INH
6
VEE
7
VSS
8
C
9B
10 A 11
IO3
12
IO0
13
IO1
14
IO2
15
VDD 16
74HC4051
U2 0.1uF
C36
1M R10 1M R15
1
2
3
4
P9
TC1
0.1uF C62
0.1uF
C60
0.1uF
C61
1
2
3
4
P10
TC2
0.1uF C65
0.1uF
C63
0.1uF
C64
1
2
3
4
P11
TC3
0.1uF C68
0.1uF
C66
0.1uF
C67
1
2
3
4
P12
TC4
0.1uF C71
0.1uF
C69
0.1uF
C70
1
2
3
4
P13
TC5
0.1uF C75
0.1uF
C73
0.1uF
C74
1
2
3
4
P14
TC6
0.1uF C78
0.1uF
C76
0.1uF
C77
1
2
3
4
P15
TC7
0.1uF C81
0.1uF
C79
0.1uF
C80
1
2
3
4
P16
TC8
0.1uF C84
0.1uF
C82
0.1uF
C83
IO4
1
IO6
2
OUT/IN 3
IO7
4
IO5
5
INH
6
VEE
7
VSS
8
C
9B
10 A 11
IO3
12
IO0
13
IO1
14
IO2
15
VDD 16
74HC4051
U5 0.1uF
C59
IO4
1
IO6
2
OUT/IN 3
IO7
4
IO5
5
INH
6
VEE
7
VSS
8
C
9B
10 A 11
IO3
12
IO0
13
IO1
14
IO2
15
VDD 16
74HC4051
U6 0.1uF
C72
1M R84 1M R89
10KB
1
2
3
4
5
6
P18
FADER1
0.1uF
C87
0.1uF
C9
IO4
1
IO6
2
OUT/IN 3
IO7
4
IO5
5
INH
6
VEE
7
VSS
8
C
9B
10 A 11
IO3
12
IO0
13
IO1
14
IO2
15
VDD 16
74HC4051
U7 0.1uF
C85
1M
R108
10KB
1
2
3
4
5
6
P19
FADER2
0.1uF
C88
0.1uF
C10
10KB
1
2
3
4
5
6
P20
FADER3
0.1uF
C89
0.1uF
C11
10KB
1
2
3
4
5
6
P21
FADER4
0.1uF
C90
0.1uF
C12
10KB
1
2
3
4
5
6
P22
FADER5
0.1uF
C91
0.1uF
C13
10KB
1
2
3
4
5
6
P23
FADER6
0.1uF
C92
0.1uF
C14
10KB
1
2
3
4
5
6
P24
FADER7
0.1uF
C93
0.1uF
C15
10KB
1
2
3
4
5
6
P25
FADER8
0.1uF
C94
0.1uF
C16
0 ohm R9
0 ohm R87
TP8 TP11 TP13
TP7 TP10
TP12
0 ohm
R104
10uFC4
10uF
C5
10uF C18
AN_SEL_0
AN_SEL_1
AN_SEL_2
+VDDA
AGND1
AN_SEL_0 AN_SEL_1 AN_SEL_2
+VDDA
AGND1
AN_IN_0 AN_IN_1
AN_SEL_0 AN_SEL_1 AN_SEL_2
+VDDA
AGND3
AN_SEL_0 AN_SEL_1 AN_SEL_2
+VDDA
AGND3
AGND3 AGND3
AN_IN_2 AN_IN_3
AN_SEL_0 AN_SEL_1 AN_SEL_2
AGND2
AGND2
AN_IN_4
+VDDA
AGND1 AGND1 AGND1 AGND1 AGND1 AGND1 AGND1 AGND1
AGND3 AGND3 AGND3 AGND3 AGND3 AGND3 AGND3 AGND3
AGND2 AGND2 AGND2 AGND2 AGND2 AGND2 AGND2 AGND2
AGND1 AGND1
AGND1
AGND3
AGND2
+VFADER
GLOBAL CONTROLLER 360 POTS
TRACK CONTROLLER 360 POTS
TRACK FADERS
Copyright 2013 - Akai Professional
ADA5TP102A.sch
9/13/2013
2 6
9-40-0681-1 9-79-0681-1-0
c

ASSY N UMB ER:
123456
D C B A
C D B A
COM PAN Y: TITL E: PART N UMBER: FILE NAM E: SCAL E:
RELE ASE D: DRA WN: DA TED:
DAT ED:
SIZE :
SHEE T: OF
ADA5 TOP PANEL PCB
AKAI PROFESSIONAL
CAN
0.1uF C173 0.1uF C174 0.1uF C175 0.1uF C176
OE1
1
A0
2
A1
3
A2
4
A3
5
A4
6
A5
7
A6
8
A7
9
10
10
Y7 11 Y6 12 Y5 13 Y4 14 Y3 15 Y2 16 Y1 17 Y0 18
OE2
19
VCC 20
74AHC541 U27
0.1uF
C150
47 OHM
1 8R187A
47 OHM
2 7R187B
47 OHM
3 6R187C
47 OHM
4 5R187D
47 OHM
1 8R189A
47 OHM
2 7R189B
47 OHM
3 6R189C
47 OHM
4 5R189D
0.1uF C111 0.1uF C133 0.1uF C142 0.1uF C101
0.1uF C108
TP1
0.1uF
C56 0.1uF C98 0.1uF C99 0.1uF C100
0.1uF C177
0.1uF C154
A
2Y4
74AHC1G14
U74A
55 3
3
U74B 0.1uF
C102
TP2 TP4
47 ohm
R177 47 ohm R7 47 ohm R8 47 ohm R11 47 ohm R65
47 ohm R12 47 ohm R133 47 ohm R180 47 ohm R181 47 ohm R182
47 ohm R183 47 ohm R184 47 ohm R185 47 ohm R186 47 ohm R188
0.1uF
C105 0.1uF C106
47 ohm
R190
RGB-29 RGB-28 RGB-27 RGB-26 RGB-25 RGB-24 RGB-23 RGB-22 RGB-21 RGB-20 RGB-19 RGB-18 RGB-17
RGB-120 RGB-121 RGB-122
RGB-16 RGB-15 RGB-14
RGB-123 RGB-124 RGB-125
RGB-13 RGB-12 RGB-11
RGB-126 RGB-127 RGB-128
RGB-10 RGB-9 RGB-8
RGB-129 RGB-130
RGB-7
RGB-131 RGB-132 RGB-133 RGB-134
RGB-6 RGB-5 RGB-4 RGB-3 RGB-2 RGB-1 RGB-0
RGB-76 RGB-75 RGB-74 RGB-73 RGB-72 RGB-71 RGB-70 RGB-69 RGB-68 RGB-67 RGB-66 RGB-65 RGB-64 RGB-63 RGB-62 RGB-61 RGB-60
RGB-116 RGB-117 RGB-118 RGB-119
RGB-59 RGB-58 RGB-57 RGB-56 RGB-55 RGB-54 RGB-53 RGB-52 RGB-51 RGB-50 RGB-49 RGB-48 RGB-47 RGB-46 RGB-45 RGB-44 RGB-43 RGB-42 RGB-41 RGB-40
RGB-39 RGB-38 RGB-37 RGB-36 RGB-35 RGB-34 RGB-33 RGB-32 RGB-31 RGB-30
RGB-115 RGB-114 RGB-113 RGB-112 RGB-111 RGB-110 RGB-109 RGB-108 RGB-107 RGB-106 RGB-105 RGB-104 RGB-103 RGB-102 RGB-101 RGB-100 RGB-99 RGB-98 RGB-97 RGB-96 RGB-95 RGB-94 RGB-93 RGB-92 RGB-91 RGB-90 RGB-89 RGB-88 RGB-87 RGB-86 RGB-85 RGB-84 RGB-83 RGB-82 RGB-81 RGB-80
RGB-79 RGB-78 RGB-77
RGB-[0..142]
+3.3V
GND
GND
+3.3V
GND
GND
+3.3V
GND
GND
+3.3V
GND
GND
GND
+3.3V
GND
CLK_0
STROBE_0
CLK_1
STROBE_1
CLK_2
STROBE_2
CLK_3
STROBE_3
GND
SPI-CLK
SPI-STROBE
STROBE_2
CLK_2
STROBE_2
CLK_2
STROBE_3
CLK_3
STROBE_3
CLK_3
+3.3V
GND
GND
STROBE_1
CLK_1
+3.3V
GND
GND
STROBE_1
CLK_1
+3.3V
GND
GND
STROBE_2
CLK_2
+3.3V
GND
GND
STROBE_1
CLK_1
SPI-DATA
+3.3V
GND
GND
STROBE_0
CLK_0
+3.3V
GND
GND
STROBE_0
CLK_0
+3.3V
GND
GND
STROBE_0
CLK_0
+3.3V
GND
GND
STROBE_0
CLK_0
+3.3V
GND
GND
STROBE_1
CLK_1
+3.3V
GND
GND
STROBE_3
CLK_3
+3.3V
GND
GND
STROBE_2
CLK_2
FPGA_EN
GND
+3.3V
RGB_EN
RGB_EN
RGB_EN RGB_EN RGB_EN RGB_EN
RGB_EN RGB_EN RGB_EN RGB_EN RGB_EN RGB_EN
RGB_EN RGB_EN RGB_EN RGB_EN
+3.3V
GND
GND
STROBE_3
CLK_3
+3.3V
GND
GND
STROBE_3
CLK_3
RGB_EN RGB_EN
Copyright 2013 - Akai Professional
ADA5TP102A.sch
9/13/2013
PCB designer may re-route as needed Do not exceed more than 8 devices per line
F A N O U T
4 6
9-40-0681-1 9-79-0681-1-0
c
RGB-[0..142]
Q1 1 Q2 2 Q3 3 Q4 4 Q5 5 Q6 6 Q7 7
GND
8
SDO 9
SCLR
10
SCLK
11
RCLK
12
OE
13
SER
14
Q0 15
VCC 16
74LV595A
U22
Q1 1 Q2 2 Q3 3 Q4 4 Q5 5 Q6 6 Q7 7
GND
8
SDO 9
SCLR
10
SCLK
11
RCLK
12
OE
13
SER
14
Q0 15
VCC 16
74LV595A
U13
Q1 1 Q2 2 Q3 3 Q4 4 Q5 5 Q6 6 Q7 7
GND
8
SDO 9
SCLR
10
SCLK
11
RCLK
12
OE
13
SER
14
Q0 15
VCC 16
74LV595A
U12
Q1 1 Q2 2 Q3 3 Q4 4 Q5 5 Q6 6 Q7 7
GND
8
SDO 9
SCLR
10
SCLK
11
RCLK
12
OE
13
SER
14
Q0 15
VCC 16
74LV595A
U11
Q1 1 Q2 2 Q3 3 Q4 4 Q5 5 Q6 6 Q7 7
GND
8
SDO 9
SCLR
10
SCLK
11
RCLK
12
OE
13
SER
14
Q0 15
VCC 16
74LV595A
U10
Q1 1 Q2 2 Q3 3 Q4 4 Q5 5 Q6 6 Q7 7
GND
8
SDO 9
SCLR
10
SCLK
11
RCLK
12
OE
13
SER
14
Q0 15
VCC 16
74LV595A
U9
Q1 1 Q2 2 Q3 3 Q4 4 Q5 5 Q6 6 Q7 7
GND
8
SDO 9
SCLR
10
SCLK
11
RCLK
12
OE
13
SER
14
Q0 15
VCC 16
74LV595A
U24
Q1 1 Q2 2 Q3 3 Q4 4 Q5 5 Q6 6 Q7 7
GND
8
SDO 9
SCLR
10
SCLK
11
RCLK
12
OE
13
SER
14
Q0 15
VCC 16
74LV595A
U37
Q1 1 Q2 2 Q3 3 Q4 4 Q5 5 Q6 6 Q7 7
GND
8
SDO 9
SCLR
10
SCLK
11
RCLK
12
OE
13
SER
14
Q0 15
VCC 16
74LV595A
U42
Q1 1 Q2 2 Q3 3 Q4 4 Q5 5 Q6 6 Q7 7
GND
8
SDO 9
SCLR
10
SCLK
11
RCLK
12
OE
13
SER
14
Q0 15
VCC 16
74LV595A
U48
Q1 1 Q2 2 Q3 3 Q4 4 Q5 5 Q6 6 Q7 7
GND
8
SDO 9
SCLR
10
SCLK
11
RCLK
12
OE
13
SER
14
Q0 15
VCC 16
74LV595A
U60
Q1 1 Q2 2 Q3 3 Q4 4 Q5 5 Q6 6 Q7 7
GND
8
SDO 9
SCLR
10
SCLK
11
RCLK
12
OE
13
SER
14
Q0 15
VCC 16
74LV595A
U62
Q1 1 Q2 2 Q3 3 Q4 4 Q5 5 Q6 6 Q7 7
GND
8
SDO 9
SCLR
10
SCLK
11
RCLK
12
OE
13
SER
14
Q0 15
VCC 16
74LV595A
U63
Q1 1 Q2 2 Q3 3 Q4 4 Q5 5 Q6 6 Q7 7
GND
8
SDO 9
SCLR
10
SCLK
11
RCLK
12
OE
13
SER
14
Q0 15
VCC 16
74LV595A
U64
Q1 1 Q2 2 Q3 3 Q4 4 Q5 5 Q6 6 Q7 7
GND
8
SDO 9
SCLR
10
SCLK
11
RCLK
12
OE
13
SER
14
Q0 15
VCC 16
74LV595A
U61
Q1 1 Q2 2 Q3 3 Q4 4 Q5 5 Q6 6 Q7 7
GND
8
SDO 9
SCLR
10
SCLK
11
RCLK
12
OE
13
SER
14
Q0 15
VCC 16
74LV595A
U4
Q1 1 Q2 2 Q3 3 Q4 4 Q5 5 Q6 6 Q7 7
GND
8
SDO 9
SCLR
10
SCLK
11
RCLK
12
OE
13
SER
14
Q0 15
VCC 16
74LV595A
U14
RGB-135 RGB-136 RGB-137 RGB-138 RGB-139 RGB-140 RGB-141 RGB-142
+3.3V
GND
GND
STROBE_3
CLK_3
RGB_EN
0.1uF C107
Q1 1 Q2 2 Q3 3 Q4 4 Q5 5 Q6 6 Q7 7
GND
8
SDO 9
SCLR
10
SCLK
11
RCLK
12
OE
13
SER
14
Q0 15
VCC 16
74LV595A
U15
47 ohm R198

Switch Read Lines
TRACK STOP
TRACK SELECT
SCENE LAUNCH
MUTE SOLO
RECORD
A/B
DEVICE
MISC MISC
CLIP LAUNCHES
ASSY N UMB ER:
123456
D C B A
C D B A
COM PAN Y: TITL E: PART N UMBER: FILE NAM E: SCAL E:
RELE ASE D: DRA WN: DA TED:
DAT ED:
SIZE :
SHEE T: OF
ADA5 TOP PANEL PCB
AKAI PROFESSIONAL
CAN
1N4148
D339
SW92
DEV- 1N4148
D433 SW93
DEV+ 1N4148
D430 SW94
BANK- 1N4148
D431 SW95
BANK+ 1N4148
D432 SW104
DEV ON/OFF 1N4148
D442 SW105
DEV LOCK 1N4148
D443
SW28
PAN 1N4148
D367 SW29
SENDS 1N4148
D366 SW30
USER 1N4148
D368 SW31
METRONOME 1N4148
D370
SW54
NUDGE- 1N4148
D393 SW56
NUDGE+ 1N4148
D394 SW57
SHIFT 1N4148
D395 SW41
BANK LOCK 1N4148
D392 SW52
LEFT 1N4148
D382 SW53
RIGHT 1N4148
D390 SW51
UP 1N4148
D381 SW55
DOWN 1N4148
D383
SW108
PLAY 1N4148
D446 SW109
RECORD 1N4148
D447 SW110
AUTOMATION 1N4148
D448
SW106
CLIP/DEVICE 1N4148
D444 SW107
DETAIL 1N4148
D445
SW1 CL_1_1 1N4148
D340
SW2 CL_2_1 1N4148
D341
SW3 CL_3_1 1N4148
D342
SW4 CL_4_1 1N4148
D343
SW5 CL_5_1 1N4148
D344
SW6 CL_6_1 1N4148
D345
SW7 CL_7_1 1N4148
D346
SW8 CL_8_1
1N4148
D349
SW11 CL_2_2 1N4148
D350
SW12 CL_3_2 1N4148
D351
SW13 CL_4_2 1N4148
D352
SW14 CL_5_2 1N4148
D353
SW15 CL_6_2 1N4148
D354
SW16 CL_7_2 1N4148
D355
SW17 CL_8_2
1N4148
D358
SW20 CL_2_3 1N4148
D359
SW21 CL_3_3 1N4148
D360
SW22 CL_4_3 1N4148
D361
SW23 CL_5_3 1N4148
D362
SW24 CL_6_3 1N4148
D363
SW25 CL_7_3 1N4148
D364
SW26 CL_8_3
1N4148
D372
SW33 CL_2_4 1N4148
D373
SW34 CL_3_4 1N4148
D374
SW35 CL_4_4 1N4148
D375
SW36 CL_5_4 1N4148
D376
SW37 CL_6_4 1N4148
D377
SW38 CL_7_4 1N4148
D378
SW39 CL_8_4
1N4148
D385
SW43 CL_2_5 1N4148
D386
SW44 CL_3_5 1N4148
D387
SW45 CL_4_5 1N4148
D388
SW46 CL_5_5 1N4148
D389
SW47 CL_6_5 1N4148
D380
SW48 CL_7_5 1N4148
D379
SW49 CL_8_5
1N4148
D348
SW10 CL_1_2
1N4148
D357
SW19 CL_1_3
1N4148
D371
SW32 CL_1_4
1N4148
D384
SW42 CL_1_5
SW119
TAP TEMPO 1N4148
D70
1N4148
D45
SW9 TSTOP_1 1N4148
D78
SW18 TSTOP_2 1N4148
D131
SW27 TSTOP_3 1N4148
D160
SW40 TSTOP_4 1N4148
D169
SW50 TSTOP_5 1N4148
D320
SW58 TSTOP_6 1N4148
D321
SW59 TSTOP_7 1N4148
D322
SW60 TSTOP_8
1N4148
D331
SW61 TSEL_1 1N4148
D332
SW66 TSEL_2 1N4148
D333
SW71 TSEL_3 1N4148
D334
SW76 TSEL_4 1N4148
D335
SW81 TSEL_5 1N4148
D336
SW86 TSEL_6 1N4148
D337
SW91 TSEL_7 1N4148
D338
SW100 TSEL_8
1N4148
D347
SW65 SL_1 1N4148
D356
SW70 SL_2 1N4148
D365
SW75 SL_3 1N4148
D369
SW80 SL_4 1N4148
D391
SW85 SL_5 1N4148
D396
SW90 STOP ALL 1N4148
D397
SW99 MASTER
1N4148
D37
SW62 MUTE_2 1N4148
D38
SW63 MUTE_3 1N4148
D39
SW64 MUTE_4 1N4148
D40
SW67 MUTE_5 1N4148
D41
SW68 MUTE_6 1N4148
D42
SW69 MUTE_7 1N4148
D43
SW72 MUTE_8
1N4148
D44
SW73 MUTE_1
1N4148
D398
SW74 SOLO_1 1N4148
D399
SW77 SOLO_2 1N4148
D400
SW78 SOLO_3 1N4148
D401
SW79 SOLO_4 1N4148
D402
SW82 SOLO_5 1N4148
D403
SW83 SOLO_6 1N4148
D404
SW84 SOLO_7 1N4148
D405
SW87 SOLO_8
1N4148
D406
SW88 REC_1 1N4148
D407
SW89 REC_2 1N4148
D408
SW96 REC_3 1N4148
D409
SW97 REC_4 1N4148
D410
SW98 REC_5 1N4148
D411
SW101 REC_6 1N4148
D412
SW102 REC_7 1N4148
D413
SW103 REC_8
1N4148
D414
SW111 AB_1 1N4148
D415
SW112 AB_2 1N4148
D416
SW113 AB_3 1N4148
D417
SW114 AB_4 1N4148
D418
SW115 AB_5 1N4148
D419
SW116 AB_6 1N4148
D420
SW117 AB_7 1N4148
D421
SW118 AB_8
SW-RET13 SW-RET12 SW-RET11 SW-RET10 SW-RET9 SW-RET8 SW-RET7 SW-RET6 SW-RET5
SW-DRV0
SW-RET0
SW-DRV1
SW-RET1
SW-DRV2
SW-RET2 SW-RET3
SW-DRV3
SW-DRV4
SW-RET4
SW-DRV5
SW-DRV6
SW-RET14
SW-DRV7
SW-DRV[0..7]
SW-RET[0..14]
Copyright 2013 - Akai Professional
ADA5TP102A.sch
9/13/2013
Switch Enable Lines
ABBREVIATIONS CL_X_Y = Clip Launch, Col X, Row Y TSTOP_X = T rack Stop, Col X TSEL_X = Track Select, Col X MUTE_X = Mute, Col X SOLO_X = Solo/Cue, Col X REC_X = Record, Col X SL_X = Scene Launch, Col X AB_X = A/B Assign, Col X
3 6
9-40-0681-1 9-79-0681-1-0
c
SW-DRV[0..7]
SW-RET[0..14]
