Akai MPK49 User manual

SPECIFICATIONS
GENERAL
Display custom LCD w/ backlight
Dimensions (WxDxH) 730mm x 300mm x 100mm
Weight 5.8kg
Power ~100mA, 5V DC via USB
~1A, 6V DC via external adaptor
Number of Presets 30
MIDI output channels over USB 48 (16 channels x 3 ports)
MIDI output channels from 5-pin MIDI 16
Keyboard 49 Semi-Weighted keyboard (velocity
and channel pressure sensitive)
Drum pads 12 (velocity and pressure sensitive)
Drum pad banks 4
Sliders 8
360 degree knobs 8
Switches 8
Accessories
User’s manual
USB cable (1m)
CD-ROM disc
INPUTS/OUTPUTS
MIDI inputs 5-pin DIN x 1
MIDI outputs 5-pin DIN x 1
USB Slave connector x 1 (MIDI over USB)
DC IN 6V DC, 1A
SERVICE MANUAL
MODEL: MPK 49

DISASSEMBLY PROCEDURES

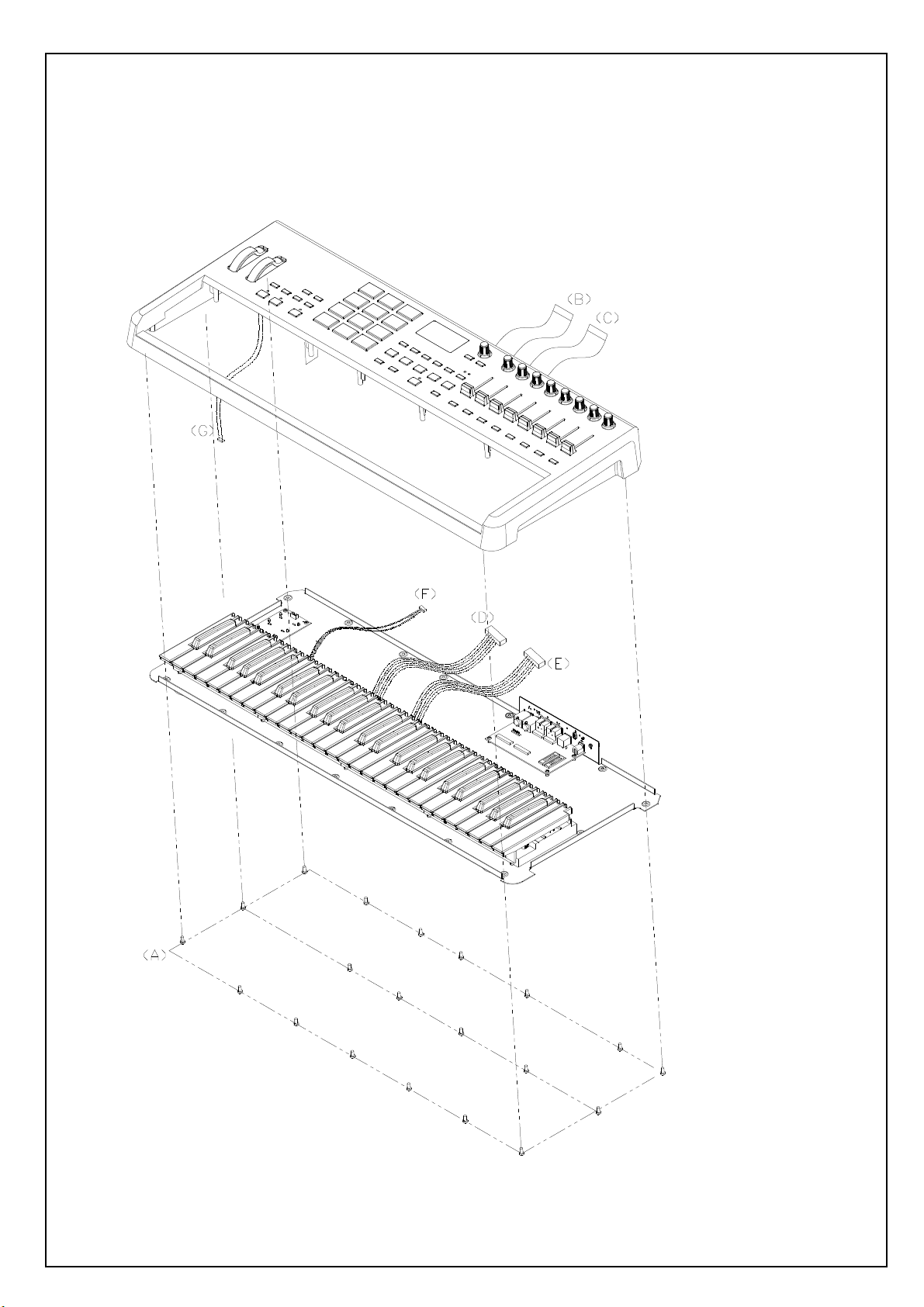

1. DISASSEMBLE THE CABINET (Fig1)
(A) REMOVE 20 SCREWS FROM BOTTOM PANEL.
(B)(C)(D)(E)(F)(G) REMOVE 6 CABLES.
(Fig1)

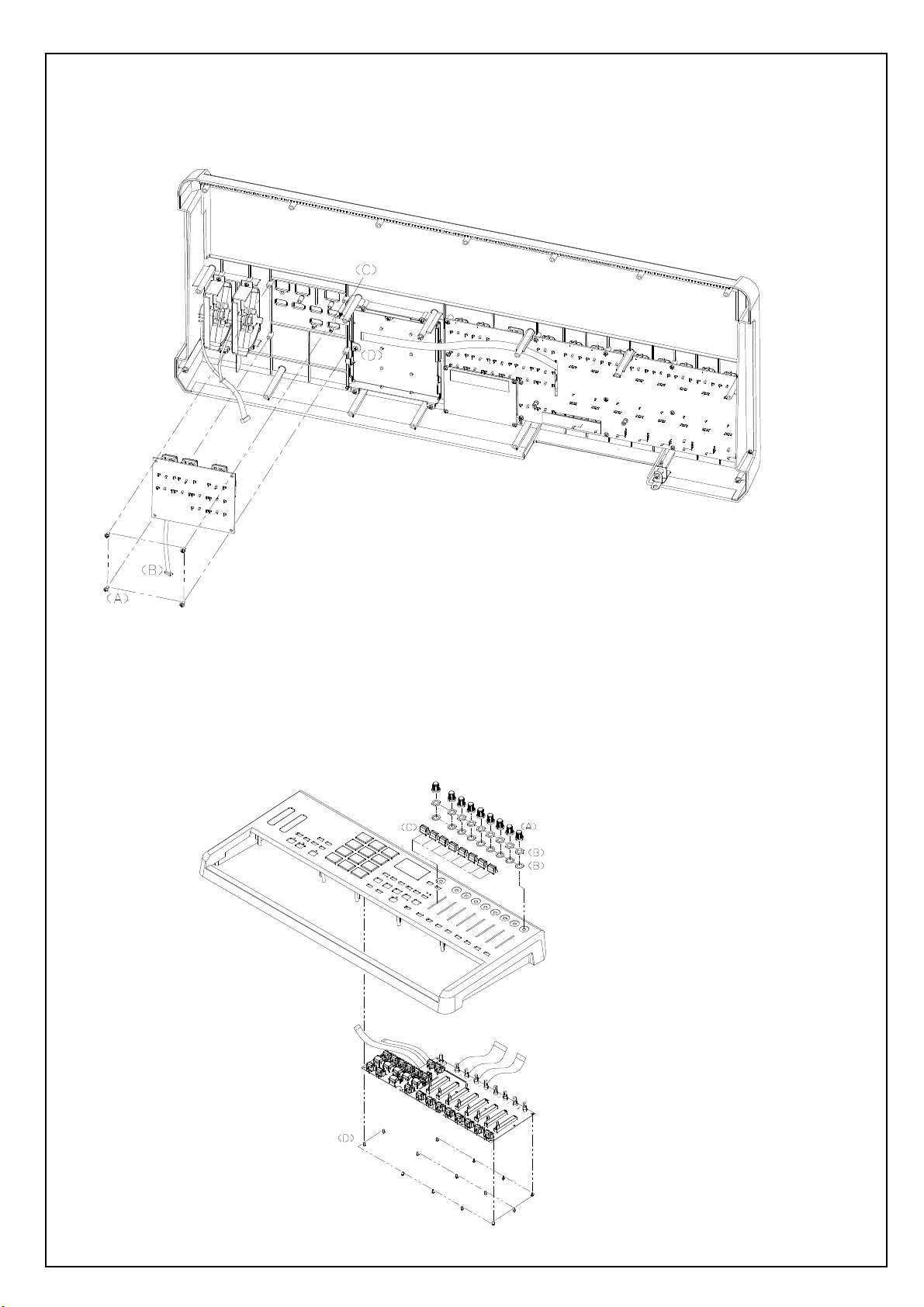

2. DISASSEMBLE THE LEFT PANEL PCB ASS’Y. (Fig2)
(A) REMOVE 4 SCREWS
(B) REMOVE 1 CABLE
(C) REMOVE PAD SENSOR
(Fig.2)
3.DISASSEMBLE THE RIGHT PANEL PCB ASS’Y. (Fig.3)
(A) REMOVE 9 KNOBS
(B) REMOVE 9 NUTS AND 9 WASHERS
(C) REMOVE 8 SLIDER CAPS FROM THE TOP PANEL
(D) REMOVE 14 SCREWS
(E) REMOVE ALL CABLES
(Fig.3)

4.DISASSEMBLE THE LED PCB ASS’Y. (Fig.4)
(A) REMOVE 4 SCREWS.
(Fig.4)
5.DISASSEMBLE THE MAIN PCB ASS’Y. (Fig.5)
(A) REMOVE 2 NUTS
(B) REMOVE 3 SCREWS


     



       





 


 

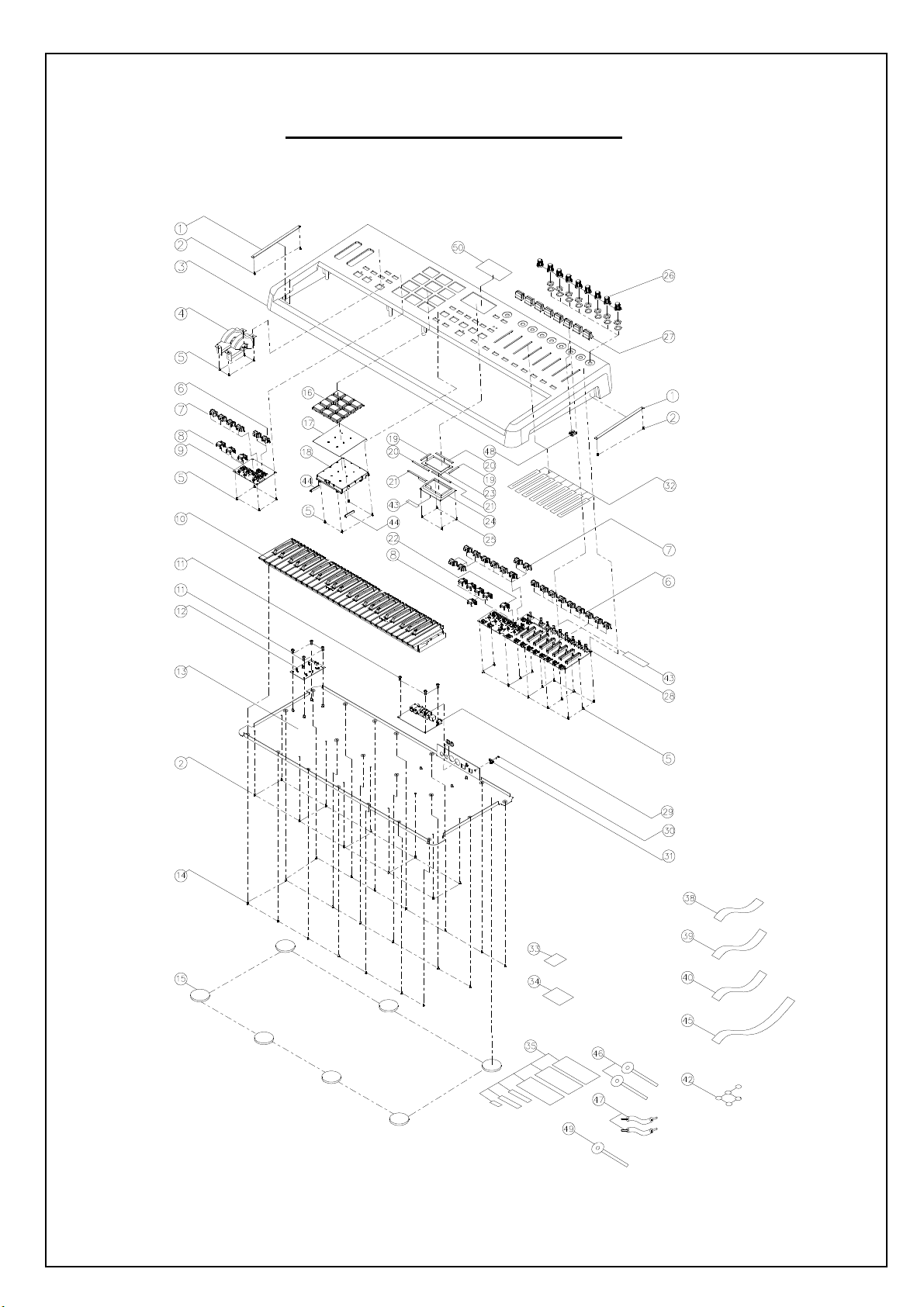

LEVEL
P/N DESCRIPTION QTY REF

AA822333X BUTTON PUSH B (7) 1 22

BAAMB-12S-50 FLEXIBLE BUSHING 50X1.2MM 2 44

BAGL-40A CABLE CLIP 40L 2 46

BAGL-55A CABLE CLIP 55L 1

BAS-MS-RR3NNS PAD SENSOR 1 17

CN0100000701 WIRE 70mm 2 47

EVA1304408 FOAM EVA STRIP 71X4X1.5tMM SA 2 21

EVA1504405 FOAM EVA STRIP 75X16X1.0tMM SA 2 43

FFC1810001801 CONNECTOR 18P 180MM 1MM 1 38

FFC2210002001 CONNECTOR 22P 200MM PITCH:1MM 1 39

FFC2610002001 CONNECTOR 26P 200MM PITCH:1MM 1 40

FFC2610003001 CONNECTOR 26P 300MM PITCH:1MM 1 45

LAC22AKA22 STICKER BARCODE S/N AD49 1 35

LAC42YAH298 STICKER ROHS 1 33

LAC52ALE01 STICKER SAFETY 1 34

LAC67MAR195 TAPE DOUBLE SIDE 68X5 MM 2 20

LAC67MAR196 TAPE DOUBLE SIDE 50X7 MM 2 19

LAP67YAH255 STICKER

10mm RED 5 42

LCM-WTDH002 LCM ASS'Y 1 24

MT1501804 PLATE SOLDER GND 1 48

MT1504406 BRACKET PAD SENSOR 1 18

MT150441501 SIDE HANDLE METAL COVER-PAINT 2 1

MT1504415 SIDE HANDLE METAL COVER 2

MT153030401 BOTTOM PANEL-PAINT,PRINT 1 13

MT1530304 BOTTOM PANEL 1

NM1106112 NONWOVEN 60X10 MM ,ADHESIVE 8 32

PAD49AKA01 PACKING 1

AA821535X USB CABLE L:1M 1

AA822328X SHEET POLY 900X900 1

AL7-51-0226 SAFETY MANUAL 1

AL9-63-0008 MPK49(AD49) CD 1

AL9-63-0010 ABLETON LIVE LITE CD 1

CB513S033 CARDBOARD INSERT PACKING 1

CB513S034 CARDBOARD INSERT PACKING 1

CGAD49513AKA01 BOX GIFT AD49 1

CTAD49513AKA01 BOX SHIPPING AD49 1

GEAKA04 ABLETON CARD 1

LAC22AKA42 STICKER S/N ABLETON 1

LAC67YAH261 STICKER

8mm GREEN 1

OPAD49AKA02 QUICK START MANUAL AD49 1

PE150350BO POLYBAG 150X350 MM 1

PE230370402B07 POLYBAG 230X370 MM 1

PLAD4901 POLYFOAM LEFT 1

PLAD4902 POLYFOAM RIGHT 1

PUAD4901 FOAM STRIP 680X24X14 MM 1

PT1110685 BUTTON PUSH MEDIUM ,CLEAR 11 6

PT1304315 POWER CABLE RETAINER 1 31

PT1501404 LENS LCD 1 23

PT1504409 FILM COVER LENS 1 50

PT151060202 SLIDER CAP PAINT,BLACK 8 27

PT1510602 SLIDER CAP 8

PT1510604 BUTTON PUSH B(6)(COOLGRAY 4C) 8 8

PT1510631 BUTTON PUSH MEDIUM ,COOLGRAY 4C 14 7
MPK 49 BOM


PT153000501 TOP PANEL-PAINT,PRINT 1 3

PT1530005 TOP PANEL 1

RU1330701 FOOT STAND 7 15

RU1504303 RUBBER DRUM PAD 1 16

SC0208RBCI SCREW M2X8 MM PRZ TAPPING 4 25

SC0306RICI SCREW M3X6 MM PRZ 7 11

SC0308RBNI SCREW M3X8 MM PRN TAPPING 26 5

SC0310BIBI SCREW M3X10 MM PPB 1 30

SC0310RBBI SCREW M3X10 MM PRB TAPPING 14 2

SC0408PBBI SCREW M4X8 MM PPB TAPPING 20 14

TWBAEP-490-W-AF ASS'Y Keybed Ta Horng 49-key 1 10

BAEP-490-W-AF
Keybed Ta Horng 49-key with Aftertouch EP-490-W-AF
1

BAGL-55A CABLE CLIP 55L 1 49

CN0225406401 CONNECTOR 2P 640MM 2.54MM 1

CN1625403501 CONNECTOR 1

CN1625404301 CONNECTOR 16P 430MM 2.54MM 1

TWPT151062001 ASSY KNOB/CAP BLACK 9 26

PT1510620 KNOB AD24,COOLGRAY 4C 9

PT1510621 KNOB CAP AD24,BLACK 9

TWPT151063001 ASSY P/M WHEEL 1 4

AL0-09-0037 VARIABLE RESISTOR 2

AL7-13-0080 HEAT SHRINK TUBING 1/16 X5/8 2

AL9-06-0018 SPRING MOD WHEEL 24X24X0.2 MM 1

AL9-06-0030 SPRING PITCH WHEEL

7.0X

0.9 MM 1

CN0620002305 CONNECTOR 6P 230MM 2MM 1

MT1304412 BRACKET P/M WHEEL 2

PT1510630 PITCH/MOD WHEEL 2

WS1306505 WASHER FLAT 13X6.5X 0.5 MM 1
1AL9-79-0450 MIAN PCB ASS'Y 1
2AA822395X 26P FFC CONNECTOR 1 J12
2AA822748X DIODE BAV99 5 D1,2,5,7,8
2AL0-16-1004 RESISTOR 1M(SMD)1% 1 R47
2AL0-16-1102 RESISTOR 11K(SMD)1% 2 R75,76
2AL0-16-1331 RESISTOR 1.33K(SMD)1% 1 R81
2AL0-16-1582 RESISTOR 15.8K(SMD)1% 4 R50,56,71,77
2AL0-16-2321 RESISTOR 2.32K SMD 1% 1 R86
2AL0-16-3321 RESISTOR 3.32K(SMD)1% 4 R83,84,87,88
2AL0-16-3322 RESISTOR 33.2K(SMD)1% 2 R52,66
2AL0-16-4751 RESISTOR 4.75K(SMD)1% 2 R82,85
2AL0-16-4752 RESISTOR 47.5K(SMD)1% 4 R54,55,68,69
2AL0-16-8060 RESISTOR 806

SMD 1% 1 R44
2AL0-16-8661 RESISTOR 8.66K (SMD)1% 1 R53
2AL0-17-0101 RES ARRAY 4X100

1/16W 9 R41,57,59,61~64,72,74
2AL1-56-0220 CAP 22PF NPO 5% 50V 2 C51,53
2AL1-61-1102 CAP SMD 1000PF/50V NPO 0603 13 C6~8,10,34,35,38,39,42,43,45,46,52
2AL1-62-0104 CAP 0.1UF X7R 10% 0603 42 C2~4,9,12,13,15~22,25,26,31~33,36,40
C47,48,54~59,61~65,67~72,74,75
2AL1-62-0105 CAP 1UF X5R 10% 10V 0603(SMD) 3 C11,14,30
2AL2-51-0140 DIODE MBRS140LT3 2 D3,4
2AL2-51-4401 TRANSISTOR 2N4401 1 Q2
2AL2-51-4403 TRANSISTOR 2N4403 3 Q1,3,4
2AL2-52-5242 DIODE MMBZ5242B 2 D6,9
2AL2-54-6306 TRANSIST0R FDC6306P 1 U3
2AL2-61-7223 IC NJU7223DL1-33 3.3V TO-252 1 U1
2AL2-71-1324 IC LMV324 SOP-14 1 U10
2AL2-73-4051 IC74HC4051 SOIC-16 1 U5

2AL2-74-0181 IC TLP181 1 U2
2AL4-00-0002 JACK 5P MIDI 2 J4,5
2AL4-02-0007 JACK 7P(6.3) 2 J1,2
2AL4-08-0402 USB JACK (USB1.1) 1 J3
2AL4-14-0116 CONNECTOR 6P DIL 2 J9,10
2AL4-15-0004 CONNECTOR 4P 2.54 180° 1 J8
2AL7-01-0060 CRAYSTAL 40M SMD 1 U8
2AL7-01-0061 CRAYSTAL 6.1M SMD 1 U6
2AL7-20-0102 BEAD 1000

100MHZ 0.2A 2 L3,5
2AL9-40-0450 MAIN PCB 1 -
2AL9-61-0161 IC (AL2-70-3433)) 1 U7
2AL2-70-3433 IC UPSD3433EV-40U6 1
2AL9-61-0162 IC (ICLCMXO640C) 1 U9
2ICLCMXO640C IC LCMXO640C-3TN100C 1
2AL9-61-0163 IC (AL2-69-2458) 1 U4
2AL2-69-2458 IC EEPROM SERTAL 24C256 1M SOI 1
2CS103K5003X7R CAP SMD 0.01uF 10%50V 03X7R 6 C5,49,60,66,73,76
2EC10716S ELECTRIC CAP 100UF/16V DIP 1 C37
2ECS47525BP ELECT CAP 4.7UF/25V SMD 4 C1,23,24,44
2FCN1R1002201 22P FFC CONNECTOR 1 J13
2JKDJ-0702B-020 DC BASE 2.0MM 1 J6
2PT1304702 PLATE 18X4.1X0.6 MM ,ADHESIVE 1 (J5)
2RS000008J05 RES 0

5% SMD 0805 10 R1,2,12,51,60,70,73,78,80,89
2RS001K08J05 RES 1K 5% SMD 0805 7 R3,6,11,16,18,20,24
2RS002208J05 RES 22

5% SMD 0805 2 R45,46
2RS004708J05 RES 47

1/8W 0805 2 R5,9
2RS010008F05 RES 100

1% SMD 0805 1 R32
2RS010K08J05 RES 10K 5% SMD 0805 9 R7,8,19,23,26,34,42,48,65
2RS022008J05 RES 220

5% SMD 0805 3 R10,21,22
2RS04K708J05 RES 4.7K 5% SMD 0805 11 R13,14,35~40,43,49,79
2RS051008J05 RES 510

5% SMD 0805 1 R4
2RS100K08J05 RES 100K 5% SMD 0805 7 R17,25,27~29,33,67
2RS82418J05 RES 820K 5% SMD 0805 1 R15
2RS82K508F05 RES 82.5K 1% SMD0805 1 R58
2TE512540801 TERMINAL 8P 2.54mm 1 J11
2TE962541401 CONNECTOR 14P 1 J7
2UHLPF3218MF100M 10UH 1A 0.29

SMD 2 L1,2
1AL9-79-0451 LEFT PCB ASS'Y 1
2AA822395X 26P FFC CONNECTOR 1 J3
2AA822748X DIODE BAV99 9 D1~6,13~15
2AL1-62-0104 CAP 0.1UF X7R 10% 0603 8 C1~4,7,10,13,14
2AL2-49-0070 DIODE BAV70 6 D7~12
2AL2-51-4401 TRANSISTOR 2N4401 1 Q1
2AL2-62-0004 IC 74AHC04 1 U2
2AL2-71-1324 IC LMV324 SOP-14 1 U1
2AL3-02-0080 LED L-169XSYDK 2 LED1,2
2AL9-40-0451 LEFT PCB 1 -
2BALE48201-5A LED HOLDER

4.8X1.5MM 2 HW1,2
2CN0620002301 6P pitch 2.0MM L:230MM 1 J1
2CS103K5003X7R CAP SMD 0.01uF 10%50V 03X7R 3 C8,9,11
2CS561J5005COG SMD 560P 5%50V 05COG 3 C5,6,12
2FCN1R1001601 FFC CONNECTOR BASE 16P 90° 1 J4
2IC74LVC139AD IC74LVC139AD SOP-16 1 U3
2LD1030 LED GREEN DIP 3 LED3~5
2PT111048009 LED HOLDER

4.8X9.0MM 3 HW3~5
2RS000008J05 RES 0

5% SMD 0805 2 R19,24

2RS001K08J05 RES 1K 5% SMD 0805 1 R3
2RS010K08J05 RES 10K 5% SMD 0805 5 R5,8,12,17,23
2RS022008J05 RES 220

5% SMD 0805 3 R20~22
2RS027K08J05 RES 27K 5% SMD 0805 3 R10,11,15
2RS047008J05 RES SMD 470

5% SMD 0805 3 R4,9,16
2RS04K708J05 RES 4.7K 5% SMD 0805 3 R6,7,18
2RS15018J05 RES 15

5% SMD 0805 2 R1,2
2RS68018J05 RES 68

5% SMD 0805 2 R13,14
2SWSKHVBB3420 SWITCH 4.3 mm 9 S1~9
2TE10200602 CONNECTOR(6P 90°2.0MM) 1 J2
1TWPC07A00801 AD49 RIGHT PCB ASS'Y
1AL9-79-0452 RIGHT PCB ASS'Y 1
2AA822395X 26P FFC CONNECTOR 2 J1,4
2AA822748X DIODE BAV99 26 D1~26
2AL0-09-0044 VARIABLE RESISTOR 2.5KB 8 R2~9
2AL0-09-0057 VARIABLE RESISTOR 10KB 8 R21~28
2AL0-16-1004 RESISTOR 1M(SMD)1% 0805 3 R16,17,19
2AL0-17-0680 RESISTOR 4X68 1/16W 0603 2 R33,34
2AL1-08-0222 ELECT 22UF/16V SMALL 1 C26
2AL1-56-0102 CAP 1000PF NPO 100V 0805(SMD) 4 C46,53,66,78
2AL1-62-0104 CAP 0.1UF X7R 10% 0603 (SMD) 49 C9~17,27~36,38~45,47,48,51,52,54~56,59,63~65,67~77
2AL2-51-4401 TRANSISTOR 2N4401 2 Q1,2
2AL2-51-4403 TRANSISTOR 2N4403 2 Q3,4
2AL2-64-0154 IC 74HC154 4-TO-6 LINE SOIC-24 1 U3
2AL2-73-4051 IC74HC4051 IC74HC4051 SOIC-16 3 U1,2,5
2AL3-02-0080 LED L-169XSYDK 9 LED4~12
2AL4-15-1800 CONNECTOR 18P 90° 1 J3
2AL6-00-0013 ENCODER 1 E1
2BALE48201-5A LED HOLDER

4.8X1.5MM 9 HW4~12
2DIZDSMAJ10ASM DIODE DSMAJ10A 1 D27
2FCN1R1002201 22P FFC CONNECTOR 1 J2
2IC74AC574PW IC74AC574PW TSSOP-20 2 U4,6
2LD-LG2040 LED GREEN 3MM 1 LED2
2LD1030 LED GREEN 3MM 2 LED1,3
2PT111048009 LED HOLDER

4.8X9.0MM 3 HW1~3
2RS001008J05 RES 10

5% SMD 0805 1 R15
2RS001208J05 RES 12

5% SMD 0805 1 R12
2RS010K08J05 RES 10K 5% SMD 0805 7 R1,13,14,29~32
2RS022008J05 RES 220

5% SMD 0805 3 R18,20,35
2RS047008J05 RES 470

5% SMD 0805 1 R11
2RS100K08J05 RES 100K 5% SMD 0805 1 R10
2RS68018J05 RES 68

5% SMD 0805 1 R36
2SWSKHVBB3420 SWITCH 4.3 mm 25 S1~25
1AL9-79-0453 LED PCB ASS'Y 1
2AL3-02-0080 LED L-169XSYDK 6 D1~6
2BALE48201-5A LED HOLDER

4.8X1.5MM 6 (D1~6)
2RS001008J05 RES 10

5% SMD 0805 6 R1~6
2TE10200602 CONNECTOR(6P 90°2.0MM) 1 J1

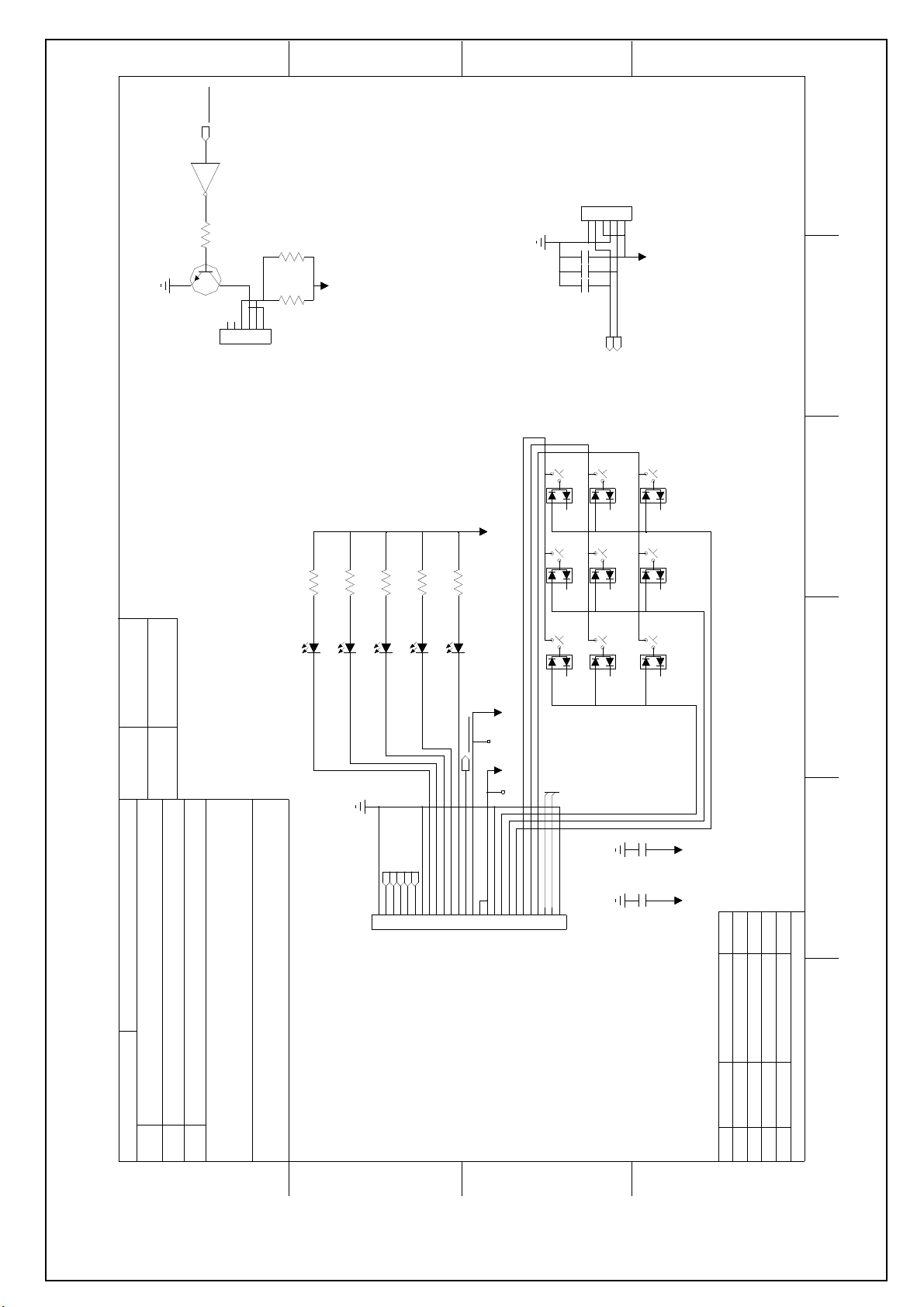

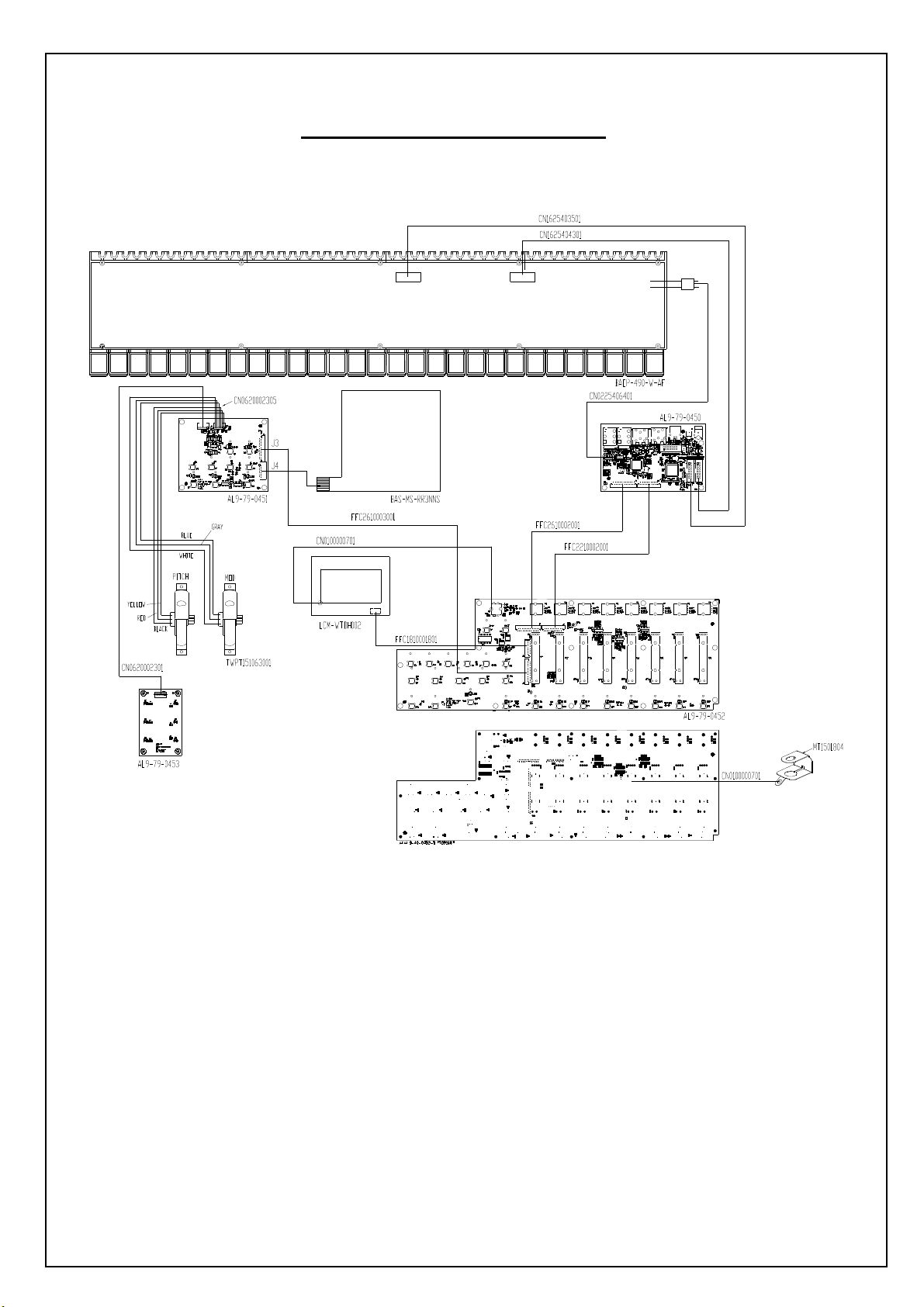

10k
R34
Z1
0 ohm
R12
R64-B
100 ohm R64-C
100 ohm R64-D
100 ohm R57-A
100 ohm R57-B
R61-A
100 ohm R59-D
100 ohm R62-B
100 ohm R72-D
100 ohm R72-C
R74-D
1
R38
4.7k R37
4.7k R36
4.7k R35
4.7k R43
R42
100 ohm 1%
R32
100 ohm
R41-C 100 ohmR41-B
R61-B
100 ohm
R63-C
100 ohmR63-D
100 ohmR63-A 100 ohmR63-B
R59-C 100 ohmR59-B 100 ohmR59-A
R14
100k
R33
+3V3
FPGA_INT
FPGA_SELECT
FPGA_EN
BUTTON_COLUMN0
KEYBED_COL0 KEYBED_COL3 KEYBED_COL2 KEYBED_COL5 KEYBED_COL4 KEYBED_COL7 KEYBED_COL6 KEYBED_COL9
POWER_EN
+3V3
PAD_SCAN_SEL[0:1]
PAD_SCAN_SEL0
PAD_SCAN_SEL1
KEYBED_ROW[0:7]
KEYBED_COL1
KEYBED_ROW6
KEYBED_ROW7
KEYBED_ROW[0:7]
KEYBED_COL8 KEYBED_COL9
ANALOG_TOP
+3V3_FULL
+3V3
KEYBED_COL10
KEYBED_COL11
KEYBED_ROW0
KEYBED_ROW1
KEYBED_ROW2
KEYBED_ROW3
KEYBED_ROW4
KEYBED_ROW5
KEYBED_COL4
KEYBED_COL5
KEYBED_COL2
KEYBED_COL3
KEYBED_COL0
KEYBED_COL1
KEYBED_COL12
KEYBED_COL13
FOOTSWITCH
BTN_SCAN_SEL3
BTN_SCAN_SEL2
BTN_SCAN_SEL1
BTN_SCAN_SEL0
BTN_SCAN_SEL[0:3]
KEYBED_COL6
KEYBED_COL7
BUTTON_COLUMN[0:3]
TDI_FPGA
TMS_FPGA
TCK_FPGA
PAD_SCAN_SEL1
PAD_SCAN_SEL0 PAD_SCAN_SEL[0:1]
+3V3
BTN_SCAN_SEL0
BTN_SCAN_SEL1 BTN_SCAN_SEL[0:3]
LCD_CONTRAST
BUTTON_COLUMN3 BUTTON_COLUMN2
BUTTON_COLUMN1
BUTTON_COLUMN0
+3V3
ANALOG_SELECT2
ANALOG_SELECT1
ANALOG_SELECT0
ANALOG_SELECT[0:2]
+3V3
BTN_SCAN_SEL3
BTN_SCAN_SEL2
LCD/LED/FPGA_DATA7
LCD/LED/FPGA_DATA6
LCD/LED/FPGA_DATA5
LCD/LED/FPGA_DATA4
LCD/LED/FPGA_DATA3
LCD/LED/FPGA_DATA2
LCD/LED/FPGA_DATA1
LCD/LED/FPGA_DATA0
KEYBED_ROW1
KEYBED_ROW0
FPGA_SELECT
FPGA_EN
POWER_EN
TDO_FPGA
ANALOG_TOP
KEYBED_COL[0:13]
KEYBED_ROW7
KEYBED_ROW6
KEYBED_ROW5
KEYBED_ROW4
KEYBED_ROW3
KEYBED_ROW2
LCD/LED/FPGA_DATA3
LCD/LED/FPGA_DATA2
LCD/LED/FPGA_DATA1
LCD/LED/FPGA_DATA0
TAP_TEMPO_LED
FPGA_INT
USB-
USB+
LCD/LED/FPGA_DATA2
LCD/LED/FPGA_DATA1
LCD/LED/FPGA_DATA0
LCD/LED/FPGA_DATA[0:7]
LCD/LED/FPGA_DATA7
LCD/LED/FPGA_DATA6
LCD/LED/FPGA_DATA5
LCD/LED/FPGA_DATA4
BTN_SCAN_SEL1
BTN_SCAN_SEL0
BTN_SCAN_SEL[0:3]
LCD/LED/FPGA_DATA7
LCD/LED/FPGA_DATA6
LCD/LED/FPGA_DATA5
LCD/LED/FPGA_DATA4
LCD/LED/FPGA_DATA3
ANALOG_SELECT[0:2]
BUTTON_COLUMN3
BUTTON_COLUMN2
BUTTON_COLUMN1
BUTTON_COLUMN0 BUTTON_COLUMN[0:3]
BTN_SCAN_SEL3
BTN_SCAN_SEL2
PITCH_POT
LCD_CONTRAST_DC
LCD_RS
LCD_RW
LCD_E
ANALOG_SELECT2
ANALOG_SELECT1
ANALOG_SELECT0
ANALOG1
ANALOG0 ANALOG[0:3]
+3V3_FULL
+3V3
TAP_TEMPO_LED
+5VUNREG
MOD_POT
ANALOG_TOPPAD_RETURN2
PAD_RETURN1
PAD_RETURN0 PAD_RETURN[0:2]
ENC_B
ENC_A
ANALOG2
KEYBED_COL8
KEYBED_COL11
KEYBED_COL10
KEYBED_COL13
KEYBED_COL12
POWER_EN
+3V3
MIDI_RX
LCD_E
TDO
TDI
TCK
TMS
RESET
+3V3
MIDI_TX
SDA
SCL
PAD_RETURN[0:2]
ENC_A
ENC_B
USB_DIS
LCD_RS
LCD_RW
PAD_RETURN0
PAD_RETURN2
PAD_RETURN1
+3V3
+3V3
+3V3
SDA
SCL
ANALOG0
+3V3
LCD/LED/FPGA_DATA[0:7]
POWER
ANALOG3
ANALOG2
ANALOG1
ANALOG[0:3]
0.1uF
C63
C44
4.7uF,25V
1000pFC38
1000pFC35
1000pF
C52
CB201209T-102Y
L5
0.1uF
C54
0.1uF
C55
0.1uF
C75
0.1uF
C12
0.1uF
C36
0.1uF
C33
0.1uF
C56
0.1uF
C68
0.1uF
C65
0.1uF
C62
CB201209T-102Y
L3
4.7uF,25V
C24
4.7uF,25V
C23
GND
VCC
8
4
A2
3A1
2A0
24C256
U4
SDA 5
SCL
6
WP 7
0.1uF
C57
0.1uF
C47
0.1uF
C48
Z2 Z3
1000pFC46
1000pFC43
1000pFC39
1000pFC42
7
6
5
4
3
2
1 15 14 13 12 11 10
9
8 23 22 21 20
19 18 17 16
5
4
3 2
1 13 12 11 10
9 8 7 6 21 20
19 18 17 16 15 14
10k R48 MBT4403
Q3
0 ohmR31
94
GNDIO0
93
VCCIO0 92
PT3F 91
VCC
98
PT2E 97
PT2F 96
PT3A 95
PT3B
3
GND
2
1
4
3
2
1
12
11
10
9
8
7
6
5
3
2
1
11
10
9
8
7
6
5
4
0.1uF
C32
0.1uF
C31
0.01uF
C73
PB6B
38 PB5D
37 PB5B
36
VCC 35
GNDIO2
42
VCCIO2 41
GND
40
PB6C
39
PB9A
46 PB8D
45 PB8C
44 PB8B
43
50 PB9D
49
SLEEP
48
PB9C
47
54
PR11C 53
PR11B 52
PR11D 51
PB9F
58
PR10B 57
PR10C 56 PR10D 55
PR11A
62
PR9B 61
VCCIO1 60
PR9D 59
PR10A
66
PR6B 65
PR6C 64
PR7B 63
GNDIO1
70
PR4B 69
PR4D 68
PR5B 67
PR5D
74
PR2B 73
PR2D 72
PR3B 71
PR3D
78
PT9E 77
PT9F 76
GNDIO1
75
VCCIO1
82
GNDIO0
81
VCCIO0 80
PT9A 79
PT9C
86
PT6B 85
GND
84
PT7A 83
PT7E
90
PT4F 89
VCC_AUX 88
PT5A 87
PT5B
PL2C
2PL2A1
PL3B
6PL3A
5PL2D
4PL2B
3
VCCIO3 10
PL4A
9PL3D
8PL3C
7
PL5B
14 PL4D
13
GNDIO3
12
PL4C
11
PL9A
18 PL8D
17 PL8C
16 PL7B
15
PL11A22 PL10C
21 PL10A 20 PL9C
19
TMS
26
GNDIO3
25
VCCIO3 24
PL11C23
GNDIO2
30
VCCIO2 29
TCK
28
PB2C
27
PB4E
34
TDI
33
PB4C
32
TDO
31
PSEN 63
WR 62
P1.6 61
P1.5 60
PB6
67 PB7
66
RD 65
P1.7 64
72
PB5
71
VREF
70
69
RESET_IN
68 76
P3.0 75
PB3
74 PB4
73
AVCC
80 P3.2 79
PB1
78 P3.1 77
PB2
UPSD3433EV-40U6
U7
PB0
40.000 MHz
U8
VCC
4
3
GND
2
1
JTAGTDO
6
PC7
5
ALE 4
PD1
3
VCC
10
PC4
9
DEBUG
8
JTAGTDI
7
15
USB-
14
13
VDD
12
USB+
11
19
P4.7 18
JTAGTCK
17
PC2
16 PC3
23
PA6
22 PA7
21
JTAGTMS
20
P4.6
27
PA4
26
P4.4 25
PA5
24
P4.5
31
P4.2 30
GND
29
PA3
28
P4.3
35 PA1
34
P4.0 33
PA2
32
P4.1
39
AD2 38
AD1 37
AD0 36
PA0
43
P3.5 42
AD4 41
P3.4 40
AD3
47
P3.7 46
AD6 45
P3.6 44
AD5
NC1
51
50
XTAL2
49 XTAL1 48
AD7
NC3 55
P1.1 54
NC2
53
P1.0 52
P1.4 59
P1.3 58
NC4 57
P1.2 56
N/C
* decoupling cap should be placed close to microcontroller
****
DNS
N/C
N/C N/C N/C N/C N/C N/C N/C N/C
22 ohm
R46
22pF
C53
P3.3 2
PD2
1
OF
C
AKAI
SCALE:
RELEASED:
DRAWN: DATED:
DATED:
REV:
SIZE:
SHEET:
C
D
B
A
COMPANY:
TITLE:
PART NUMBER:
FILENAME:
3456
D
C
B
A
ASSY NUMBER:
REVISION RECORD
APPROVED:ECO NO:
LTR DATE:
12
9-40-0450-A
MICRO & FPGA AD49 MAIN PCB
N/C
2
31
Copyright (c) 2007 Akai Digital Ltd.
N/C
N/C
DNS
DNS
R.E./I.F/J.B/M.S. 7/6/2007
AD49MNA04A.sch
9-79-0450-A-1
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
LOWER KEYS
PLACE DECOUPLING CAPS NEAR VCC AND VCCIO PINS
N/C
N/C
N/C N/C N/C
N/C
N/C N/C N/C N/C
N/C
N/C
N/C
UPPER KEYS
DECOUPLING
FPGA
N/C N/C N/C N/C N/C N/C N/C N/C N/C
SEEPROM
N/C N/C
MICROCONTROLLER
DECOUPLING
TO
RIGHT
PCB
TOP
TO
N/C N/C N/C
N/C N/C
N/C
N/C
N/C
RIGHT
PCB
TOP
J9
16
15
14
13
6.100MHz
U6
VCC
4
LCMXO640C-3TN100C
U9
PT2A 100
PT2C 99
PT2B
BLM21BB121SN1
L4
22pF
C51
22 ohm
R45
4.7k R13
4.7k
DNS
N/C N/C N/C N/C N/C N/C
100 ohm
100 ohmR62-D 100 ohmR62-C 100 ohmR62-A
100 ohm
J10
16
15
14
13
12
4.7k R49
100 ohmR74-B 100 ohmR74-A
10k
22FMZ-ST(LF)(SN)
J13
22
26FMZ-ST(LF)(SN)
J12
26 25 24
0.01uF
C66
100 ohmR41-A
100 ohmR41-D
100 ohmR61-C
100 ohm R72-A
100 ohm R72-B
100 ohm R74-C 100 ohm
4.7k R40
4.7k R39
4.7k
0.1uF
C74
100 ohm R57-C
100 ohm R57-D
100 ohm R61-D
100 ohm
1000pFC34
0 ohm
R78
0 ohm
R80
100 ohm R64-A
100 ohm

SD
G
C
820k
R15
1kR6
1k
R24
R19
R65
4.7k R79
10k R26
100k R29
100k R28
100k R27
47 ohm
R9
47 ohmR5
R23
220 ohm
R21
220 ohm
R22
220 ohmR10
1kR20
TP3TP2
1k
R3
510 ohm
R4
0 ohm
R2
0 ohm
R1
10k
R7
10k
R8
MBRS140LT3
D3
OUT1
GND
AD49MNA04A.sch
7/6/2007R.E./I.F/J.B/M.S.
2 3
2
ASSY NUMBER:
AKAI
3 2 1
DATE:LTR ECO NO: APPROVED:
REVISION RECORD
C
A
B
C
D
65 4
SCALE:
FILENAME:
PART NUMBER:
TITLE:
COMPANY:
A
B D
OF
SHEET:
SIZE:
REV:
DATED:
DATED:DRAWN:
RELEASED:
*
N/C
Power input is 6VDC

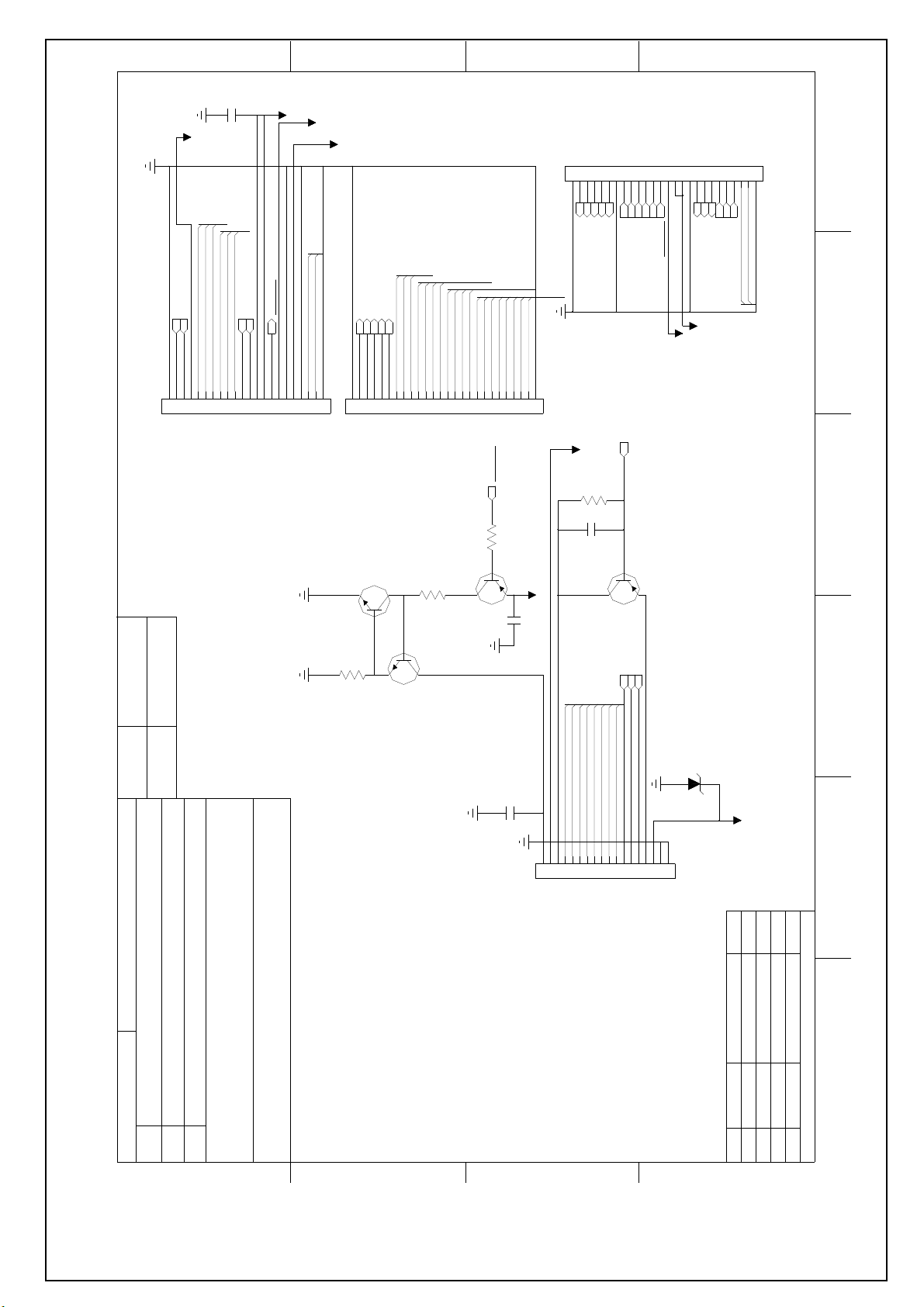

POWER & I/O
Copyright (c) 2007 Akai Digital Ltd.
AD49 MAIN PCB
9-40-0450-A
9-79-0450-A-1
MIDI IN
N/C
N/C N/C
FOOTSWITCH
NC
* Provide plenty of copper for heat sinking for case of over voltage adapter
N/C
N/C
N/C
N/C
N/C
JTAG EMULATOR
MIDI OUT
N/C
N/C
P6
J6
3
2 1
MBRS140LT3
D4
J3
6 5
N/CN/C
1000pF
C8
MBT4401
Q2
1000pF
C10
FDC6306P
U3-ASD
G
1uF
C30
TP1
BAV99
D1
3
2
10k
J7
14 13 12
100k R25
0.1uF
C20
12V
D9
0.1uFC22
1k
R11
MBT4403
Q1
3
10k
100k
R67
33.2k 1%
R66
+5VUNREG
TCK_FPGA
POWER_EN
LCD_CONTRAST_DC
LCD_CONTRAST
+3V3
JTAG EMULATOR
GND
N/C
TCK
TMS
TDI
TDO
N/C
VDD
DNS
LCD CONTRAST
Place R77 near micro
N/C
POPULATE FOR PP ONLY
MICROCONTROLLER
FPGA
4
D+ 3
D- 2
+VBUS 1
NJU7223DL1-33
U1
GND
3
IN
2
1
0.1uF
C3 0.1uF
C25
0.1uF
C4
10uH
L1
1uF
C11
RING
TIP
SLEEVE
J2
7
6 5
4
3
2
1
STEREO CLIFF CL111505W
5
4
3
2
1
MIDI J4
87
6
1000pF C6
TLP181
U2
10k
54
3
2
1
MIDI
J5 8
761000pF
C7
2 1
BAV99
D8
3
0.1uF
C19
0.1uF
C9
3 2
1
11 10
9 8 7 6
5
4
0.01uF
C49
0.01uF
C5
3
2 1
BAV99
D2
MBT4403
Q4
0 ohmR30
0.1uF
C67
100uF,10V
C37
4.7uF,25V
C1
7
6
5
4
3
2
1
J11
80.01uF
C76
10uH
L2
2
1
0.1uF
C13
FDC6306P
U3-B
1uF
C14
12V
D6
0.1uF
C21
0.1uF
C2
+3V3
POWER
MIDI_TX
+3V3
+3V3
USB_DIS
USB+
USB-
+3V3_FULL
+3V3
TCK
TMS
TDI
RESET
+3V3
+3V3
+3V3
MIDI_RX
+3V3
FOOTSWITCH
TMS_FPGA
TDI_FPGA
TDO_FPGA
+3V3
+3V3
TDO

LMV324M
U10-C
8
-
9
+
10
0.01uF
C29
C61
15.8k 1%
4.75k 1%
R82
0.1uF
C70
3.32k 1%
R83
C71
3.32k 1%
C50
0.1uF C28
0.01uF
C27
0.01uF
0 ohm
R89
6
IO5
5
IO74
OUT/IN 3
IO6
10 C
9
VSS
8VEE
7
INH
14 IO0
13
IO3
12
A11 B
SLEEVE
RING
TIP
2 1
STEREO CLIFF CL111505W
J1
7 6 5
4
3
BAV99
D7
3
2 1
R84
15.8k 1%R71
47.5k 1%R69
11.0k 1%
R76
R50
47.5k 1%R55
ANALOG_SELECT1
R88
3.32k 1%
R87
15.8k 1%R77 3
47.5k 1%R68
11.8k 1%
R53
0 ohmR51
11
4
-v
+v
47.5k 1%R54
33.2k 1%
R52
0 ohmR60
R17
1M R47
82.5k 1%
R58
LMV324M
1000pFC45
806 ohm 1% R44
0.1uF C18
1kR16
1kR18
100k
0 ohmR70
0.01uF
C60
1.33k 1%
R81
0.1uF
0.1uF
C59
2.32k 1%
R86
0.1uF
C58
15.8k 1%
R56
0.01uF
0.1uF
C69
LMV324M
U10-A
1
-
2
+
11.0k 1%
R75
0 ohmR73
0.1uF
C64
3.32k 1%
LMV324M
U10-B
7
-
6
+
5
MOD_POT
ANALOG_TOP
GND
74HC4051
U5
VDD
16
IO215 IO1
DNS
DNS DNS
DNS
*
REV:
SIZE:
SHEET: OF
C
TITLE:
PART NUMBER:
FILENAME:
SCALE:
RELEASED:
DRAWN: DATED:
DATED:
C
B
A
C
D
B
A
COMPANY:
DATE:
123456
D
EXPRESSION
NC
AKAI
ASSY NUMBER:
REVISION RECORD
APPROVED:ECO NO:
LTR
* decoupling cap should be placed close to connector
** decoupling cap should be place close to MUX
DNS *
TOUCH
AFTER-
NC NC
9-40-0450-A
9-79-0450-A-1
AD49MNA04A.sch
7/6/2007R.E./I.F/J.B/M.S.
3 3
2
*
**
**
*
MAXIMUM CARE SHOULD BE TAKEN IN ROUTING ALL SIGNALS ON THIS SHEET

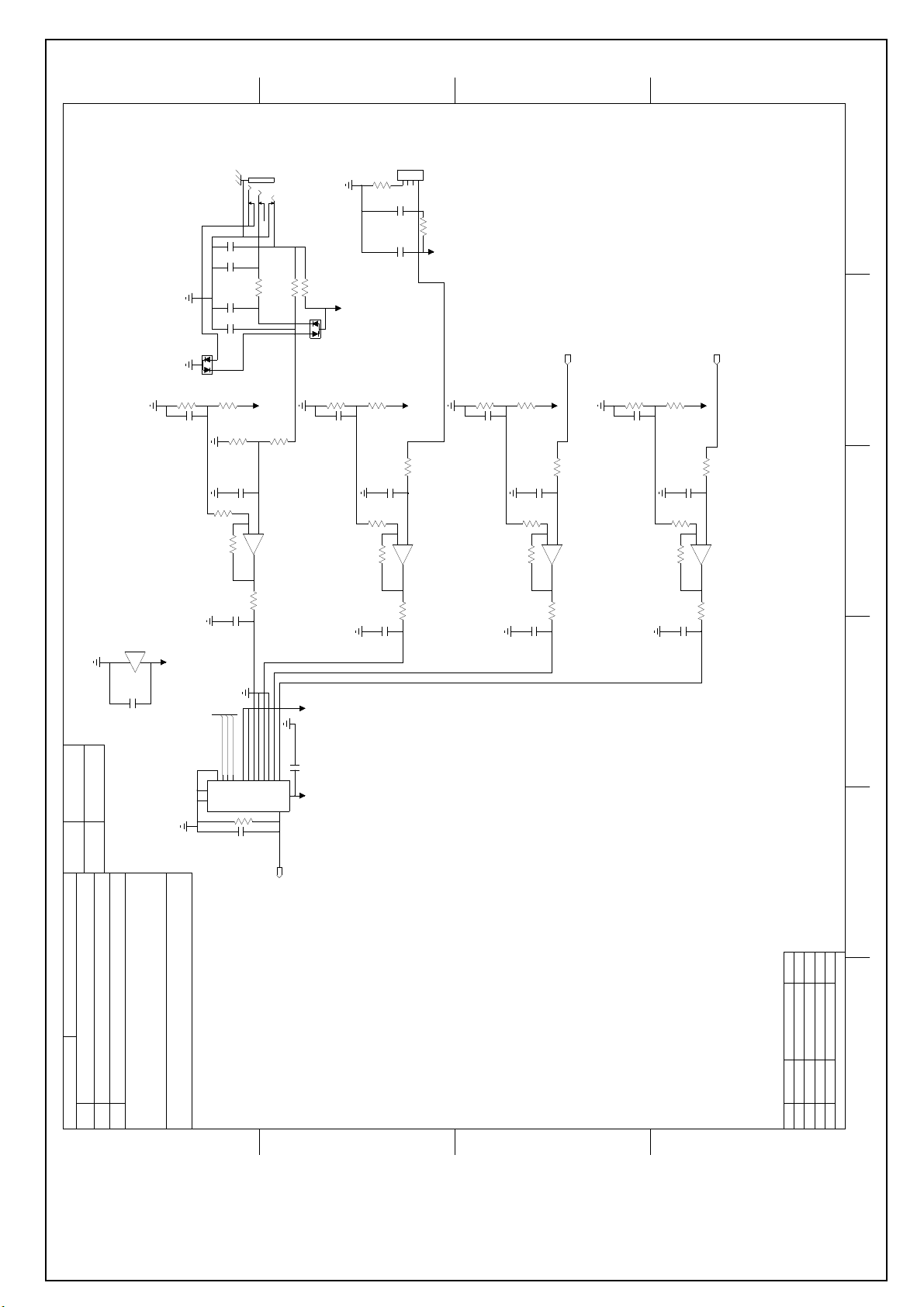

ANALOG
Copyright (c) 2007 Akai Digital Ltd.
AD49 MAIN PCB
2
IO41
21
BAV99
D5
3
0.1uF
C16
0.1uF C17
0.1uF C15
J8
4
3 2
1
0.1uFC26
0.1uF C41
0.1uF C40
U10-D
14
-
13
+
12
LMV324M
U10-E
0.1uFC72
4.75k 1%
R85
ANALOG3
ANALOG_TOP
ANALOG_TOP
ANALOG_TOP
ANALOG_SELECT[0:2]
+3V3
ANALOG_SELECT2
ANALOG_SELECT0
ANALOG_TOP
GND
ANALOG_TOP
GND
ANALOG_TOP
+3V3
PITCH_POT
GND

v+
5
+
3
GND
R23
0 ohm R24
0 ohm R19
10k R12
+v
-v
74AHC04
U2-C
65 89
27kR15
10k R17
470 ohmR16
4.7k R18 R6
27kR11
10k R8
470 ohmR9
4.7k R7
560pF C6
N/C

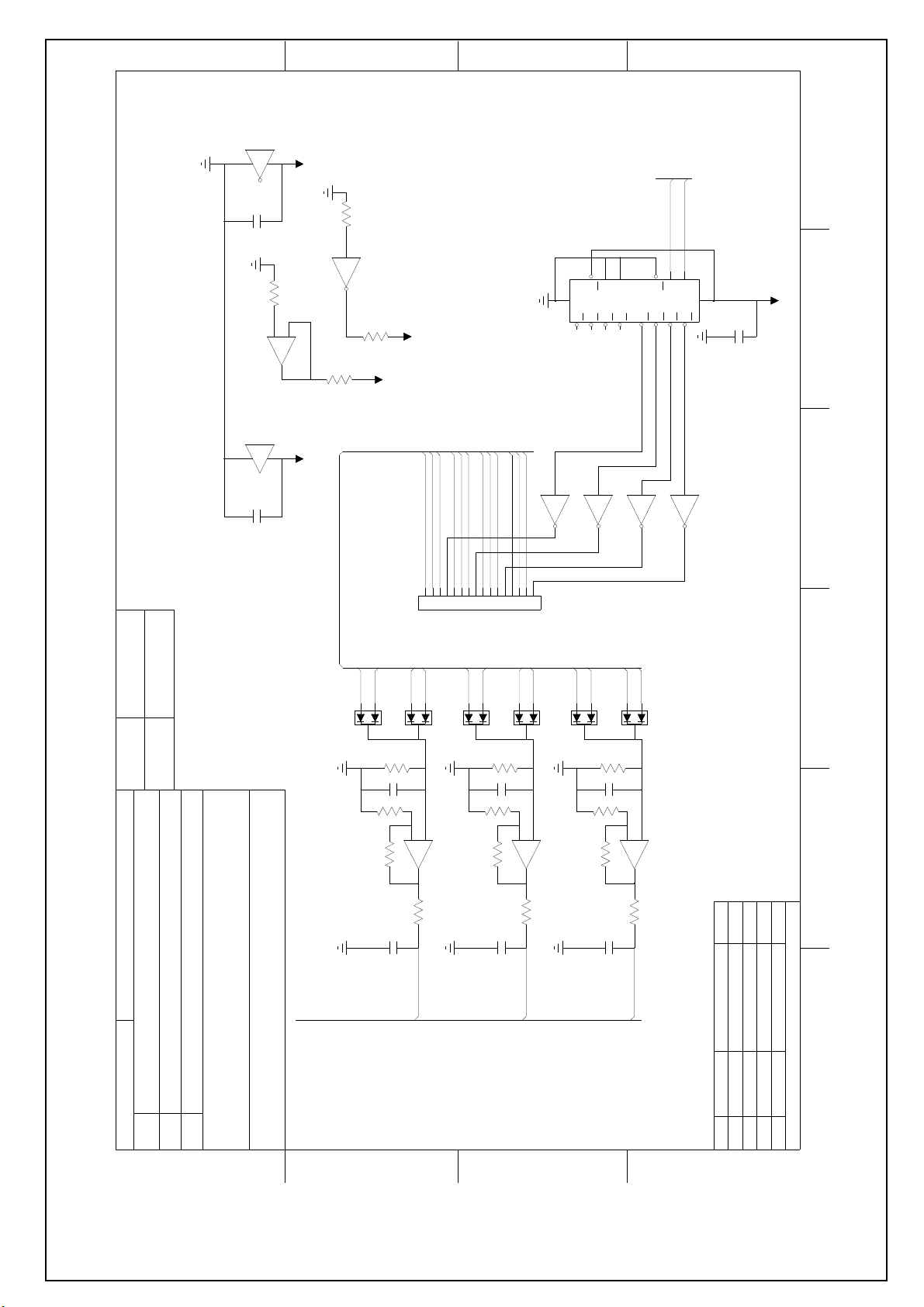

PADS & MUXES
MAXIMUM CARE SHOULD BE TAKEN IN ROUTING ALL SIGNALS ON THIS SHEET
N/C
GND
GND GND GND
GND GND GND
SN74LVC139AD
U3
VCC
16
G2
15
0.01uF
74AHC04
U2-F
1213
LMV324M
U1-D
14
-
13
+
12
LMV324M
U1-E
11
4
74AHC04 U2-G
7
14
v-
LMV324M
U1-C
8
-
9
+
10
LMV324M
U1-B
7
-
6
+
LMV324M
U1-A
1
-
2
BAV70
D9
3
2
74AHC04
U2-D
74AHC04
U2-B
43
74AHC04
U2-A
21
560pF C12
27kR10
10k R5
470 ohmR4
560pF
1
R.E./I.F/J.B/M.S.
AD49TLA01A.sch
6/13/2007
2
SHEET: OF
DATED:
ECO NO: APPROVED:
REVISION RECORD
SCALE:
COMPANY:
9-40-0451-A
AD49 TOP LEFT PCB
2 1
DATE:
D B
A
RELEASED: DATED:
B
A
C
D
6 5 4 3
B
FILENAME:
ASSY NUMBER:
PART NUMBER:
TITLE:
DRAWN:
LTR
C
PAD2
PAD1
TO PADS
2
9-79-0451-A-0
AKAI
REV:
SIZE:
PAD10
PAD9
PAD8
PAD7
PAD6
PAD5
PAD4
PAD3
N/C N/C
VREF+
VREF+
VREF+
VREF+
PAD12
PAD11
C5
4.7k
BAV70
D12
3
2
1
1BAV70
D10
3
2
3
2
1
BAV70
D8
BAV70
D7
3
2
1
BAV70
D11
3
2
1
1
C14
10k
C13
0.1uF
C7
0.1uF
C9
0.1uF
C8 0.01uF
C11
0.01uF
2
G1
1
X1 5
X0 4
B13
A1
8
X3 7
X2 6
Y1 11
Y2 10
Y3 9
A214
B213
Y0 12
1 9 8 7
6
5
4
3 2
J4
16 15
14 13
12
11 10
52807-1610
PAD1
PAD[1:12]
PAD12
PAD11
PAD10
PAD5
PAD4
PAD_RETURN0
PAD_RETURN1
PAD_RETURN2
PAD_RETURN[0:2]
PAD3
PAD2
PAD1
PAD12
PAD11
PAD10
PAD9
PAD8
PAD7
PAD6
PAD7
PAD4
PAD8
PAD5
PAD9
PAD6
PAD3
PAD2
+3V3
+3V3
+3V3+3V3
+3V3
PAD_SCAN_SEL1
PAD_SCAN_SEL0
PAD_SCAN_SEL[0:1]

D15
32
1
LED5
1
9 8
7
6 5
4
3 2
17 16 15 14 13 12 11 10
25 24 23 22 21 20
19 18
TP1
D2
32
1
D3
32
1
2
1
D4
3
D5
32
1
D6
32
1
32
1
S8
D13
1
S9
D14
32
Q1
0.1uF
C10
0.1uF
C4
0.1uFC2
0.1uF
C1
0.1uFC3
2
1
4
3
2
1
S6B-PH-KL(LF)(SN)
J2
6
5
YEL
LED4
YEL
LED3
YEL
LED2
1kR3
MBT4401
TP2
220 ohm R22
15 ohm
R2
220 ohm R21
ANALOG_TOP
PAD D
PAD C
PAD BPAD A
12 LEVELS
FULL LEVEL
TO WHEEL LED BOARD Set for 18mA x 6 LEDs = 110mA nominal
12 LEVEL
FULL LEVEL
ARP
LATCH
NOTE REPEAT
NOTE REPEAT
ARP LATCH
ARP
N/C
N/C
N/C
N/C
PCB *
RIGHT
TOP
TO
Cap should be placed close to connector

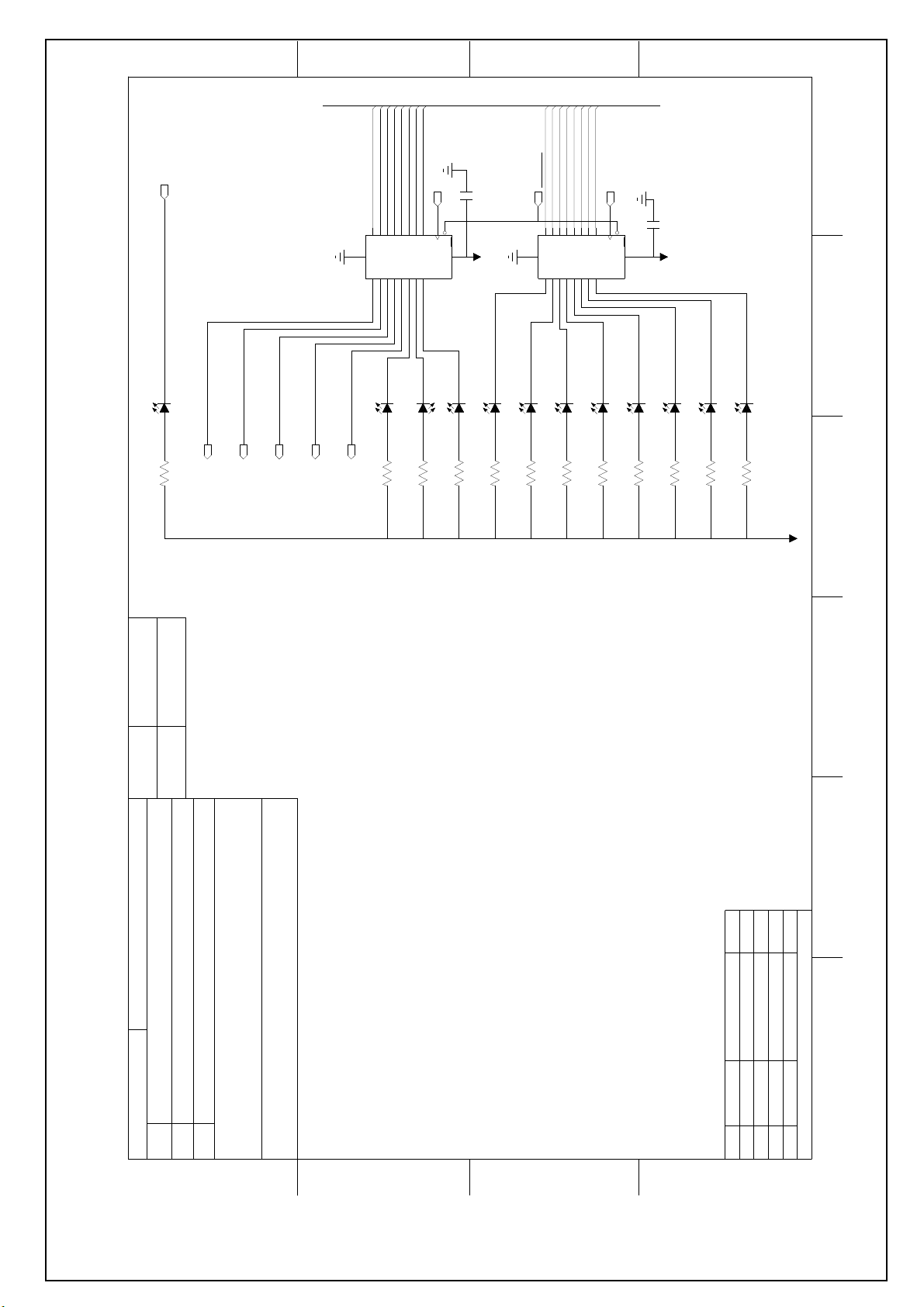

MISC
* Pin order reversed vs. main board connector.
N/C
N/C
N/C
N/C
N/C
S3
INDICATOR LEDS SET FOR 6mA
BACKLIT BUTTON LEDS SET FOR 16mA
INDICATOR LEDS ARE T1 CASE DIFFUSED, BUTTON LEDS ARE 2MMx3MM NON-DIFFUSED
S4
S6S5
S1 S2
S7
S6B-PH-KL(LF)(SN)
J1
6
5
4
3
74AHC04
U2-E
1011
15 ohm
R1
26FMZ-ST(LF)(SN)
J3
26
220 ohm R20
68 ohm R14
68 ohm R13
YEL
MOD
+3V3
POWER_EN
POWER_EN
ANALOG_TOP
SHEET: OF
2
R.E./I.F/J.B/M.S. 6/13/2007
2
AD49TLA01A.sch
9-40-0451-A
9-79-0451-A-0
2
DATED:
DATED:
ECO NO: APPROVED:
REVISION RECORD
SCALE:
COMPANY:
AD49 TOP LEFT PCB
3 2 1
DATE:
D B
A
RELEASED:
C
B
A
C
D
65 4
SIZE:
B
FILENAME:
ASSY NUMBER:
PART NUMBER:
TITLE:
DRAWN:
LTR
N/C
N/C
*
MOD WHEEL
FROM PITCH/
POTS
AKAI
REV:
1
D1
32
YEL
LED1
LATCH_LED
ARP_LED
12_LEVEL_LED
FULL_LEVEL_LED
+3V3
+3V3
+3V3
PITCH
PAD_RETURN0
BUTTON_COLUMN2
BUTTON_COLUMN1
BUTTON_COLUMN0
BTN_SCAN9
BTN_SCAN8
BTN_SCAN7
NOTE_REPEAT_LED
ANALOG_TOP
PAD_SCAN_SEL1
PAD_SCAN_SEL0PAD_SCAN_SEL[0:1]
MOD
PITCH
PAD_RETURN2
PAD_RETURN1

TP2
10 ohmR15
5
4
3
2
1
10KB
R27 6
5
4
3
2
1
10KB
R28 6
5
4
3
2
1
10KB
R25 6
5
4
3
2
1
10KB
R26 6
5
4
3
2
1
10KB
R23 6
5
4
3
2
1
10KB
R24 6
5
4
3
2
1
10KB
R21 6
5
4
3
2
1
10KB
R22 6
0.1uFC24
0.1uF
C45
0.1uF
C25
0.1uFC47
0.1uFC62
0.1uFC67
0.1uF
C57
0.1uF
C42
0.1uF
C50
0.1uF
C64
0.1uFC60
0.1uFC68
0.1uF
C61
0.1uF
C65
0.1uF
C19
0.1uF
C2
0.1uFC32
0.1uFC28
0.1uFC20
0.1uF
C31
0.1uF
C21
0.1uFC34
0.1uFC22
0.1uF
C5
0.1uF
C44
0.1uFC51
0.1uF
C23
0.1uFC48
C121, C122)
C115, C116, C117, C118, C119, C120,
C109, C110, C111, C112, C113, C114,
C103, C104, C105, C106, C107, C108,
(C96, C97, C98, C99, C100, C101, C102,
AS CLOSE TO POT AS POSSIBLE
*** POT WIPER CAPS SHOULD BE PLACED
**
*** *** ******
*** *** ***
MAXIMUM CARE SHOULD BE TAKEN IN ROUTING ALL SIGNALS ON THIS SHEET
*** *** ******
*** *** ***
***
DNS
DNS DNS
DNS DNS DNS
DO NOT STUFF
***
DNS
DNS DNS
DNS DNS DNS
DNS
DNS

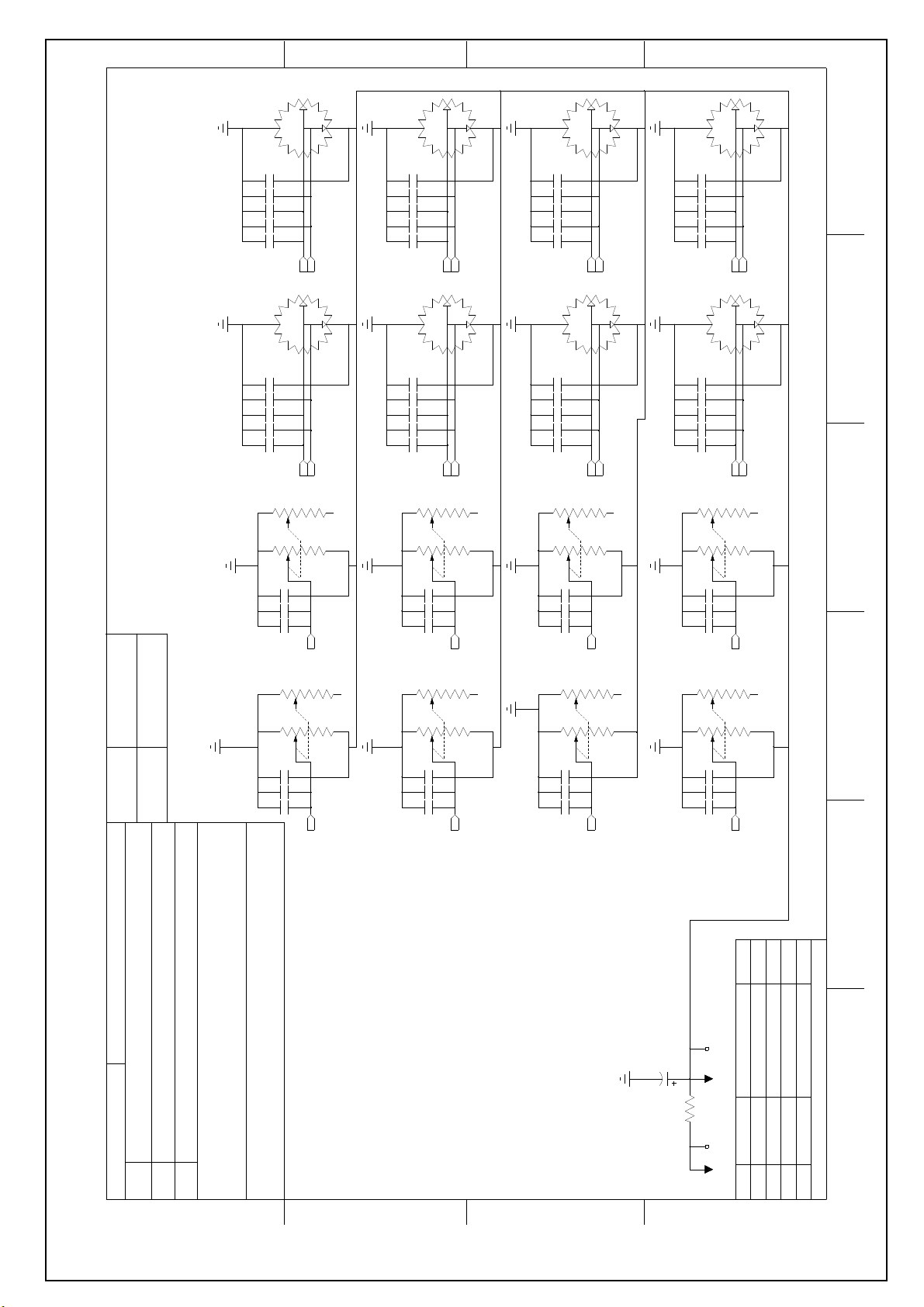

POTS & FADERS
DNS
DNS
2
1
R7
4
3
2
1
3
2
1
R8
4
3
2
1 1
4
3
2
1
0.1uFC18
0.1uF
C33
AD49 TOP RIGHT PCB
9-40-0452-A
9-79-0452-A-0
R.E./I.F/J.B/M.S.
2
6/13/2007
AD49TRA01A.sch
PART NUMBER:
ASSY NUMBER:
FILENAME:
B
SIZE:
REV:
1
AKAI
D
C
A
B
C
LTR
DRAWN:
TITLE:
D
DATE:
123
45
6
REVISION RECORD
APPROVED:ECO NO:
DATED:
DATED:RELEASED:
A
B
Rotary4Rotary3
Rotary2
Rotary1
5
COMPANY:
SCALE: SHEET: OF
Fader4
Fader3
Fader2
Fader1
Rotary8
Rotary7
Rotary6Rotary5
**
**
Fader7 Fader8
Fader6
Fader5
**
**
**
**
(C8, C9, C17, C18, C19, C25, C26,
AS CLOSE TO POT AS POSSIBLE
* POT TOP CAPS SHOULD BE PLACED
**
**
**
C52, C53, C54, C55, C56, C57,
C40, C42, C46, C48, C49, C50,
C30, C31, C32, C33, C34, C35,
C64, C65, C66, C67, C83)
C36, C37, C38, C39, C47, C51, (C14, C21, C22, C23, C27, C28, C29,
AS CLOSE TO 4051 AS POSSIBLE
** POT OUT CAPS SHOULD BE PLACED
** ****
** **
****
C58, C84)
** ****
** **
****
**
R5
4
3
2
1
R9
4
3
22uF
C26
R4 R6
4
3
2
R3
4TP1
R2
4
3
2
1
ANALOG_TOP
FADERS7 FADERS8
FADERS6FADERS5
0.1uFC10
0.1uF
C11 0.1uF C9
0.1uFC16
0.1uF
C75 0.1uF C69
0.1uFC72
0.1uF
C71
0.1uFC70
0.1uF
C13
0.1uF
C15
0.1uF
C73
0.1uFC74 0.1uFC76
0.1uFC14 0.1uFC12
0.1uF
C1
0.1uFC290.1uFC27
0.1uFC300.1uFC55
0.1uFC52
0.1uFC54
0.1uFC41
0.1uFC58
0.1uF
C40
0.1uF
C37
0.1uFC49
0.1uFC43
0.1uF
C3
0.1uF
C4
0.1uF
C6
0.1uF
C7
0.1uF
C8
R2 L2
R1 L1
+3V3_FULL
R6 L6
R5 L5
R4 L4
R3 L3 FADERS4FADERS3
FADERS2FADERS1
R8 L8
R7 L7

R19
1M R17 1M R16
FADERS7
FADERS8
FADERS2
FADERS1
L8 L7
1000pFC53
0.1uFC36
0.1uF
C56
1M
ANALOG_SELECT1
ANALOG_SELECT2
ANALOG_SELECT0
ANALOG_SELECT1
ANALOG_SELECT2
+3V3
ANALOG0
ANALOG1
ANALOG2
ANALOG_SELECT0
ANALOG_SELECT1
ANALOG_SELECT2
ANALOG_SELECT0
ANALOG_SELECT[0:2]
ANALOG[0:2]
R4 R3 R2 R1
+3V3 +3V3
L4 L3 L2 L1
FADERS6
FADERS5
ANALOG_SELECT[0:2]
ANALOG_SELECT[0:2]
L6 L5
R8 R7 R6 R5
FADERS4
FADERS3
VDD
16
IO2
15 IO1
14 IO0
13
OUT/IN 3
IO62
IO4
1
VEE
7
INH
6
IO5
5
IO7
4
A
11 B
10 C
9
VSS
8
IO2
15 IO1
14 IO0
13
IO3
12
2
IO4
1
6
IO5
5
IO7
4
OUT/IN 3
IO6
10 C
9
VSS
8VEE
7
INH
14 IO0
13
IO3
12
A
11 B
74HC4051
U5
VDD
16
IO2
15 IO1
1000pFC66
1000pFC46
6/13/2007
APPROVED:
REVISION RECORD
SHEET: OFSCALE:
COMPANY:
5
AD49 TOP RIGHT PCB
AD49TRA01A.sch
DATE:
D
B
A
RELEASED: DATED:
DATED:
ECO NO:
C
D
6 5 4 3 2 1
ASSY NUMBER:
PART NUMBER:
TITLE:
DRAWN:
LTR
C
B
A
9-79-0452-A-0 9-40-0452-A
AKAI
2
REV:
SIZE:
B
FILENAME:
MAXIMUM CARE SHOULD BE TAKEN IN ROUTING ALL SIGNALS ON THIS SHEET
* decoupling caps should be placed close to MUX
ANALOG MUXES
*
* *
2
R.E./I.F/J.B/M.S.
IO7
4
OUT/IN 3
IO6
2
IO4
1
VSS
8VEE
7
INH
6
IO5
5
IO3
12
A
11 B
10 C
9
0.1uF C39
74HC4051
U1
VDD
16
74HC4051
U2

SMAJ10A
D27
100k
R10
POWER_EN
+3V3
POWER_EN
POWER_EN
PAD_SCAN_SEL1
PAD_SCAN_SEL0 PAD_SCAN_SEL[0:1]
LCD/LED/FPGA_DATA1
LCD/LED/FPGA_DATA0
LCD/LED/FPGA_DATA[0:7]
+3V3
LCD_RS
LCD_RW
LCD_E
+5VUNREG
BTN_SCAN8
BTN_SCAN7
LCD/LED/FPGA_DATA7
LCD/LED/FPGA_DATA6
LCD/LED/FPGA_DATA5
LCD/LED/FPGA_DATA4
LCD/LED/FPGA_DATA3
LCD/LED/FPGA_DATA2
PAD_RETURN1 PAD_RETURN0
ANALOG_TOP
+3V3
BUTTON_COLUMN2
BUTTON_COLUMN0
BUTTON_COLUMN1
BTN_SCAN9
NOTE_REPEAT_LED
LATCH_LED
ARP_LED
12_LEVEL_LED
FULL_LEVEL_LED
MOD
PITCH
PAD_RETURN2
LCD/LED/FPGA_DATA6
LCD/LED/FPGA_DATA5
LCD/LED/FPGA_DATA4
LCD/LED/FPGA_DATA3
LCD/LED/FPGA_DATA2
LCD/LED/FPGA_DATA1
LCD/LED/FPGA_DATA0
LCD/LED/FPGA_DATA[0:7]
BUTTON_COLUMN0
BUTTON_COLUMN[0:3] BTN_SCAN_SEL3
BTN_SCAN_SEL2
BTN_SCAN_SEL1
BTN_SCAN_SEL0
BTN_SCAN_SEL[0:3]
LCD/LED/FPGA_DATA7
+5VUNREG
ANALOG_SELECT2
ANALOG_SELECT1
ANALOG_SELECT0
ANALOG_SELECT[0:2]
BUTTON_COLUMN3
BUTTON_COLUMN2
BUTTON_COLUMN1
PAD_RETURN0PAD_RETURN[0:2]
ANALOG2
ANALOG1
ANALOG0ANALOG[0:2]
+3V3_FULL
+3V3
LCD_CONTRAST_DC
ENC_B
ENC_A
MOD
PITCH
ANALOG_TOP
PAD_RETURN2 PAD_RETURN1
PAD_SCAN_SEL1
PAD_SCAN_SEL0
PAD_SCAN_SEL[0:1]
LCD_CONTRAST_DC
TAP_TEMPO_LED
LCD_E
LCD_RW
LCD_RS
C78
0.1uF
1000pF
Q1
470
R11
Q2
12 ohm
R12
10k
R1 0.1uFC17
MBT4403
Q4
Q3
C77
MBT4403
14 13 12 11 10
9
8
7
22 21 20
19 18 17 16 15
8
7
6
5
4
3
2
1
16 15 14 13 12 11 10
9
24 23 22 21 20
19 18 17
6
5
4
3
2
1
14 13 12 11 10
9
8
7
22 21 20
19 18 17 16 15
22FMZ-ST(LF)(SN)
J2
C
A
B
C
LTR
DRAWN:
TITLE:
PART NUMBER:
DATE:
123456
D
APPROVED:ECO NO:
DATED:
DATED:RELEASED:
A
B
D
with respect to the connector at the other end
If the Alesis PCB decal is used this is not necessary as the
AD49 TOP RIGHT PCB
5
COMPANY:
SCALE: SHEET: OF
REVISION RECORD
LEFT
TOP
TO
I/O
TO LCD
connections are reversed in the decal
FFC connector 1mm pitch.
Note that it would normally be necessary to reverse the pin out
PCB *
MAIN
TO
* Pin order reversed vs. main board connector.
PCB *
MAIN
TO
PCB
(Backlight current in AD24 measured to be 55mA, and we desire to match AD49 backlight brightness to AD24)
(Vbe was measured in a VC0 sample to be .66V, so that voltage will be assumed to be nominal)
R10 = (Vbe / I) = (0.66V / 55mA) = 12 Ohms
2.35V * 55mA = 130mW
6V (DC input) - 0.3V (Schottky Diode) - 0.6V (R10) - 2.75V (white LED backlight) = 2.35V
Max dissipation will be about 130mW:
Datasheet recommends 1.6" x 1.6" for 350mW at 25 deg. C
Ensure large area of copper is used as heatsink for Q2
5
4
3
2
1
13
12
11 10
9 8
7
6
6
5
4
3
2
1
0.1uF C35
MBT4401
MBT4401
26FMZ-ST(LF)(SN)
J1
26 25
26FMZ-ST(LF)(SN)
J4
26 25 24 23
52807-1810
J3
18
17
16 15 14
Dissipation at accidental 9VDC input will be about 300mW
2
9-40-0452-A
9-79-0452-A-0
AD49TRA01A.sch
6/13/2007
ASSY NUMBER:
FILENAME:
B
SIZE:
REV:
3
AKAI
R.E./I.F/J.B/M.S.

R36
68 ohmR33-D
68 ohm
R33-C
68 ohmR33-B
68 ohmR33-A
R34-A
ARP_LED
12_LEVEL_LED
FULL_LEVEL_LED
LCD/LED/FPGA_DATA[0:7]
+3V3
+3V3
TAP_TEMPO_LED
GREEN LED2
LCD/LED/FPGA_DATA2
LCD/LED/FPGA_DATA1
LCD/LED/FPGA_DATA0
+3V3
POWER_EN
NOTE_REPEAT_LED
LATCH_LED
LCD/LED/FPGA_DATA1
LCD/LED/FPGA_DATA0
LCD/LED/FPGA_DATA7
LED_LATCH1
LCD/LED/FPGA_DATA6
LCD/LED/FPGA_DATA5
LCD/LED/FPGA_DATA4
LCD/LED/FPGA_DATA3
YEL LED11 YEL LED12 YEL LED9 YEL LED10 YEL LED7 YEL LED8 YEL LED4 YEL LED6
D2
4D1
3D0
2
OE
D6
8D5
7D46 D3
5
Q7 12
CLK
11
GND
10
D79
Q3 16
Q4 15
Q5 14
Q6 13
VCC
20
Q0 19
Q1 18
Q2 17
OE
1
D3
5D2
4D13 D02
D7
9D68 D57 D4
6
Q6 13
Q7 12
CLK
11
GND
10
Q2 17
Q3 16
Q4 15
Q5 14
SN74AC574PW
U6
VCC
20
Q0 19
Q1 18
0.1uFC59
0.1uF
C38
220 ohmR35
YEL LED5
1
B
SIZE:
REV:
4
AKAI
R.E./I.F/J.B/M.S.
2
9-40-0452-A
B
C
LTR
DRAWN:
TITLE:
PART NUMBER:
ASSY NUMBER:
FILENAME:
23456
D
C
A
DATED:
DATED:
RELEASED:
A
B D
DATE:
1
AD49 TOP RIGHT PCB
5
COMPANY:
SCALE: SHEET: OF
REVISION RECORD
APPROVED:ECO NO:
BANK B
CK7
CK4
CK5
CK2
CK1
BANK A
CK3
INDICATOR LEDS SET FOR 6mA
BACKLIT BUTTON LEDS SET FOR 16mA
INDICATOR LEDS ARE T1 CASE DIFFUSED, BUTTON LEDS ARE 2MMx3MM NON-DIFFUSED
LEDS
TIME DIVISION
TAP TEMPO
CK8
CK6
YEL LED3
68 ohmR34-D
68 ohmR34-C
68 ohmR34-B
68 ohm
SN74AC574PW
U4
YEL LED1
9-79-0452-A-0
6/13/2007
AD49TRA01A.sch
LED_LATCH2
LCD/LED/FPGA_DATA7
LCD/LED/FPGA_DATA6
LCD/LED/FPGA_DATA5
LCD/LED/FPGA_DATA4
LCD/LED/FPGA_DATA3
LCD/LED/FPGA_DATA2
220 ohmR18
220 ohmR20
68 ohm
