AKG CU 400 User manual

Conference
Seminar
House of Worship / Church
School
Live Sound / Club Music
•Half 19” all metal case diversity receiver
•Automatic frequency setup
• Up to 16 pre-programmed frequencies within the same frequency band.
• Pilot Tone prevents unexpected start-up noise
•Infrared link of all frequency and setup data to the transmitter
• Up to 14 hours battery life and battery status information in hours
•Two-color display backlighting to indicate critical operation conditions (low battery, audio peak, RF low)
• Compatible with WMS 4500 antenna splitters, power supplies, and high quality directional and omni-directional antennas
WMS
470
AKG WMS 470 is your best choice for any application calling for a solution that is more flexible than
a simple plug-and-play system, yet easy to set up and operate. WMS 470 is a high-performance
solution for any situations where several radio mics will be used simultaneously, including gigs at
clubs and stages, for regional events, seminars or house of worship applications.
With 30 MHz tuning range you can select 1200 frequencies and operate with up to 20 channels
simultaneously within the same frequency band or up to 48 channels in multiple bands.
WMS 470 is the most cost-efficient wireless systems. Transmitters are powered by a single AA size
Alkaline (LR6), Lithium (FR6) or Ni-MH rechargeable (HR6) battery and provide up to 14 hours of
continuous operation.
Being compatible and based on the technology of the professional WMS 4500 wireless system you
can set up even complex wireless systems using antenna splitters, power supply units and the
whole range of professional directional or omni-directional antennas.
Wireless Microphone System
Wireless Microphone System

Conference
Seminar
House of Worship / Church
School
Live Sound / Club Music
• 30.5 MHz tuning range
• Half 19” all metal case diversity receiver
• Automatic setup function designed for less experienced operators
•Up to 16 pre-programmed frequencies per group
•Pilot Tone prevents unexpected start-up noise
•Infrared link of all frequency and setup data to the transmitter
•Transmitter battery status monitoring
•Programmable warning functions using a two-color display backlighting to indicate critical operation
conditions (low battery, audio peak, RF low)
• Compatible with WMS 4500 antenna splitters, power supplies, and high quality directional and
omni-directional antennas

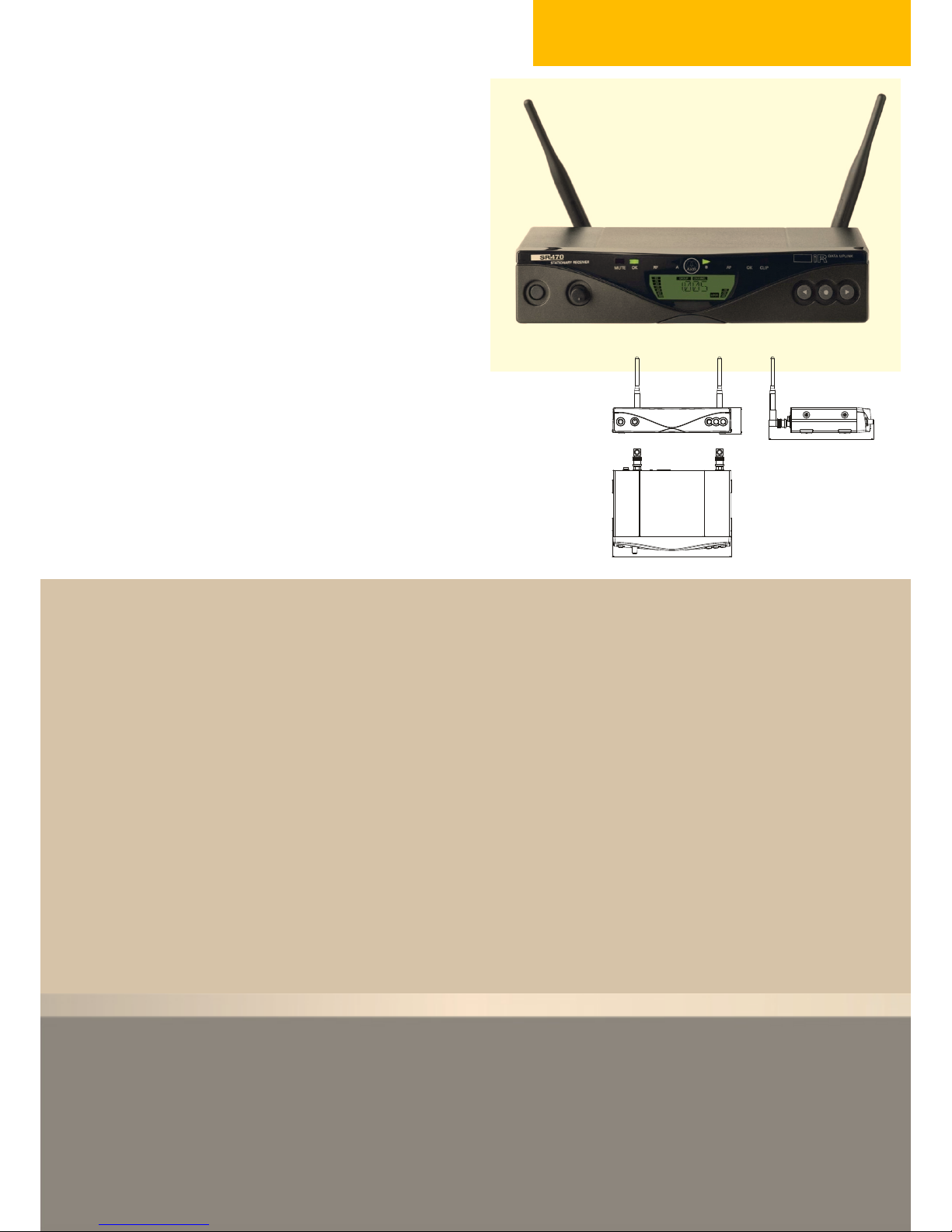

SR 470 Receiver Specifications
Carrier frequency range Band 1: 650 to 680 MHz Band 6-A-ISM: 835.1 to 861.9 & 863.1 to 864.9 MHz
Band 3: 720 to 750 MHz Band 7: 500.1 to 530.5 MHz
Band 3-K: 740.1 to 751.9 MHz Band 8: 570.1 to 600.5 MHz
Band 5-A: 790.1 to 819.9 MHz Band 9: 600.1 to 605.9 & 614.1 to 630.5 MHz
Band 5-B: 806.125 to 809.750 MHz Band 9-U: 600.1 to 630.5 MHz
Band 5-D: 794.1 to 805.9 MHz
Switching bandwidth 30.5 MHz (country dependent)
Sensitivity 6.3 dBV / -100 dBm
Diversity System Microprocessor-controlled diversity
Modulation Wideband FM
Audio bandwidth 35 – 20 000 Hz (±3 dB)
T.H.D. 0.3 %
SNR (A-weighted) typ. 120 dB(A)
Audio outputs 1 x XLR sockets balanced
1 x TS ” / 6.3 mm jack sockets unbalanced
Dimensions 19 inch 1U rack, 202 mm (7.8 in.) 44 mm (1.7 in.) 190 mm (7.4 in.)
Net / Shipping Weight 972 g (2.2 lbs.)
Standard Accessories 2 UHF antennas, power supply, rack mount kit
SR 470
Item number: SR 470 3300H00..
Architects’ and Engineers’ Specifications
The receiver shall be a stationary diversity design with pilot tone, 1200 carrier frequencies that can be programmed within a 30 MHz wide subband and a rugged half-
rack case with backlit liquid crystal color display. The receiver shall provide indicators for audio and RF levels; diversity mode (A/B); transmitter battery status; name,
frequency, frequency group, and preset (country) name. The color of the backlighting shall change between green and red to indicate normal operation or display user-
selectable warning messages (low battery capacity, audio level, RF level, etc.). The receiver shall select intermodulation-free frequencies automatically from an
integrated frequency database arranged by local frequency allocations and provide an automatic function for finding dead spots. An infrared radiator shall transmit
setup parameter data to the transmitter. Rear panel BNC sockets shall allow either the supplied antennas or a complex antenna network to be connected to the
receiver. The squelch threshold shall be adjustable between –80 and –100 dBm. The receiver’s audio bandwidth shall be 35 Hz to 20 kHz; S/N 120 dB(A); THD <0.3%
at 1 kHz. Audio outputs shall comprise a balanced 3-pin XLR output switchable to –30 dB or 0 dB and an unbalanced 1/4" TS jack. The receiver shall provide a
lockable DC input for the supplied 12 V DC power supply. The receiver shall measure 200 x 44 x 190 mm (W x D x H) and weigh 972 g. The receiver shall be the AKG
SR 470 or equivalent.
Wireless Microphone System
44
177
202,4

Conference
Seminar
House of worship / Church
School
Live Sound / Club Music
•Extremely light and compact bodypack transmitter
•Premium audio quality
•Pilot Tone
•Quick setup via infrared link of all frequency and setup data from receiver
•Long battery life - most cost-efficient wireless system
•Up to 50 mW RF-output power
•14 hours battery life (Lithium battery)
•Battery status information in hours
•Low battery data transmission to receiver

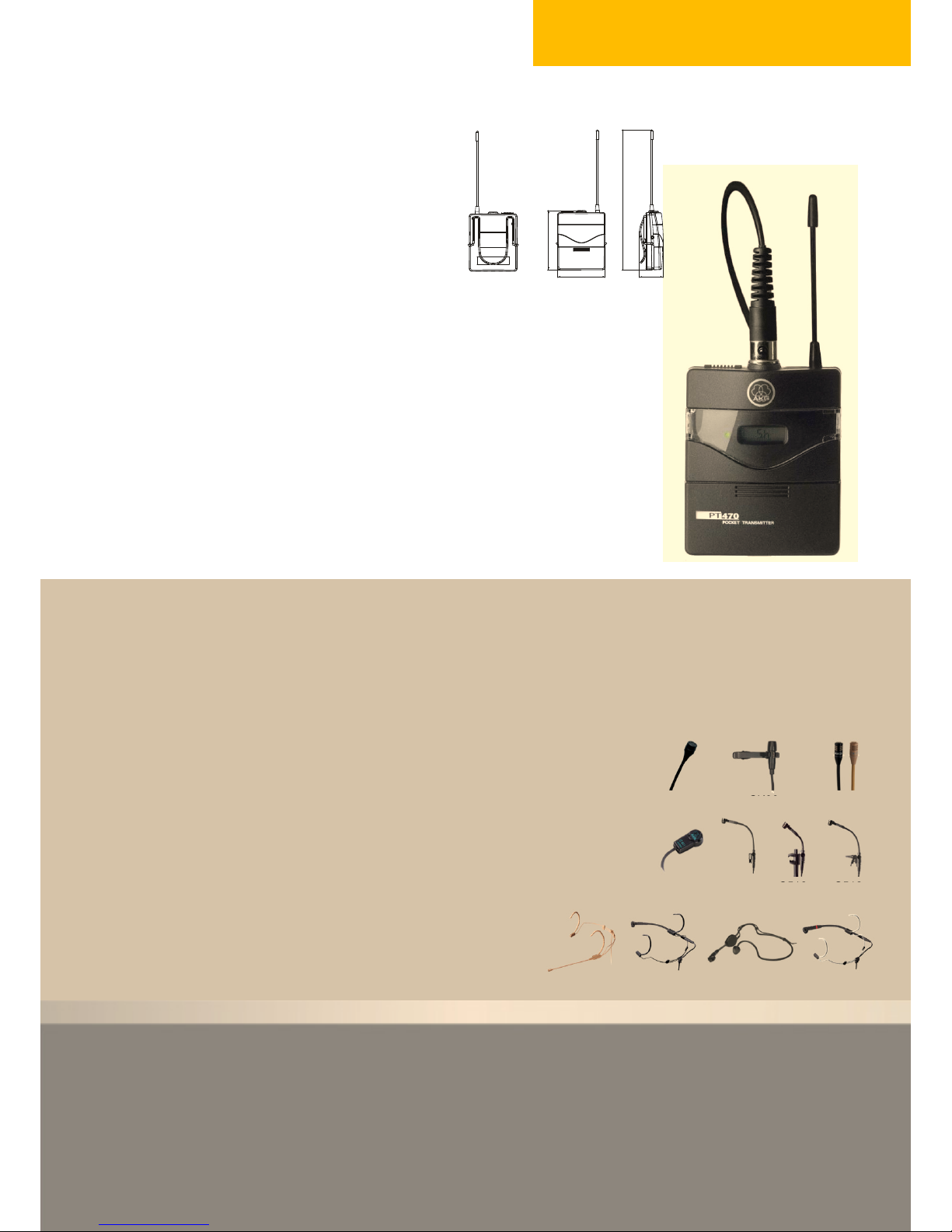

PT 470
PT 470 Bodypack Transmitter Specifications
Carrier frequency range Band 1: 650 to 680 MHz Band 6-A-ISM: 835.1 to 861.9 & 863.1 to 864.9 MHz
Band 3: 720 to 750 MHz Band 7: 500.1 to 530.5 MHz
Band 3-K: 740.1 to 751.9 MHz Band 8: 570.1 to 600.5 MHz
Band 5-A: 790.1 to 819.9 MHz Band 9: 600.1 to 605.9 & 614.1 to 630.5 MHz
Band 5-B: 806.125 to 809.750 MHz Band 9-U: 600.1 to 630.5 MHz
Band 5-D: 794.1 to 805.9 MHz
Switching bandwidth 30.5 MHz (country dependent)
RF output power 10 or 50 mW (ERP, country dependent)
Modulation Wideband FM
Audio input TB3M / 3-pin mini-XLR socket (max. 2.5 Vrms)
Audio bandwidth 35 – 20 000 Hz (±3 dB)
T.H.D. 0.7 %
SNR (A-weighted) > 120 dB(A)
Battery life 7 hours with one 1.5 V LR6 AA alkaline battery
8 hours with one 1.2 V HR6 AA rechargeable battery (min. 2100 mAh)
14 hours with one 1.5 V FR6 AA lithium battery
Dimensions 60 mm (2.4 in.) 73.5 mm (2.9 in.) x 30 mm (1.2 in.)
Net / Shipping Weight 90 g (3.2 oz.) without batteries
Standard Accessories 1 AA size LR6 batteries, belt clip
C520 C555
C417 CK99 CK77
C411 C516 C518 C519
HC577
Item number: PT 470 3302H00..
Architects’ and Engineers’ Specifications
The bodypack transmitter shall be housed in a miniature body and provide pilot tone and 1200 carrier frequencies that can be programmed via infrared within a 30 MHz
wide subband. An LC display shall indicate the transmitter battery capacity in hours, as well as the frequency, frequency group, and preset name. An outside infrared
sensor shall allow the frequency and input gain setting to be programmed, and a silent mode shall permit the transmitter to be used legally in R&TTE countries. The
transmitter shall transmit low battery capacity and muting information to the receiver and use an integrated dipole transmitting antenna. The transmitter shall be available
with an RF output of 10 mW or 50 mW (ERP). The transmitter shall provide a lockable on/mute/off switch with IR programming and silent mode functions. Charging
contacts on the bottom panel shall allow the easy charging of a rechargeable battery inside the transmitter and a 2.5 mm jack shall allow an external mute switch to be
connected. The audio bandwidth of the transmitter shall be 35 Hz to 20 kHz; S/N 120 dB(A); THD at 1 kHz <0.7%. The input gain shall be adjustable by means of a
special tool integrated in the battery compartment cover. The transmitter shall operate off one AA size LR6 dry battery for >7 hours, up to 8 hours off one AA size NiMH
rechargeable battery and up to 14 hours off one AA size FR6 lithium battery. The bodypack transmitter shall measure 60 x 73.5 x 30 mm and weigh 90 g. The bodypack
transmitter shall be the AKG PT 470 or equivalent.
Wireless Microphone System
Available AKG Microphones:
C544
73,5
176,2
60 30

Conference
Seminar
House of Worship / Church
School
Live Sound / Club Music
•Available with D 5 or C 5 high quality microphone element
•Premium audio quality
•Pilot Tone
•Quick setup via infrared data link of all frequency and setup data from receiver
•Long battery life - most cost-efficient wireless systems
•Up to 50 mW RF-output power
•14 hours battery life (Lithium battery)
•Battery status information in hours
•Low battery data transmission to receiver
HT 470
HT 470 Handheld Transmitter Specifications
Carrier frequency range Band 1: 650 to 680 MHz Band 6-A-ISM: 835.1 to 861.9 & 863.1 to 864.9 MHz
Band 3: 720 to 750 MHz Band 7: 500.1 to 530.5 MHz
Band 3-K: 740.1 to 751.9 MHz Band 8: 570.1 to 600.5 MHz
Band 5-A: 790.1 to 819.9 MHz Band 9: 600.1 to 605.9 & 614.1 to 630.5 MHz
Band 5-B: 806.125 to 809.750 MHz Band 9-U: 600.1 to 630.5 MHz
Band 5-D: 794.1 to 805.9 MHz
Switching bandwidth 30.5 MHz (country dependent)
RF output power 10 or 50 mW (ERP, country dependent)
Modulation / Bandwidth Wideband FM
Microphone capsules D 5 – dynamic (super cardiod)
C 5 – condenser (cardioid)
Max. SPL 144 dB SPL
Audio bandwidth 35 – 20 000 Hz (±3 dB)
T.H.D. 0.7 %
SNR (A-weighted) > 120 dB(A)
Battery life 7 hours with one 1.5 V LR6 AA alkaline battery
8 hours with one 1.2 V HR6 AA rechargeable battery (min. 2100 mAh)
14 hours with one 1.5 V FR6 AA lithium battery
Dimensions 237 mm (9.3 in.) length, 51 mm (2 in.) dia.
Net / Shipping Weight 240 g (8.5 oz.) without batteries
Standard Accessories 1 x AA size LR6 battery, stand adapter, windscreen
Item number: HT 470 D 5 3301X00..
HT 470 C 5 3301X00..
Architects’ and Engineers’ Specifications
The handheld transmitter shall be housed in a miniature body and provide pilot tone, 1200 carrier frequencies that can be programmed via infrared within a 30 MHz
wide subband. An LC display shall indicate the transmitter battery capacity in hours, as well as the frequency, frequency group, and preset name. An outside infrared
sensor shall allow the frequency and input gain setting to be programmed, and a silent mode shall permit the transmitter to be used legally in R&TTE countries. The
transmitter shall transmit low battery capacity and muting information to the receiver and use an integrated dipole transmitting antenna. The transmitter shall be
available with an RF output of 10 mW or 50 mW (ERP). The transmitter shall provide a central on/mute/off switch with IR programming and silent mode functions.
Charging contacts on the bottom panel shall allow the easy charging of a rechargeable battery inside the transmitter. The audio bandwidth of the transmitter shall be
35 Hz to 20 kHz; S/N 120 dB(A); THD at 1 kHz <0.7%. The transmitter shall operate off one AA size dry battery for >7 hours, up to 8 hours off one AA size NiMH
rechargeable battery and up to 14 hours off one AA size FR6 lithium battery. The handheld transmitter shall measure 236.9 mm long x 51.1 mm max. dia. and weigh
240 g. An stand adapter shall be included as a standard accessory. The handheld transmitter shall be the AKG HT 470 or equivalent.
.
Wireless Microphone System

•2-hour quick charging.
•Two slots that fit both HT 470 and PT 470.
•LED status information

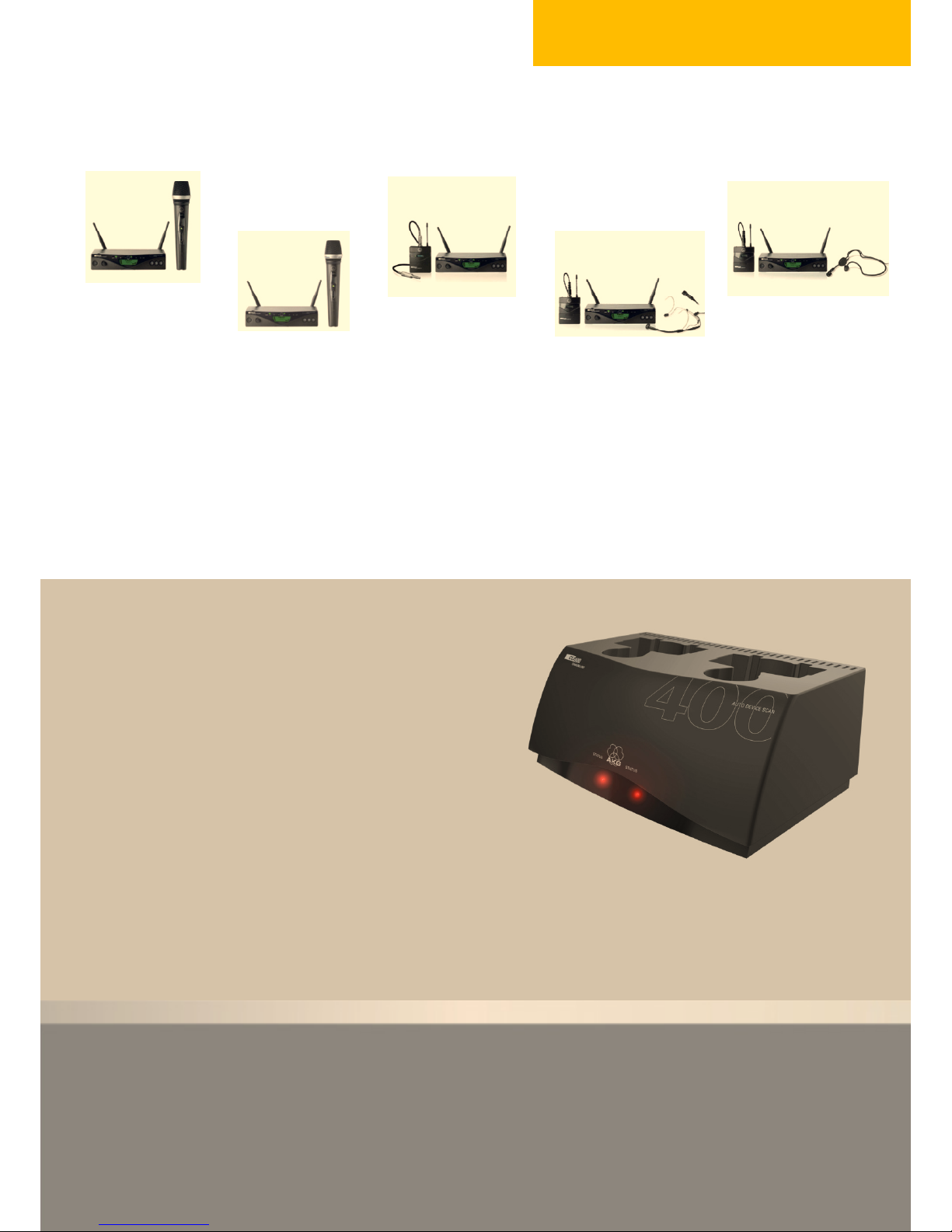

CU 400
CU 400 Charging Unit Specifications
Matching devices HT 470, PT 470, HT 450, PT 450
Rechargeable batteries AA size, >2100 mAh NiMH rechargeable battery
Slot number 2
Dimensions 7.4(W) x 4.5(H) x 3.1(D) inch / 188(W) x 115(H) x 78(D) mm
Net / Shipping Weight 14.8 oz / 420 g
Standard Accessories 1 x 5 V / 1.5 A DC Power supply
AKG’s CU 400 is a fast charger that rapidly charges the rechargeable battery inside
the transmitter without damaging the cell element. CU 400 charger determines the
optimum charge current. Charging is terminated when both batteries are fully
charged.
The CU 400 charger use the pulse technology in which a pulse is fed to the battery.
This DC pulse has a strictly controlled rise time, pulse width, pulse repetition rate
(frequency) and amplitude.
Item number: CU 400 EU/US/UK 2934Z0001
CU 400 no power supply 2934Z0004
Architects’ and Engineers’ Specifications
The charger shall be housed in a rugged plastic case with two multifunctional charging slots for charging WMS 470 Series wireless transmitters. Each charging slot shall
accommodate a handheld or bodypack transmitter and the charger shall be capable of charging any combination of transmitters (e.g., one HT 470 and one PT 470
simultaneously). The batteries shall remain inside the transmitter(s) during charging. The charger shall detect any dry (non-rechargeable) battery inside a transmitter and
automatically stop the charging cycle if a dry battery is inserted. A status LED shall be placed in front of each charging slot. These tricolor (red/amber/green) LEDs shall
indicate the charger's current operating status: amber - battery is being tested; red - battery is being charged; green - battery is fully charged and charging cycle finished;
flashing red - error. The voltage and temperature shall be monitored during the charging cycle and a signal given at the end of a charging cycle to indicate that full
capacity has been reached. All required safety parameters shall be monitored and the charging cycle stopped if one or more safety parameters fall below or exceed the
acceptable range. Operating voltage shall be 5 VDC, 1.5 A max. The charger shall accept NiMH or NiCd rechargeable batteries with a minimum capacity of 1500 mAh.
Typical charging current shall be 1.4 A when one charging slot is used and 0.7 A when both slots are used simultaneously, typical charging time 1.5 hours when one
charging slot is used and 3 hours when both slots are used simultaneously (depending on battery type and capacity). The charger shall measure 188 x 115 x 78 mm
(LxHxD), weigh approx. 420 g, and be enameled black. The charger shall be the CU 400 or equivalent.
Wireless Microphone System
WMS 470 Sets
Item number:
3305X00..
Item number:
3306X00..
Item number:
3309X00..
Item number:
3307H00..
Item number:
3308X00..
WMS 470 D5
• SR 470 Receiver
• HT 470 Handheld with
D5 Capsule
• Stand Adaptor
• 19“ Rack Mount Kit
• LR6 Battery
• EU/US/UK Power Supply
• -Wave Antennas
WMS 470 C5
• SR 470 Receiver
• HT 470 Handheld with
C5 Capsule
• Stand Adaptor
• 19“ Rack Mount Kit
• LR6 Battery
• EU/US/UK Power Supply
• -Wave Antennas
WMS 470 Sports
• SR 470 Receiver
• PT 470 Bodypack
• C 544 L Headworn Mic.
• 19“ Rack Mount Kit
• LR6 Battery
• EU/US/UK Power Supply
• -Wave Antennas
WMS 470 Instrumental
• SR 470 Receiver
• PT 470 Bodypack
• MKGL Instrument Cable
• 19“ Rack Mount Kit
• LR6 Battery
• EU/US/UK Power Supply
• -Wave Antennas
WMS 470 Presenter
• SR 470 Receiver
• PT 470 Bodypack
• CK 99 L Lavalier Mic.
• C 555 L Headworn Mic.
• 19“ Rack Mount Kit
• LR6 Battery
• EU/US/UK Power Supply
• -Wave Antennas

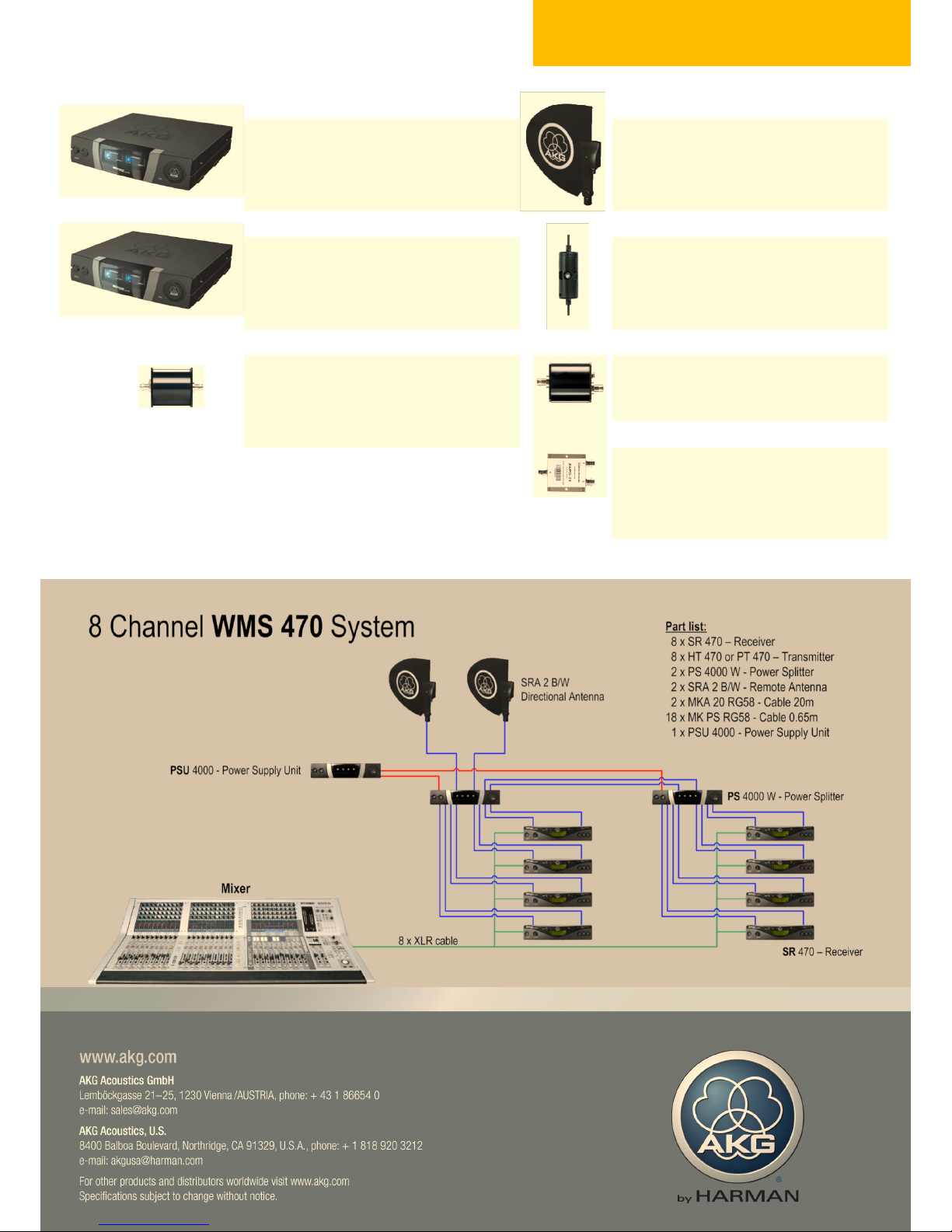

Antenna System
PS 4000 W Power splitter – Antenna distributor to feed
up to 5 receiver with the RF-signal of a pair of antennas.
To feed more than 5 receivers the PS 4000 W provide a
link output to cascade up to 3 PS 4000 W.
SRA 2 B/W Directional antenna – Active antenna with
integrated high performance booster required for use
with long cable runs.
SRA 2 W Directional antenna – Passive antenna for
use with short cable runs (<10 m)
RA 4000 B/W Omni-directional antenna – Active
antenna with integrated high performance booster
required for use with long cable runs.
RA 4000 W Omni-directional antenna – Passive
antenna for use with short cable runs (<10 m)
ASU 4000 Antenna Supply Unit – Remote power supply
for small systems where no PS 4000 W is in use to
provide the necessary power for the active antennas.
ZAPD-21 Passive splitter – 2-into-1 antenna combiner
for indoor and outdoor use. Can be used either to split
signals or combine them as needed.
AB 4000 Antenna Booster – High performance antenna
booster for inserting into long antenna cables. One AB
4000 can compensate for approx. 17 dB of cable
attenuation. Up to three boosters can be used in series
for extremely long cable runs.
Wireless Microphone System
PSU 4000 Power supply unit – Three high current 12V
DC outputs feed the power to 3 PS 4000 W antenna
distributors. Via PS 4000 W 12 receiver and up to 8
active antenna components (SRA 2 B/W, RA 4000 B/W,
AB 4000) get the power through the antenna cable.
