Electric Shower
Installation and Instruction Manual
Patents Pending, Registered Design

2
© 2015 AKW 14-009-033-07
Product Features
Introduction

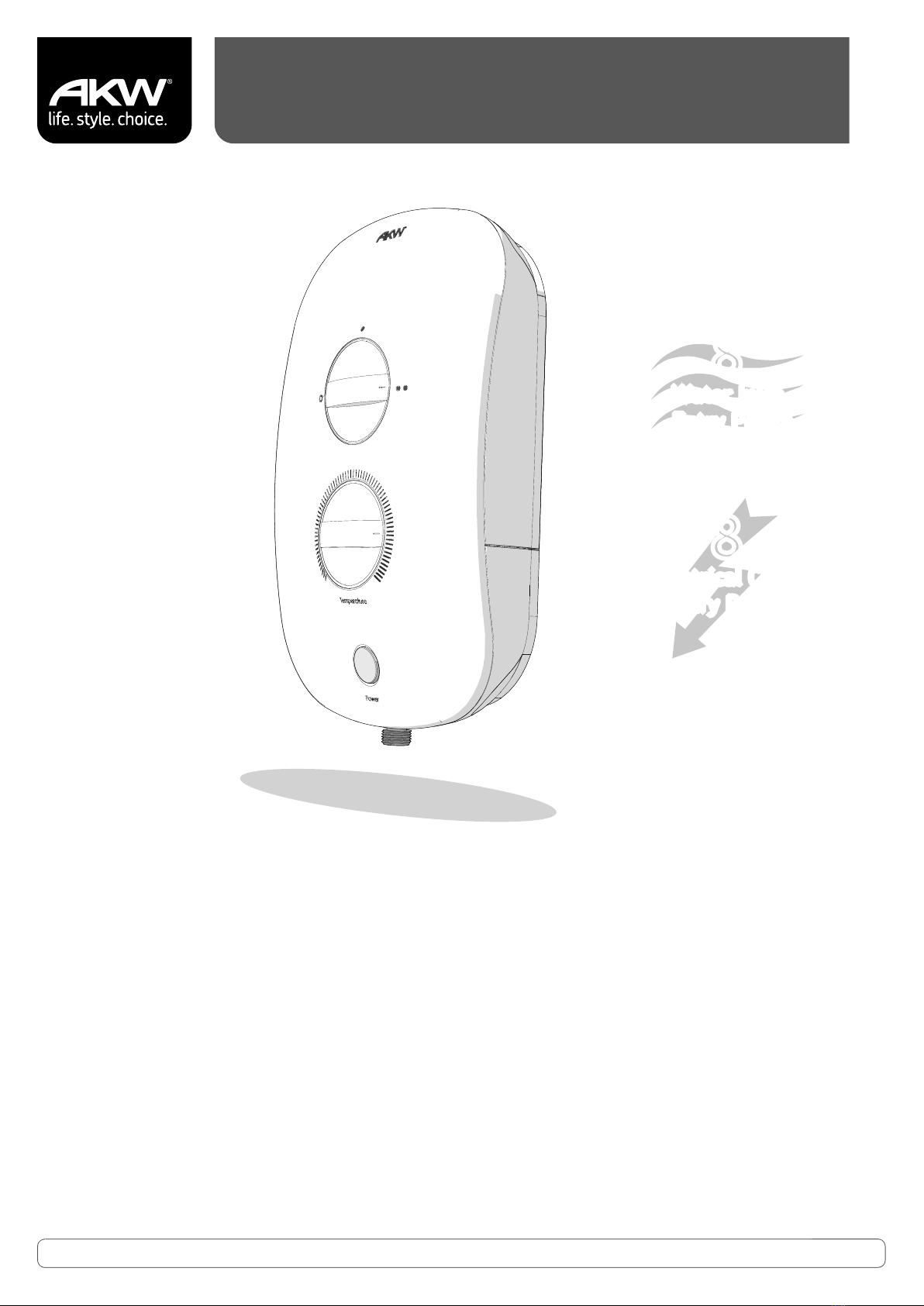

Product Features
The iSure Electric Shower has been specifically designed to allow for easy installation.
Advanced fitting innovations mean it’s quick and easy to install over most manufacturers’
footprints and extra safe.
Flexible Installation
8 Water Inlet Points
8 Cable Inlet Points
Dual power blocks for left or right wiring
Retro-fit footprint
3 year warranty
8.5kW or 9.5kW options available
Smart App
8
Electrical Cable
Entry Points
3
Spray Patterns
8
Water Inlet
Entry Points
Warranty
3yr
150kg
Rail Rating
3
Spray Patterns
2m
Smooth Hose
8
Water Inlet
Entry Points
8
Electrical Cable
Entry Points
Optional
Easy Grip
Adjuster
2m
Smooth Hose
Optional
Easy Grip
Adjuster

3
© 2015 AKW 14-009-033-07
Contents
Introduction
These instructions are provided to advise the minimum standards of installation and recommends the best practice for the installation.
Due to the very wide variability of possible installation conditions AKW cannot provide all circumstances for the installation. AKW cannot
accept any liability in connection with this information or its use. This information is provided on the condition that the person receiving
it shall make their own tests to determine the suitability for their particular purpose. None of the foregoing affects your statutory rights.
Failure to install this AKW product in accordance with supplied instructions or the making
of unauthorised modifications will invalidate any warranty and may affect product safety.
Introduction 2-3
Product Features 2
Contents 3
User 4-8
User Safety Information 4
User Operating Instructions 5
Cleaning Recommendations 6
User Troubleshooting 7
User Warranty 8
Installer 9-17
Main Components 9
Specifications 10
Important Safety Information 11
Installation Requirements 12
Positioning of the Shower 13
Disassembly 14
Fitting to the wall 15
Reassembly- Bottom Cover 16
Reassembly- Front Cover 17
Plumbing 18-21
Water Requirements 18
Plumbing Connections 19
Plumbing Entry Points 20
Check List 21
Electricals 22-25
Electrical Requirements 22-23
Electrical Entry Points 24
Check List 25
Commissioning 26-28
Cold Water Flushing & Priming 26
Functional Checks & Testing 27
Record Commissioning Tests 28
General
Contact Us 32

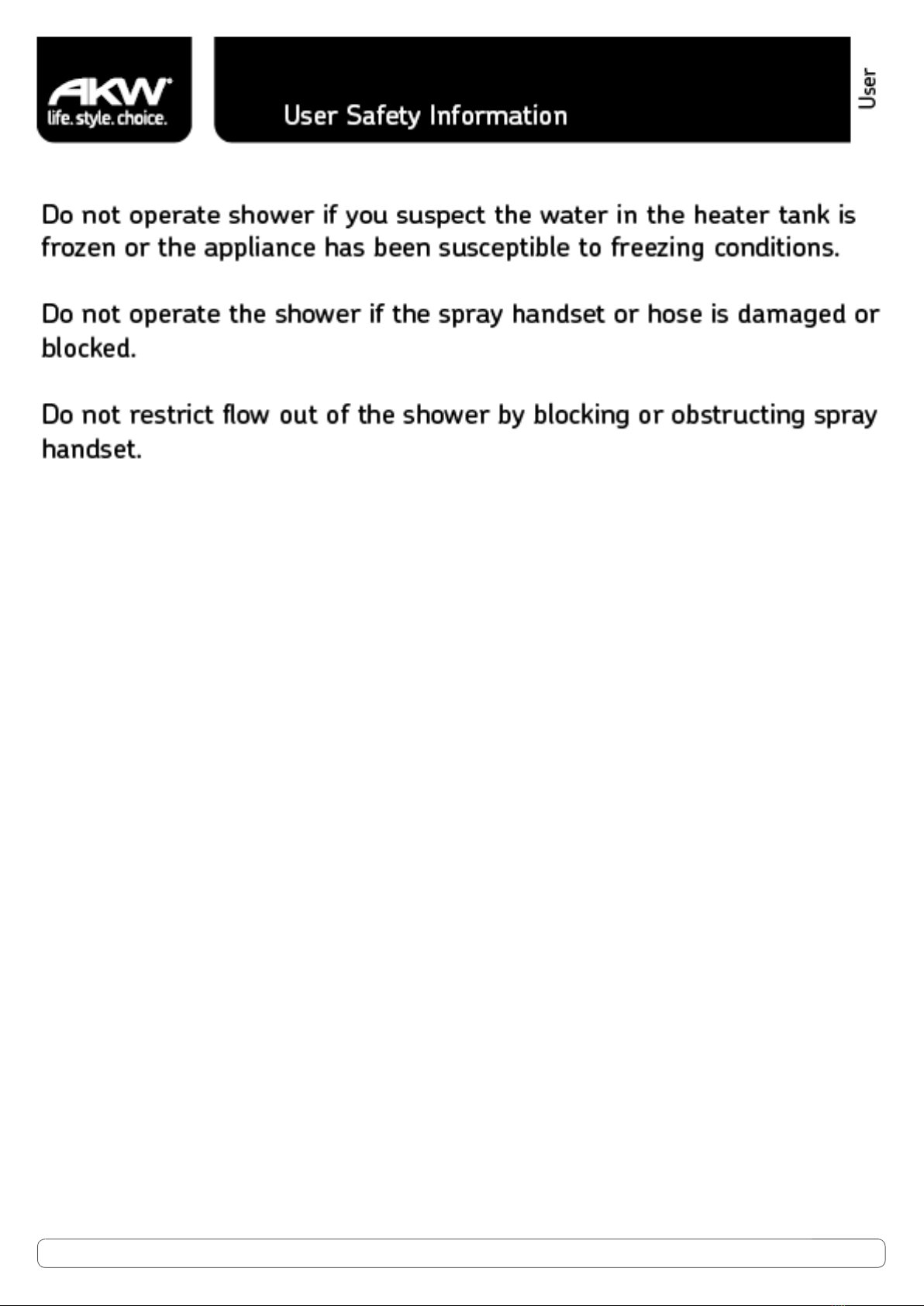

4
© 2015 AKW 14-009-033-07

5
© 2015 AKW 14-009-033-07
User
User Operating InstructionsUser Operating Instructions

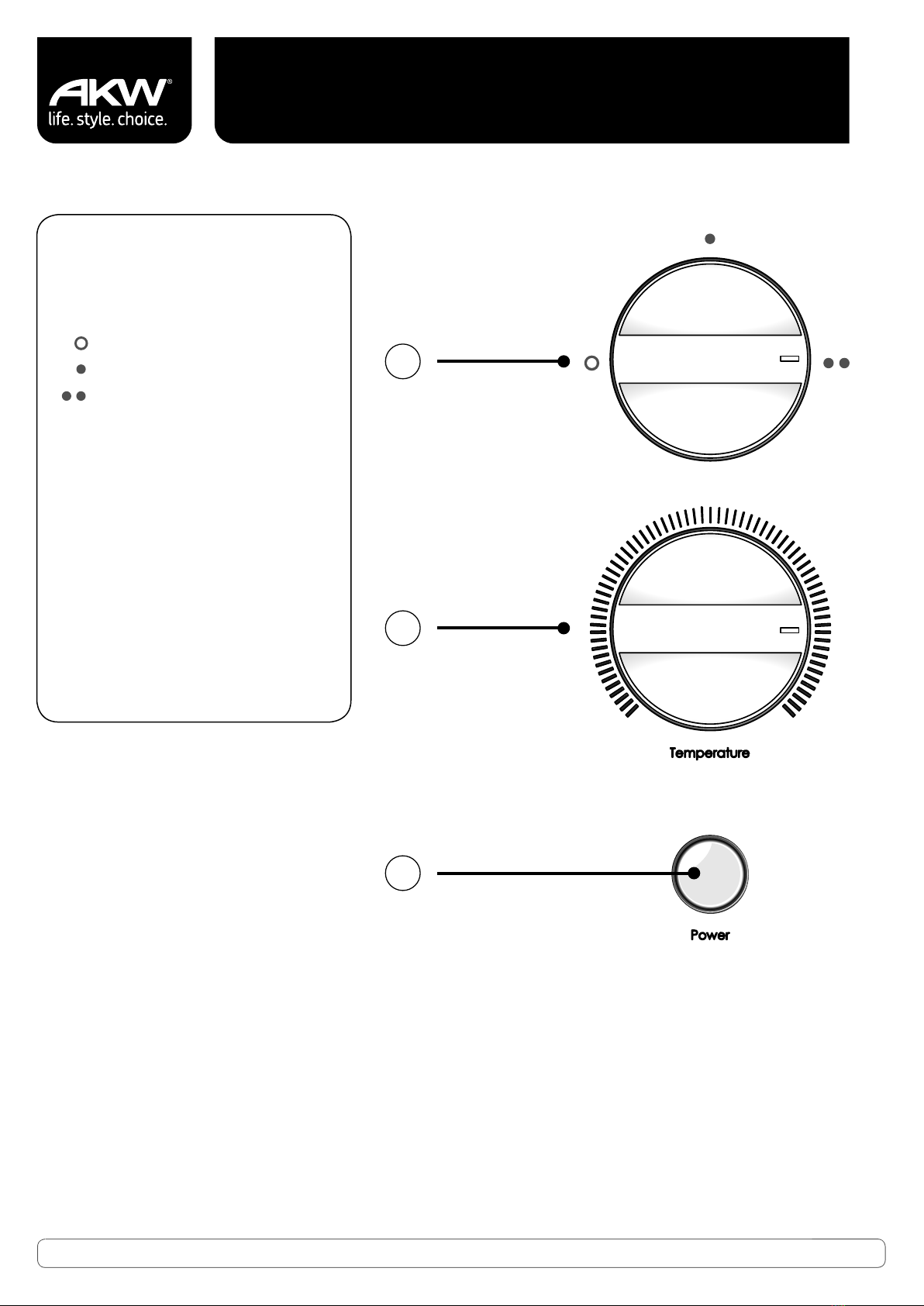

1. Power Level Control
Adjustable power setting:
Low
Medium
High
2.Temperature Control
Adjustable temperature control
3. Power Button
Push button to power on/off
the shower
1
2
3
Starting the Shower
Switch on the mains power at the isolating switch.
When the power is first turned on, the shower is in standby mode.
To switch on, press and release the power button, the Temperature and Power Level will be indicated
on the two controls.
To switch off, press and release the power button to the stop water flowing.

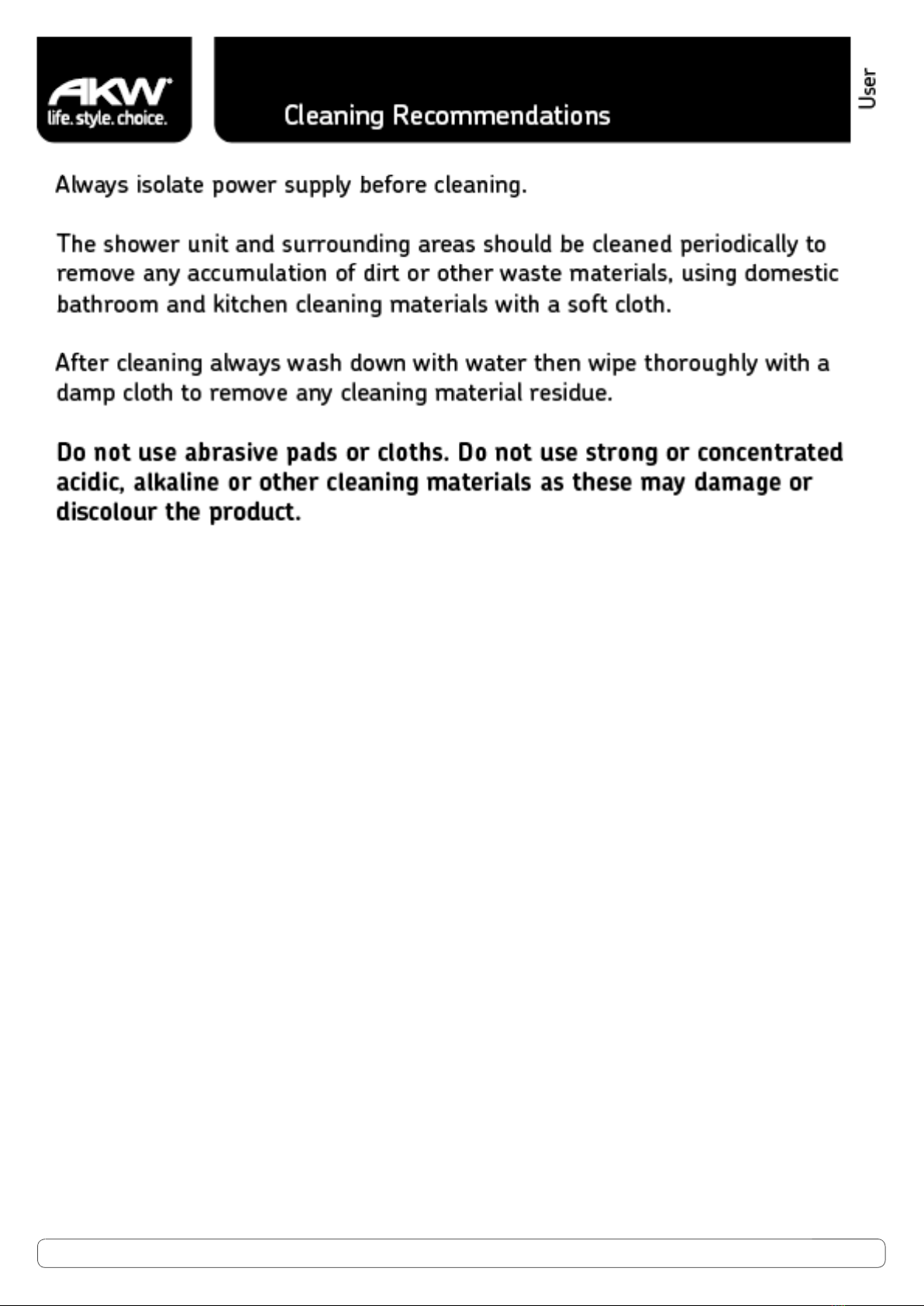

6
© 2015 AKW 14-009-033-07

7
© 2015 AKW 14-009-033-07
Fault Cause Remedy
No Water Flow
Shower runs hot
and cold during use
Shower
temperature cycles
between hot and
cold
Water from
pressure relief
outlet-PRD
activated
Water isolating valve in off position
Filter blocked
Power supply not on
Obstruction in hose or handset Call AKW Technical Enquiries
Clean the handset
Increase the flow by adjusting
the temperature control knob
to cooler setting.
Reduce the power setting
Water temperature
too hot
Shower temperature is set too high
causing the thermal cut out to turn
off the heating elements to reduce
the water temperature
Turn shower temperature
control anticlockwise
to reduce the water
temperature
Check running pressure
(minimum of 0.7bar)
Wait until pressure increases
Turn on water supply
Turn off water supply, remove
filter and clean
Turn on power supply
Insufficient water flowing
through the shower
Water pressure is below minimum
requirement. This may be caused
by other appliances on the same
pipework drawing water

8
© 2015 AKW 14-009-033-07

9
© 2015 AKW 14-009-033-07
Removable
Bottom Case
Side Pipe & Cable
Cut-out Entry
Side Pipe & Cable
Cut-out Entry
Shower Hose
Outlet
Water Heater Can
Live & Neutral Terminal
Block
Earth Terminal Block
Fixing Hole
Fixing Hole
Fixing Hole
Rear of
Front Cover
Top Pipe Inlet and
Cable Entry Cover
Bottom Pipe Inlet and
Cable Entry Cover

10
© 2015 AKW 14-009-033-07
Supply Source Mains pressure cold water only
Minimum Dynamic Pressure 50kPa (0.7 Bar)
Maximum Static Pressure 1000 kPa (10 Bar)
Optimal Minimum Dynamic Pressure*100 kPa (1 Bar) (Recommended to ensure high performance)
Maximum Inlet Temperature 28°C
Minimum Inlet Temperature 3°C
Inlet Connection 15mm pipe
Outlet Connection 1/2” BSP Male Thread Fitting
Nominal Rating at 240 V 9.5kW & 8.5kW
Supply Fuse / Circuit Breaker (9.5kW 40/45A) & (8.5kW 35/40A)
Residual Current Device (RCD) 30 mA (must be fitted)
Supply Cable Refer to current wiring regulations
and BS 7671 to determine minimum
cable size. No larger than 10mm2
Isolation Switch (e.g. Pull Cord) 45 Amp Double pole with 3mm
contact separation.

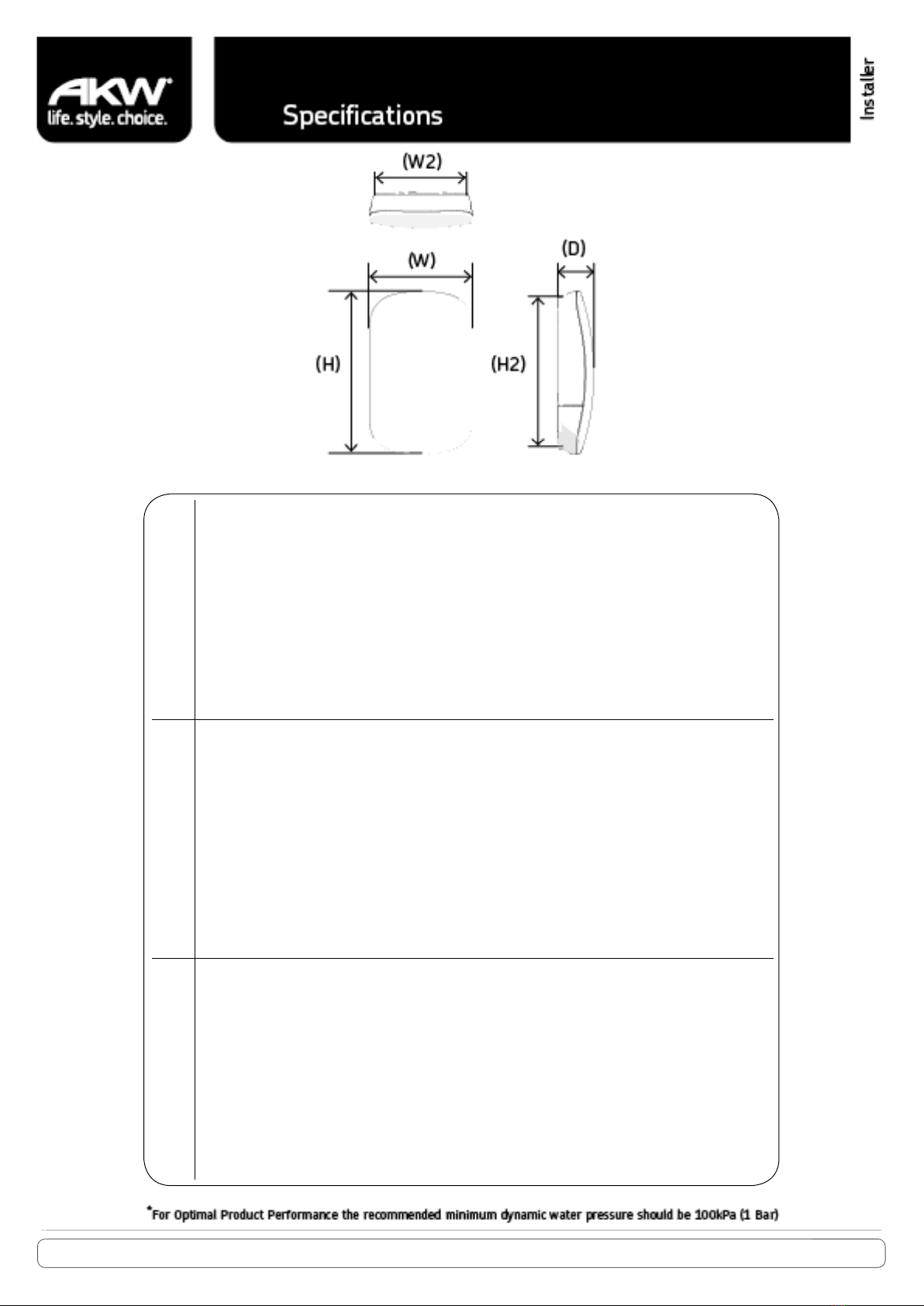

Height (H) 380 mm
Width (W) 230 mm
Depth (D) 85 mm
Footprint Height (H2) 345 mm
Footprint Width (W2) 210 mm
Water Ingress Rating IPX4
Water and Cable Entry Points Top, bottom, side or back.
ELECTRICITY SUPPLY PLUMBING SUPPLY
PHYSICAL

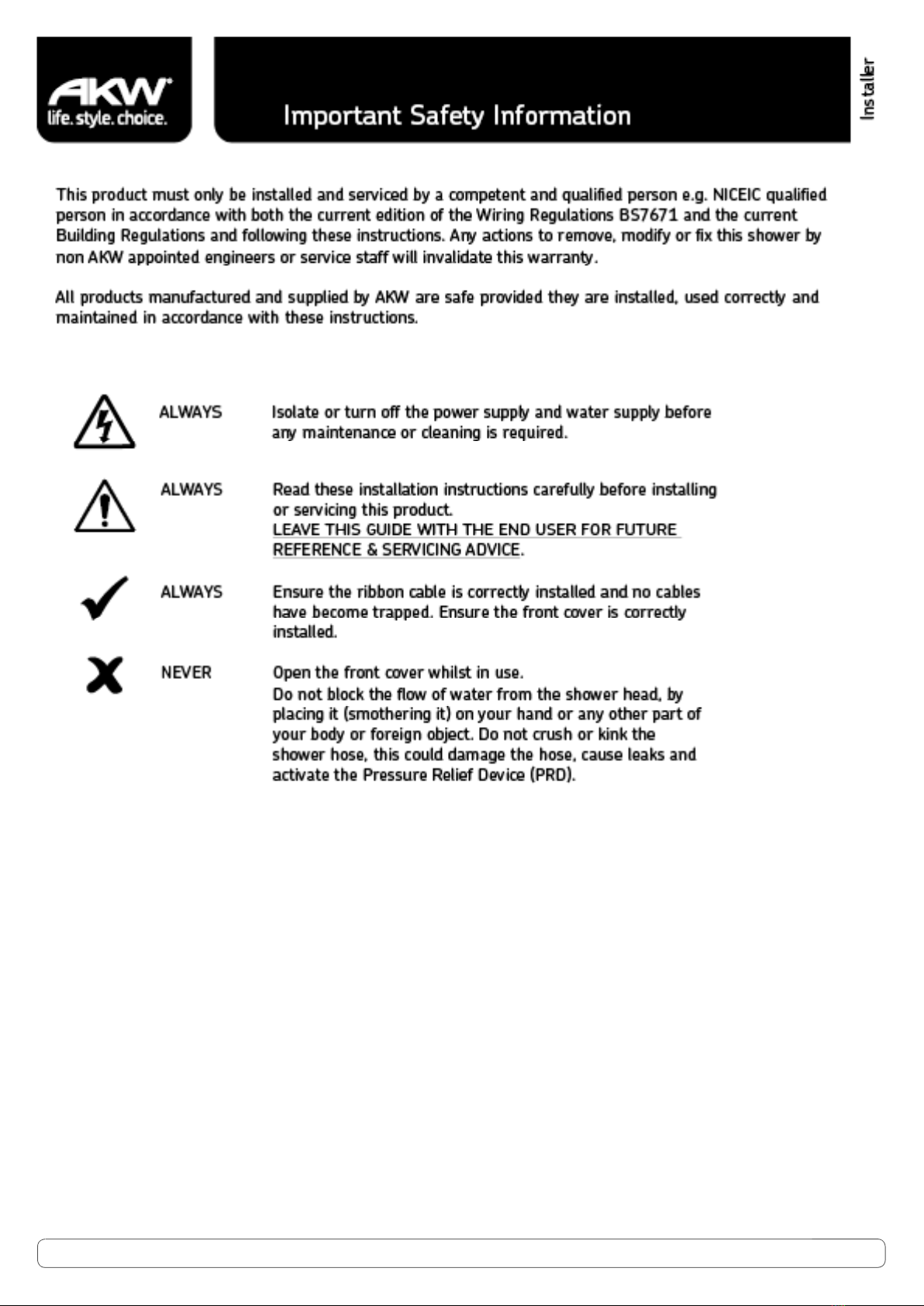

11
© 2015 AKW 14-009-033-07

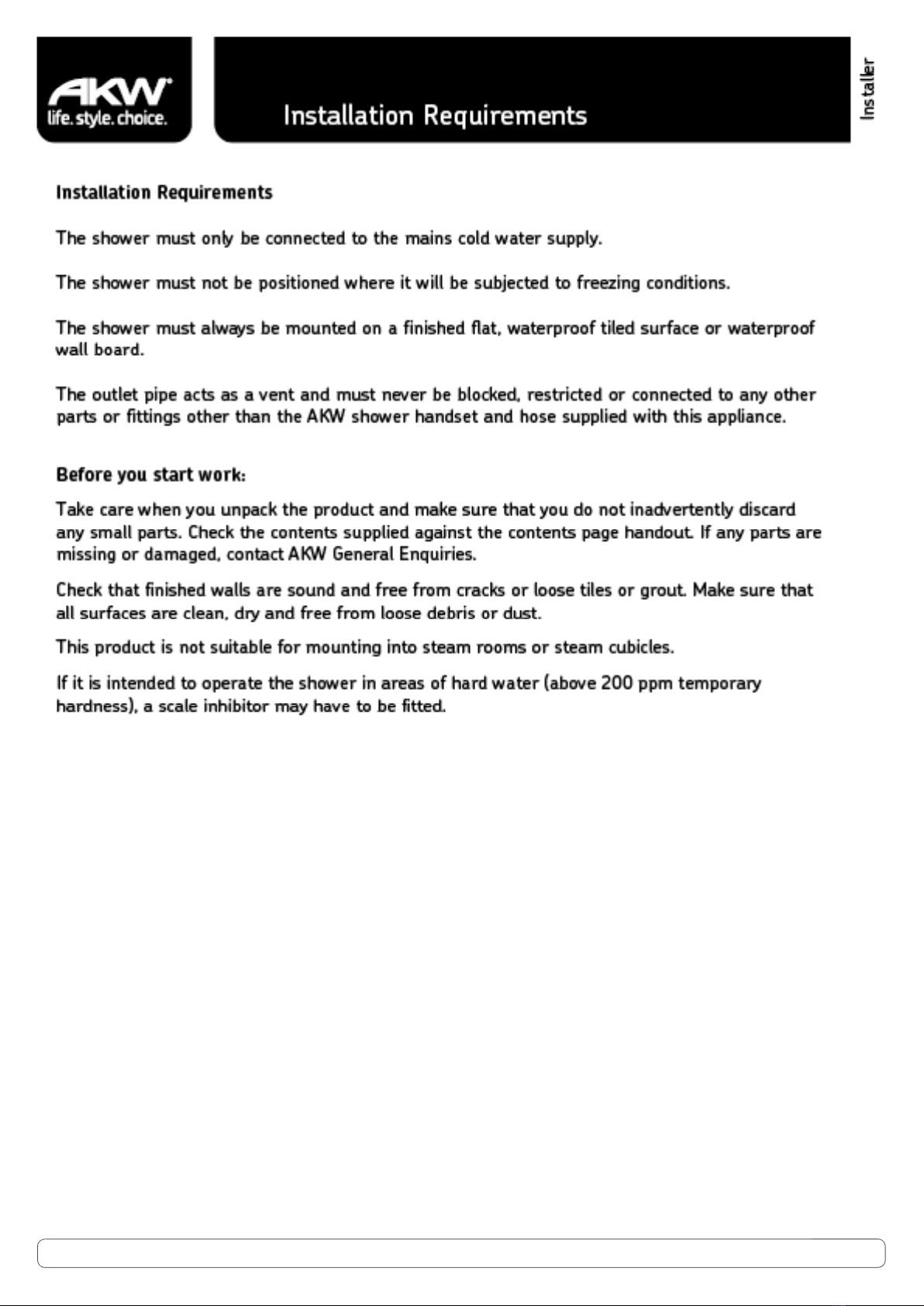

12
© 2015 AKW 14-009-033-07

13
© 2015 AKW 14-009-033-07
Shower unit can be mounted either side of riser rail.
Ensure minimum side
and top clearance of
120mm.
For ease of servicing, the unit must always be mounted on the flat surface of tiled walls.
Never tile up to the shower unit.
Do not seal the shower to the wall with silicone sealant.
The flat surface must cover the full width and length of the back plate, otherwise difficulty may arise
when fitting the cover and subsequent operation of the unit may be impaired.
Refer to the illustration below for correct positioning of the shower controls and shower handset.
Position the shower unit vertically.
Check there are no pipes or electrical cables inside the wall before drilling.
The height of the controls is dependent upon the type of installation.
DO NOT obstruct the back and sides of the shower as this will prevent the Pressure Relief Device
(PRD) from operating.
Ensure the shower unit is positioned over a bath, shower tray or wet floor.
The showerhead must be directed away from the shower unit, during normal use the showerhead
must not spray directly on to the shower unit.

14
© 2015 AKW 14-009-033-07
Disassembly
Installer
Disassembly

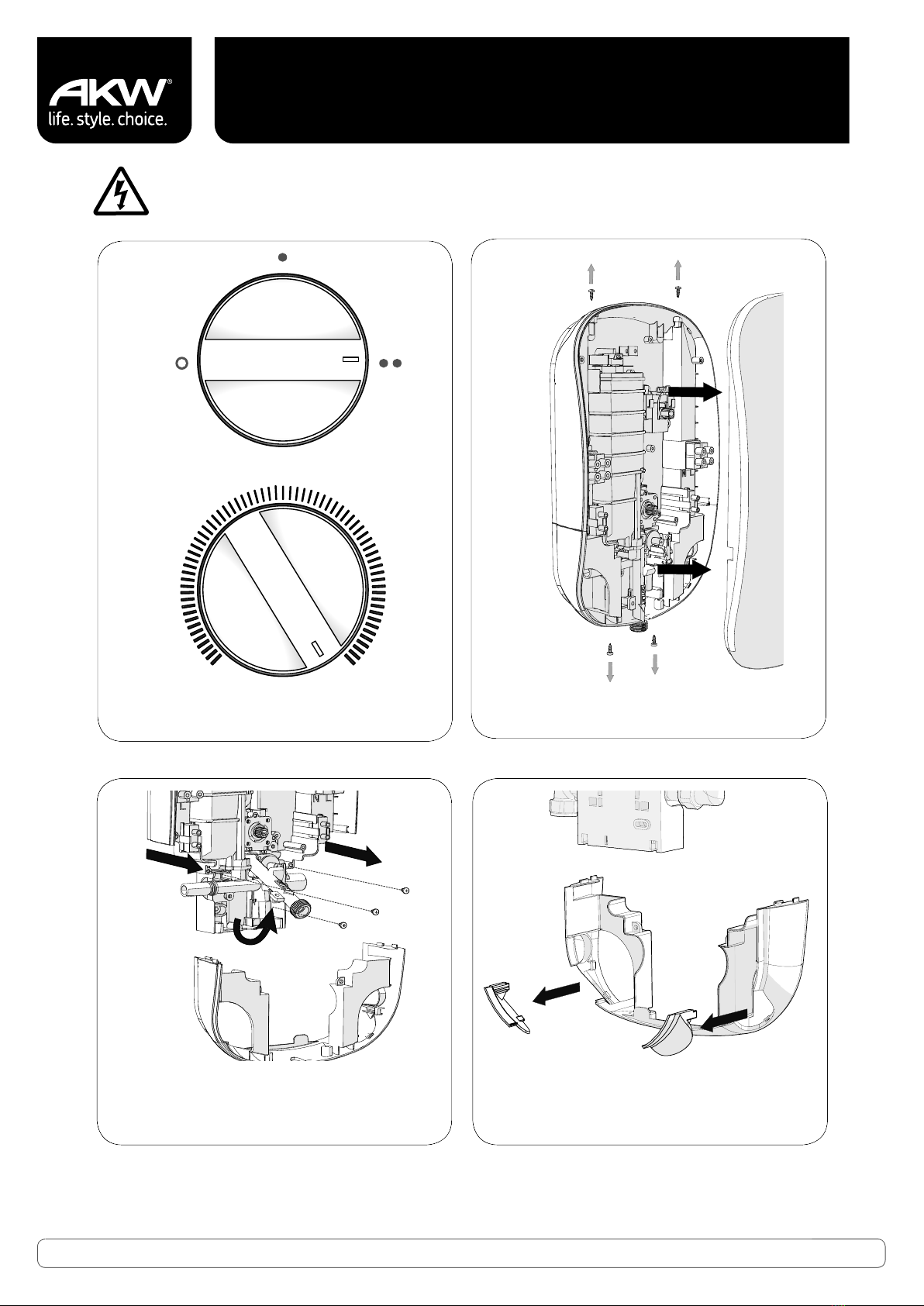

Ensure that the electrical supply is switched off at the mains.
Ensure that the water supply is turned off.
Remove the 4 screws and carefully lift off
the front cover.
Before removing the front cover, ensure the dials
are turned clockwise and hit their end stops as
shown in the image above.
Unscrew the three fixing screws, pull the outlet
pipe forwards, slide out and remove the bottom
cover plate
Note the unit can be temporarily hung using the top screws fixings whilst the cable and pipe work entries
can be connected.
Slide out the relevant pipe & entry covers

15
© 2015 AKW 14-009-033-07
Fitting to Wall
Installer
Fitting to Wall
It is essential to remove any debris and/or brick dust that could otherwise damage the unit.
Do not make any alternative or additional fixing points, as this will invalidate the warranty.
Please check for hidden cables and water pipes.
CAUTION
READ INSTRUCTIONS
BEFORE INSTALLING
THIS PRODUCT
UK
UK
UK
UK
Use the fitting template provided Ensure the template is level and temporally
hold in position with tape. Mark the 3 fixing
points on the wall
Remove the fitting template from the wall
and drill the marked fixing points. Before
drilling, ensure there are no cables or water
supplies running within the wall
Insert wall plugs and screw the top two
screws to the wall. Note: the bottom screw
should only be fitted during final installation

16
© 2015 AKW 14-009-033-07

17
© 2015 AKW 14-009-033-07
Reassembly - Front Cover
Installer
Reassembly - Front Cover
Ensure all connections are correctly inserted before the cover is refitted.
Refit the Front Cover and ensure the cogs on the inner case align.
Only use the supplied screws to secure the front cover. Failure to do so, can cause internal damage to the appliance.
Do not seal the shower to the wall with silicone sealant.
Before re-assembling the front cover, ensure the
dials are turned clockwise and hit their end stops
as shown in the image above.
Attach the front cover to the shower and
ensure all 4 screws are pushed home.

18
© 2015 AKW 14-009-033-07
The shower hose retainer (supplied in the accessory pack) should be used. The installation should comply with
Water Regulations and prevent water supply contamination.
To ensure activation of the heating elements, the shower must be connected to a mains cold water supply
with a minimum running pressure of 50kPa (0.7 bar) with a maximum static pressure of 1000kPa (10 bar).
For optimal product performance the recommended minimum dynamic water pressure should be 100kPa
(1 Bar). Dynamic pressure should not fall below 50kPa (0.7 bar) for example when other draw offs are used,
such as a flushing the toilet as this can cause the shower temperature to fluctuate dramatically.
Note: An isolating stop valve must be provided on the cold water feed before connecting to the shower.
We recommend that isolation valves (not supplied) must be fitted as close as is practicable to the water
supply inlets of the shower heater whilst being accessible for maintenance and servicing purposes.
Do not install this appliance in a position where it can freeze.
Never fit the appliance to the hot water supply.
Note: If the stated flow rates are not available, it may not be possible to achieve optimum performance from
the unit throughout the year.
Note: If the Pressure Relief Device fails, then call the installer in first instance as there may be a dynamic
pressure problem.

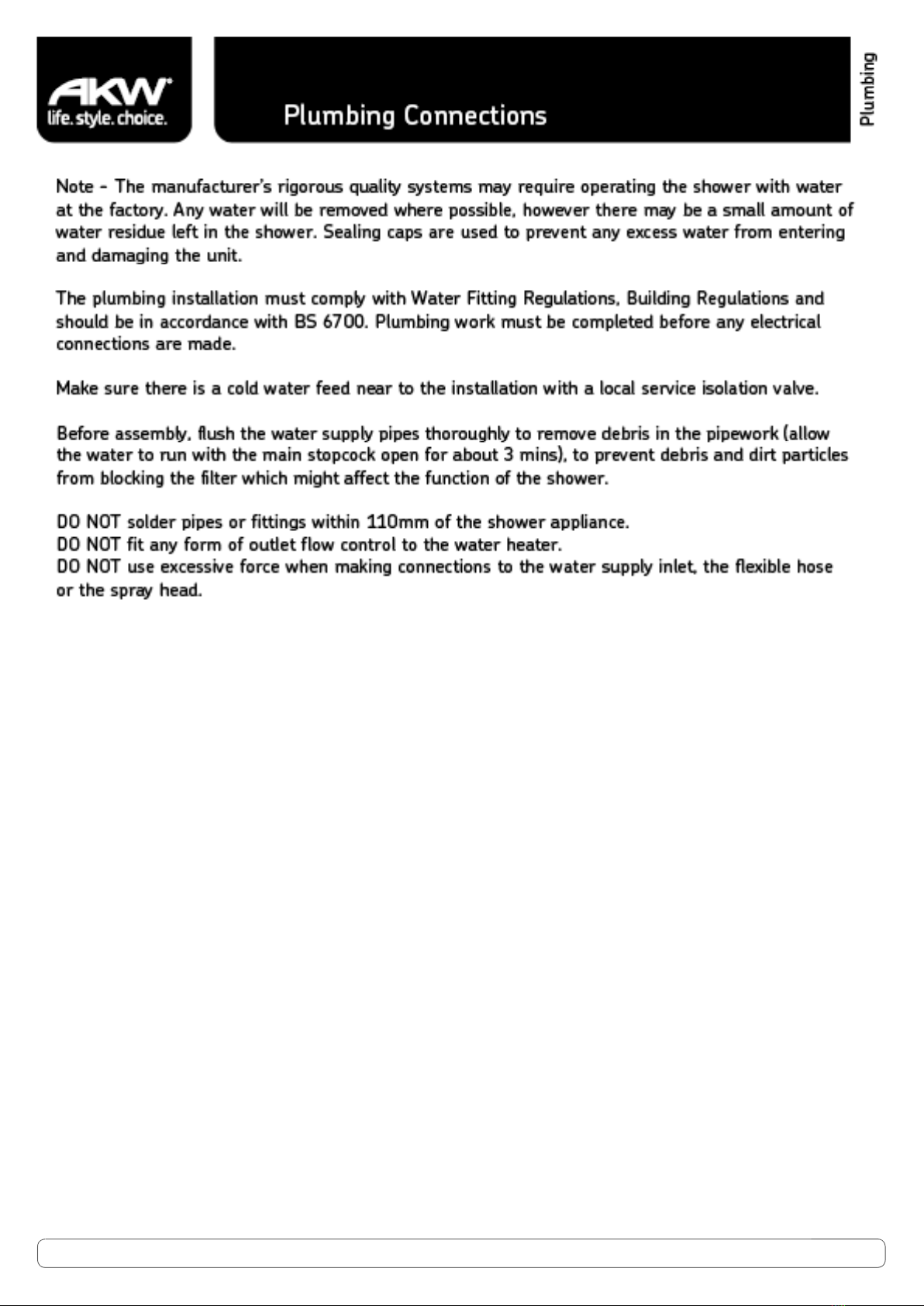

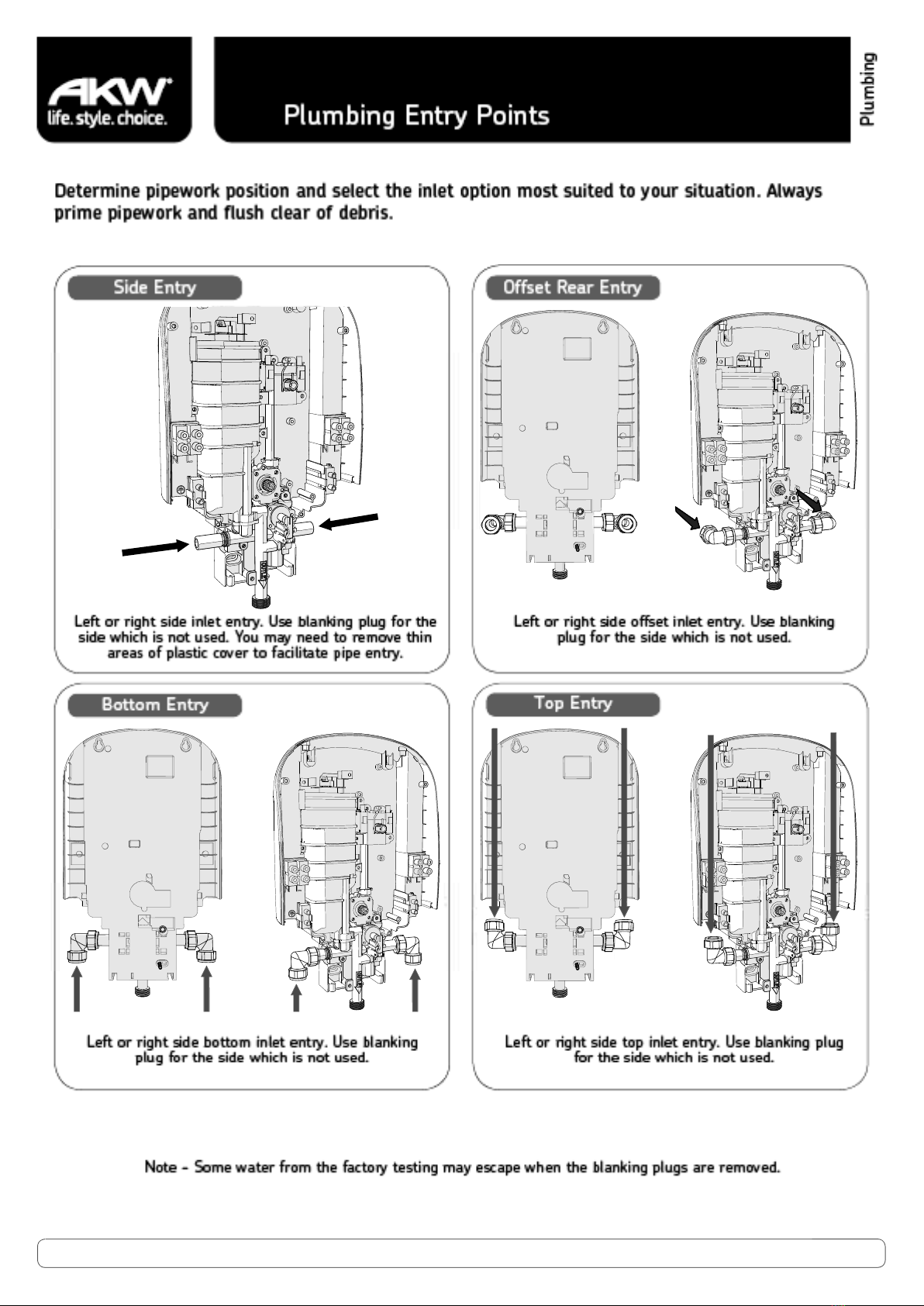

19
© 2015 AKW 14-009-033-07
