Alcatel One Touch X715 User manual

L1 Service Manual TCTMobile Limited
Rev. ONE TOUCH X715 Level 1 Service Manual Page
1.0 1/18
All rights reserved, transfer, copy, use or communication of this file is prohibited without authorization.
SERVICE MANUAL
One Touch X715
Note: this manual is non-contractual and T&A can modify without prior notice the characteristics of
described equipments.

L1 Service Manual TCTMobile Limited
Rev. ONE TOUCH X715 Level 1 Service Manual Page
1.0 2/18
All rights reserved, transfer, copy, use or communication of this file is prohibited without authorization.
1.0 2013-02-26 First Launch Tingting He Abby zhou Jeremy xu
Rev. Date Modification description Prepared By Checked By Approved By

L1 Service Manual TCTMobile Limited
Rev. ONE TOUCH X715 Level 1 Service Manual Page
1.0 3/18
All rights reserved, transfer, copy, use or communication of this file is prohibited without authorization.
Content
1.PRODUCT INSTRUCTION TO "ONE TOUCH X715"........................................................................ 4
1.1INSTRUCTION.............................................................................................................................................. 4
1.2PRODUCT CHARACTERS............................................................................................................................. 4
2.MAIN FUNCTION OF "ONE TOUCH X715"........................................................................................ 6
3.PORTABLE STICKER........................................................................................................................... 10
4.MAINTENANCE POLICY..................................................................................................................... 13
4.1 INVOICE CHECK.................................................................................................................................. 13
4.2 VISUAL MECHANICAL INSPECTION............................................................................................... 14
4.3 MAIN MAINTENANCE OPERATIONS........................................................................................................... 14
4.4 ONETOUCH X715 MAINTENANCE PROCEDURE................................................................................. 15
5.SOFTWARE DOWNLOADING............................................................................................................ 15
5.1 ADSU USER MANUAL....................................................................................................................... 15

L1 Service Manual TCTMobile Limited
Rev. ONE TOUCH X715 Level 1 Service Manual Page
1.0 4/18
All rights reserved, transfer, copy, use or communication of this file is prohibited without authorization.
1. Product Instruction to "ONE TOUCH X715"
1.1 Instruction
The HSDPA USB MODEM is designed to enable PC users to access to the Internet via
GPRS/EDGE/UMTS/HSDPA networks. It uses a standard USB interface for a fast simple
connection to your PC.
1.2 Product characters
Commercial Name one touch X715
Marketing
Unique Selling Point DC-HSPA+ access
Target region EMEA/ USA/ Latam/ Japan
Key Drivers
Network DC-HSPA+,HSPA+,HSPA,UMTS,EDGE,GPRS
Form-Factor USB Stick
Dimensions XxYxZ (mm) 88.5 x 27 x 11 mm
Weight TBD
color #1 white
color #2 Black
Technology/Bands
DC-HSPA+/HSPA+/HSPA/UMTS
One Touch X715K: 850/1900MHz/AWS(Band 5,2,4)
One Touch X715Q: 900/1900/2100 MHz/AWS(Band 8,2,1,4)
One Touch X715R: 900/1800/2100 MHz(Band 8,3,1)
One Touch X715J: 800/1700/2100 MHz(Band 6,9,1)
One Touch X715E: 2100 MHz(Band 1)
One Touch X715D: 2100/900 MHz(Band 1,8)
One Touch X715Y: 850/1900/2100 MHz(Band 5,2,1)
GPRS/EDGE 850/900/1800/1900MHz
Data speeds
DC-HSPA+ Downlink Category 24 (42.2 Mbps)
DC-HSPA+ Uplink Category 6(5.76 Mbps)
HSPA+ Downlink Category 14 (21.6Mbps)
HSPA+ Uplink Category 6 (5.76Mbps)

L1 Service Manual TCTMobile Limited
Rev. ONE TOUCH X715 Level 1 Service Manual Page
1.0 5/18
All rights reserved, transfer, copy, use or communication of this file is prohibited without authorization.
HSPA Downlink Category 10 (14.4Mbps)
Category 8 (7.2Mbps)
HSPA Uplink Category 6 (5.76Mbps)
UMTS up to 384Kbps DL & UL
EDGE up to 237Kbps Download
up to 118Kbps Upload
GPRS up to 85.6Kbps Download
up to 42.8Kbps Upload
External Interface
Power Powered via the USB interface
Language Supported
Language Supported English,Spainish,German,French
Additional Language Base on Marketing Requirement
OS Supported
Windows XP, Vista 32/64, Windows
7,windows 8 Yes
Mac OS X 10.5-10.8 Yes
Linux(Driver) - Ubuntu/fedora/Debian Yes
Android (Driver) 2.1(based on customer
reuirements) Yes
Memory
Mass Storage NAND flash 256MB+ LPDDR 128MB
Antenna
Antenna Internal
Rx diversity Yes
External Interface Optional
Connectivity
USB support 2.0
Micro SD card slot (up to 16GB) support, max up to 32GB
Visual Indicator (LED)
LED Indicators 2Colors, Red, Green
Connection Manager
Signal Strength Yes
Connection Status Yes

L1 Service Manual TCTMobile Limited
Rev. ONE TOUCH X715 Level 1 Service Manual Page
1.0 6/18
All rights reserved, transfer, copy, use or communication of this file is prohibited without authorization.
Auto installation Yes
NDIS Remote NDIS Support
Phone Book, store in PC & SIM card Yes
USSD,STK can be customized
SMS storage PC and SIM card
Plug & Link(Q1'2013) Yes
Specification
CPC(Continuous Packet Connectivity ) Yes
Fast Dormancy Yes
IPV6 Yes
Candidate Platforms
Platform #1 Qualcomm Platform MDM8215
Standard Package Contents
Packaging specifics Mini paper box
Quick Start Quick start guide
User manual Embedded into dashboard
USB cable Optional
CD-rom No
Packaging specifics Mini paper box
2. Main Function of "ONE TOUCH X715"
The modem includes the following features:
When you use dashboard tool for this data card, you have to uninstall other products’ driver (like
Monaco, because they are not compatible) and then install theArchos’s driver.

L1 Service Manual TCTMobile Limited
Rev. ONE TOUCH X715 Level 1 Service Manual Page
1.0 7/18
All rights reserved, transfer, copy, use or communication of this file is prohibited without authorization.
1. Connection
This application will ensure easy connection to the Internet. Users can also access the connection
status in the tray bar.
2. Communication

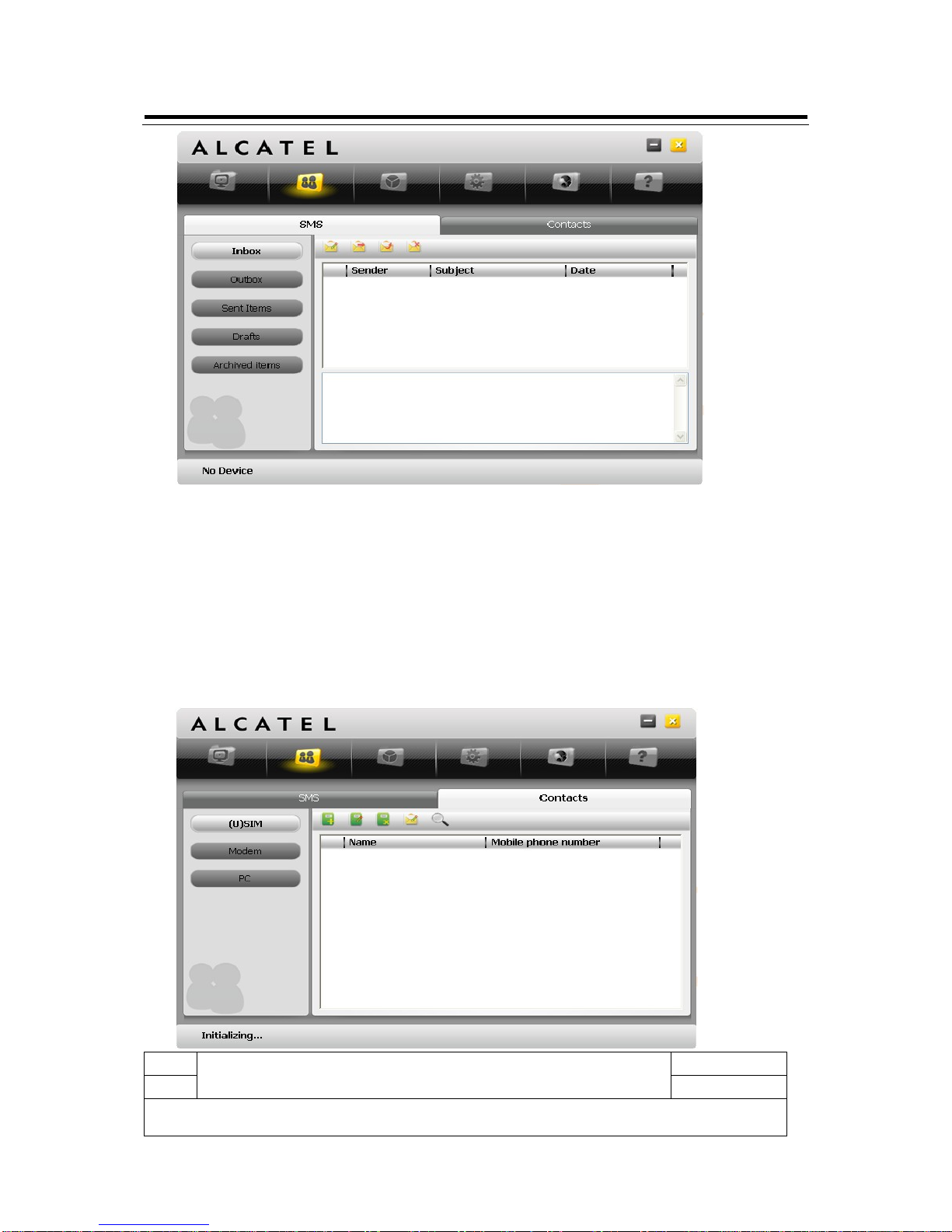

a) SMS
With the SMS application, users can use the following functions:
yNew SMS
yReply
yForward
yDelete
yResend

L1 Service Manual TCTMobile Limited
Rev. ONE TOUCH X715 Level 1 Service Manual Page
1.0 8/18
All rights reserved, transfer, copy, use or communication of this file is prohibited without authorization.
b) Contacts
It supports the following functions:
yNew
yEdit
ySend SMS
yDelete

L1 Service Manual TCTMobile Limited
Rev. ONE TOUCH X715 Level 1 Service Manual Page
1.0 9/18
All rights reserved, transfer, copy, use or communication of this file is prohibited without authorization.
3. Statistic

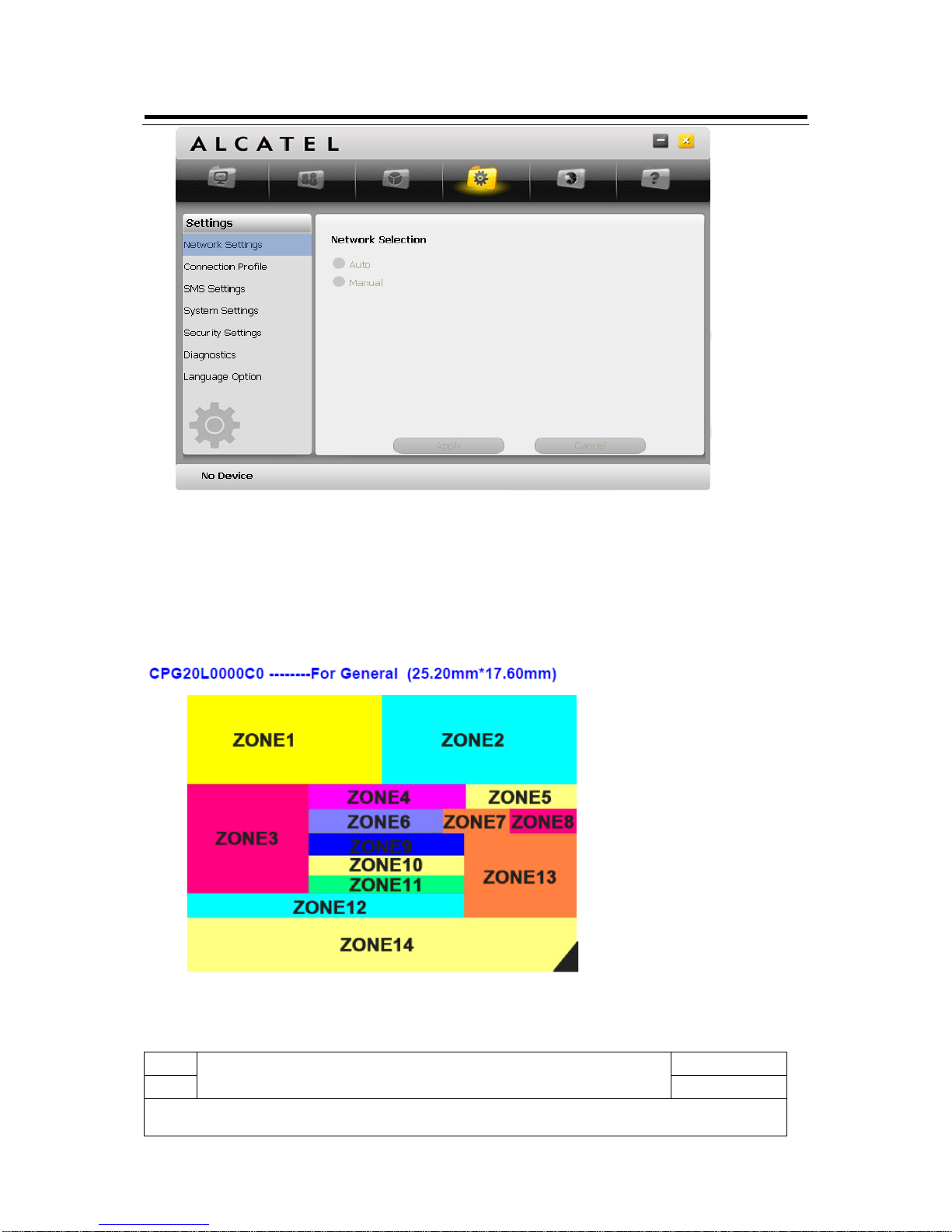

4. Settings
yNetwork setting
yConnection profile
ySMS setting
ySystem setting
ySecurity setting
yDiagnostics
yLanguage option

L1 Service Manual TCTMobile Limited
Rev. ONE TOUCH X715 Level 1 Service Manual Page
1.0 10/18
All rights reserved, transfer, copy, use or communication of this file is prohibited without authorization.
3. PORTABLE STICKER

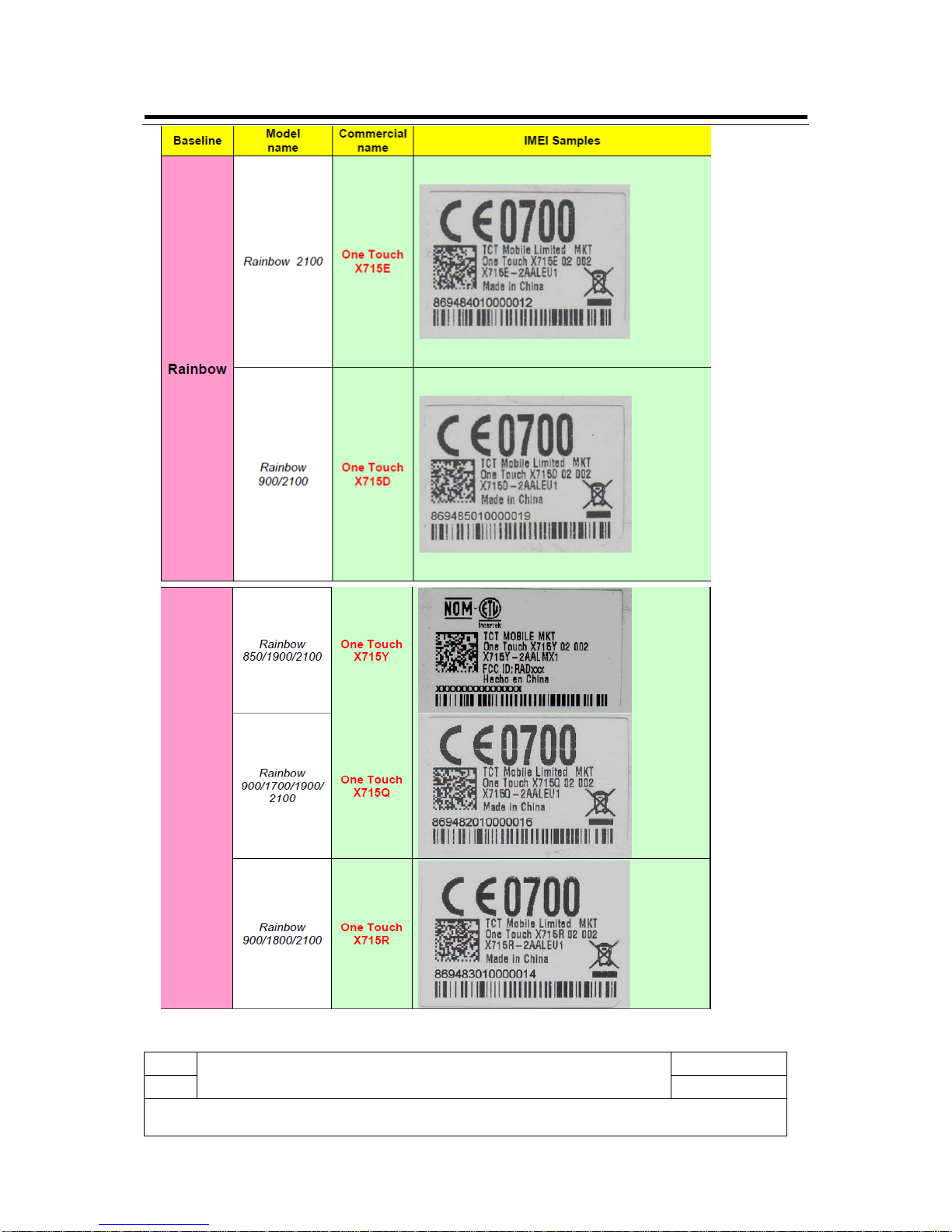

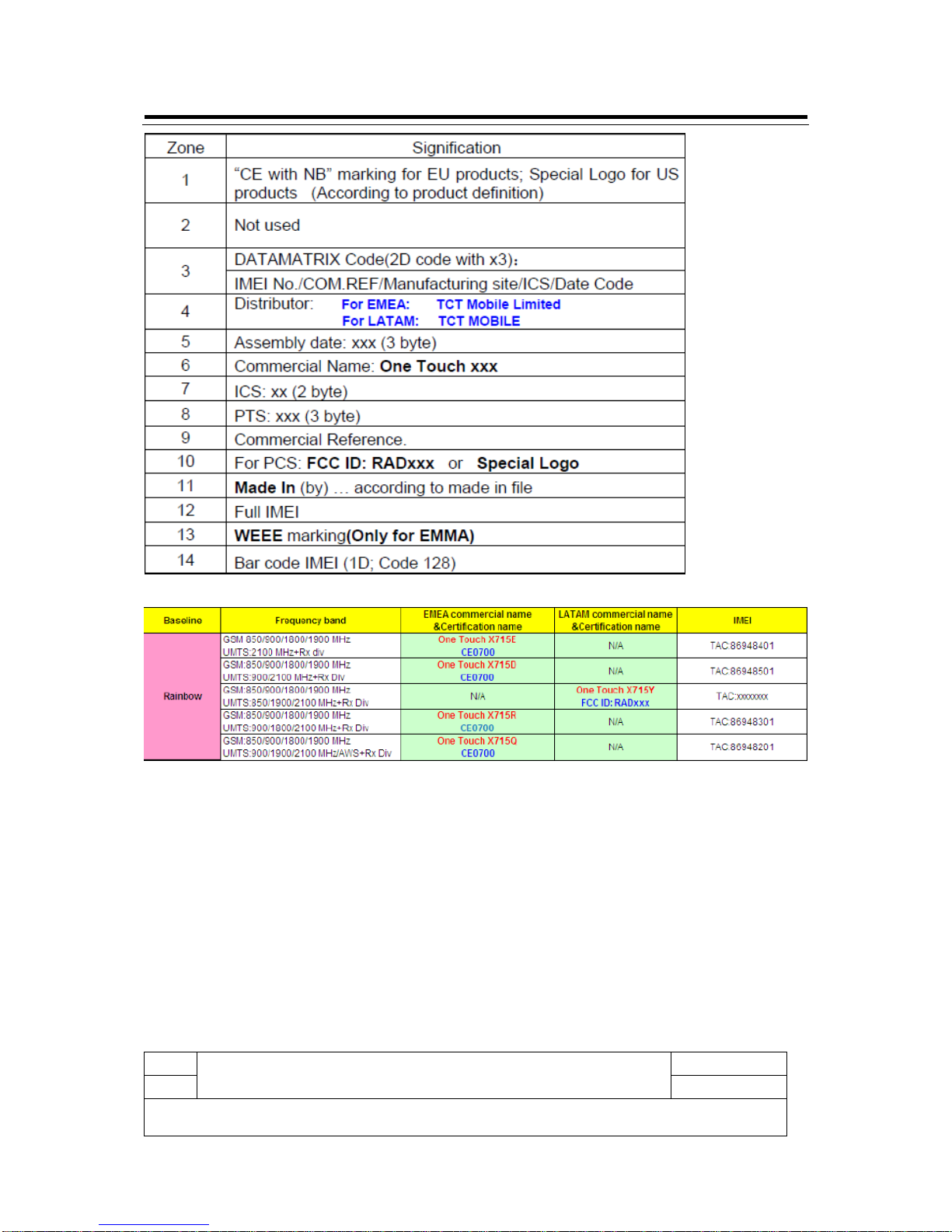

Examples: The big one includes commercial reference, HW code, SW code, Assembly date and
IMEI number.
1. Commercial_Sticker_X715 version:

L1 Service Manual TCTMobile Limited
Rev. ONE TOUCH X715 Level 1 Service Manual Page
1.0 11/18
All rights reserved, transfer, copy, use or communication of this file is prohibited without authorization.
2. Commercial_Sticker_samples

L1 Service Manual TCTMobile Limited
Rev. ONE TOUCH X715 Level 1 Service Manual Page
1.0 12/18
All rights reserved, transfer, copy, use or communication of this file is prohibited without authorization.

L1 Service Manual TCTMobile Limited
Rev. ONE TOUCH X715 Level 1 Service Manual Page
1.0 13/18
All rights reserved, transfer, copy, use or communication of this file is prohibited without authorization.
4. MAINTENANCE POLICY
4.1 INVOICE CHECK
Check warranty status of Data card by POP (Proof of Purchase)
If the end users lost his POP, pls. consider the data code as the purchasing day. Date code
transcoding: (MKT)
Coding Day
Coding Month
Coding Year
IMEI label

L1 Service Manual TCTMobile Limited
Rev. ONE TOUCH X715 Level 1 Service Manual Page
1.0 14/18
All rights reserved, transfer, copy, use or communication of this file is prohibited without authorization.
Note:
Coding
Day Day Coding Month Month Coding Year Year
1 1st E January O 2005
2 2nd F February P 2006
… … G March Q 2007
9 9th … … R 2008
A 10th O November S 2009
B 11th P December T 2010
… …
U 30th
V 31st
4.2 VISUAL MECHANICAL INSPECTION
Mechanical warranty checked items:
Corrosion: corrosion on the USB connectors, SIM connectors, and other metal surfaces
Holes (diam > 1mm): Holes on any surface, including the furnished front casing, furnished
back casing and USB model, etc.
Big bumps (diam > 1mm): Bumps on any surface, including the furnished front casing, back
casing and USB, etc.
Long scratch (length > 3mm): Scratches on any surface, including the furnished front casing,
back casing and USB, etc.
Distortion: Bend, twisted or crushed on the h/s, casing or connectors…
Broken: Any mechanical broken including front casing/back casing/usb etc.
Fallen off: Connectors fallen off …
Gap: External physical damage relating to abnormal use, like front/back cases.
Others
- Damage caused by disassembly like wrong part assembly, lost of components
- Use in abnormal environment like too high temperature with plastic melts
4.3 Main maintenance operations
•Software downloading;

L1 Service Manual TCTMobile Limited
Rev. ONE TOUCH X715 Level 1 Service Manual Page
1.0 15/18
All rights reserved, transfer, copy, use or communication of this file is prohibited without authorization.
•Swap the modem.
4.4 ONE TOUCH X715 Maintenance Procedure
•Pre-examine the modem, to see if the cover or housing or accessory is damaged.
•Check the (U)SIM card/ SD card is placed correctly and then Insert the modem to PC USB
port
•Check the status of SIM card/SD card/Network service
•If there is new version software released, pls. update the SW, and check the data card with
Tester tool after SW upgrade;
•If the fault is not with all those above, pls. give the user a swap modem and send the faulty
one to upper level RC.
5. SOFTWARE DOWNLOADING
5.1 ADSU user manual
ADSU is the ALCATEL Data card SW Update tool which allows SW upgrading with the same
commercial reference.
Notice:
Exit the PC suite before downloading!
DON’T plug-out device during any operation!
(1) Get the SW you want to download from TS web (https://css.tclmobile.cn), and save it to your
computer.
(2) Get the tool from TS web and save it to your computer, into a folder that contains no Chinese
characters.

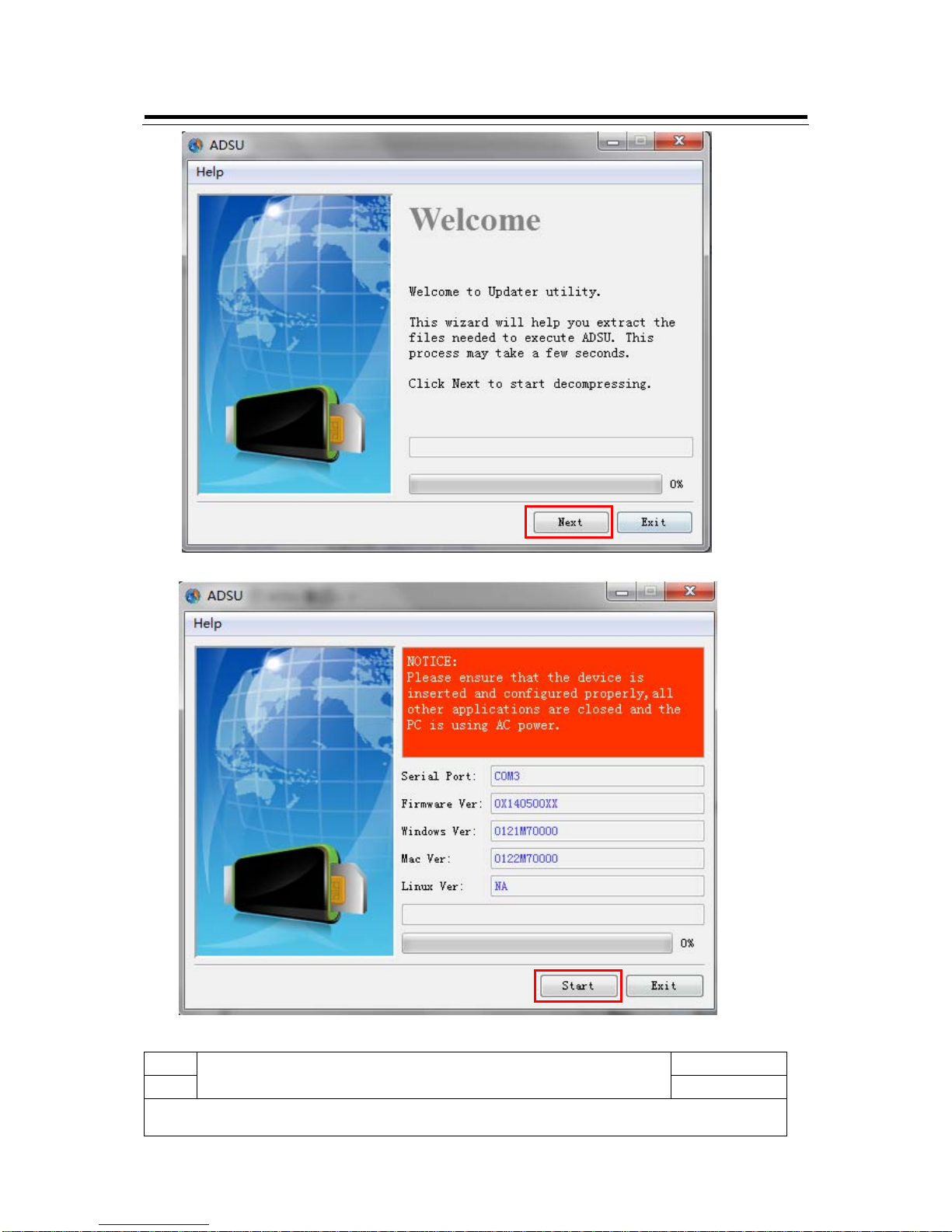

(3) Start ‘ADSU.exe’.
(4) Click the ‘next’, and you will see the COM shown.

L1 Service Manual TCTMobile Limited
Rev. ONE TOUCH X715 Level 1 Service Manual Page
1.0 16/18
All rights reserved, transfer, copy, use or communication of this file is prohibited without authorization.
(5) Click the ‘start’ and you will see the set up is ongoing.

L1 Service Manual TCTMobile Limited
Rev. ONE TOUCH X715 Level 1 Service Manual Page
1.0 17/18
All rights reserved, transfer, copy, use or communication of this file is prohibited without authorization.
(6) When it finished, please press “Exit”.

L1 Service Manual TCTMobile Limited
Rev. ONE TOUCH X715 Level 1 Service Manual Page
1.0 18/18
All rights reserved, transfer, copy, use or communication of this file is prohibited without authorization.
Note: After software upgrading is finished, please disconnect your device from the computer,
Uninstall the old connection manager if it has been installed.
Reload the battery and then you can power on your device to experience the new software.
If you have any question or problem, please feel free to contact us
([email protected]) .
Thanks for your cooperation.
TCT Mobile Phone
Global Customer Service TS Dept.
Feb 26th, 2013
